Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

20 part groups · 3 illustrations

Illustrations

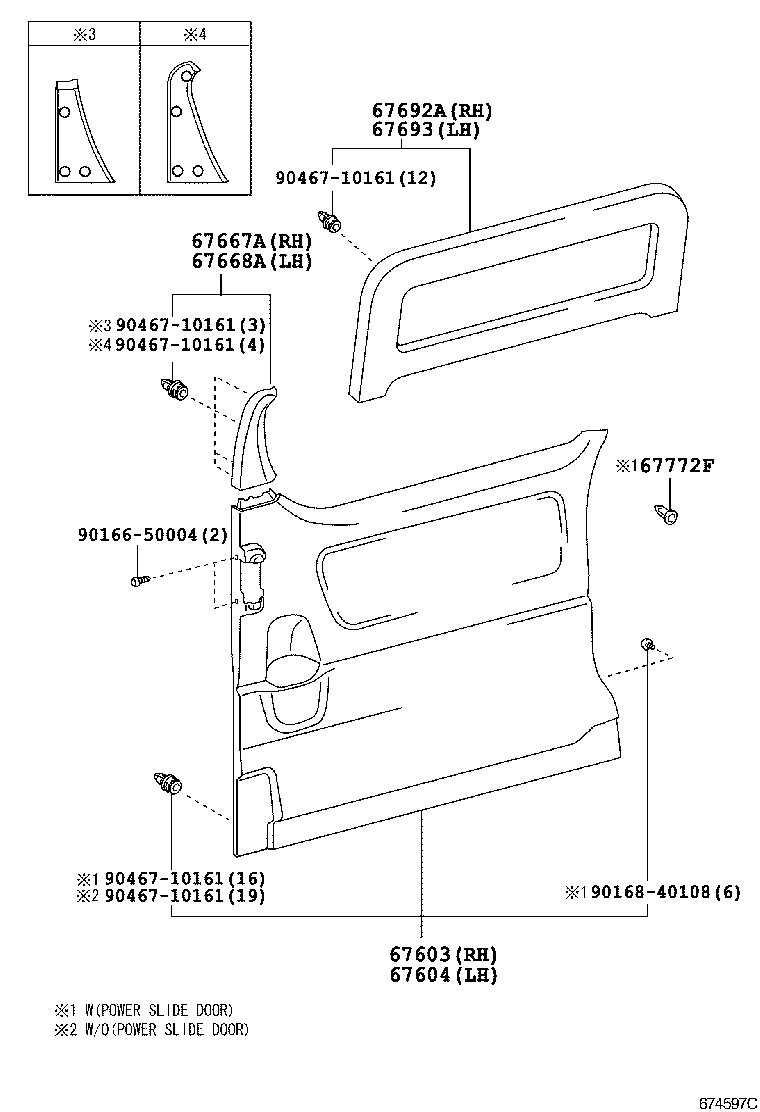

Figure 673796Q 673796Q 2005-01 → — Figure 673949H 673949H 2005-01 → — Figure 674597C 674597C 2005-01 → —

Part groups

PNCDescription
67003H Door Sub-assy, Slide, RH
67004H Door Sub-assy, Slide, LH
67603 Board Sub-assy, Rear Door Trim, RH
67604 Board Sub-assy, Rear Door Trim, LH
67604B Clip(FOR SLIDE DOOR TRIM BOARD)
67626C Bracket, Rear Door Trim, NO.2
67667A Garnish, Slide Door Window, RH
67668A Garnish, Slide Door Window, LH
67692A Cover, Slide Door Trim, Upper NO.1
67693 Cover, Slide Door Trim Board
67747A Moulding, Rear Door Trim, NO.2 RH
67748A Moulding, Rear Door Trim, NO.2 LH
67772F Cap, Rear Door Trim Retainer
67837C Seal, Rear Door Dust Proof
67851A Cover, Slide Door Service Hole, NO.1
67852A Cover, Slide Door Service Hole, NO.2
67871E Weatherstrip, Slide Door, NO.1 RH
67872 Weatherstrip, Rear Door, LH
67887D Weatherstrip, Slide Door, NO.2 RH
67888A Weatherstrip, Rear Door, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
