Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

299 part groups · 97 illustrations

Illustrations

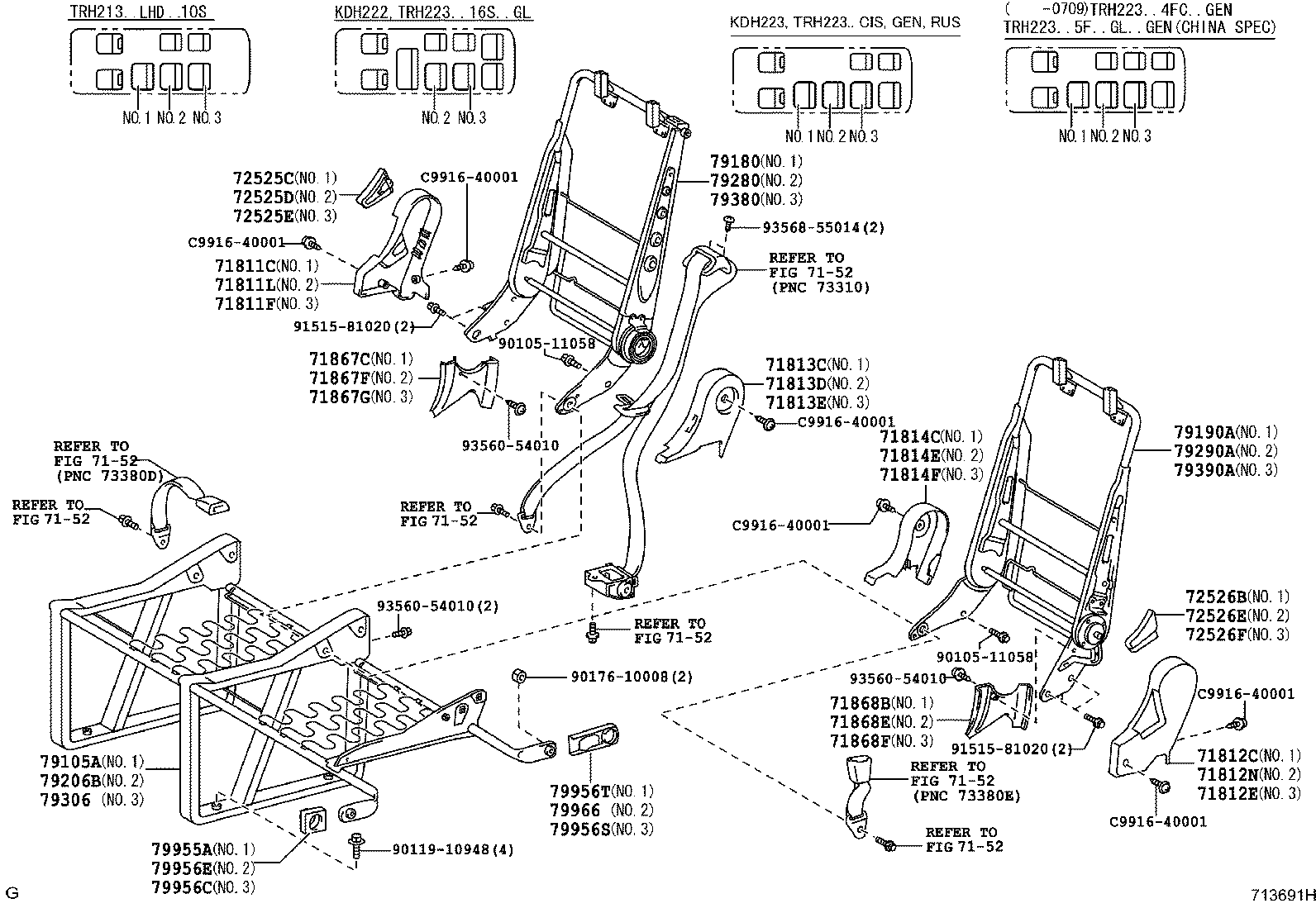

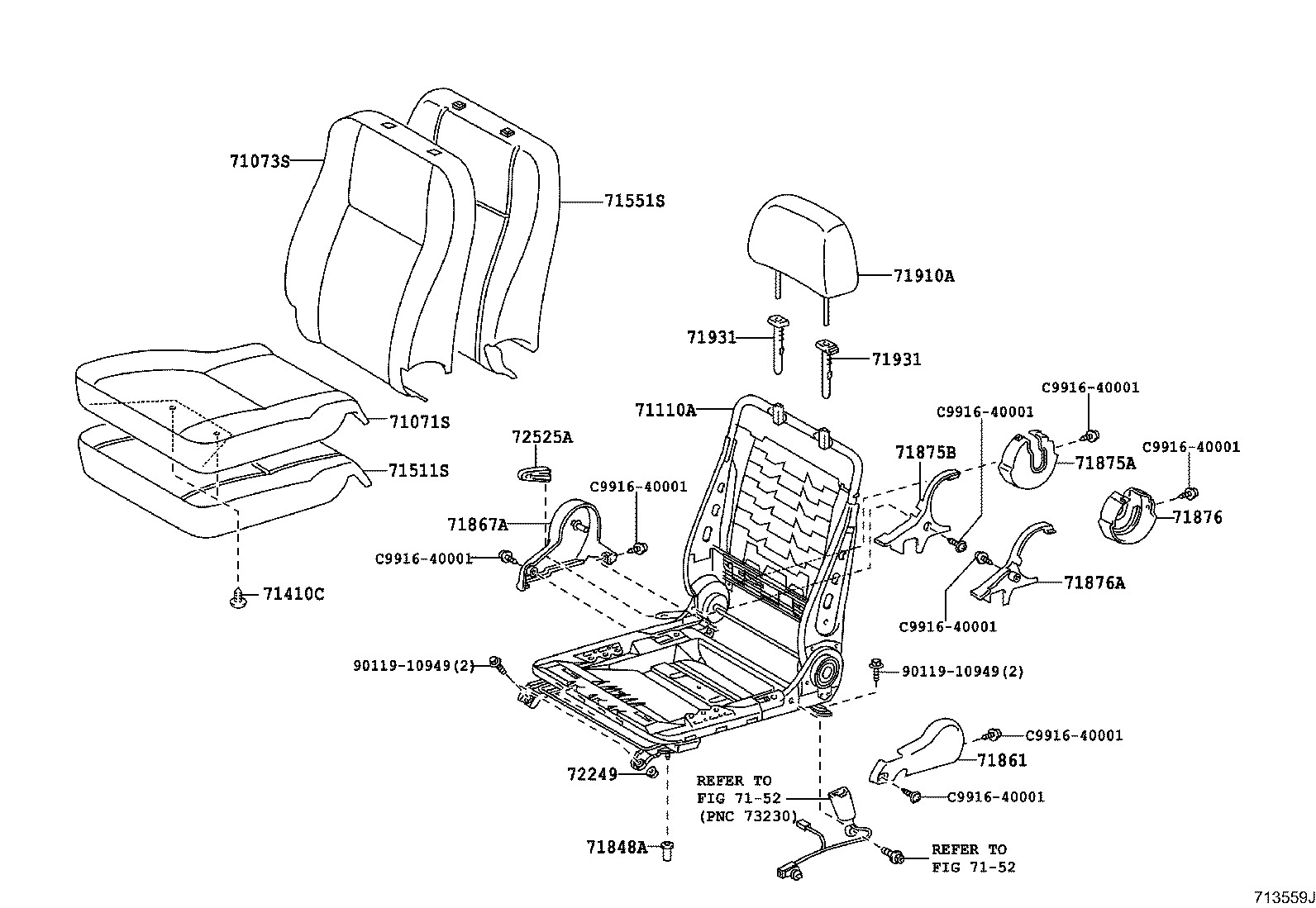

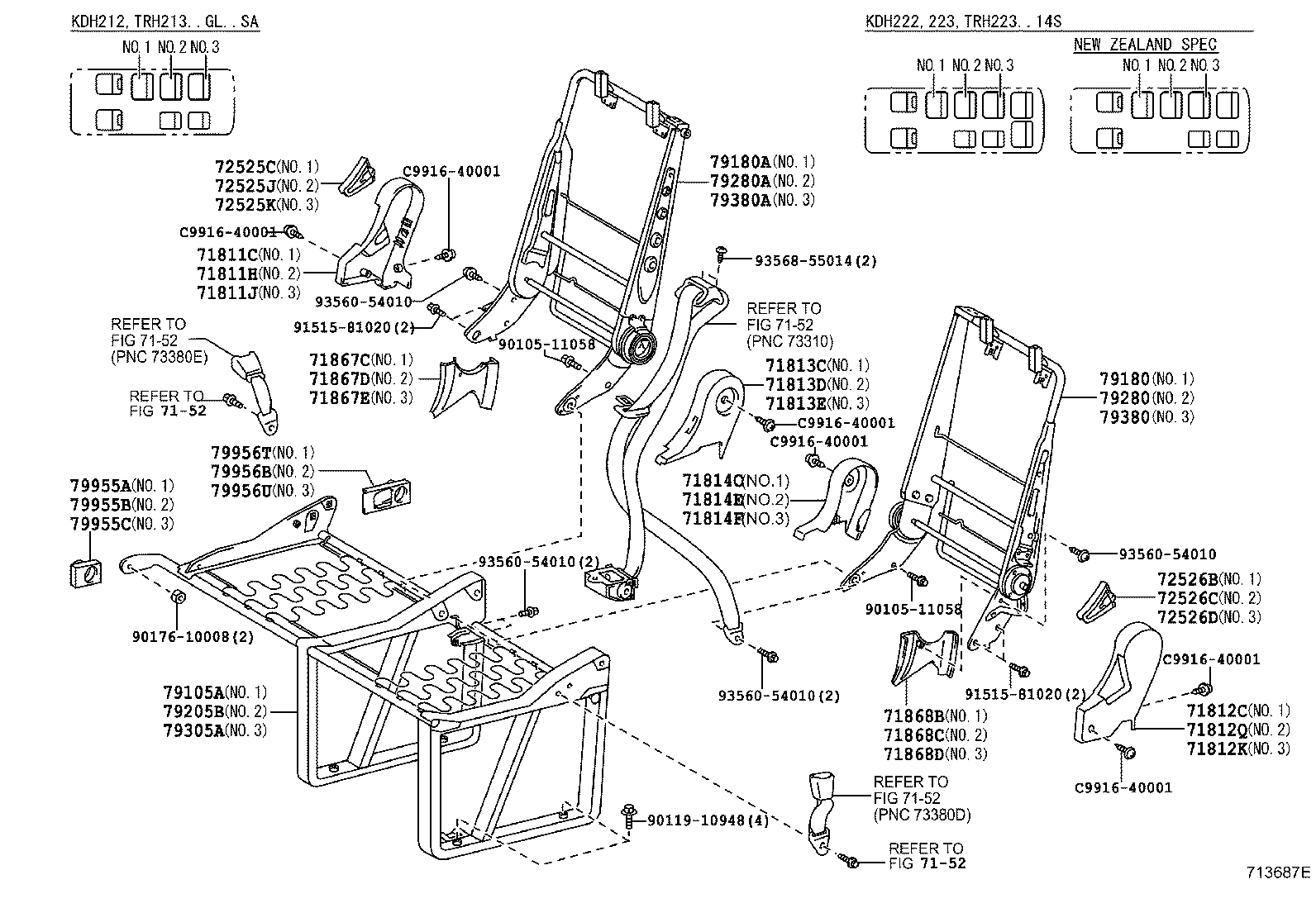

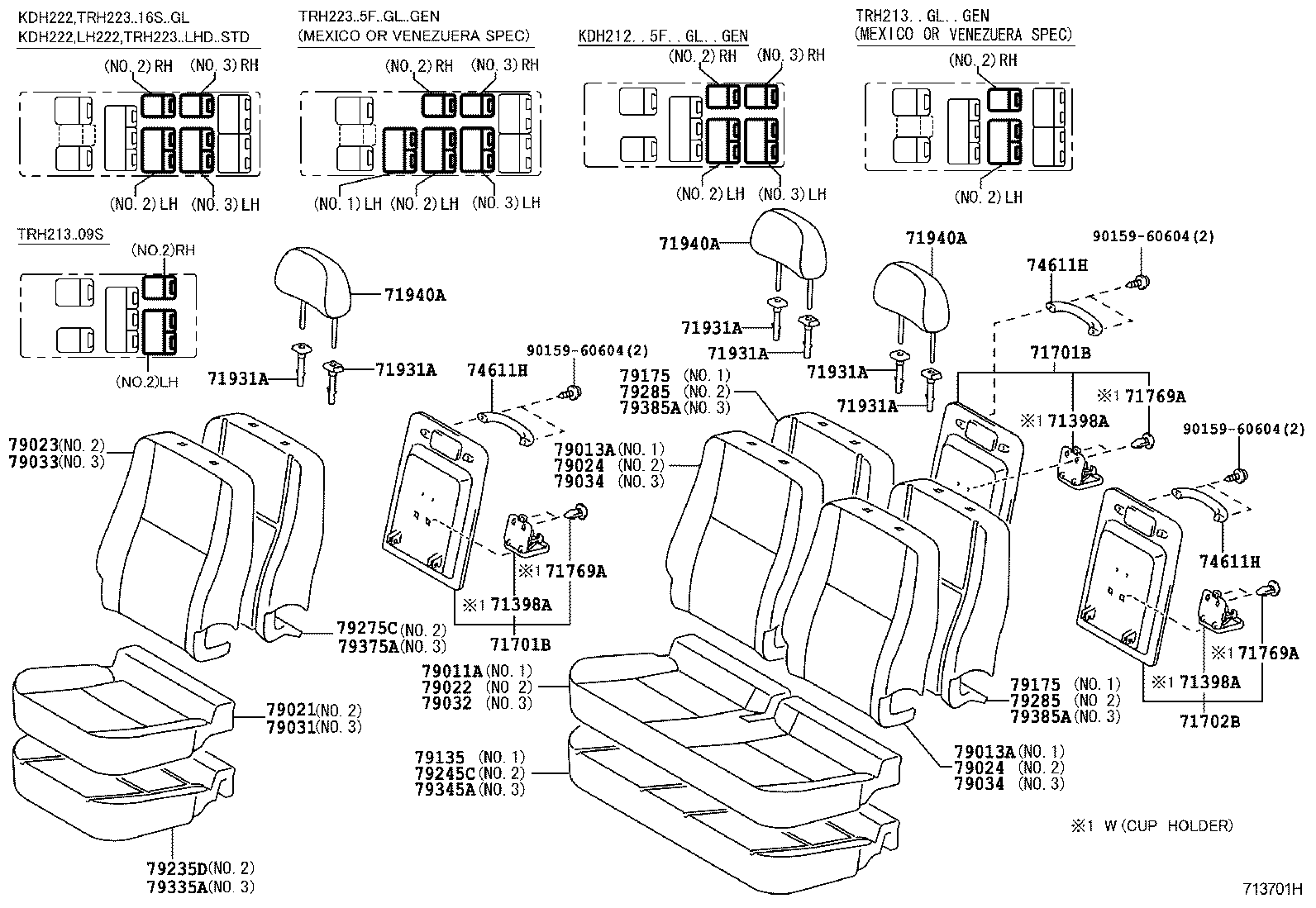

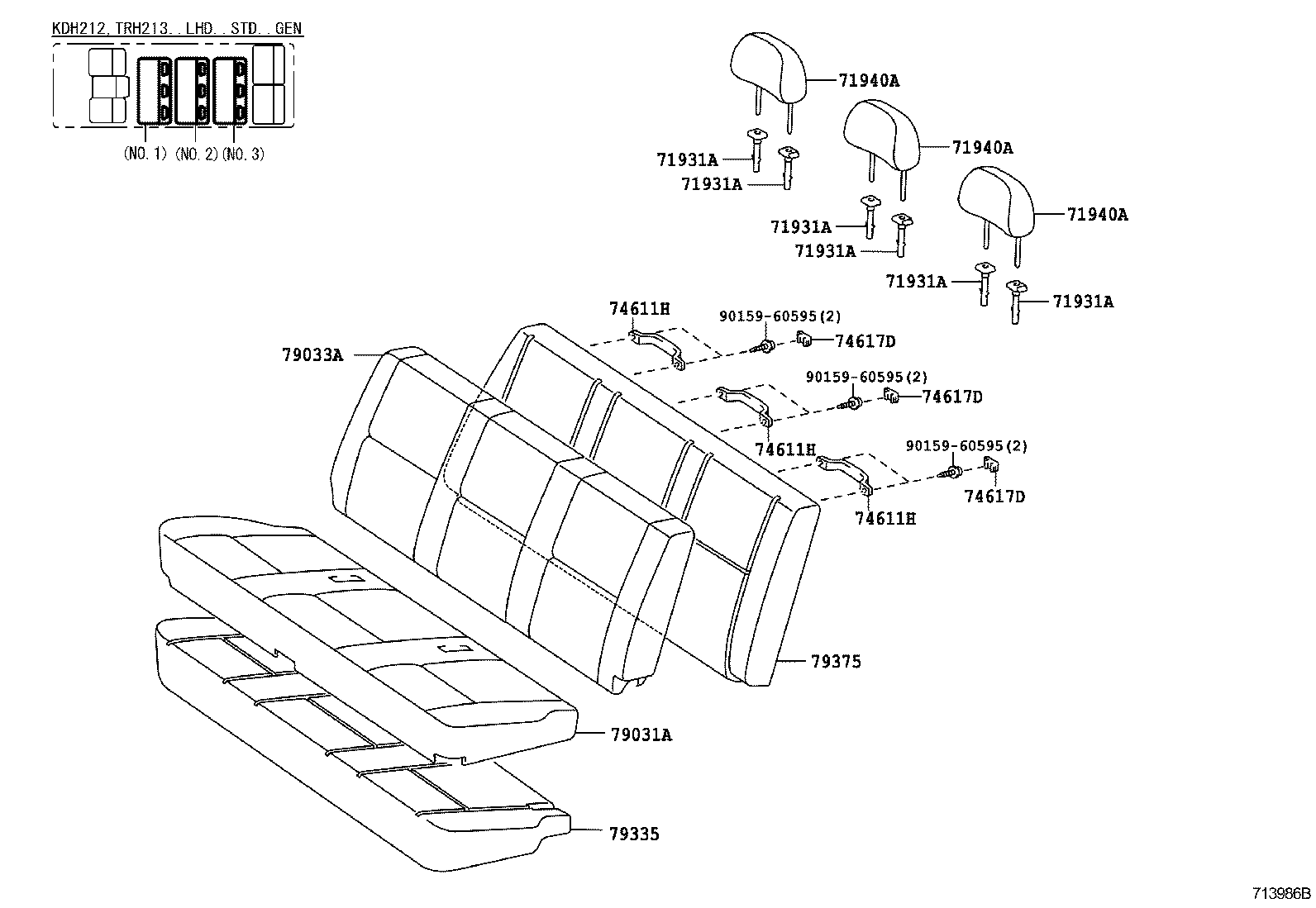

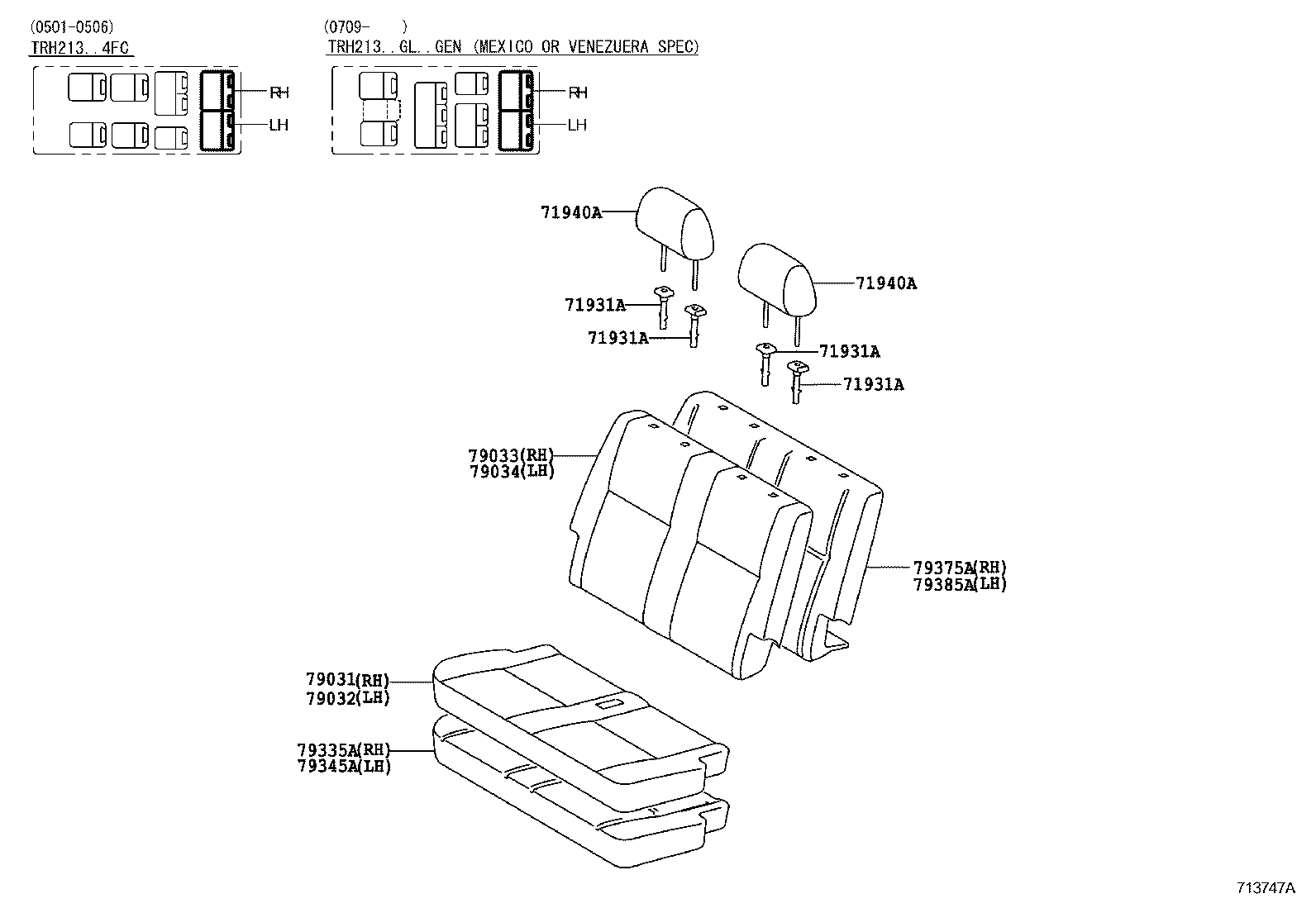

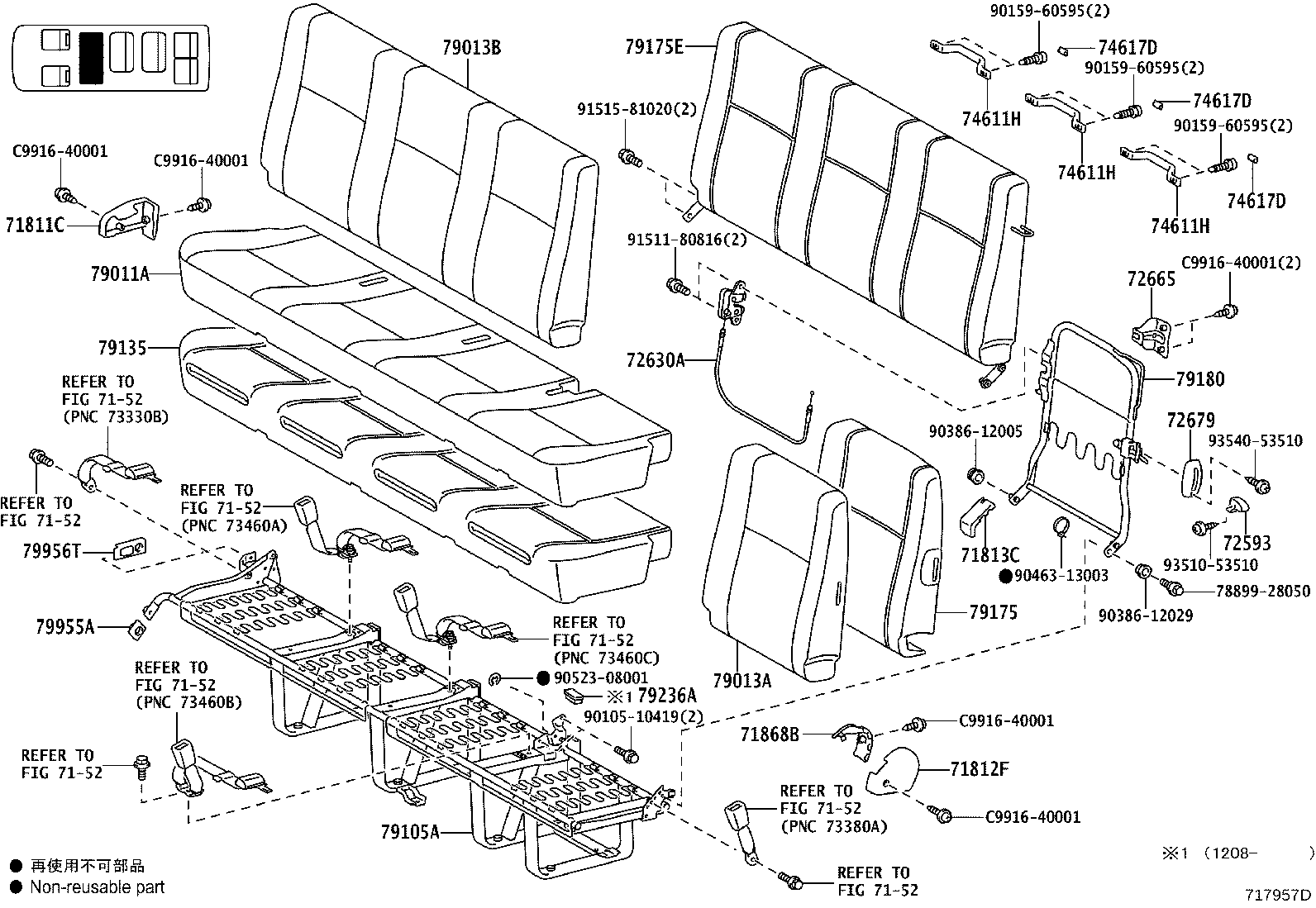

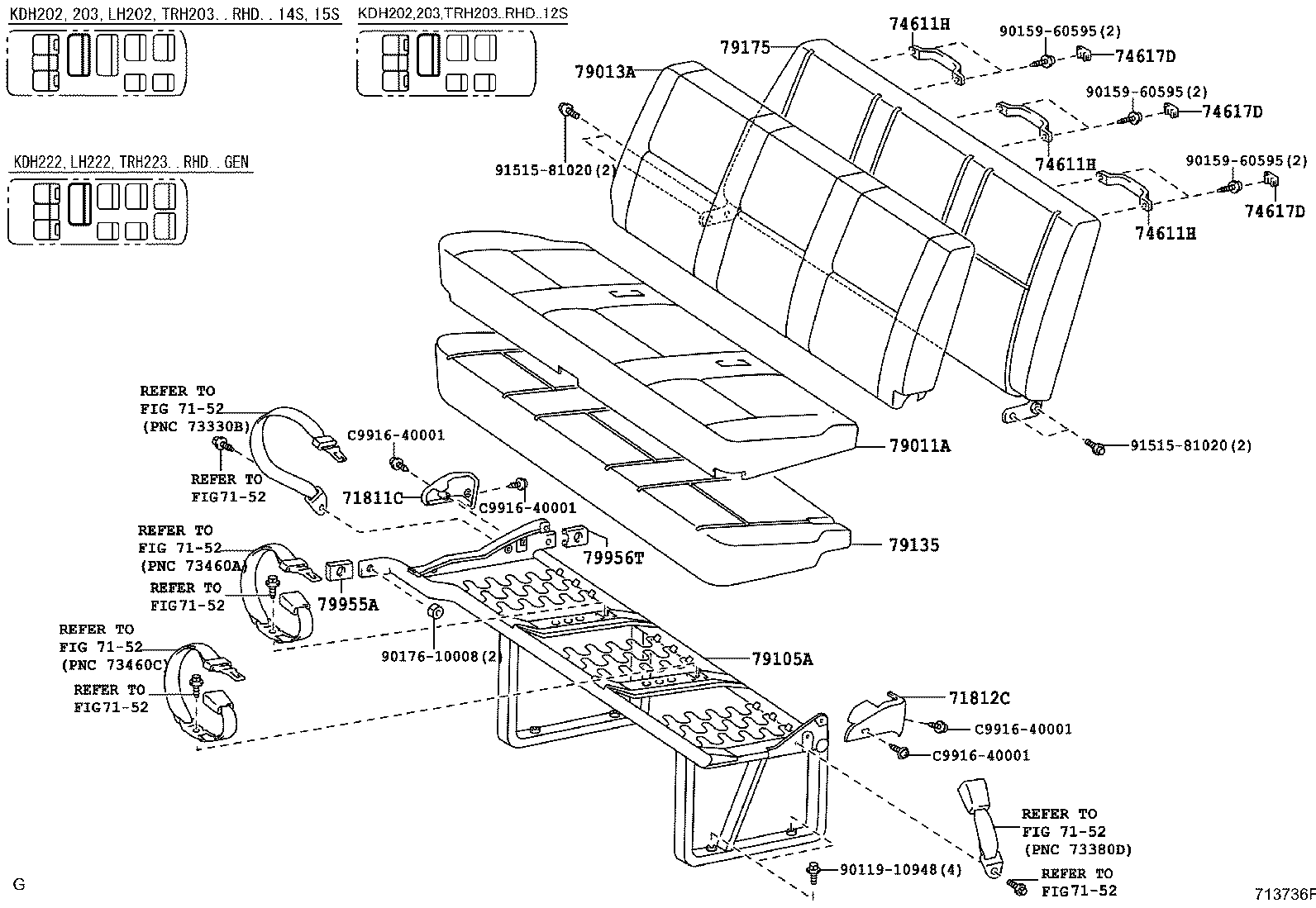

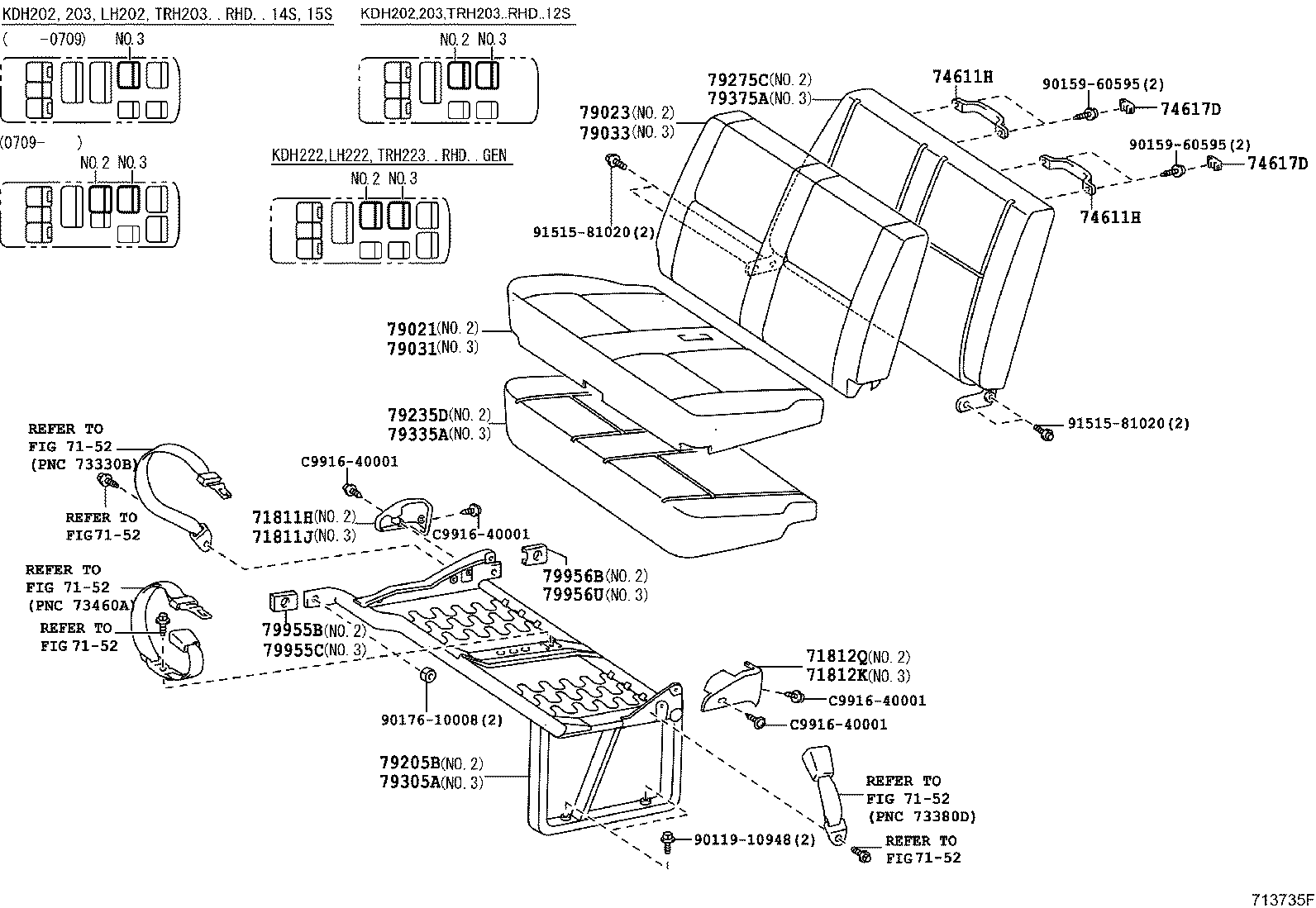

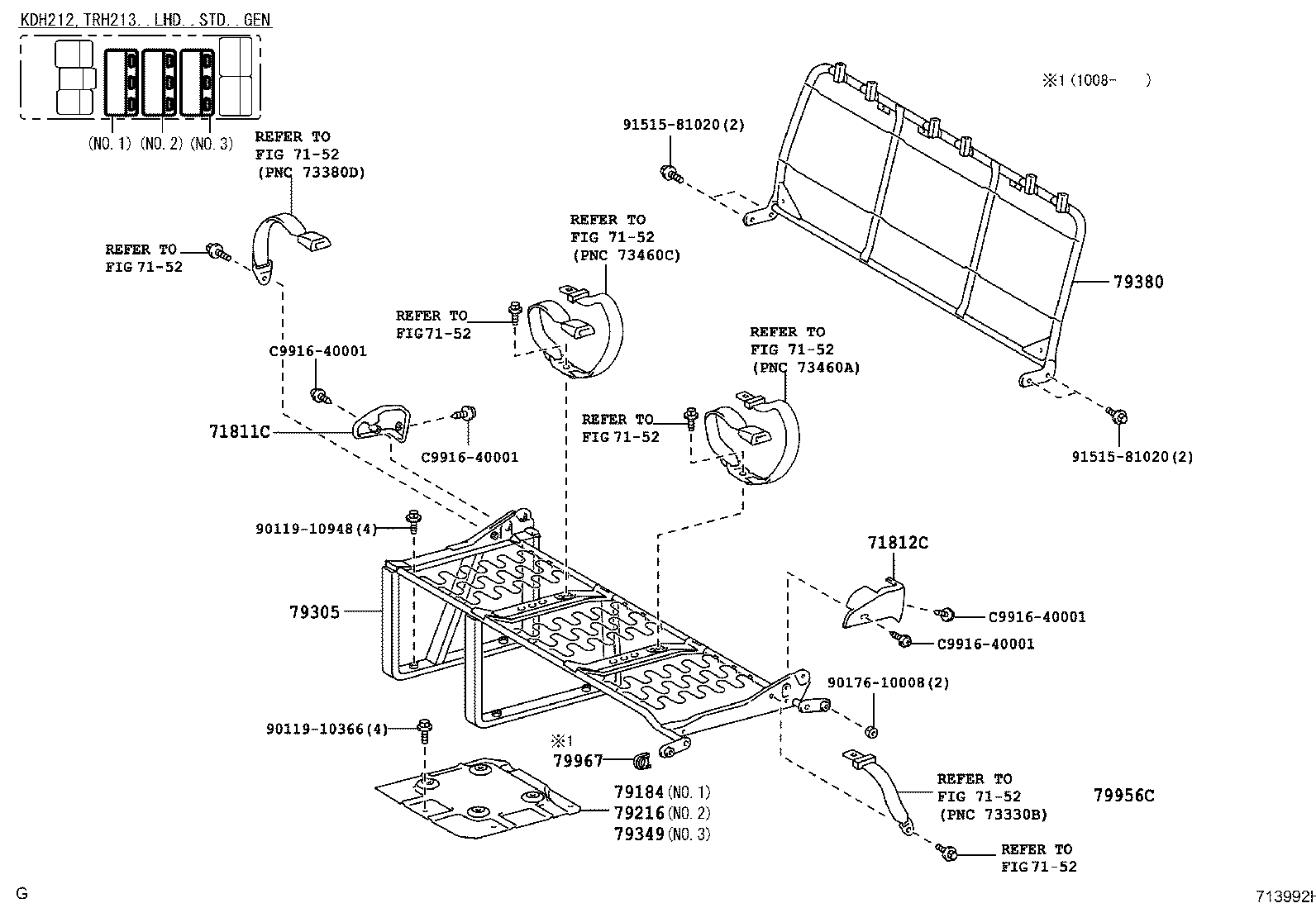

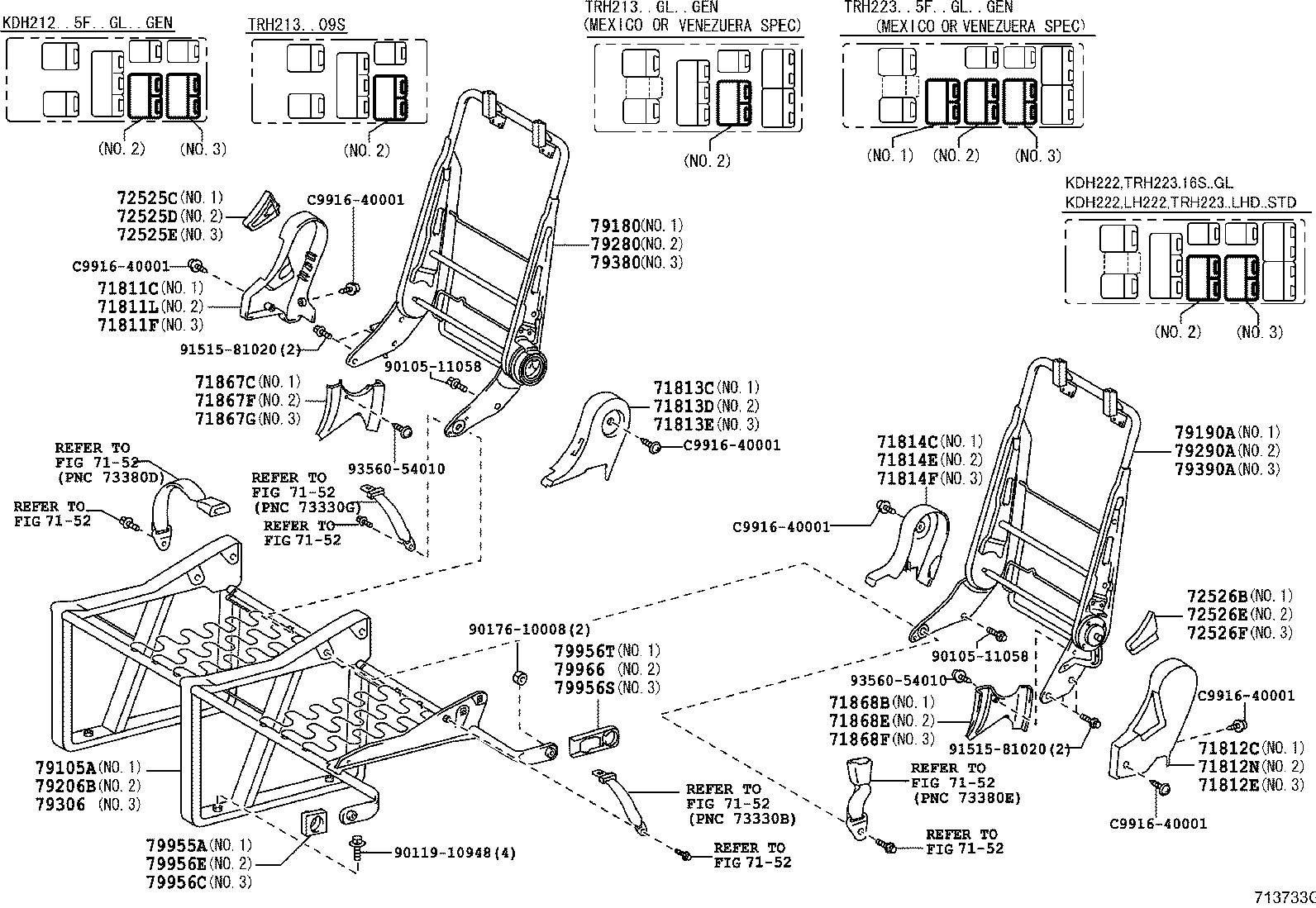

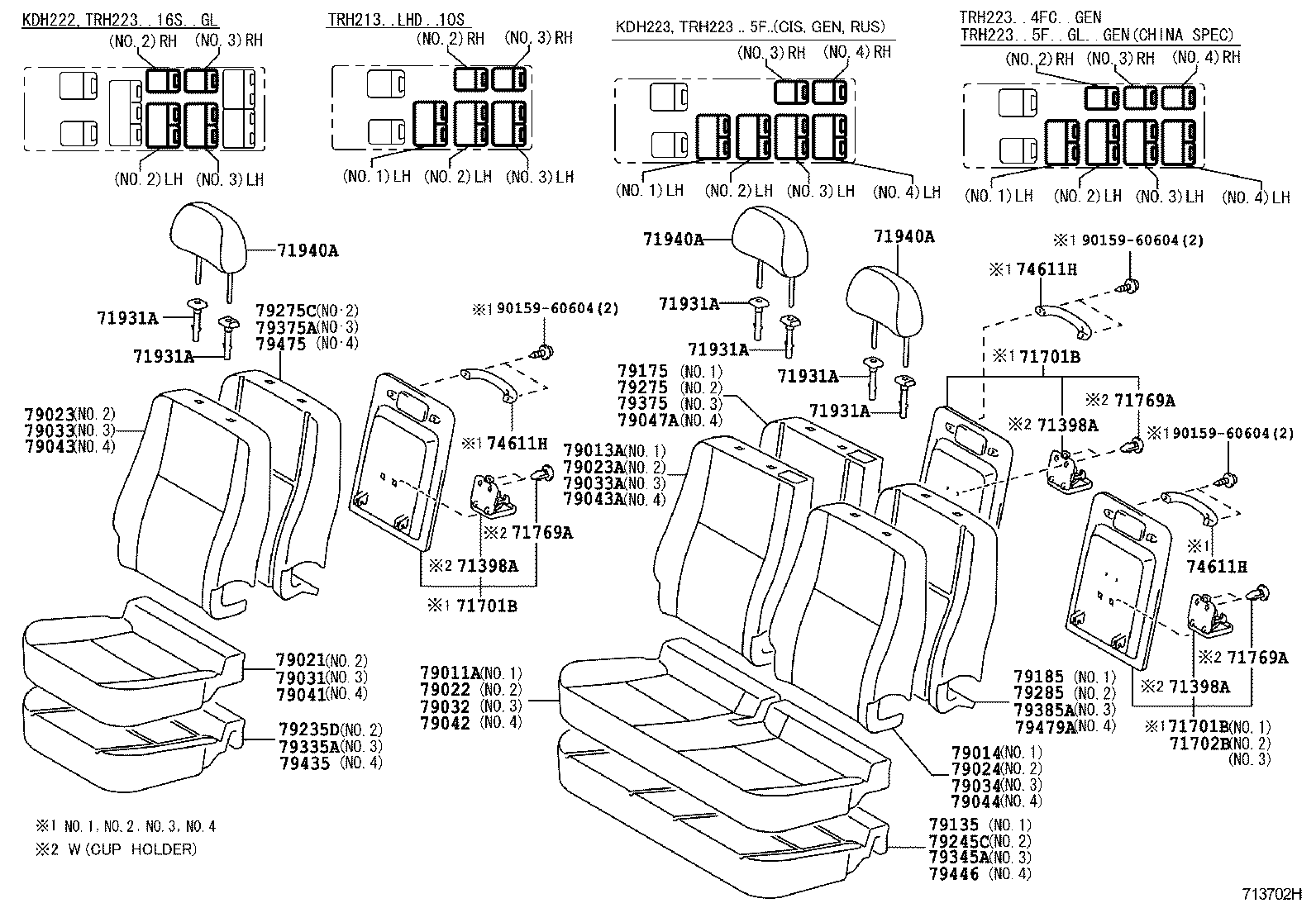

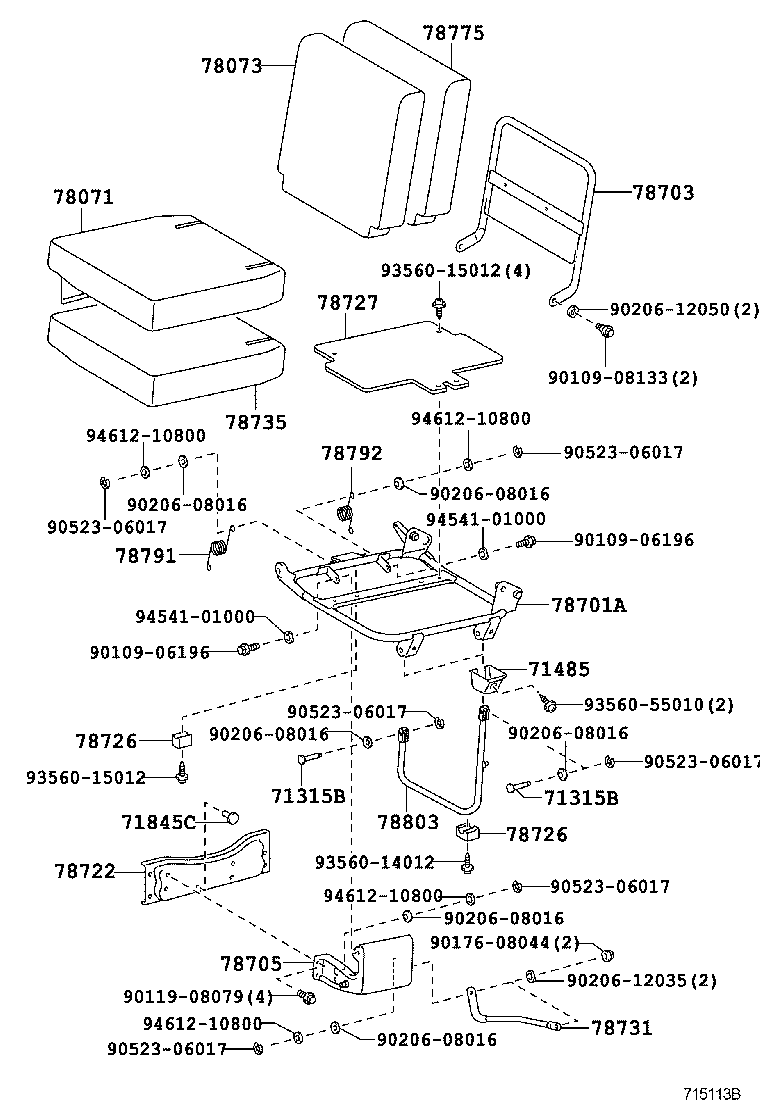

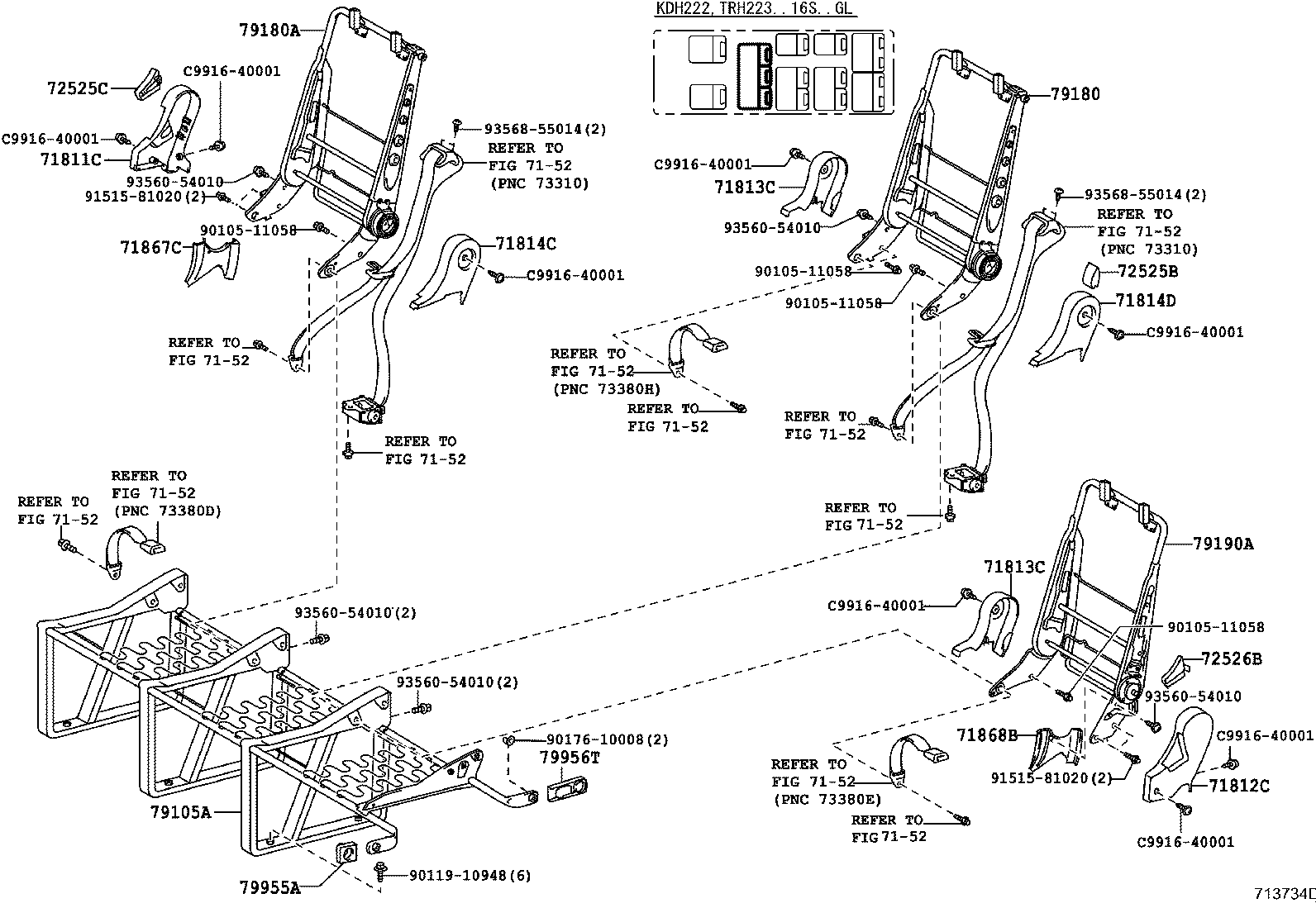

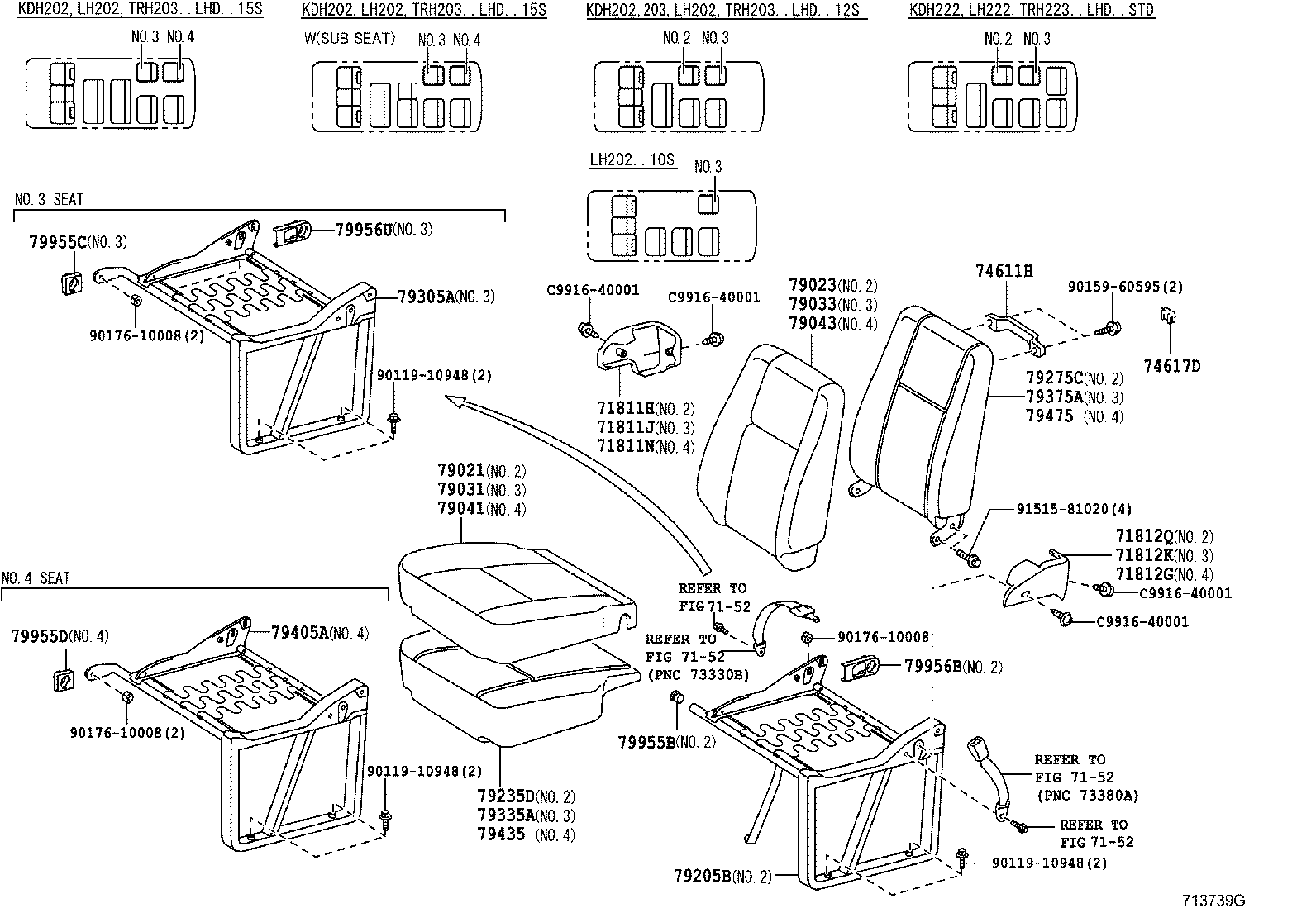

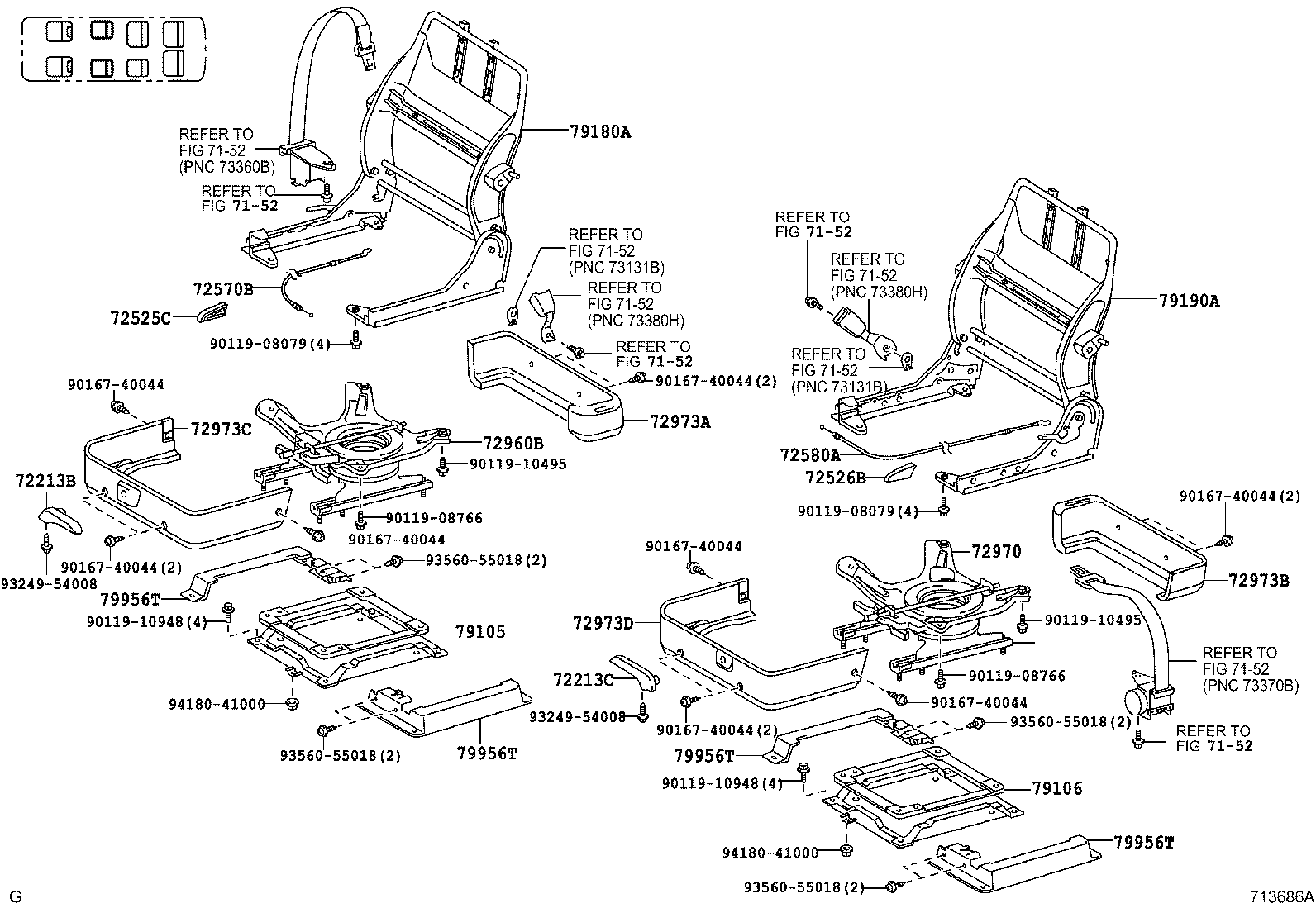

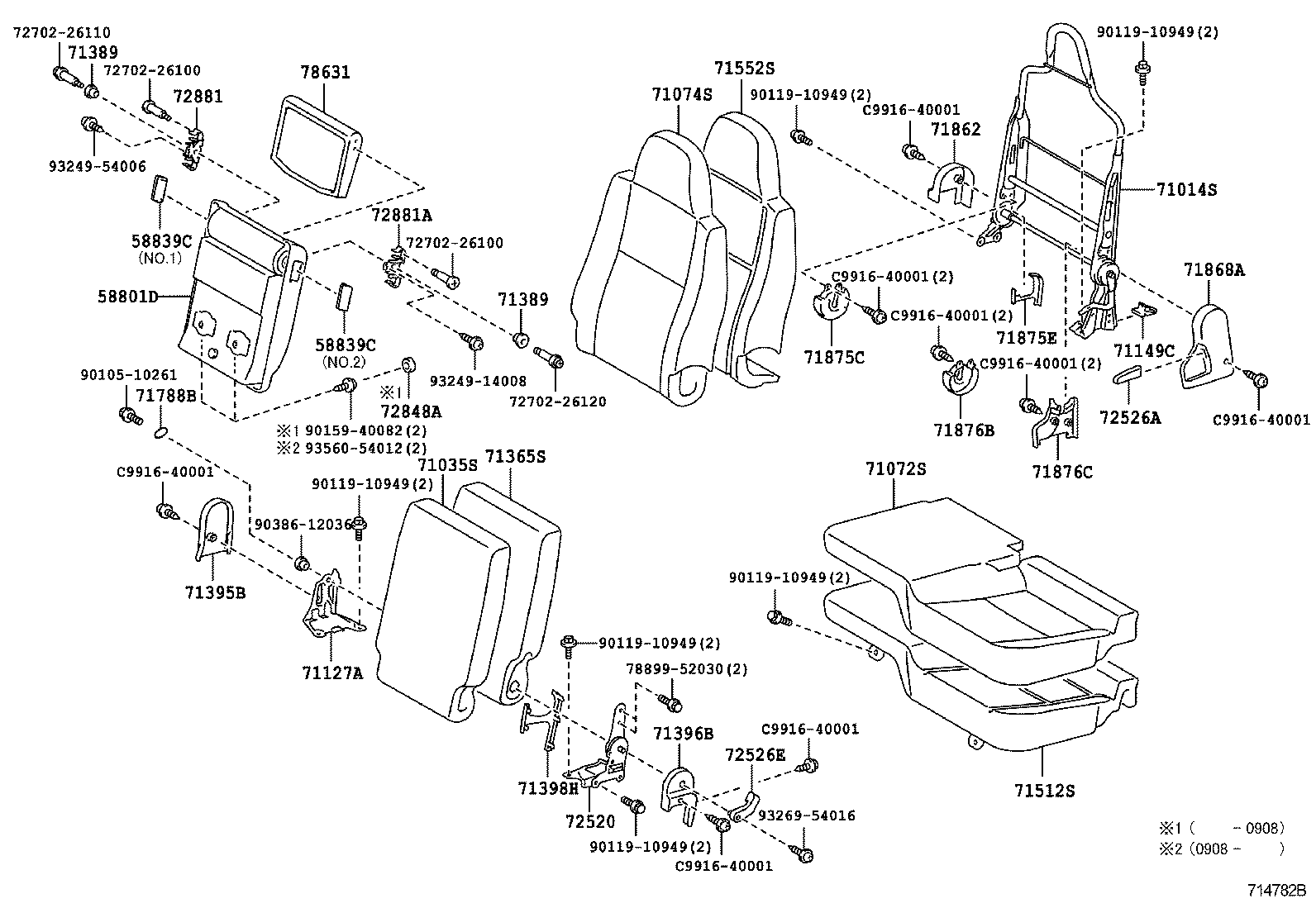

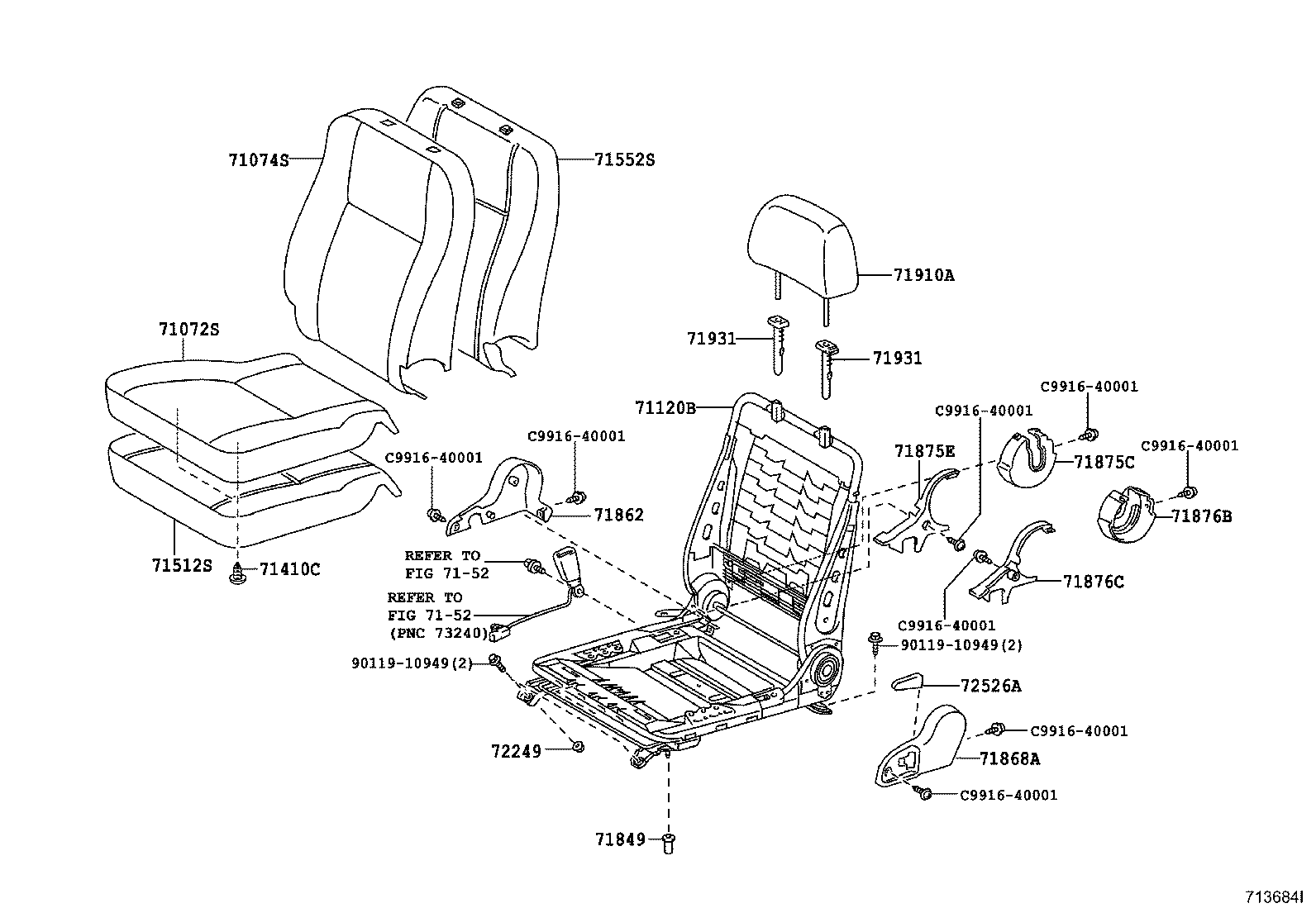

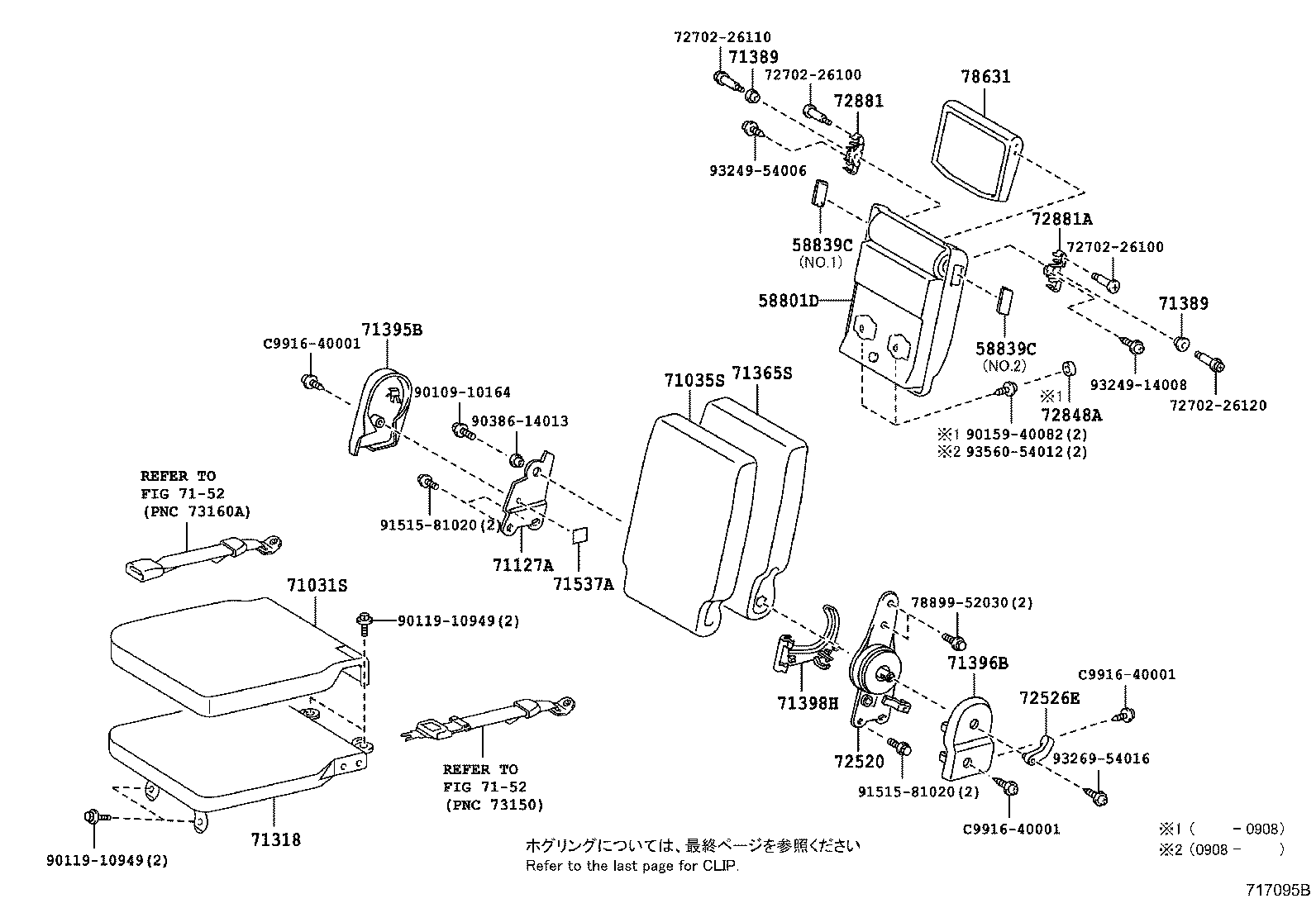

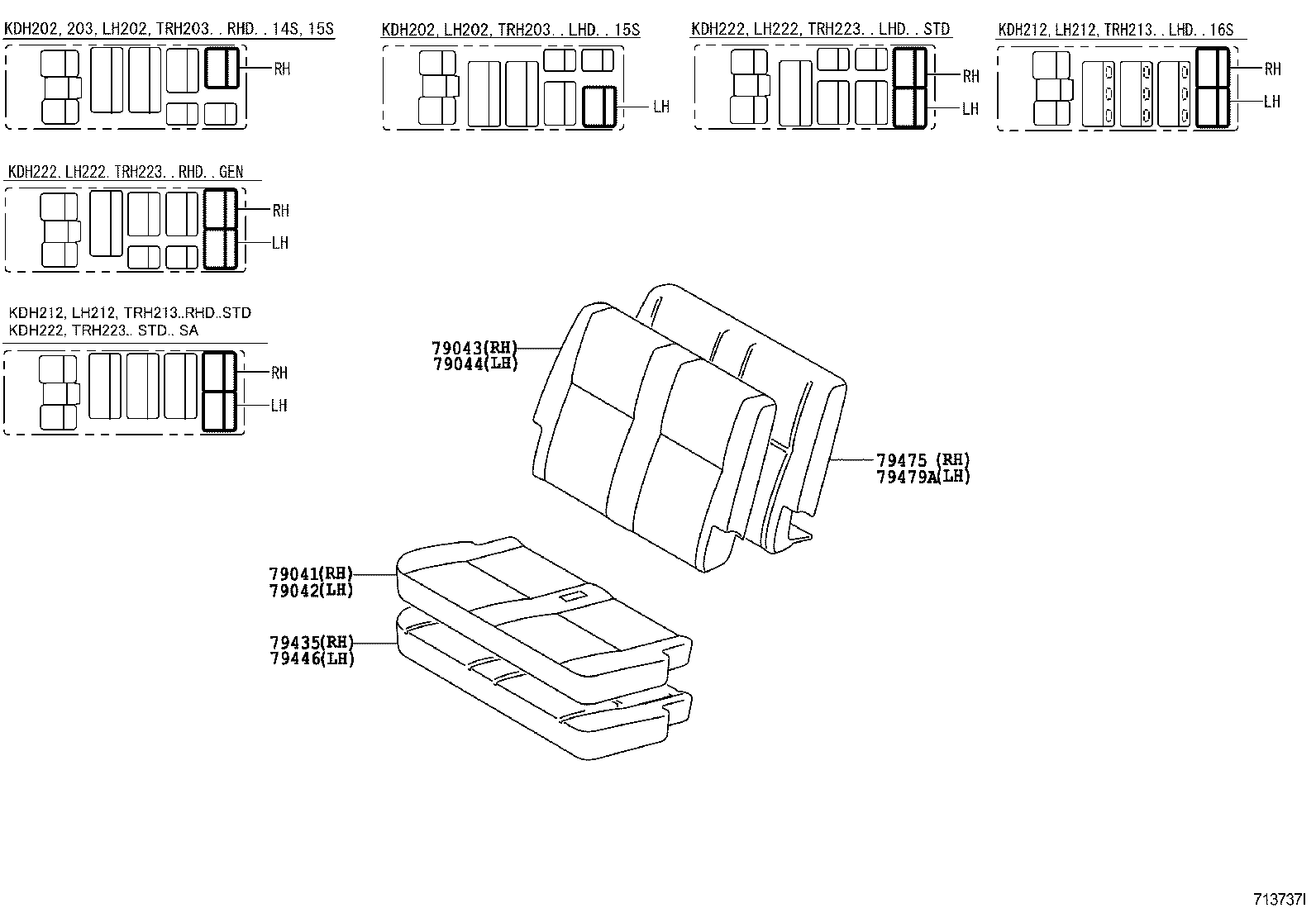

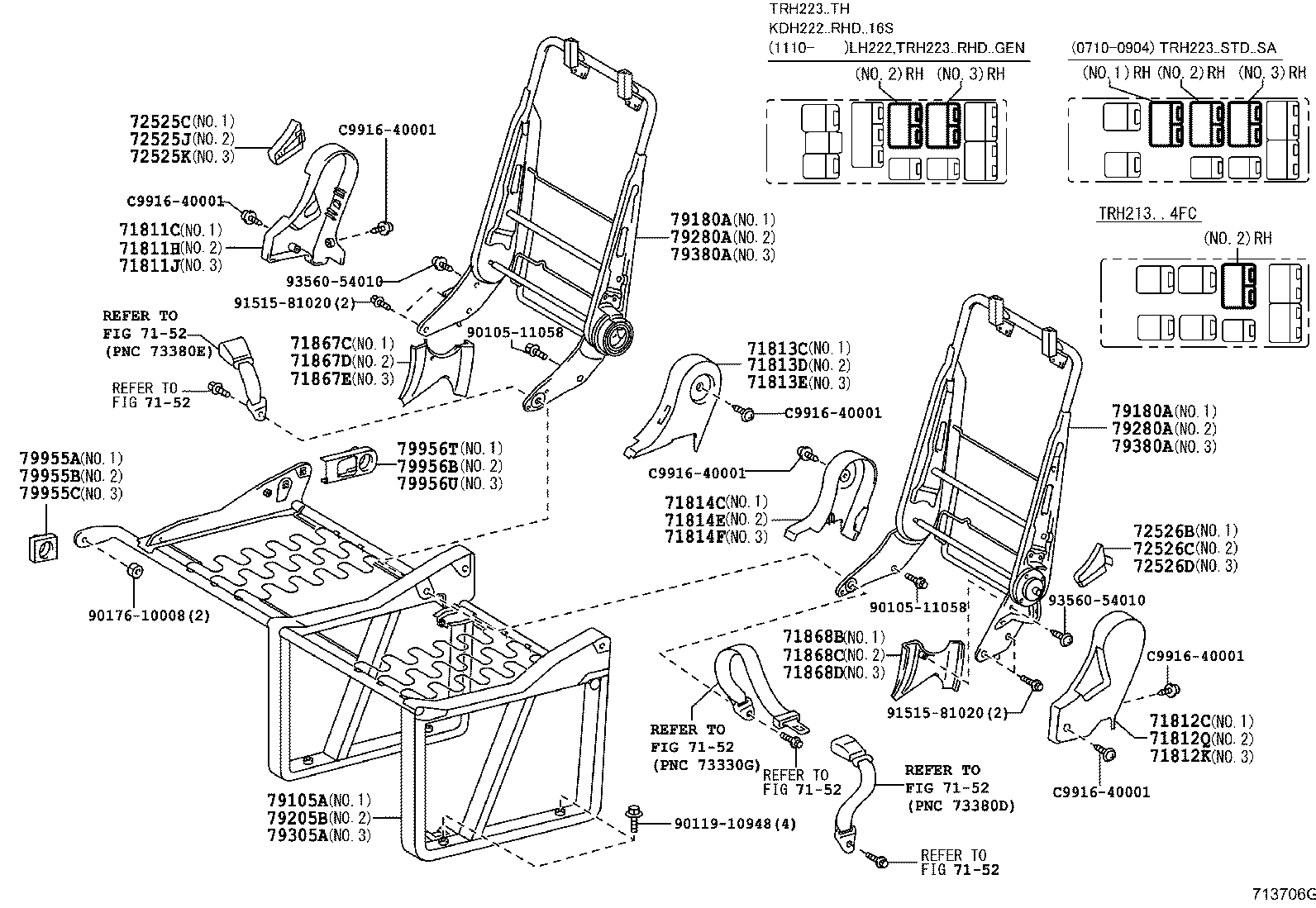

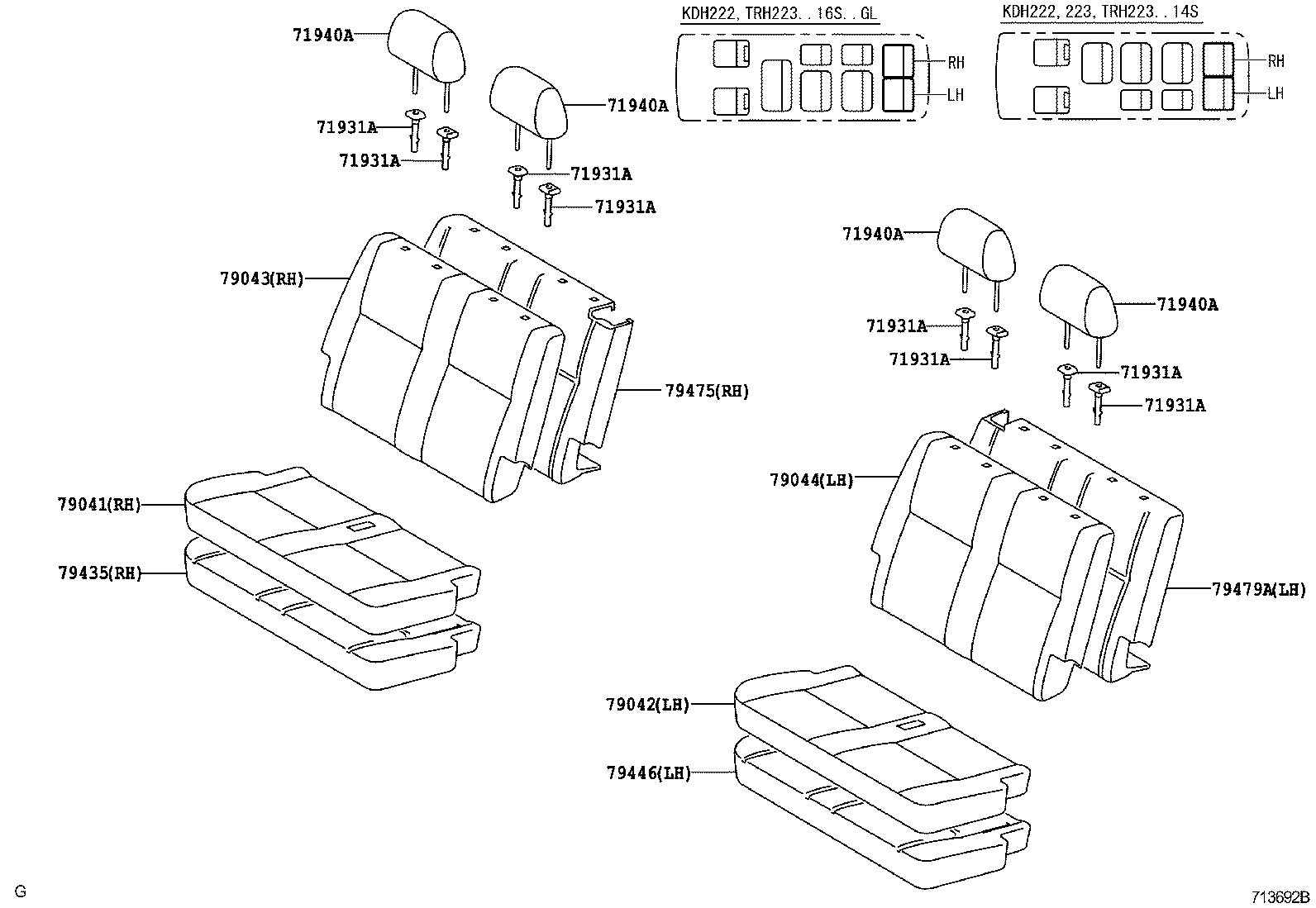

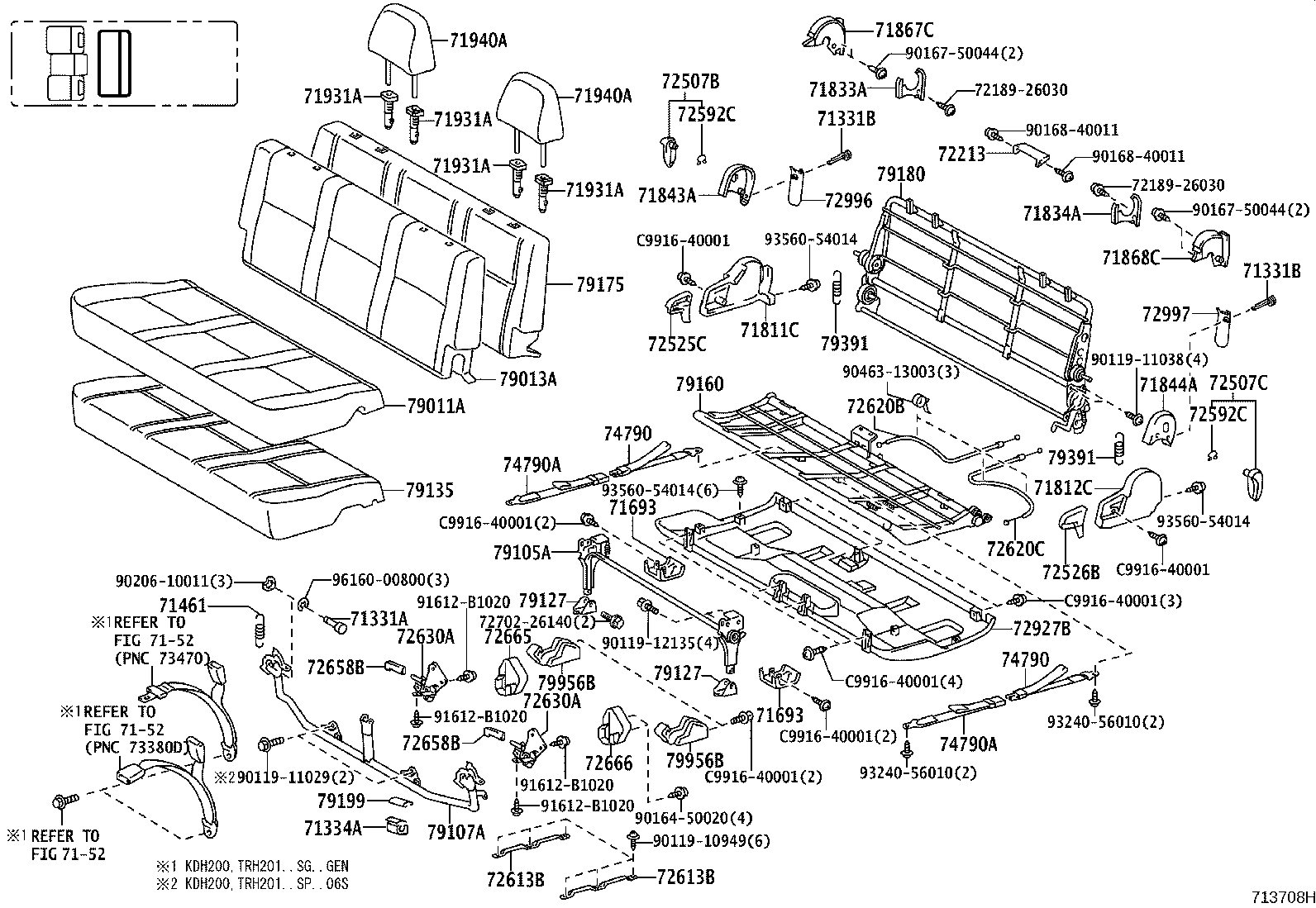

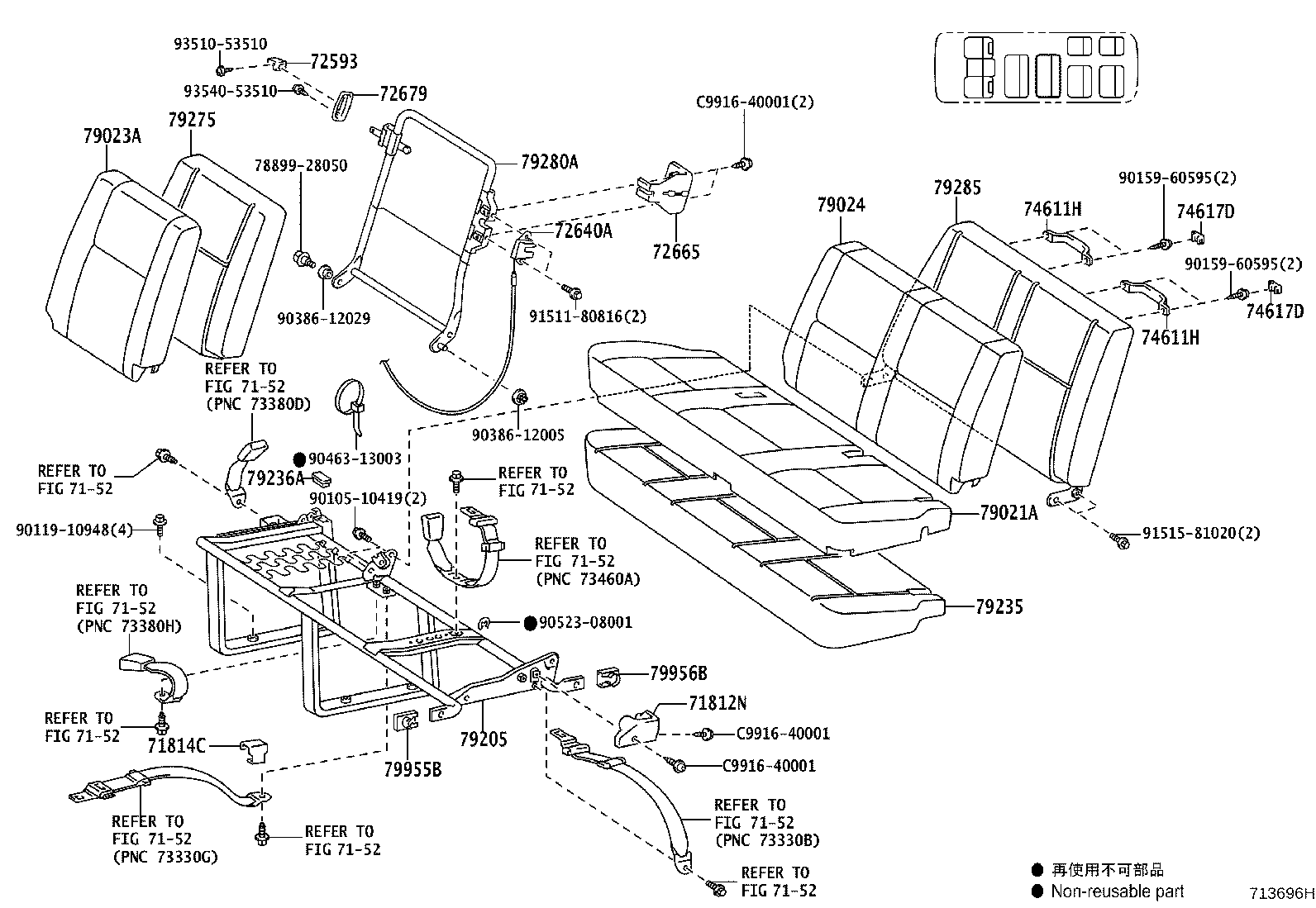

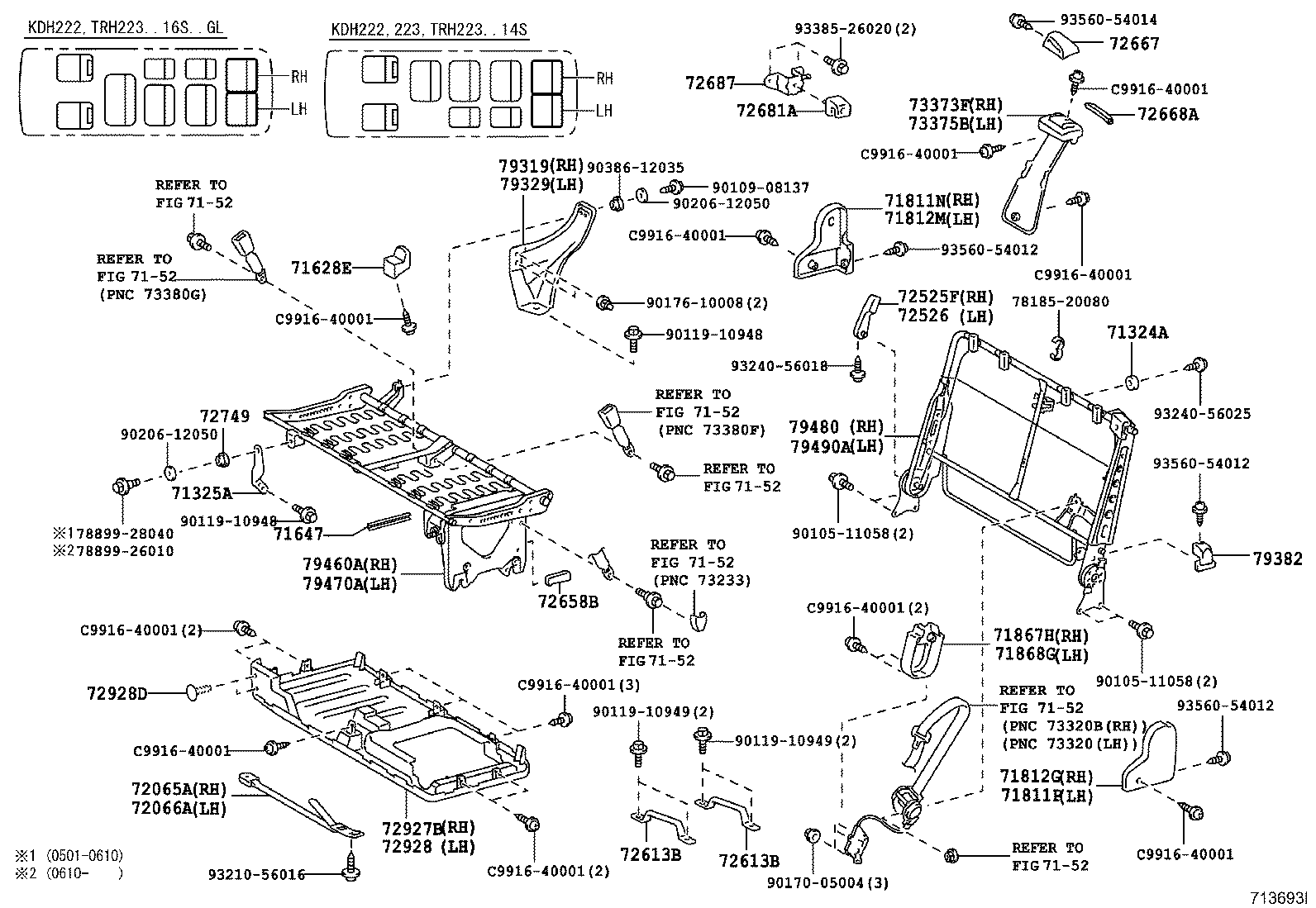

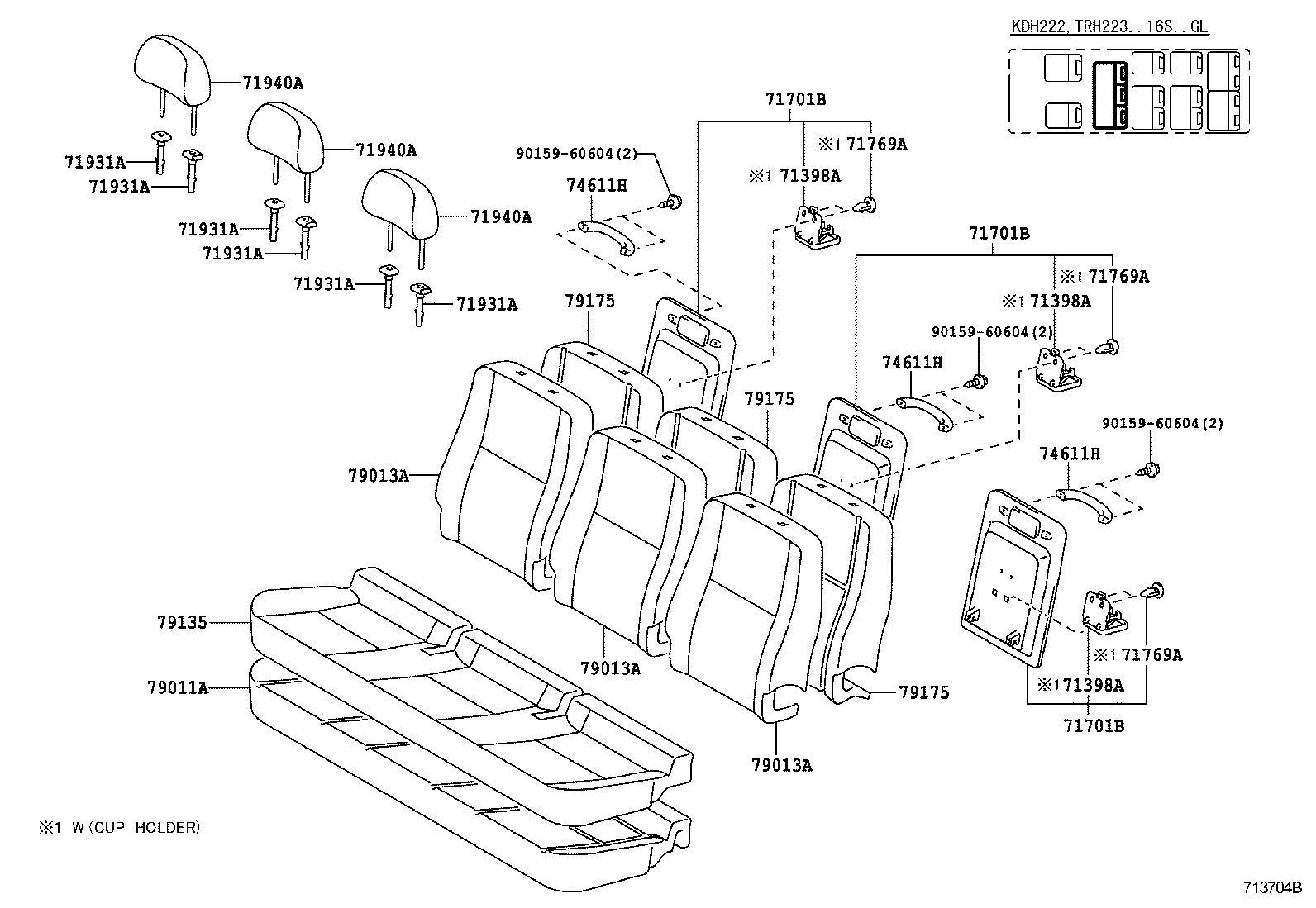

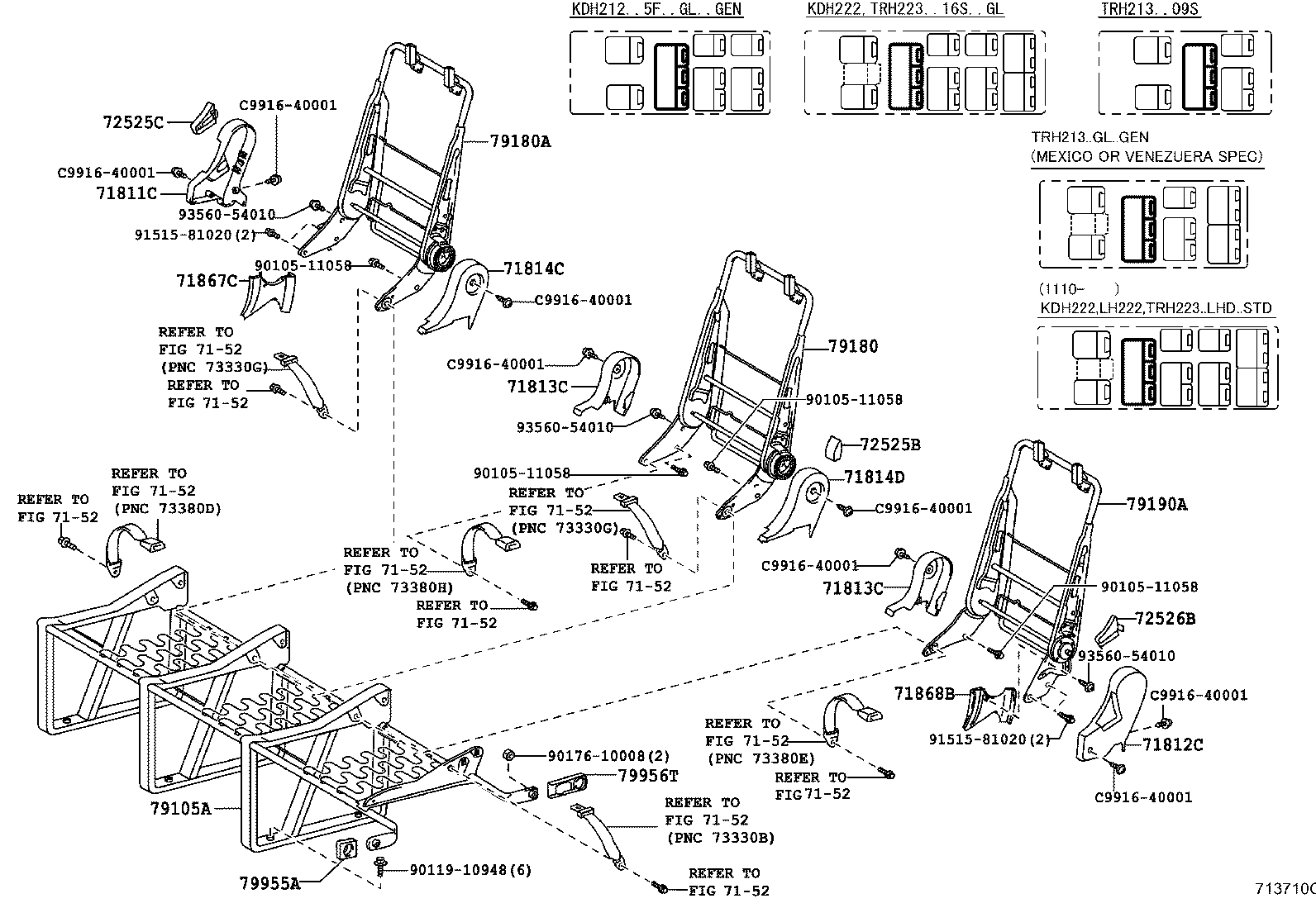

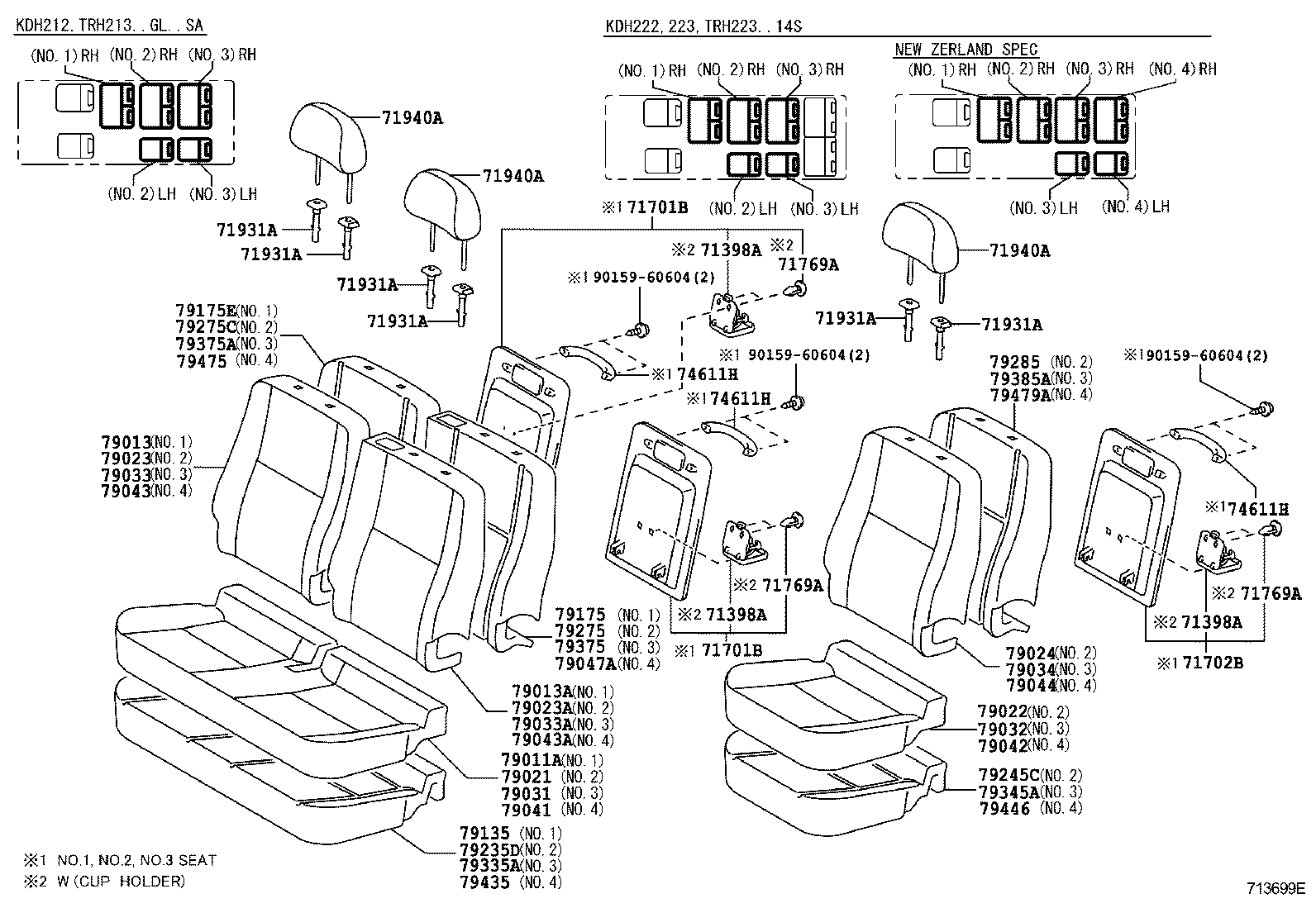

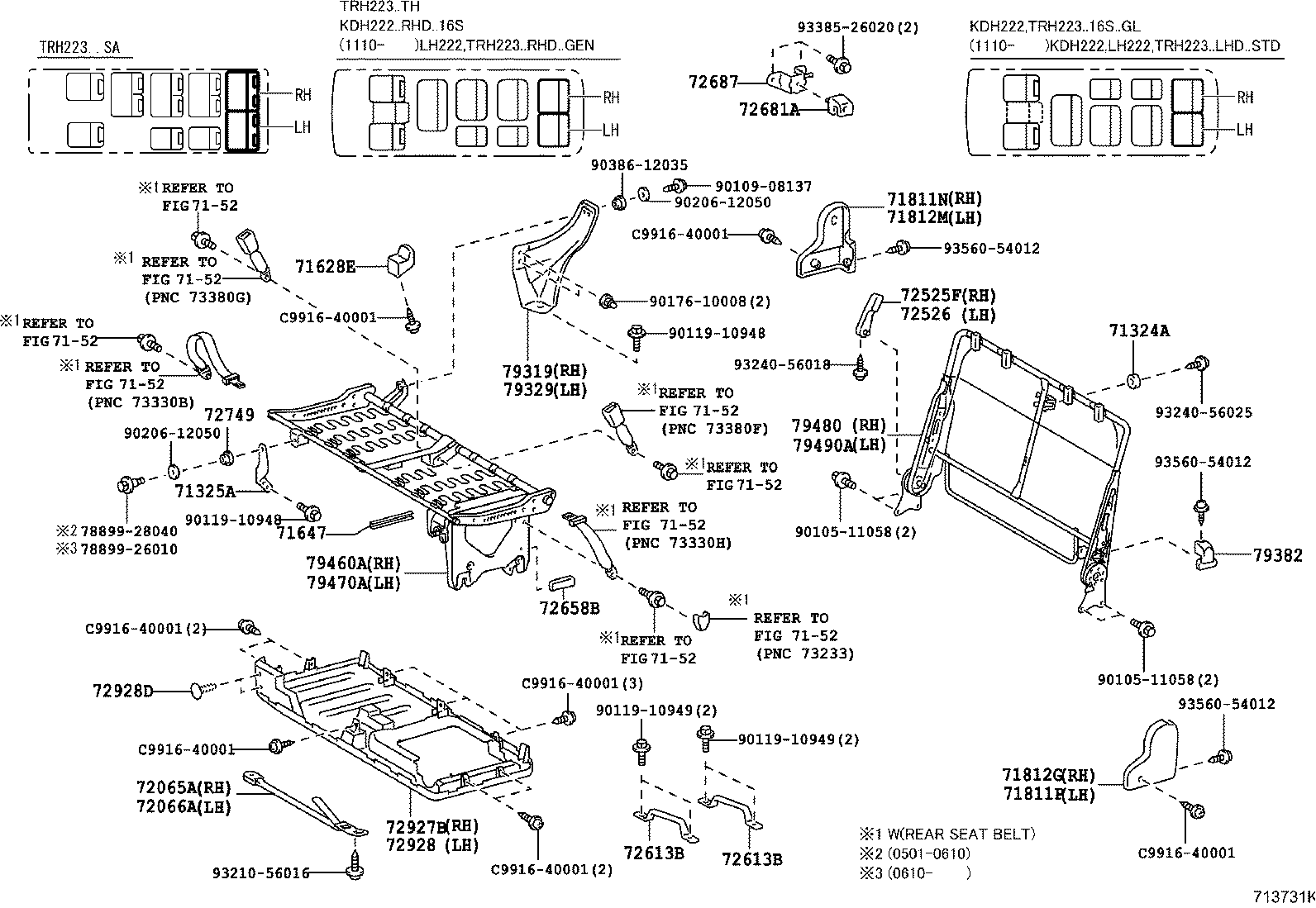

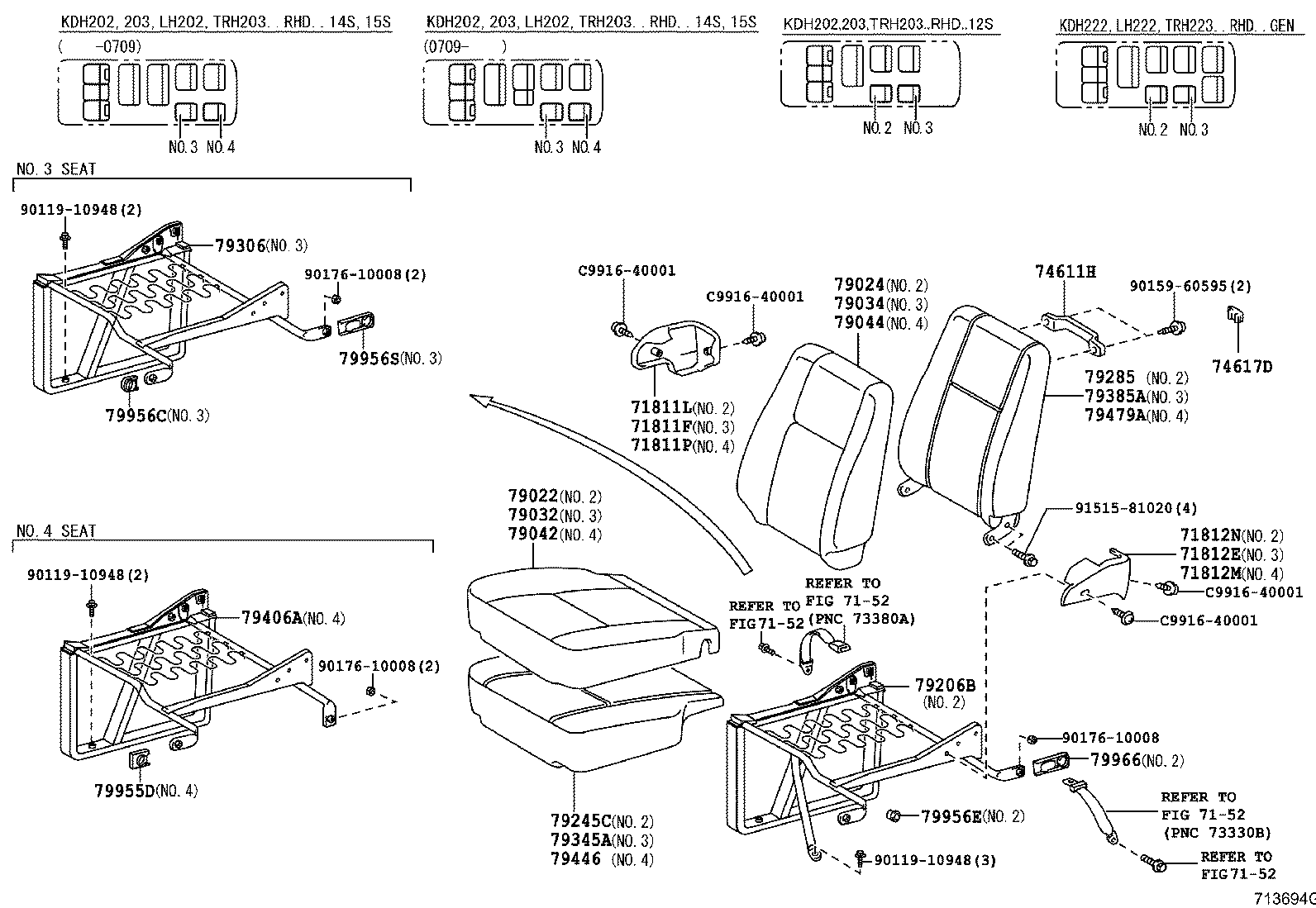

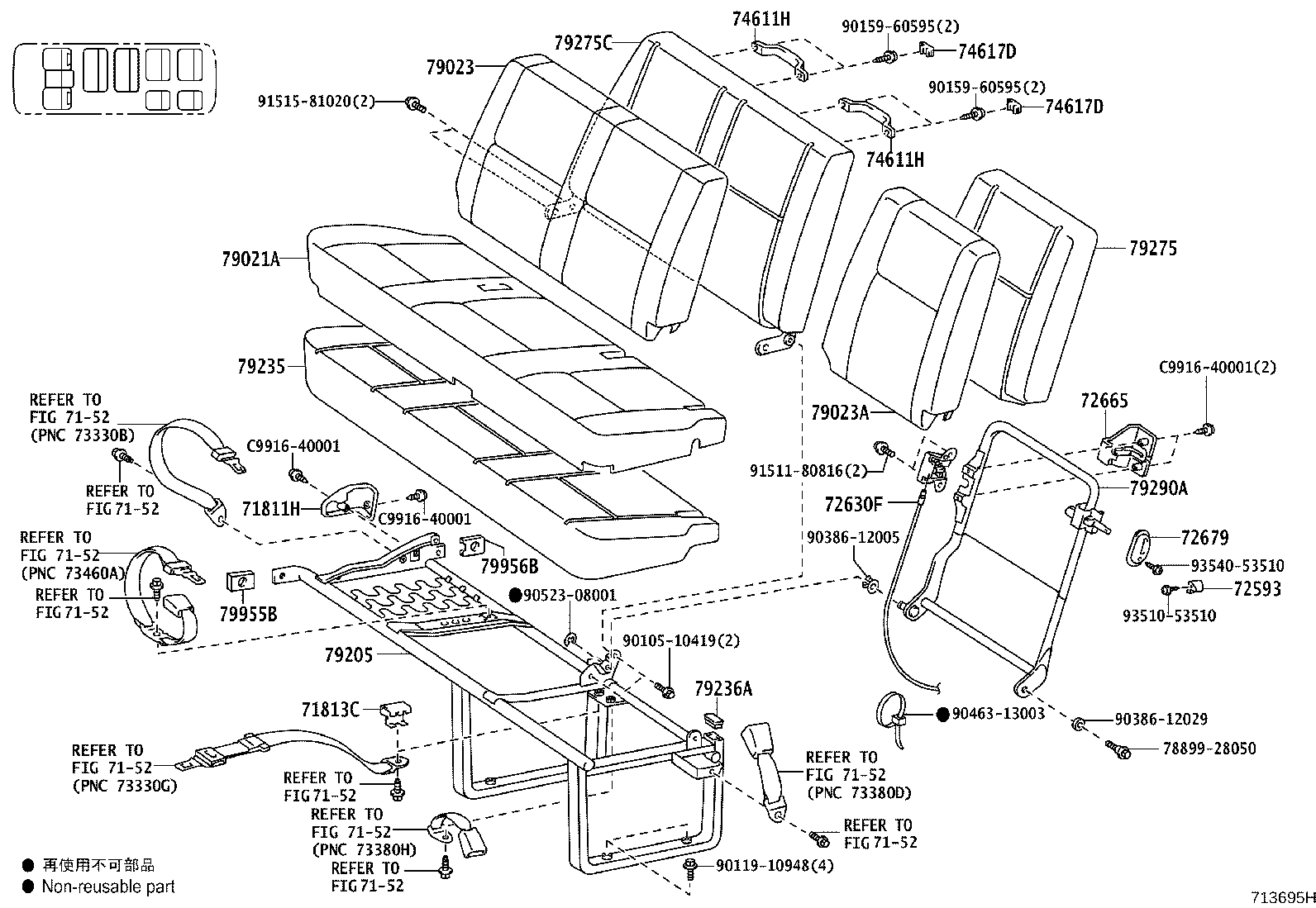

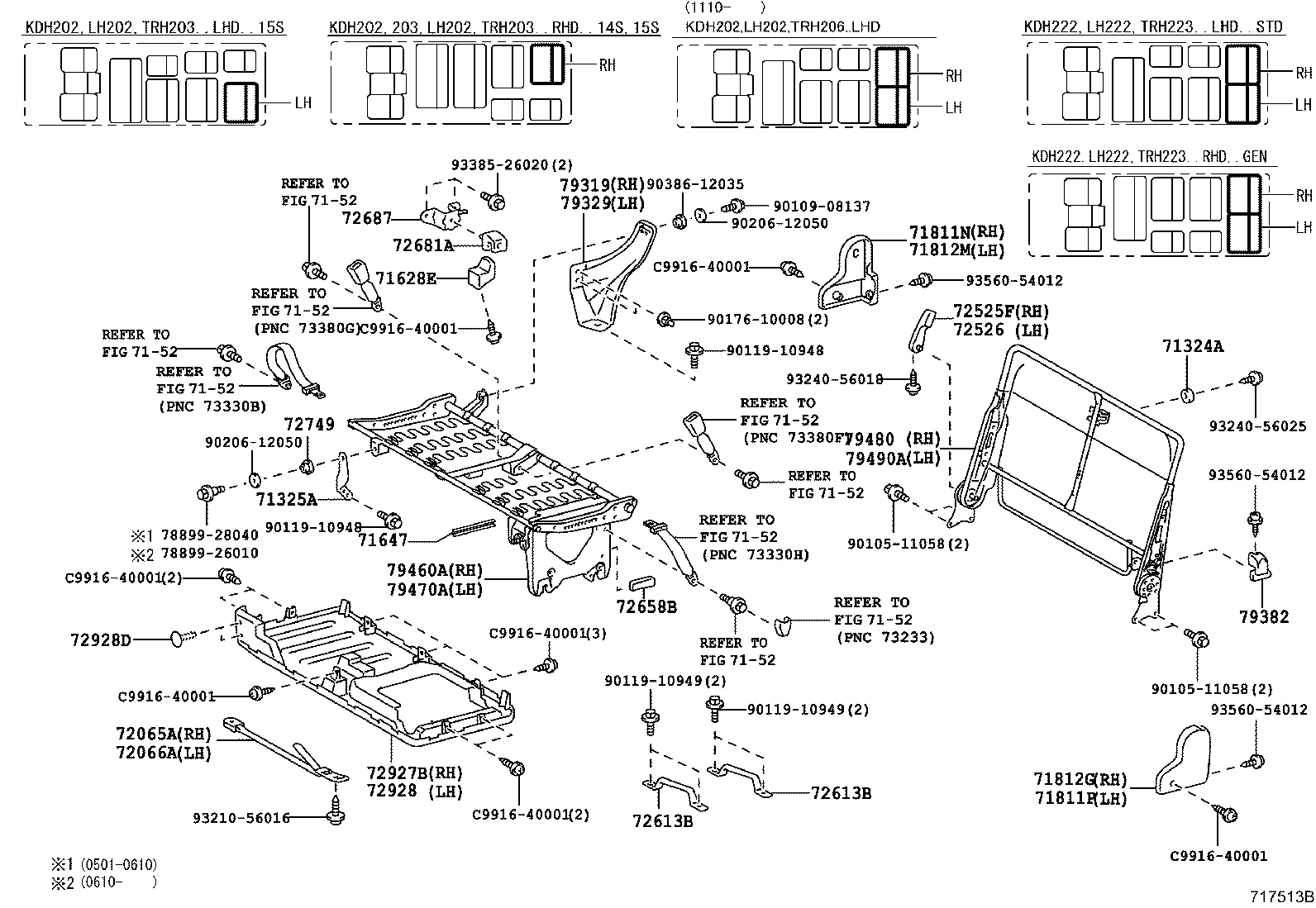

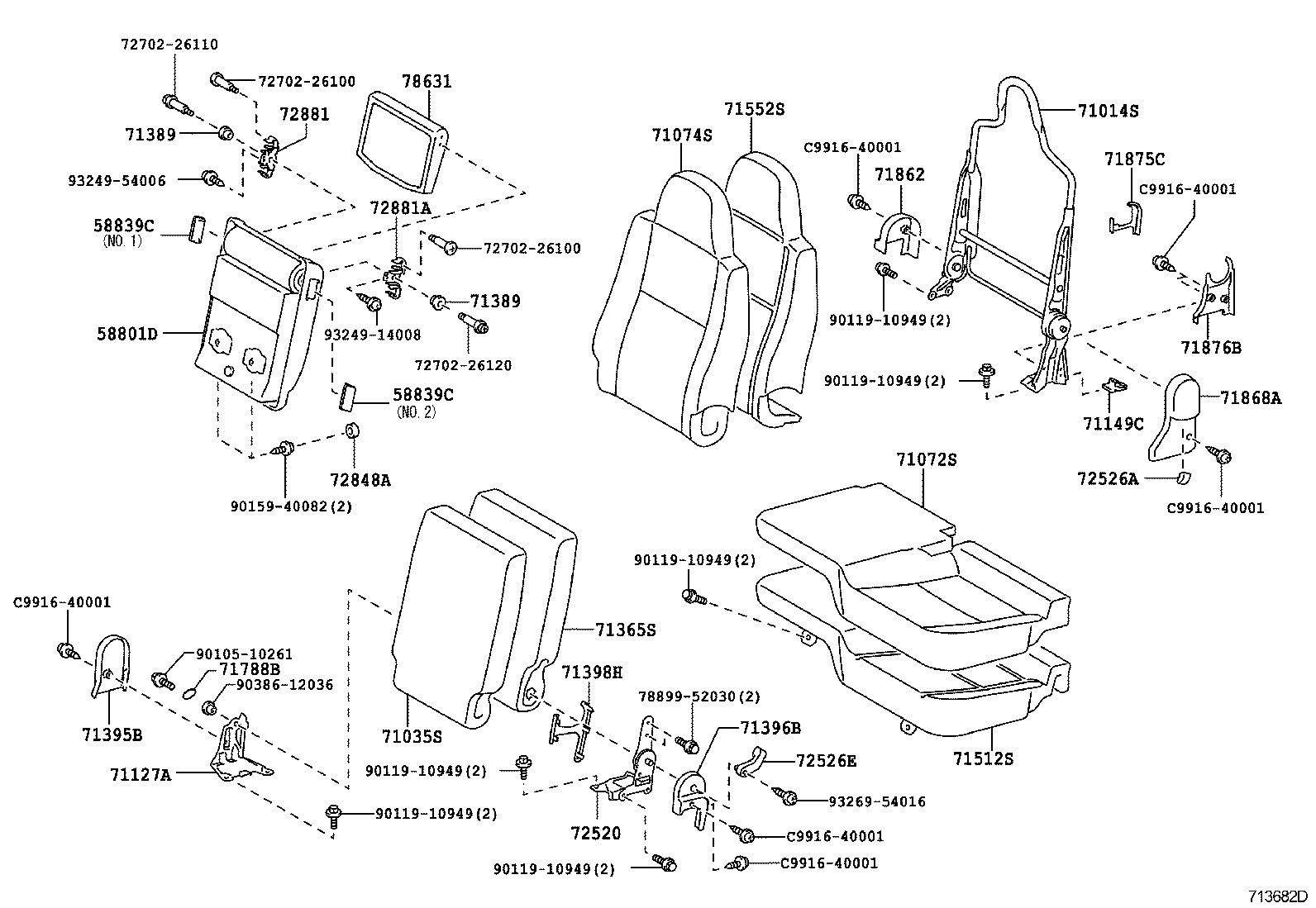

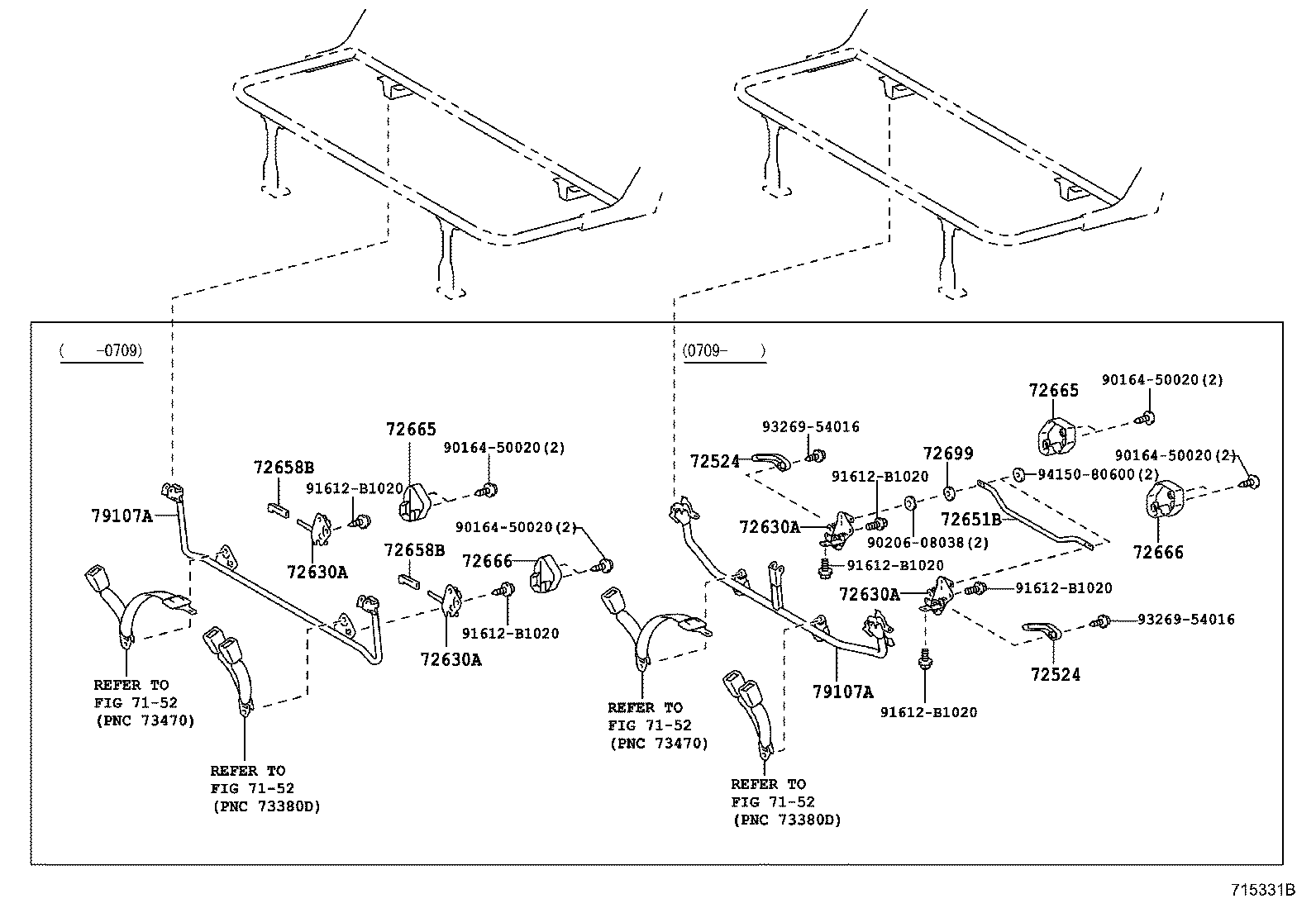

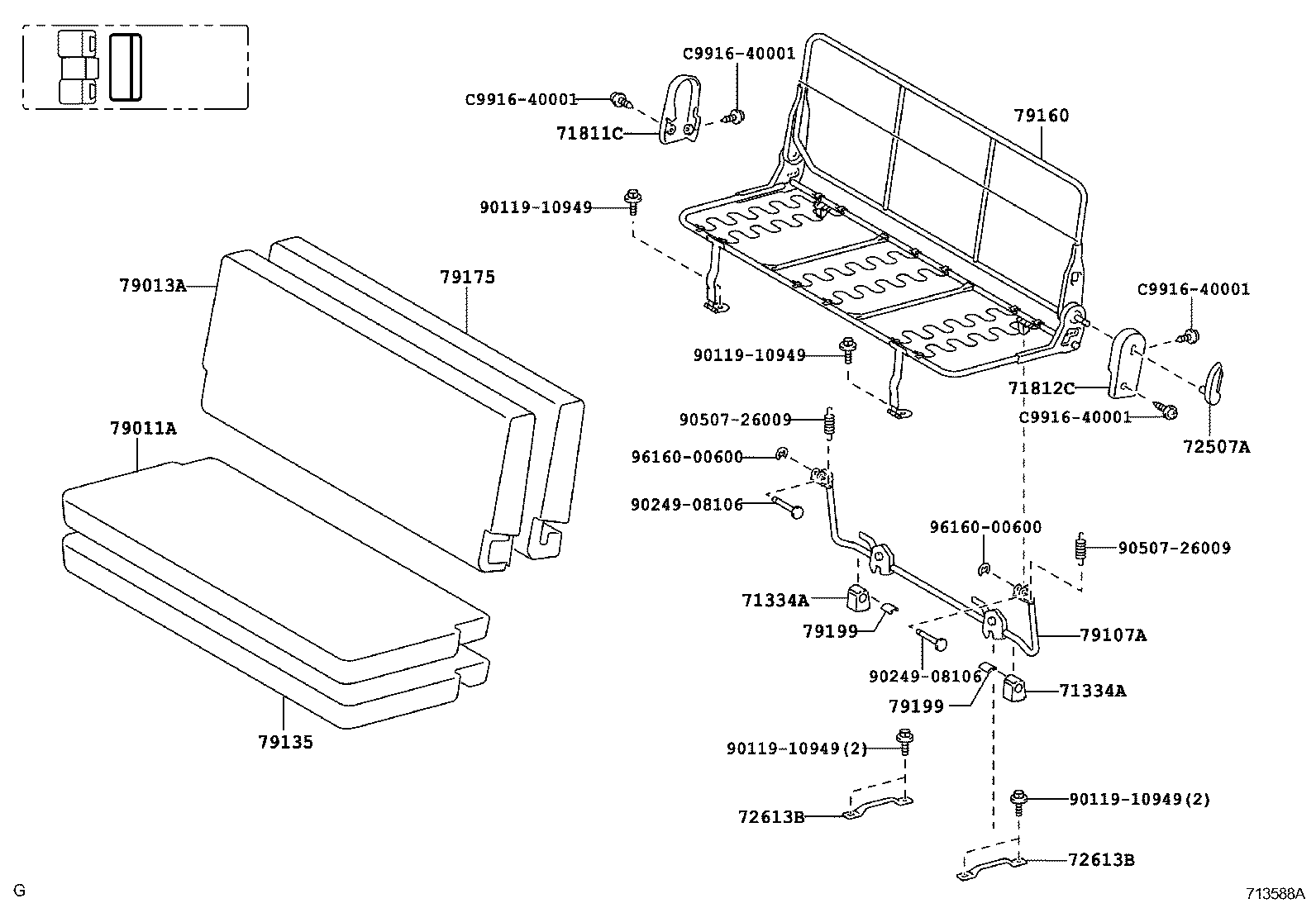

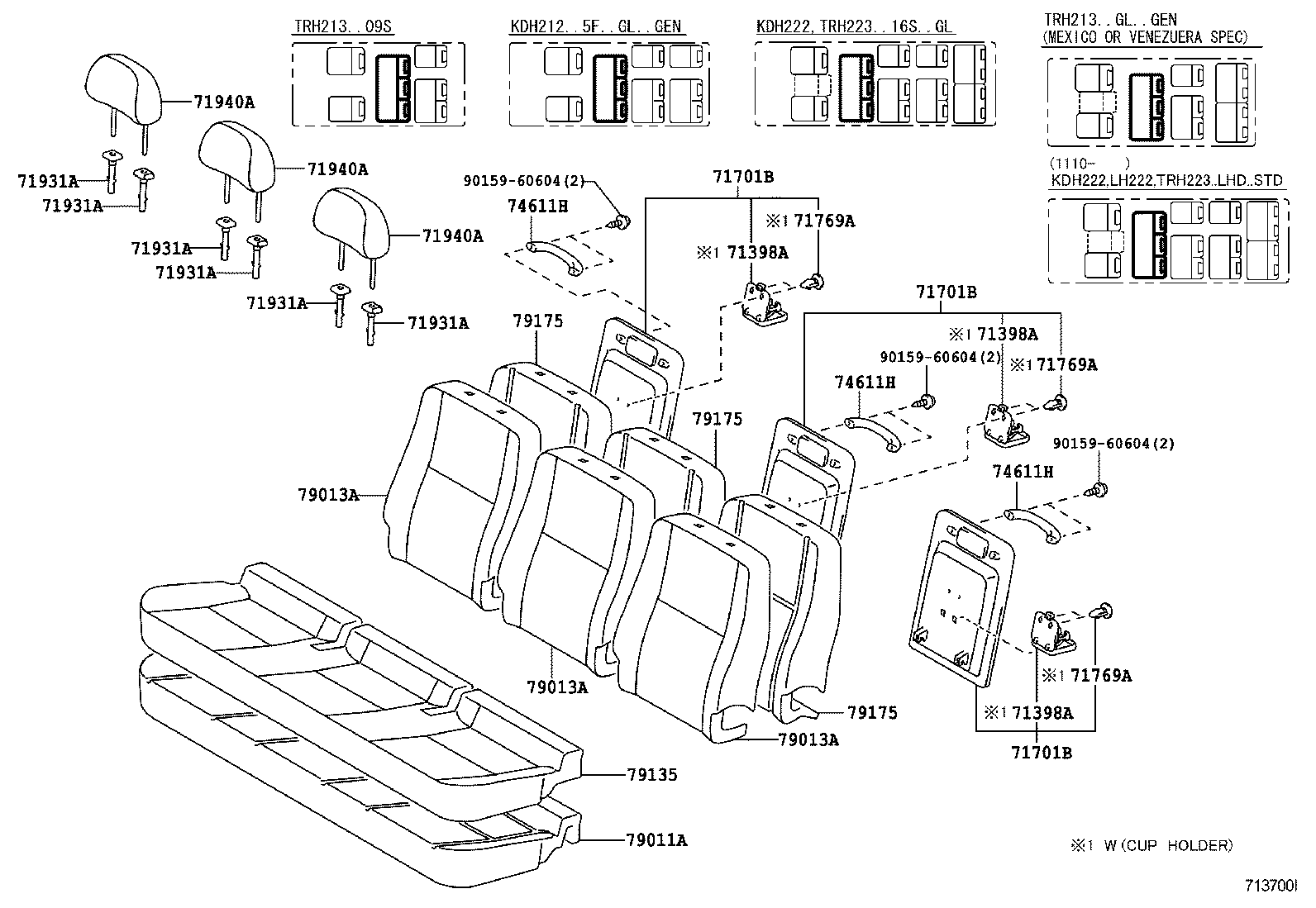

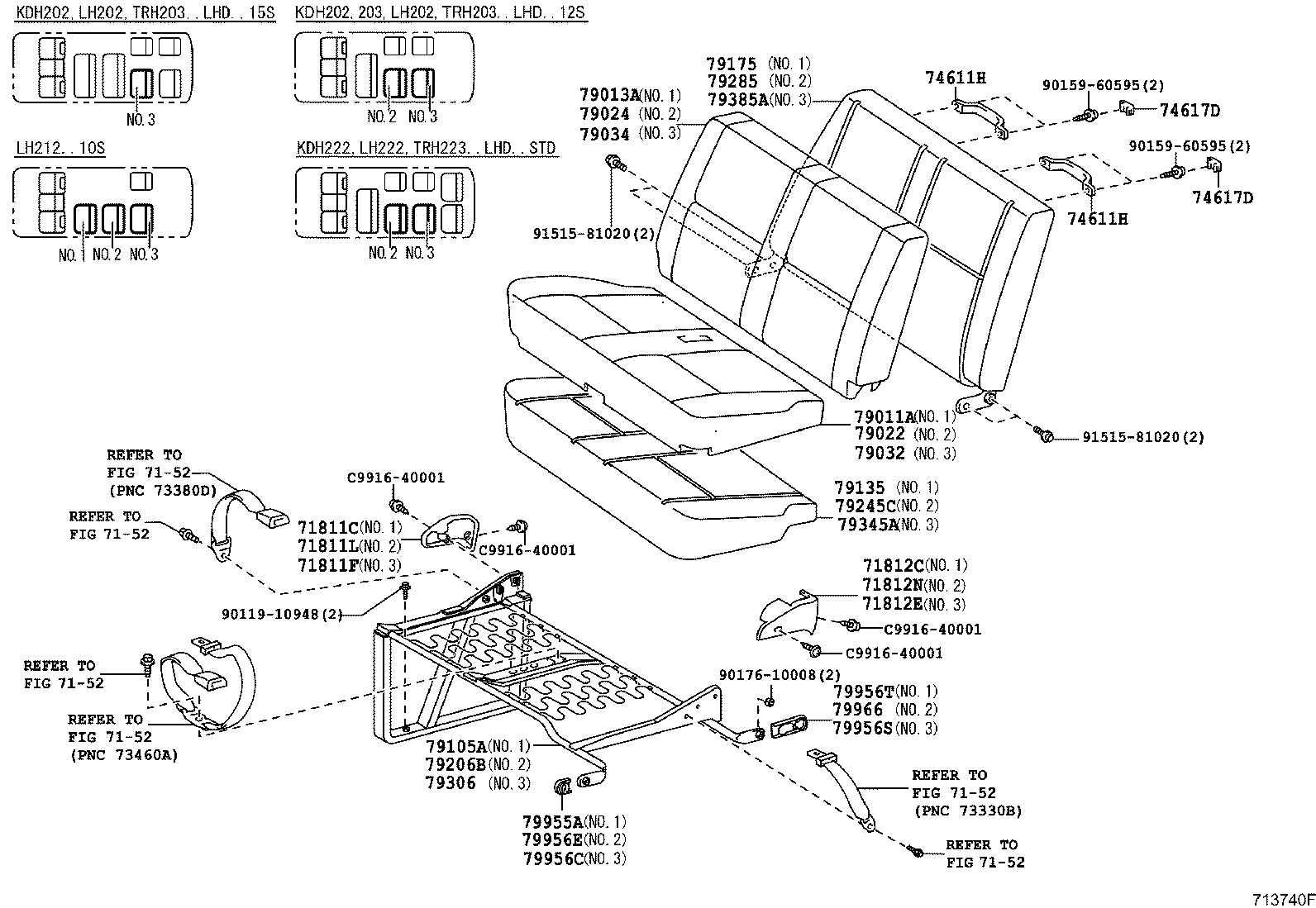

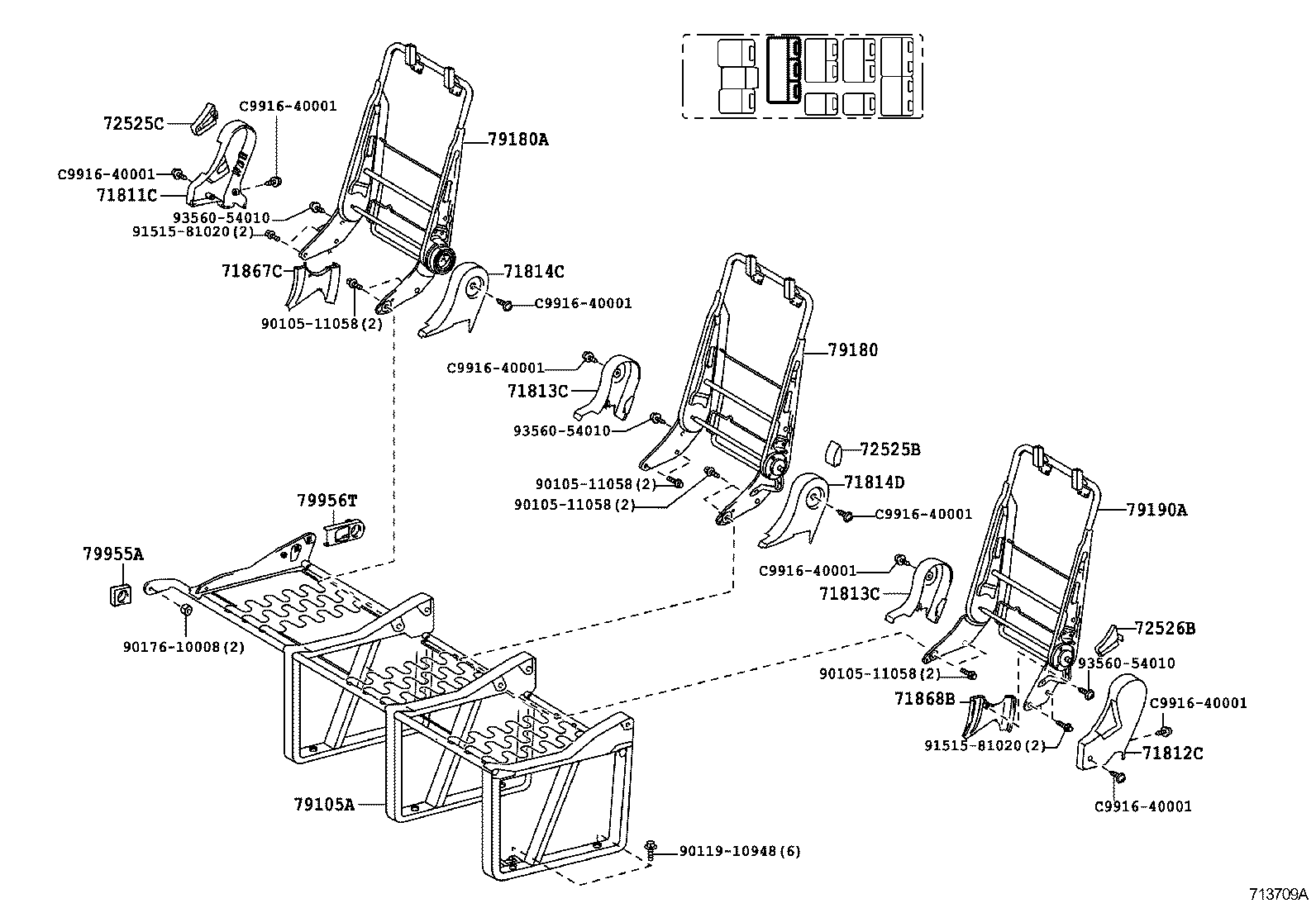

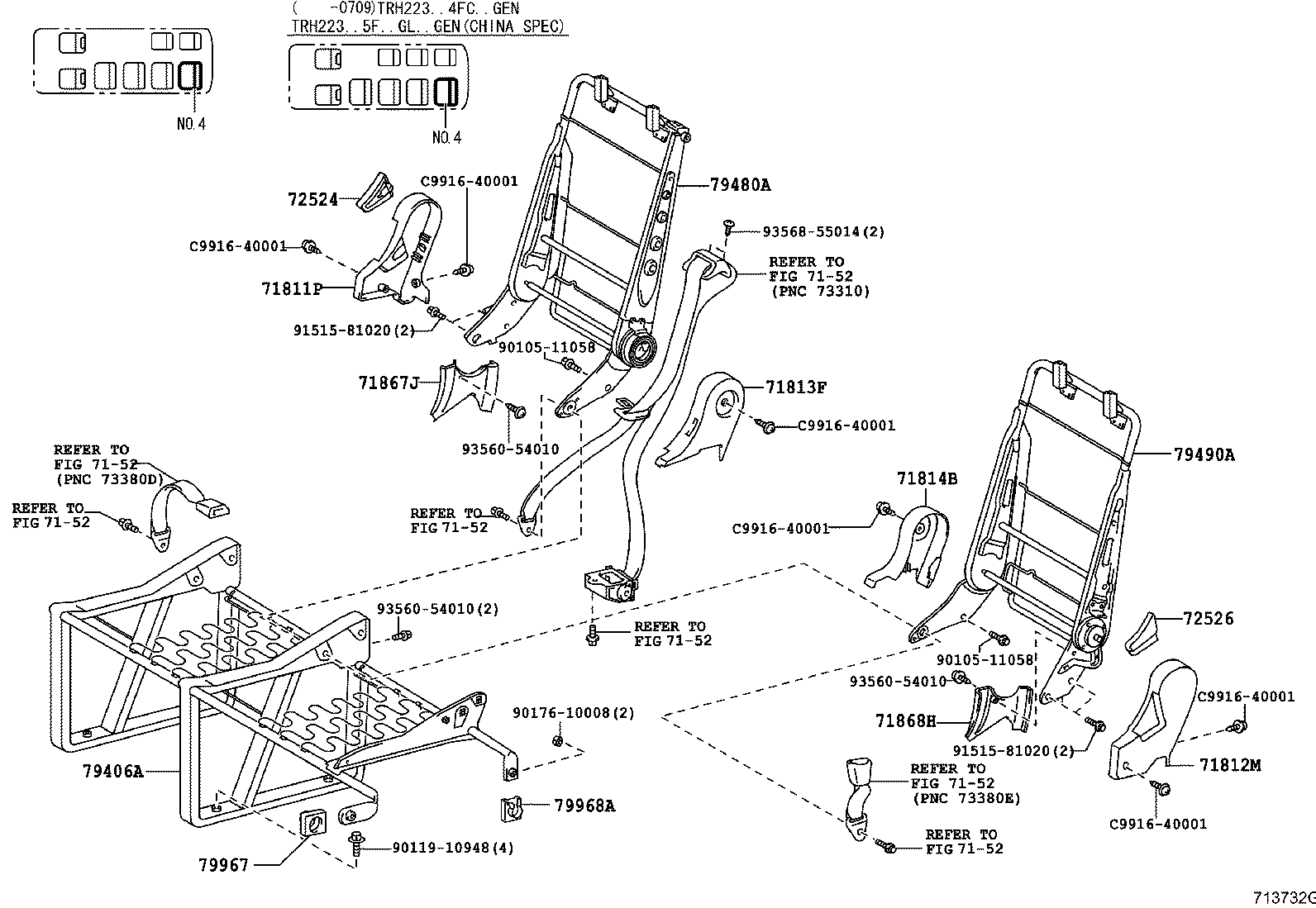

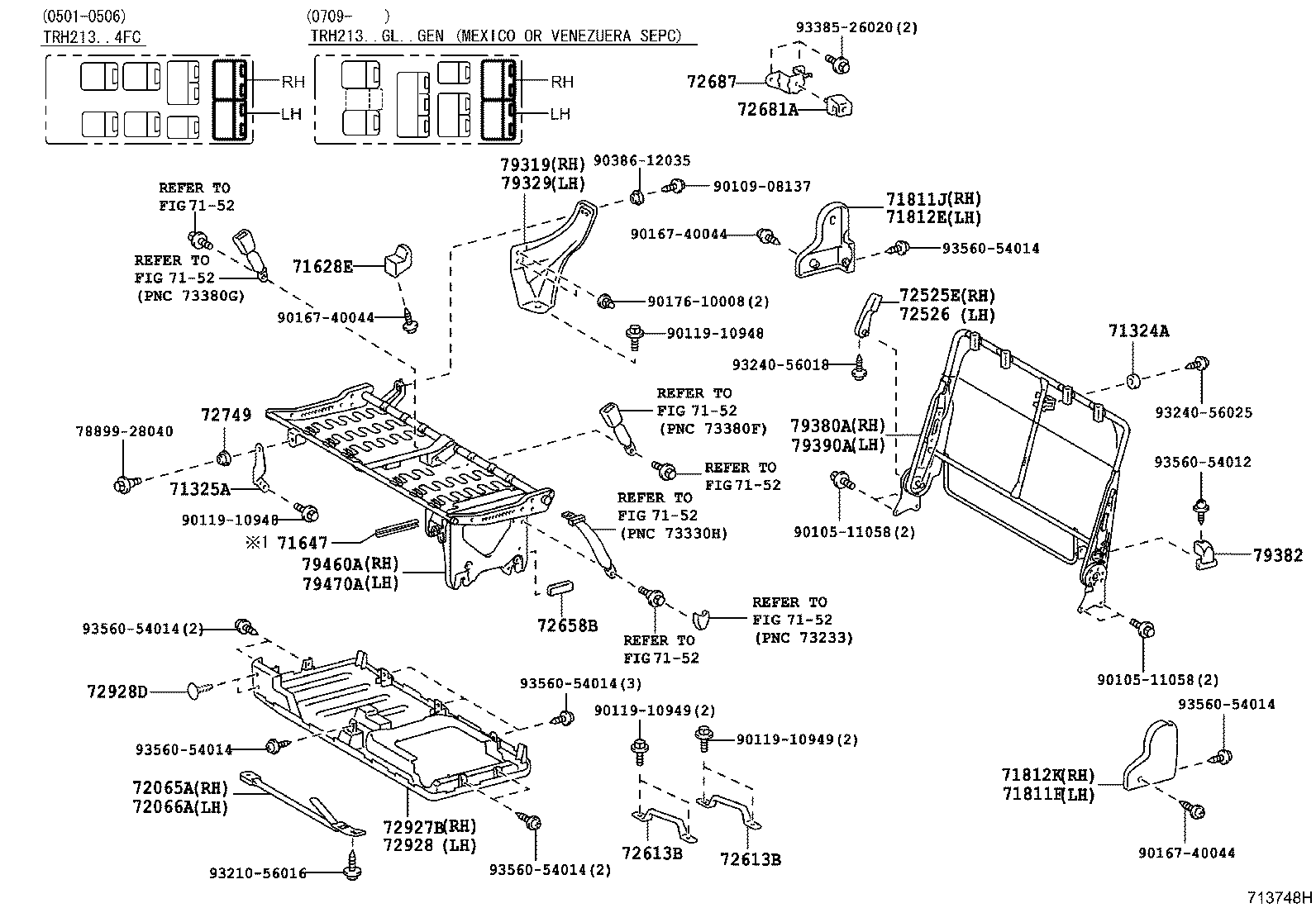

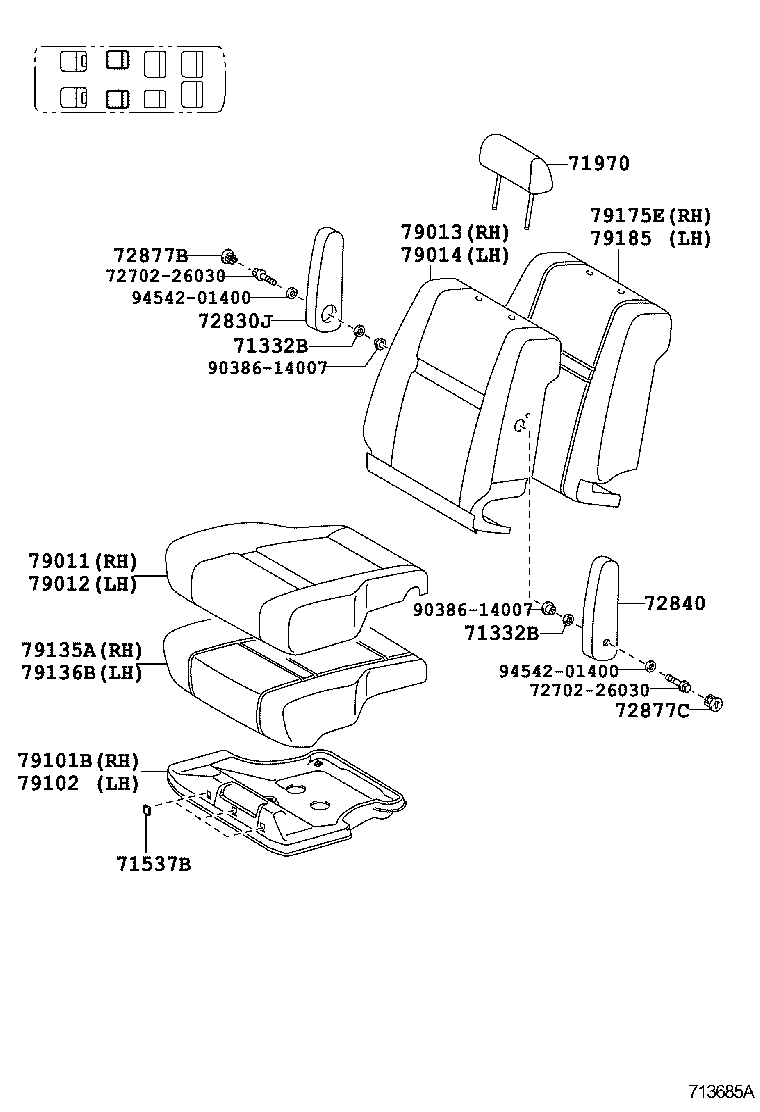

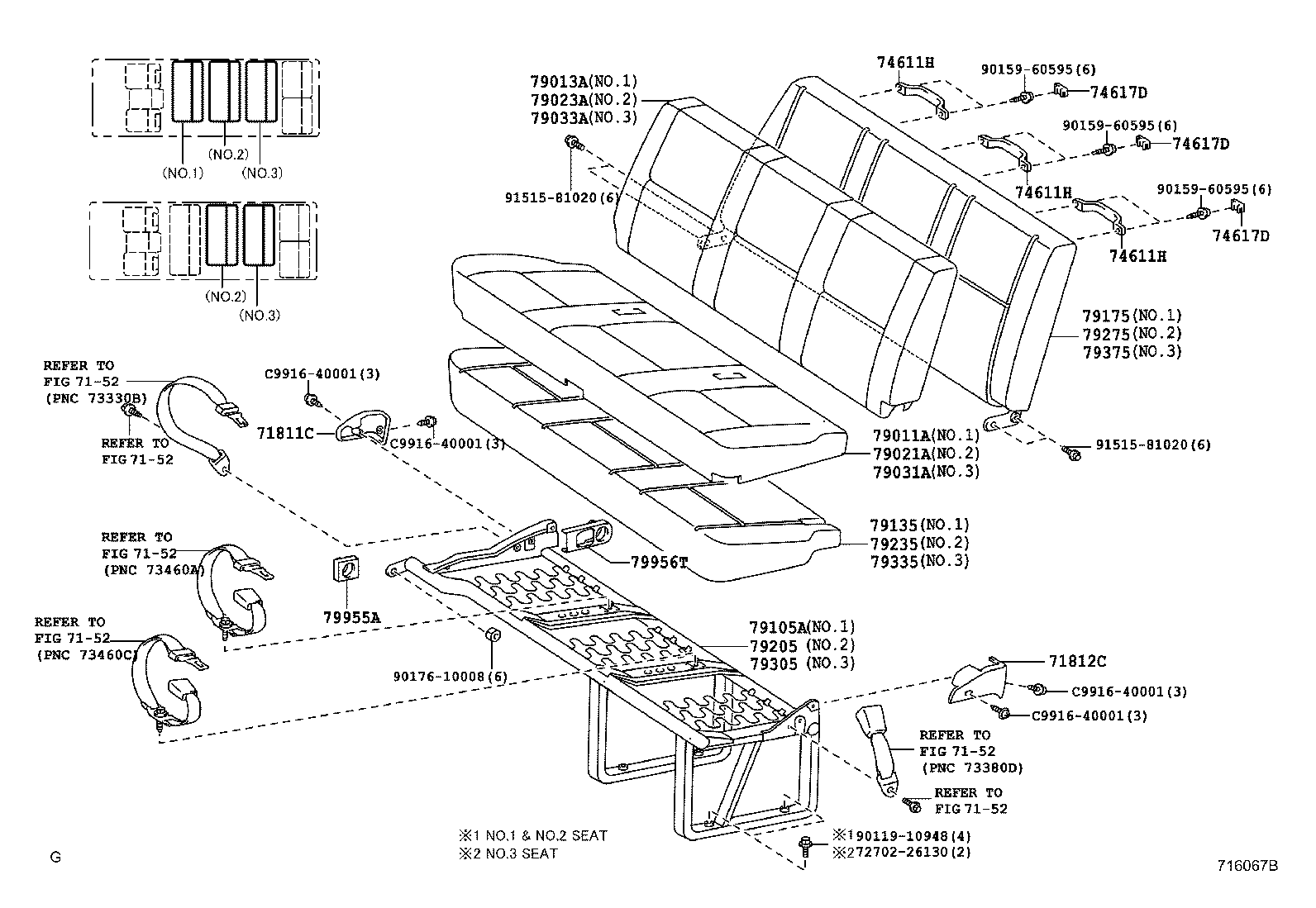

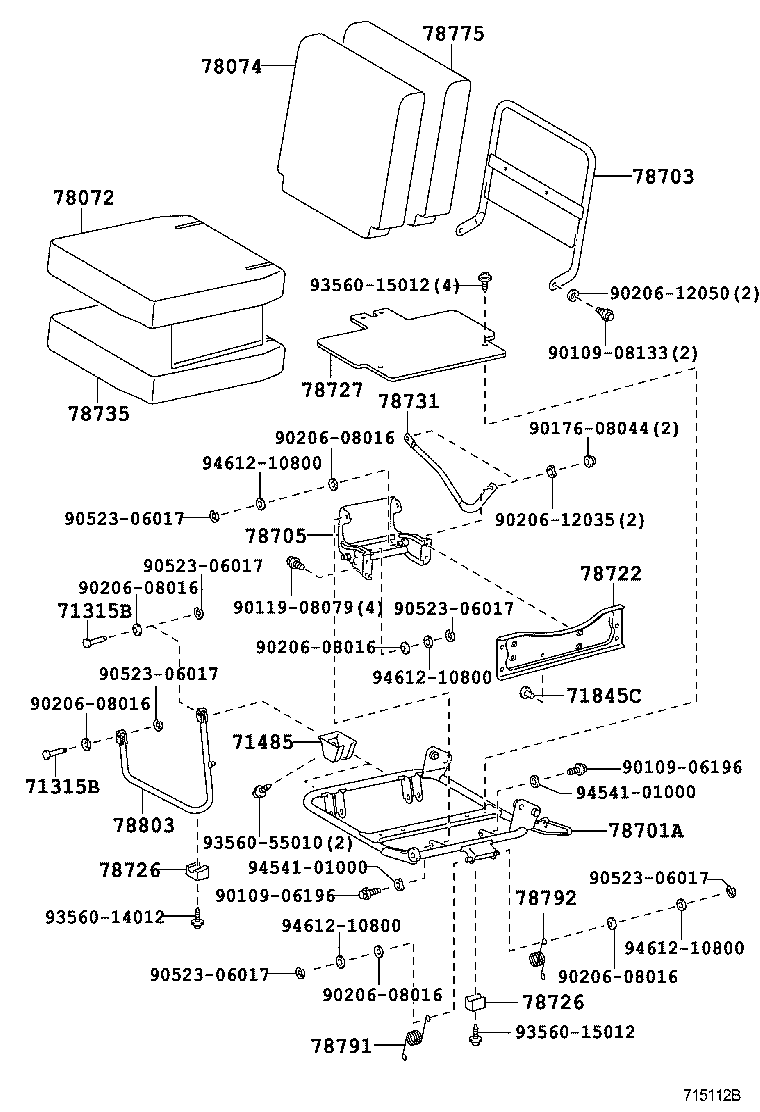

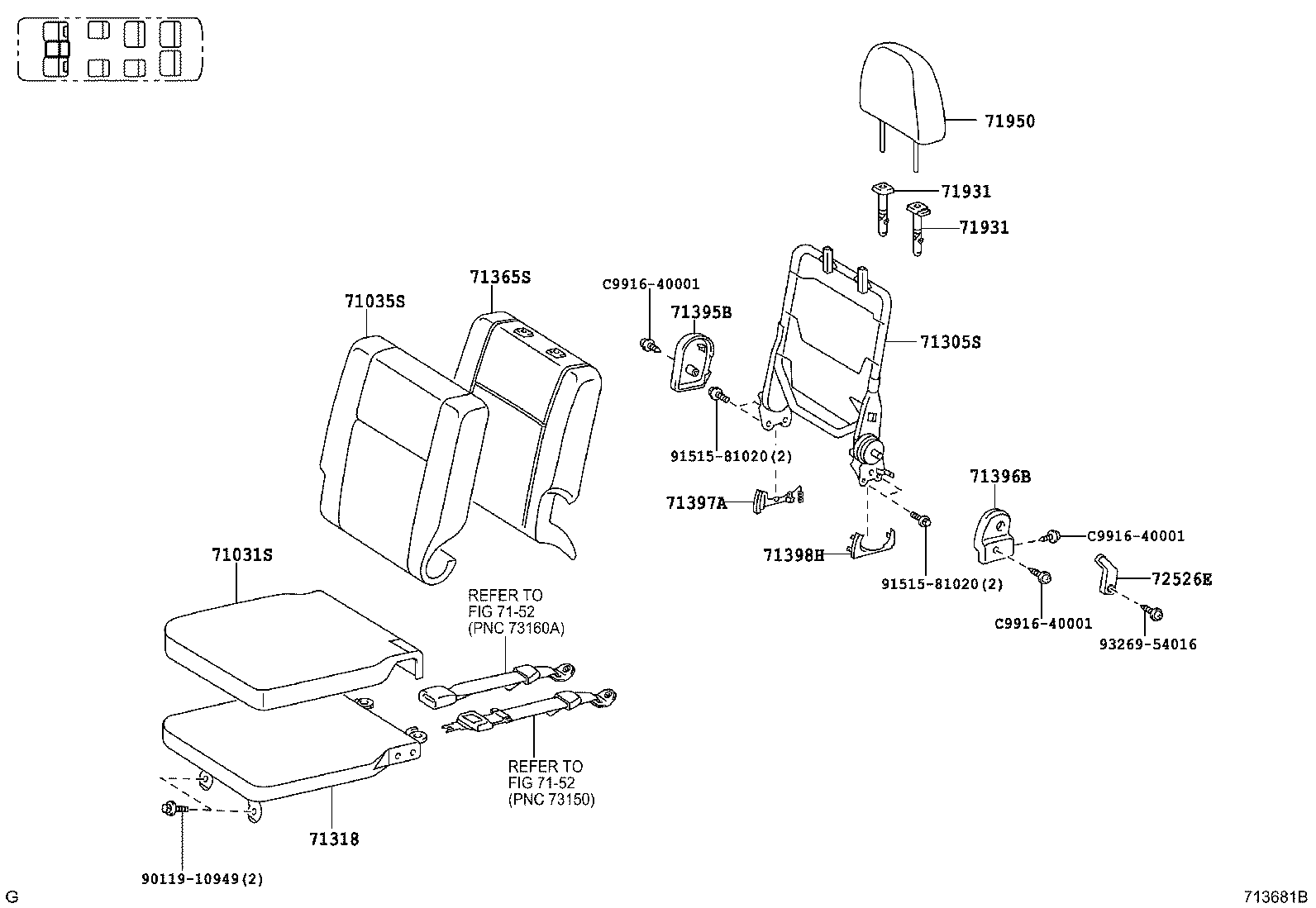

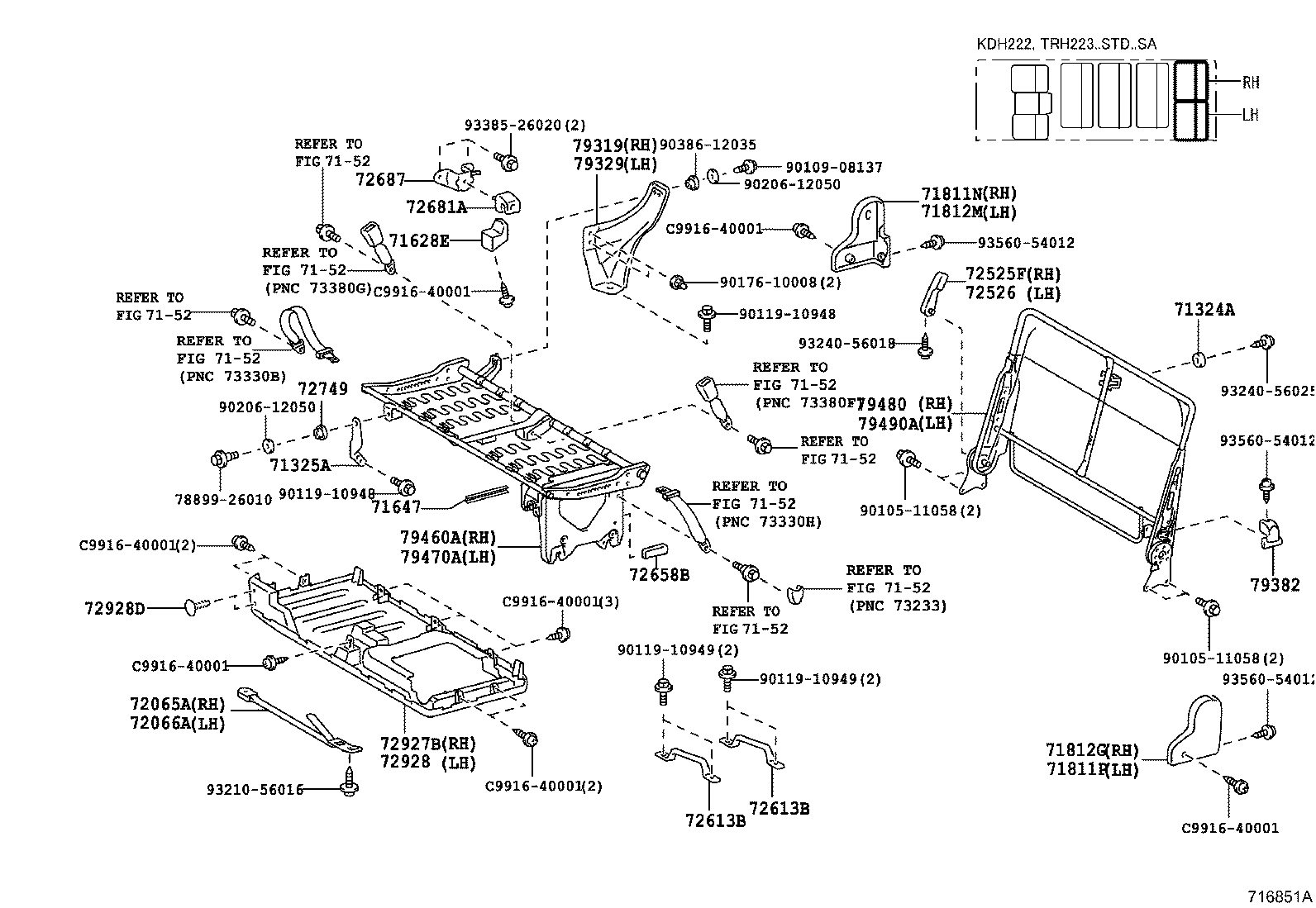

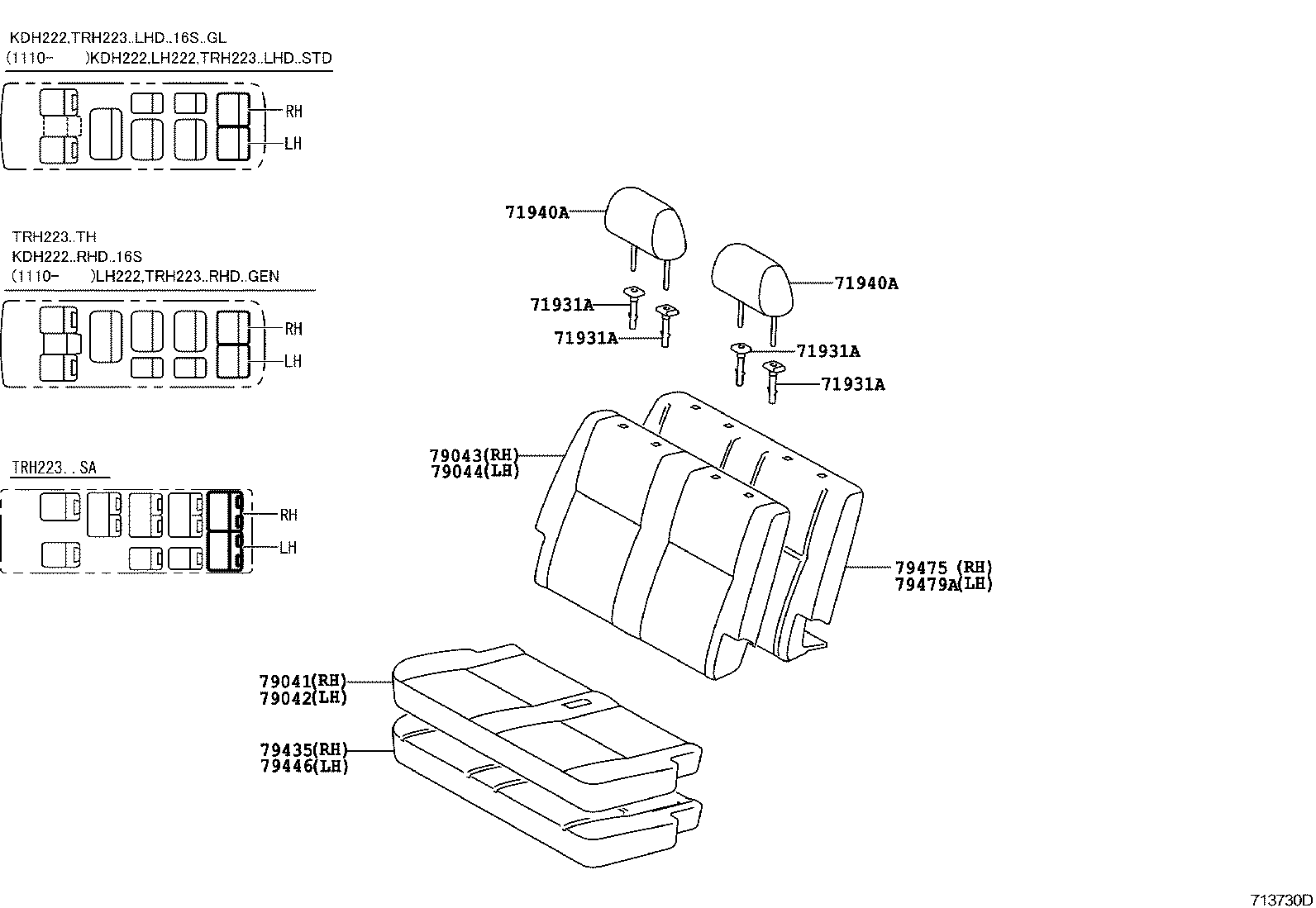

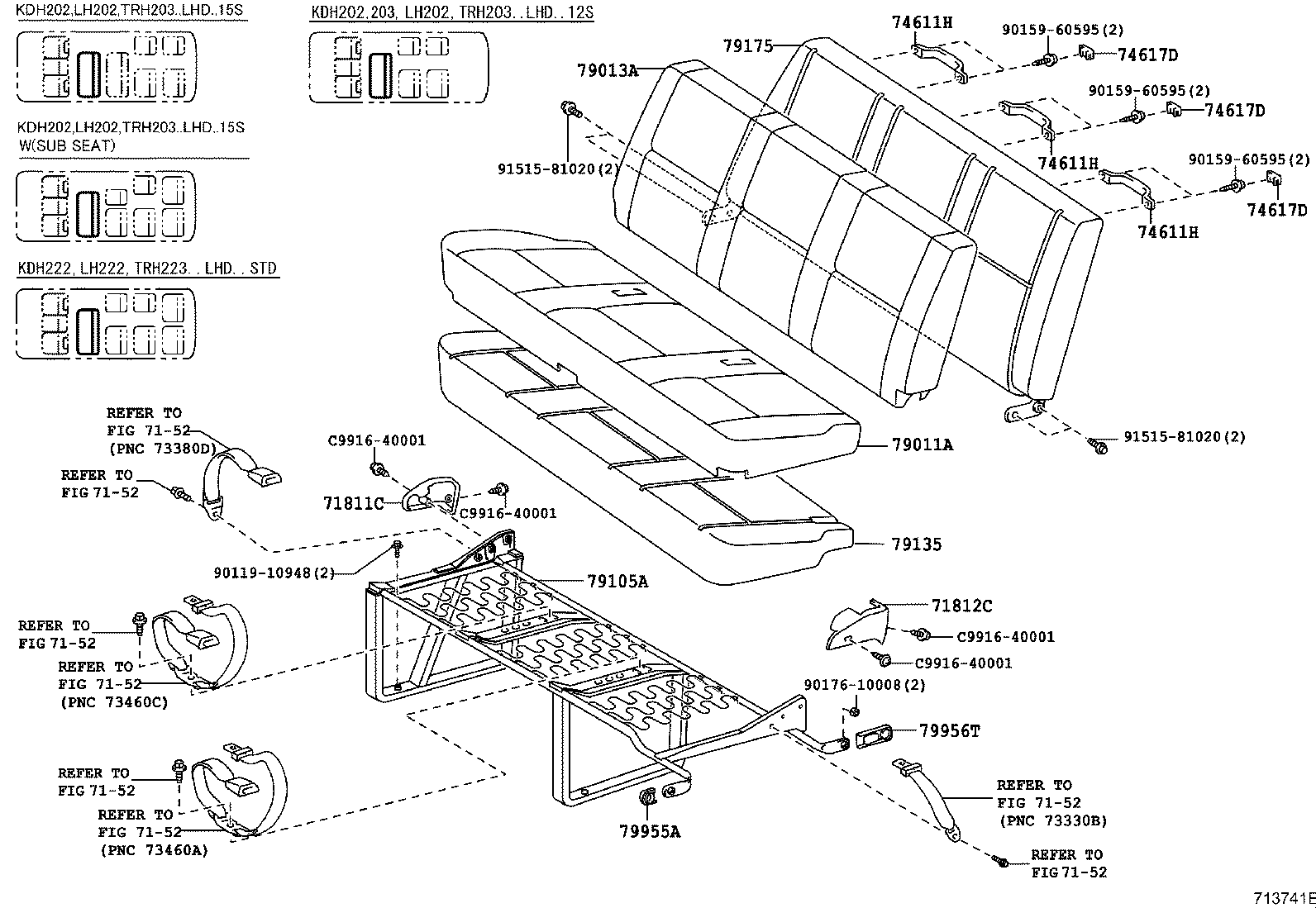

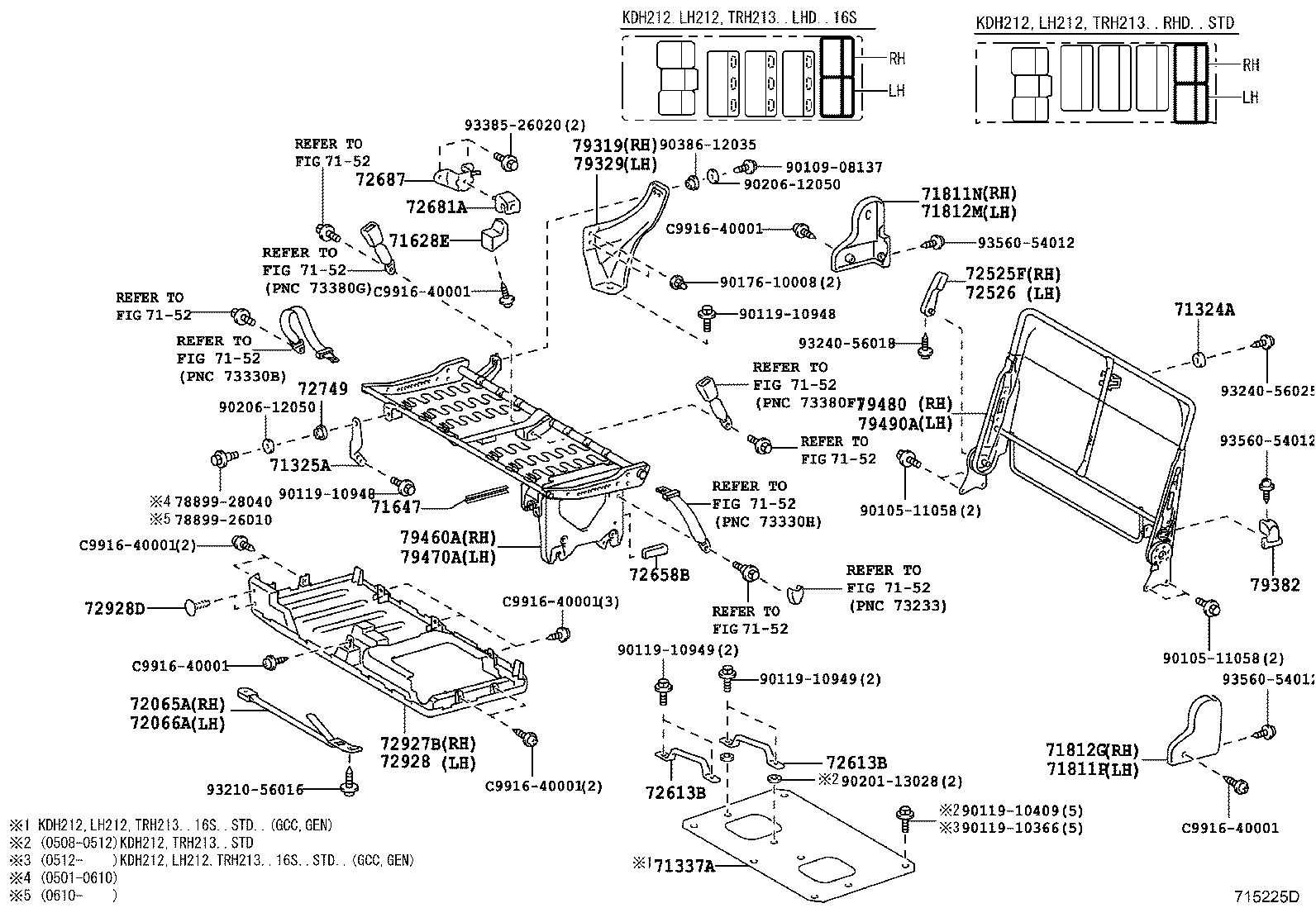

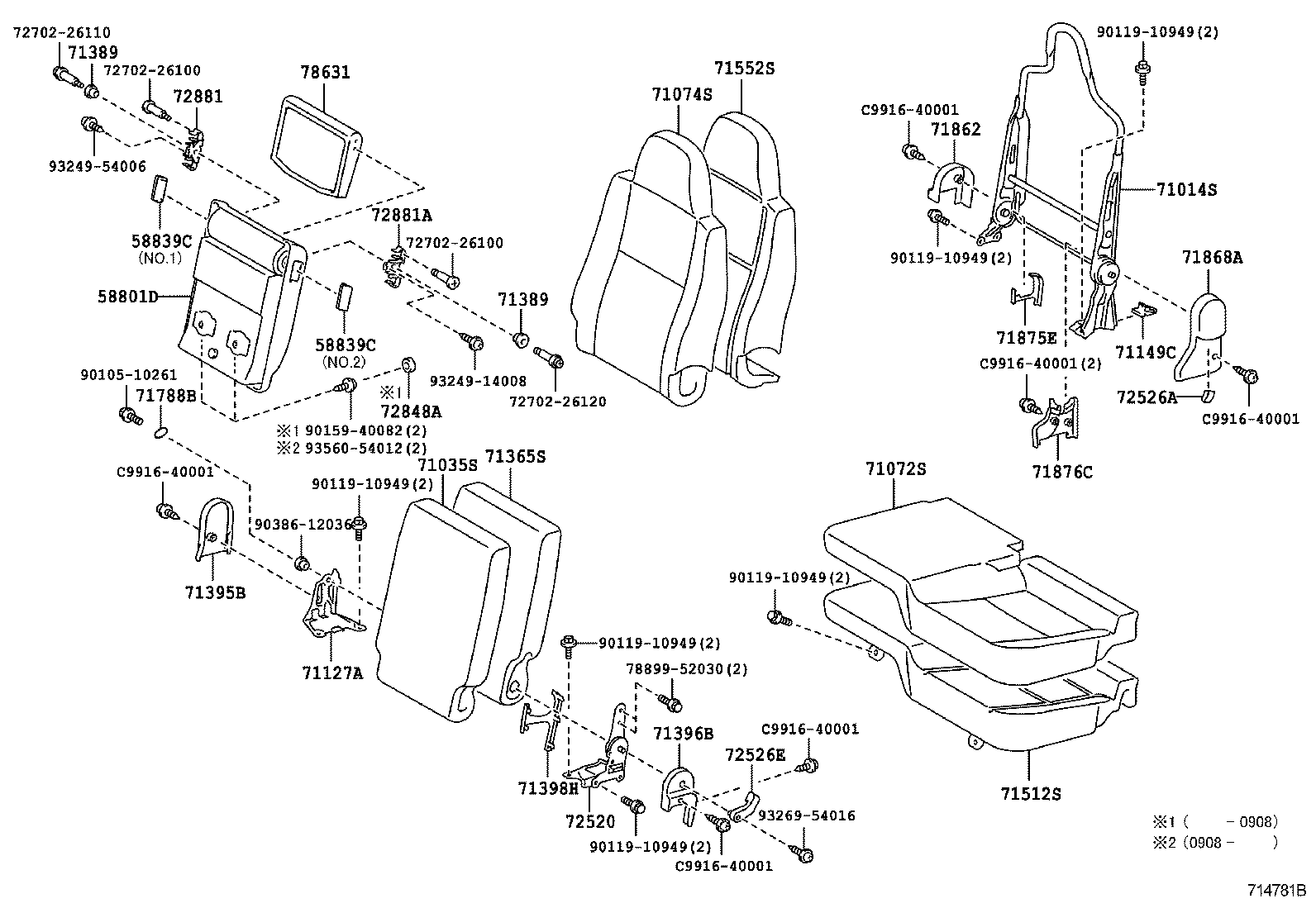

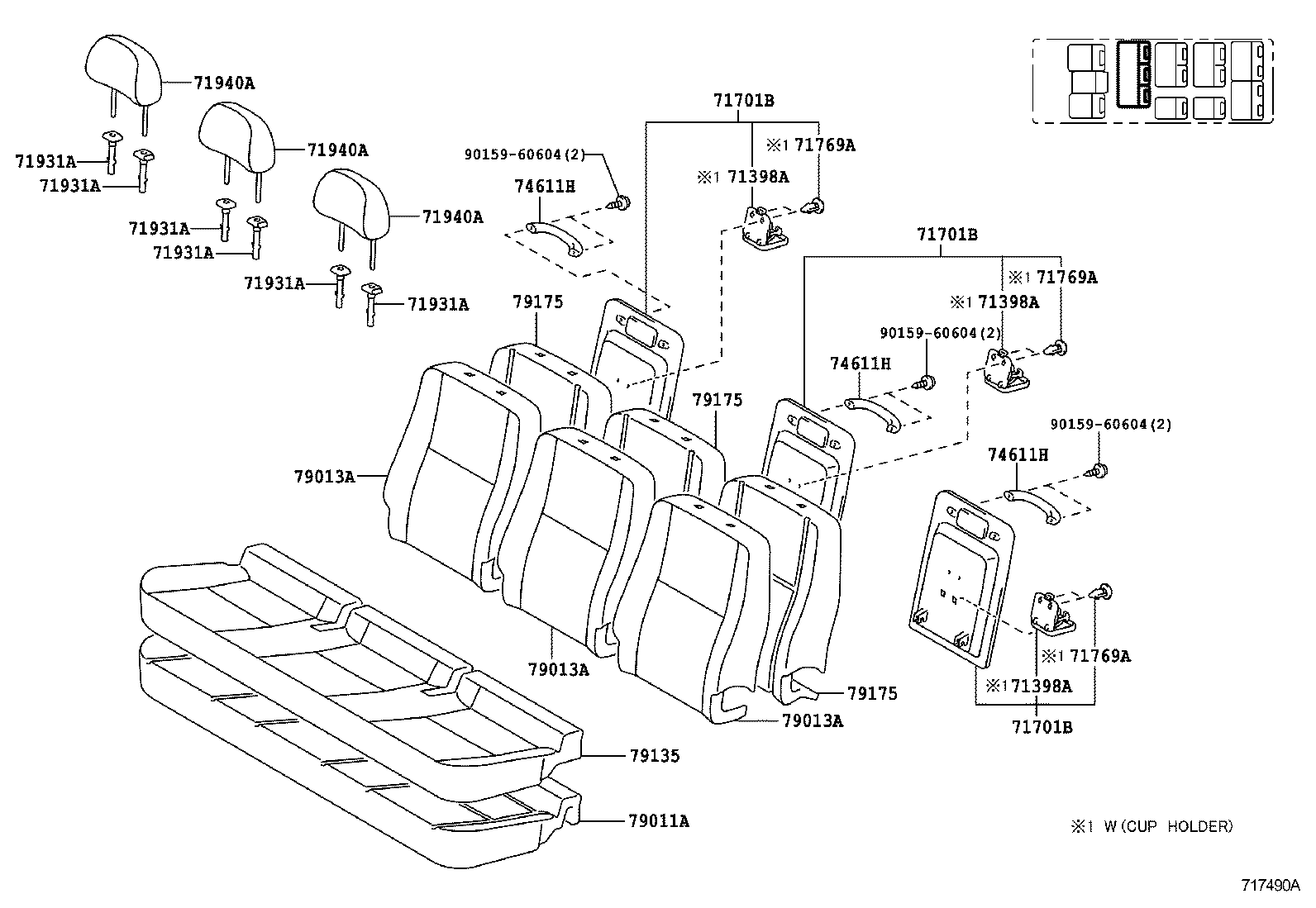

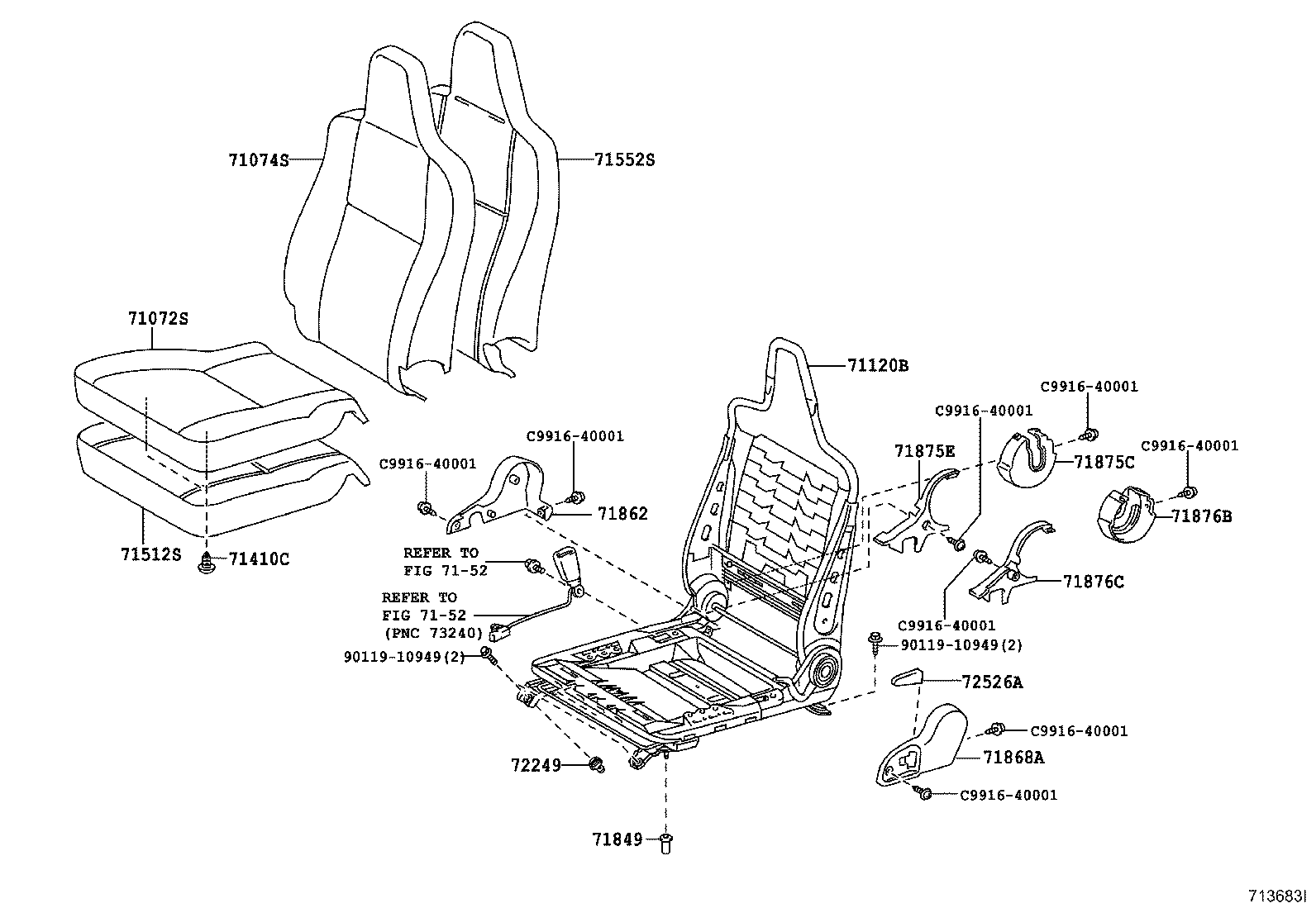

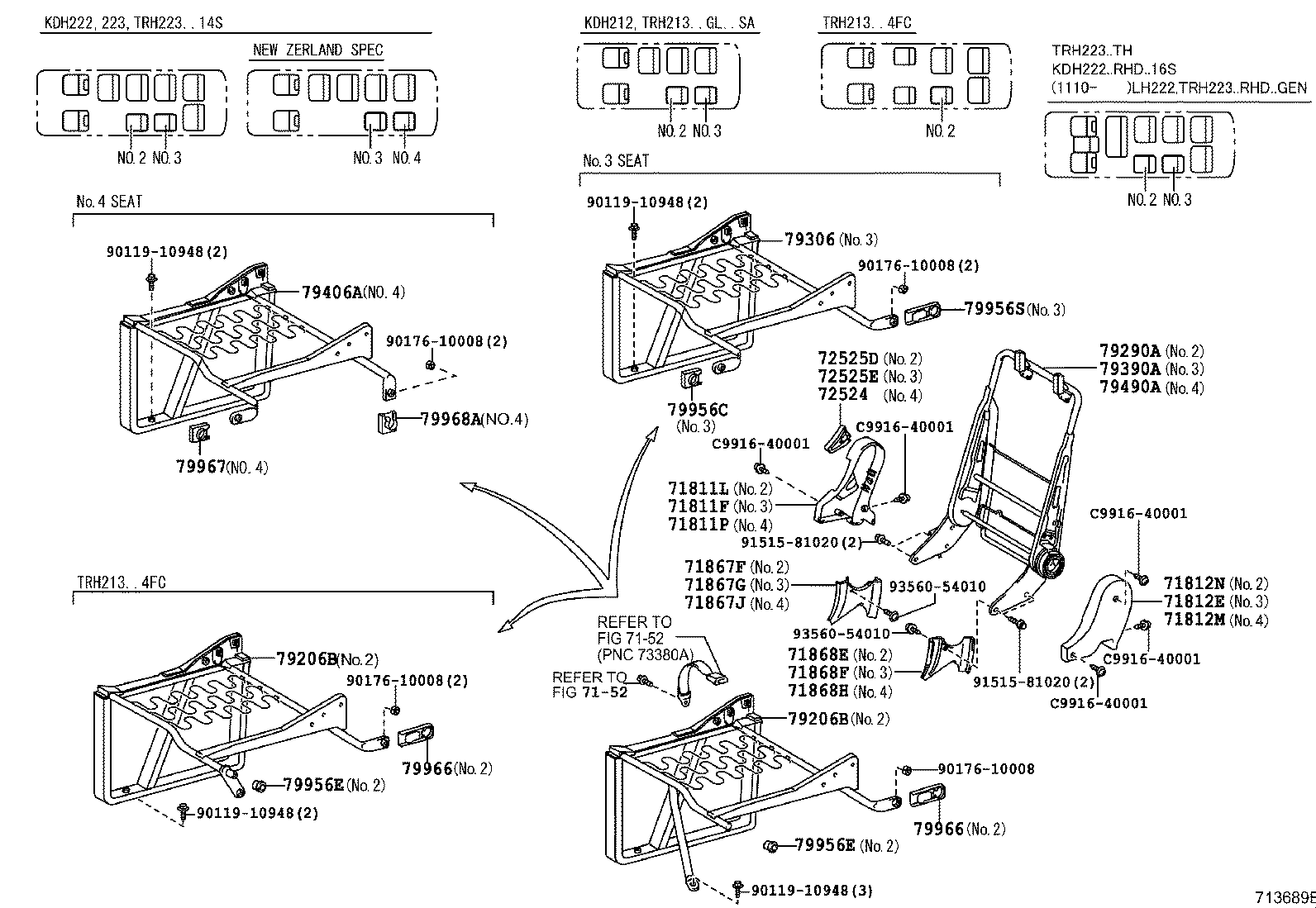

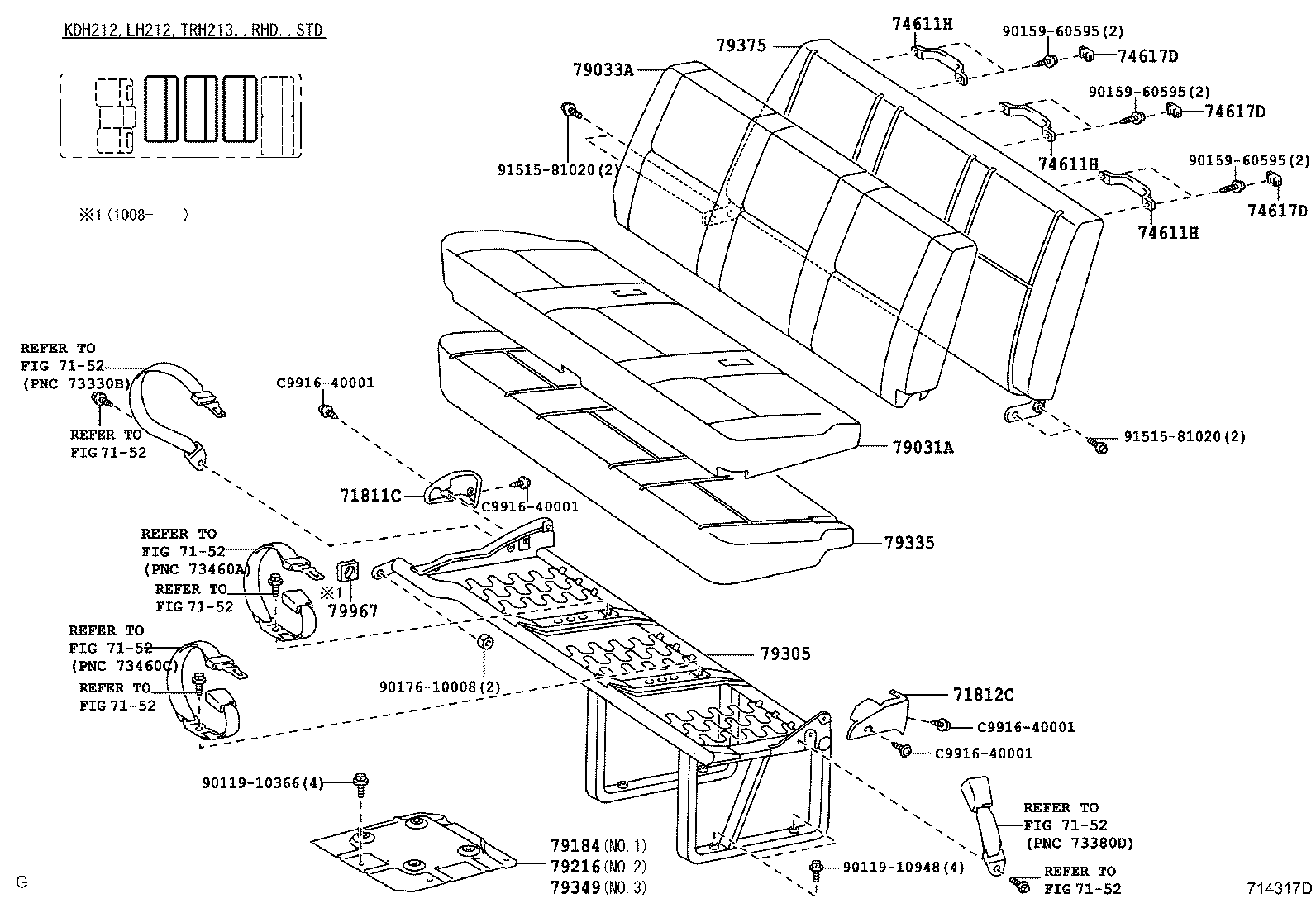

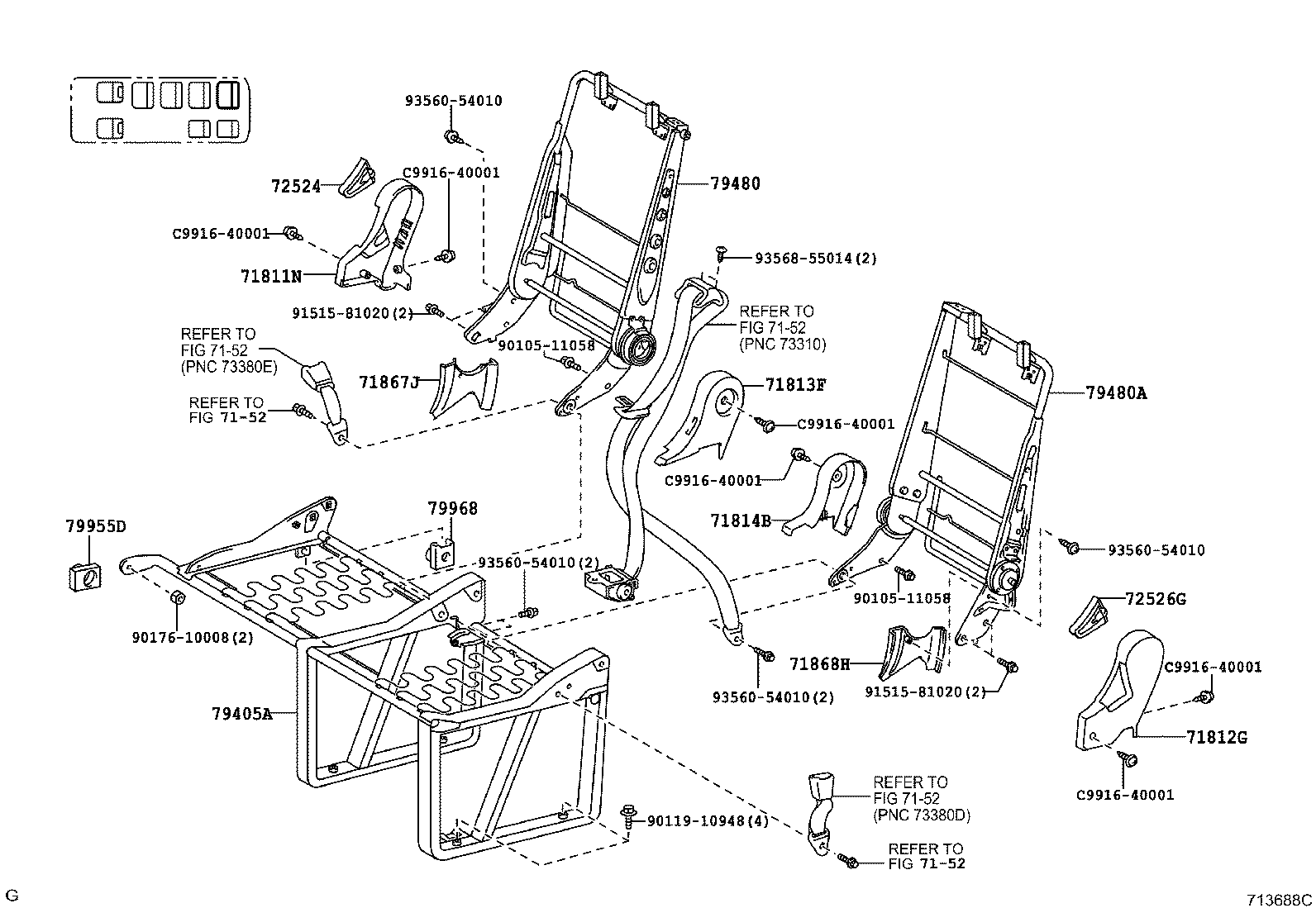

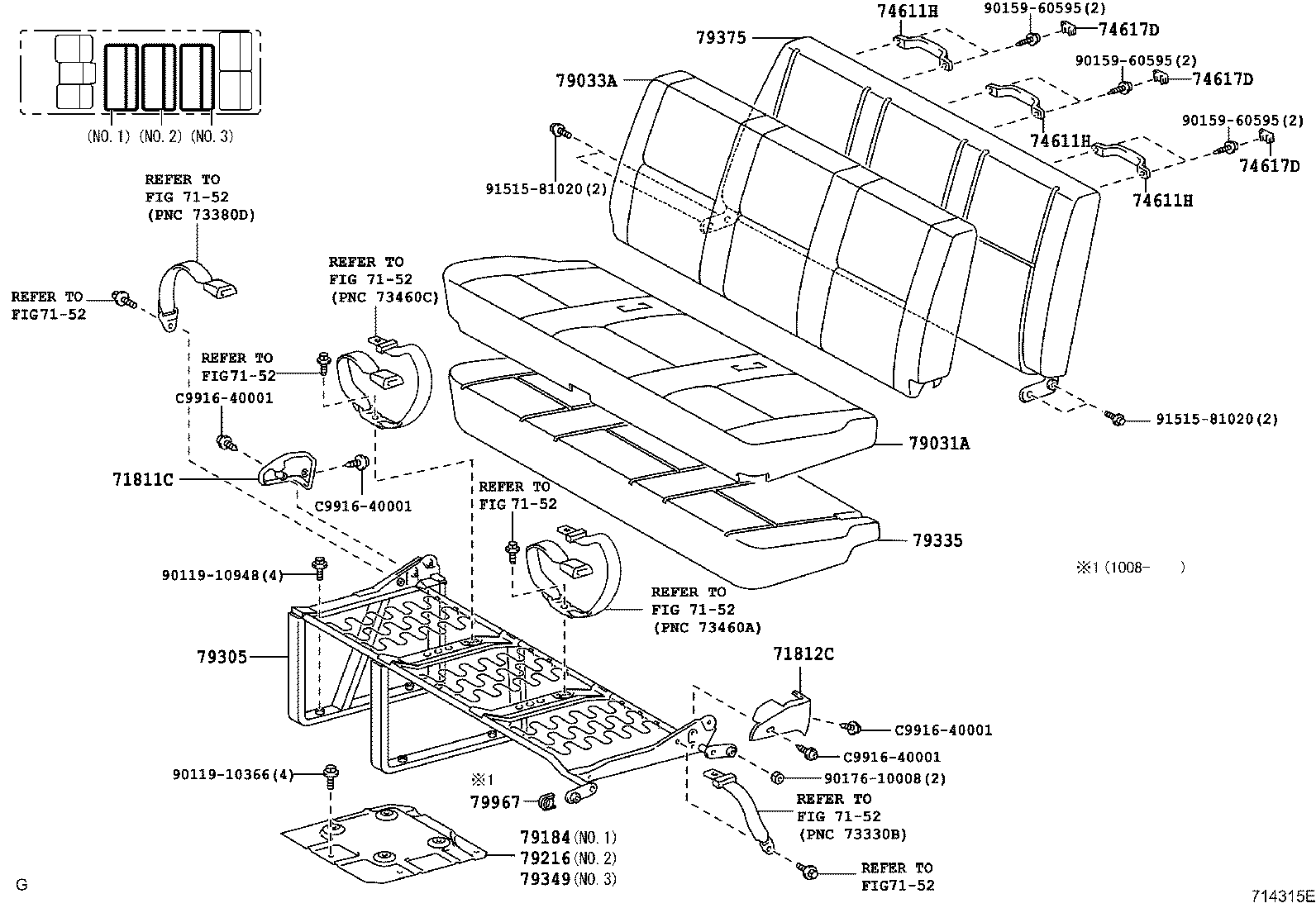

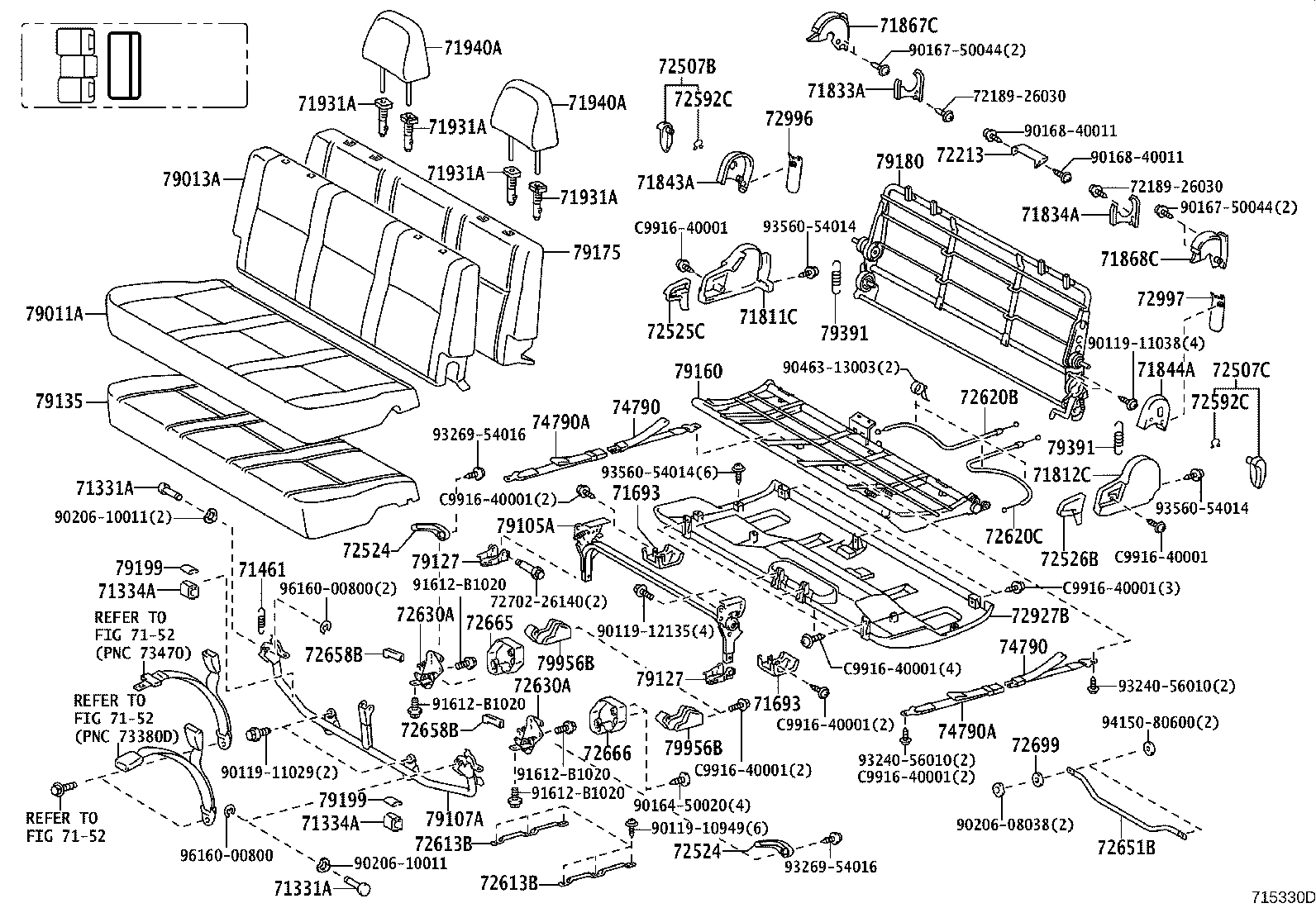

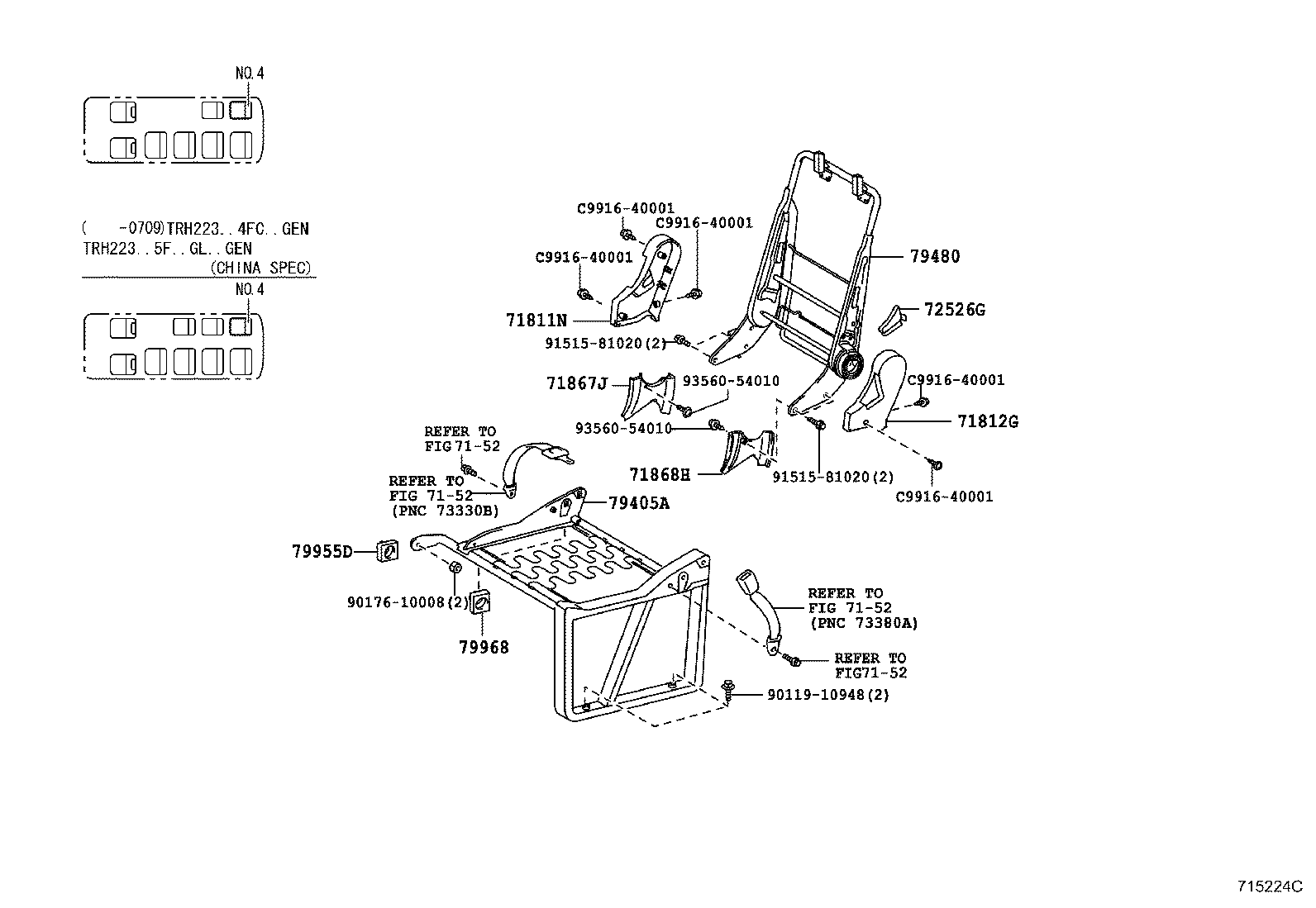

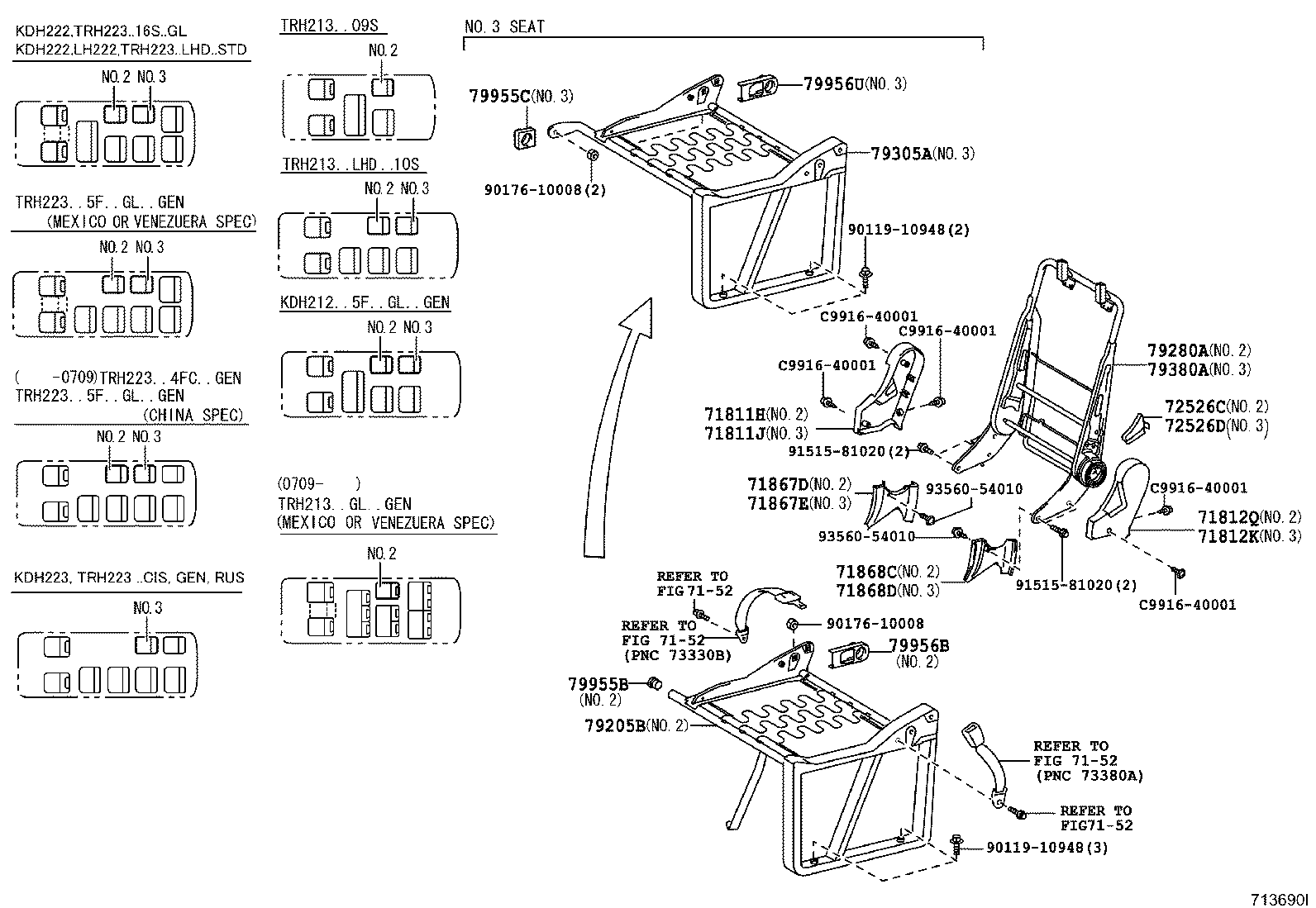

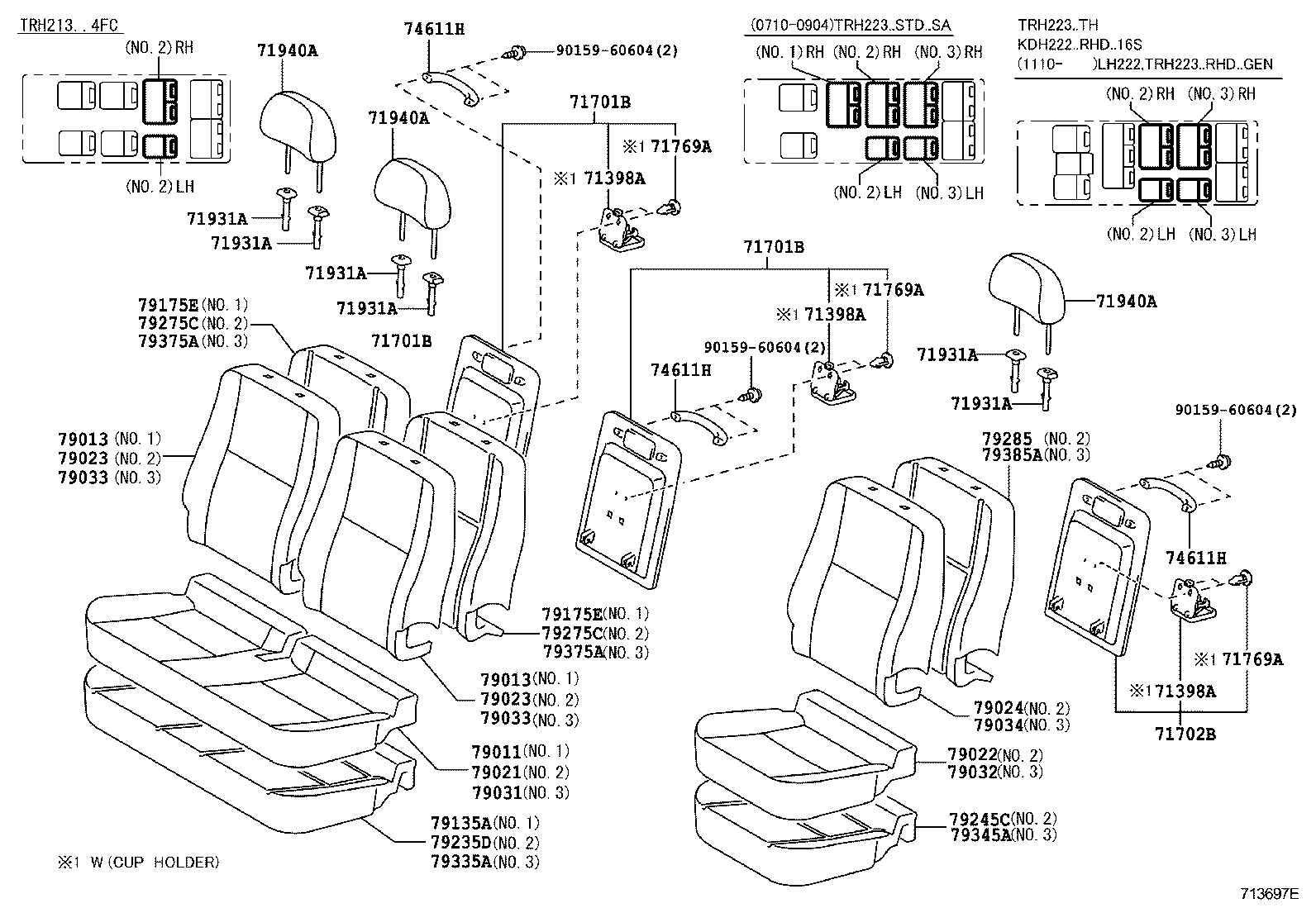

Figure 713679J 713679J 2005-01 → — Figure 713559J 713559J 2005-01 → — Figure 713682D 713682D 2005-01 → 2006-10 Figure 714781B 714781B 2006-10 → 2007-09 Figure 714781B 714781B 2006-10 → — Figure 714782B 714782B 2006-10 → — Figure 713683I 713683I 2005-01 → — Figure 713684I 713684I 2005-01 → — Figure 713681B 713681B 2005-01 → — Figure 717095B 717095B 2007-09 → — Figure 713685A 713685A 2005-01 → 2005-06 Figure 713686A 713686A 2005-01 → 2005-06 Figure 713708H 713708H 2005-01 → 2007-09 Figure 713986B 713986B 2005-08 → 2012-05 Figure 713992H 713992H 2005-08 → 2012-05 Figure 713588A 713588A 2005-01 → — Figure 715331B 715331B 2005-01 → — Figure 715330D 715330D 2007-09 → — Figure 715330D 715330D 2008-11 → — Figure 713697E 713697E 2005-01 → 2005-06 Figure 713697E 713697E 2005-01 → — Figure 713697E 713697E 2006-10 → — Figure 713697E 713697E 2007-10 → 2009-04 Figure 713697E 713697E 2011-10 → — Figure 713699E 713699E 2005-01 → — Figure 713689E 713689E 2005-01 → — Figure 713689E 713689E 2005-01 → — Figure 713689E 713689E 2011-10 → — Figure 713706G 713706G 2005-01 → 2005-06 Figure 713706G 713706G 2005-01 → — Figure 713706G 713706G 2006-10 → — Figure 713706G 713706G 2007-10 → 2009-04 Figure 713706G 713706G 2011-10 → — Figure 713687E 713687E 2005-01 → — Figure 713688C 713688C 2005-01 → 2010-08 Figure 713688C 713688C 2010-08 → — Figure 713701H 713701H 2005-01 → — Figure 713701H 713701H 2007-09 → — Figure 713701H 713701H 2011-10 → — Figure 713702H 713702H 2005-01 → — Figure 713690I 713690I 2005-01 → — Figure 713690I 713690I 2011-10 → — Figure 715224C 715224C 2005-01 → — Figure 713733G 713733G 2005-01 → — Figure 713733G 713733G 2007-09 → — Figure 713733G 713733G 2011-10 → — Figure 713691H 713691H 2005-01 → — Figure 713732G 713732G 2005-01 → — Figure 717490A 717490A 2005-01 → 2007-09 Figure 717490A 717490A 2006-10 → — Figure 717490A 717490A 2011-10 → — Figure 717490A 717490A 2012-05 → — Figure 713709A 713709A 2005-01 → 2007-09 Figure 713709A 713709A 2006-10 → 2011-05 Figure 713709A 713709A 2011-10 → — Figure 713700I 713700I 2005-01 → — Figure 713700I 713700I 2005-05 → 2007-09 Figure 713700I 713700I 2011-10 → — Figure 713710G 713710G 2005-01 → — Figure 713710G 713710G 2005-05 → 2007-09 Figure 713710G 713710G 2011-10 → — Figure 713704B 713704B 2005-01 → — Figure 713734D 713734D 2005-01 → — Figure 713694G 713694G 2005-01 → — Figure 713735F 713735F 2005-01 → — Figure 713736F 713736F 2005-01 → — Figure 713695H 713695H 2005-01 → 2007-09 Figure 713739G 713739G 2005-01 → — Figure 713740F 713740F 2005-01 → — Figure 713741E 713741E 2005-01 → — Figure 713696H 713696H 2005-01 → — Figure 714315E 714315E 2005-12 → — Figure 714317D 714317D 2006-01 → — Figure 716067B 716067B 2009-04 → — Figure 716067B 716067B 2012-05 → — Figure 713692B 713692B 2005-01 → — Figure 713730D 713730D 2005-01 → — Figure 713730D 713730D 2006-10 → — Figure 713730D 713730D 2007-10 → 2009-04 Figure 713730D 713730D 2011-10 → — Figure 713737I 713737I 2005-01 → — Figure 713737I 713737I 2009-04 → — Figure 713747A 713747A 2005-01 → 2005-06 Figure 713747A 713747A 2007-09 → — Figure 713693I 713693I 2005-01 → — Figure 713731K 713731K 2005-01 → — Figure 713731K 713731K 2007-10 → 2009-04 Figure 713731K 713731K 2011-10 → — Figure 713731K 713731K 2011-10 → — Figure 717513B 717513B 2005-01 → — Figure 713748H 713748H 2005-01 → 2005-06 Figure 713748H 713748H 2007-09 → — Figure 715225D 715225D 2005-08 → — Figure 716851A 716851A 2009-04 → — Figure 715112B 715112B 2007-09 → — Figure 715113B 715113B 2007-09 → — Figure 717957D 717957D 2012-04 → —

Part groups

PNCDescription
58801D Box Assy, Console
58839C Cover, Front Seatback Control Panel Hole
71014S Frame Sub-assy, Front Seatback, LH
71031S Cover Sub-assy, Center Seat Cushion
71035S Cover, Front Seatback, Center
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71127A Plate, FR0NT Seat Cushion Cover Set
71130 Leg Assy, Front Seat, RH
71149C Cover, Front Seat Leg, LH (FOR LH SEAT)
71305S Frame Sub-assy, Center Seatback
71315B Pin, Rear Seat Hinge
71318 Pad, Center Seat Cushion
71324A Cushion, Rear Seat
71325A Hinge, Rear Seat Cushion Leg
71331A Pin, Rear Seat Hinge
71331B Pin, Rear Seat Hinge, RH
71332B Spacer, Rear Seatback Hinge
71334A Stopper, Rear Seat Leg
71337A Plate, Rear Seat Leg
71365S Pad, Center Seatback
71389 Spacer, Center Seat Hinge
71395B Cover, Center Seat Hinge, RH
71396B Cover, Center Seat Hinge, LH
71397A Cover, Center Seat Hinge
71398A Holder, Rear Seatback
71398H Cover, Center Seat Hinge, Upper LH
71410C Clip(FOR FRONT SEAT CUSHION)
71461 Spring, Rear Seat Cushion
71485 Cover, Rear Seat Hinge
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71537B Protector, Rear Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71628E Spacer, Rear Seat Cushion
71647 Protector, Rear Seat Cushion Edge
71693 Cover, Rear Seat Cushion Hinge, Lower RH
71701B Board Sub-assy, Rear Seatback, RH
71702B Board Sub-assy, Rear Seatback, LH
71769A Clip, Rear Seatback Board
71788B Washer, Front Seatback Board Setting
71811C Cover, Reclining Adjuster, RH
71811F Cover, Reclining Adjuster, RH
71811H Cover, Reclining Adjuster, RH
71811J Cover, Reclining Adjuster, RH
71811L Cover, Reclining Adjuster, RH
71811N Cover, Reclining Adjuster, RH
71811P Cover, Reclining Adjuster, RH
71812C Cover, Reclining Adjuster, LH
71812E Cover, Reclining Adjuster, LH
71812F Shield, Rear Seat Cushion, LH
71812G Cover, Reclining Adjuster, LH
71812K Cover, Reclining Adjuster, LH
71812M Cover, Reclining Adjuster, LH
71812N Cover, Reclining Adjuster, LH
71812Q Cover, Reclining Adjuster, LH
71813C Shield, Front Seatback, RH
71813D Shield, Front Seatback, RH
71813E Shield, Front Seatback, RH
71813F Shield, Front Seatback, RH
71814B Shield, Front Seatback, LH
71814C Shield, Front Seatback, LH
71814D Shield, Front Seatback, LH
71814E Shield, Front Seatback, LH
71814F Shield, Front Seatback, LH
71833A Cover, Rear Seat Reclining, NO.1 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71843A Cover, Rear Seat Reclining, NO.2 RH
71844A Cover, Rear Seat Reclining, NO.2 LH
71845C Cap, Rear Seat Cover
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71867C Shield, Front Seat Cushion, Inner NO.1 RH
71867D Shield, Front Seat Cushion, Inner NO.1 RH
71867E Shield, Front Seat Cushion, Inner NO.1 RH
71867F Shield, Front Seat Cushion, Inner NO.1 RH
71867G Shield, Front Seat Cushion, Inner NO.1 RH
71867H Shield, Front Seat Cushion, Inner NO.1 RH
71867J Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71868B Shield, Rear Seat Cushion, Inner NO.1 LH
71868C Shield, Rear Seat Cushion, Inner NO.1 LH
71868D Shield, Rear Seat Cushion, Inner NO.1 LH
71868E Shield, Rear Seat Cushion, Inner NO.1 LH
71868F Shield, Rear Seat Cushion, Inner NO.1 LH
71868G Shield, Rear Seat Cushion, Inner NO.1 LH
71868H Shield, Rear Seat Cushion, Inner NO.1 LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875C Cover, Reclining Adjuster Inside, RH
71875E Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876B Cover, Reclining Adjuster Inside, LH
71876C Cover, Reclining Adjuster Inside, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71950 Headrest Assy, Front Seat
71970 Headrest Assy, Rear Seat
72065A Hook Sub-assy,Rear Seat Cushion Lock,RH
72066A Hook Sub-assy,Rear Seat Cushion Lock,LH
72213 Knob, Seat Track Adjusting Handle
72213B Knob, Seat Track Adjusting Handle, RH
72213C Knob, Seat Track Adjusting Handle, LH
72249 Guide, Seat Track Locking
72507A Handle Sub-assy, Reclining Release
72507B Handle Sub-assy, Reclining Release, RH
72507C Handle Sub-assy, Reclining Release, LH
72520 Adjuster Assy, Reclining Seatback, LH
72524 Handle, Reclining Adjuster Release
72525A Handle, Reclining Adjuster Release, RH
72525B Handle, Reclining Adjuster Release, RH
72525C Handle, Reclining Adjuster Release, NO.1 RH
72525D Handle, Reclining Adjuster Release, NO.2 RH
72525E Handle, Reclining Adjuster Release, NO.3 RH
72525F Handle, Reclining Adjuster Release, NO.4 RH
72525J Handle, Reclining Adjuster Release, RH
72525K Handle, Reclining Adjuster Release, NO.5 RH
72526 Handle, Reclining Adjuster Release, LH
72526A Handle, Reclining Adjuster Release, LH
72526B Handle, Reclining Adjuster Release, NO.1 LH
72526C Handle, Reclining Adjuster Release, NO.2 LH
72526D Handle, Reclining Adjuster Release, NO.3 LH
72526E Handle, Reclining Adjuster Release, LH
72526F Handle, Reclining Adjuster Release, NO.4 LH
72526G Handle, Reclining Adjuster Release, NO.5 LH
72570B Cable Assy, Reclining Adjusting, RH
72580A Cable Assy, Reclining Adjusting, LH
72592C Ring, Shaft Snap
72593 Knob, Reclining Remote Control Lever
72613B Striker, Rear Seat Lock
72620B Cable Assy, Rear NO.1 Seat Lock
72620C Cable Assy, Rear NO.1 Seat Lock
72630A Lock Assy, Rear NO.1 Seat
72630F Lock Assy, Rear NO.2 Seat
72640A Lock Assy, Rear Seatback, LH
72651B Rod, Rear Seat Lock
72658B Knob, Rear Seat Lock Handle
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72667 Bezel, Rear Seatback Lock, Upper
72668A Bezel, Rear Seatback Lock, Lower
72679 Bezel, Rear Seatback Lock Control
72681A Hook, Rear Seat
72687 Bracket, Rear Seat Hook
72699 Plate, Rear Seat Lock Release
72749 Spacer, Rear Seat Reclining
72830J Armrest Assy, Rear NO.1 Seat, RH
72840 Armrest Assy, Rear NO.1 Seat, LH
72848A Cap, Seat Armrest, NO.1
72877B Cover, Seat Armrest, RH
72877C Cover, Seat Armrest
72881 Support, Rear Seat Center Armrest, RH
72881A Support, Rear Seat Center Armrest, LH
72927B Cover, Rear Seat Cushion Under
72928 Cover, Rear Seat Cushion Under, LH
72928D Clip (FOR REAR SEAT CUSHION UNDER COVER)
72960B Table Assy, Rear Seat Turn, RH
72970 Table Assy, Rear Seat Turn, LH
72973A Cover, Rear Seat Turn Table
72973B Cover, Rear Seat Turn Table, NO.2
72973C Cover, Front Seat Turn Table,NO.1
72973D Cover, Front Seat Turn Table, NO.2
72996 Cover, Rear Seatback, RH
72997 Cover, Rear Seatback, LH
73373F Cover, Rear Seat Shoulder Belt Hole
73375B Cover, Rear Seat Shoulder Belt Hole, LH
74611H Grip, Assist
74617D Plug, Assist Grip
74790 Holder Assy, Warning Reflector
74790A Holder Assy, Warning Reflector
78071 Cover Sub-assy, Sub Seat Cushion, RH
78072 Cover Sub-assy, Sub Seat Cushion, LH
78073 Cover Sub-assy, Sub Seatback, RH
78074 Cover Sub-assy, Sub Seatback, LH
78631 Table, Front Seat Side
78701A Frame Sub-assy, Sub Seat Cushion
78703 Frame Sub-assy, Sub Seatback
78705 Bracket Sub-assy, Sub Seat Cushion
78722 Plate, Sub Seat Cushion Board, NO.1
78726 Cushion, Sub Seat Cushion Frame
78727 Board, Sub Seat Cushion
78731 Arm, Sub Seat Link, NO.1
78735 Pad, Sub Seat Cushion
78775 Pad, Sub Seatback
78791 Spring, Sub Seat Link, NO.1
78792 Spring, Sub Seat Link, NO.2
78803 Leg Sub-assy, Sub Seat
79011 Cover Sub-assy, NO.1 Seat Cushion, RH
79011A Cover Sub-assy, NO.1 Seat Cushion
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79013 Cover Sub-assy, NO.1 Seatback, RH
79013A Cover Sub-assy, NO.1 Seatback
79013B Cover Sub-assy, NO.1 Seatback
79014 Cover Sub-assy, NO.1 Seatback, LH
79021 Cover Sub-assy, NO.2 Seat Cushion, RH
79021A Cover Sub-assy, NO.2 Seat Cushion
79022 Cover Sub-assy, NO.2 Seat Cushion, LH
79023 Cover Sub-assy, NO.2 Seatback, RH
79023A Cover Sub-assy, NO.2 Seatback
79024 Cover Sub-assy, NO.2 Seatback, LH
79031 Cover Sub-assy, NO.3 Seat Cushion, RH
79031A Cover Sub-assy, NO.3 Seat Cushion
79032 Cover Sub-assy, NO.3 Seat Cushion, LH
79033 Cover Sub-assy, NO.3 Seatback, RH
79033A Cover Sub-assy, NO.3 Seatback
79034 Cover Sub-assy, NO.3 Seatback, LH
79041 Cover Sub-assy, NO.4 Seat Cushion, RH
79042 Cover Sub-assy, NO.4 Seat Cushion, LH
79043 Cover Sub-assy, NO.4 Seatback, RH
79043A Cover Sub-assy, NO.4 Seatback
79044 Cover Sub-assy, NO.4 Seatback, LH
79047A Pad Sub-assy, NO.4 Seatback, RH
79101B Frame Sub-assy, NO.1 Seat Cushion, RH
79102 Frame Sub-assy, NO.1 Seat Cushion, LH
79105 Leg Sub-assy, NO.1 Seat, RH
79105A Leg Sub-assy, NO.1 Seat
79106 Leg Sub Assy, NO.1 Seat, LH
79107A Leg Sub-assy, NO.1 Seat, Rear
79127 Bracket, NO.1 Seat Leg, Lower
79135 Pad, NO.1 Seat Cushion
79135A Pad, NO.1 Seat Cushion, RH
79136B Pad, NO.1 Seat Cushion, LH
79160 Spring Assy, NO.1 Seat Cushion
79175 Pad, NO.1 Seatback
79175E Pad, NO.1 Seatback, RH
79180 Spring Assy, NO.1 Seatback
79180A Spring Assy, NO.1 Seatback, RH
79184 Plate, NO.1 Seat Leg
79185 Pad, NO.1 Seatback, LH
79190A Spring Assy, NO.1 Seatback, LH
79199 Holder, NO.1 Seat Leg Stopper
79205 Leg Sub-assy, NO.2 Seat
79205B Leg Sub-assy, NO.2 Seat, RH
79206B Leg Sub-assy, NO.2 Seat, LH
79216 Plate, NO.2 Seat Leg
79235 Pad, NO.2 Seat Cushion
79235D Pad, NO.2 Seat Cushion, RH
79236A Cover, NO.2 Seat Leg
79245C Pad, NO.2 Seat Cushion, LH
79275 Pad, NO.2 Seatback
79275C Pad, NO.2 Seatback, RH
79280 Spring Assy, NO.2 Seatback
79280A Spring Assy, NO.2 Seatback, RH
79285 Pad, NO.2 Seatback, LH
79290A Spring Assy, NO.2 Seatback, LH
79305 Leg Sub-assy, NO.3 Seat
79305A Leg Sub-assy, NO.3 Seat, RH
79306 Leg Sub Assy, NO.3 Seat, LH
79319 Bracket, NO.3 Seat Leg, RR RH
79329 Bracket, NO.3 Seat Leg, RR LH
79335 Pad, NO.3 Seat Cushion
79335A Pad, NO.3 Seat Cushion, RH
79345A Pad, NO.3 Seat Cushion, LH
79349 Plate, NO.3 Seat Cushion
79375 Pad, NO.3 Seatback
79375A Pad, NO.3 Seatback, RH
79380 Spring Assy, NO.3 Seatback
79380A Spring Assy, NO.3 Seatback, RH
79382 Cover, NO.3 Seat Front Bracket, LH
79385A Pad, NO.3 Seatback, LH
79390A Spring Assy, NO.3 Seatback, LH
79391 Spring, Rear Seat Cushion
79405A Leg Sub-assy, NO.4 Seat, RH
79406A Leg Sub-assy, NO.4 Seat, LH
79435 Pad, NO.4 Seat Cushion
79446 Pad, 3RD Seat Cushion, NO.2
79460A Spring Assy, NO.4 Seat Cushion, RH
79470A Spring Assy, NO.4 Seat Cushion, LH
79475 Pad, NO.4 Seatback
79479A Pad, NO.4 Seatback Headrest, LH
79480 Spring Assy, NO.4 Seatback
79480A Spring Assy, NO.4 Seatback, RH
79490A Spring Assy, NO.4 Seatback, LH
79955A Cover, Rear Seat Front Bracket, RH
79955B Cover, NO.2 Seat Front Bracket, RH
79955C Cover, Rear Seat Front Bracket, RH
79955D Cover, Rear Seat Front Bracket, RH
79956B Cover, Rear Seat Leg Side, RH
79956C Cover, Rear Seat Leg Side, LH
79956E Cap(FOR REAR SEAT LEG SIDE COVER)
79956S Cover, Rear Seat Leg Side
79956T Cover, Rear Seat Leg Side
79956U Cover, Rear Seat Leg Side
79966 Cover, Rear Seat Leg Side, NO.3
79967 Cover, Rear Seat Leg Side, NO.4
79968 Cover, Rear Seat Leg Side, NO.5
79968A Cover, Rear Seat Leg Side, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
