Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

38 part groups · 16 illustrations

Illustrations

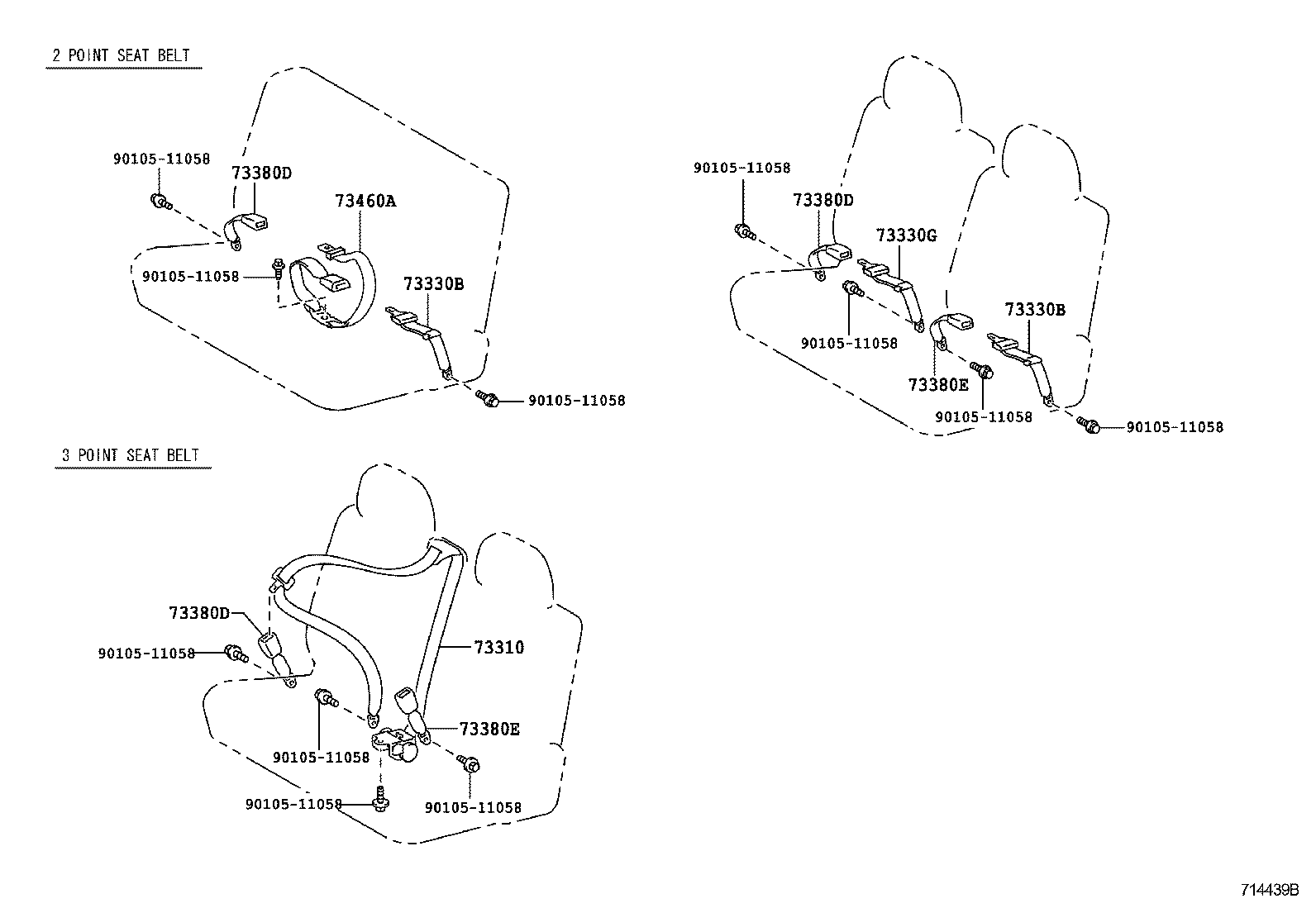

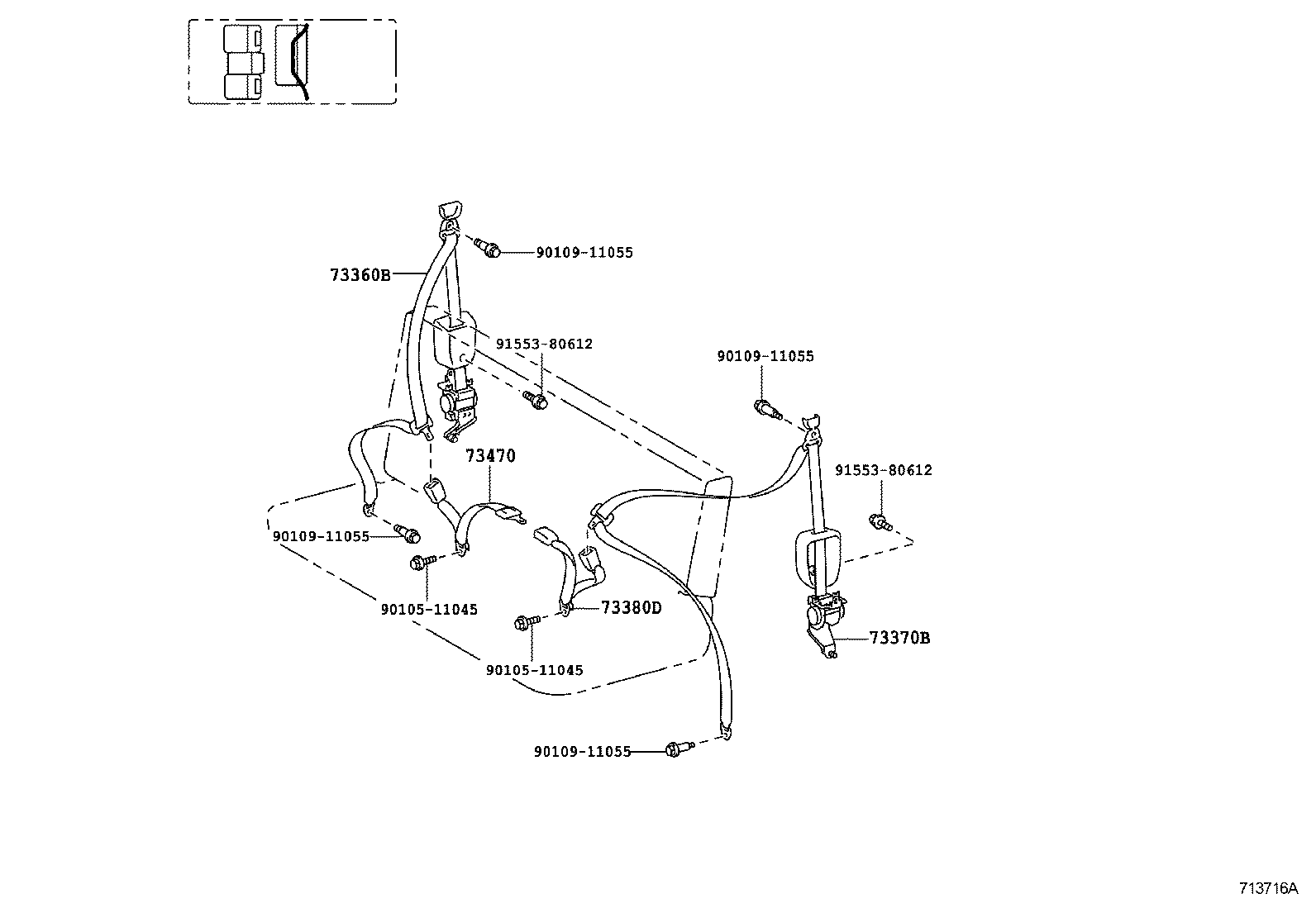

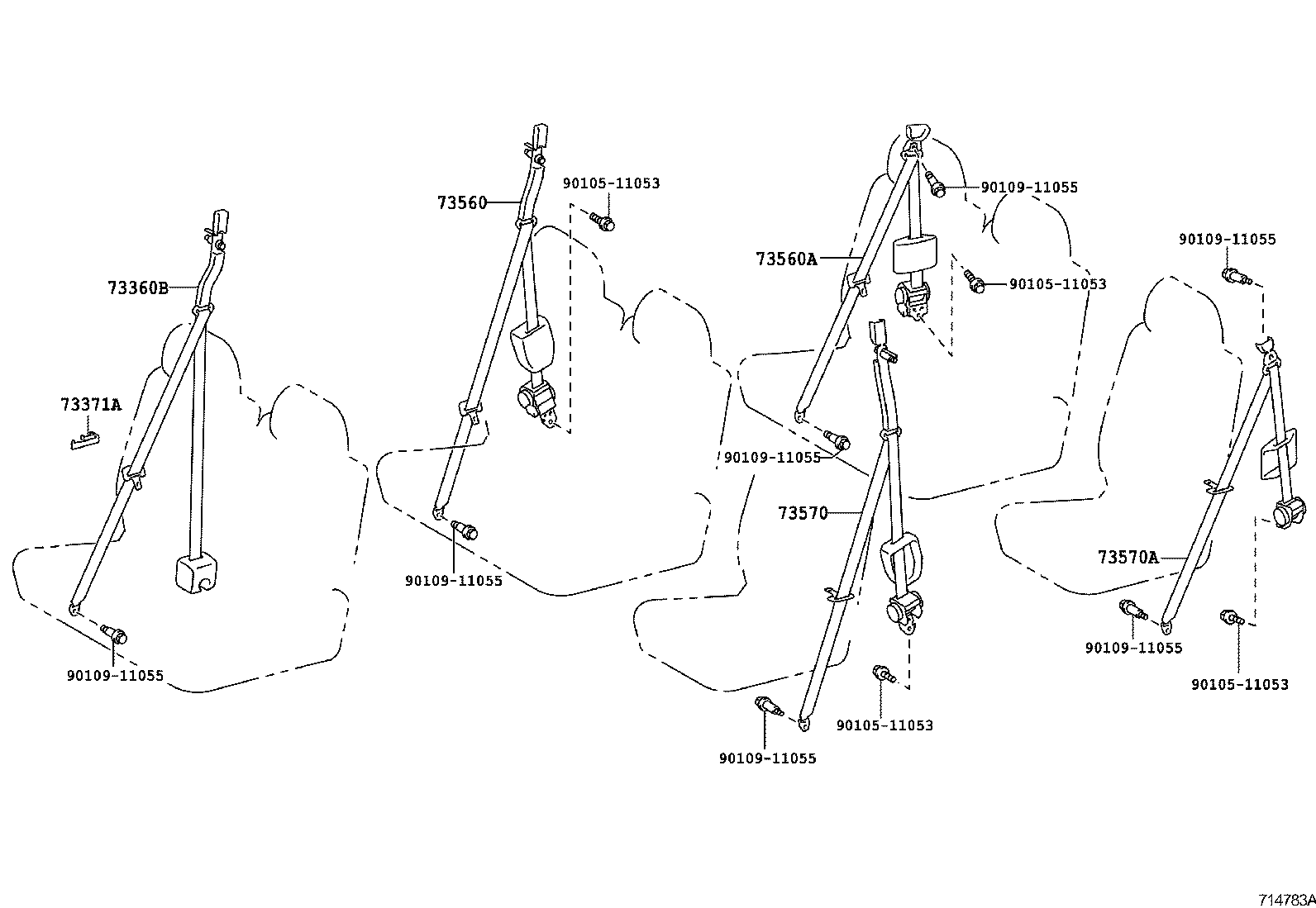

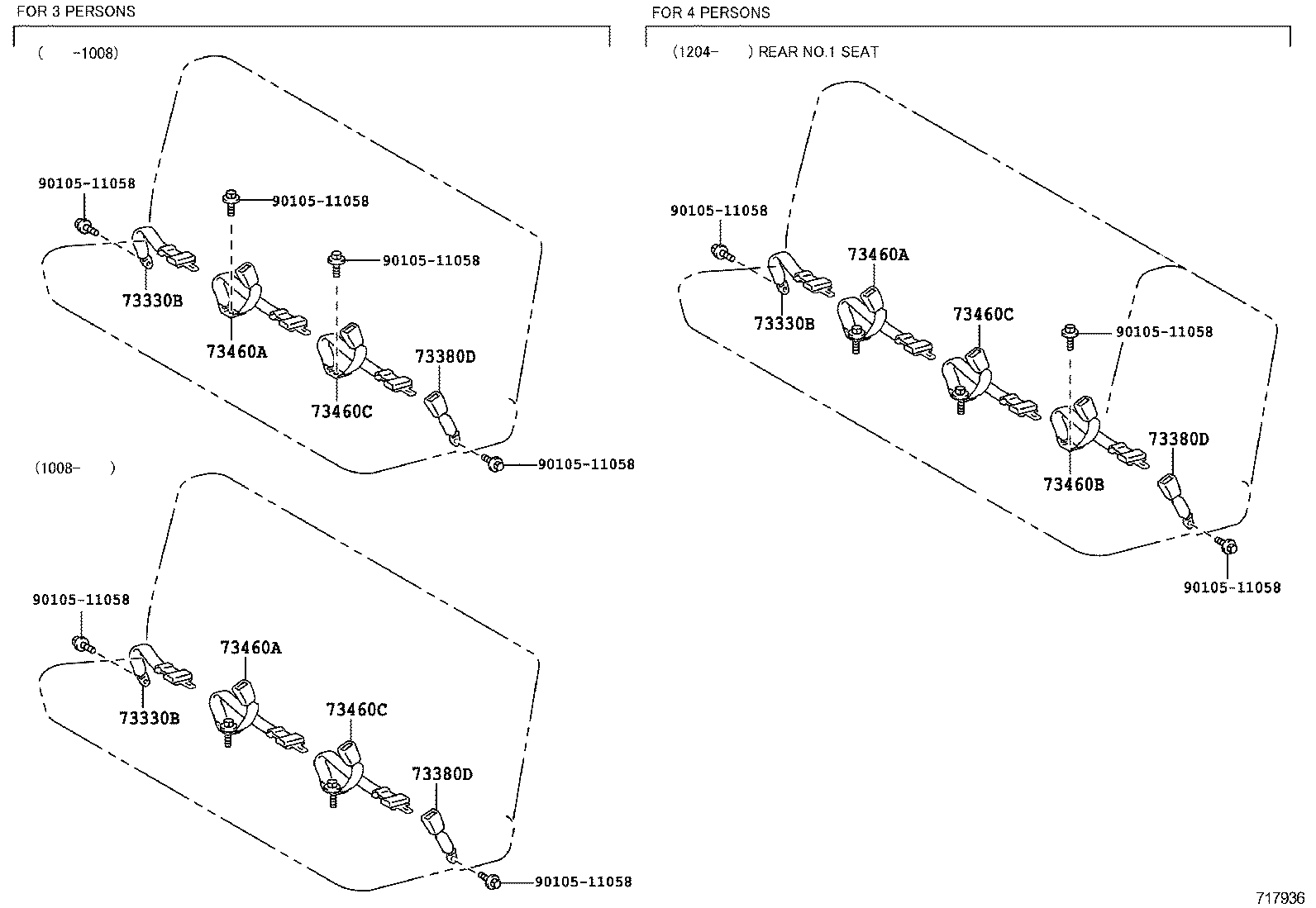

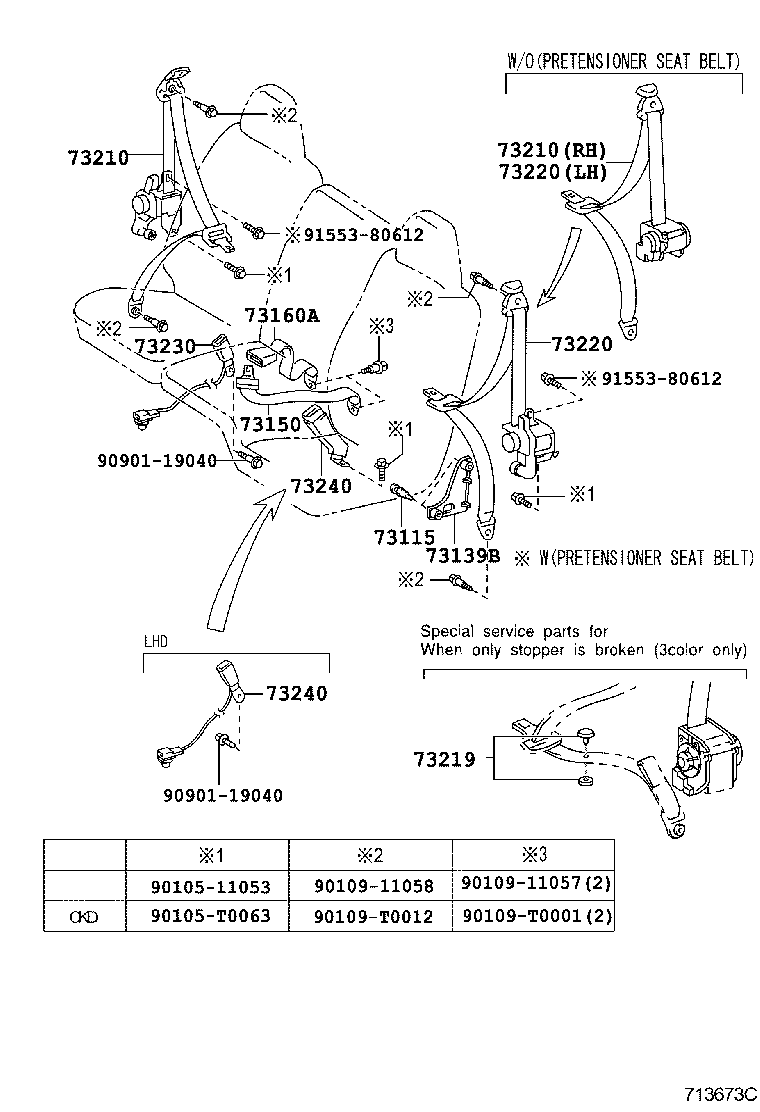

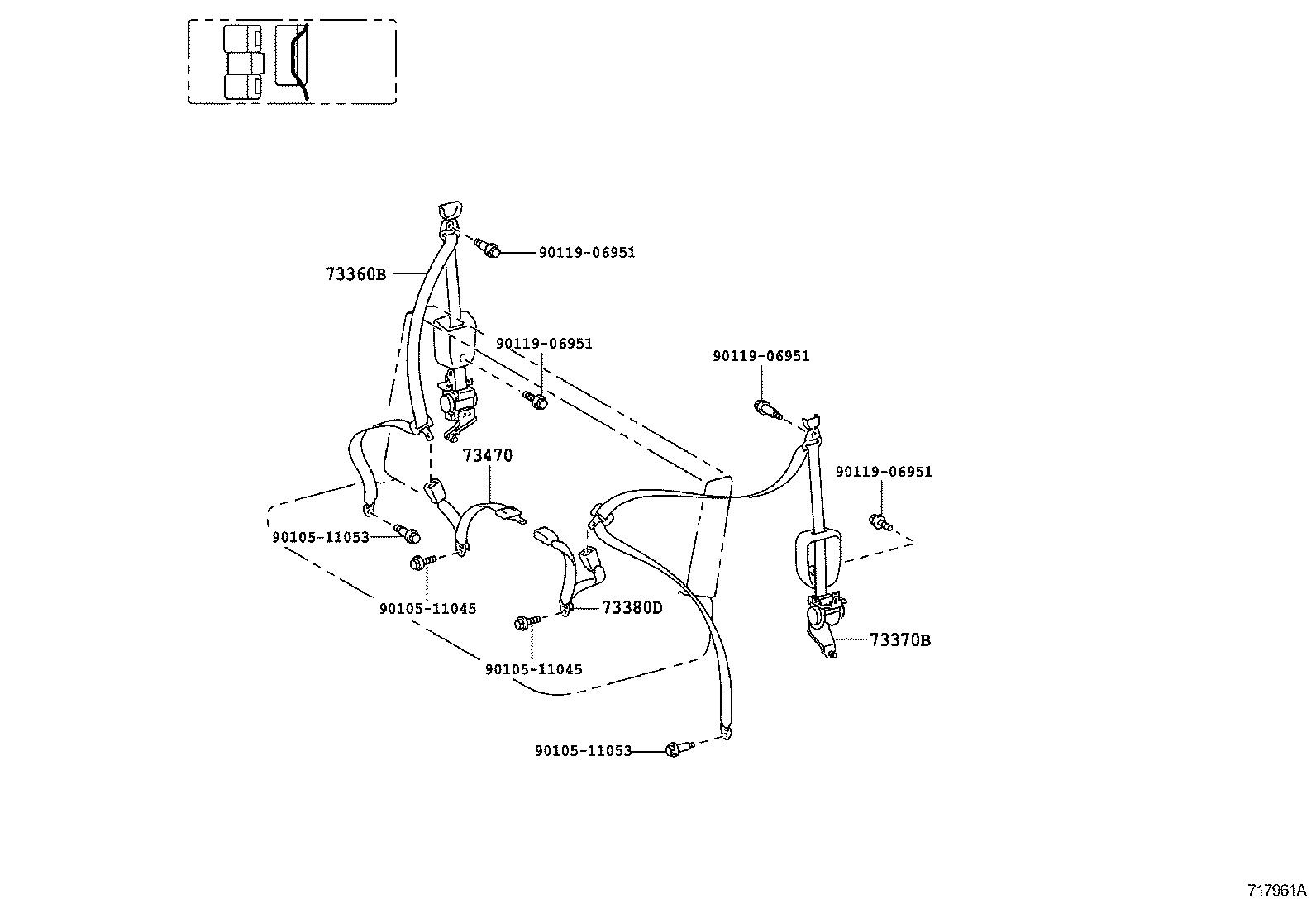

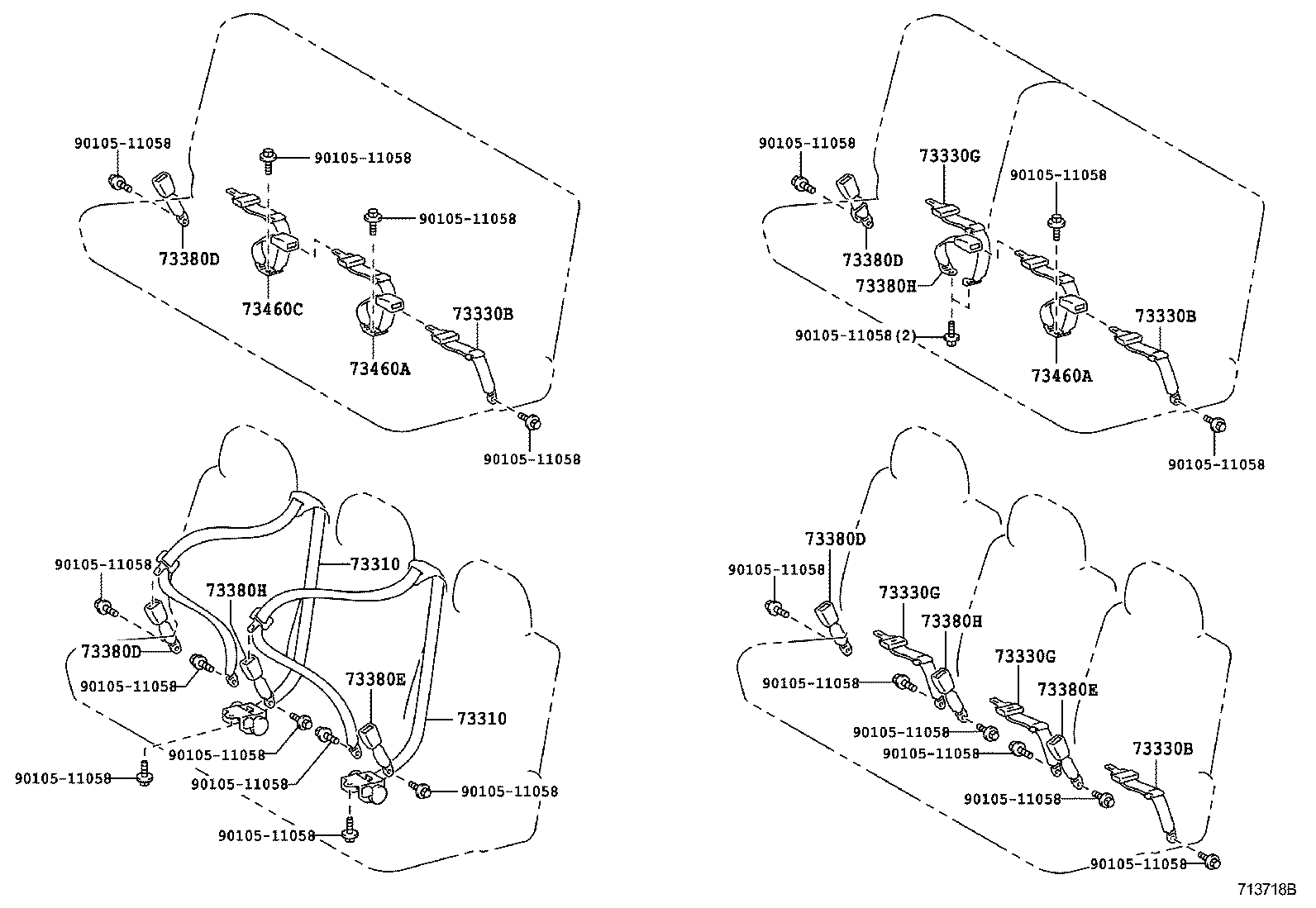

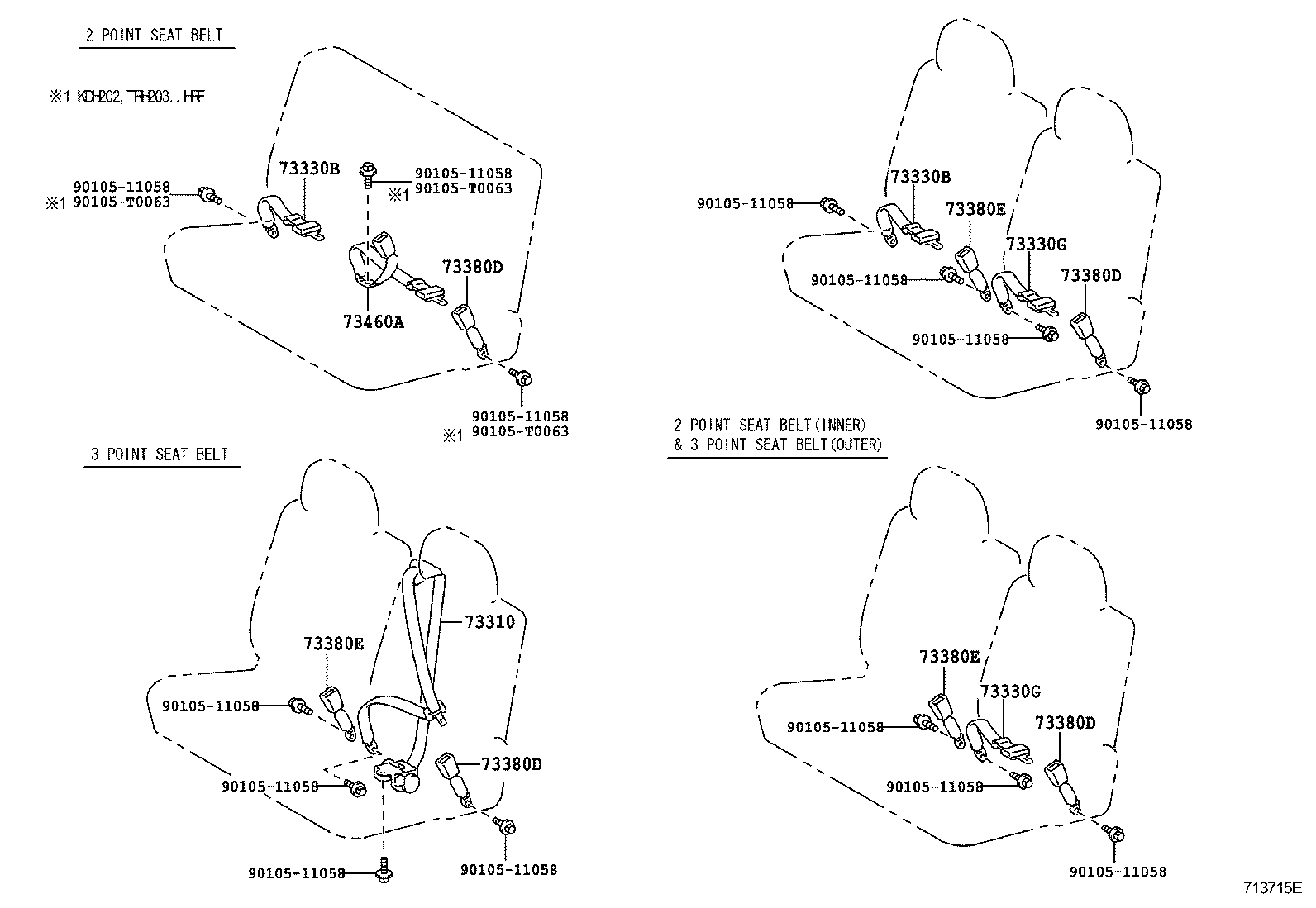

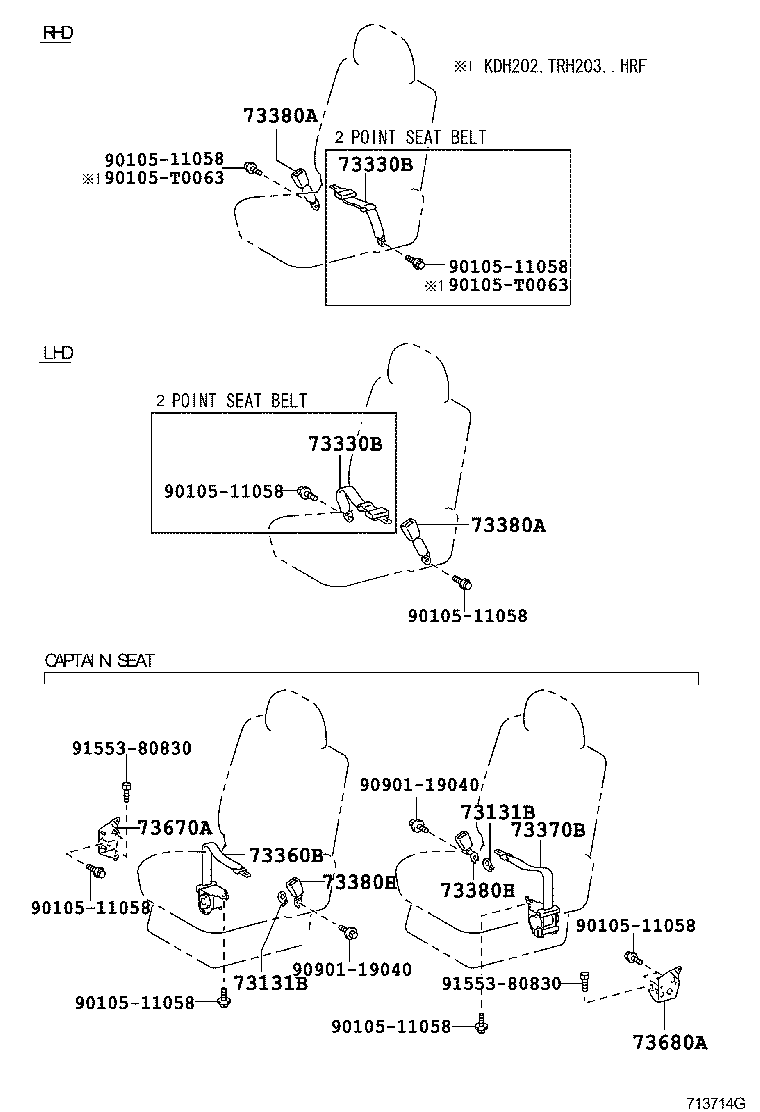

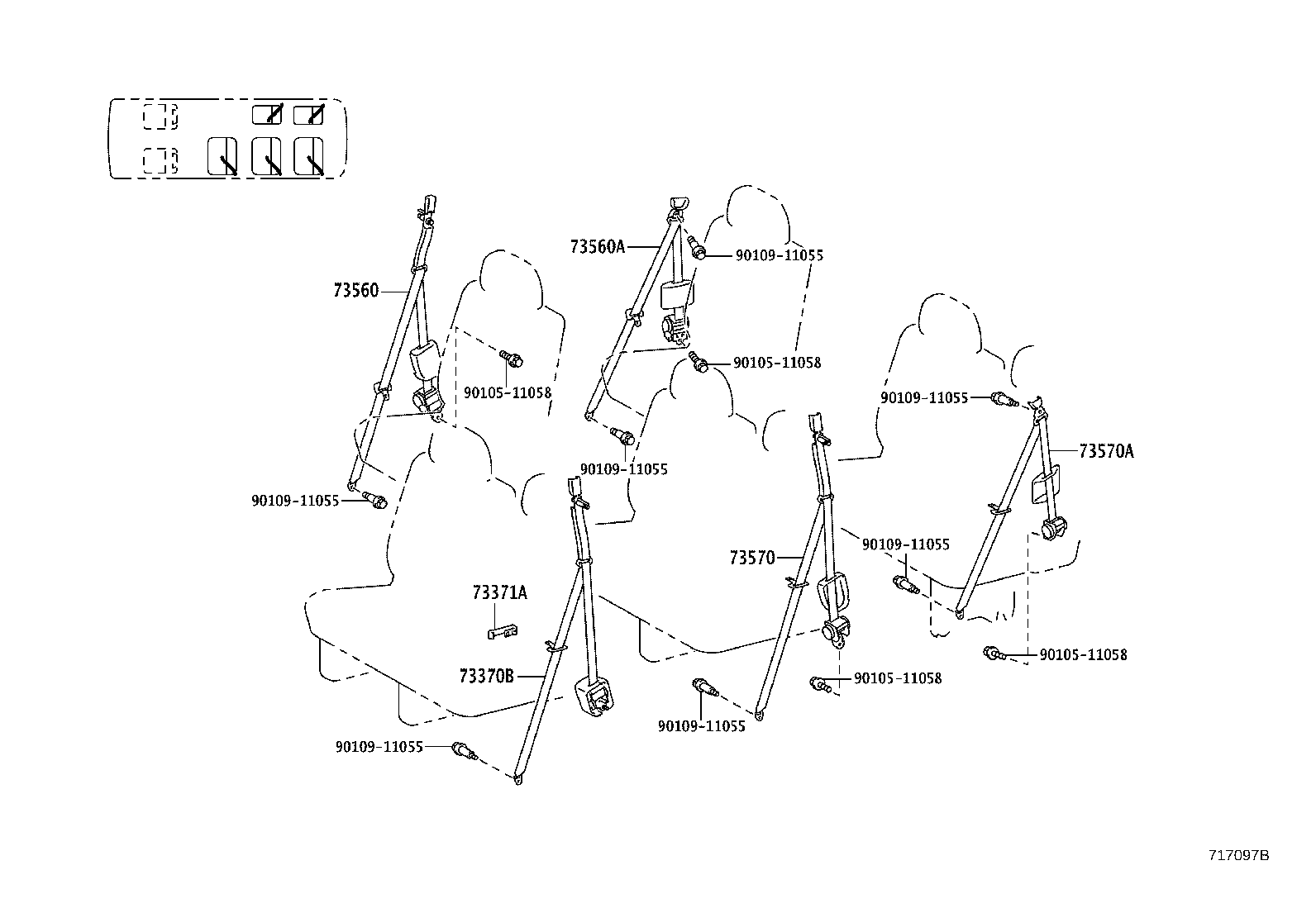

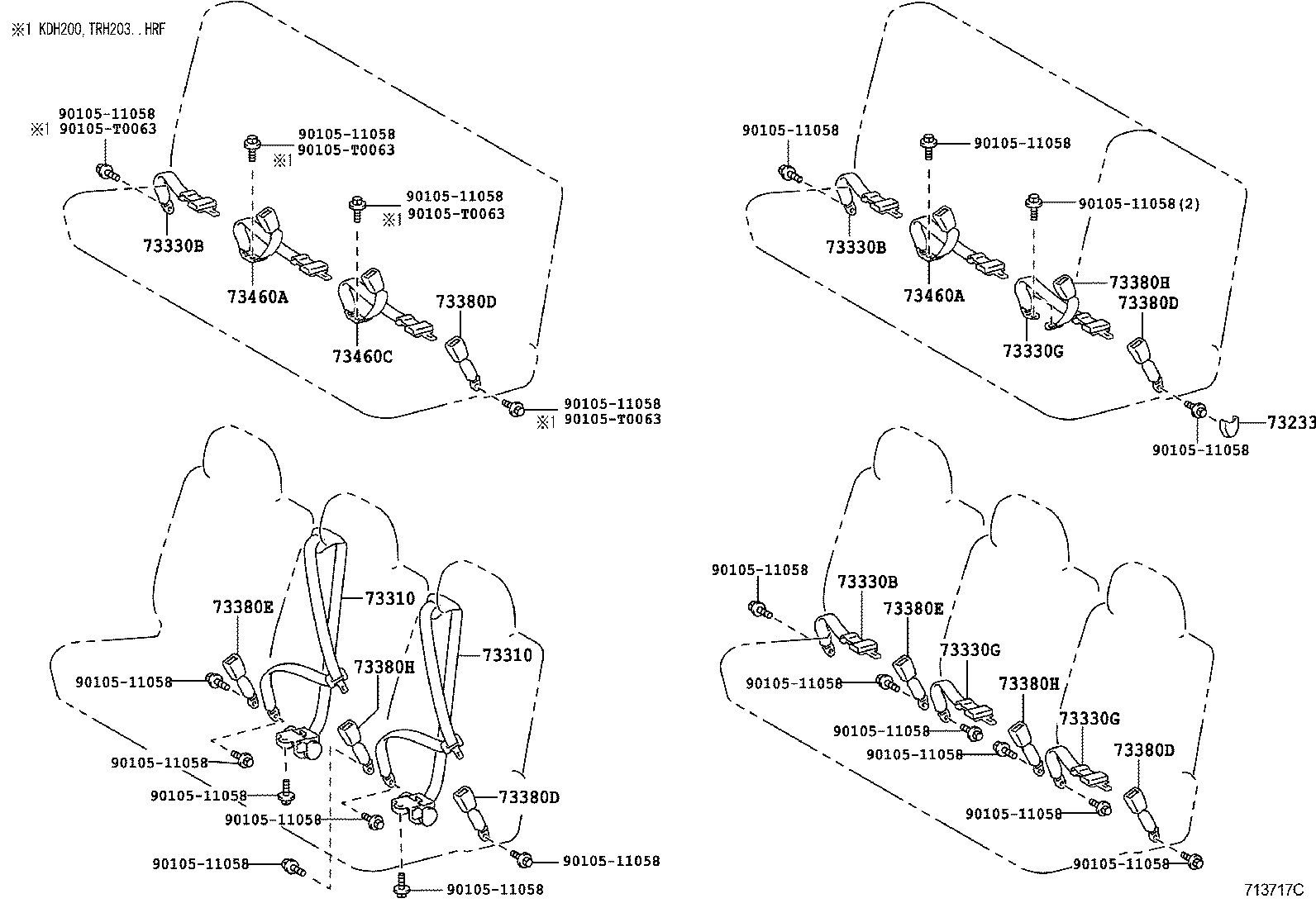

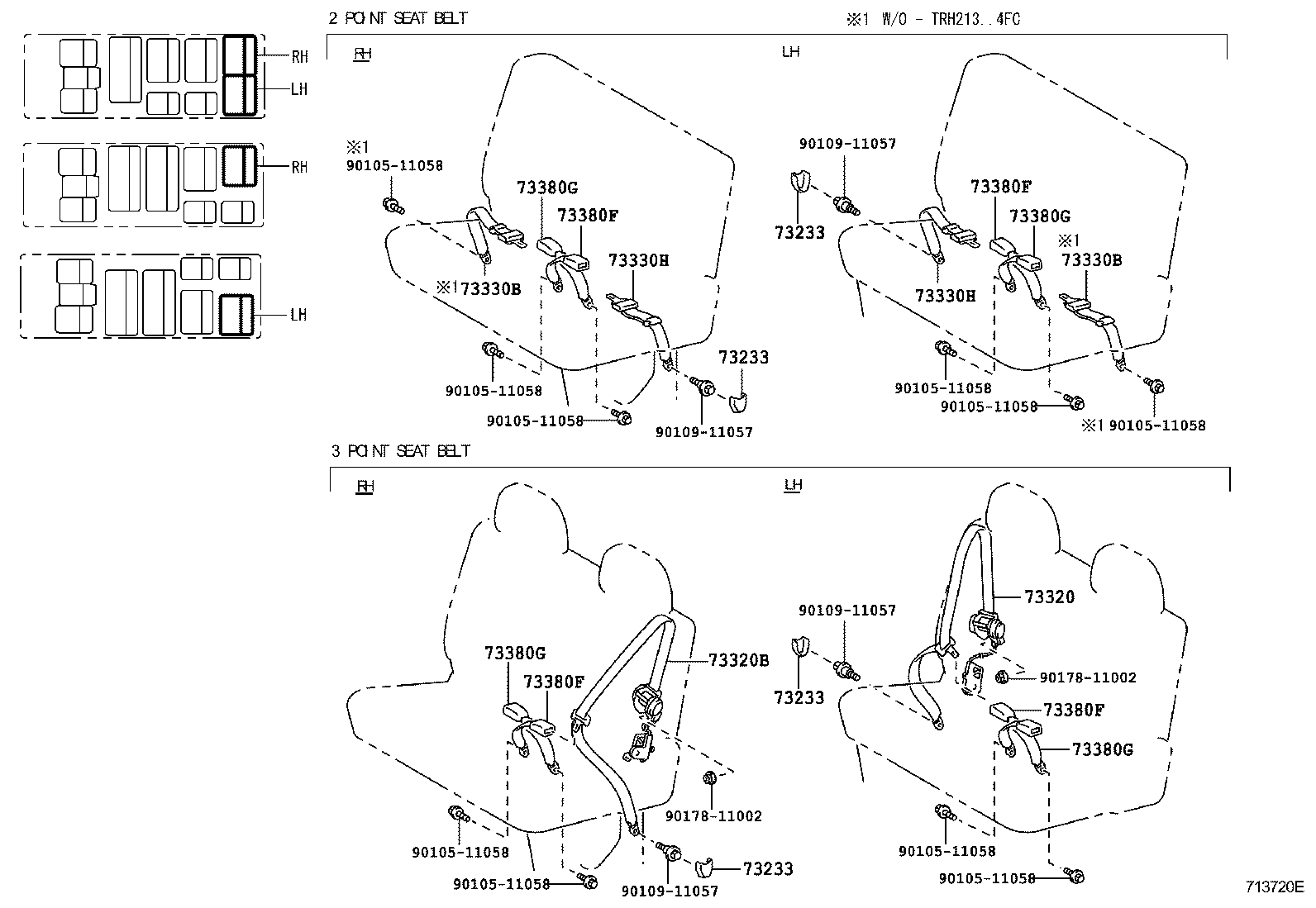

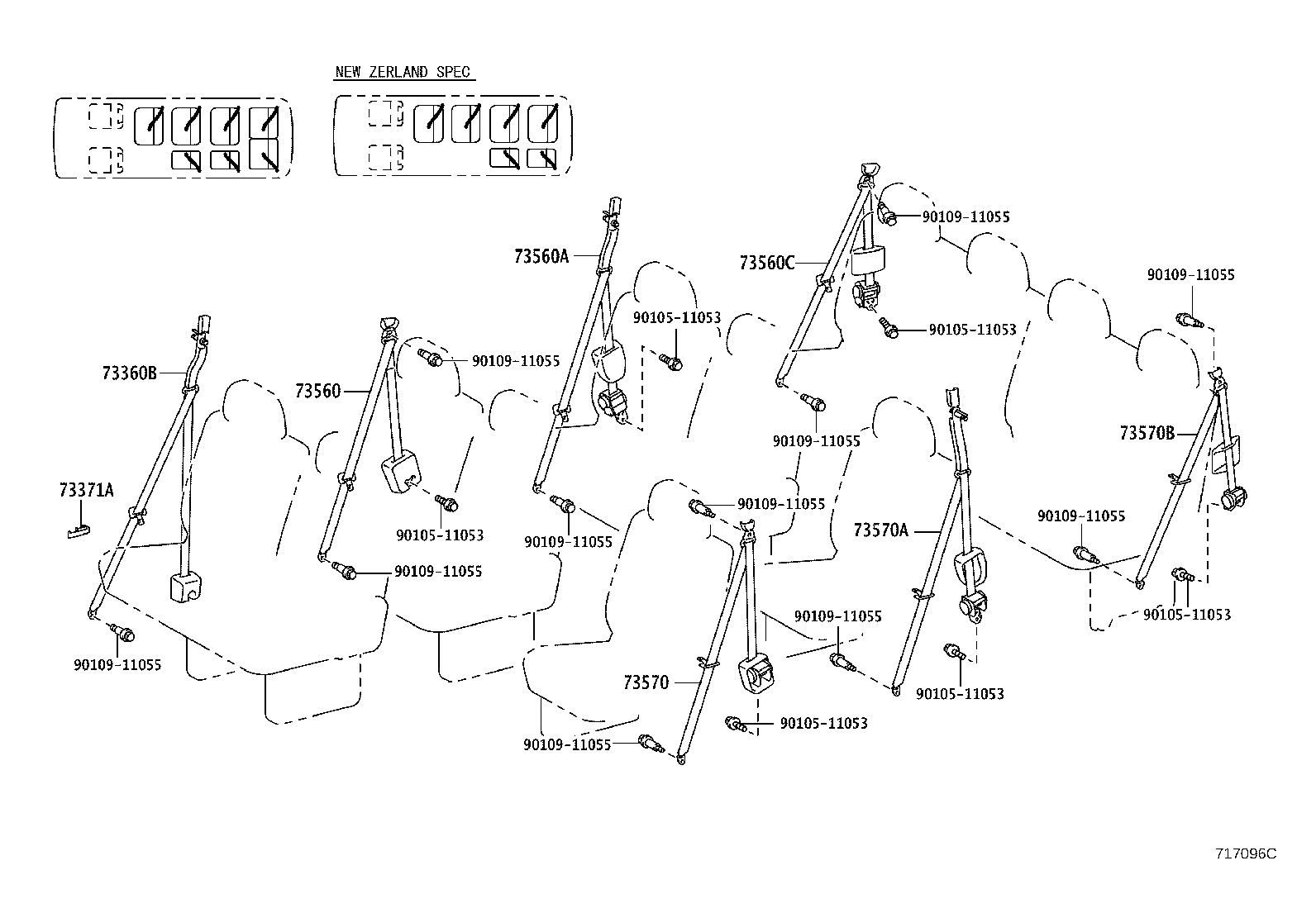

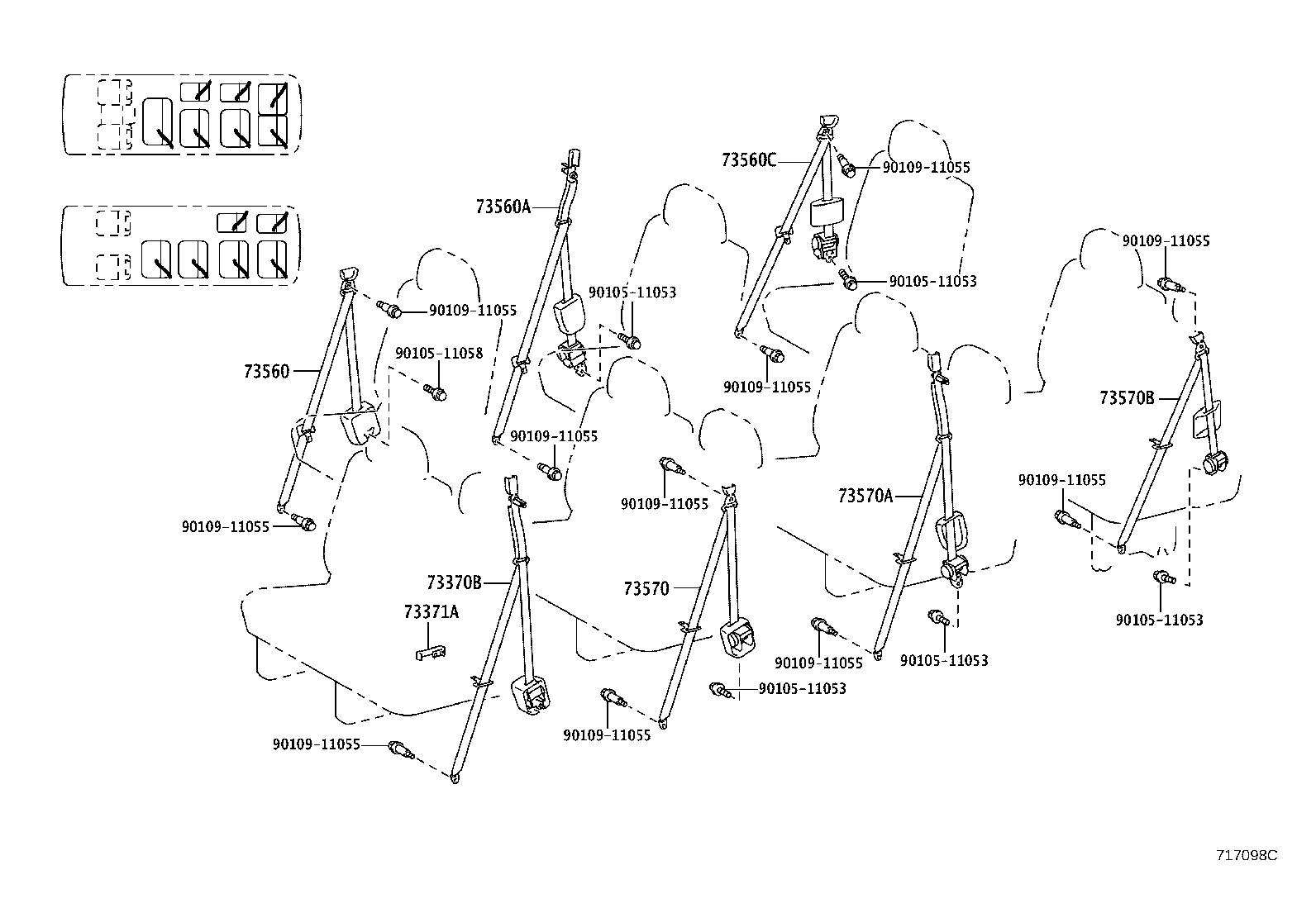

Figure 713672A 713672A 2005-01 → — Figure 713673C 713673C 2005-01 → — Figure 713716A 713716A 2005-01 → 2012-05 Figure 717961A 717961A 2012-05 → — Figure 714783A 714783A 2006-10 → — Figure 717096C 717096C 2005-01 → — Figure 717096C 717096C 2006-10 → — Figure 717097B 717097B 2005-01 → — Figure 717098C 717098C 2005-01 → — Figure 713714G 713714G 2005-01 → — Figure 713715E 713715E 2005-01 → — Figure 714439B 714439B 2005-01 → — Figure 713717C 713717C 2005-01 → — Figure 717936 717936 2006-10 → — Figure 713718B 713718B 2005-01 → — Figure 713720E 713720E 2005-01 → —

Part groups

PNCDescription
73115 Clip, Belt Comfort NO.1
73131B Bracket, Seat Belt
73139B Cover, Seat Belt Anchor
73150 Belt Assy, Front Seat Lap Type, Center
73160A Seat Belt Assy, Front Center, RH
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73310 Belt Assy, Rear Seat 3 Point Type, RH
73320 Belt Assy, Rear Seat 3 Point Type, LH
73320B Belt Assy, Rear Seat Lap Type, NO.2
73330B Belt Assy, Seat Lap Type, NO.1
73330G Belt Assy, RR Seat Lap Type
73330H Belt Assy, RR Seat Lap Type
73360B Belt Assy, Rear Seat, Outer
73370B Belt Assy, Rear Seat, Outer
73371A Hanger Rear Seat Shoulder Belt
73380A Belt Assy, Rear Seat, Inner
73380D Belt Assy, Rear Seat, Inner
73380E Belt Assy, RR Seat, Inner
73380F Belt Assy, RR Seat, Inner
73380G Belt Assy, RR Seat, Inner
73380H Belt Assy, RR Seat, Inner
73460A Belt Assy, Rear Seat Center, Inner
73460B Belt Assy, Rear Seat Center, Inner LH
73460C Belt Assy, Rear Seat Center, Inner
73470 Belt Assy, Rear Seat, Outer
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73560A Belt Assy, NO.3 Seat, Outer RH
73560C Belt Assy, Rear NO.4 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73570A Belt Assy, NO.3 Seat, Outer LH
73570B Belt Assy, Rear Seat, Outer
73670A Bracket Assy, Rear Seat Belt Outer Anchor, RH
73680A Bracket Assy, Rear Seat Belt Outer Anchor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
