Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

15 part groups · 3 illustrations

Illustrations

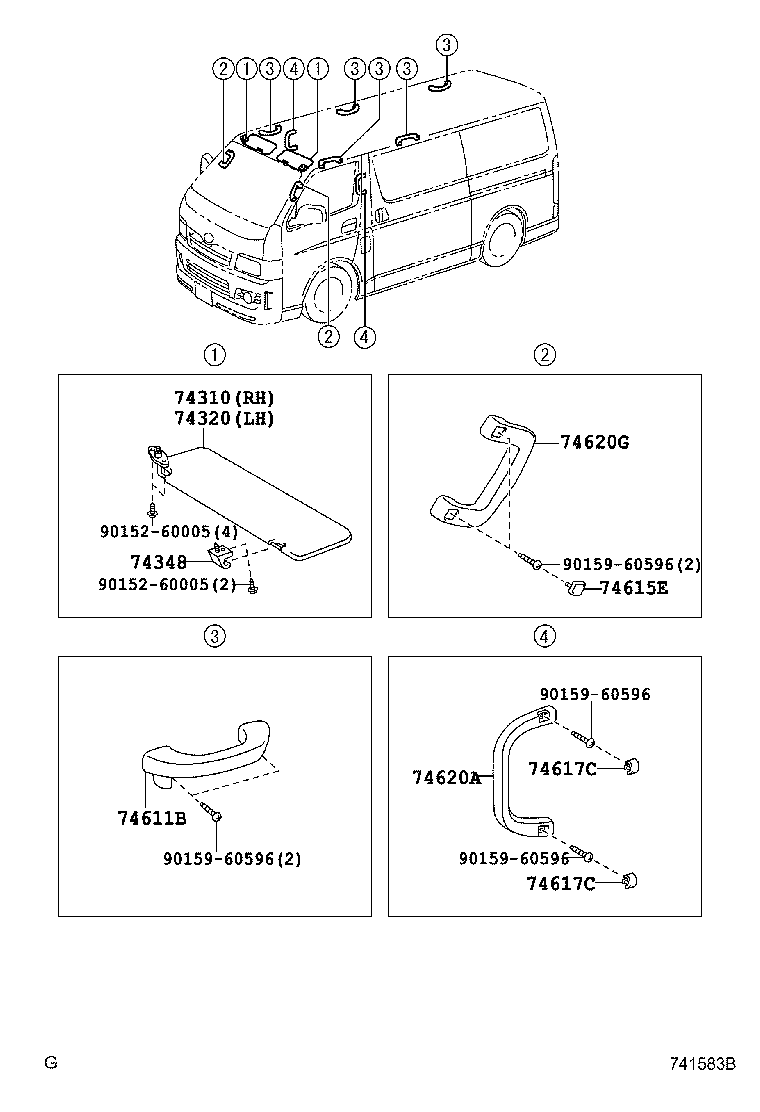

Figure 741569 741569 2005-01 → — Figure 741583B 741583B 2005-01 → — Figure 741582A 741582A 2005-01 → —

Part groups

PNCDescription
58780B Band Assy, Tool Box
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74611B Grip, Assist
74615E Plug, Front Assist Grip, NO.1 RH
74617C Plug, Assist Grip
74620A Grip Assy, Assist, Rear
74620G Grip Assy, Assist, Front
74710 Extinguisher Assy
74710A Bracket, Extinguisher
74813B Handle, Front Door Pull, RH
74814C Handle, Front Door Pull, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
