Toyota Hiace
2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States
Supported model
Data version 2014-08

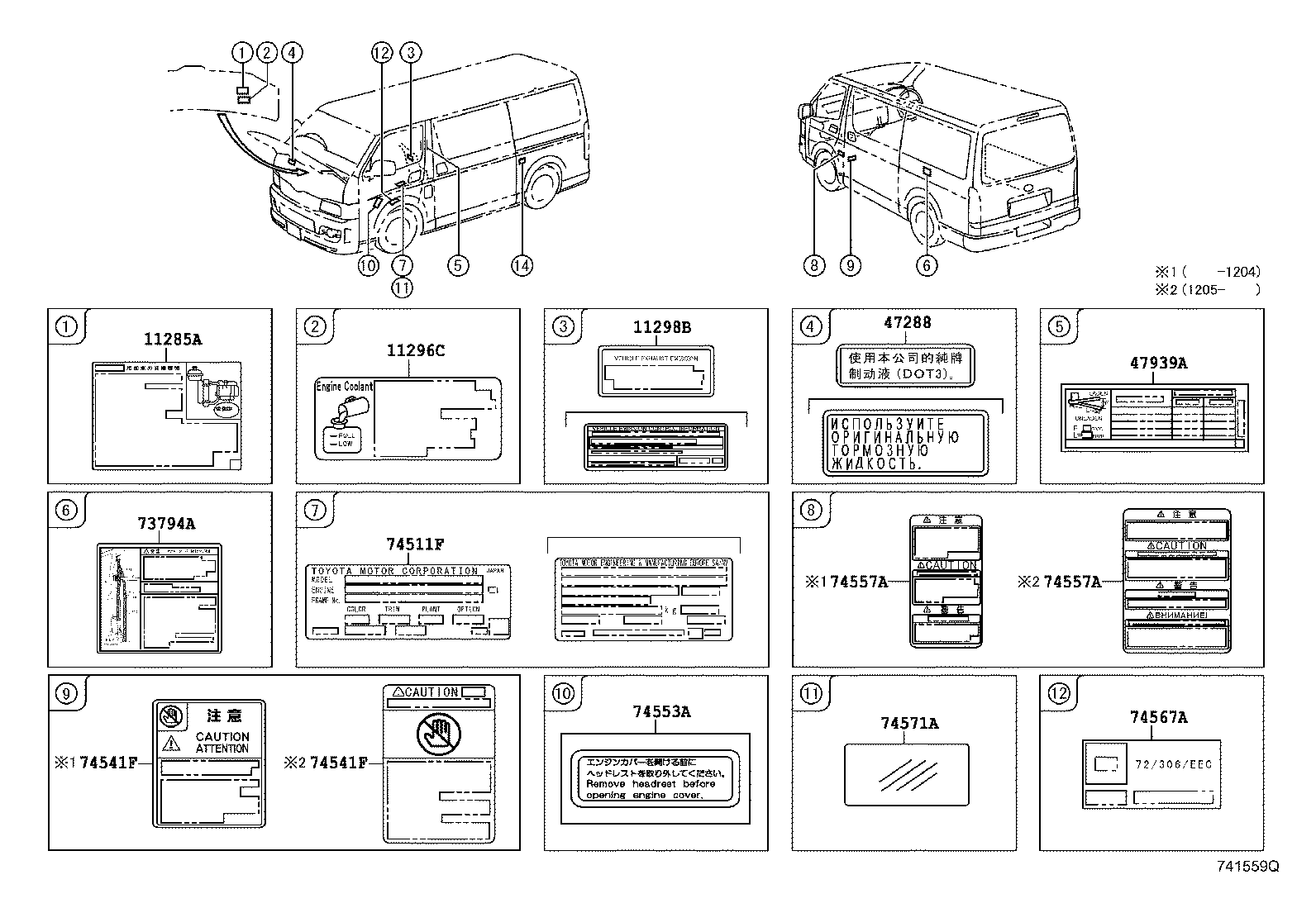

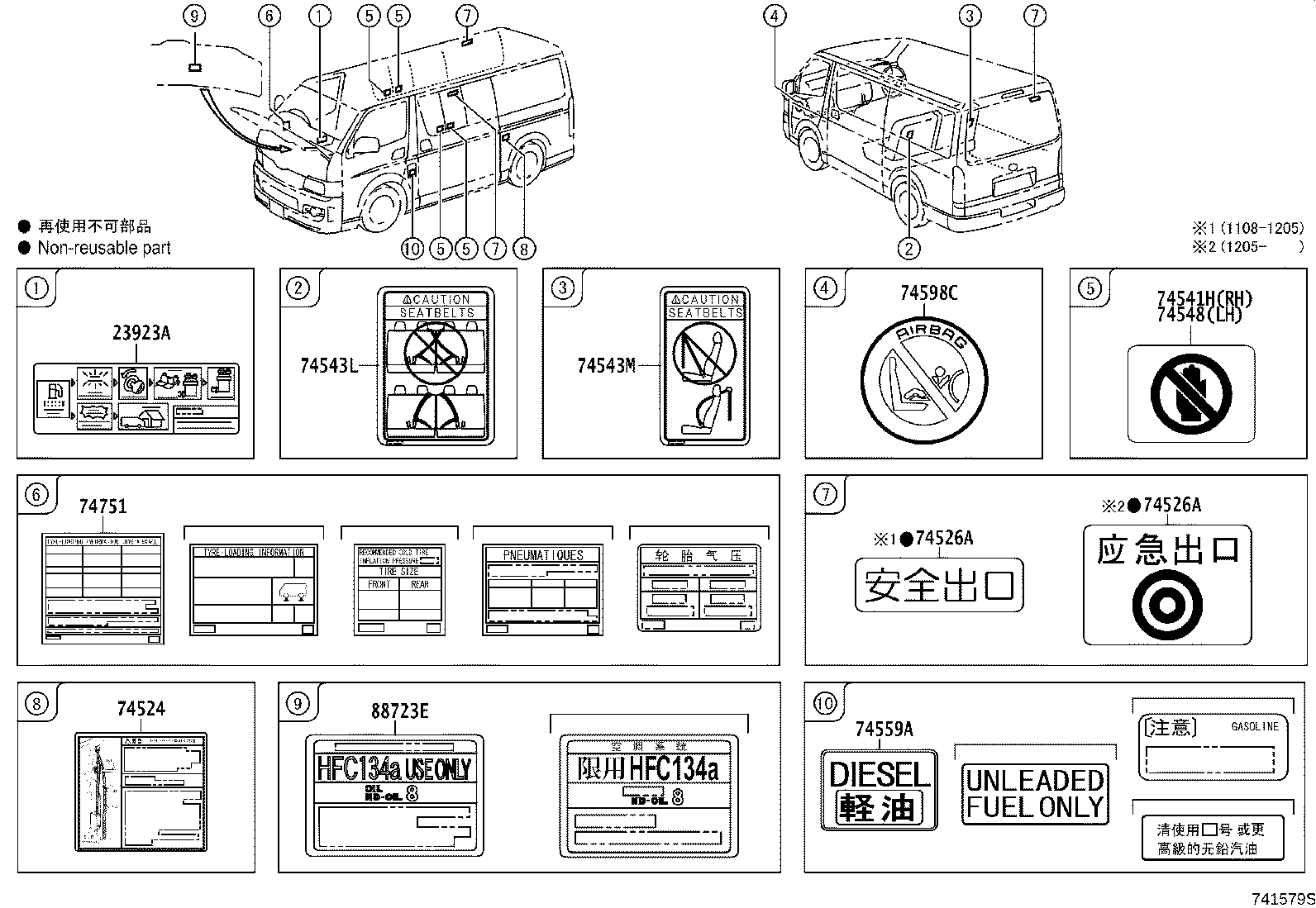

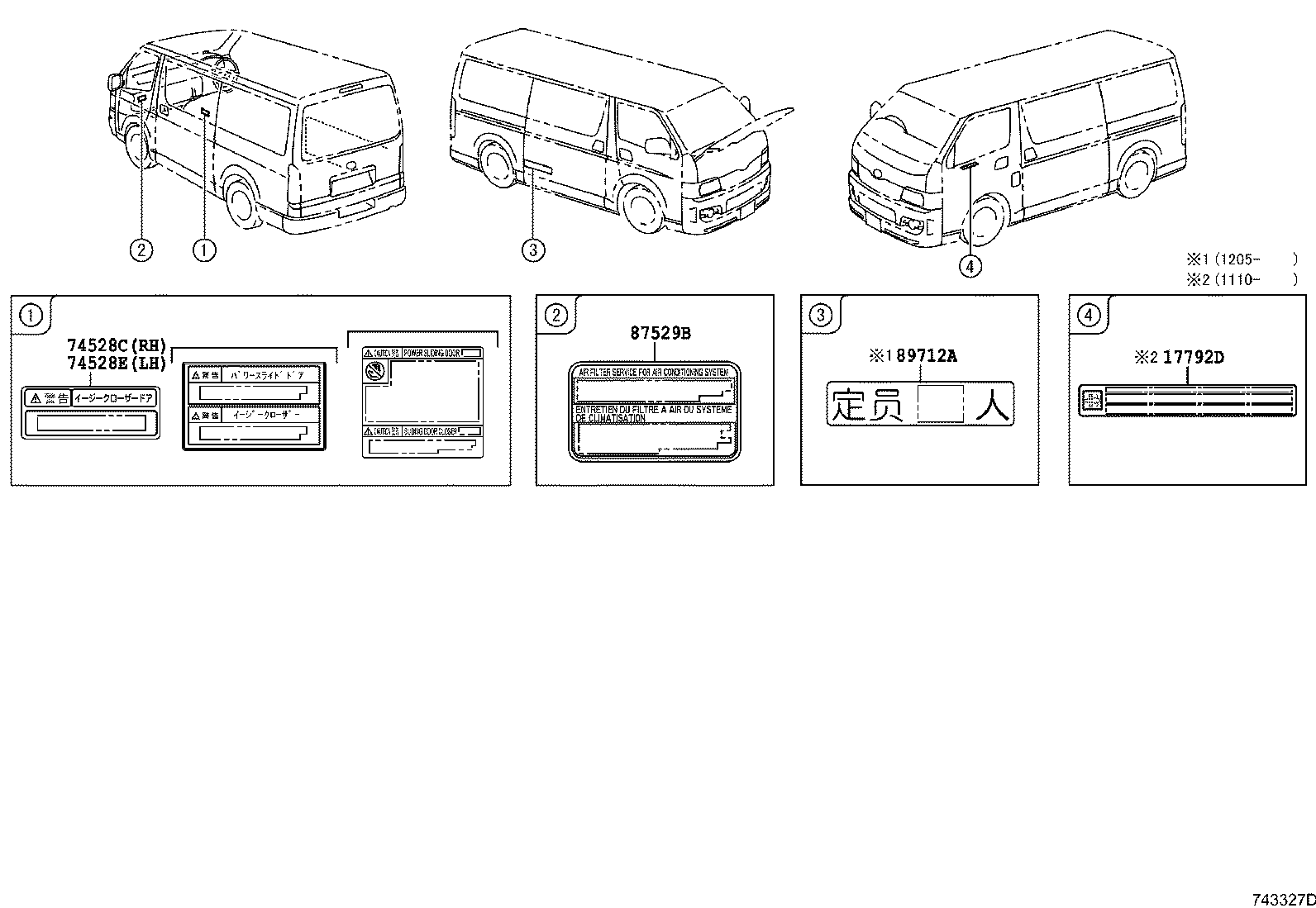

Caution Plate
31 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11289B | Label, Spark Plug Notice |
| 11296C | Label, Engine Service Information |
| 11298B | Label, Emission Control Information |
| 16793E | Label, Cooling Fan Caution |
| 17700R | Label, Air Cleaner Information |
| 17792D | Label, Emission Control Device Information |
| 23923A | Label, Fuel Sedimenter Notice |
| 47288 | Label, Brake Fluid Notice |
| 47939A | Plate, Load Sensing Valve Marking |
| 73794A | Label, Rear Separator Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74524 | Plate, Seat Belt Caution |
| 74526A | Plate, Emergency Hammer Caution |
| 74528C | Label, Power Slide Door Notice |
| 74528E | Label, Power Slide Door Notice |
| 74541F | Label, Slide Door Glass Caution |
| 74541H | Plate, Body Caution |
| 74543L | Label, Rear Seat Caution, NO.1 |
| 74543M | Label, Rear Seat Caution, NO.2 |
| 74548 | Plate, Body Caution |
| 74553A | Plate, Front Seat Caution |
| 74557A | Plate, Engine Service Hole Cover Balance Caution |
| 74559A | Plate, Fuel Caution |
| 74567A | Plate, E.C.E Approved Number |
| 74571A | Film, Label Cover |
| 74598C | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| 89712A | Label, Seat Control Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
