Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

6 part groups · 6 illustrations

Illustrations

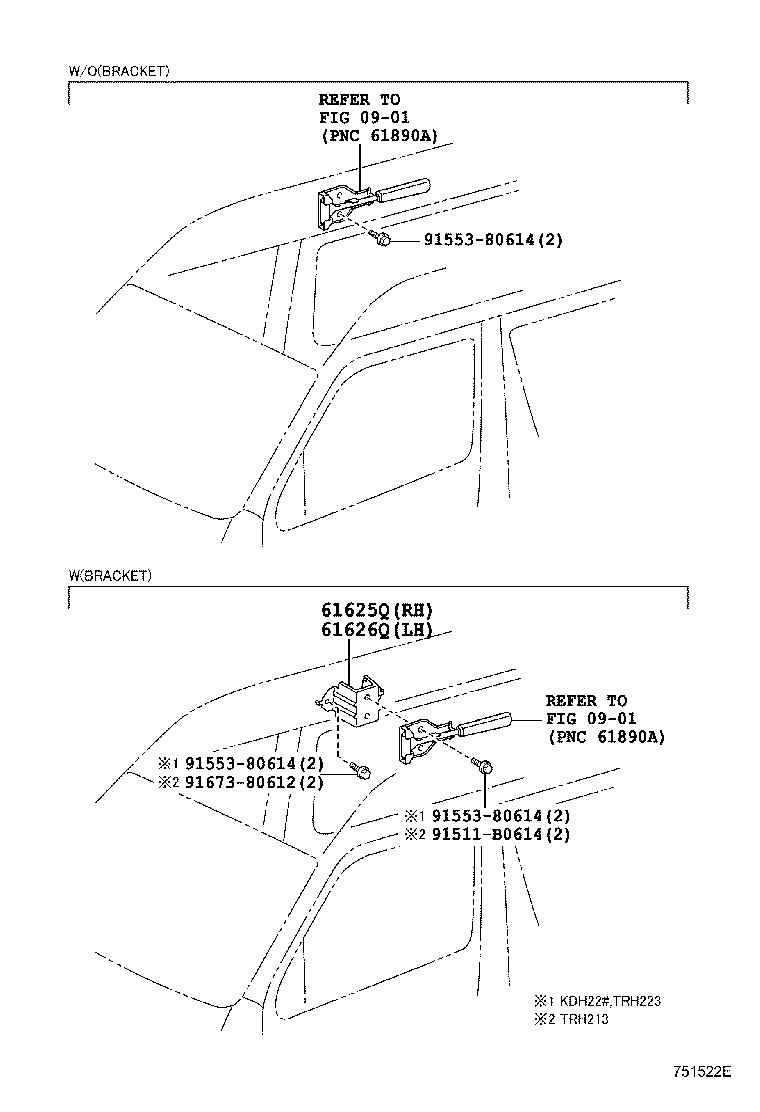

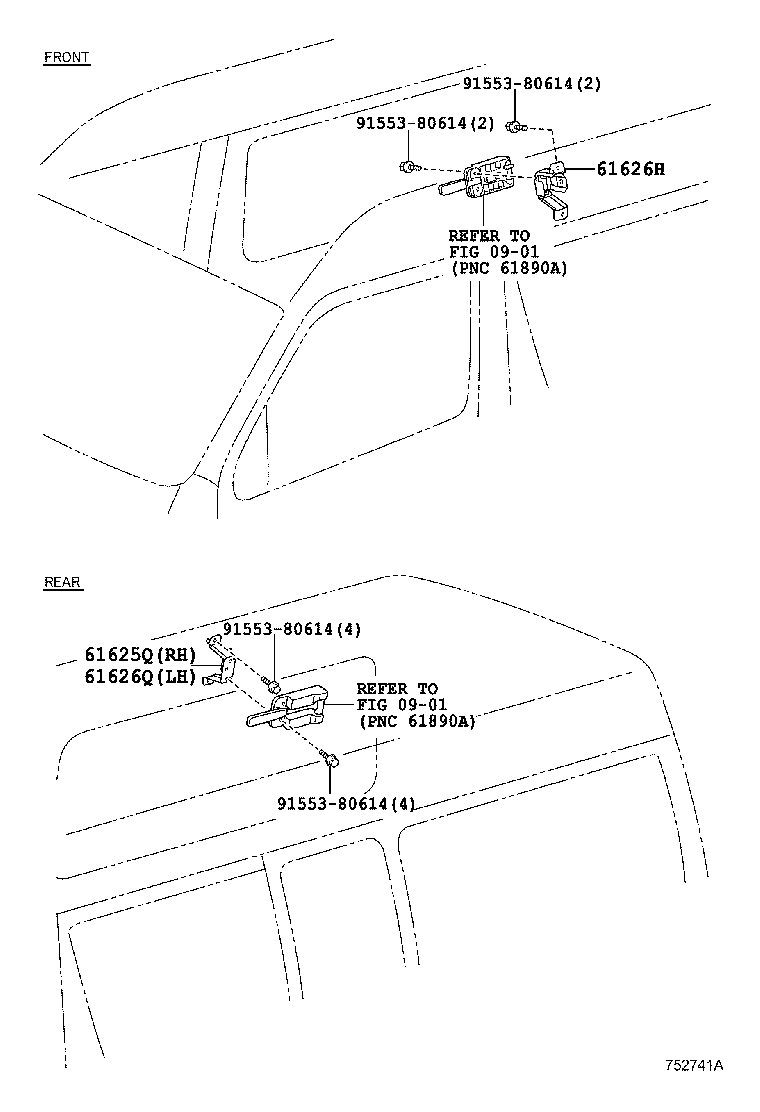

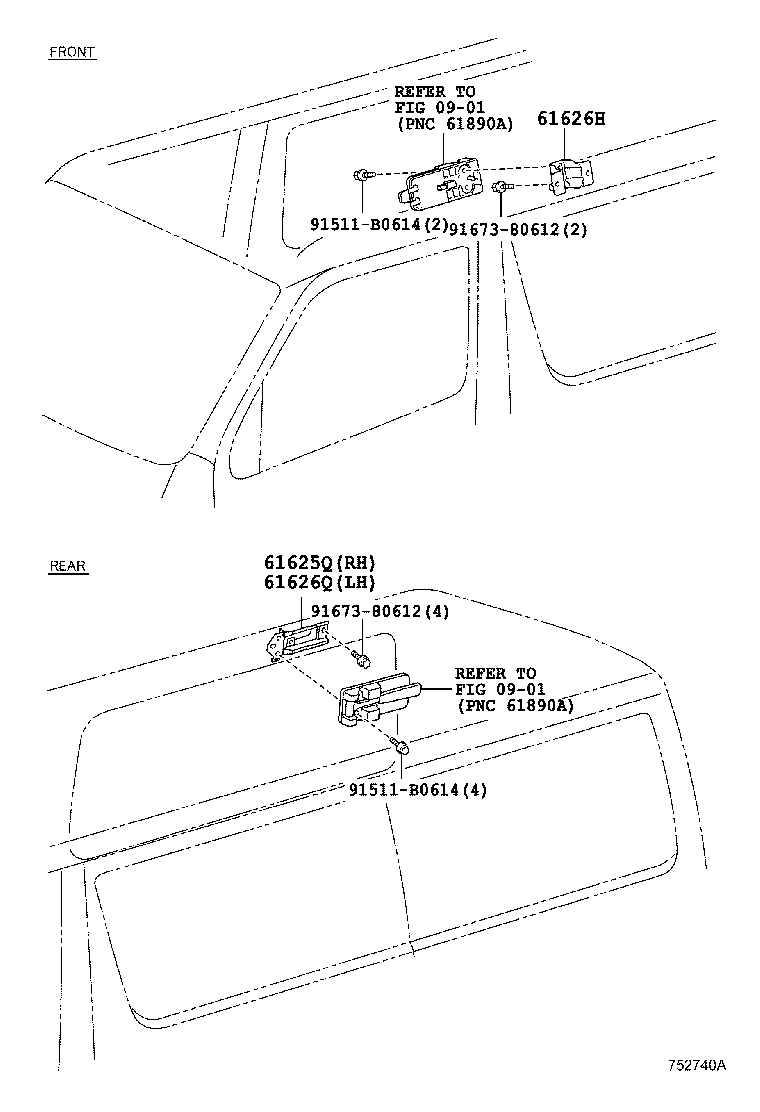

Figure 751473D 751473D 2005-01 → — Figure 751522E 751522E 2005-01 → 2012-05 Figure 751522E 751522E 2005-01 → — Figure 751522E 751522E 2005-01 → — Figure 752741A 752741A 2012-05 → — Figure 752740A 752740A 2012-05 → —

Part groups

PNCDescription
58777A Holder, Tool Bag
58780 Band Assy, Tool Box
58789A Hook, Tool Box Band, NO.2
61625Q Bracket, Quarter Panel Reinforcement, RH
61626H Bracket, Quarter Panel Reinforcement, LH
61626Q Bracket, Quarter Panel Reinforcement, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
