Toyota Hiace
2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States
Supported model
Data version 2014-08

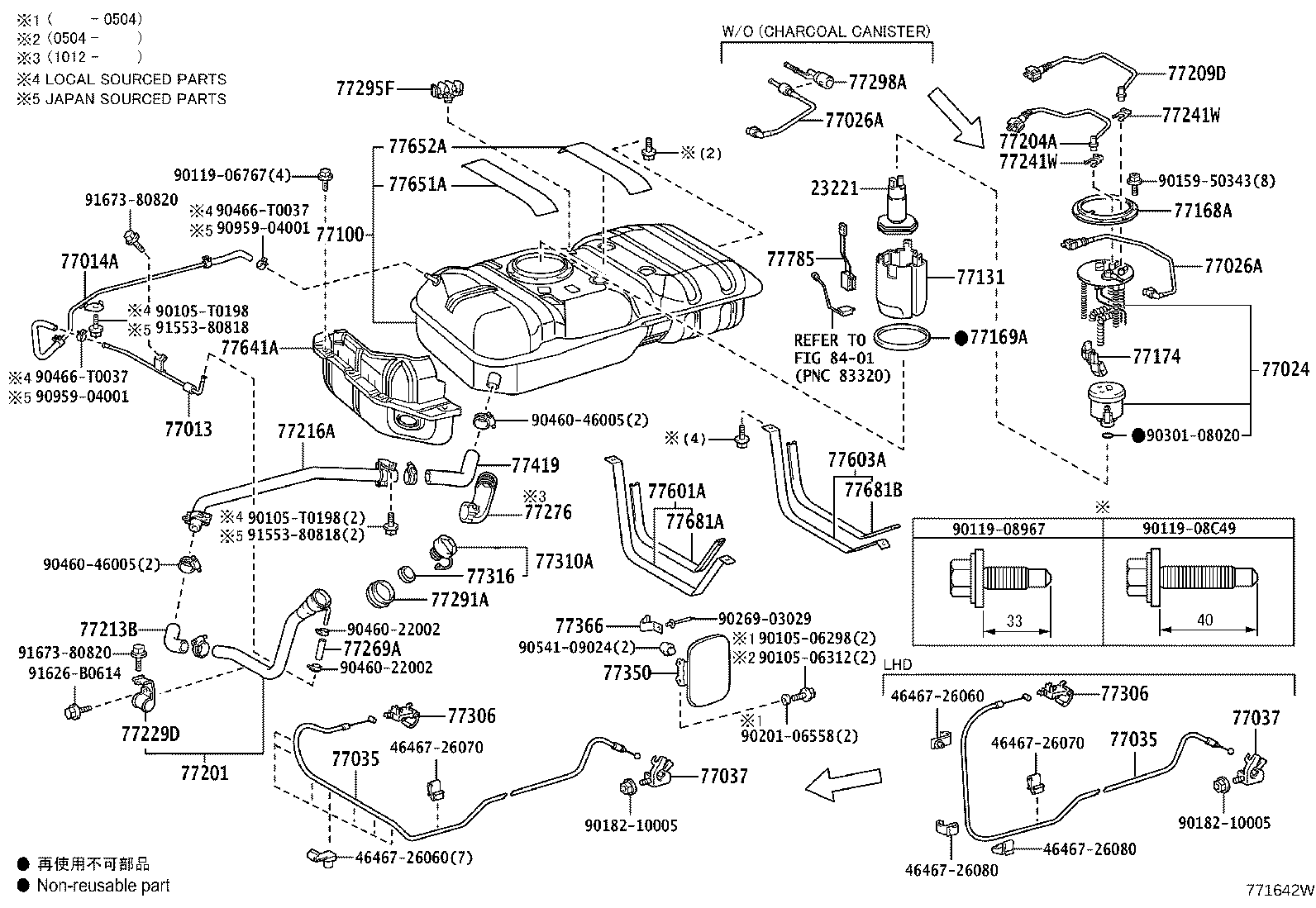

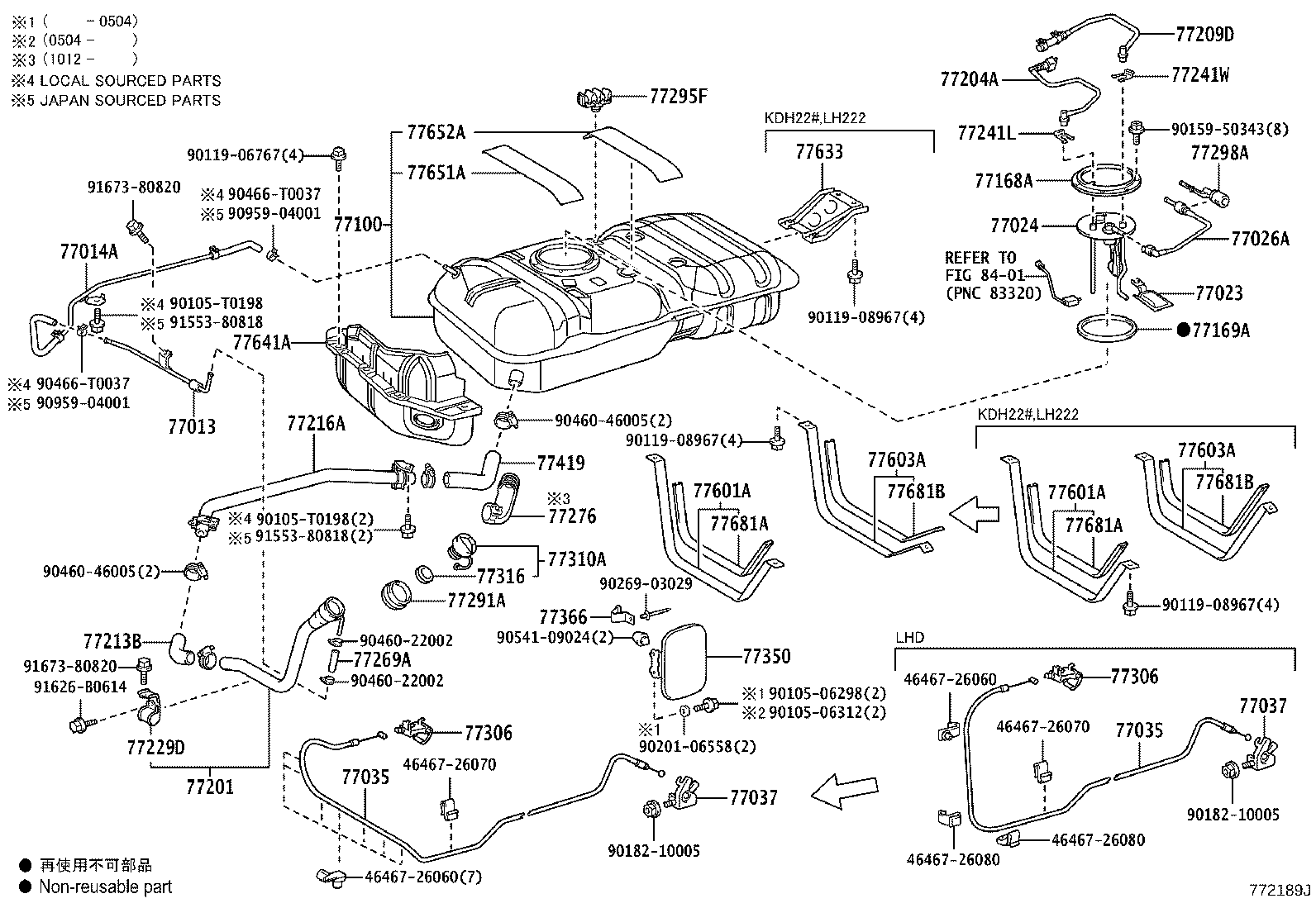

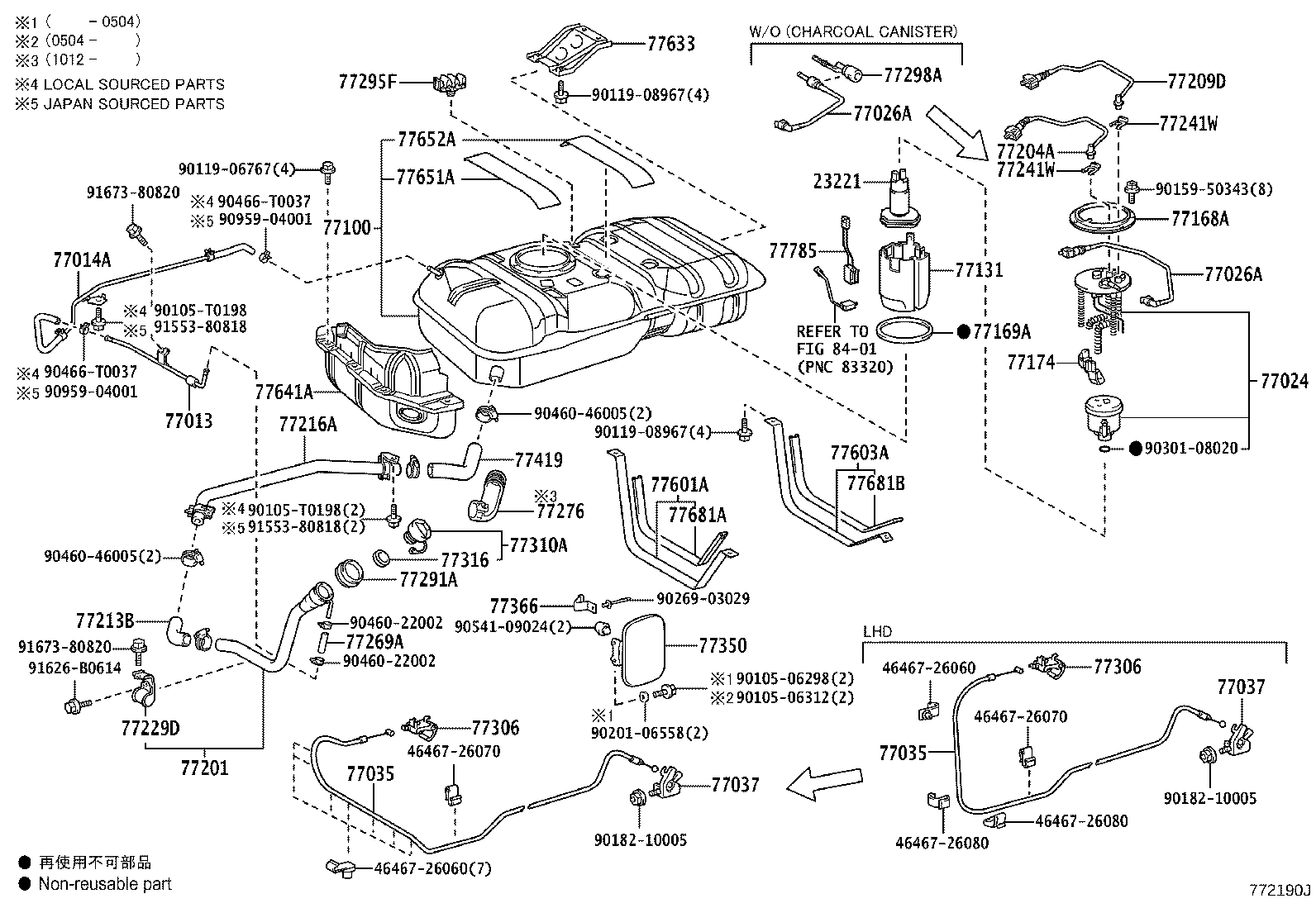

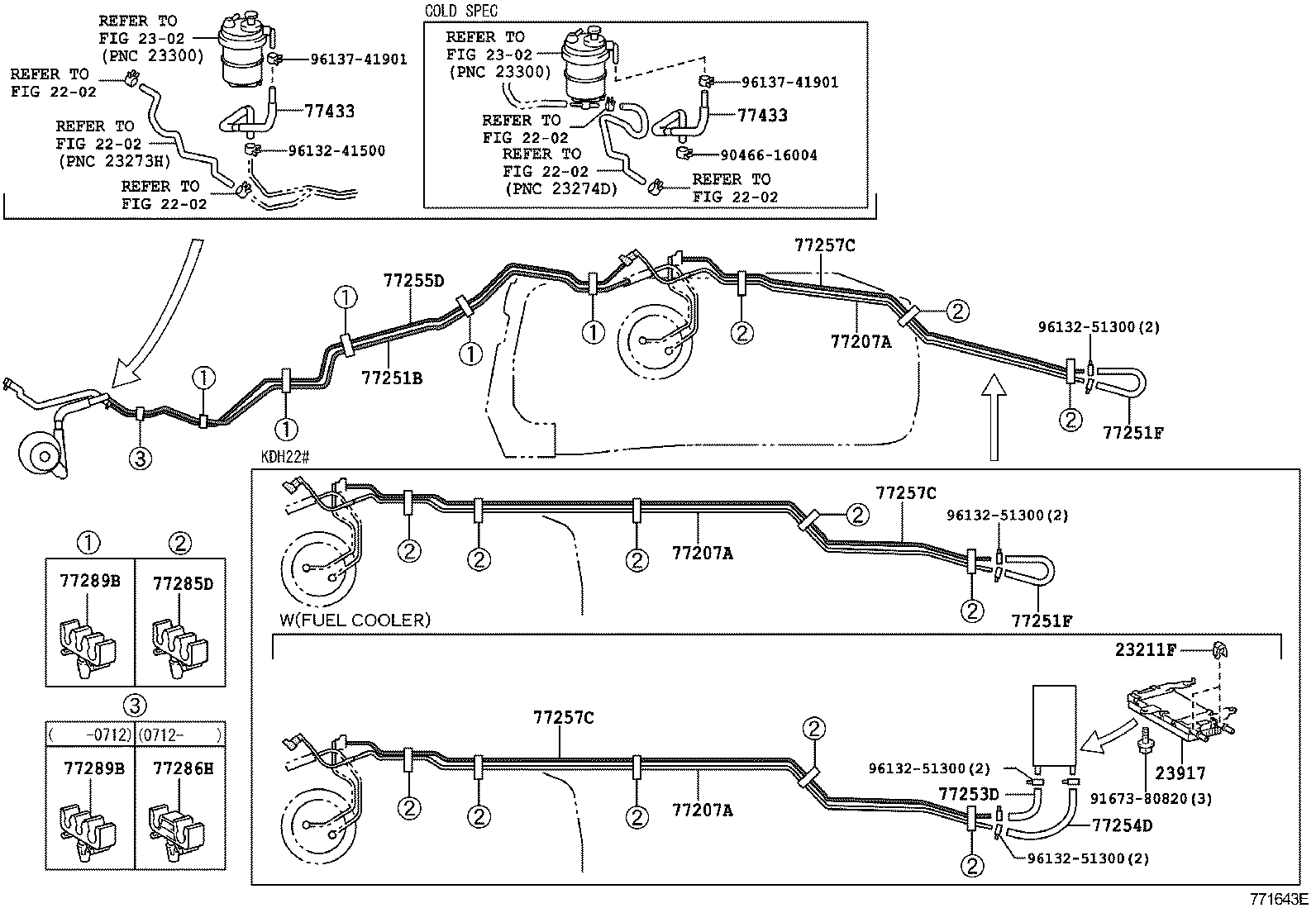

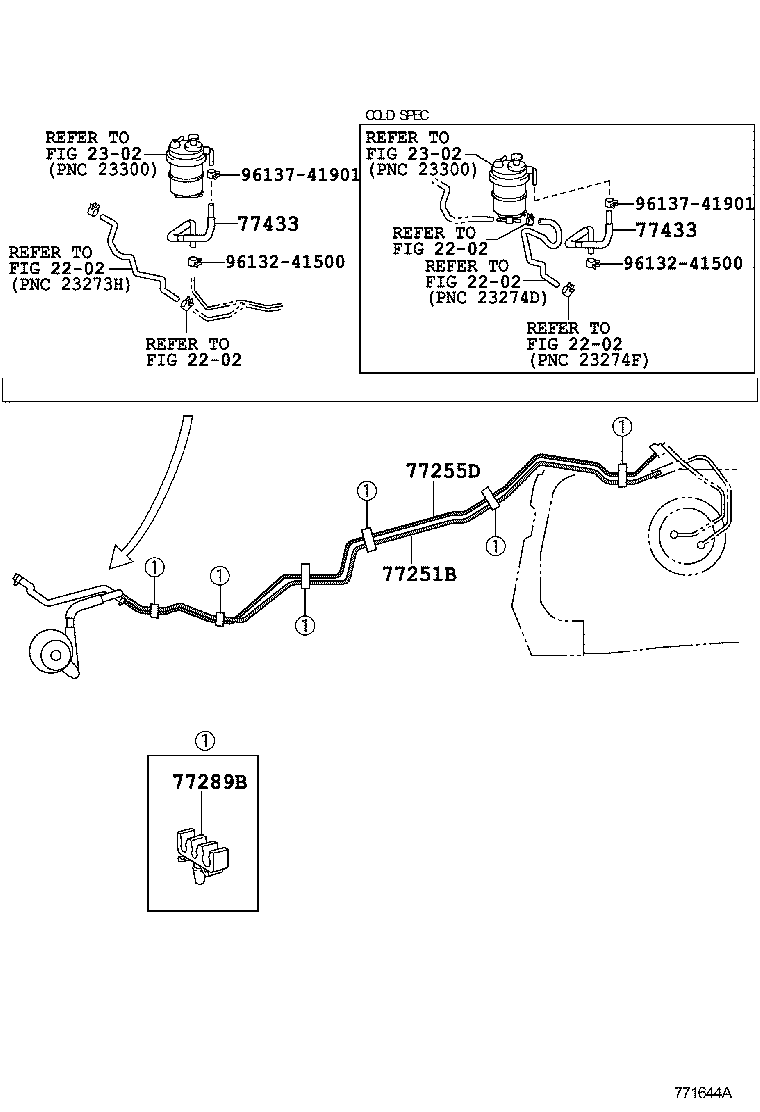

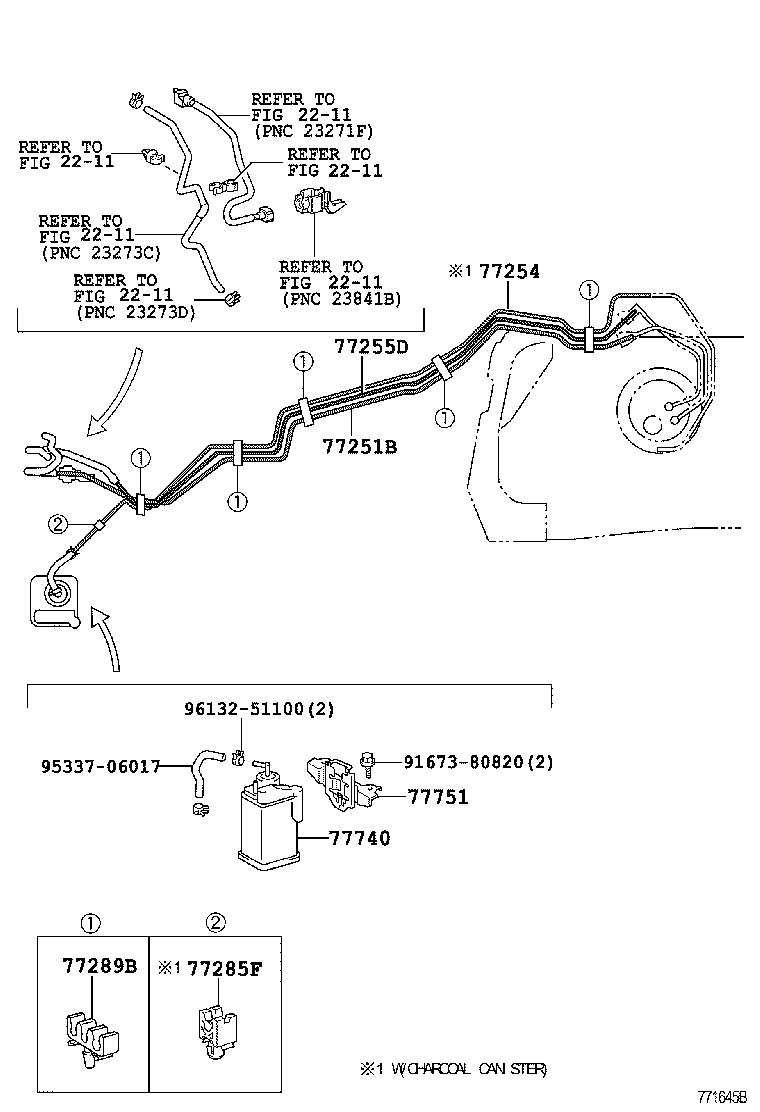

Fuel Tank & Tube
58 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 23211F | Bracket |
| 23221 | Pump, Fuel |
| 23917 | Cooler, Fuel |
| 77013 | Tube Sub-assy, Fuel Tank Breather, NO.2 |
| 77014A | Tube Sub-assy, Fuel Tank Breather, NO.3 |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77024 | Tube Sub-assy, Fuel Main & Return, Front |
| 77026A | Tube Sub-assy, Fuel Evaporation, NO.1 |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77100 | Tank Assy, Fuel |
| 77131 | Bracket, Fuel Tank Filler Pipe Support |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77174 | Support, Fuel Suction, NO.1 |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77204A | Tube, Fuel Tank Return |
| 77207A | Tube Sub-assy, Fuel Return |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77229D | Support, Fuel Tank Filler Pipe, NO.4 |
| 77241L | Tube, Fuel Tank Suction |
| 77241W | Clip, Tube Joint |
| 77251B | Tube, Fuel Main |
| 77251F | Hose, Fuel |
| 77253D | Hose, Fuel |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77254D | Hose, Fuel |
| 77255D | Tube, Fuel Return |
| 77257C | Tube, Fuel Return, NO.3 |
| 77269A | Hose, Fuel Tank Breather |
| 77276 | Protector, Fuel Hose |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77295F | Grommet, Fuel Hose |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77419 | Hose, Fuel, NO.3 |
| 77433 | Hose, Fuel Main, NO.1 |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77603A | Band Sub-assy, Fuel Tank, NO.2 |
| 77633 | Stay, Fuel Tank |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77681A | Seat, Fuel Tank Band |
| 77681B | Seat, Fuel Tank Band |
| 77740 | Canister Assy, Charcoal |
| 77751 | Bracket, Charcoal Canister Base |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
