Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

107 part groups · 24 illustrations

Illustrations

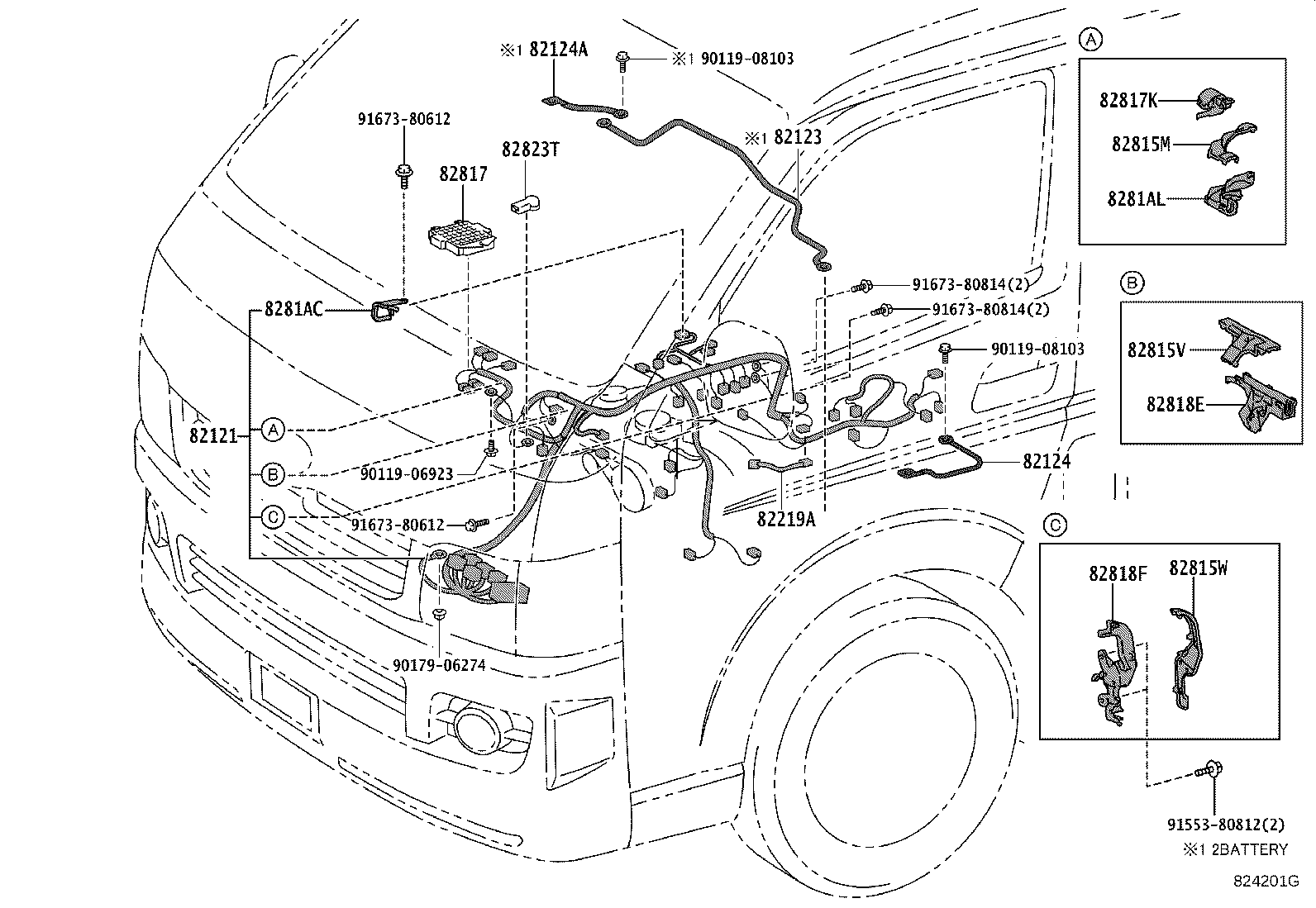

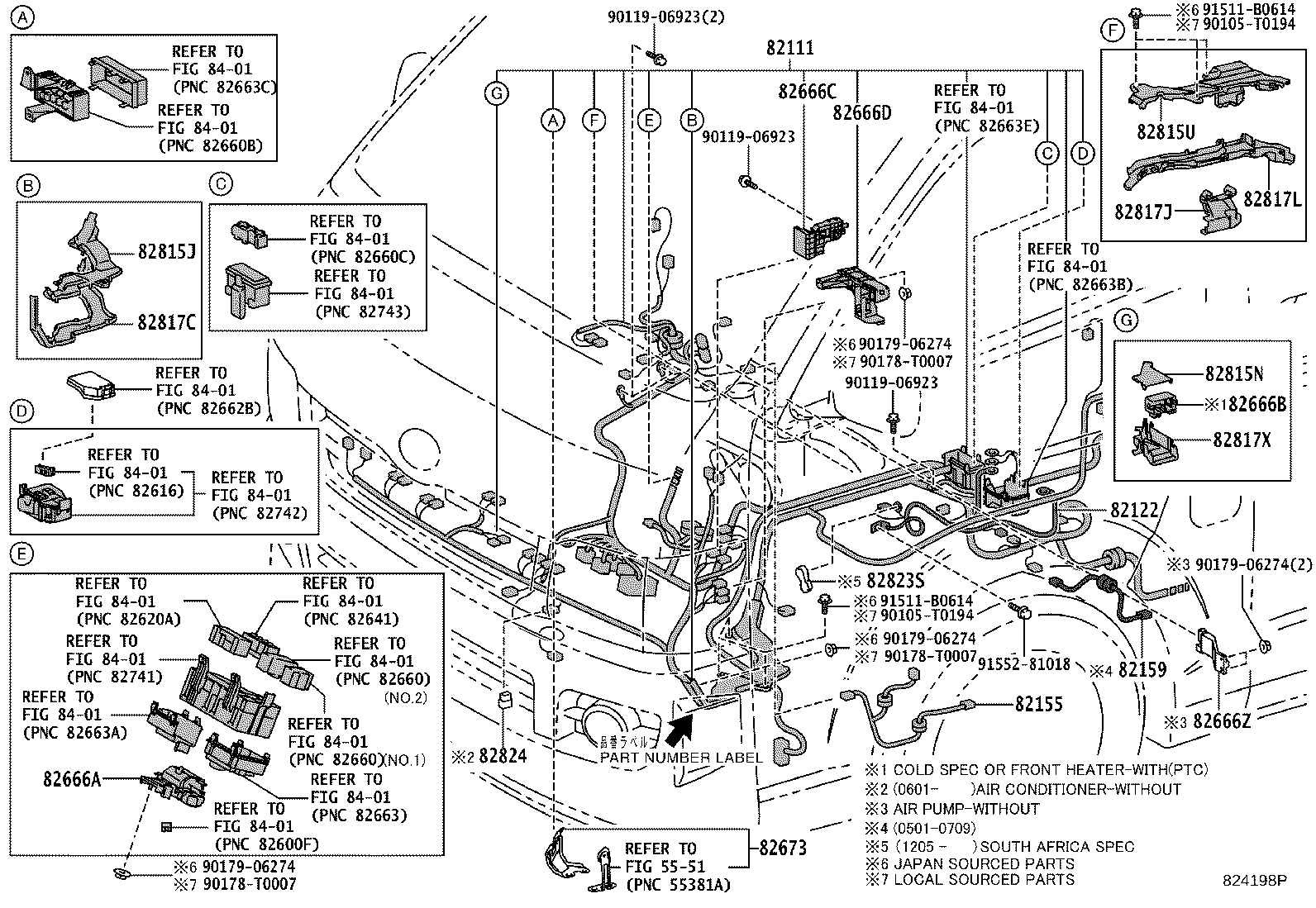

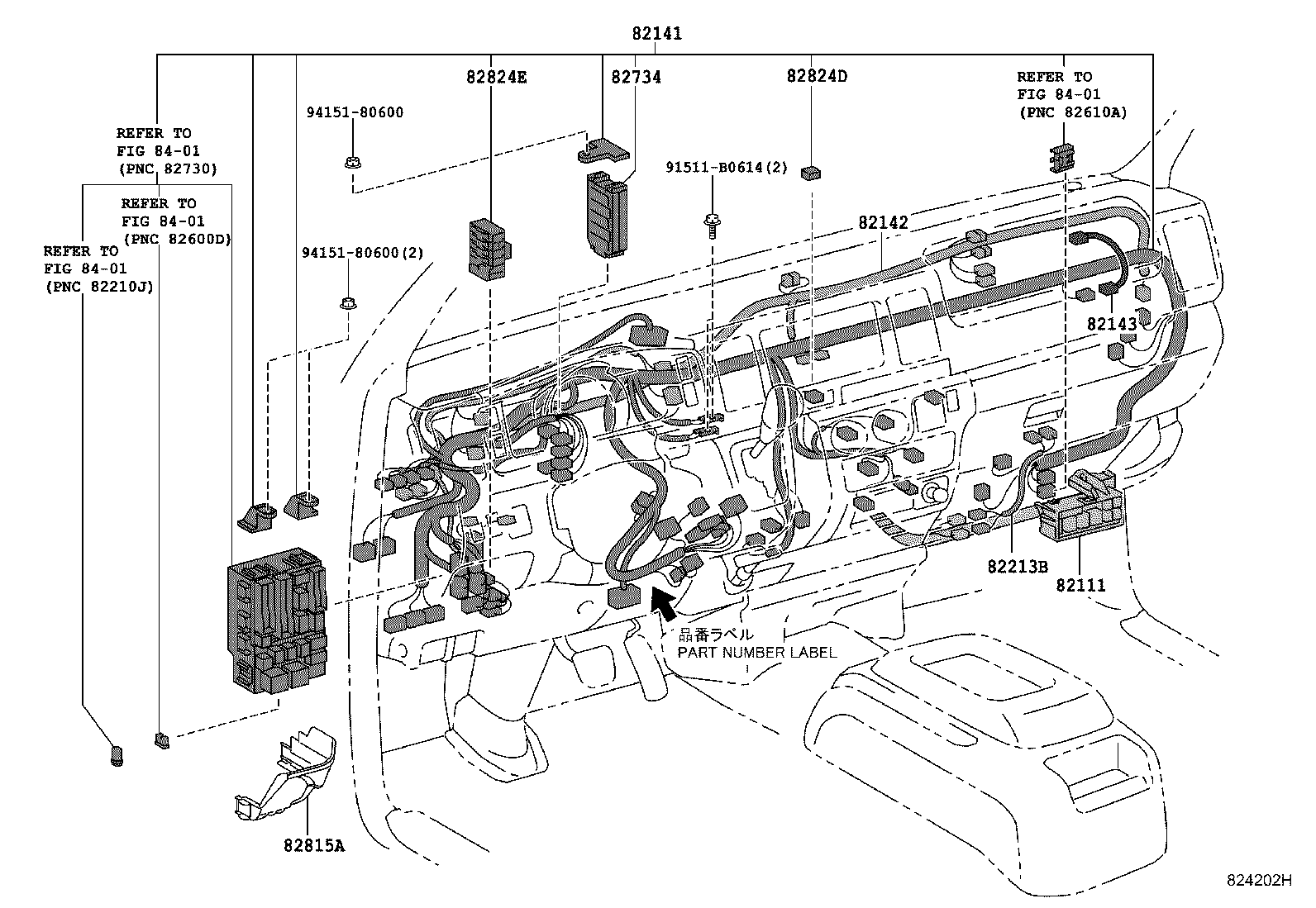

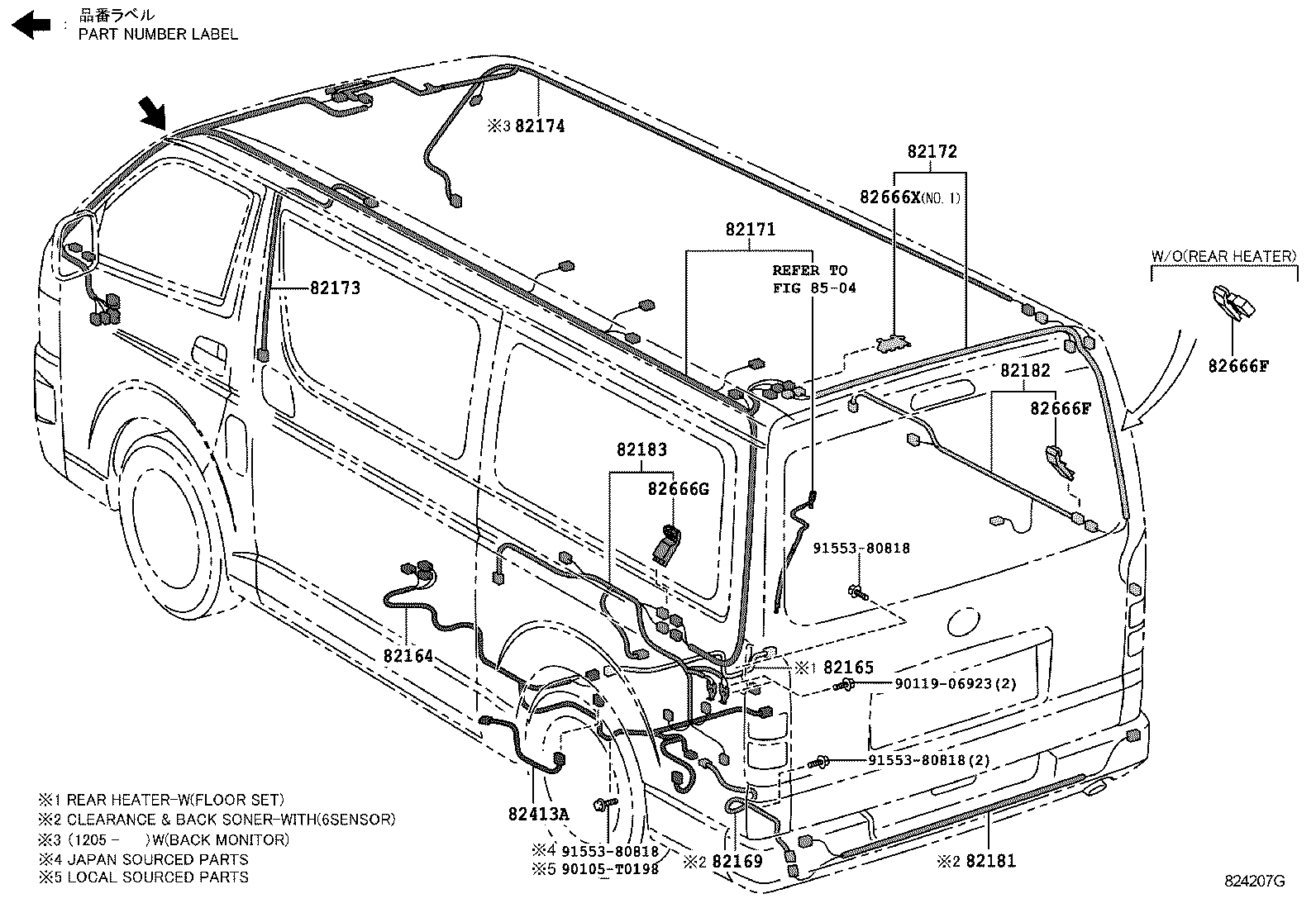

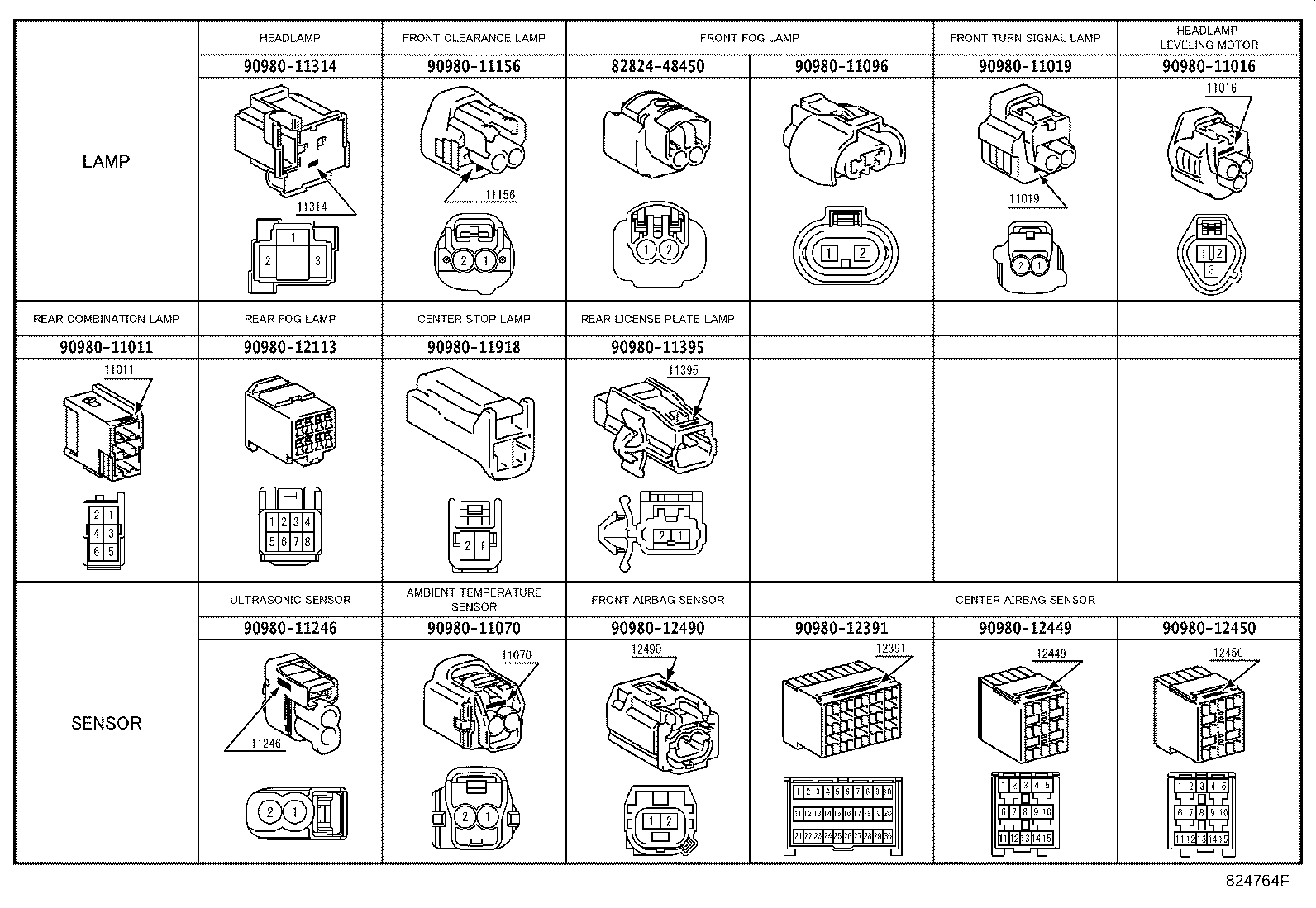

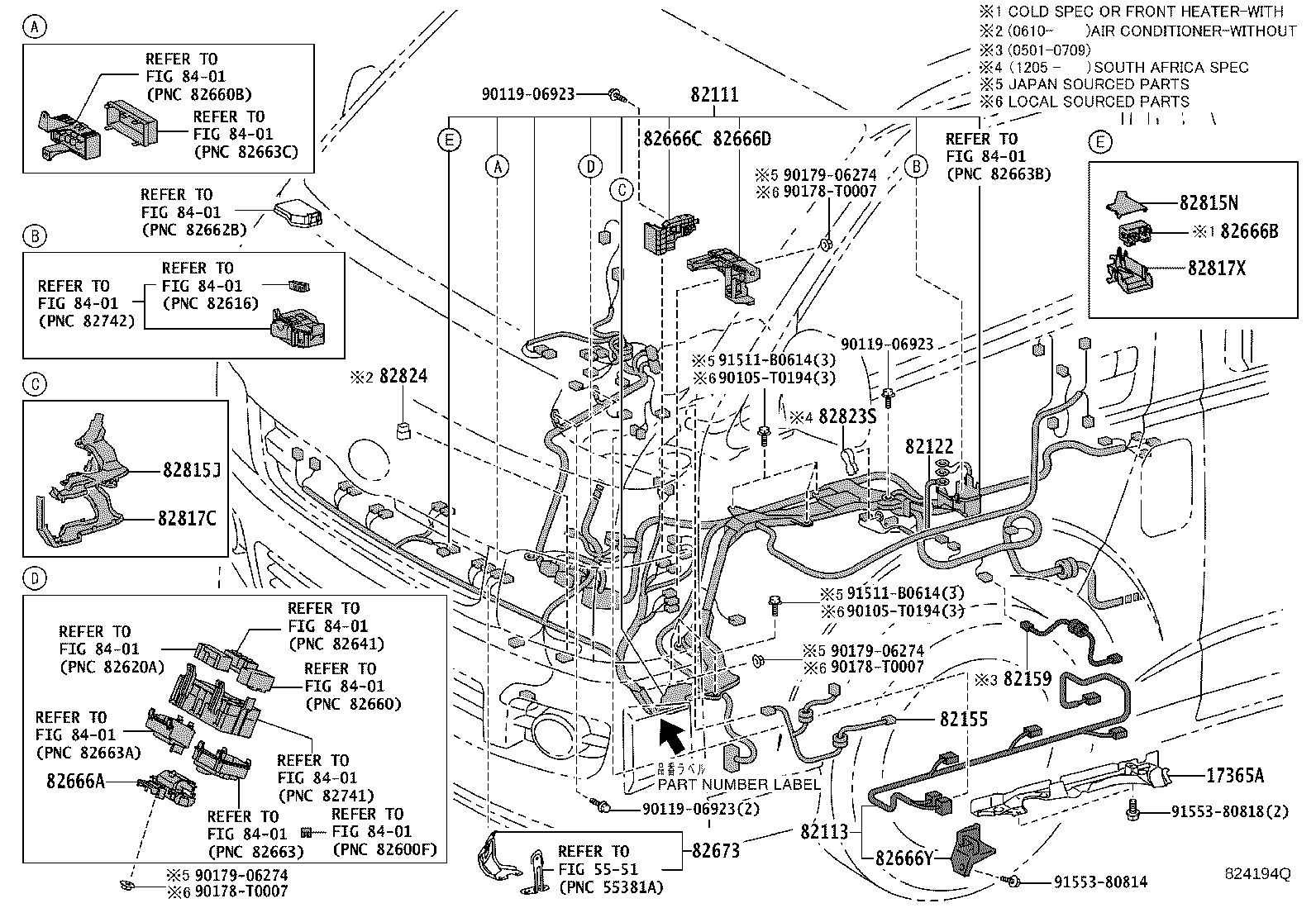

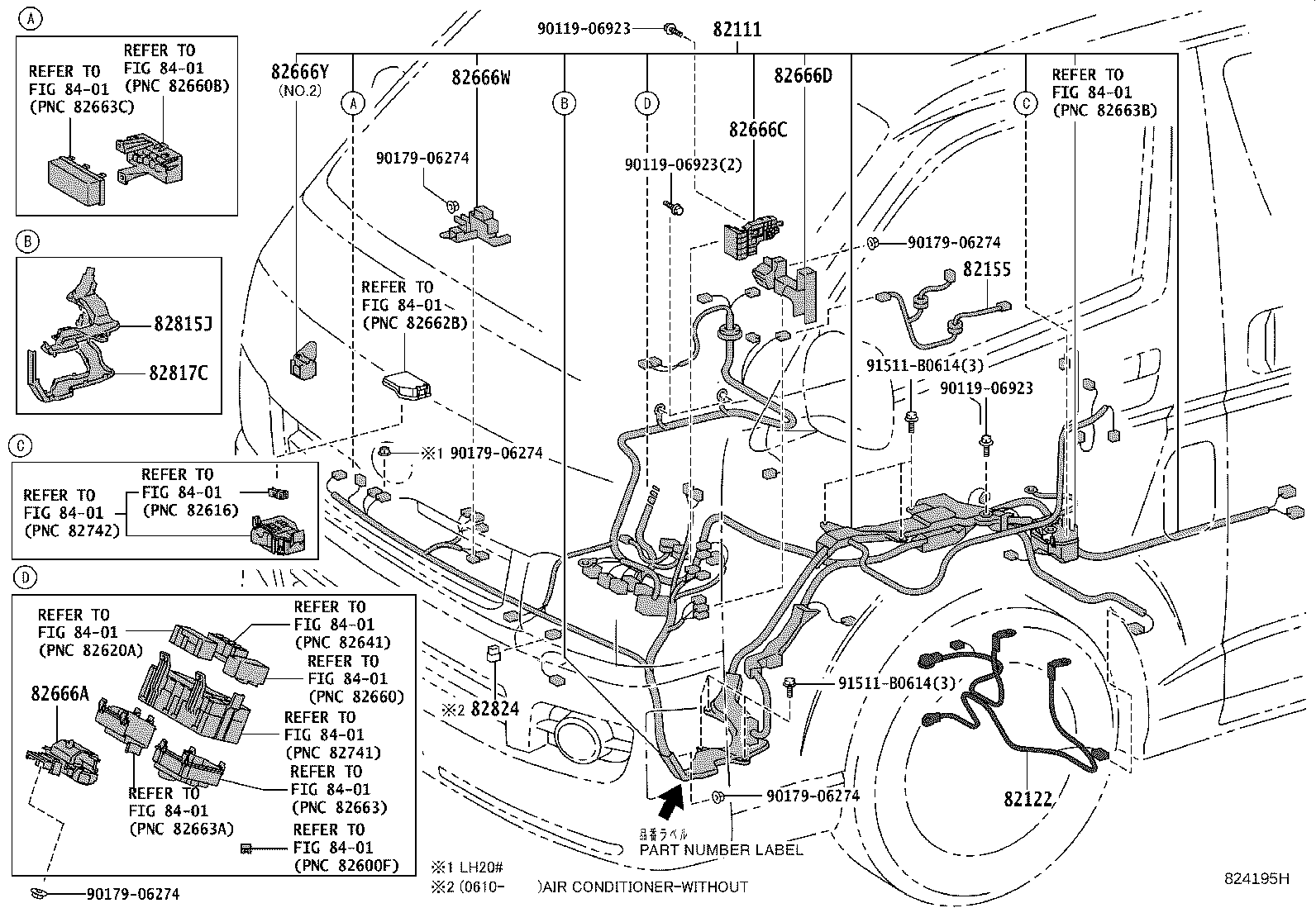

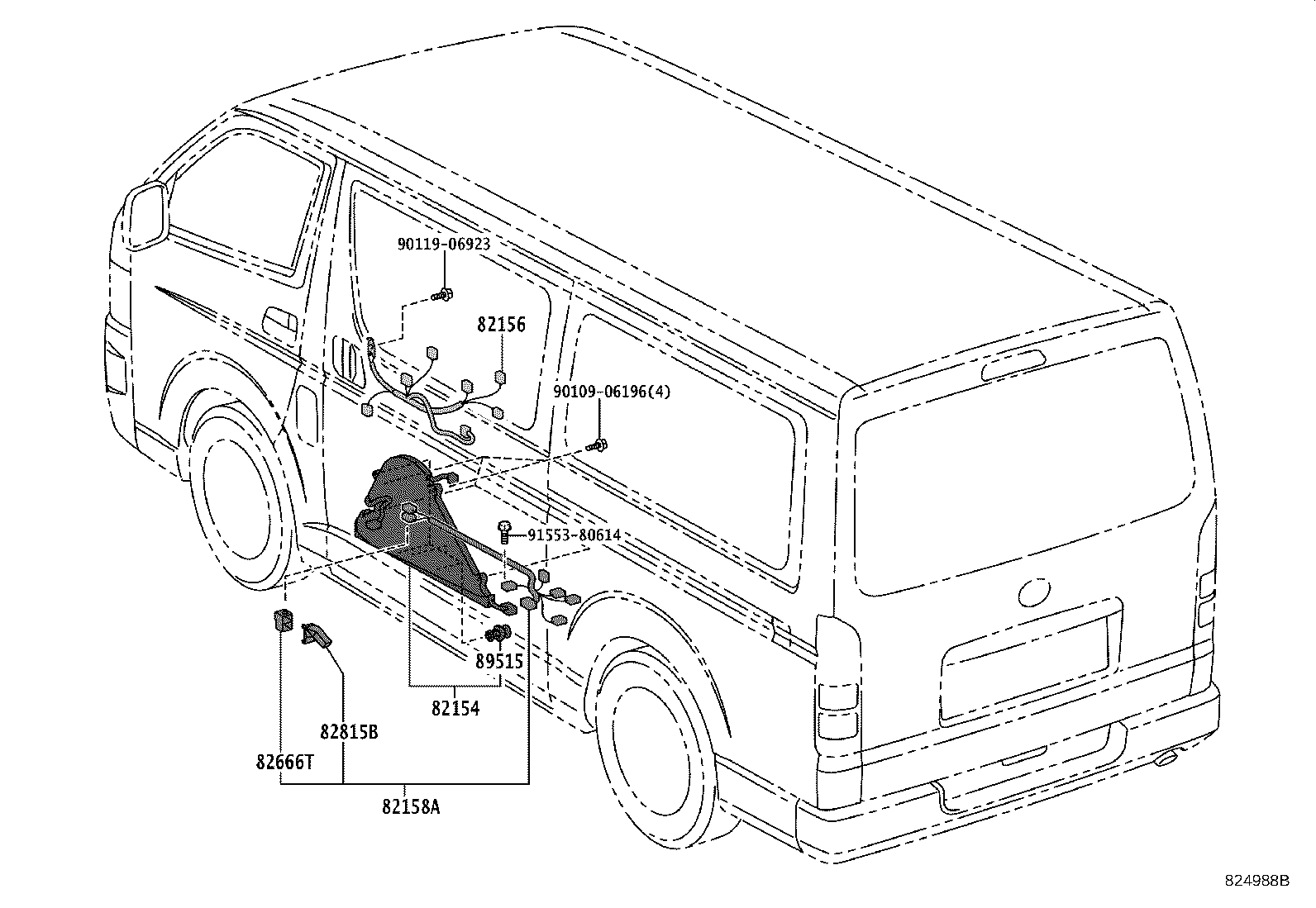

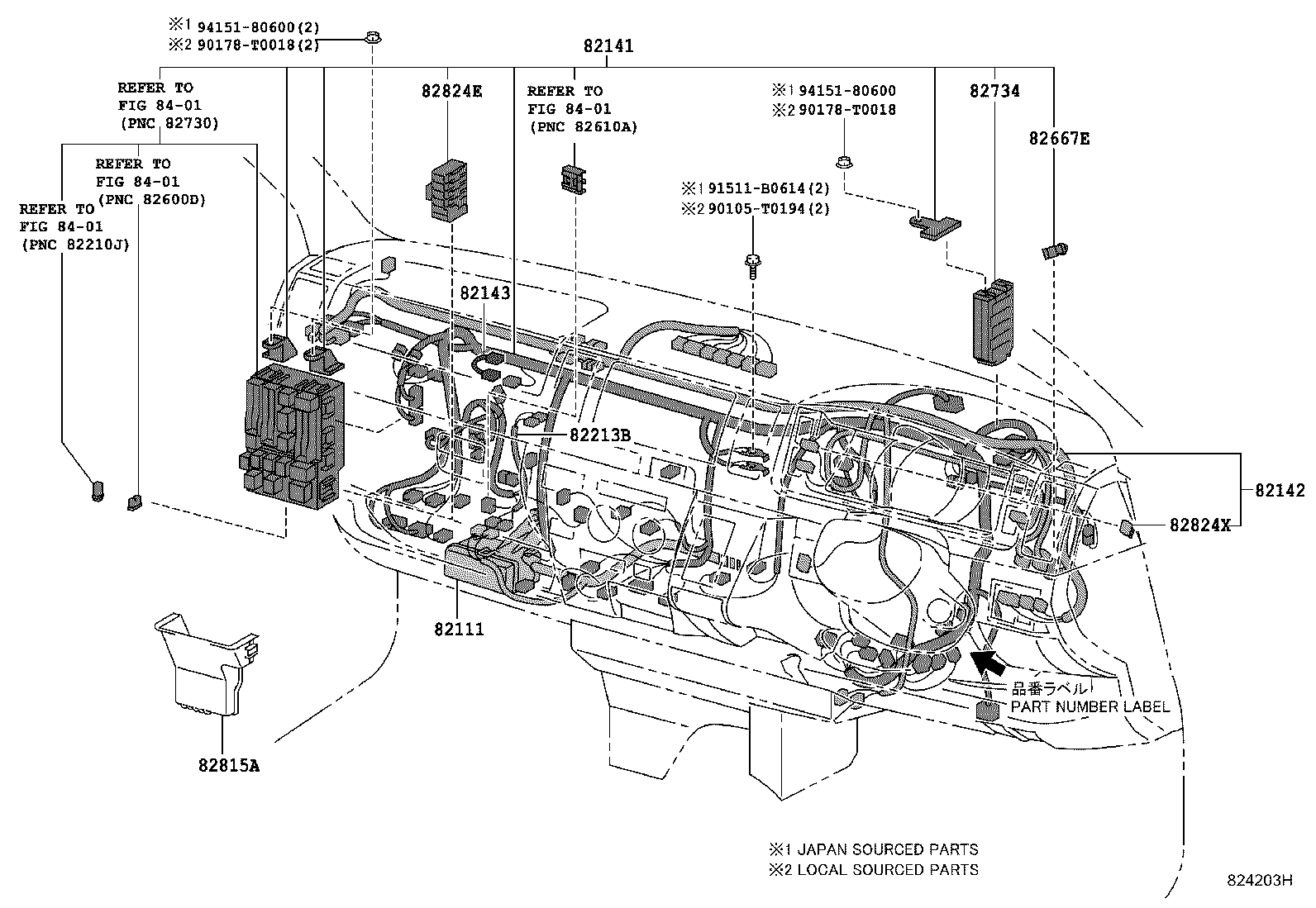

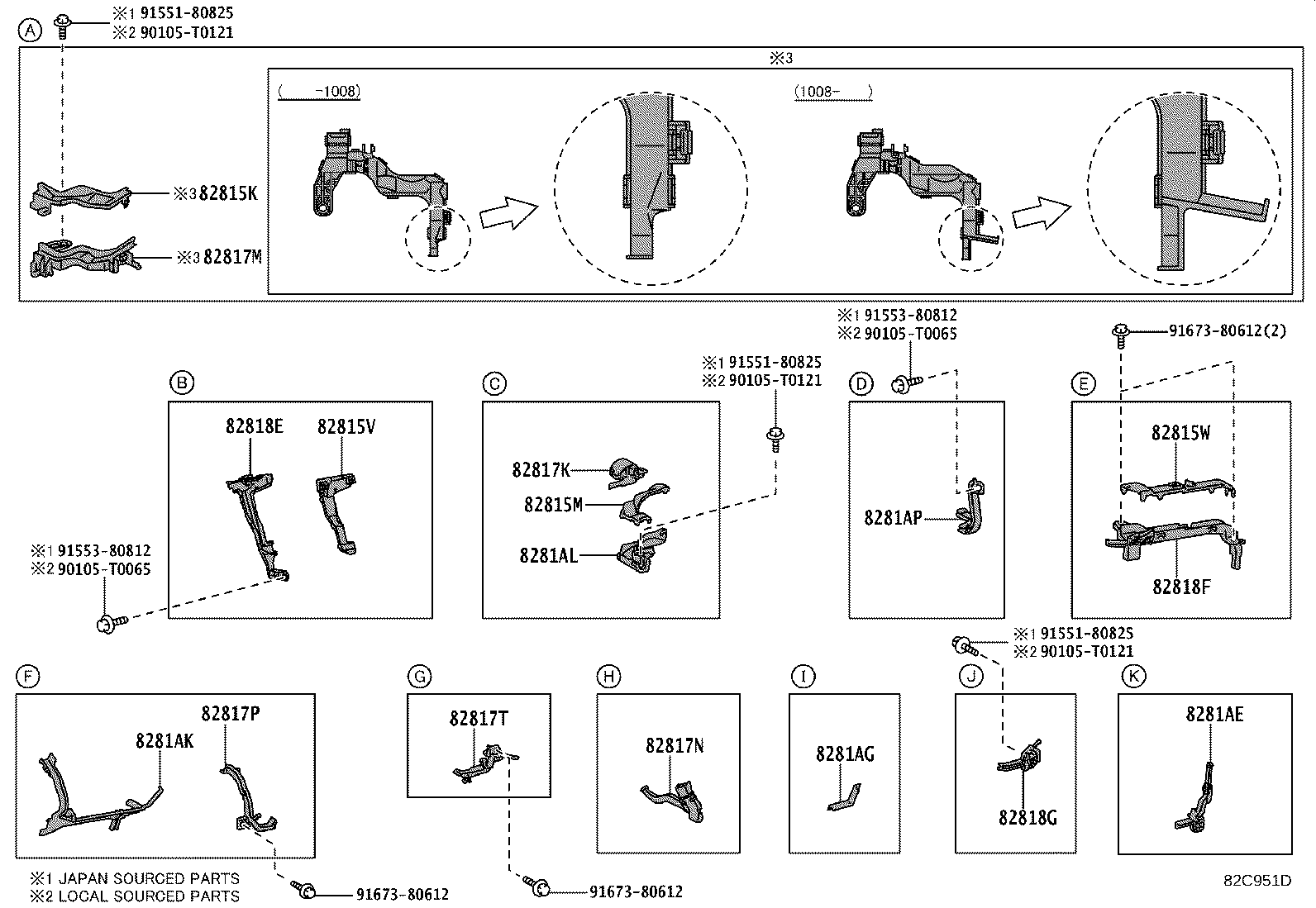

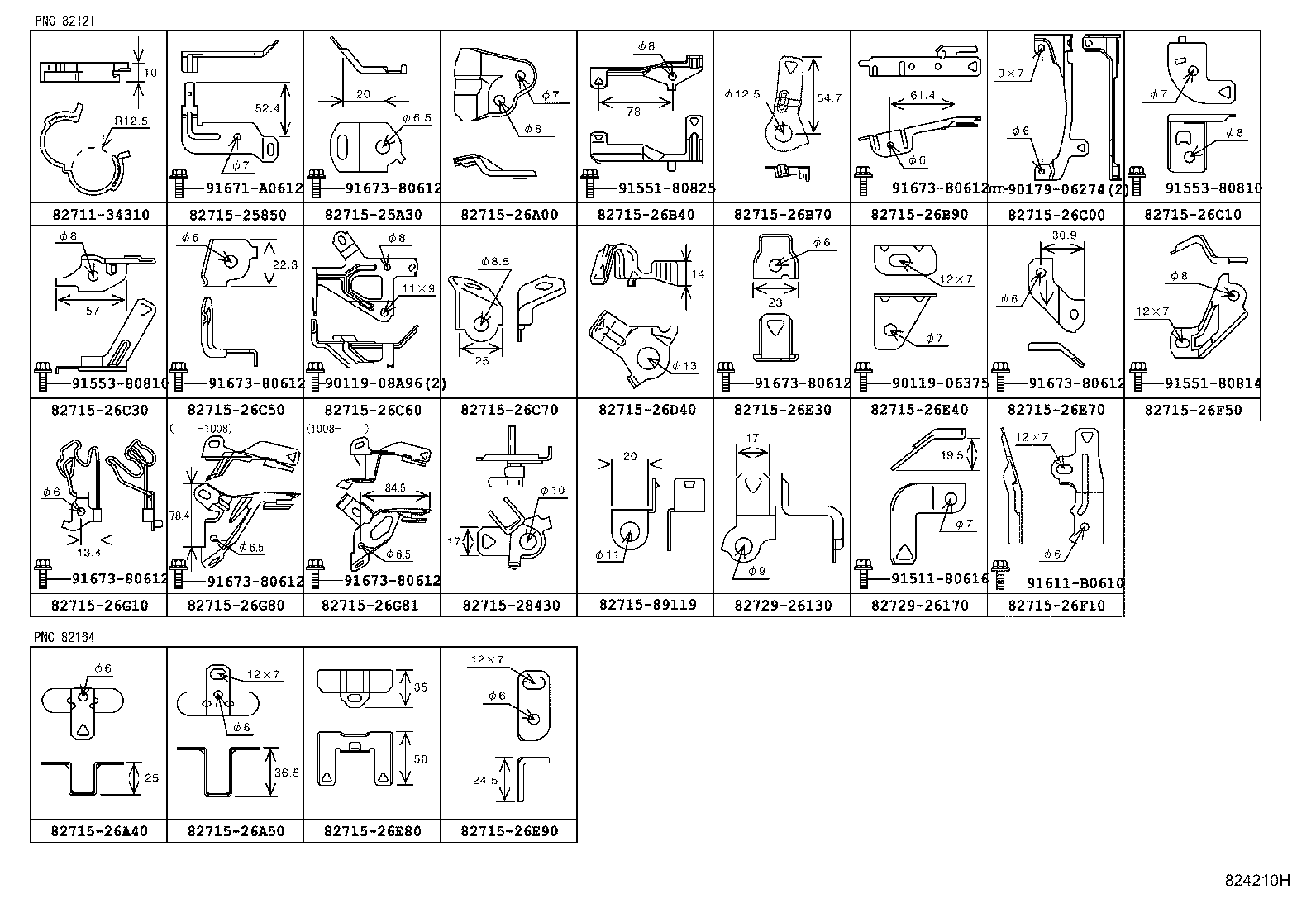

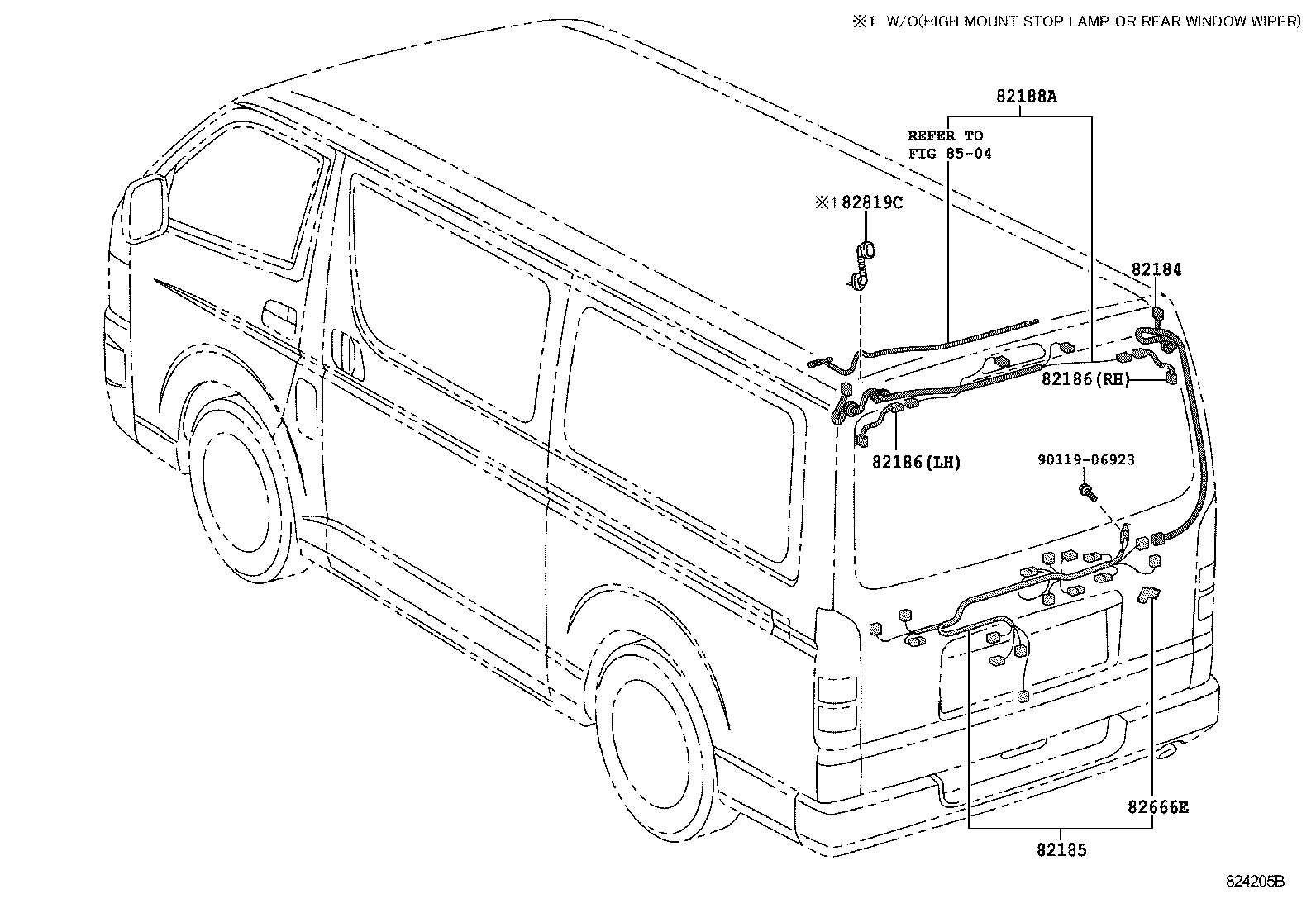

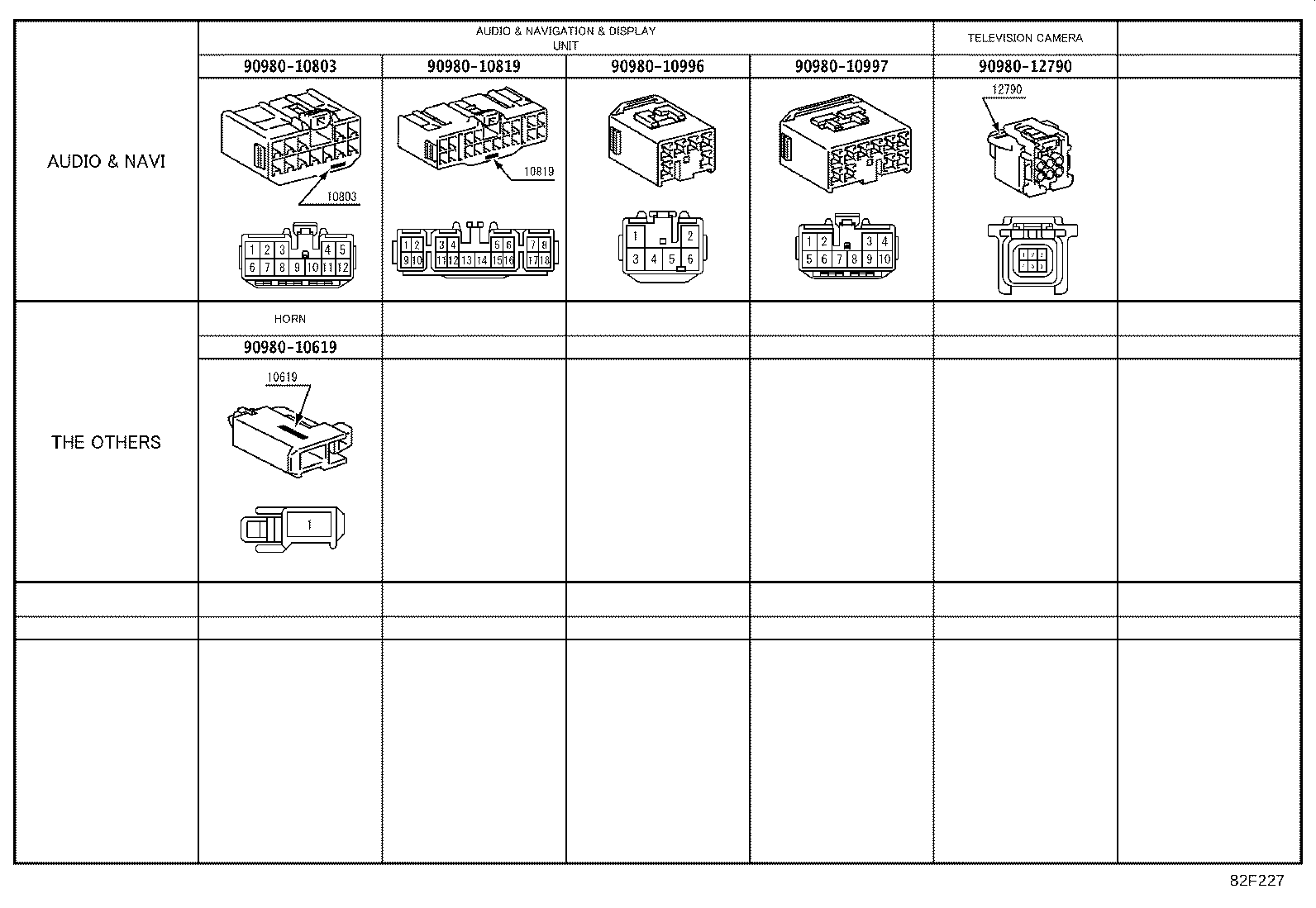

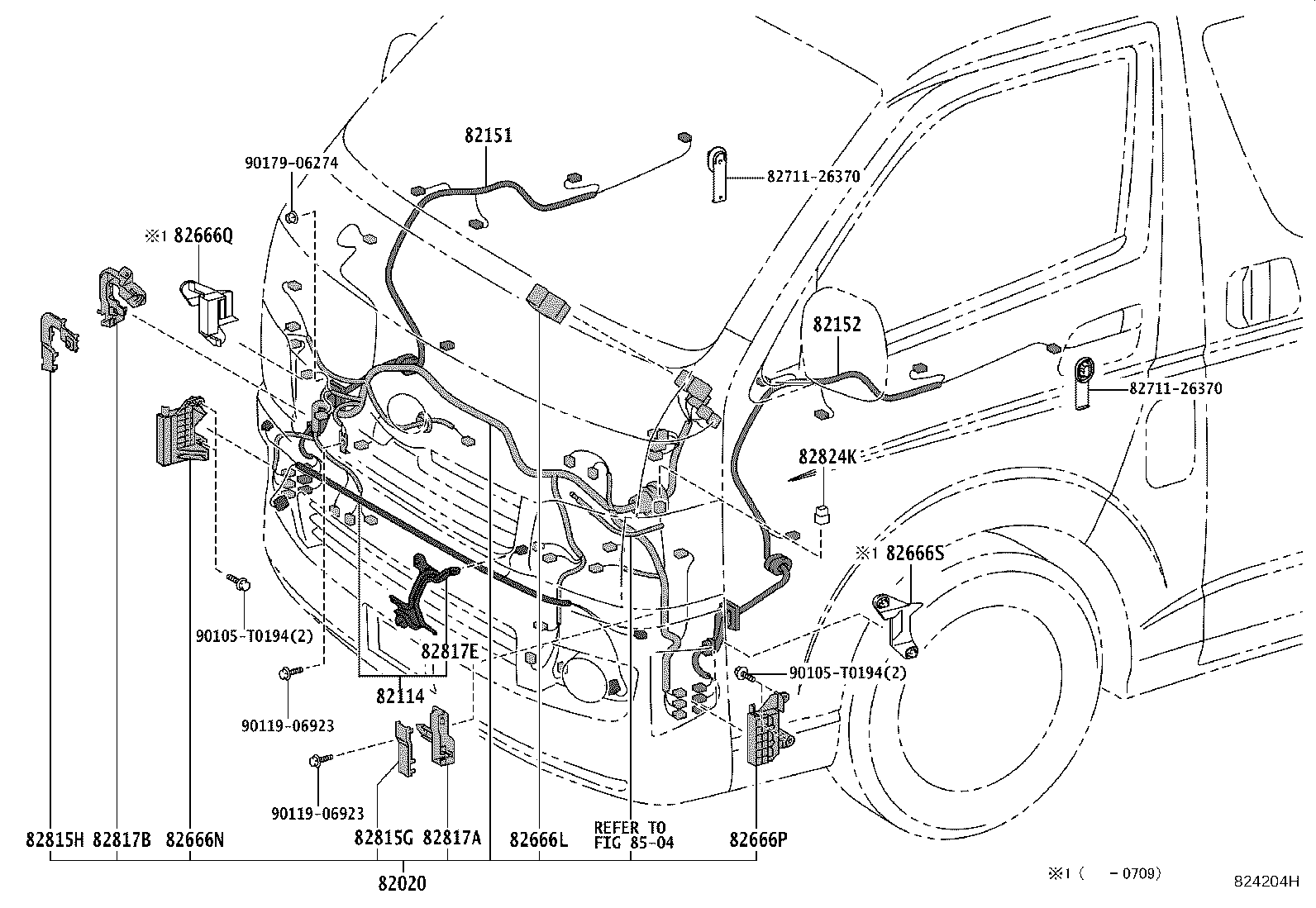

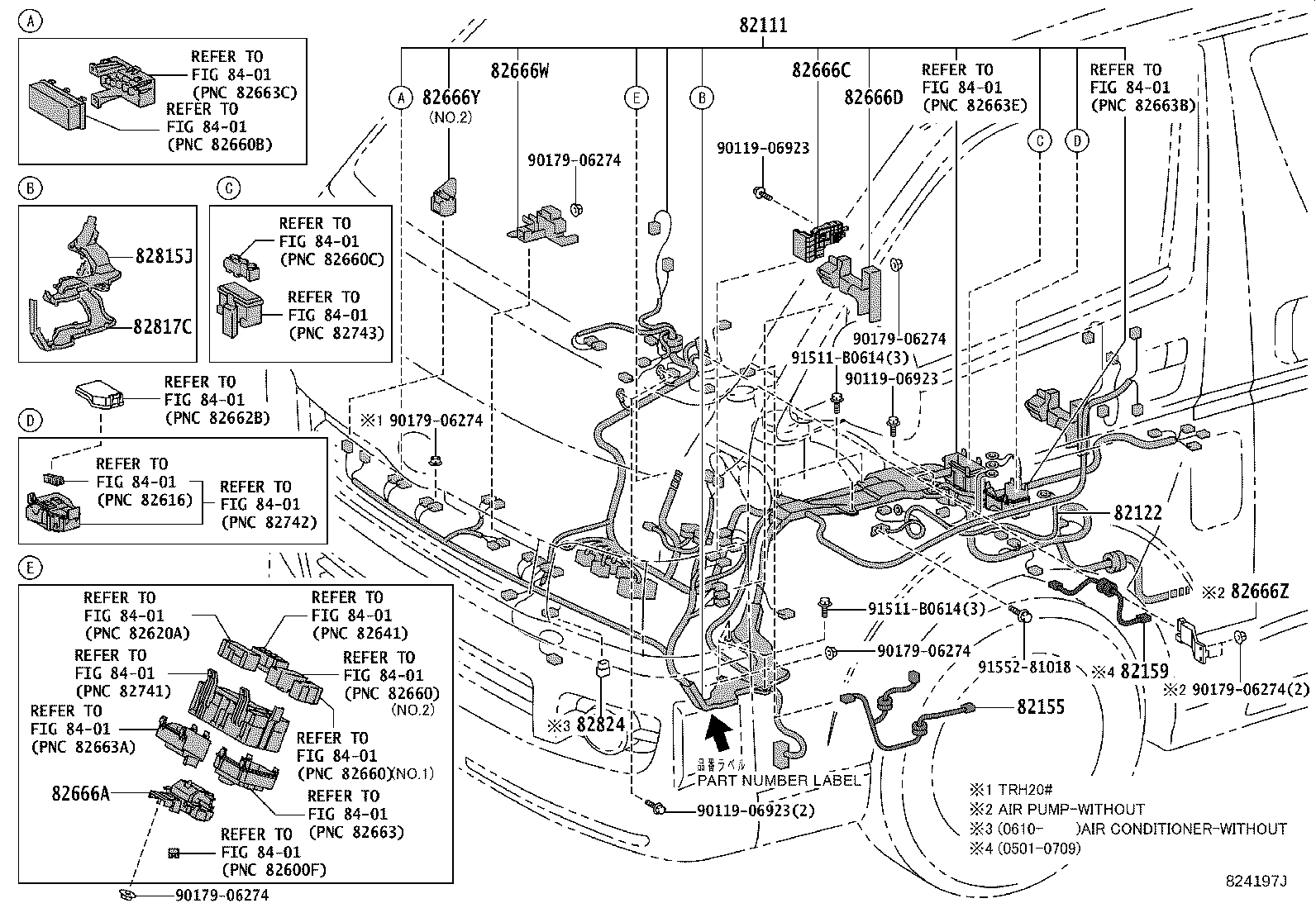

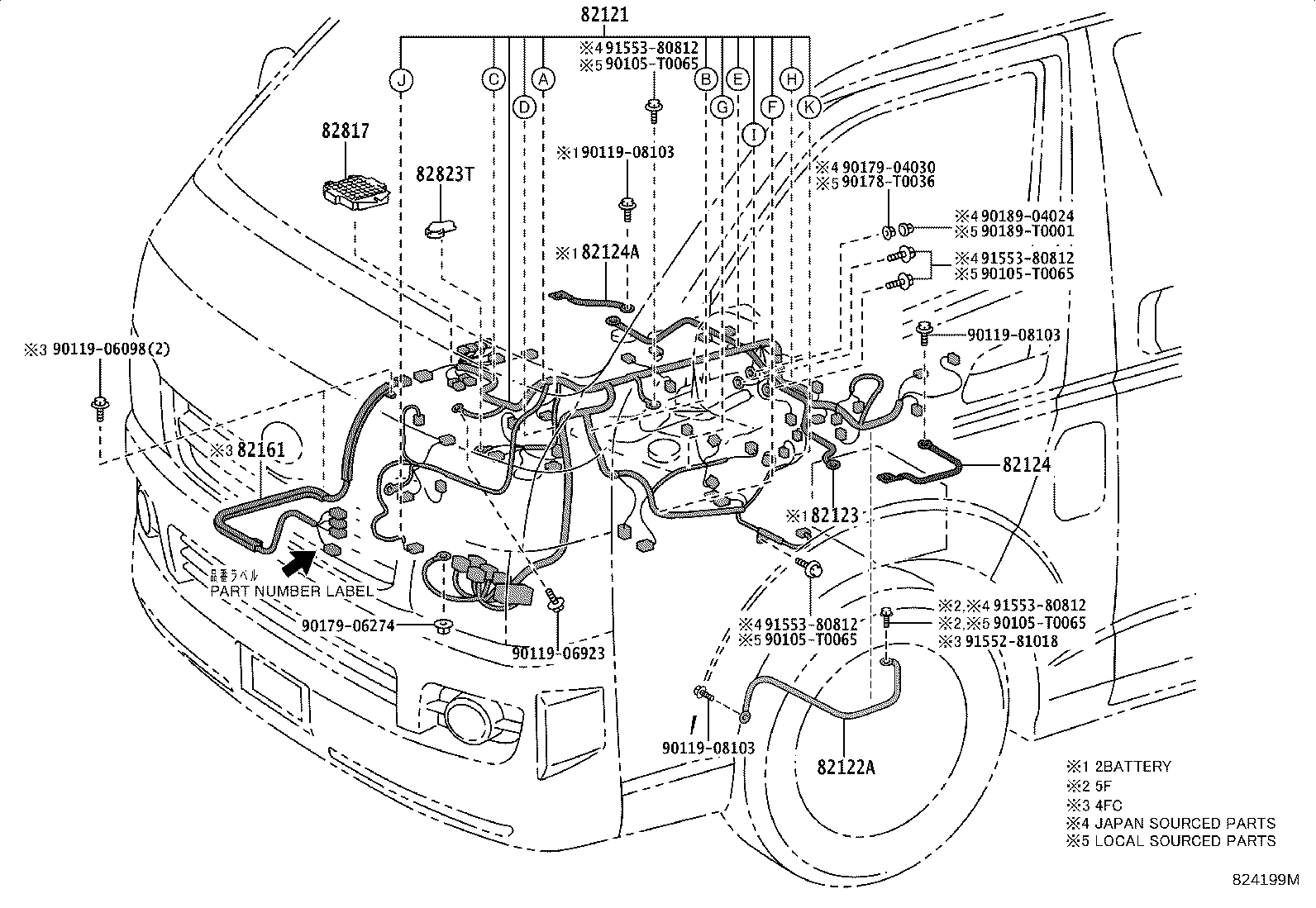

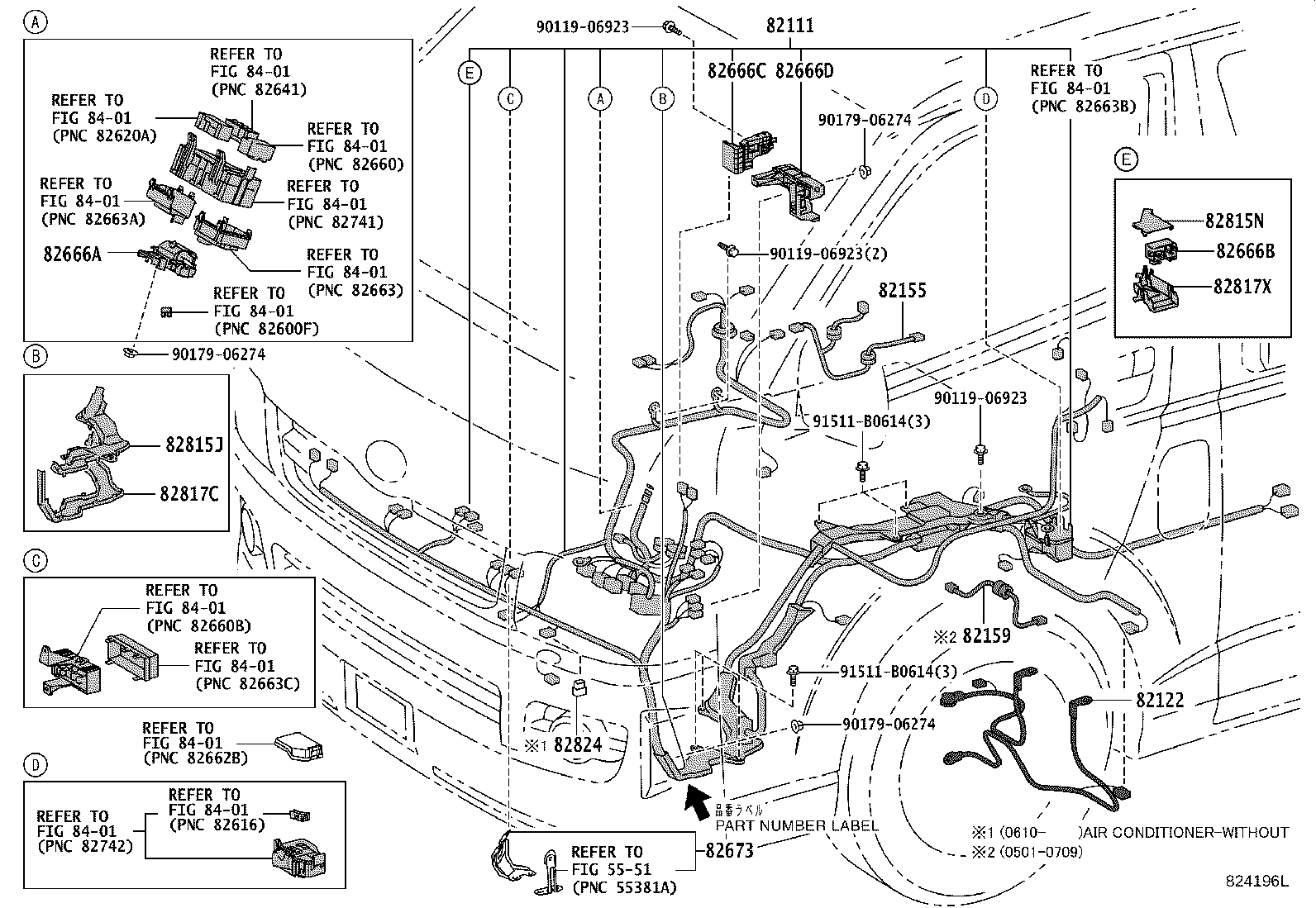

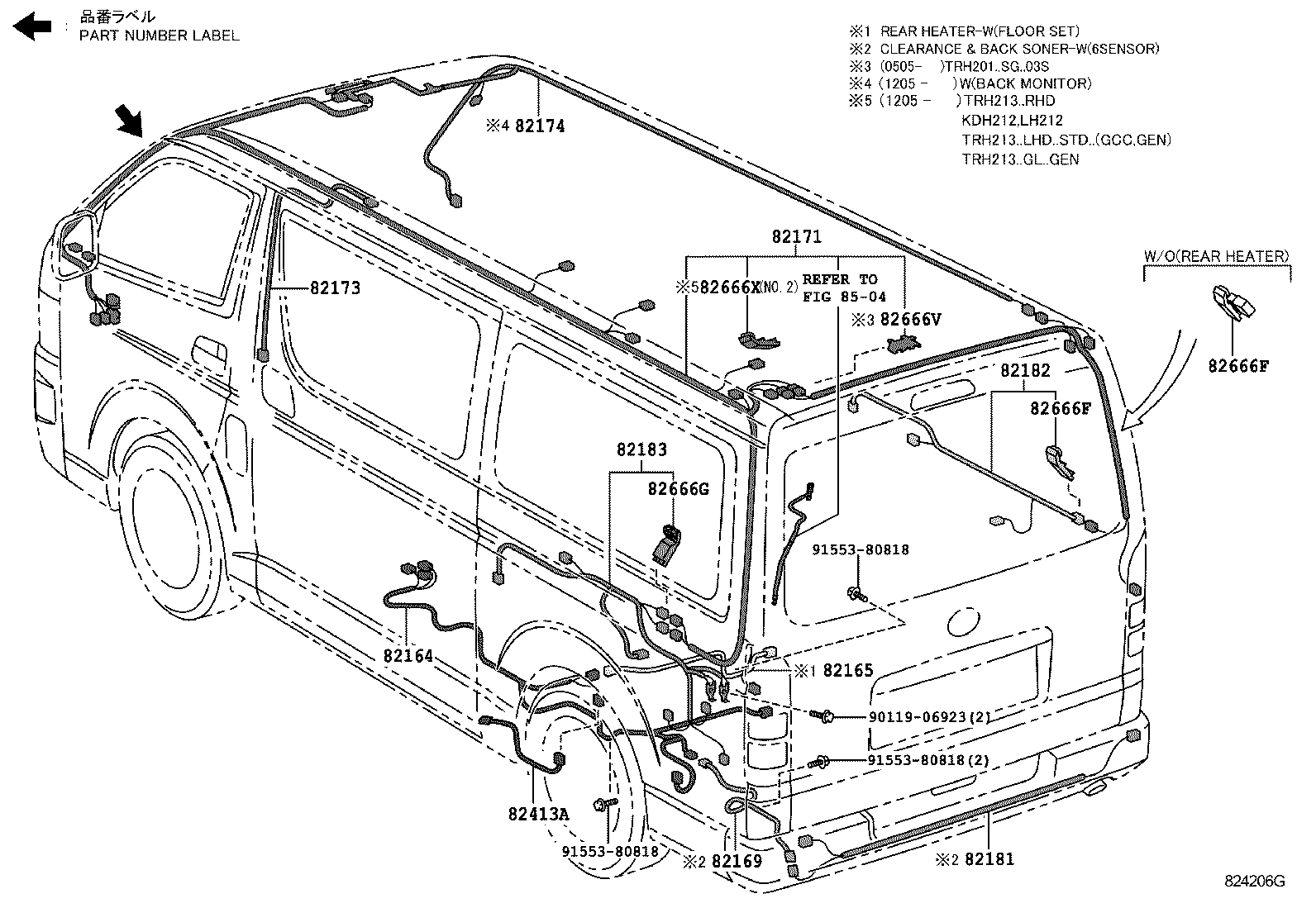

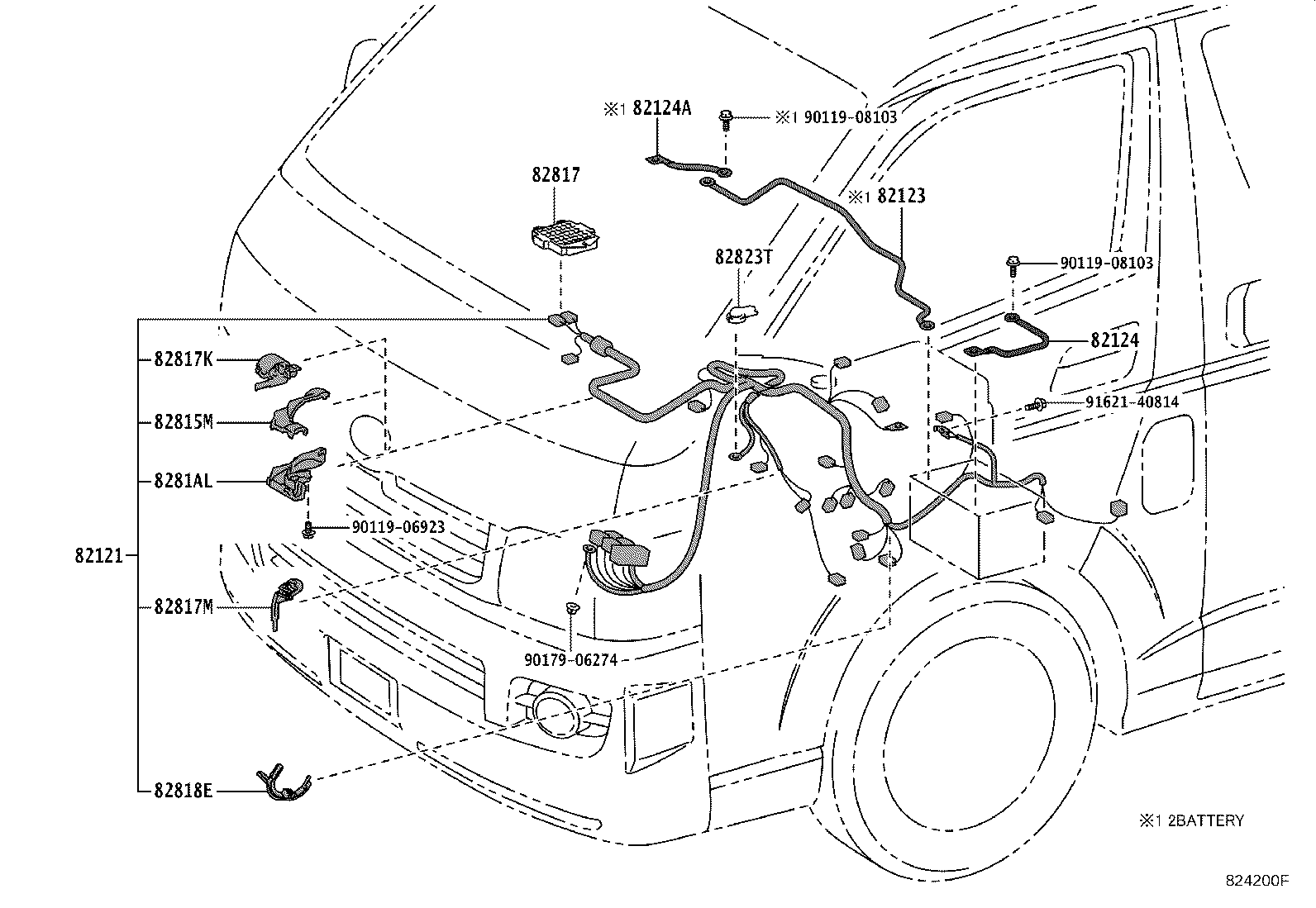

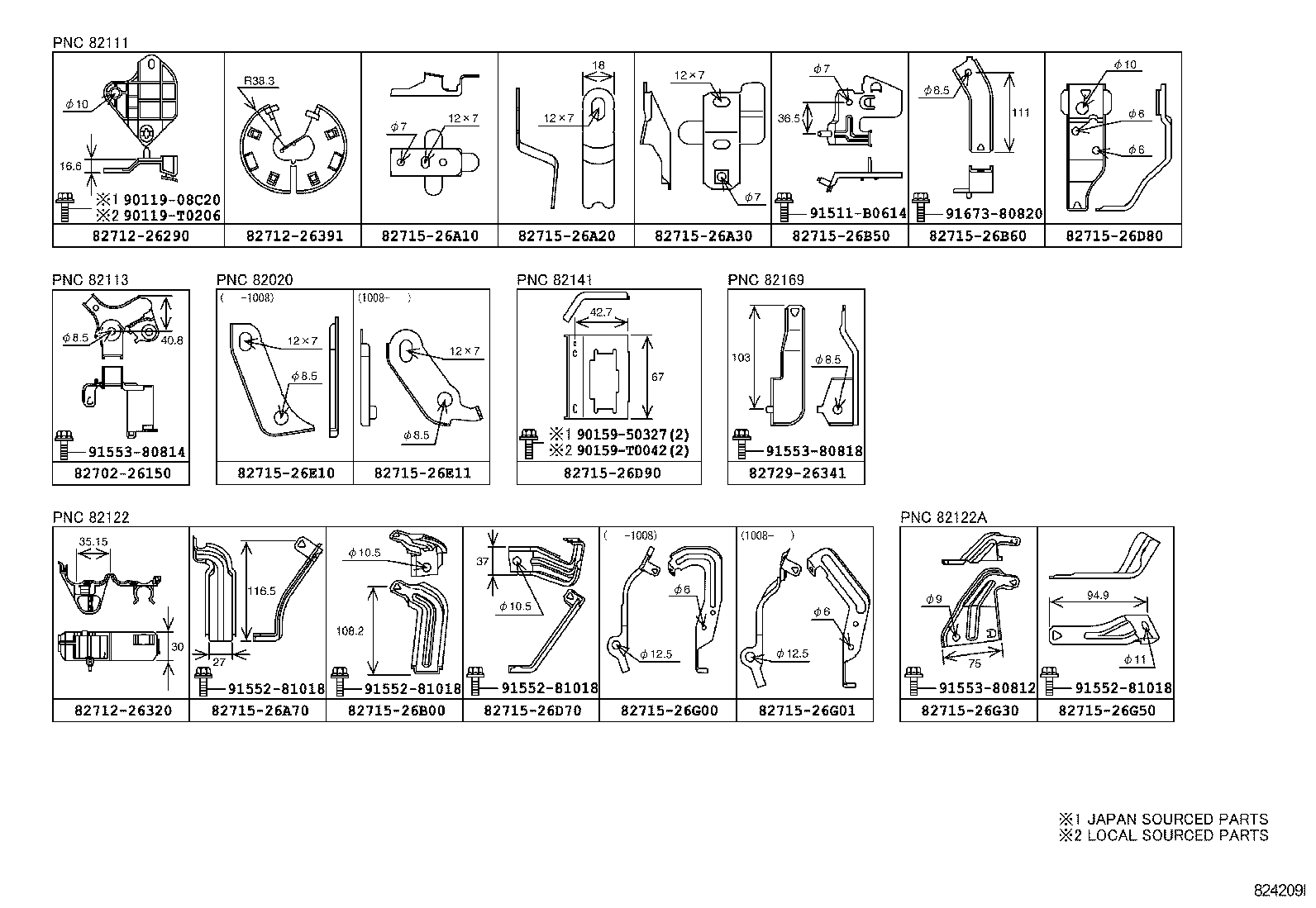

Figure 824193L 824193L 2005-01 → — Figure 824194Q 824194Q 2005-01 → — Figure 824195H 824195H 2005-01 → — Figure 824196L 824196L 2005-01 → — Figure 824197J 824197J 2005-01 → — Figure 824198P 824198P 2005-01 → — Figure 824199M 824199M 2005-01 → — Figure 82C951D 82C951D 2005-01 → — Figure 824200F 824200F 2005-01 → — Figure 824201G 824201G 2005-01 → — Figure 824202H 824202H 2005-01 → — Figure 824203H 824203H 2005-01 → — Figure 824204H 824204H 2005-01 → — Figure 824988B 824988B 2006-10 → — Figure 824988B 824988B 2009-04 → — Figure 824988B 824988B 2010-08 → — Figure 824205B 824205B 2005-01 → — Figure 824206G 824206G 2005-01 → — Figure 824207G 824207G 2005-01 → — Figure 824208C 824208C 2005-01 → — Figure 824209I 824209I 2005-01 → — Figure 824210H 824210H 2005-01 → — Figure 824764F 824764F 2005-01 → — Figure 82F227 82F227 2005-01 → —

Part groups

PNCDescription
17365A Cover, Air Tube
82020 Harness Assy, Wiring Cowl TO Headlamp
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82122A Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82124A Wire, Engine, NO.5
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82154 Wire, Rear Door, NO.2
82155 Wire, Center Piller, NO.1
82156 Wire, Slide Door
82158A Wire, Step Panel, LH
82159 Wire, Pillar, NO.2
82161 Wire, Floor
82164 Wire, Frame
82165 Wire, Frame, NO.2
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82174 Wire, Roof, NO.4
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82188A Wire, Back Door, NO.3
82213B Wire, Heater
82219A Wire, Sensor
82413A Wire, Fuel Tank
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Y Holder, Connector NO.18
82666Z Holder, Connector NO.19
82667E Holder, Connector, NO.20
82673 Bracket, Junction Block
82734 Block, Center Junction
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817X Protector, Wiring Harness, NO.17
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82819C Grommet, Wiring Harness
8281AC Protector, Wiring Harness, NO.4
8281AE Protector, Wiring Harness, NO.6
8281AG Protector, Wiring Harness, NO.8
8281AK Protector, Wiring Harness, NO.11
8281AL Protector, Wiring Harness, NO.12
8281AP Protector, Wiring Harness, NO.15
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824K Connector, Wiring Harness
82824X Connector, Wiring Harness
89515 Clip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
