Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

7 part groups · 5 illustrations

Illustrations

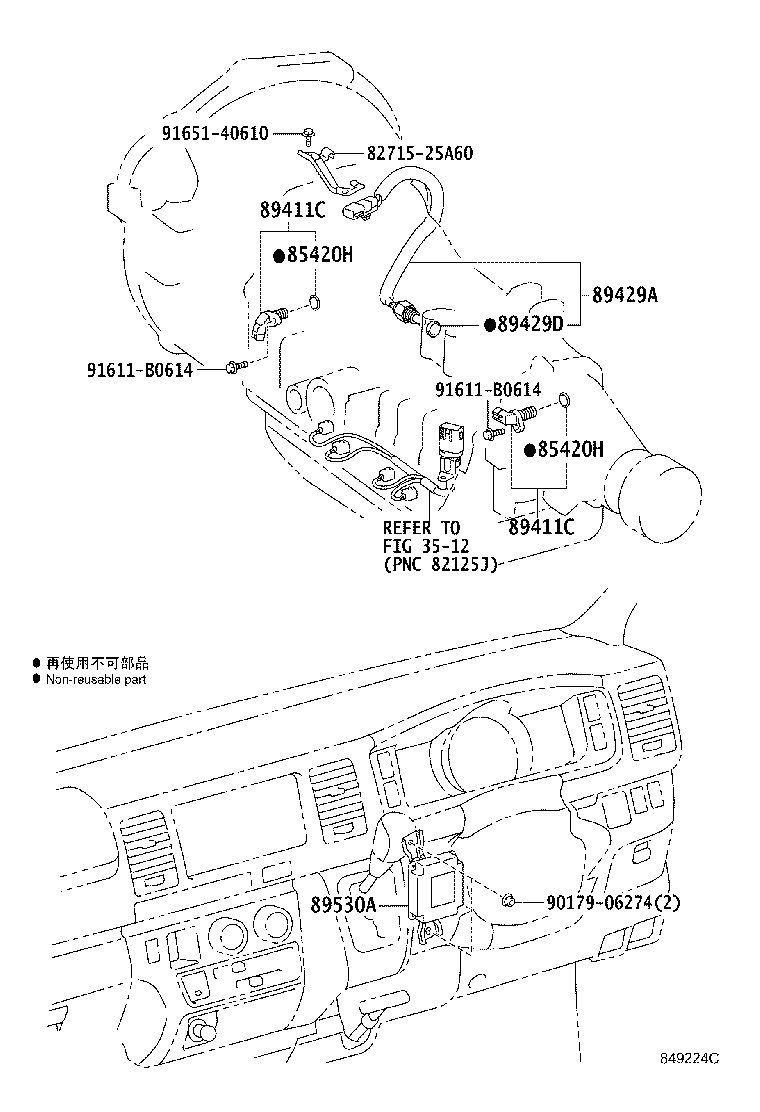

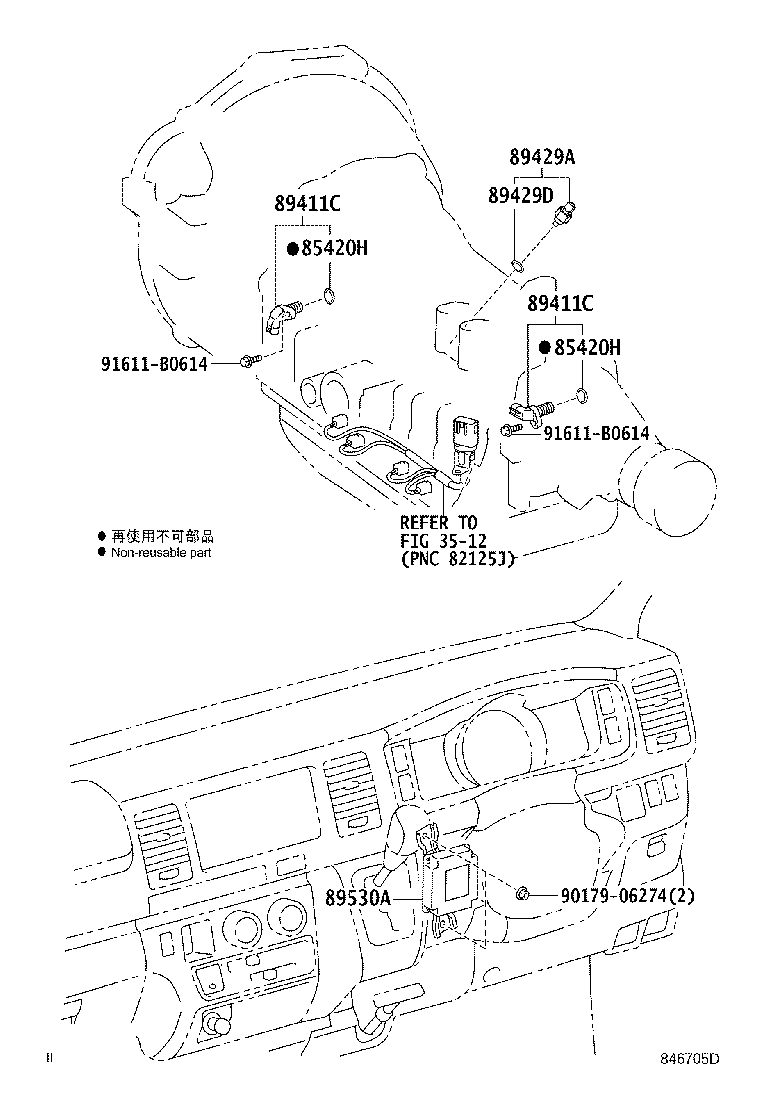

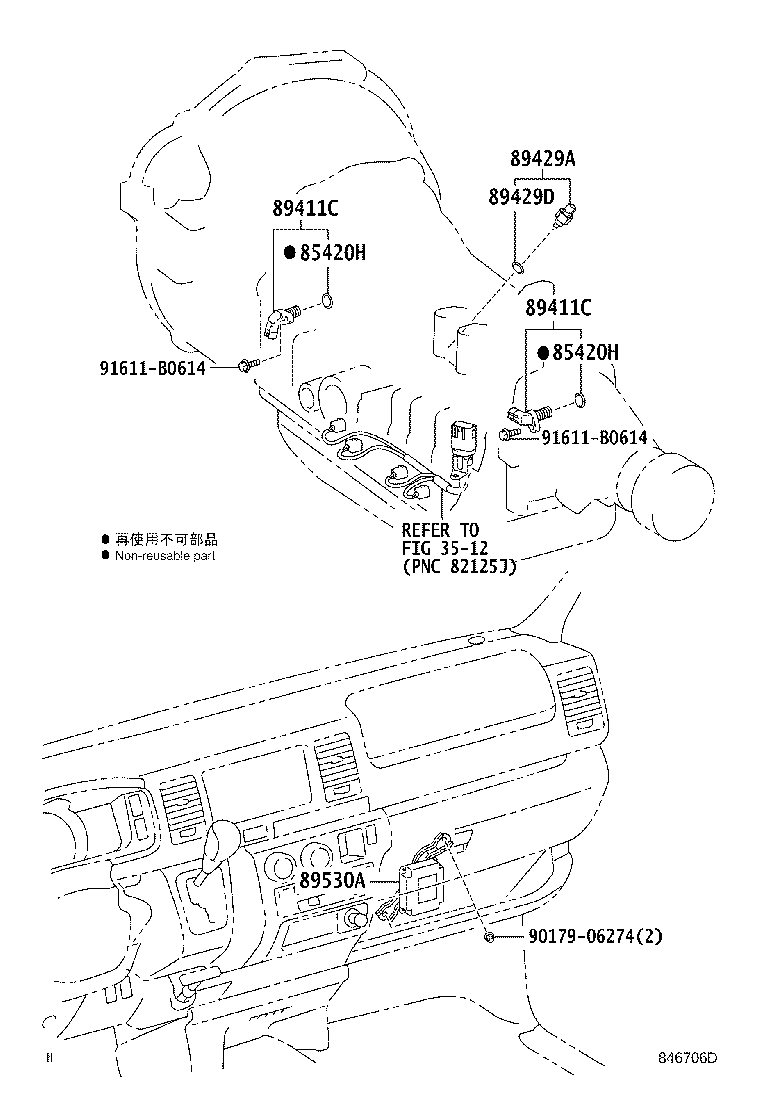

Figure 846704F 846704F 2005-01 → — Figure 846705D 846705D 2005-01 → — Figure 846705D 846705D 2006-10 → 2011-10 Figure 846706D 846706D 2005-01 → — Figure 849224C 849224C 2011-10 → —

Part groups

PNCDescription
85420H Ring, O(FOR SPEED SENSOR)
89411C Sensor, Speed
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
89429A Sensor, Temperature
89429D Ring, O(FOR TEMPERATURE SENSOR)
89530A Computer Assy, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
