Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

5 part groups · 4 illustrations

Illustrations

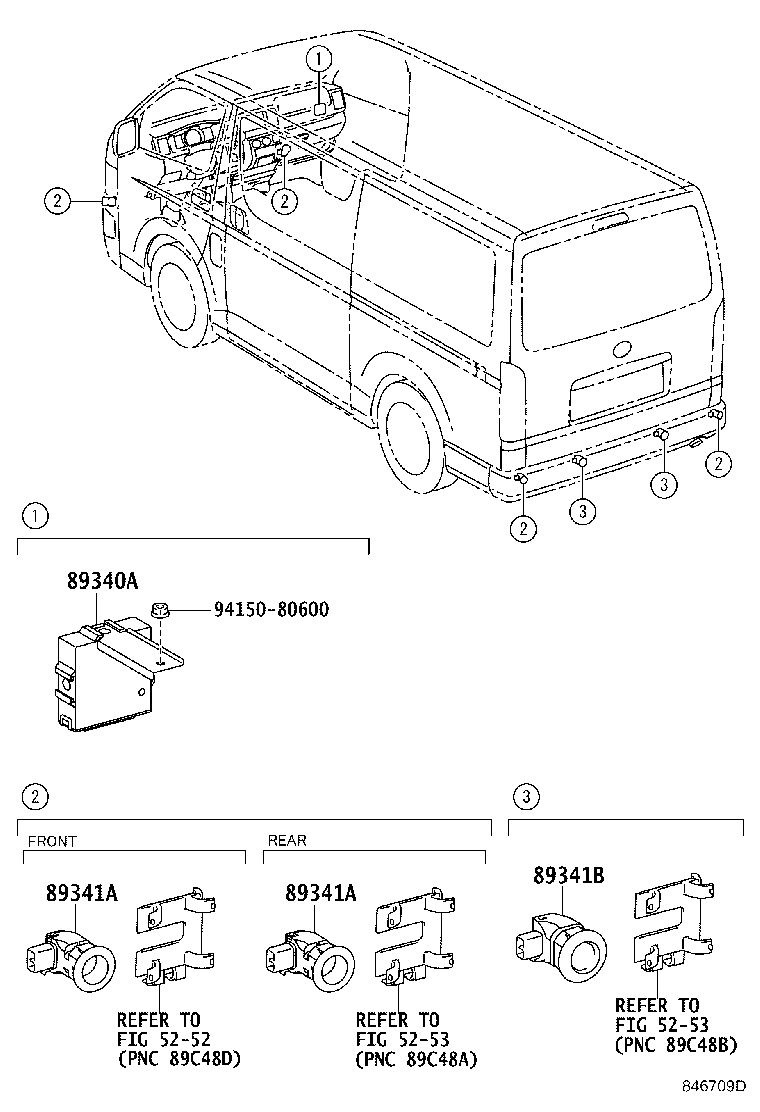

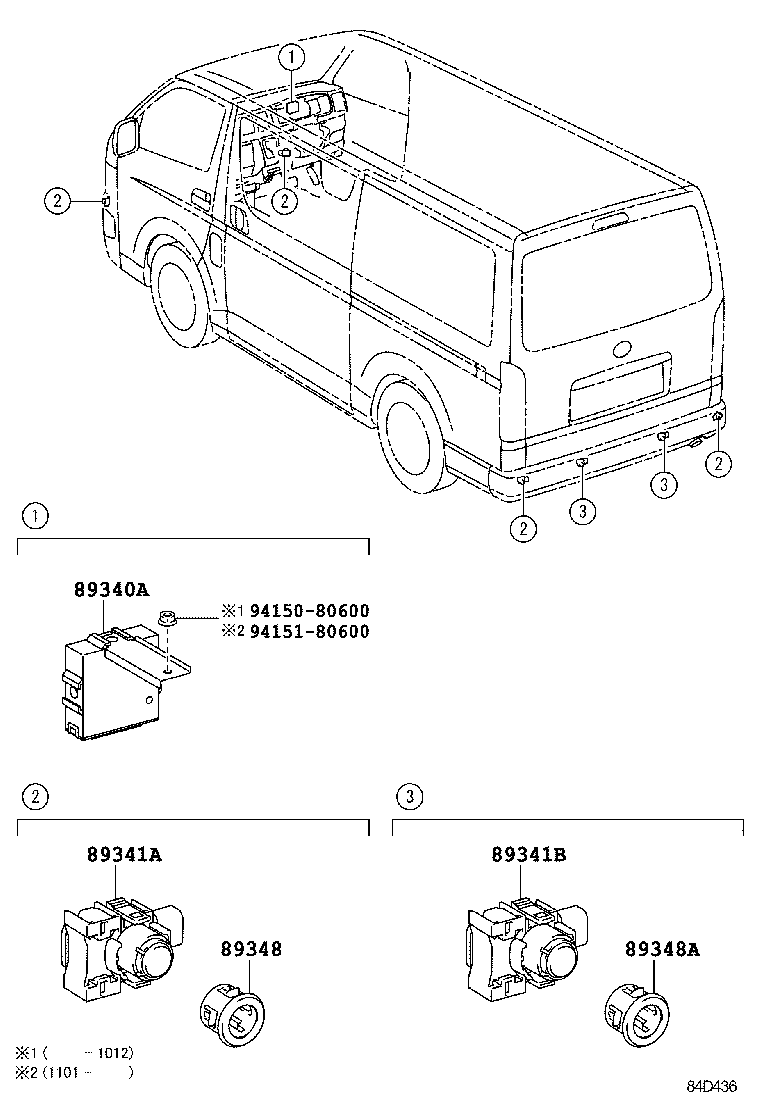

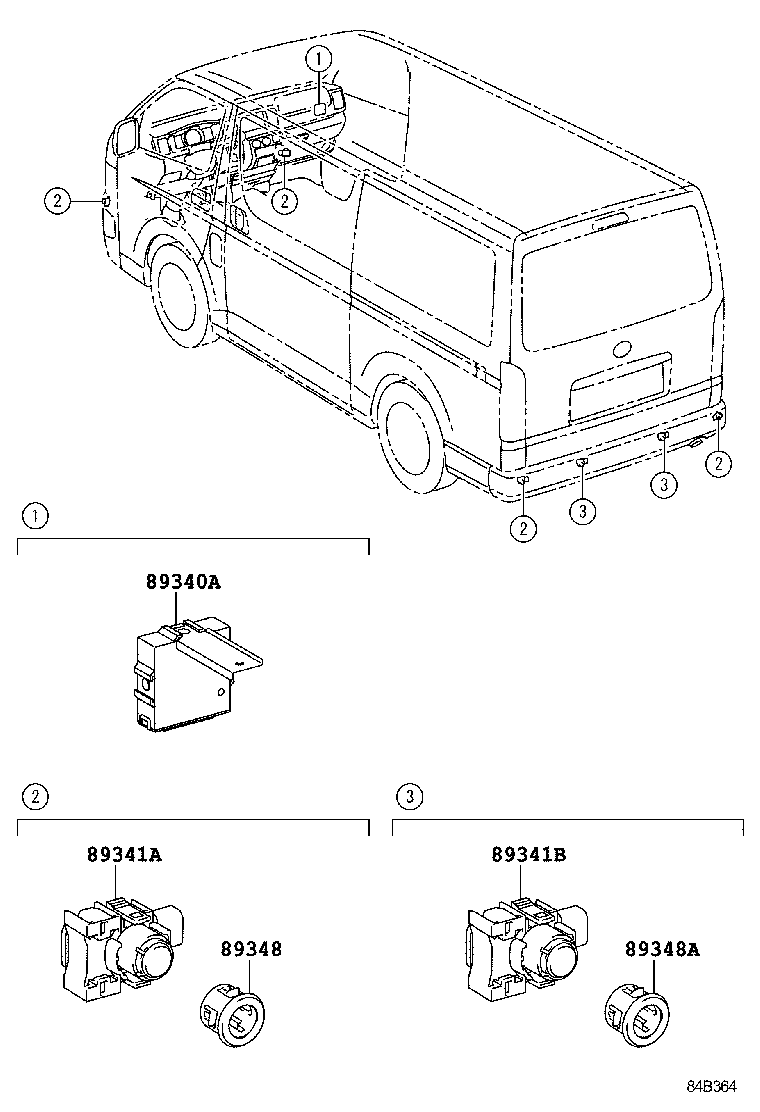

Figure 846708B 846708B 2005-01 → 2010-08 Figure 846709D 846709D 2005-01 → 2010-08 Figure 84D436 84D436 2010-08 → — Figure 84B364 84B364 2010-08 → —

Part groups

PNCDescription
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89348 Retainer, Ultrasonic Sensor, NO.1
89348A Retainer, Ultrasonic Sensor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
