Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

6 part groups · 4 illustrations

Illustrations

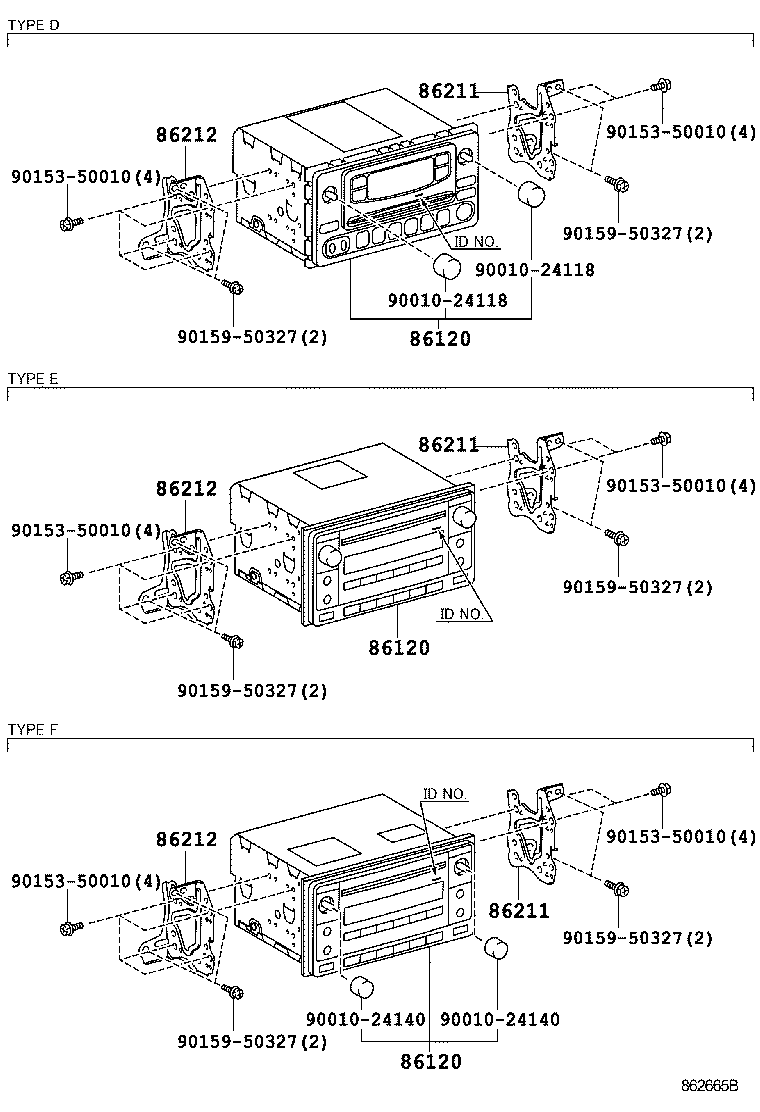

Figure 862378D 862378D 2005-01 → — Figure 862665B 862665B 2005-01 → — Figure 864336 864336 2005-01 → — Figure 862379 862379 2005-01 → —

Part groups

PNCDescription
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
86221D Panel, Radio Receiver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
