Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

11 part groups · 2 illustrations

Illustrations

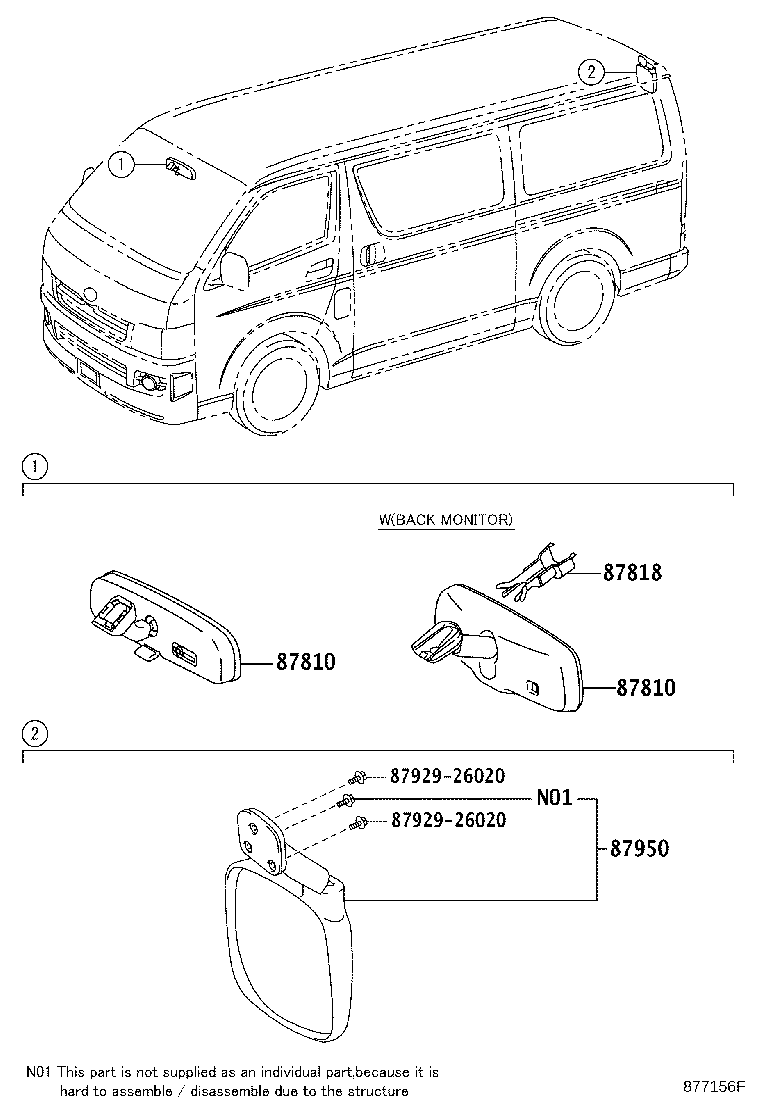

Figure 877289H 877289H 2005-01 → — Figure 877156F 877156F 2005-01 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87818 Cover, Inner RR View Mirror
87901B Mirror Sub-assy, Outer Rear View, RH
87906B Mirror Sub-assy, Outer Rear View, LH
87910 Mirror Assy, Outer Rear View, RH
87930A Mirror Assy, Outer Under View
87940 Mirror Assy, Outer Rear View, LH
87945 Cover, Outer Mirror, LH
87946 Retractor, Outer Mirror, RH
87950 Mirror Assy, Outer Under Rear View
87966 Retractor, Outer Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
