Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

9 part groups · 6 illustrations

Illustrations

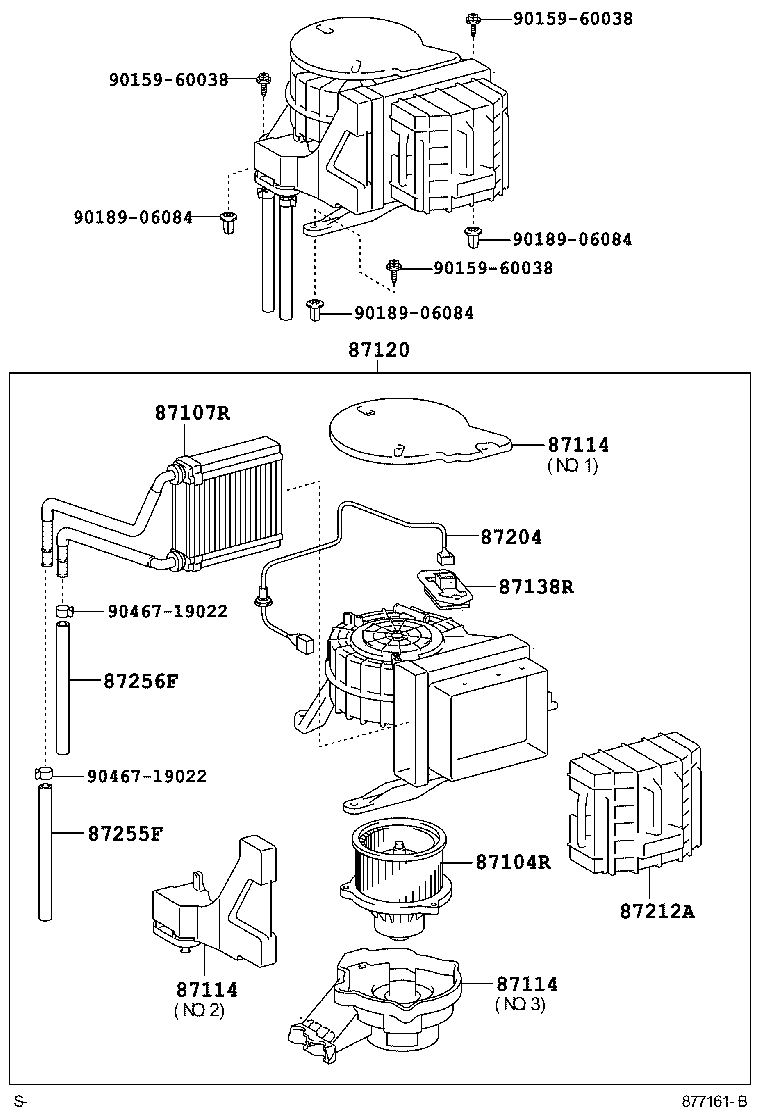

Figure 877370B 877370B 2005-01 → 2007-09 Figure 877370B 877370B 2005-01 → — Figure 877370B 877370B 2005-01 → — Figure 877370B 877370B 2007-09 → — Figure 877161B 877161B 2005-01 → — Figure 877161B 877161B 2005-01 → —

Part groups

PNCDescription
87104R Motor Sub-assy, Rear Heater Blower
87107R Unit Sub-assy, Rear Heater
87114 Cover, Heater
87120 Heater Assy, Rear
87138R Resistor, Rear Heater Blower
87204 Wire & Piping Sub-assy, Heater Parts
87212A Duct, Air, Rear NO.1
87255F Hose, Rear Heater Water Inlet, F(FOR HEATER UNIT)
87256F Hose, Rear Heater Water Outlet, F (FOR HEATER UNIT)
