Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

30 part groups · 28 illustrations

Illustrations

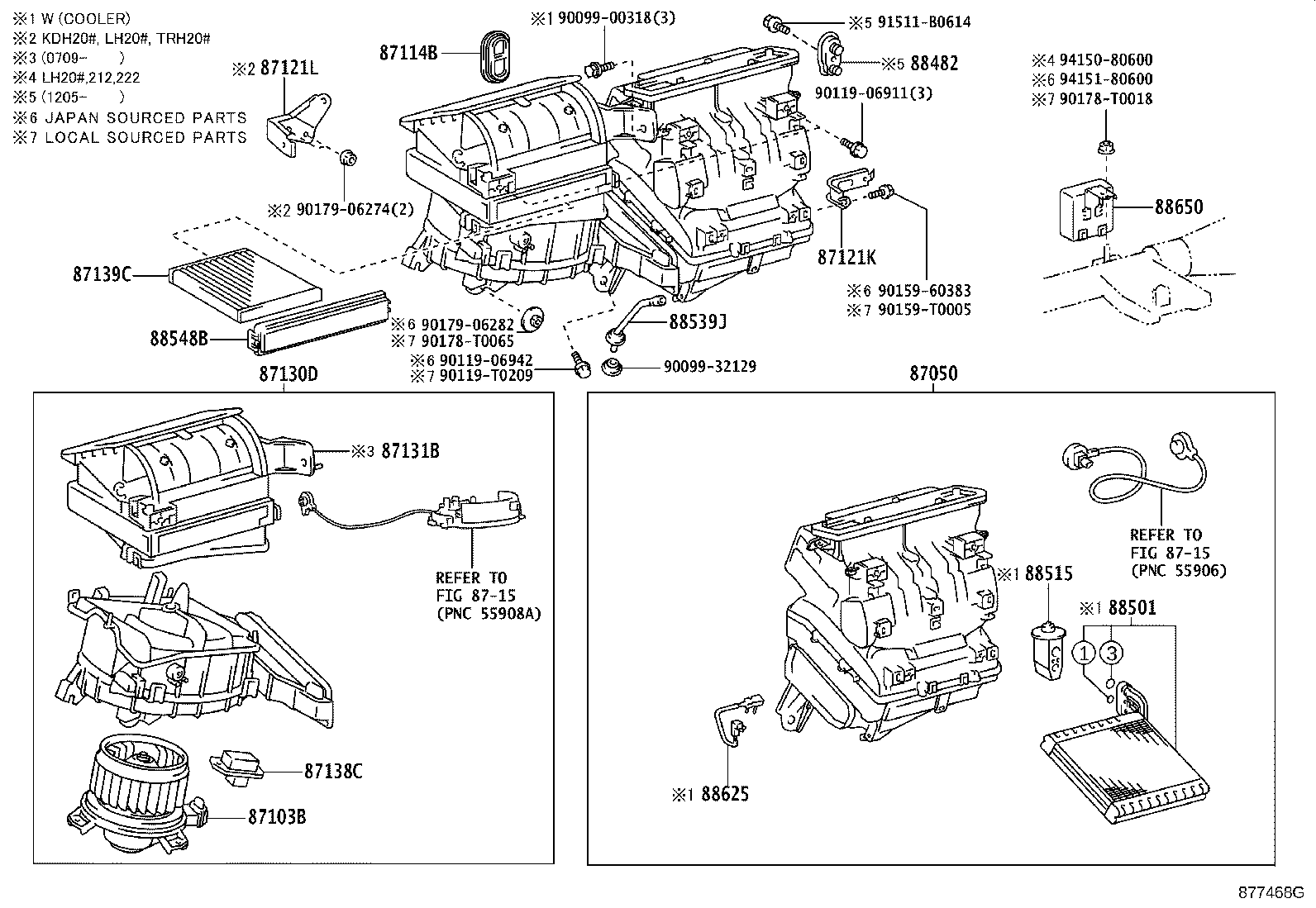

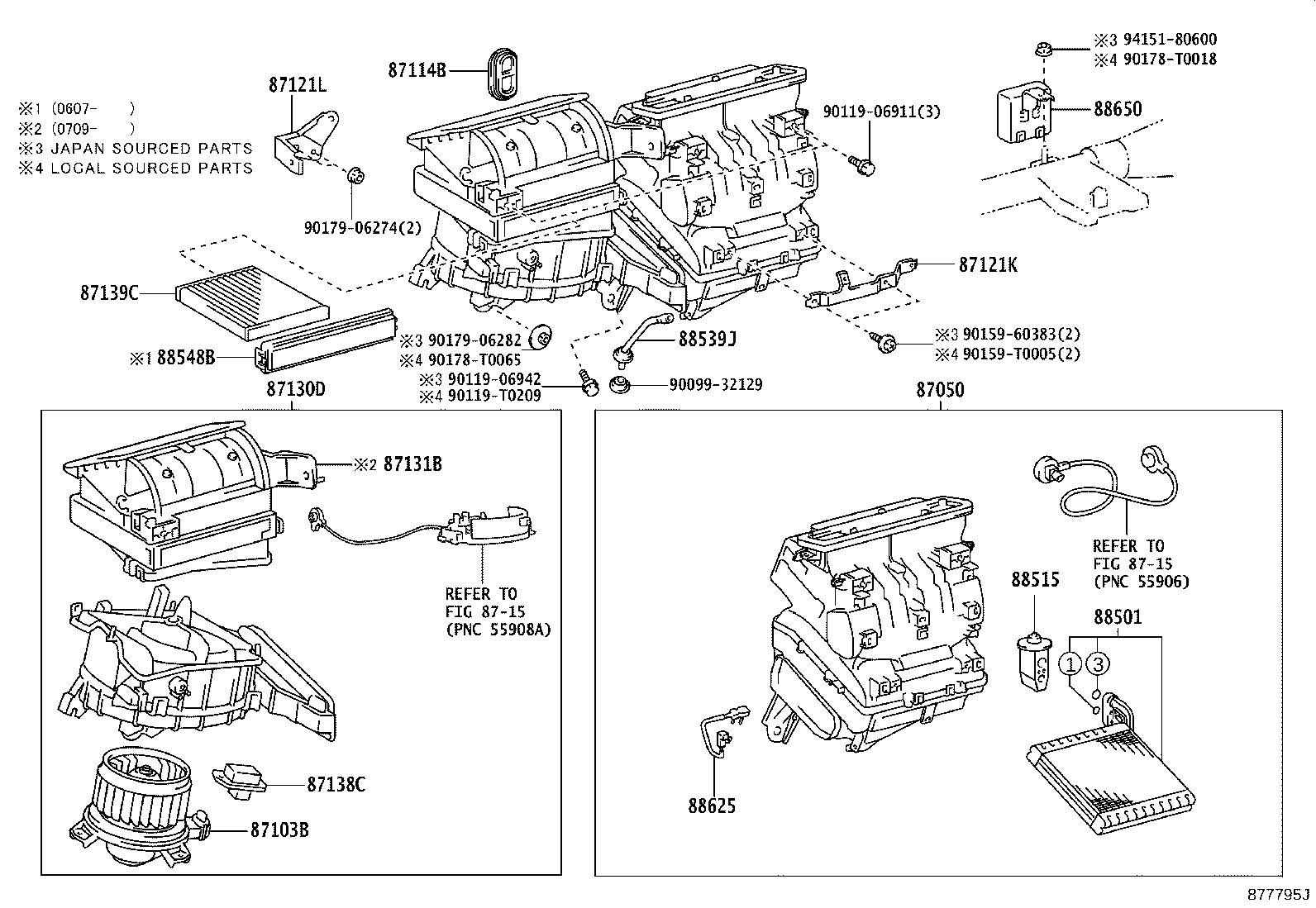

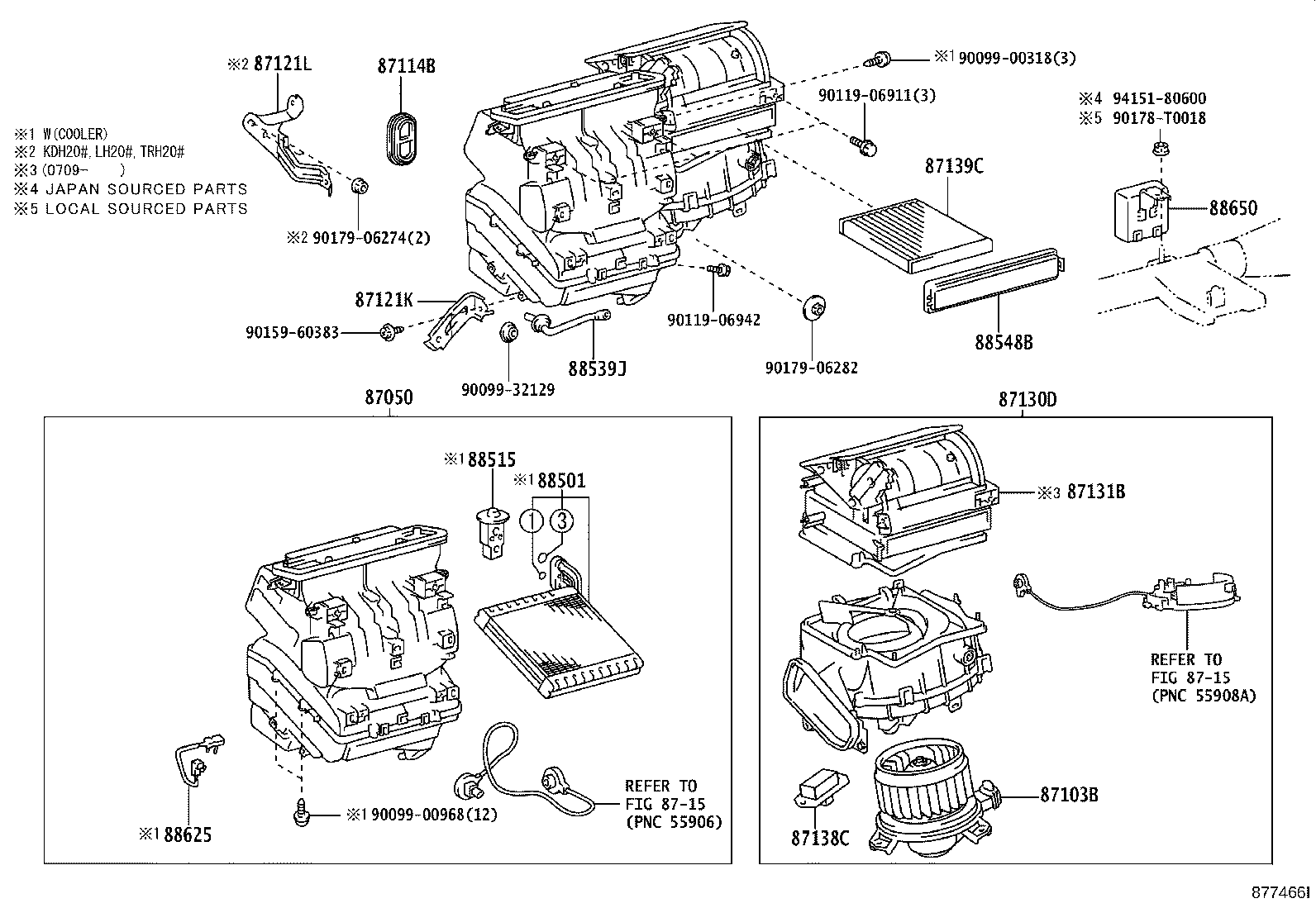

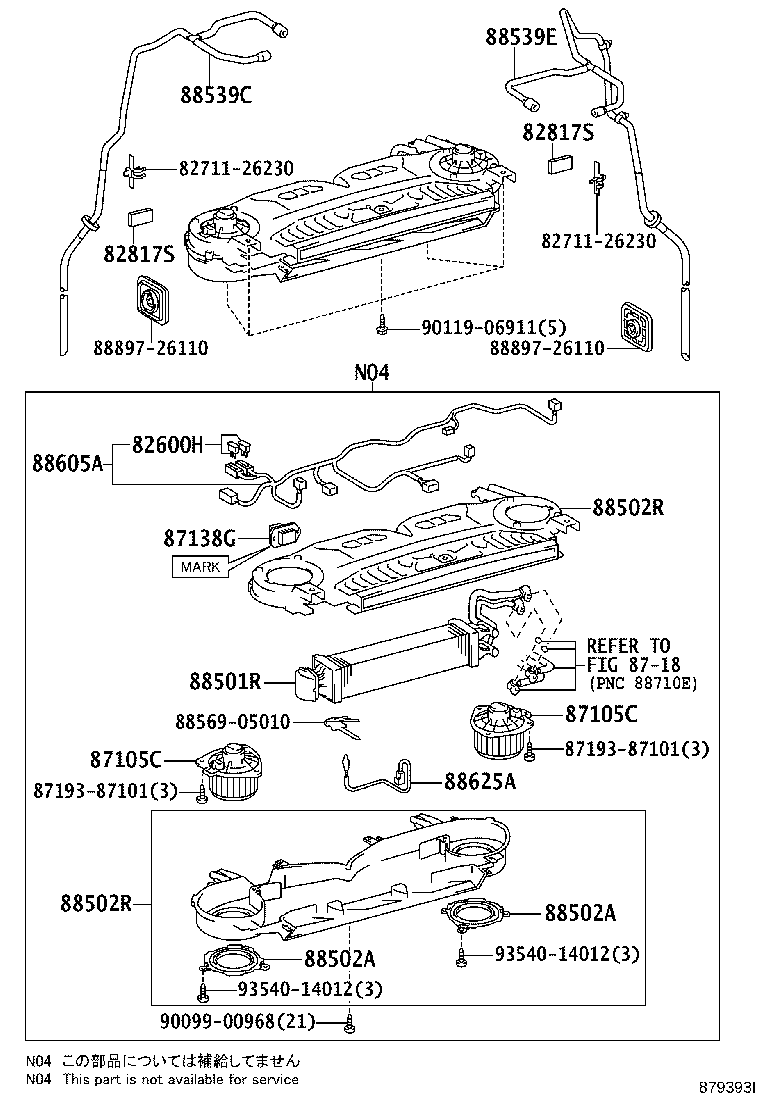

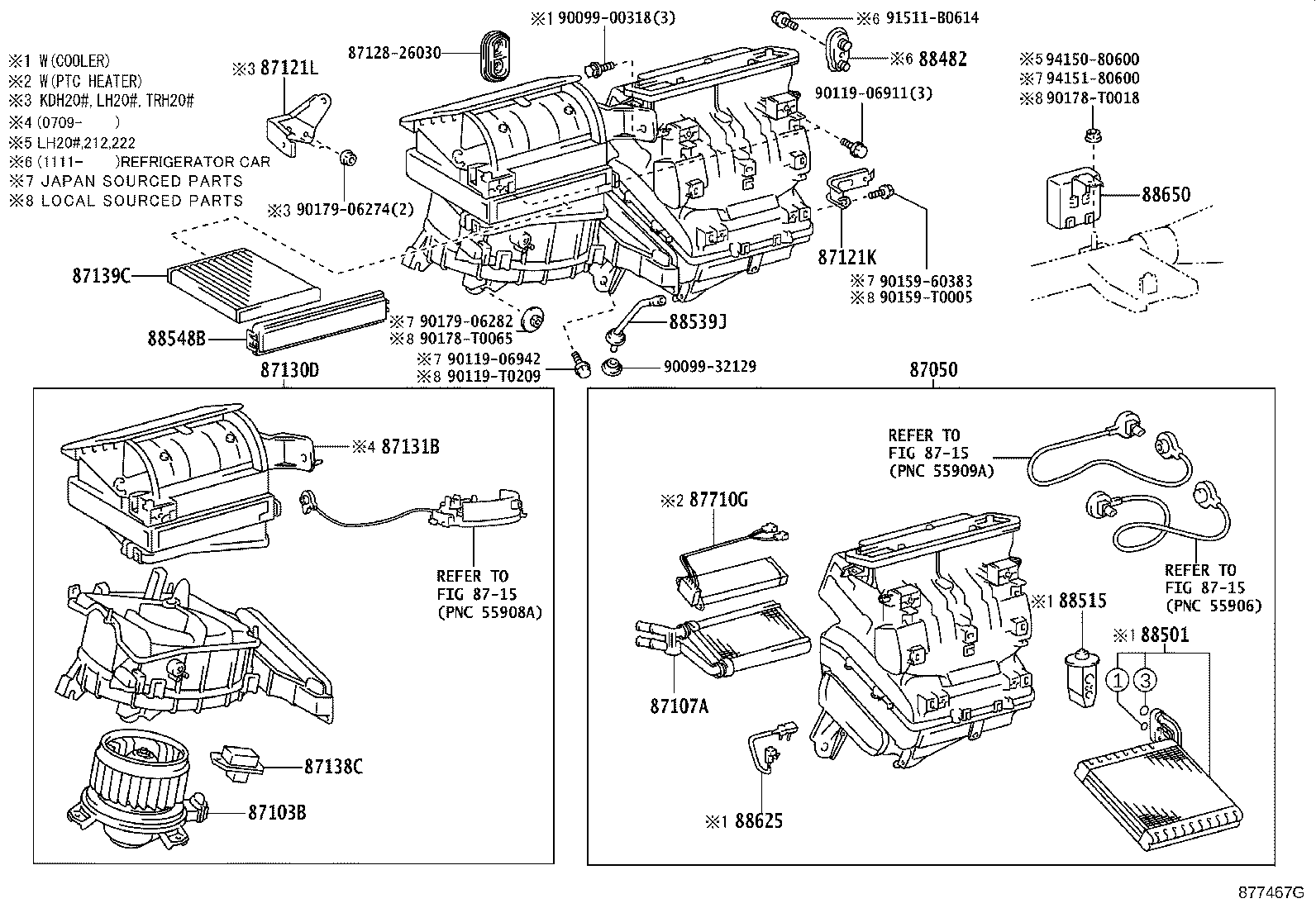

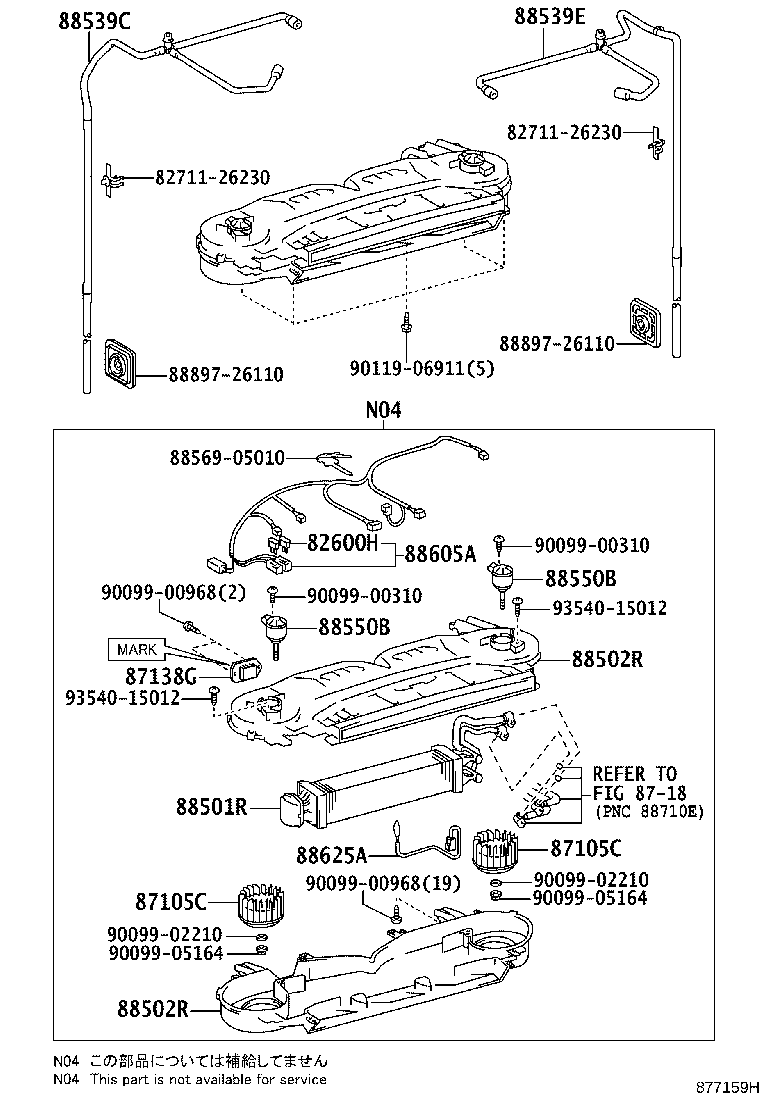

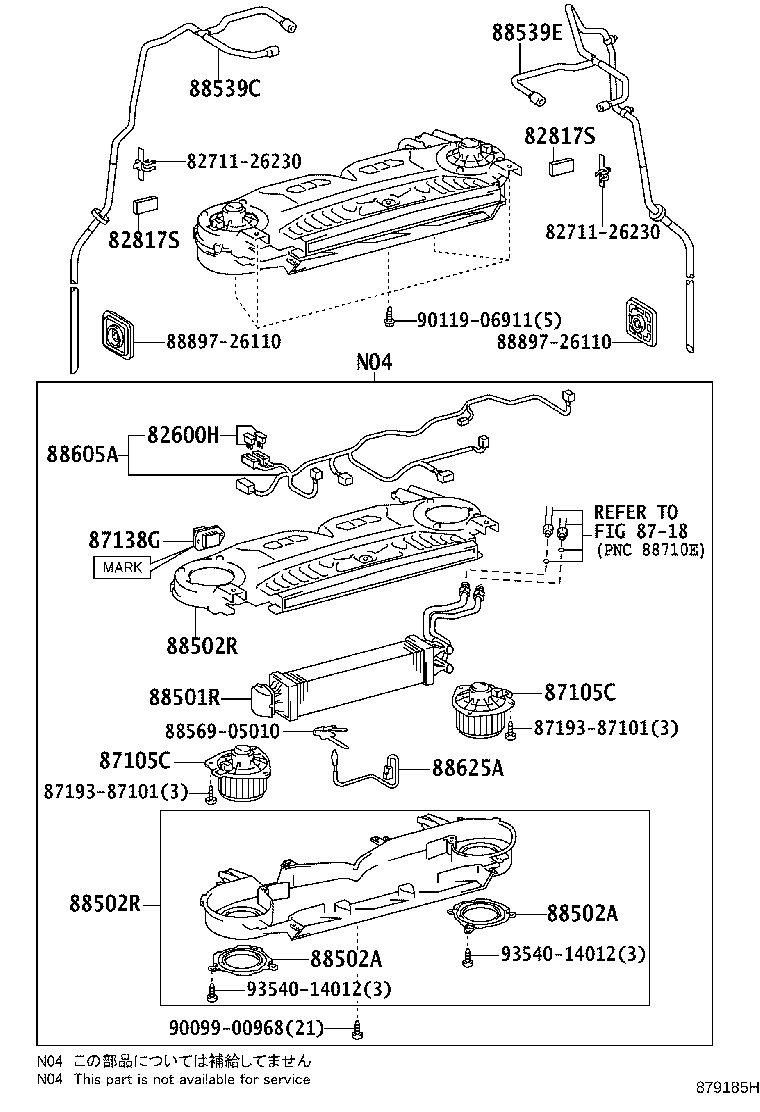

Figure 877465J 877465J 2005-01 → — Figure 877466I 877466I 2005-01 → — Figure 877467G 877467G 2005-01 → — Figure 877467G 877467G 2005-01 → — Figure 877468G 877468G 2005-01 → — Figure 877468G 877468G 2005-01 → — Figure 877795J 877795J 2005-12 → 2006-10 Figure 877795J 877795J 2006-02 → 2007-09 Figure 877795J 877795J 2006-02 → — Figure 877795J 877795J 2007-09 → — Figure 877159H 877159H 2005-01 → 2006-10 Figure 877159H 877159H 2005-01 → 2006-11 Figure 877159H 877159H 2005-01 → 2006-11 Figure 877159H 877159H 2005-01 → 2007-09 Figure 877159H 877159H 2005-01 → 2007-09 Figure 877159H 877159H 2005-05 → 2007-09 Figure 877159H 877159H 2005-06 → 2006-11 Figure 877159H 877159H 2005-08 → 2007-09 Figure 877159H 877159H 2006-01 → 2007-09 Figure 877159H 877159H 2006-01 → 2007-09 Figure 877159H 877159H 2006-02 → 2007-09 Figure 877159H 877159H 2006-10 → 2006-11 Figure 877159H 877159H 2006-10 → 2007-09 Figure 877159H 877159H 2007-09 → 2008-08 Figure 879185H 879185H 2006-11 → — Figure 879393I 879393I 2007-09 → — Figure 879393I 879393I 2008-08 → — Figure 874585M 874585M 2005-01 → —

Part groups

PNCDescription
82600H Fuse, Fuse Block
82817S Protector, Wiring Harness
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87105C Fan Sub-assy, Blower, Rear
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87121K Bracket, Heater
87121L Bracket, Heater
87130D Blower Assy
87131B Case, Heater Blower
87138C Resistor, Blower
87138G Resistor, Rear Cooler Blower
87139C Filter, Clean Air
87710G Quick Heater Assy
88482 Cap, Cooler
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88502A Case Sub-assy, Cooling Unit
88502R Case Sub-assy, Cooling Unit
88515 Valve, Cooler Expansion
88539C Hose, Cooler Unit Drain, NO.2
88539E Hose, Cooler Unit Drain, NO.3
88539J Hose, Drain Cooler
88548B Case, Air Filter
88550B Motor Assy, Blower
88605A Harness Sub-assy, Cooler Wiring
88625 Thermistor, Cooler, NO.1
88625A Thermistor, Cooler NO.2
88650 Amplifier Assy, Cooler Stabilizer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
