Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

32 part groups · 32 illustrations

Illustrations

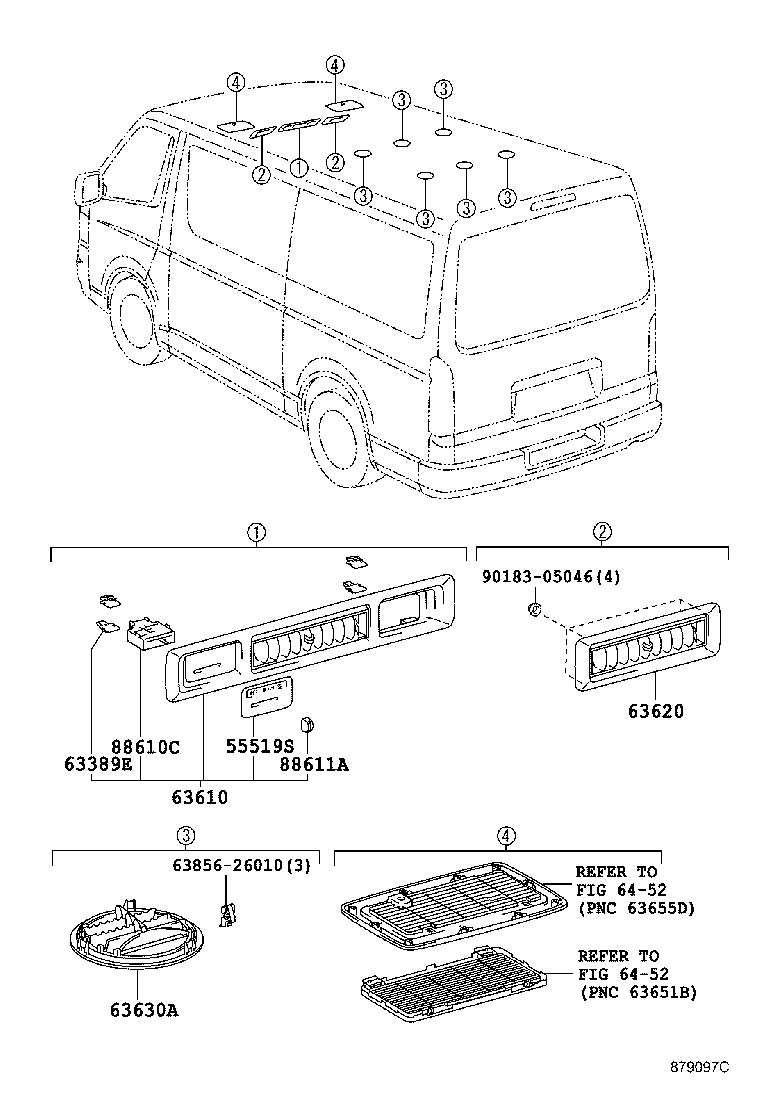

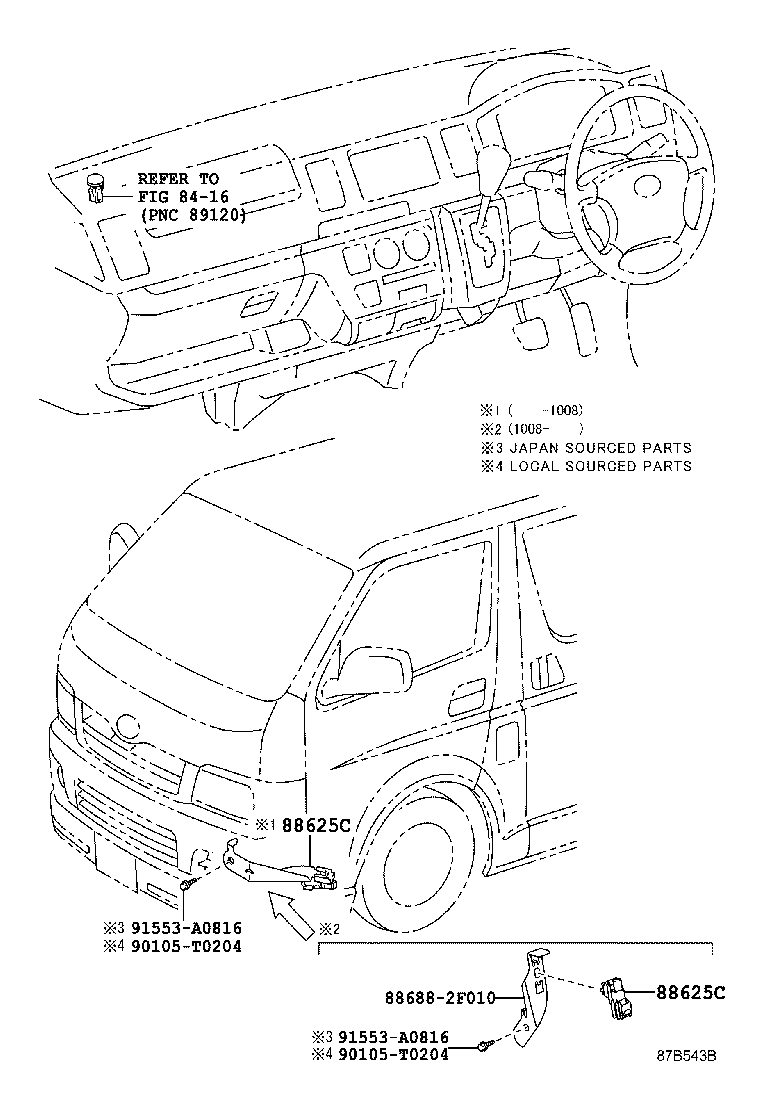

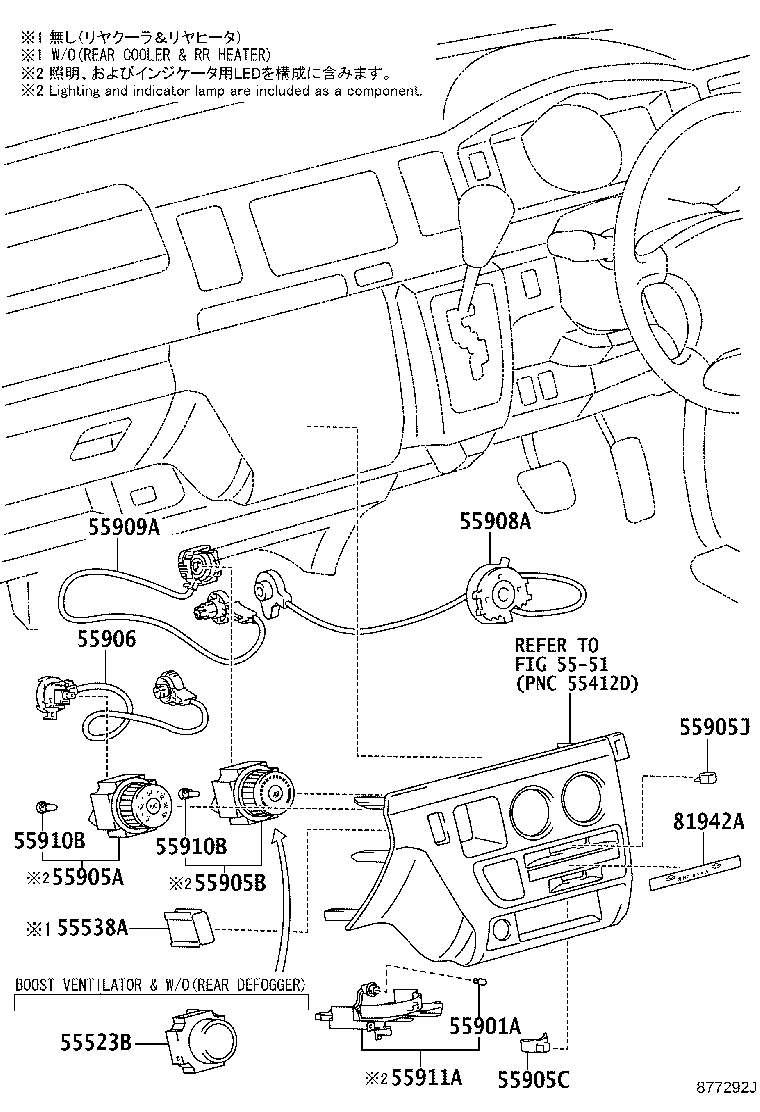

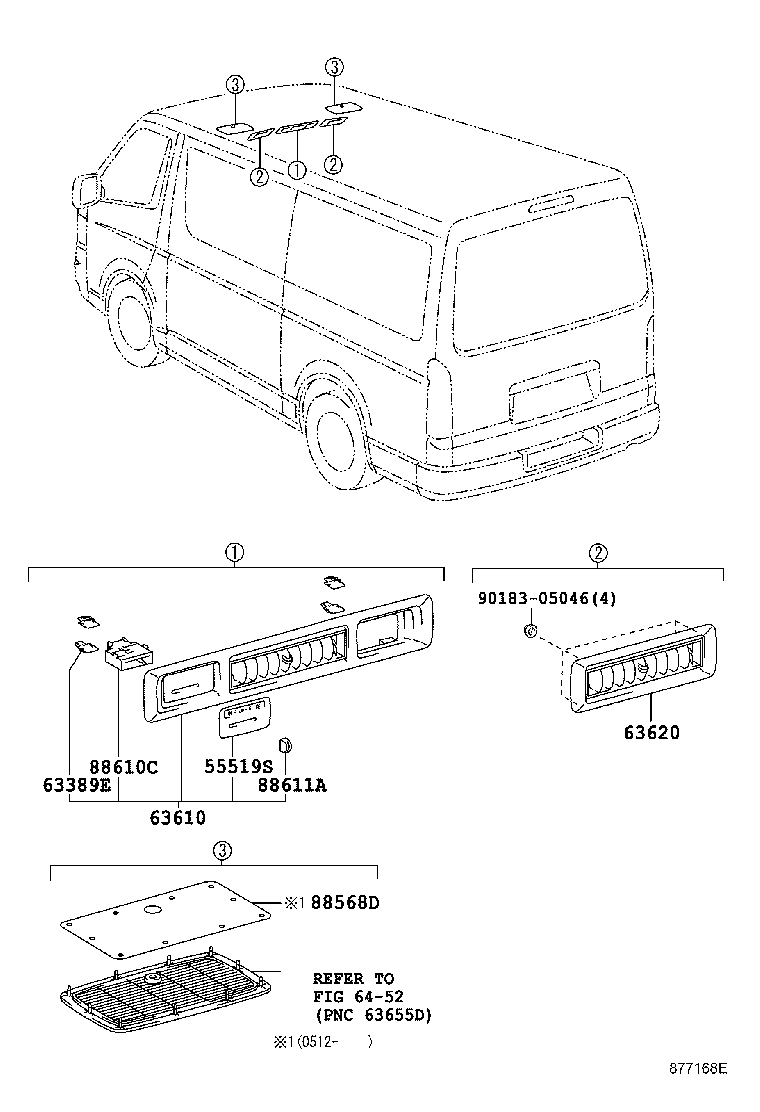

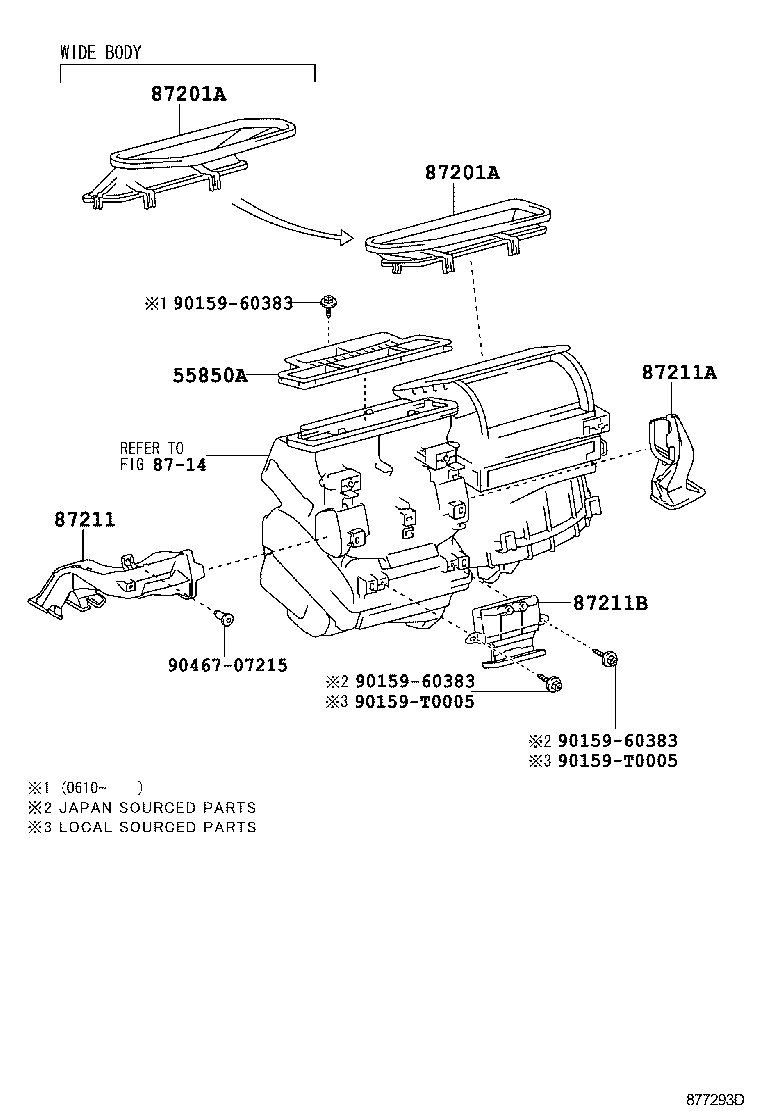

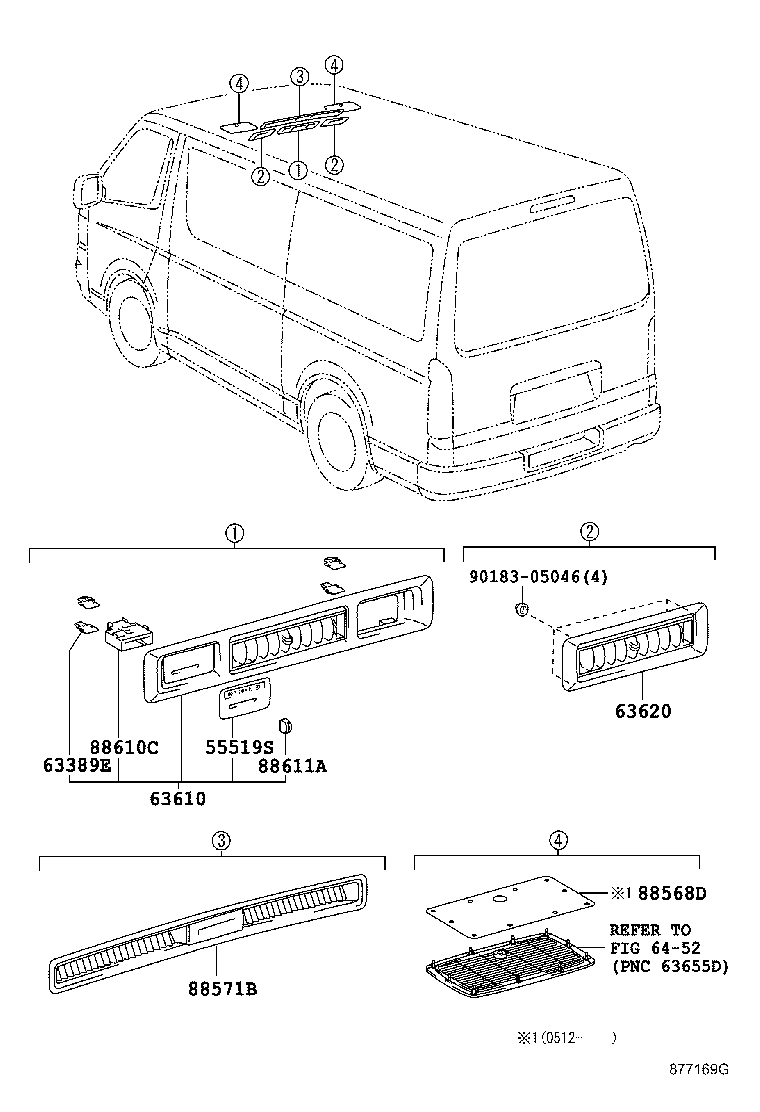

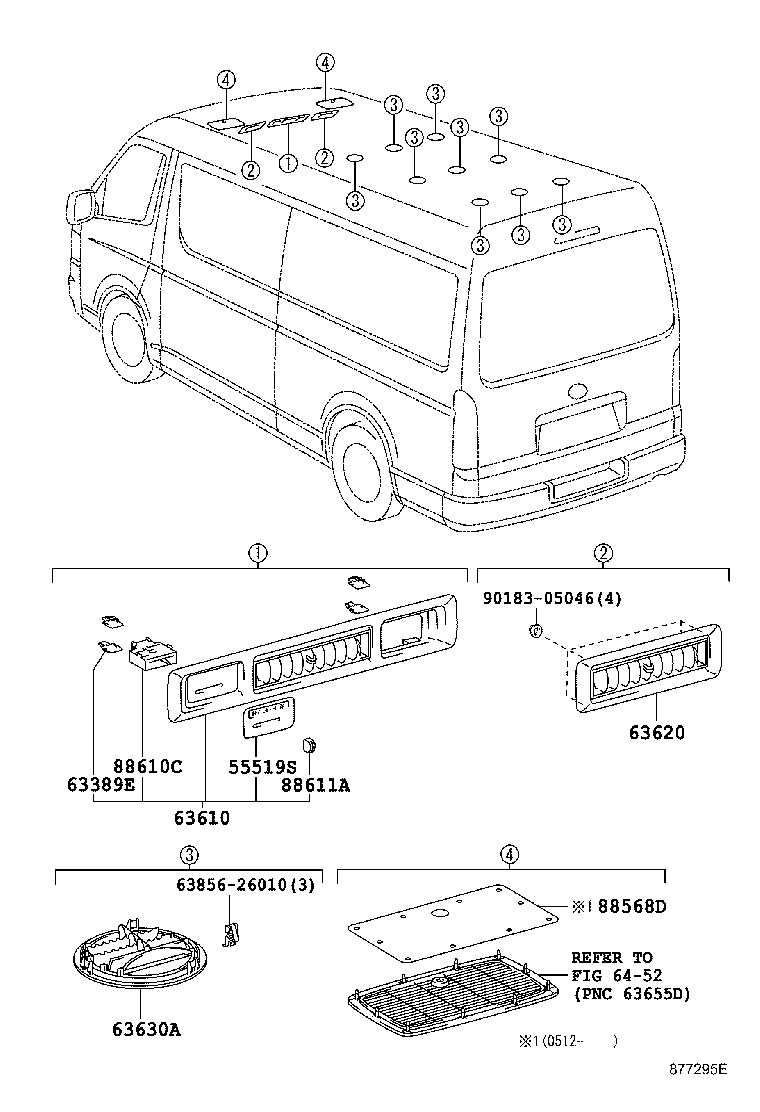

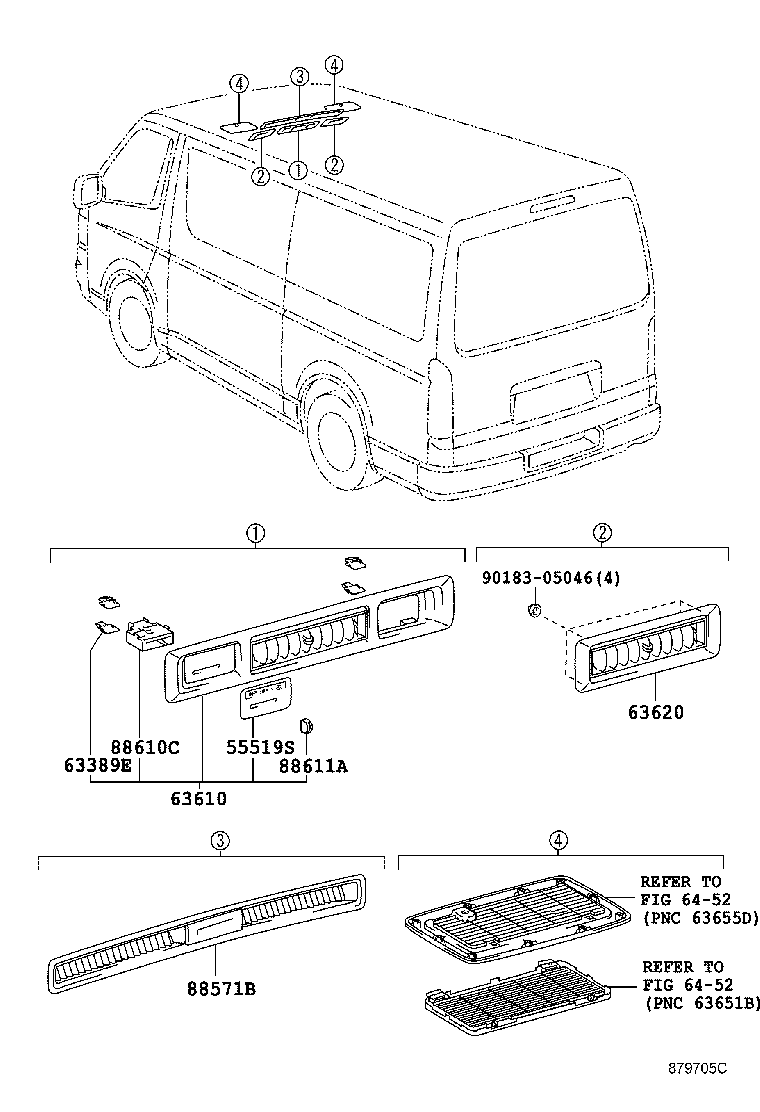

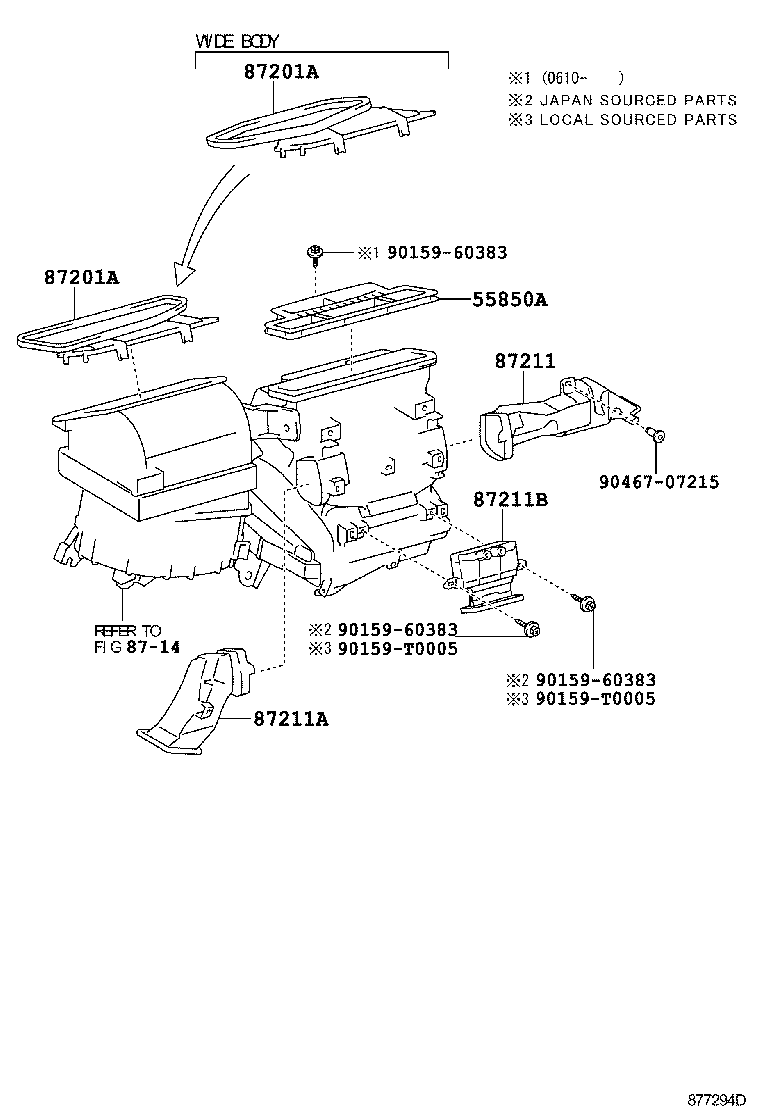

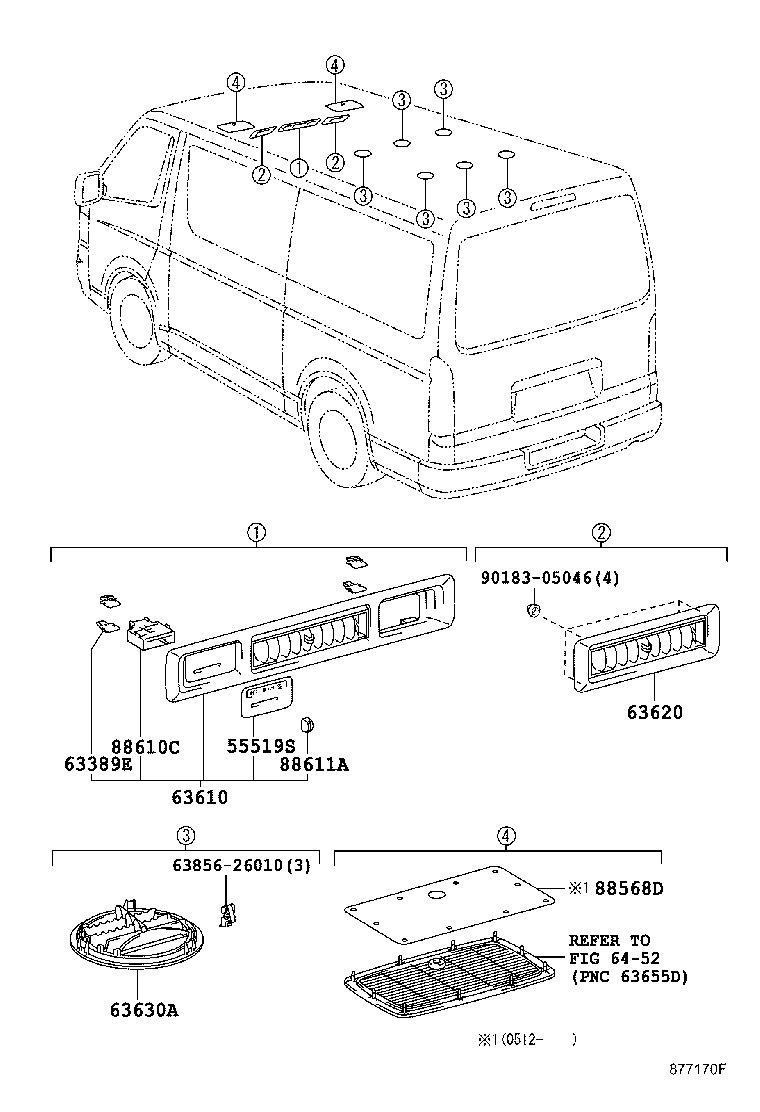

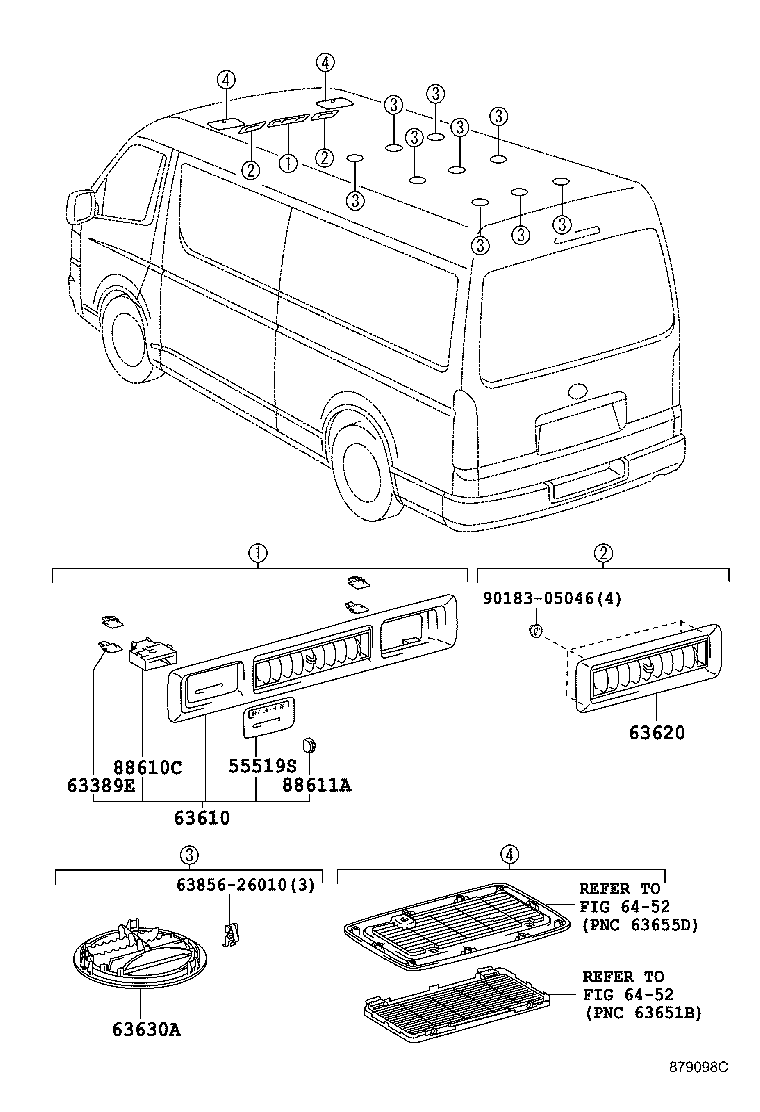

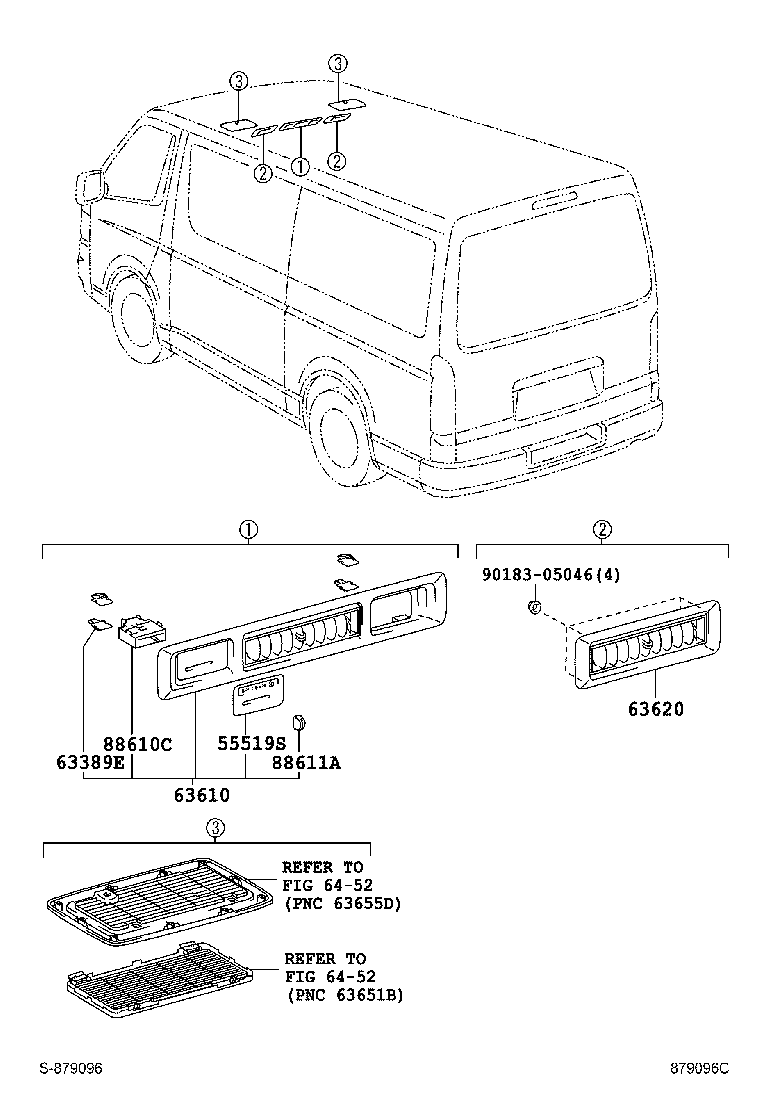

Figure 877291J 877291J 2005-01 → — Figure 877292J 877292J 2005-01 → — Figure 877293D 877293D 2005-01 → — Figure 877294D 877294D 2005-01 → — Figure 877165B 877165B 2005-01 → — Figure 877165B 877165B 2005-01 → — Figure 877165B 877165B 2005-01 → — Figure 877165B 877165B 2005-01 → — Figure 877168E 877168E 2005-01 → 2006-11 Figure 877168E 877168E 2005-01 → 2007-04 Figure 877168E 877168E 2005-01 → 2007-04 Figure 877168E 877168E 2005-01 → 2007-09 Figure 879096C 879096C 2006-11 → — Figure 879096C 879096C 2007-04 → — Figure 879096C 879096C 2007-04 → — Figure 879096C 879096C 2007-09 → — Figure 877169G 877169G 2005-01 → 2007-04 Figure 877169G 877169G 2005-01 → 2007-09 Figure 877169G 877169G 2007-09 → 2008-07 Figure 879705C 879705C 2007-04 → — Figure 879705C 879705C 2007-09 → — Figure 879705C 879705C 2008-07 → — Figure 877170F 877170F 2005-01 → 2007-04 Figure 877170F 877170F 2005-01 → 2007-09 Figure 879097C 879097C 2007-04 → — Figure 879097C 879097C 2007-09 → — Figure 877295E 877295E 2005-01 → 2006-11 Figure 877295E 877295E 2005-01 → 2007-04 Figure 879098C 879098C 2006-11 → — Figure 879098C 879098C 2007-04 → — Figure 879098C 879098C 2007-09 → — Figure 87B543B 87B543B 2005-01 → —

Part groups

PNCDescription
55519S Label, Rear Cooler Control Information
55523B Cover, Heater Control Opening
55538A Cover, Cooler Switch Hole
55850A Connector Assy, Instrument Panel Register, Center
55901A Bulb, Heater Control Sub-assy, NO.1
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55905J Knob Sub-assy, Control
55906 Cable Sub-assy, Heater Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
55911A Base, Heater Control
63389E Retainer, Air Outlet Register
63610 Register Assy, Air Outlet, NO.1
63620 Register Assy, Air Outlet, NO.2
63630A Register Assy, Air Duct, NO.3
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
87123A Knob, Heater Control
87201A Duct Sub-assy, Air
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87290E Switch Assy, Heater
88568D Filter, Air Intake
88571B Grille, Air Outlet
88601A Switch Sub-assy, Cooler Control
88610C Switch Assy, Cooler Control
88611A Knob, Cooler Control Switch
88625C Thermistor, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
