Heating & Air Conditioning - Water Piping

23 part groups · 41 illustrations

Illustrations

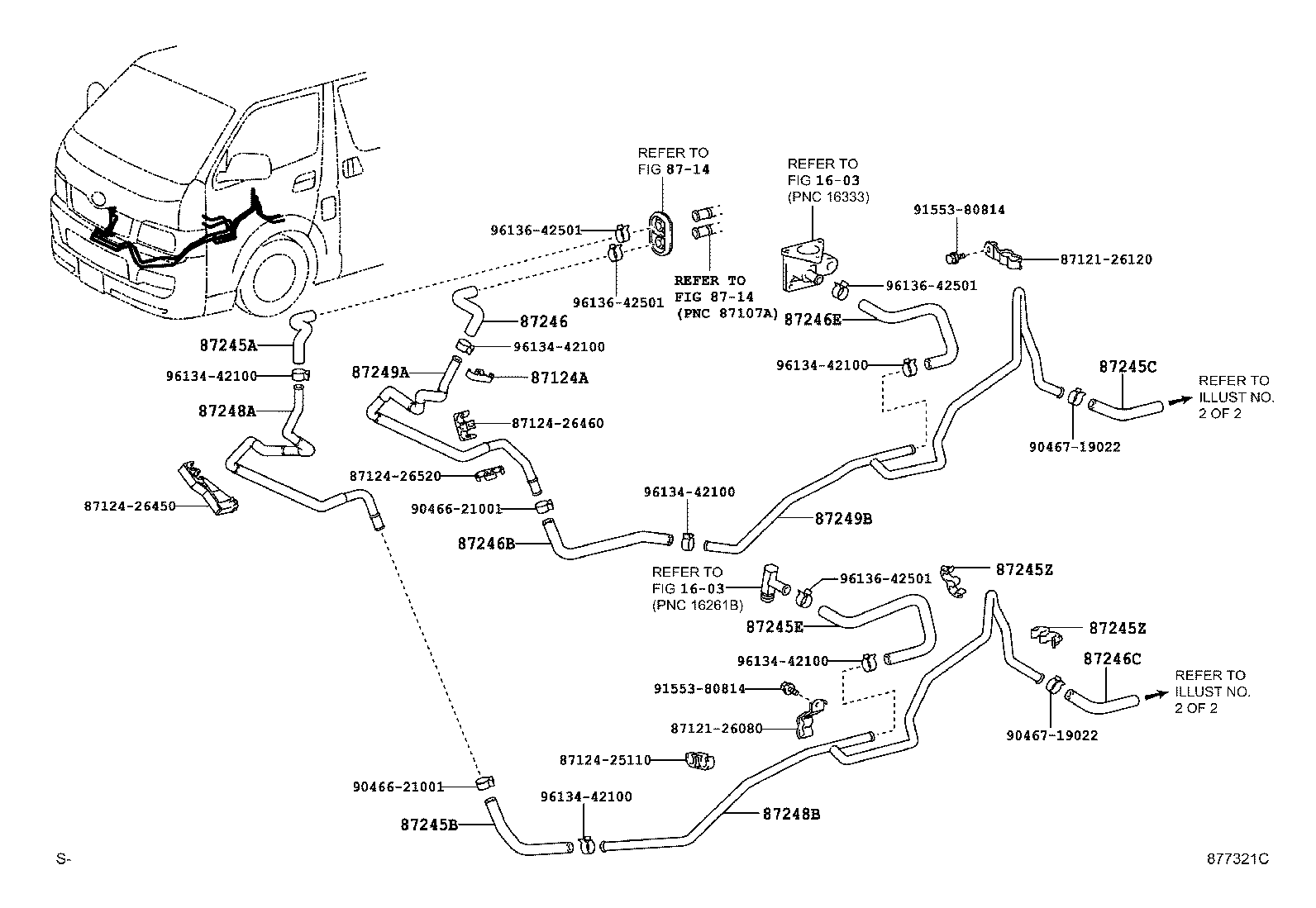

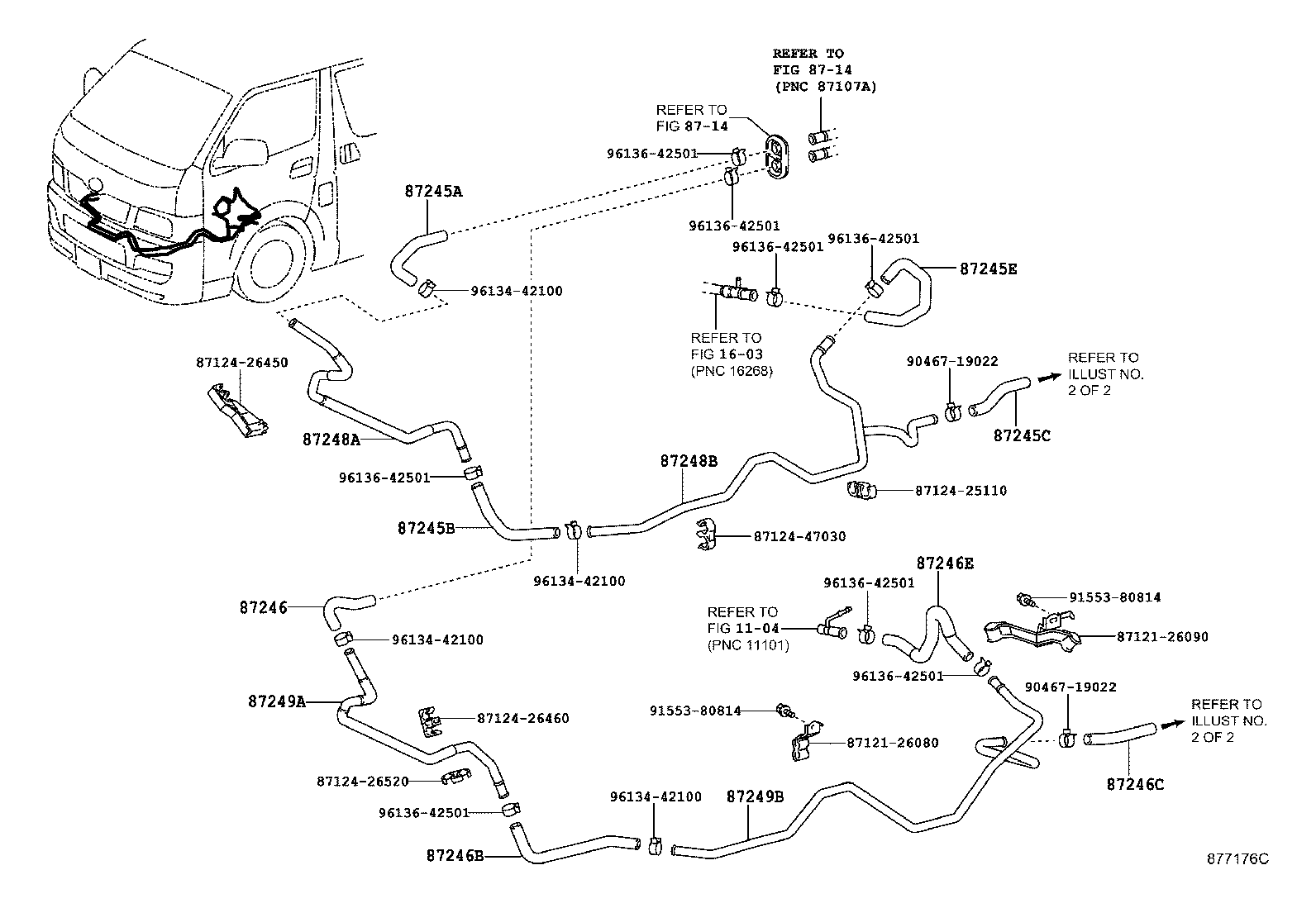

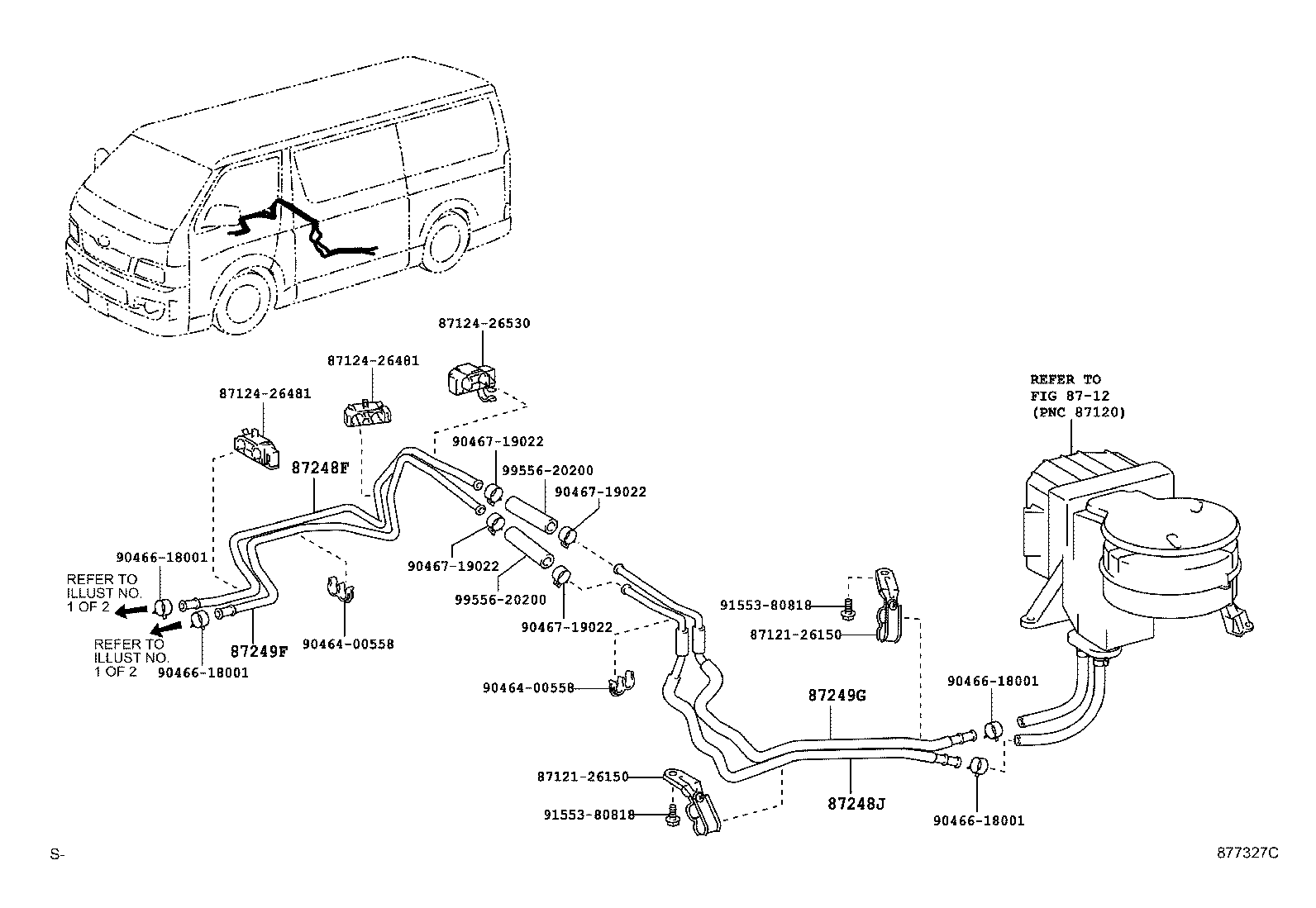

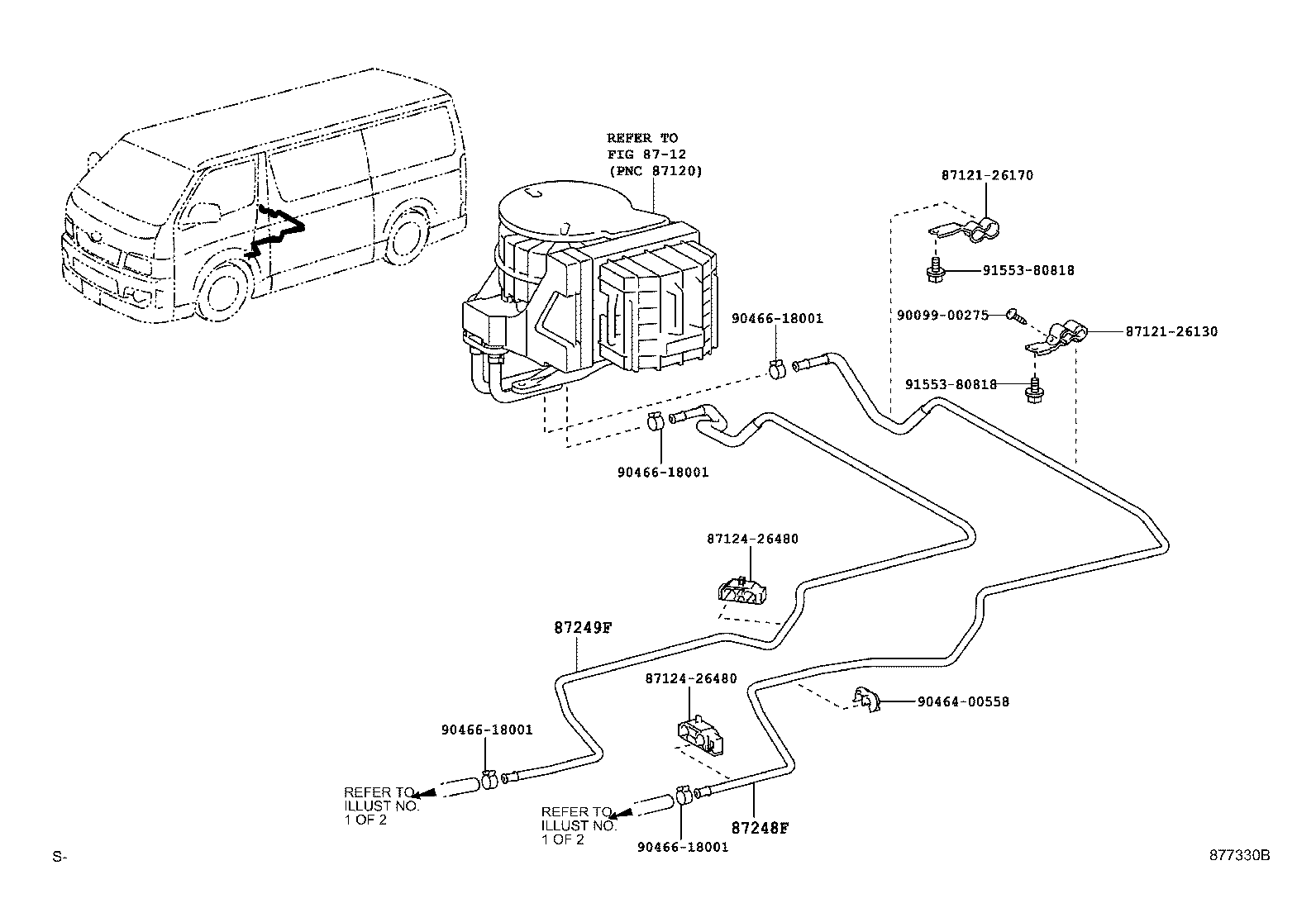

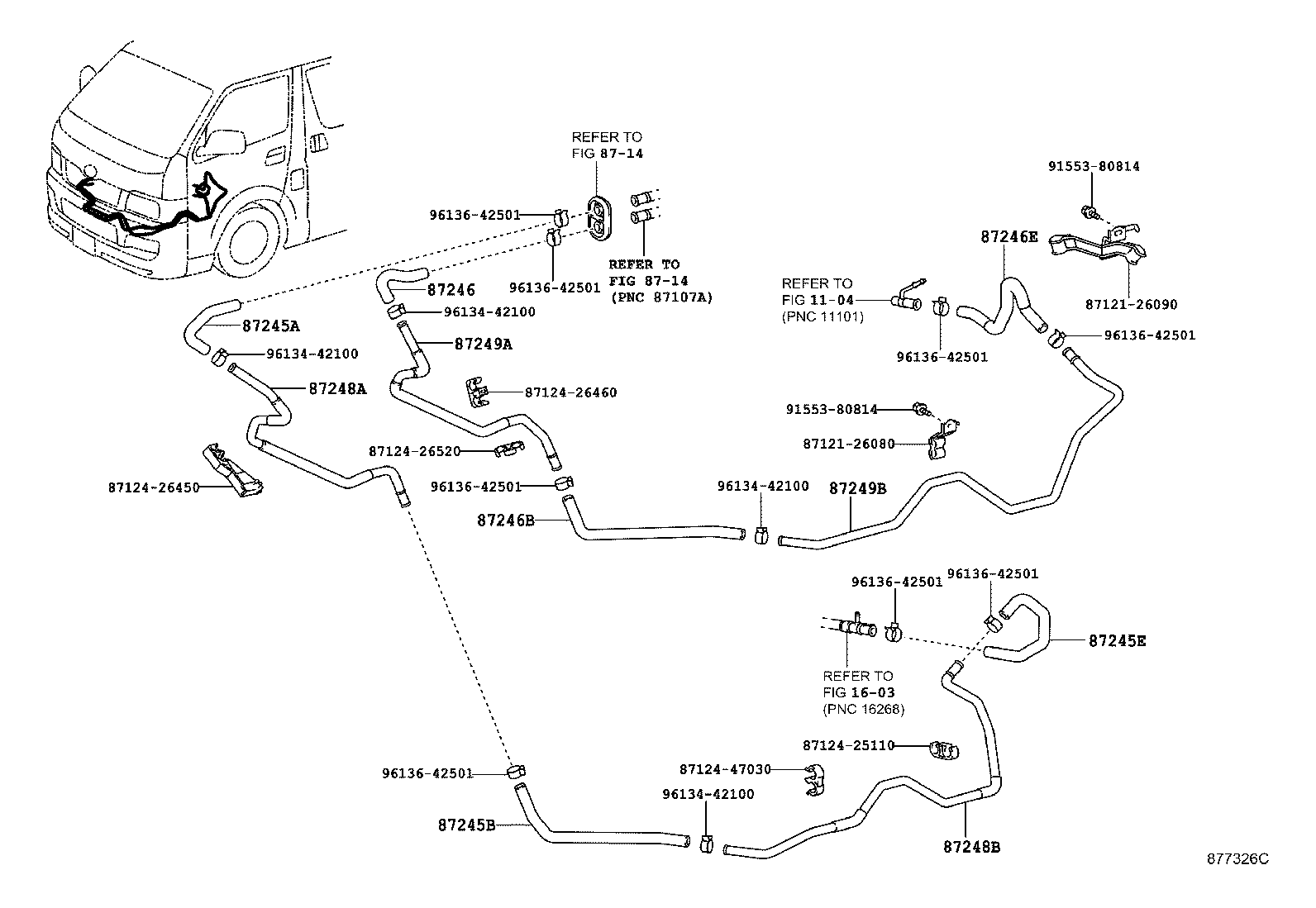

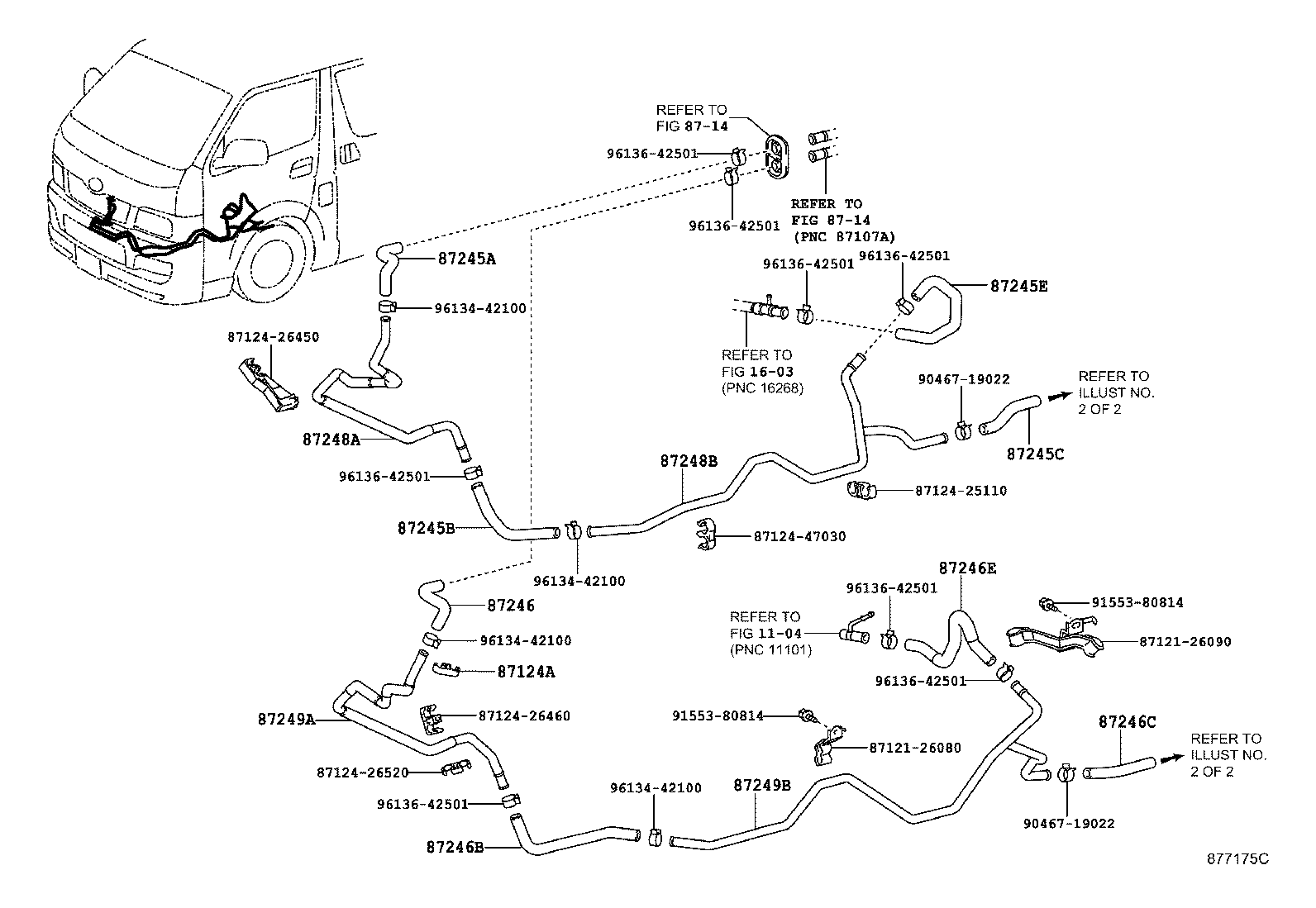

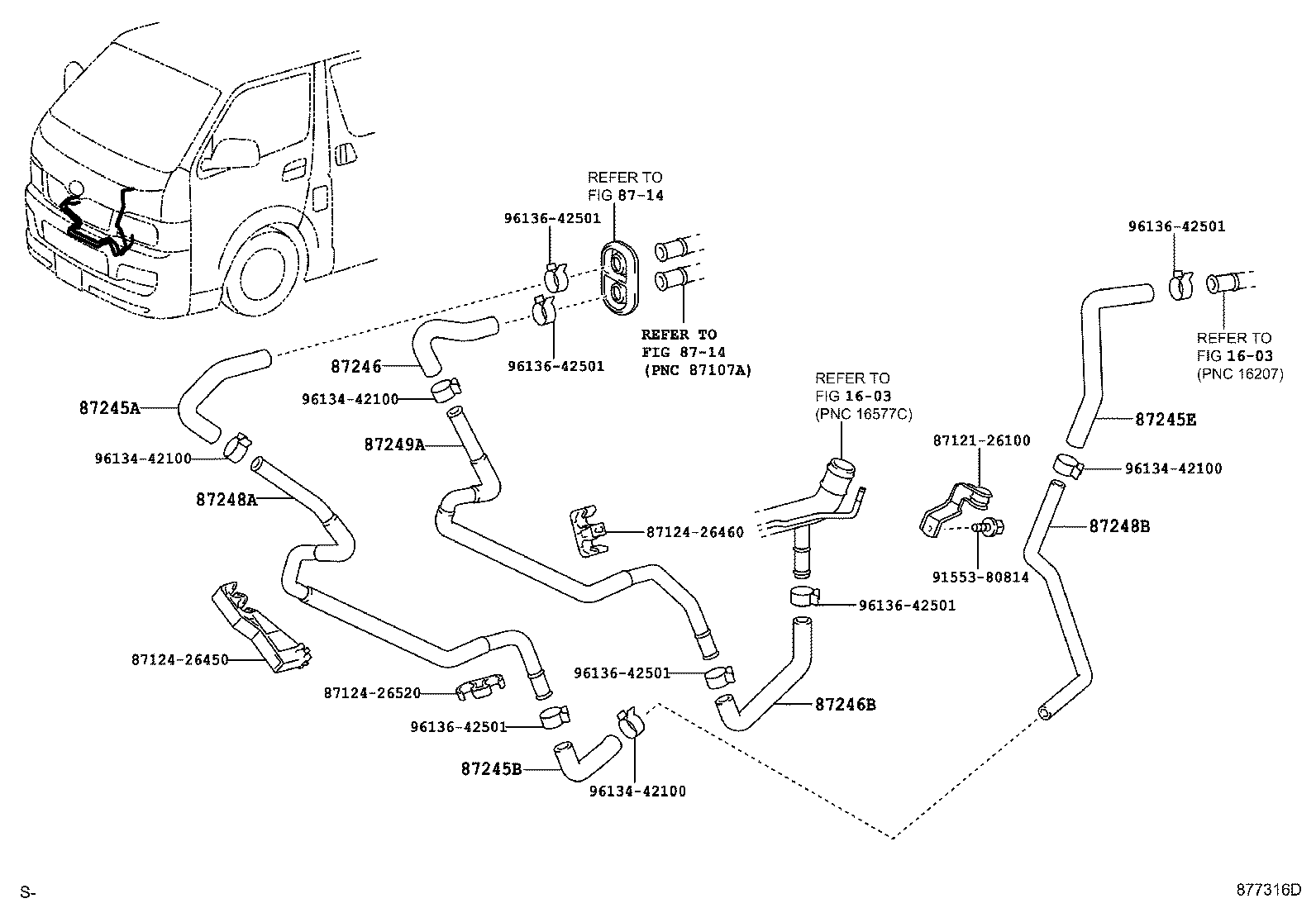

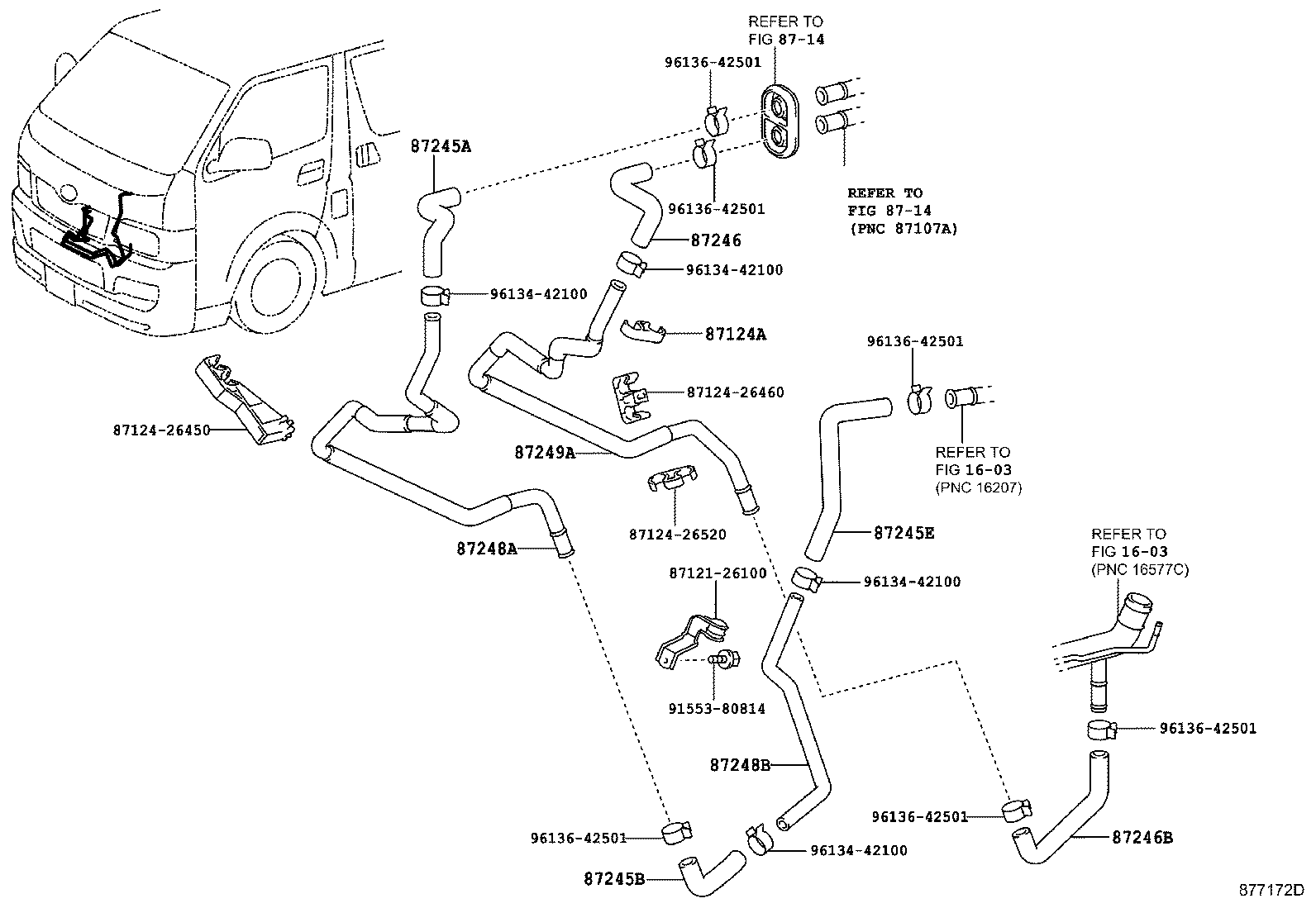

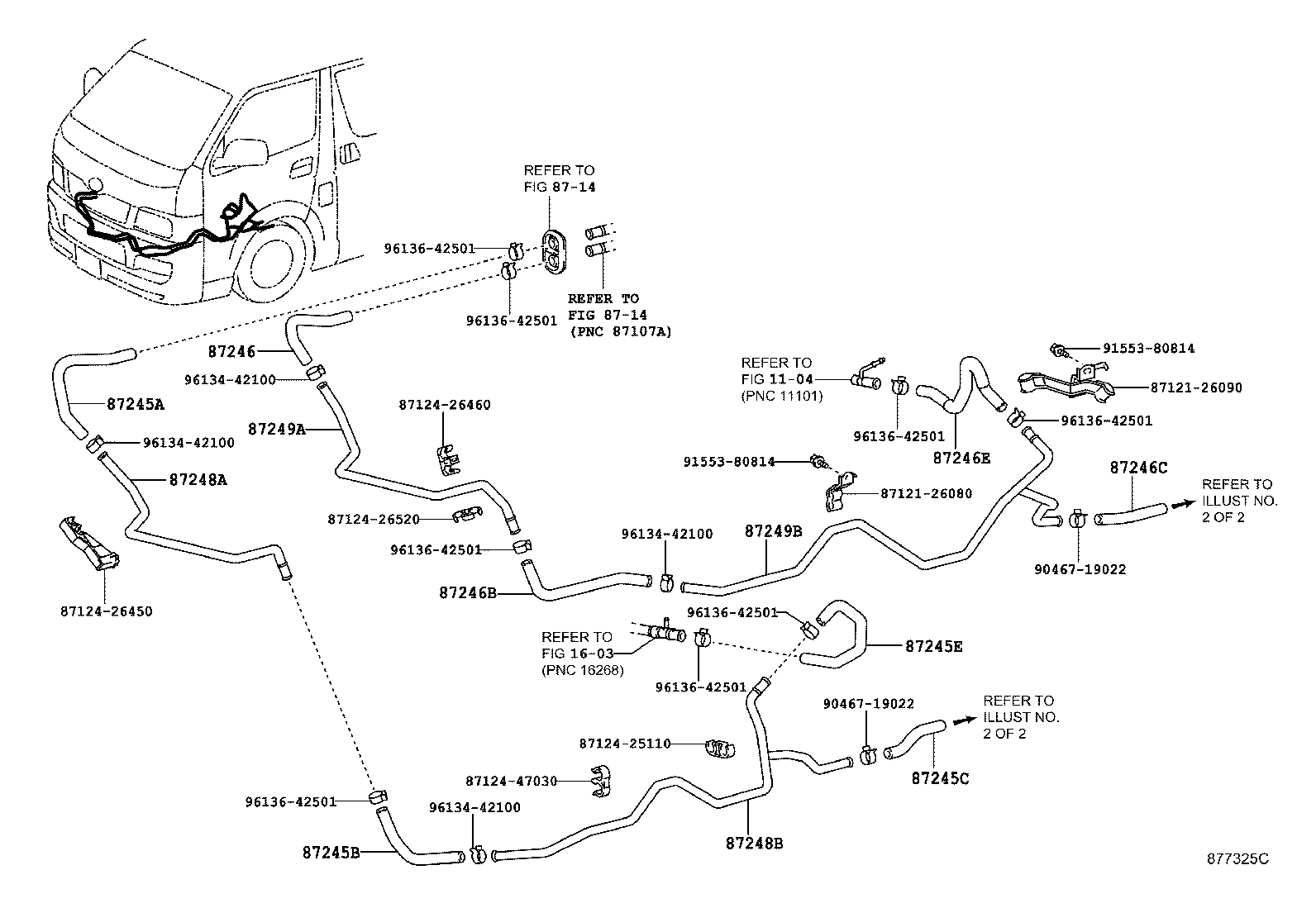

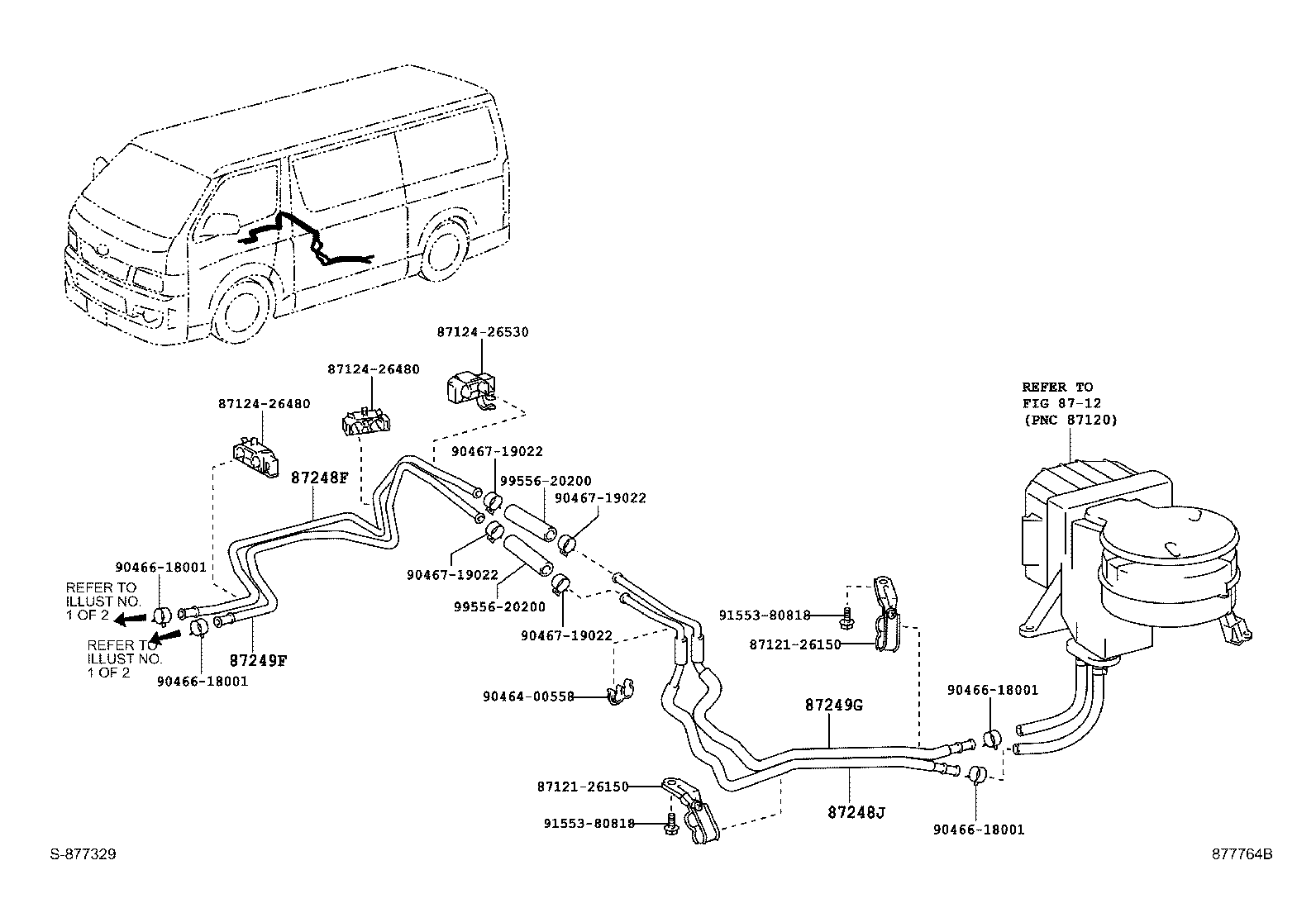

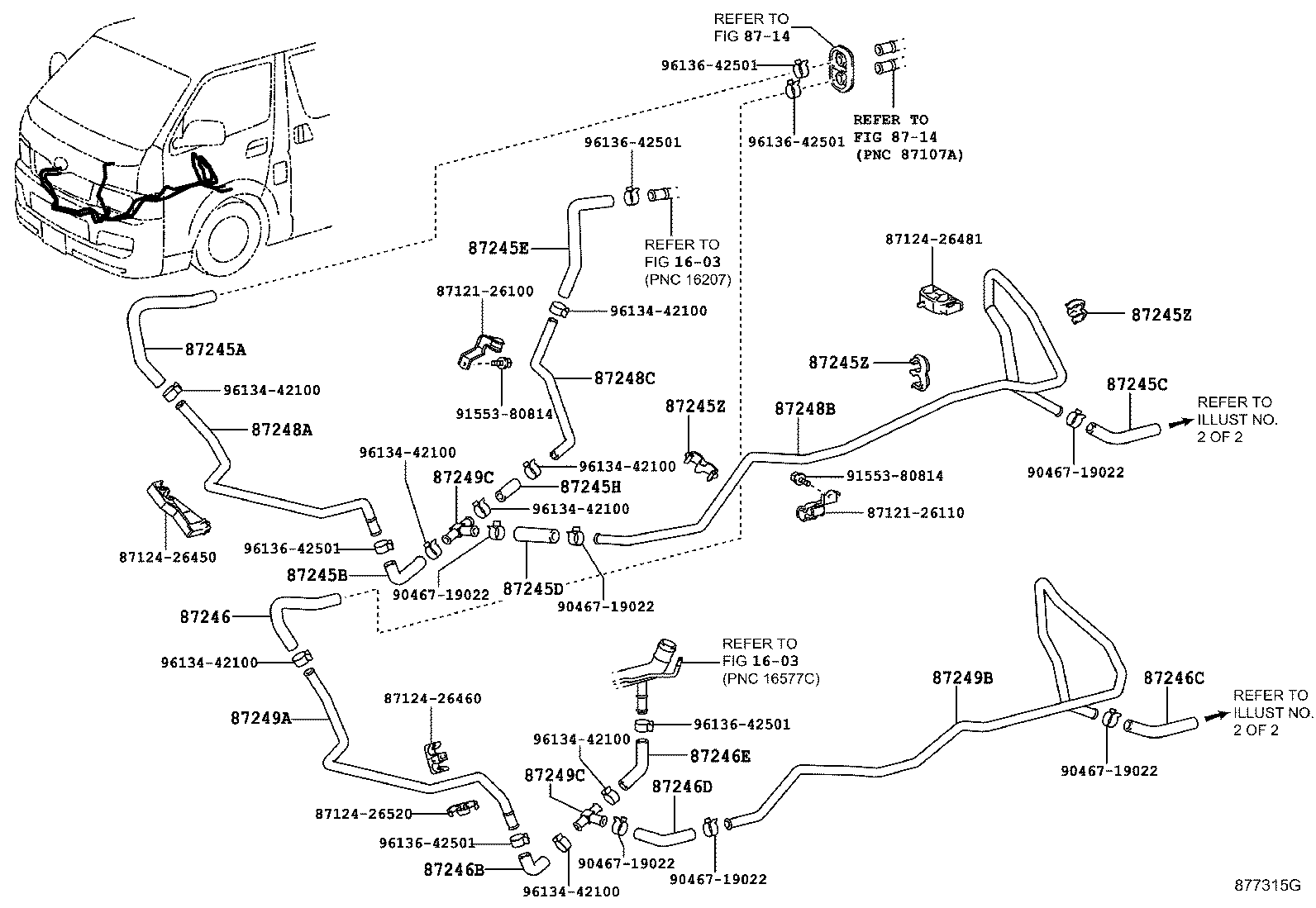

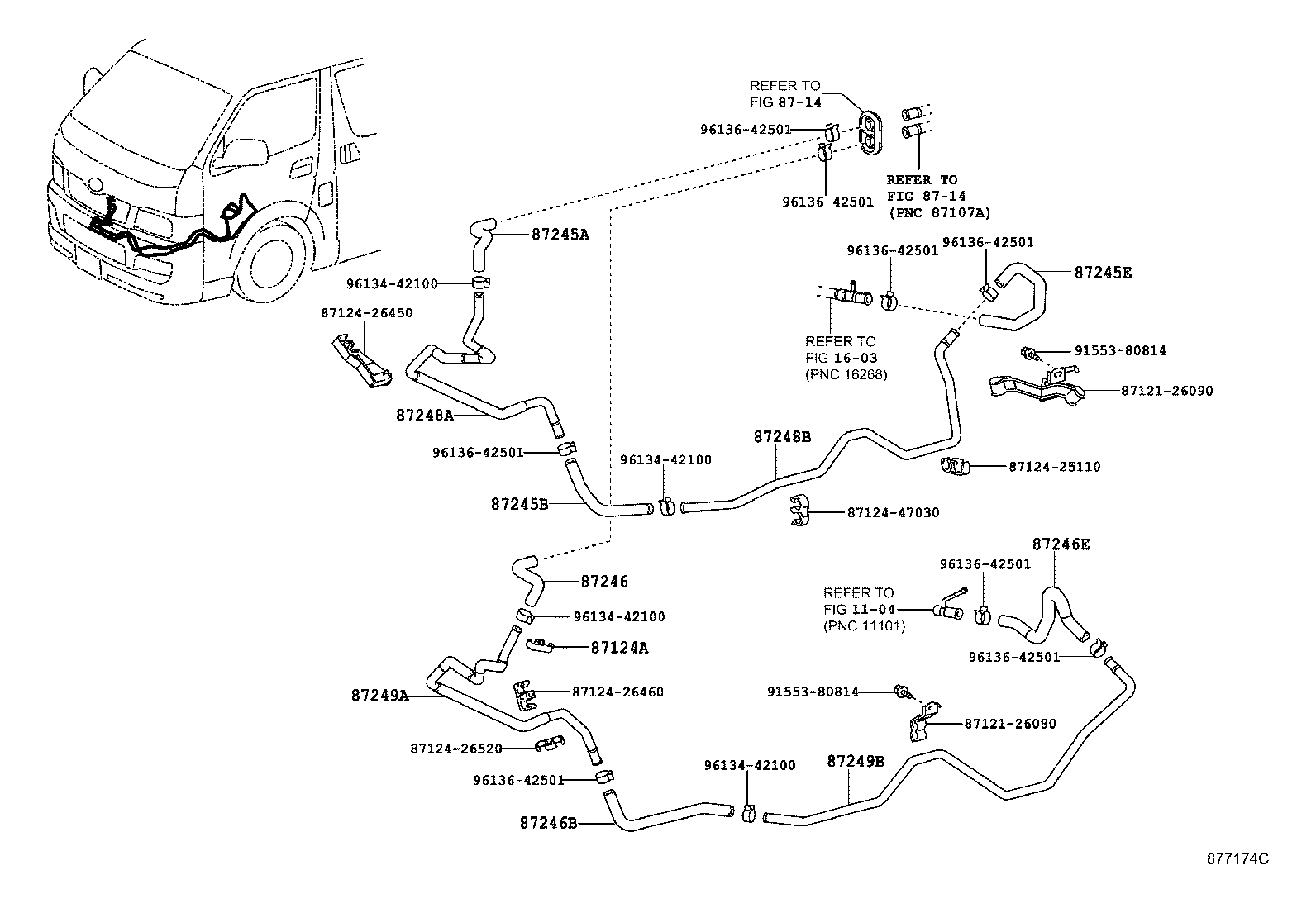

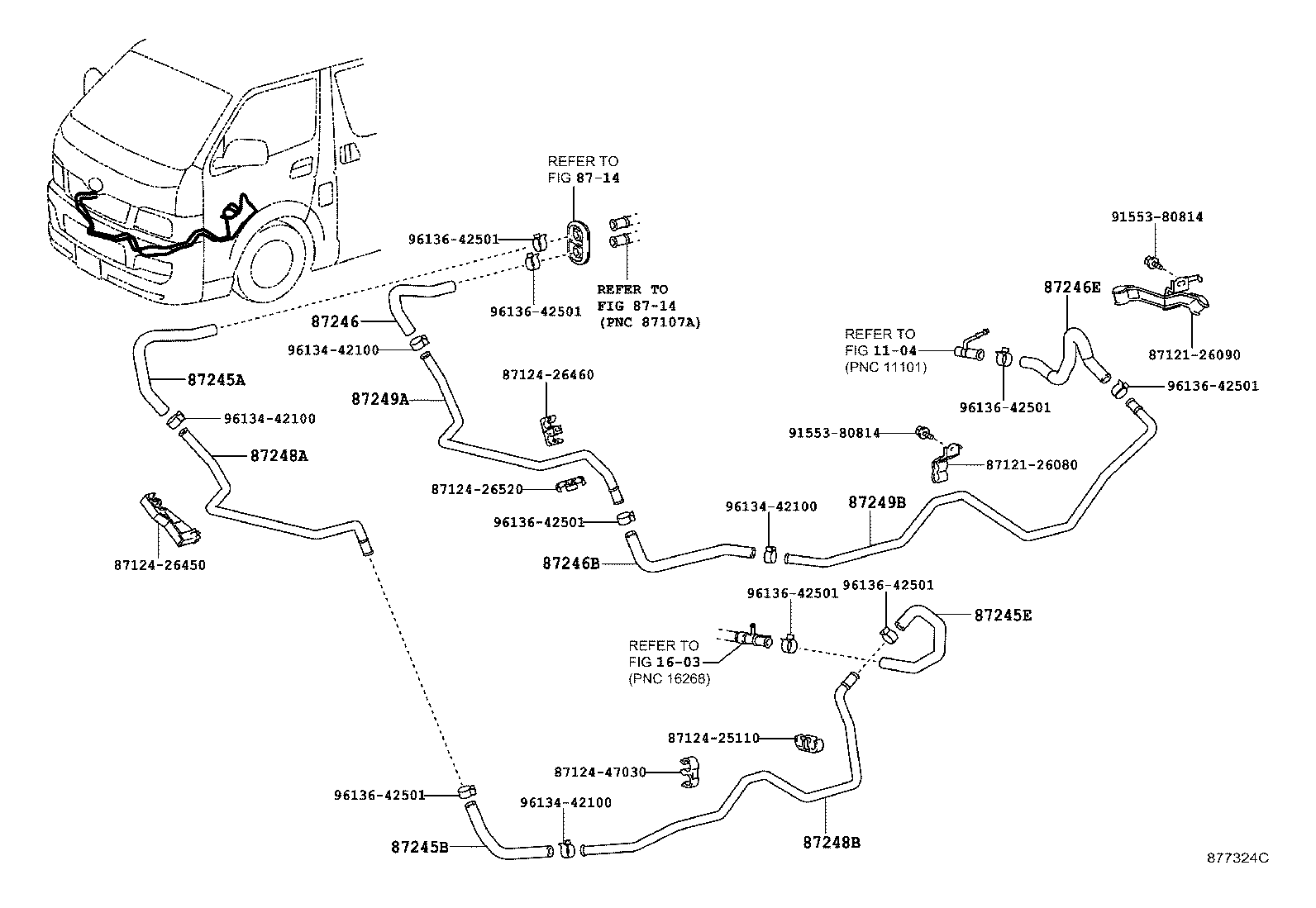

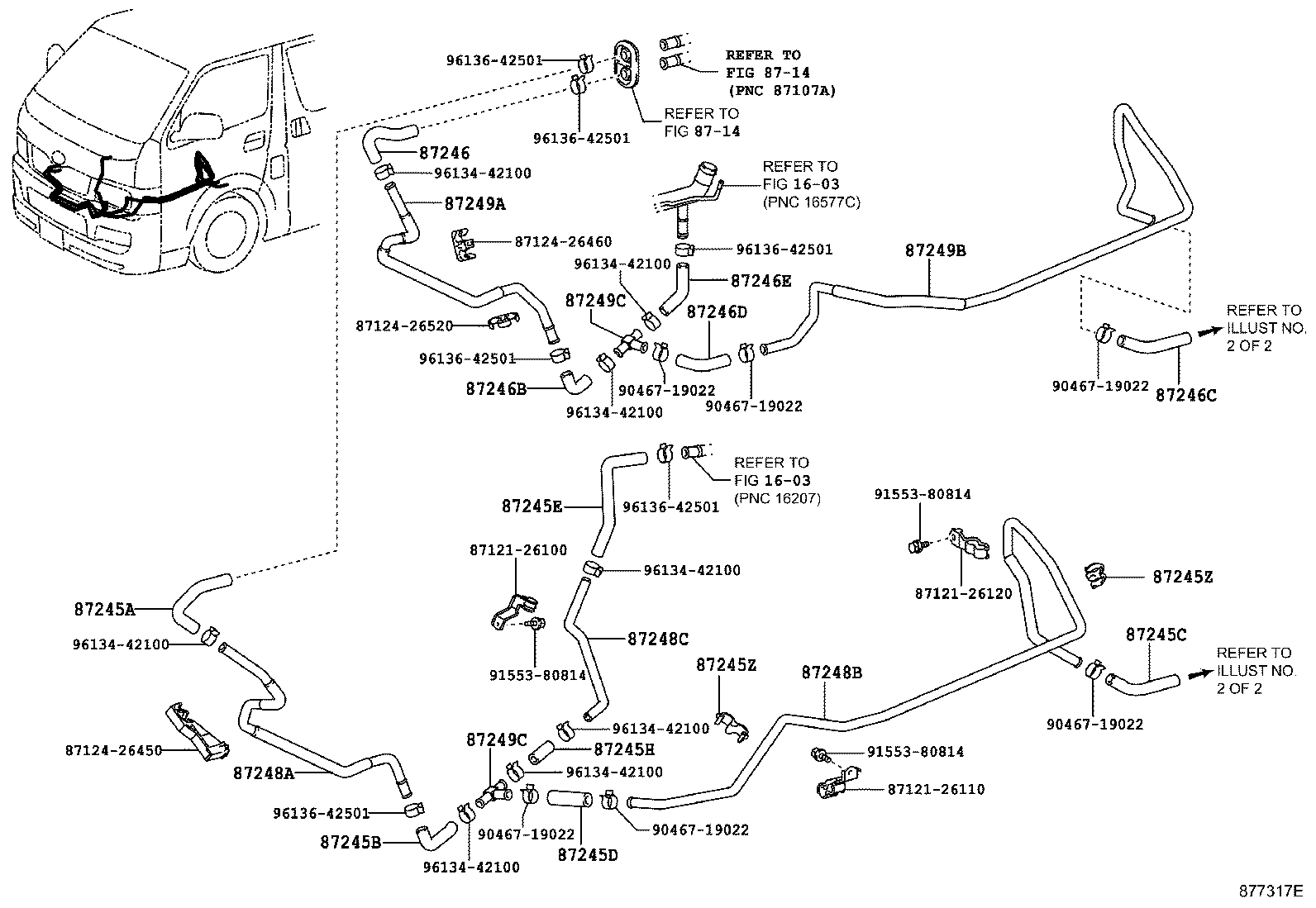

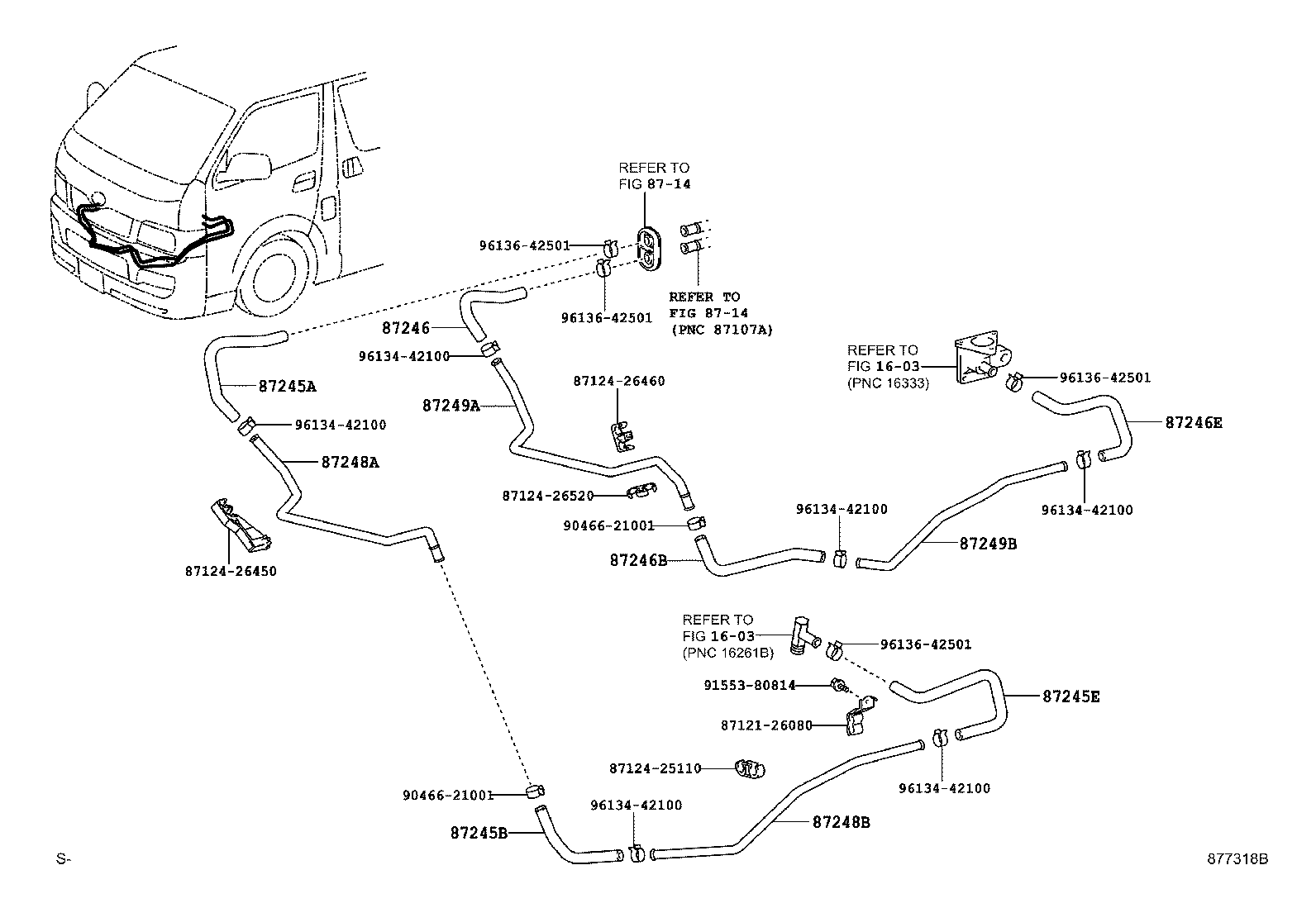

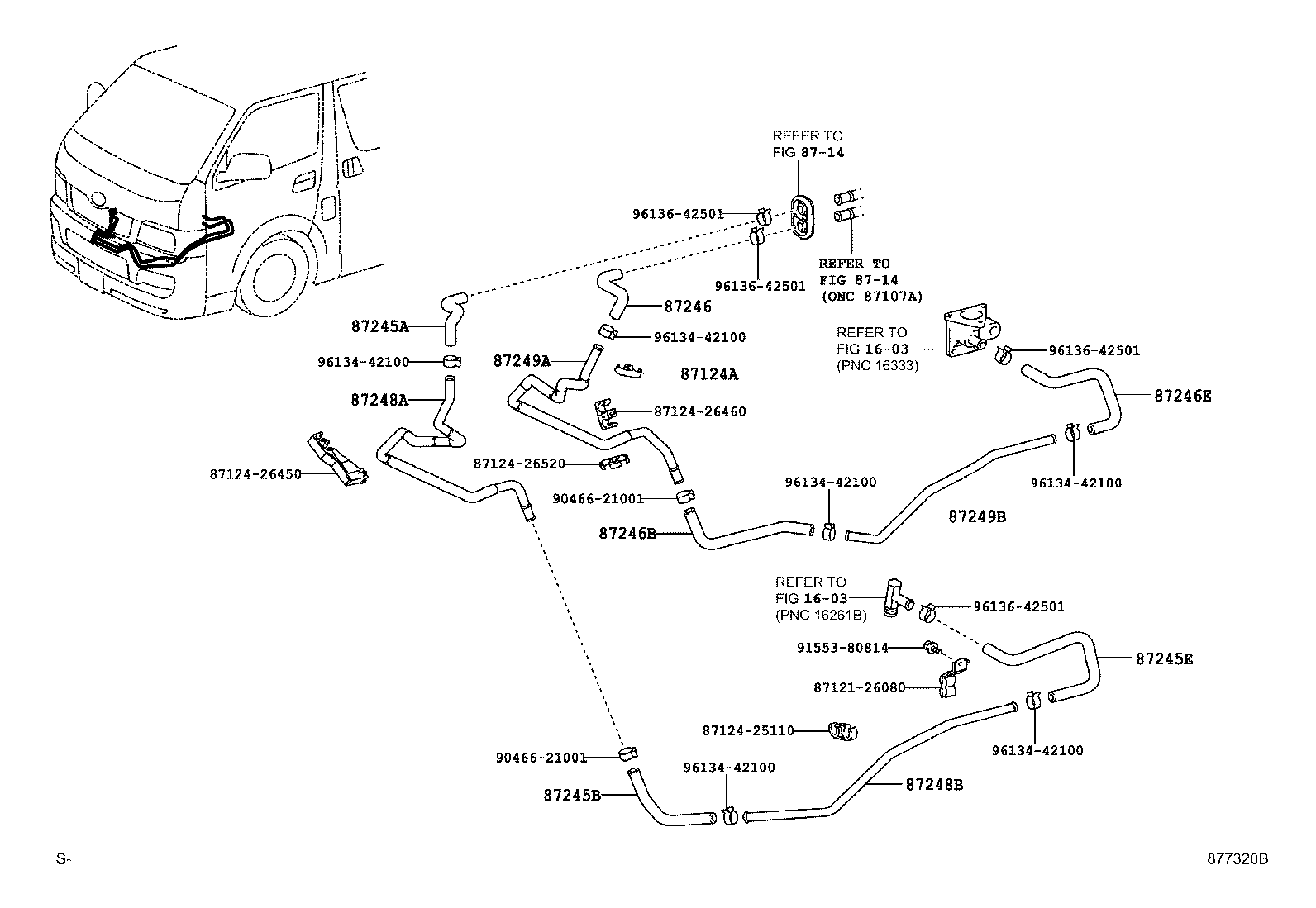

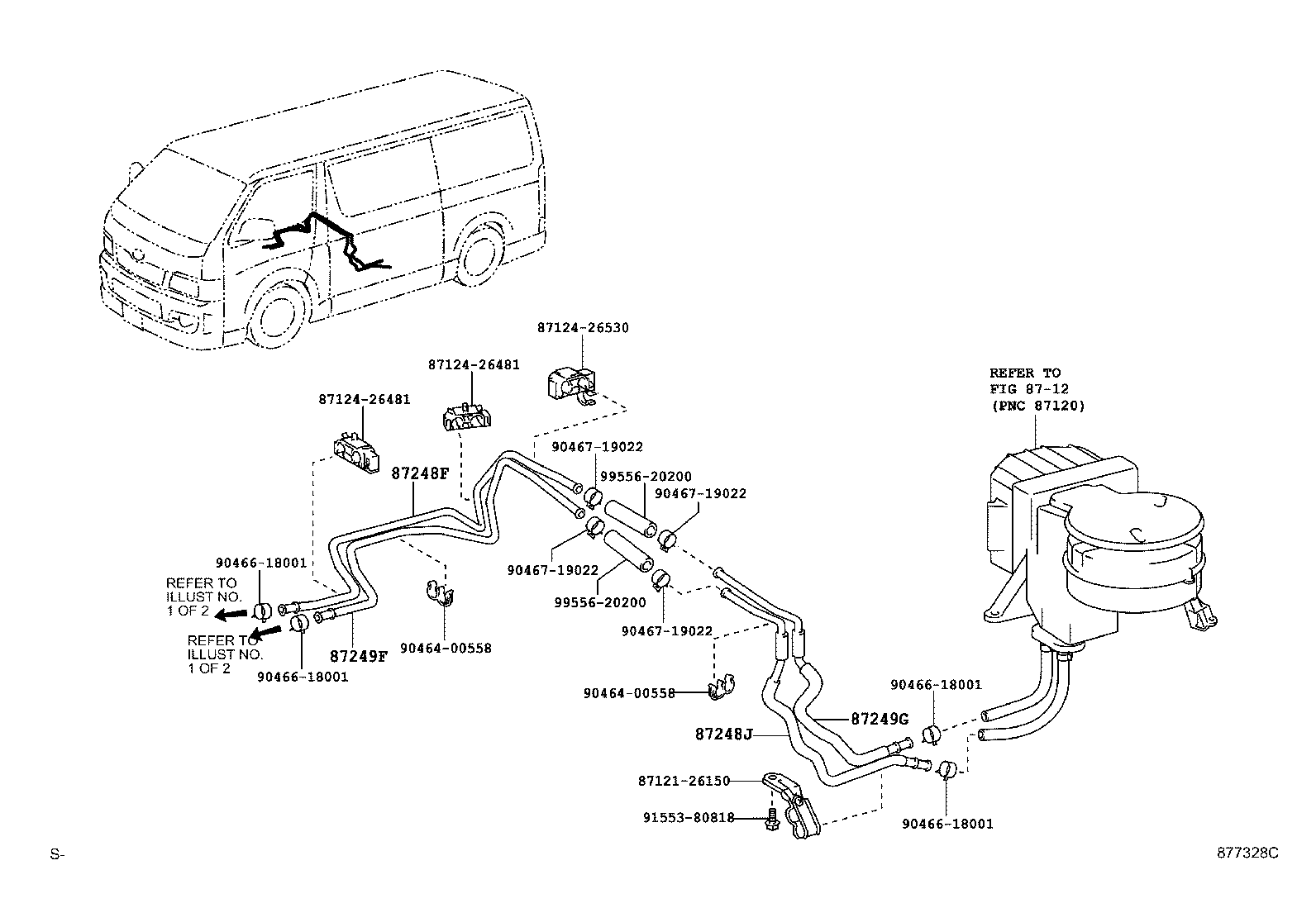

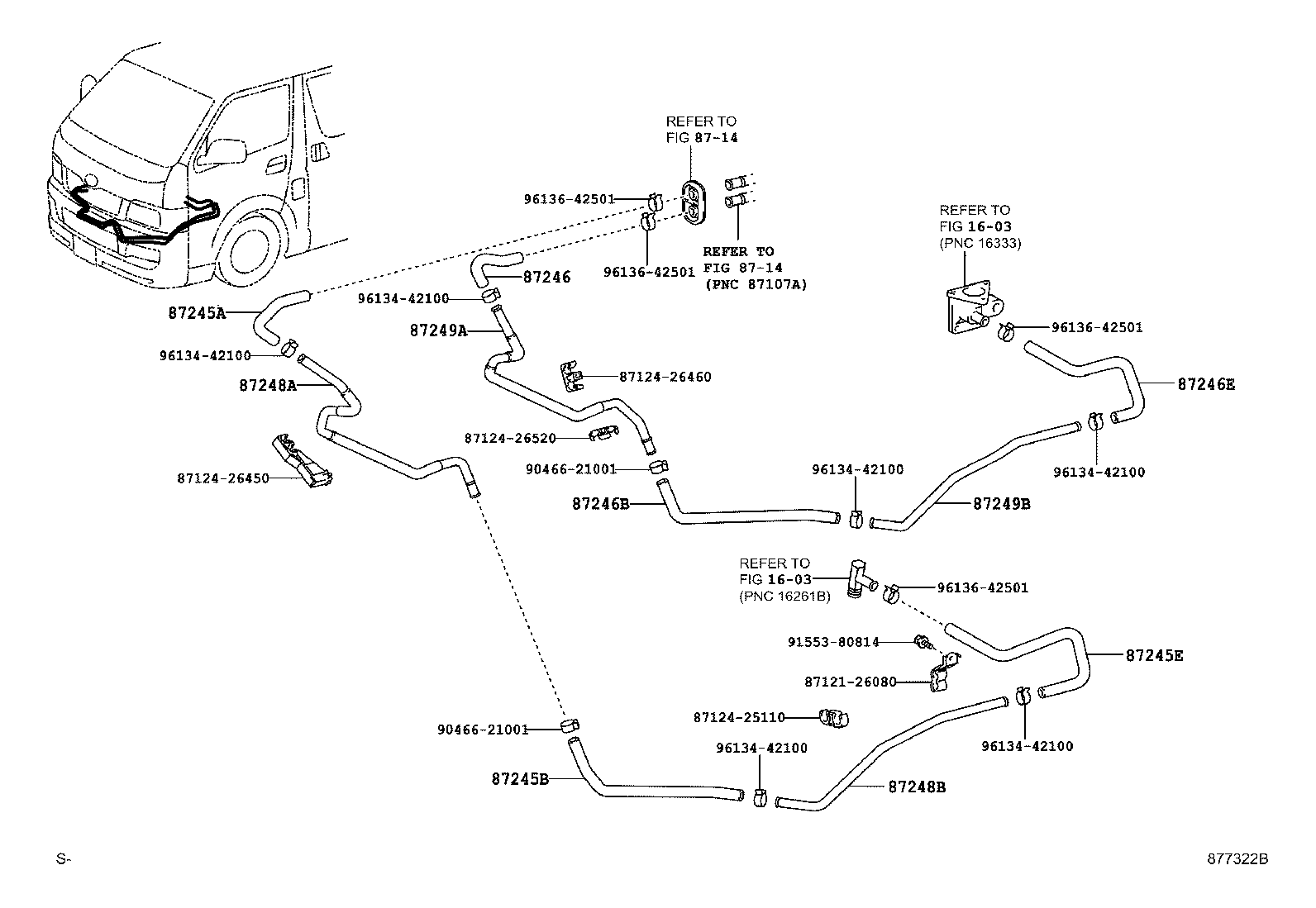

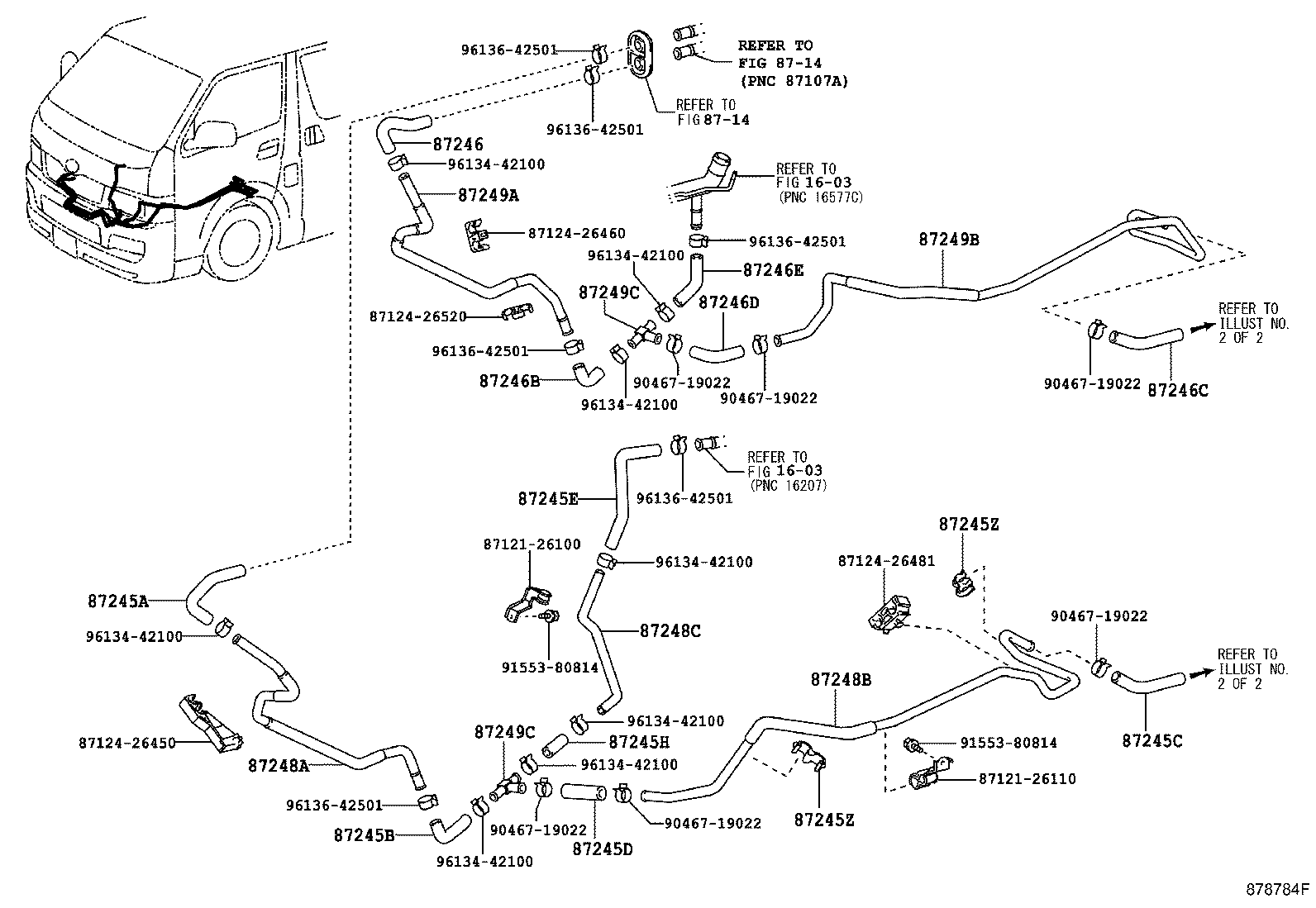

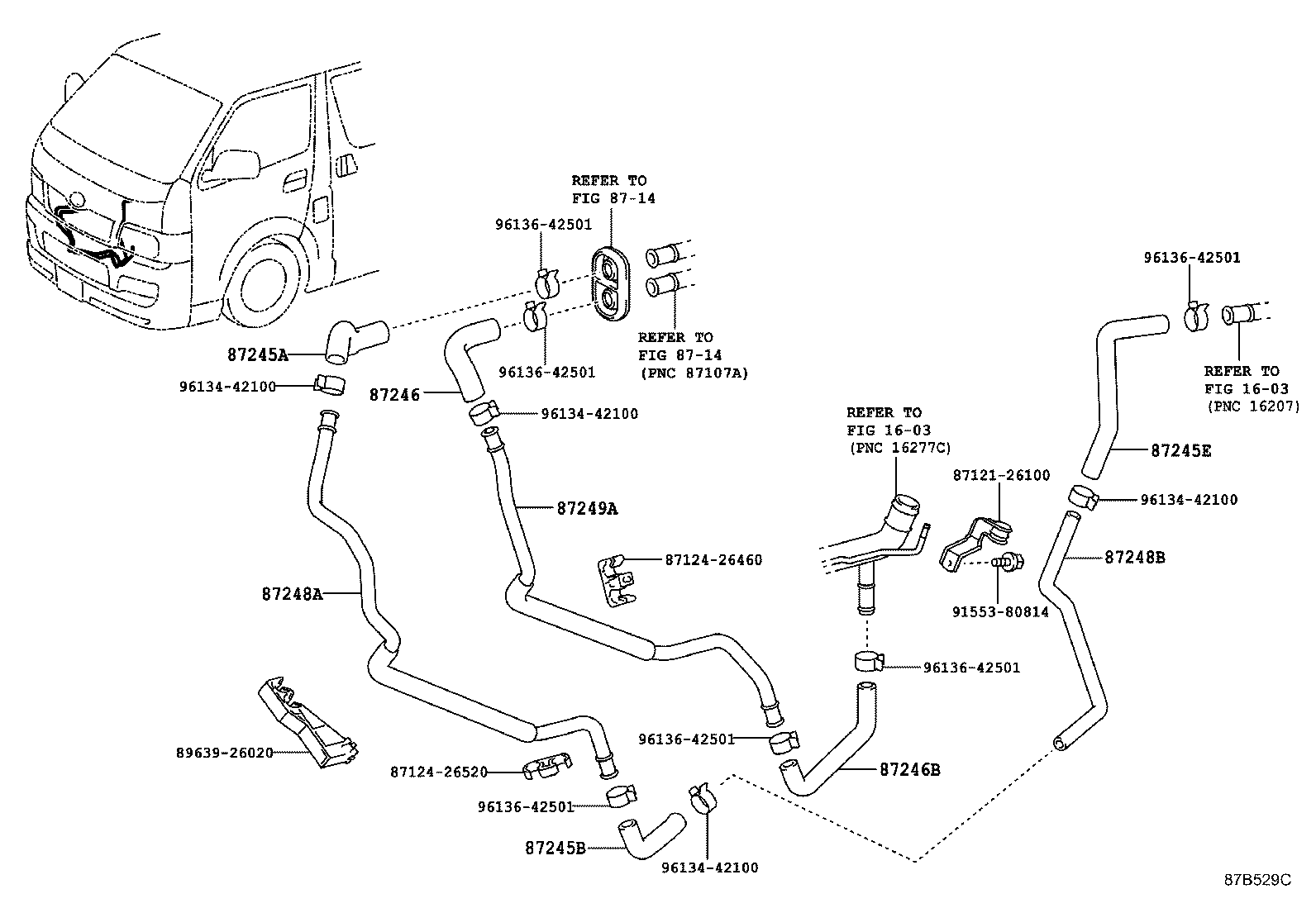

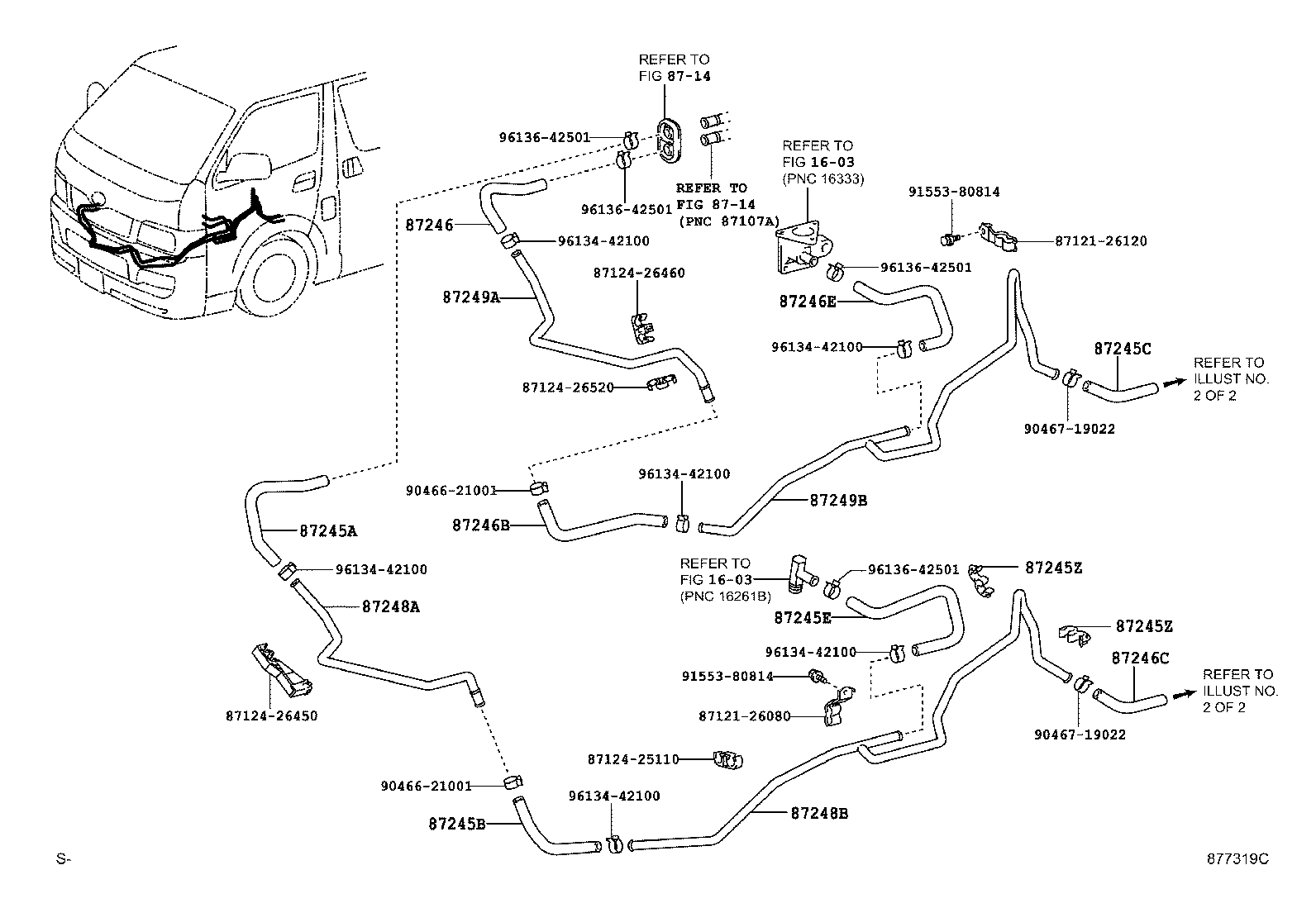

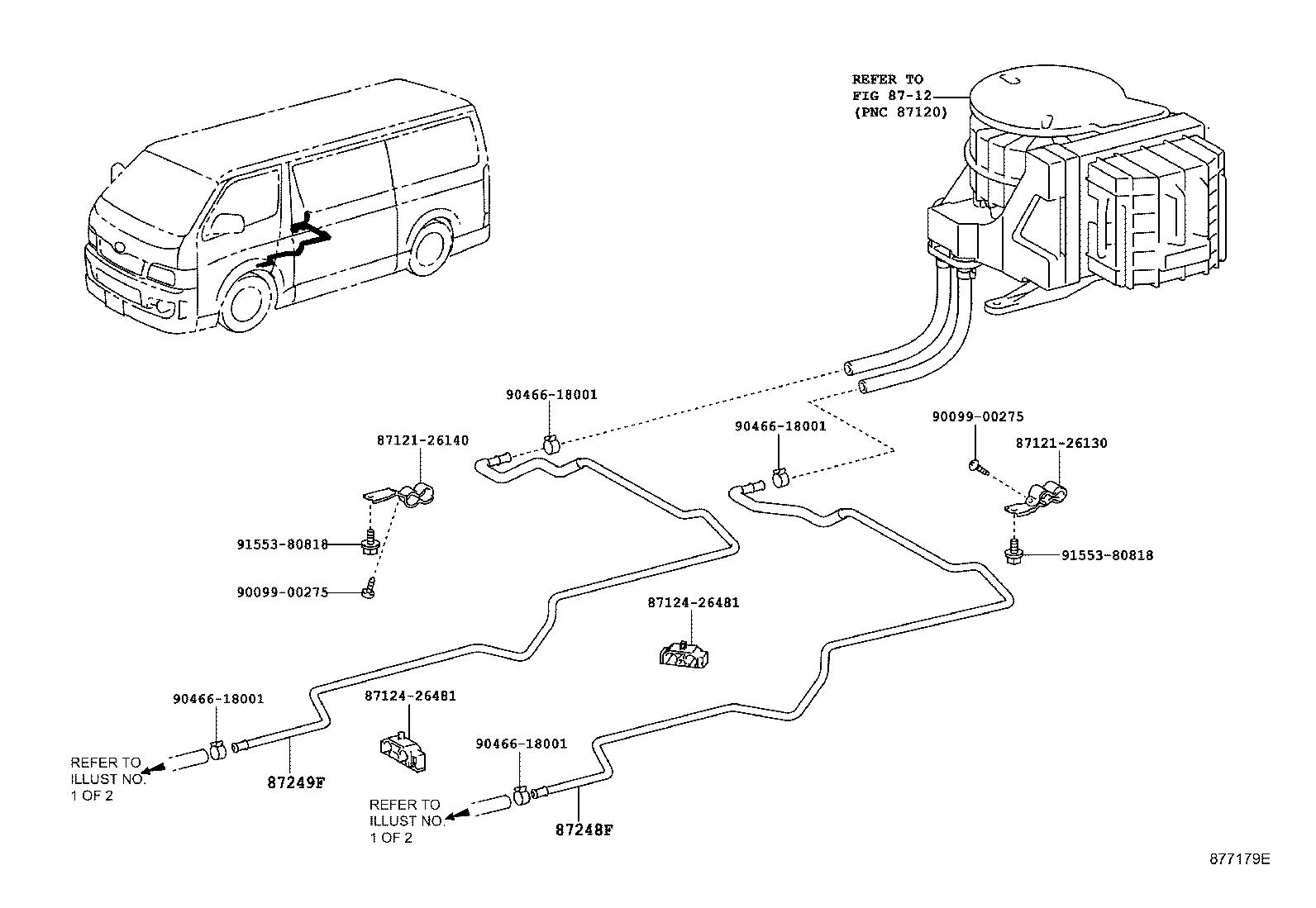

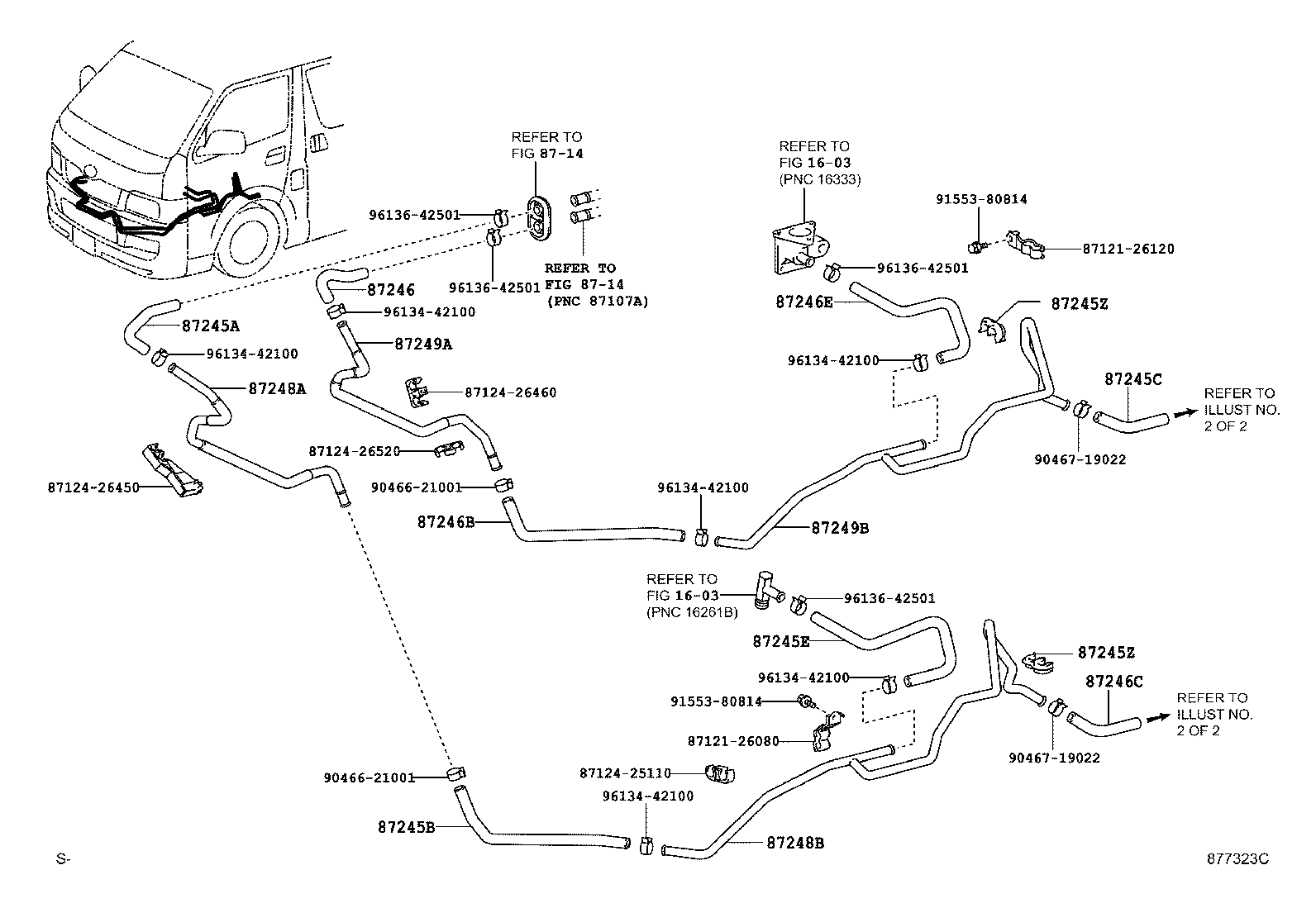

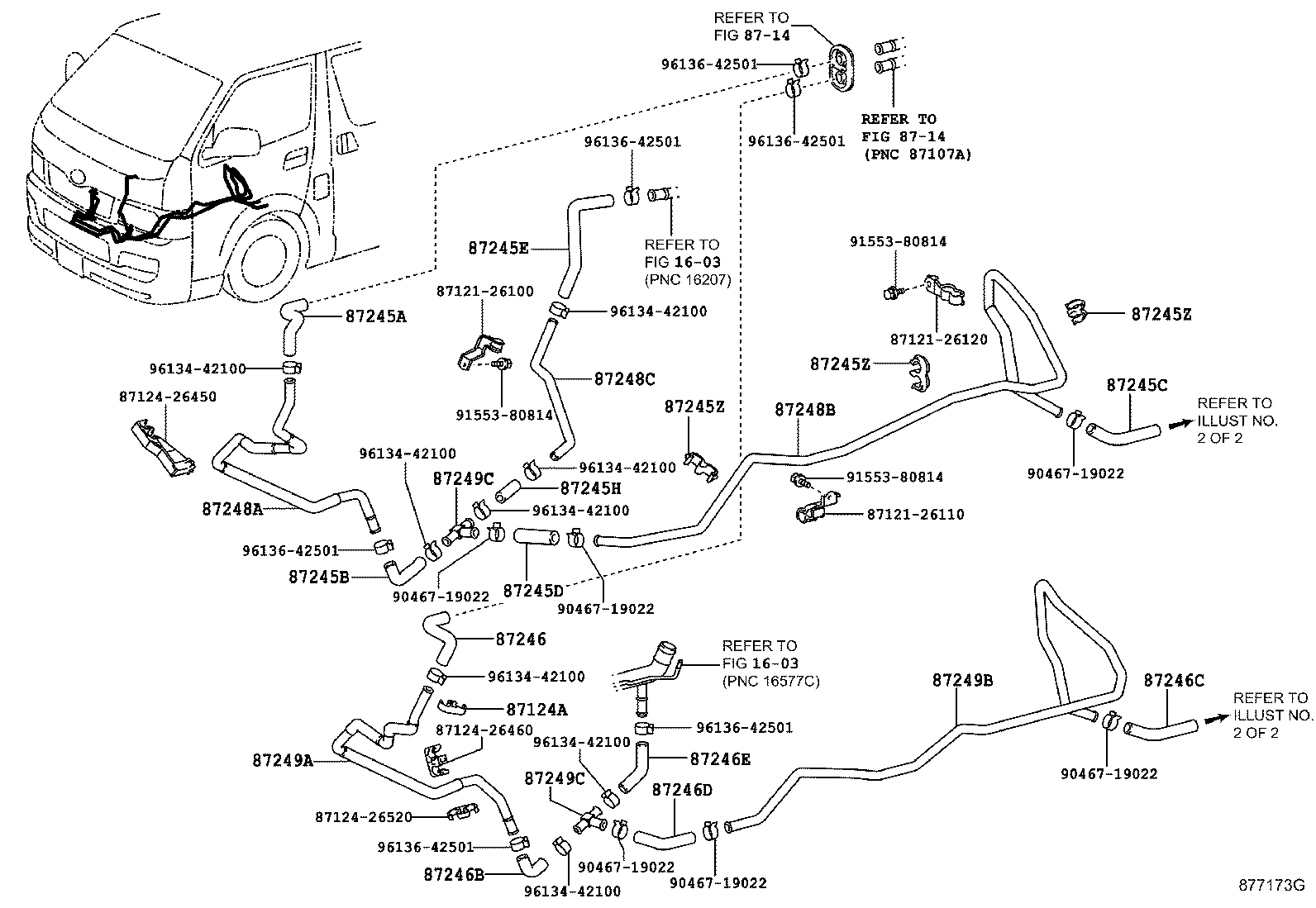

Figure 877314D 877314D 2005-01 → 2007-09 Figure 877314D 877314D 2005-01 → — Figure 877315G 877315G 2005-01 → 2007-09 Figure 877315G 877315G 2005-01 → — Figure 877172D 877172D 2005-01 → — Figure 877173G 877173G 2005-01 → — Figure 877316D 877316D 2005-01 → — Figure 877316D 877316D 2005-01 → — Figure 877316D 877316D 2006-10 → 2007-10 Figure 877316D 877316D 2007-09 → — Figure 877317E 877317E 2005-01 → 2006-10 Figure 878784F 878784F 2006-10 → — Figure 877318B 877318B 2005-01 → — Figure 877319C 877319C 2005-01 → — Figure 877320B 877320B 2005-01 → — Figure 877321C 877321C 2005-01 → — Figure 877322B 877322B 2005-01 → — Figure 877323C 877323C 2005-01 → — Figure 877324C 877324C 2005-01 → — Figure 877325C 877325C 2005-01 → — Figure 877174C 877174C 2005-01 → 2007-09 Figure 877174C 877174C 2005-01 → — Figure 877174C 877174C 2005-01 → — Figure 877175C 877175C 2005-01 → — Figure 877326C 877326C 2005-01 → — Figure 877326C 877326C 2005-05 → 2007-09 Figure 877326C 877326C 2006-10 → 2007-10 Figure 877326C 877326C 2007-09 → — Figure 877326C 877326C 2008-07 → — Figure 877176C 877176C 2005-01 → — Figure 877176C 877176C 2007-09 → — Figure 87B529C 87B529C 2010-08 → — Figure 877327C 877327C 2005-01 → 2007-09 Figure 877327C 877327C 2005-01 → — Figure 877328C 877328C 2005-01 → — Figure 877329C 877329C 2005-01 → — Figure 877329C 877329C 2007-09 → — Figure 877764B 877764B 2005-08 → — Figure 877330B 877330B 2005-01 → — Figure 877179E 877179E 2005-01 → — Figure 877179E 877179E 2005-01 → —

Part groups

PNCDescription
87124A Clamp, Heater
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246 Hose, Heater Water, Outlet
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248F Pipe, Heater Water Inlet, F
87248J Pipe, Heater Water Inlet, J
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249F Pipe, Heater Water Outlet, F
87249G Pipe, Heater Water Outlet, G
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
