Heating & Air Conditioning - Cooler Piping

33 part groups · 87 illustrations

Illustrations

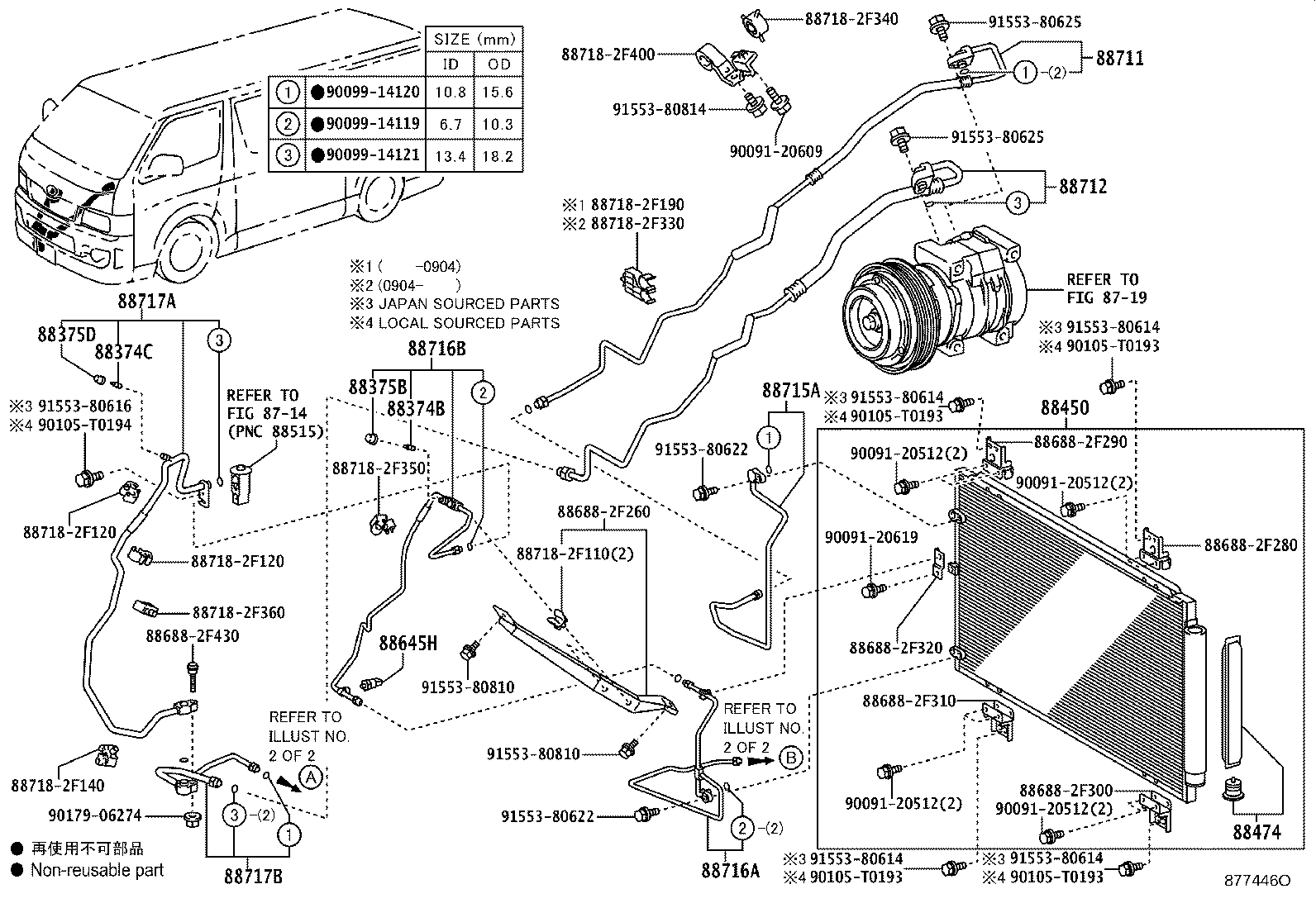

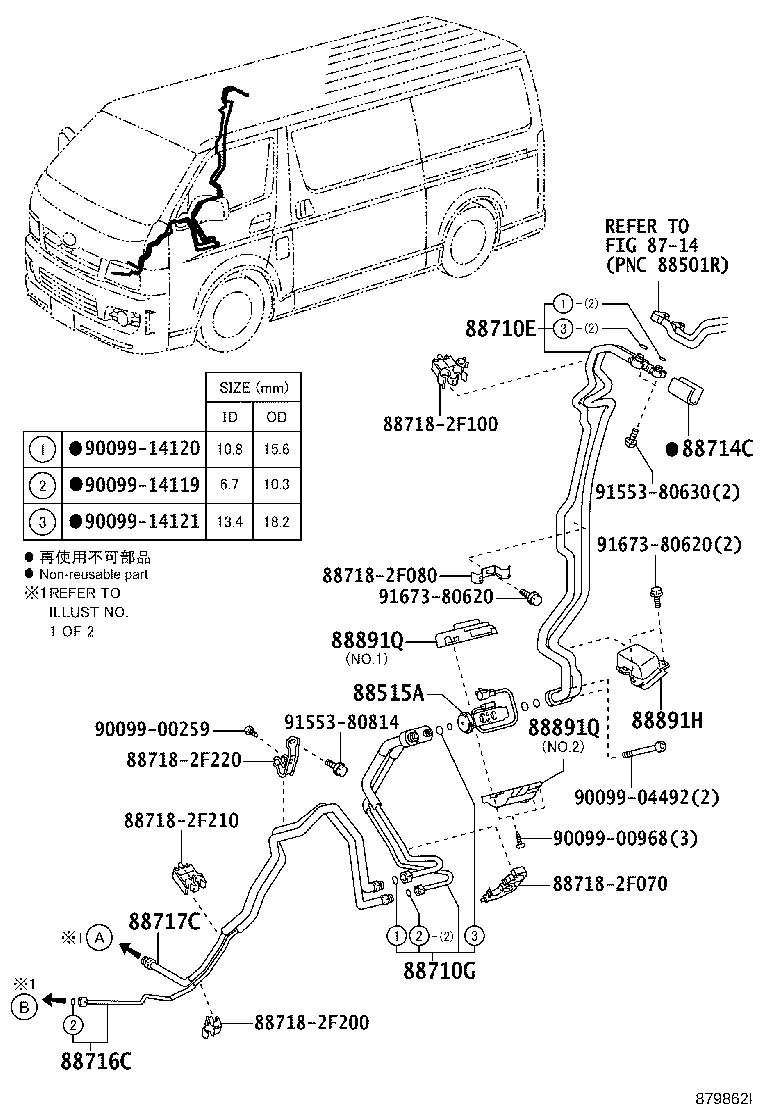

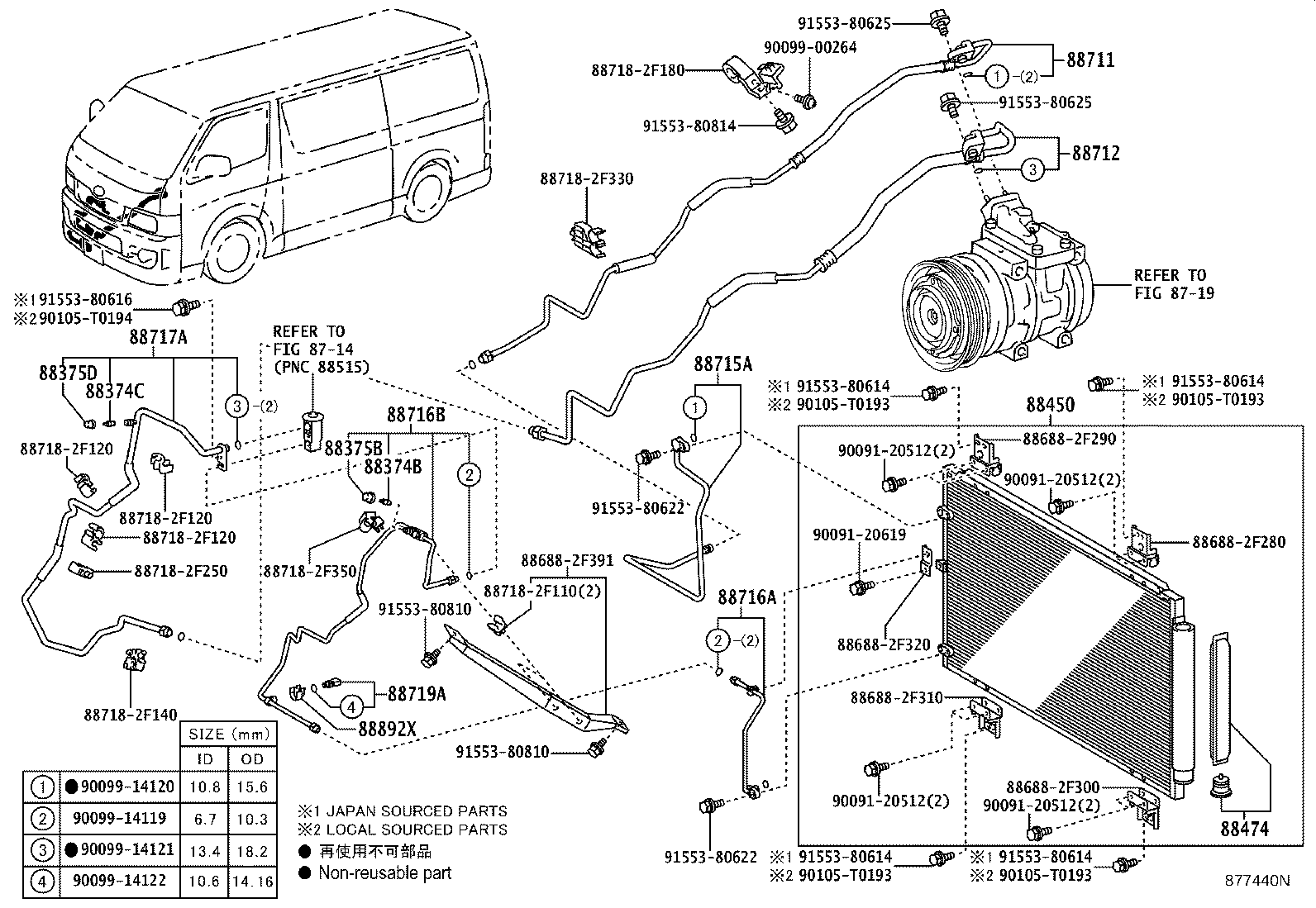

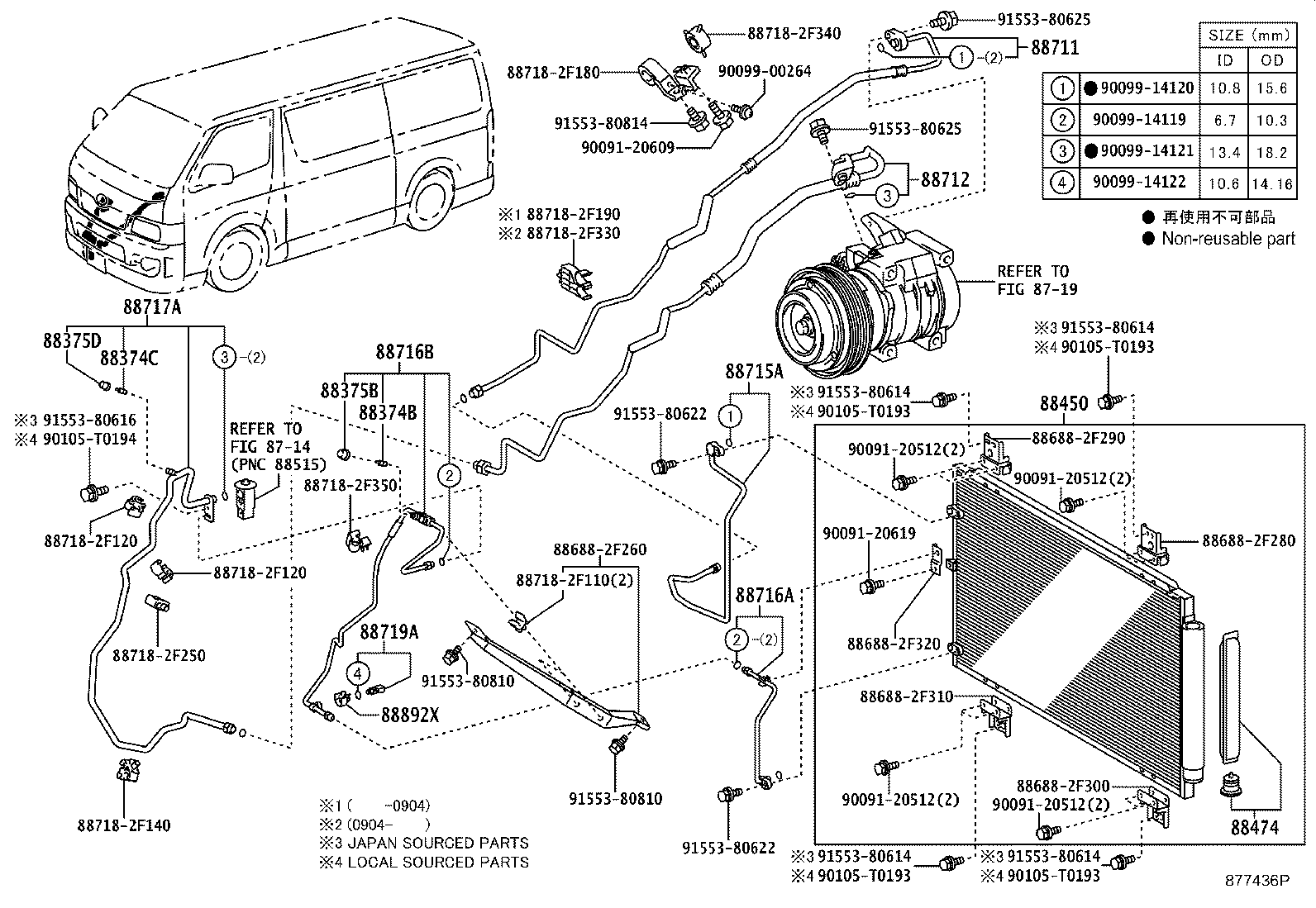

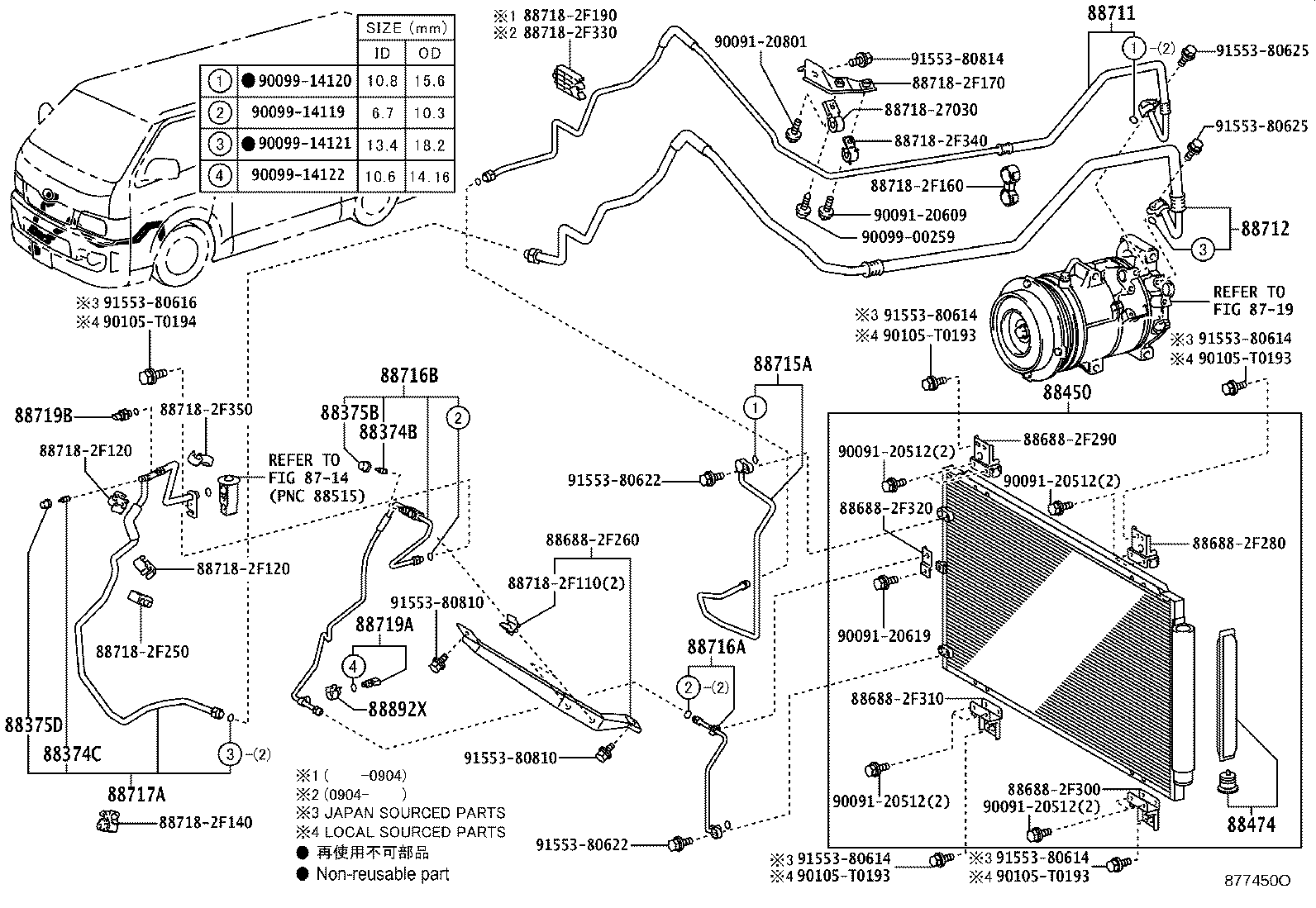

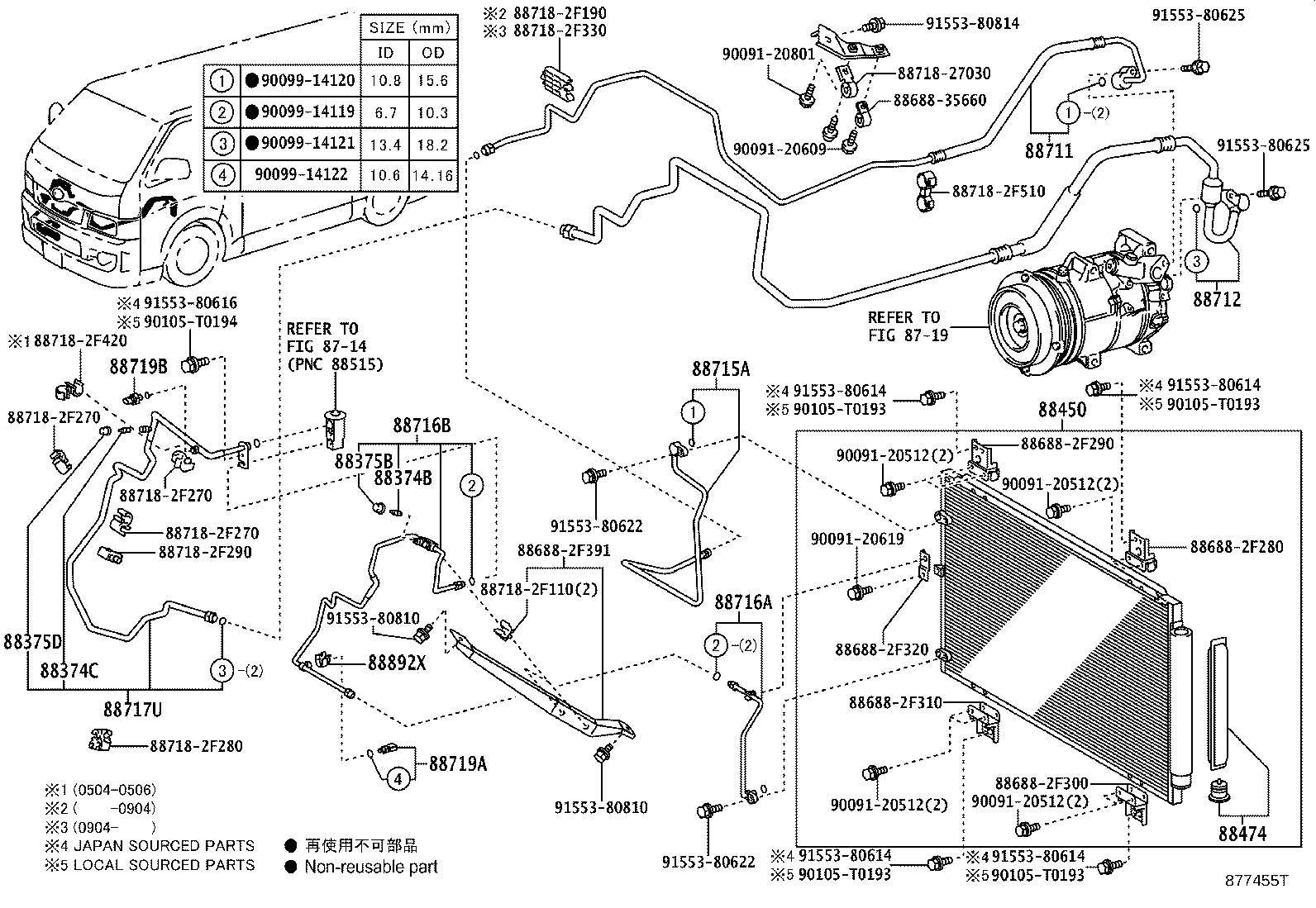

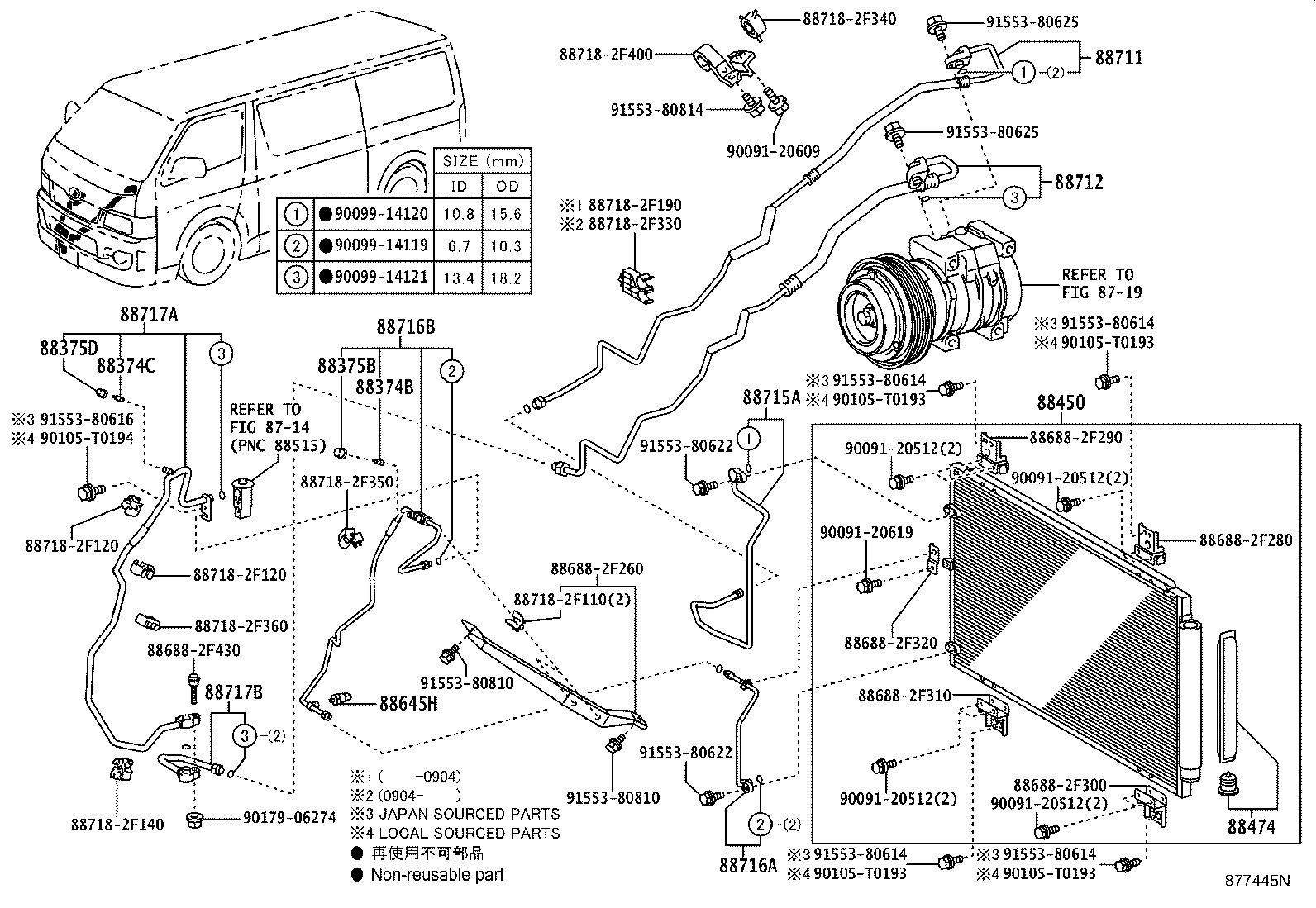

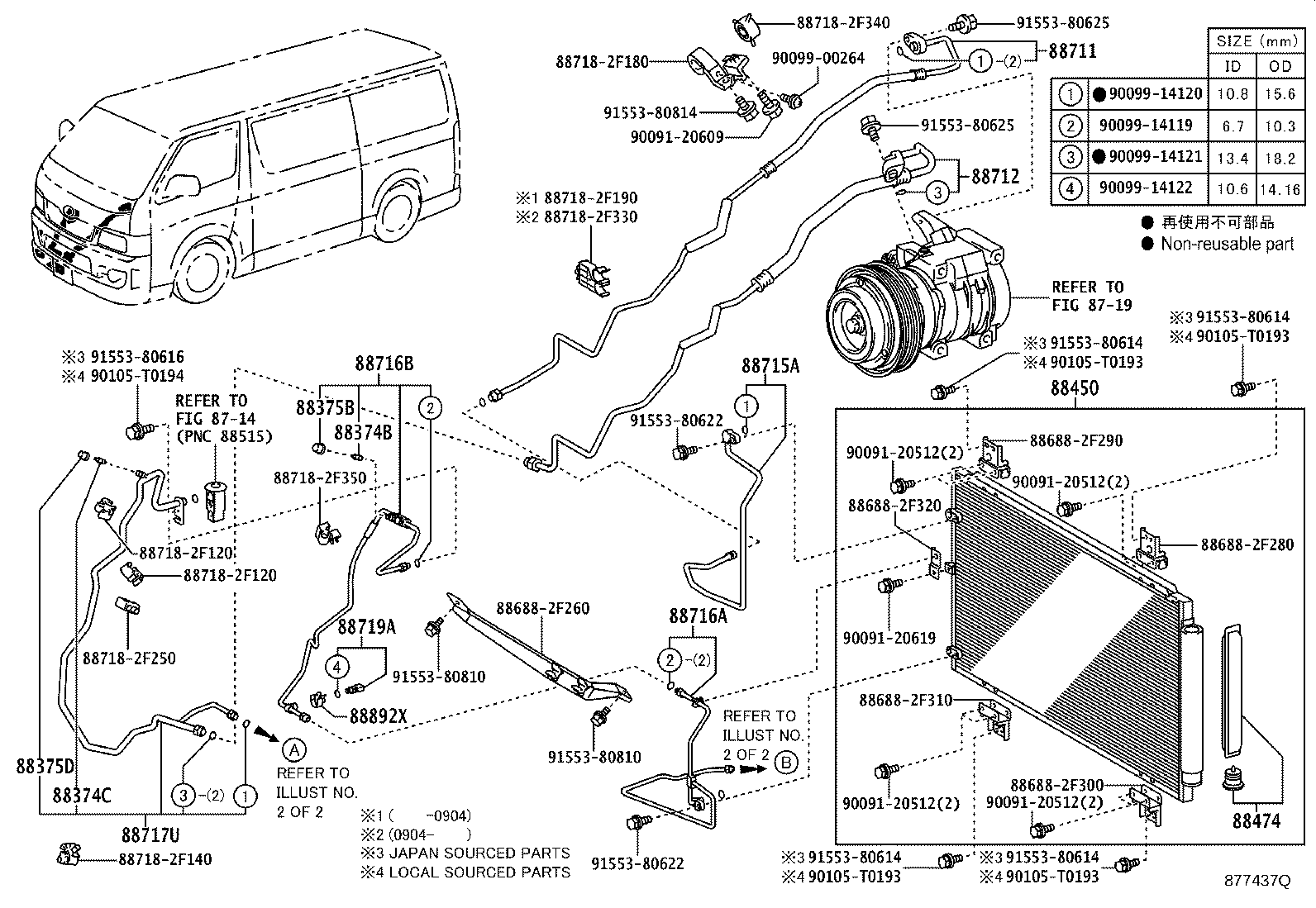

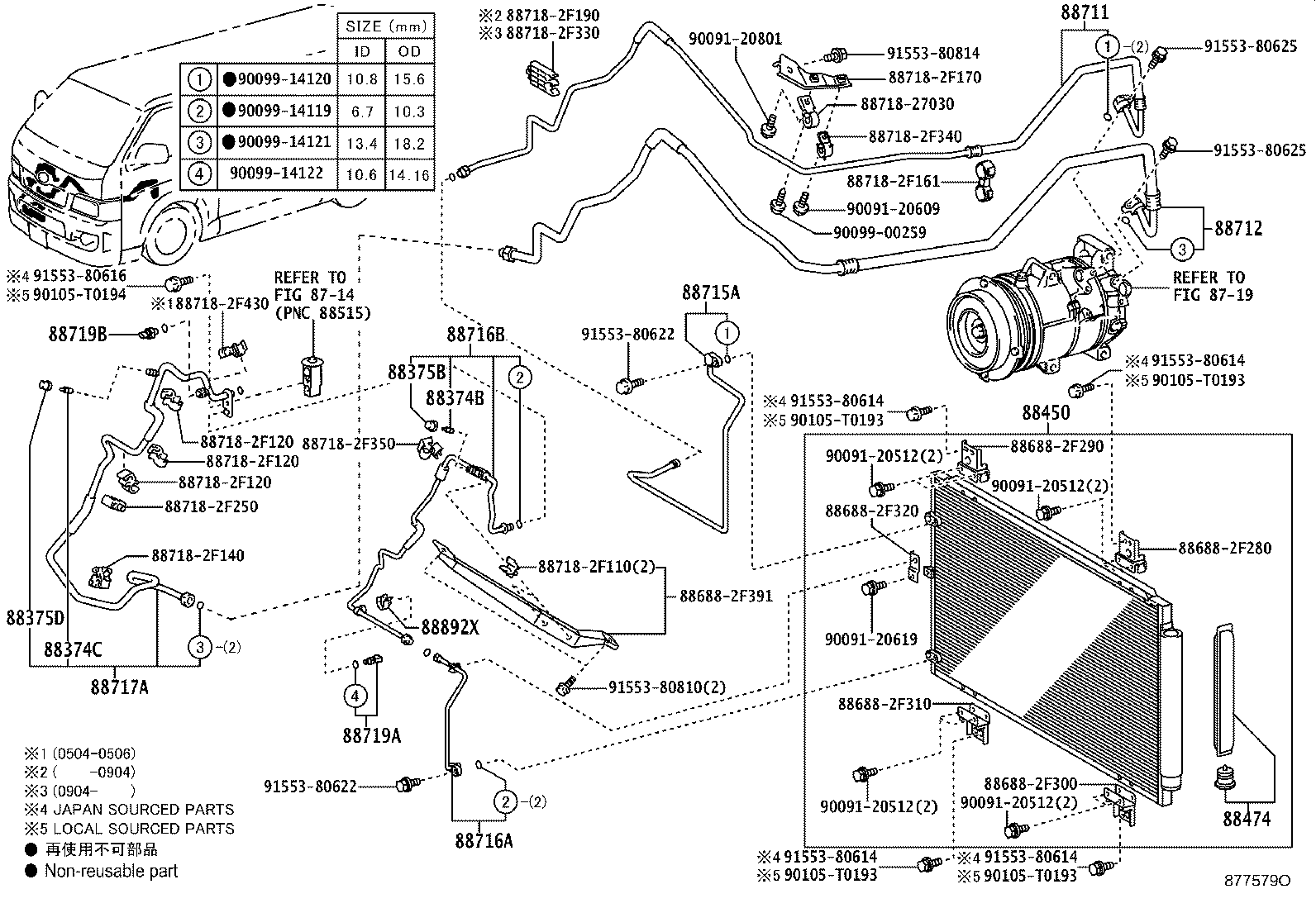

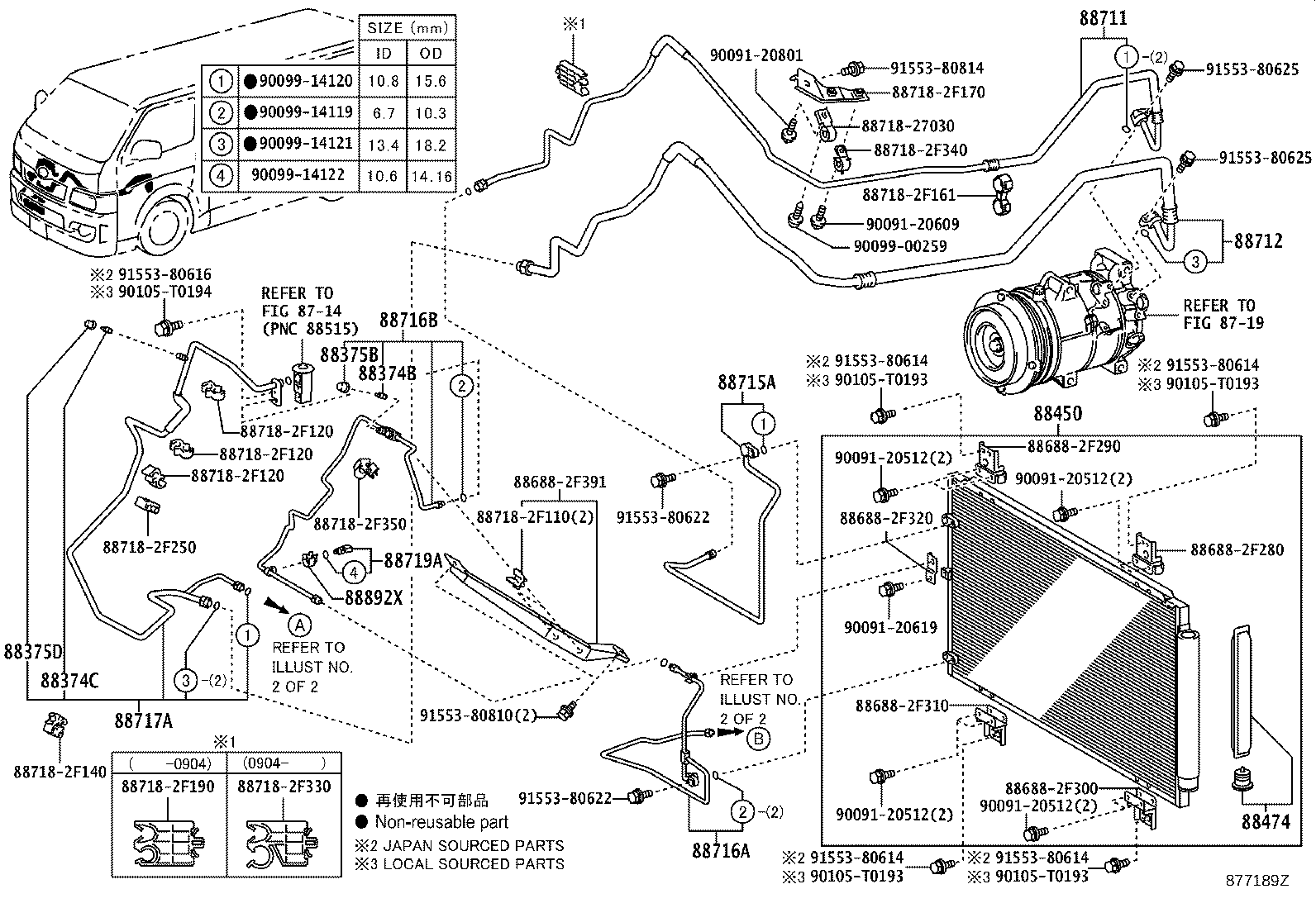

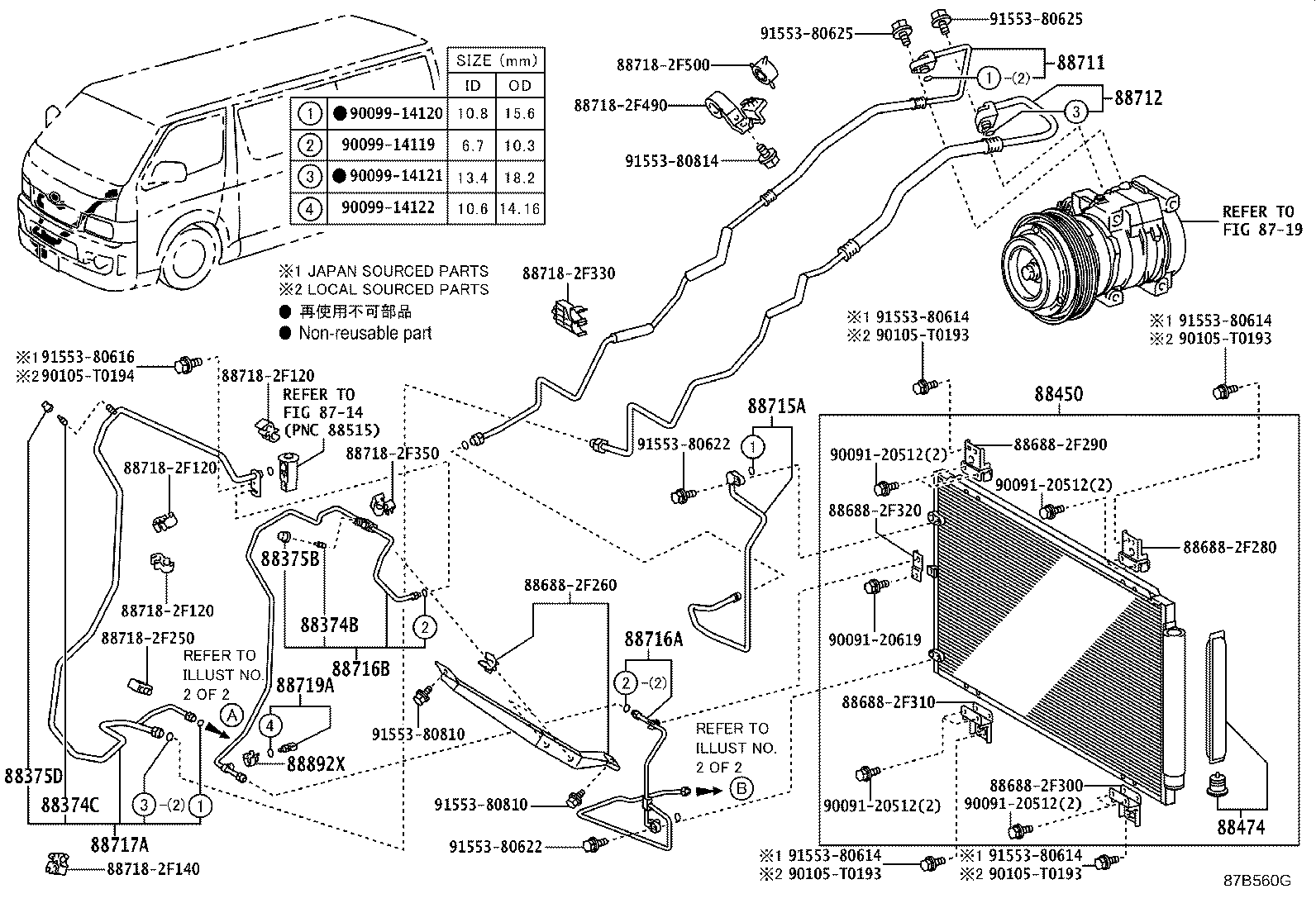

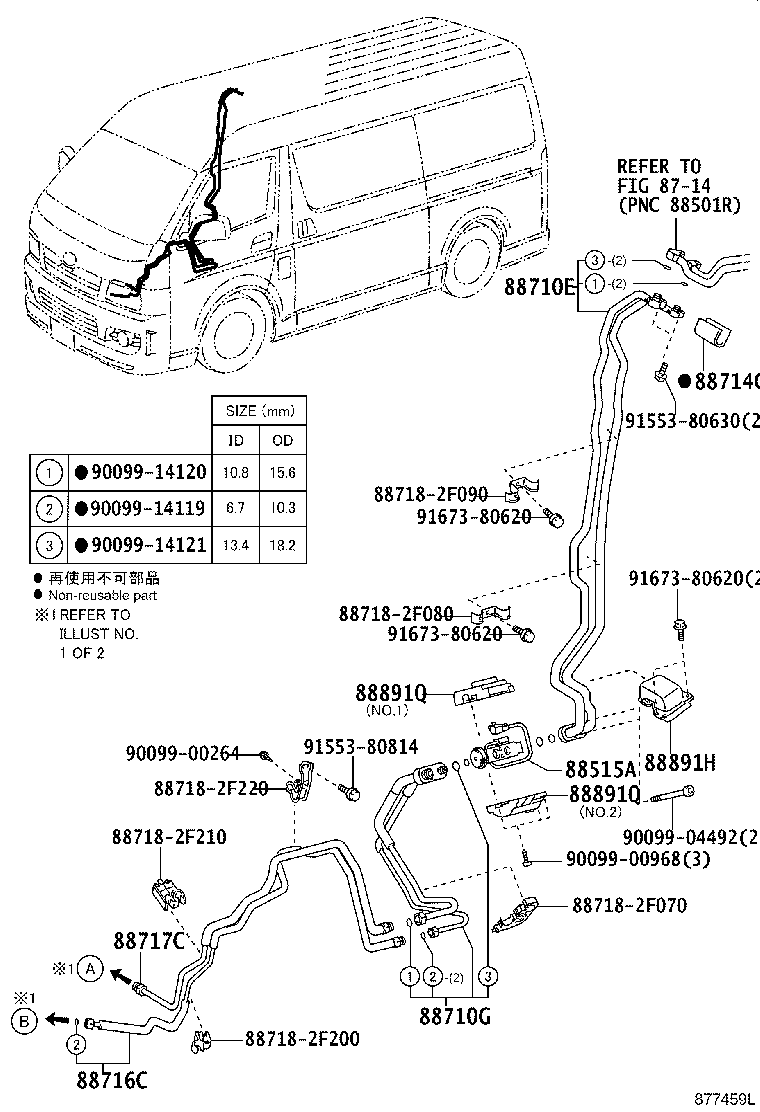

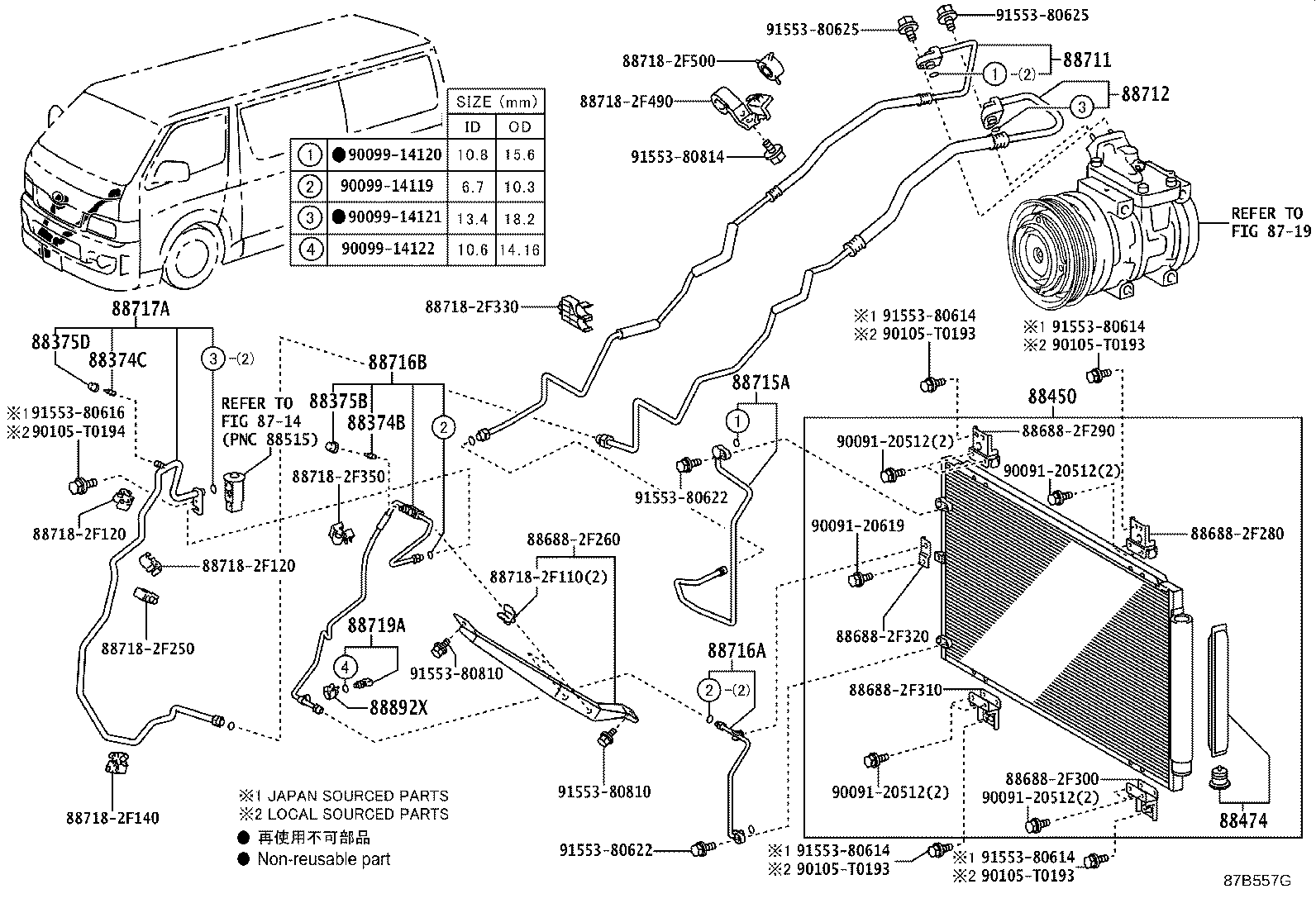

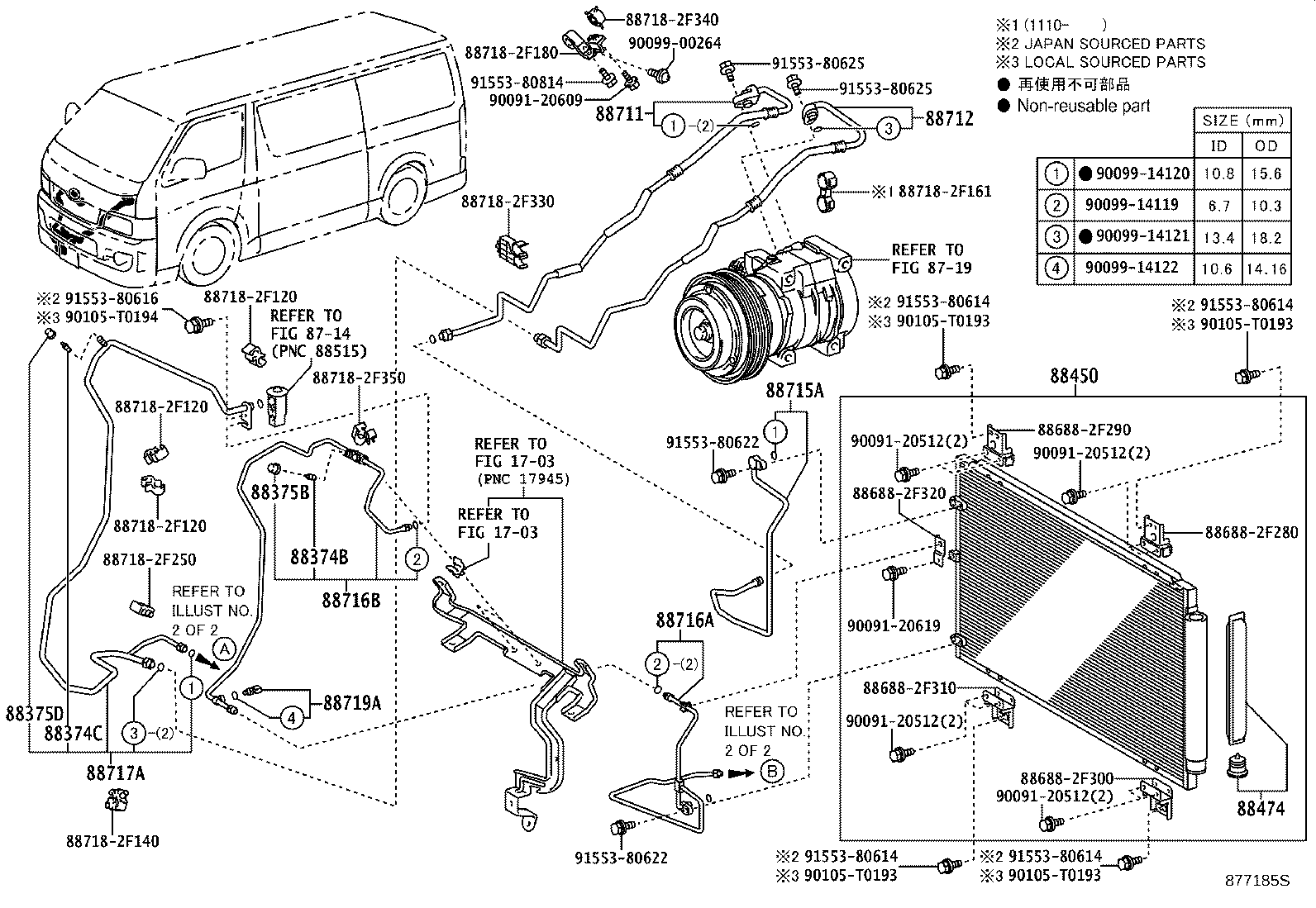

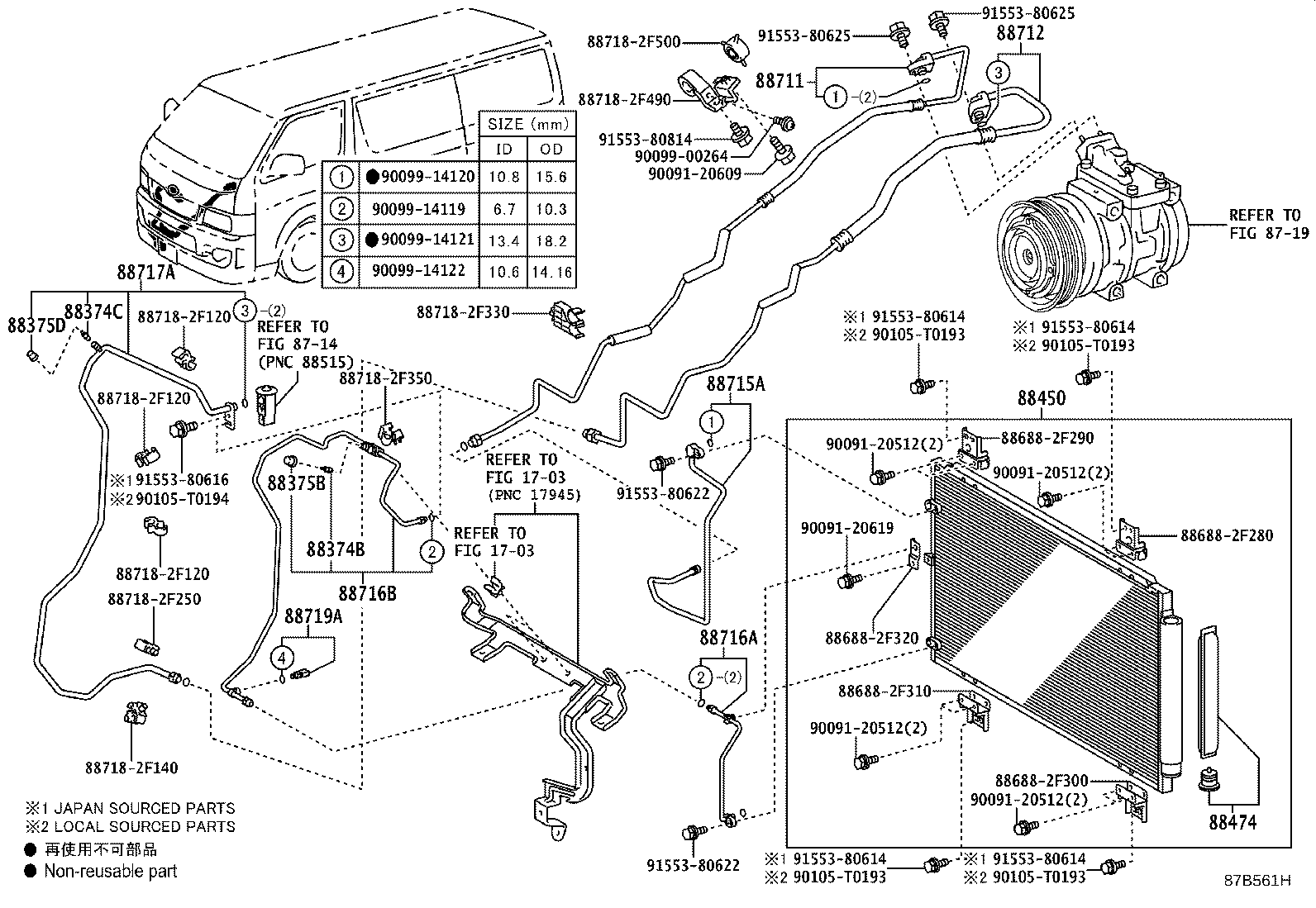

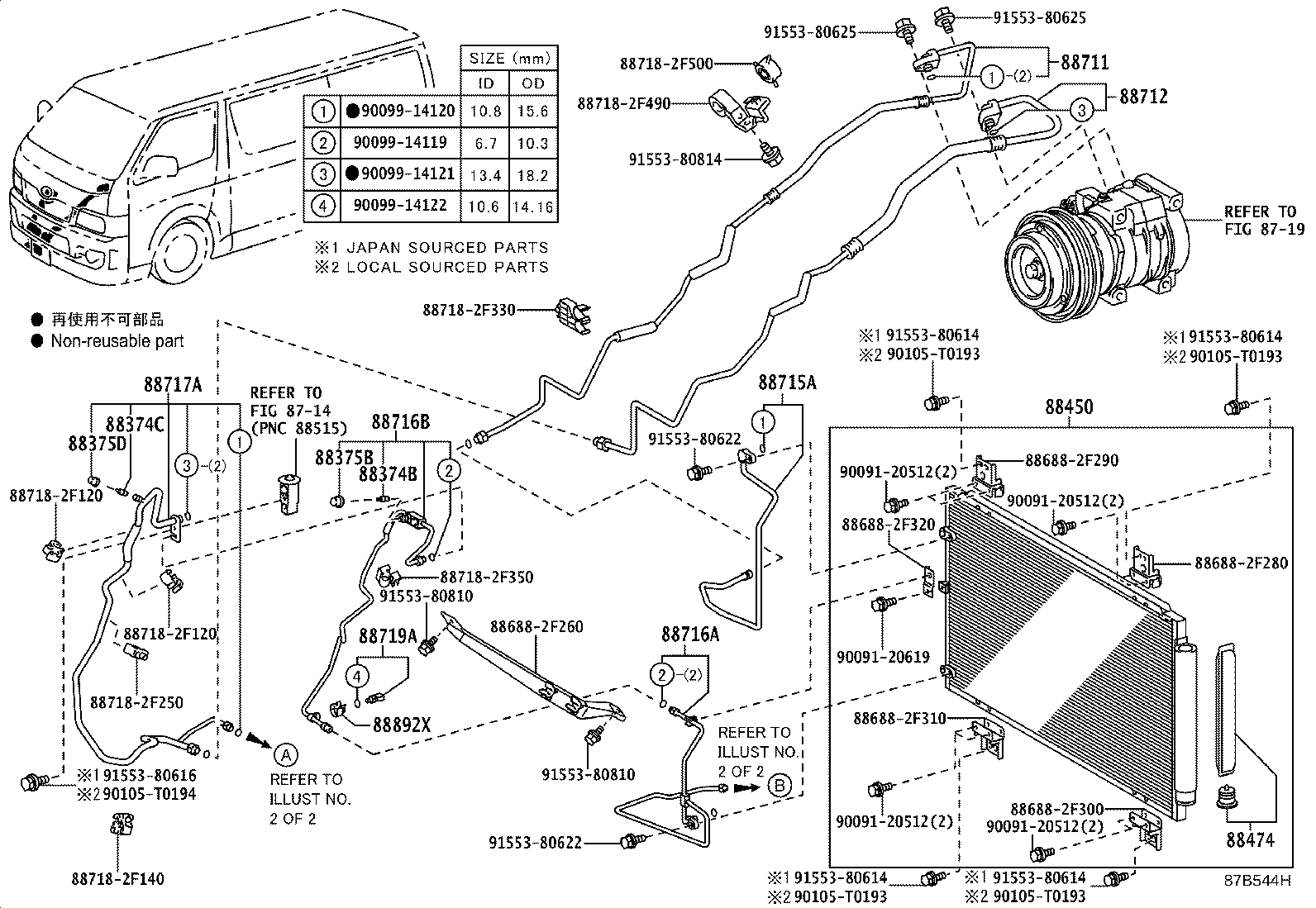

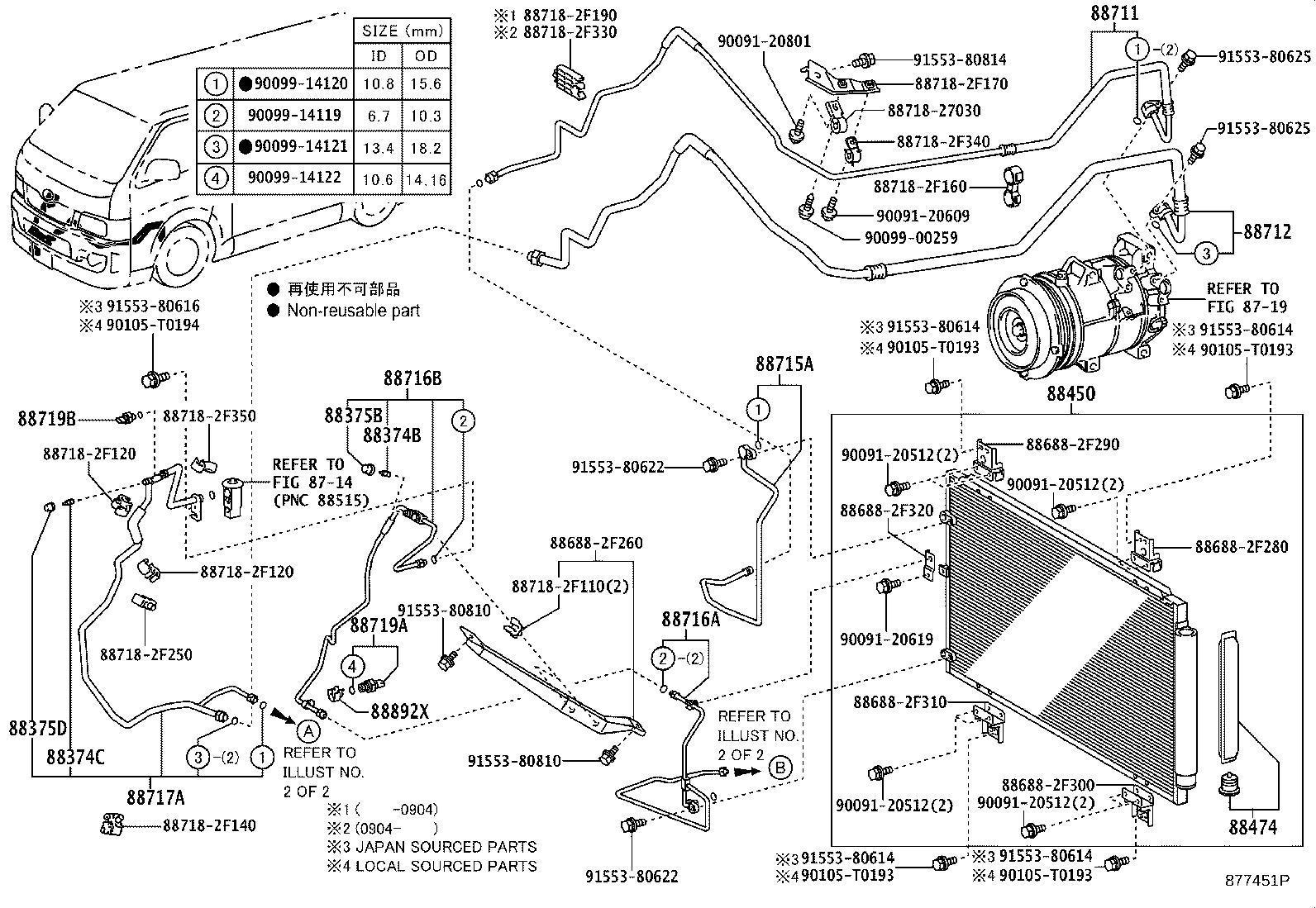

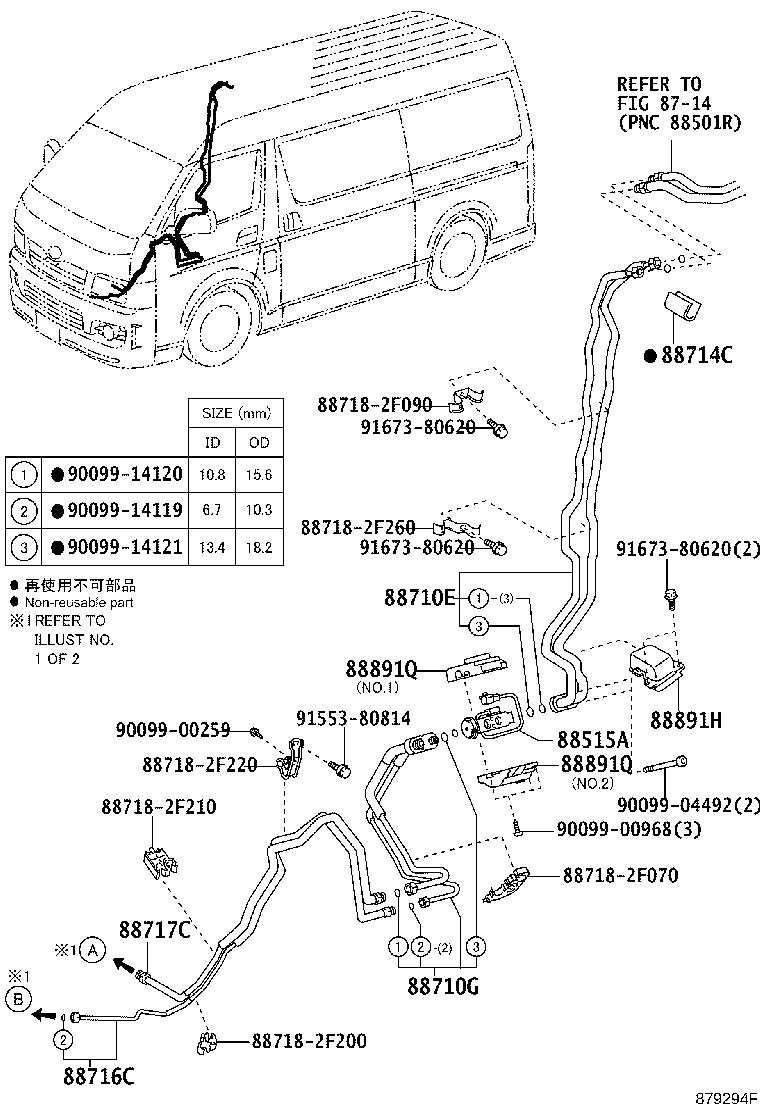

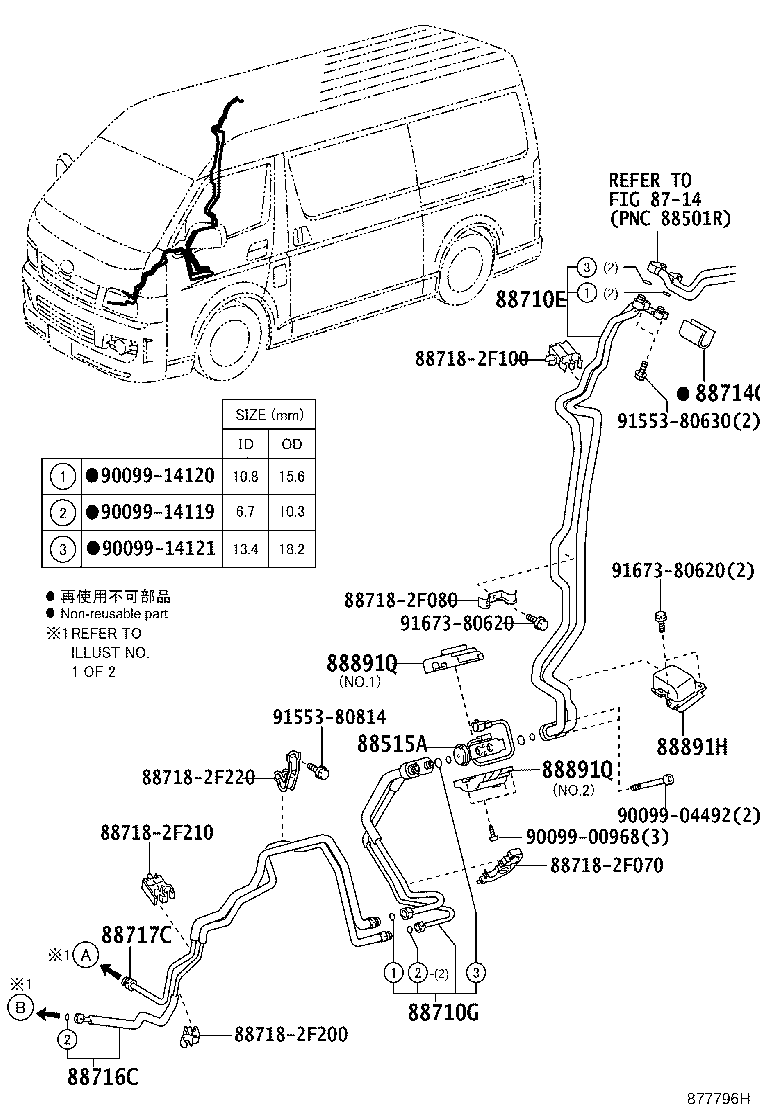

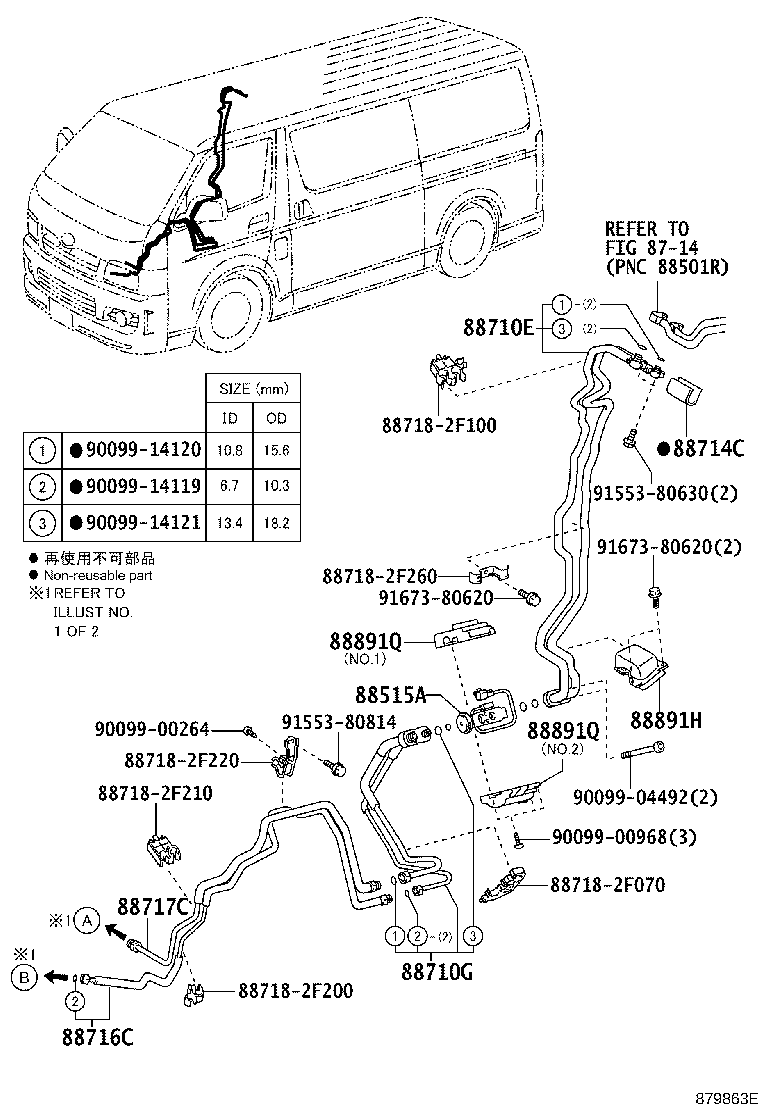

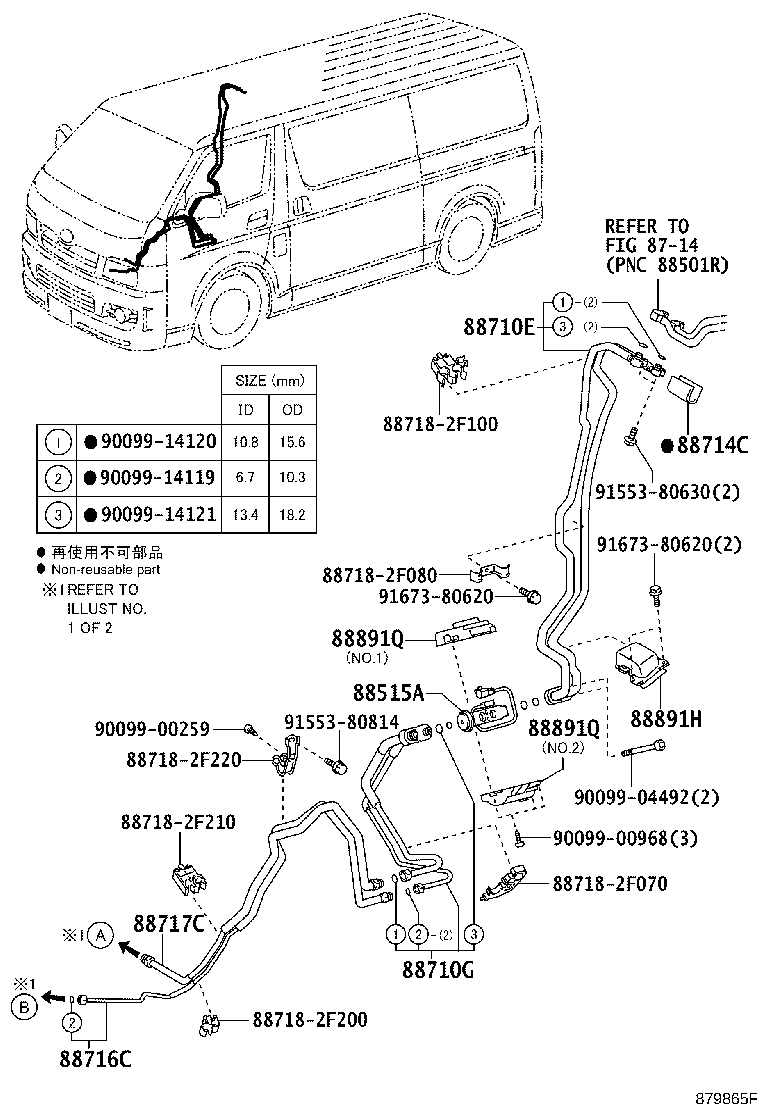

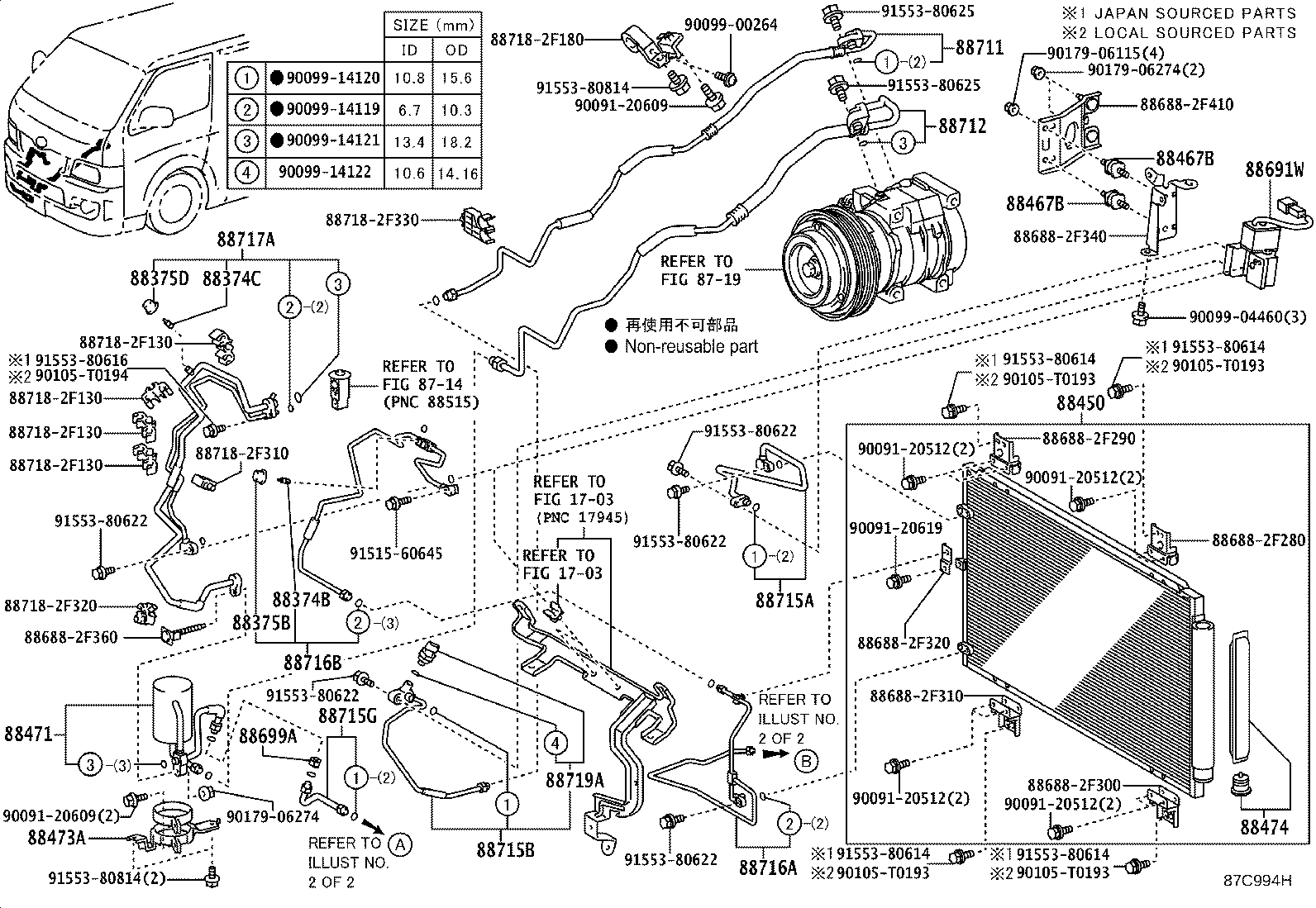

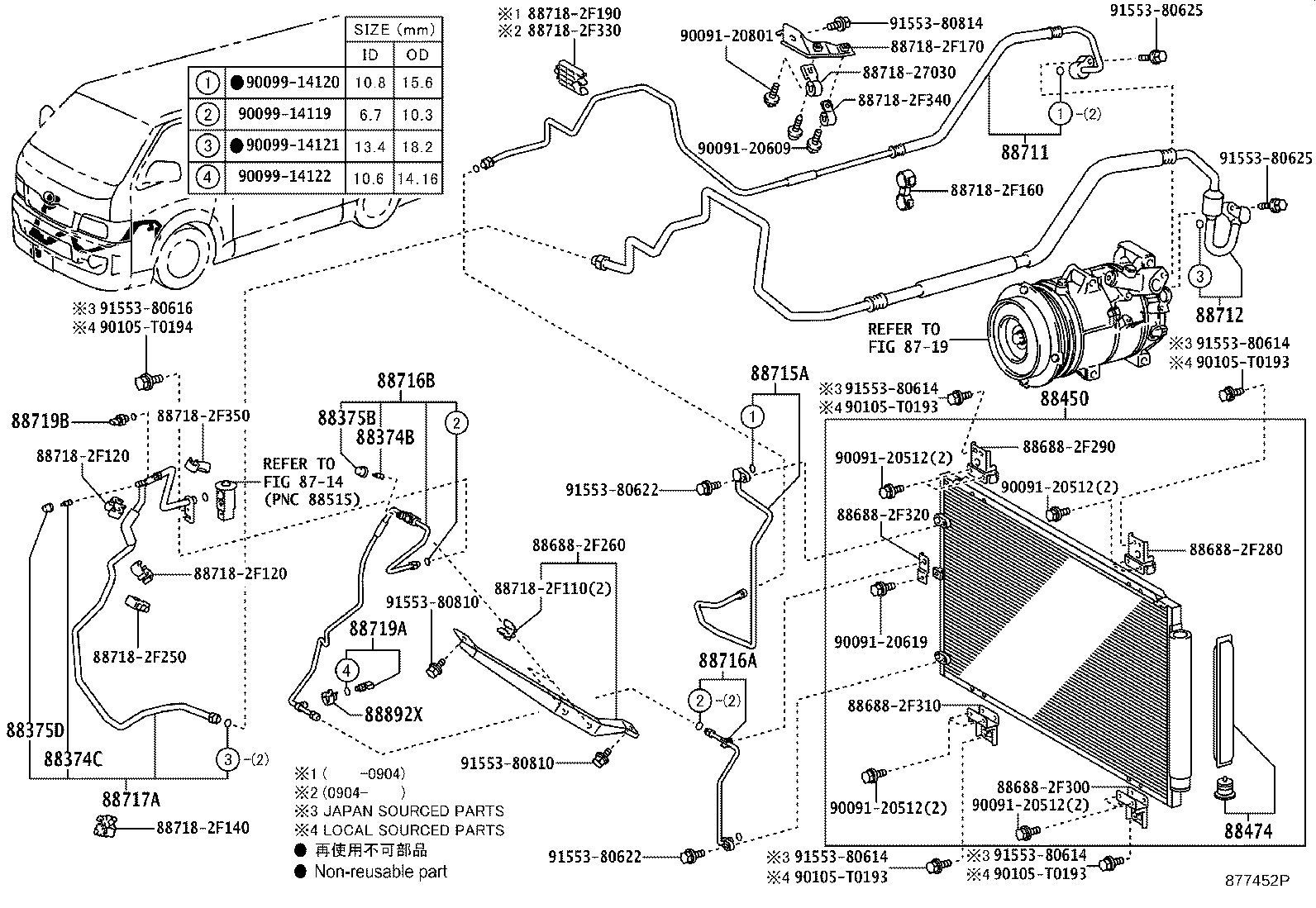

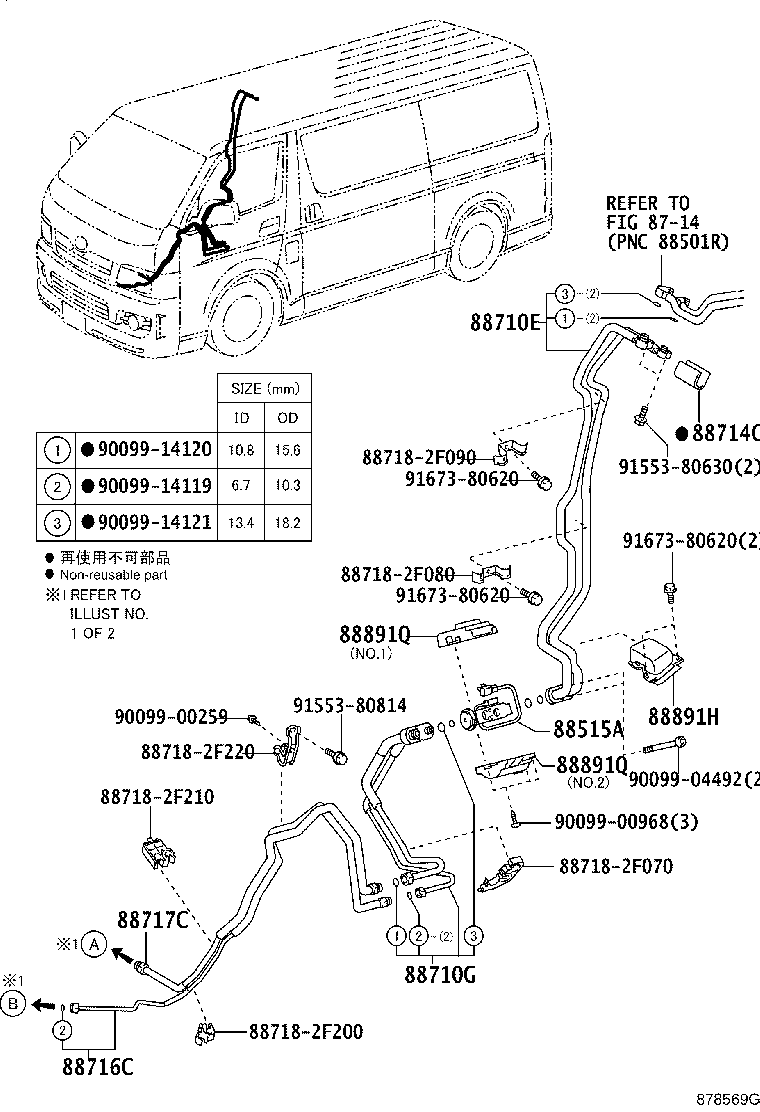

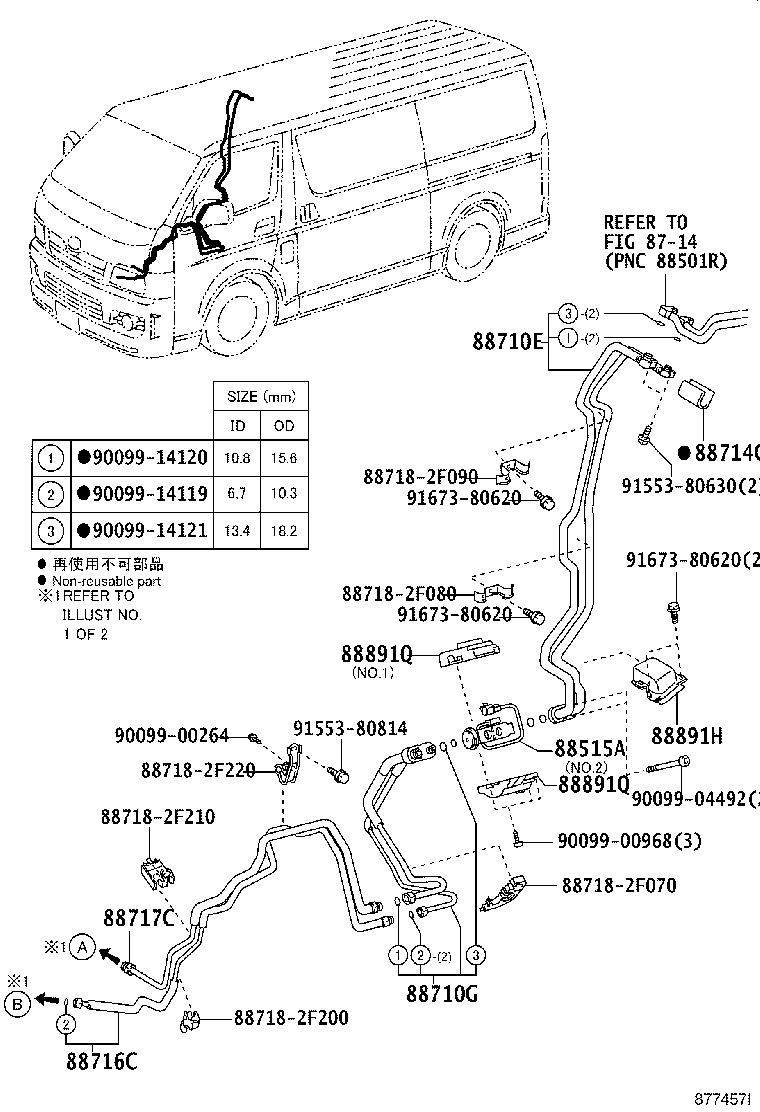

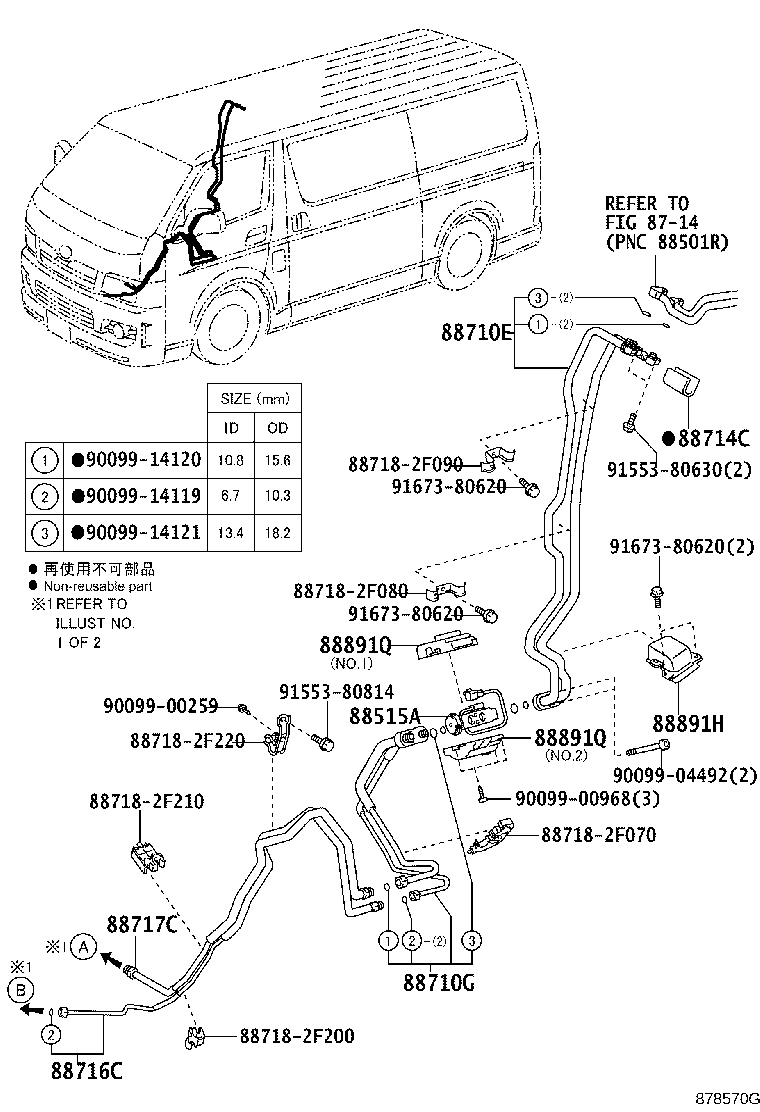

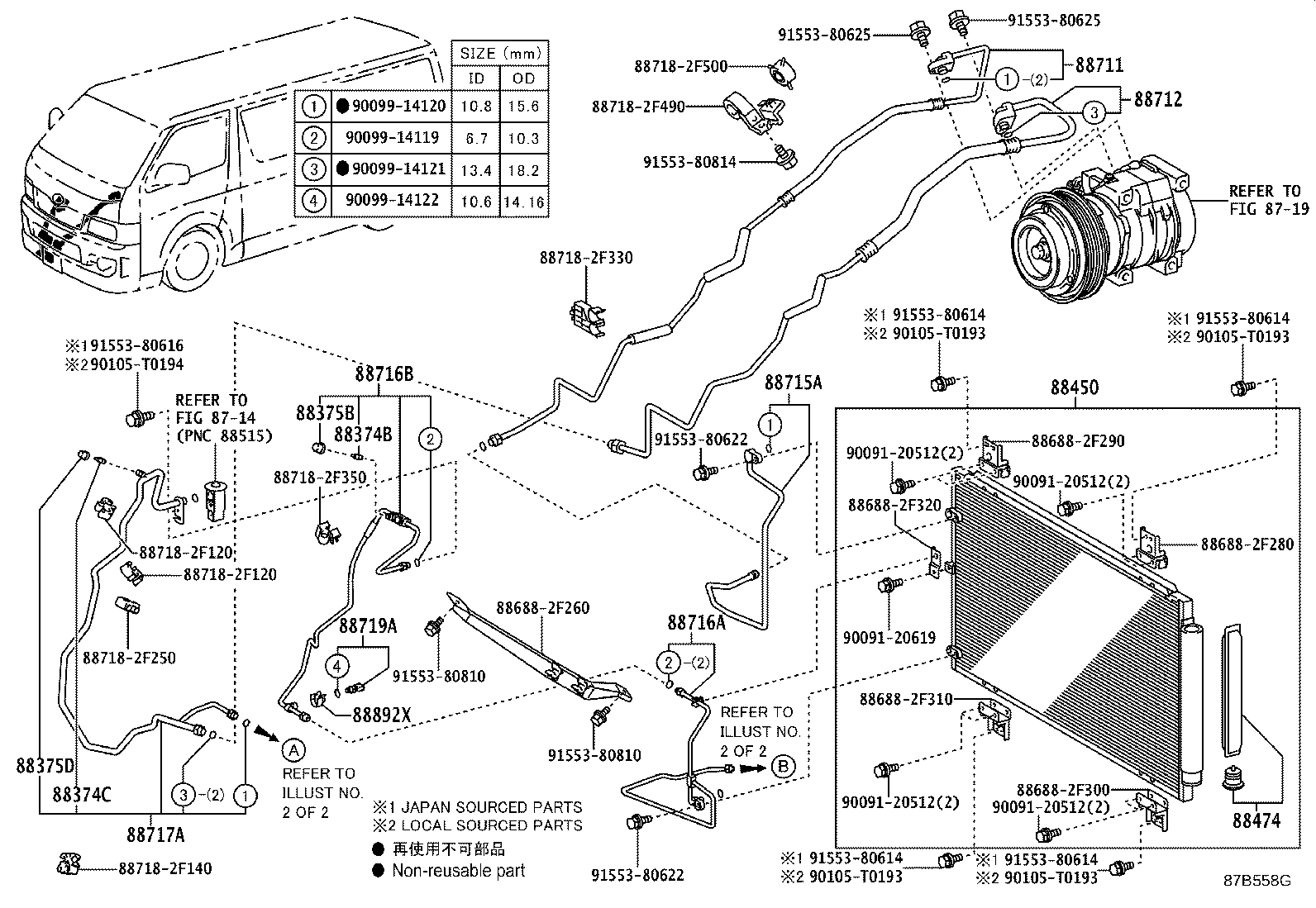

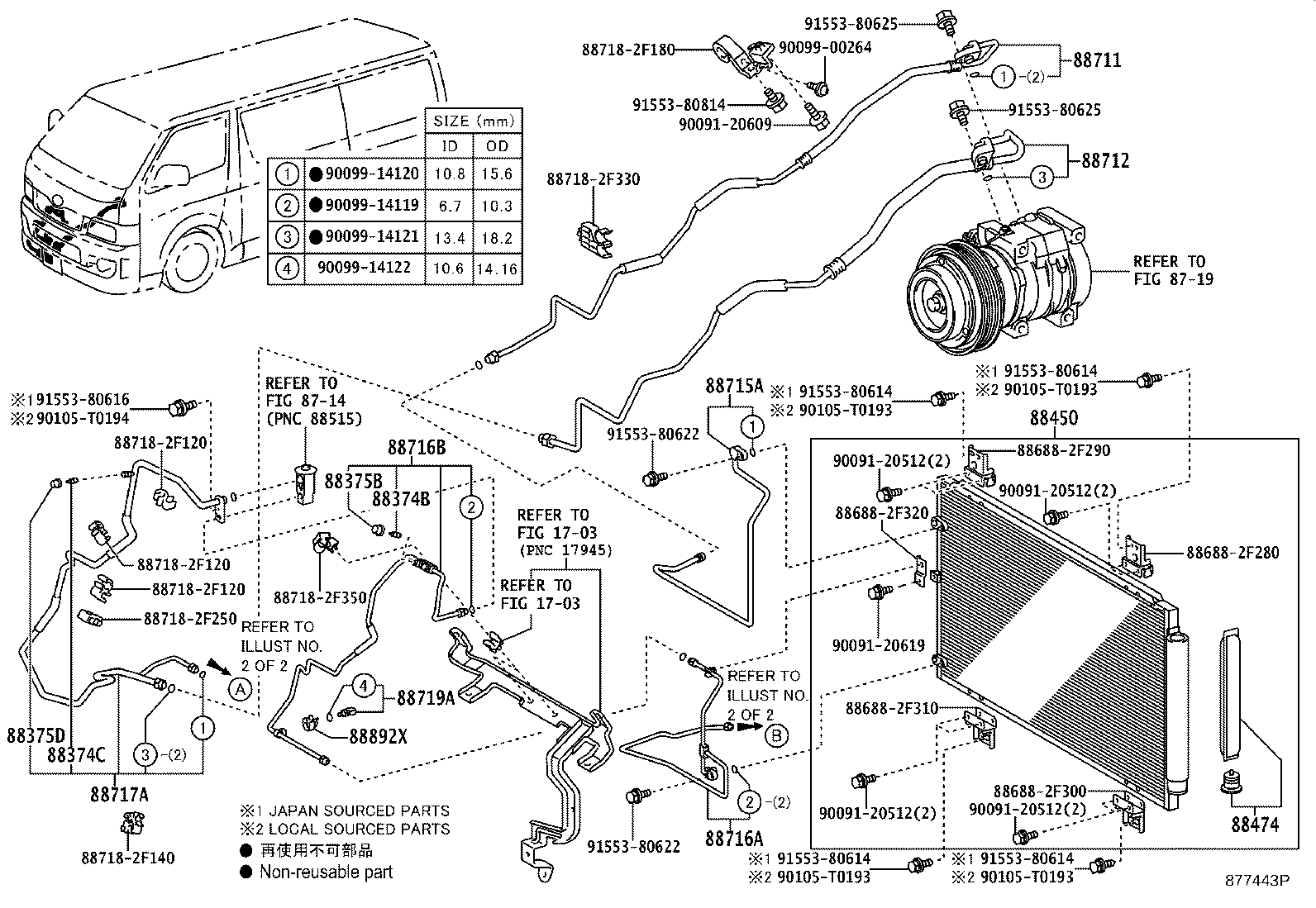

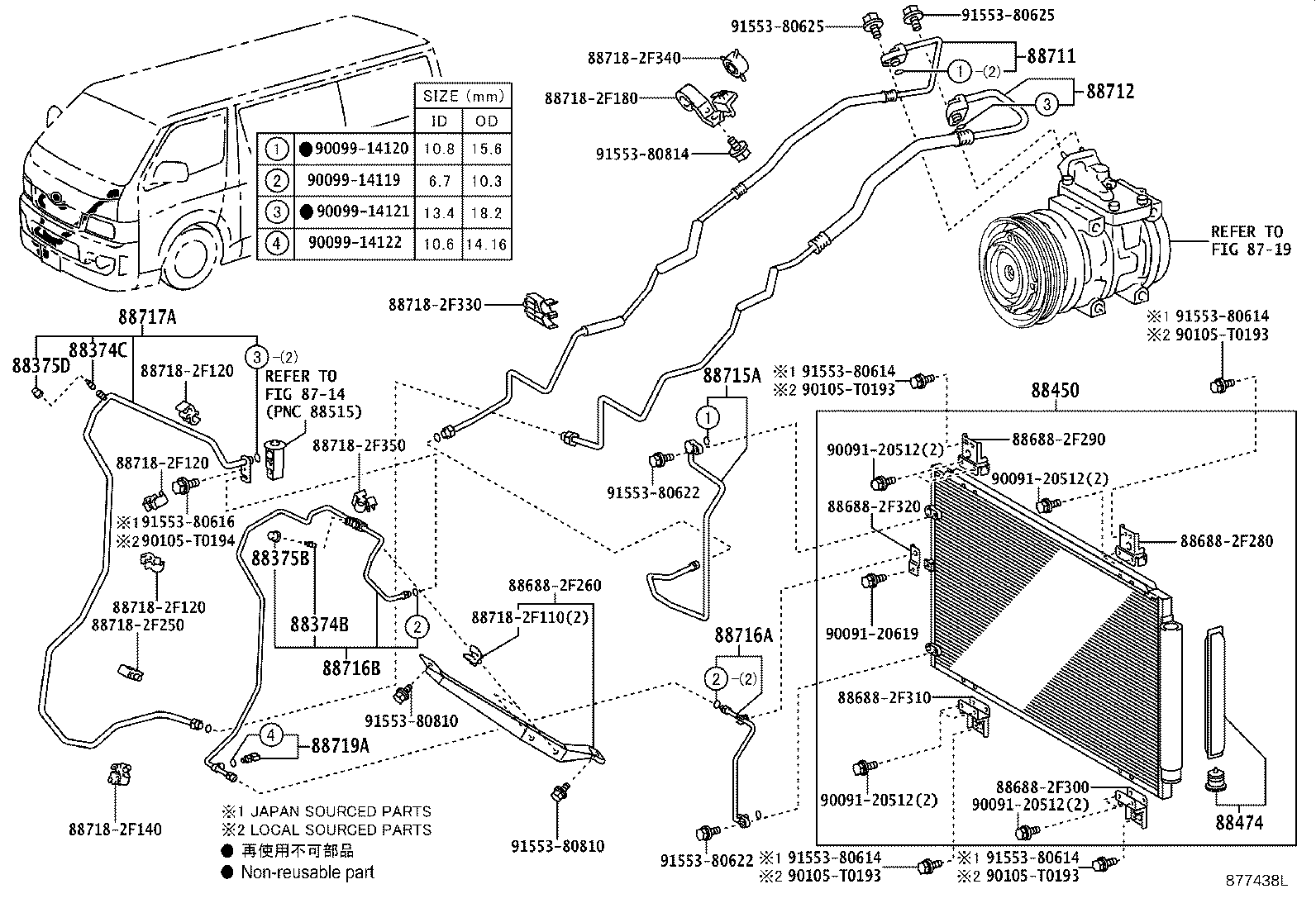

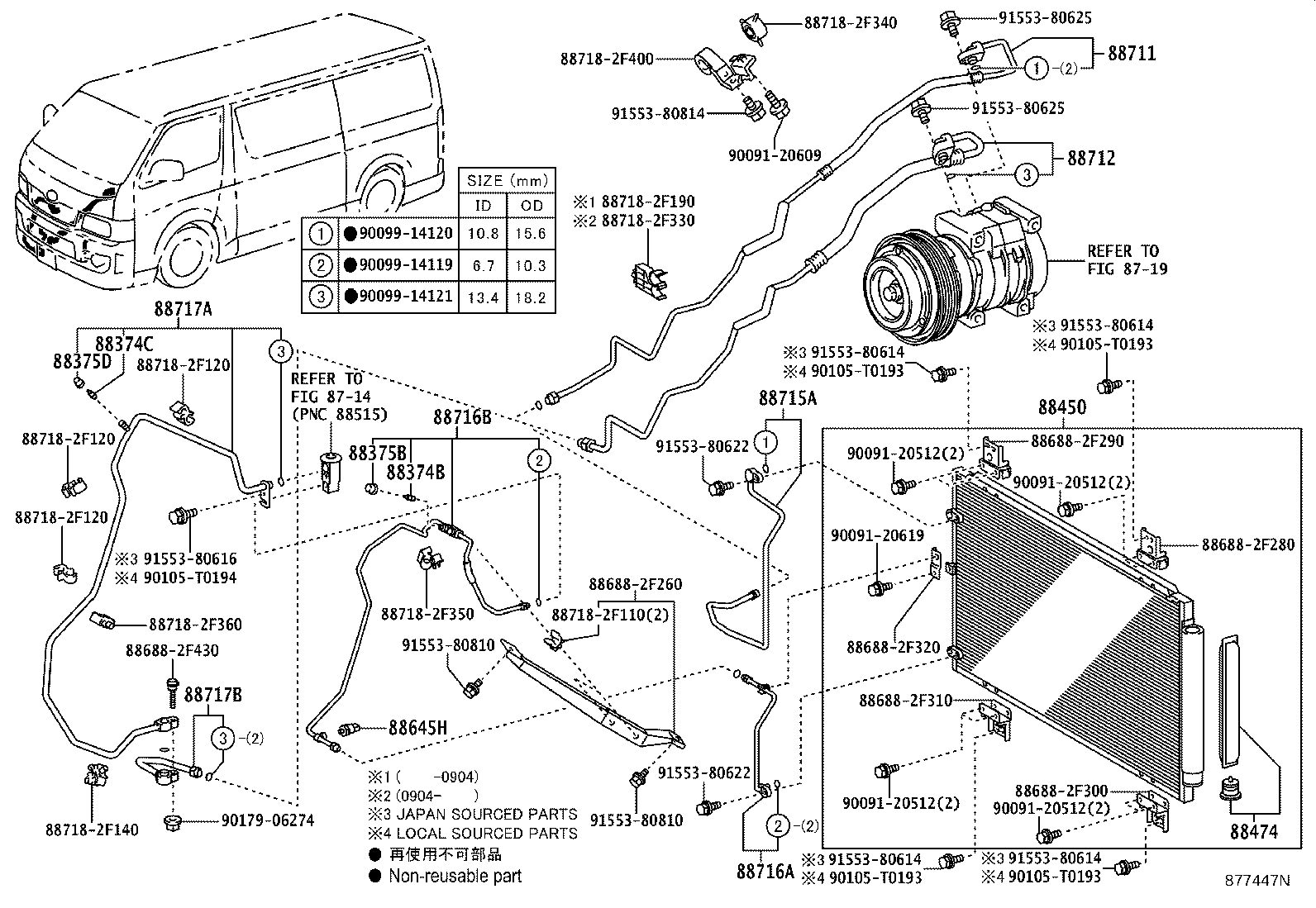

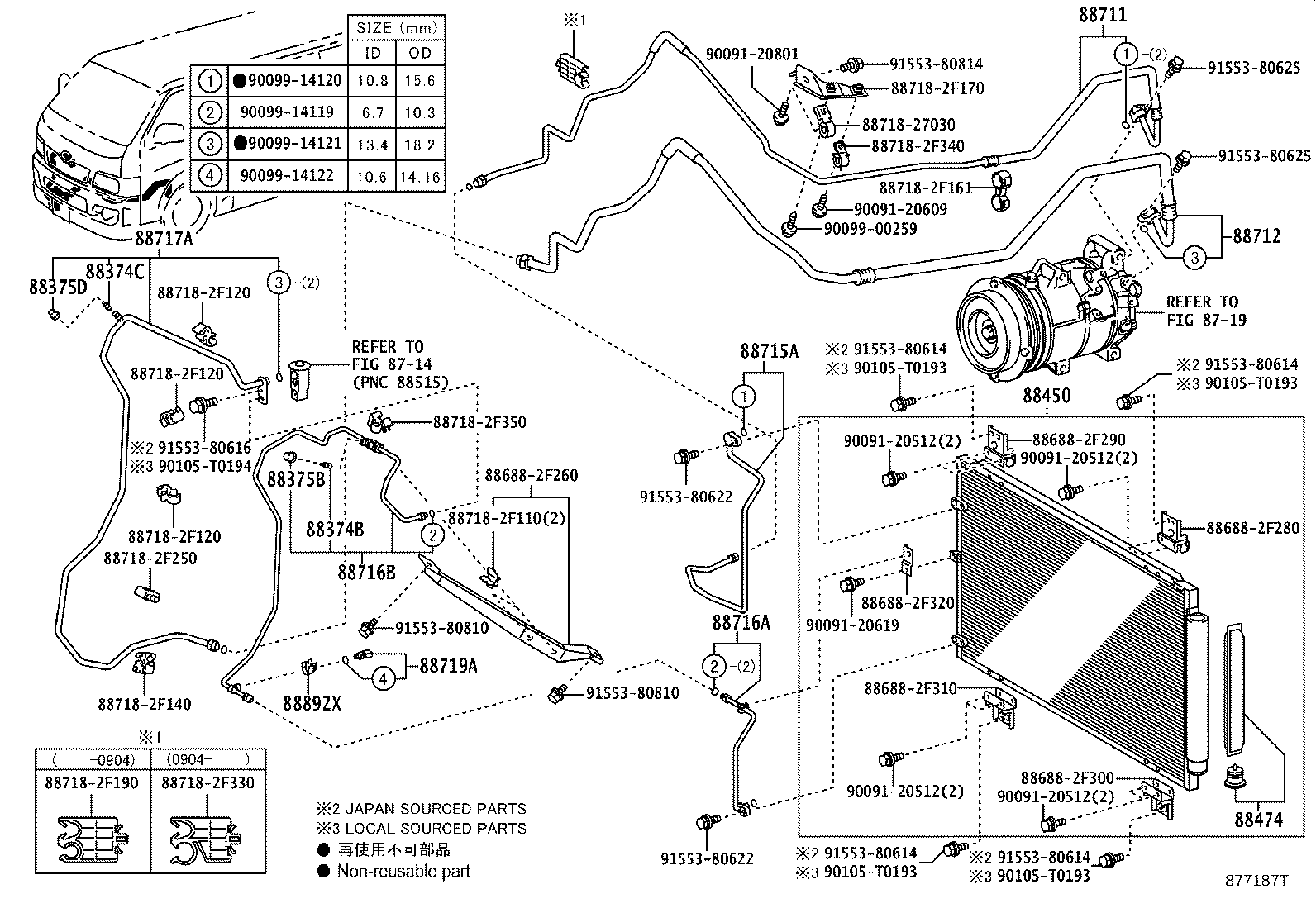

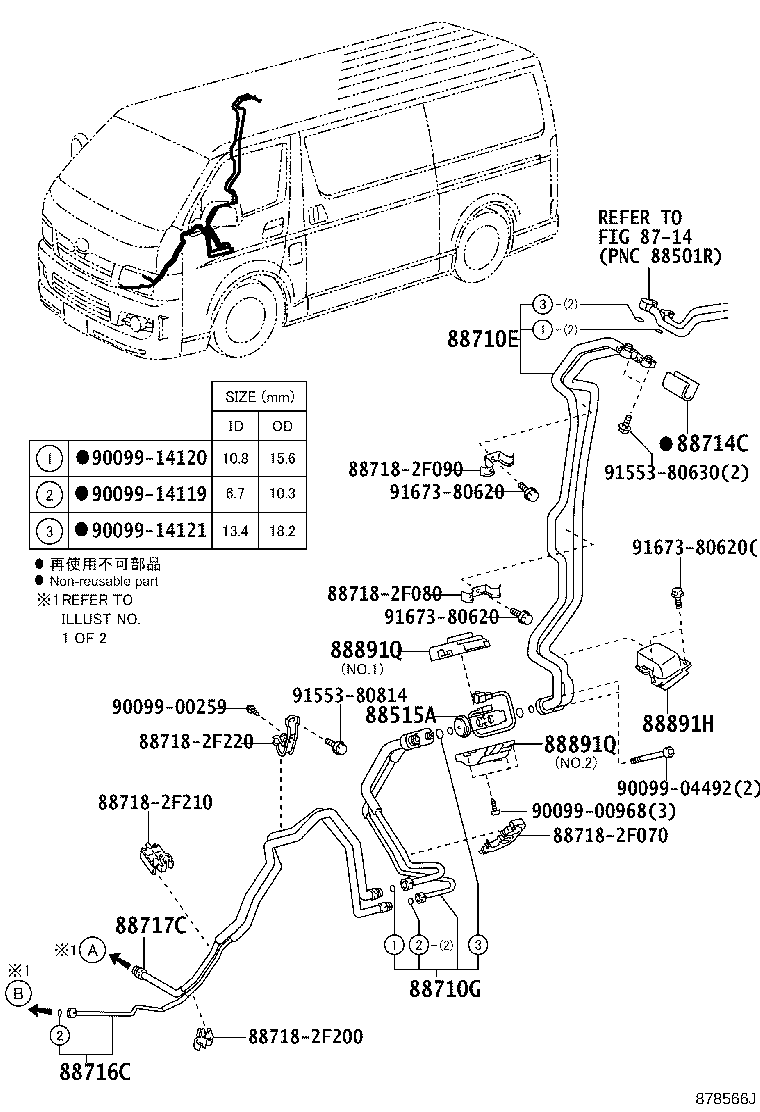

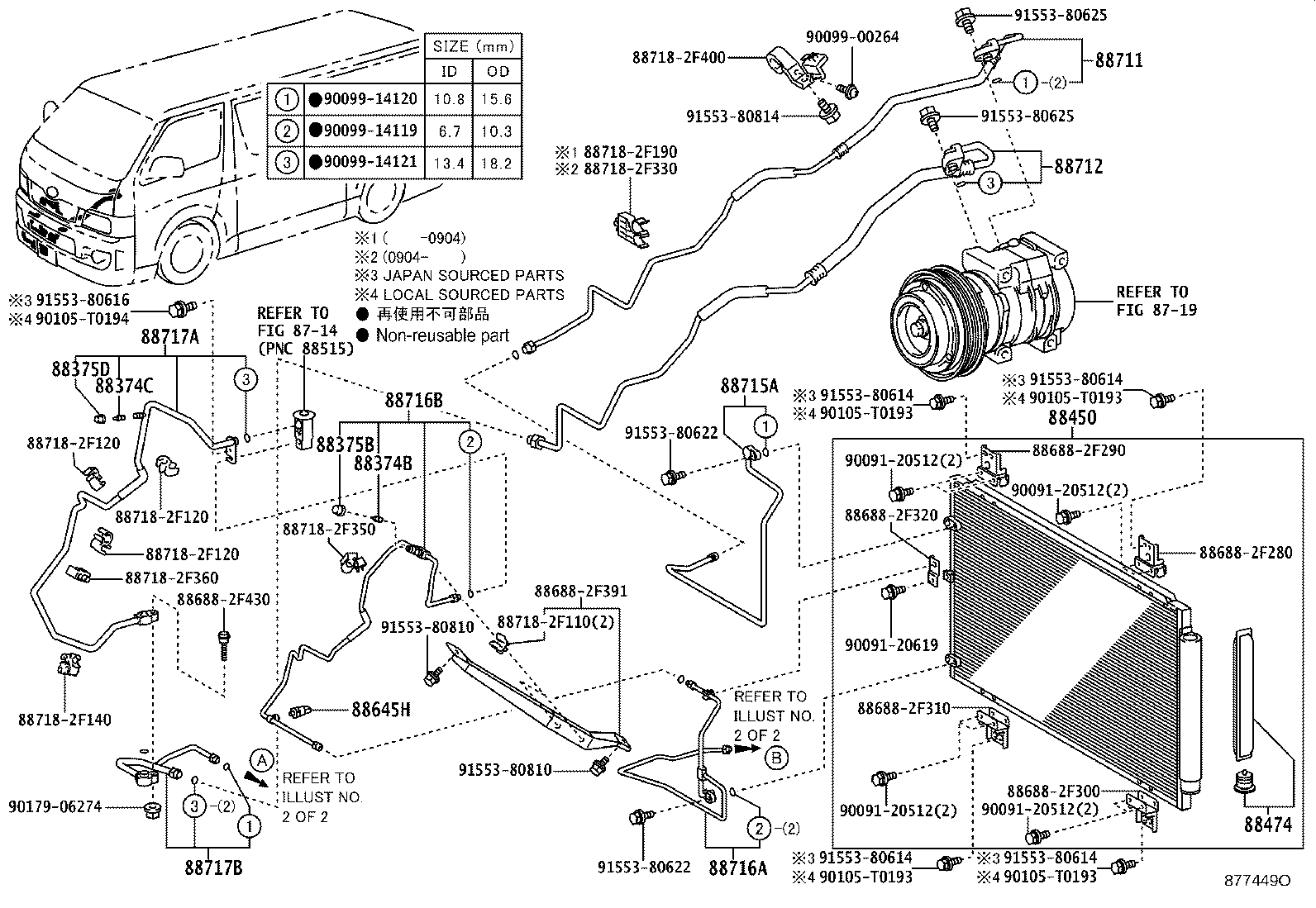

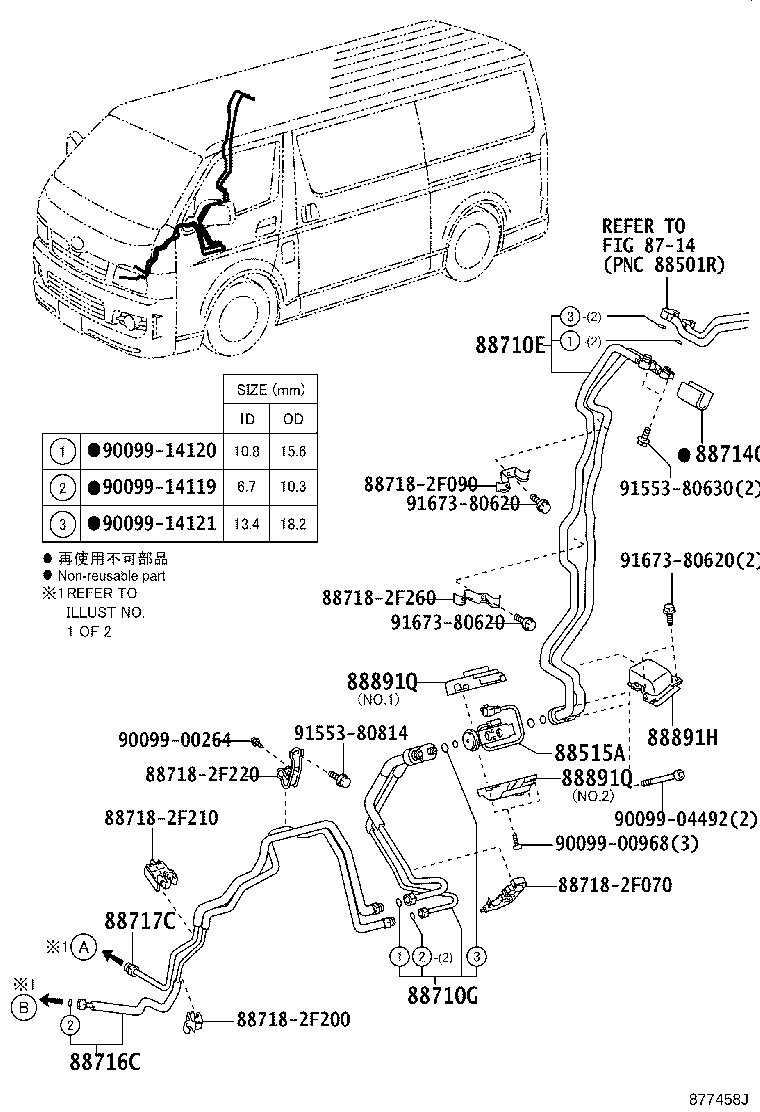

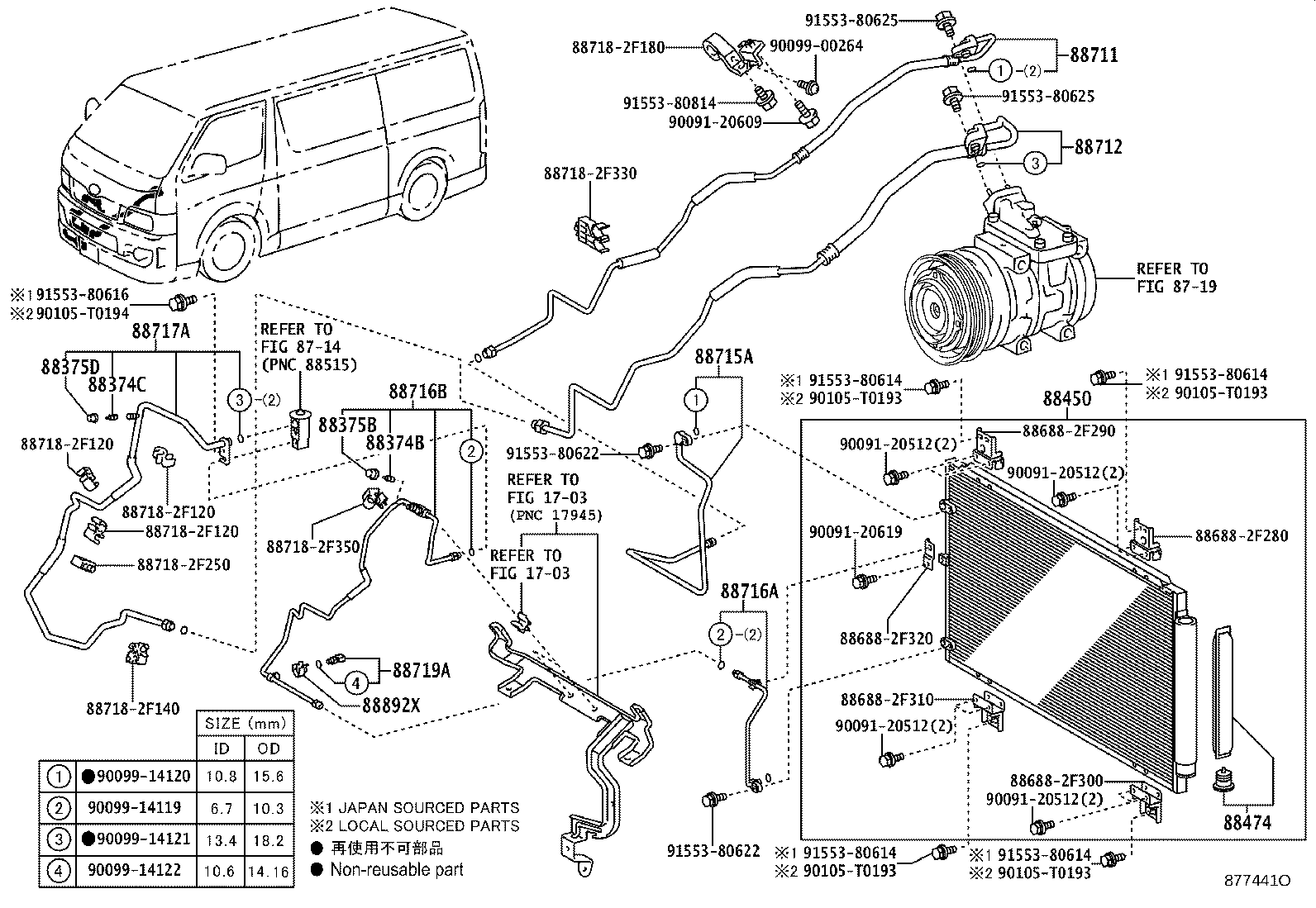

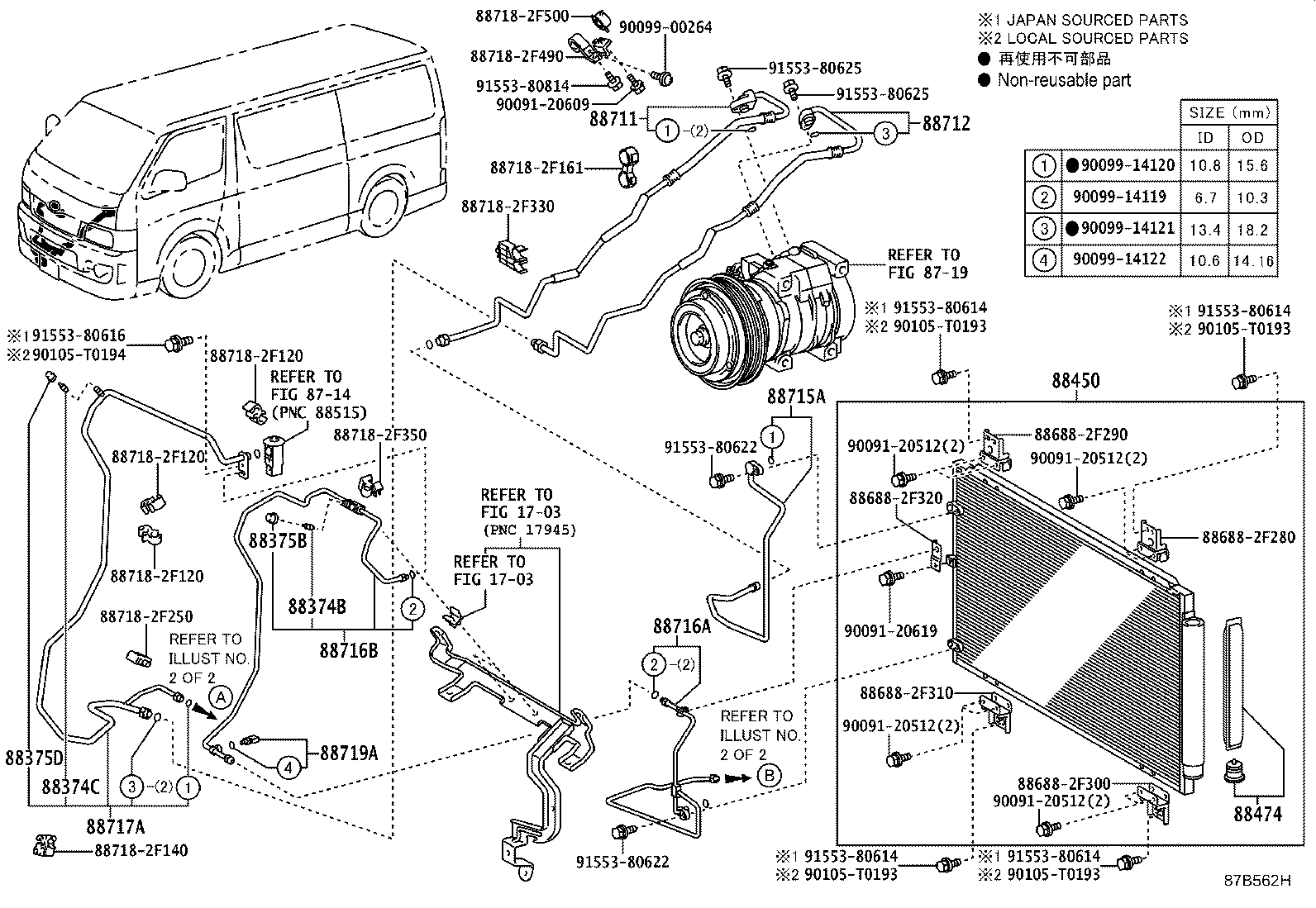

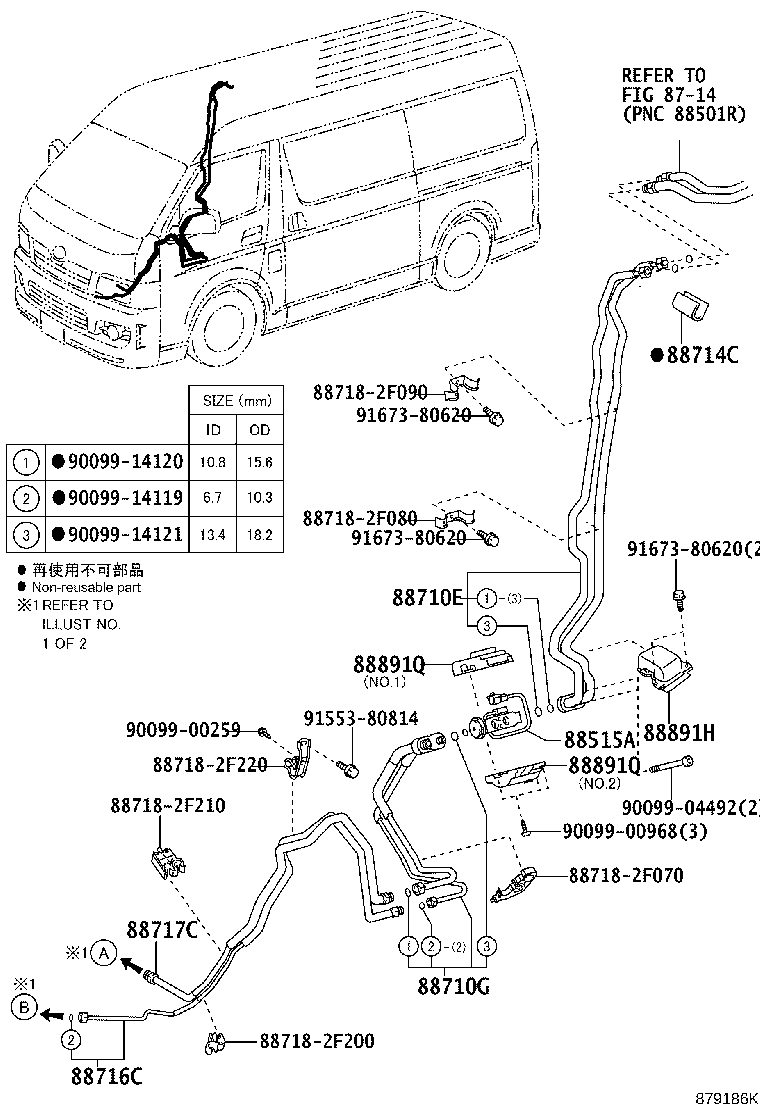

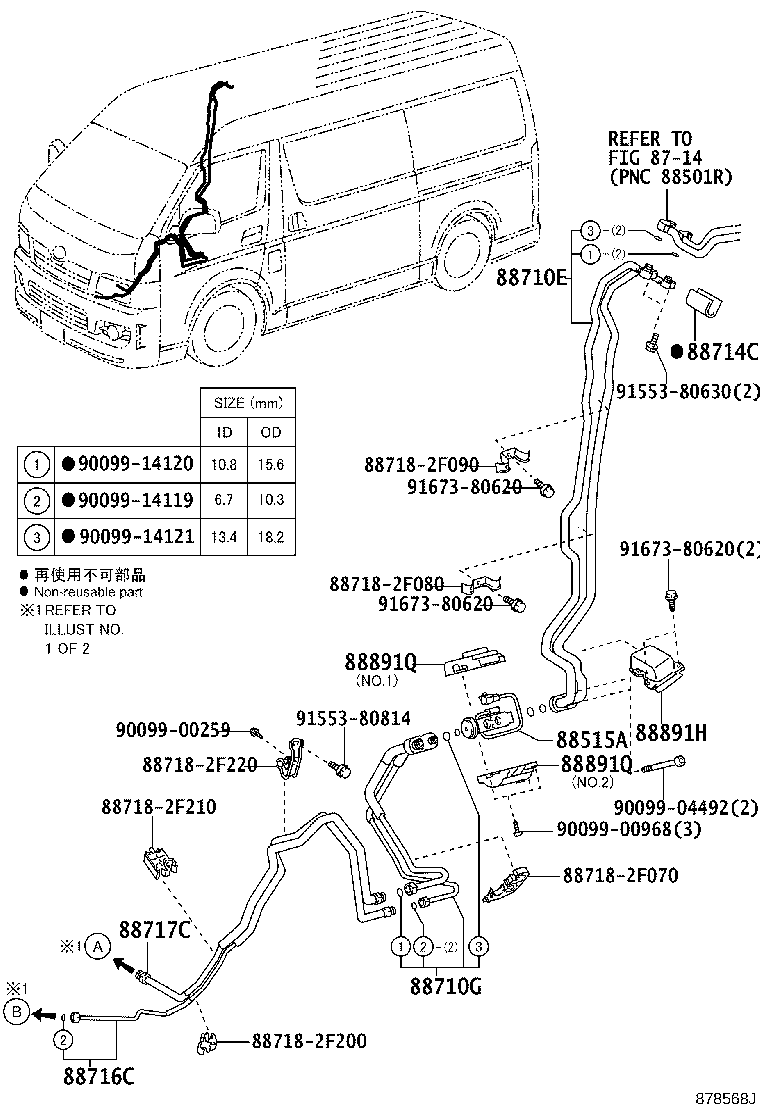

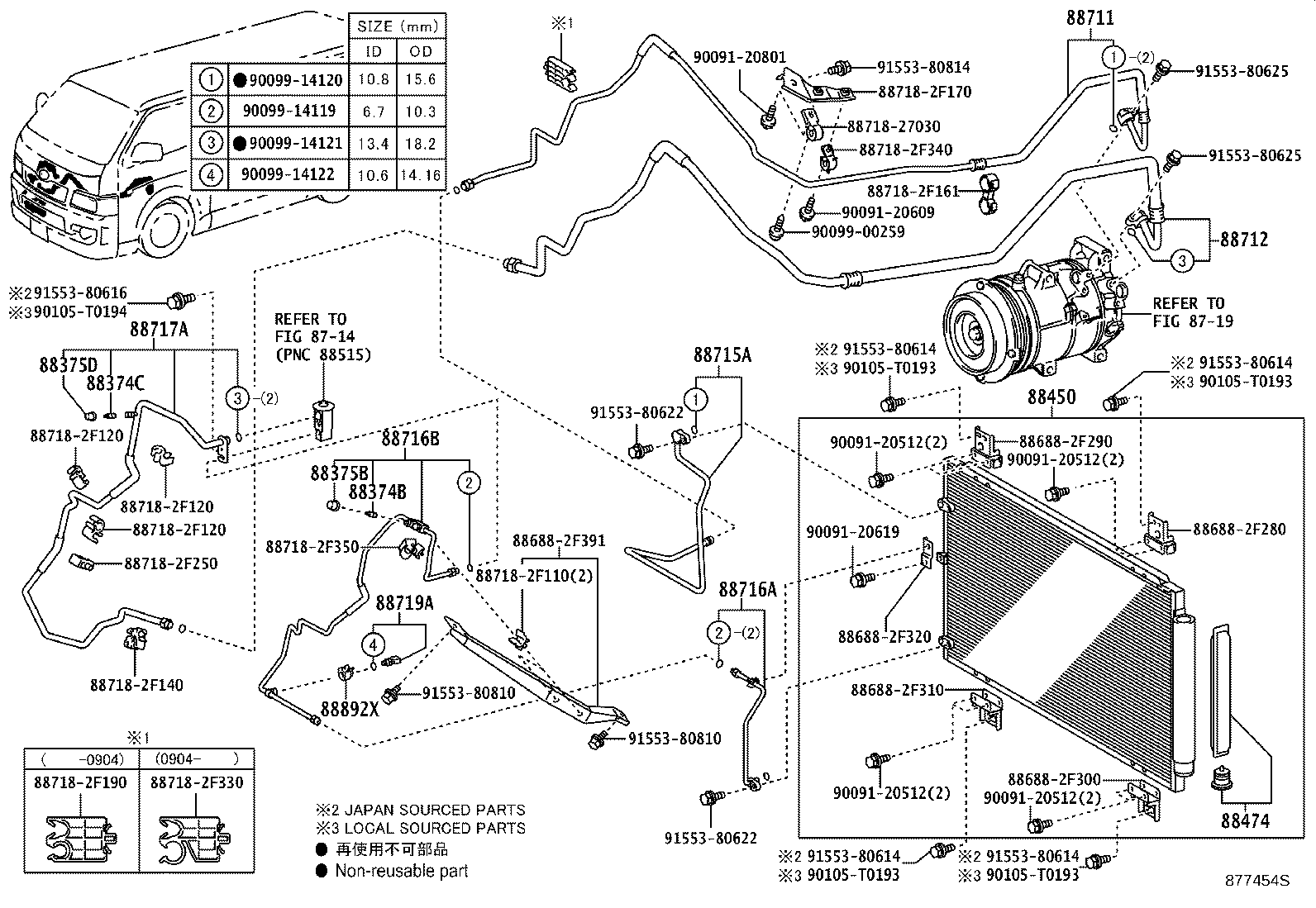

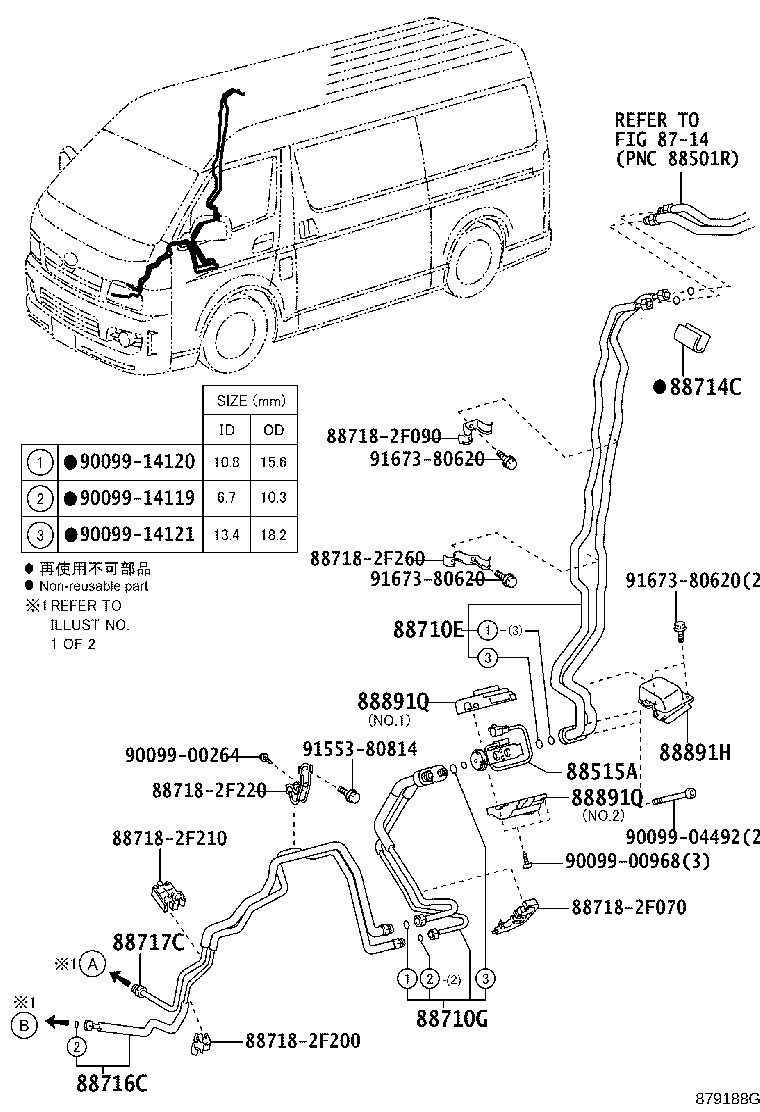

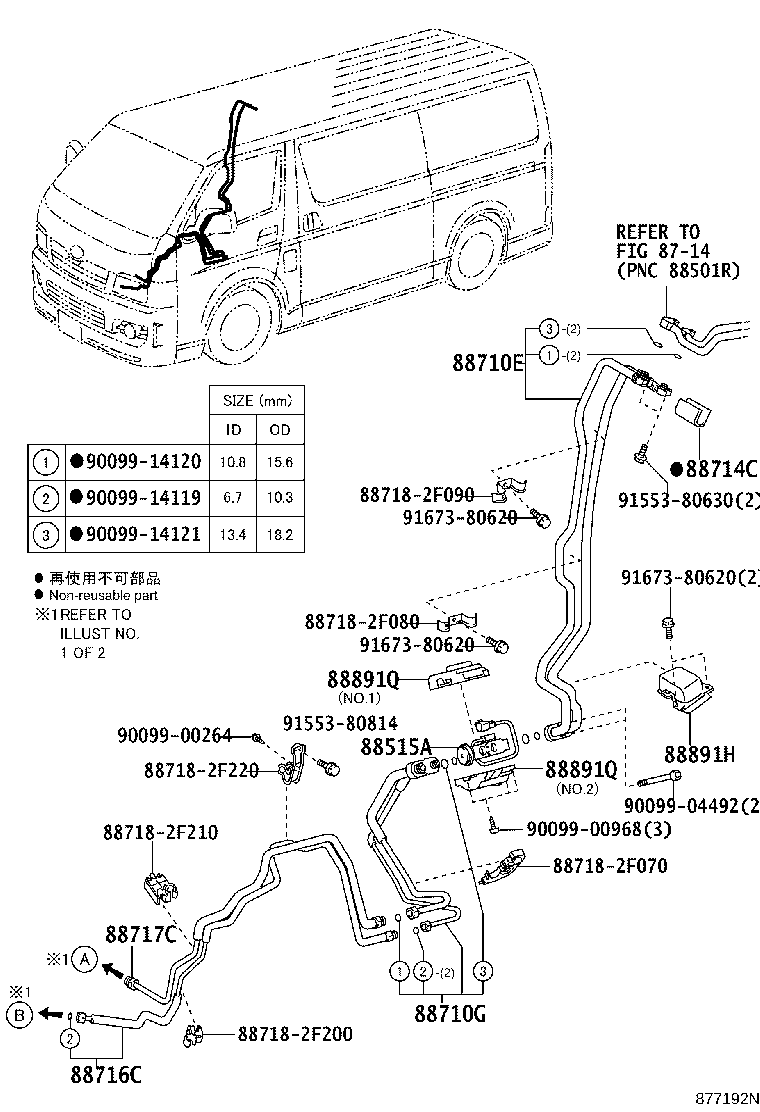

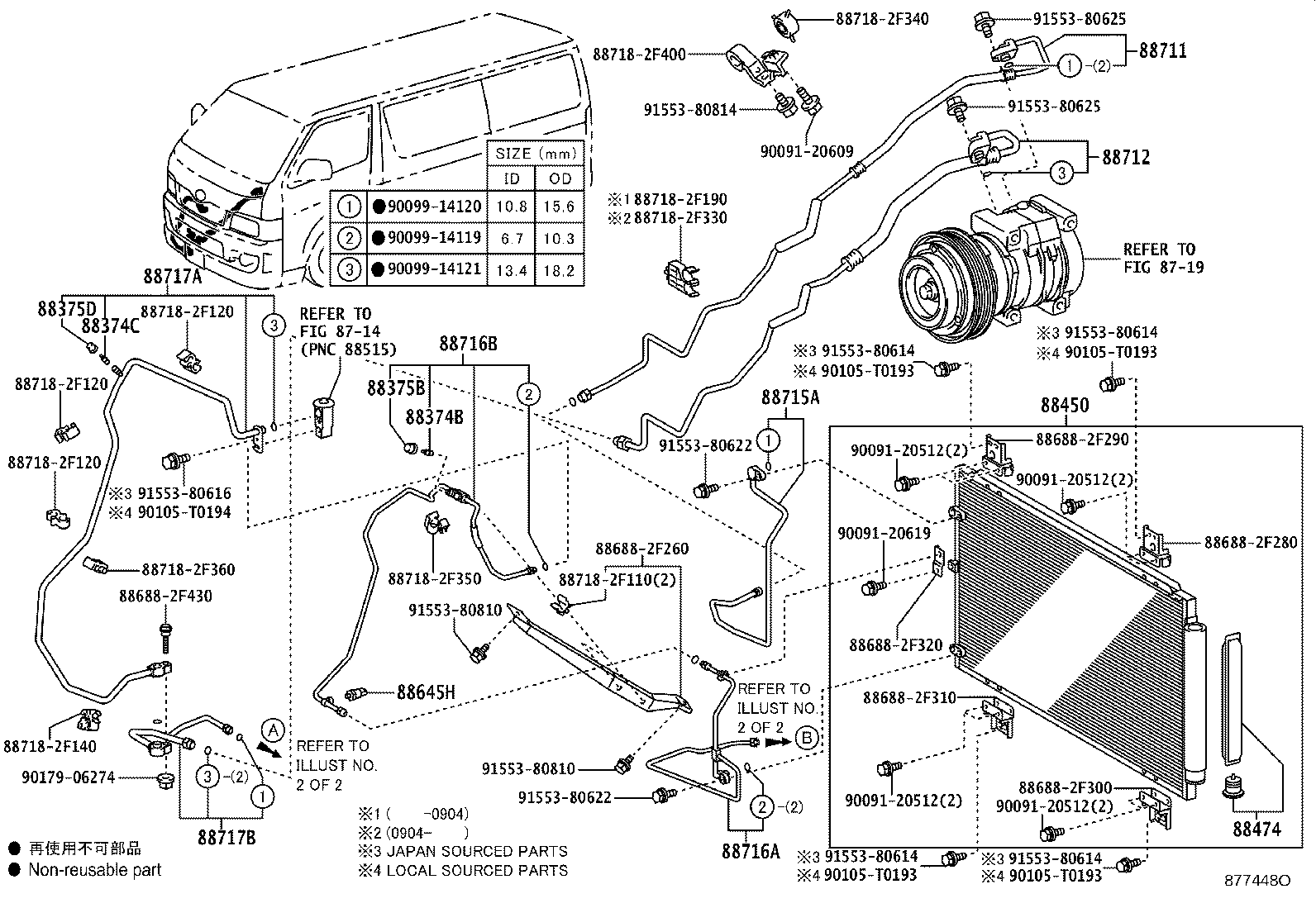

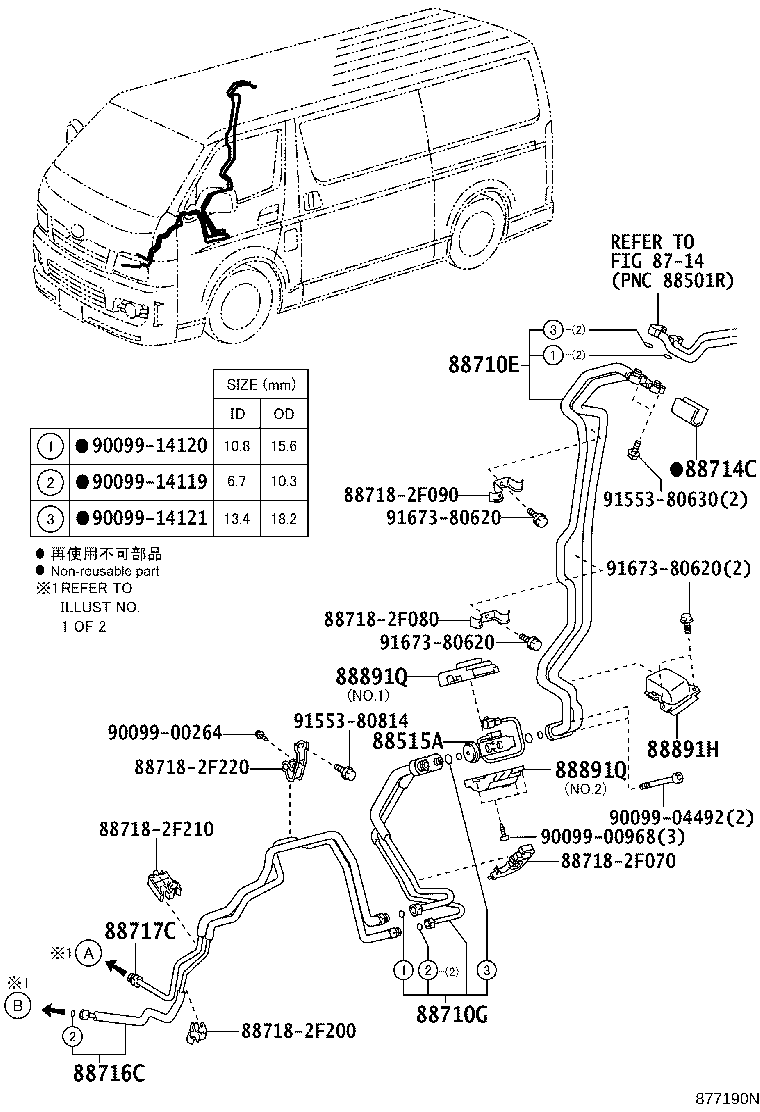

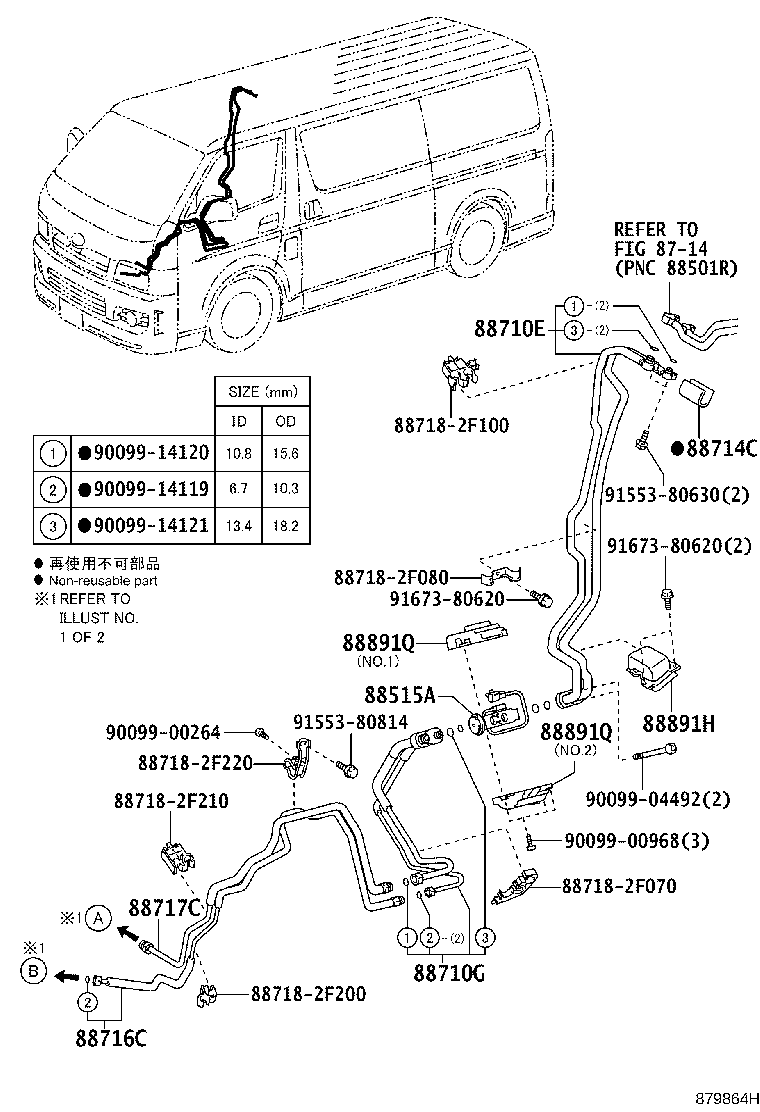

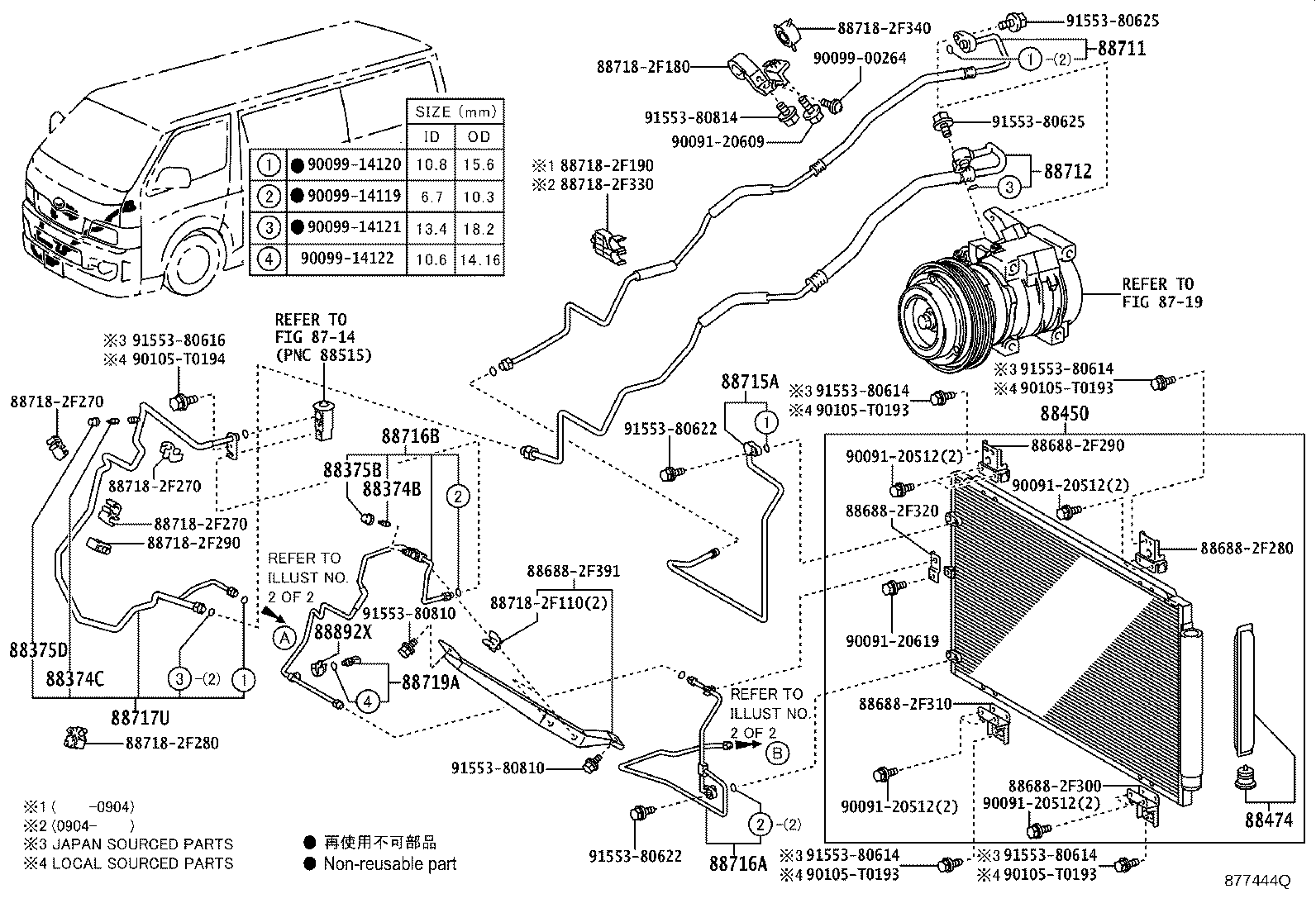

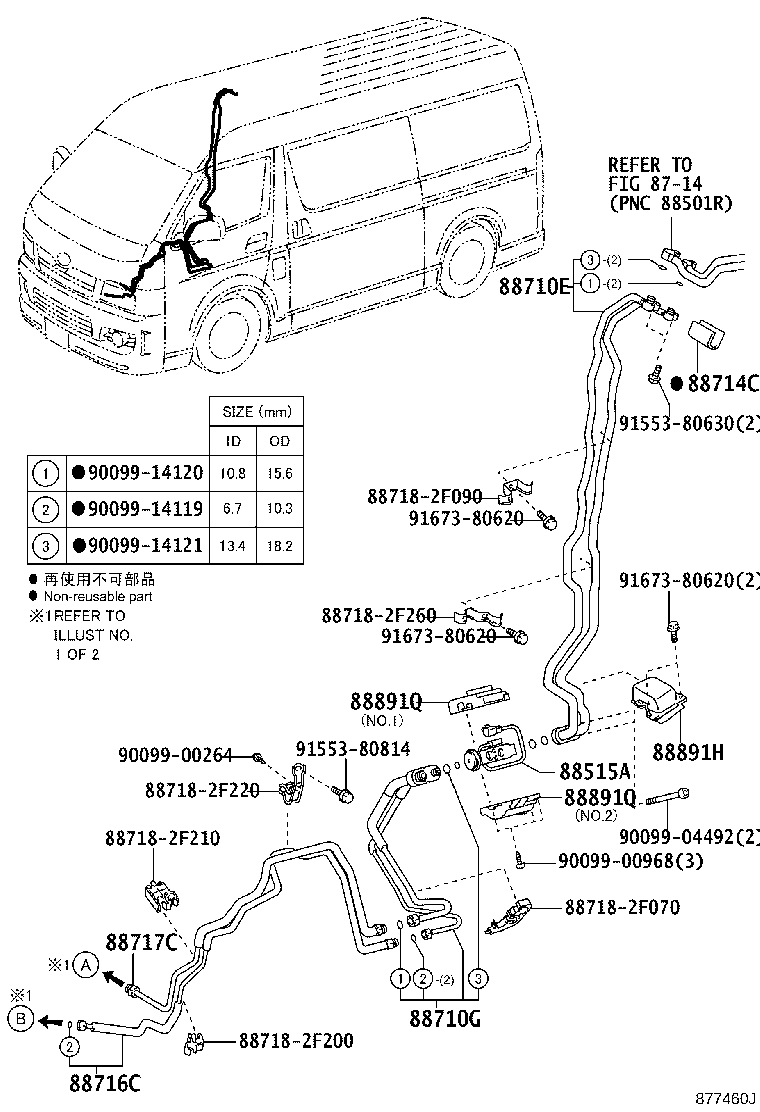

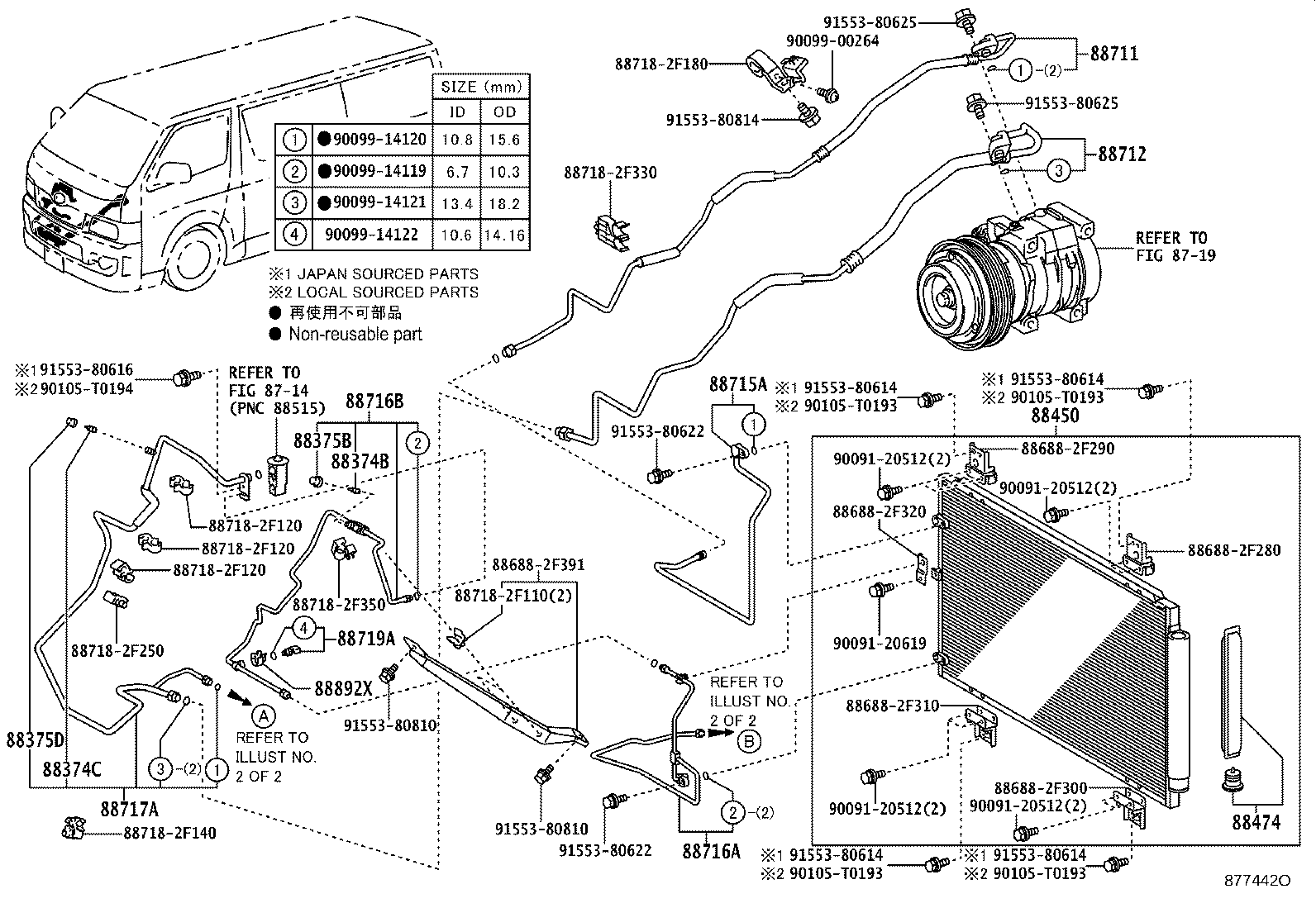

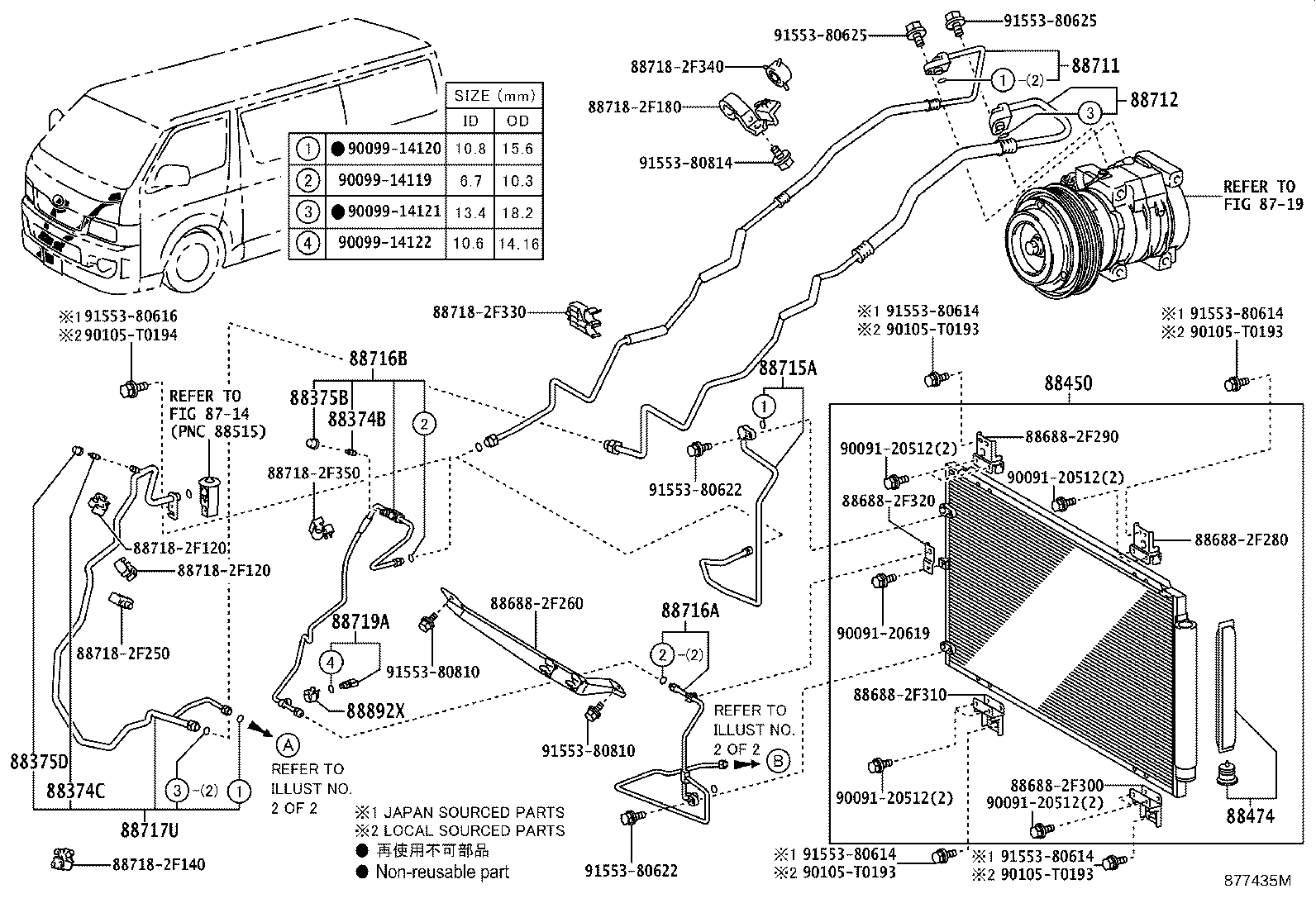

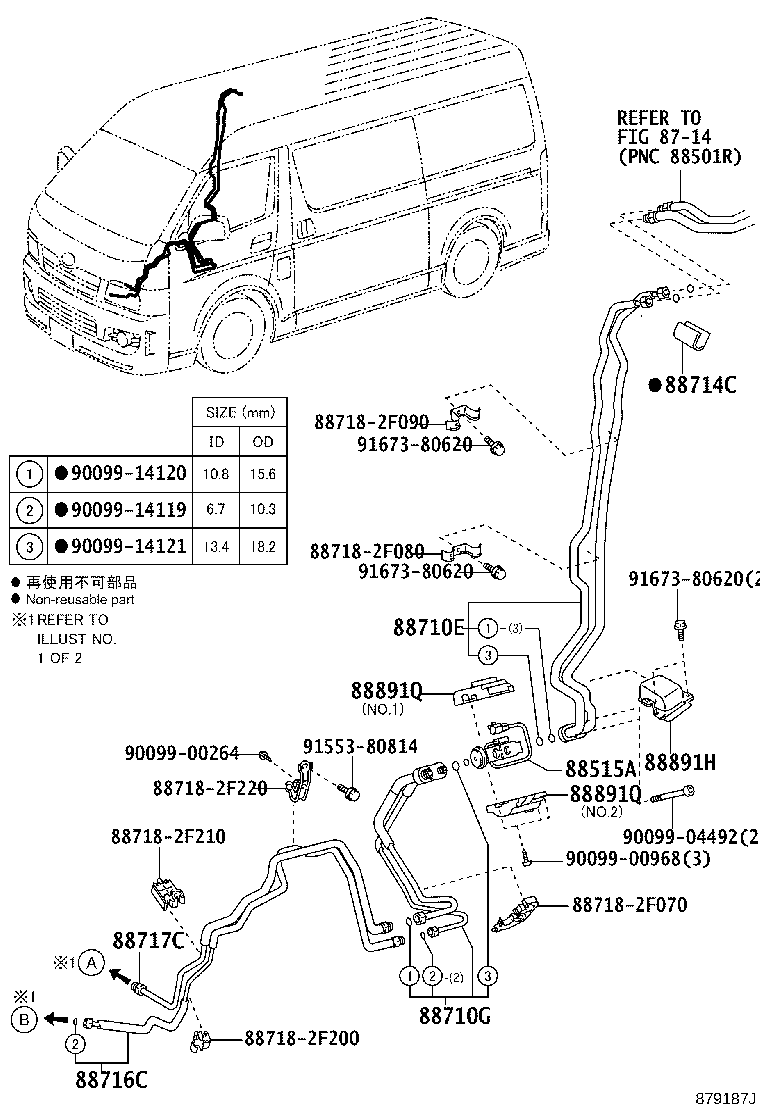

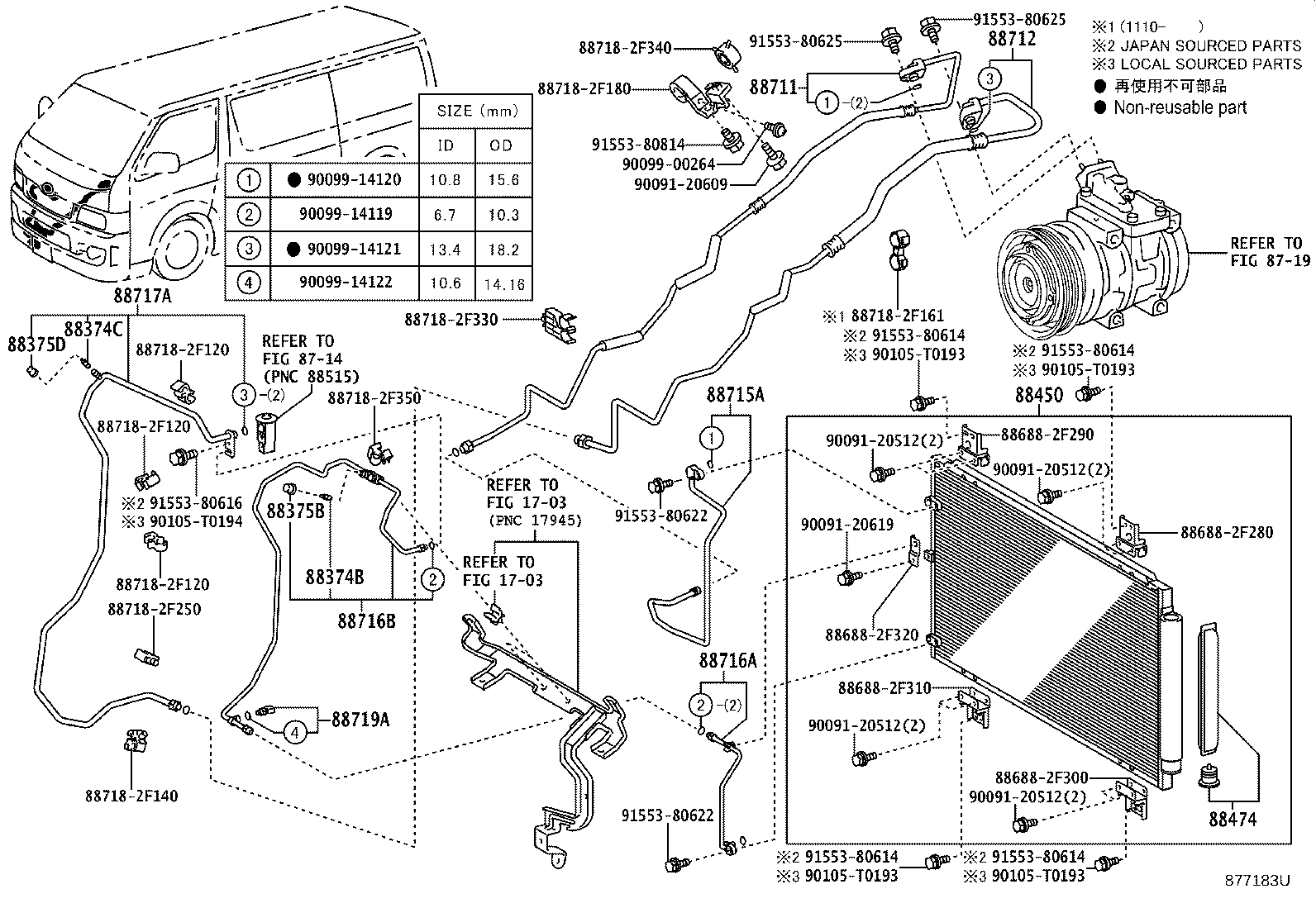

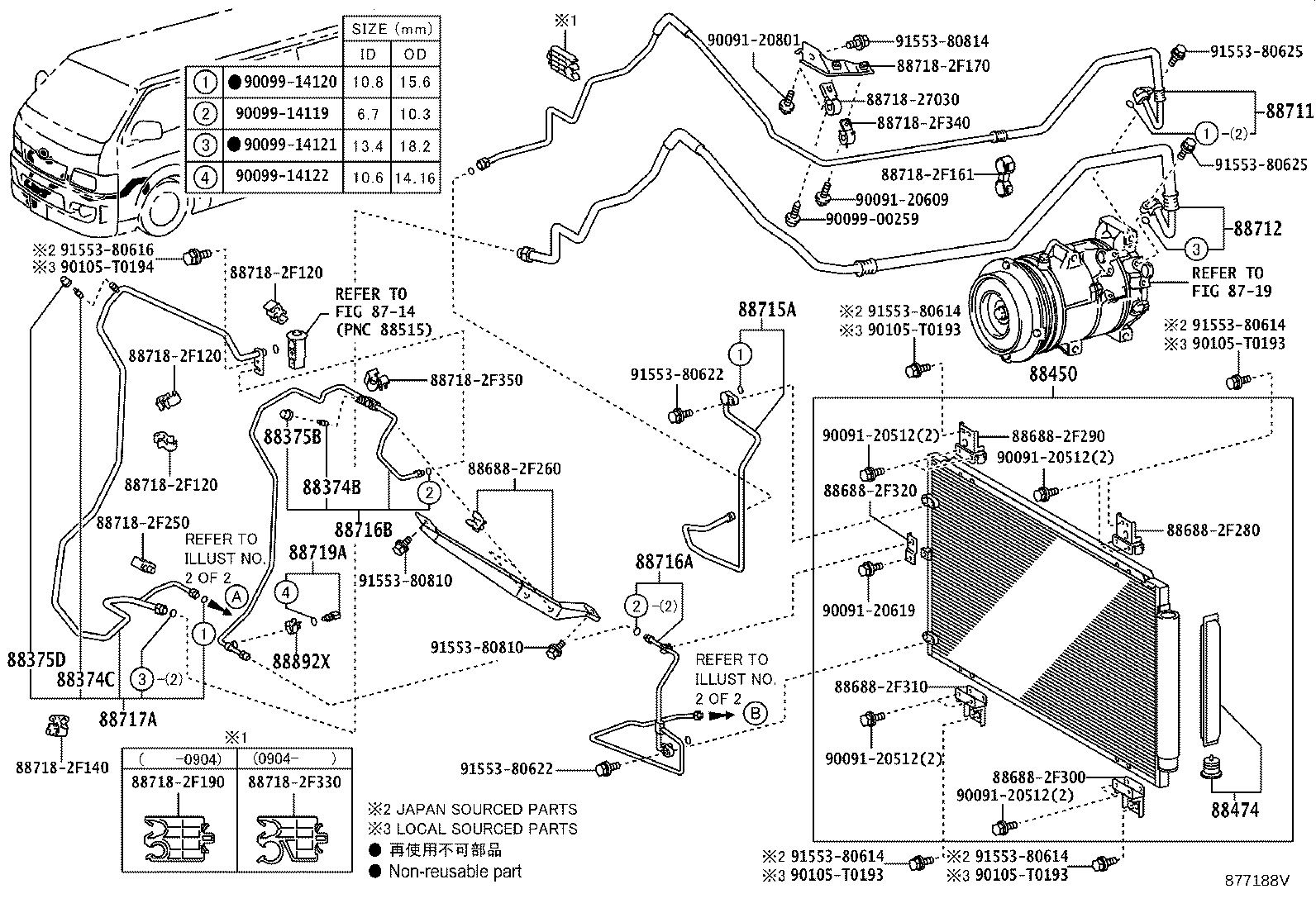

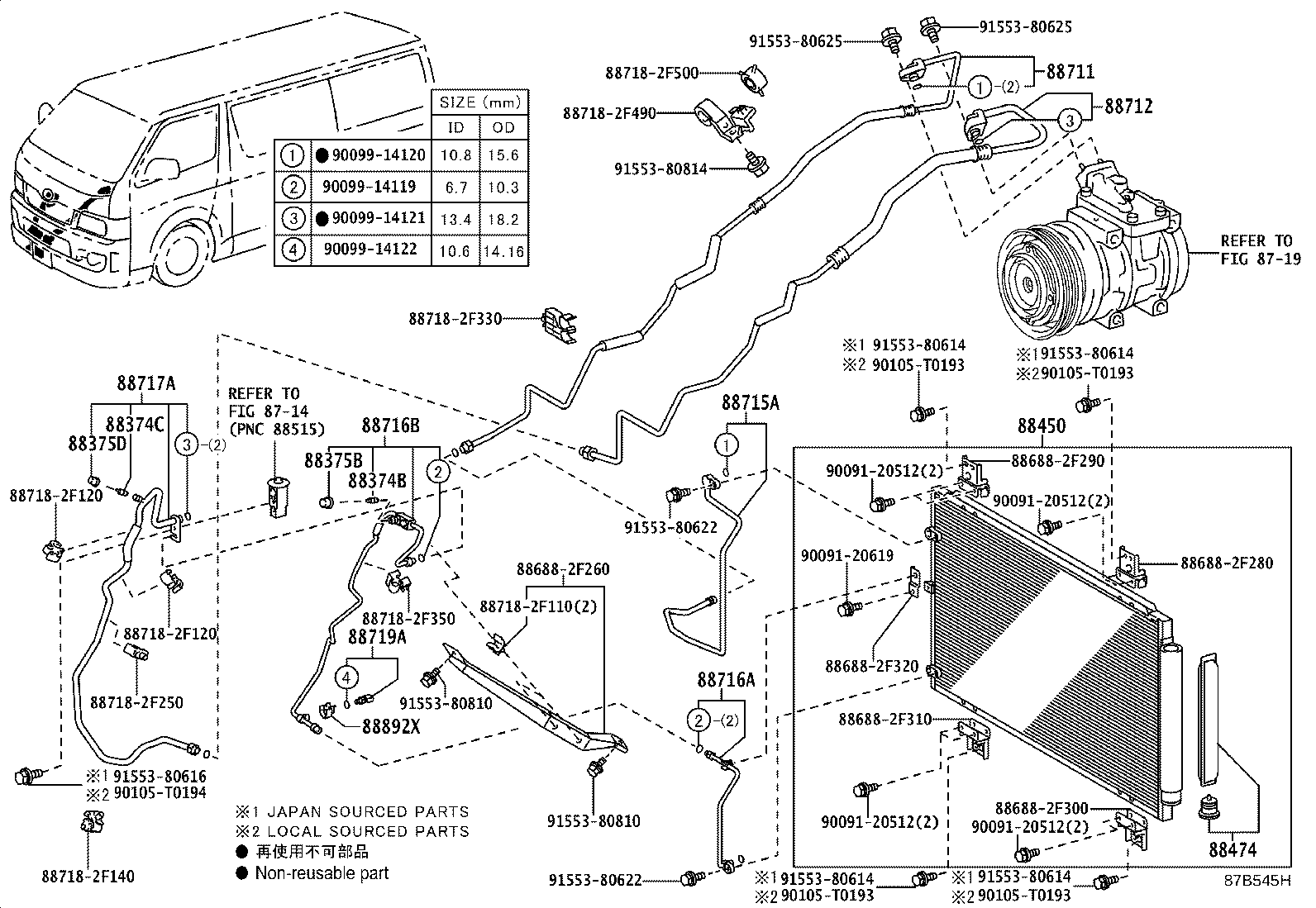

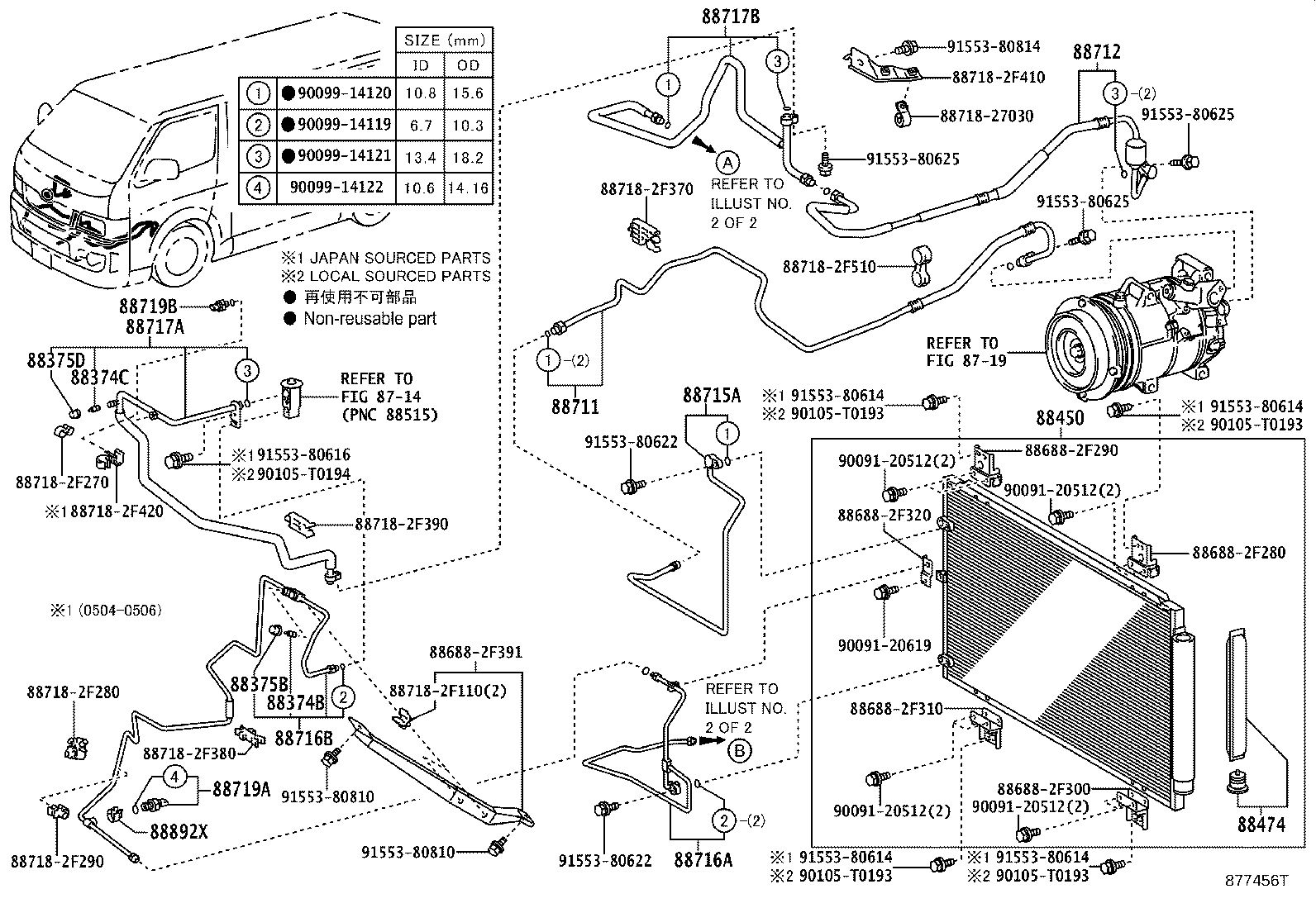

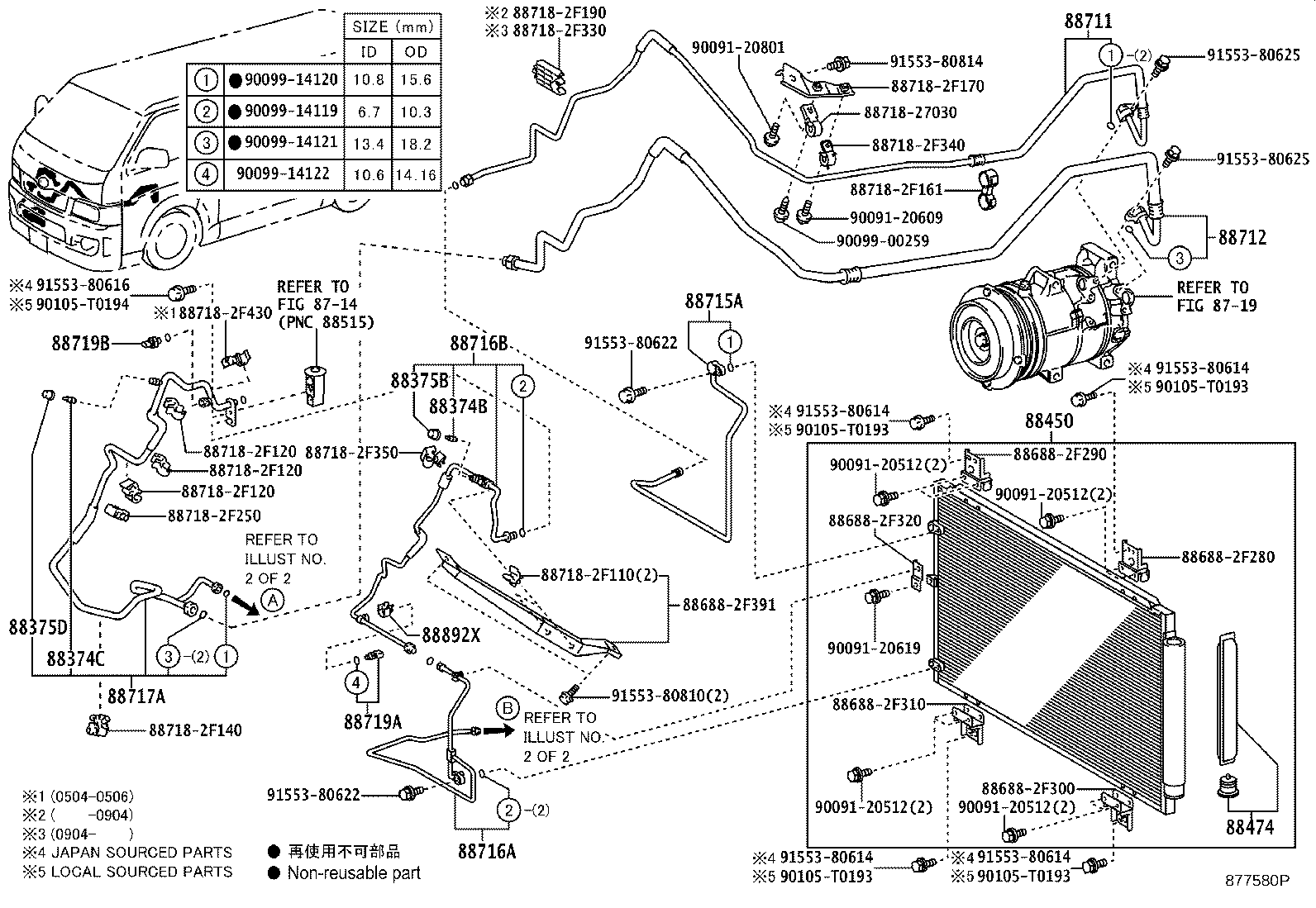

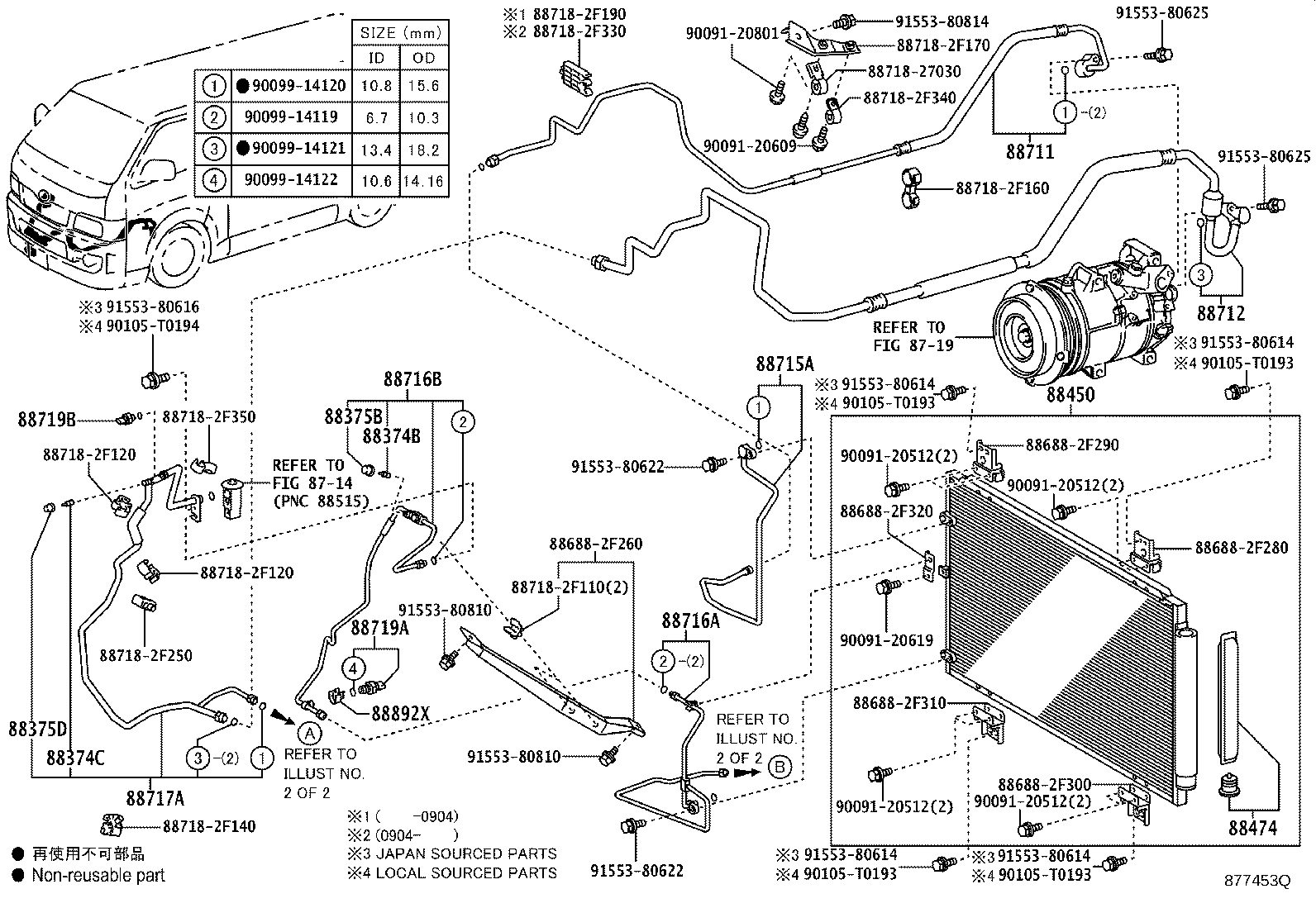

Figure 877434K 877434K 2005-01 → 2010-08 Figure 87B557G 87B557G 2010-08 → — Figure 877435M 877435M 2005-01 → 2010-08 Figure 877435M 877435M 2005-01 → — Figure 87B558G 87B558G 2010-08 → — Figure 877436P 877436P 2005-01 → — Figure 877437Q 877437Q 2005-01 → 2010-08 Figure 877437Q 877437Q 2005-01 → — Figure 87B563H 87B563H 2010-08 → — Figure 877438L 877438L 2005-01 → 2010-08 Figure 877438L 877438L 2005-01 → — Figure 87B559G 87B559G 2010-08 → — Figure 877439M 877439M 2005-01 → 2010-08 Figure 877439M 877439M 2005-01 → — Figure 877439M 877439M 2005-01 → — Figure 87B560G 87B560G 2010-08 → — Figure 877440N 877440N 2005-01 → — Figure 877441O 877441O 2005-01 → — Figure 877442O 877442O 2005-01 → — Figure 877442O 877442O 2007-09 → — Figure 877443P 877443P 2005-01 → 2007-09 Figure 877443P 877443P 2005-01 → — Figure 877444Q 877444Q 2005-01 → — Figure 877183U 877183U 2006-10 → 2010-08 Figure 87B561H 87B561H 2010-08 → — Figure 877185S 877185S 2006-10 → 2010-08 Figure 87B562H 87B562H 2010-08 → — Figure 87B545H 87B545H 2010-08 → — Figure 87B544H 87B544H 2010-08 → — Figure 877445N 877445N 2005-01 → — Figure 877446O 877446O 2005-01 → — Figure 877447N 877447N 2005-01 → — Figure 877448O 877448O 2005-01 → — Figure 877449O 877449O 2005-01 → — Figure 877450O 877450O 2005-01 → — Figure 877451P 877451P 2005-01 → — Figure 877452P 877452P 2005-01 → — Figure 877453Q 877453Q 2005-01 → — Figure 877187T 877187T 2005-01 → — Figure 877188V 877188V 2005-01 → — Figure 877454S 877454S 2005-01 → — Figure 877579O 877579O 2005-01 → — Figure 877189Z 877189Z 2005-01 → 2007-09 Figure 877189Z 877189Z 2005-01 → — Figure 877189Z 877189Z 2005-12 → 2007-09 Figure 877580P 877580P 2005-01 → 2005-12 Figure 877580P 877580P 2005-01 → — Figure 877580P 877580P 2005-08 → 2005-12 Figure 877580P 877580P 2007-09 → — Figure 877455T 877455T 2005-01 → — Figure 877456T 877456T 2005-01 → — Figure 87C994H 87C994H 2012-05 → — Figure 877190N 877190N 2005-01 → 2006-10 Figure 877190N 877190N 2005-01 → 2007-09 Figure 877190N 877190N 2005-01 → — Figure 877190N 877190N 2005-01 → — Figure 878566J 878566J 2006-10 → 2007-09 Figure 878566J 878566J 2006-10 → — Figure 878566J 878566J 2006-10 → — Figure 877457I 877457I 2005-01 → 2006-10 Figure 877457I 877457I 2005-01 → 2007-09 Figure 879861H 879861H 2007-09 → — Figure 878569G 878569G 2006-10 → 2007-09 Figure 879862I 879862I 2007-09 → — Figure 879293H 879293H 2007-09 → — Figure 877458J 877458J 2005-01 → 2007-09 Figure 879863E 879863E 2007-09 → — Figure 877459L 877459L 2005-01 → 2006-10 Figure 877459L 877459L 2005-01 → 2006-11 Figure 878568J 878568J 2006-10 → 2006-11 Figure 879186K 879186K 2006-11 → 2007-09 Figure 879186K 879186K 2006-11 → — Figure 879294F 879294F 2007-09 → — Figure 879187J 879187J 2006-11 → 2007-09 Figure 879187J 879187J 2006-11 → — Figure 879187J 879187J 2006-11 → — Figure 877460J 877460J 2005-01 → 2006-11 Figure 879188G 879188G 2006-11 → — Figure 877192N 877192N 2006-01 → 2006-10 Figure 877192N 877192N 2006-01 → 2007-09 Figure 877192N 877192N 2006-10 → 2007-09 Figure 879864H 879864H 2007-09 → 2007-10 Figure 879864H 879864H 2007-09 → — Figure 878570G 878570G 2006-10 → 2007-09 Figure 879865F 879865F 2007-09 → 2007-10 Figure 879865F 879865F 2007-09 → — Figure 877796H 877796H 2006-02 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88450 Condenser Assy, W/Receiver
88467B Insulator, Cooler Condenser Mounting
88471 Tank, Receiver Air Conditioner
88473A Holder, Receiver
88474 Dryer, Cooler
88515A Valve, Cooler Expansion
88645H Switch, Pressure NO.1
88691W Valve, Magnet
88699A Valve, Air
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714C Insulator, Cooler Refrigerant Hose, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88715G Tube, Discharge, G
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717U Tube, Suction, NO.1
88719A Sensor, Air Conditioner Pressure
88719B Sensor, Air Conditioner Pressure, NO.2
88891H Cover, Cooler, NO.1
88891Q Cover, Cooler, NO.2
88892X Cover, Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
