Heating & Air Conditioning - Compressor

12 part groups · 12 illustrations

Illustrations

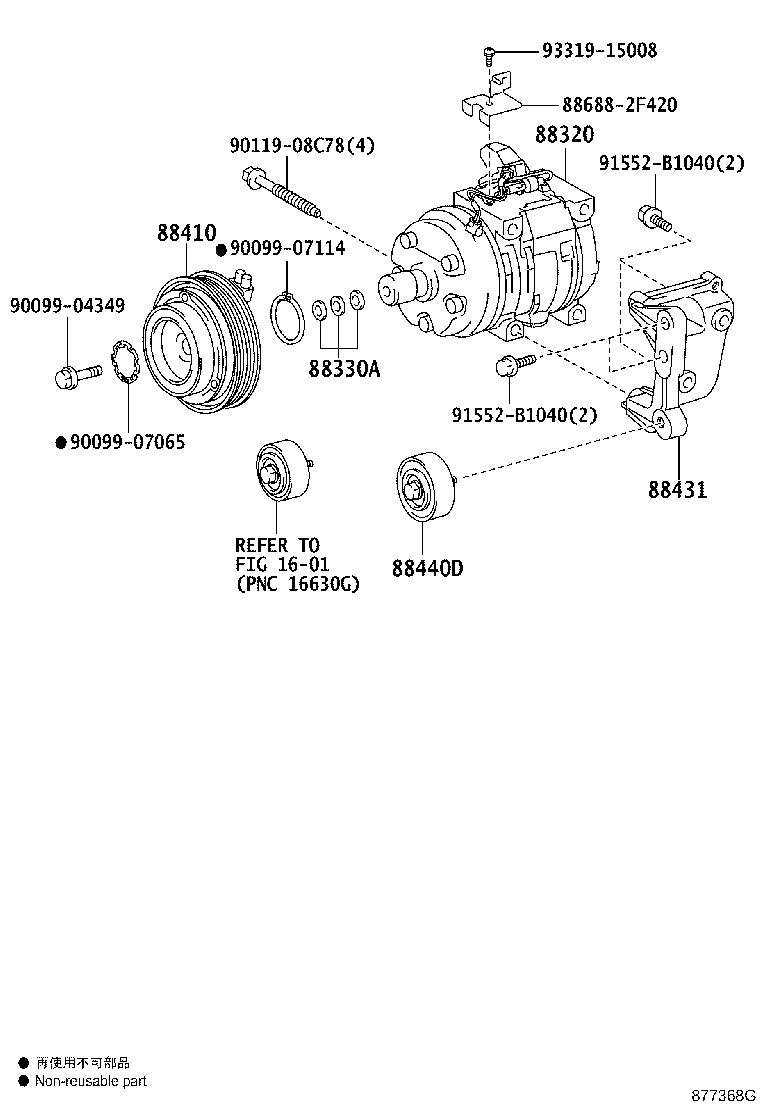

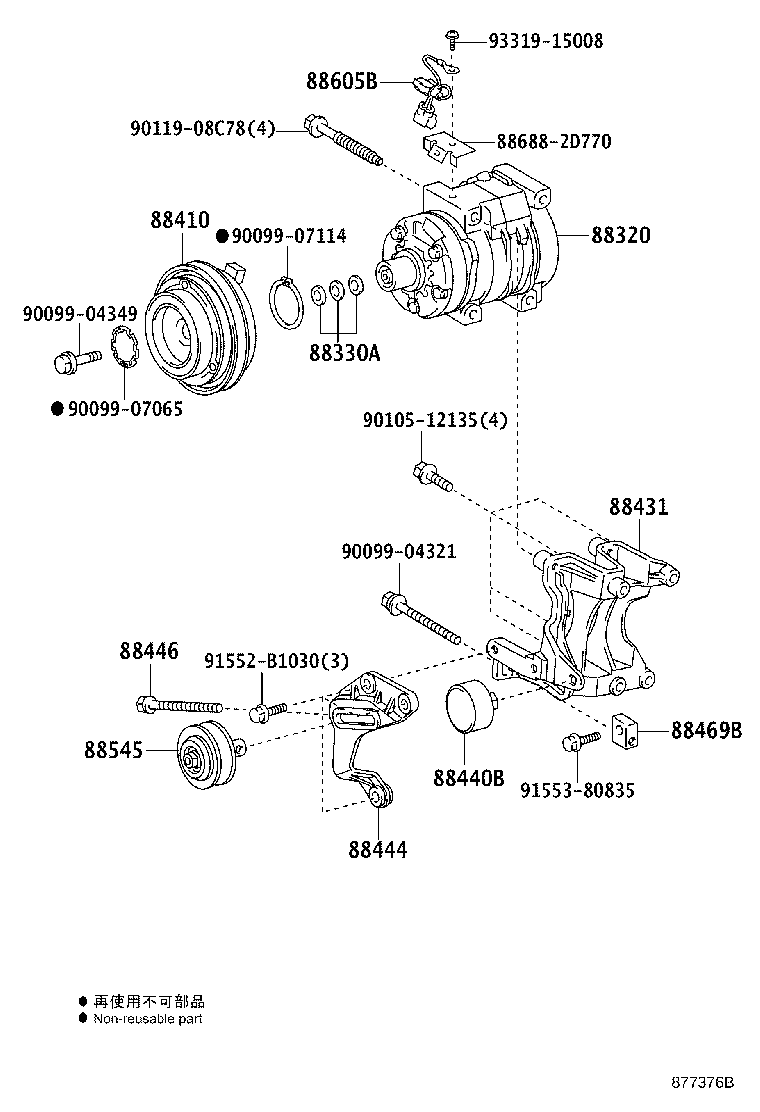

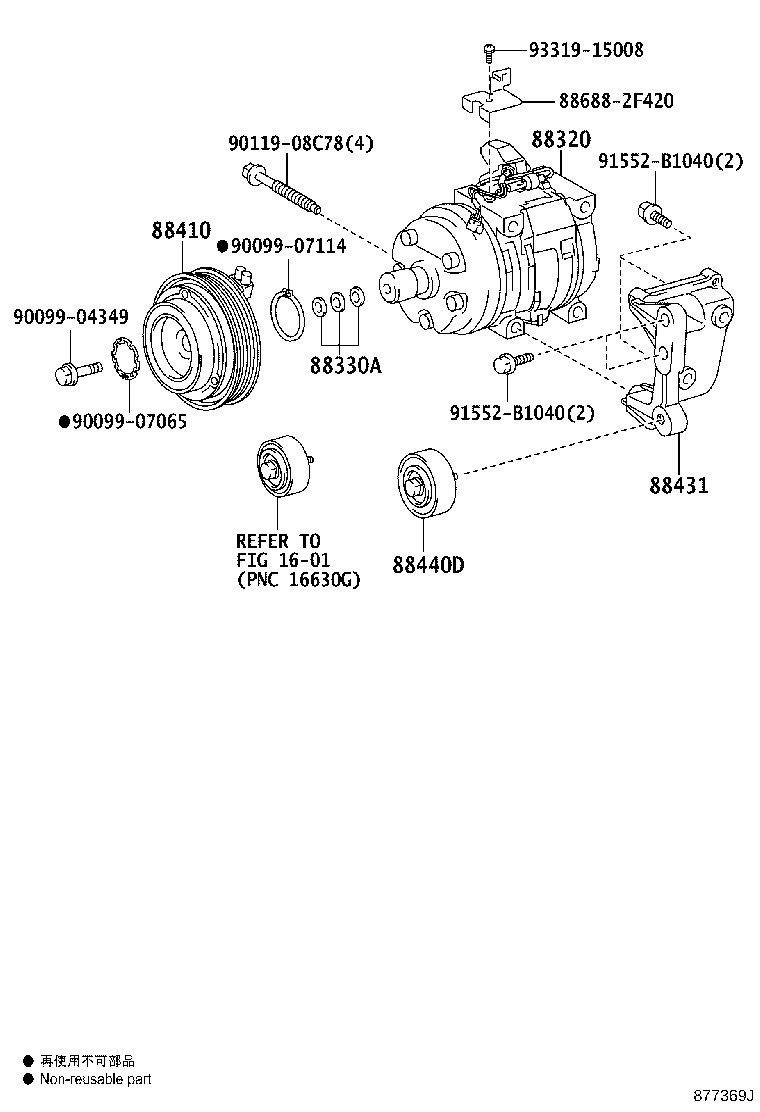

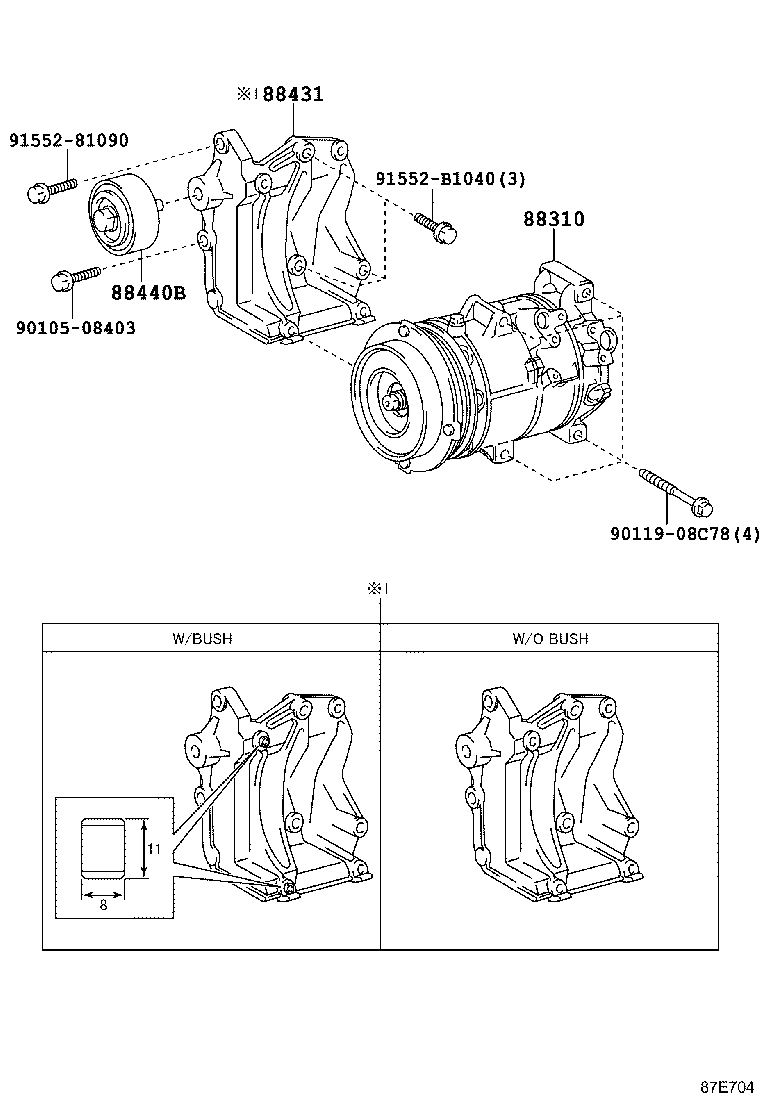

Figure 877181H 877181H 2005-01 → — Figure 877368H 877368H 2005-01 → 2007-09 Figure 877368H 877368H 2005-01 → — Figure 877369J 877369J 2005-01 → 2007-09 Figure 877369J 877369J 2005-01 → — Figure 877376B 877376B 2005-01 → — Figure 87E704 87E704 2005-01 → 2007-09 Figure 87E704 87E704 2005-01 → — Figure 87E704 87E704 2005-01 → — Figure 87E704 87E704 2005-01 → — Figure 87E704 87E704 2006-10 → 2007-10 Figure 87E704 87E704 2007-09 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88440D Pulley Assy, Idle NO.2
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88469B Collar
88545 Pulley Assy, Idle
88605B Harness Sub-assy, Air Conditioner Wiring
