Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

21 part groups · 5 illustrations

Illustrations

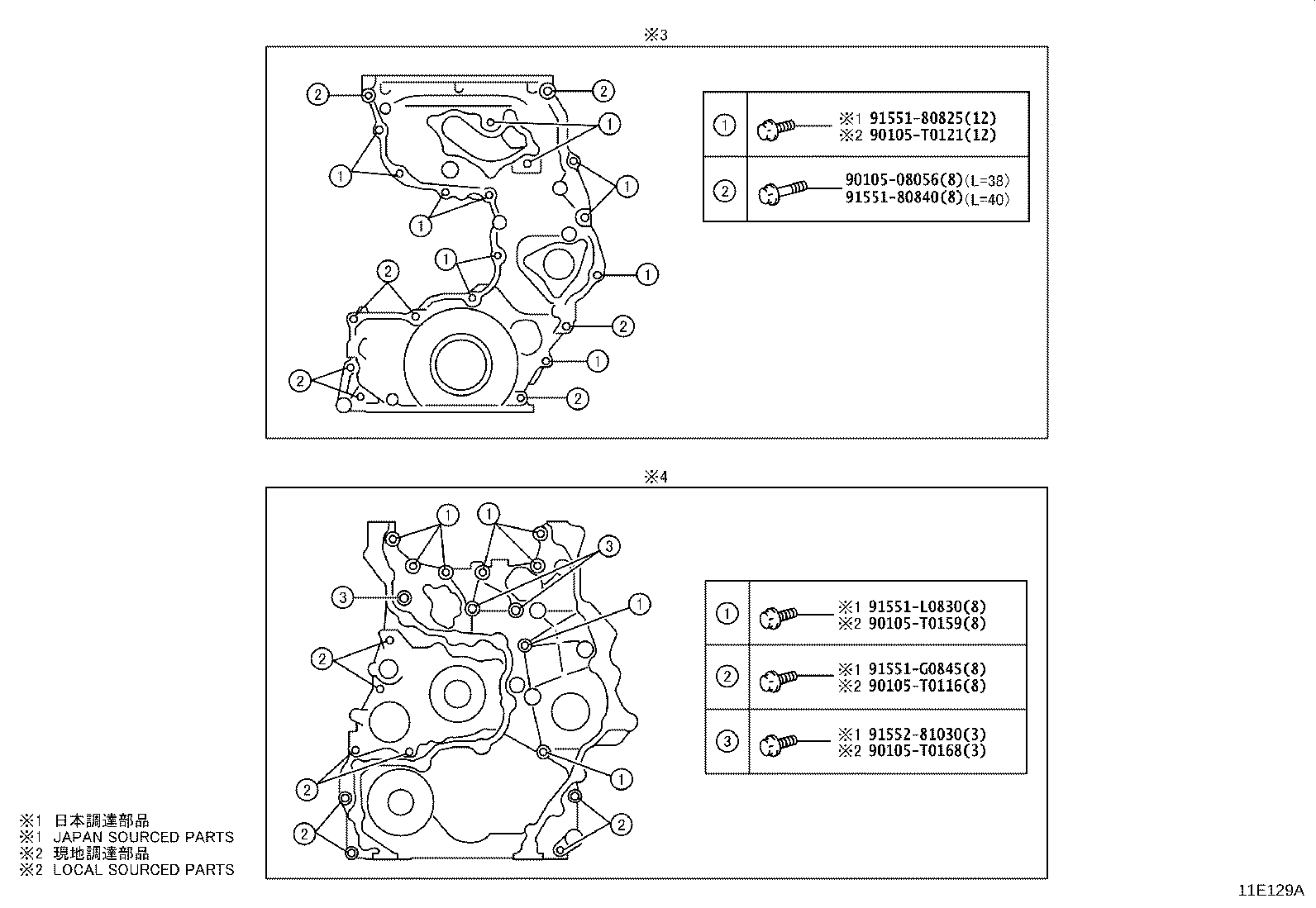

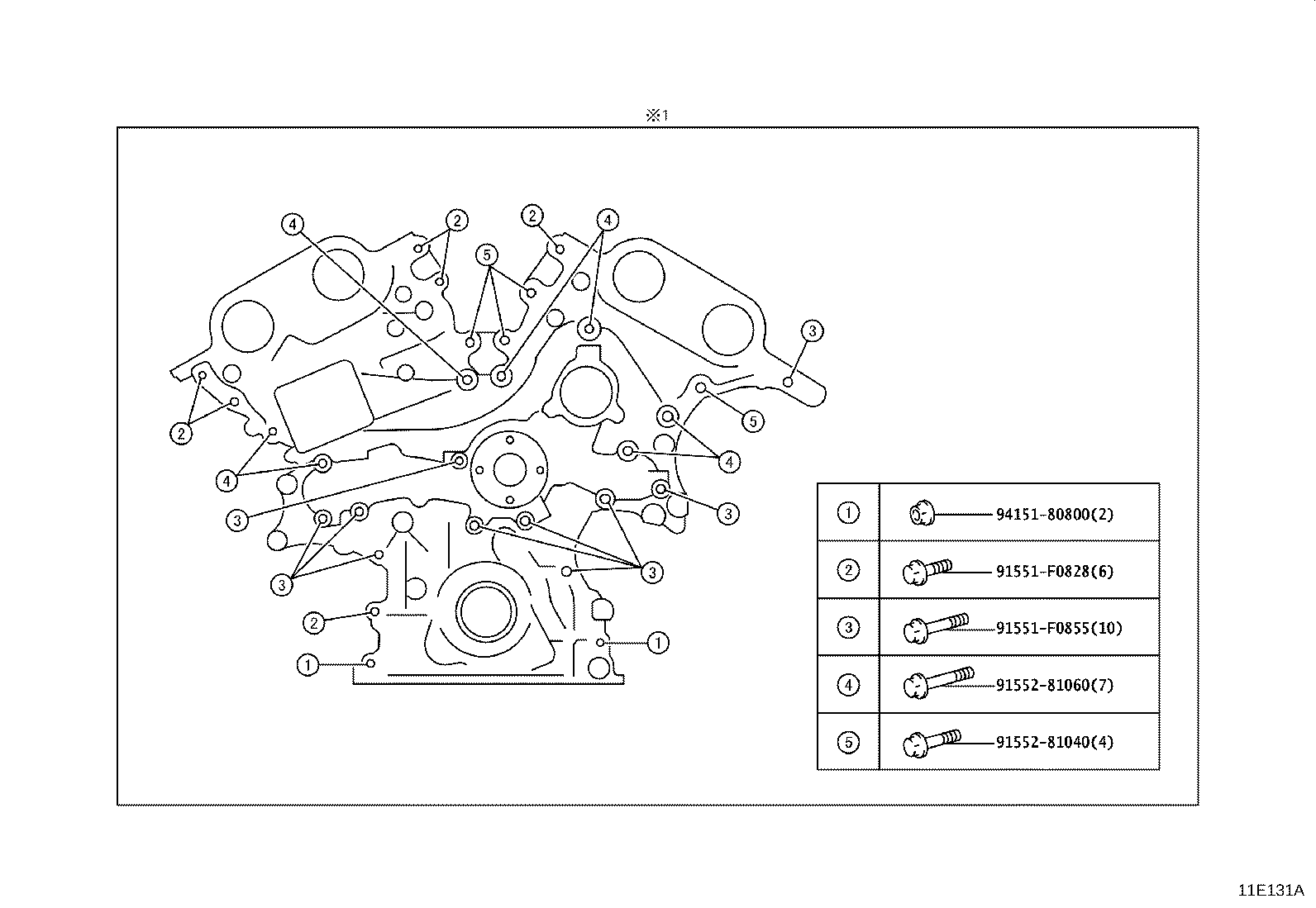

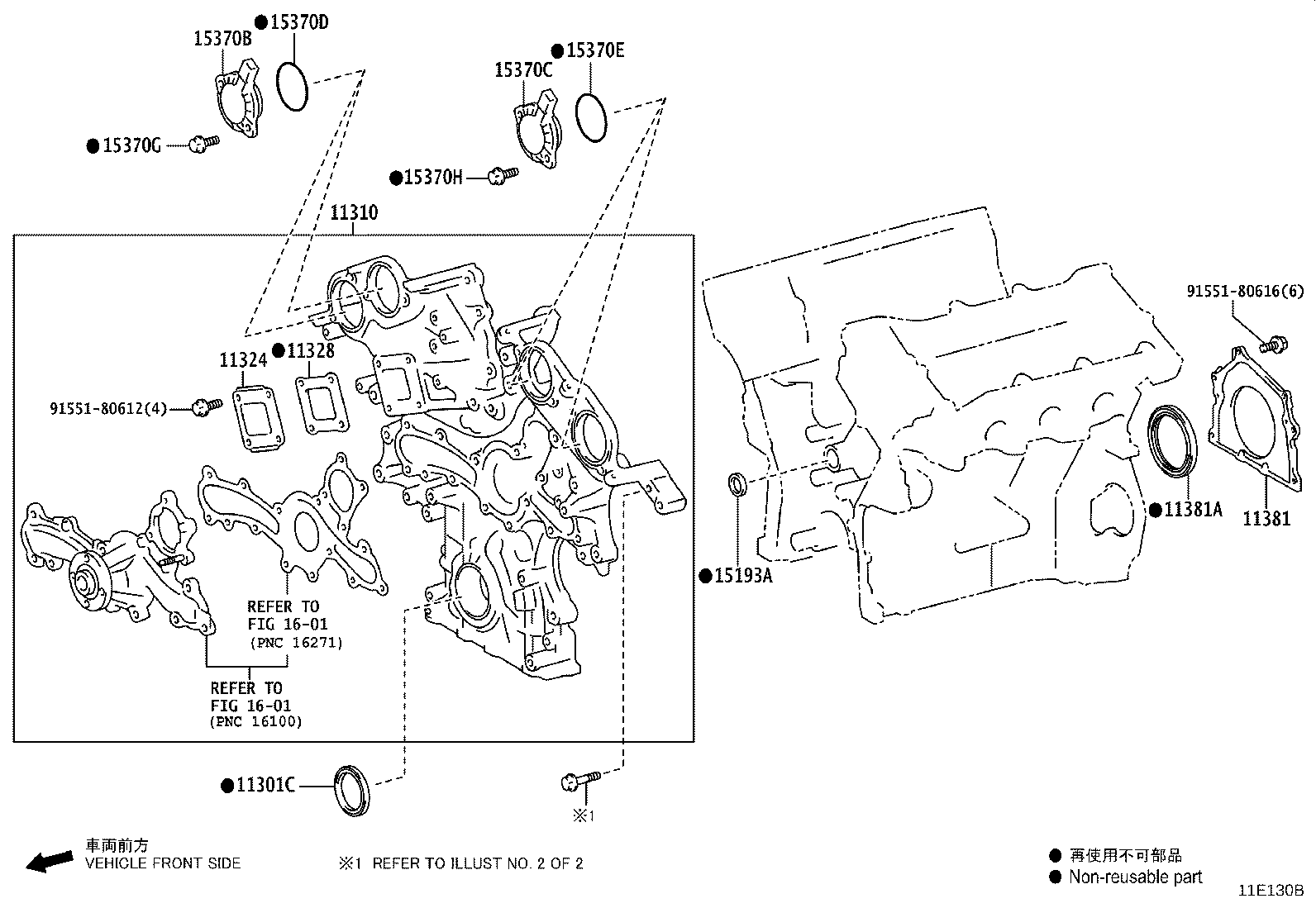

Figure 11E128C 11E128C 2019-02 → — Figure 11E129A 11E129A 2019-02 → — Figure 11E130B 11E130B 2019-02 → — Figure 11E131A 11E131A 2019-02 → 2019-08 Figure 11E746 11E746 2019-08 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302 Cover Sub-assy, Timing Chain OR Belt
11303A Seal, Oil(FOR CRANKSHAFT FRONT)
11310 Cover Assy, Timing Chain
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11328A Gasket, Timing Belt Cover, NO.1
11329A Gasket, Timing Belt OR Chain Cover, NO.2
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11366 Seal, Flywheel Housing Under Cover Dust
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
15133B Plug, Oil Pump Relief Valve
15193A Gasket, Oil Pump
15370B Solenoid Assy, Cam Timing Oil Control, RH
15370C Solenoid Assy, Cam Timing Oil Control, LH
15370D Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID RH)
15370E Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID LH)
15370G Bolt(FOR CAM TIMING OIL CONTROL SOLENOID RH)
15370H Bolt(FOR CAM TIMING OIL CONTROL SOLENOID LH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
