Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States
Supported model
Data version 2024-09
Mounting
11 part groups · 4 illustrations

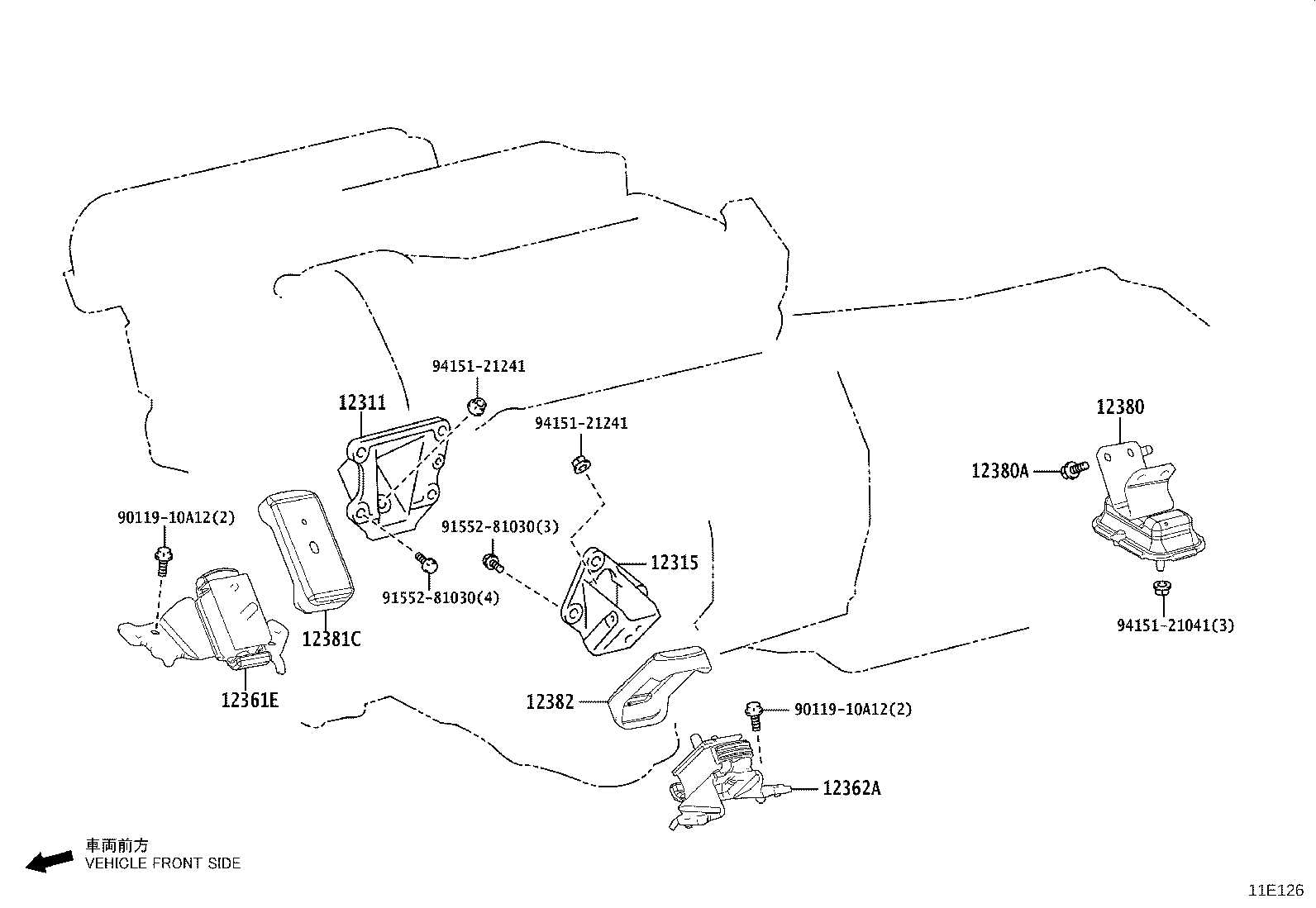

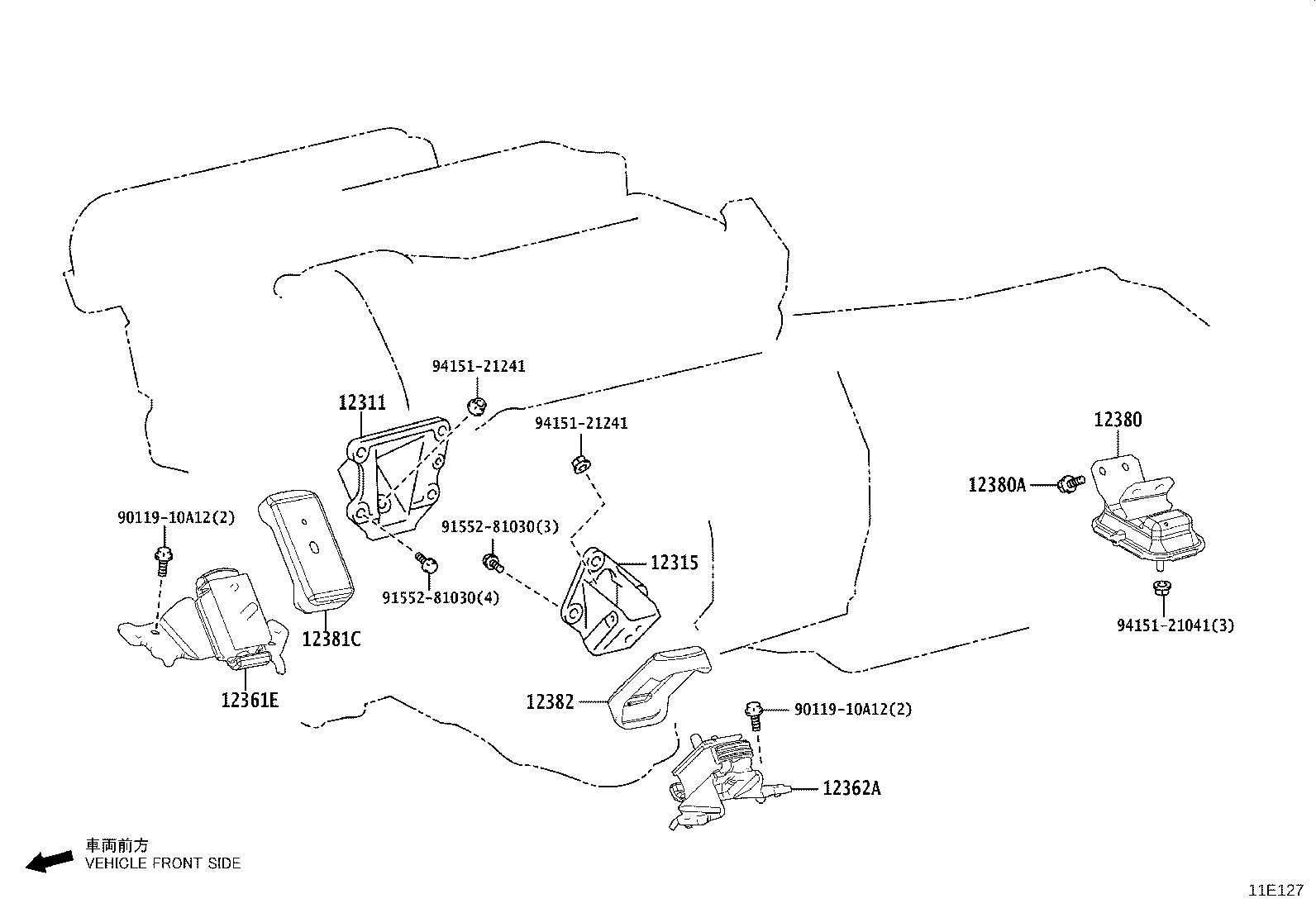

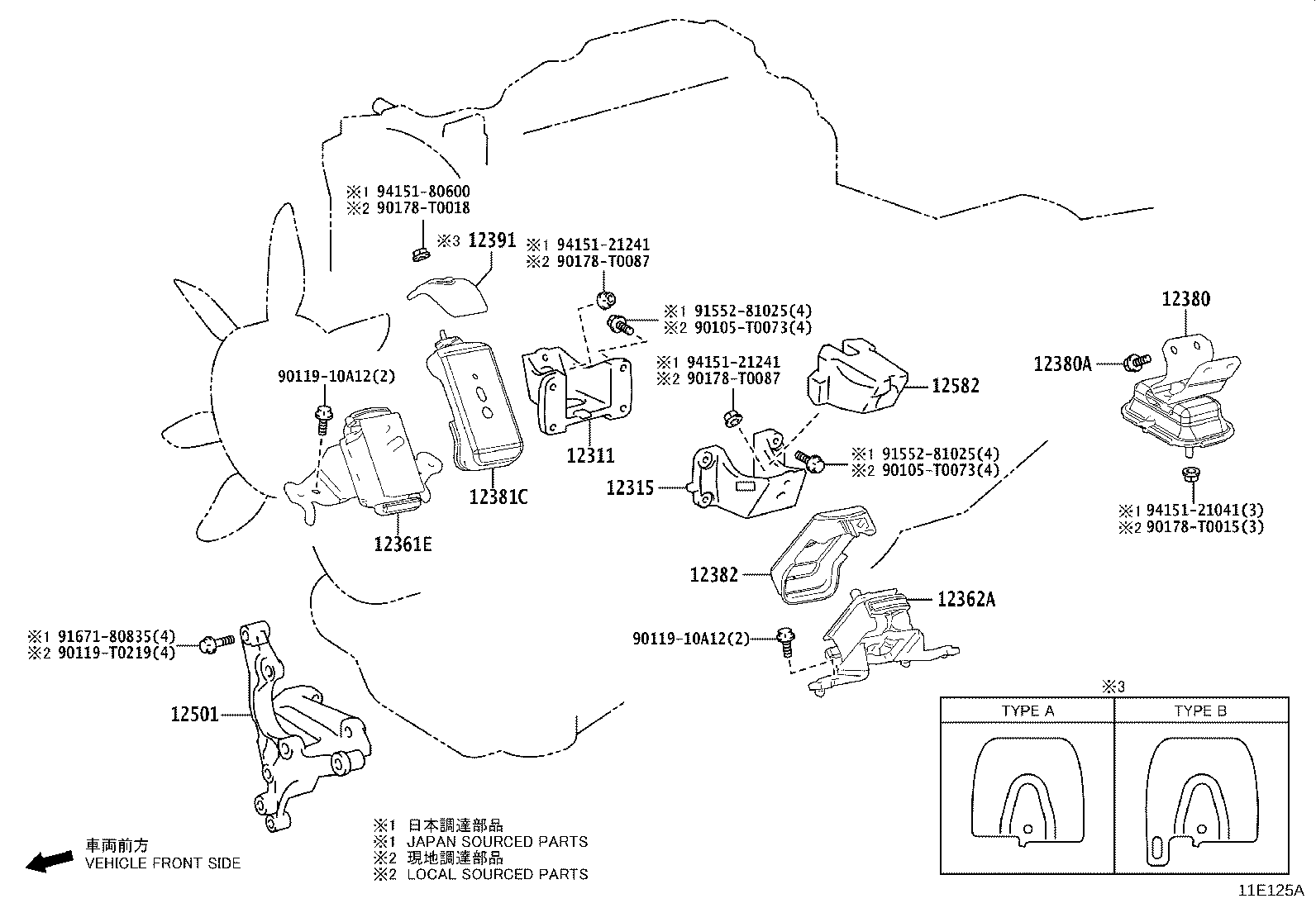

Part groups
| PNC | Description |
|---|---|
| 12311 | Bracket, Engine Mounting, Front NO.1 RH |
| 12315 | Bracket, Engine Mounting, Front NO.1 LH |
| 12361E | Insulator, Engine Mounting, Front RH |
| 12362A | Insulator, Engine Mounting, Front LH |
| 12380 | Insulator Assy, Engine Mounting, Rear |
| 12380A | Bolt(FOR ENGINE MOUNTING INSURATOR) |
| 12381C | Stabilizer, Engine Mounting, RH |
| 12382 | Stabilizer, Engine Mounting, LH |
| 12391 | Insulator, Engine Mounting Front, Heat, RH |
| 12501 | Bracket Sub-assy, Alternator |
| 12582 | Insulator, Cylinder Block, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
