Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States
Supported model
Data version 2024-09

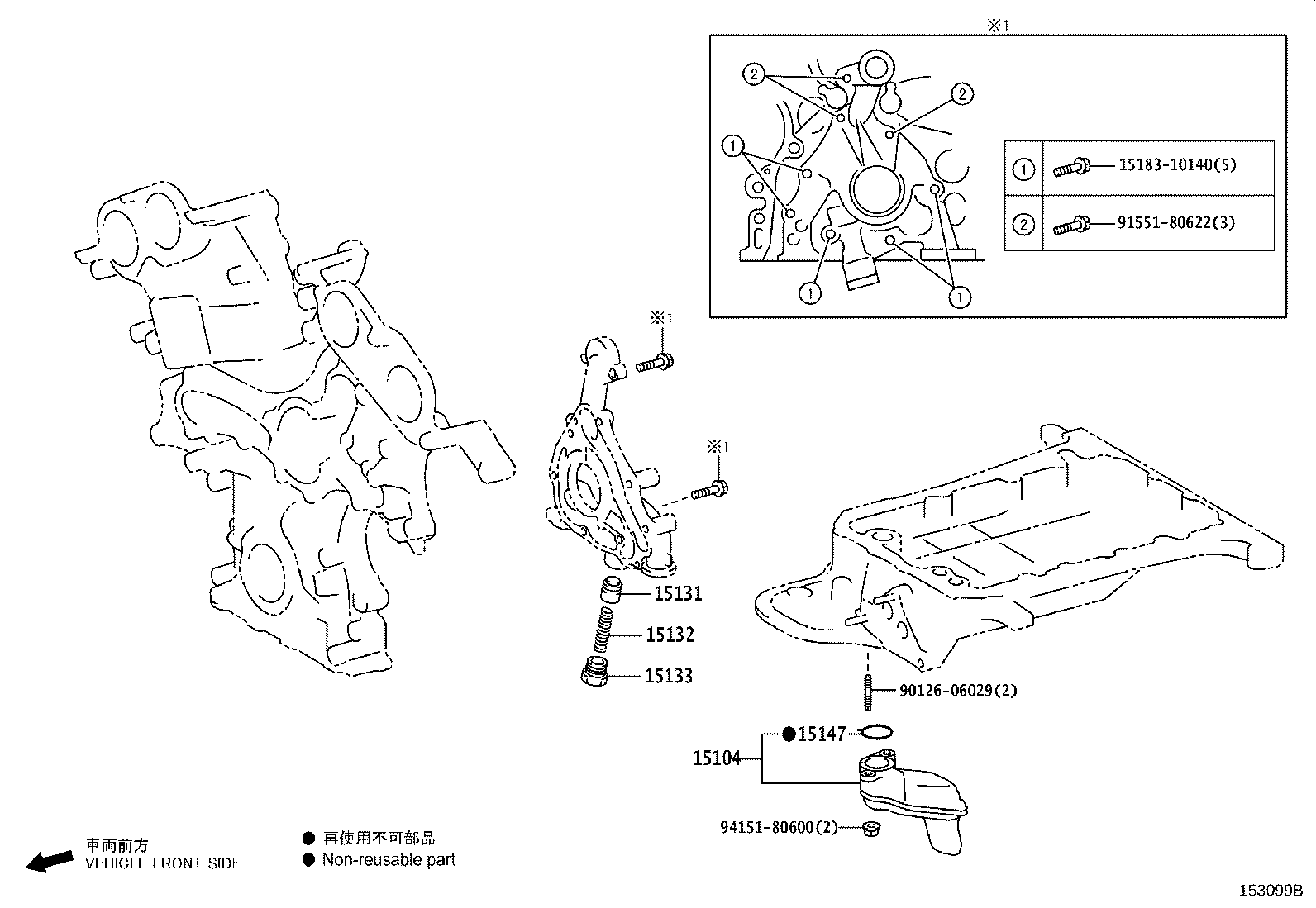

Engine Oil Pump
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15012 | Cover Sub-assy, Oil Pump |
| 15104 | Strainer Sub-assy, Oil |
| 15131 | Valve, Oil Pump Relief |
| 15132 | Spring, Oil Pump Relief Valve |
| 15133 | Plug, Oil Pump Relief Valve |
| 15147 | Gasket, Oil Strainer |
| 15149 | Gasket, Oil Strainer Flange |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
