Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

6 part groups · 2 illustrations

Illustrations

Figure 153100C

153100C 2019-02 → —

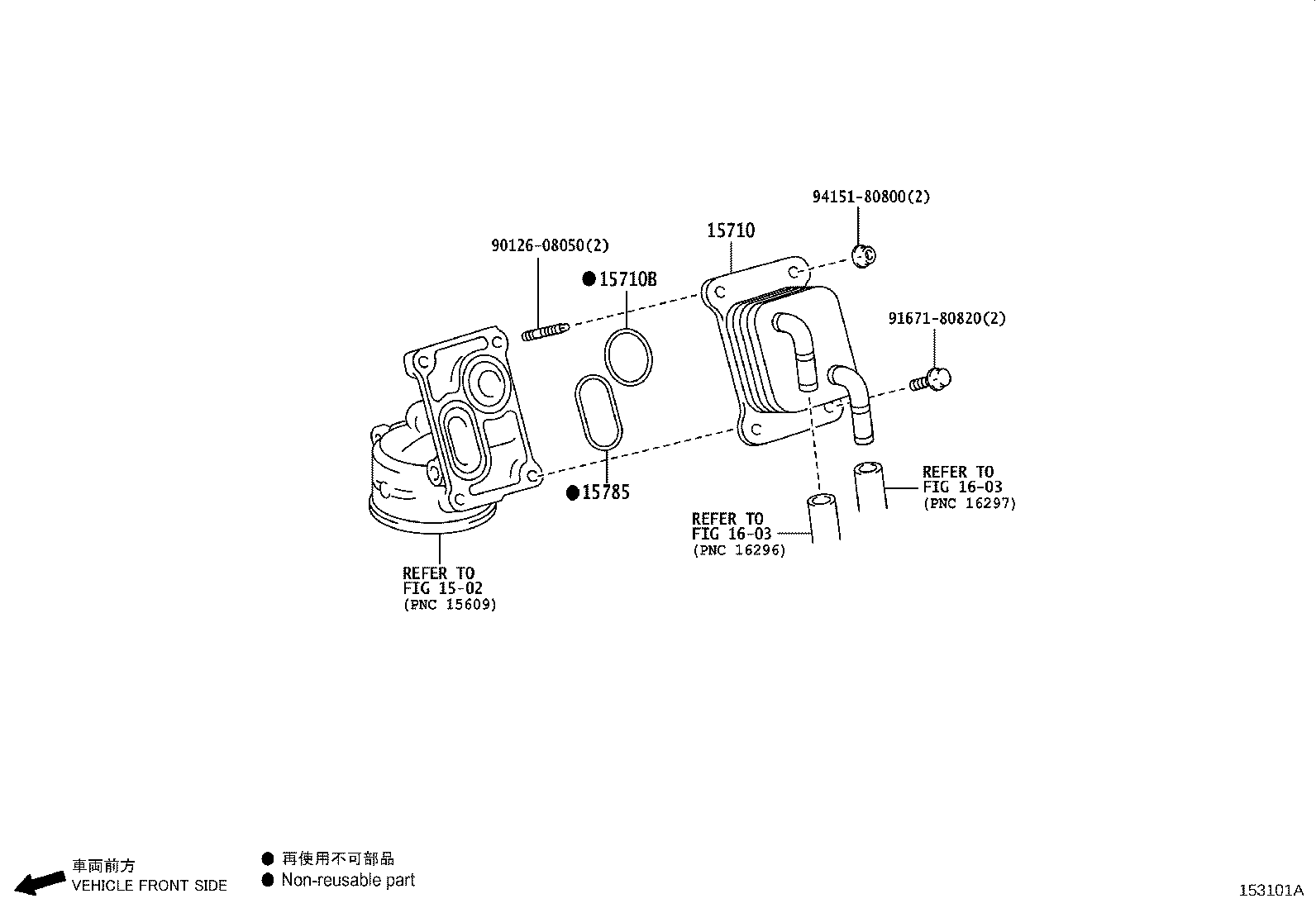

Figure 153101A

153101A 2019-02 → —

Part groups

PNC	Description
15071	Cooler Set, Engine Oil
15710	Cooler Assy, Oil
15710B	Ring, O(FOR OIL COOLER)
15723	Ring, O
15785	Gasket, Oil Cooler
16345A	Gasket, Water Outlet Pipe

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
