Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

13 part groups · 20 illustrations

Illustrations

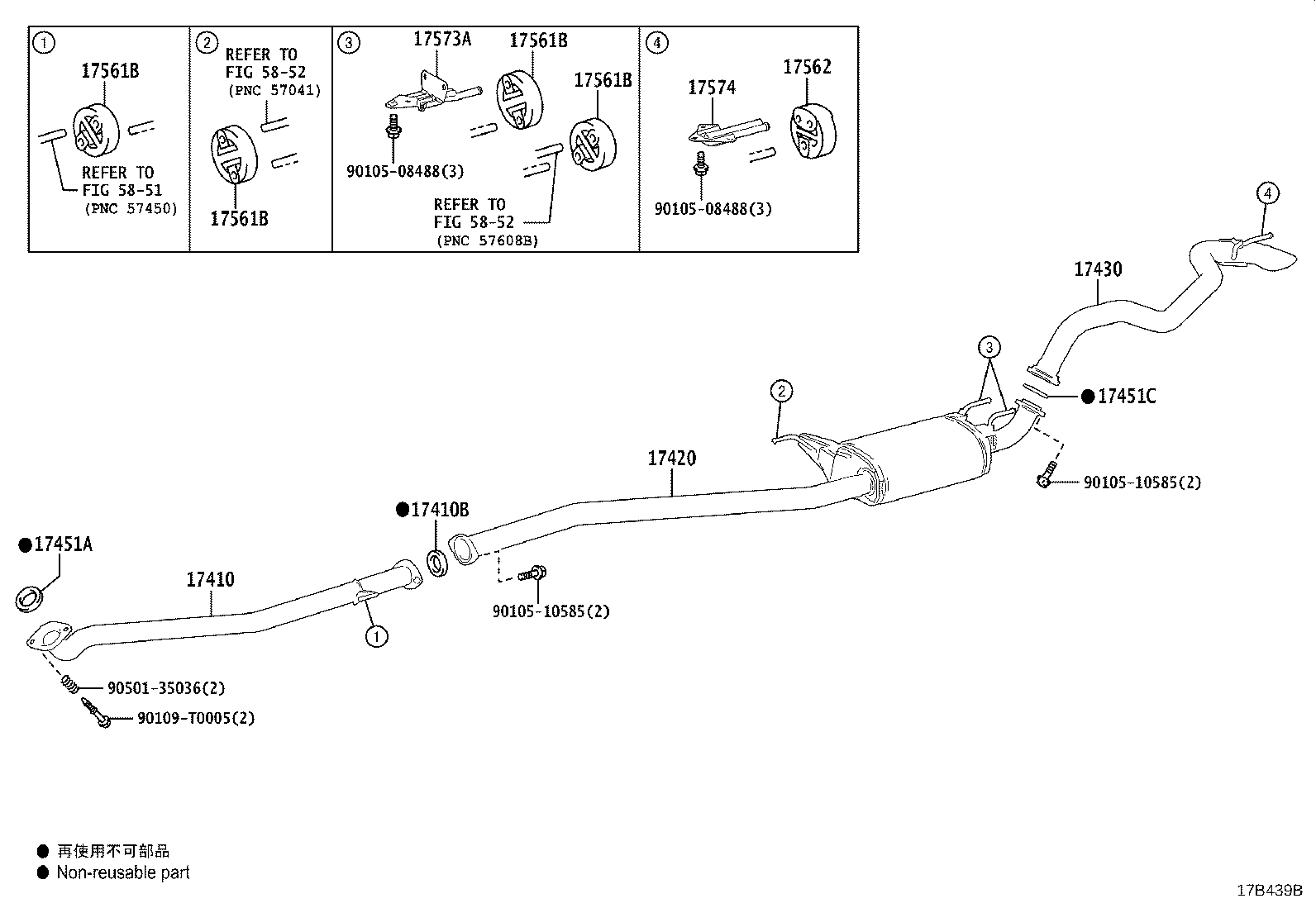

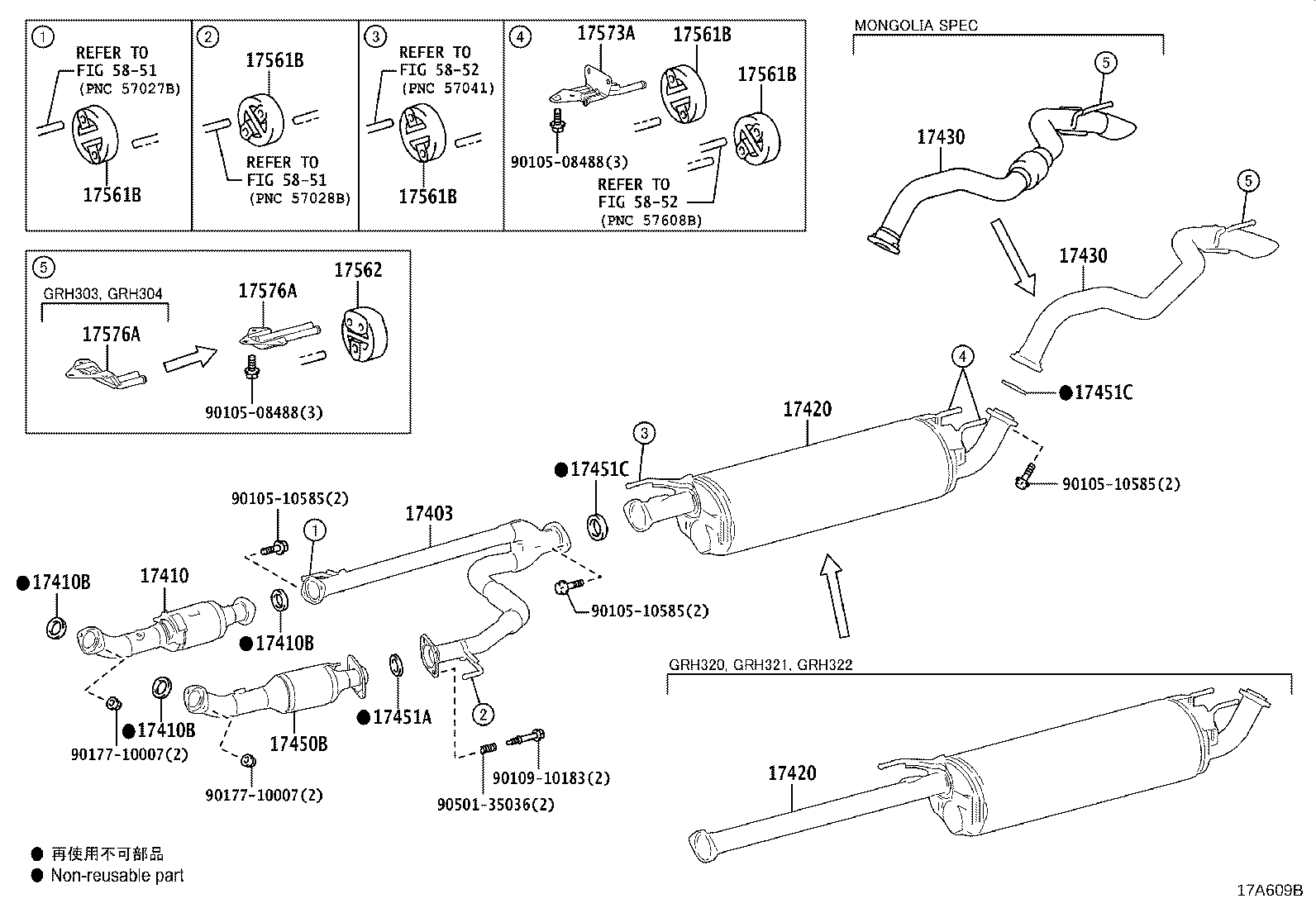

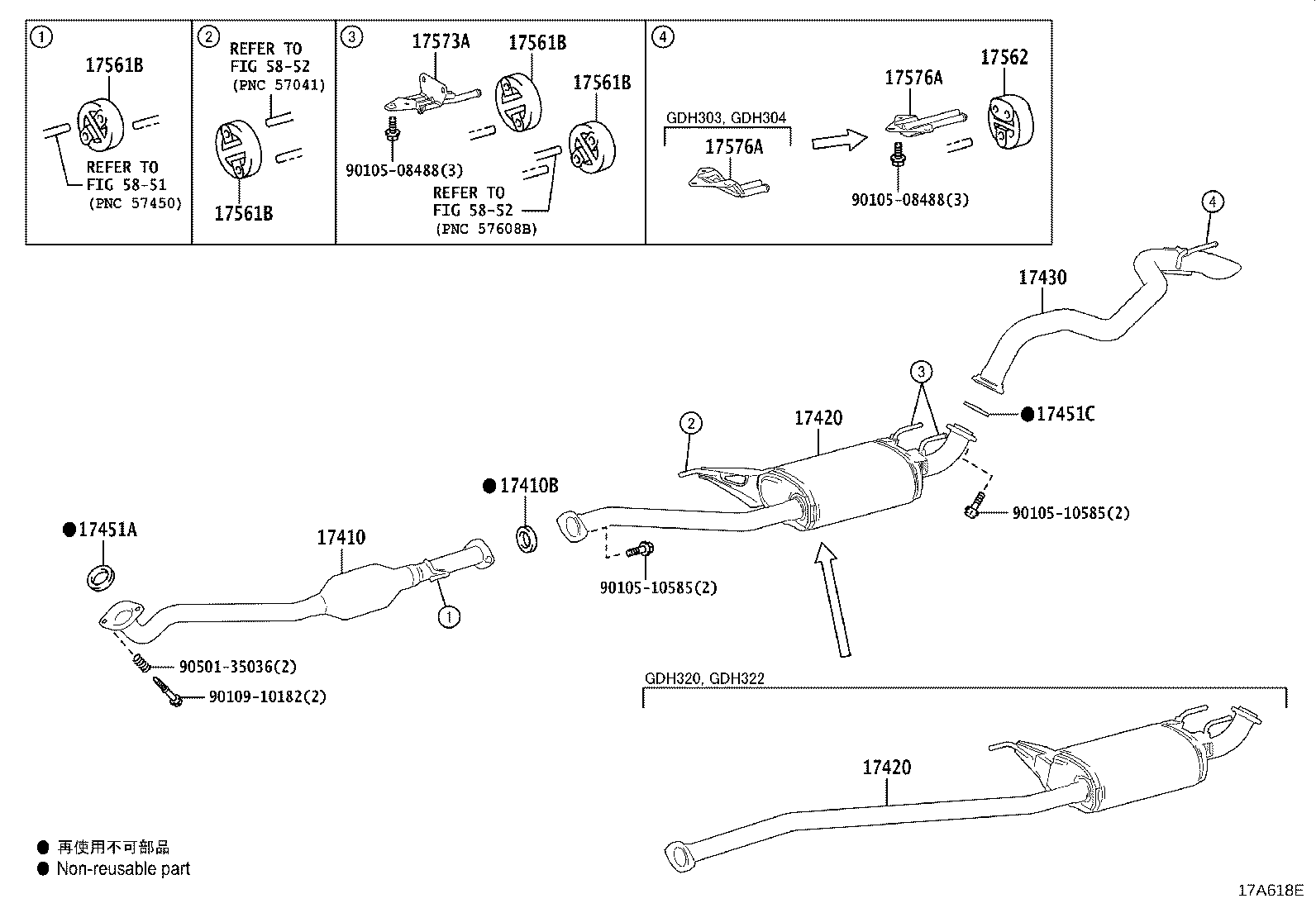

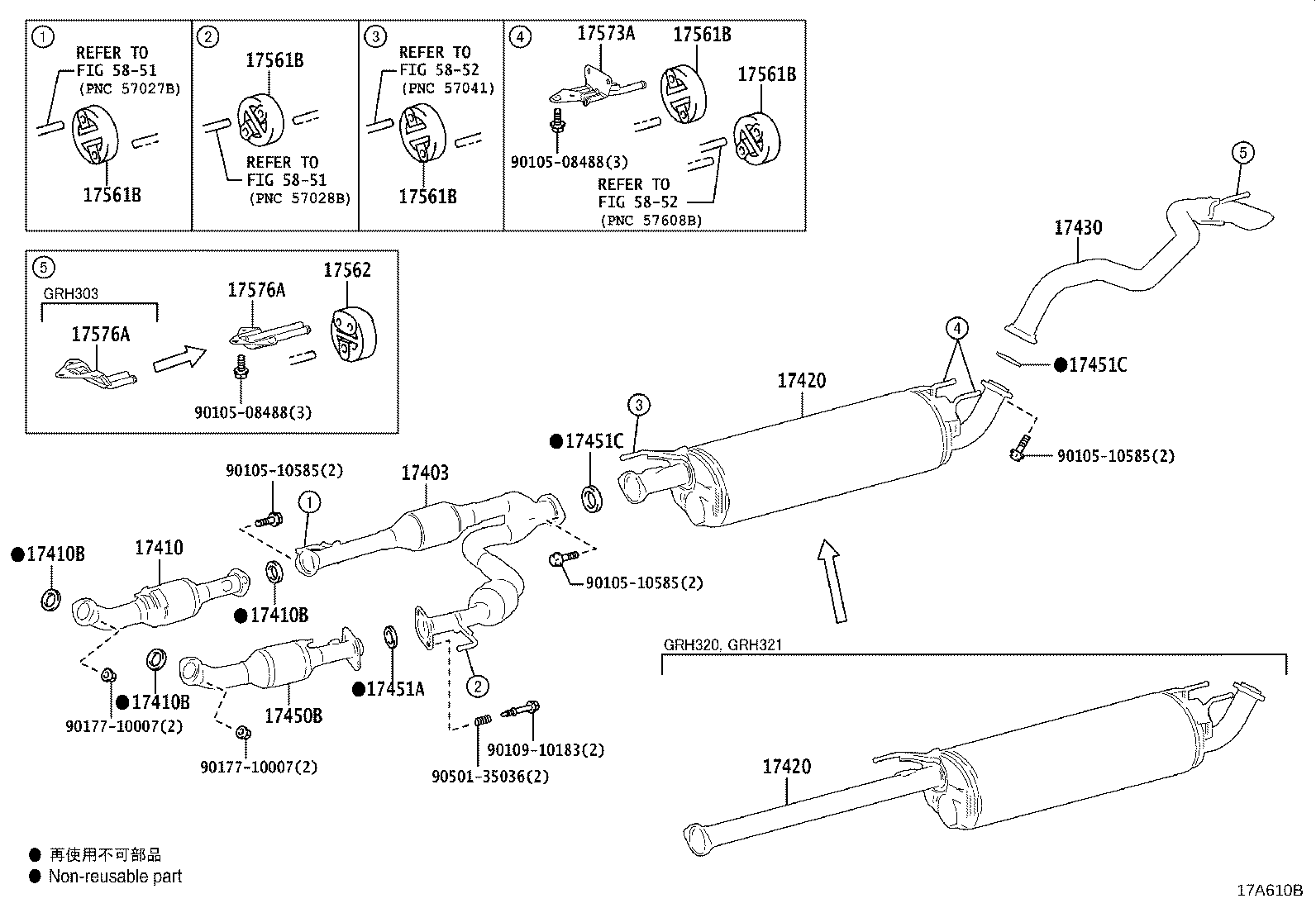

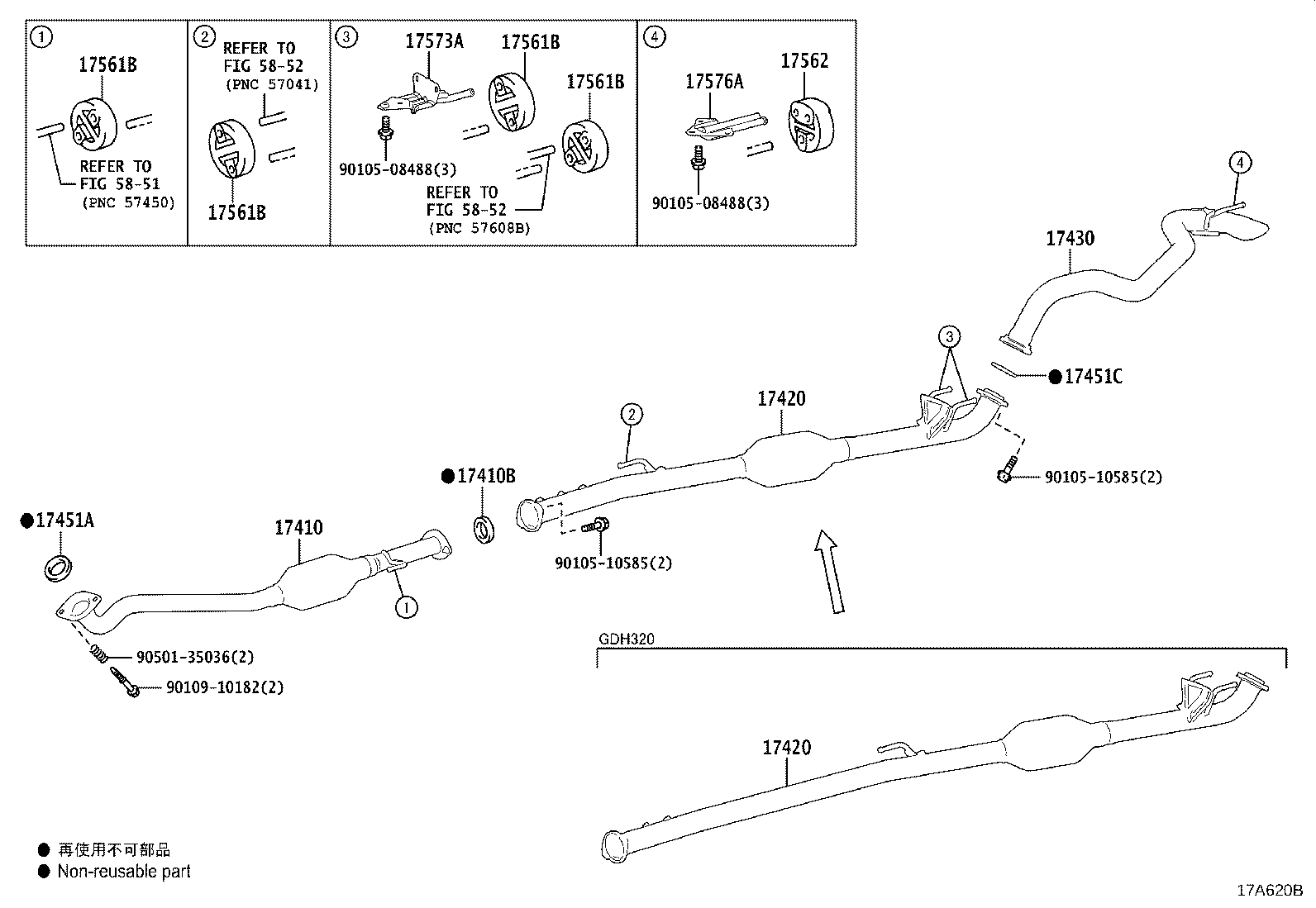

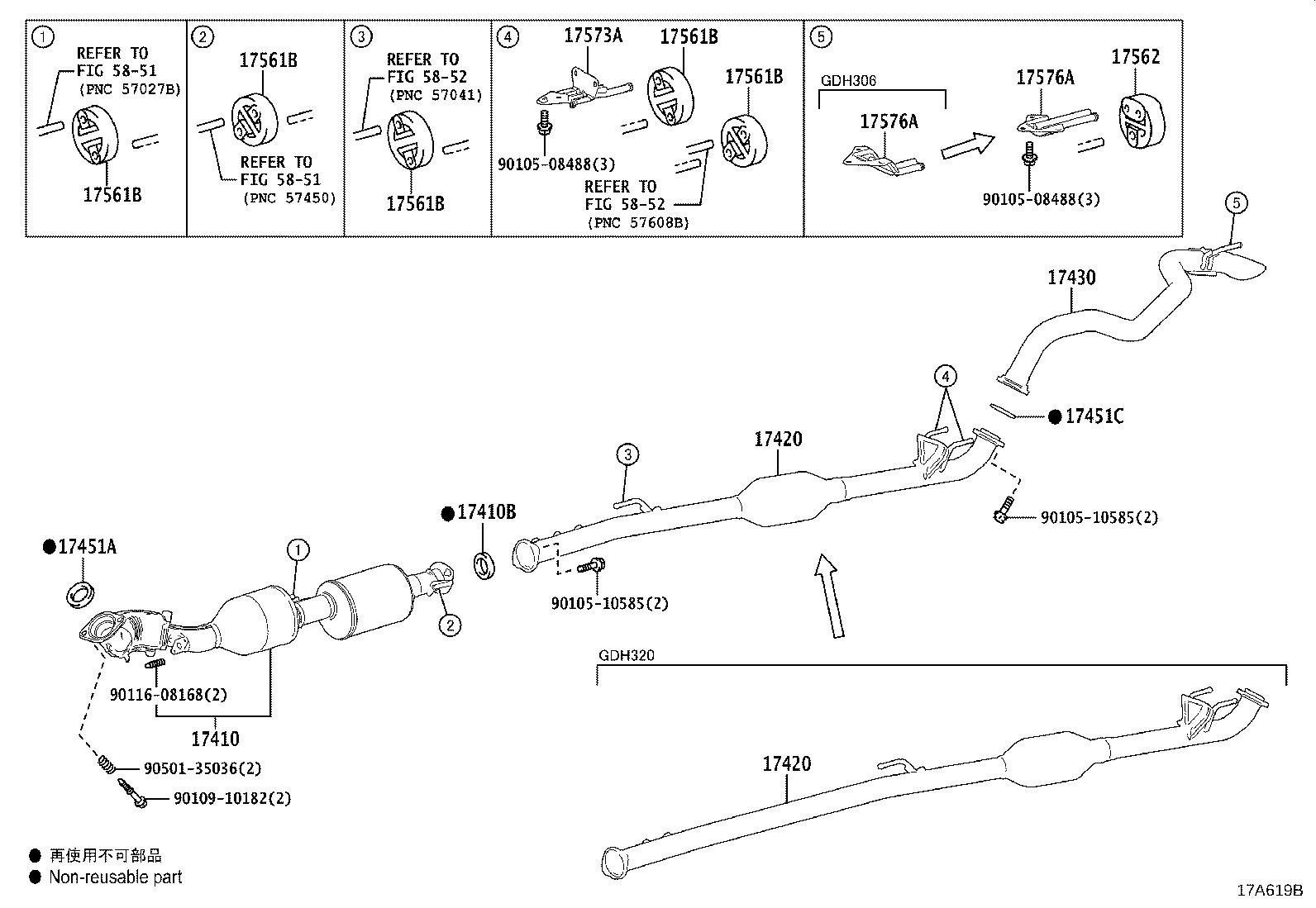

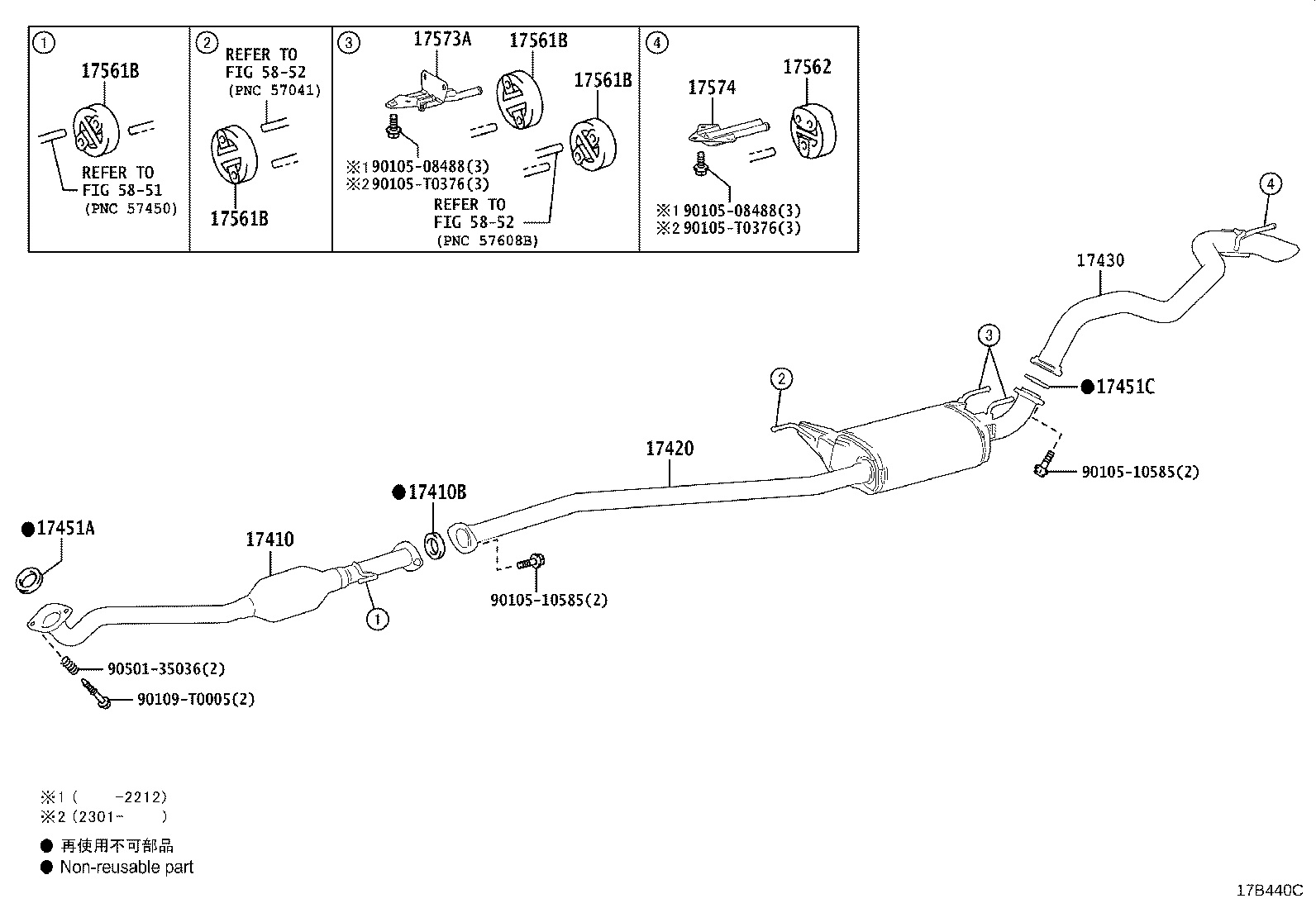

Figure 17A617F 17A617F 2019-02 → — Figure 17A617F 17A617F 2019-02 → — Figure 17A617F 17A617F 2019-02 → — Figure 17A617F 17A617F 2019-02 → — Figure 17A617F 17A617F 2019-02 → — Figure 17A618E 17A618E 2019-02 → — Figure 17A618E 17A618E 2019-02 → — Figure 17A618E 17A618E 2019-02 → — Figure 17A618E 17A618E 2019-02 → — Figure 17A618E 17A618E 2019-02 → — Figure 17A619B 17A619B 2019-02 → — Figure 17A619B 17A619B 2019-02 → — Figure 17A619B 17A619B 2019-02 → — Figure 17A620B 17A620B 2019-02 → — Figure 17A620B 17A620B 2019-03 → — Figure 17B440C 17B440C 2019-06 → — Figure 17B439B 17B439B 2019-06 → — Figure 17A609B 17A609B 2019-02 → — Figure 17A610B 17A610B 2019-02 → — Figure 17A610B 17A610B 2019-02 → —

Part groups

PNCDescription
17403 Pipe Sub-assy, Exhaust, Front NO.3
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17450B Pipe Assy, Exhaust, Front NO.2
17451A Gasket, Exhaust Pipe, NO.2
17451C Gasket, Exhaust Pipe, NO.3
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17573A Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17576A Bracket, Exhaust Pipe Support, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
