Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

23 part groups · 23 illustrations

Illustrations

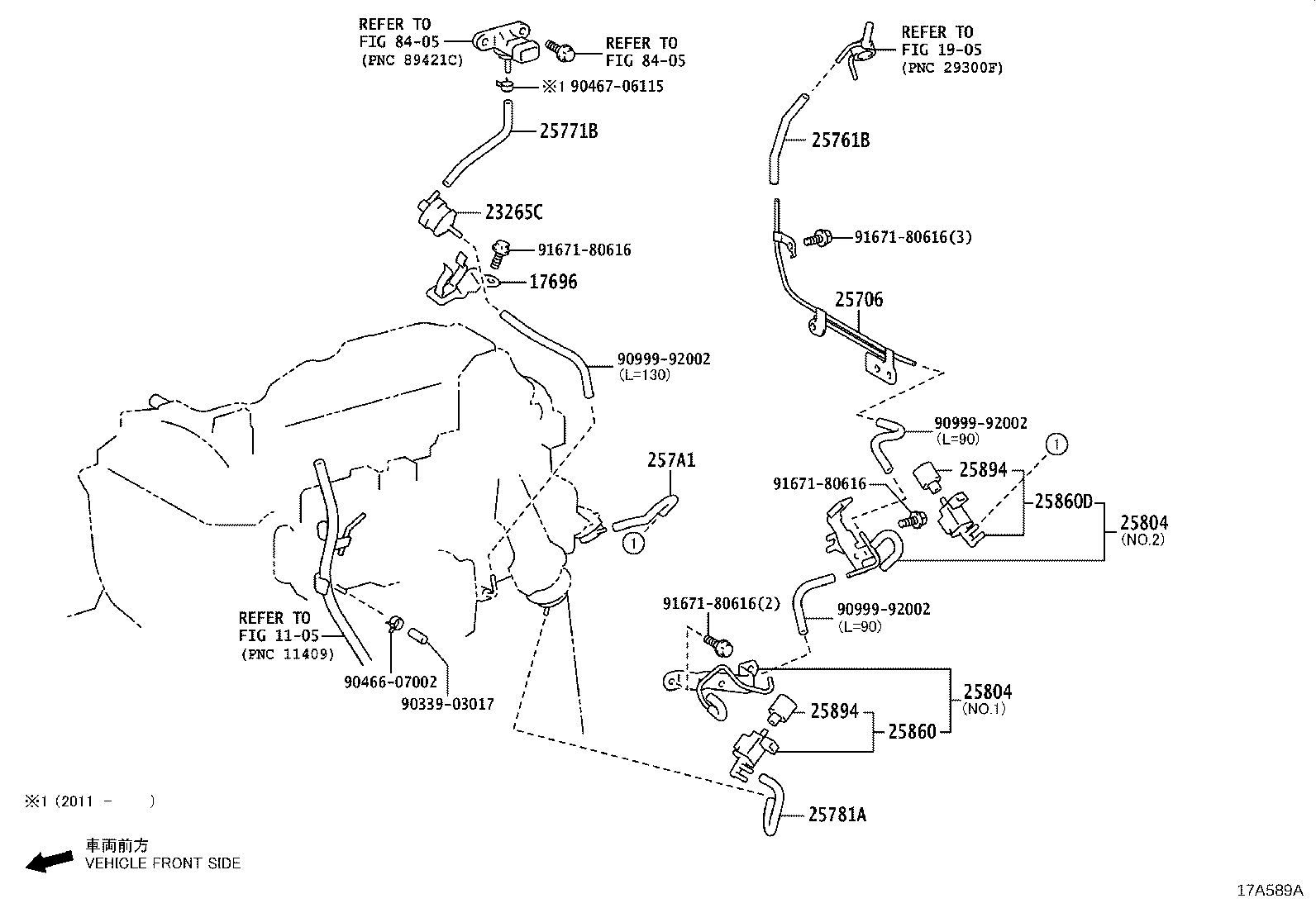

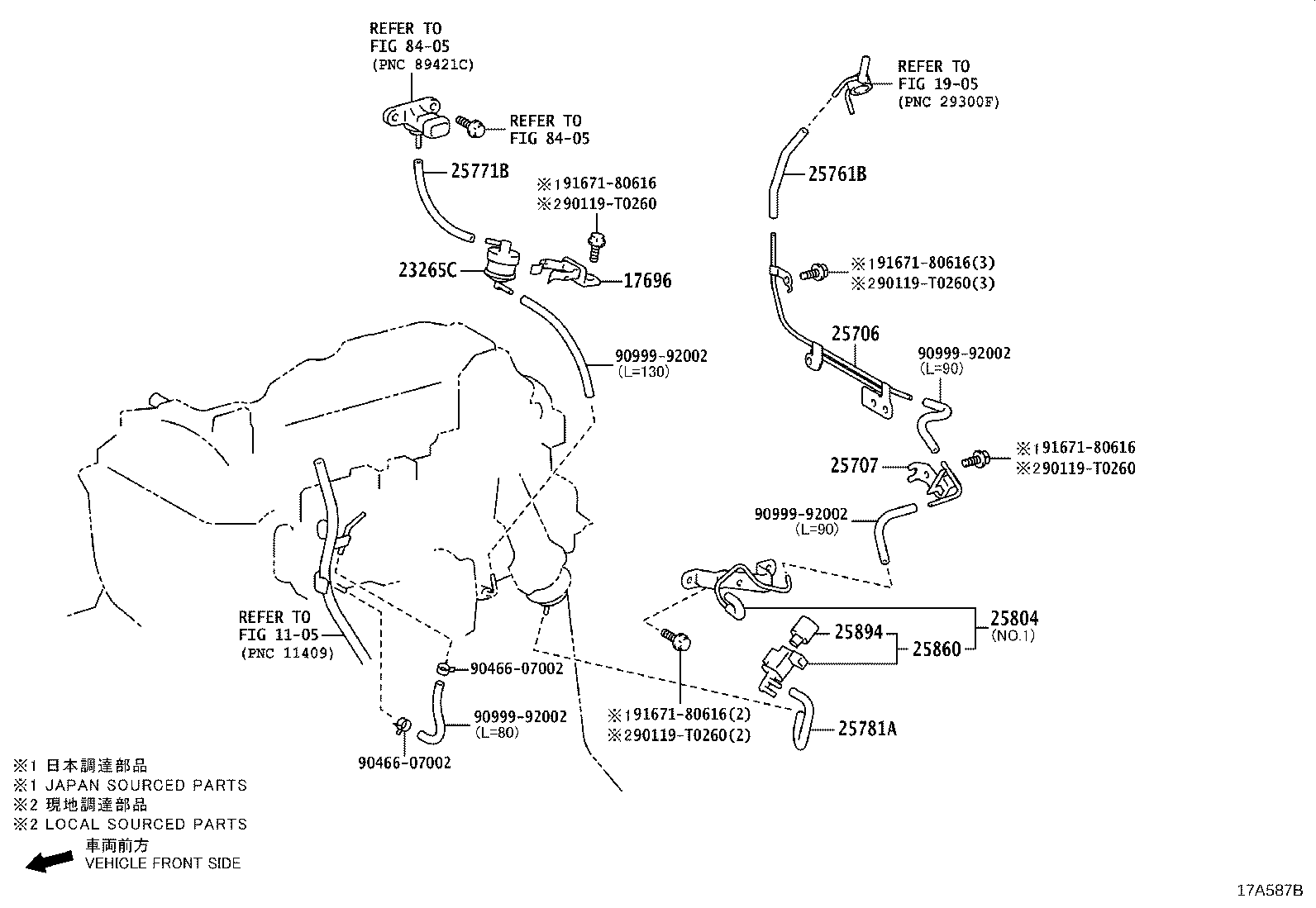

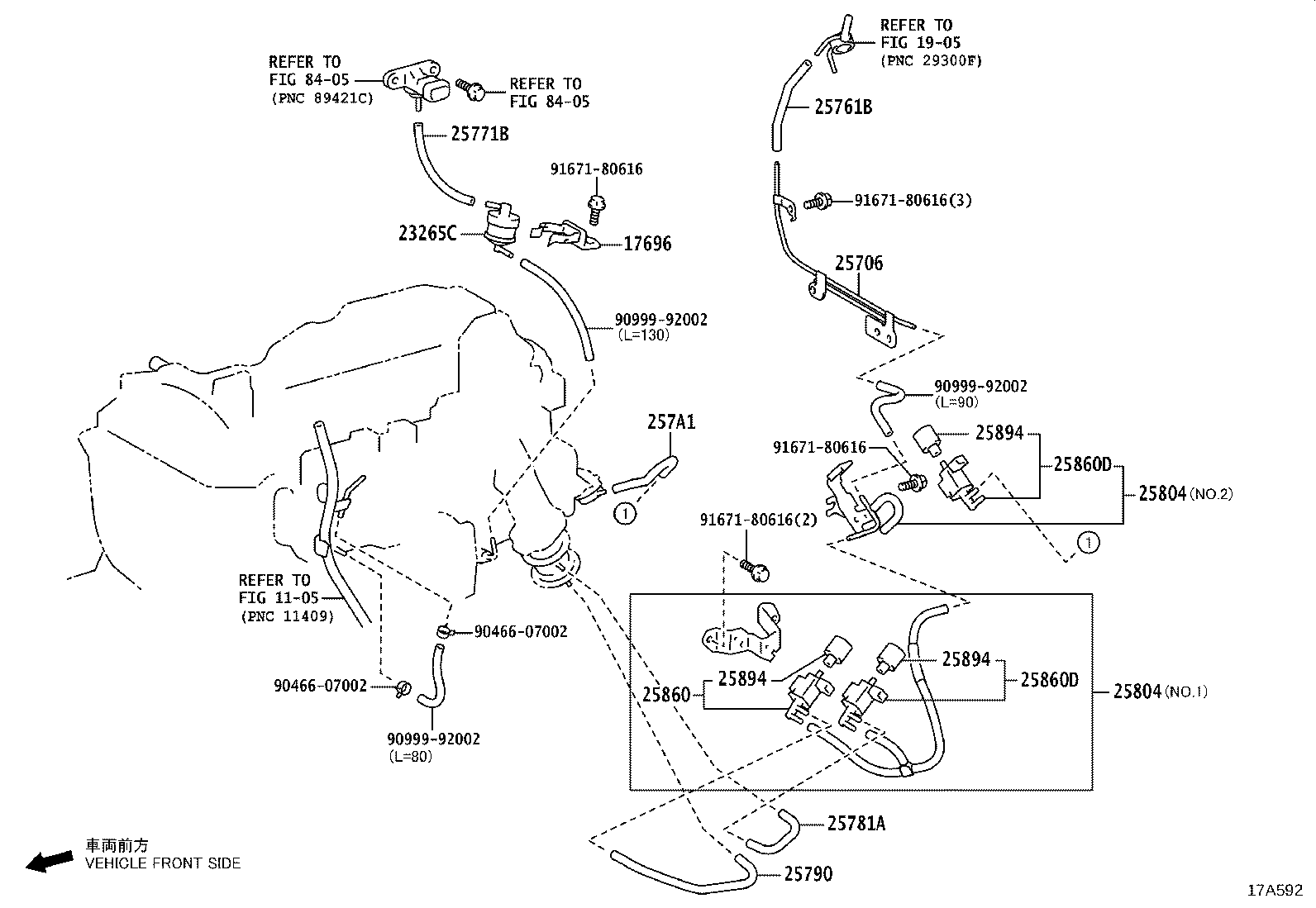

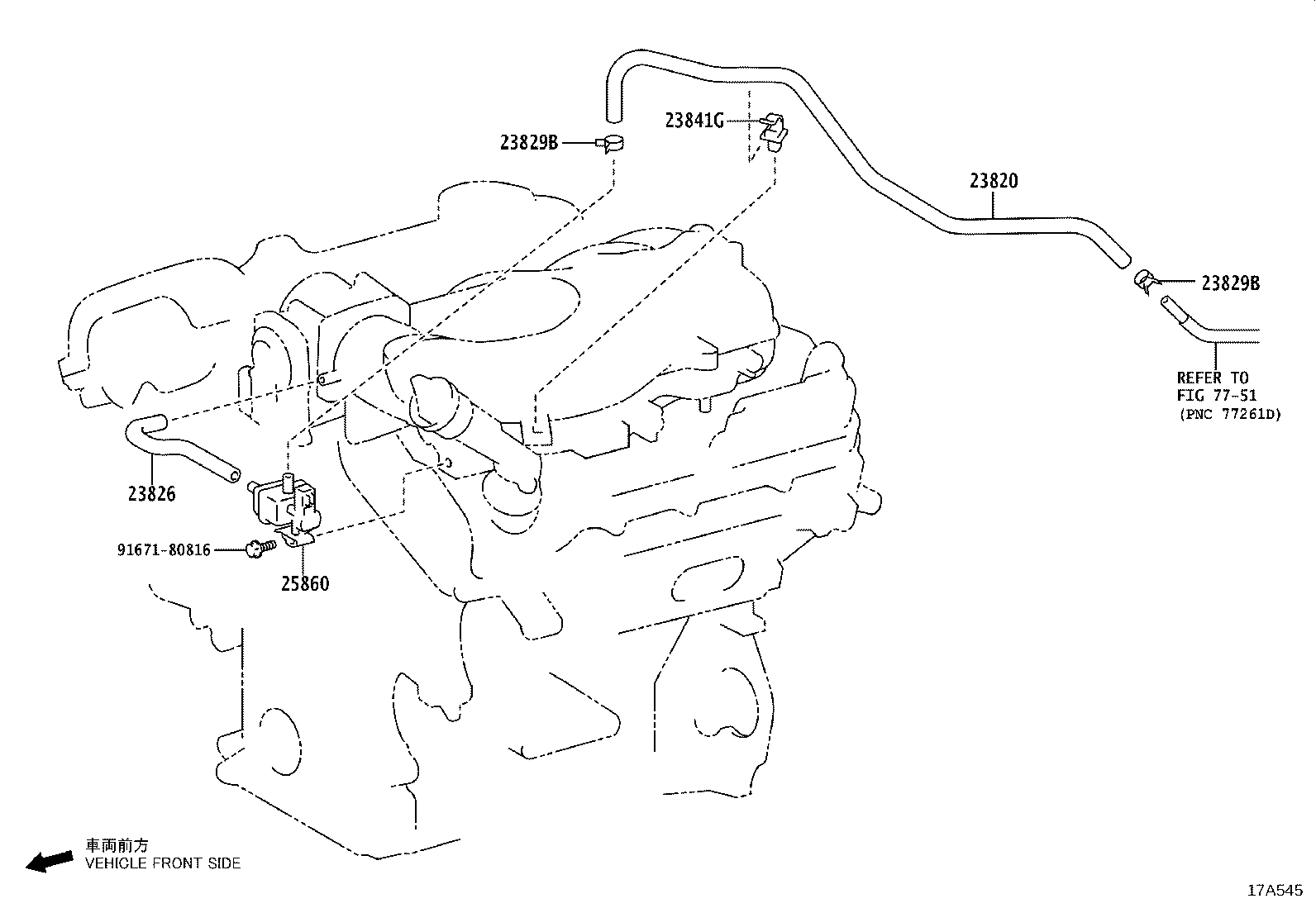

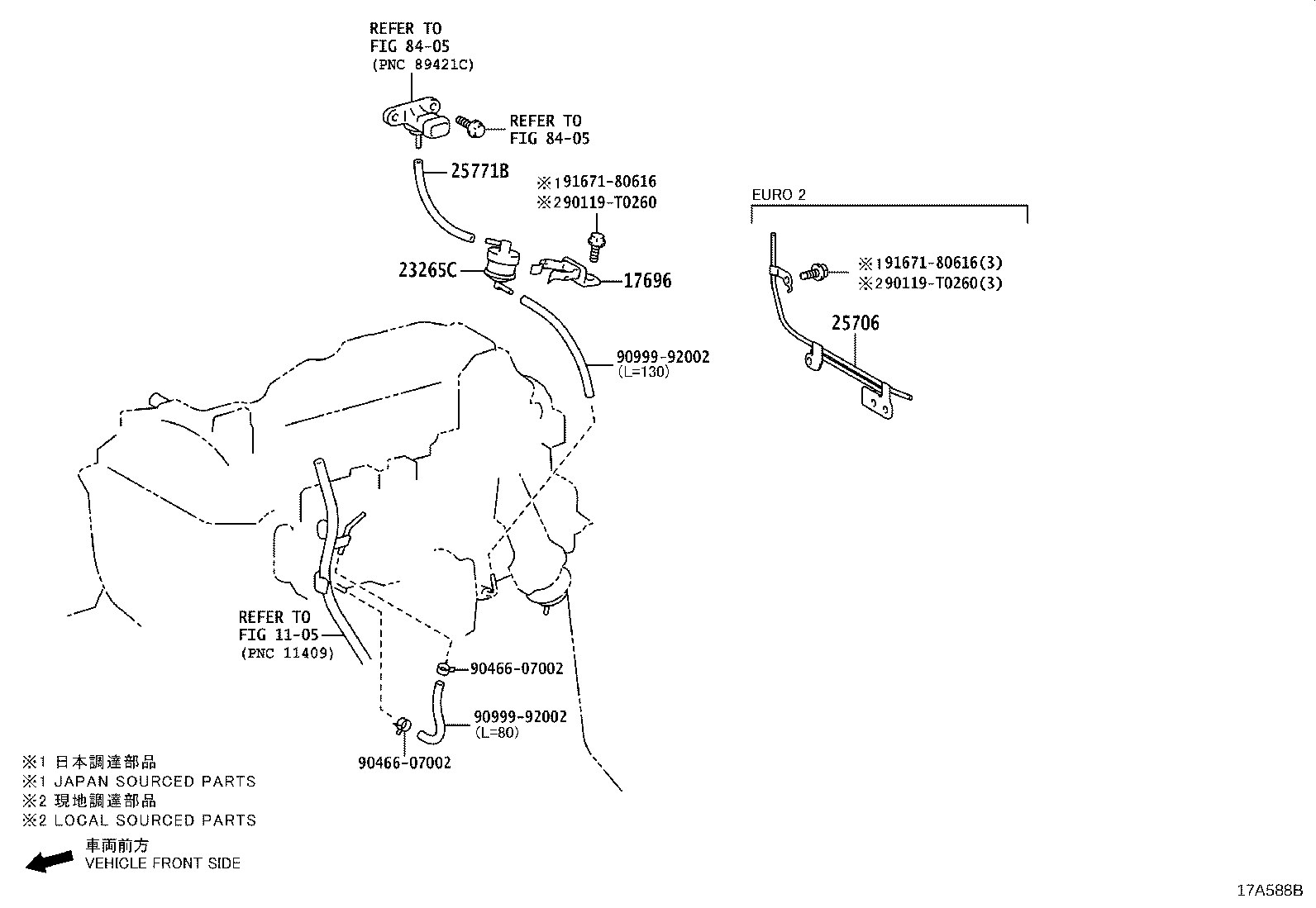

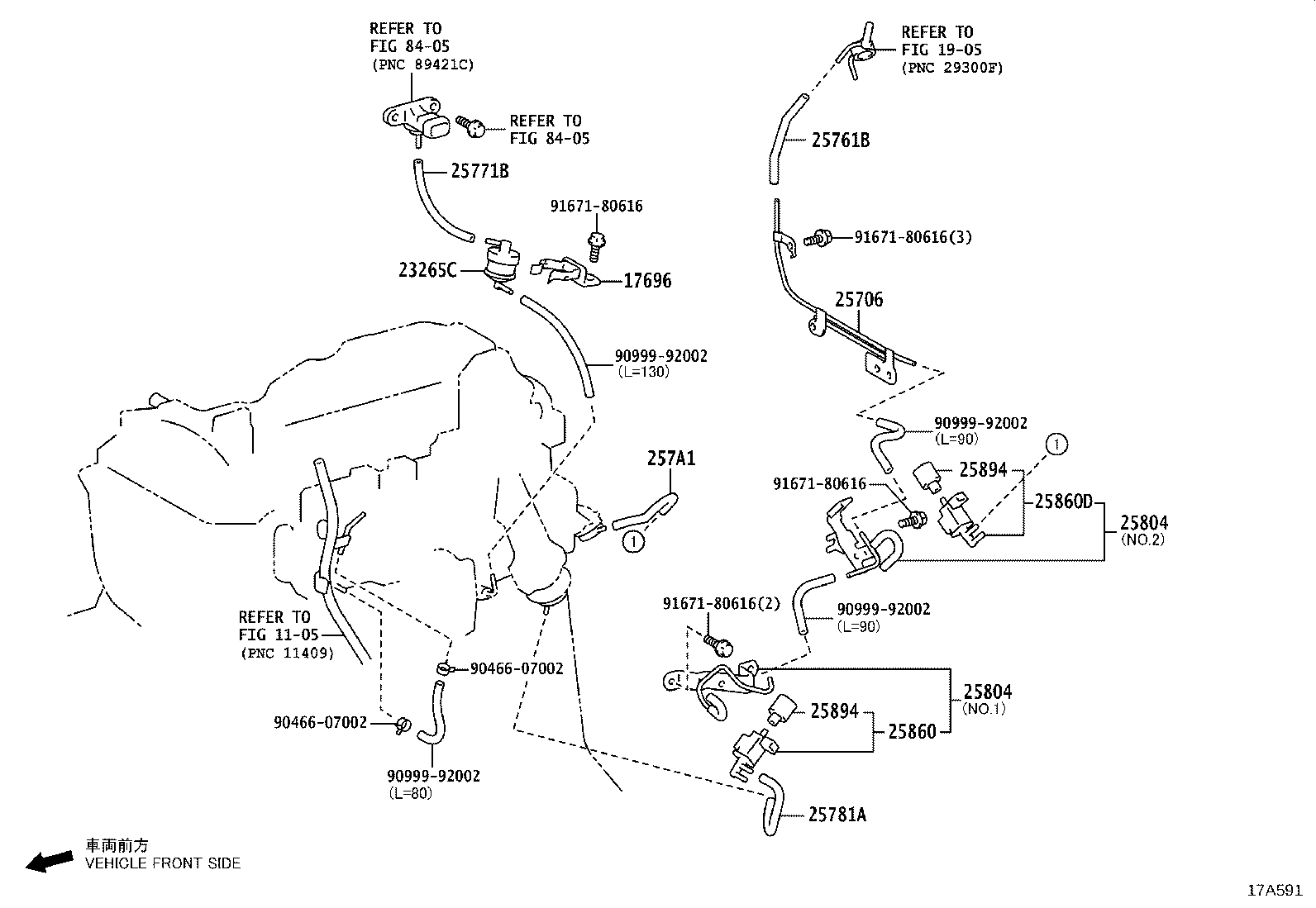

Figure 17A586F 17A586F 2019-02 → — Figure 17A587B 17A587B 2019-02 → — Figure 17A587B 17A587B 2019-02 → — Figure 17A587B 17A587B 2019-02 → — Figure 17A587B 17A587B 2019-02 → — Figure 17A588B 17A588B 2019-02 → — Figure 17A588B 17A588B 2019-02 → — Figure 17A588B 17A588B 2019-02 → — Figure 17A588B 17A588B 2019-02 → — Figure 17A588B 17A588B 2019-02 → — Figure 17A591 17A591 2019-02 → — Figure 17A591 17A591 2019-02 → — Figure 17A591 17A591 2019-02 → — Figure 17A591 17A591 2019-02 → — Figure 17A591 17A591 2019-02 → — Figure 17A591 17A591 2019-02 → — Figure 17A592 17A592 2019-02 → — Figure 17A592 17A592 2019-02 → — Figure 17A592 17A592 2019-02 → — Figure 17A592 17A592 2019-02 → — Figure 17A589A 17A589A 2019-12 → — Figure 17A589A 17A589A 2019-12 → — Figure 17A545 17A545 2019-02 → —

Part groups

PNCDescription
17302A Clip, Hose
17341P Hose, Air
17578B Clamp, Pipe
17696 Bracket, Gas Filter
23265C Filter, Gas
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23829B Clip(FOR FUEL VAPOR FEED HOSE)
23841G Clamp, Fuel Hose
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25733A Pipe, Vacuum, NO.1
25734 Pipe, Vacuum, NO.2
25761B Hose, Vaccum Transmitting, NO.1
25771B Hose, Vaccum Transmitting, NO.2
25781A Hose, Vacuum Transmitting, NO.3
25790 Hose Assy, Vacuum Transmitting, NO.4
257A1 Hose, Vacuum Transmitting, NO.5
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
25894 Filter, NO.1
89639E Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
