Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

12 part groups · 9 illustrations

Illustrations

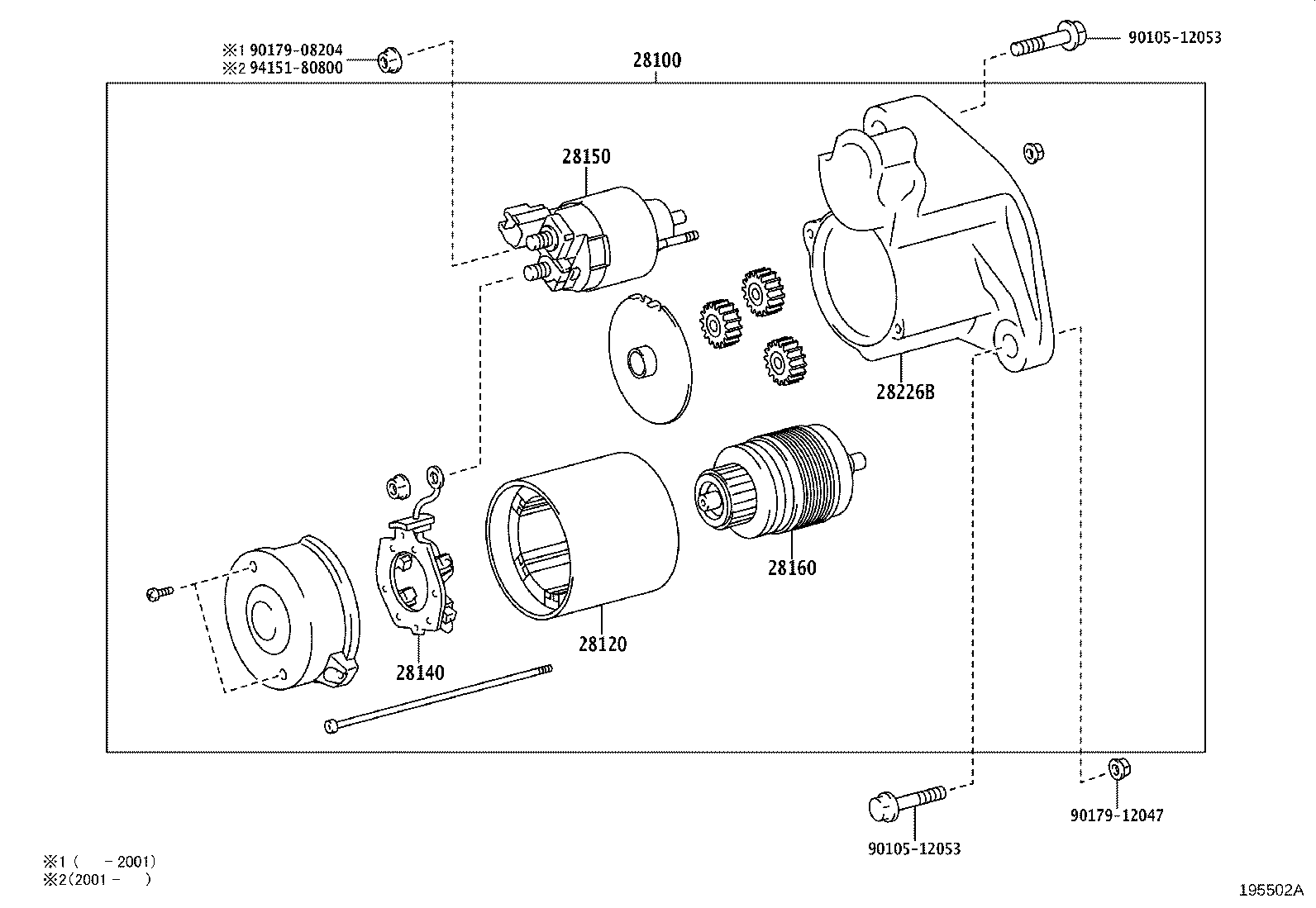

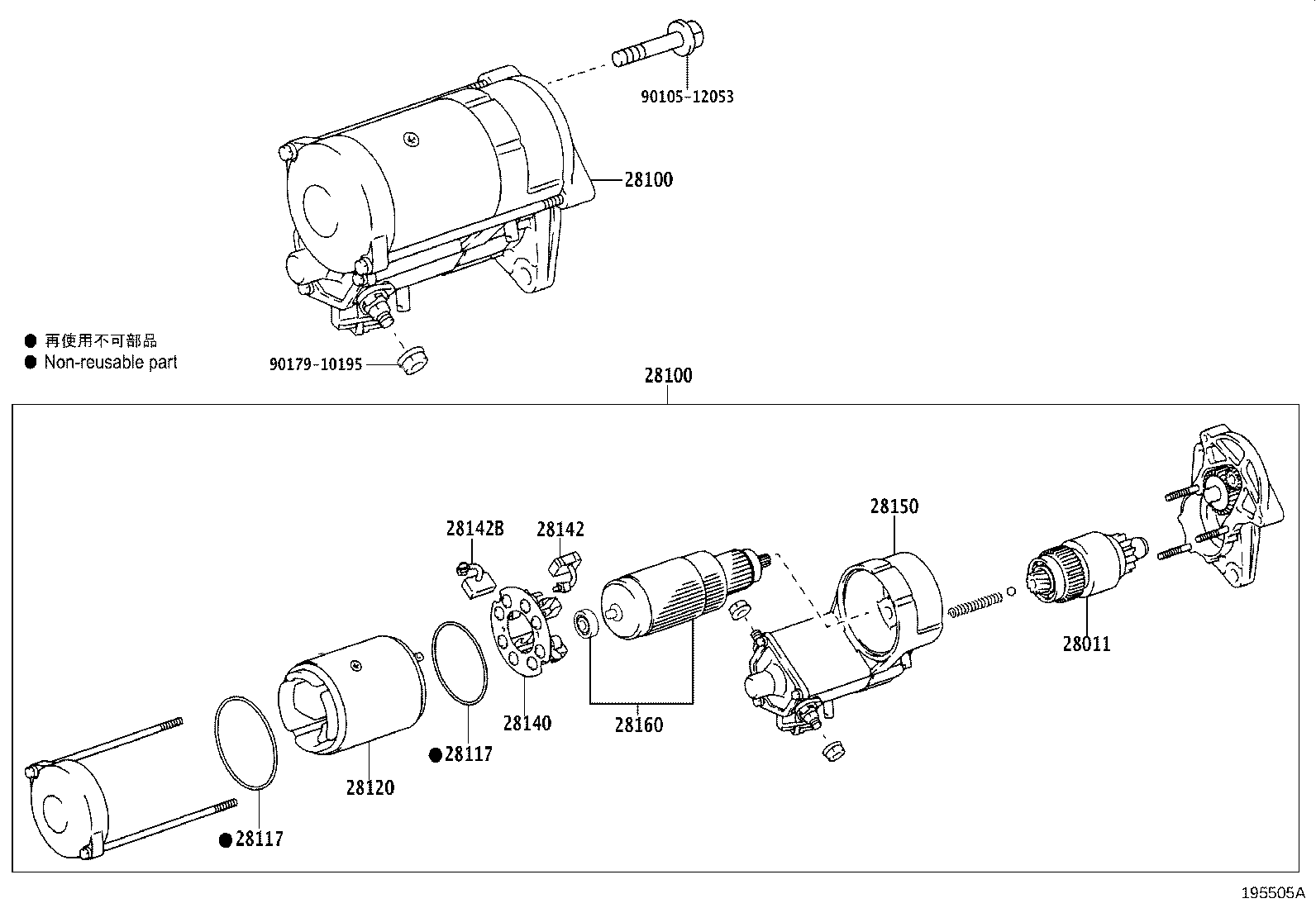

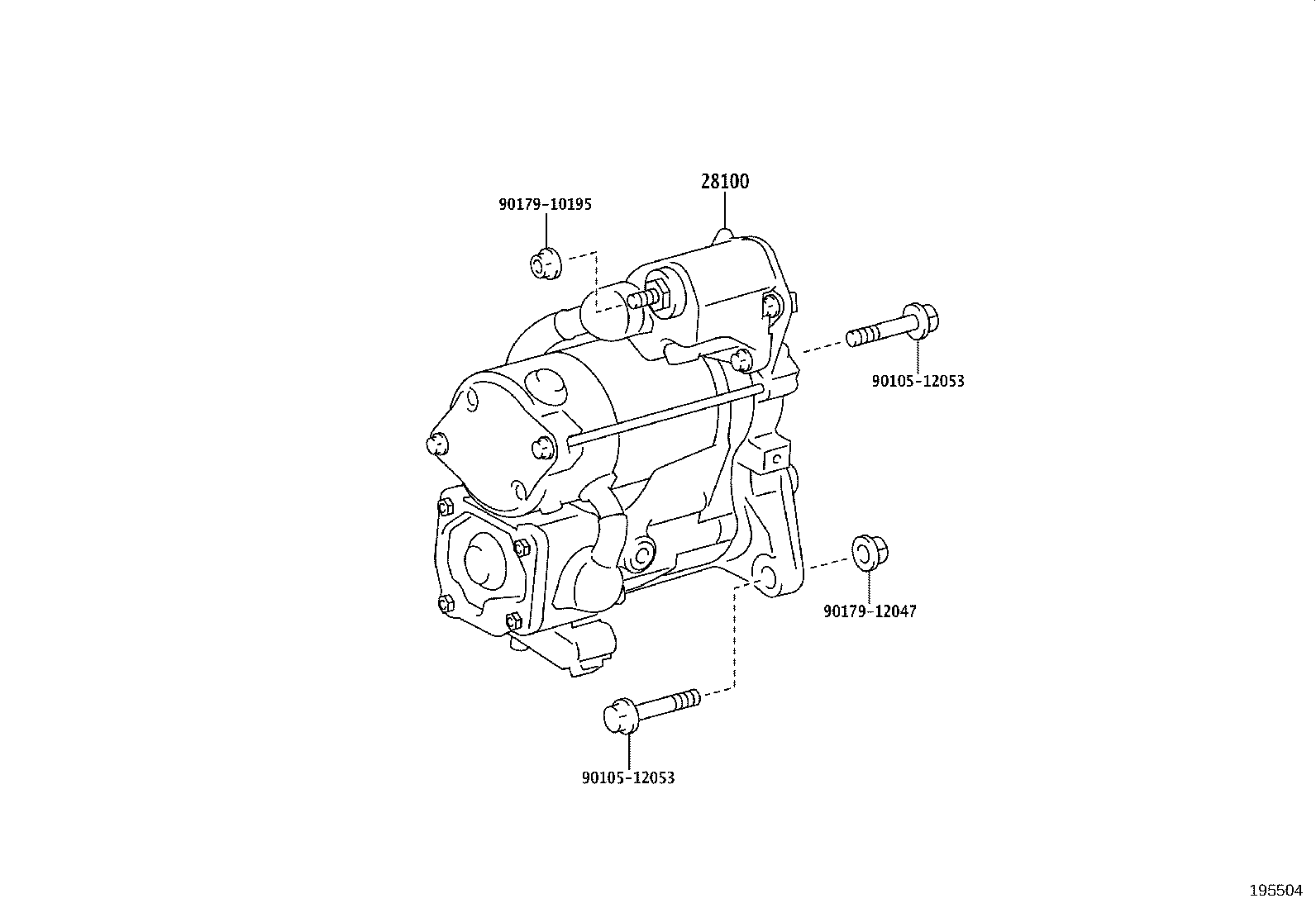

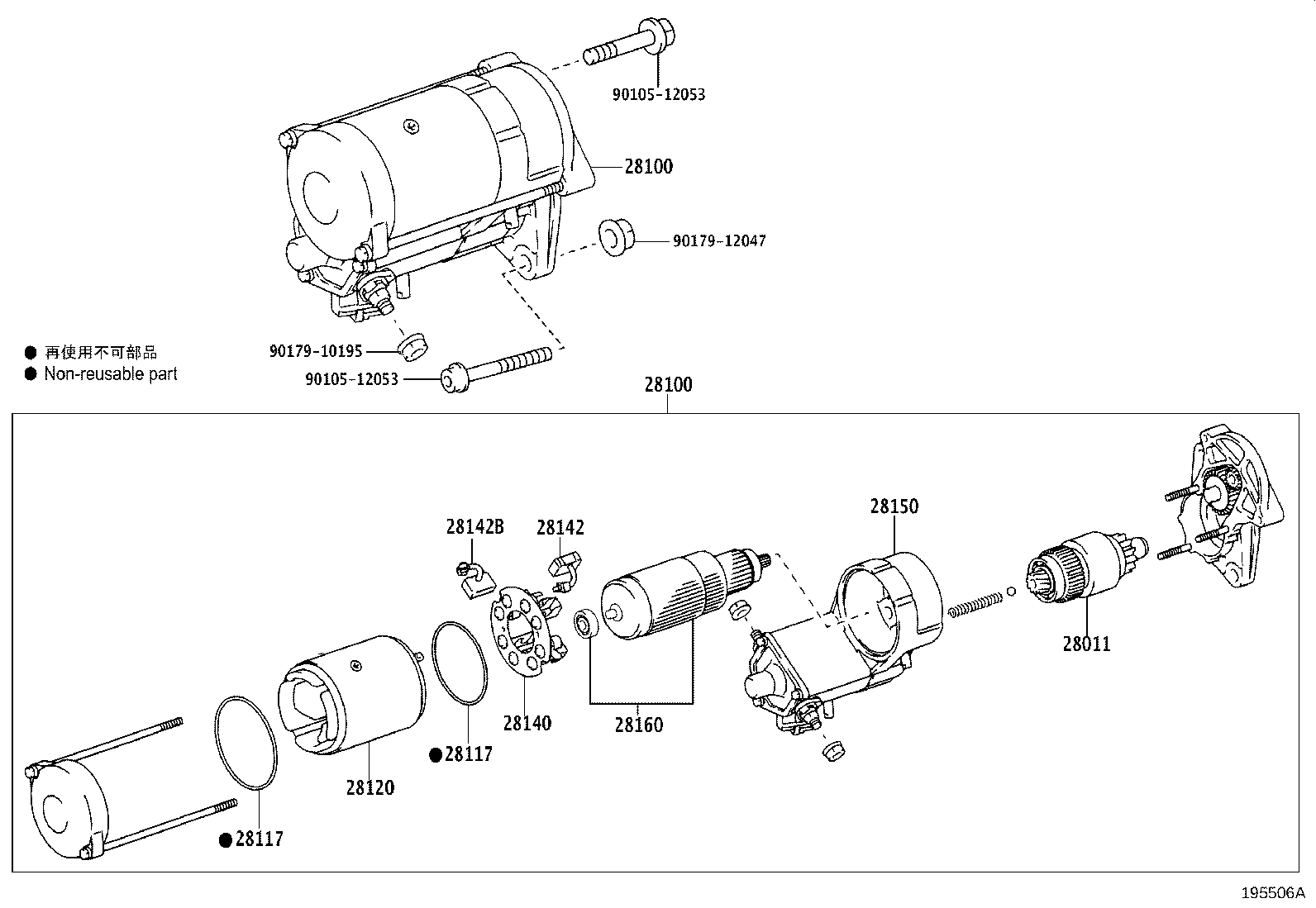

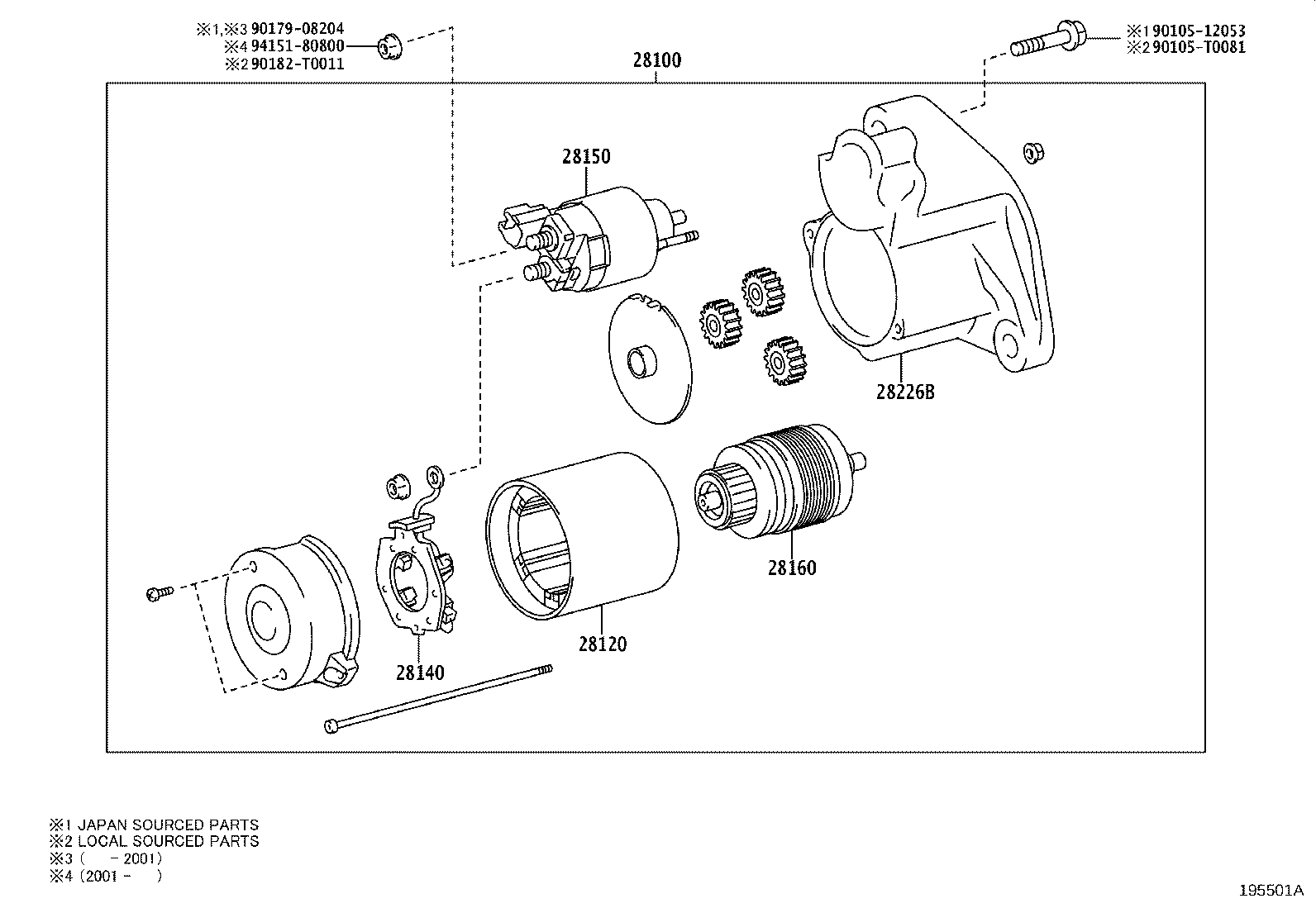

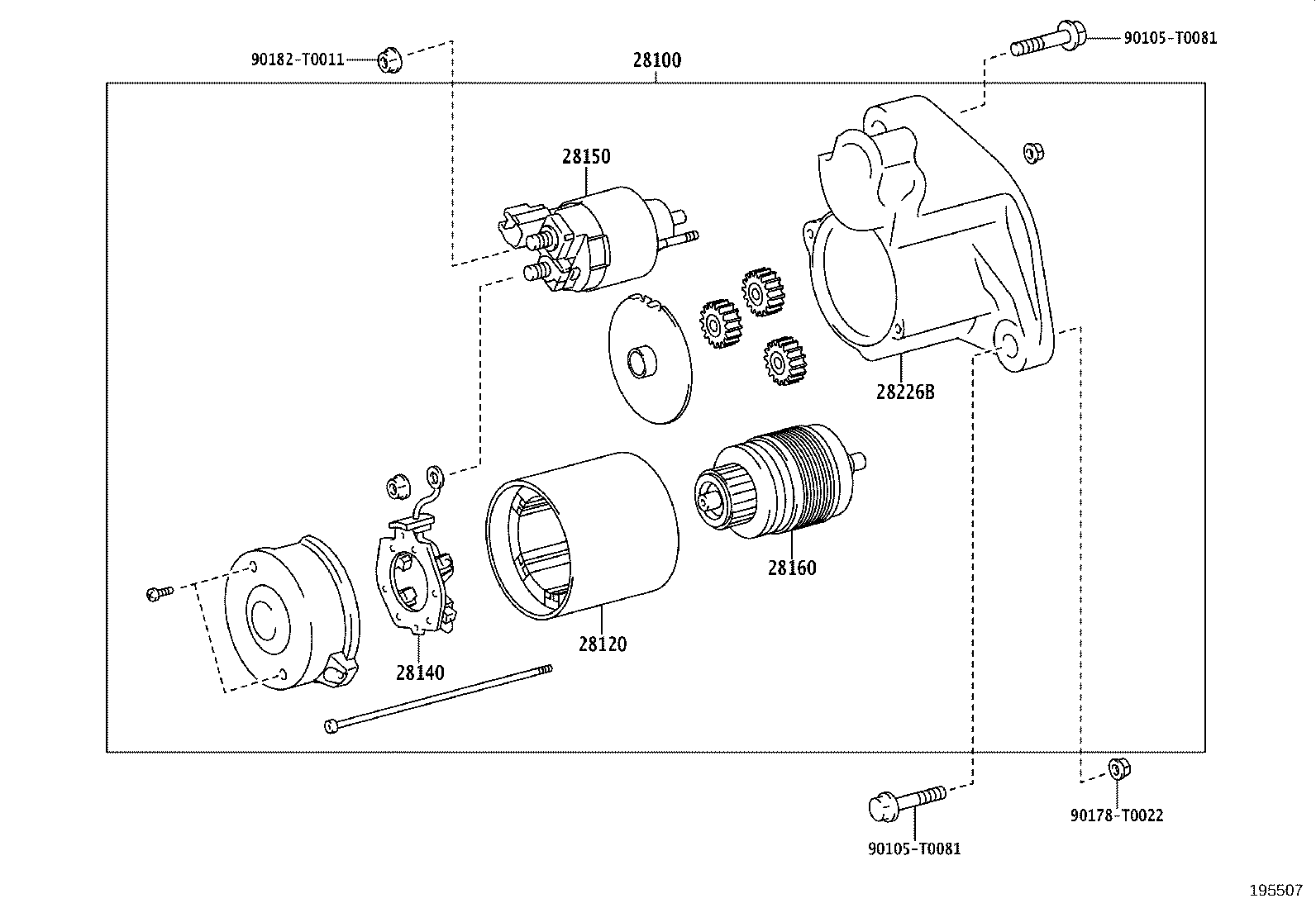

Figure 195500B 195500B 2019-02 → — Figure 195501A 195501A 2019-02 → — Figure 195501A 195501A 2019-02 → — Figure 195502A 195502A 2019-02 → — Figure 195507 195507 2019-06 → — Figure 195503 195503 2019-02 → — Figure 195504 195504 2019-02 → — Figure 195505A 195505A 2019-03 → — Figure 195506A 195506A 2019-07 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28117 Rubber(FOR STARTER YOKE)
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28142B Brush, Starter, NO.2
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28192 Cover, Starter
28226B Starter Kit, Repair Service
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
