Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

16 part groups · 4 illustrations

Illustrations

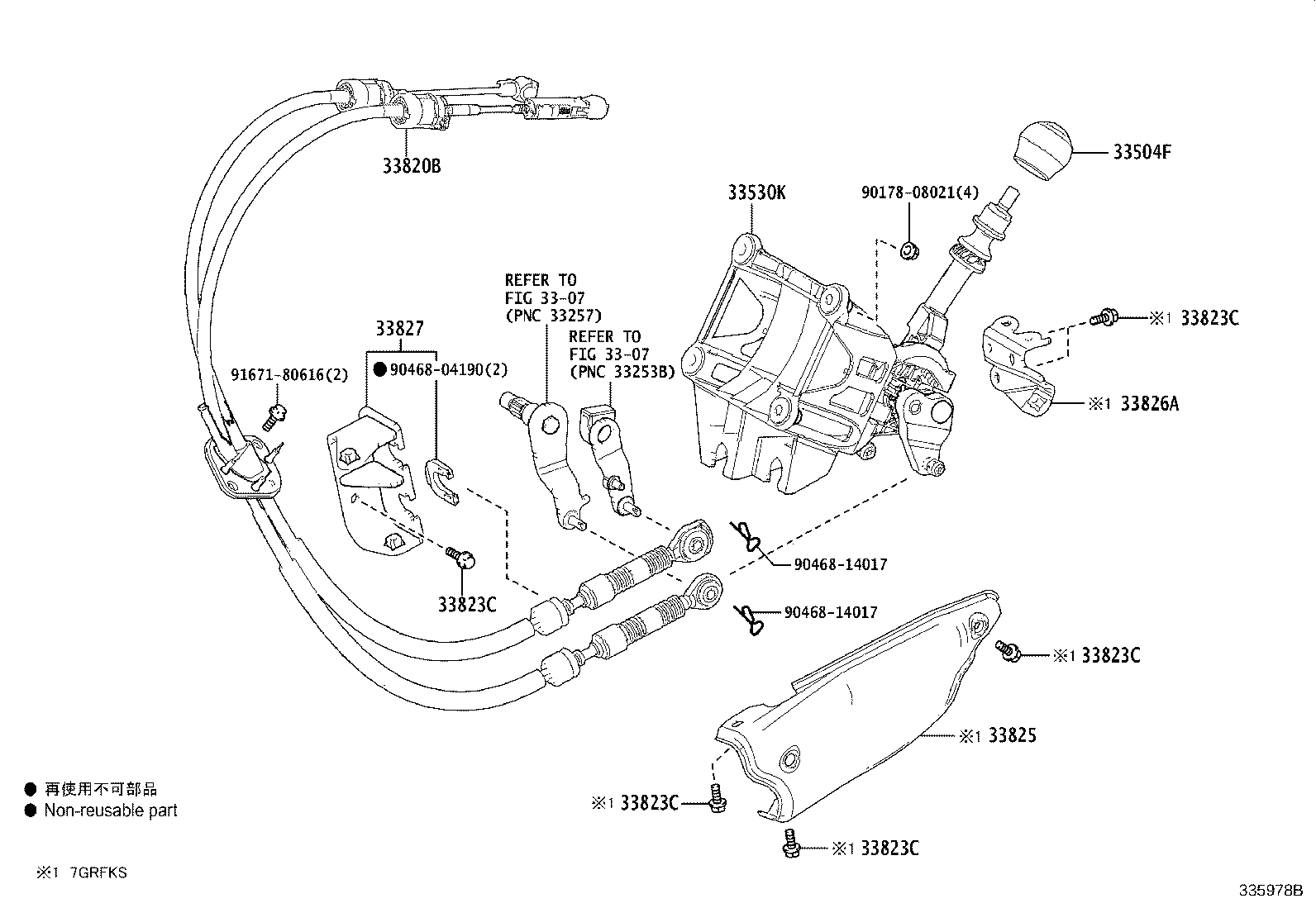

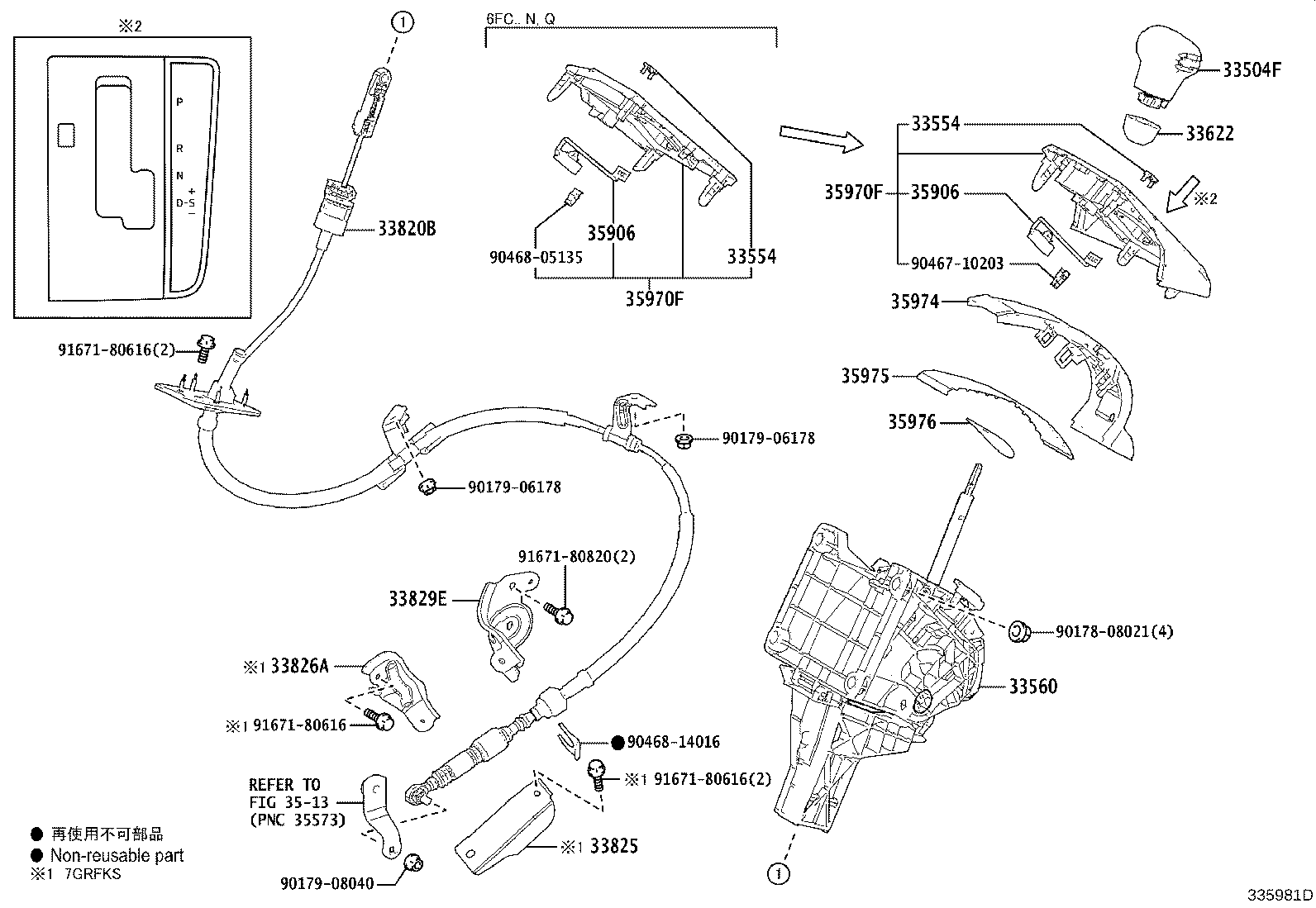

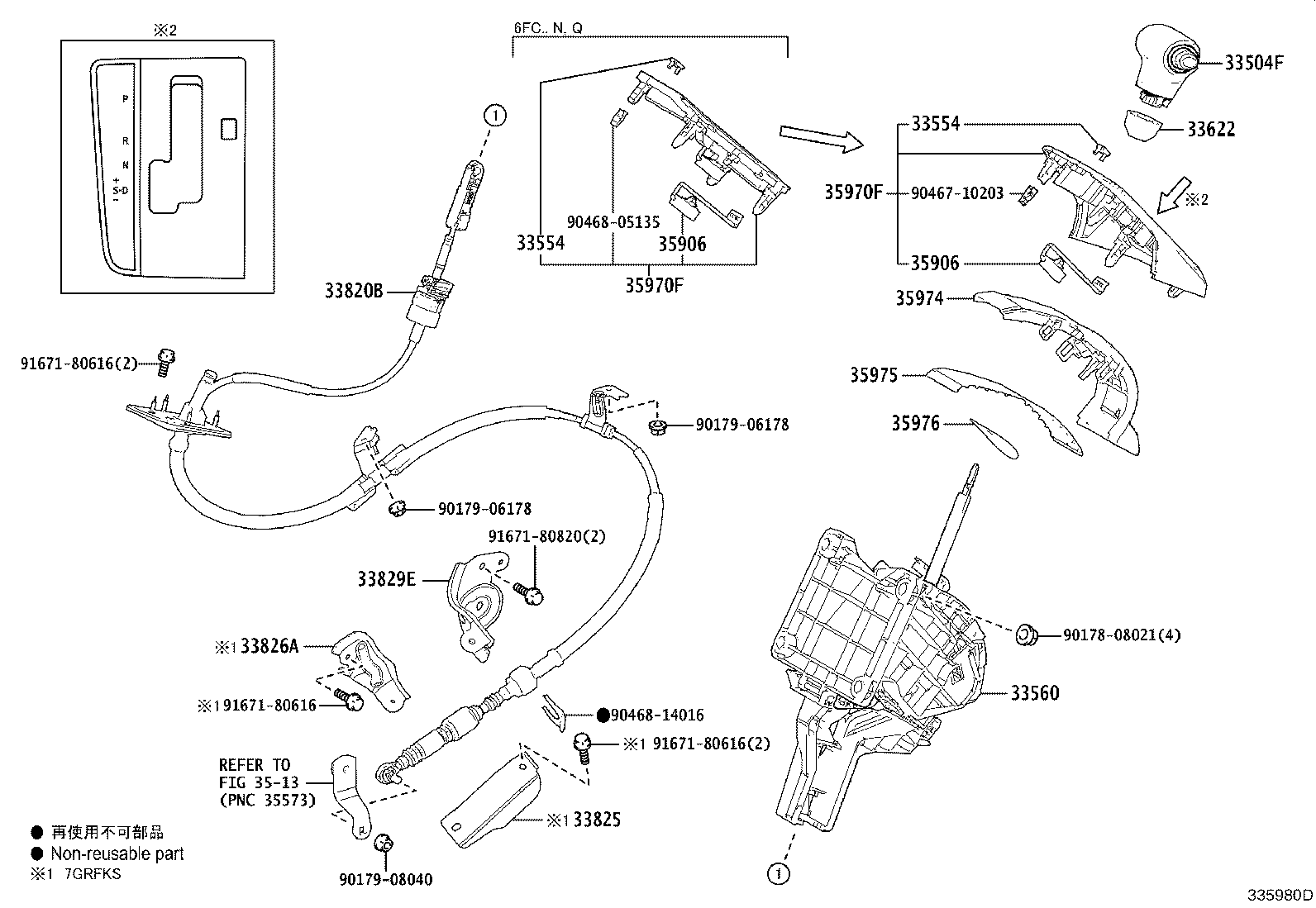

Figure 335979B 335979B 2019-02 → — Figure 335981D 335981D 2019-02 → — Figure 335978B 335978B 2019-02 → — Figure 335980D 335980D 2019-02 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33530K Lever Assy, Shift
33554 Cap, Shift Lever
33560 Unit Assy, Shift Lock Control
33622 Cover, Shift Lever Knob, NO.1
33820B Cable Assy, Transmission Control
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33825 Insulator, Transmission Control Cable
33826A Bracket, Transmission Control Cable, NO.2
33827 Bracket, Transmission Control Cable, NO.3
33829E Bracket, Transmission Control Cable
35906 Wire Sub-assy, Indicator Lamp
35970F Housing Assy, Position Indicator
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
