Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

16 part groups · 7 illustrations

Illustrations

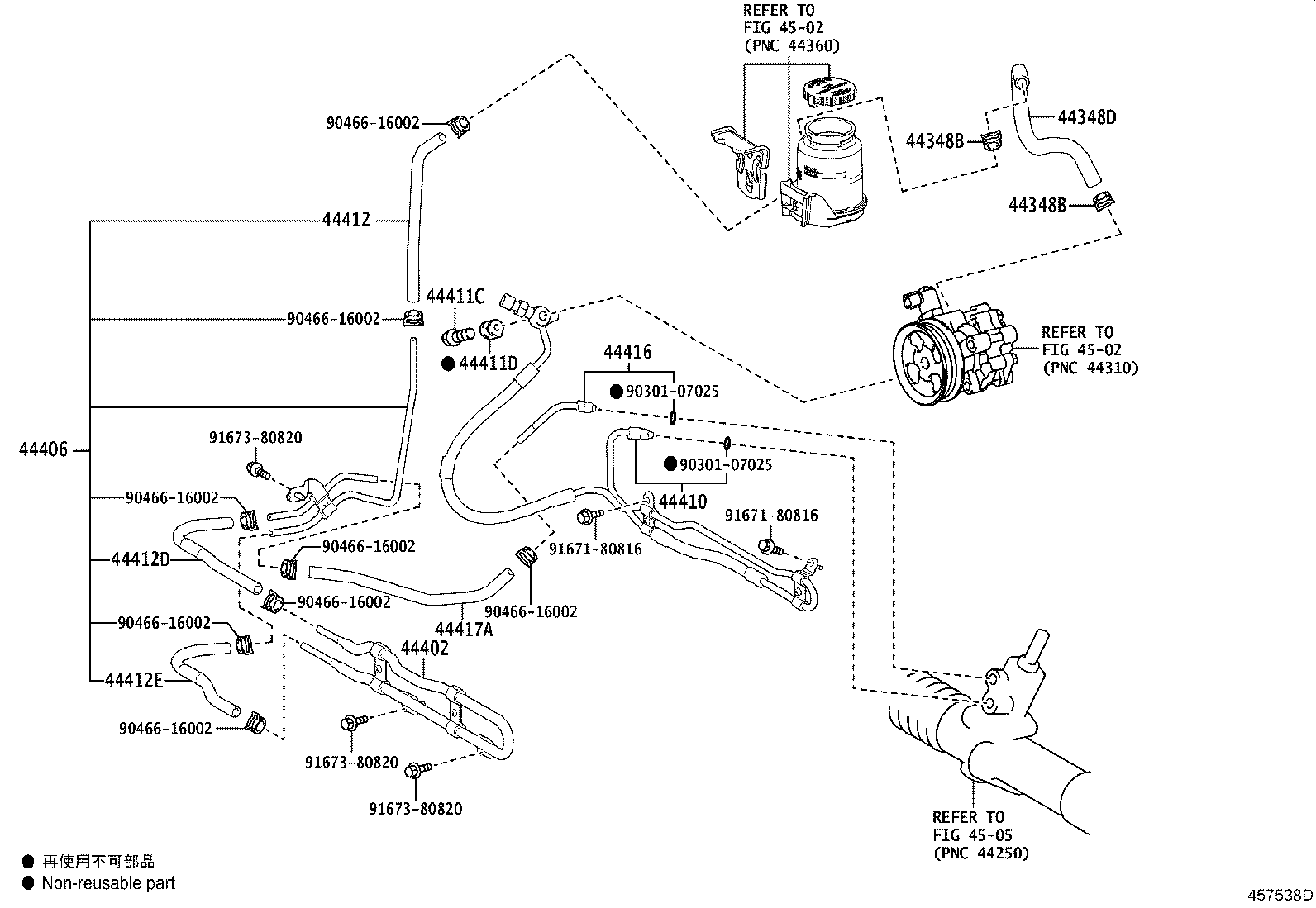

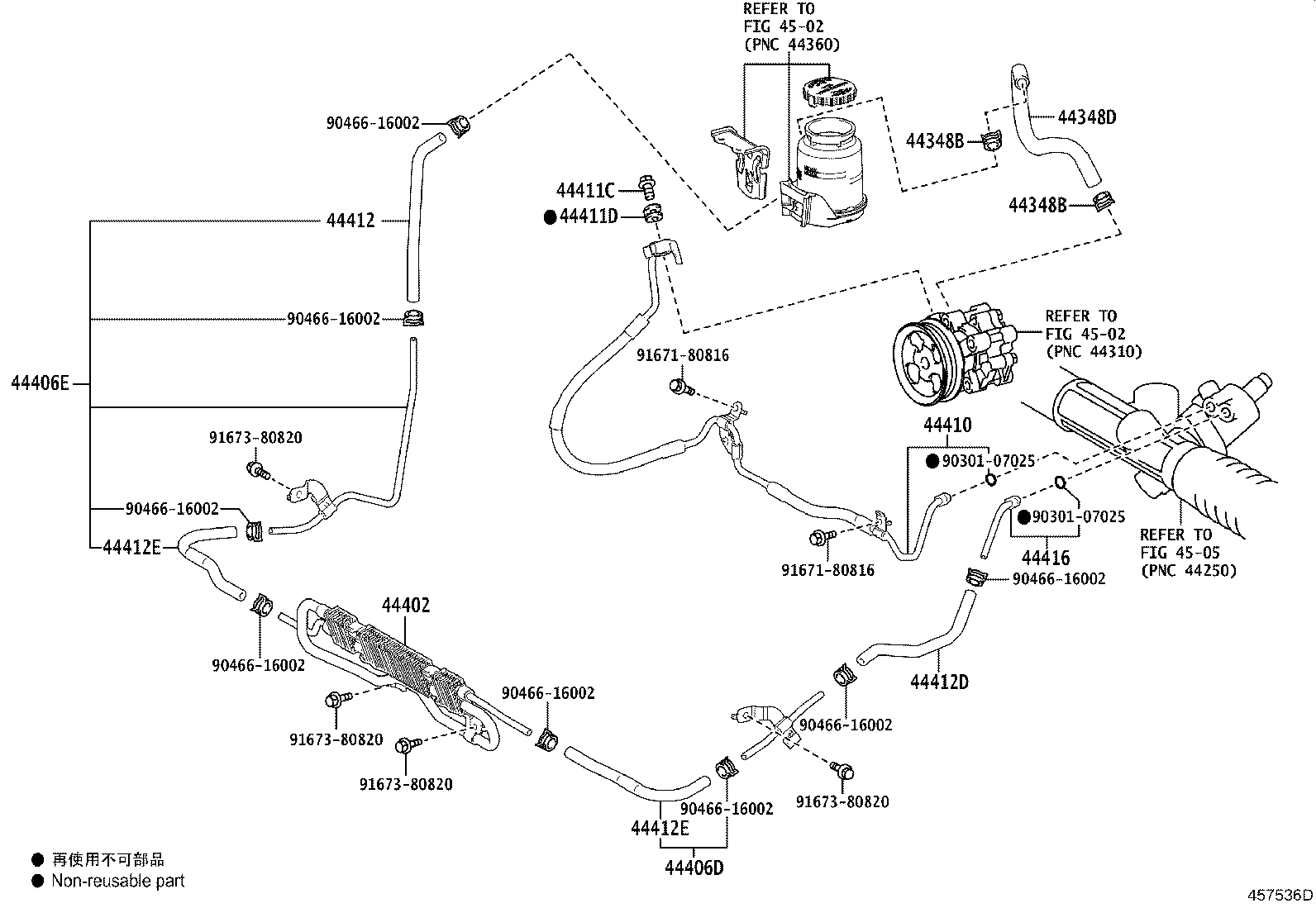

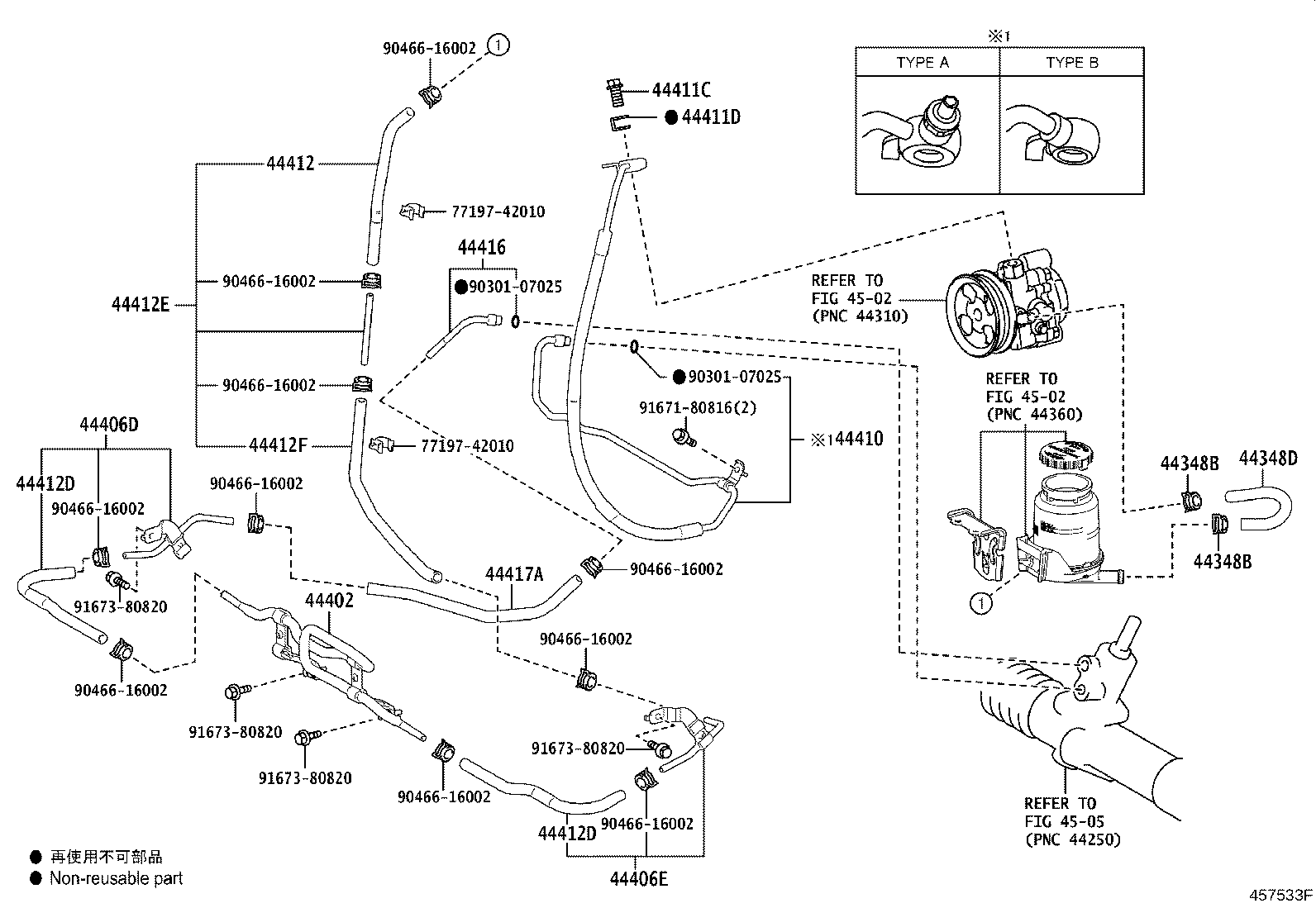

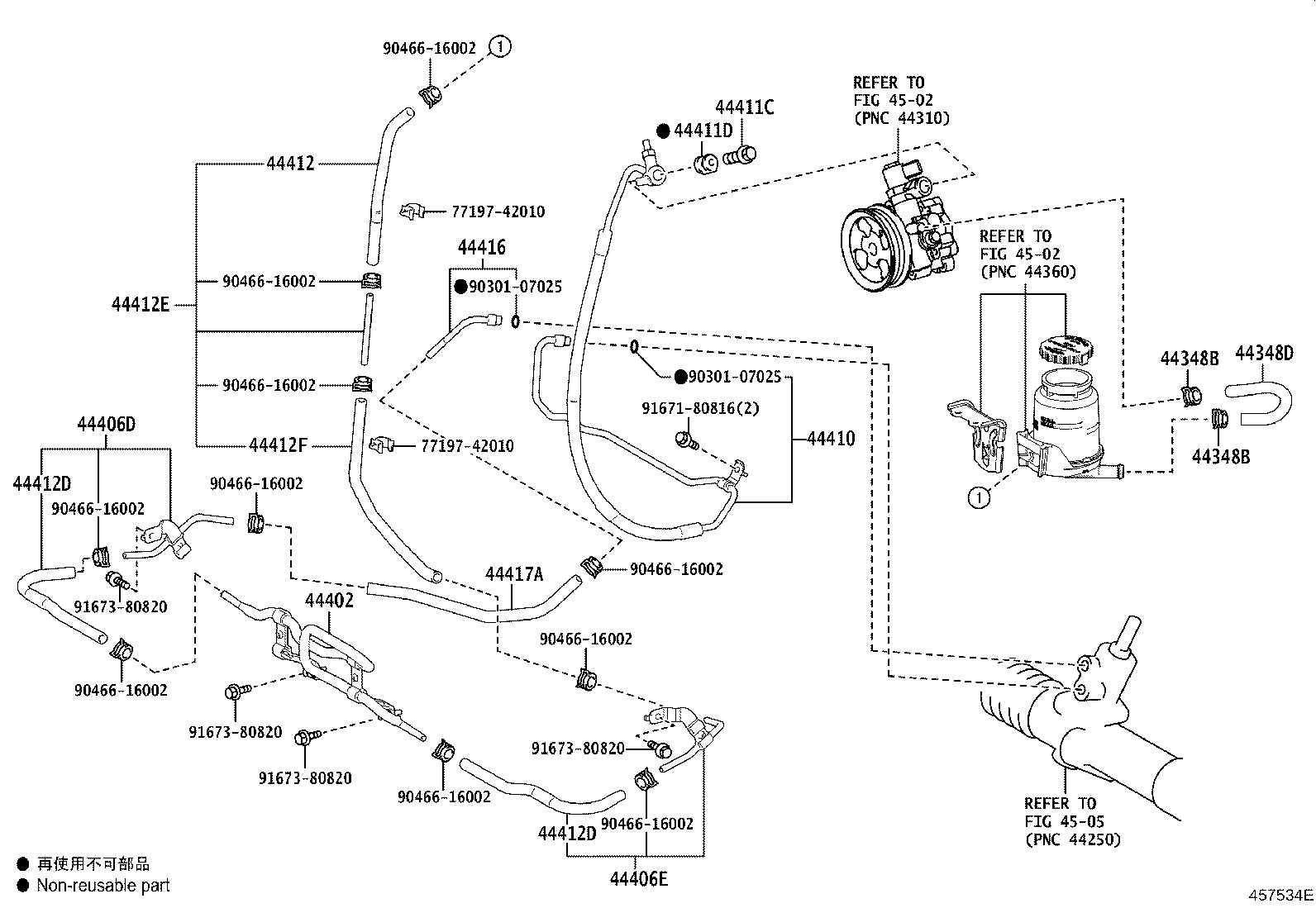

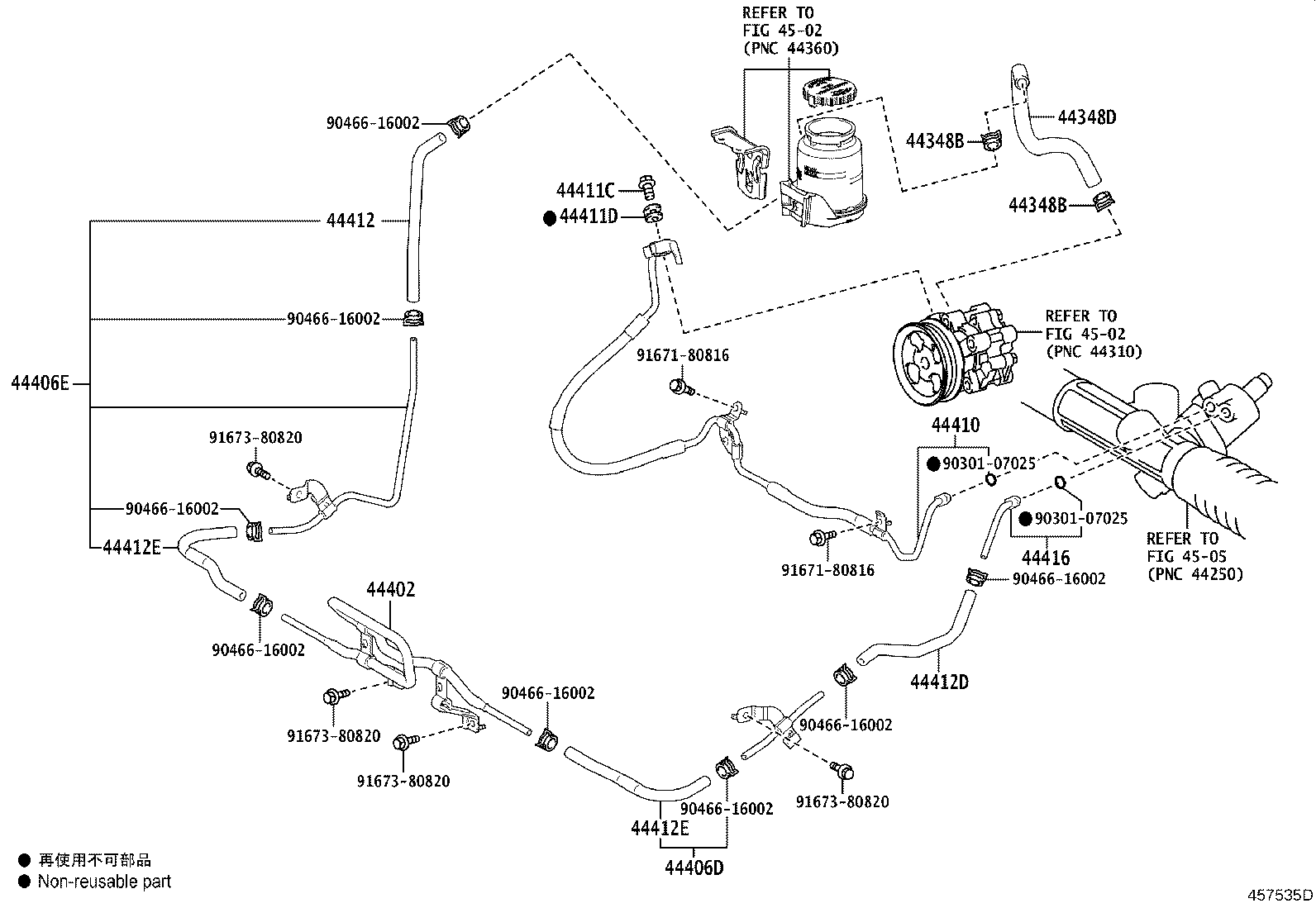

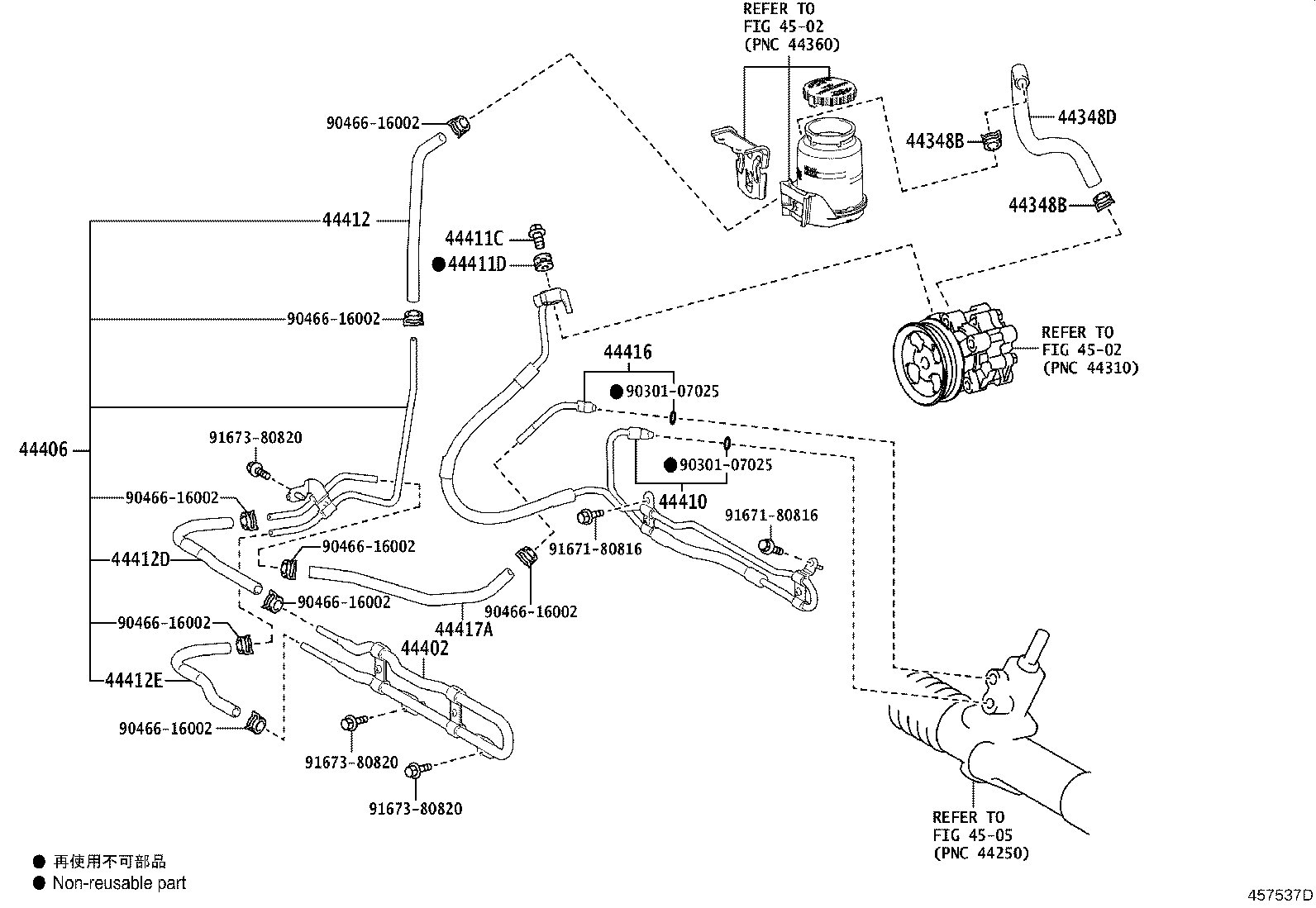

Figure 457532F 457532F 2019-02 → — Figure 457533F 457533F 2019-02 → — Figure 457534E 457534E 2019-02 → — Figure 457535D 457535D 2019-02 → — Figure 457536D 457536D 2019-02 → — Figure 457537D 457537D 2019-02 → — Figure 457538D 457538D 2019-02 → —

Part groups

PNCDescription
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44348D Hose, Oil Reservoir TO Pump, NO.2
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406 Tube Sub-assy, Return
44406D Tube Sub-assy, Return, NO.1
44406E Tube Sub-assy, Return, NO.2
44410 Tube Assy, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44412F Hose, Return, NO.3
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44417A Hose, Return Tube (FOR RETURN TUBE TO RETURN TUBE NO.2)
44428 Hose, Return, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
