Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States
Supported model
Data version 2024-09

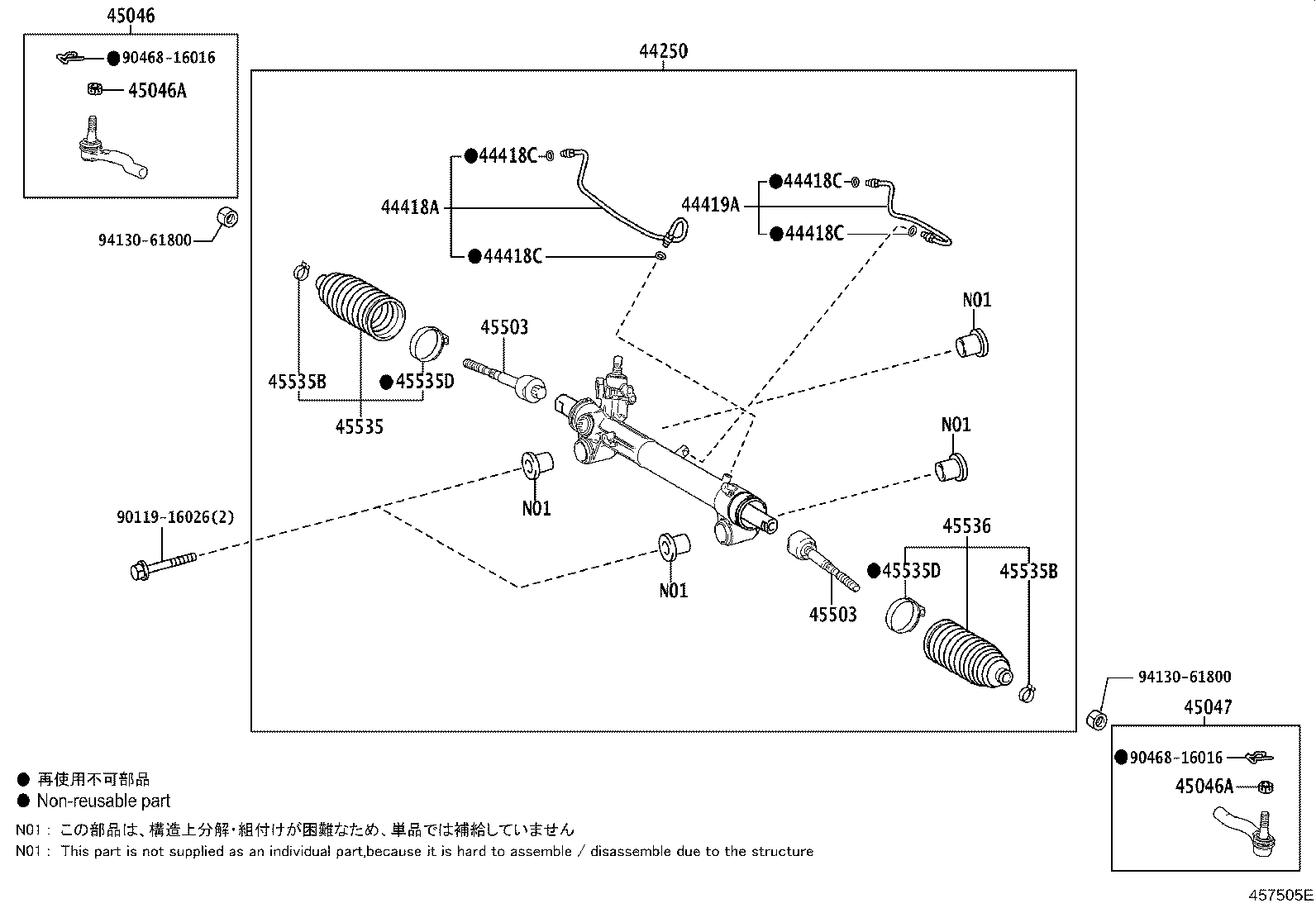

Front Steering Gear & Link
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44250 | Gear Assy, Power Steering(FOR RACK & PINION) |
| 44418A | Tube, Steering Right Turn Pressure |
| 44418C | Ring, O(FOR STEERING TURN PRESSURE TUBE) |
| 44419A | Tube, Steering Left Turn Pressure |
| 45046 | End Sub-assy, Tie Rod, RH |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45503 | End Sub-assy, Steering Rack |
| 45535 | Boot, Steering Rack, NO.1 |
| 45535B | Clip(FOR STEERING RACK BOOT) |
| 45535D | Clamp(FOR STEERING RACK BOOT NO.1) |
| 45536 | Boot, Steering Rack, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
