Parking Brake & Cable
40 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 46201E | Lever Sub-assy, Parking Brake |
| 46301 | Lever Sub-assy, Parking Brake Intermediate |
| 46301B | Bush(FOR INTERMEDIATE LEVER) |
| 46321A | Spring, Tensiion(FOR PARKING BRAKE INTERMEDIATE LEVER) |
| 46333 | Pipe, Intermediate Lever |
| 46356A | Bracket, Intermediate Lever(FOR PARKING BRAKE) |
| 46359A | Bracket, Parking Brake Intermediate Lever Support |

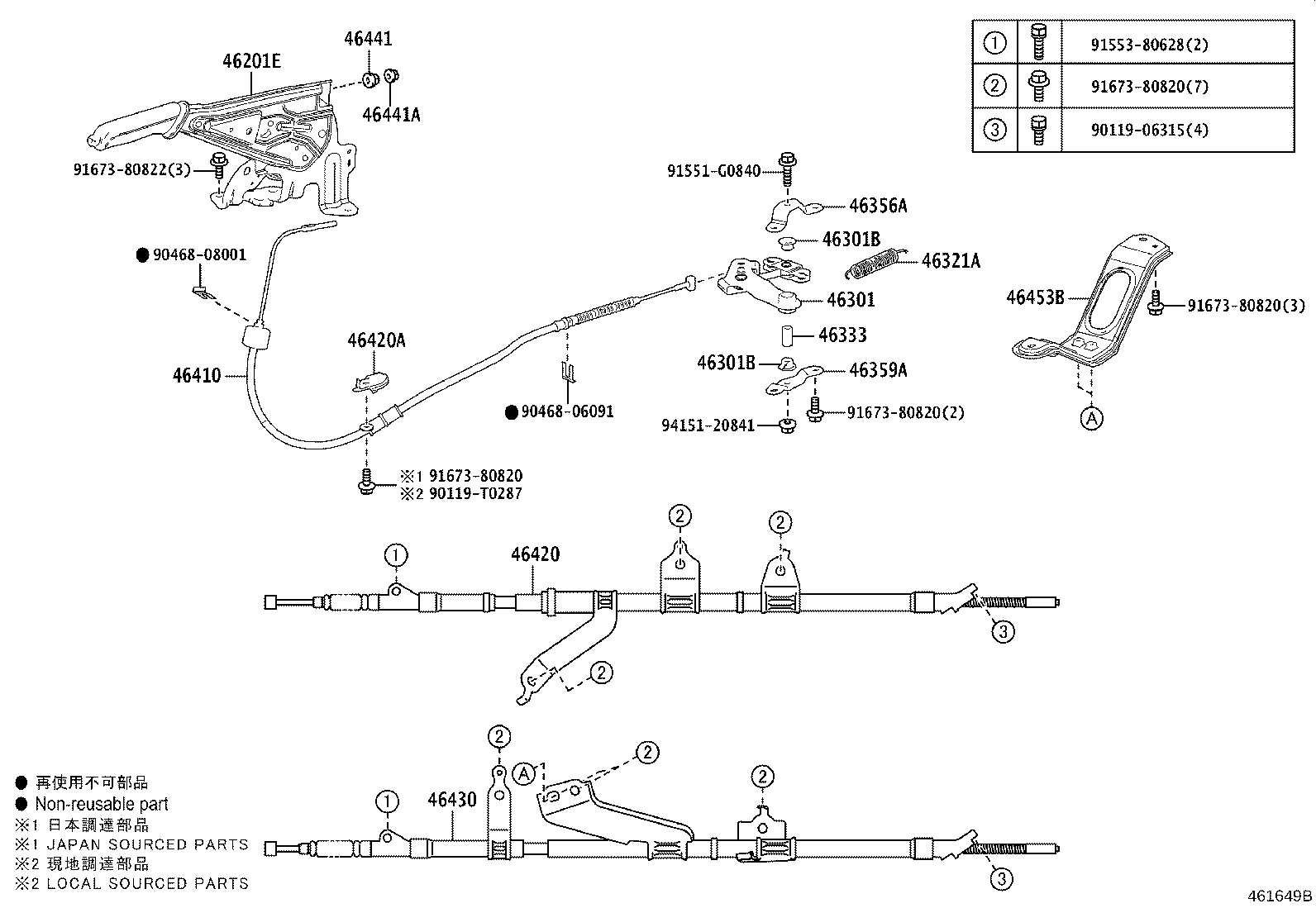

| 46410 | Cable Assy, Parking Brake, NO.1 |

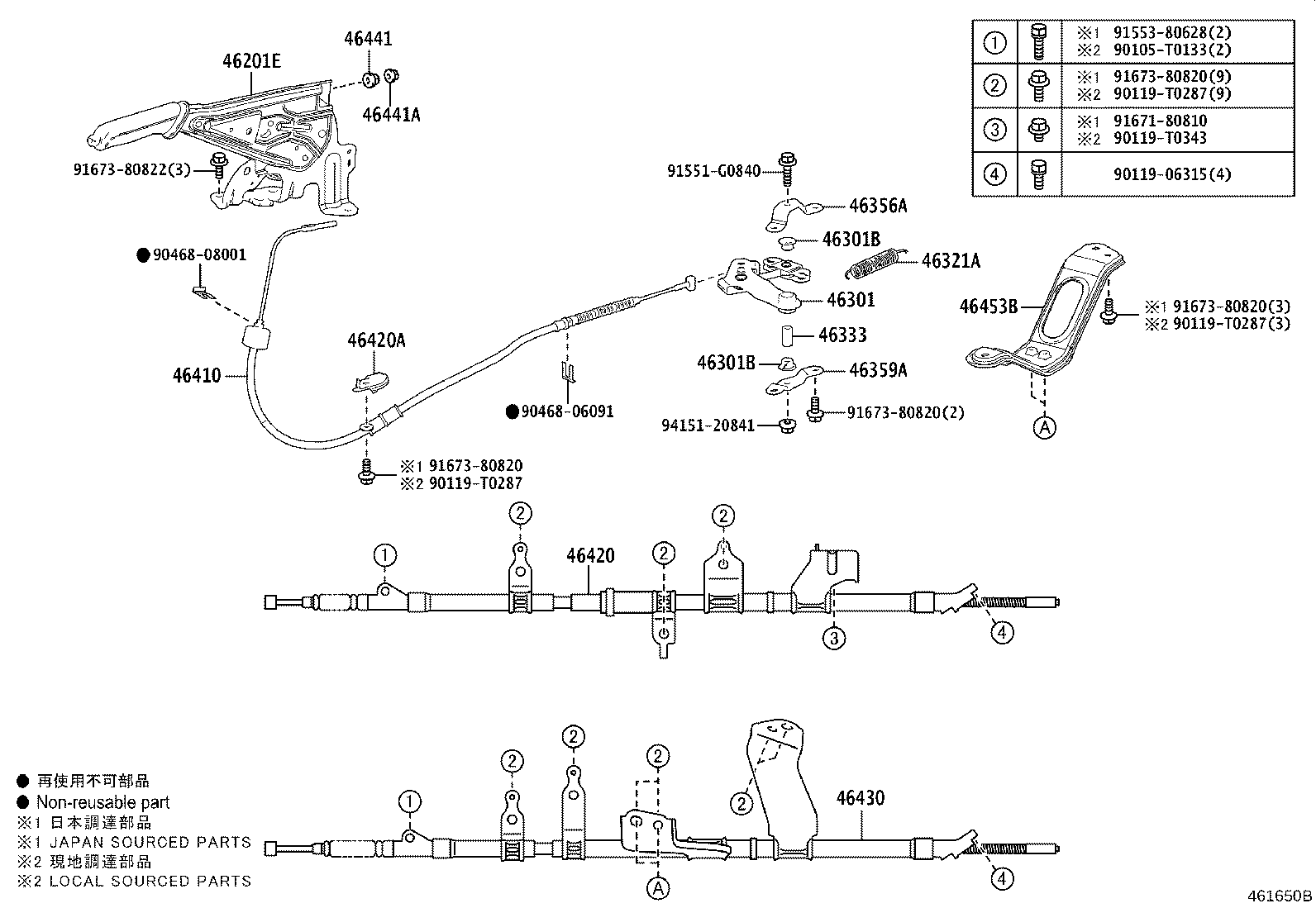

| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420A | Clamp, NO.1(FOR PARKING BRAKE CABLE) |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46441 | Nut, Wire Adjusting, NO.1 |
| 46441A | Nut, Wire Adjusting, NO.2 |
| 46453B | Bracket, Cable Support, NO.3 |
| 46503 | Plate Sub-assy, Parking Brake, RH |
| 46503A | Bolt(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING) |
| 46504 | Plate Sub-assy, Parking Brake, LH |

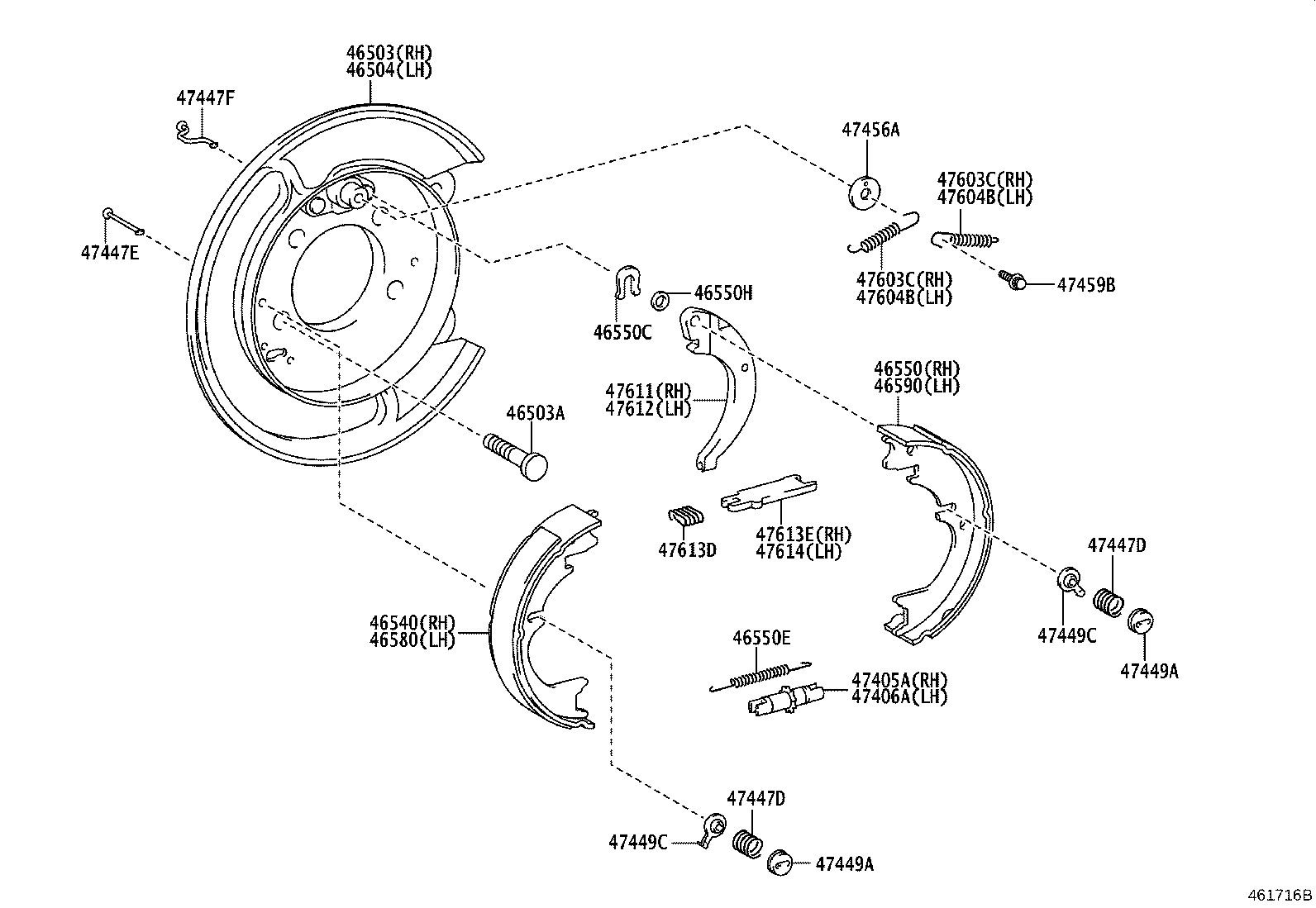

| 46540 | Shoe Assy, Parking Brake, RH OR Center NO.1 |
| 46550 | Shoe Assy, Parking Brake, RH OR Center NO.2 |
| 46550C | Washer, Type C(FOR PARKING BRAKE SHOE) |
| 46550E | Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) |
| 46550H | Shim(FOR PARKING BRAKE SHOE) |
| 46580 | Shoe Assy, Parking Brake, LH NO.1 |
| 46590 | Shoe Assy, Parking Brake, LH NO.2 |
| 47405A | Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE) |
| 47406A | Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE) |
| 47447D | Spring, Compression(FOR PARKING BRAKE SHOE HOLD DOWN) |
| 47447E | Pin, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) |
| 47447F | Pin, Shoe Hold Down Spring, NO.2(FOR PARKING BRAKE) |
| 47449A | Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) |
| 47449C | Cup, Shoe Hold Down Spring, NO.2(FOR PARKING BRAKE) |
| 47456A | Plate, Shoe Guide(FOR PARKING BRAKE) |
| 47459B | Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE) |
| 47603C | Spring, Tension(FOR PARKING BRAKE BELL CRANK RH) |
| 47604B | Spring, Tension(FOR PARKING BRAKE BELL CRANK LH) |
| 47611 | Lever, Parking Brake Shoe, RH |
| 47612 | Lever, Parking Brake Shoe, LH |
| 47613D | Spring, Compression(FOR PARKING BRAKE SHOE STRUT) |
| 47613E | Strut, Parking Brake Shoe, RH |
| 47614 | Strut, Parking Brake Shoe, LH |
