Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

4 part groups · 5 illustrations

Illustrations

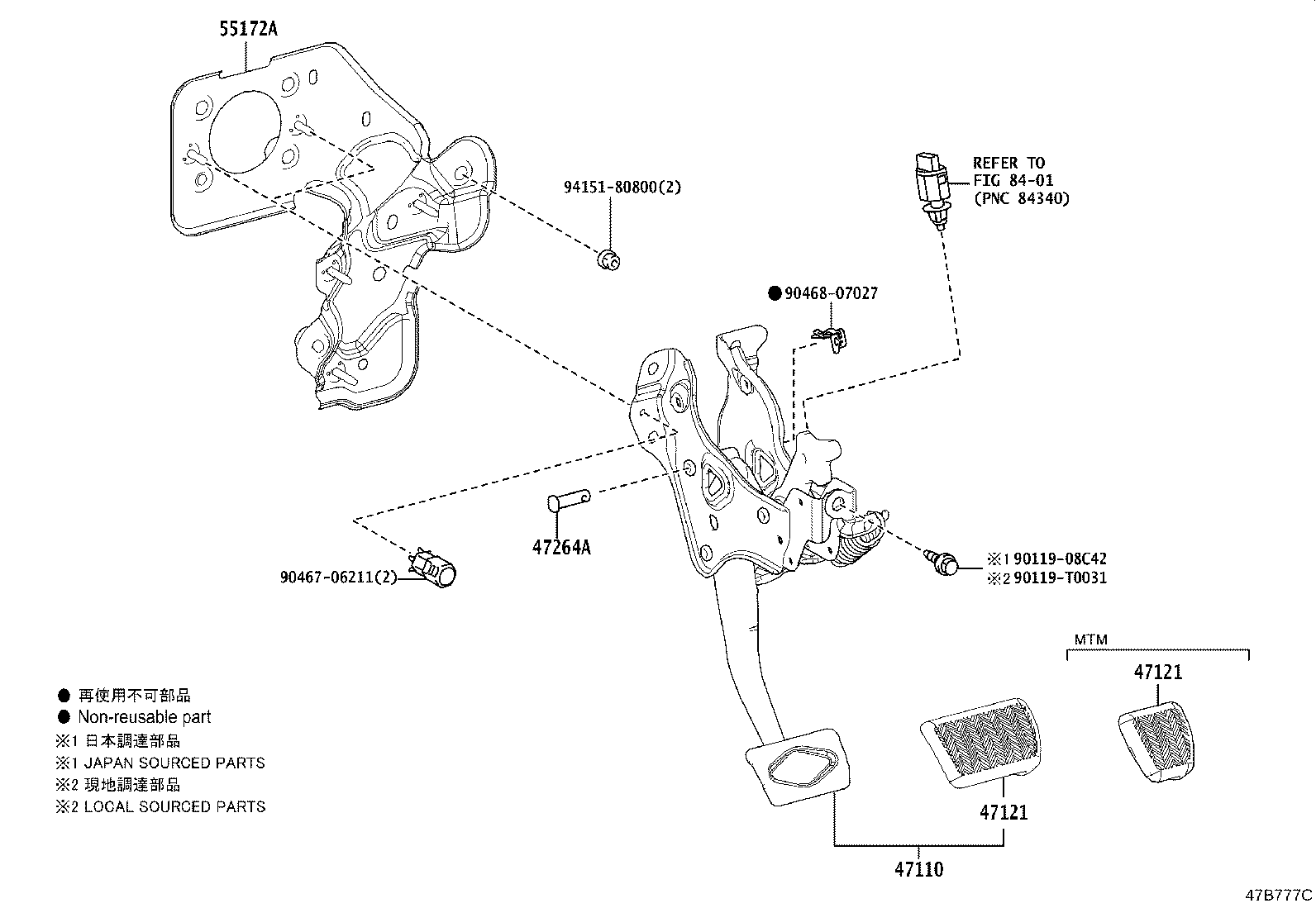

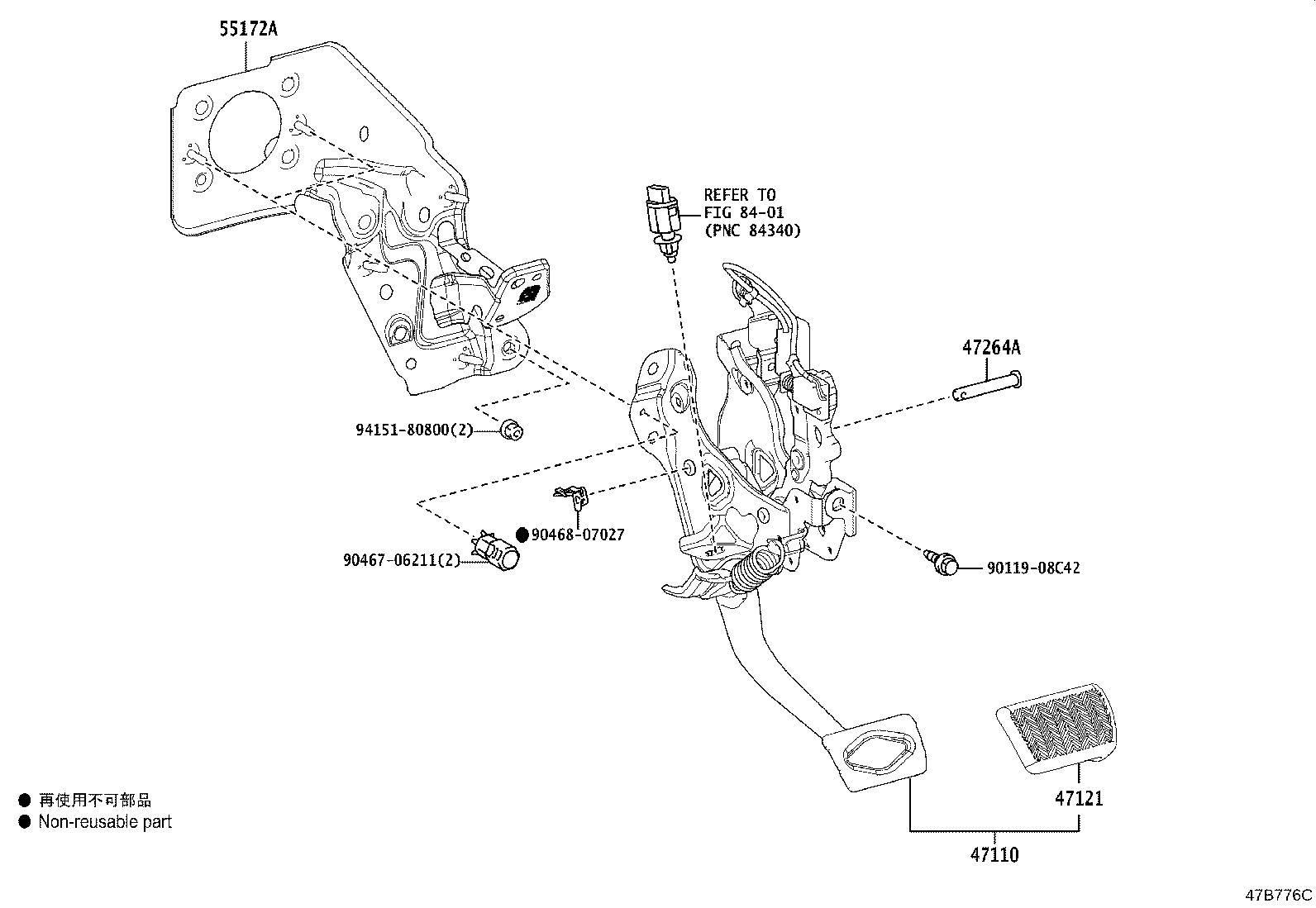

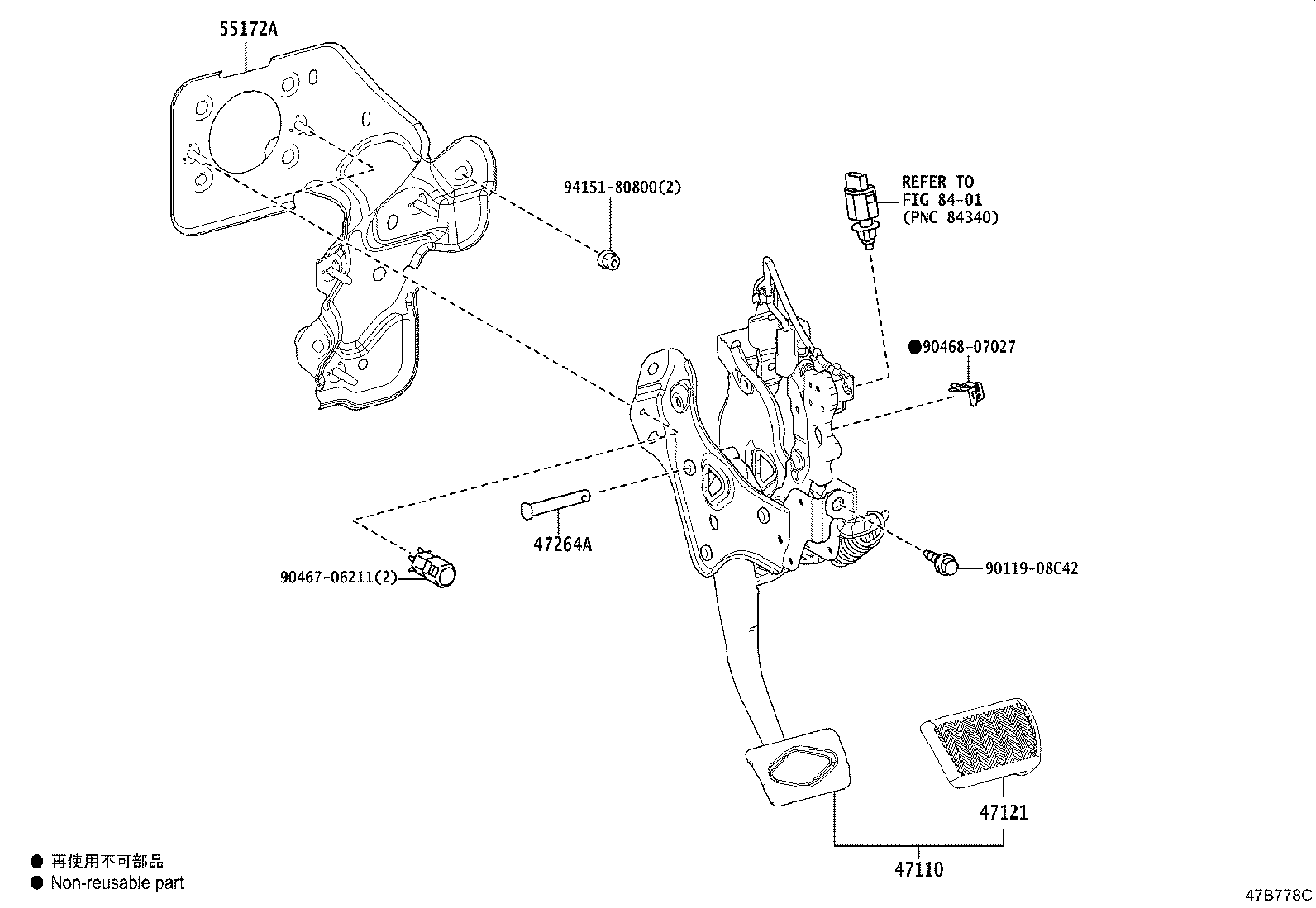

Figure 47B774C 47B774C 2019-02 → — Figure 47B774C 47B774C 2019-02 → — Figure 47B776C 47B776C 2019-02 → — Figure 47B777C 47B777C 2019-02 → — Figure 47B778C 47B778C 2019-02 → —

Part groups

PNCDescription
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47264A Pin(FOR PUSH ROD)
55172A Base, Brake Pedal Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
