Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

37 part groups · 18 illustrations

Illustrations

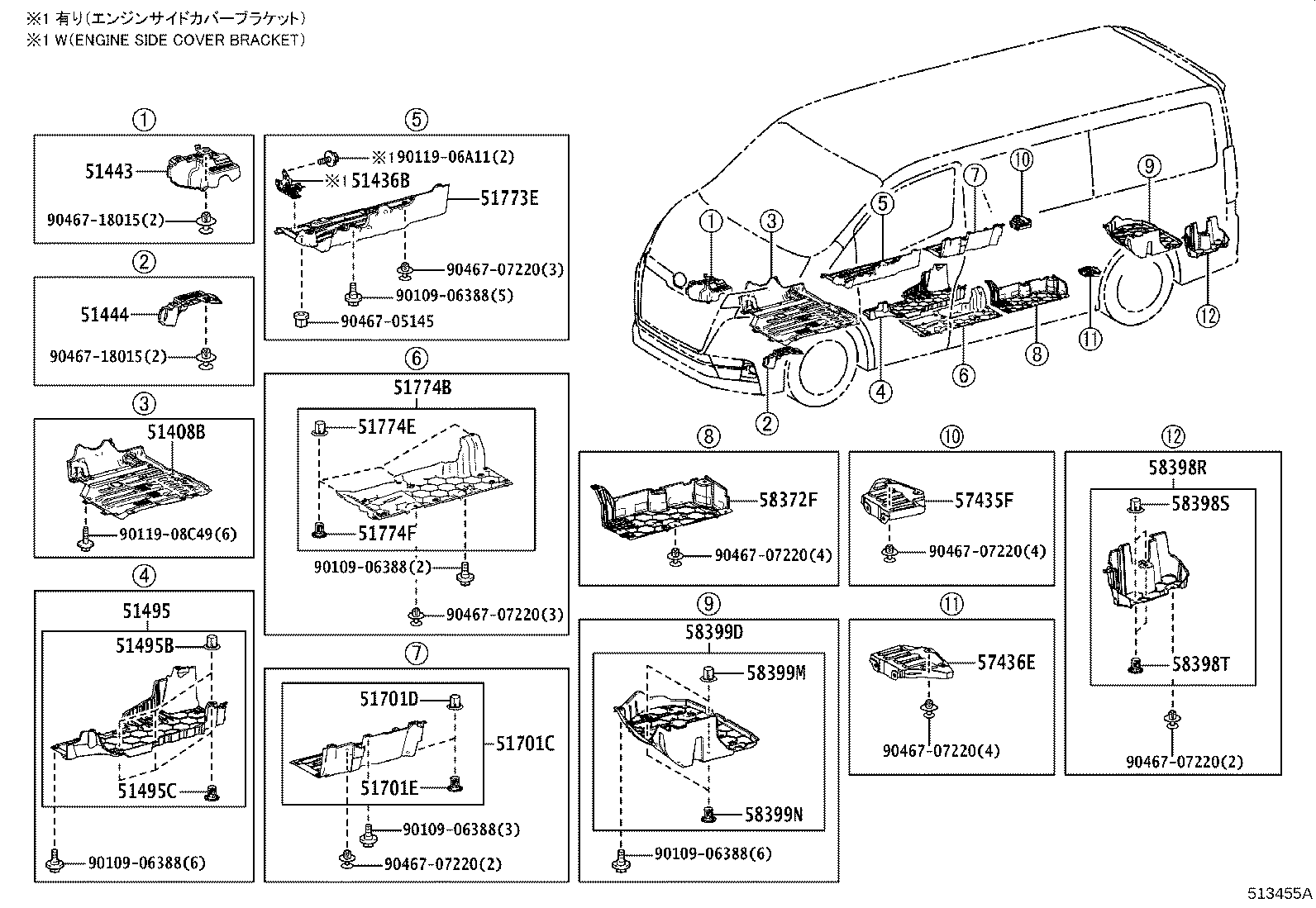

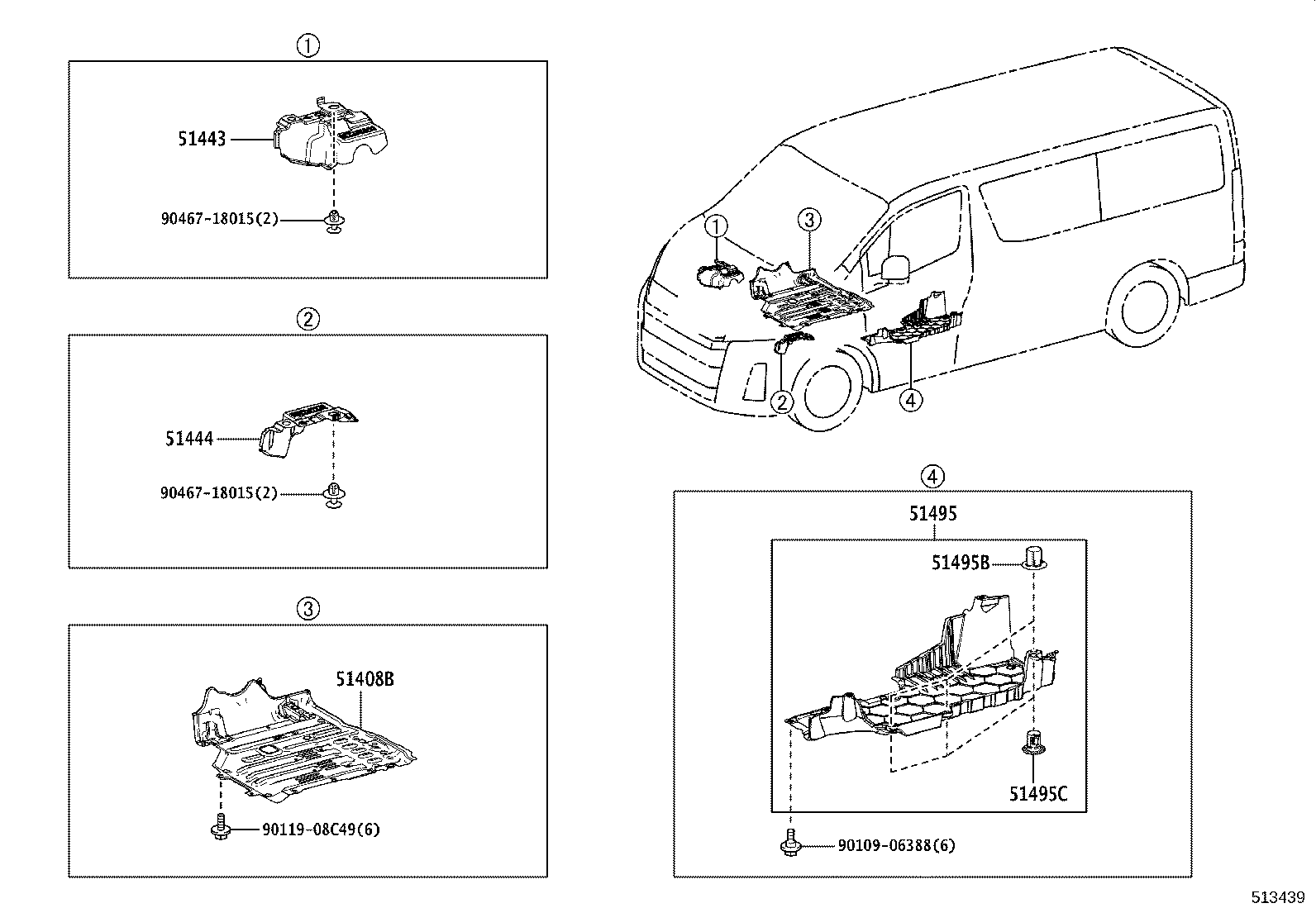

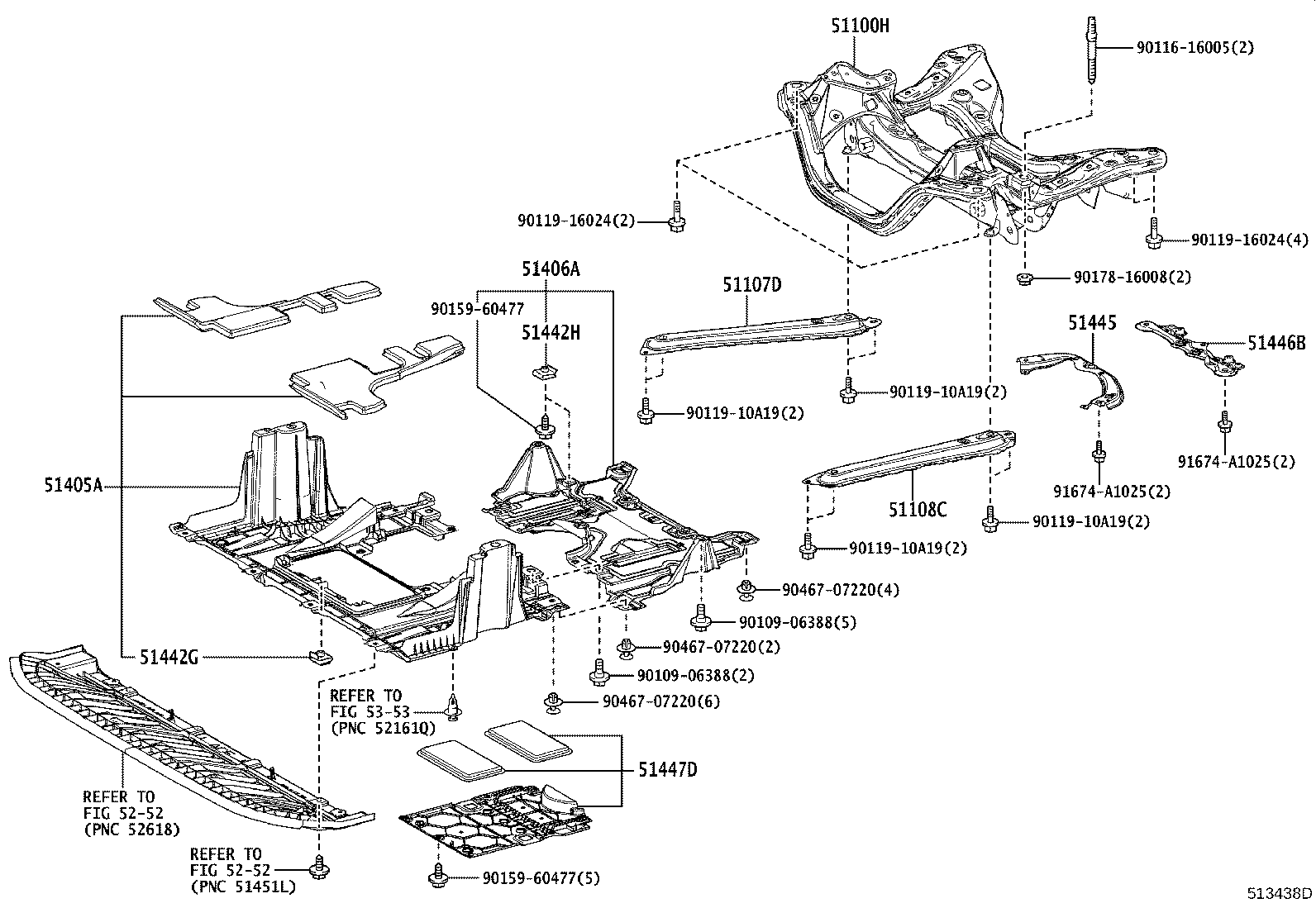

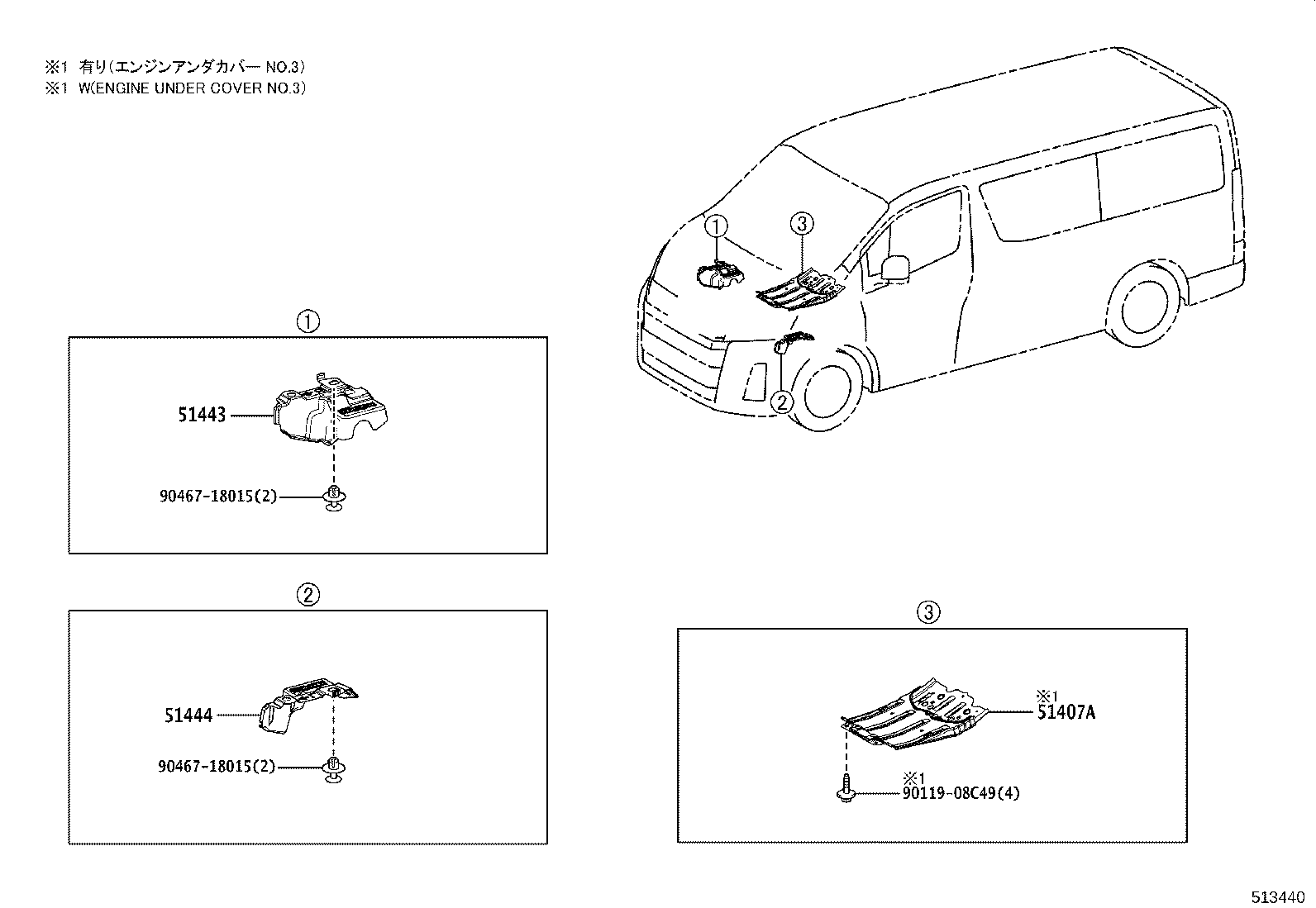

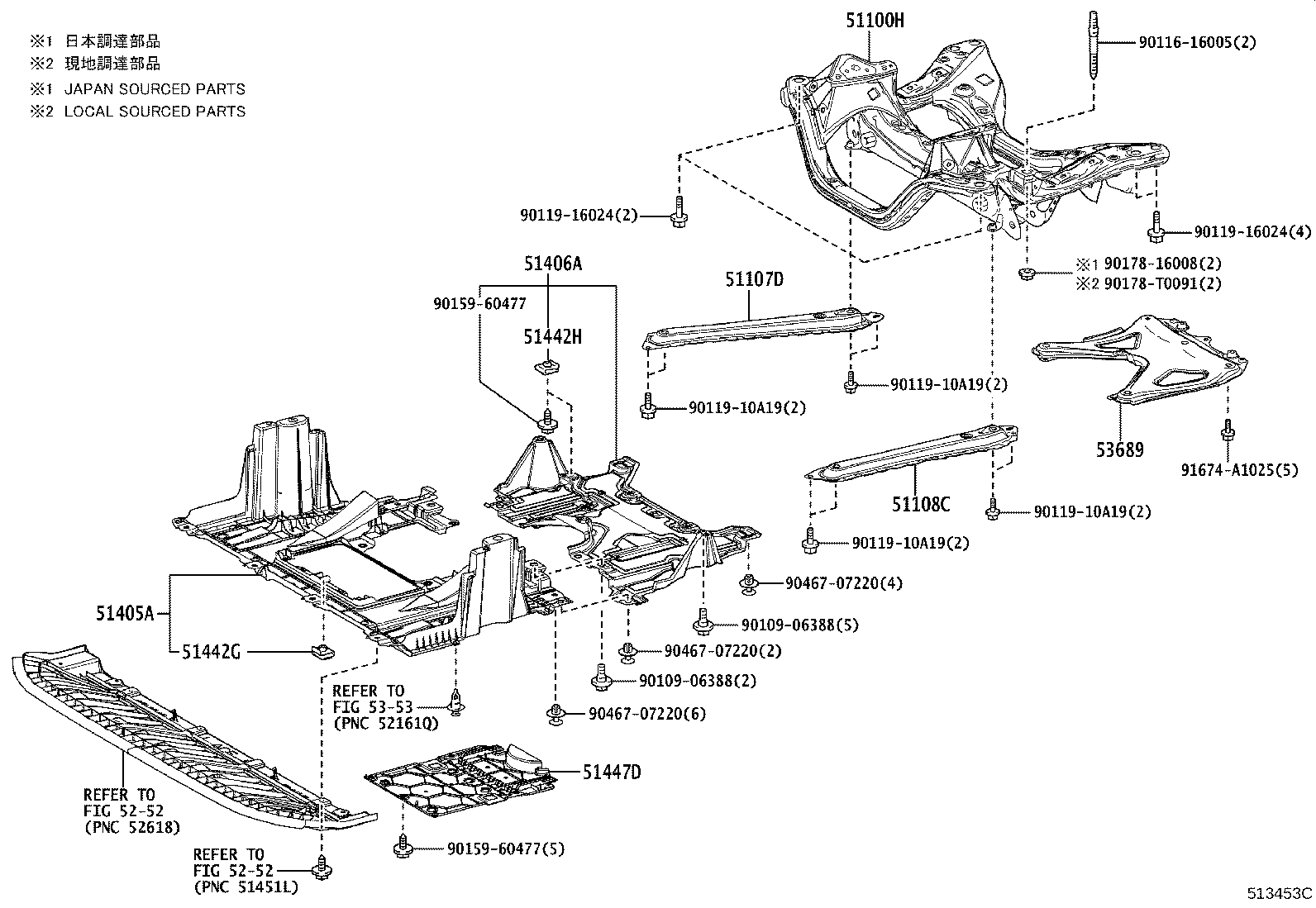

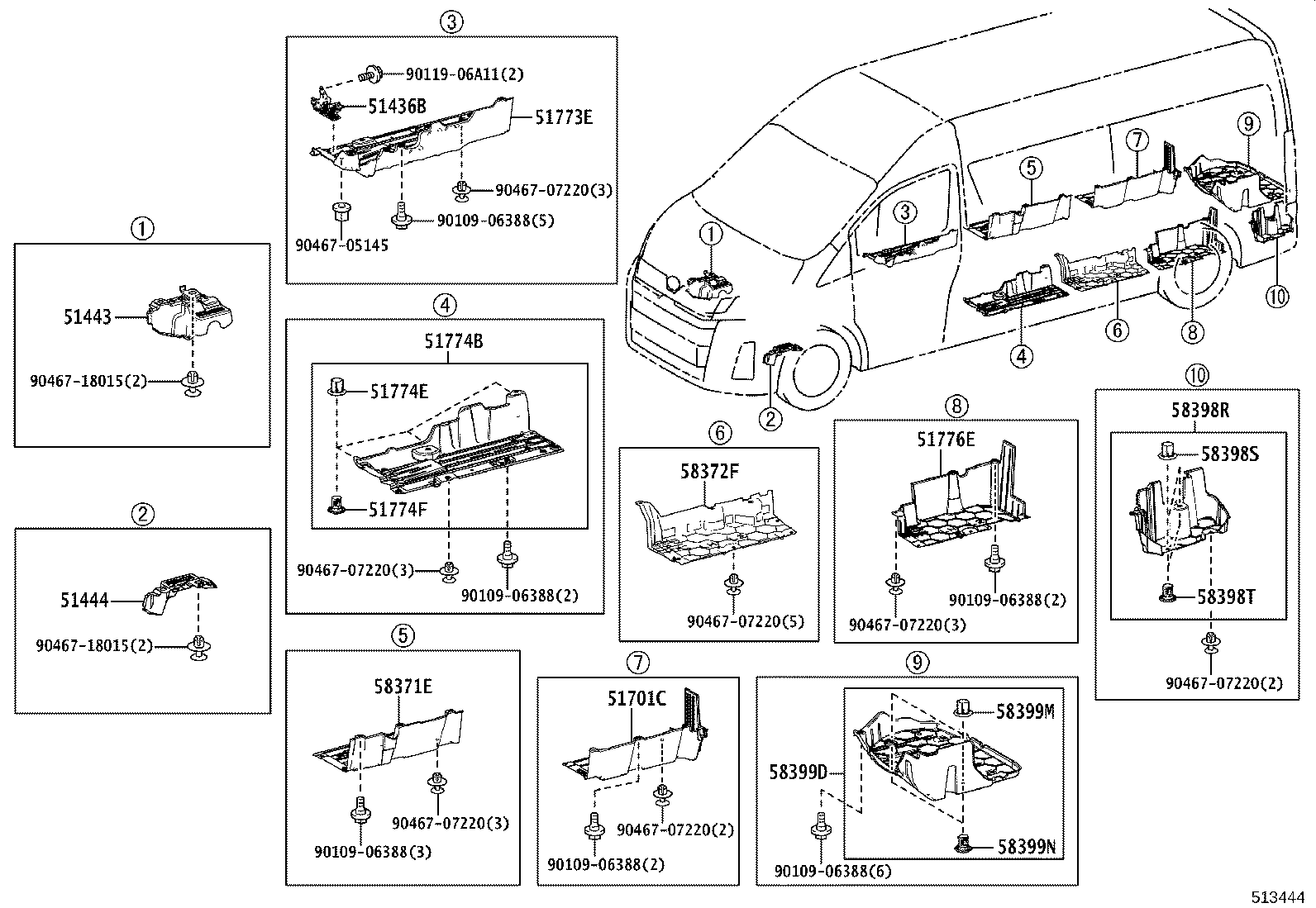

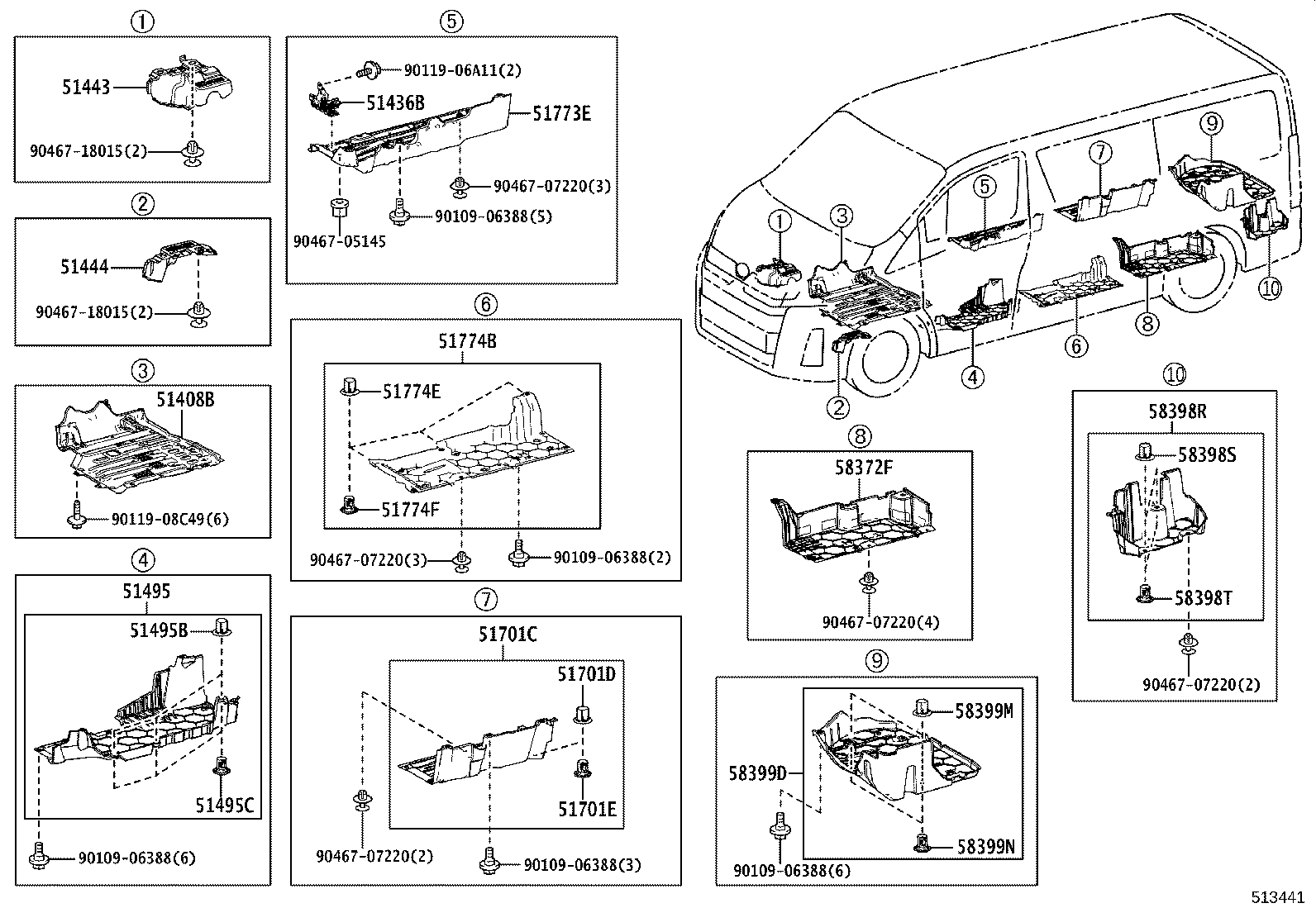

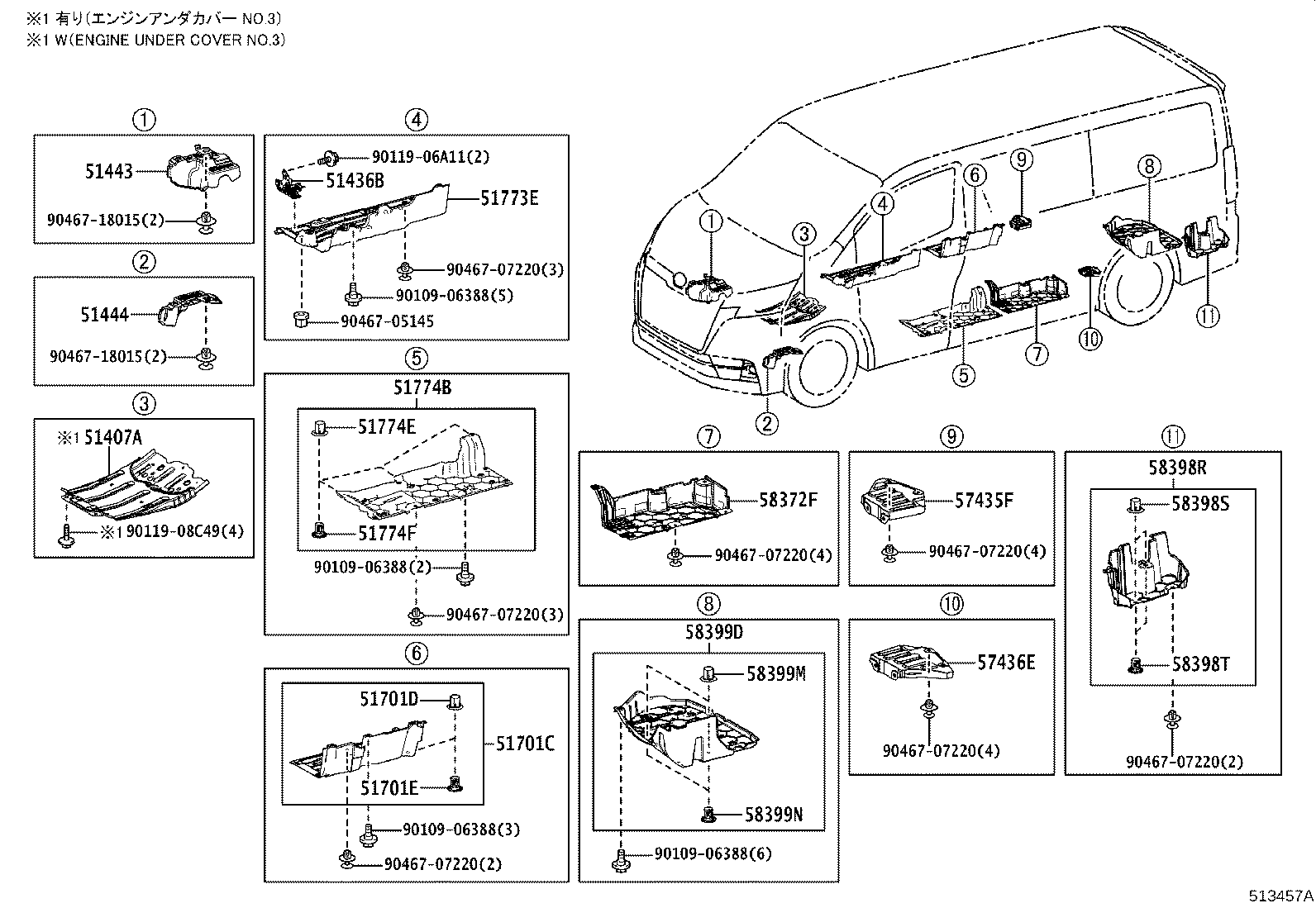

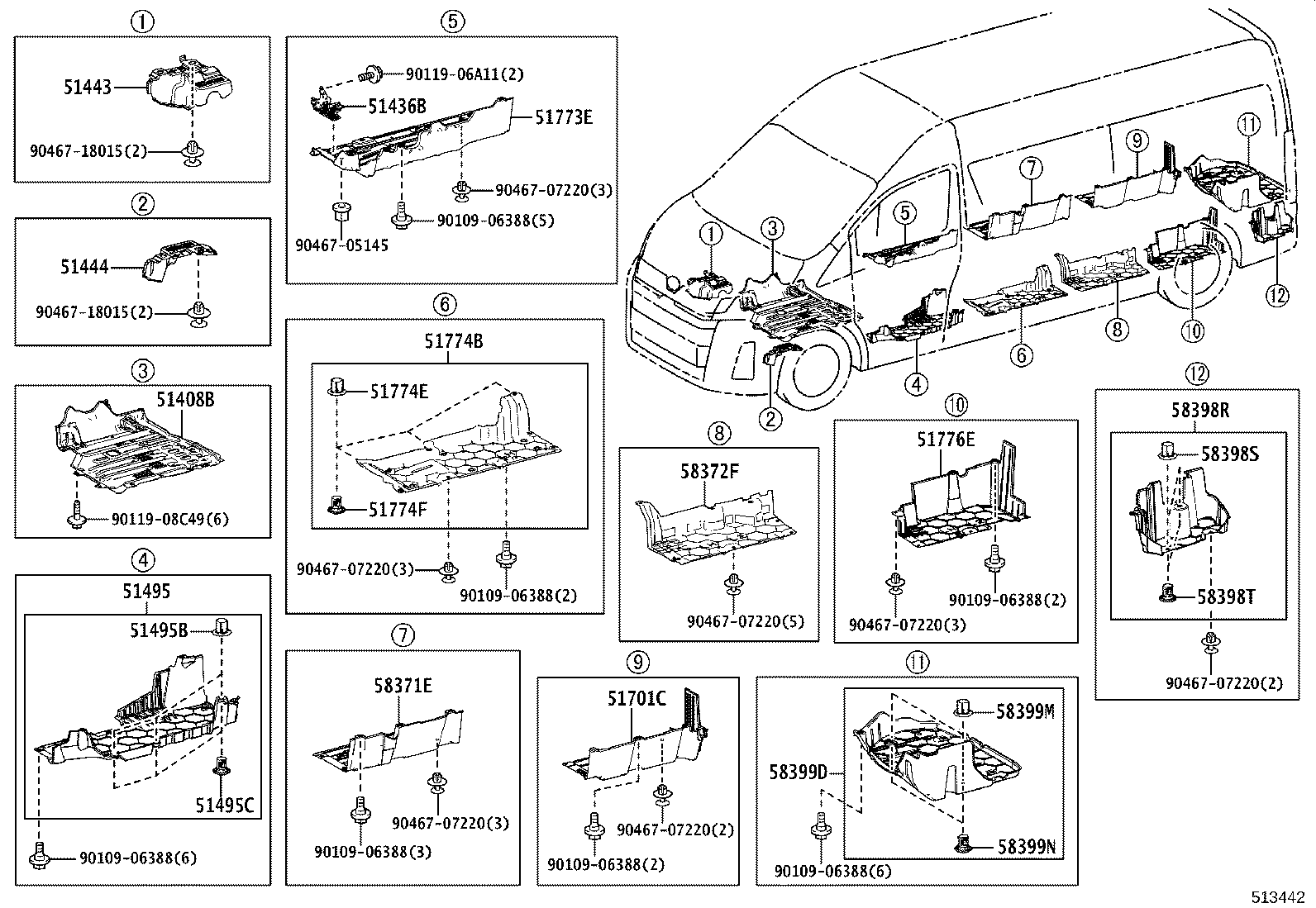

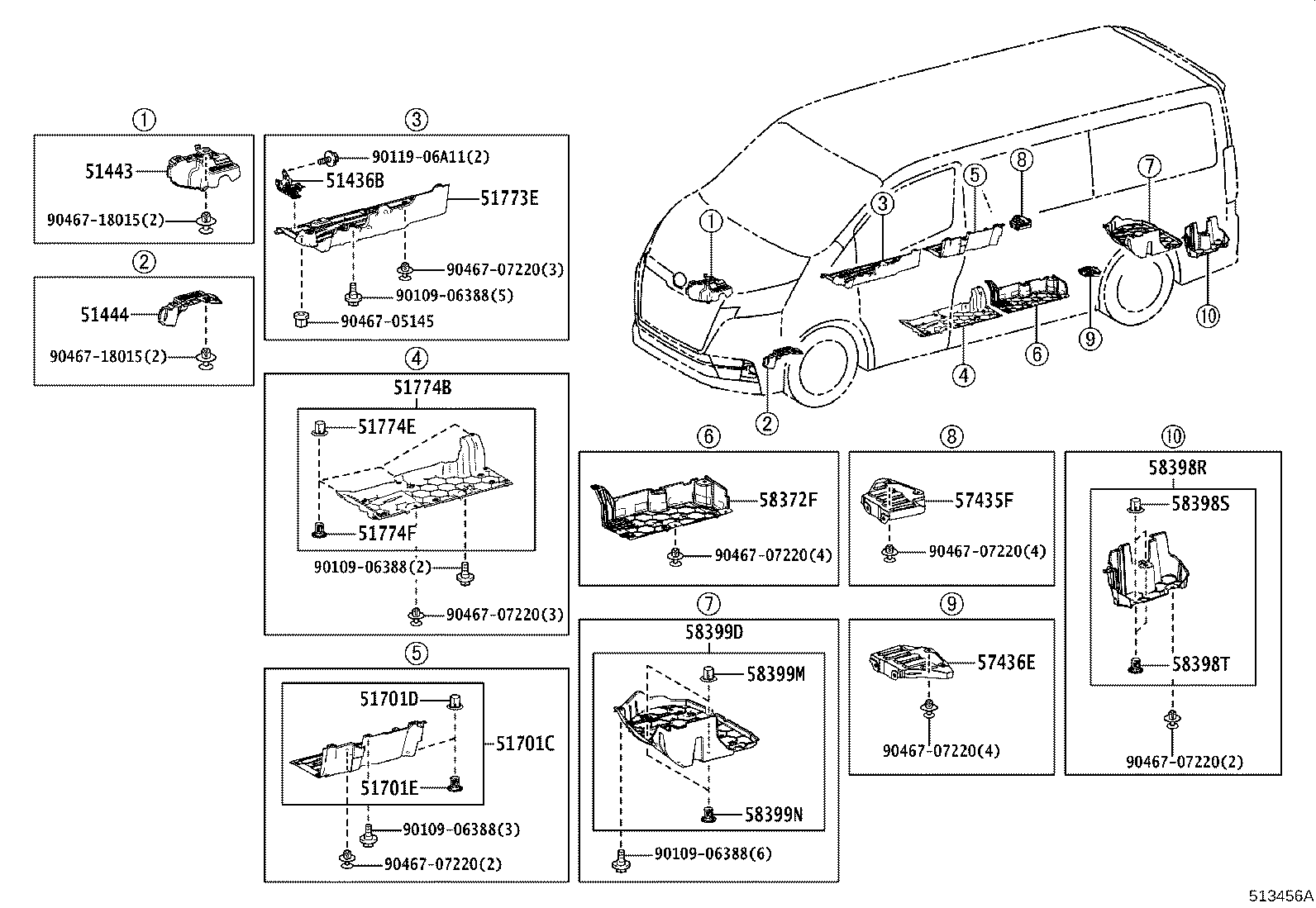

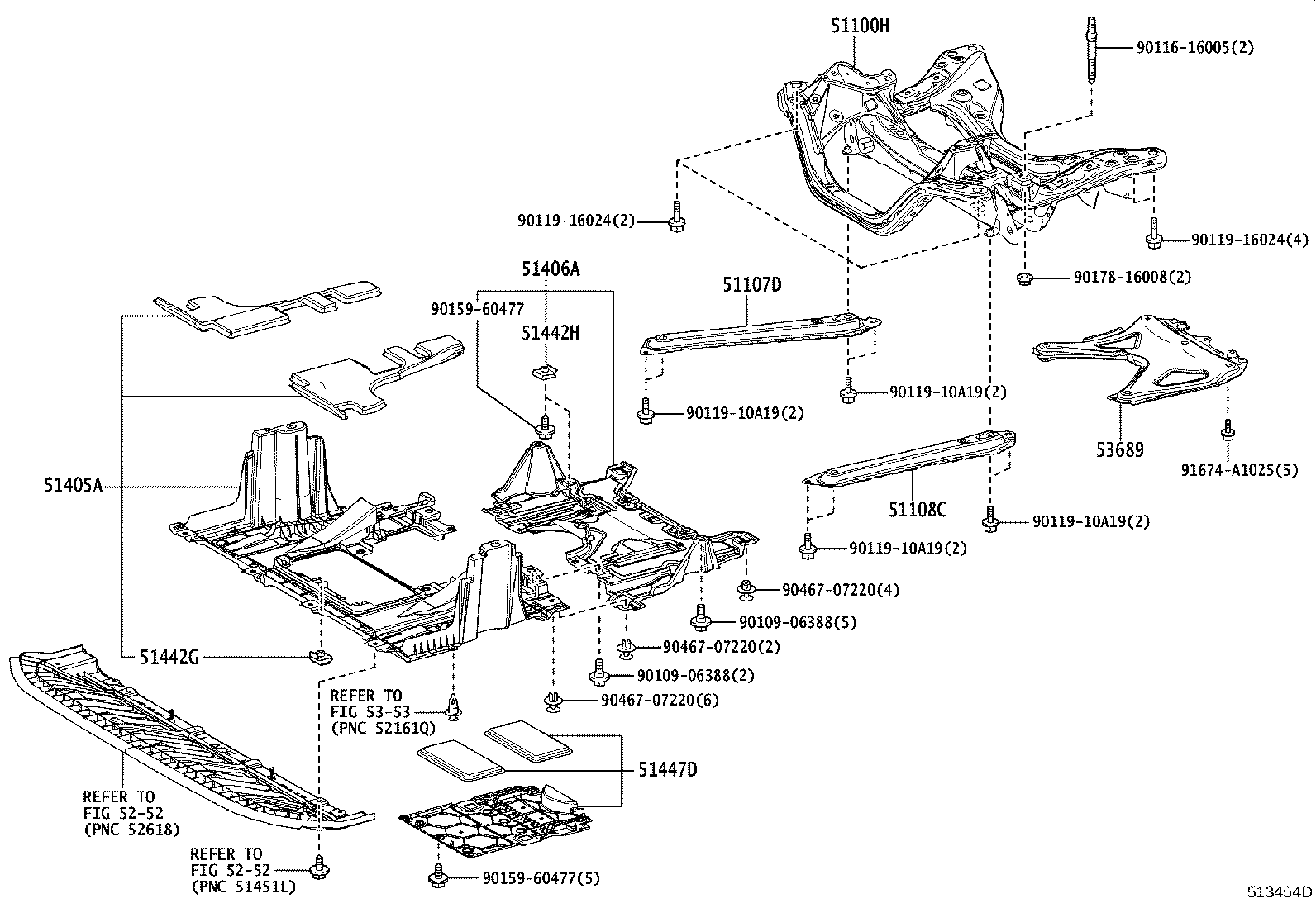

Figure 513437C 513437C 2019-02 → 2025-06 Figure 513437C 513437C 2019-02 → — Figure 513437C 513437C 2019-02 → — Figure 513453C 513453C 2019-07 → 2025-06 Figure 513453C 513453C 2019-07 → — Figure 513438D 513438D 2019-02 → 2021-06 Figure 513454D 513454D 2019-07 → — Figure 513440 513440 2019-02 → — Figure 513440 513440 2019-02 → — Figure 513441 513441 2019-02 → — Figure 513442 513442 2019-03 → — Figure 513444 513444 2019-03 → — Figure 513439 513439 2019-03 → — Figure 513439 513439 2022-08 → — Figure 513439 513439 2022-09 → — Figure 513455A 513455A 2019-07 → — Figure 513456A 513456A 2019-07 → — Figure 513457A 513457A 2019-07 → —

Part groups

PNCDescription
51100H Frame Assy, Front
51107D Reinforcement Sub-assy, Side Rail, Rear RH
51108C Reinforcement Sub-assy, Side Rail, Rear LH
51405A Cover Sub-assy, Engine Under, NO.1
51406A Cover Sub-assy, Engine Under, NO.2
51407A Cover Sub-assy, Engine Under, NO.3
51408B Cover Sub-assy, Engine Under, RH
51436B Bracket, Engine Side Cover, NO.1 RH
51442G Clip, Engine Under Cover, NO.1
51442H Clip, Engine Under Cover, NO.2
51443 Cover, Engine Under, Rear RH
51444 Cover, Engine Under, Rear LH
51445 Bracket, Engine Under Cover
51446B Bracket, Engine Under Cover, NO.2
51447D Cover, Engine Under, NO.4 Center
51495 Cover, Transmission Under
51495B Clip, Transmission Under Cover
51495C Clip, Transmission Under Cover
51701C Cover Sub-assy, Step Plate, RH
51701D Clip, Step Plate Cover
51701E Clip, Step Plate Cover
51773E Cover, Step Plate, RH
51774B Cover, Step Plate, LH
51774E Clip, Step Plate Cover
51774F Clip, Step Plate Cover
51776E Cover, Rear Step, NO.2
53689 Brace, Front Suspension, Lower Center
57435F Plate, Rear Step, Lower RH
57436E Plate, Rear Step, Lower LH
58371E Cover, Rear Floor Step, NO.1
58372F Cover, Rear Floor Step, NO.2
58398R Cover, Body Lower Back, LH
58398S Clip, Body Lower Back Cover
58398T Clip, Body Lower Back Cover
58399D Cover, Floor Under, NO.2
58399M Clip, Floor Under Cover, NO.1
58399N Clip, Floor Under Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
