Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

5 part groups · 12 illustrations

Illustrations

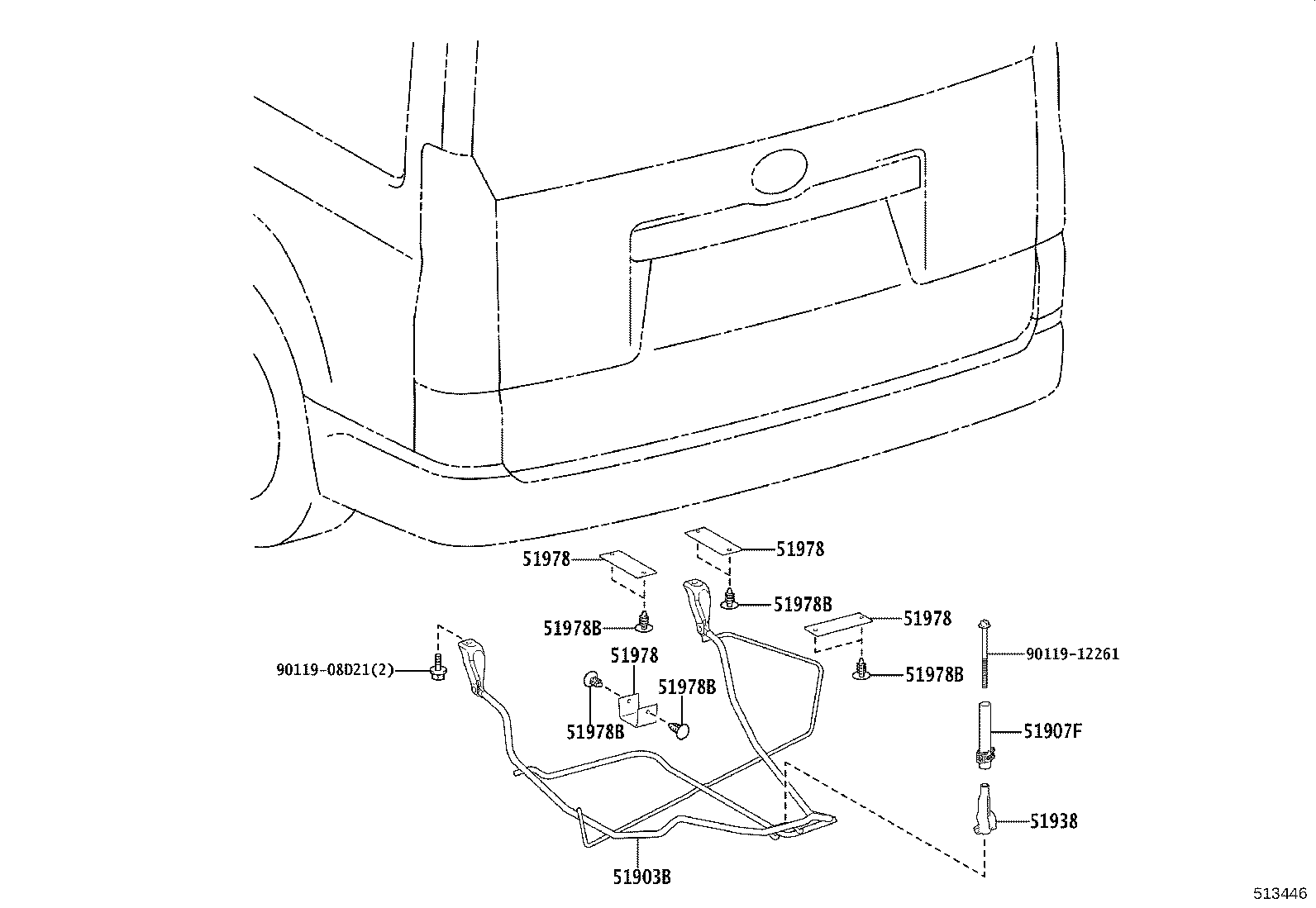

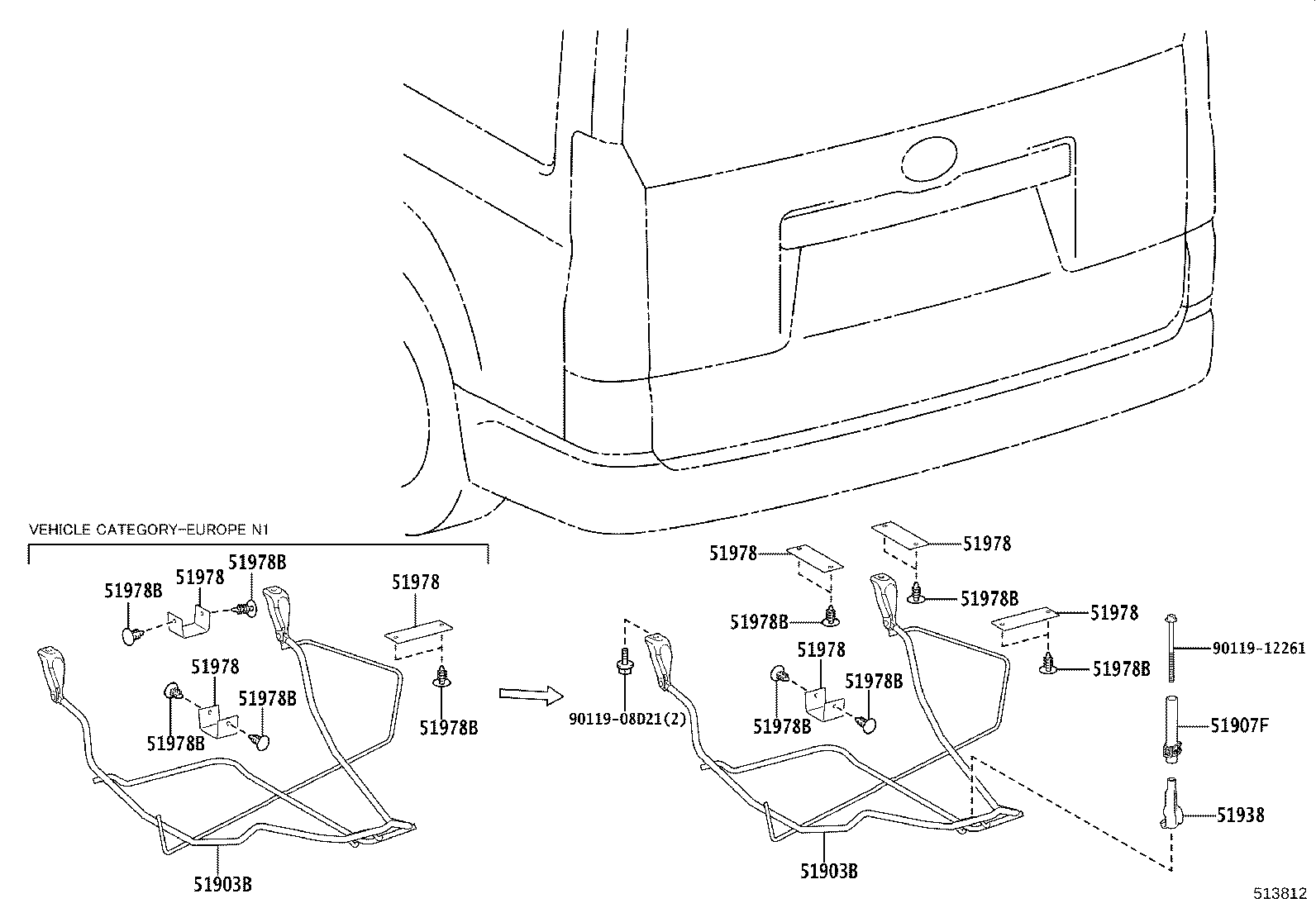

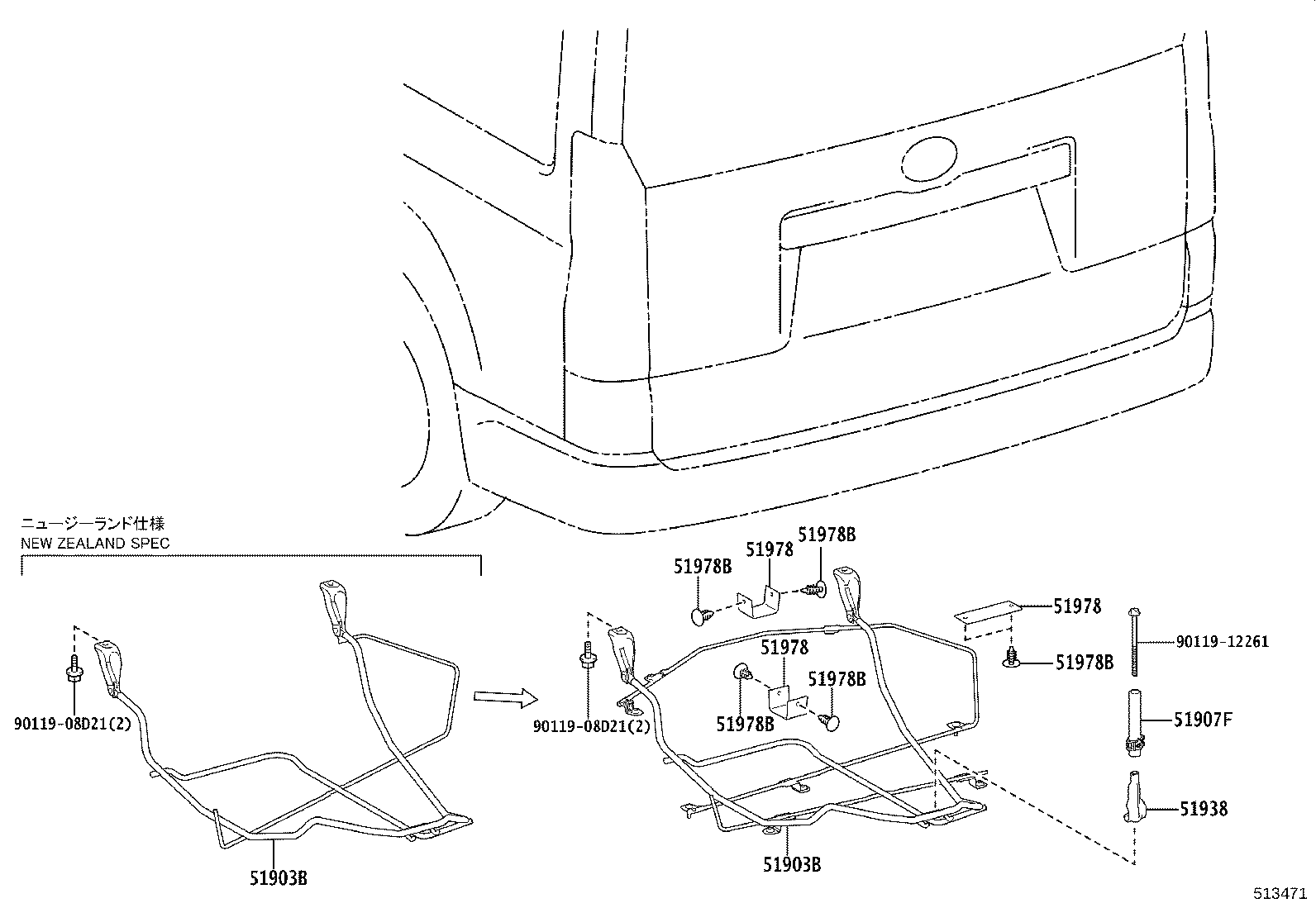

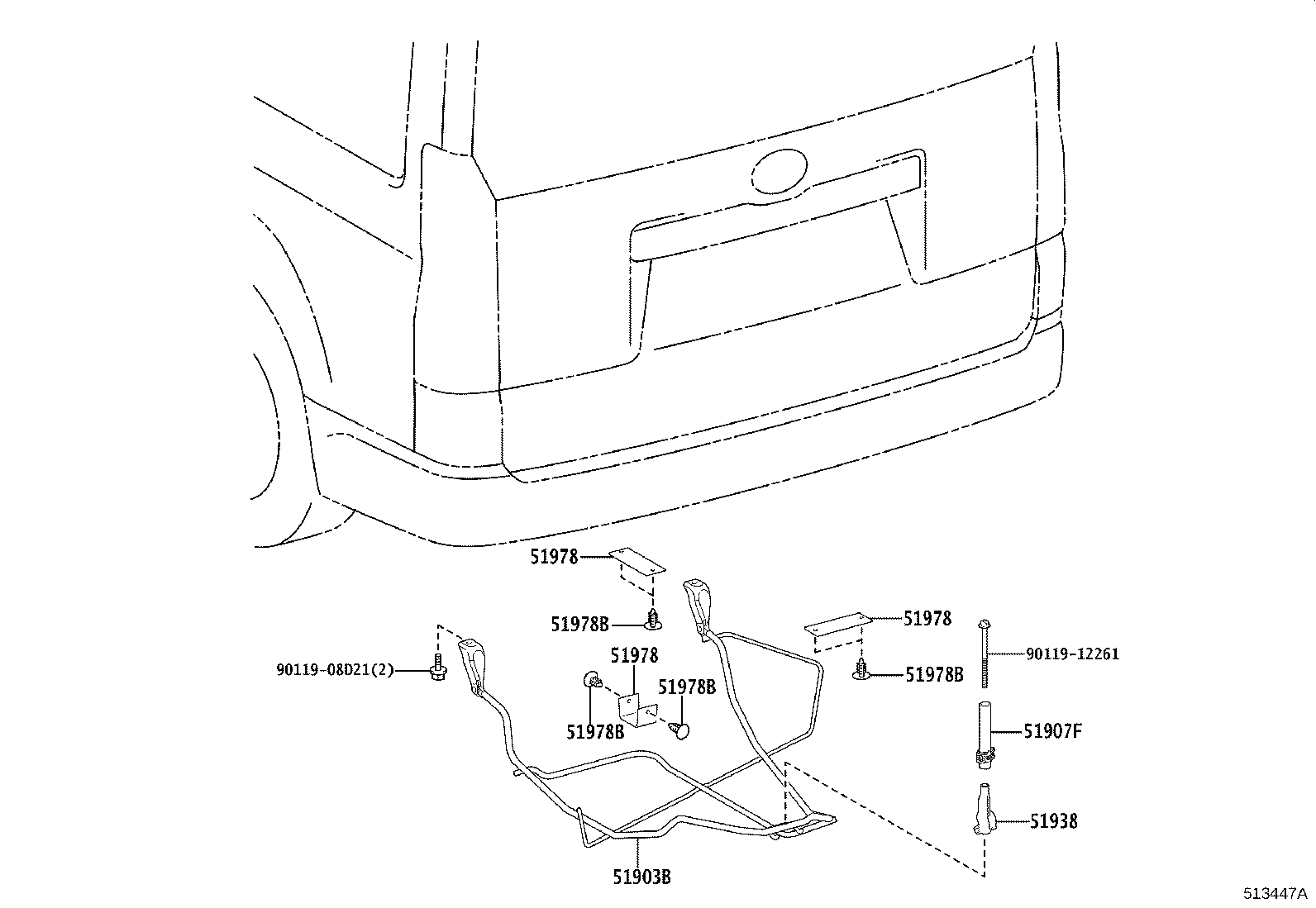

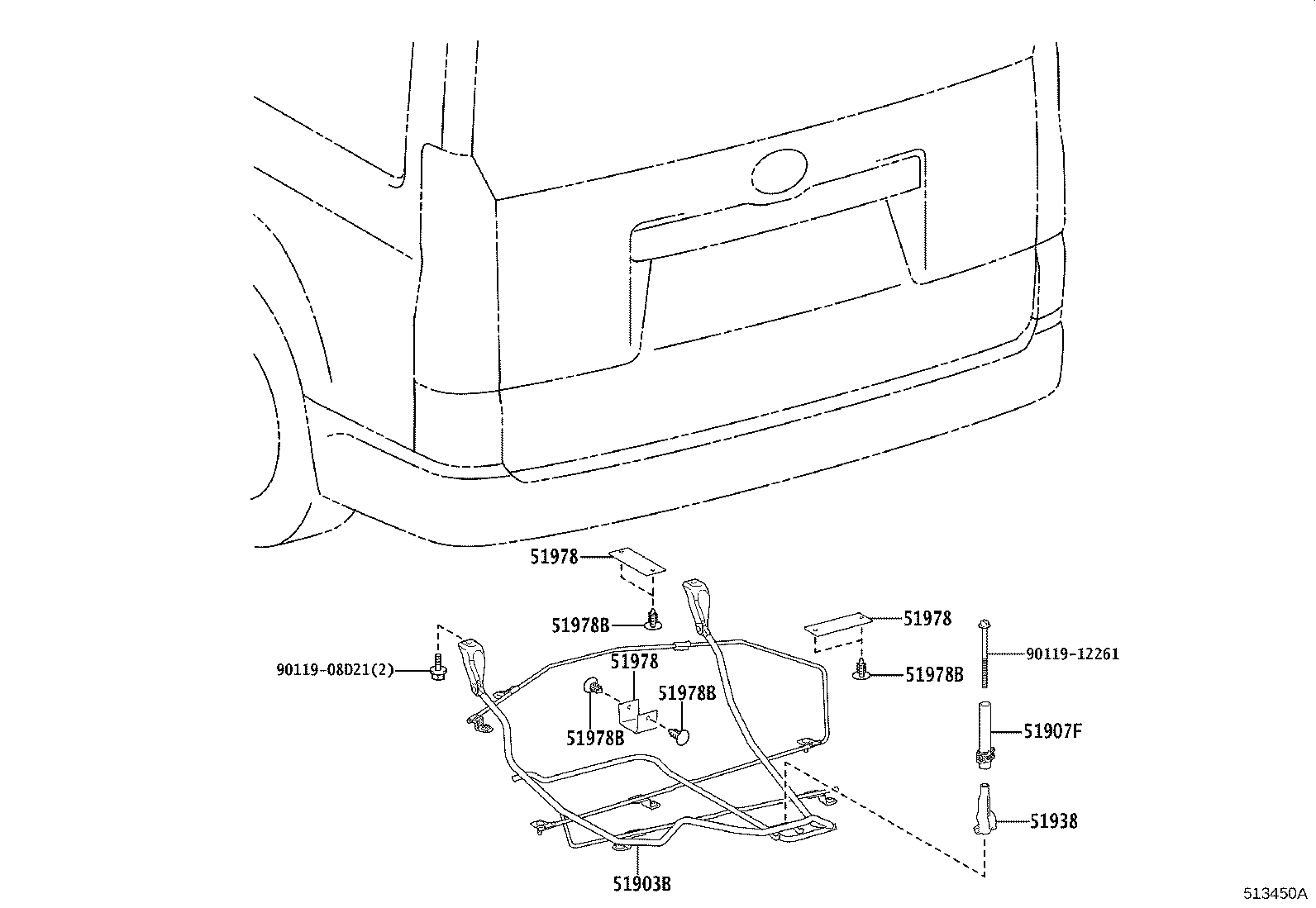

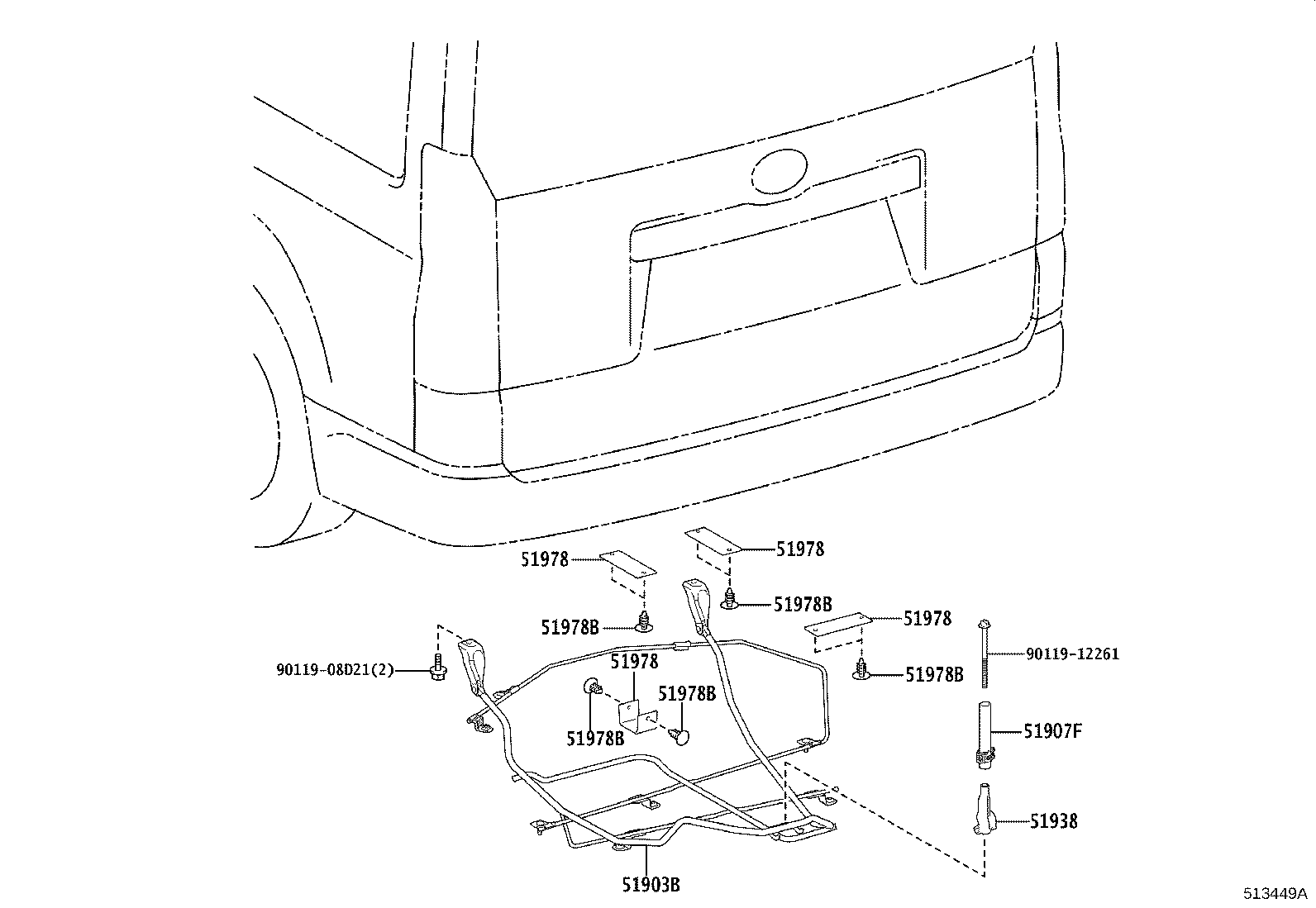

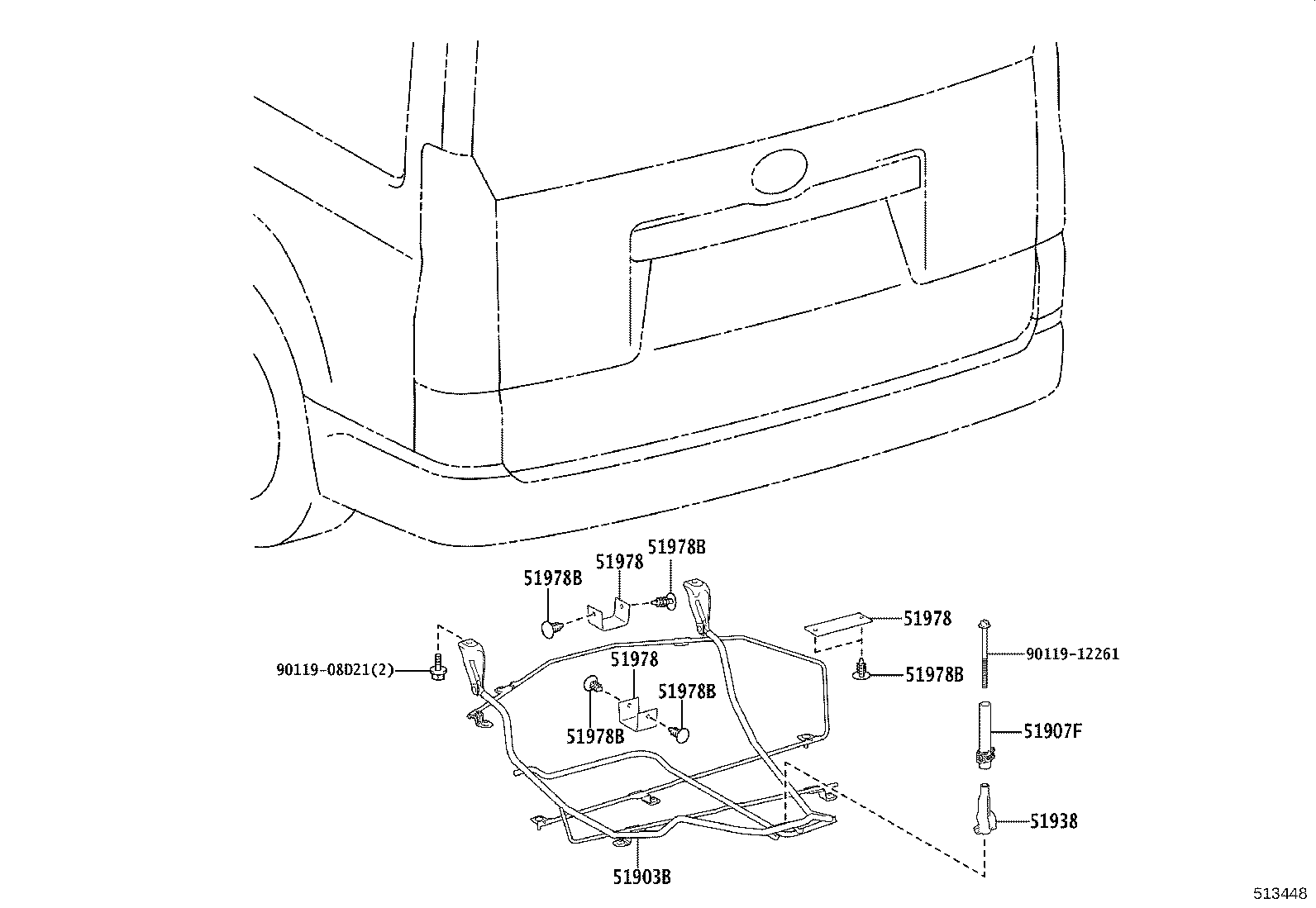

Figure 513445 513445 2019-02 → — Figure 513445 513445 2019-02 → — Figure 513445 513445 2019-02 → — Figure 513446 513446 2019-02 → — Figure 513446 513446 2019-02 → — Figure 513446 513446 2019-02 → — Figure 513471 513471 2019-02 → — Figure 513448 513448 2019-02 → — Figure 513447A 513447A 2019-03 → — Figure 513450A 513450A 2019-03 → — Figure 513812 513812 2019-03 → — Figure 513449A 513449A 2019-07 → —

Part groups

PNCDescription
51903B Carrier Sub-assy, Spare Wheel
51907F Stopper Sub-assy, Spare Wheel Carrier
51938 Lock, Spare Wheel Carrier
51978 Protector, Spare Wheel Carrier
51978B Clip, Spare Wheel Carrier Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
