Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

8 part groups · 2 illustrations

Illustrations

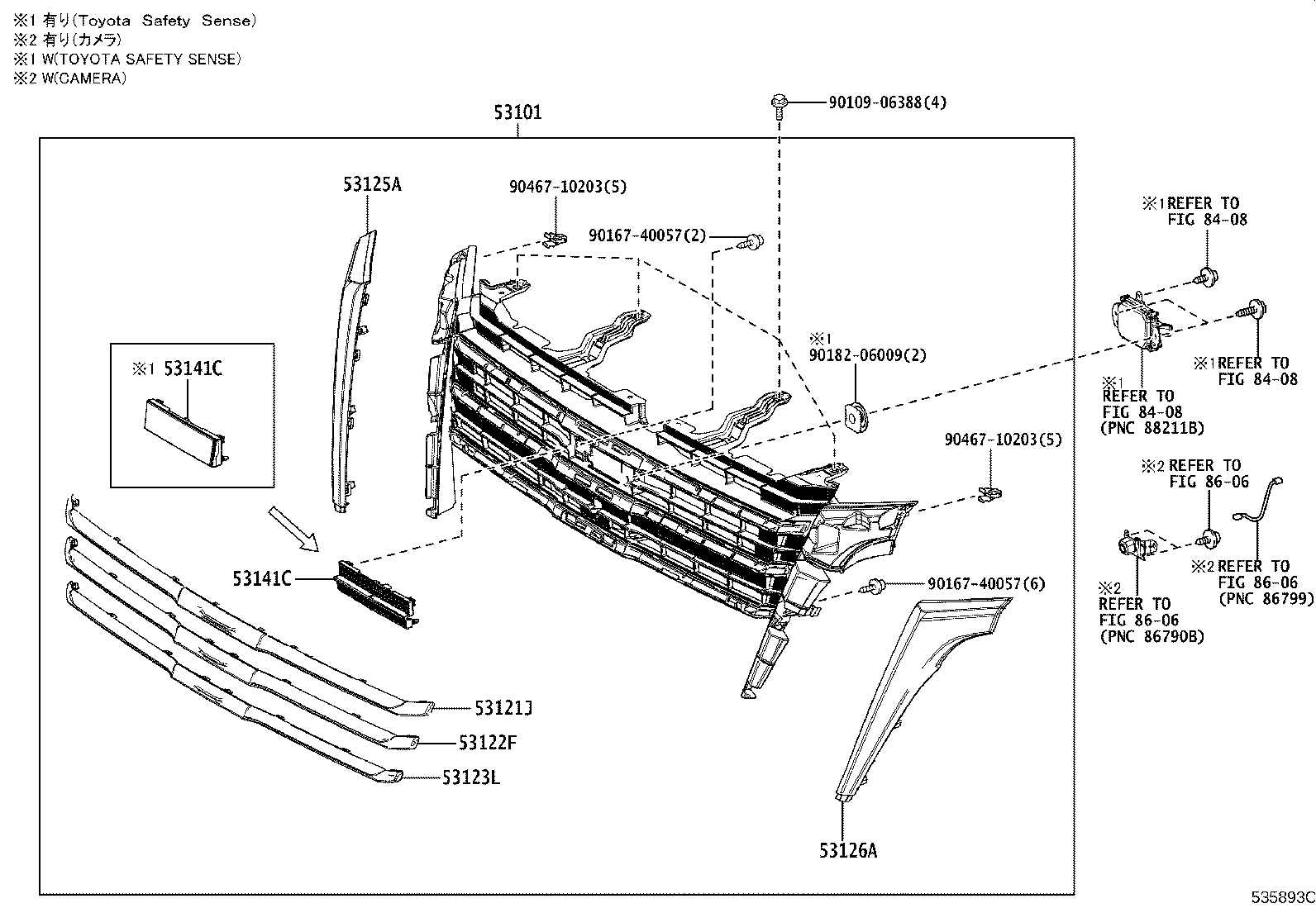

Figure 535892E 535892E 2019-02 → — Figure 535893C 535893C 2019-07 → —

Part groups

PNCDescription
53101 Grille Sub-assy, Radiator
53121J Moulding, Radiator Grille, NO.1
53122A Moulding, Radiator Grille, Lower
53122F Moulding, Radiator Grille, NO.2
53123L Moulding, Radiator Grille, NO.3
53125A Moulding, Radiator Grille, Center RH
53126A Moulding, Radiator Grille, Center LH
53141C Garnish, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
