Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States
Supported model
Data version 2024-09
Hood & Front Fender
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161F | Piece, Front Bumper |
| 52161Q | Piece, Front Bumper |
| 52161W | Piece, Front Bumper |
| 53301 | Hood Sub-assy |
| 53301B | Cushion, Hood Bumper |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53827K | Protector, Front Fender Side Panel, RH |
| 53828J | Protector, Front Fender Side Panel, LH |
| 53835 | Brace, Front Fender TO Extension, RH |
| 53836 | Brace, Front Fender TO Extension, LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53857 | Retainer, Front Wheel Opening Extension, RH |
| 53858 | Retainer, Front Wheel Opening Extension, LH |

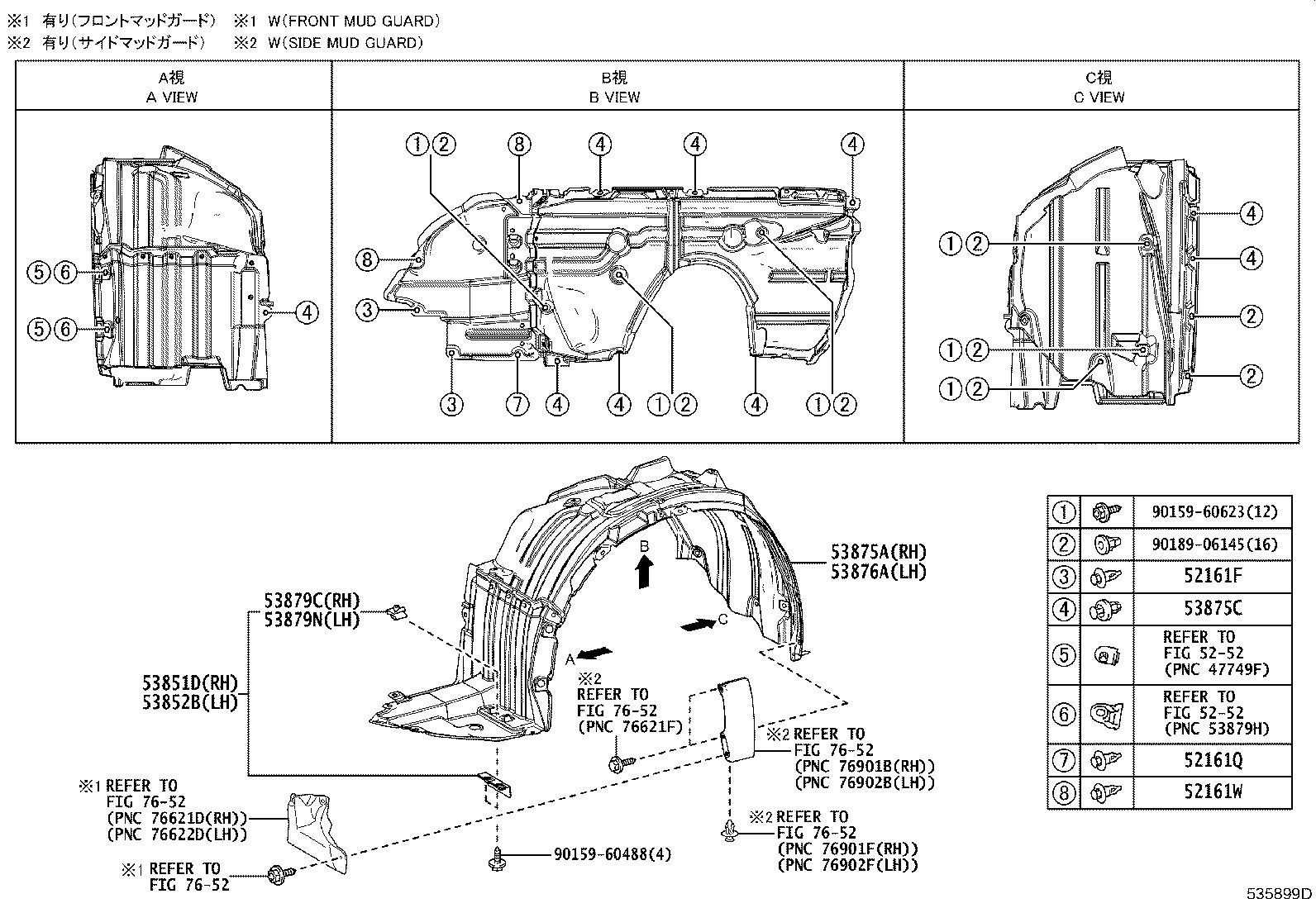

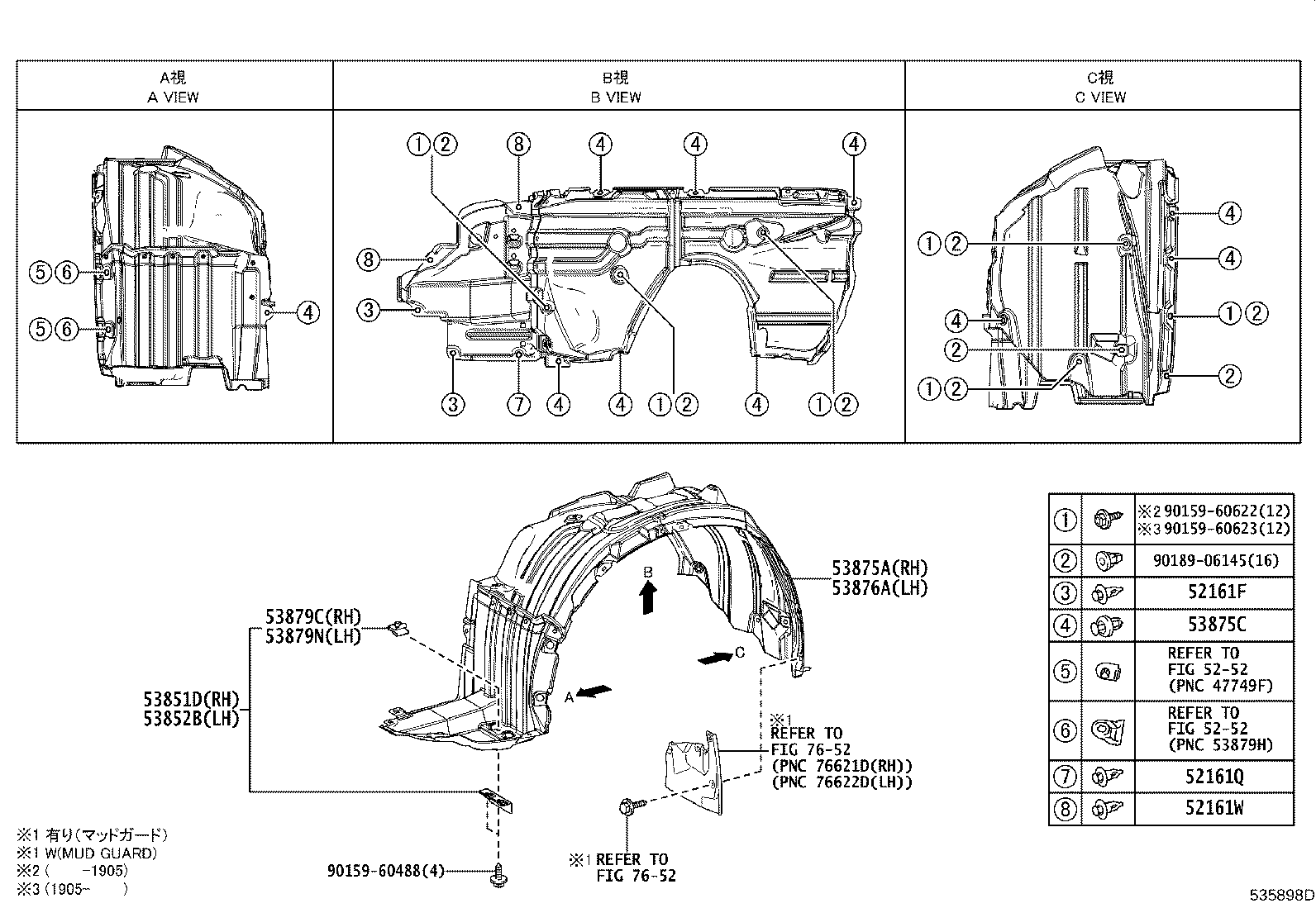

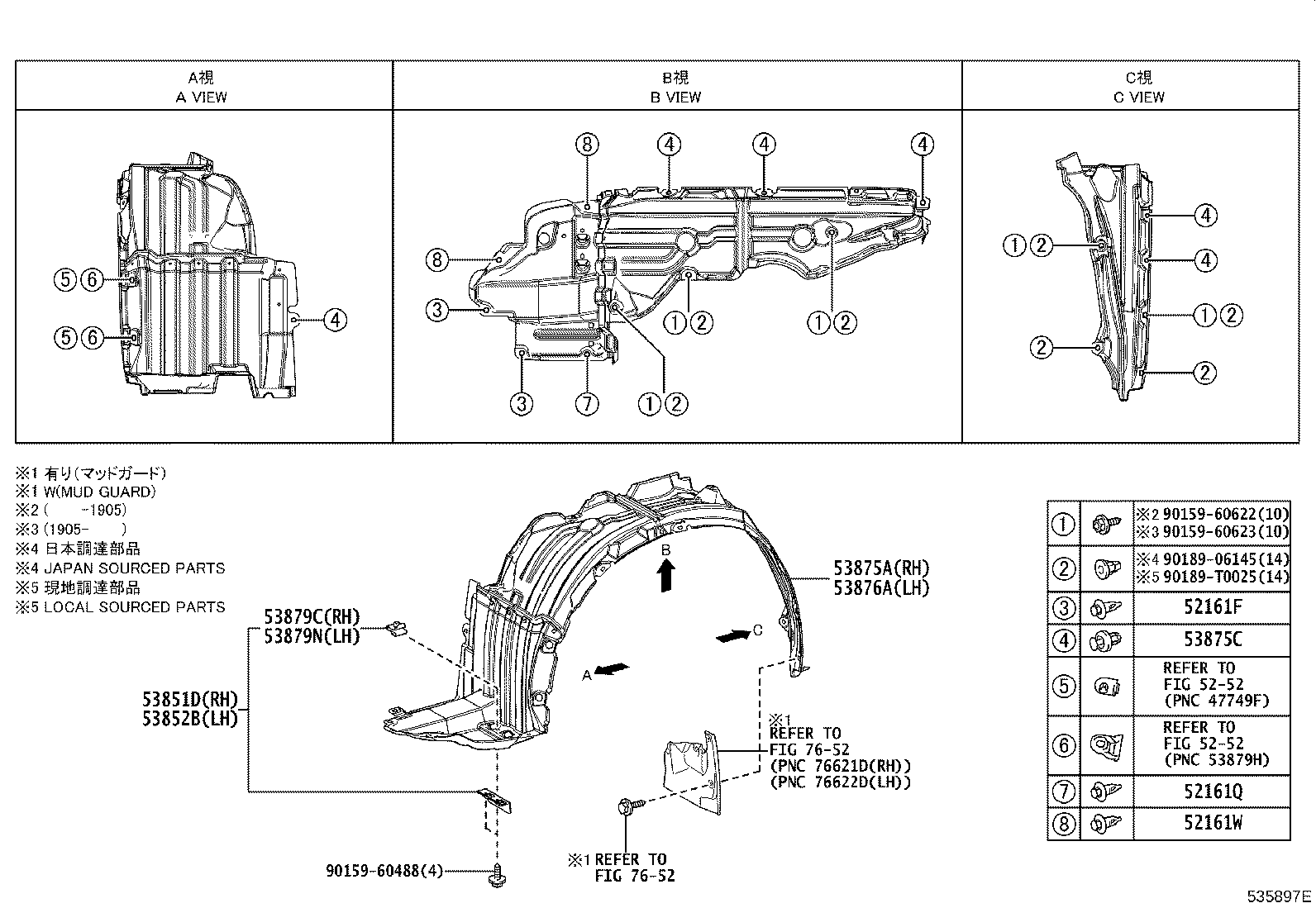

| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53876A | Liner, Front Fender, LH |
| 53879C | Retainer, Front Fender Liner |
| 53879N | Retainer, Front Fender Liner, LH |
| 53882K | Seal, Front Fender |
| 55879C | Seal, Cowl Vent |
| 55879D | Clip(FOR COWL VENT SEAL) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
