Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

78 part groups · 81 illustrations

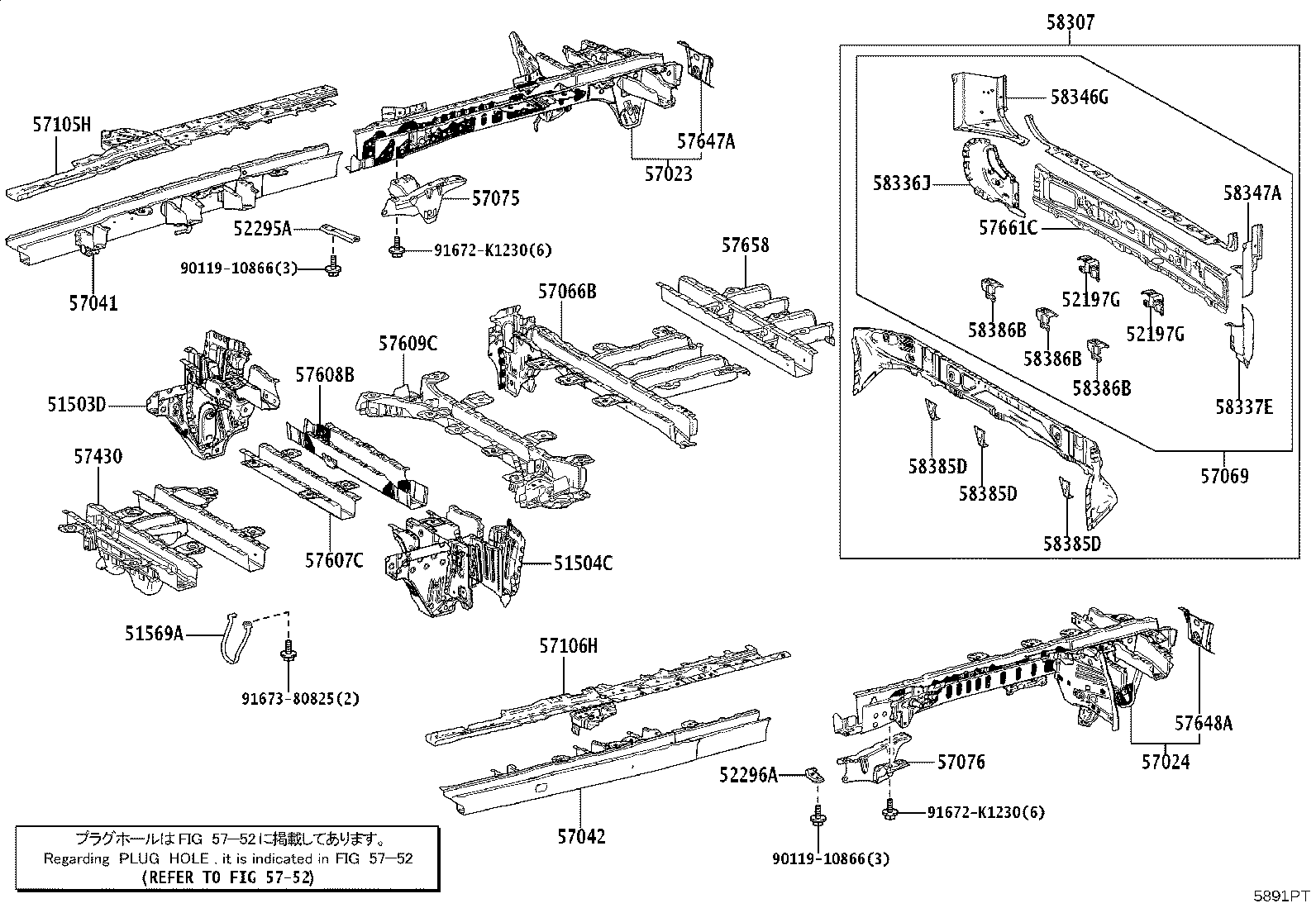

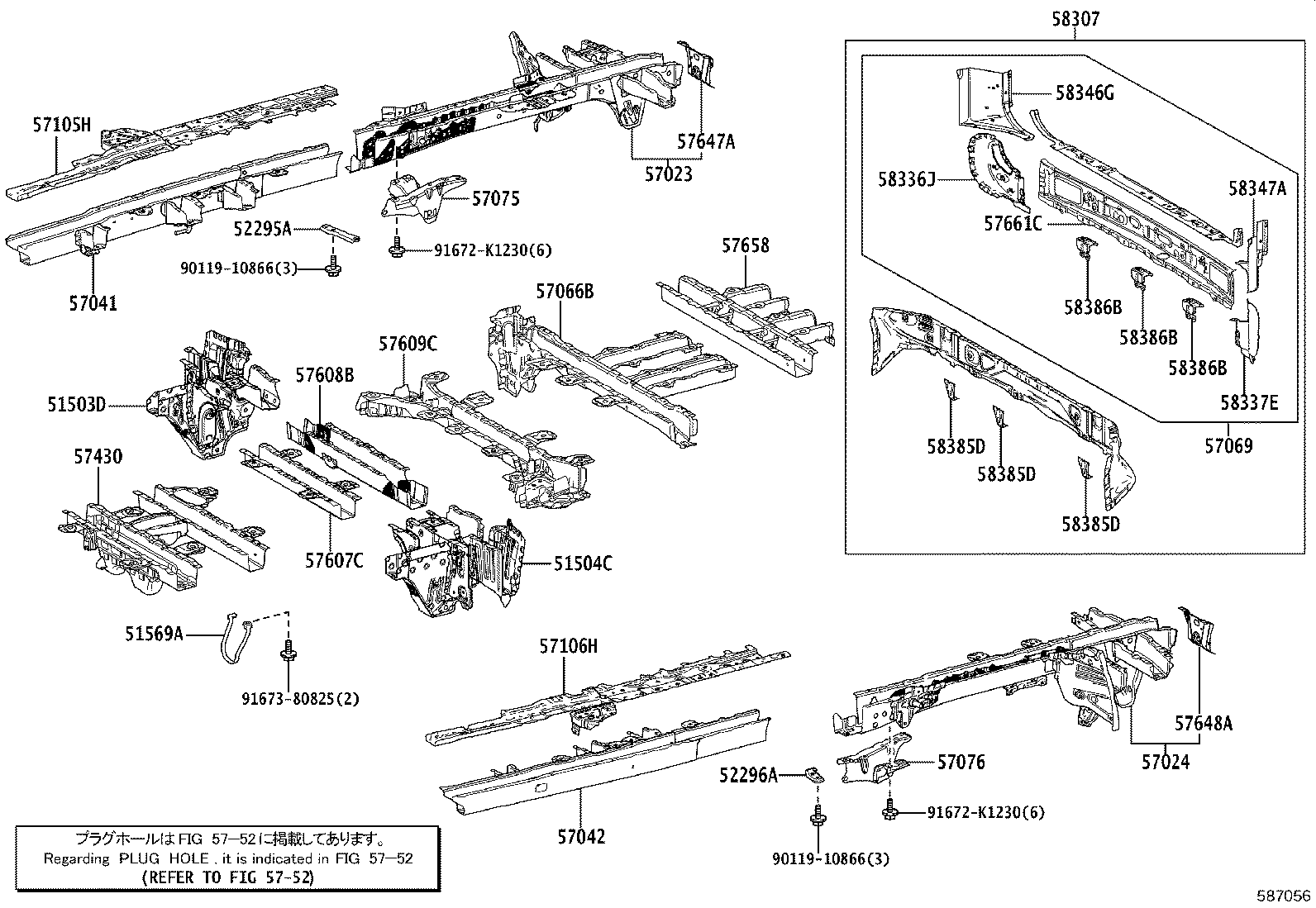

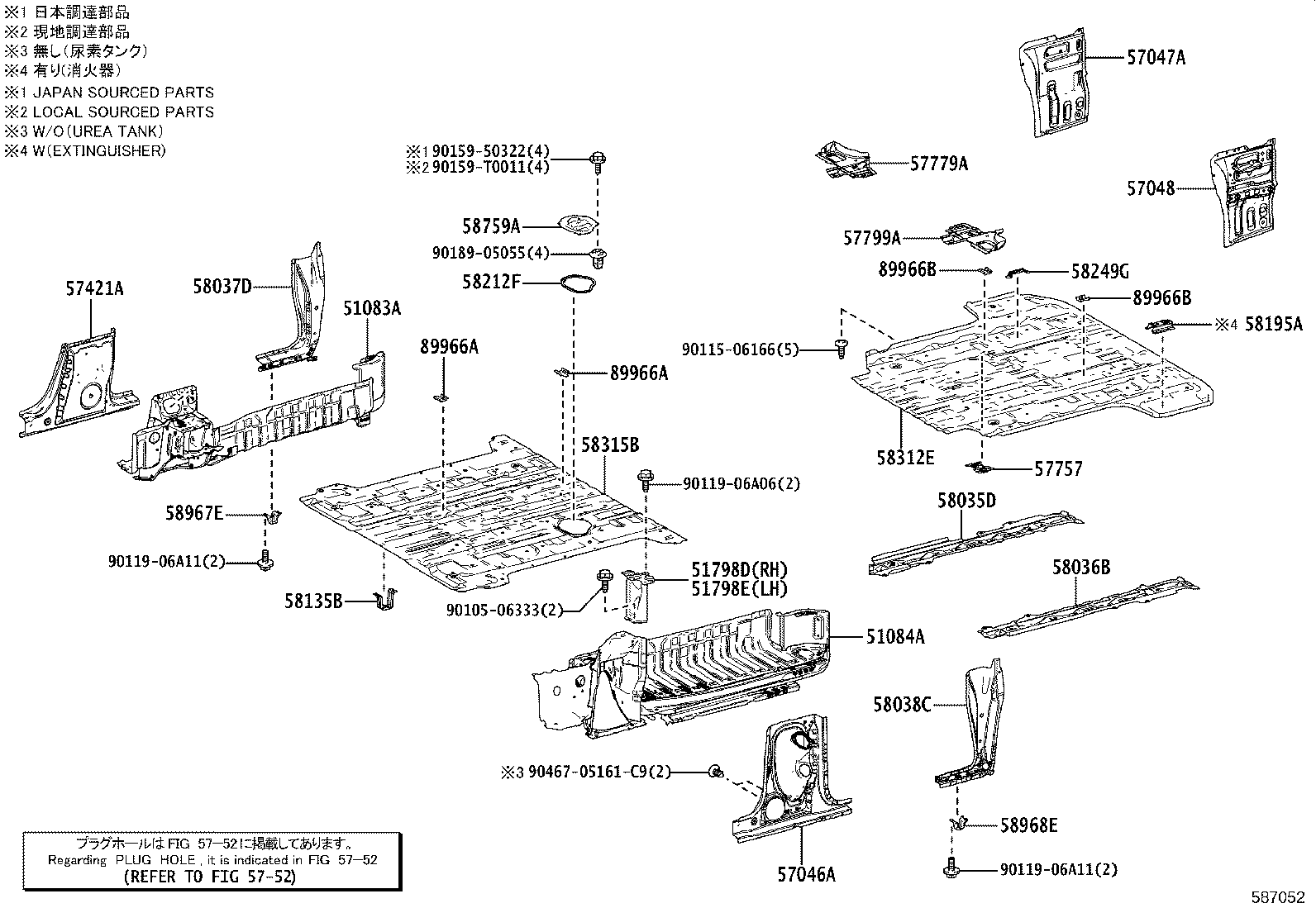

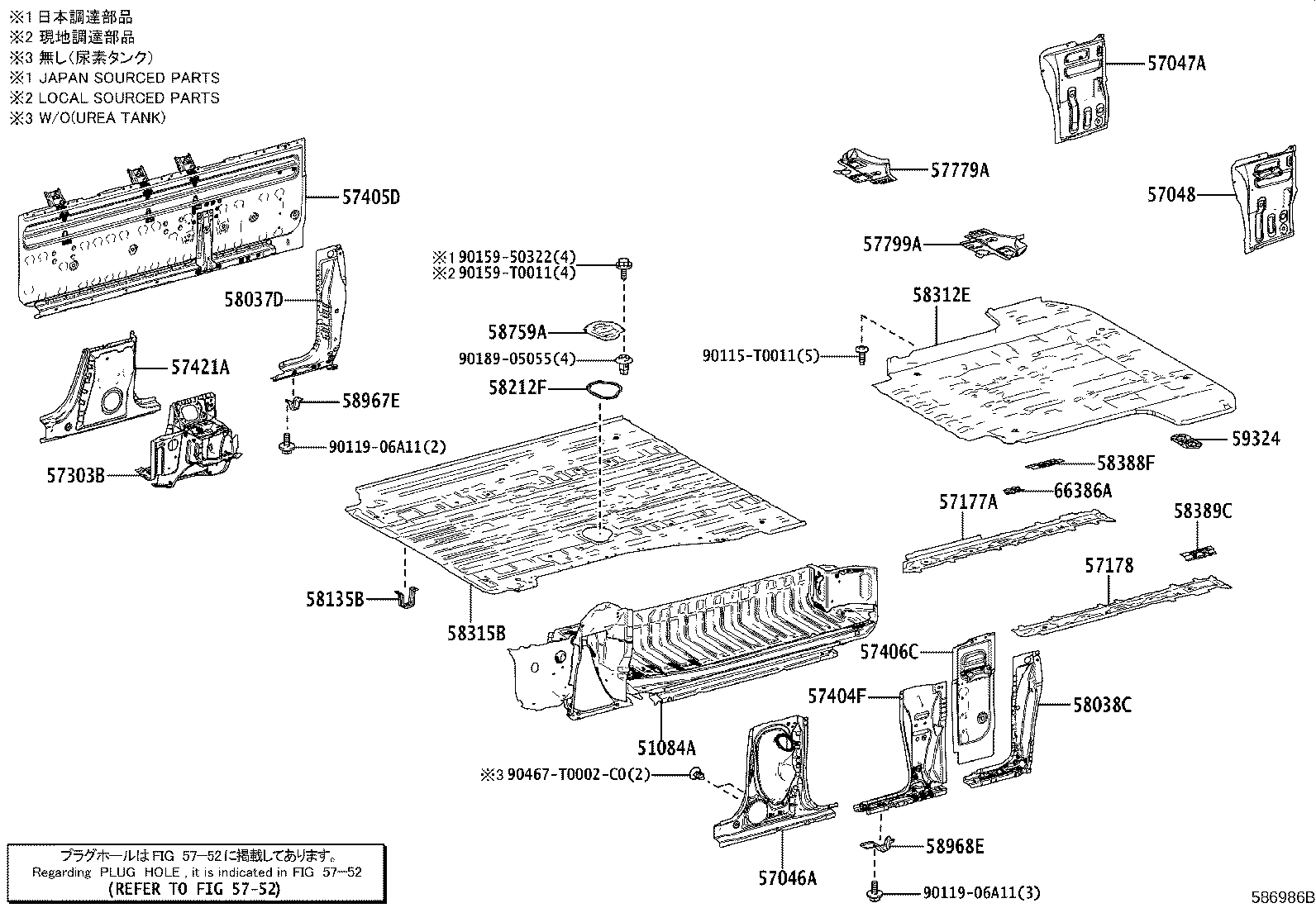

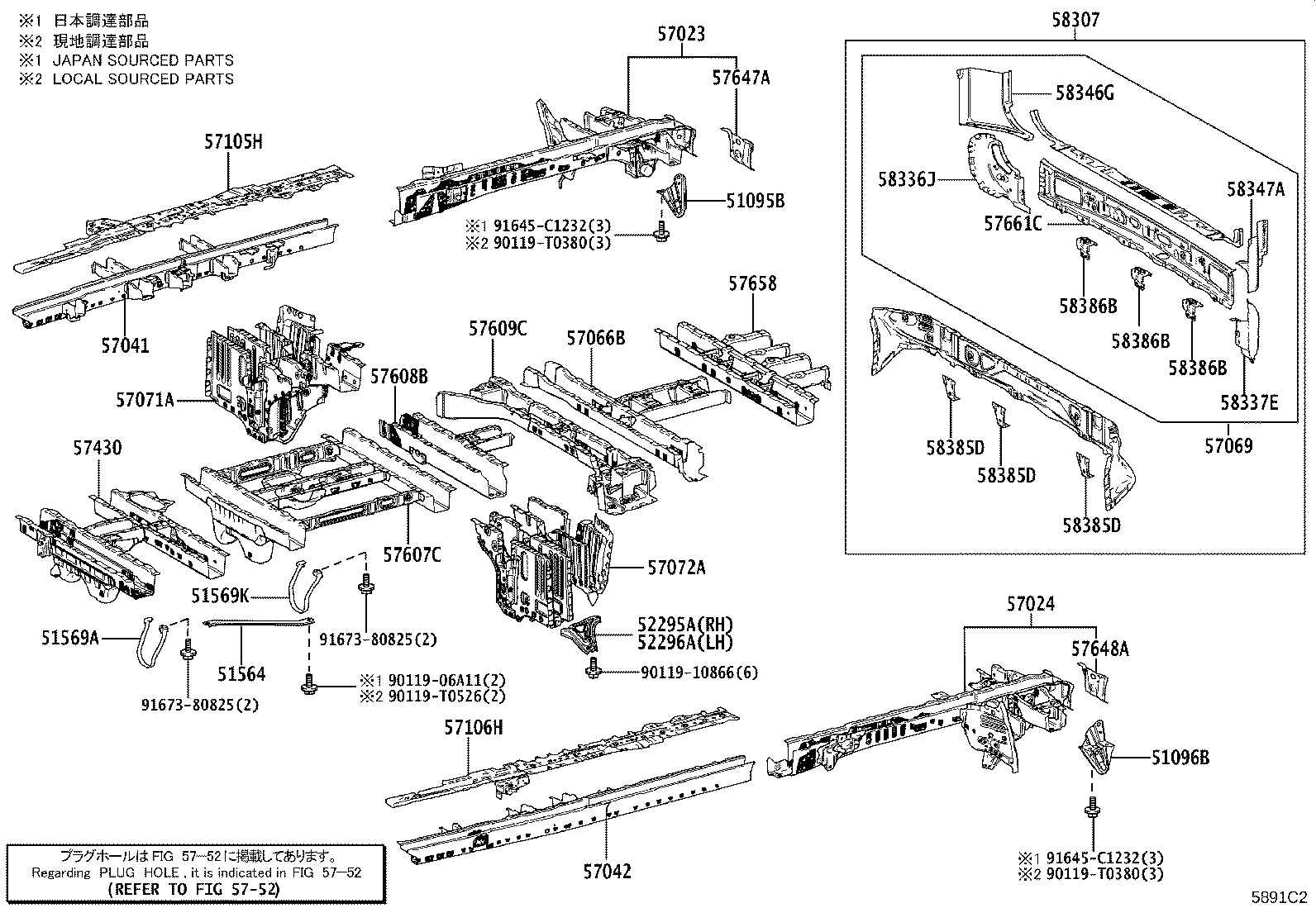

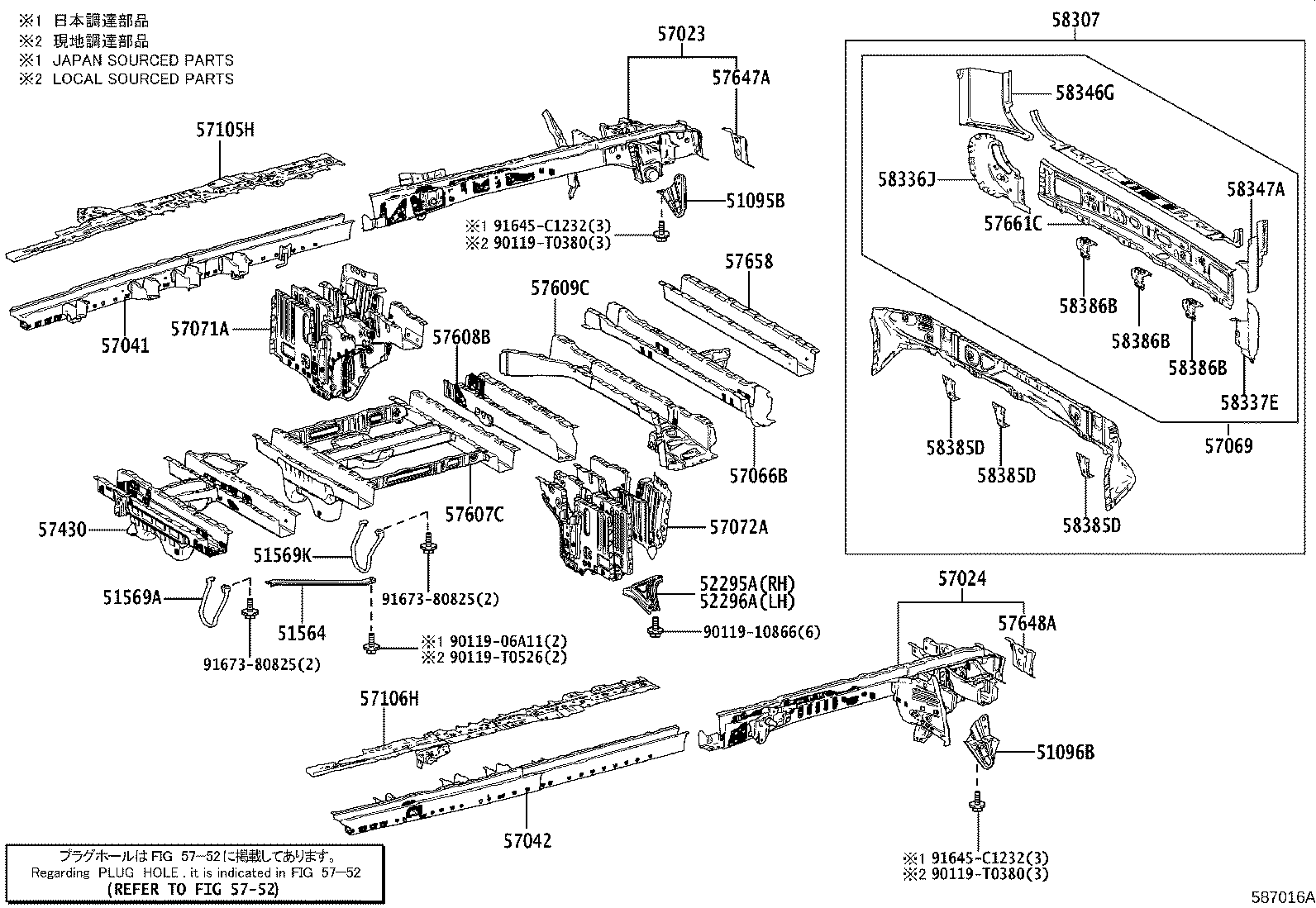

Illustrations

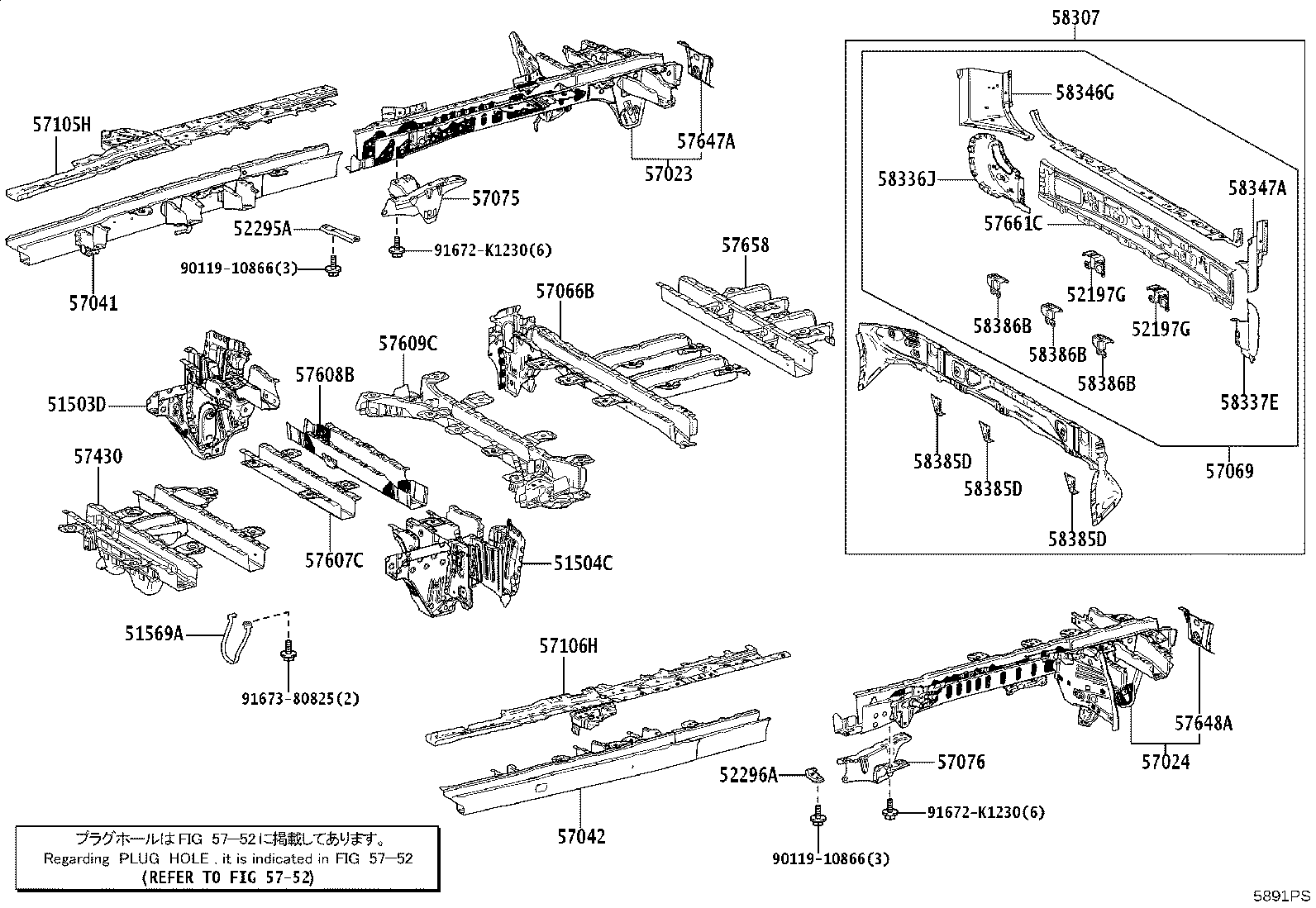

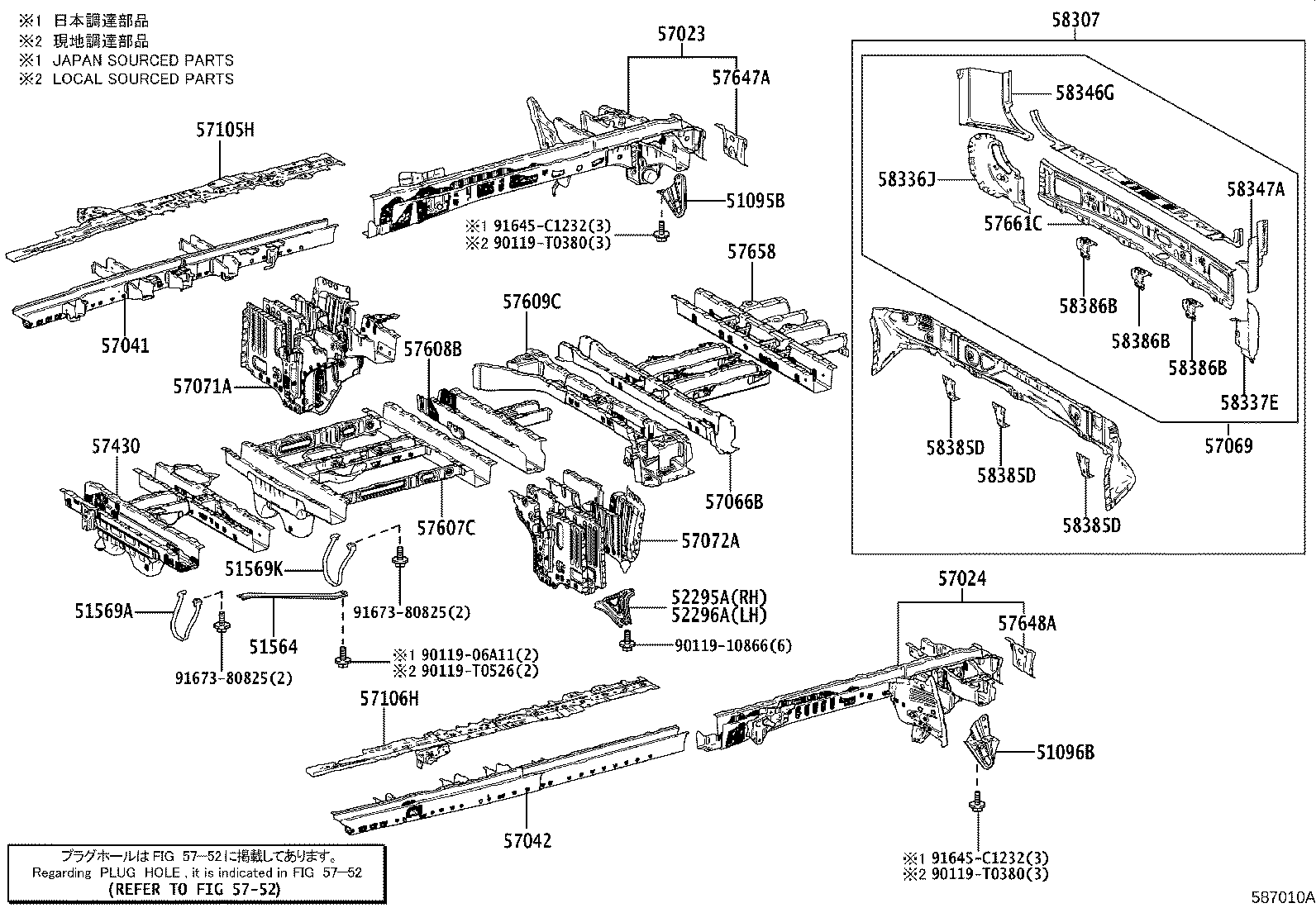

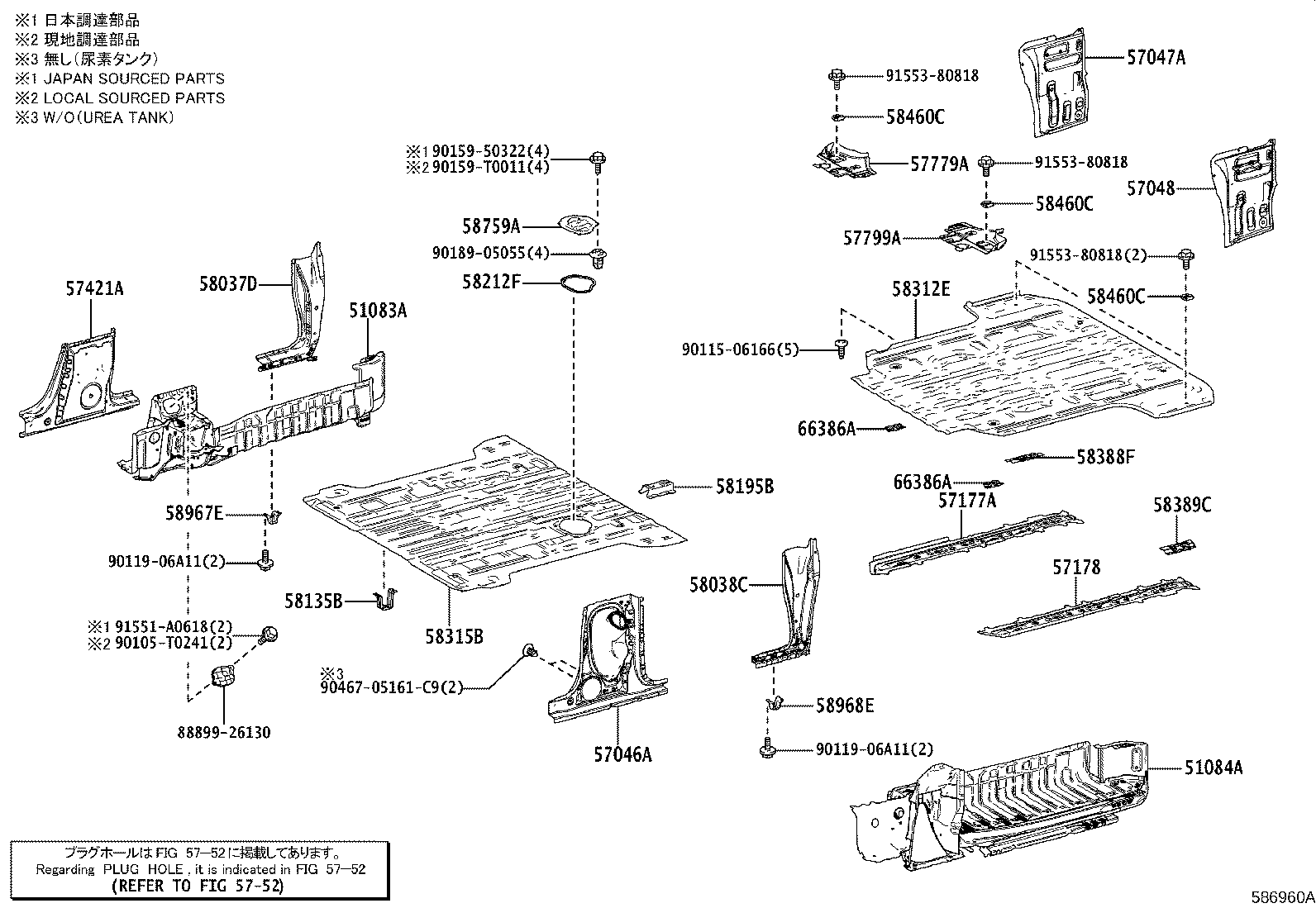

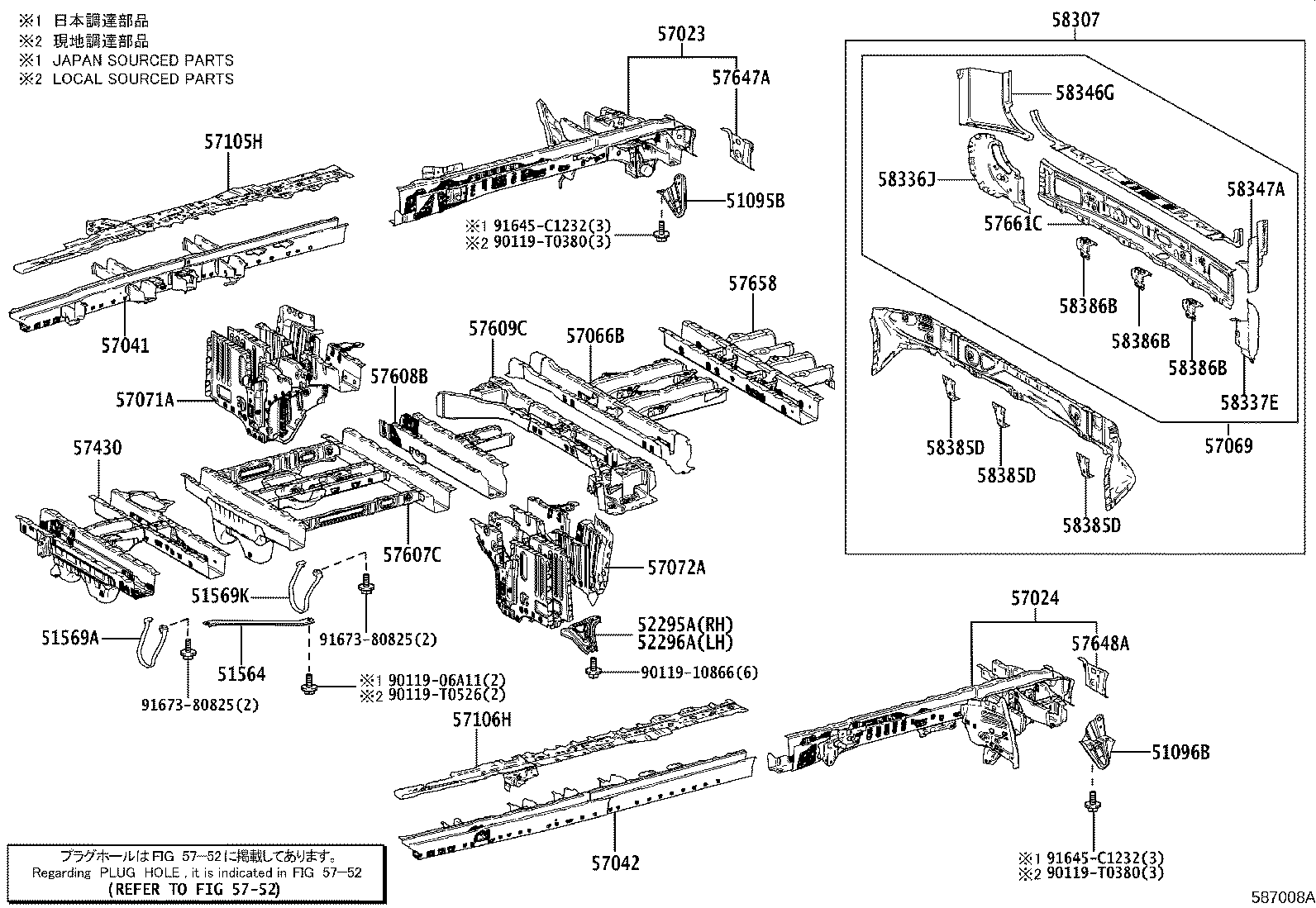

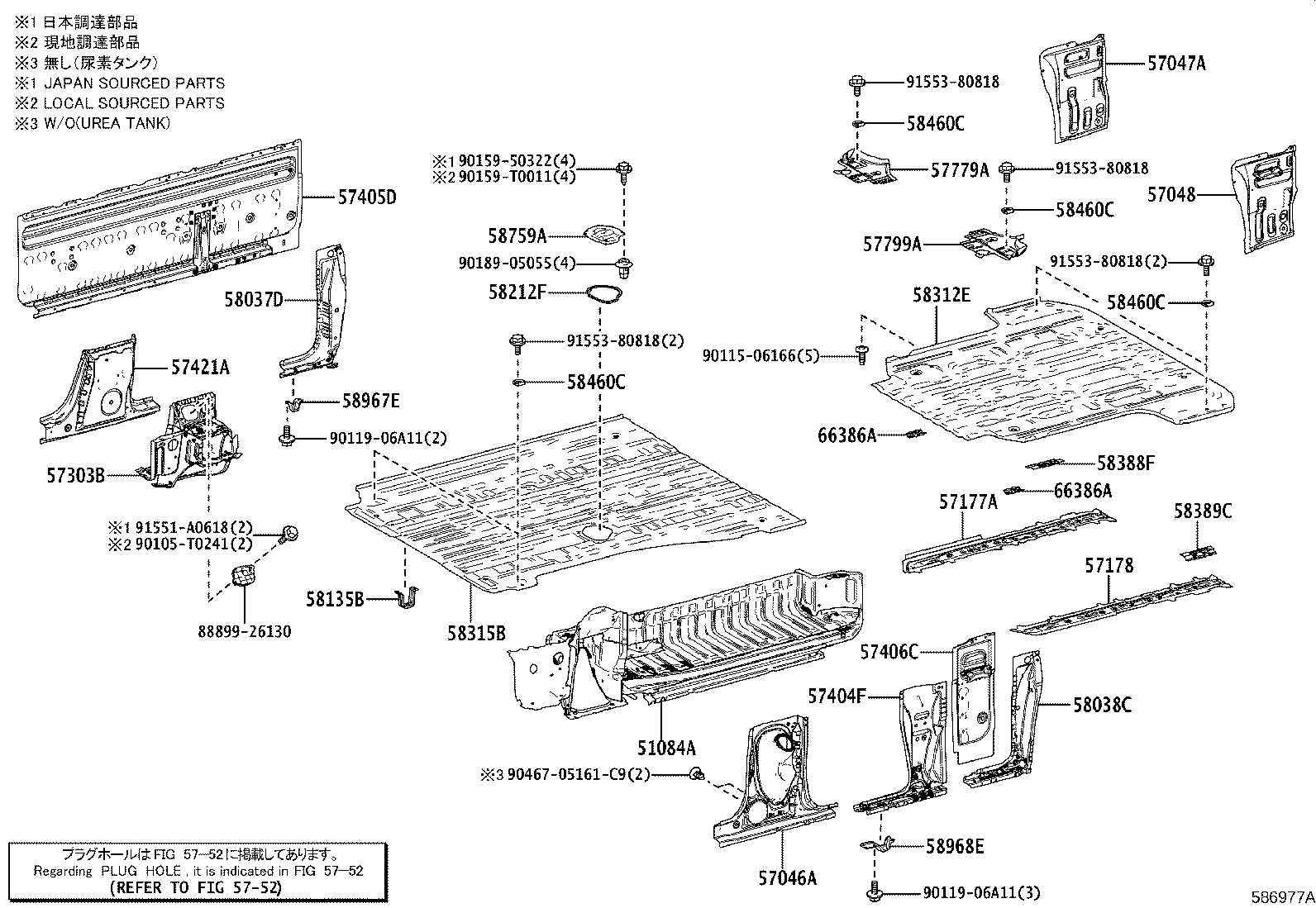

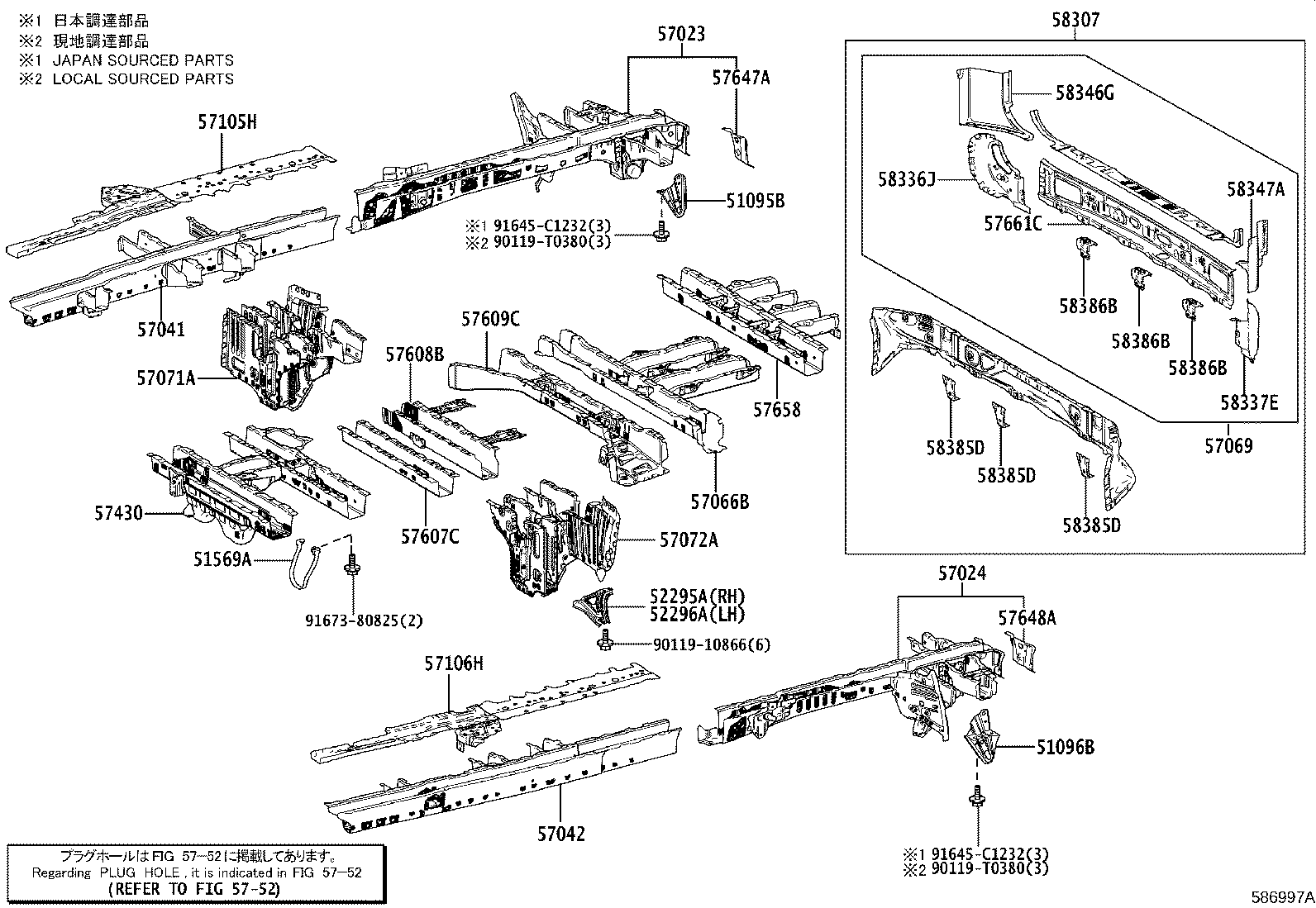

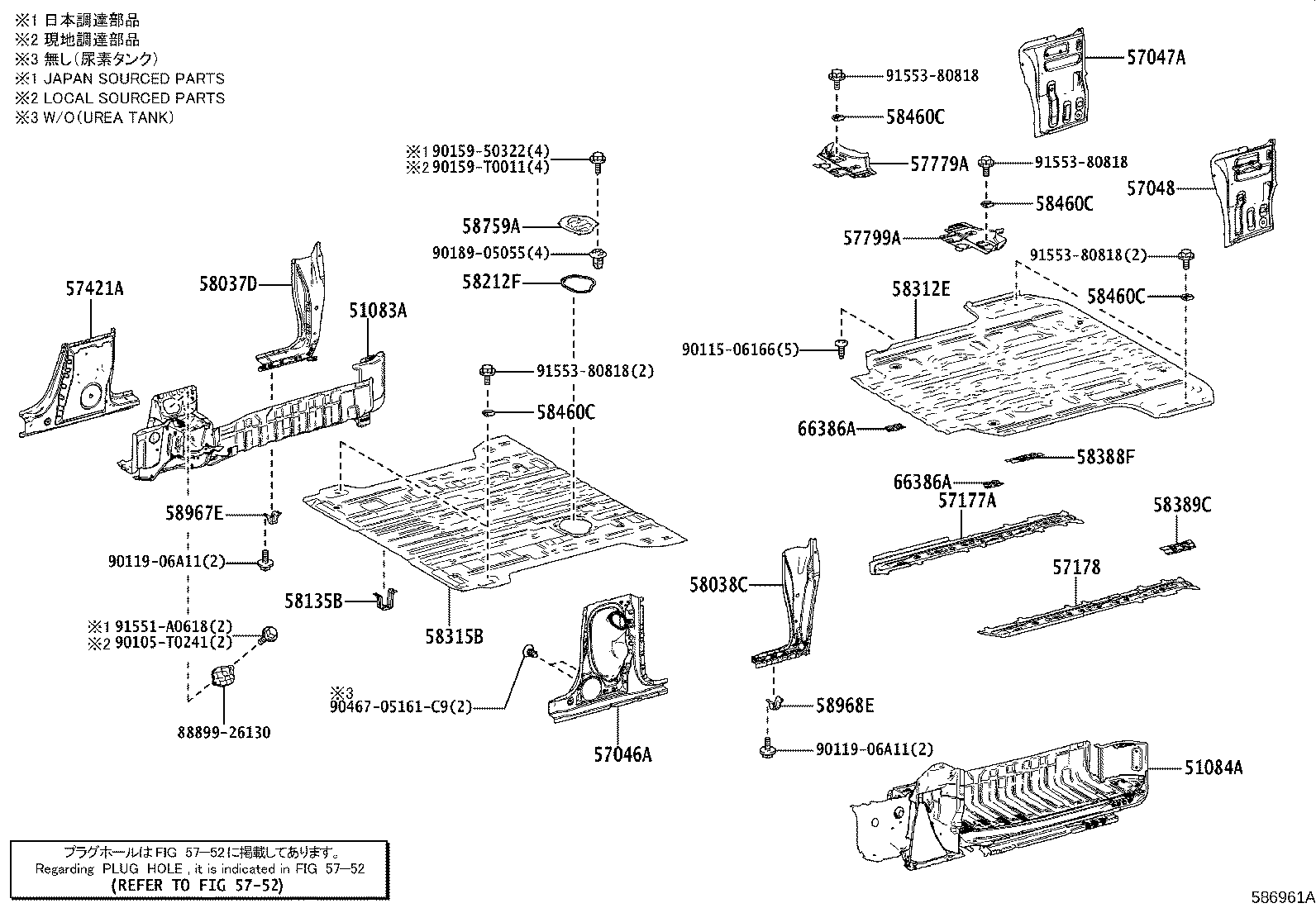

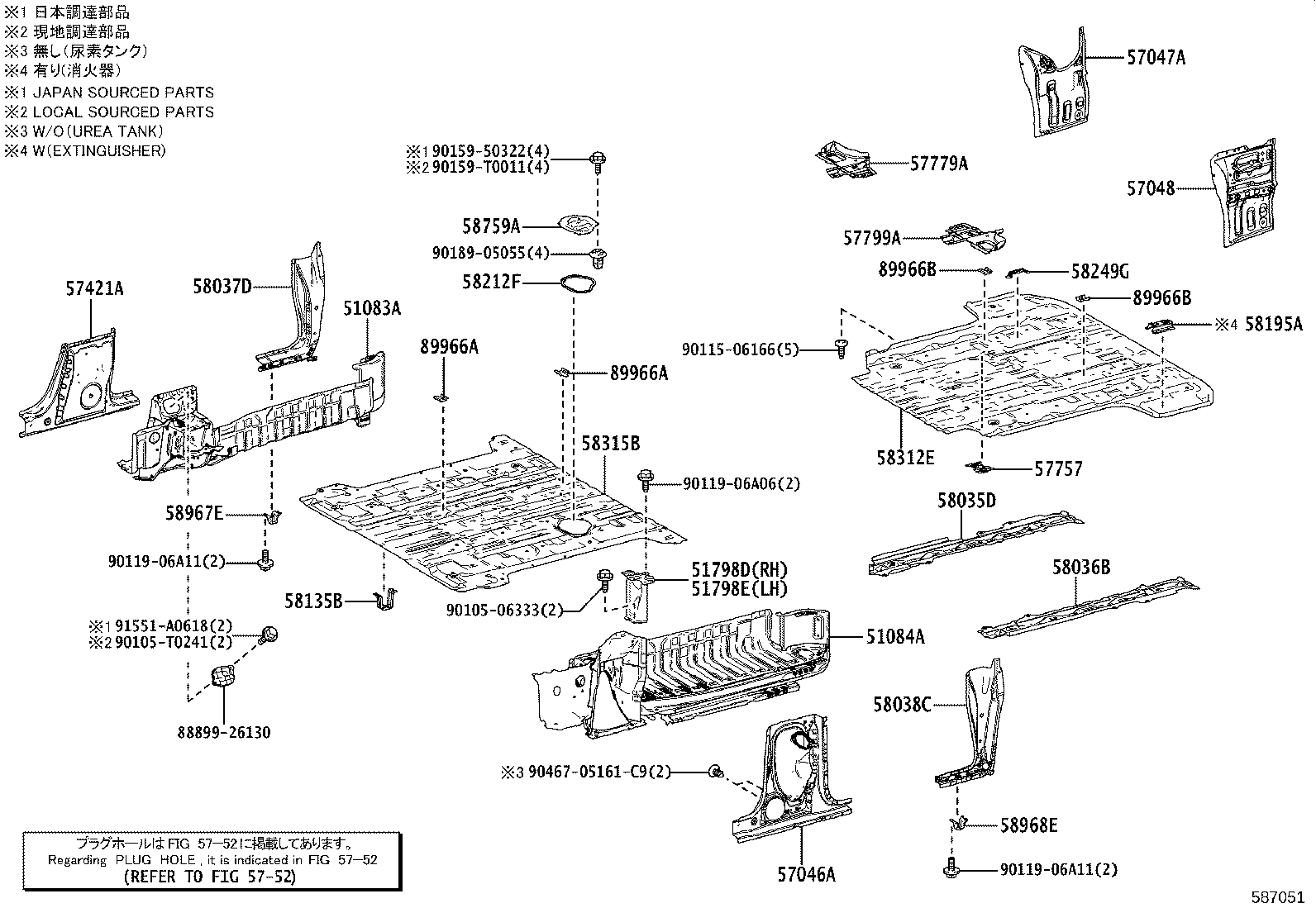

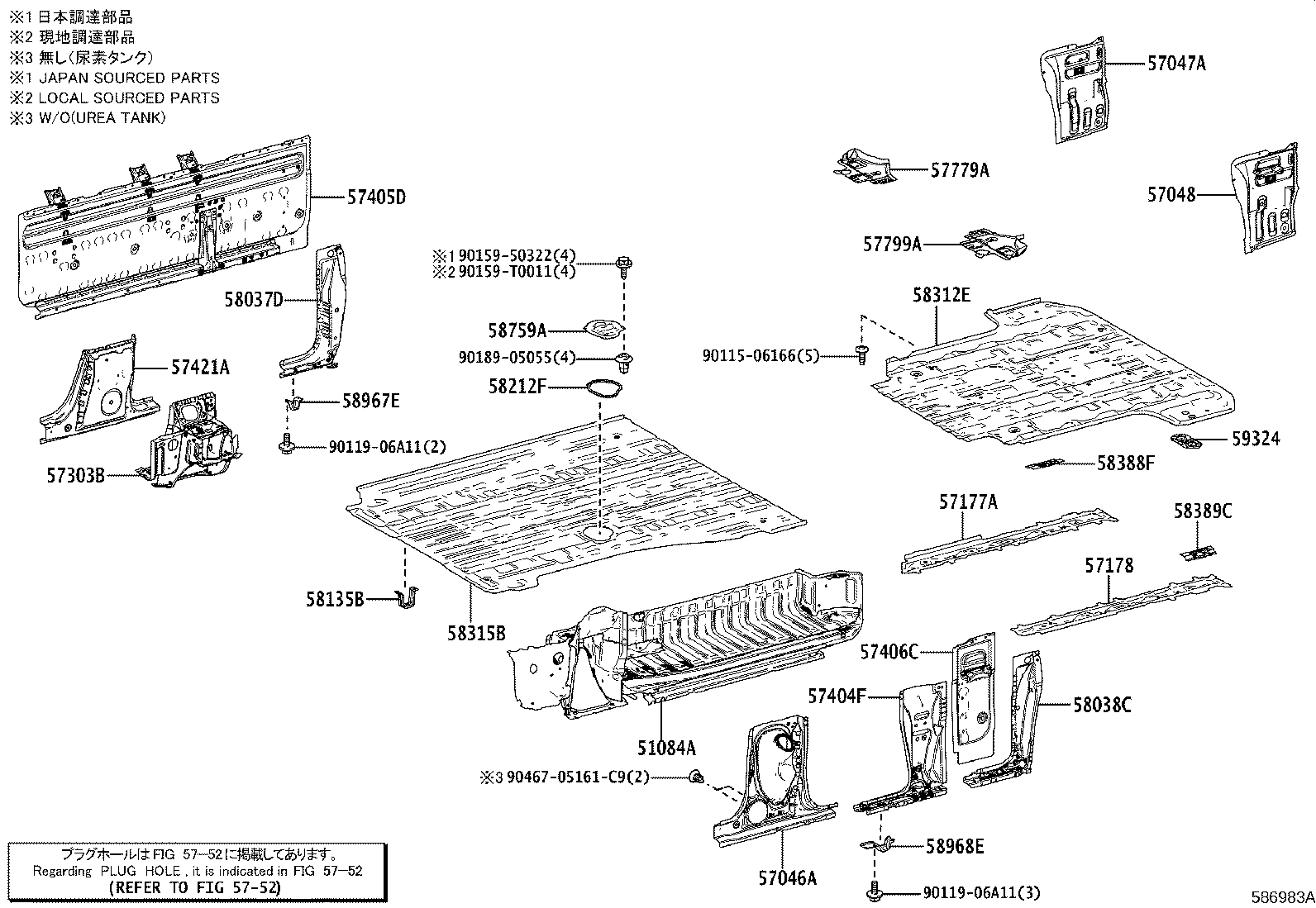

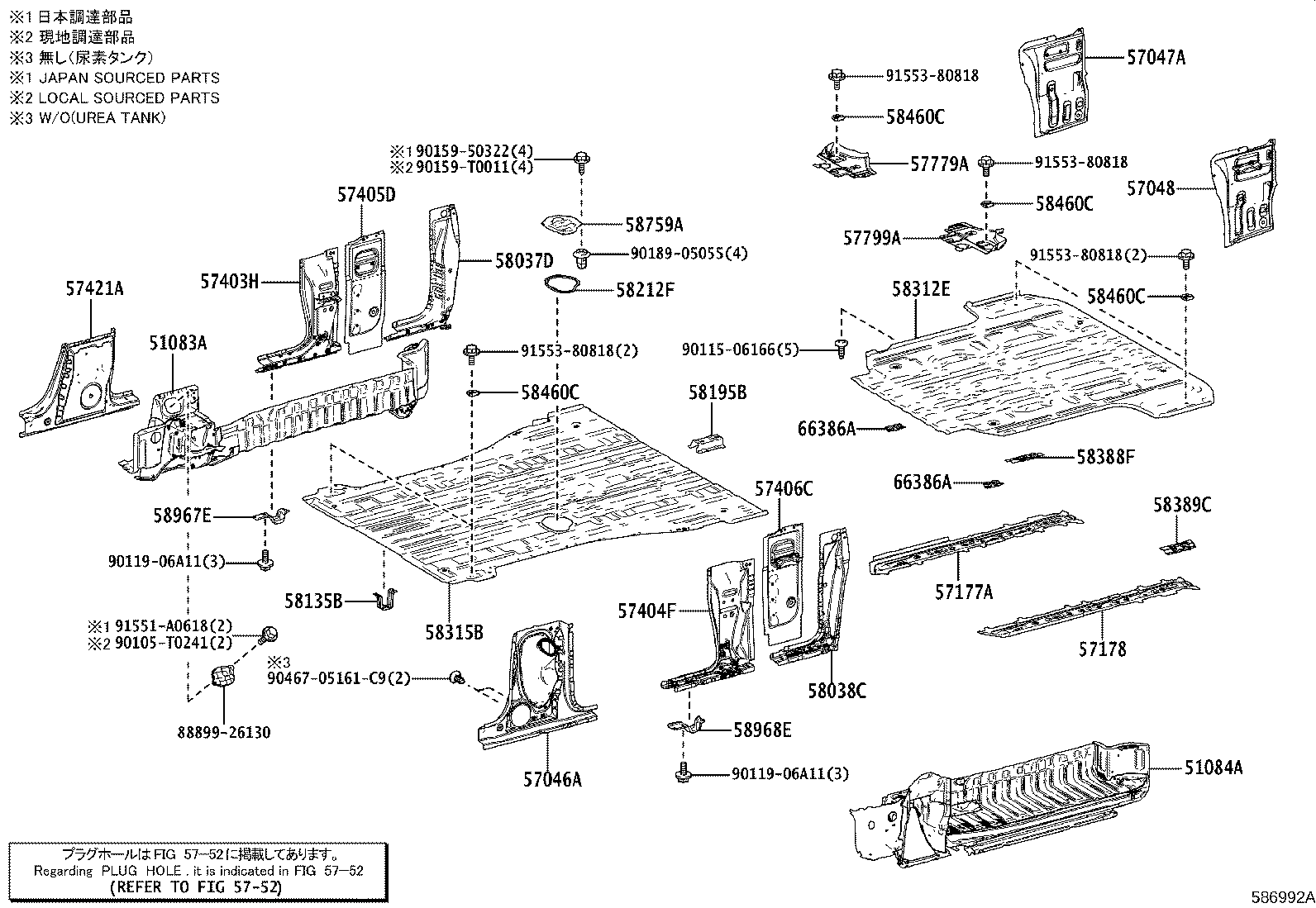

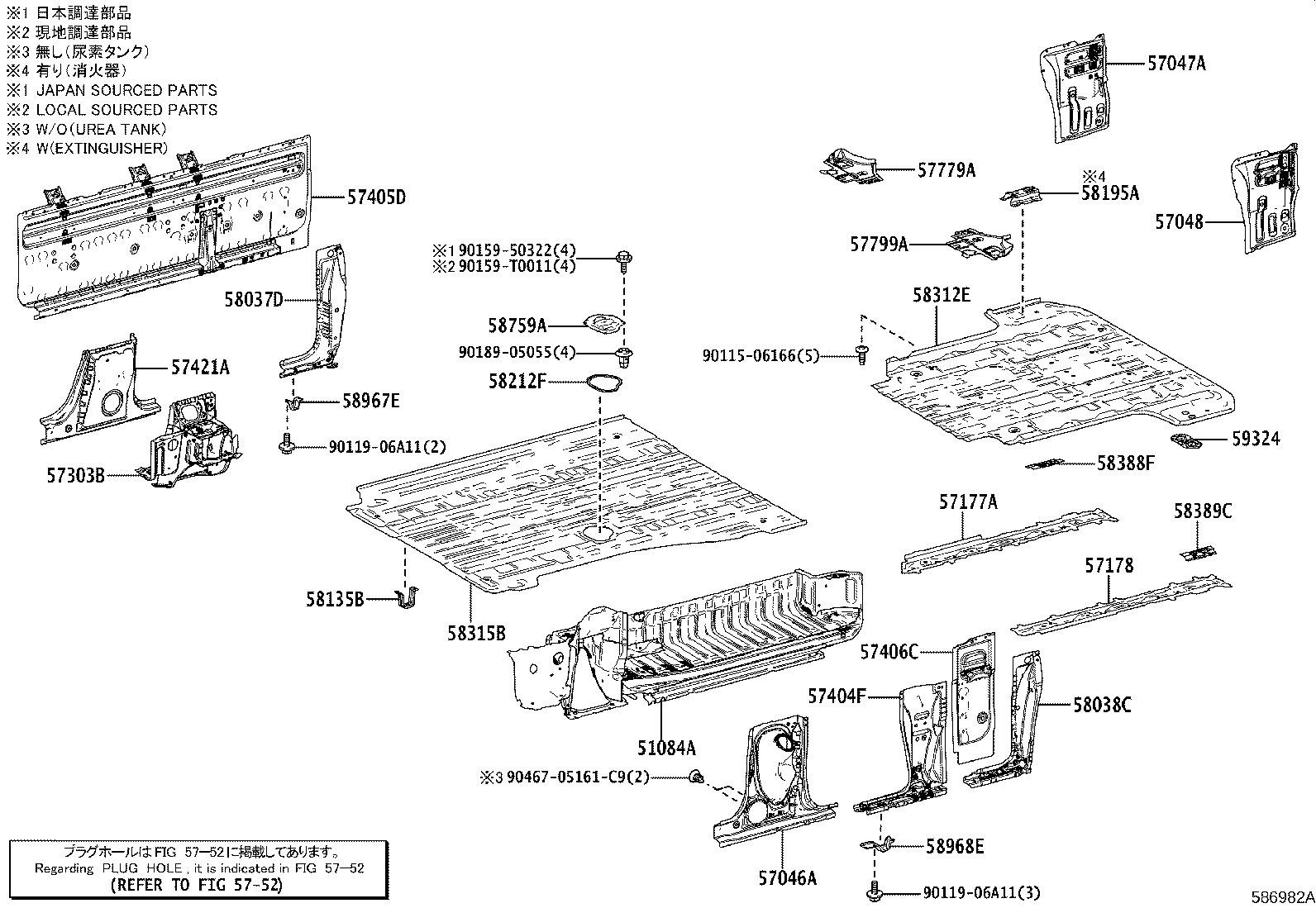

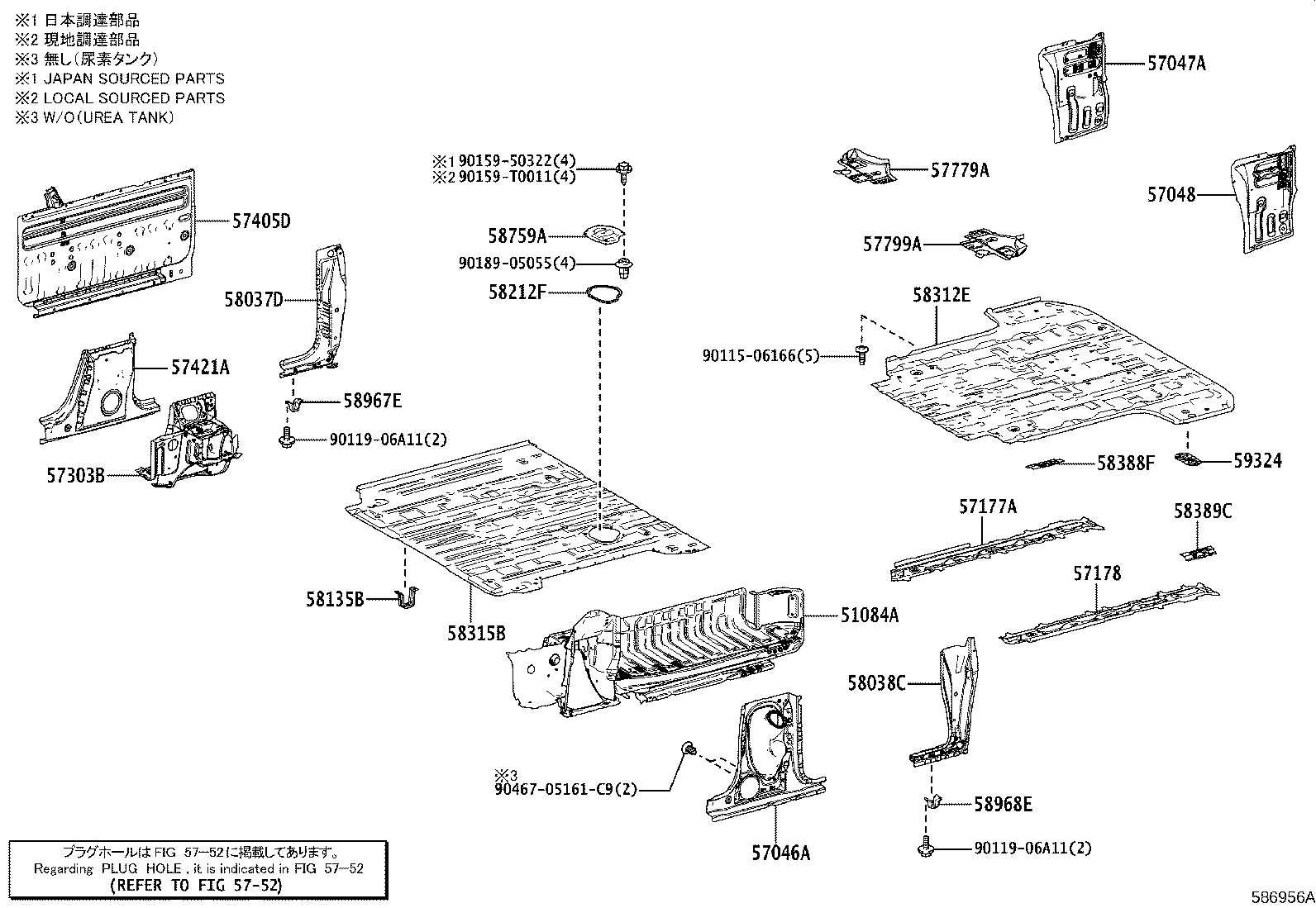

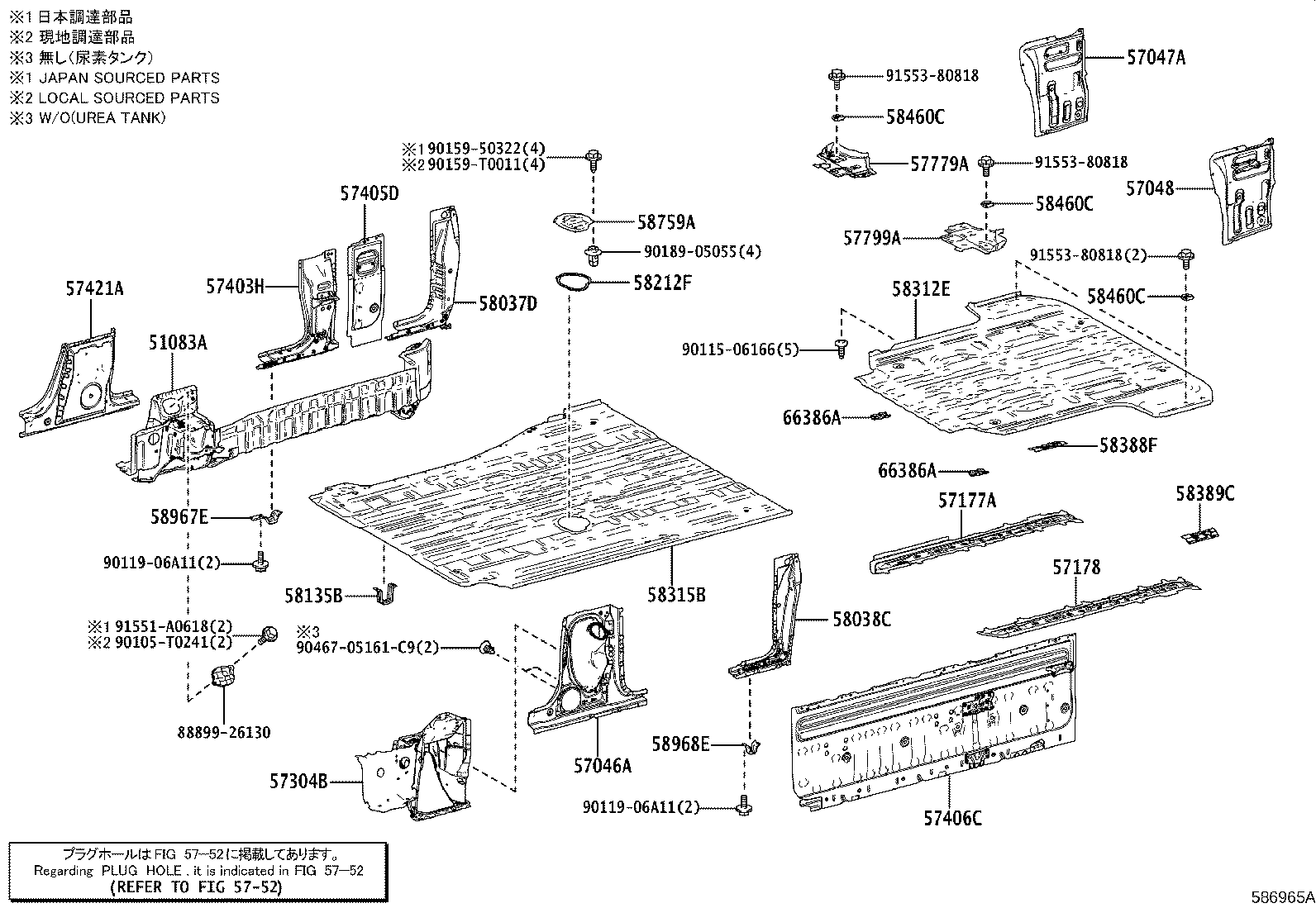

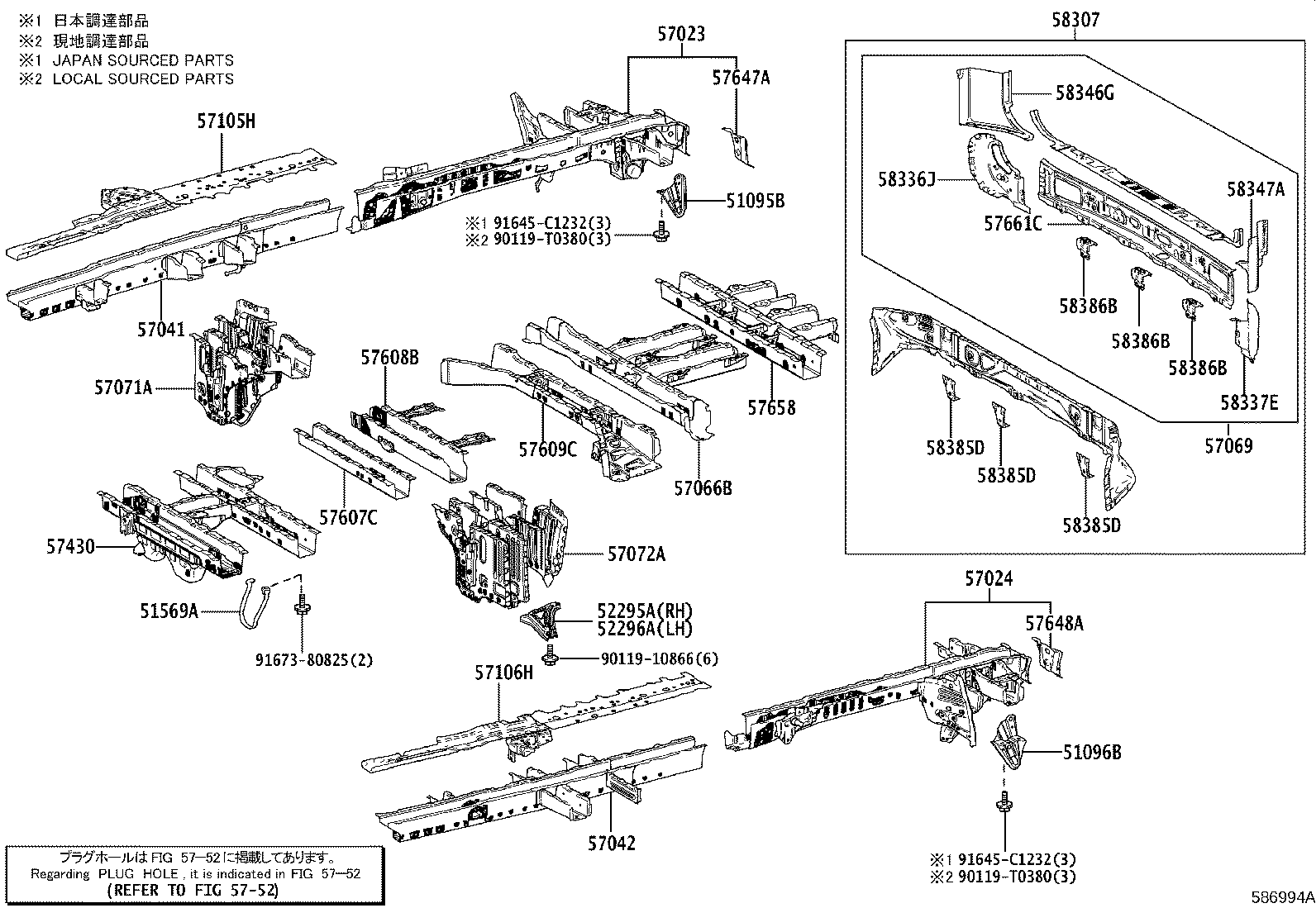

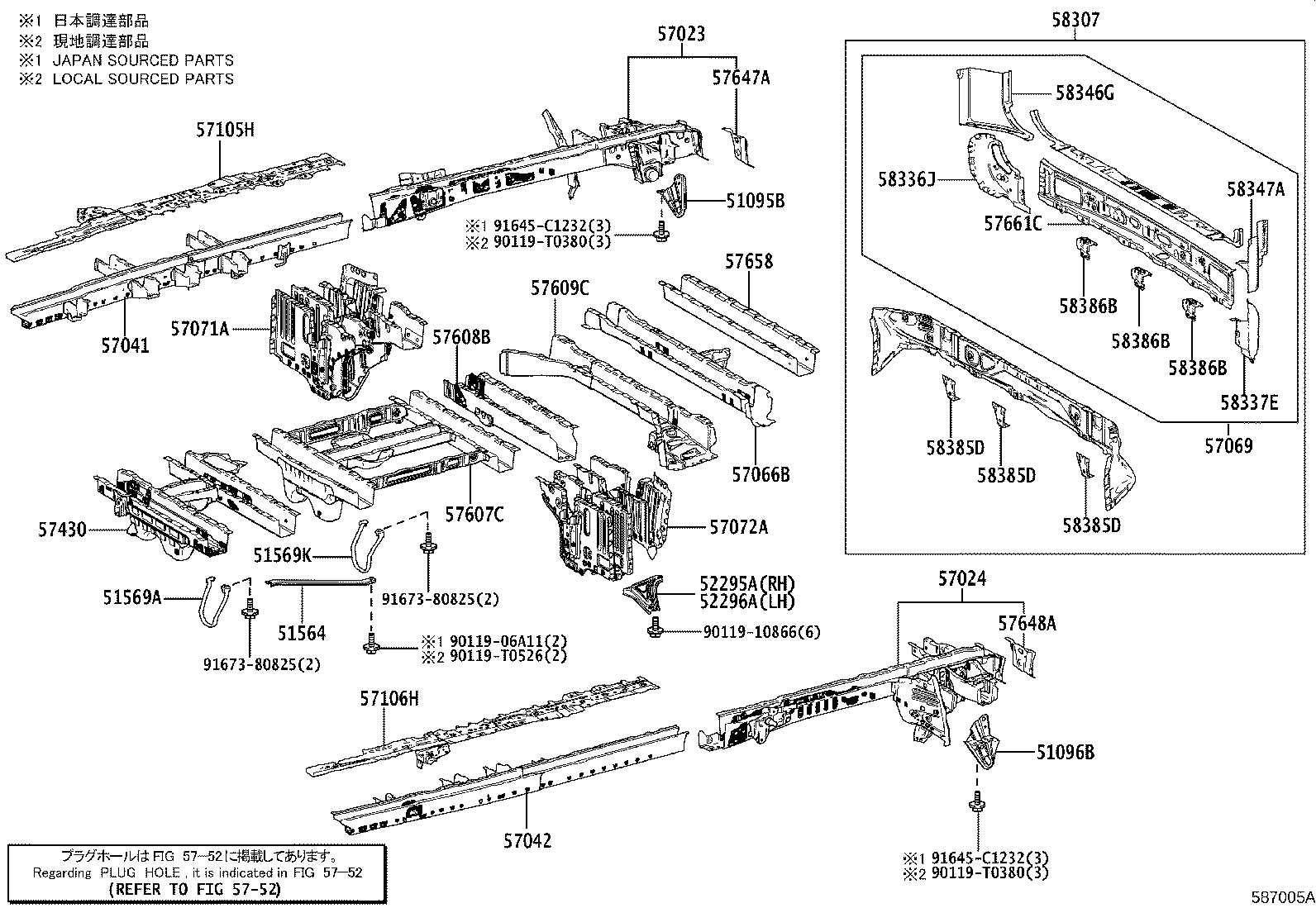

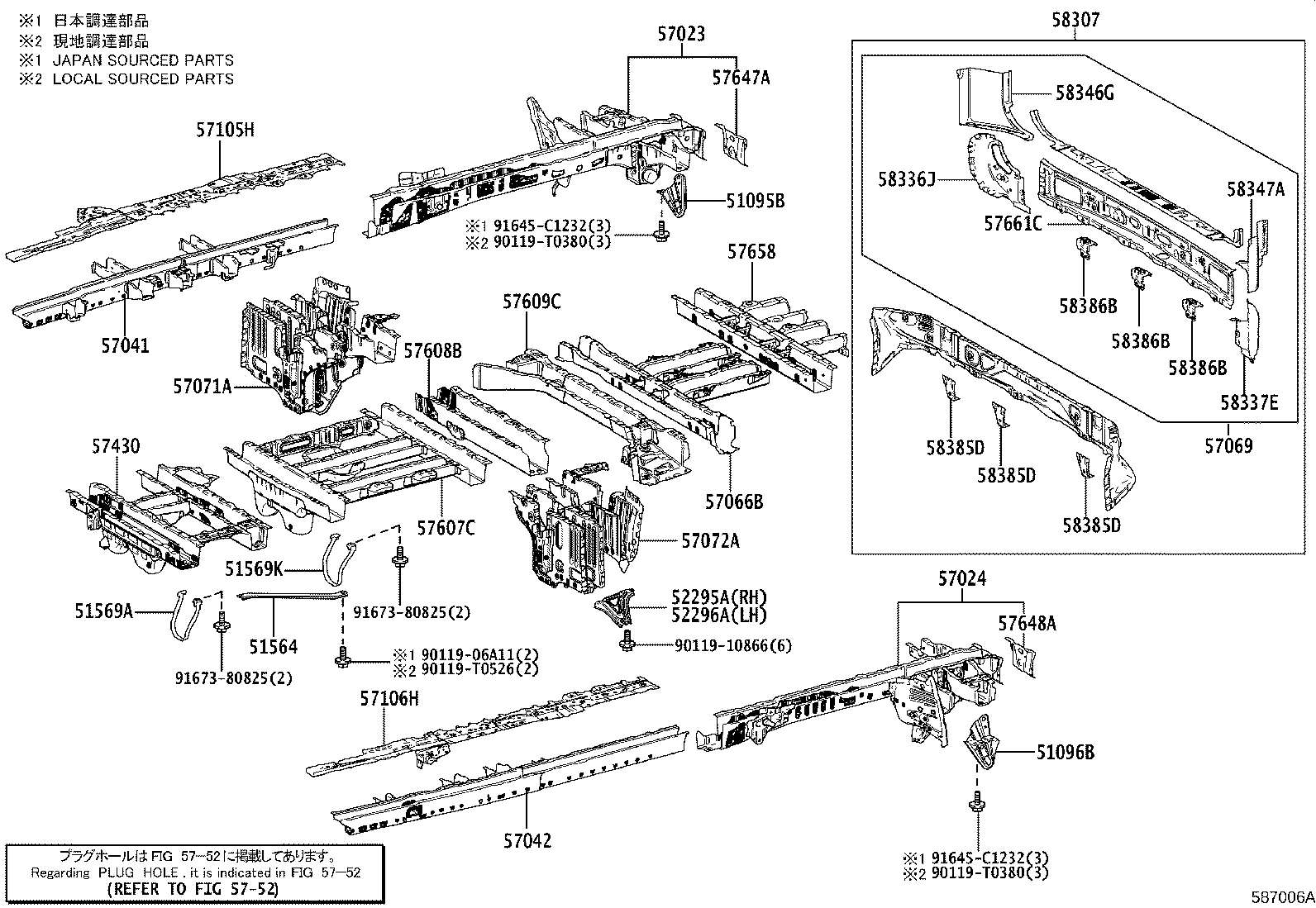

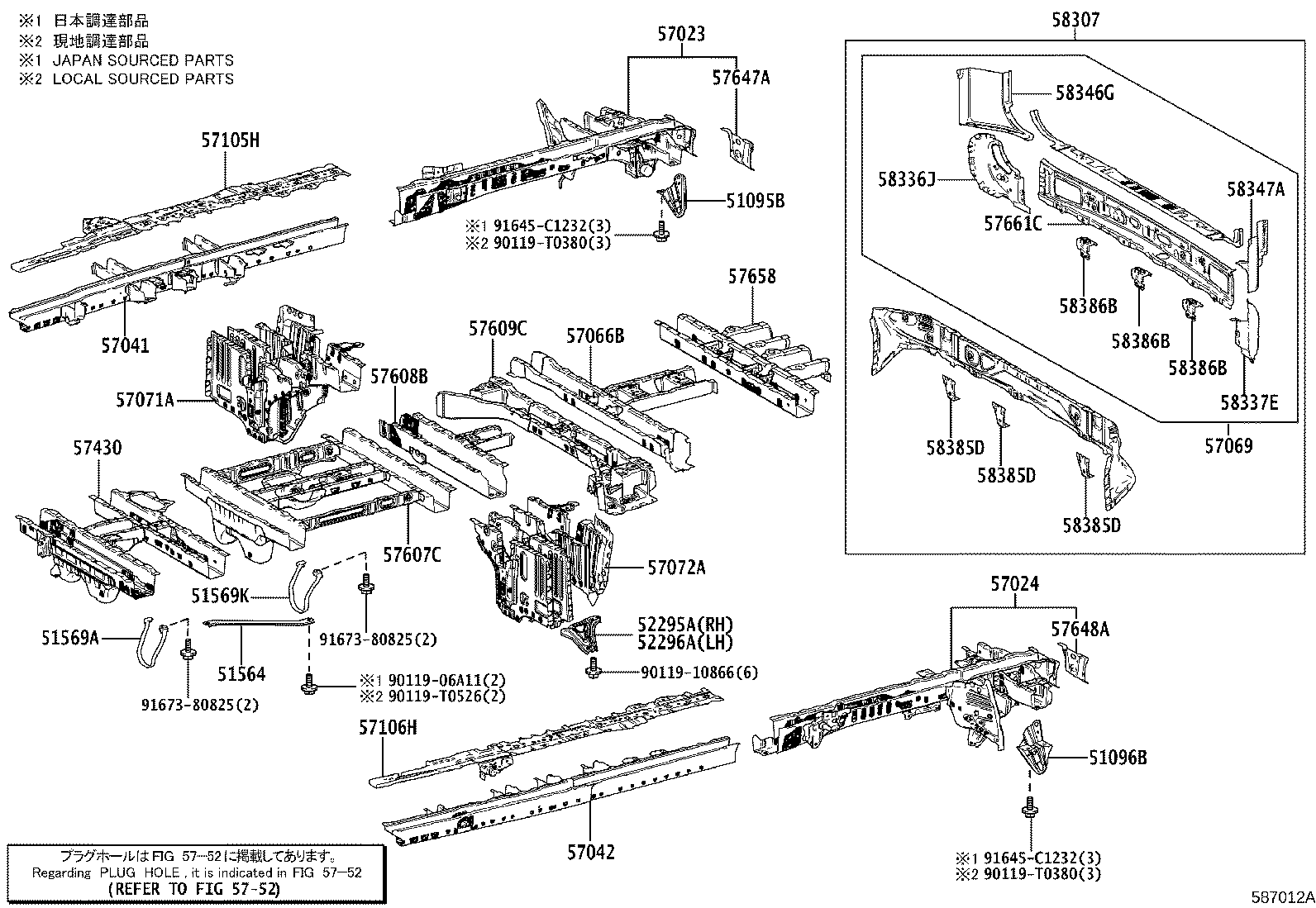

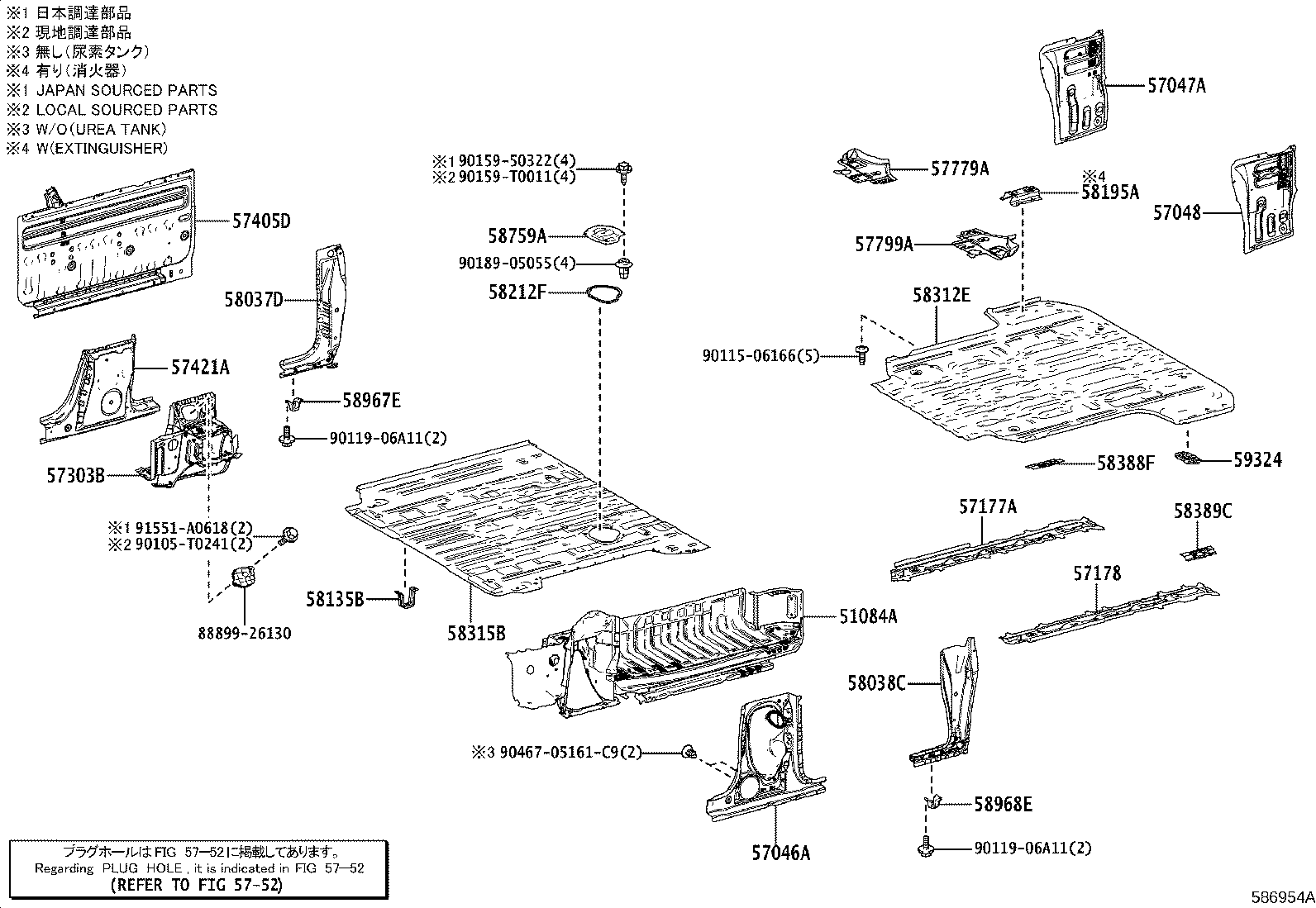

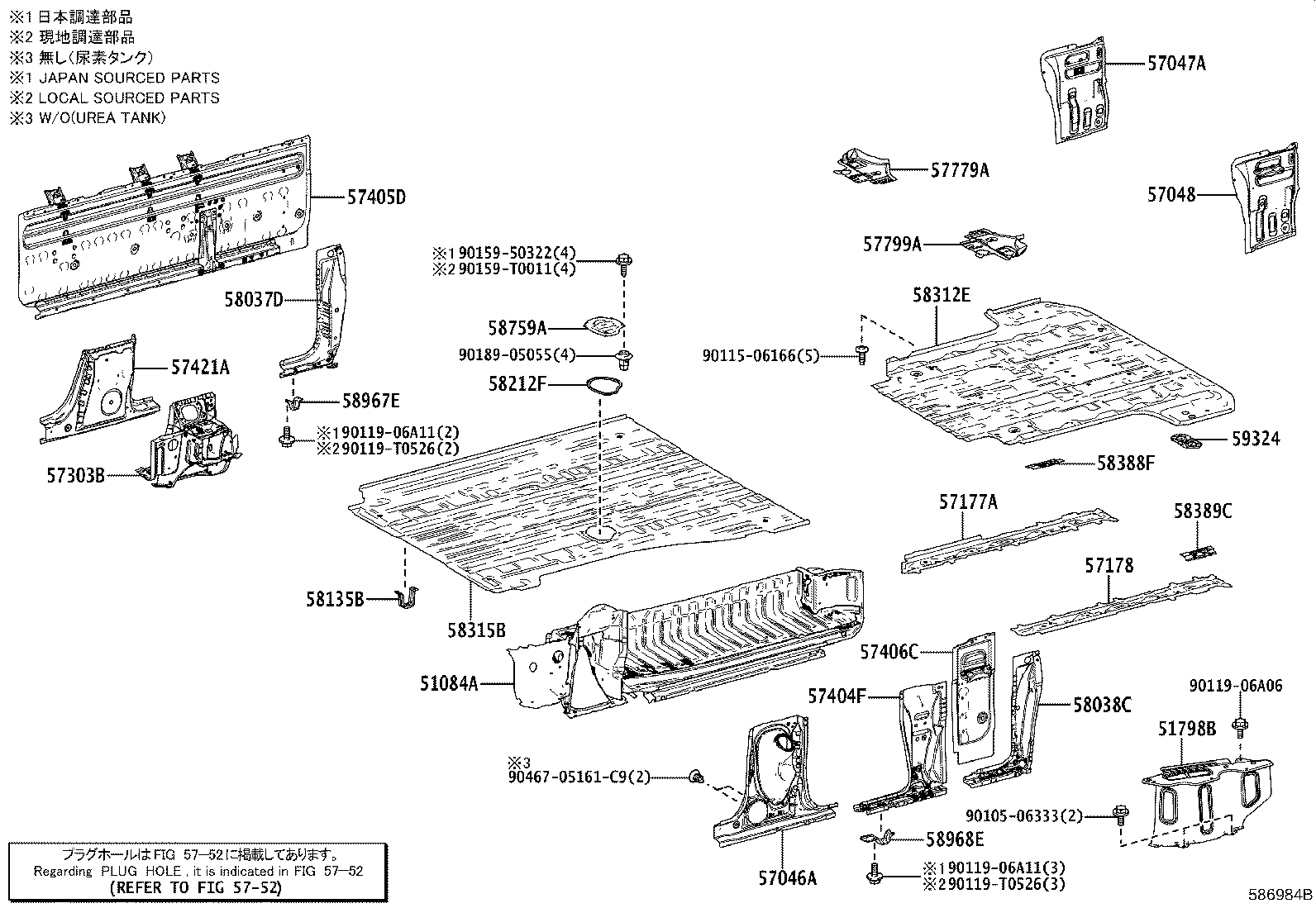

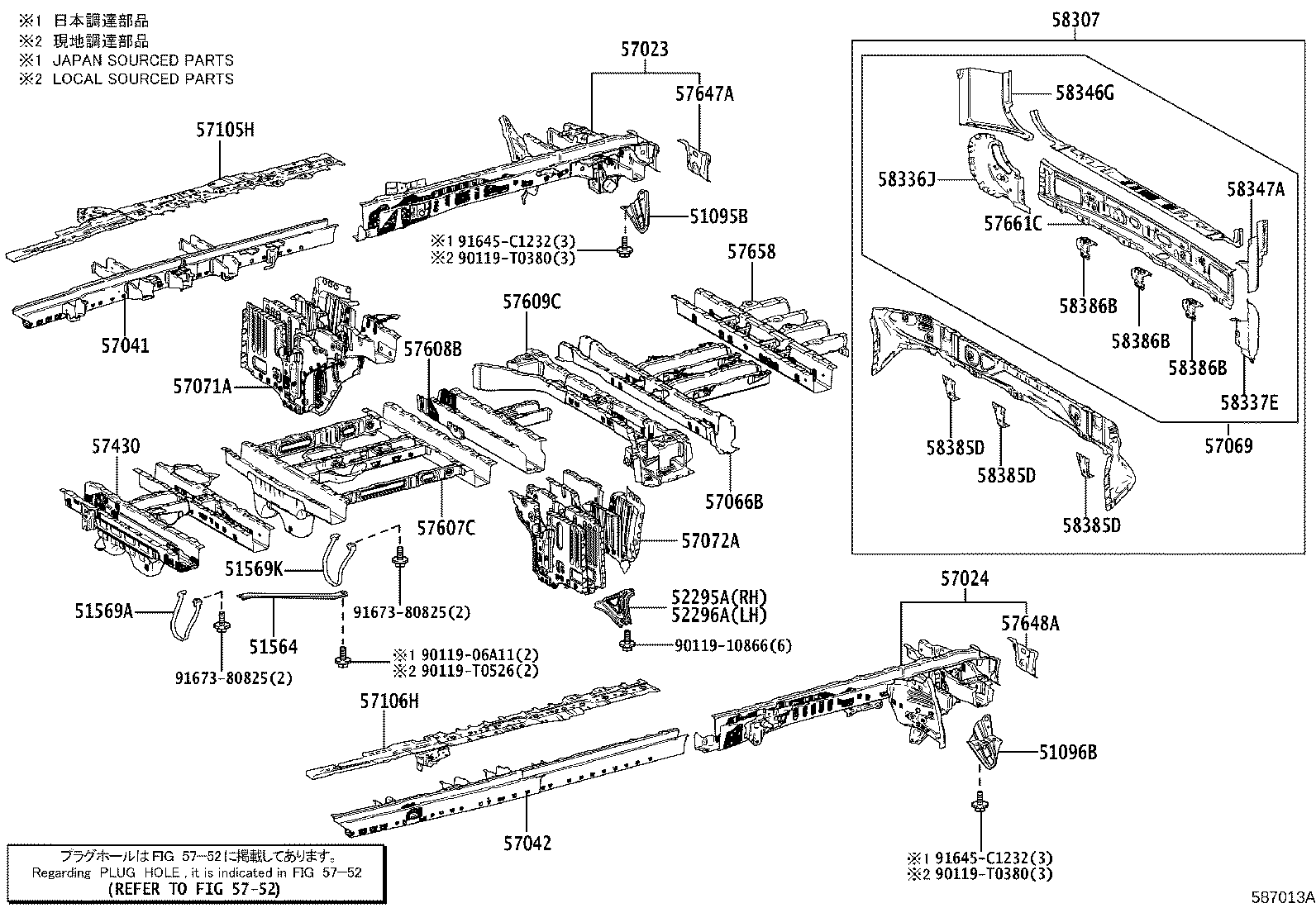

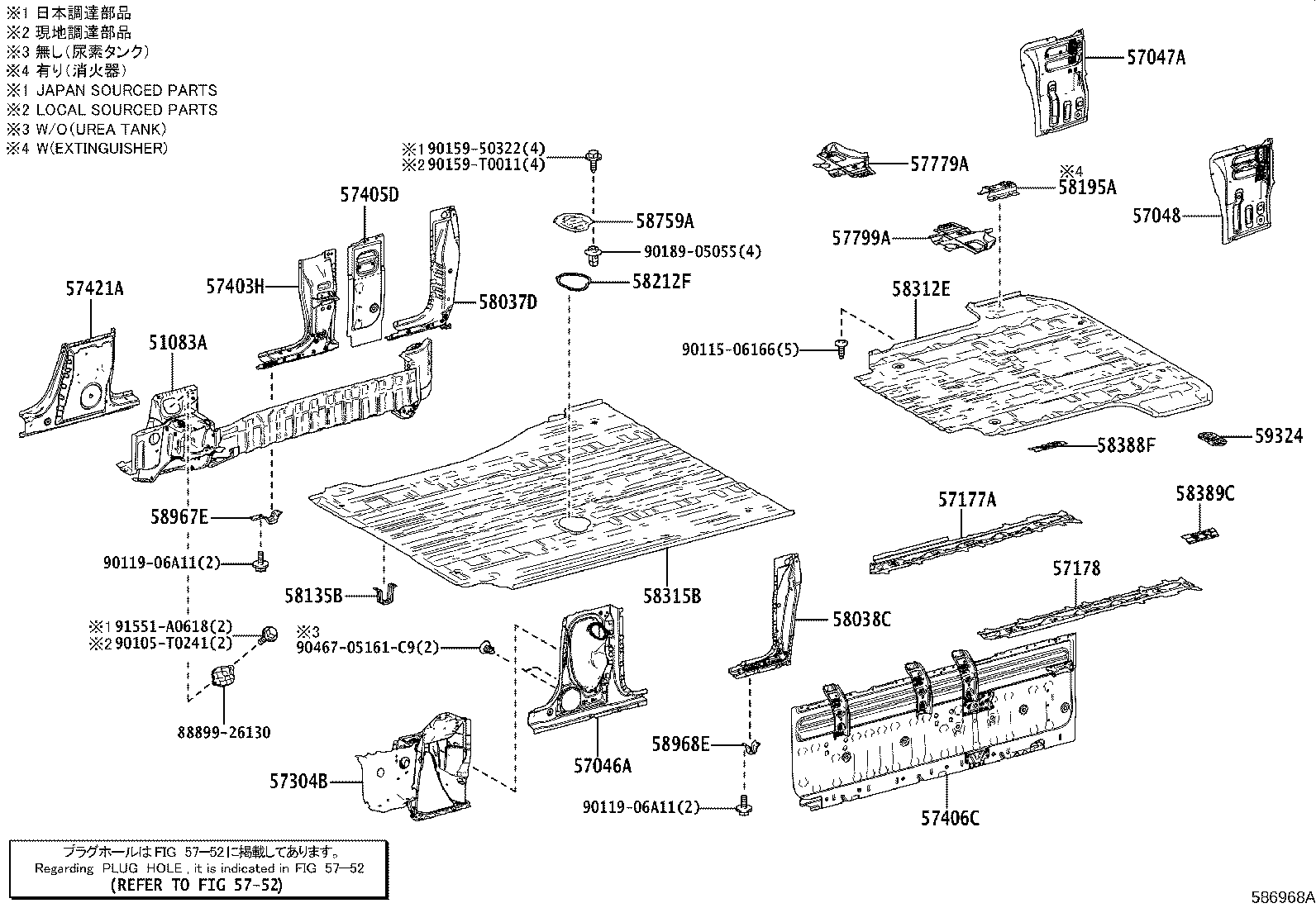

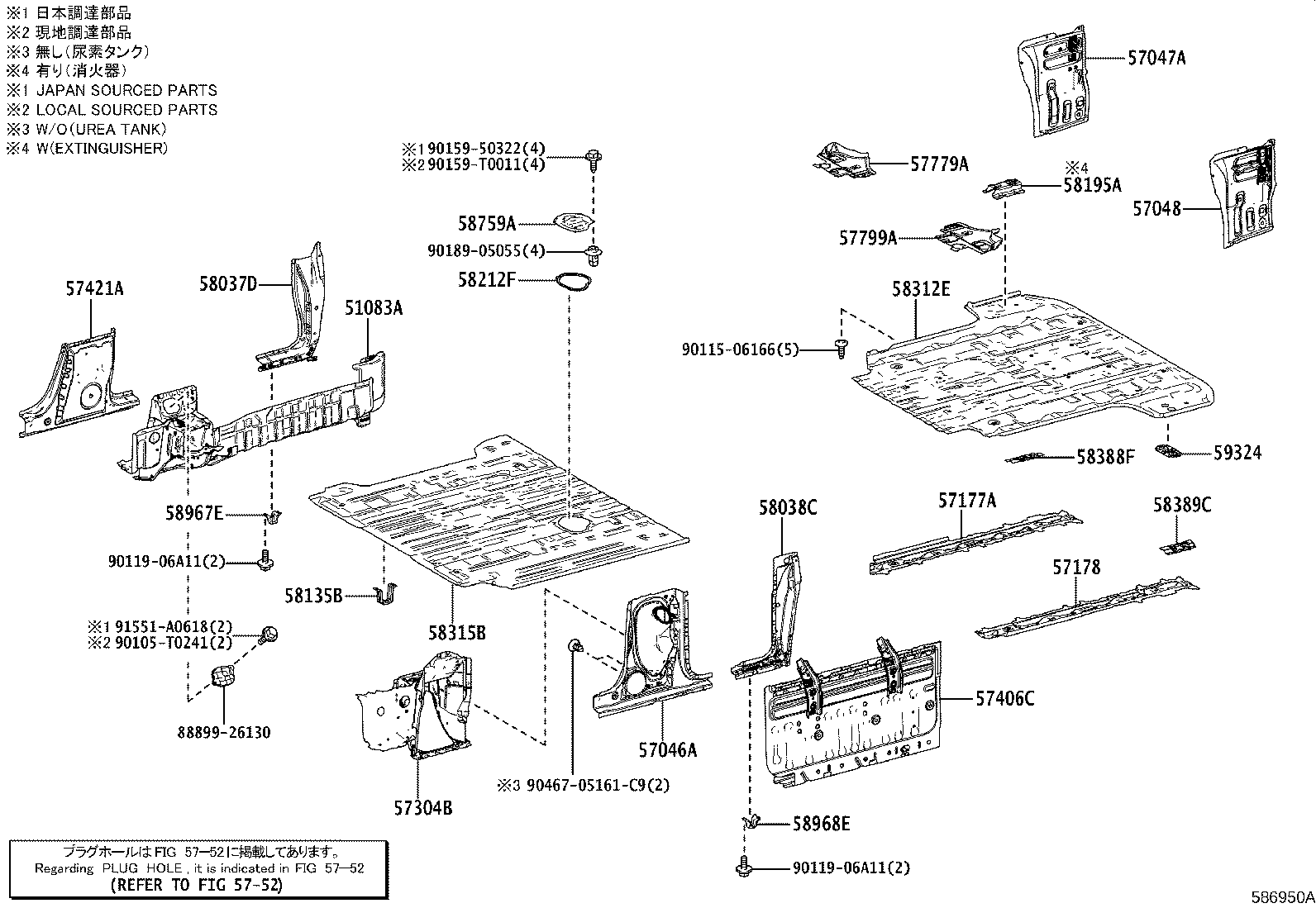

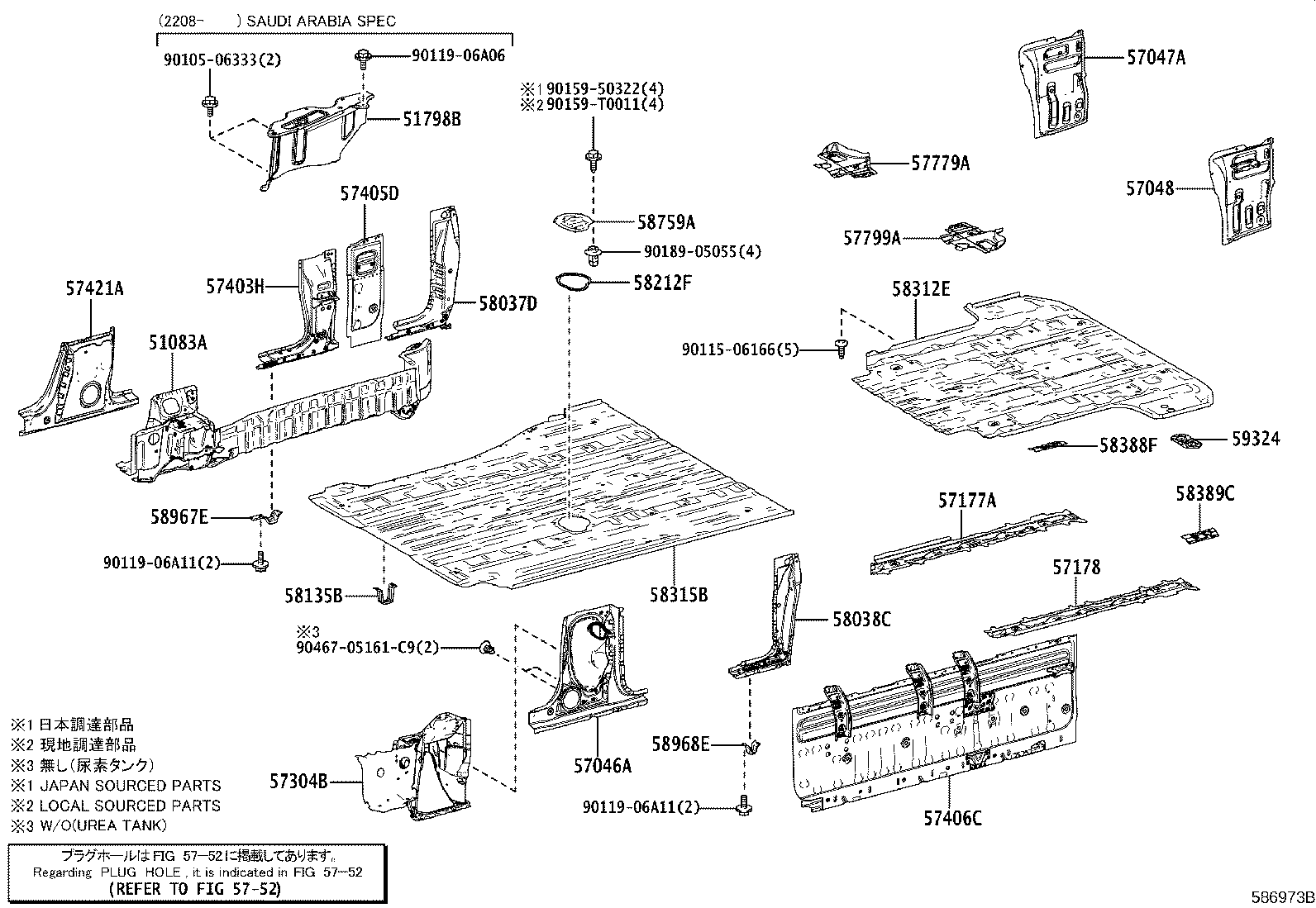

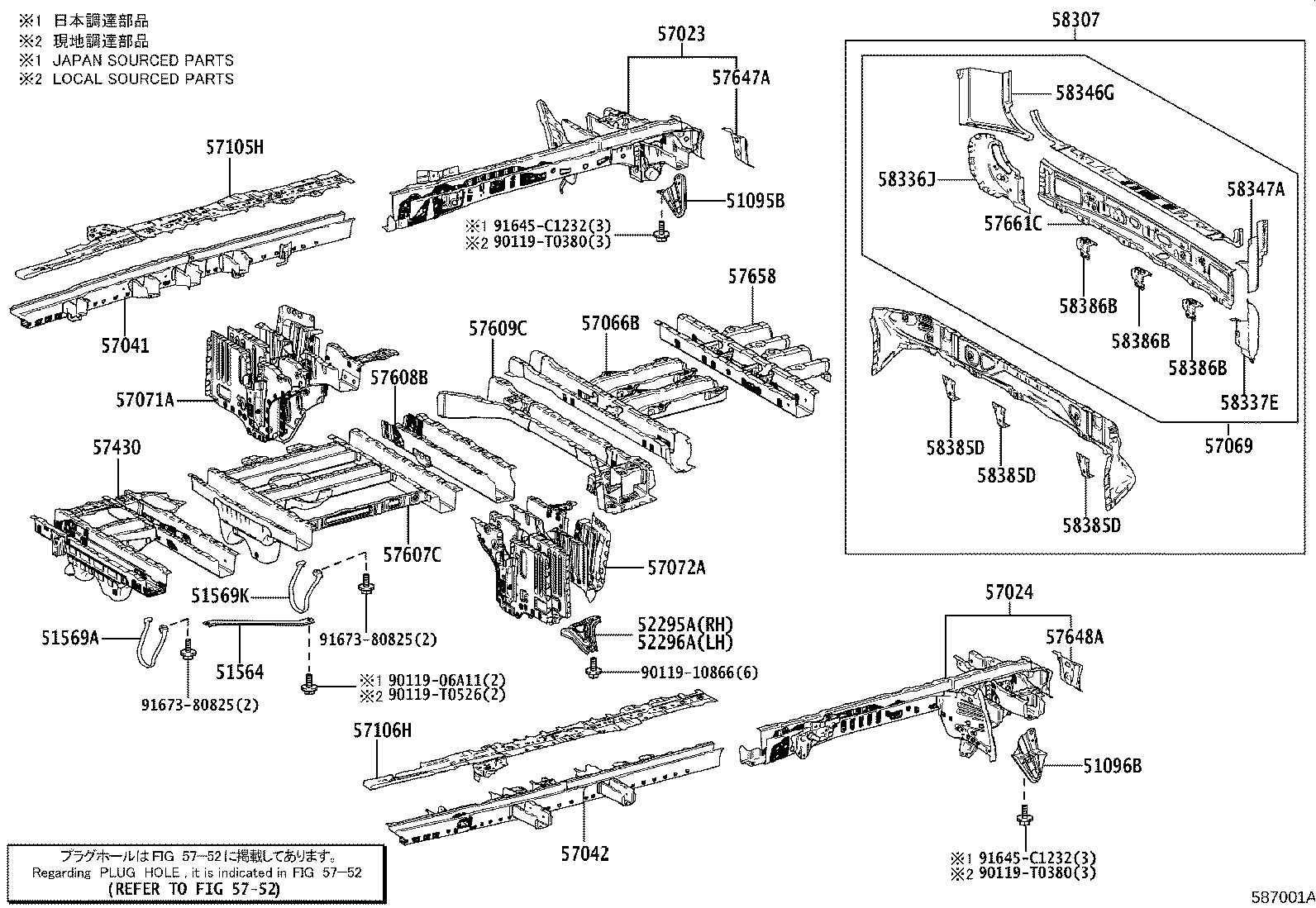

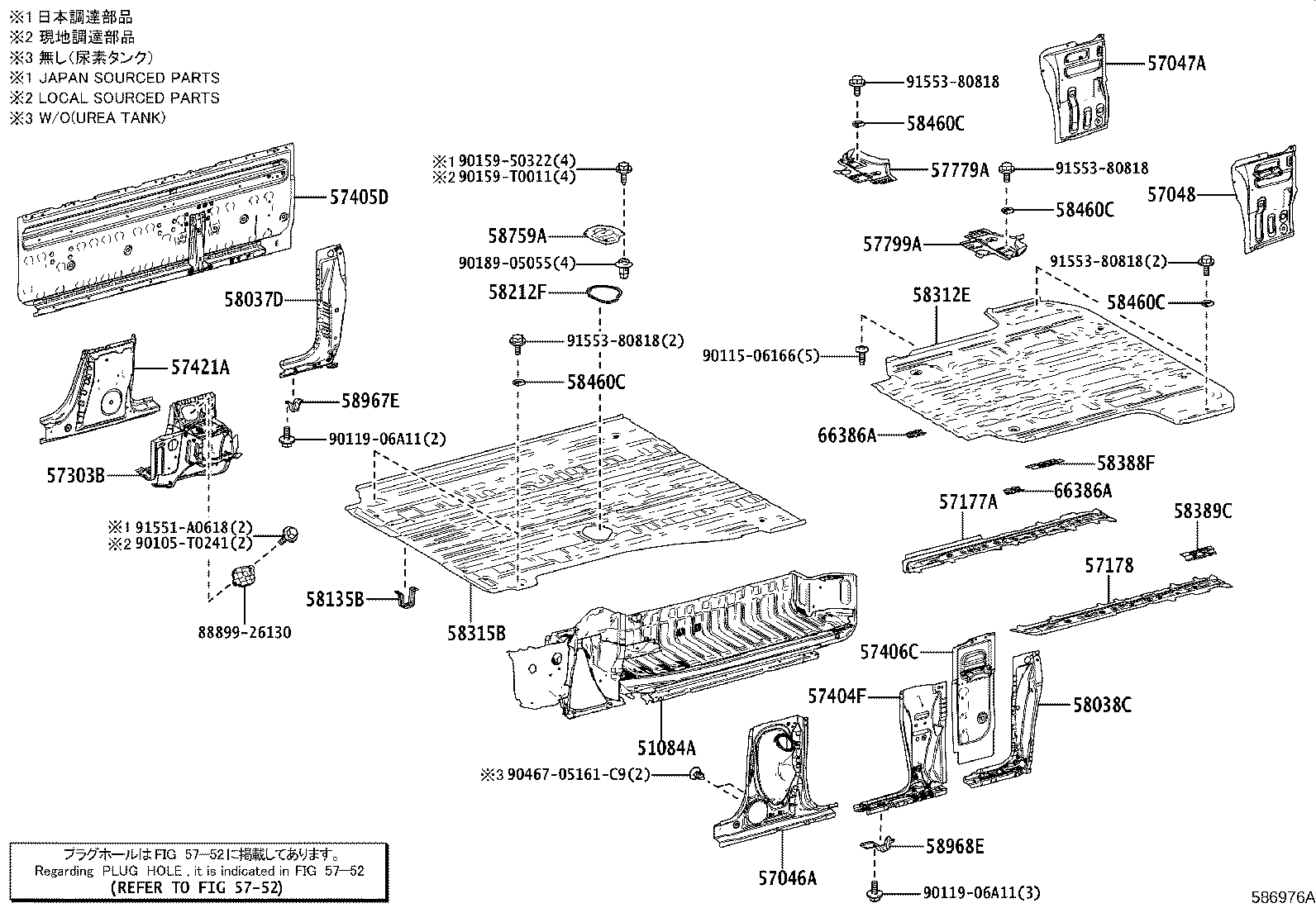

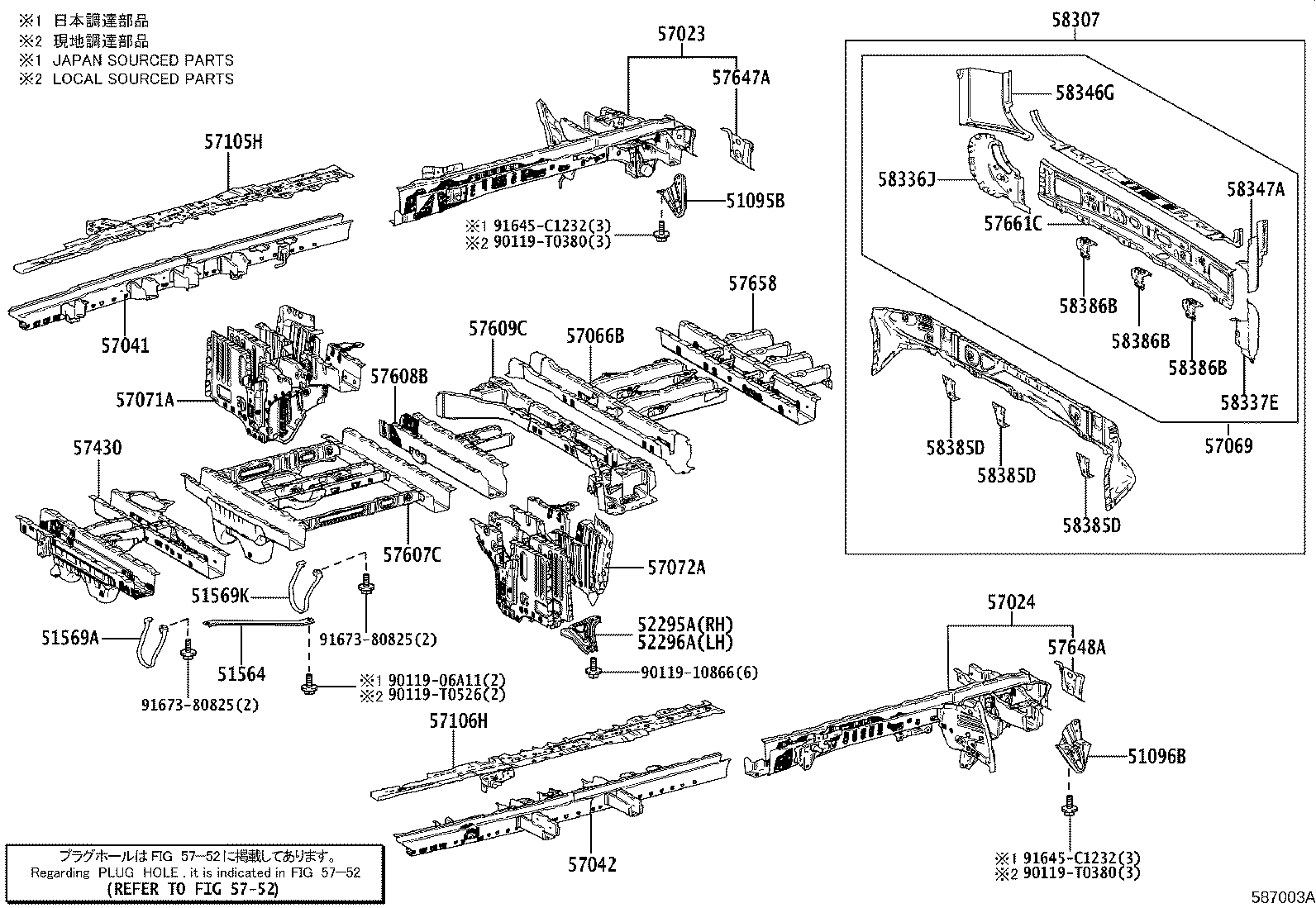

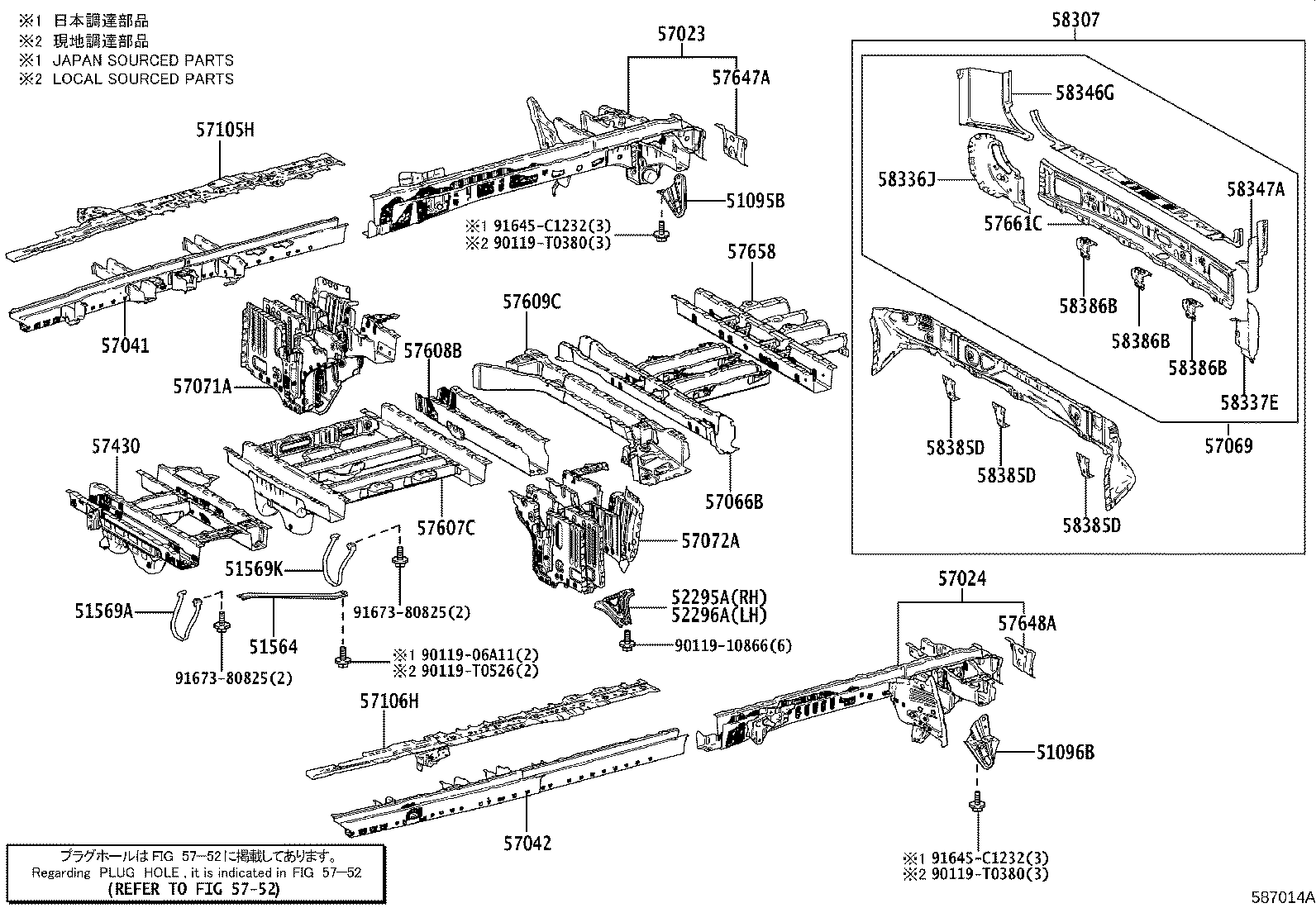

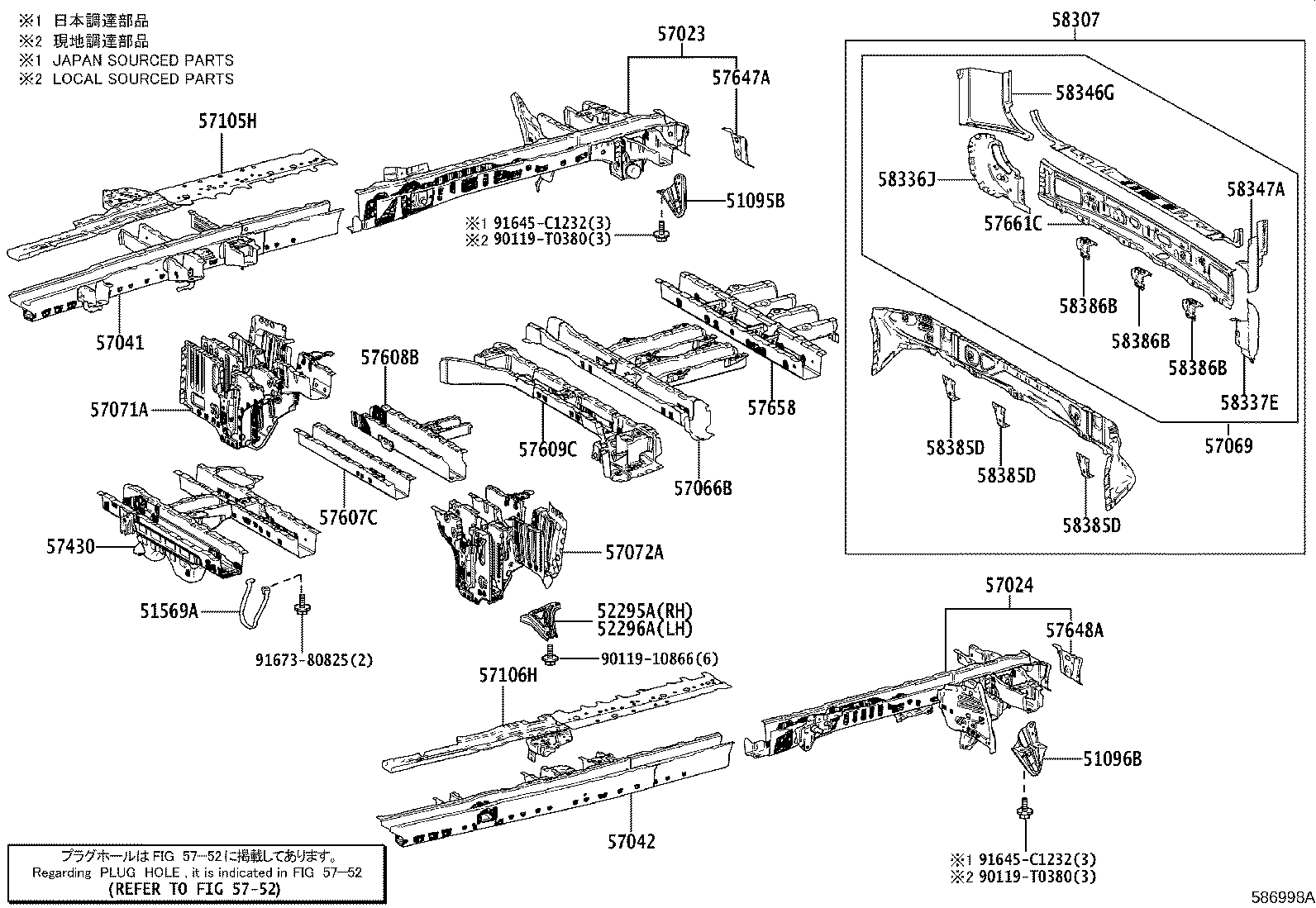

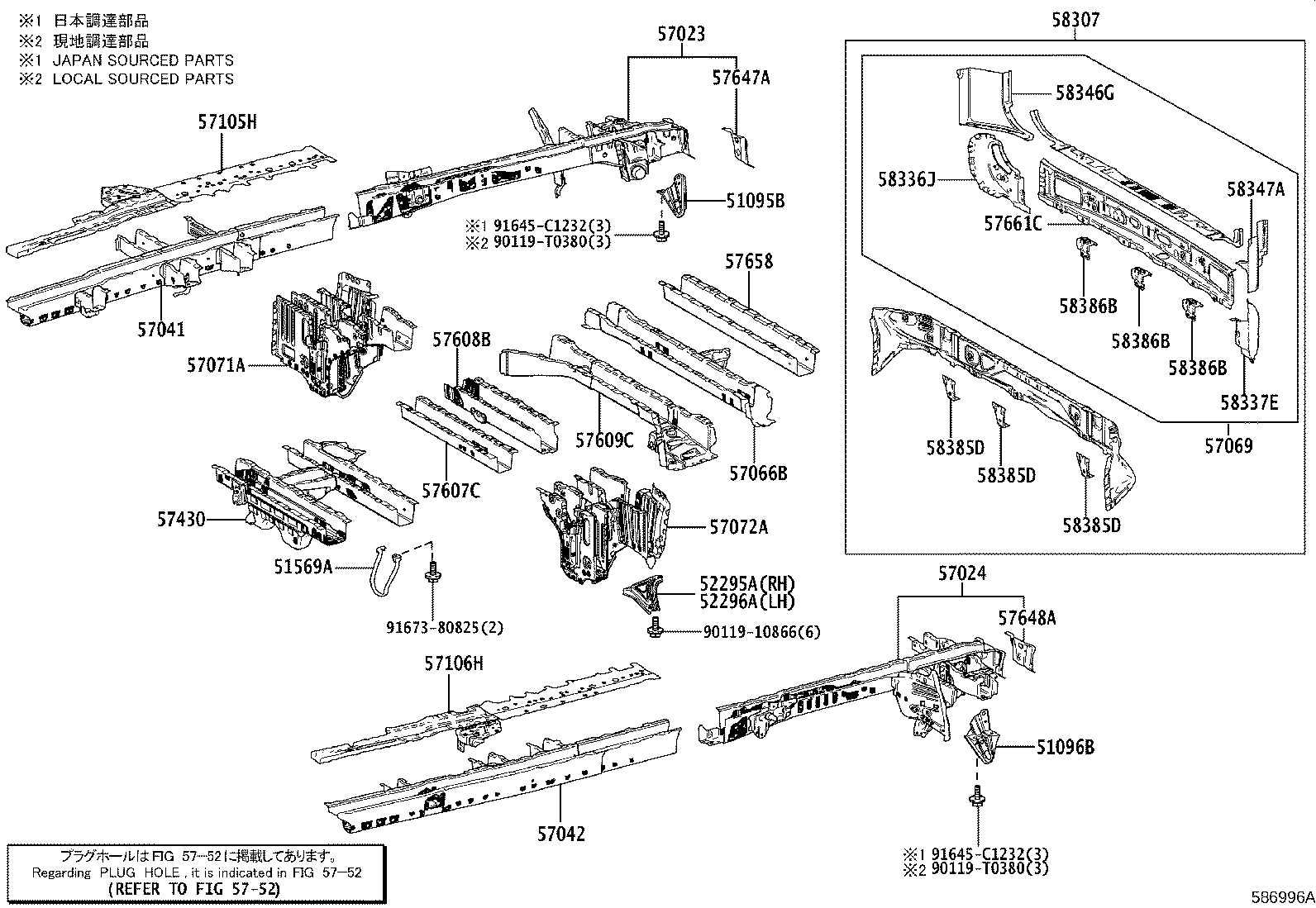

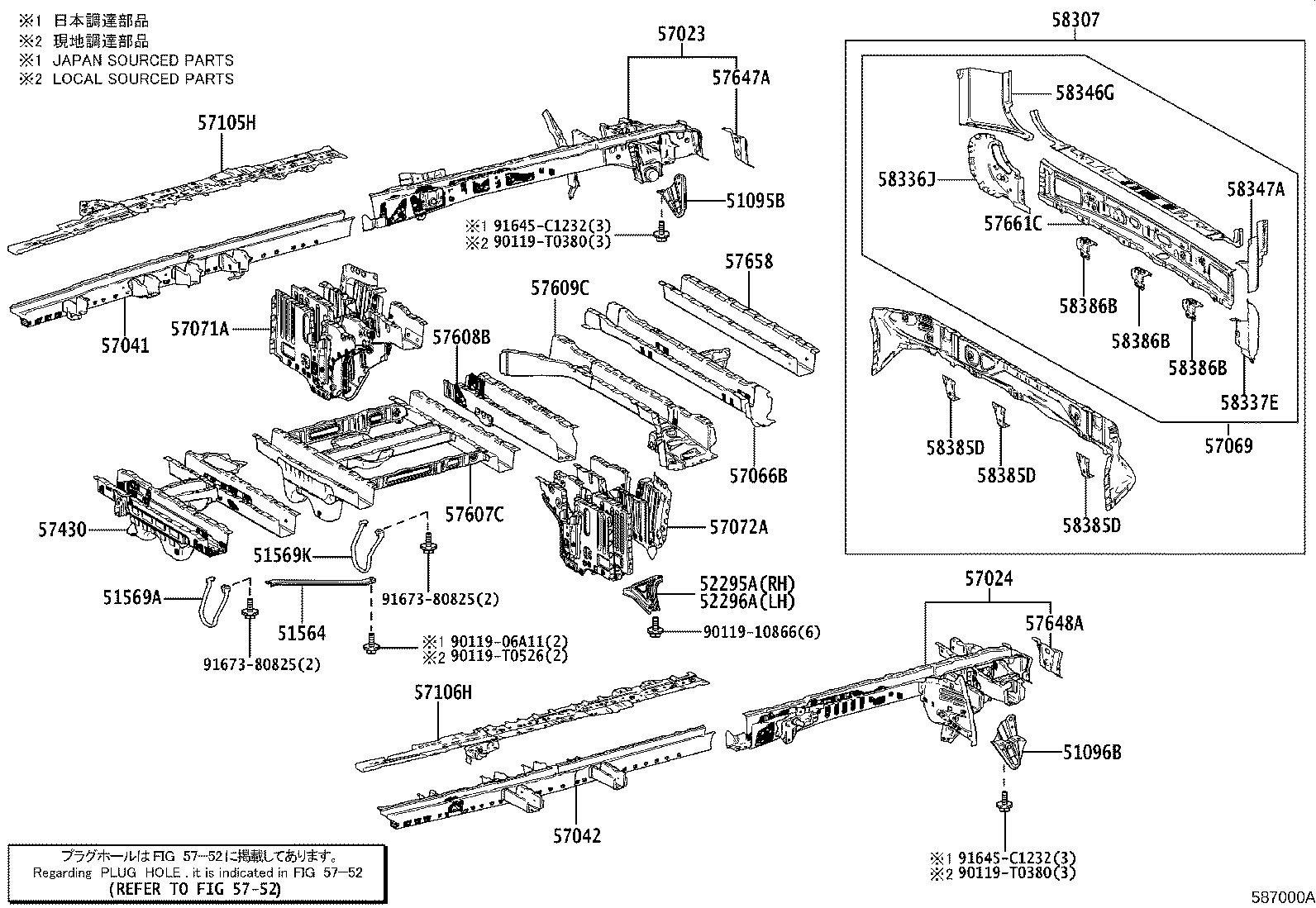

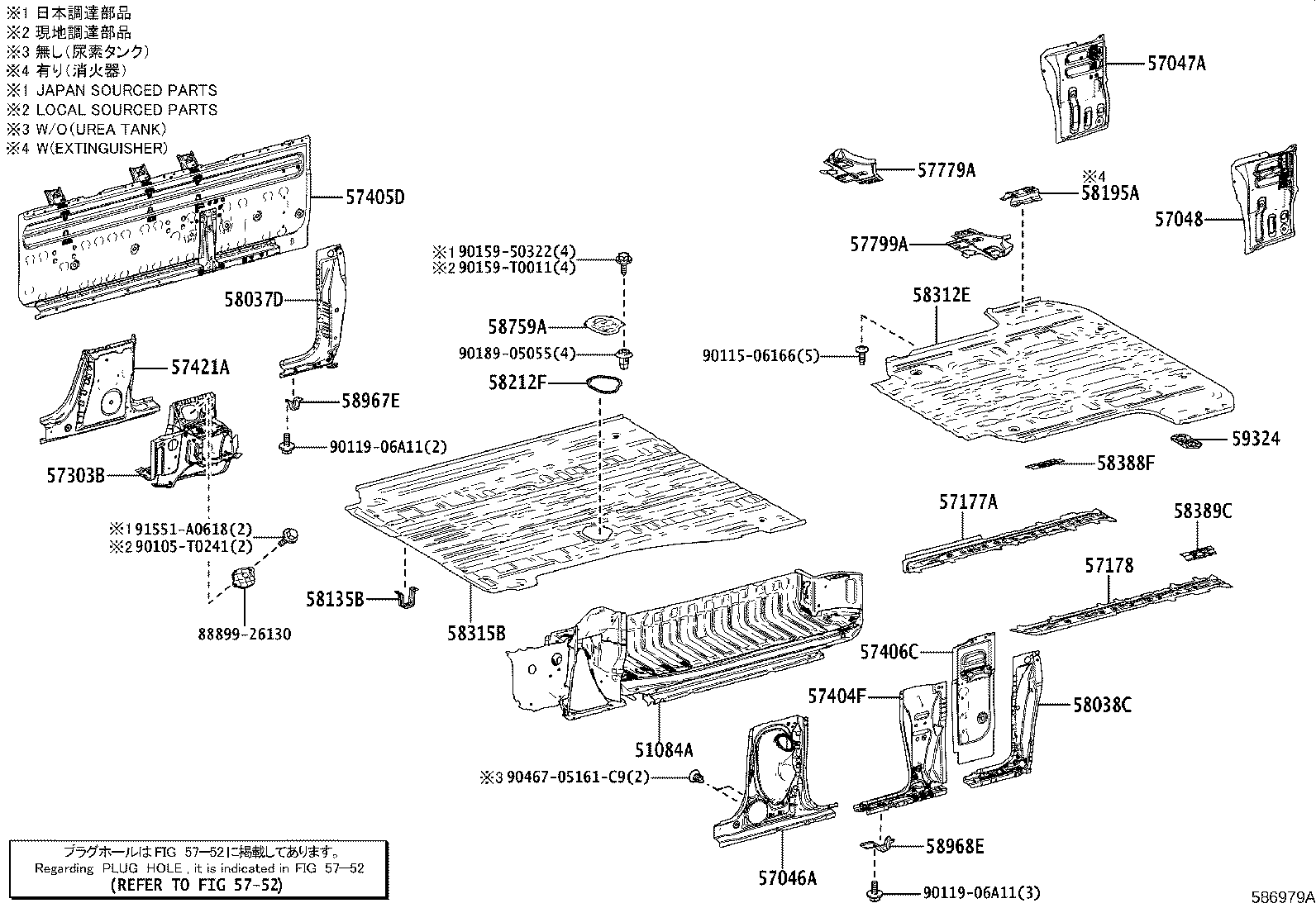

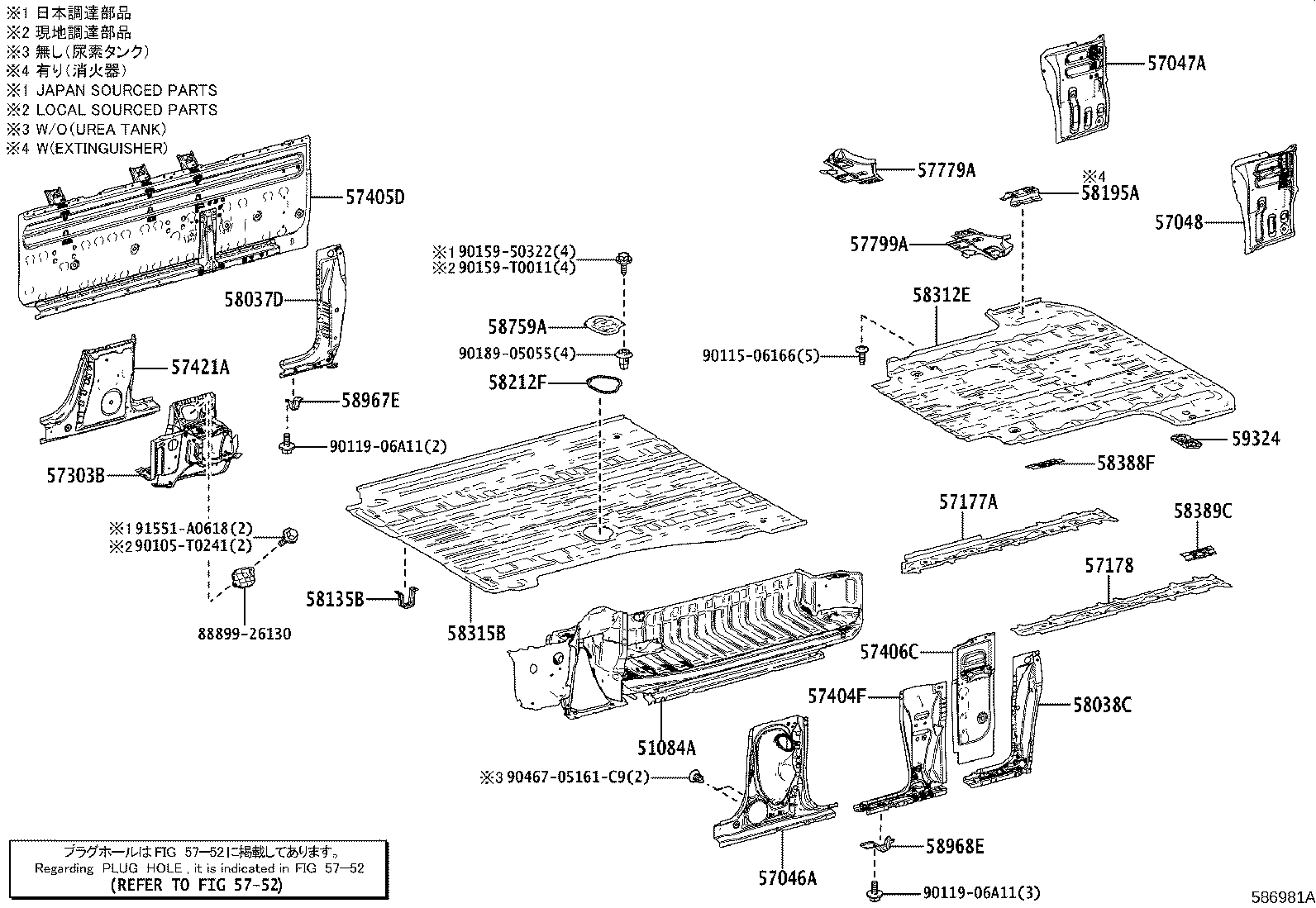

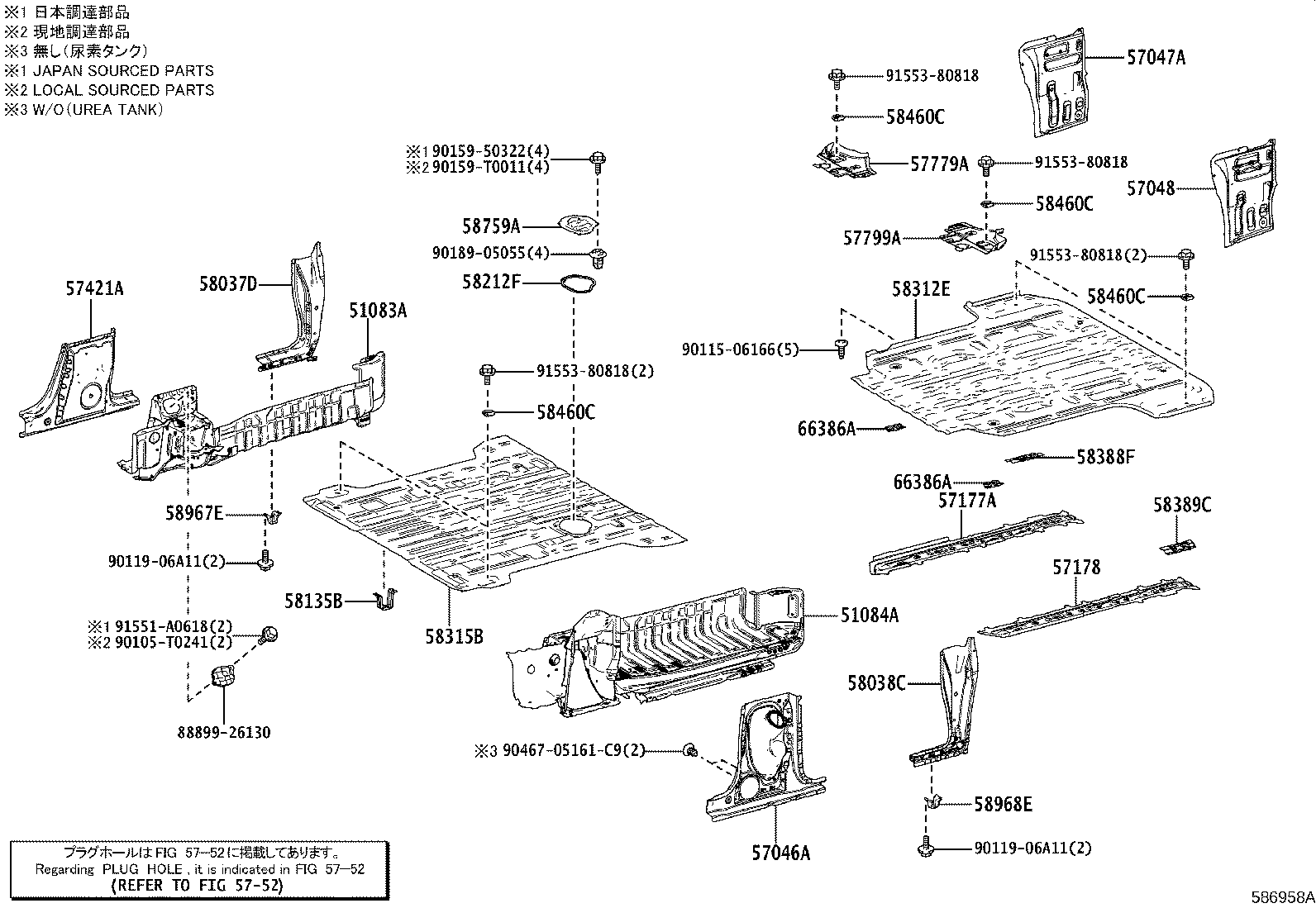

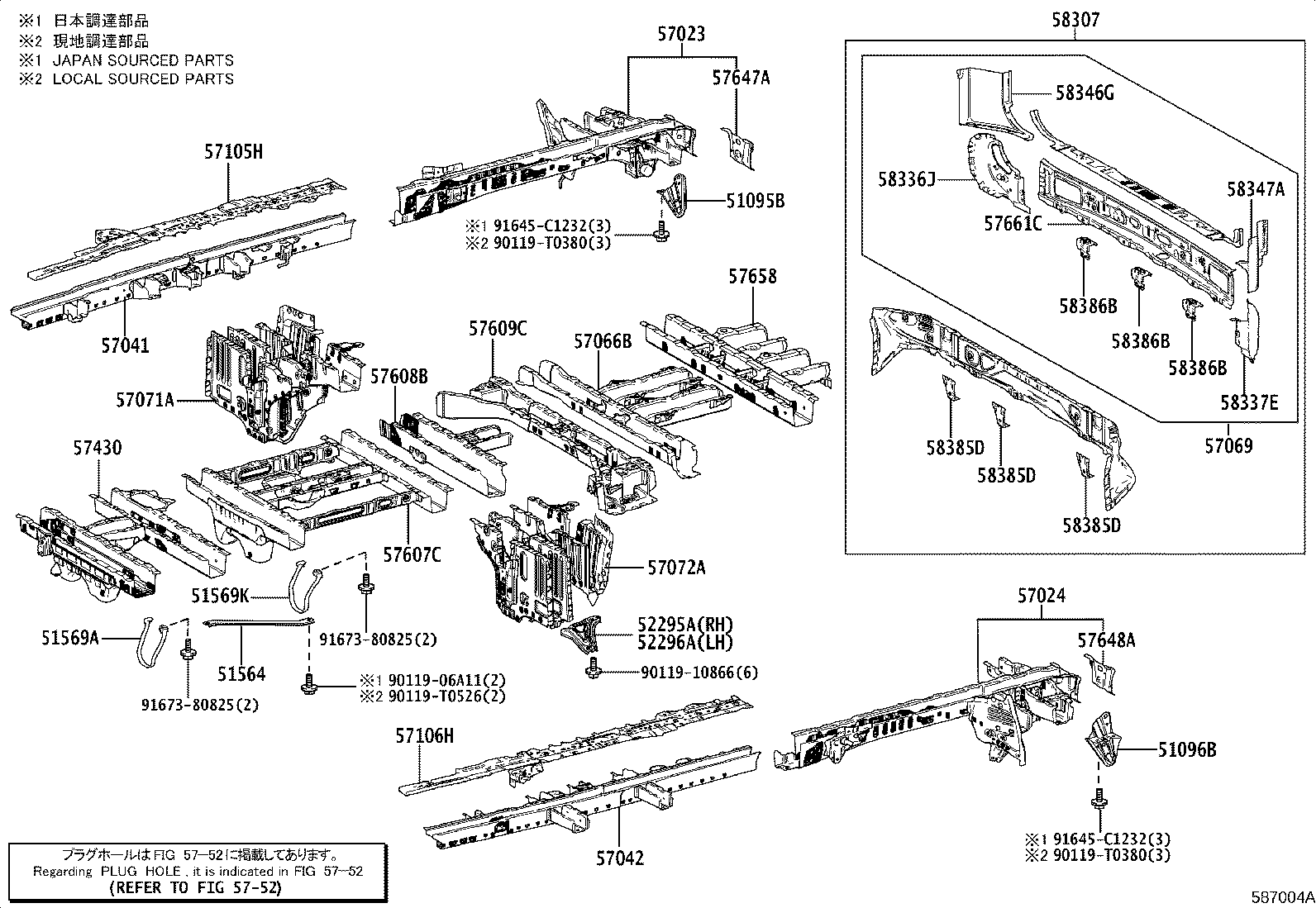

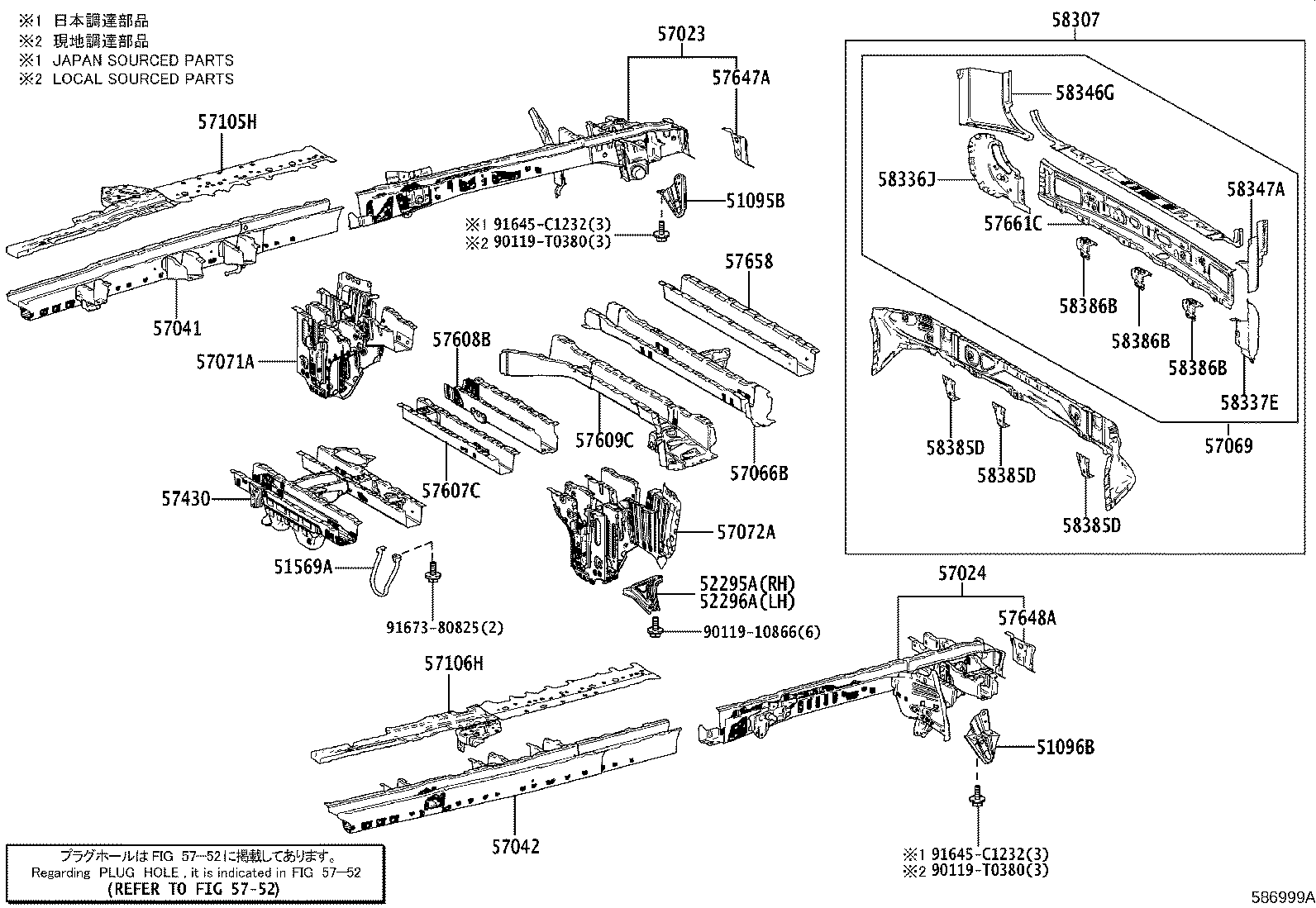

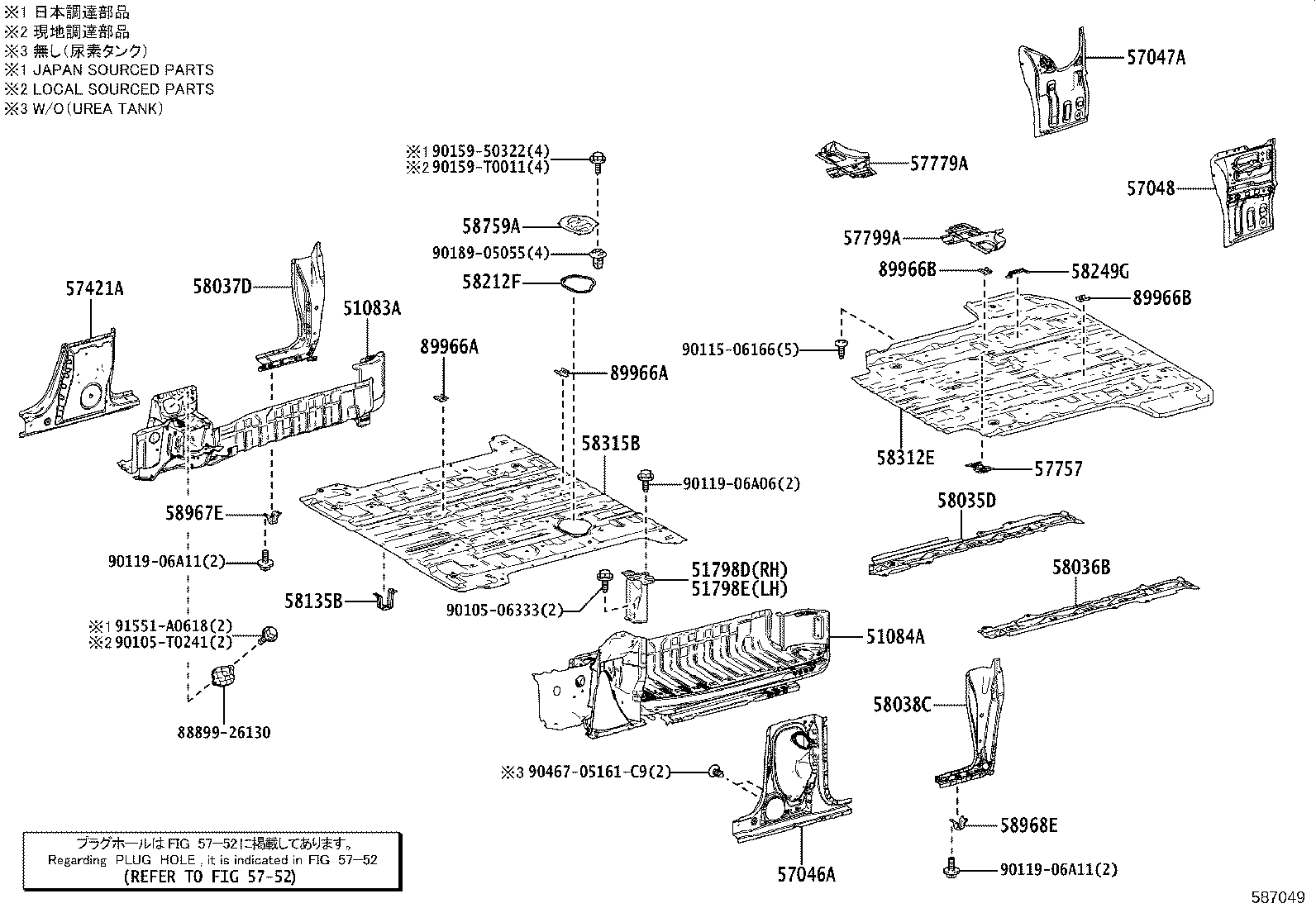

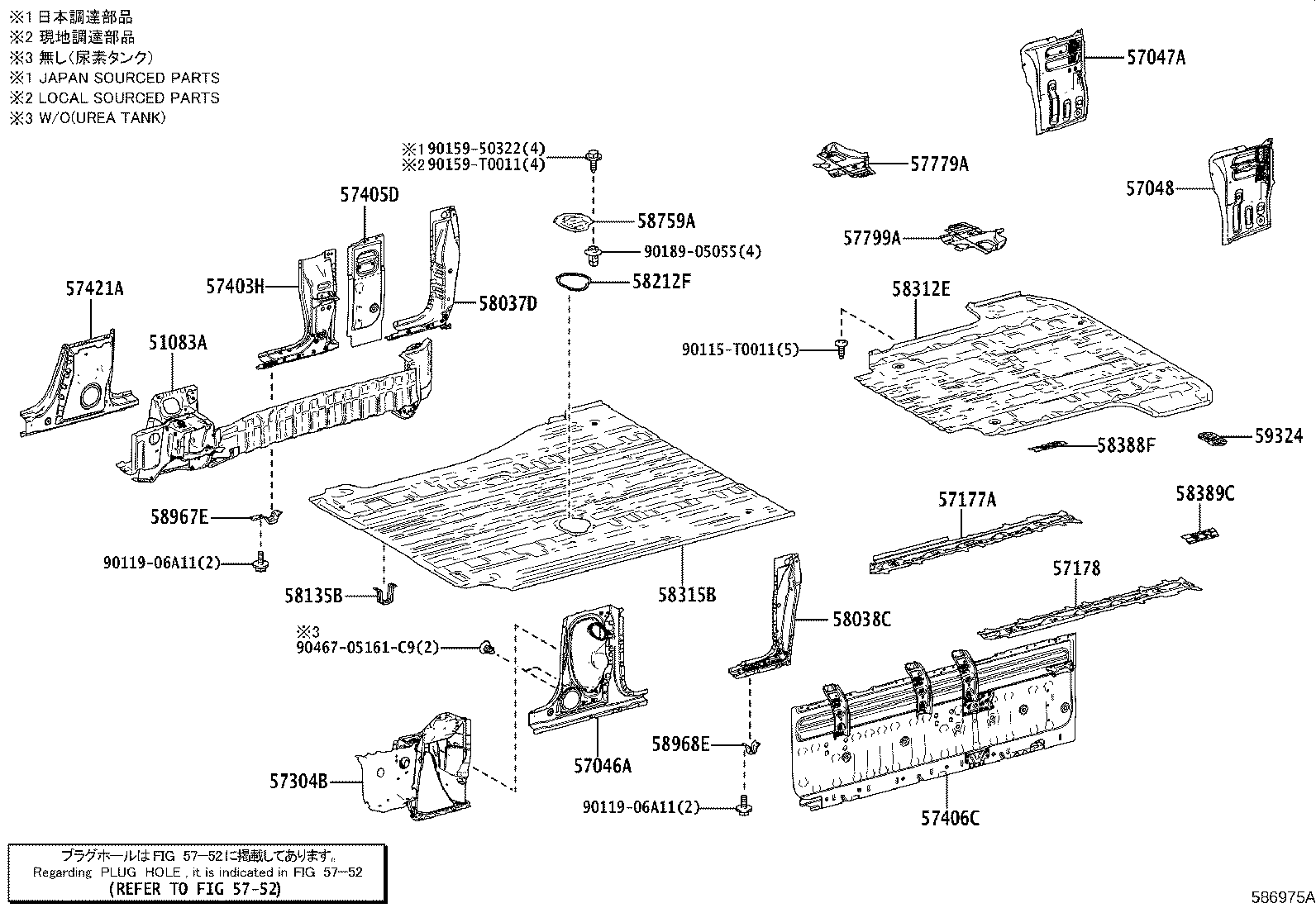

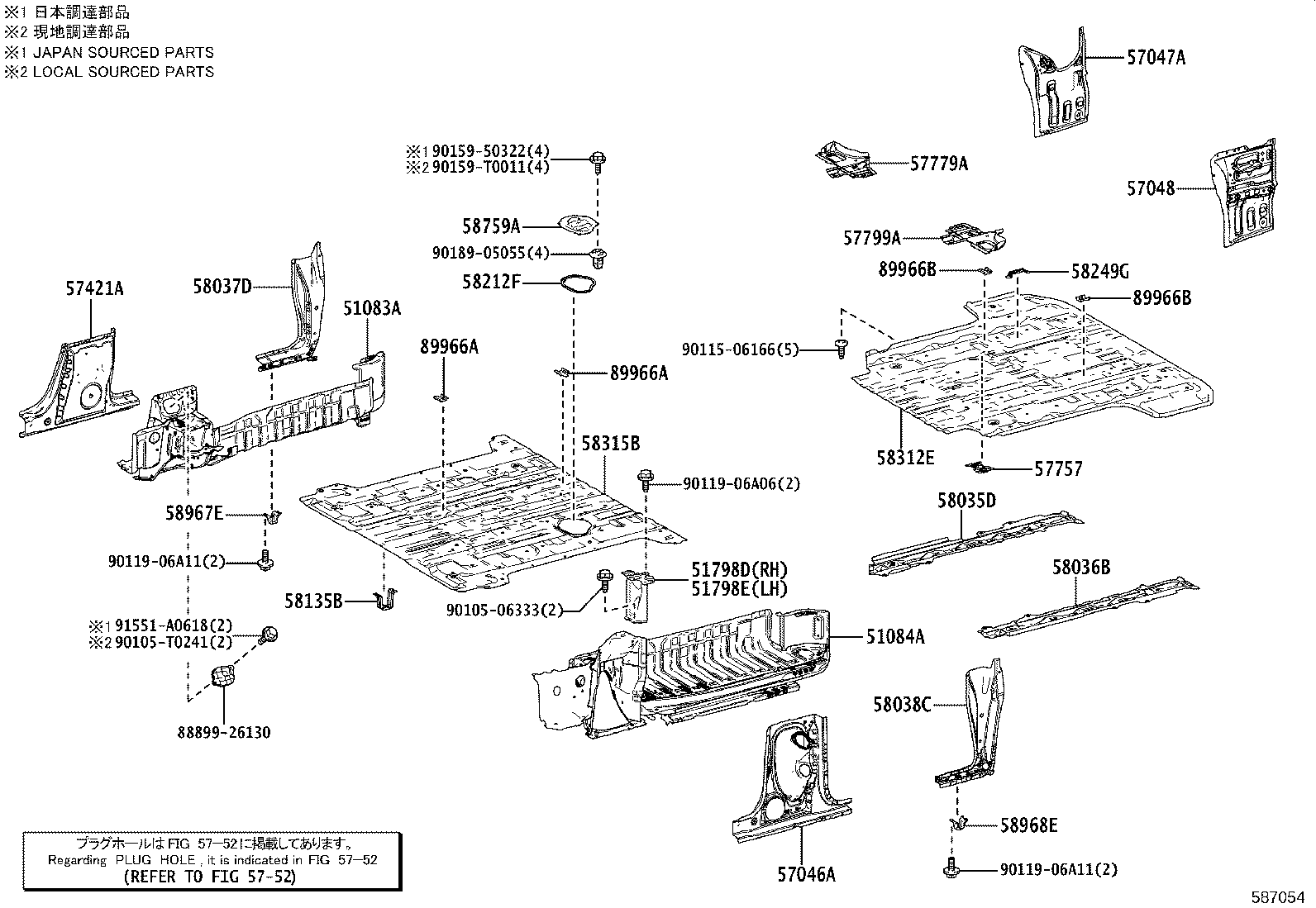

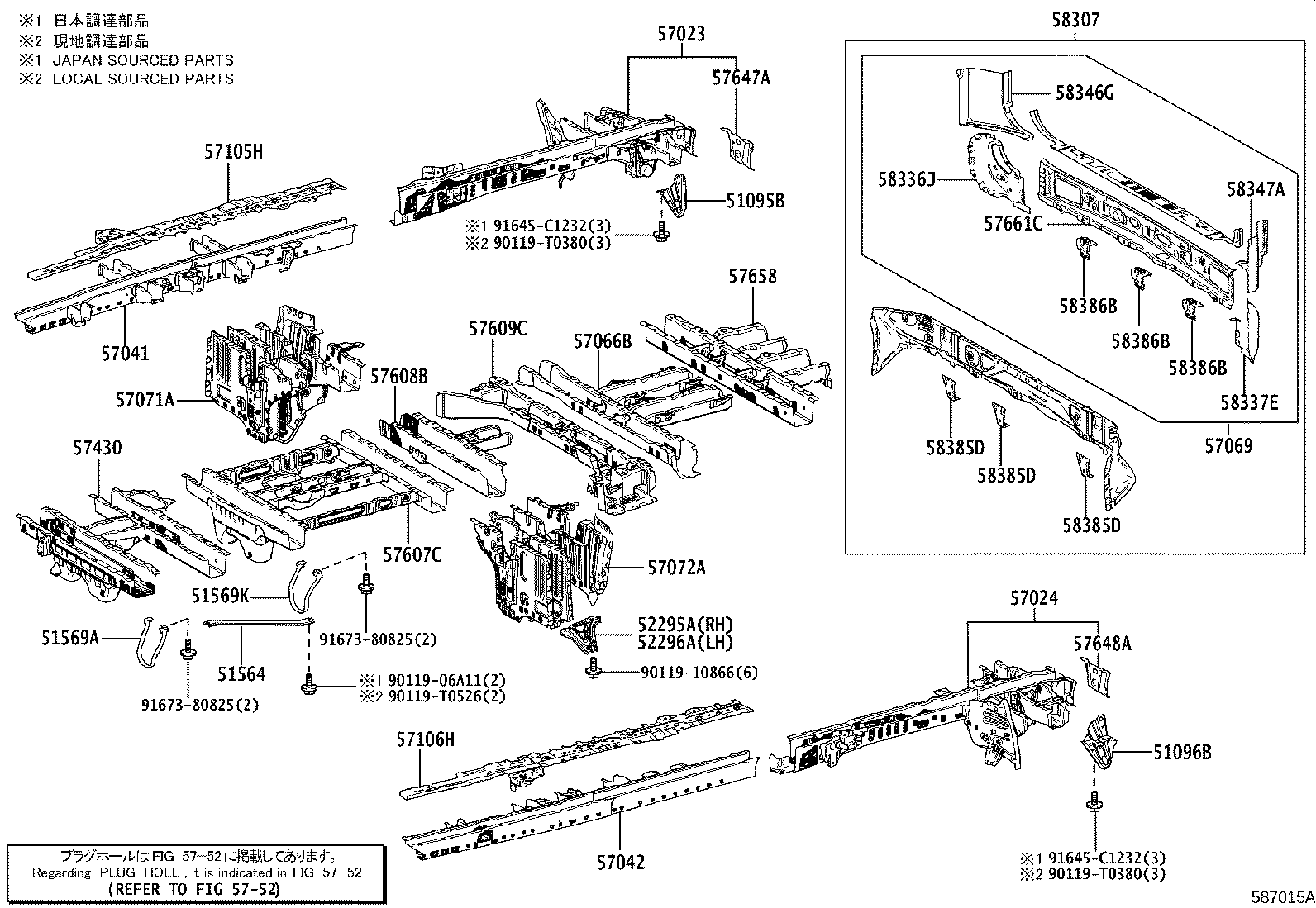

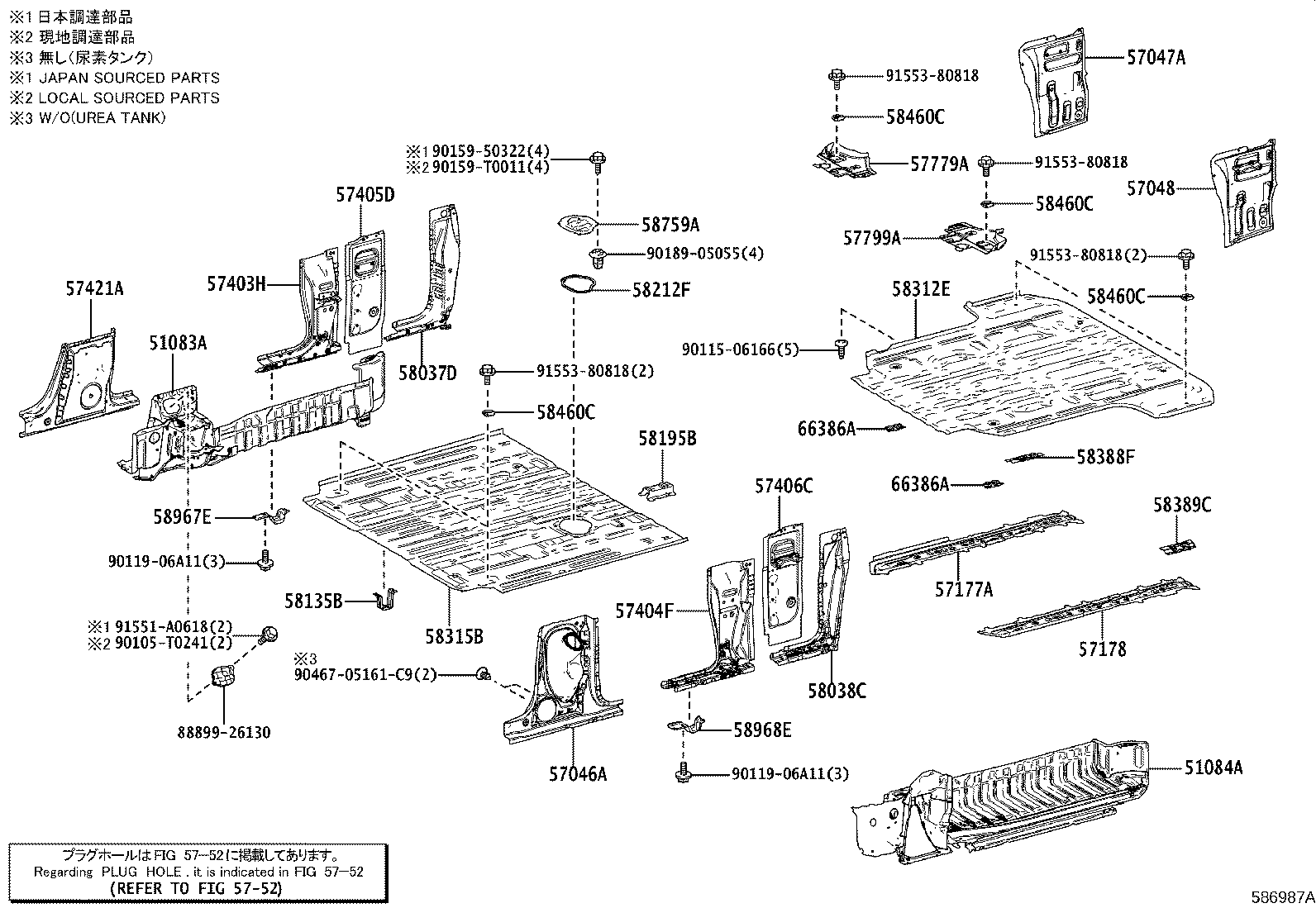

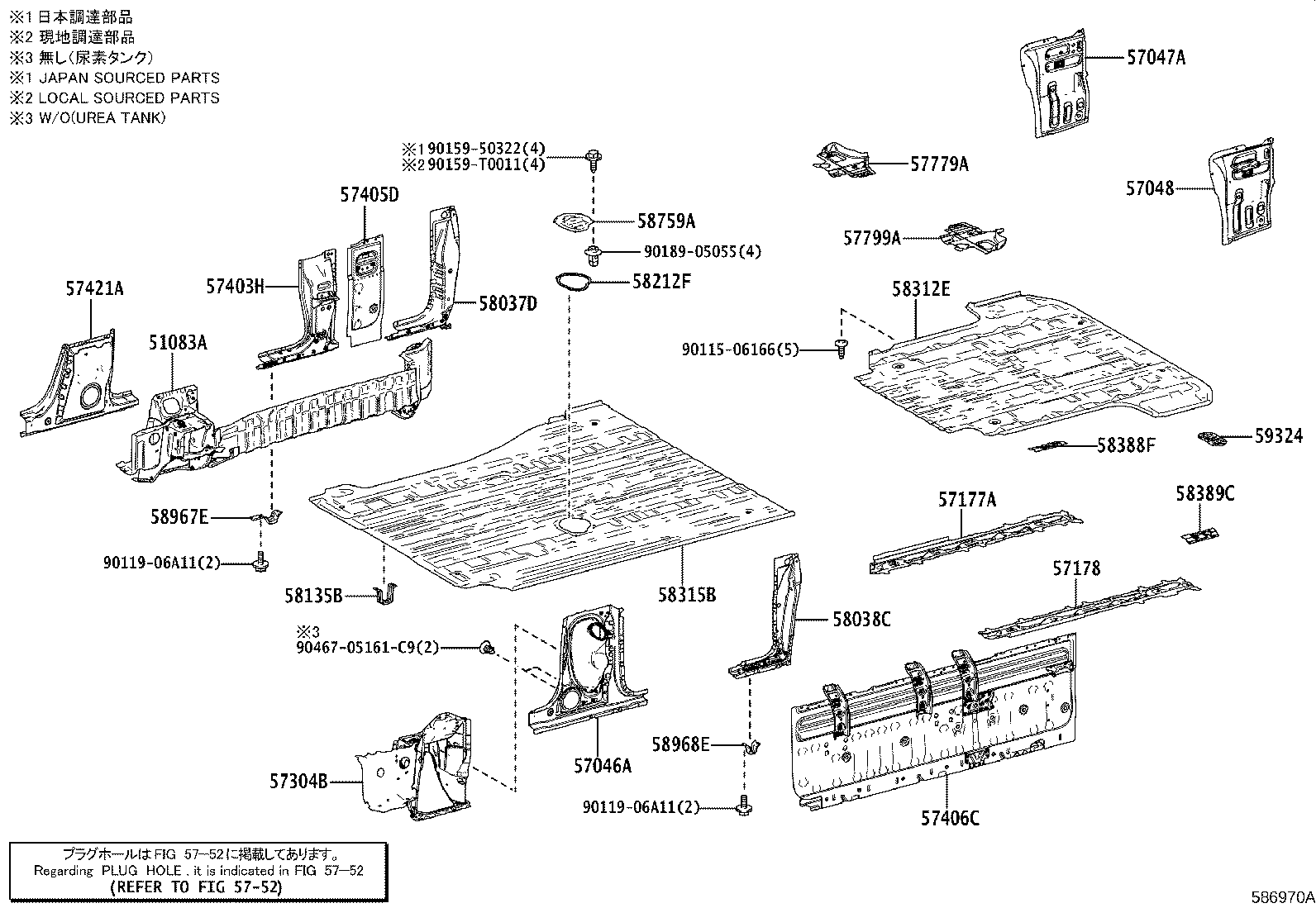

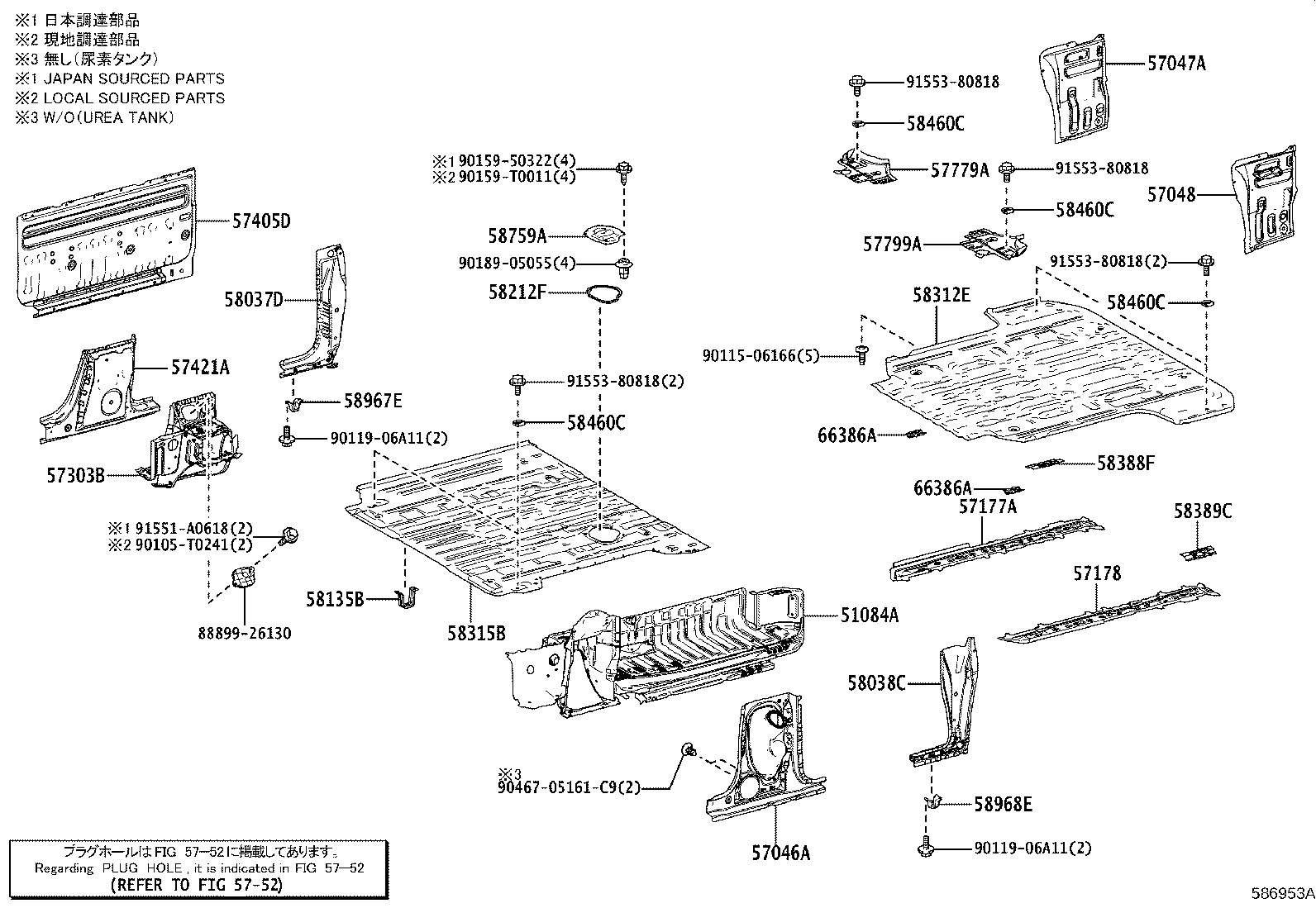

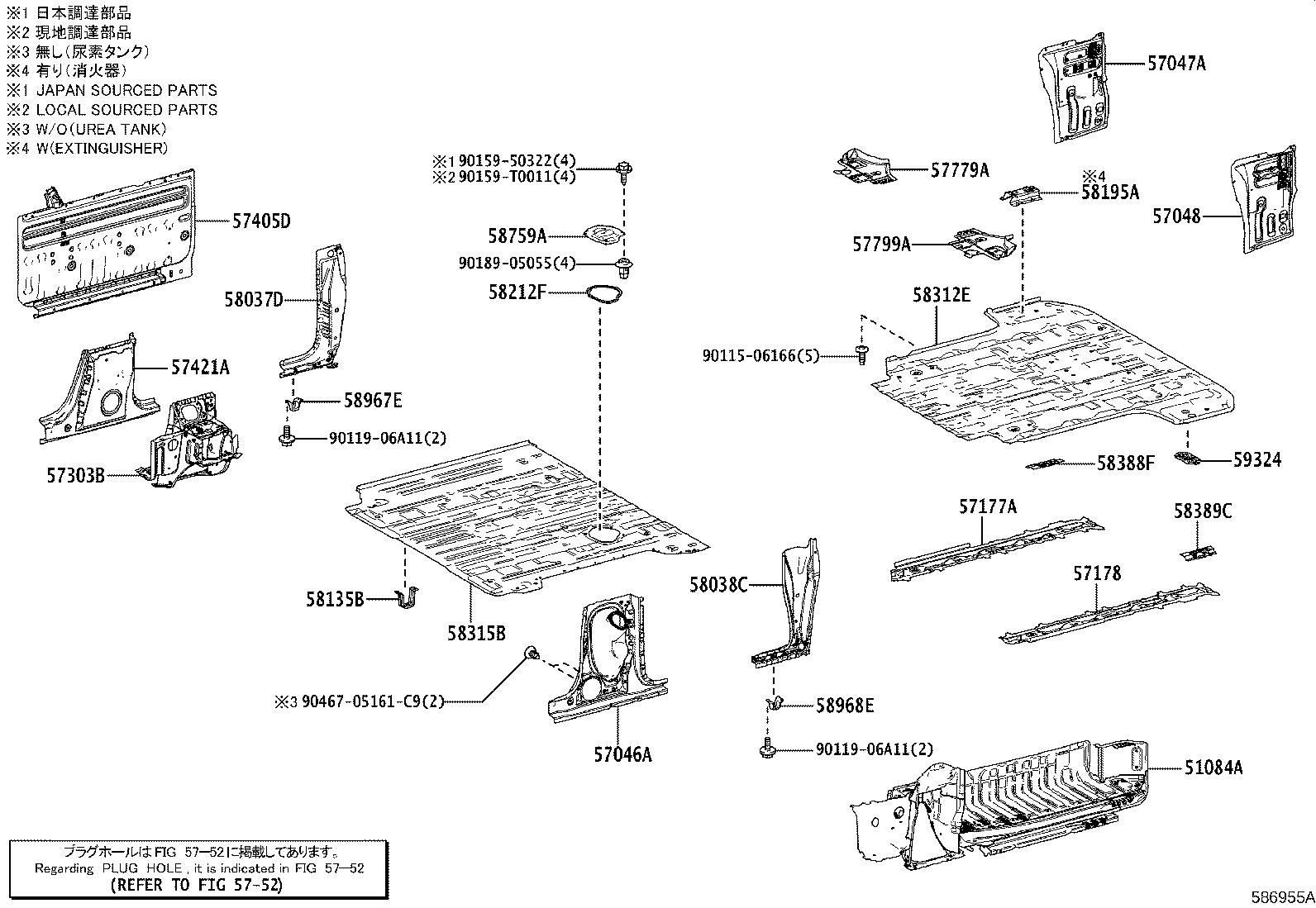

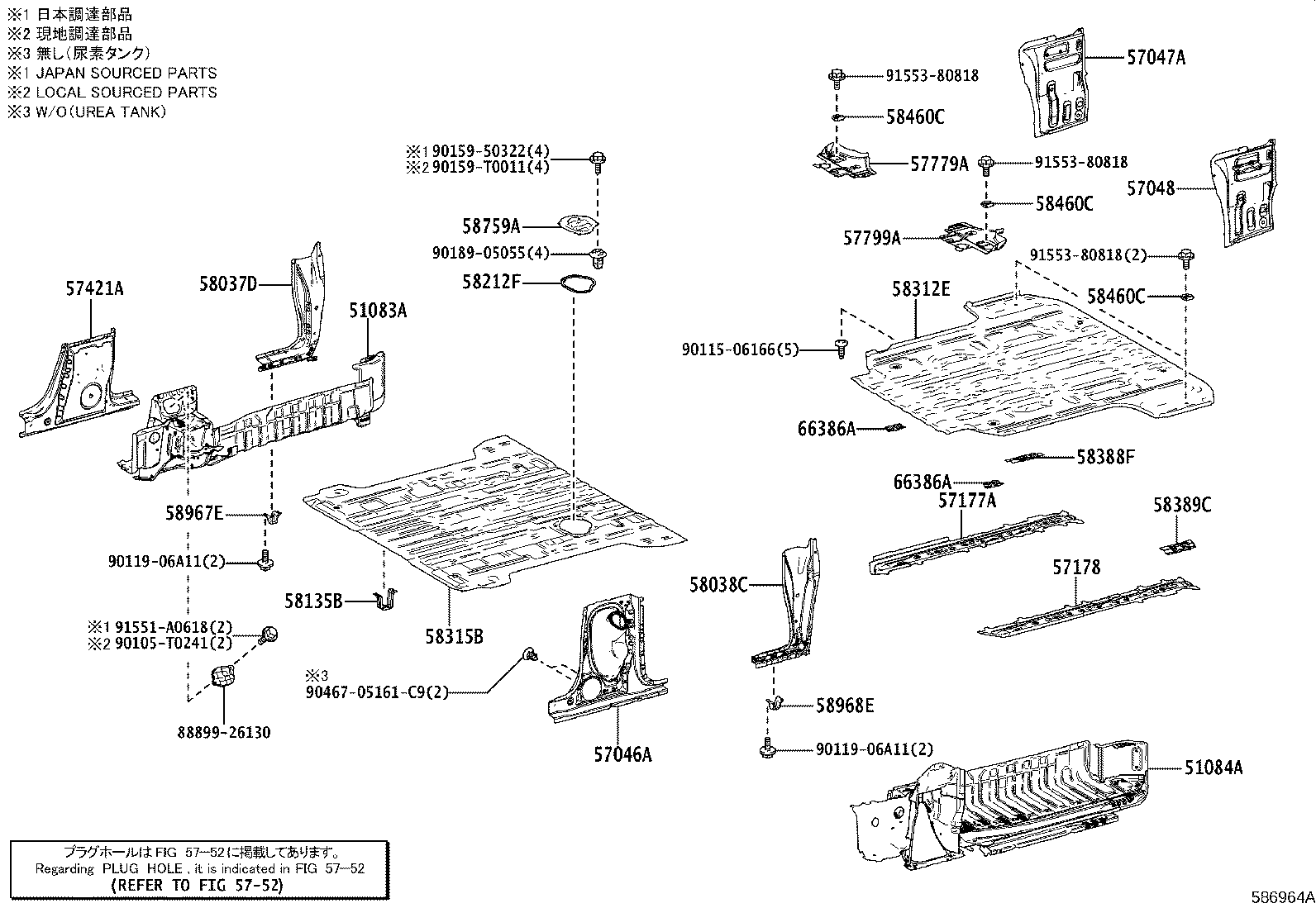

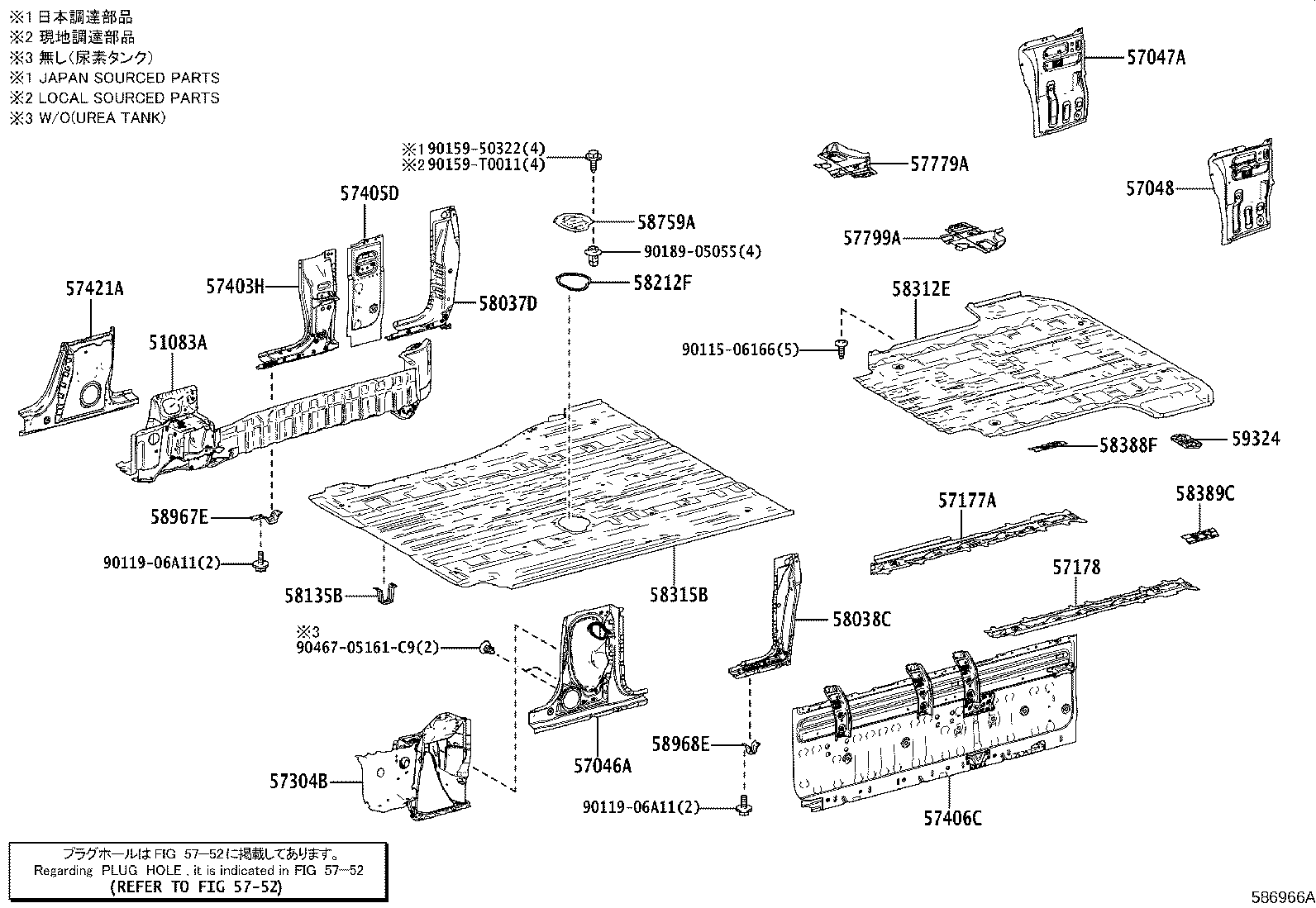

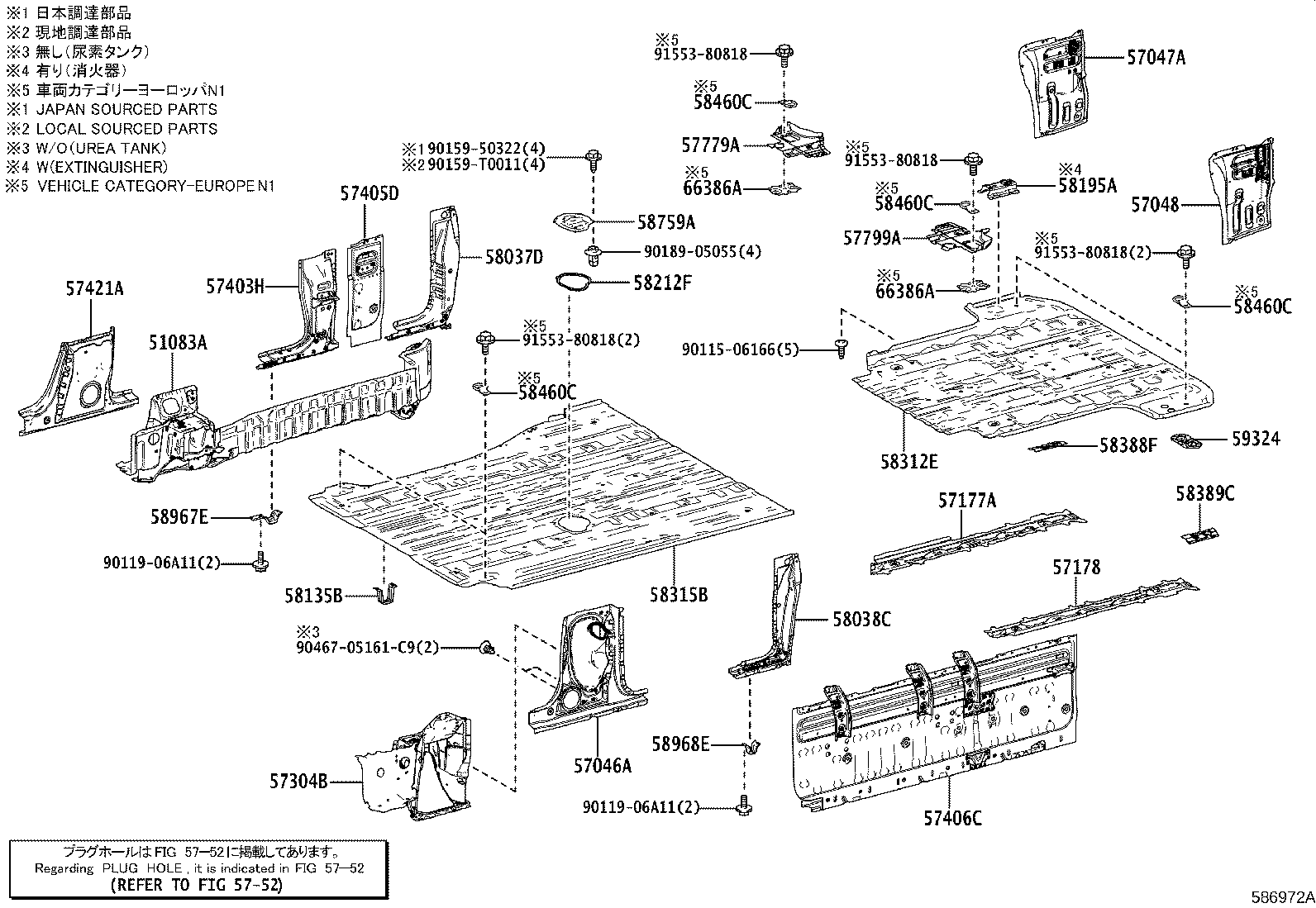

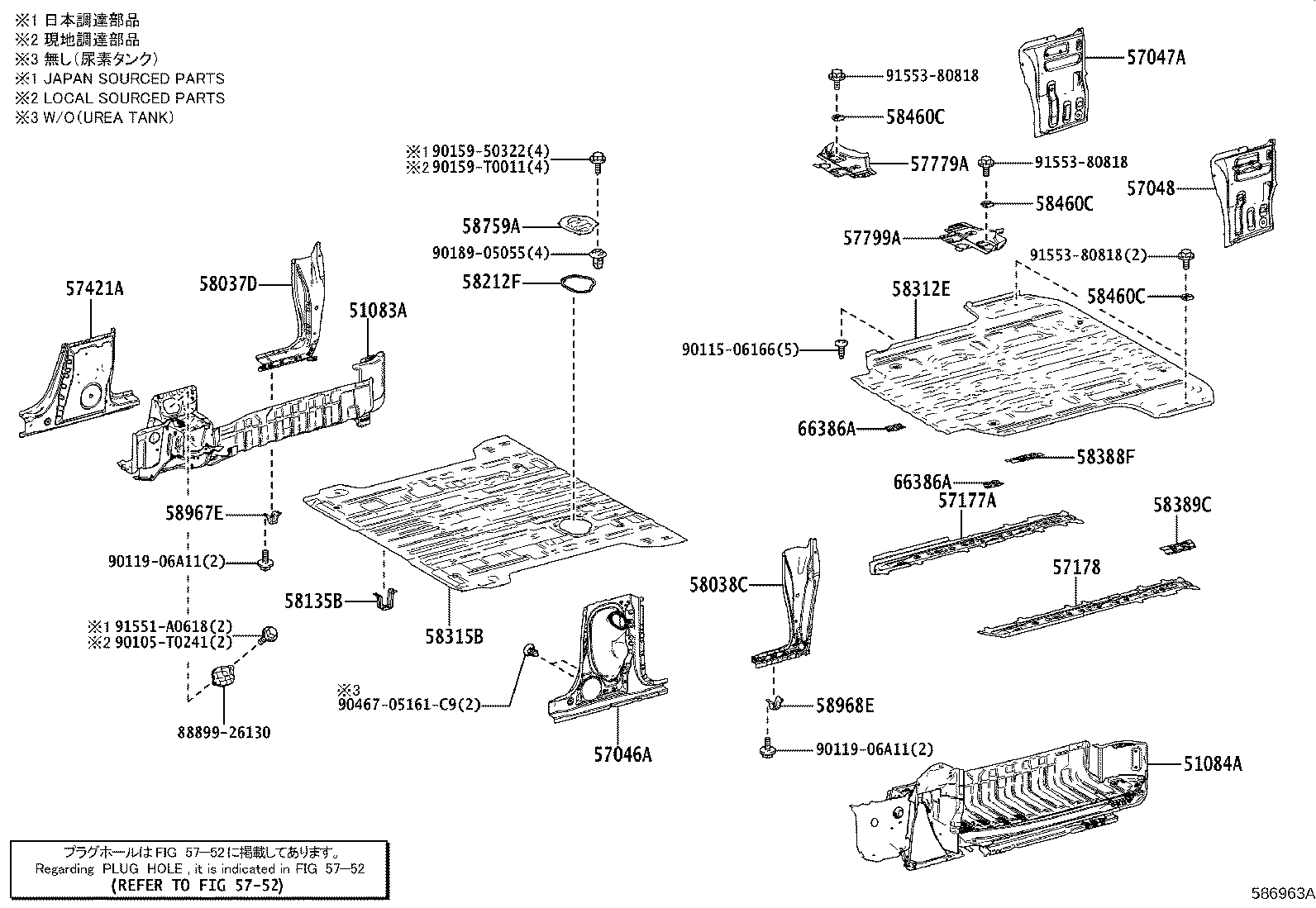

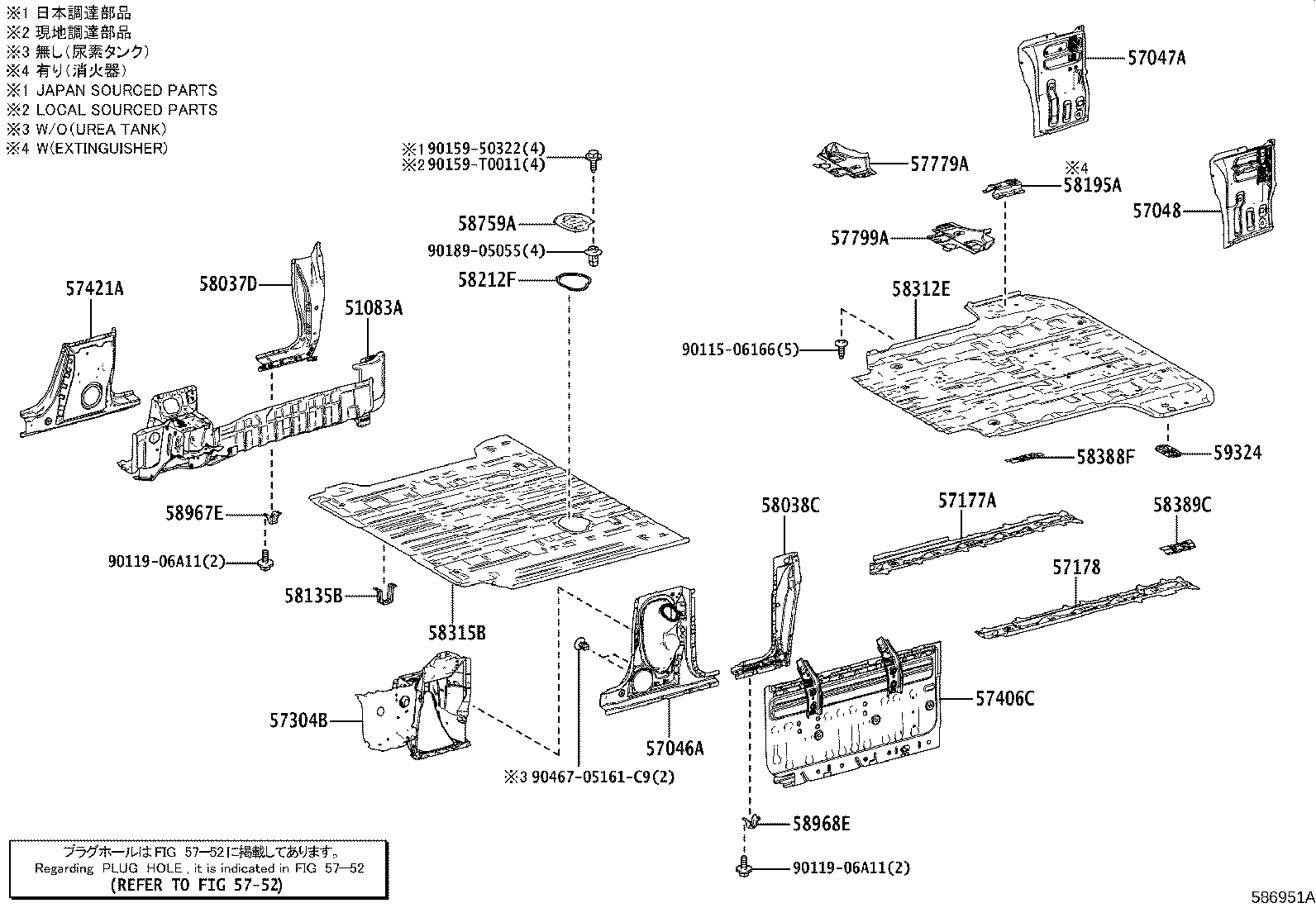

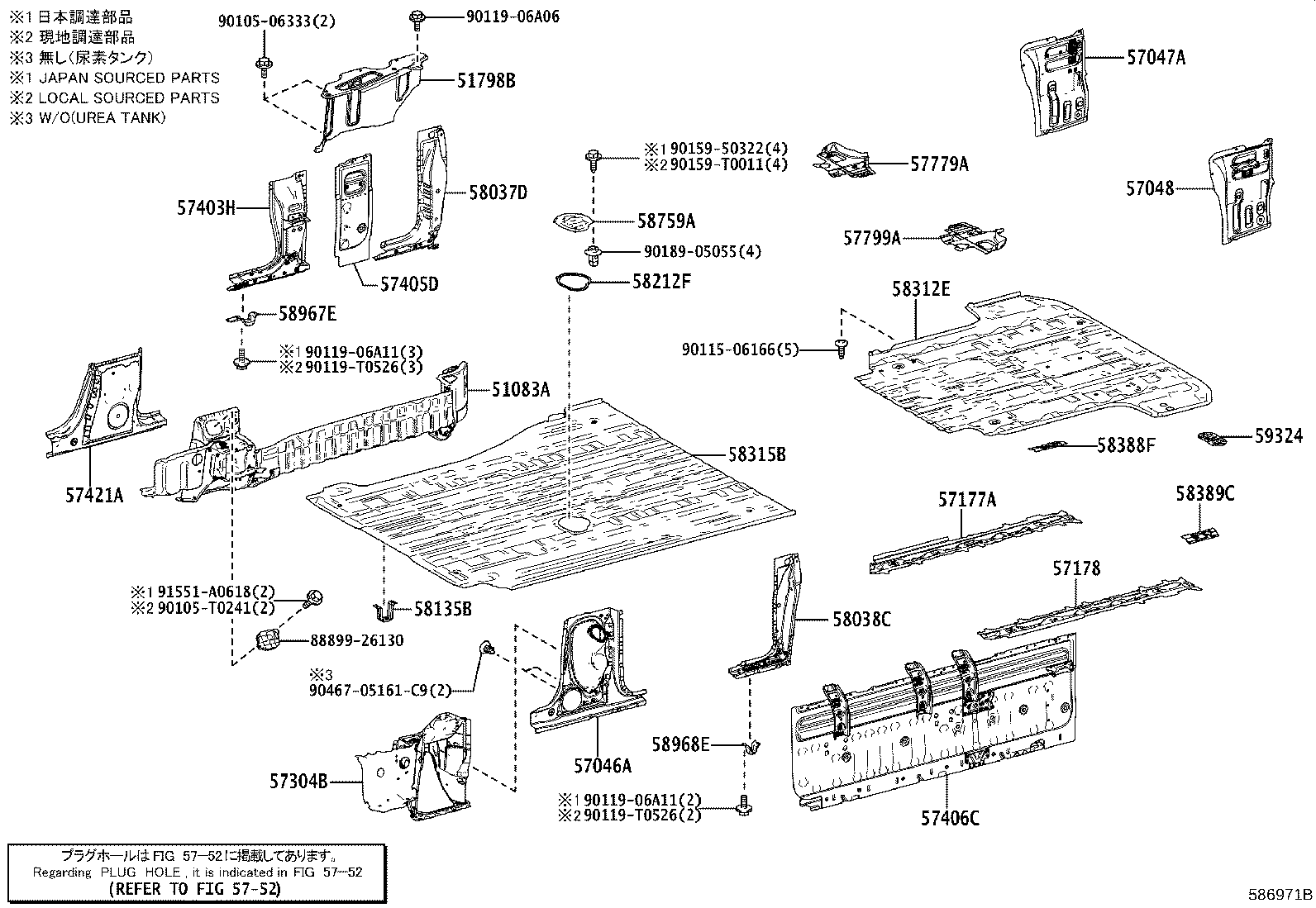

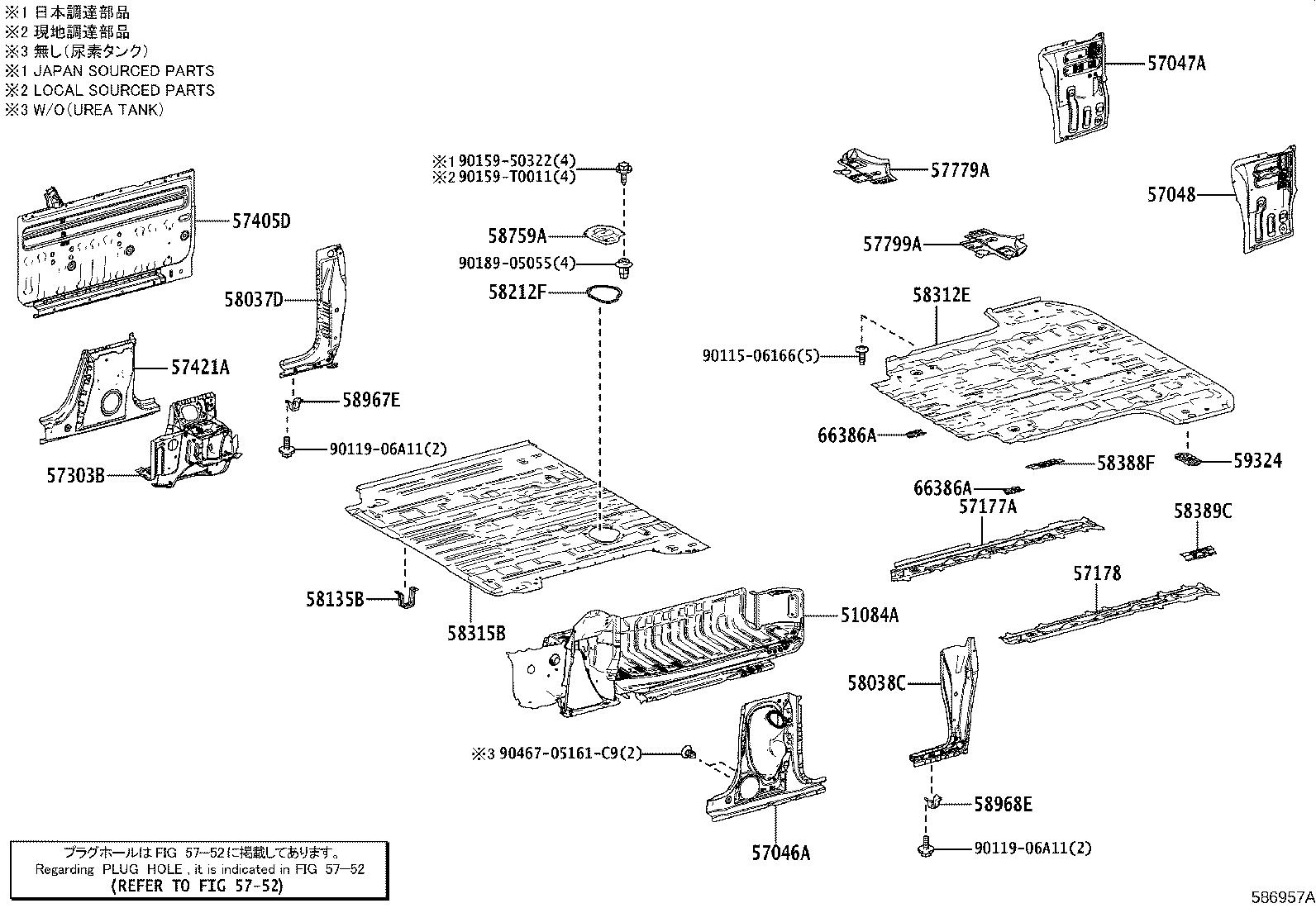

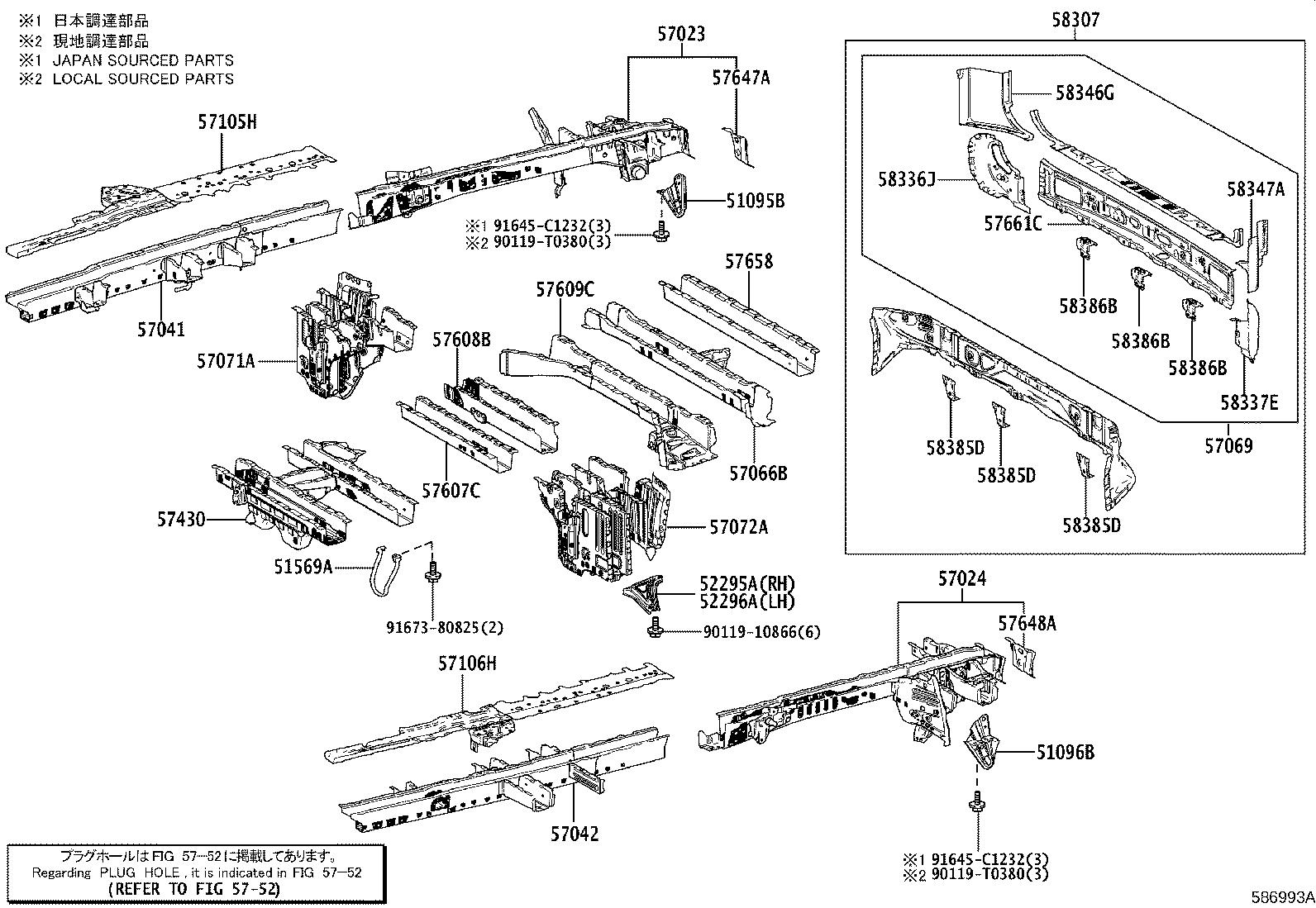

Figure 586949A 586949A 2019-02 → — Figure 586950A 586950A 2019-02 → — Figure 586951A 586951A 2019-02 → — Figure 586952A 586952A 2019-02 → — Figure 586953A 586953A 2019-02 → — Figure 586954A 586954A 2019-02 → — Figure 586955A 586955A 2019-02 → — Figure 586956A 586956A 2019-02 → — Figure 586957A 586957A 2019-02 → — Figure 586958A 586958A 2019-02 → — Figure 586959A 586959A 2019-02 → — Figure 586960A 586960A 2019-02 → — Figure 586961A 586961A 2019-02 → — Figure 586962A 586962A 2019-02 → — Figure 586963A 586963A 2019-02 → — Figure 586964A 586964A 2019-02 → — Figure 586965A 586965A 2019-03 → — Figure 586966A 586966A 2019-03 → — Figure 586967A 586967A 2019-03 → — Figure 586968A 586968A 2019-03 → — Figure 586969A 586969A 2019-03 → — Figure 586970A 586970A 2019-03 → — Figure 586971B 586971B 2019-03 → — Figure 586972A 586972A 2019-03 → — Figure 586973B 586973B 2019-03 → — Figure 586974A 586974A 2019-03 → — Figure 586975A 586975A 2019-06 → — Figure 586976A 586976A 2019-03 → — Figure 586977A 586977A 2019-03 → — Figure 586979A 586979A 2019-03 → — Figure 586980A 586980A 2019-03 → — Figure 586981A 586981A 2019-03 → — Figure 586982A 586982A 2019-03 → — Figure 586983A 586983A 2019-03 → — Figure 586984B 586984B 2019-03 → — Figure 586985B 586985B 2019-03 → — Figure 586986B 586986B 2019-06 → — Figure 586987A 586987A 2019-03 → — Figure 586988A 586988A 2019-03 → — Figure 586989A 586989A 2019-03 → — Figure 586990A 586990A 2019-03 → — Figure 586992A 586992A 2019-03 → — Figure 587045 587045 2019-07 → — Figure 587046 587046 2019-07 → — Figure 587047 587047 2019-07 → — Figure 587048 587048 2019-07 → — Figure 587049 587049 2019-07 → — Figure 587050 587050 2019-07 → — Figure 587051 587051 2019-07 → — Figure 587052 587052 2019-07 → — Figure 587053 587053 2019-07 → — Figure 587054 587054 2019-07 → — Figure 5891C1 5891C1 2023-10 → — Figure 586993A 586993A 2019-02 → — Figure 586994A 586994A 2019-02 → — Figure 586995A 586995A 2019-02 → — Figure 586996A 586996A 2019-02 → — Figure 586997A 586997A 2019-02 → — Figure 586998A 586998A 2019-02 → — Figure 586999A 586999A 2019-02 → — Figure 587000A 587000A 2019-03 → — Figure 587001A 587001A 2019-03 → — Figure 587002A 587002A 2019-03 → — Figure 587003A 587003A 2019-03 → — Figure 587004A 587004A 2019-06 → — Figure 587005A 587005A 2019-03 → — Figure 587006A 587006A 2019-03 → — Figure 587007A 587007A 2019-03 → — Figure 587008A 587008A 2019-03 → — Figure 587009A 587009A 2019-03 → — Figure 587010A 587010A 2019-03 → — Figure 587011A 587011A 2019-03 → — Figure 587012A 587012A 2019-03 → — Figure 587013A 587013A 2019-03 → — Figure 587014A 587014A 2019-03 → — Figure 587015A 587015A 2019-06 → — Figure 587016A 587016A 2019-03 → — Figure 5891PS 5891PS 2019-07 → — Figure 587056 587056 2019-07 → — Figure 5891PT 5891PT 2019-07 → — Figure 5891C2 5891C2 2023-10 → —

Part groups

PNCDescription
51083A Step Sub-assy, RH
51084A Step Sub-assy, LH
51095B Hook Sub-assy, Transport, Rear RH
51096B Hook Sub-assy, Transport, Rear LH
51503D Bracket Sub-assy, Lower Control Link Support, RH
51504C Bracket Sub-assy, Lower Control Link Support, LH
51564 Bracket, Center Bearing, Rear
51569A Guard, Propeller Shaft
51569K Guard, Propeller Shaft
51798B Bracket, Step Panel
51798D Bracket, Step Panel, RH
51798E Bracket, Step Panel, LH
52197G Bracket, Rear Bumper Weight
52295A Brace, Rear Suspension Member, RH
52296A Brace, Rear Suspension Member, LH
57023 Member Sub-assy, Rear Side, RH
57024 Member Sub-assy, Rear Side, LH
57041 Member Sub-assy, Center Floor Side, RH
57042 Member Sub-assy, Center Floor Side, LH
57046A Plate Sub-assy, Floor Side Rail, LH
57047A Rail Sub-assy, Floor Side, Rear RH
57048 Rail Sub-assy, Floor Side, Rear LH
57066B Member Sub-assy, Rear Floor Cross, NO.6
57069 Member Sub-assy, Rear Floor Rear Cross, Outer
57071A Hanger Sub-assy, Rear Spring, Front, RH
57072A Hanger Sub-assy, Rear Spring, Front, LH
57075 Bracket Sub-assy, Upper Control Link, RH
57076 Bracket Sub-assy, Upper Control Link, LH
57105H Plate Sub-assy, Front Side Member, RH
57106H Plate Sub-assy, Front Side Member, LH
57177A Plate, Front Side Member, NO.7 RH
57178 Plate, Front Side Member, NO.7 LH
57303B Outrigger Sub-assy, NO.2 RH
57304B Outrigger Sub-assy, NO.2 LH
57403H Rail Sub-assy, Floor Side, RH
57404F Rail Sub-assy, Floor Side, LH
57405D Rail Sub-assy, Floor Side, Center RH
57406C Rail Sub-assy, Floor Side, Center LH
57421A Plate, Floor Side Rail, RH
57430 Member Assy, Center Floor Cross
57607C Member Sub-assy, Rear Floor Cross, NO.3
57608B Member Sub-assy, Rear Floor Cross, NO.4
57609C Member Sub-assy, Rear Floor Cross, NO.5
57647A Reinforcement, Rear Floor Side Member, Out RH
57648A Reinforcement, Rear Floor Side Member, Out LH
57658 Member, Rear Floor Cross, NO.7
57661C Member, Rear Floor Rear Cross, Outer
57757 Plate, Rear Floor Crossmember
57779A Gusset, Rear Floor Crossmember, B
57799A Gusset, Rear Floor Crossmember, A
58035D Extension Sub-assy, Rear Floor Side Panel, RH
58036B Extension Sub-assy, Rear Floor Side Panel, LH
58037D Reinforce Sub-assy, Center Pillar TO Floor, RH
58038C Reinforce Sub-assy, Center Pillar TO Floor, LH
58135B Bracket, Floor Insulator Support
58195A Bracket, Extinguisher, NO.1
58195B Bracket, Extinguisher, NO.1
58212F Seal, Center Floor
58249G Bracket, Cable Clamp, NO.2
58307 Panel Sub-assy, Body Lower Back
58312E Panel, Rear Floor, Rear
58315B Panel, Rear Floor, Front
58336J Reinforcement, Rear Floor End, Lower RH
58337E Reinforcement, Rear Floor End, Lower LH
58346G Reinforce, Rear Floor Rear Corner, RH
58347A Reinforce, Rear Floor Rear Corner, LH
58385D Bracket, Rear Bumper Cover
58386B Bracket, Rear Bumper Cover, NO.2
58388F Plate, Floor, Rear RH
58389C Plate, Floor, Rear LH
58460C Striker Assy, Luggage Hold Belt
58759A Cover, Fuel Tank Inspection Hole
58967E Bracket, Jack Support, NO.1
58968E Bracket, Jack Support, NO.2
59324 Base, Sub Floor Leg, NO.2
66386A Plate, Rope Hook Bar
89966A Bracket, Oscillator Electrical Key
89966B Bracket, Oscillator Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
