Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

11 part groups · 4 illustrations

Illustrations

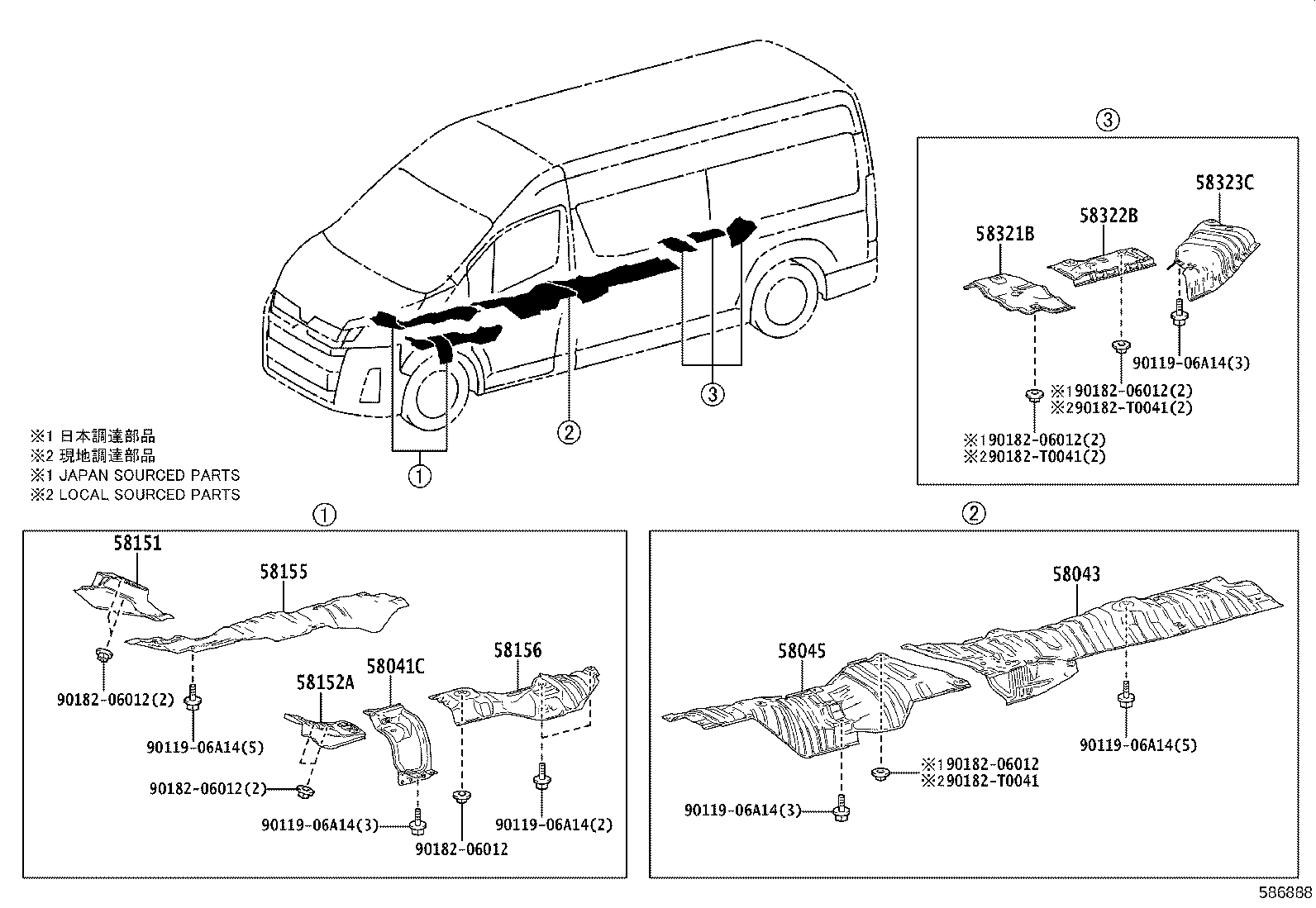

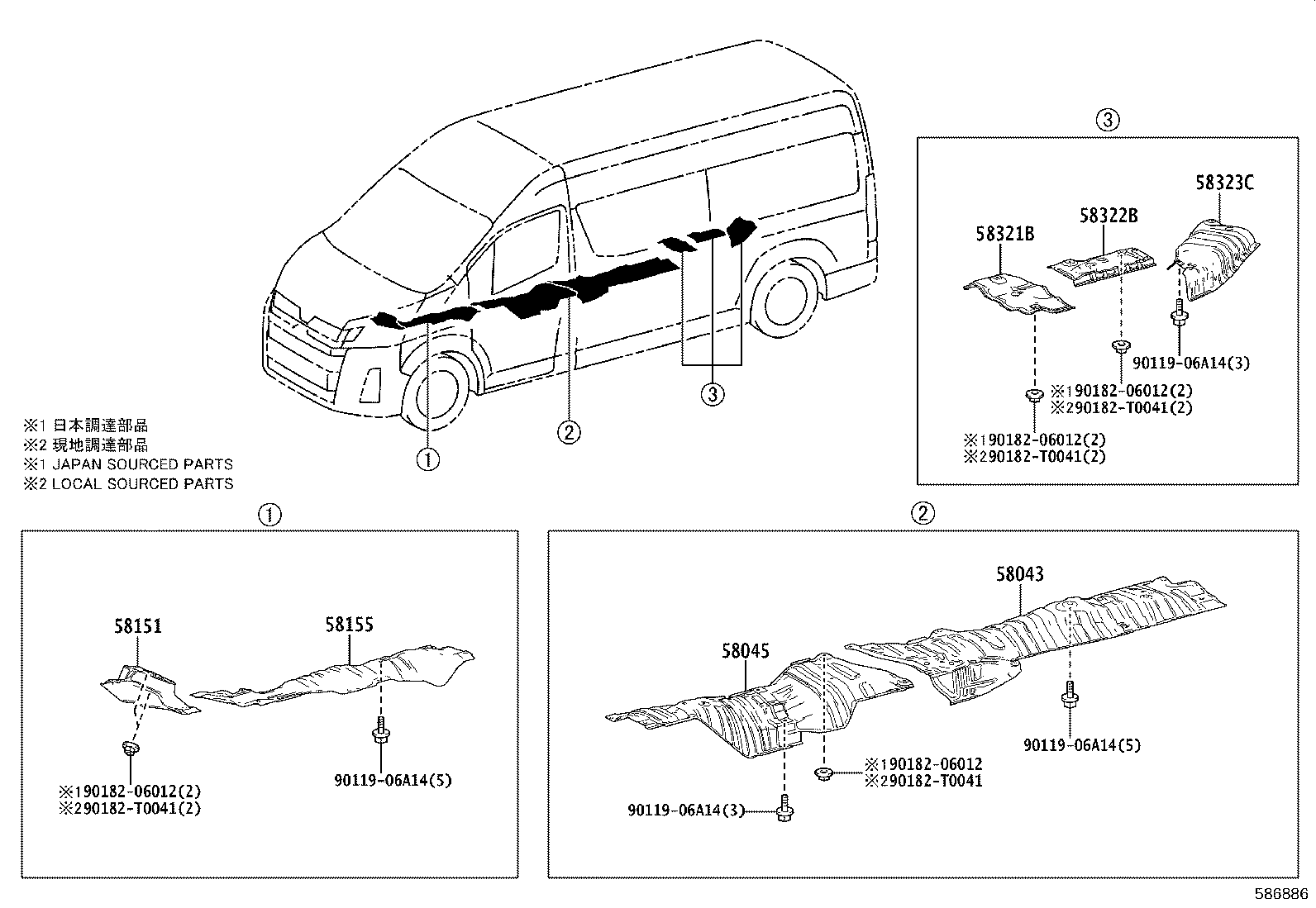

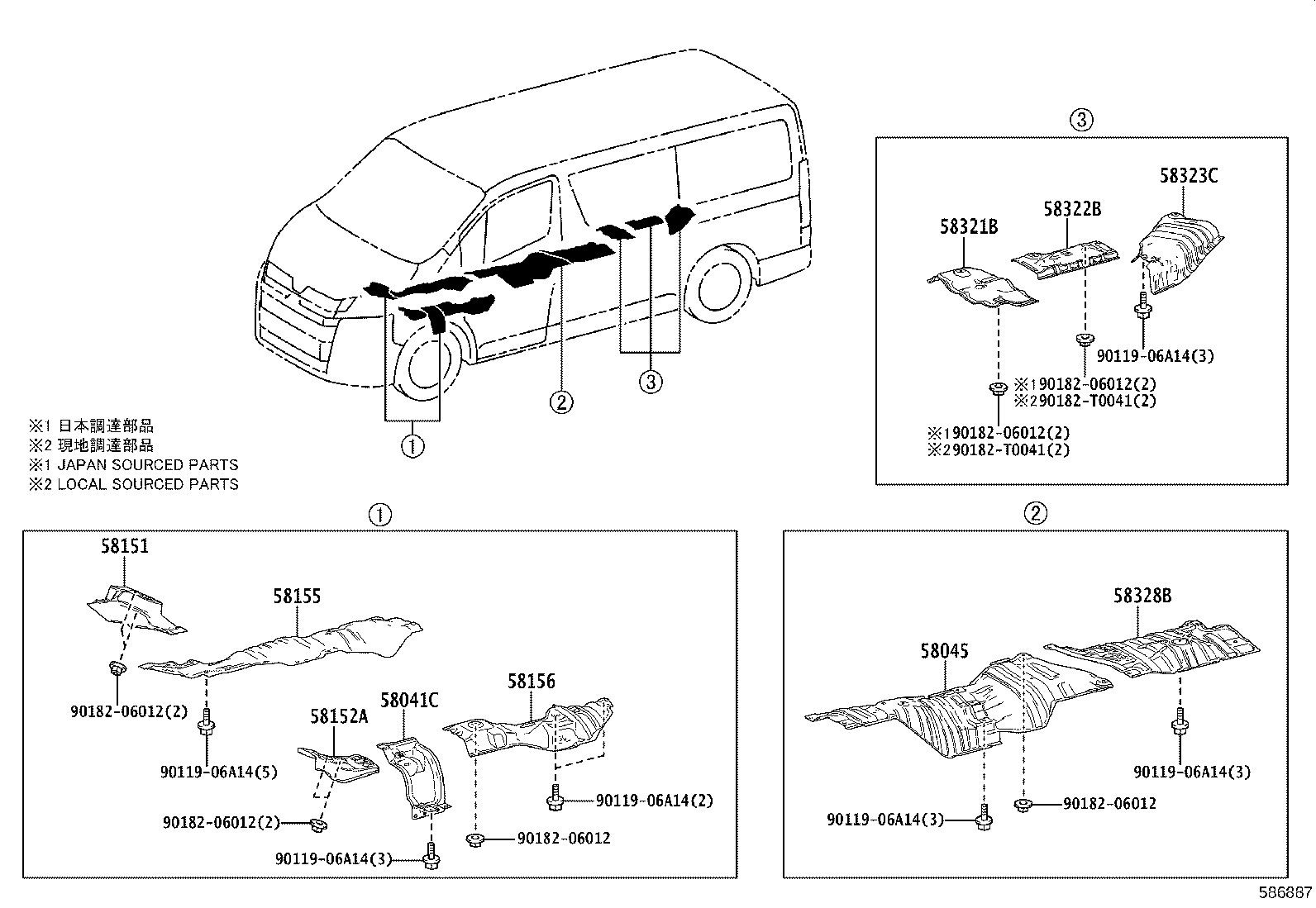

Figure 586878A 586878A 2019-02 → — Figure 586887 586887 2019-02 → — Figure 586886 586886 2019-03 → — Figure 586888 586888 2019-03 → —

Part groups

PNCDescription
58041C Insulator Sub-assy, Front Floor Heat, NO.1
58043 Insulator Sub-assy, Main Muffler Heat, Rear
58045 Insulator Sub-assy, Rear Floor Heat
58151 Insulator, Front Floor Heat, NO.1
58152A Insulator, Front Floor Heat, NO.1 Lower
58155 Insulator, Front Floor Heat, NO.3
58156 Insulator, Front Floor Heat, NO.4
58321B Insulator, Rear Floor Heat, NO.1
58322B Insulator, Rear Floor Heat, NO.2
58323C Insulator, Rear Floor Heat, NO.3
58328B Insulator, Main Muffler Heat, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
