Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States
Supported model
Data version 2024-09

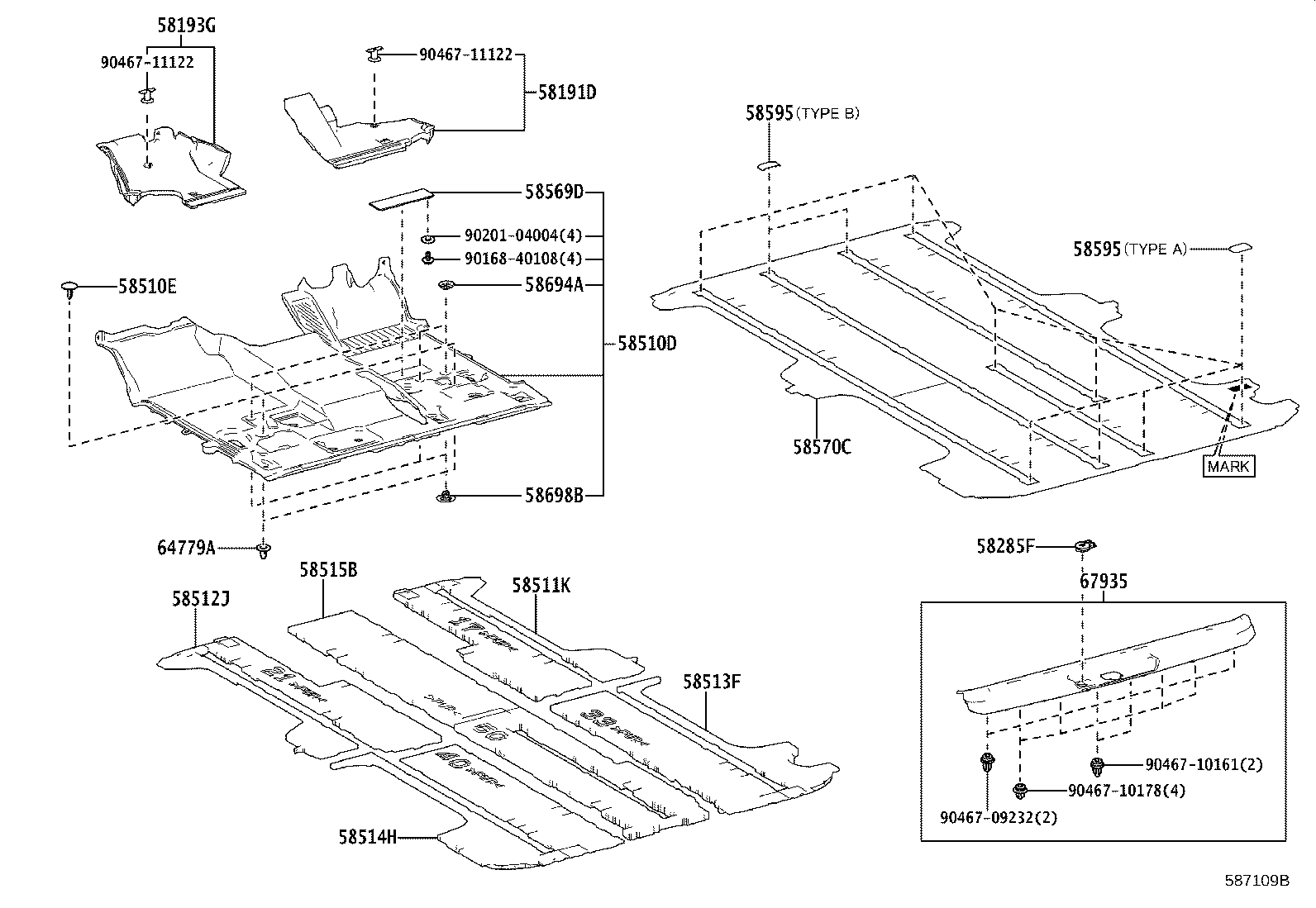

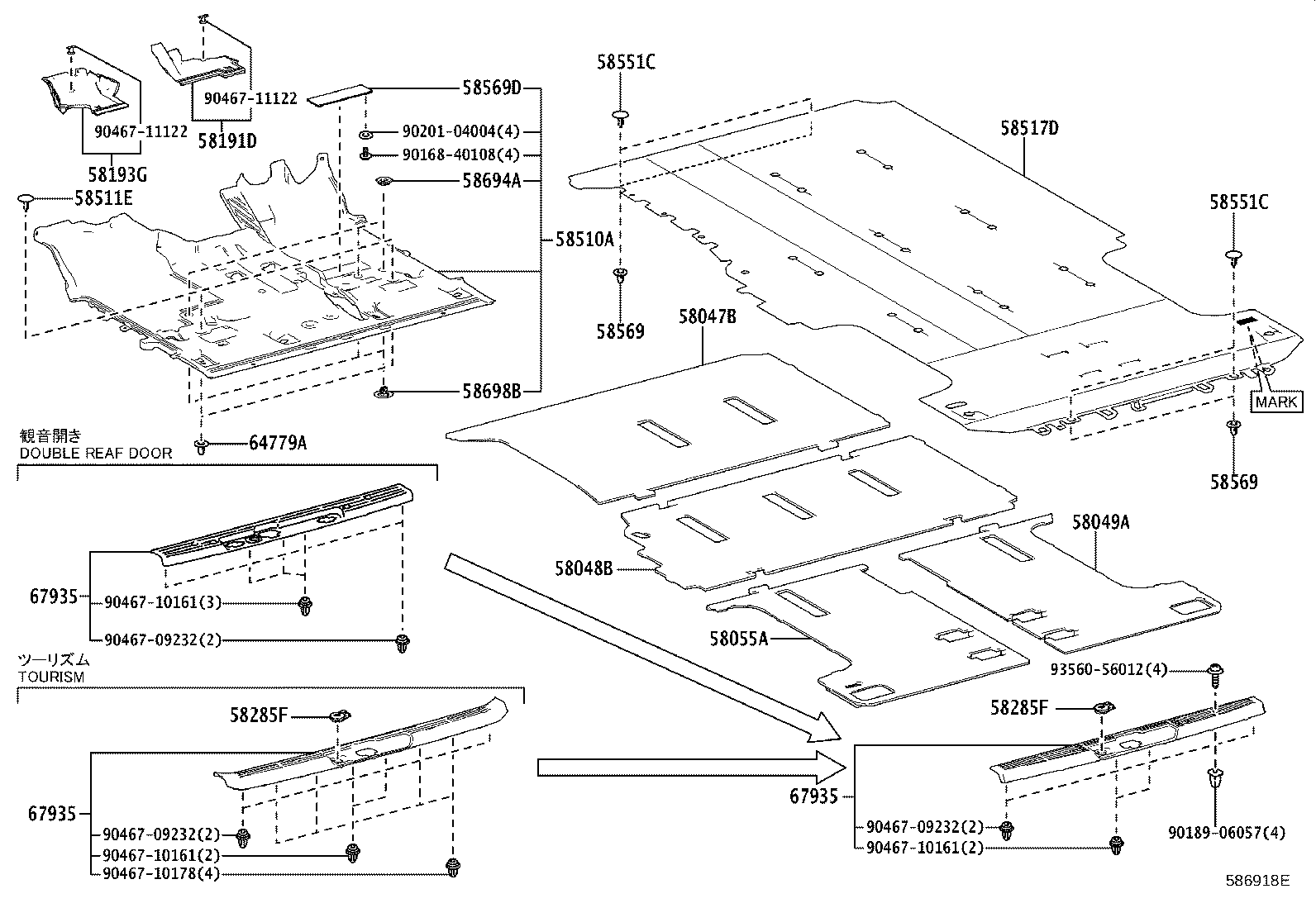

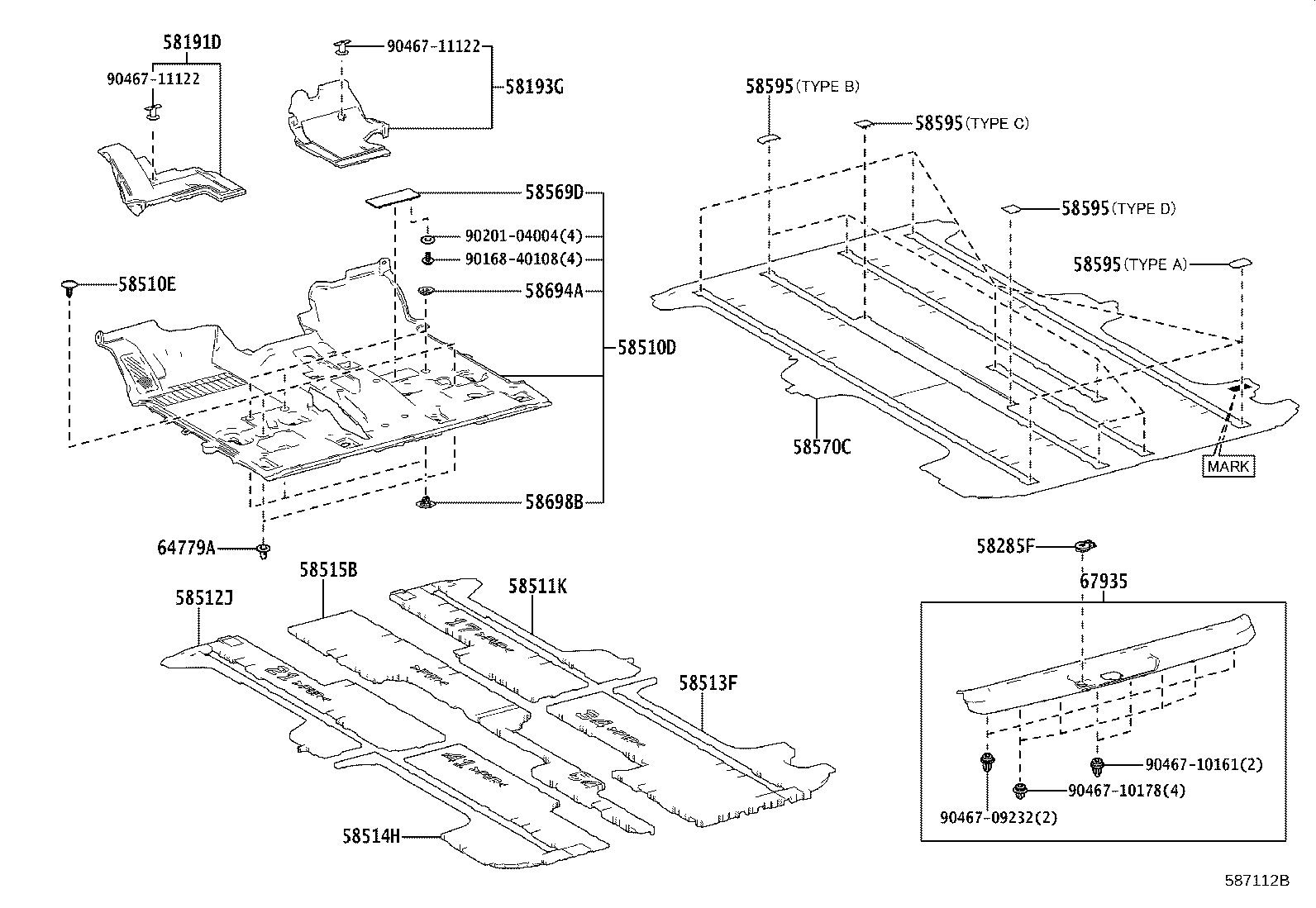

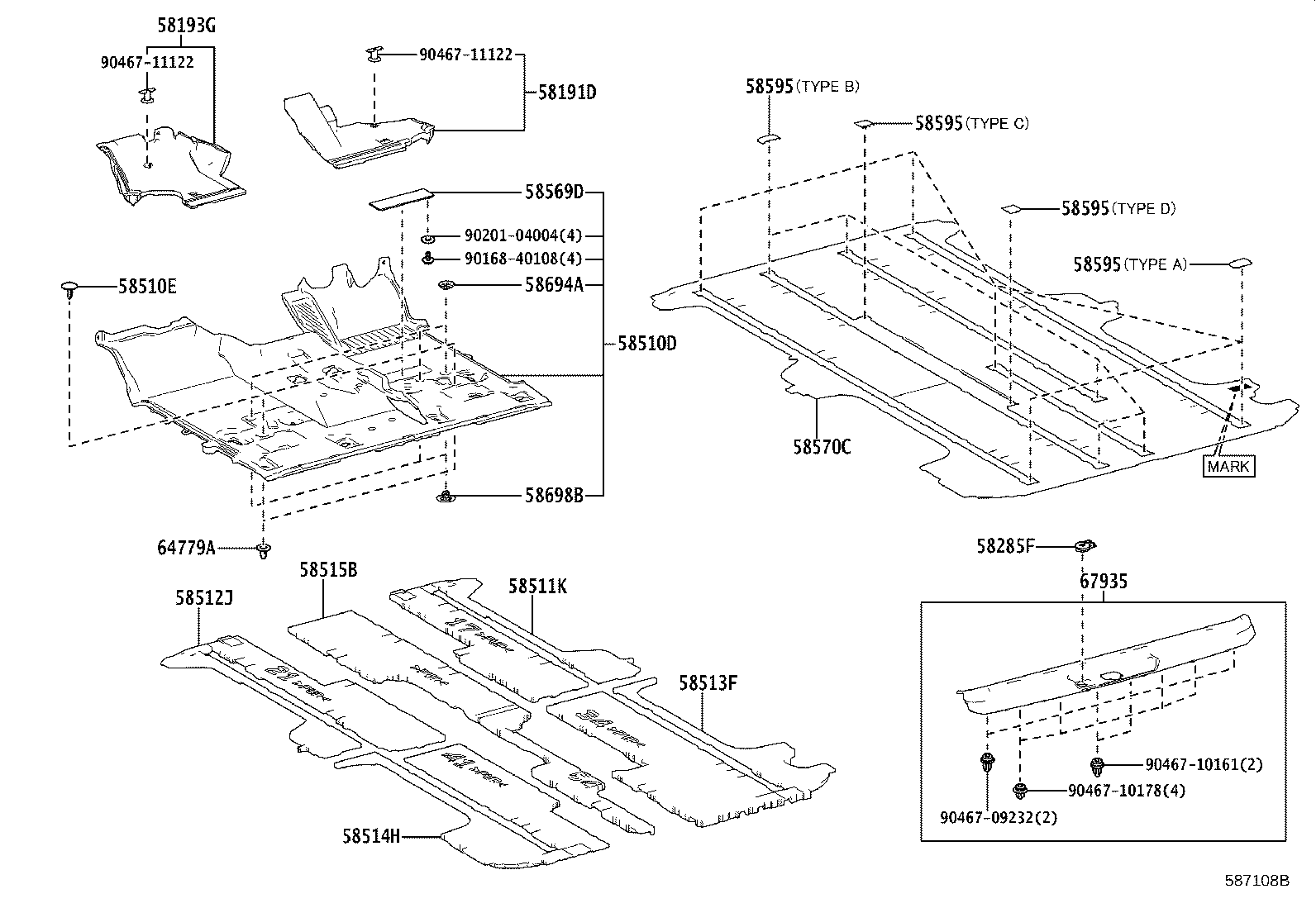

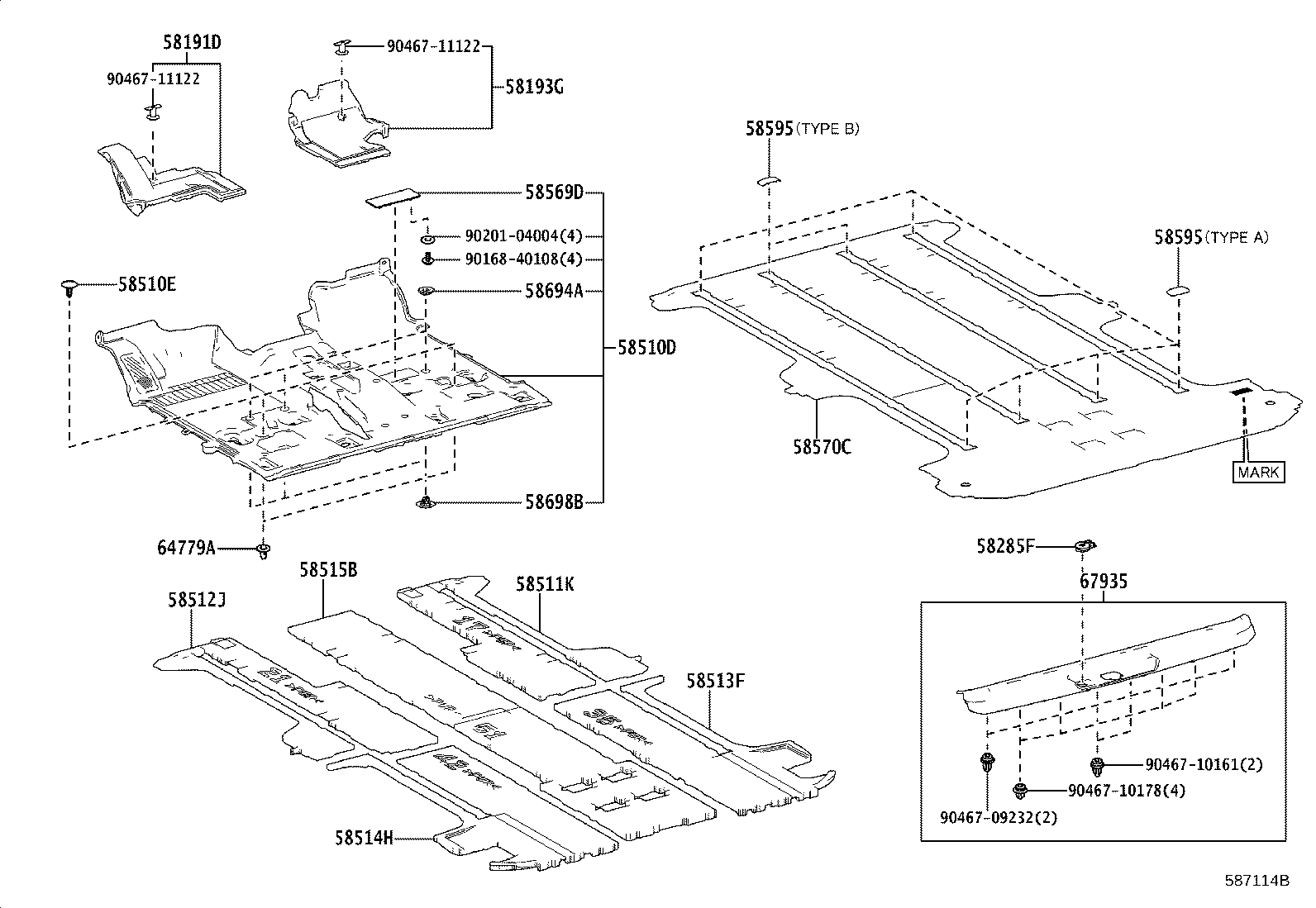

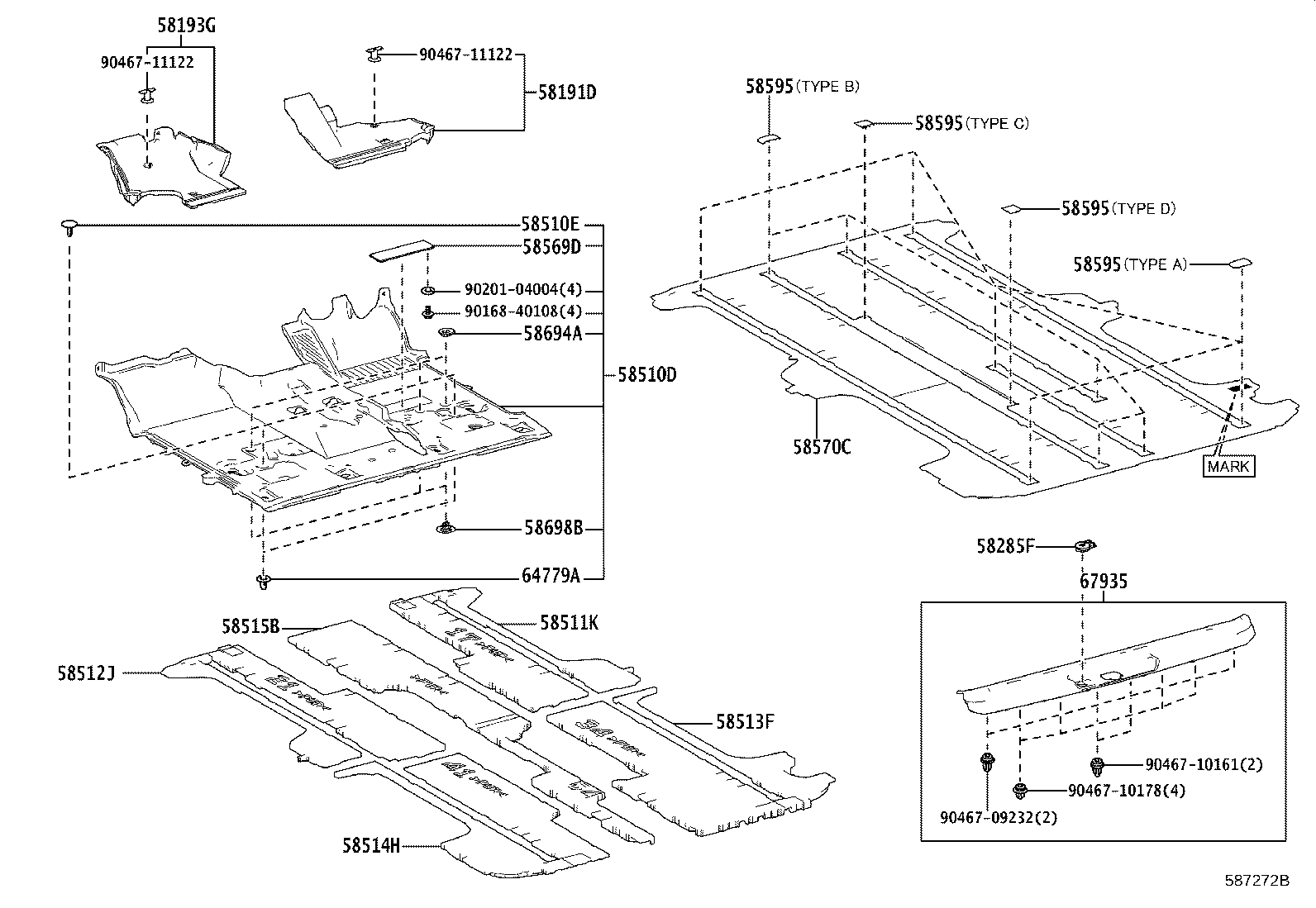

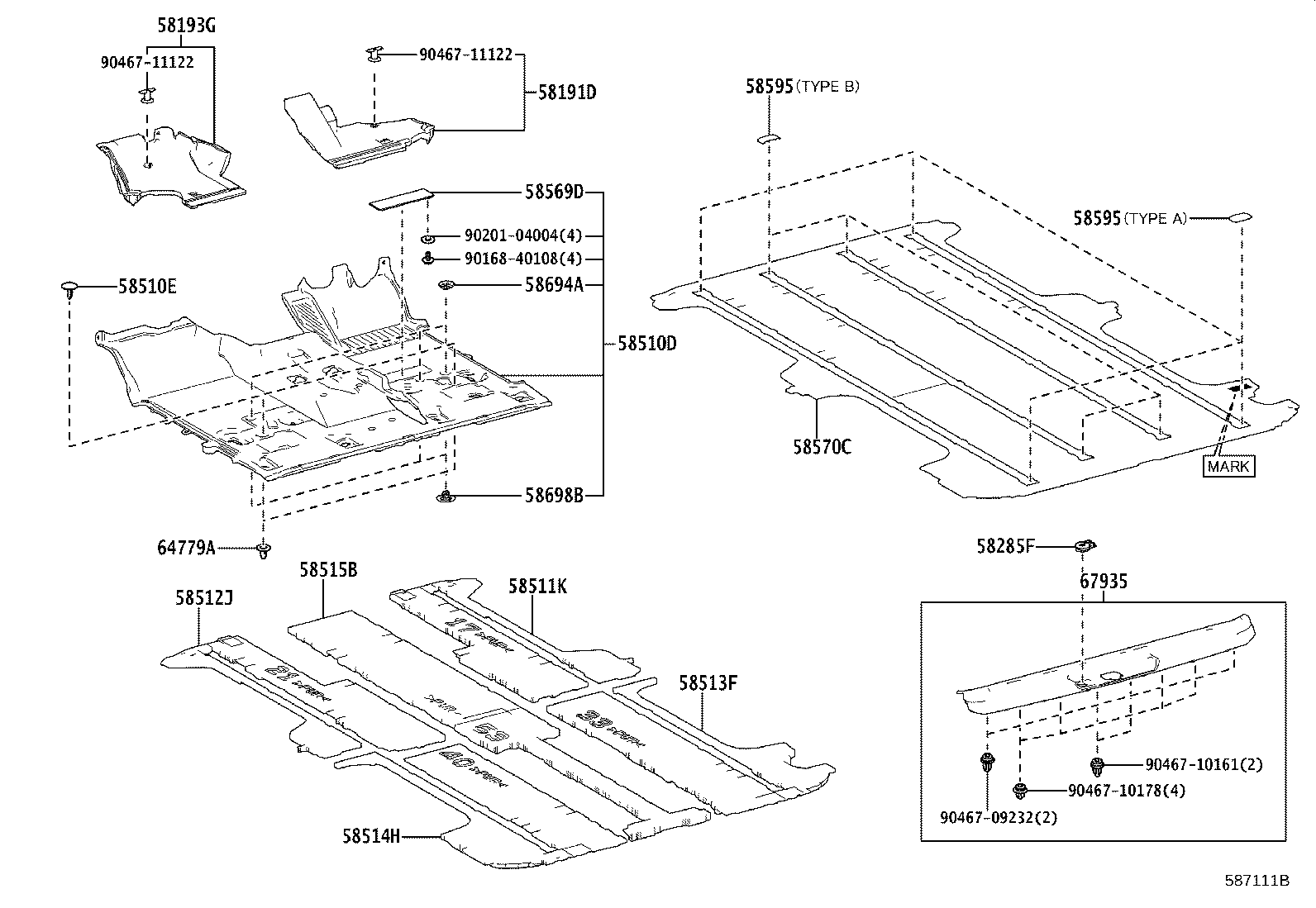

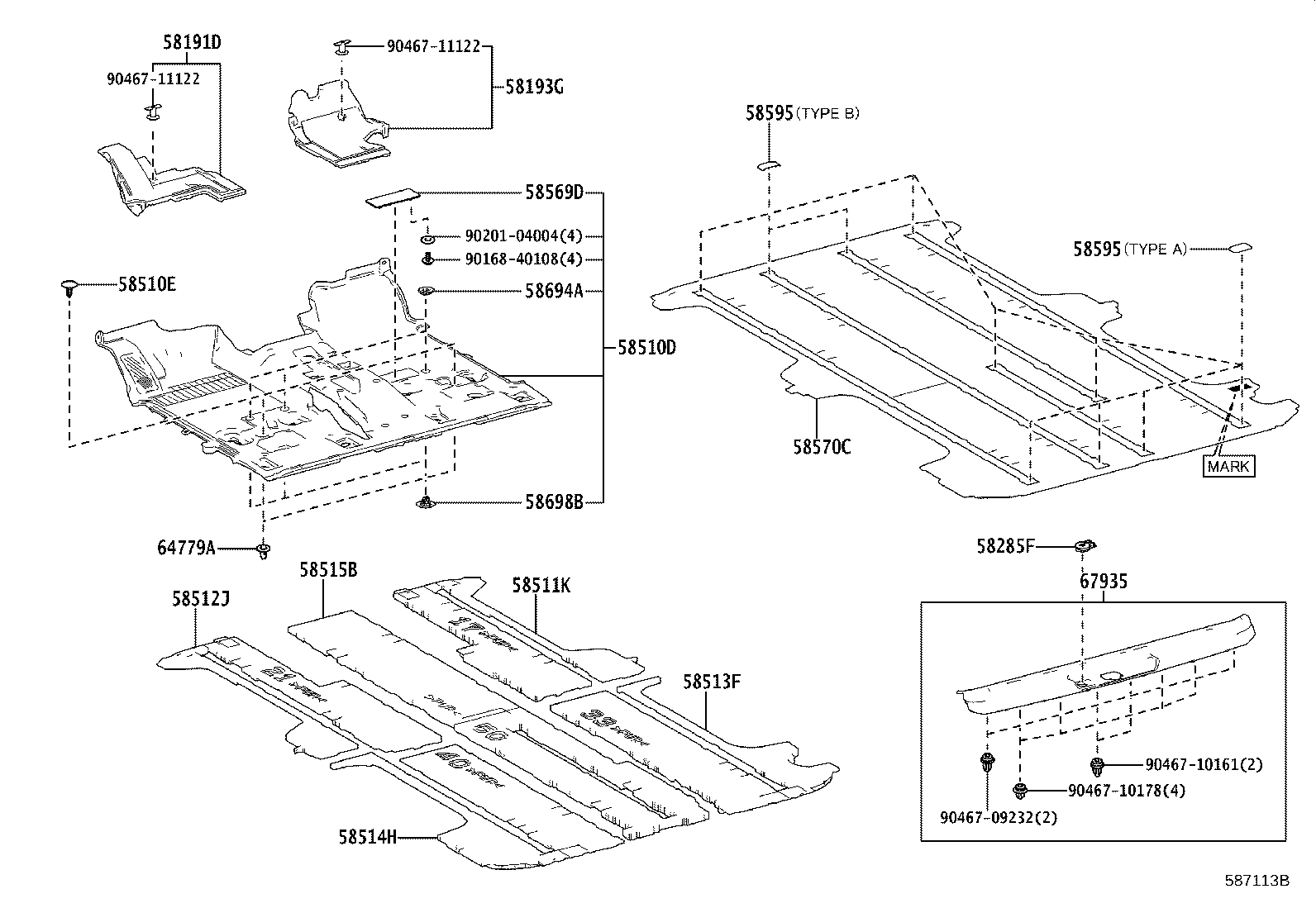

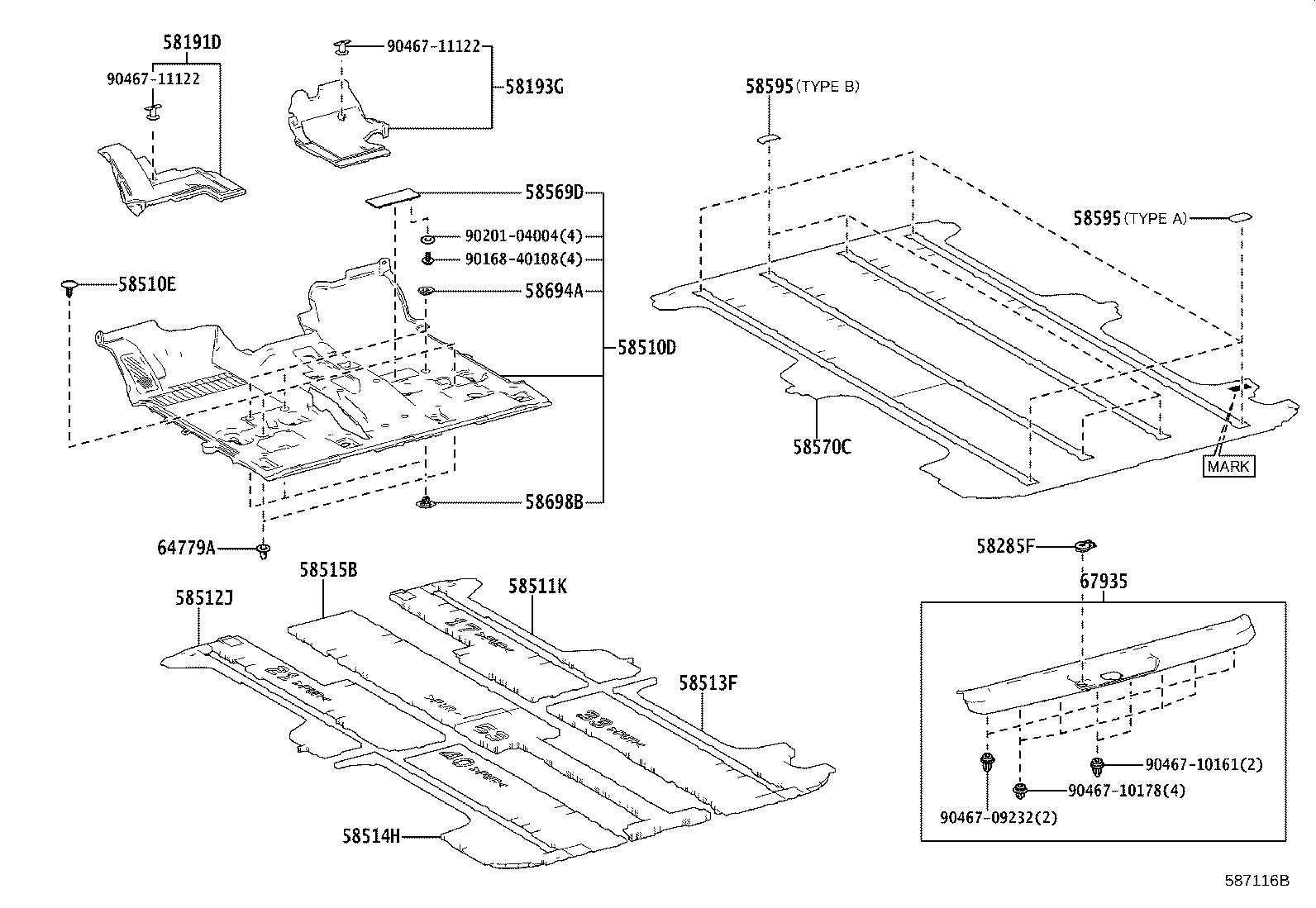

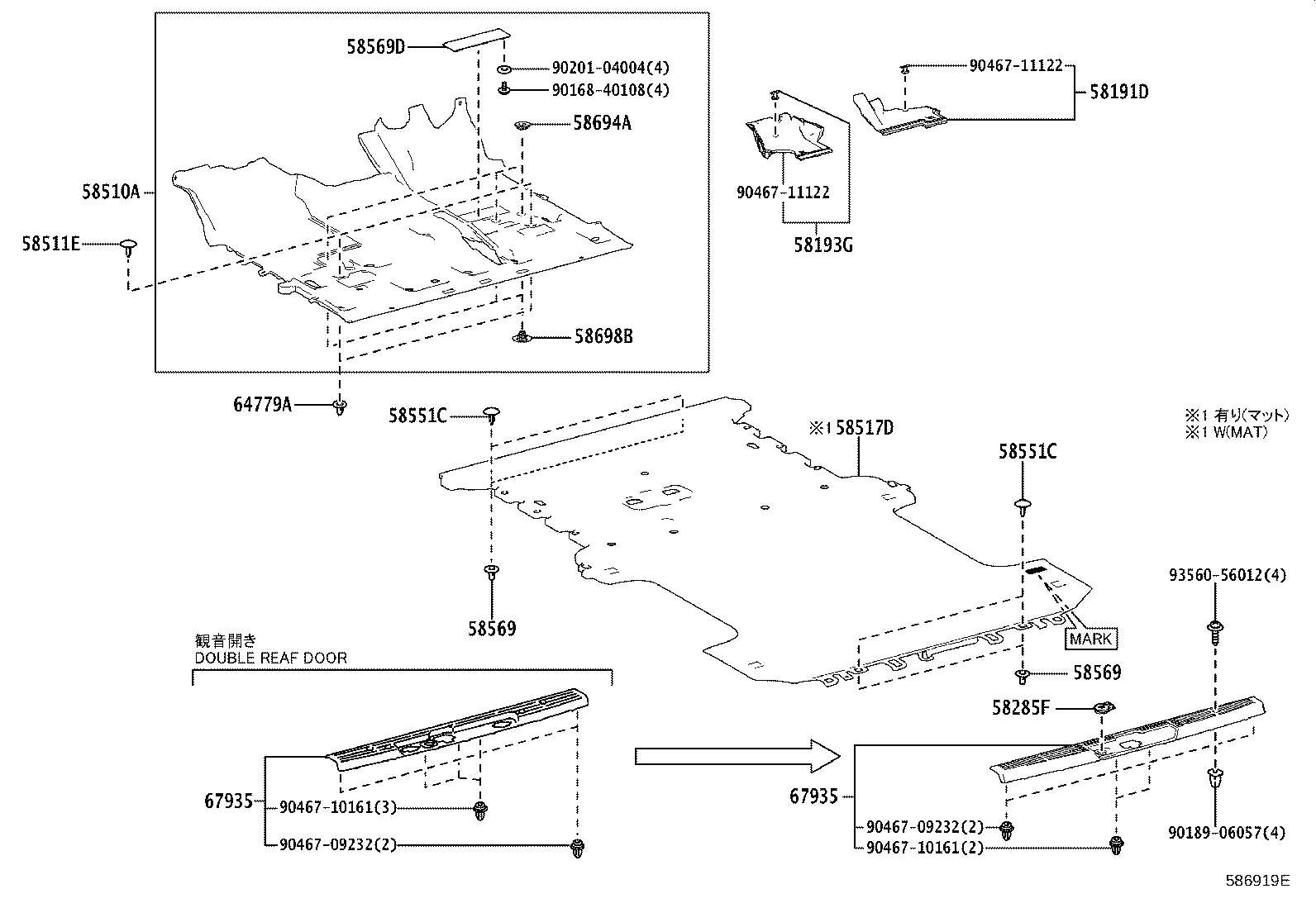

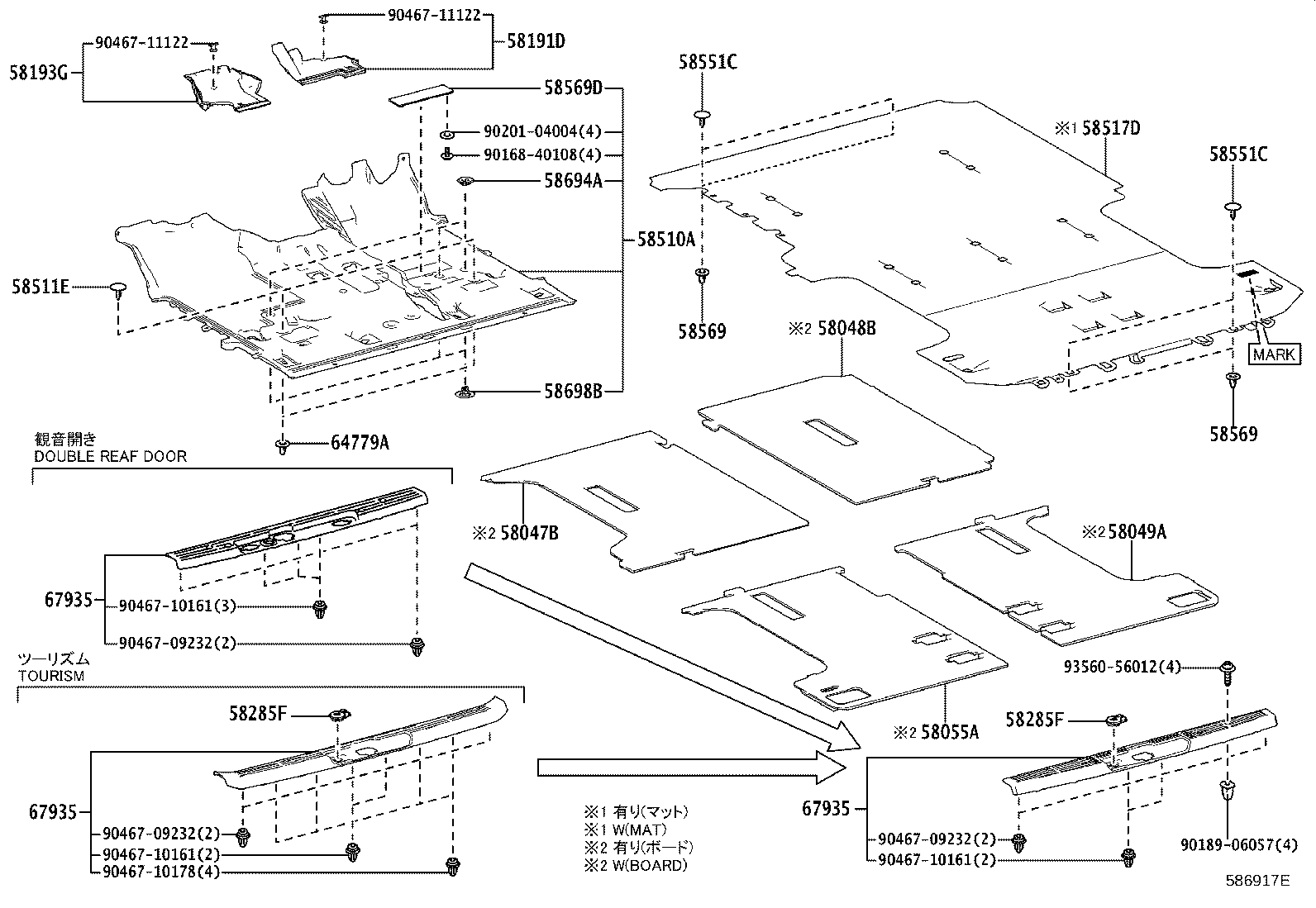

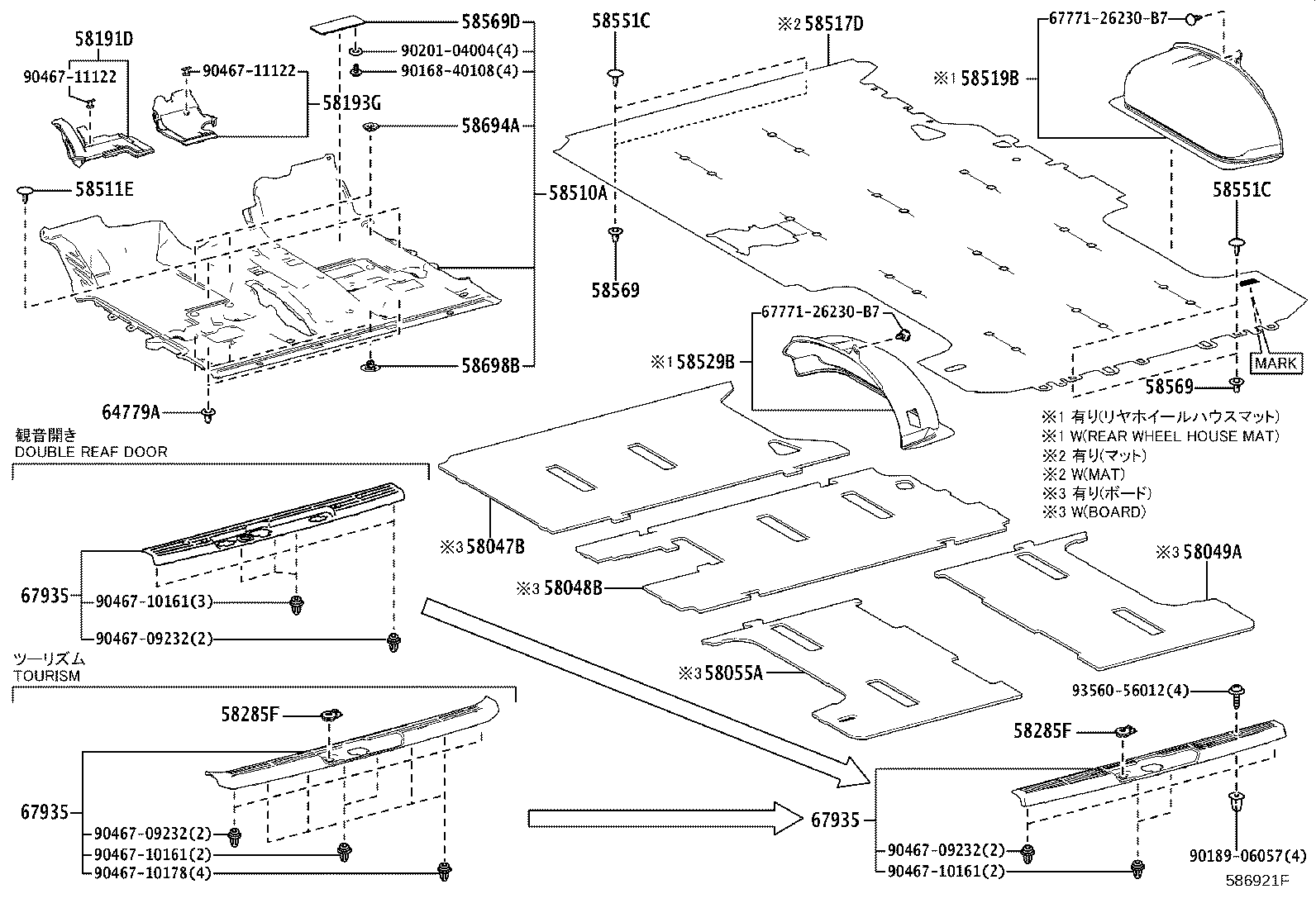

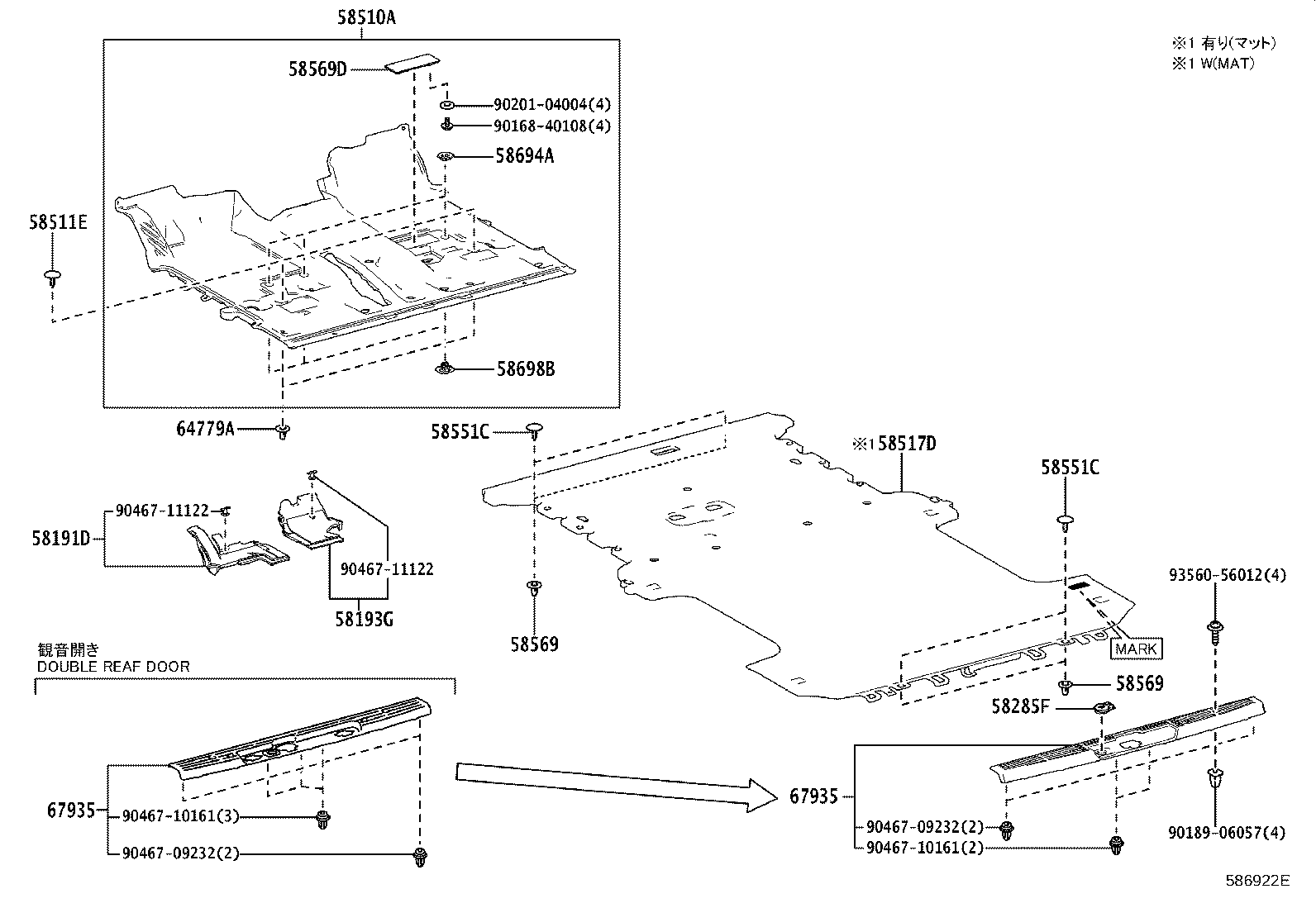

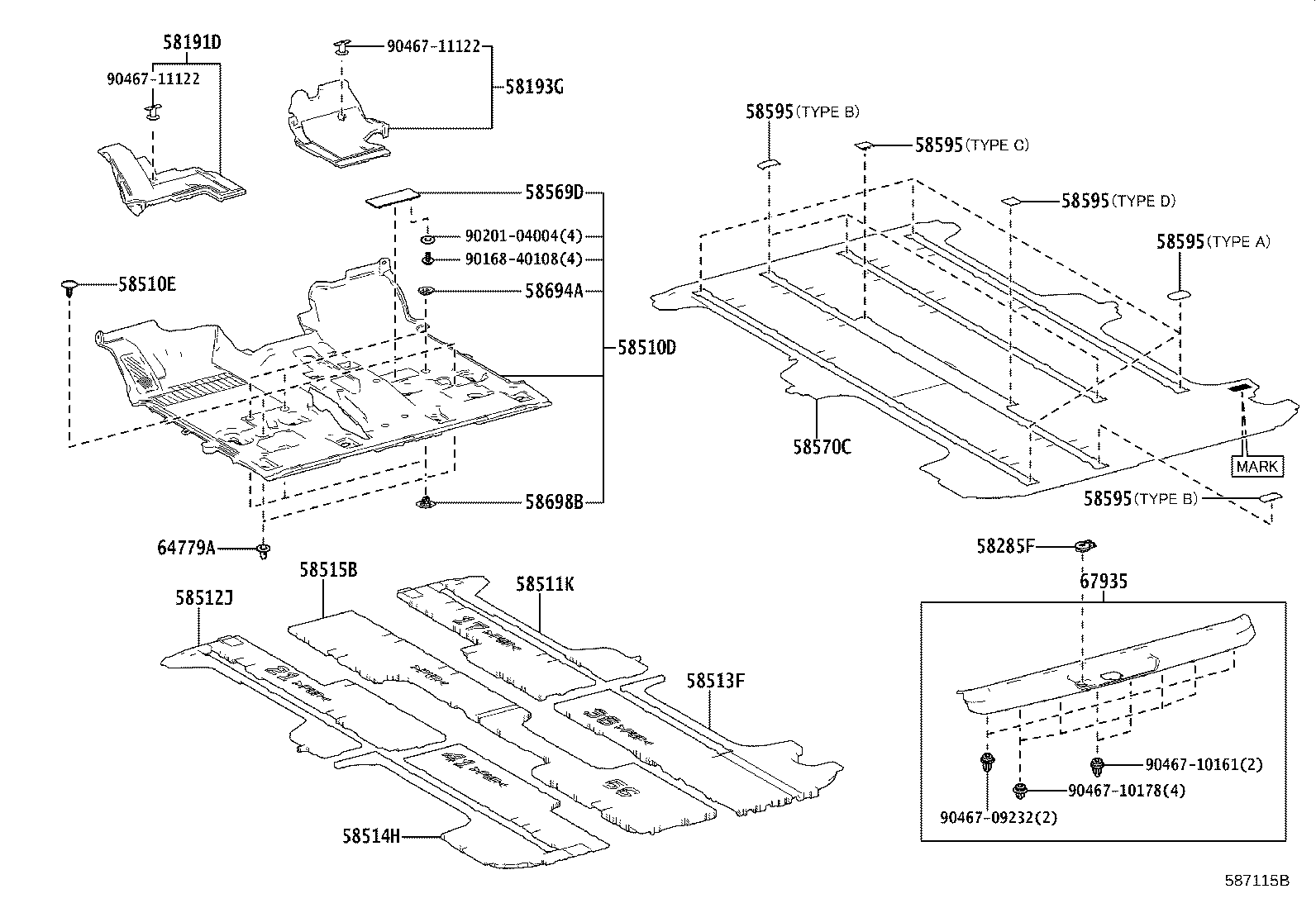

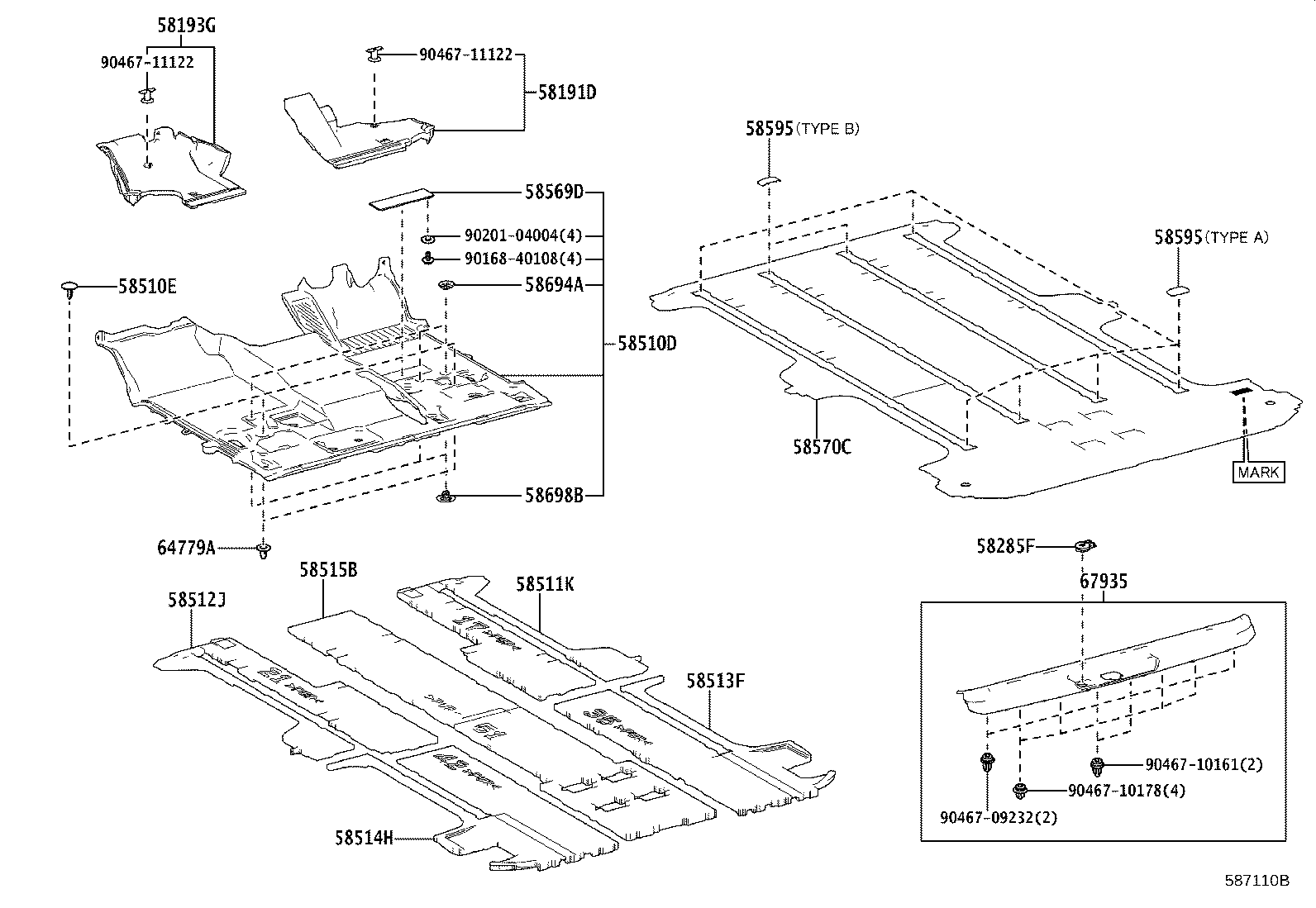

Floor Mat & Silencer Pad
29 part groups · 17 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 58047B | Board Sub-assy, Rear Floor, Upper NO.1 |
| 58048B | Board Sub-assy, Rear Floor, Upper NO.2 |
| 58049A | Board Sub-assy, Rear Floor, Upper NO.3 |
| 58055A | Board Sub-assy, Rear Floor, Upr NO.4 |
| 58191D | Footrest, Front Floor |
| 58193G | Footrest, Front Floor, NO.3 |
| 58285F | Cover, Rear Floor Hole |
| 58510A | Mat Assy, Front Floor |
| 58510D | Carpet Assy, Floor, Front |
| 58510E | Retainer, Floor Carpet |
| 58510H | Mat Assy, Floor |
| 58511E | Clip(FOR FRONT FLOOR MAT) |
| 58511K | Mat, Floor, NO.1 |
| 58512J | Mat, Floor, NO.2 |
| 58513F | Mat, Floor, NO.3 |
| 58514H | Mat, Floor, NO.4 |
| 58515B | Mat, Floor, Rear LH |
| 58517D | Mat, Rear Floor |
| 58519B | Mat, Rear Wheel House, RH |
| 58529B | Mat, Rear Wheel House, LH |
| 58551C | Clip(FOR FLOOR MAT, REAR) |
| 58569 | Stopper, Rear Floor Mat |
| 58569D | Cover, Front Floor Caution Plate |
| 58570C | Carpet Assy, Rear Floor |
| 58595 | Moulding, Floor Carpet, NO.3 |
| 58694A | Plate, Mat Set, Upper |
| 58698B | Plate, Mat Set, Lower |
| 64779A | Stopper, Spare Wheel Cover |
| 67935 | Plate, Back Door Scuff |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
