Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

20 part groups · 4 illustrations

Illustrations

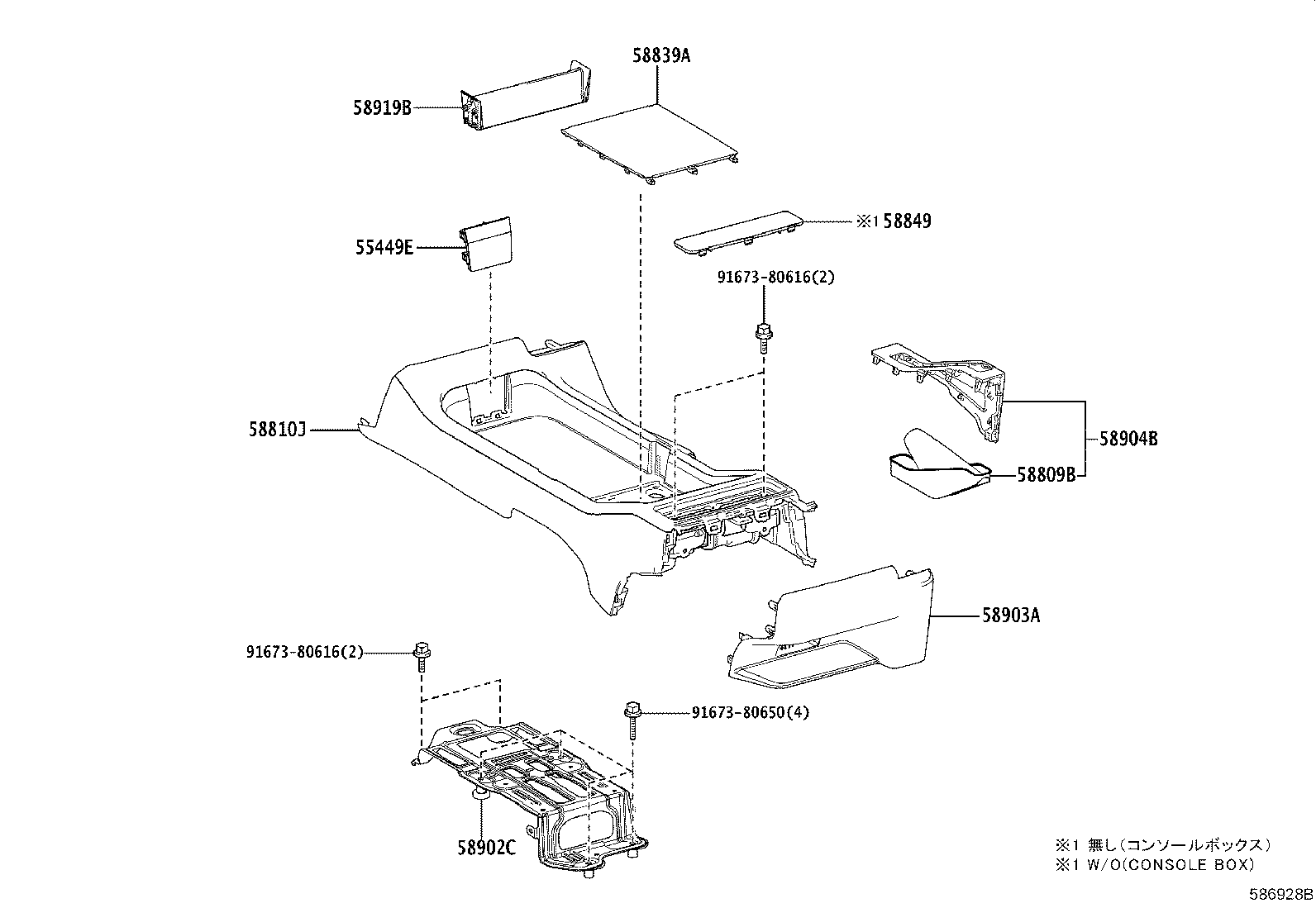

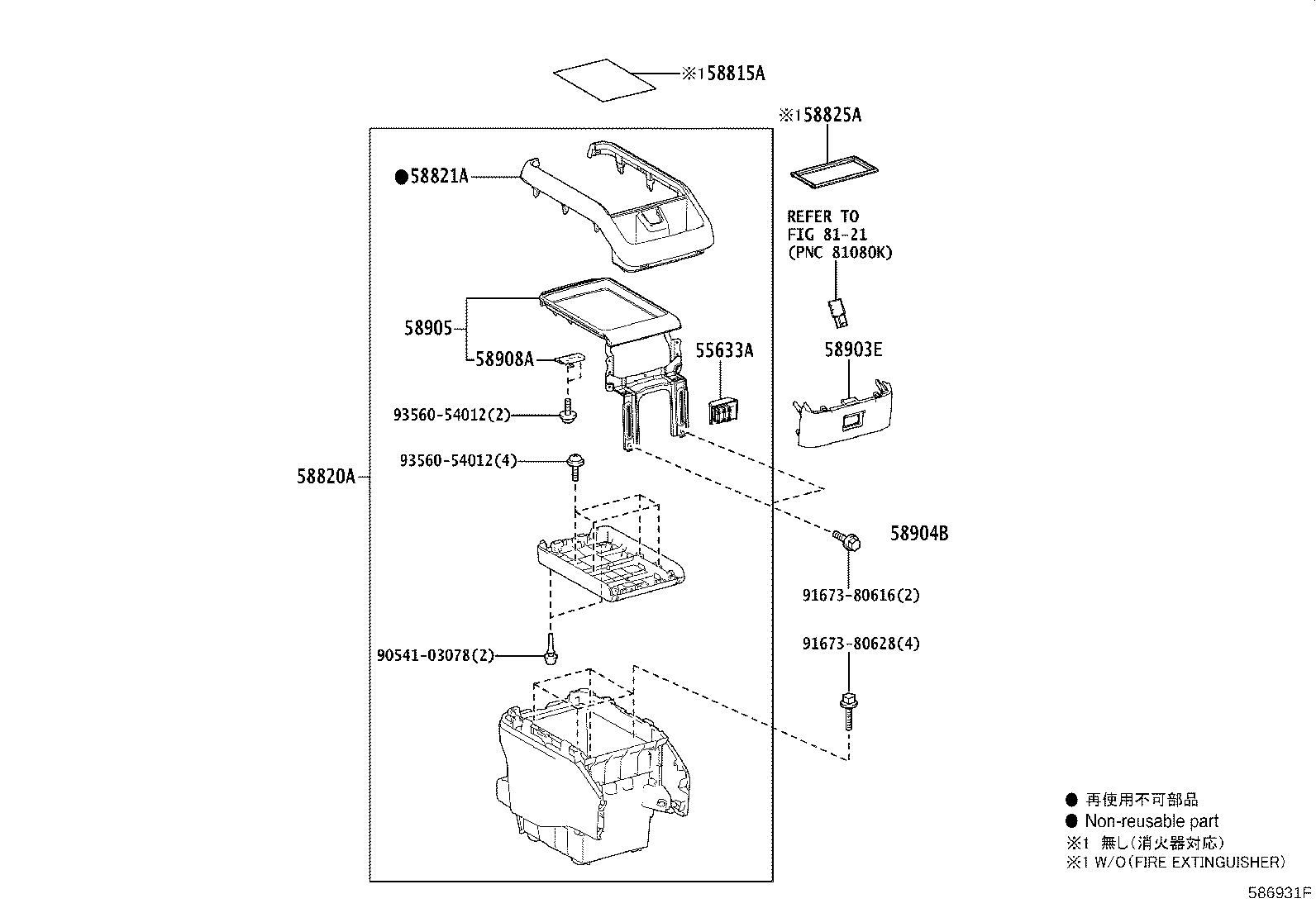

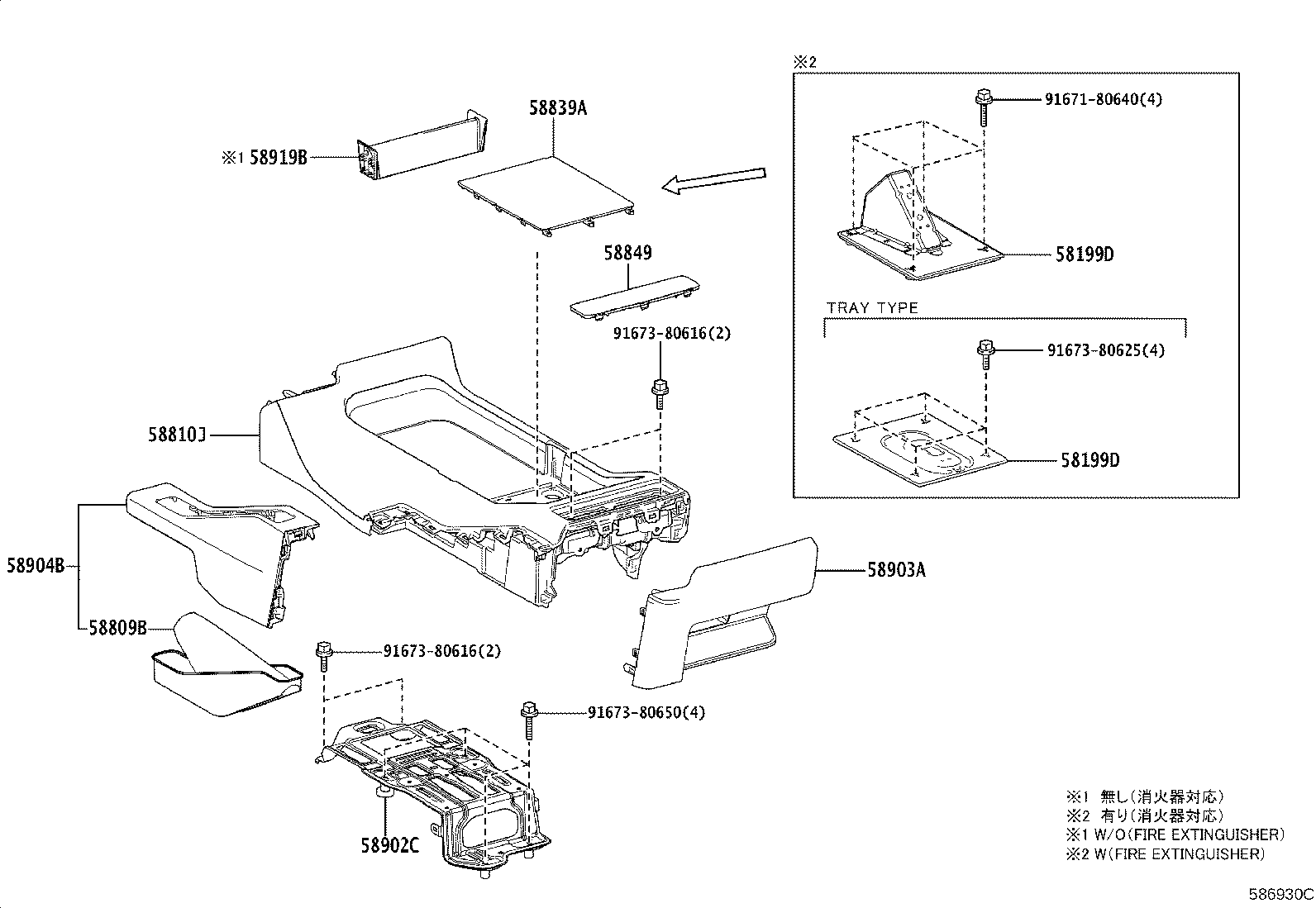

Figure 586927A 586927A 2019-02 → — Figure 586930C 586930C 2019-02 → — Figure 586928B 586928B 2019-02 → — Figure 586931F 586931F 2019-02 → —

Part groups

PNCDescription
55449E Base, Switch
55633A Support, Instrument Panel Cup Holder, NO.1
58199D Bracket, Extinguisher, NO.2
58802E Box Sub-assy, Console, Front
58809B Cover Sub-assy, Parking Brake Hole
58810J Box Assy, Console
58815A Carpet, Console Box
58820A Box Assy, Console Compartment
58821A Panel, Console
58825A Pocket, Console Box
58839A Cover, Console Box Hole
58849 Cover, Console Box Hole, NO.2
58902C Bracket Sub-assy, Console Box Mounting
58903A Panel Sub-assy, Console Rear End
58903E Panel Sub-assy, Console Rear End, NO.2
58904B Cover Sub-assy, Parking Brake Hole
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58919B Plate, Console Box
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
