Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States
Supported model
Data version 2024-09

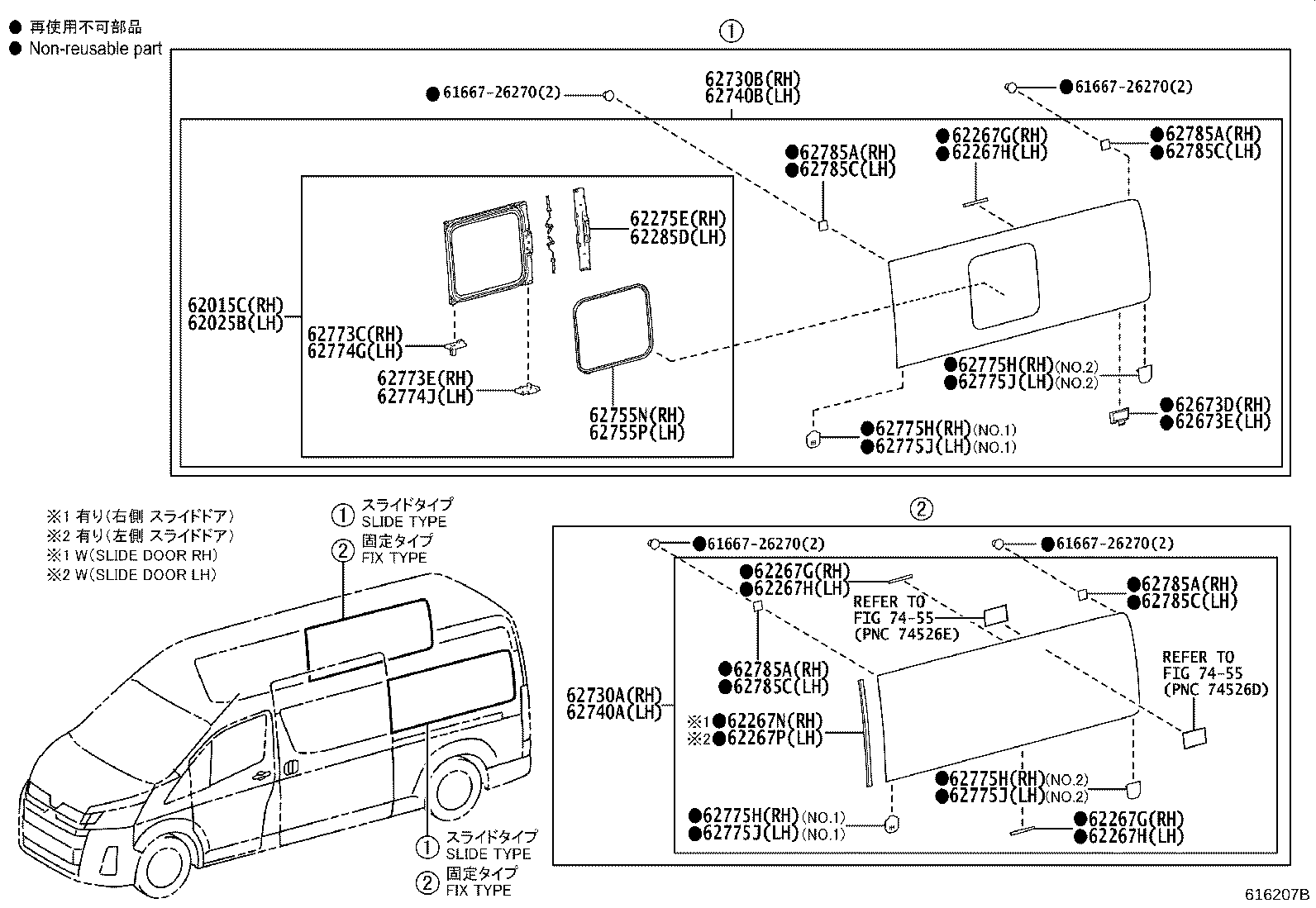

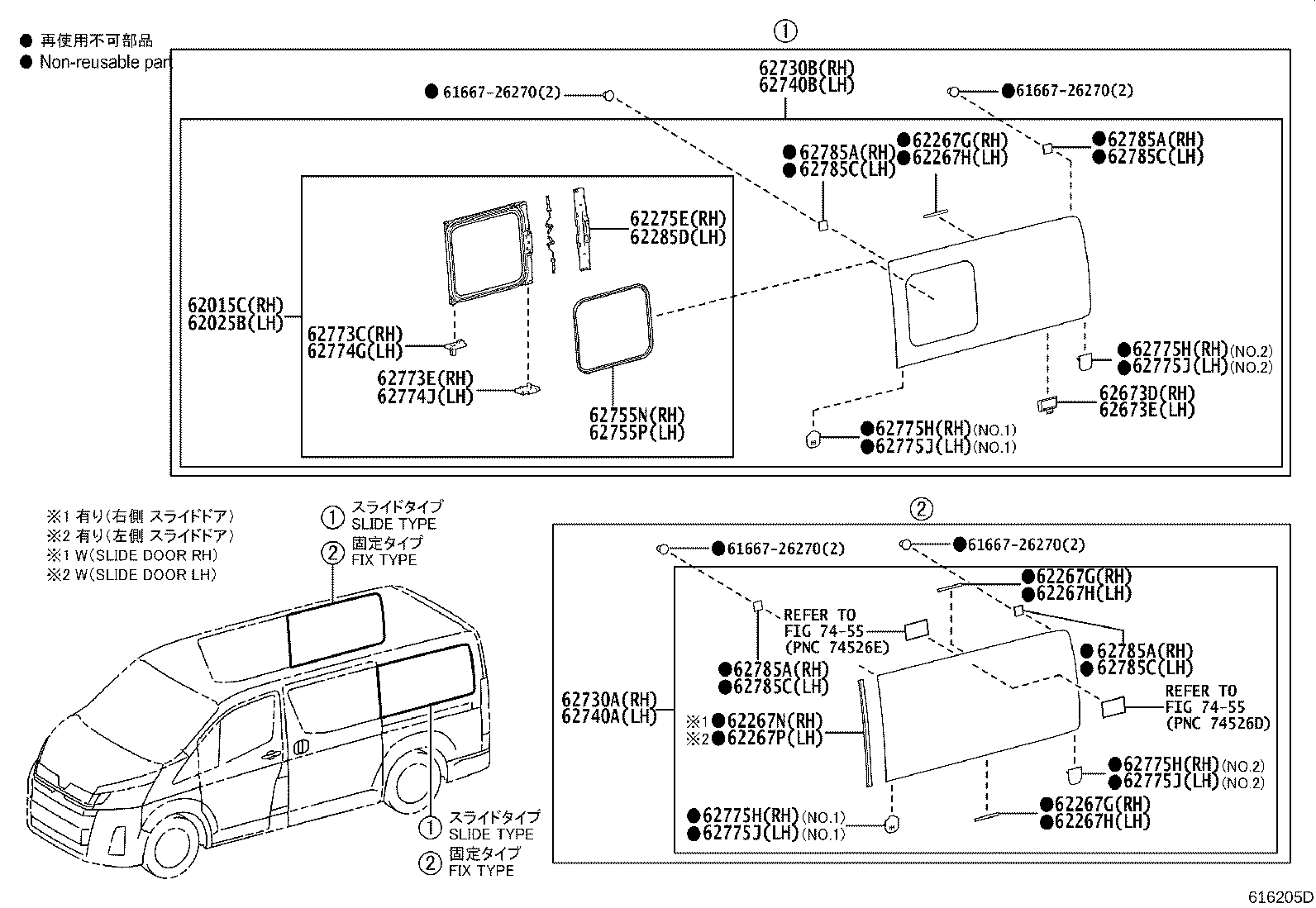

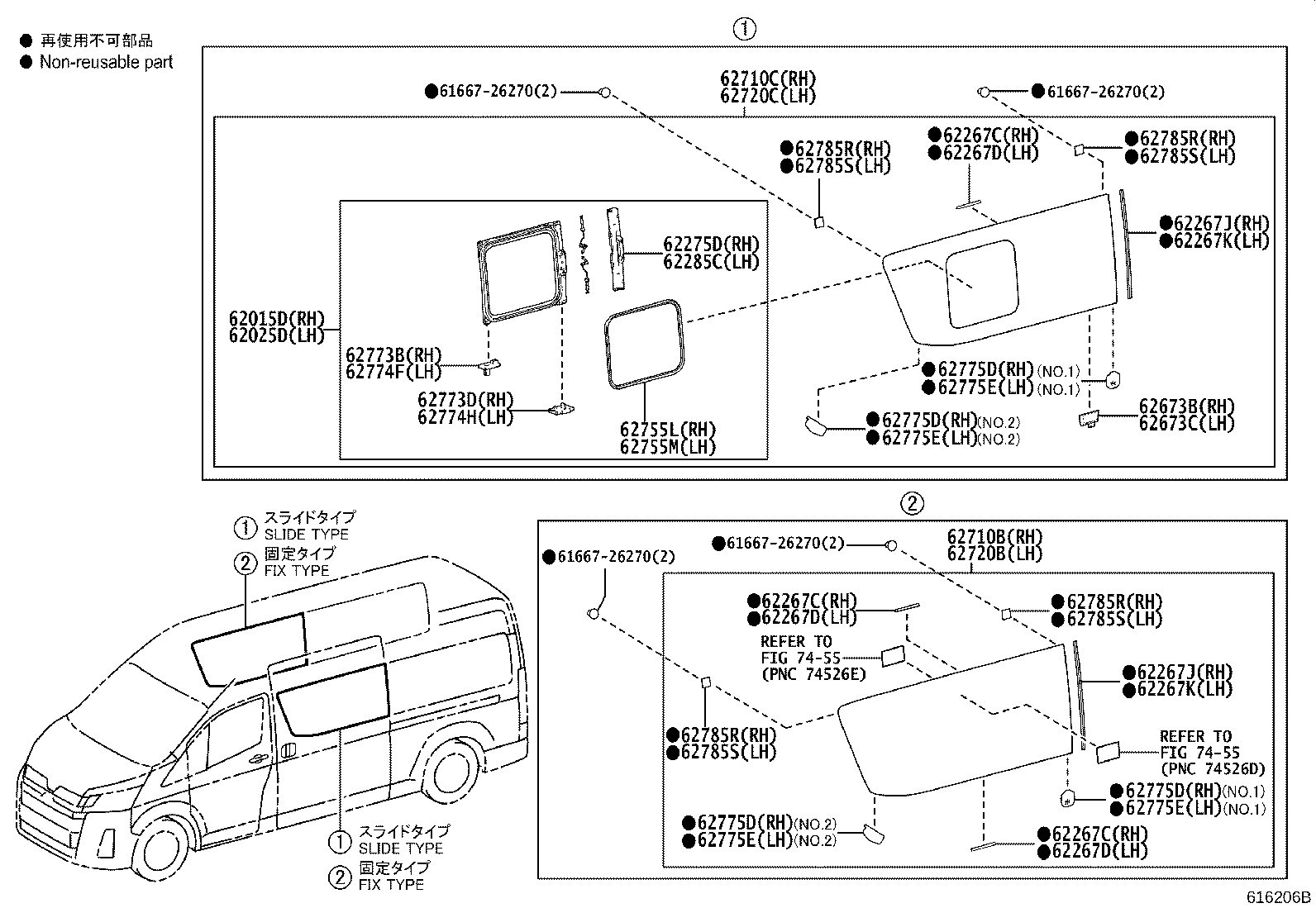

Side Window
48 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62015C | Frame Sub-assy, Rear Side Window, RH |
| 62015D | Frame Sub-assy, Front Side Window, RH |
| 62025B | Frame Sub-assy, Rear Side Window, LH |
| 62025D | Frame Sub-assy, Front Side Window, LH |
| 62267C | Dam, Front Side Window Adhesive, NO.1 RH |
| 62267D | Dam, Front Side Window Adhesive, NO.1 LH |
| 62267G | Dam, Rear Side Window Adhesive, NO.1 RH |
| 62267H | Dam, Rear Side Window Adhesive, NO.1 LH |
| 62267J | Dam, Front Side Window Adhesive, NO.2 RH |
| 62267K | Dam, Front Side Window Adhesive, NO.2 LH |
| 62267N | Dam, Rear Side Window Adhesive, NO.2 RH |
| 62267P | Dam, Rear Side Window Adhesive, NO.2 LH |
| 62275D | Cover, Front Side Window, RH |
| 62275E | Cover, Rear Side Window, RH |
| 62285C | Cover, Front Side Window, LH |
| 62285D | Cover, Rear Side Window, LH |
| 62673B | Cover, Front Side Window Rail, RH |
| 62673C | Cover, Front Side Window Rail, LH |
| 62673D | Cover, Rear Side Window Rail, RH |
| 62673E | Cover, Rear Side Window Rail, LH |
| 62710B | Window Assy, Side, Front RH |
| 62710C | Glass Sub-assy, Side Front Window, RH |
| 62720B | Window Assy, Side, Front LH |
| 62720C | Glass Sub-assy, Side Front Window, LH |
| 62730A | Window Assy, Side, Rear RH |
| 62730B | Window Assy, Quarter, Rear RH |
| 62740A | Window Assy, Side, Rear LH |
| 62740B | Window Assy, Quarter, Rear LH |
| 62755L | Run, Front Side Window, RH |
| 62755M | Run, Front Side Window, LH |
| 62755N | Run, Rear Side Window, RH |
| 62755P | Run, Rear Side Window, LH |
| 62773B | Slider, Front Side Window, RH |
| 62773C | Slider, Rear Side Window, RH |
| 62773D | Slider, Front Side Window, RH |
| 62773E | Slider, Rear Side Window, RH |
| 62774F | Slider, Front Side Window, LH |
| 62774G | Slider, Rear Side Window, LH |
| 62774H | Slider, Front Side Window, LH |
| 62774J | Slider, Rear Side Window, LH |
| 62775D | Clip, Front Side Window, RH |
| 62775E | Clip, Front Side Window, LH |
| 62775H | Clip, Rear Side Window, RH |
| 62775J | Clip, Rear Side Window, LH |
| 62785A | Spacer, Quarter Window Glass |
| 62785C | Spacer, Quarter Window Glass |
| 62785R | Spacer, Side Window Glass |
| 62785S | Spacer, Side Window Glass |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
