Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

91 part groups · 16 illustrations

Illustrations

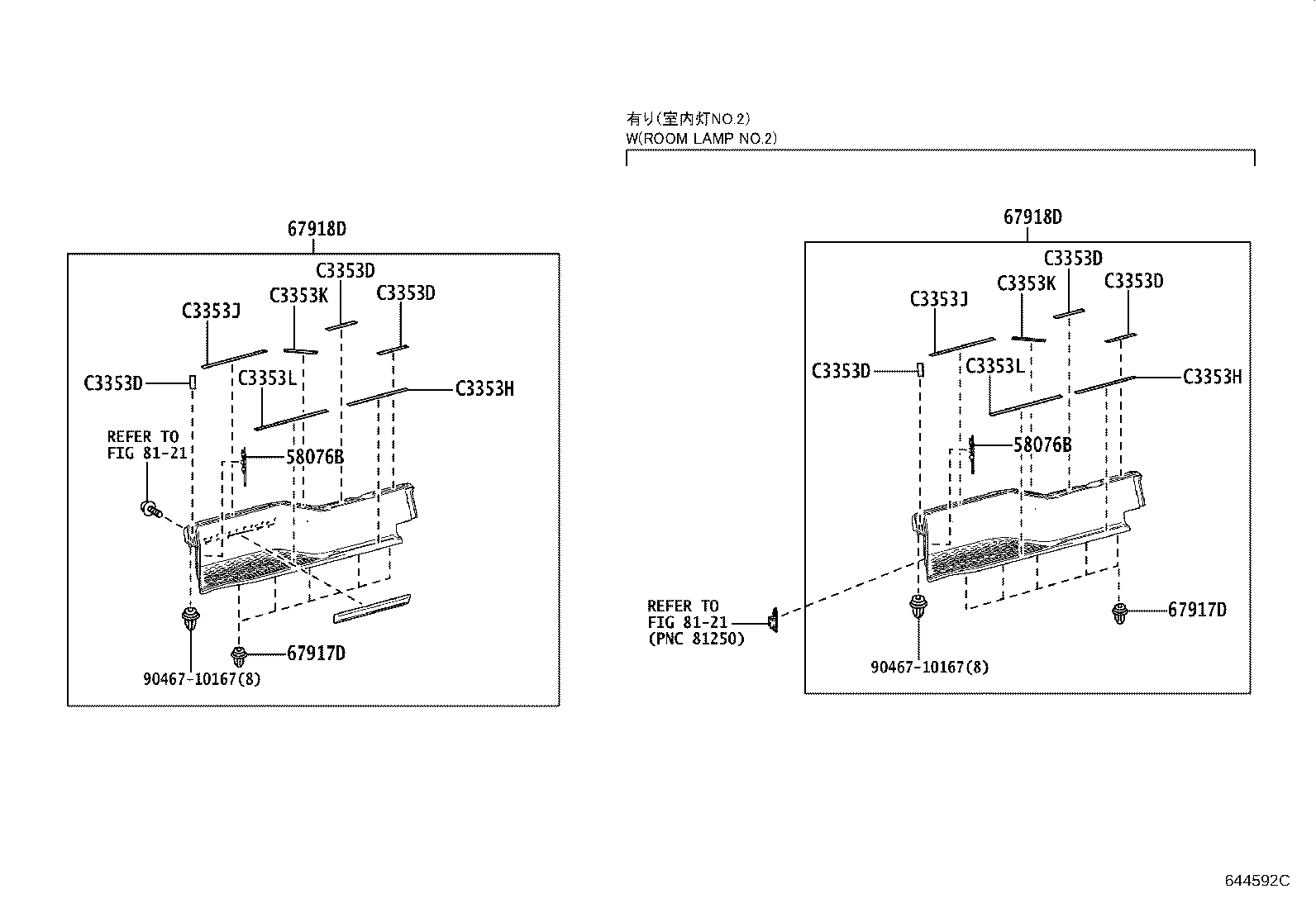

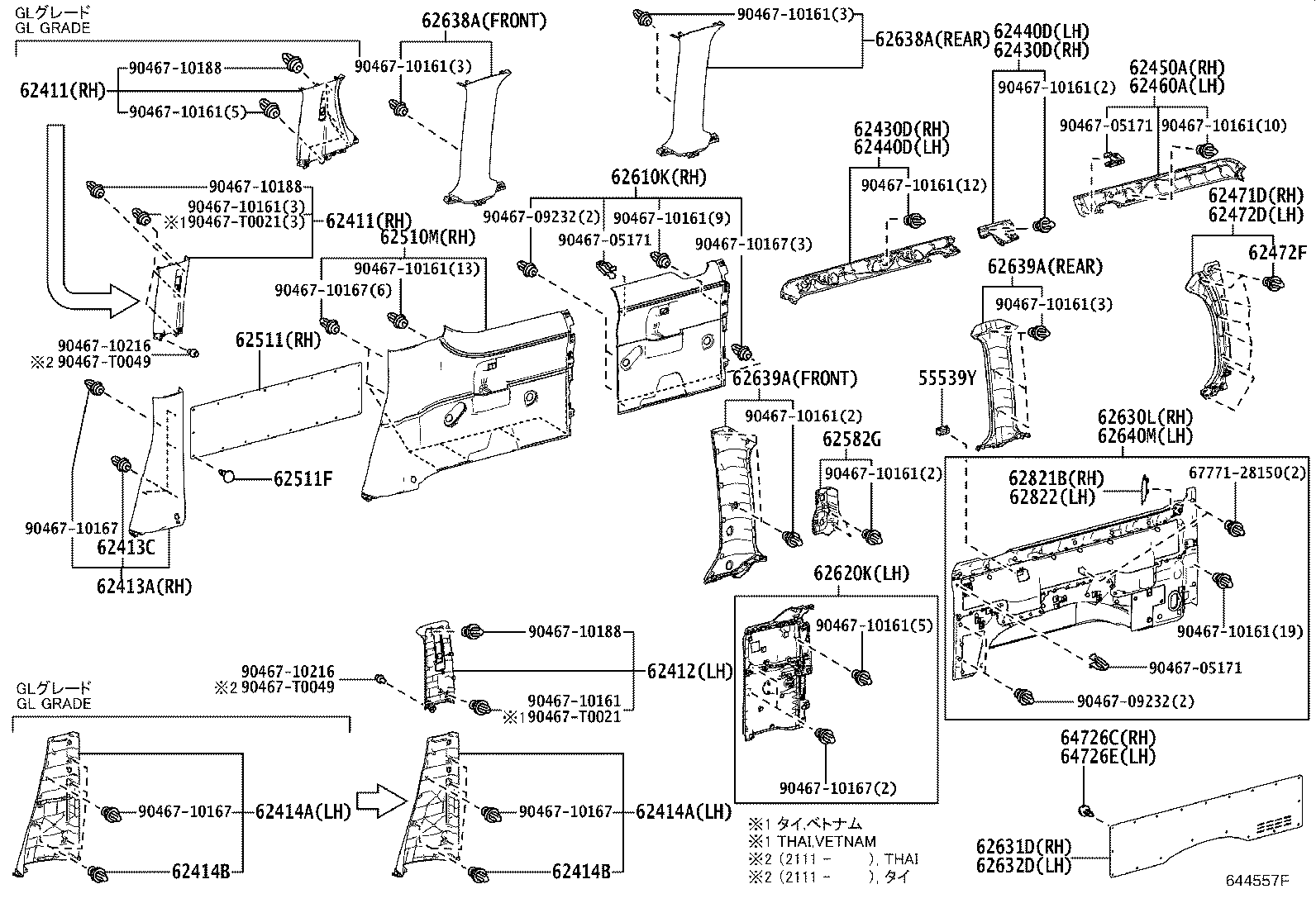

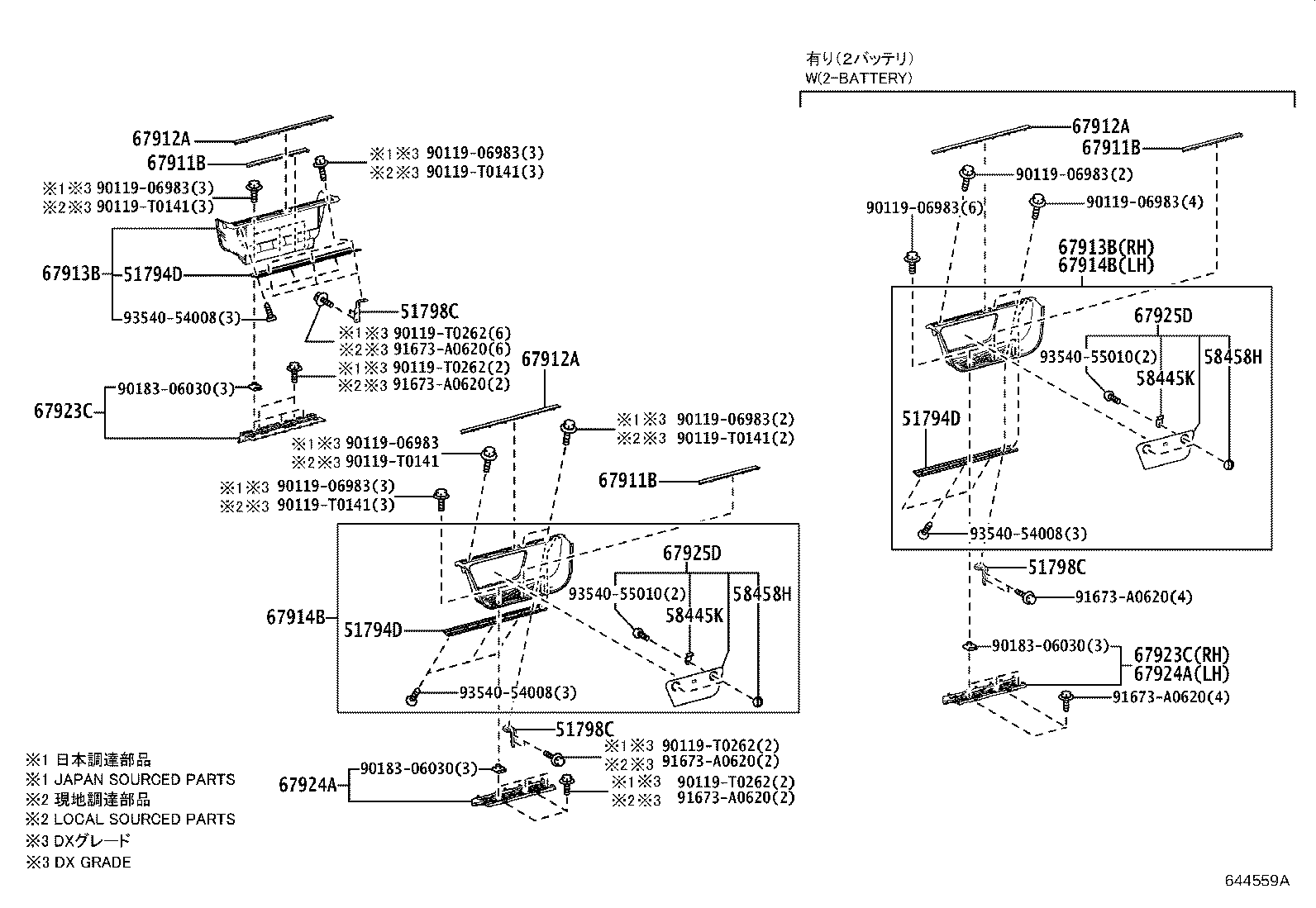

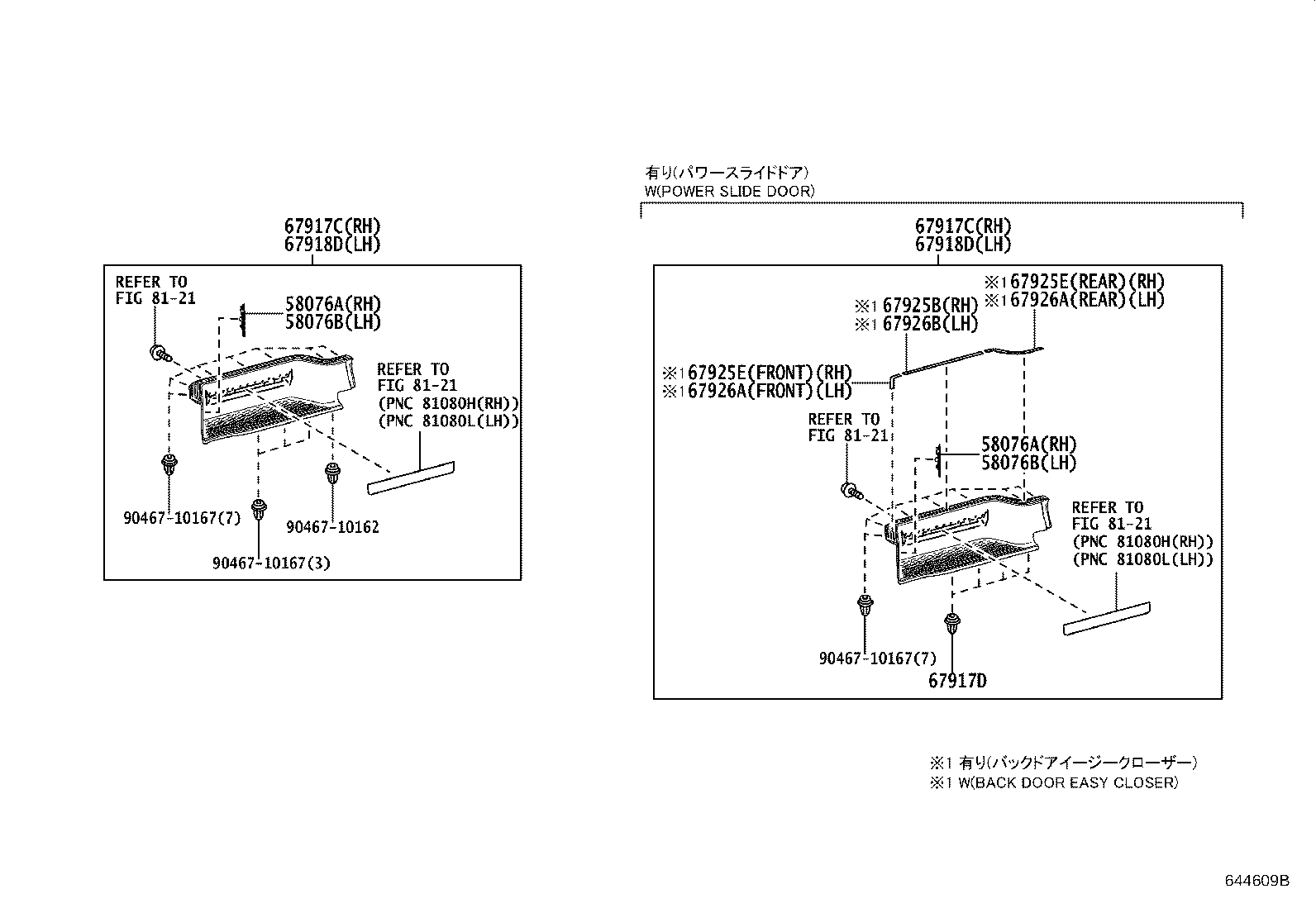

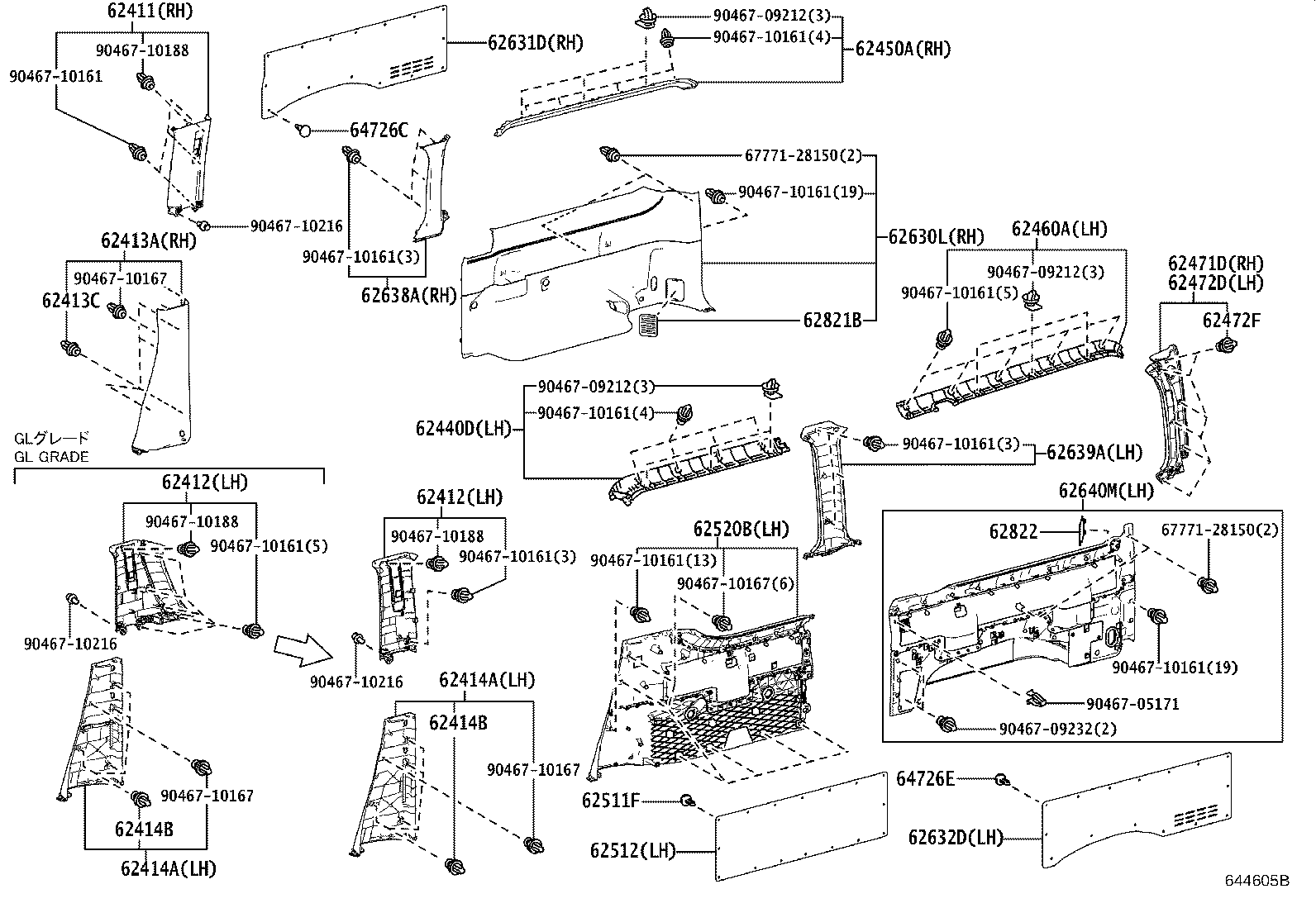

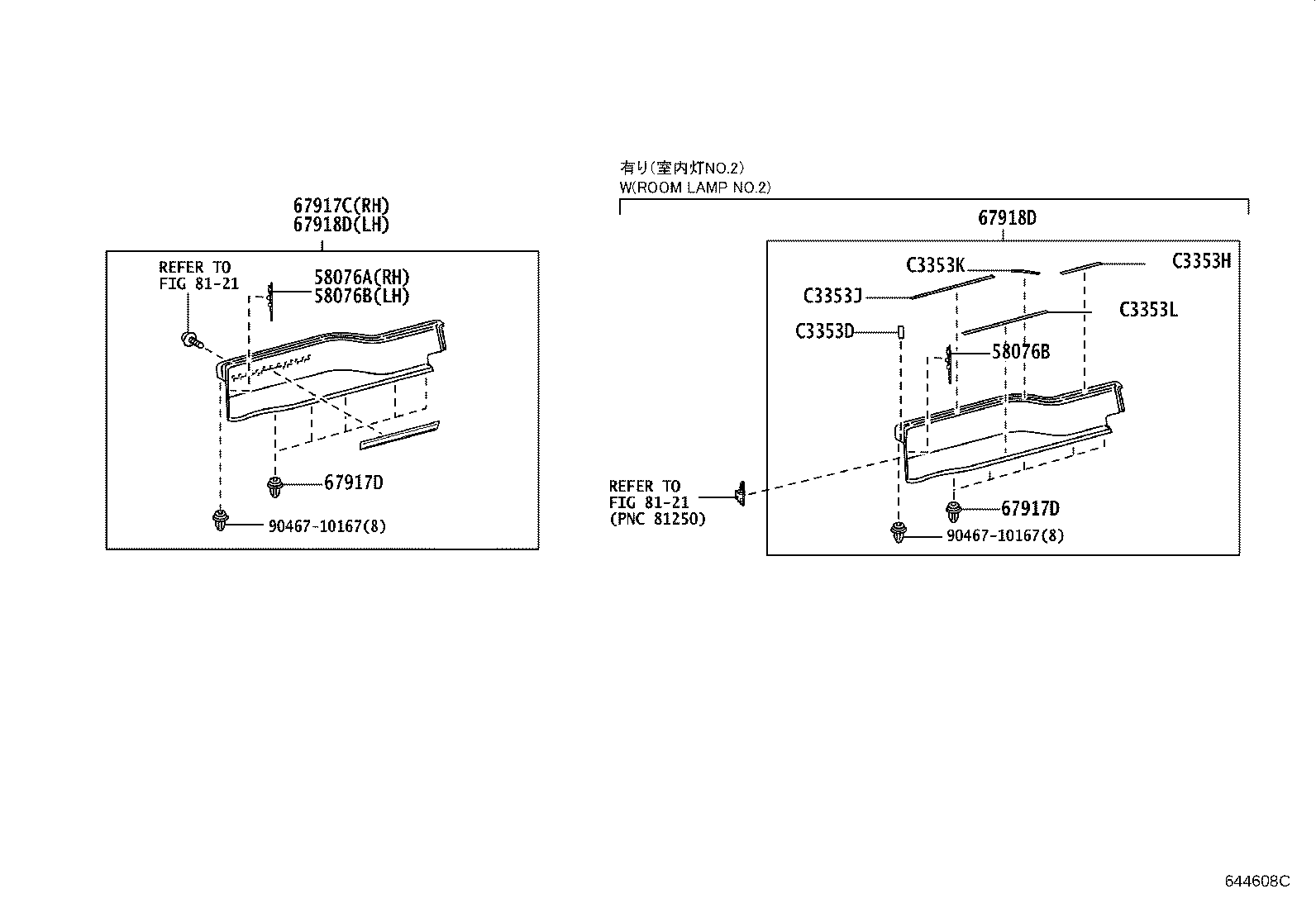

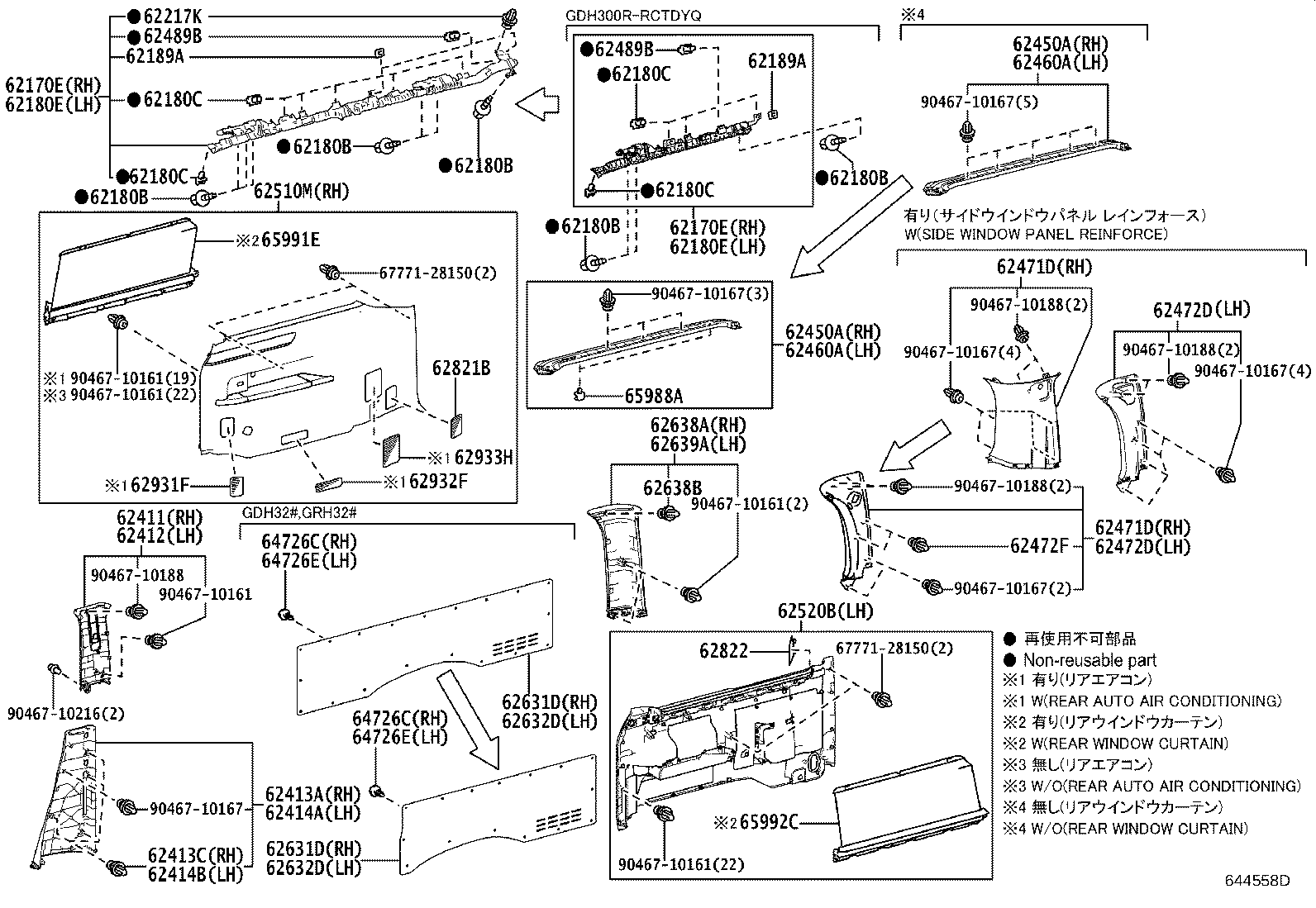

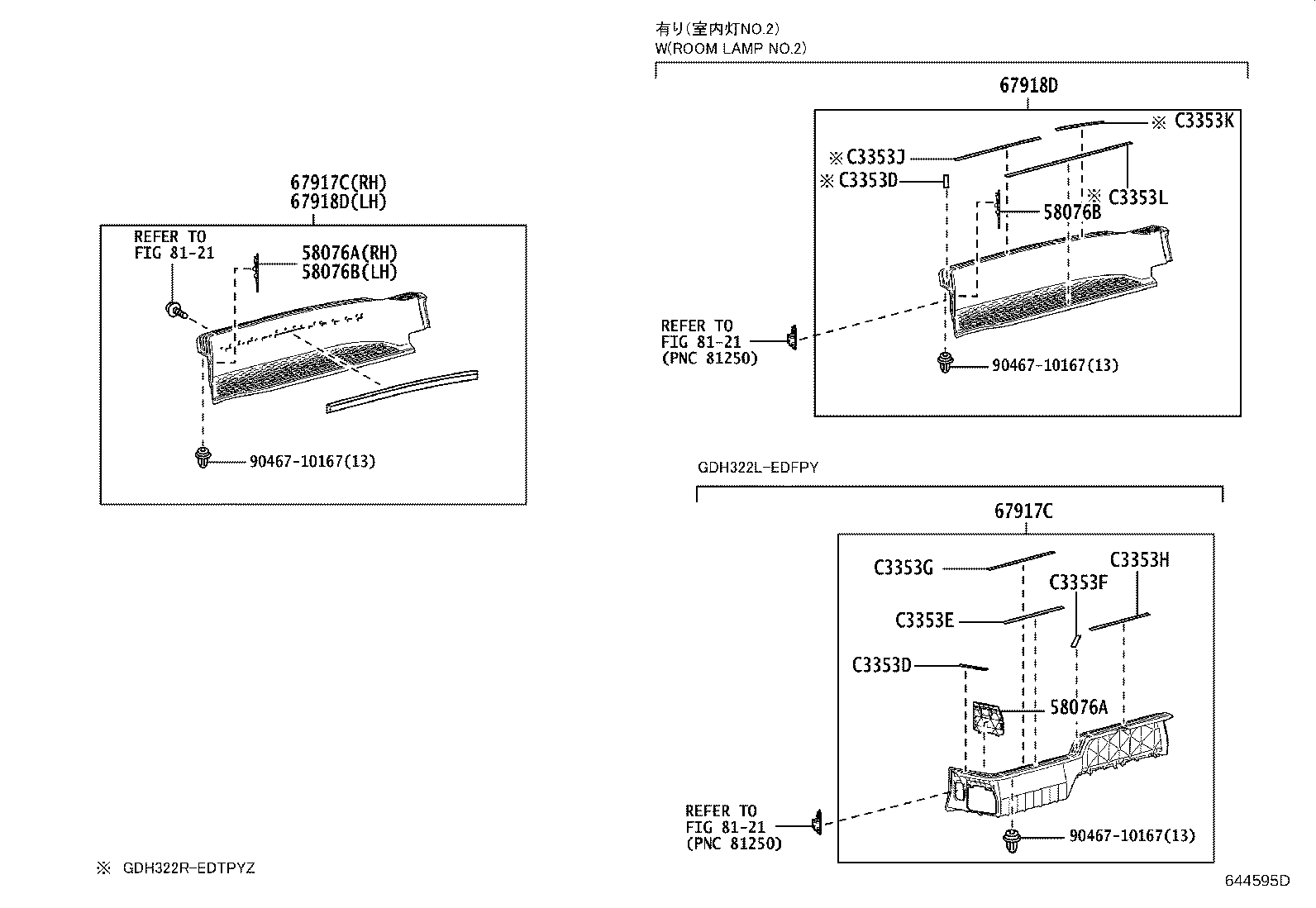

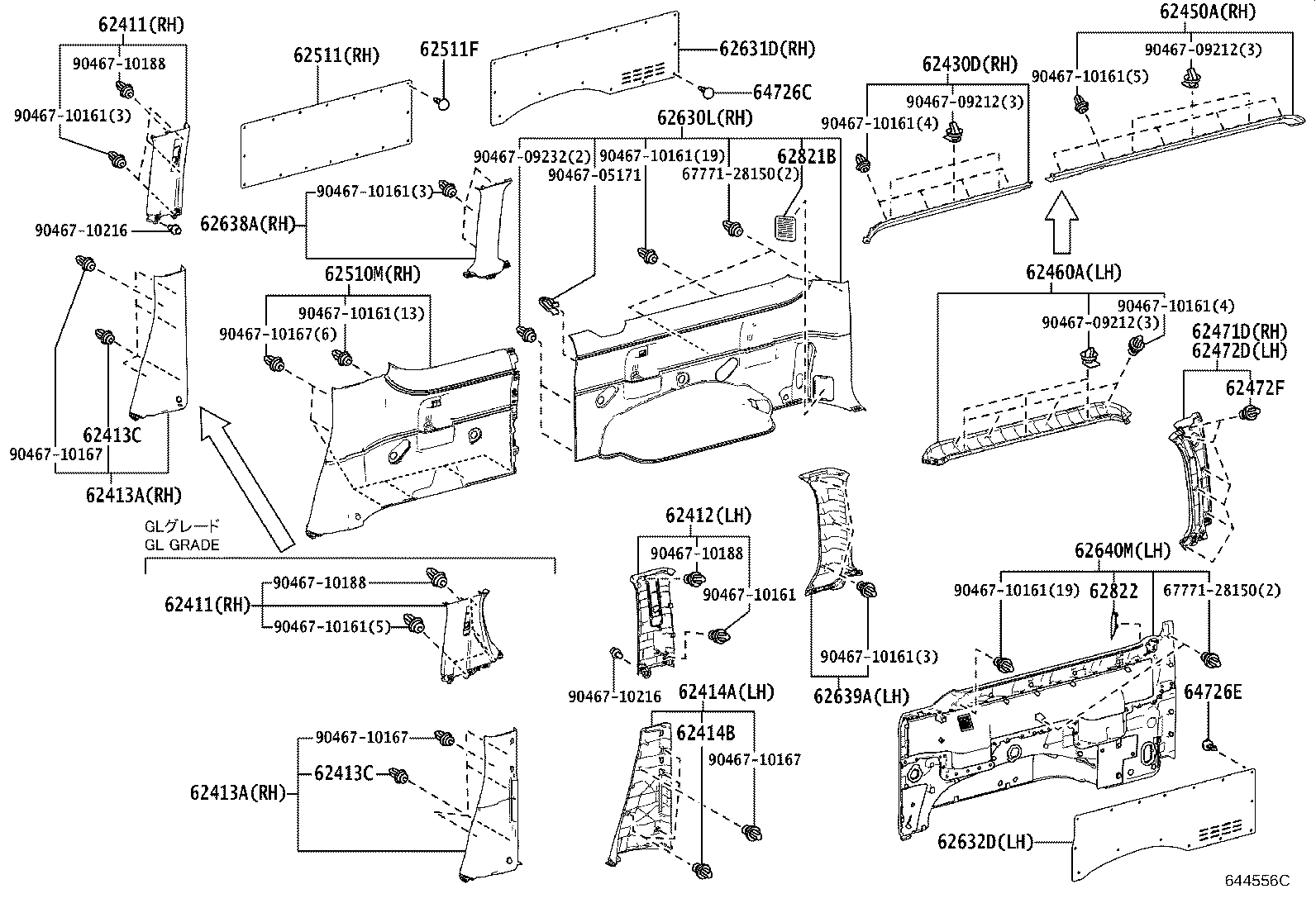

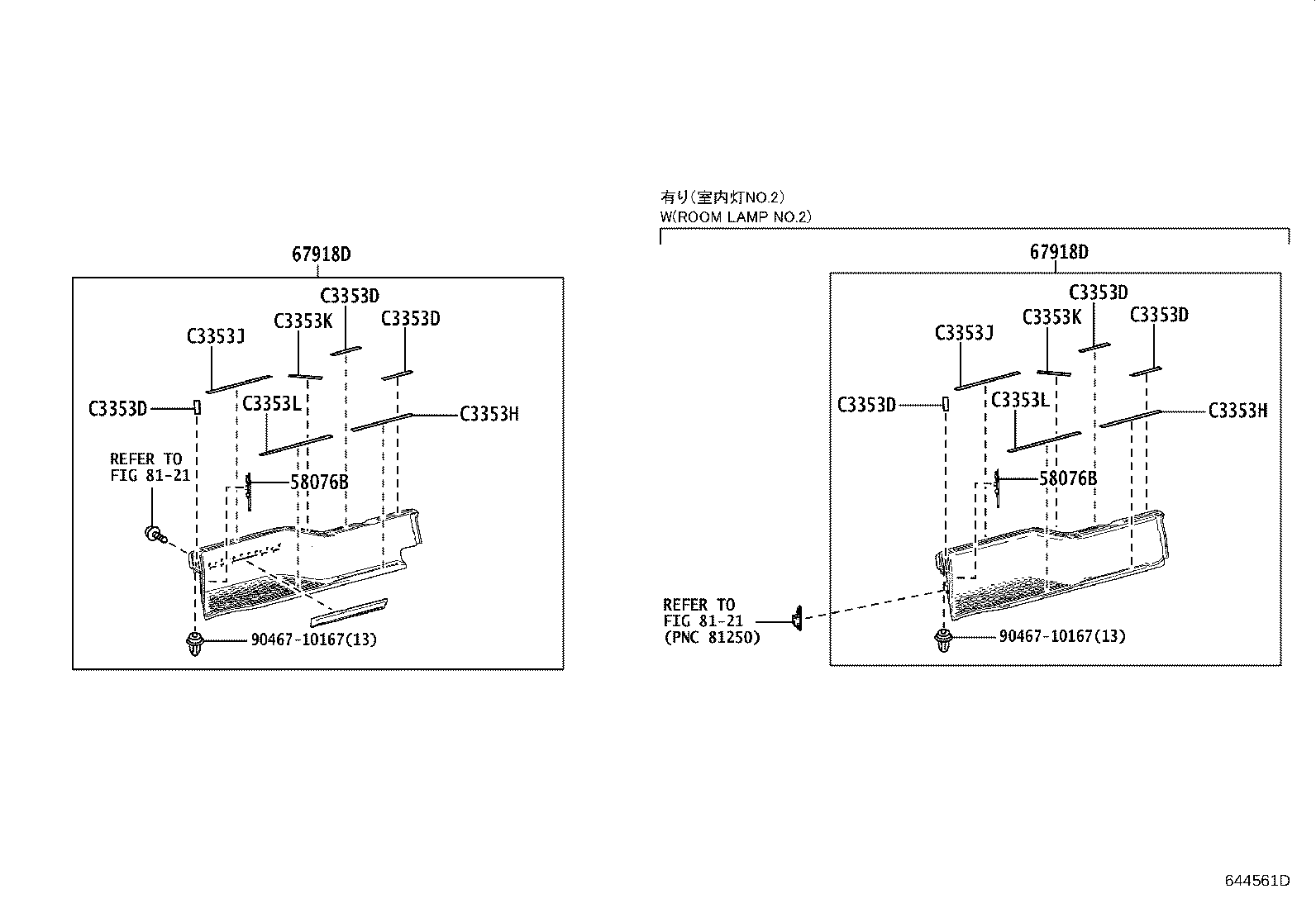

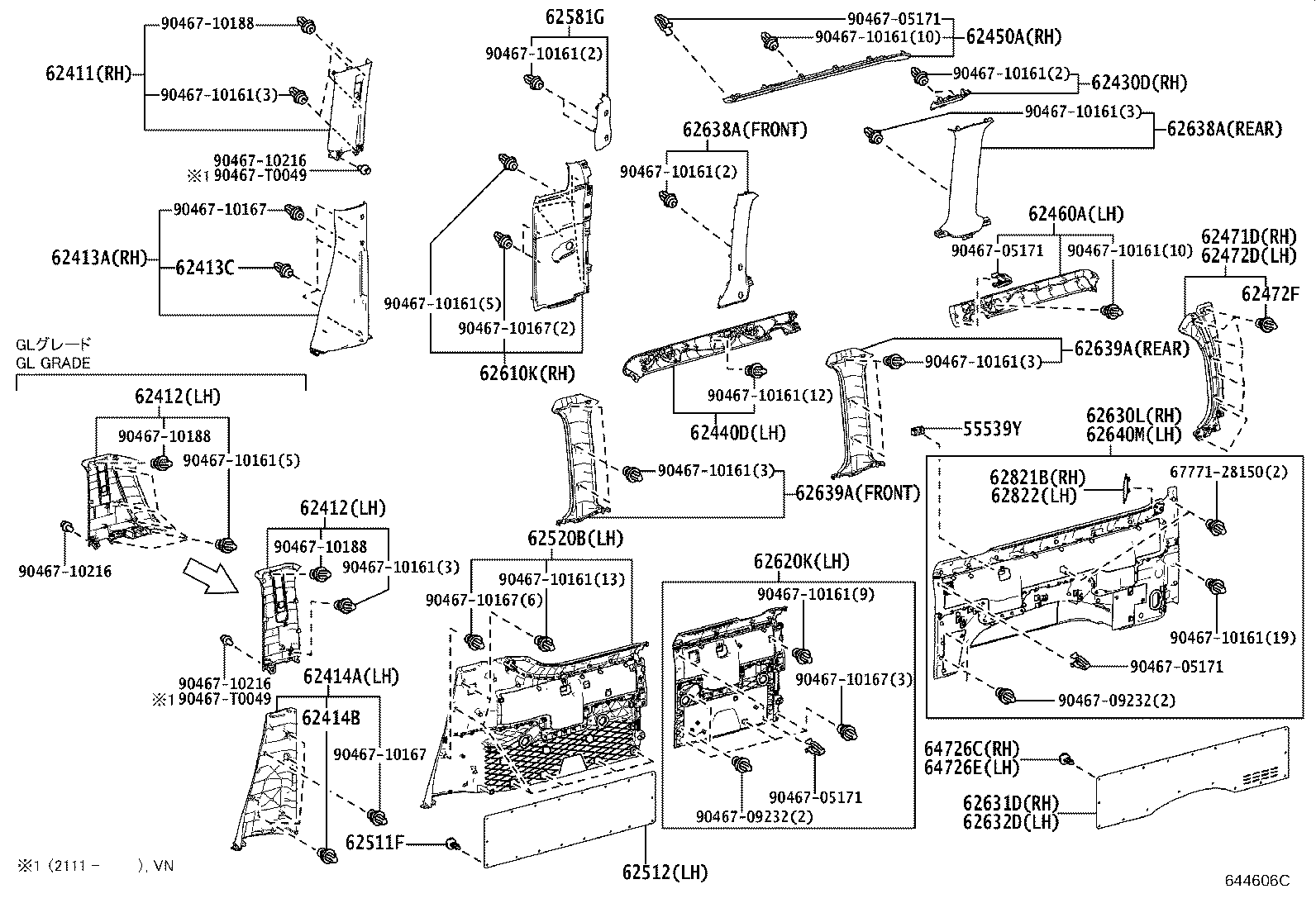

Figure 644555F 644555F 2019-02 → — Figure 644556C 644556C 2019-02 → — Figure 644605B 644605B 2019-02 → — Figure 644557F 644557F 2019-03 → — Figure 644606C 644606C 2019-03 → — Figure 644558D 644558D 2019-02 → — Figure 644559A 644559A 2019-02 → — Figure 644594B 644594B 2019-02 → — Figure 644560C 644560C 2019-02 → — Figure 644607B 644607B 2019-02 → — Figure 644607B 644607B 2019-02 → — Figure 644609B 644609B 2019-07 → — Figure 644595D 644595D 2019-03 → — Figure 644608C 644608C 2019-03 → — Figure 644561D 644561D 2019-03 → — Figure 644592C 644592C 2019-03 → —

Part groups

PNCDescription
51794D Plate, Step Bracket
51798C Bracket, Step Panel
55539Y Cover, Spare Switch Hole
58076A Cover Sub-assy, Jack Box Hole, RH
58076B Cover Sub-assy, Jack Box Hole, LH
58445K Lock, Battery Service Hole Cover
58458H Knob, Battery Service Hole Cover
62111B Clip(FOR COWL SIDE TRIM)
62111C Board, Cowl Side Trim, RH
62112 Board, Cowl Side Trim, LH
62117C Clip, NO.2(FOR COWL SIDE TRIM)
62170B Bolt, W/Washer
62170C Clip, Curtain Shield Airbag
62170D Airbag Assy, Curtain Shield, Front RH
62170E Airbag Assy, Curtain Shield, Rear RH
62180B Bolt, W/Washer
62180C Clip, Curtain Shield Airbag
62180D Airbag Assy, Curtain Shield, Front LH
62180E Airbag Assy, Curtain Shield, Rear LH
62189A Spacer, Curtain Shield Airbag Clip
62211 Garnish, Front Pillar, RH
62211D Clip(FOR FRONT BODY PILLAR GARNISH)
62211T Clip(FOR FRONT PILLAR GARNISH)
62212 Garnish, Front Pillar, LH
62217K Clip, Curtain Shield Airbag
62311B Weatherstrip, Front Door Opening Trim, RH
62312B Weatherstrip, Front Door Opening Trim, LH
62411 Garnish, Center Pillar, RH
62412 Garnish, Center Pillar, LH
62413A Garnish, Center Pillar, Lower RH
62413C Clip (FOR CENTER LOWER GARNISH)
62414A Garnish, Center Pillar, Lower LH
62414B Clip (FOR CENTER LOWER GARNISH)
62430D Garnish Assy, Roof Side Rail, Front RH
62440D Garnish Assy, Roof Side Rail, Front LH
62450A Garnish Assy, Roof Side Rail, Rear RH
62460A Garnish Assy, Roof Side Rail, Rear LH
62471D Garnish, Rear Pillar, Upper RH
62472D Garnish, Rear Pillar, Upper LH
62472F Clip(FOR REAR PILLAR GARNISH)
62489A Clip, Roof Side Inner Garnish
62489B Clip, Roof Side Inner Garnish
62510M Panel Assy, Quarter Trim, RH
62511 Board, Quarter Inside Trim, RH
62511F Retainer (FOR QUARTER INSIDE TRIM BOARD)
62512 Board, Quarter Inside Trim, LH
62520B Panel Assy, Quarter Trim, LH
62581G Cover, Quarter Pillar, RH
62582G Cover, Quarter Pillar, LH
62610K Board Assy, Side Trim, RH
62620K Board Assy, Side Trim, LH
62630L Board Assy, Quarter Trim, Rear RH
62631D Board, Quarter Trim, Rear RH
62632D Board, Quarter Trim, Rear LH
62638A Garnish, Quarter Pillar, RH
62638B Clip
62639A Garnish, Quarter Pillar, LH
62640M Board Assy, Quarter Trim, Rear LH
62821B Glille, Room Ventilation
62822 Grille, Room Ventilation, LH
62931F Duct, Quarter Vent
62932F Duct, Quarter Vent, NO.2
62933H Duct, Quarter Panel Air Inlet
64726C Retainer, Deck Trim Rear Cover
64726E Retainer, Deck Trim Rear Cover
65988A Hook, Sunshade
65991E Curtain, Rear Window, RH
65992C Curtain, Rear Window, LH
67911B Plate, Front Door Scuff, Outside, RH
67912A Plate, Front Door Scuff, Outside LH
67913B Plate, Front Door Scuff, RH
67914B Plate, Front Door Scuff, LH
67917C Plate, Rear Door Scuff, RH
67917D Clip, Rear Door Scuff Plate
67918D Plate, Rear Door Scuff, LH
67923C Clamp, Door Scuff Plate, NO.1
67923G Clamp, Cowl Side Trim Board
67924A Clamp, Door Scuff Plate, NO.2
67925B Panel, Rear Door Scuff, RH
67925D Cover, Door Scuff Plate
67925E Panel, Rear Door Scuff, RH NO.2
67926A Panel, Rear Door Scuff, LH
67926B Panel, Rear Door Scuff, LH NO.2
C3353D Tape, Step Side, NO.1
C3353E Tape, Step Side, NO.2
C3353F Tape, Step Side, NO.3
C3353G Tape, Step Side, NO.4
C3353H Tape, Step Side, NO.5
C3353J Tape, Step Side, NO.6
C3353K Tape, Step Side, NO.7
C3353L Tape, Step Side, NO.8
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
