Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

43 part groups · 30 illustrations

Illustrations

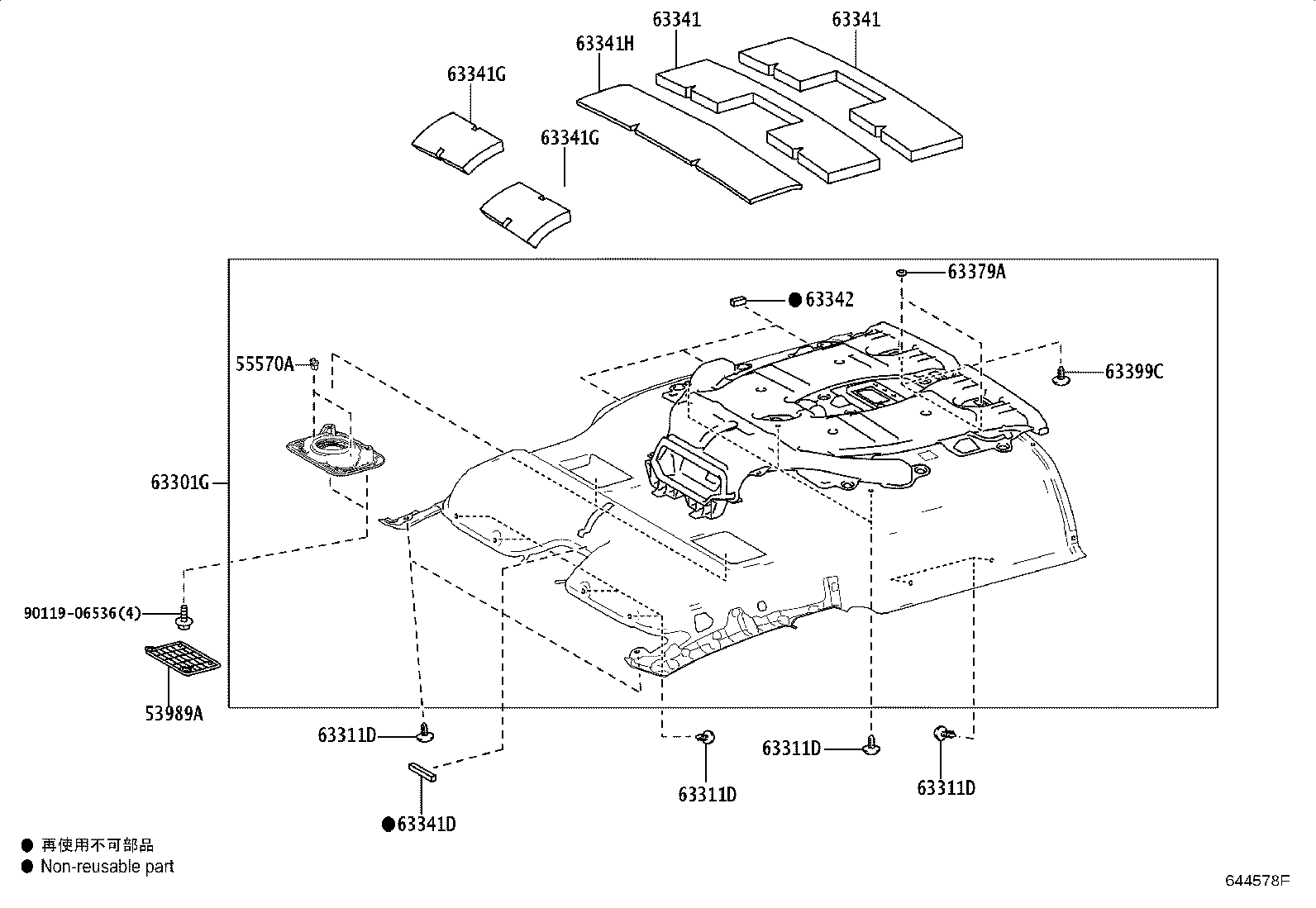

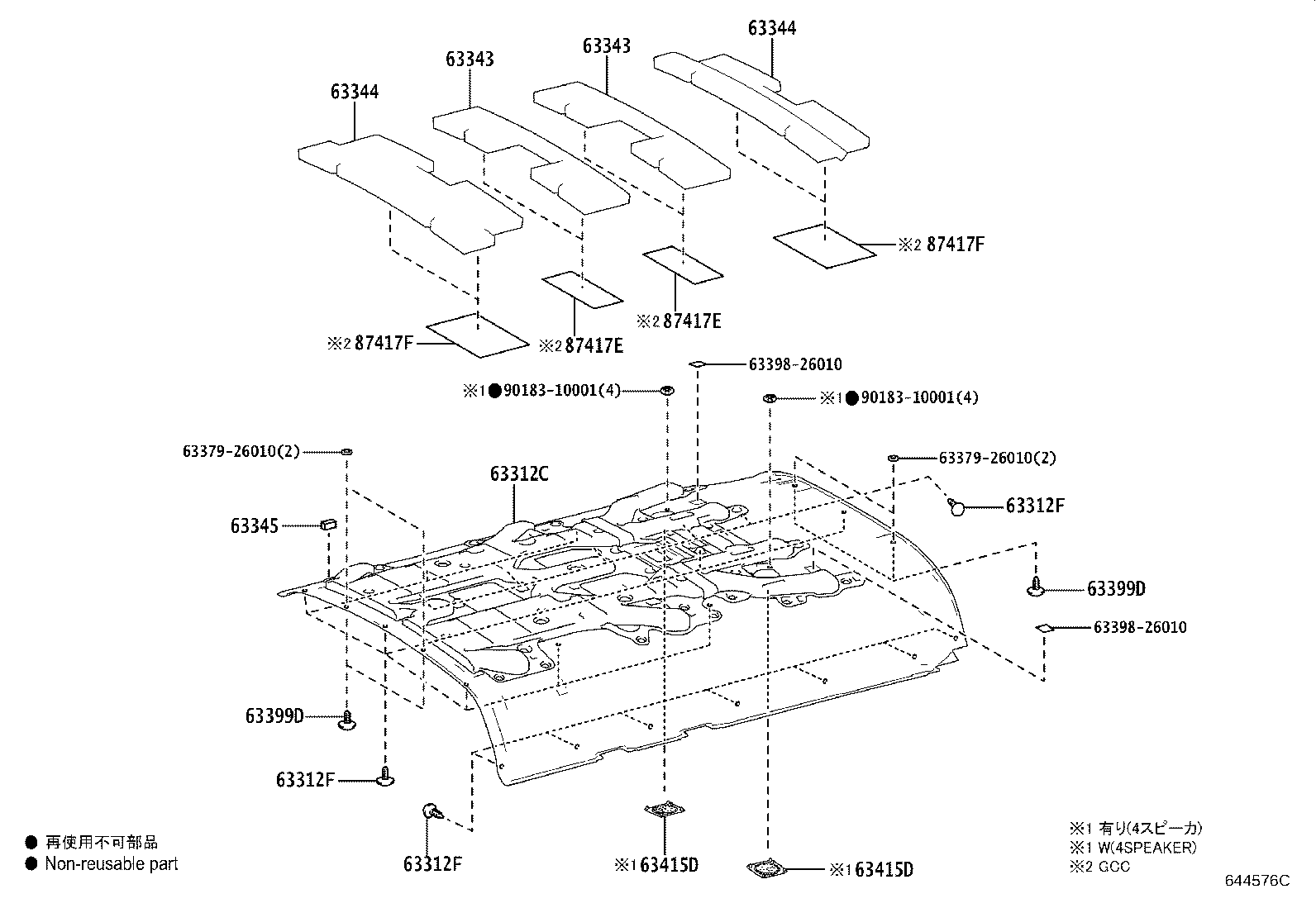

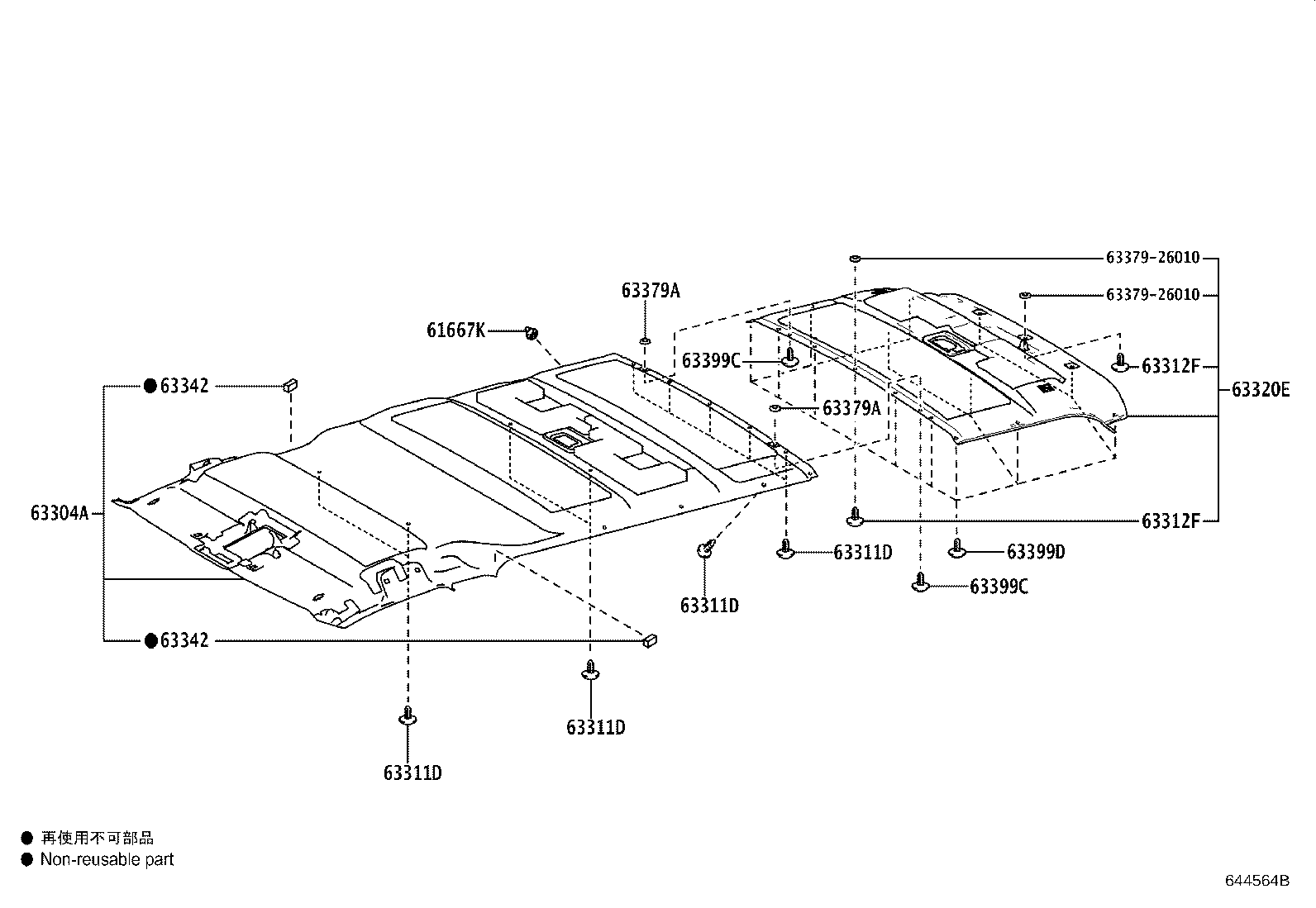

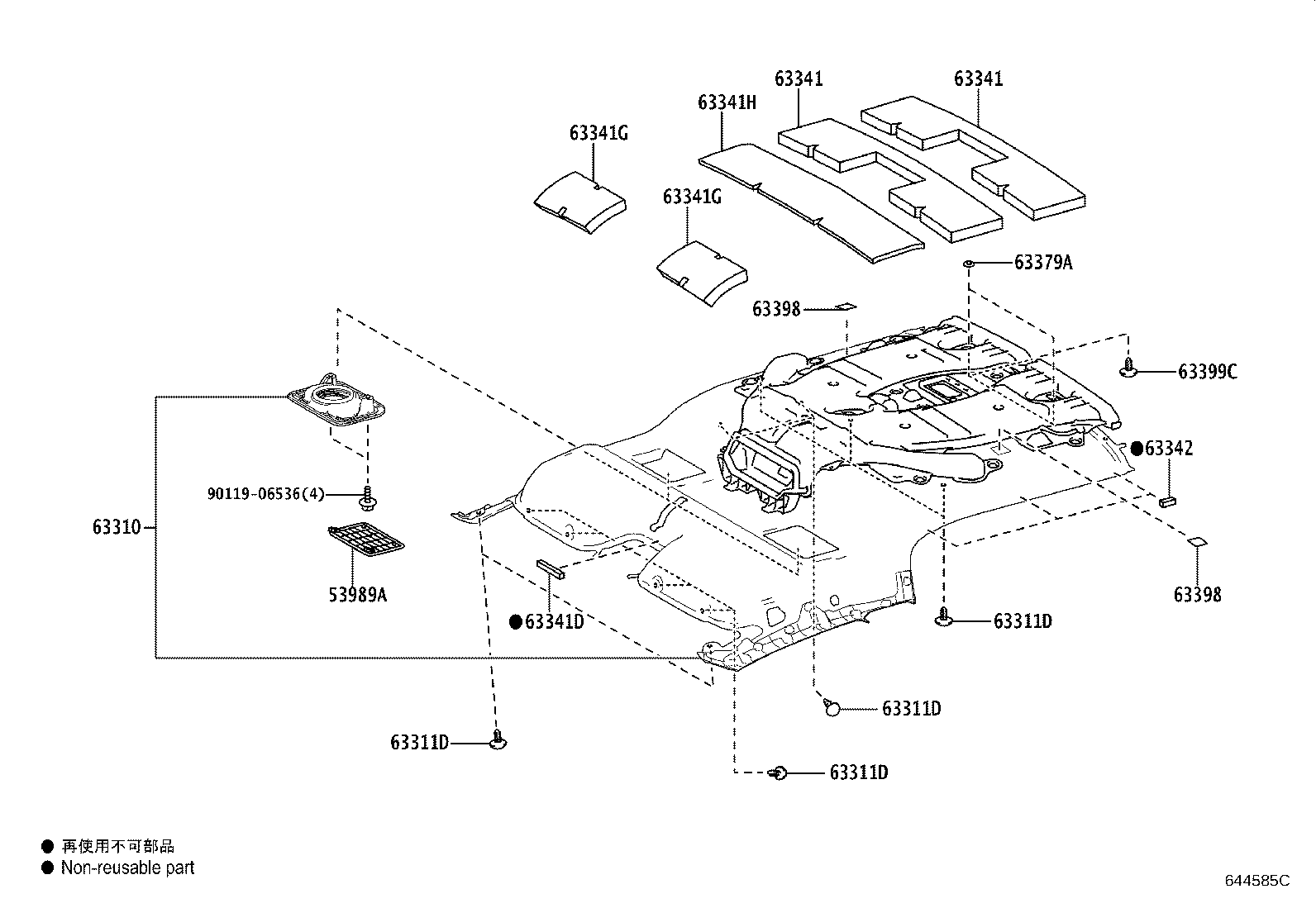

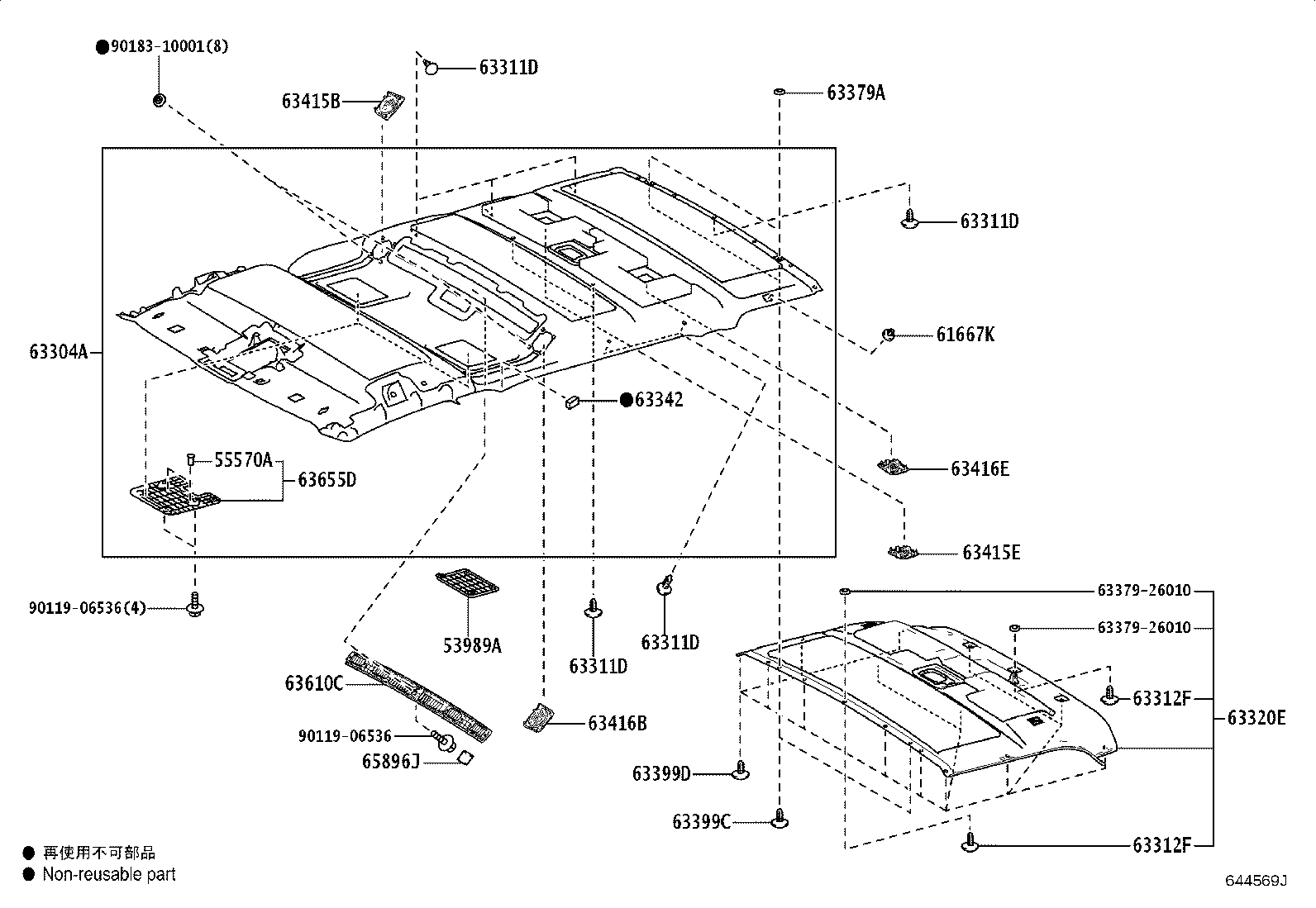

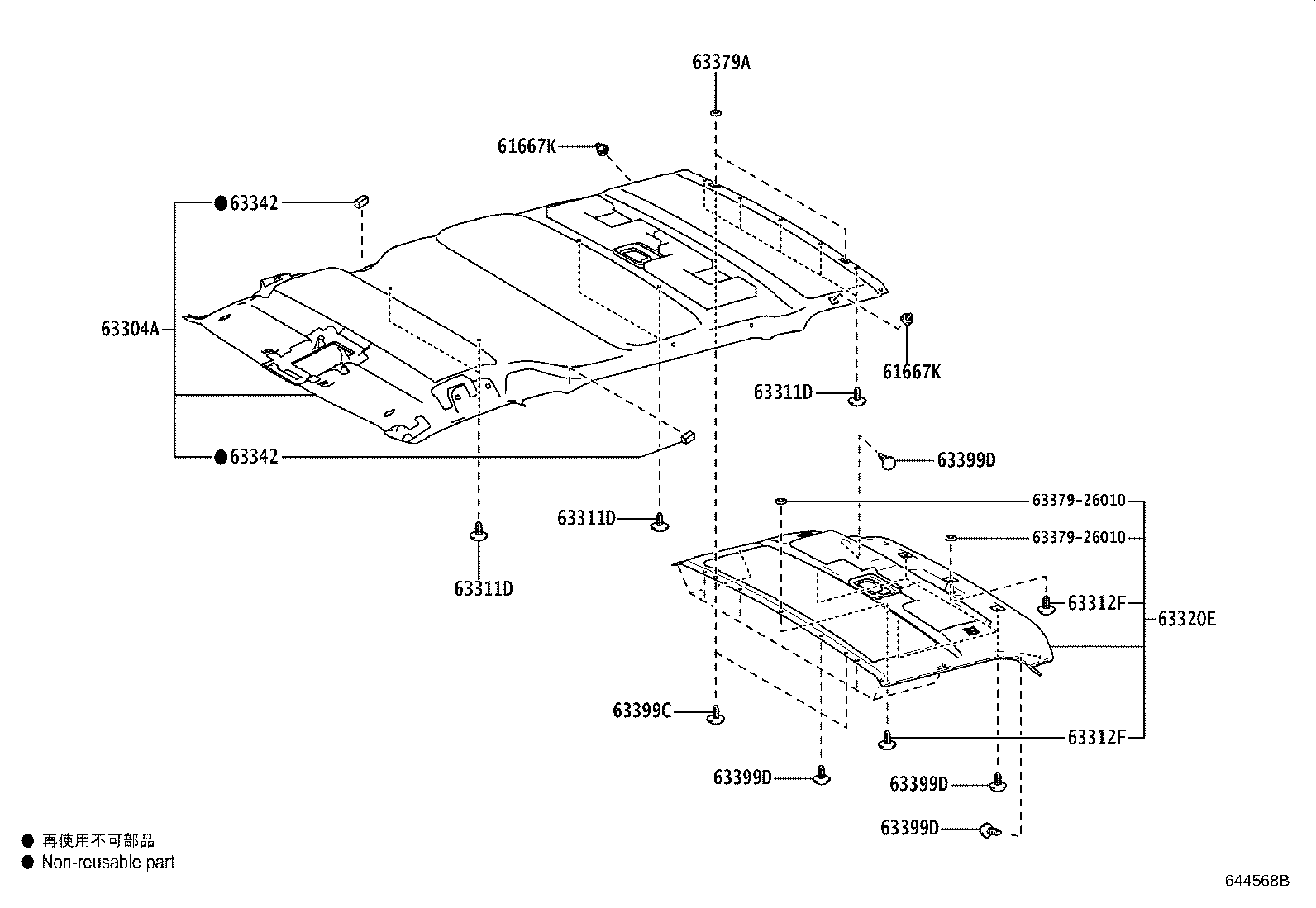

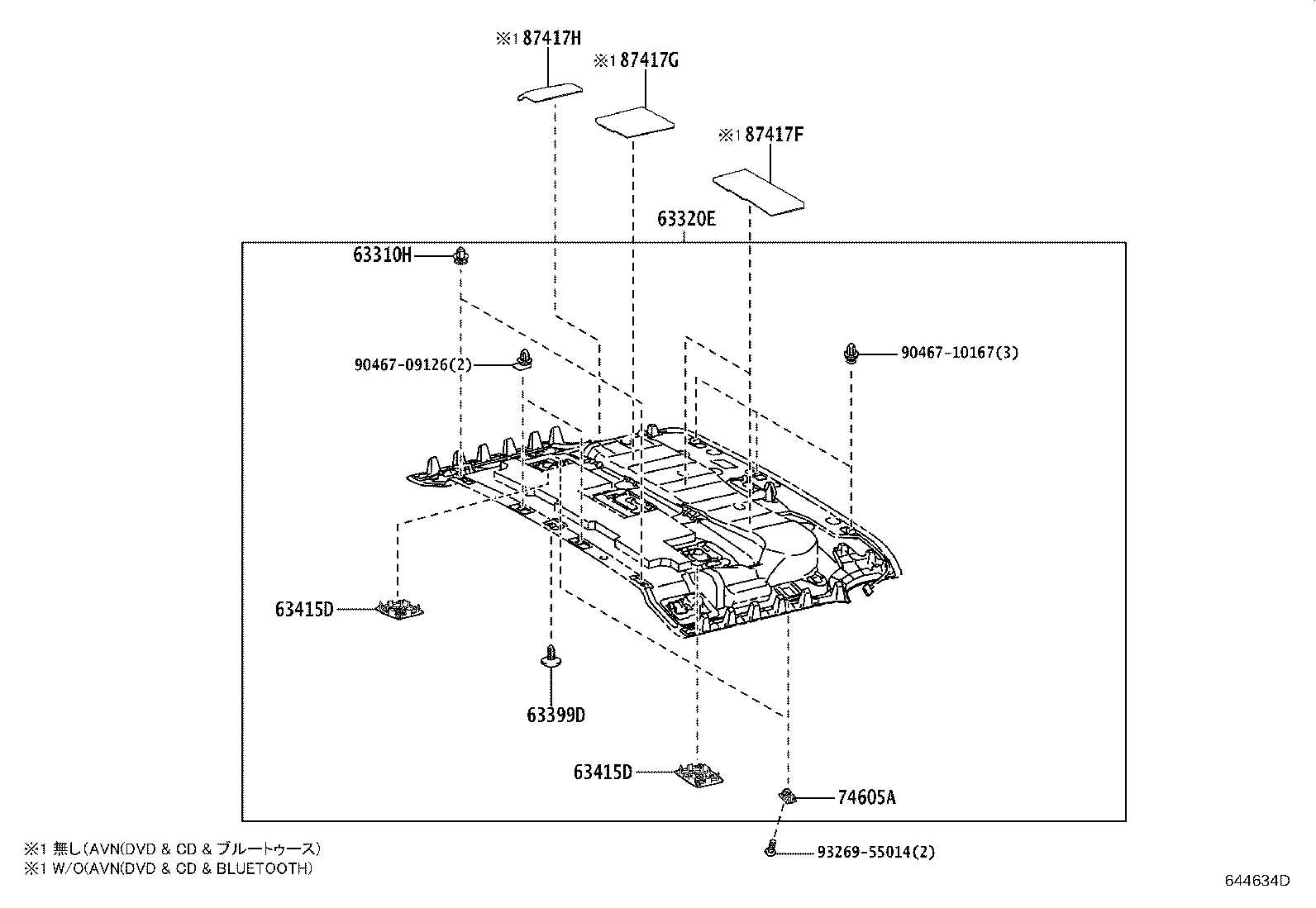

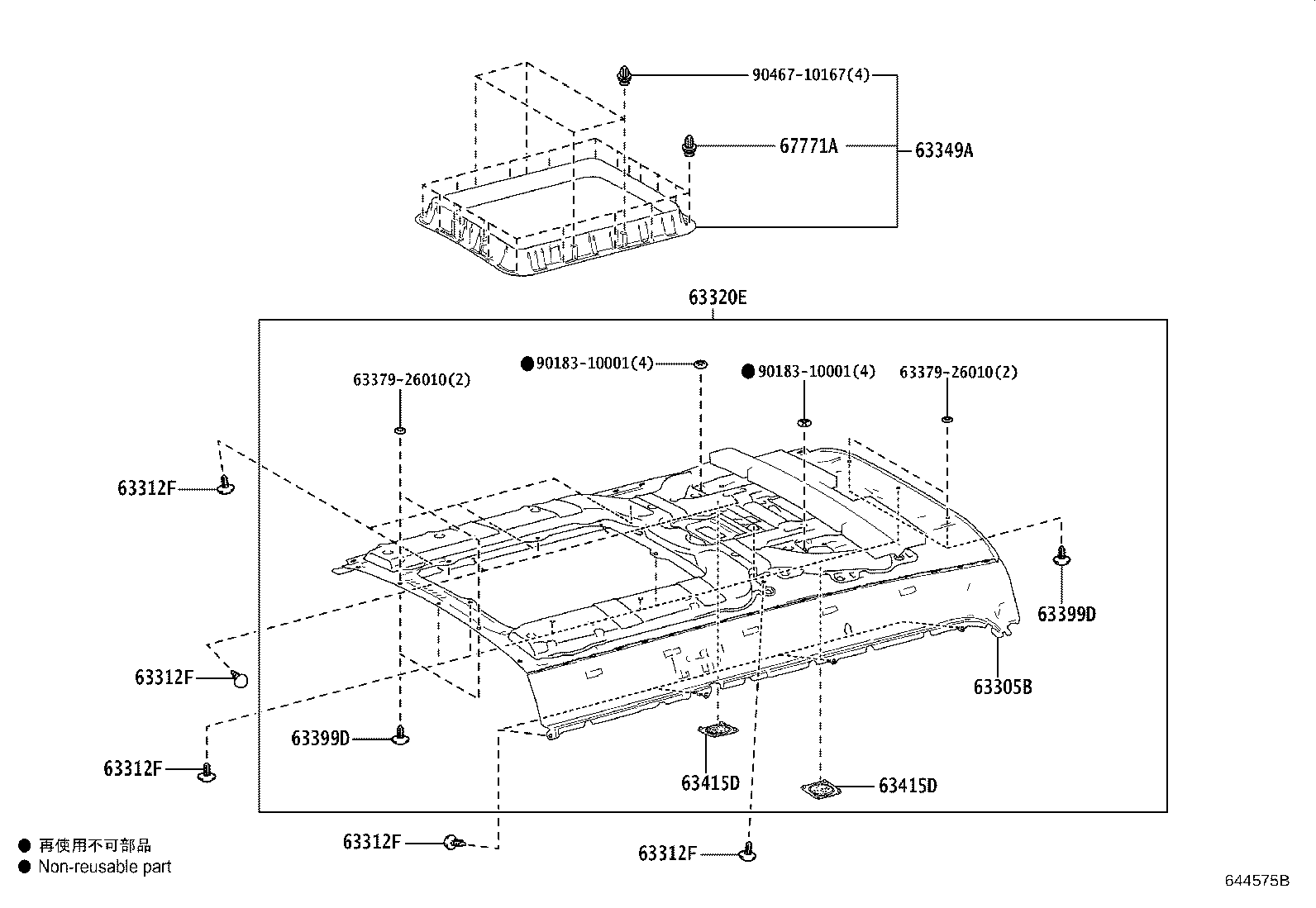

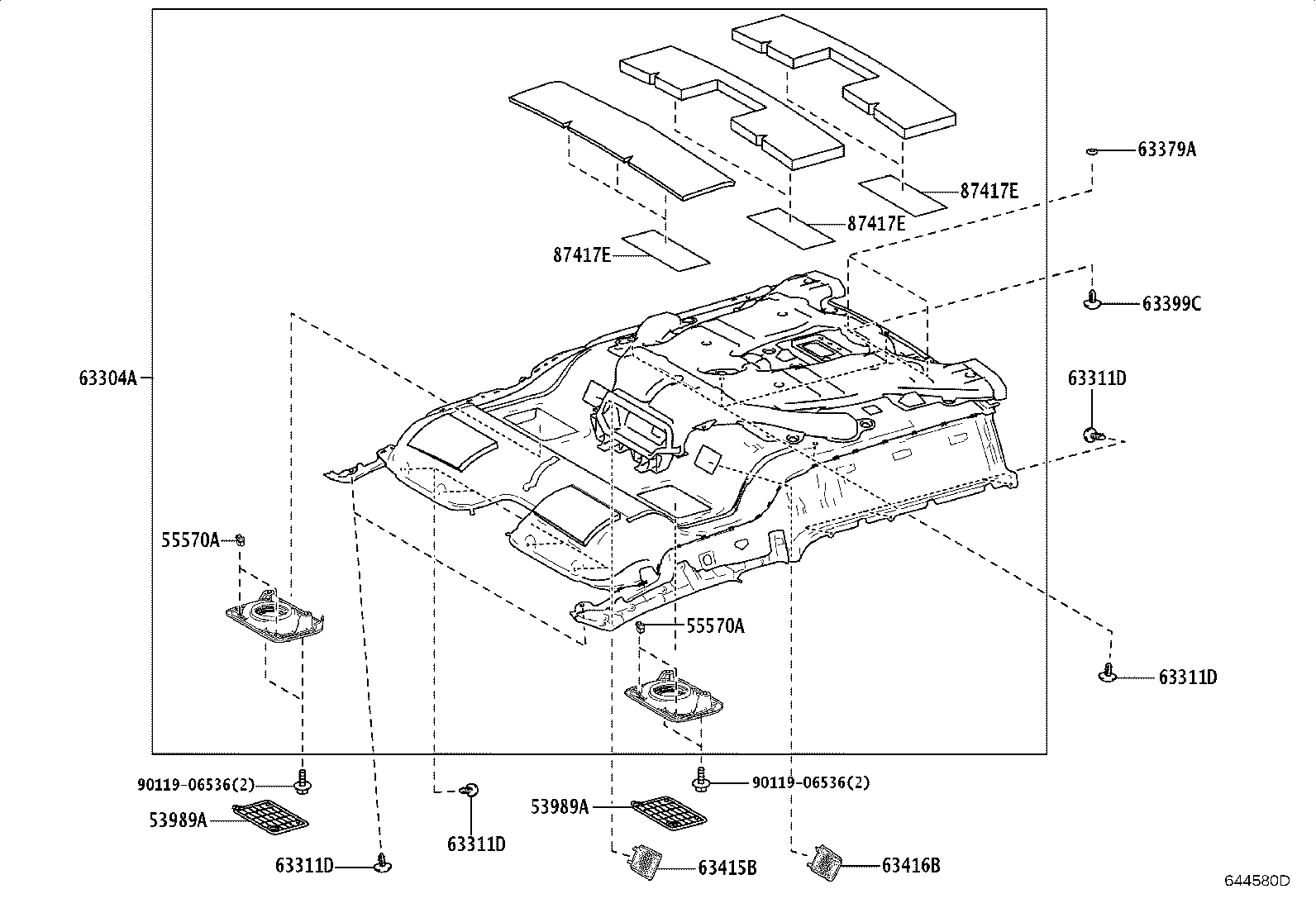

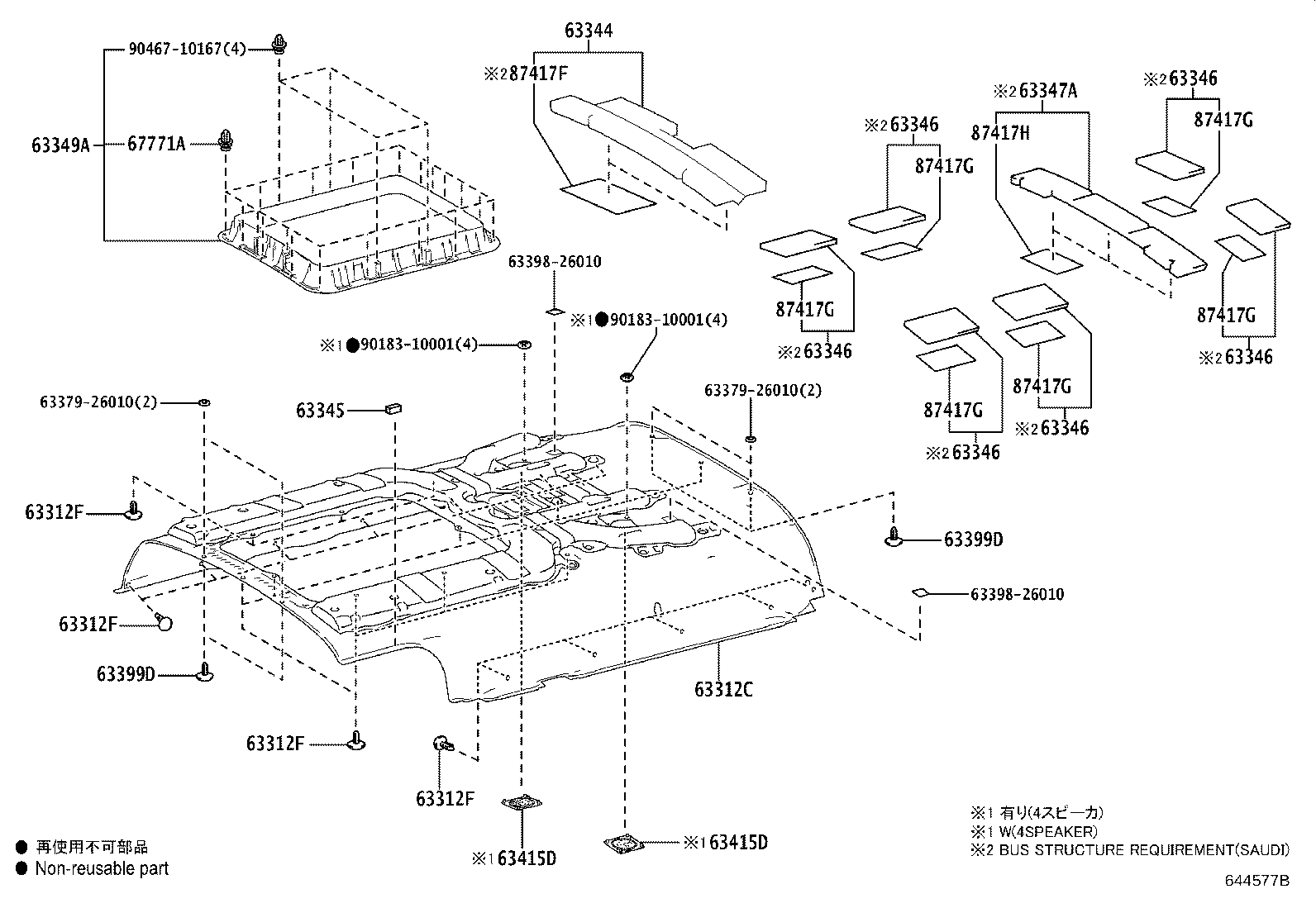

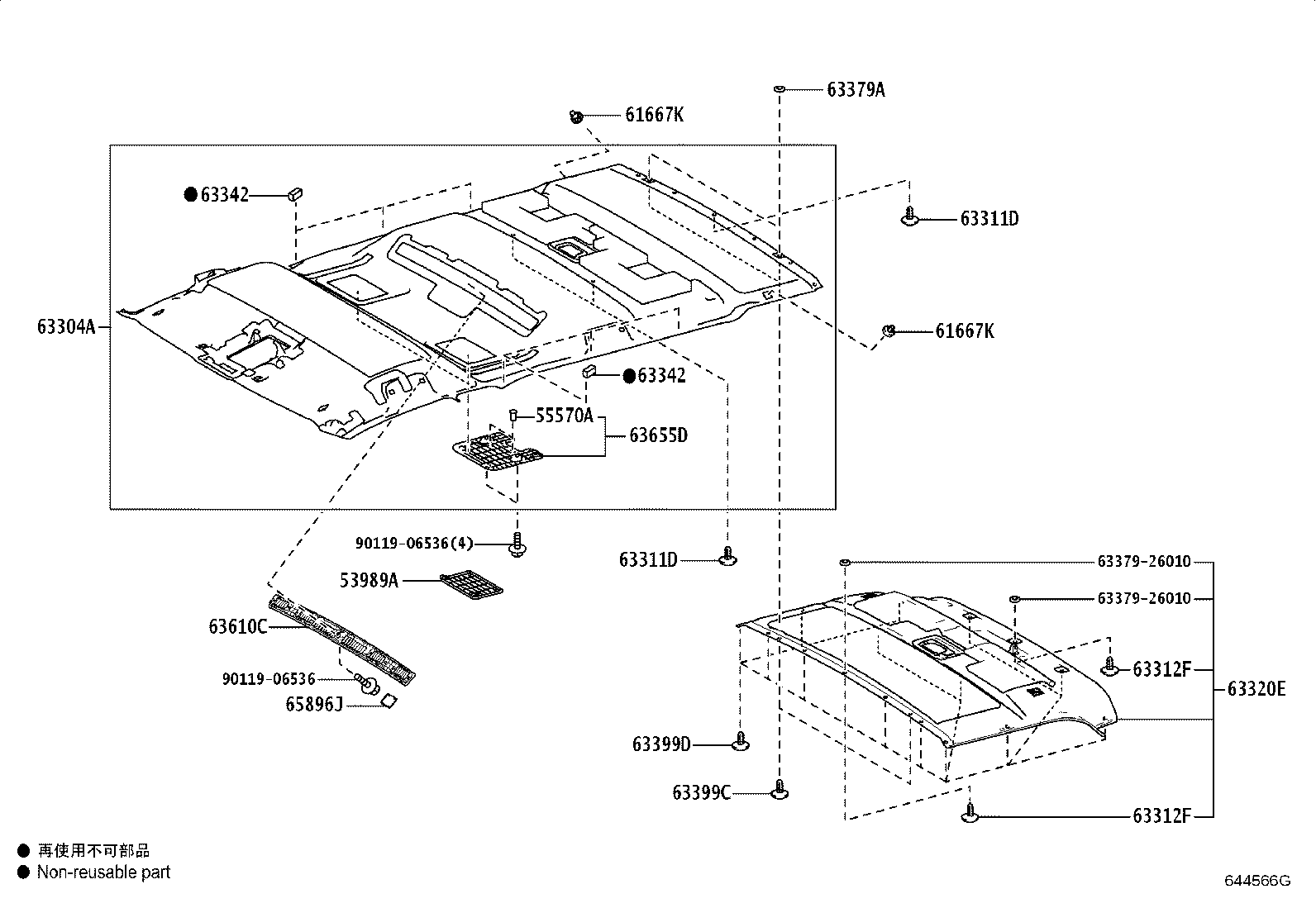

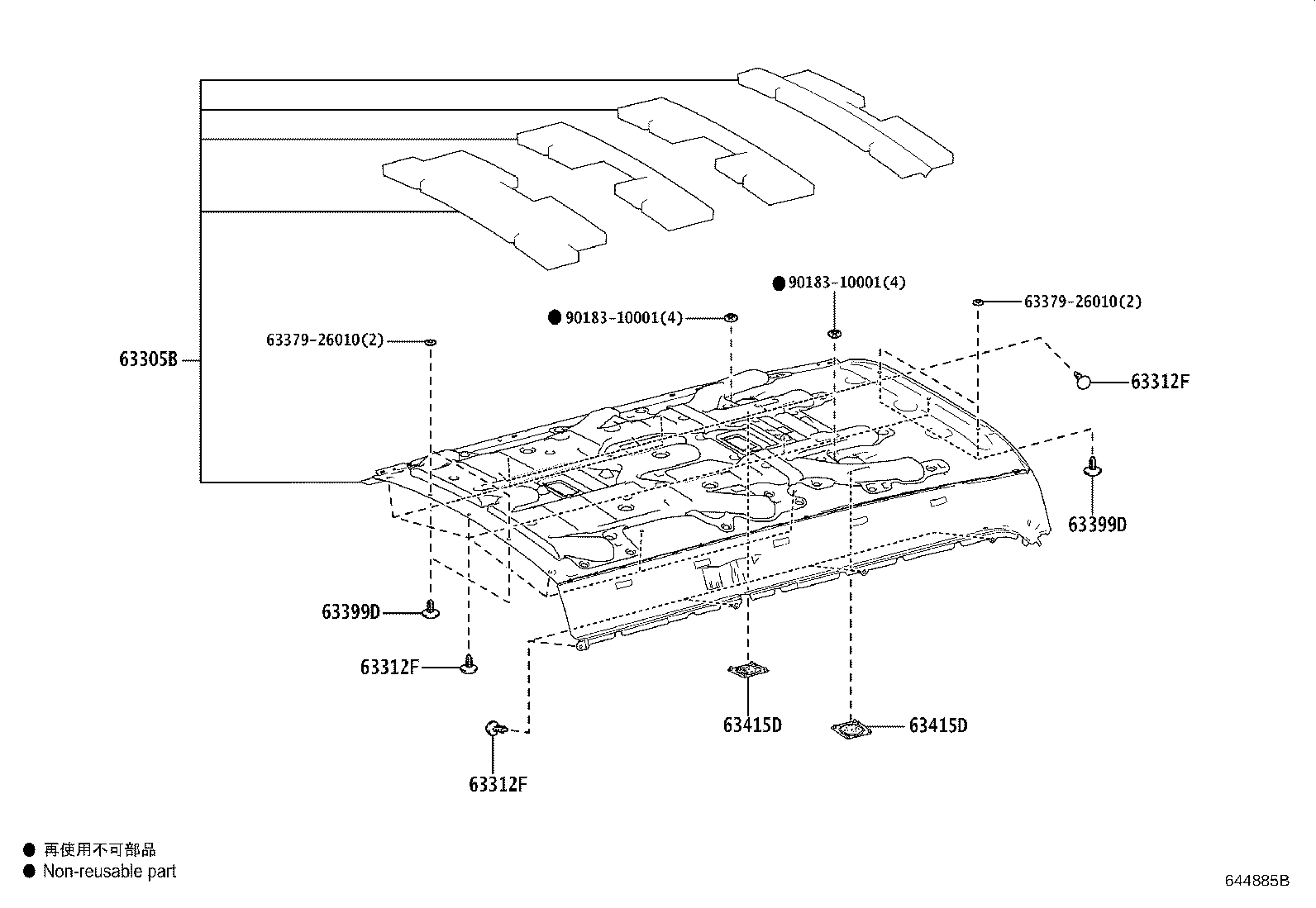

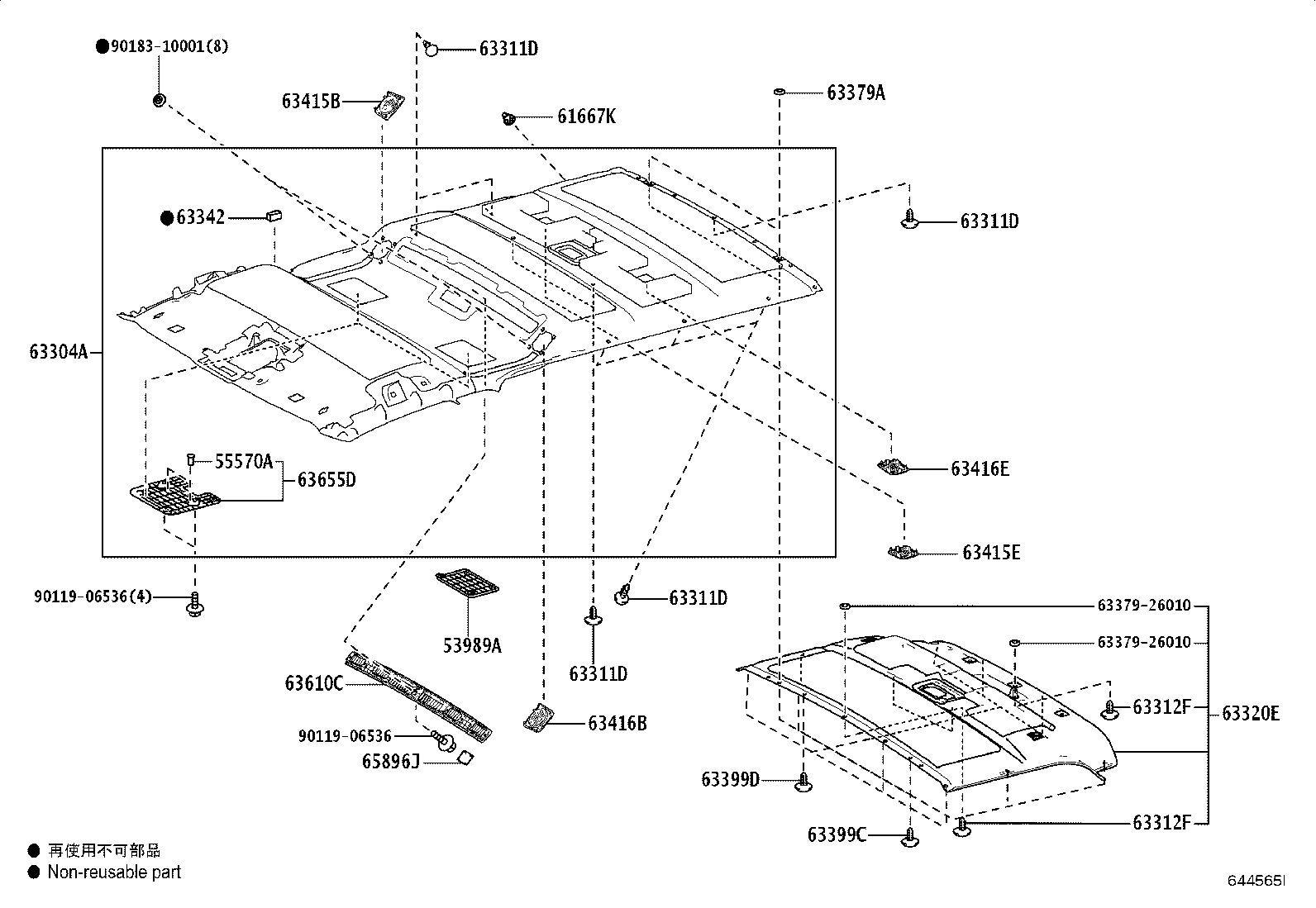

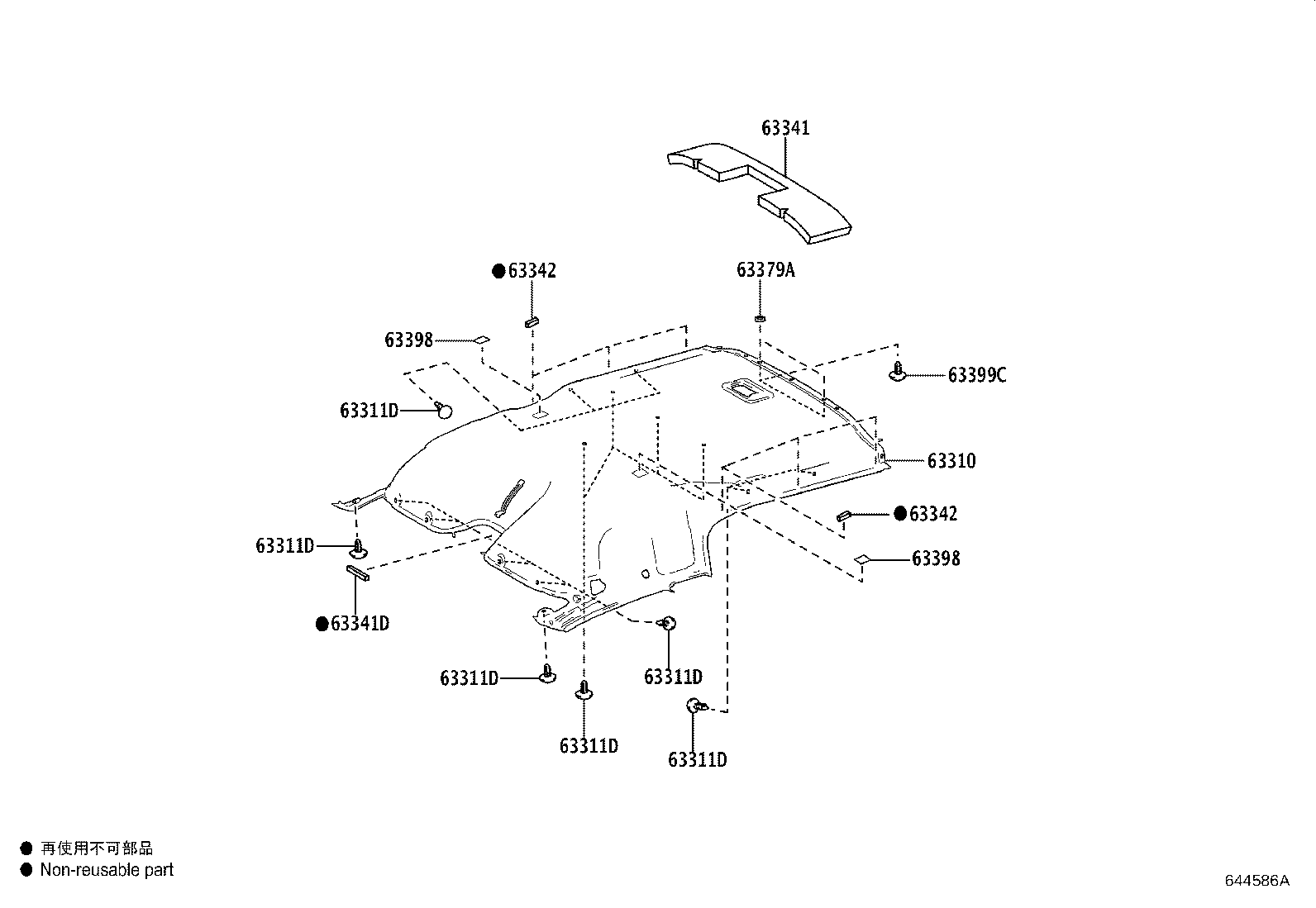

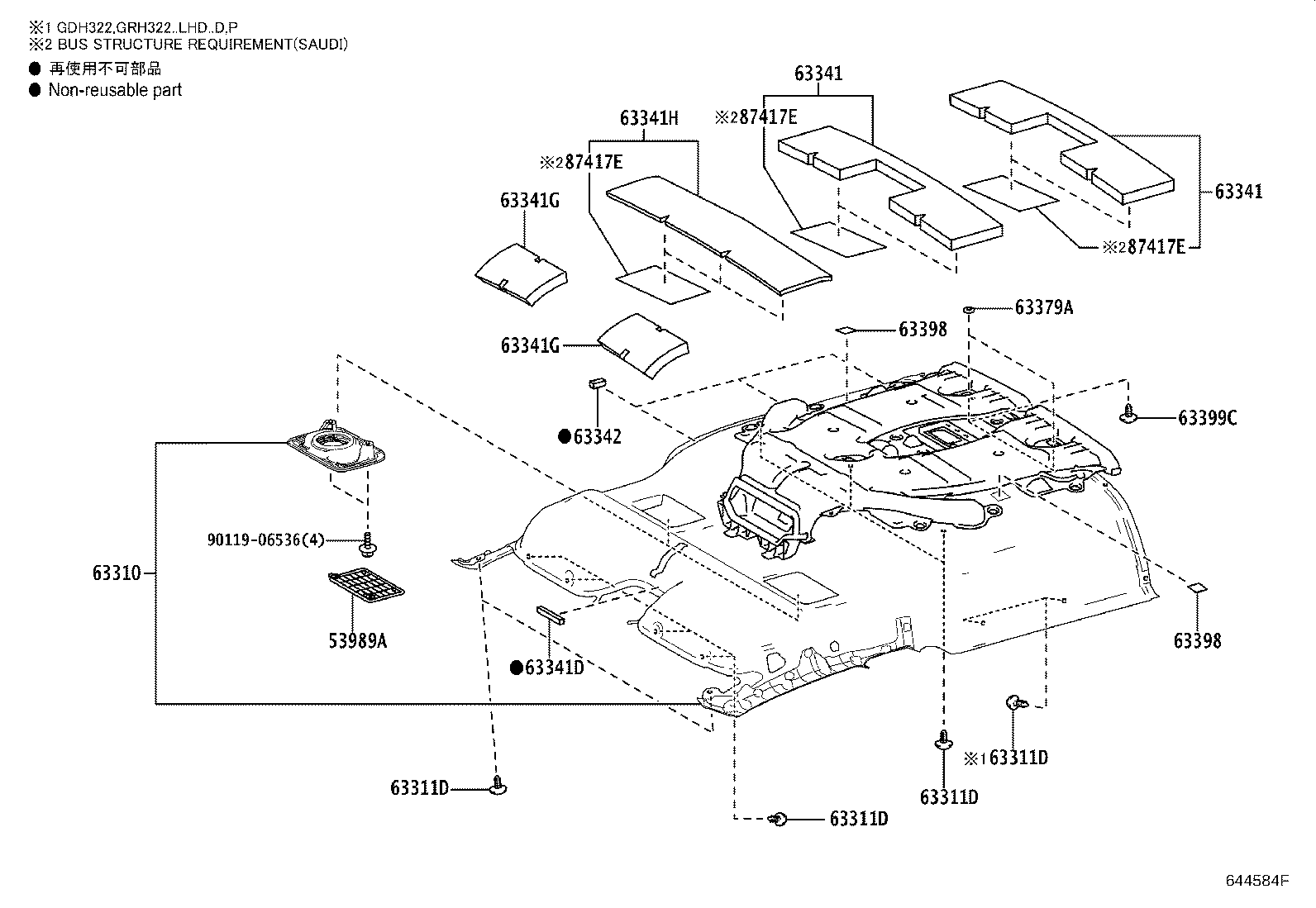

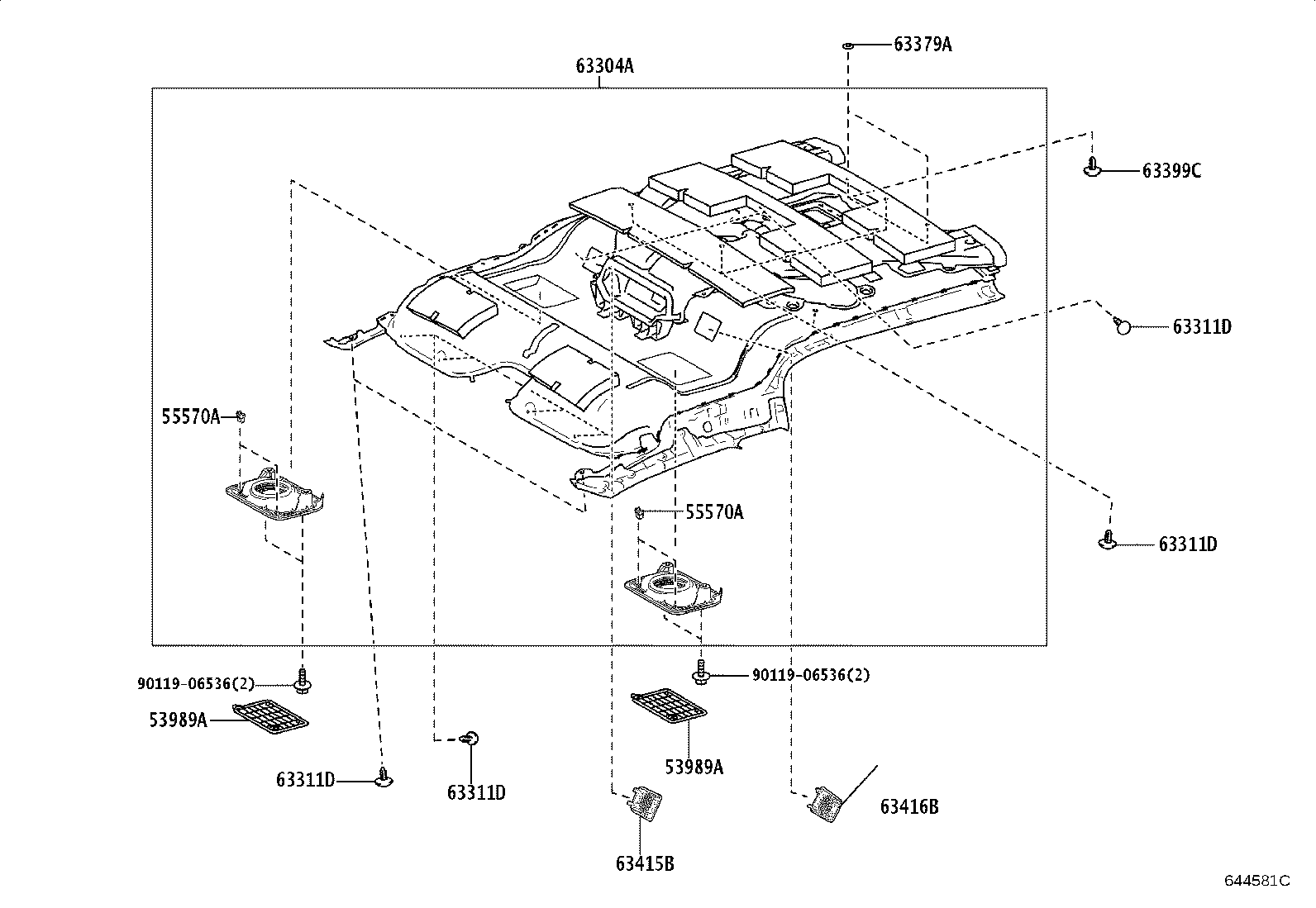

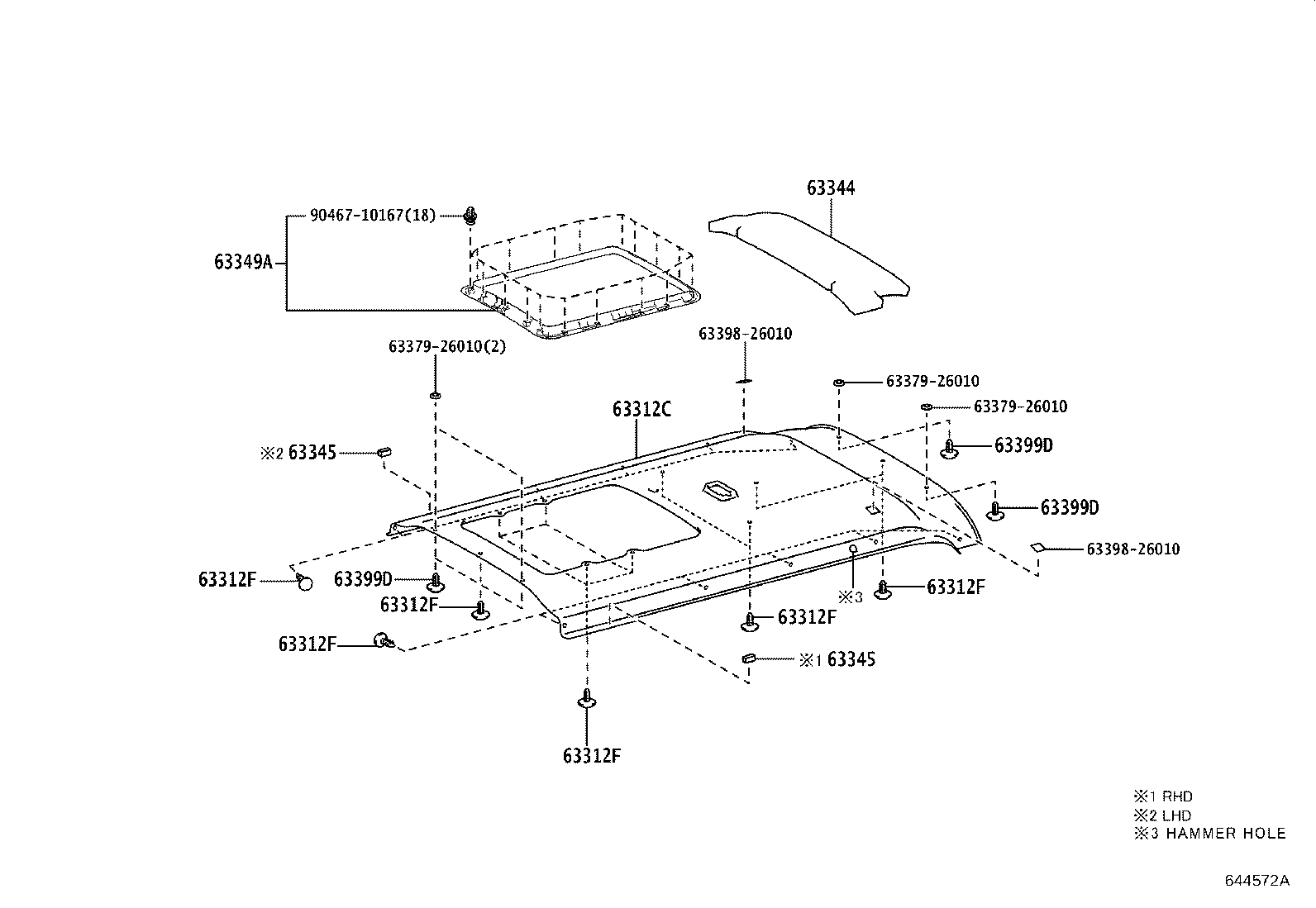

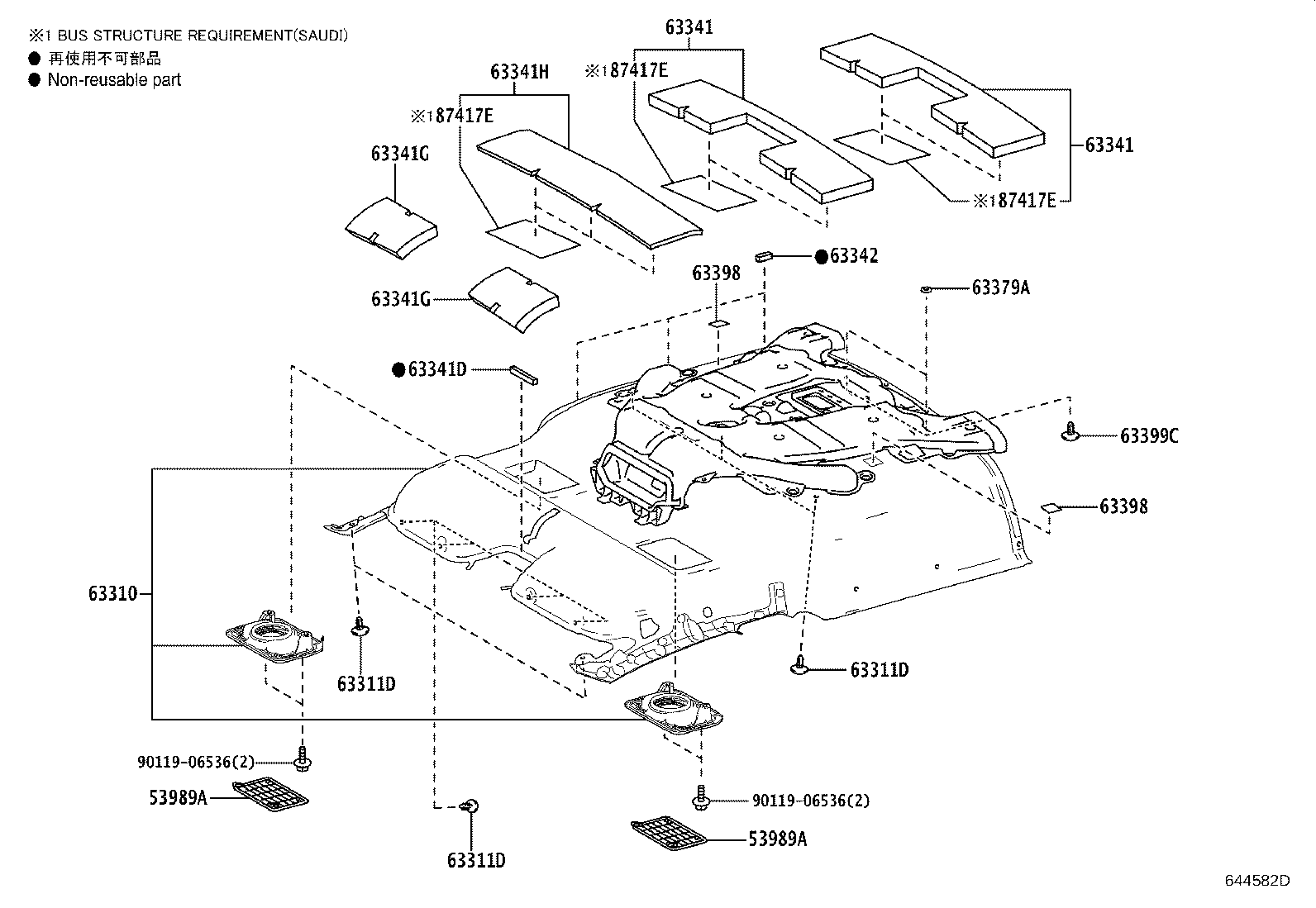

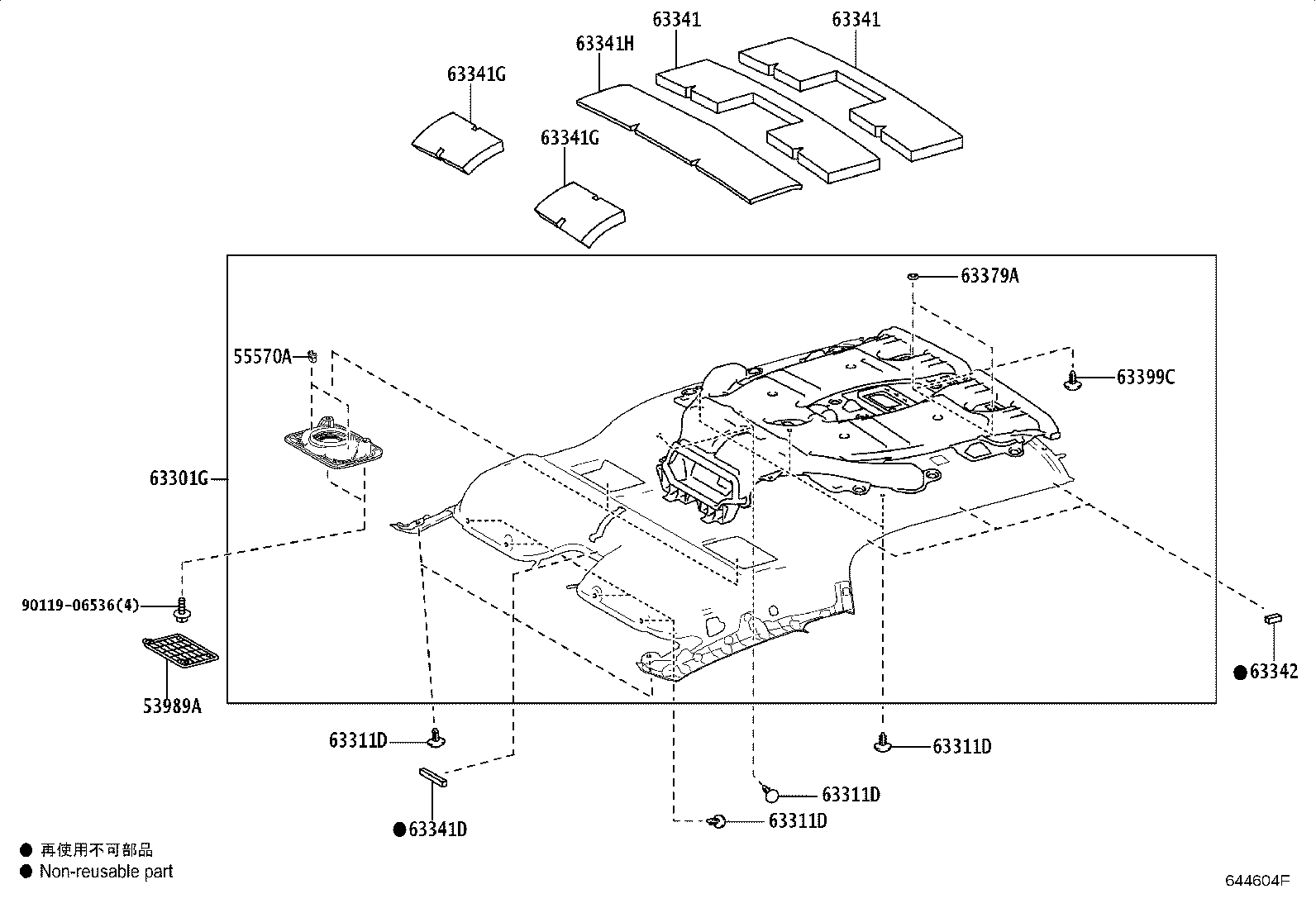

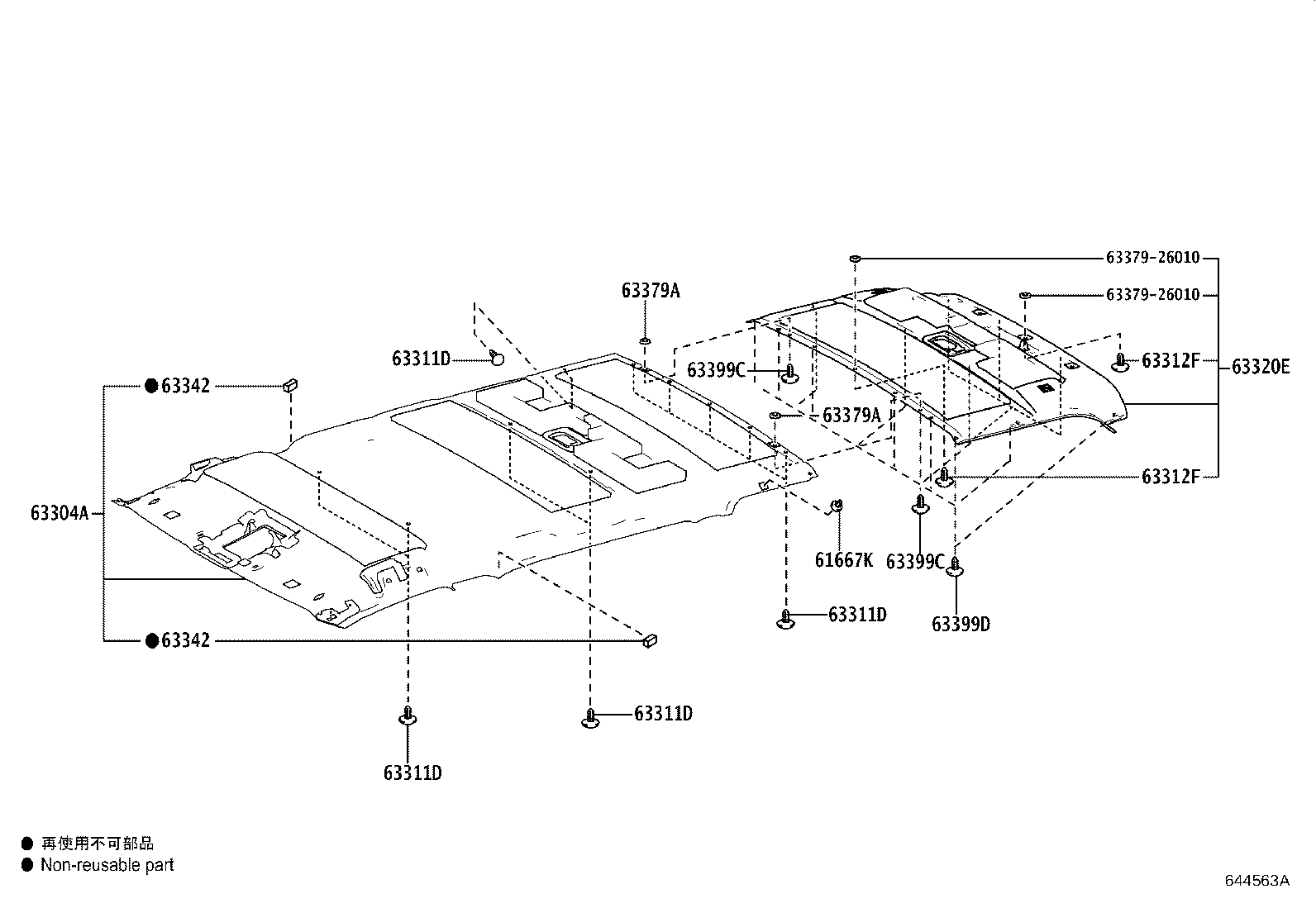

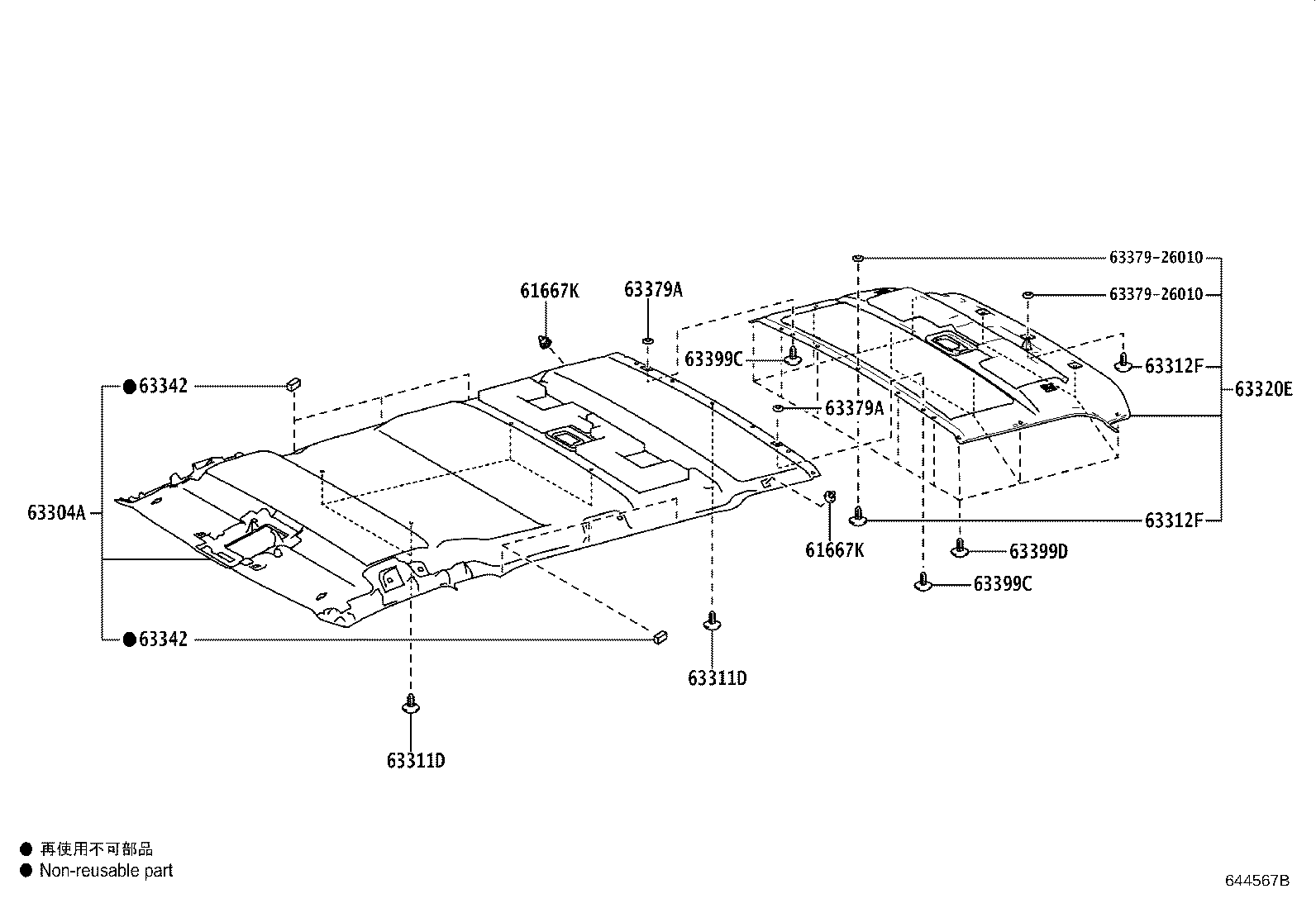

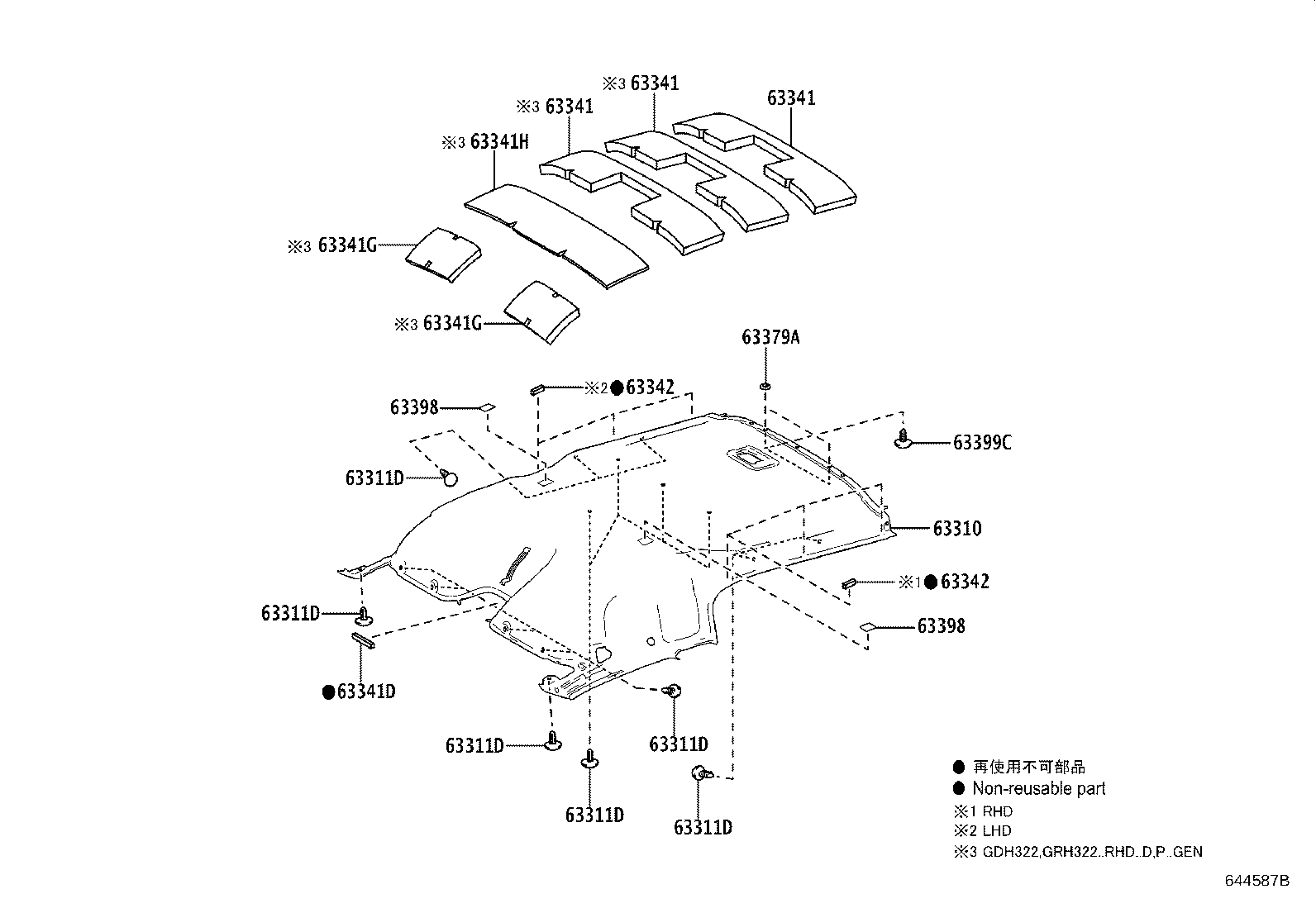

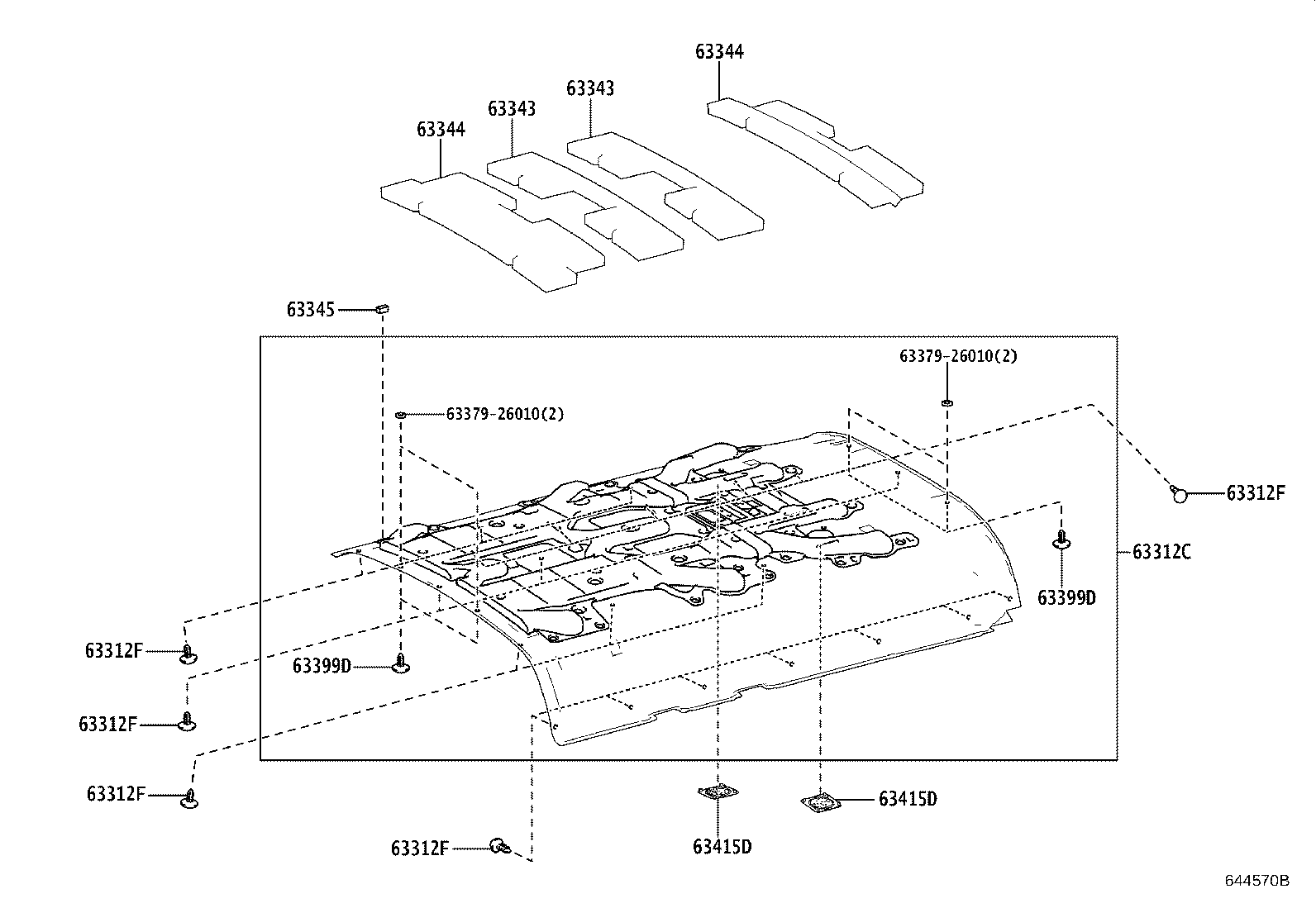

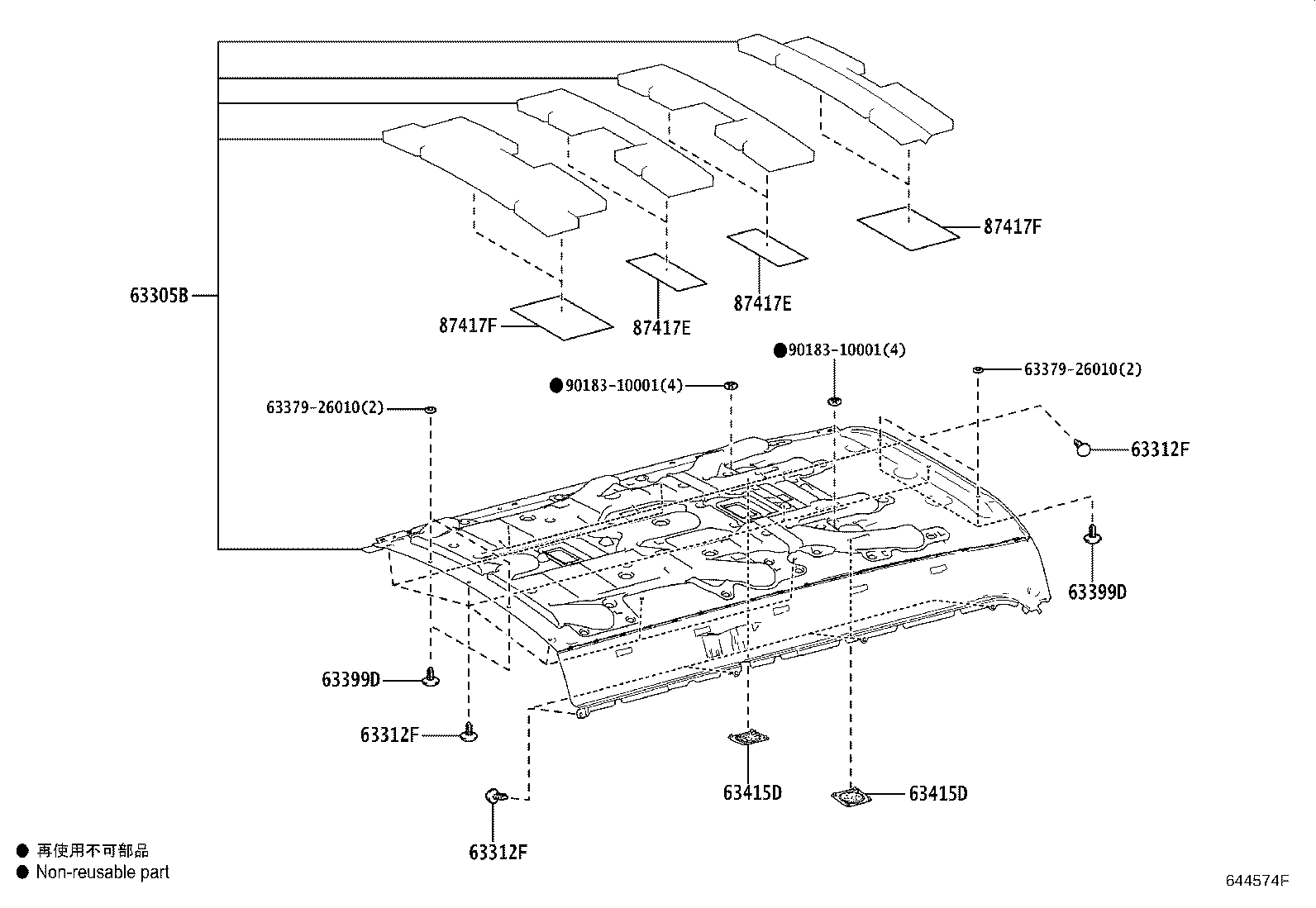

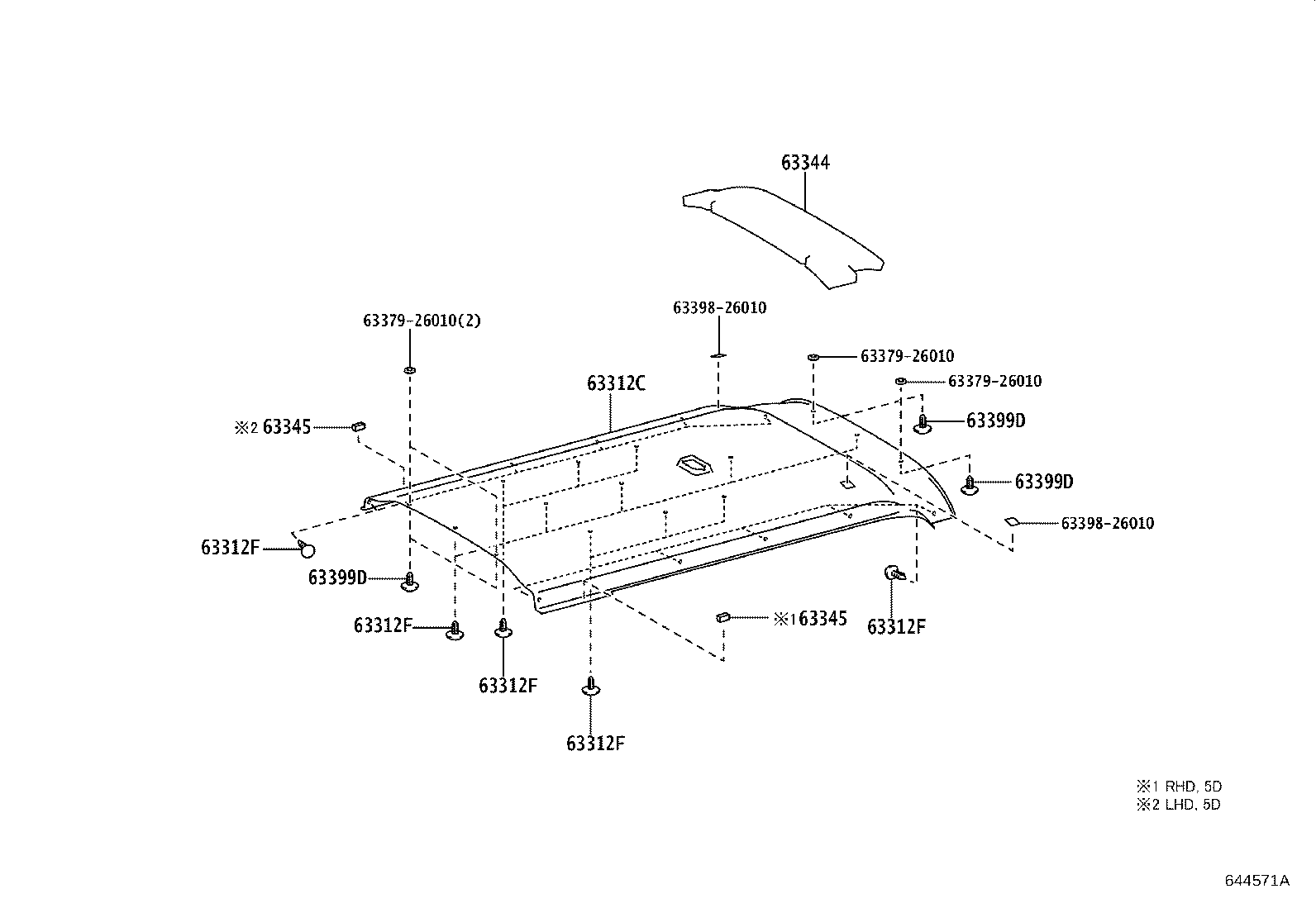

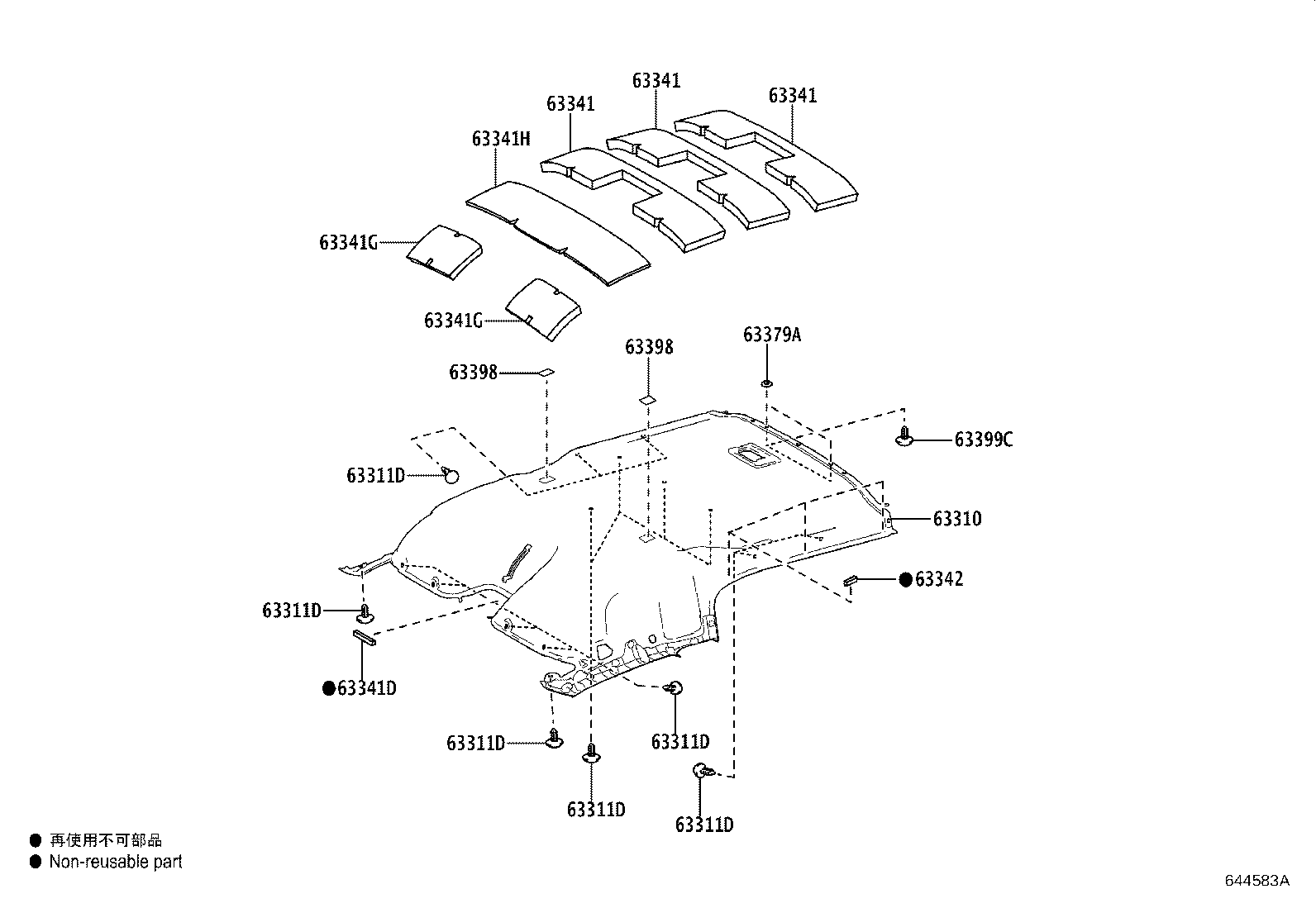

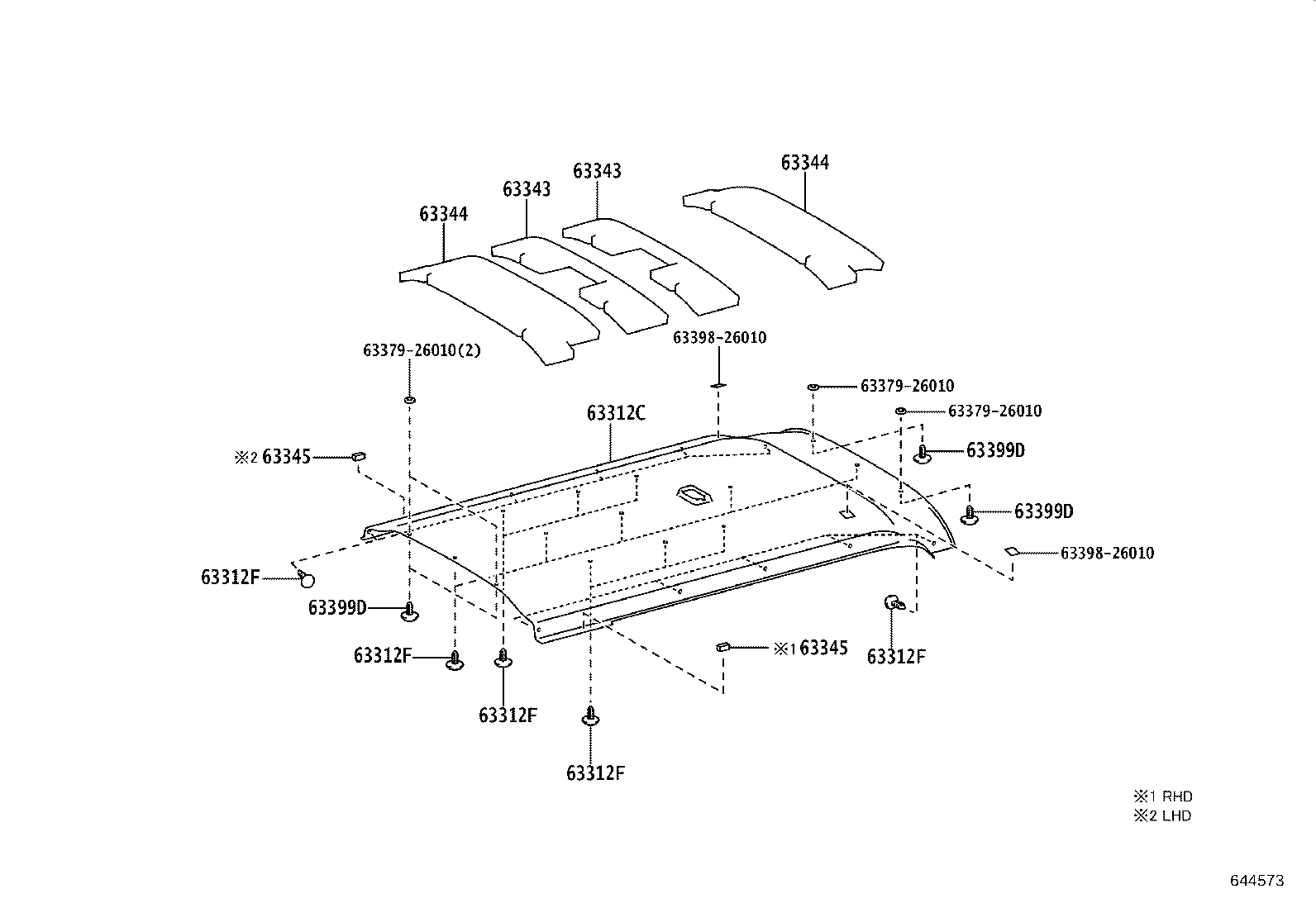

Figure 644632F 644632F 2019-07 → — Figure 644634D 644634D 2019-07 → — Figure 644563A 644563A 2019-02 → — Figure 644564B 644564B 2019-02 → — Figure 644569J 644569J 2019-02 → — Figure 644565I 644565I 2019-02 → — Figure 644567B 644567B 2019-02 → — Figure 644566G 644566G 2019-02 → — Figure 644568B 644568B 2019-02 → — Figure 644578F 644578F 2019-06 → — Figure 644604F 644604F 2019-06 → — Figure 644581C 644581C 2019-03 → — Figure 644580D 644580D 2019-03 → — Figure 644585C 644585C 2019-03 → — Figure 644584F 644584F 2019-03 → — Figure 644587B 644587B 2019-03 → — Figure 644570B 644570B 2019-06 → — Figure 644573 644573 2019-03 → — Figure 644571A 644571A 2019-03 → — Figure 644572A 644572A 2019-03 → — Figure 644574F 644574F 2019-03 → — Figure 644575B 644575B 2019-03 → — Figure 644576C 644576C 2019-03 → — Figure 644577B 644577B 2019-03 → — Figure 644577B 644577B 2019-03 → — Figure 644586A 644586A 2019-03 → — Figure 644586A 644586A 2019-03 → — Figure 644582D 644582D 2019-03 → — Figure 644583A 644583A 2019-03 → — Figure 644885B 644885B 2020-06 → —

Part groups

PNCDescription
53989A Net, Air Intake
55570A Lock Assy, Cassette Box
61667K Spacer, Quarter Panel, NO.1
63301G Headlining Sub-assy, Roof, Front
63304A Trim Sub-assy, Roof Headlining, Front
63305B Trim Sub-assy, Roof Headlining, Rear
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63311D Clip(HEADLINING, ROOF, FRONT)
63312C Headlining, Roof, Rear
63312F Clip, Roof Headlining, NO.2
63317A Retainer, Roof Headlining
63320E Headlining Assy, Roof, Rear
63341 Pad, Roof Silencer, NO.1
63341D Pad, Roof Silencer, Front
63341G Pad, Roof Silencer
63341H Pad, Roof Silencer
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63345 Pad, Roof Silencer, NO.5
63346 Pad, Roof Silencer, NO.6
63347A Pad, Roof Silencer, NO.7
63349A Garnish, Roof Headlining, Rear
63379A Washer, Roof Headlining Setting
63388A Cover, Roof Headlining Holder
63398 Plate, Roof Headlining Support
63399C Clip, Roof Headlining
63399D Clip, Roof Headlining
63415B Grille, Roof Speaker, RH
63415D Grille, Roof Speaker, Center
63415E Grille, Roof Speaker, RH NO.2
63416B Grille, Roof Speaker, LH
63416E Grille, Roof Speaker, LH NO.2
63610C Register Assy, Air Outlet, NO.1
63655D Cover, Air Intake
65896J Cap, Cover Top Set Bolt
67771A Retainer, Roof Headlining
74605A Hook Sub-assy, Coat
87417E Packing, Air Duct, NO.1
87417F Packing, Air Duct, NO.2
87417G Packing, Air Duct, NO.3
87417H Packing, Air Duct, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
