Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States
Supported model
Data version 2024-09
Rear Door Panel & Glass
47 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 62345B | Weatherstrip, Slide Door, NO.3 RH |
| 62346B | Weatherstrip, Slide Door, NO.3 LH |
| 65907E | Curtain Sub-assy, Rear RH |
| 65908D | Curtain Sub-assy, Rear LH |
| 65988 | Hook, Sunshade |

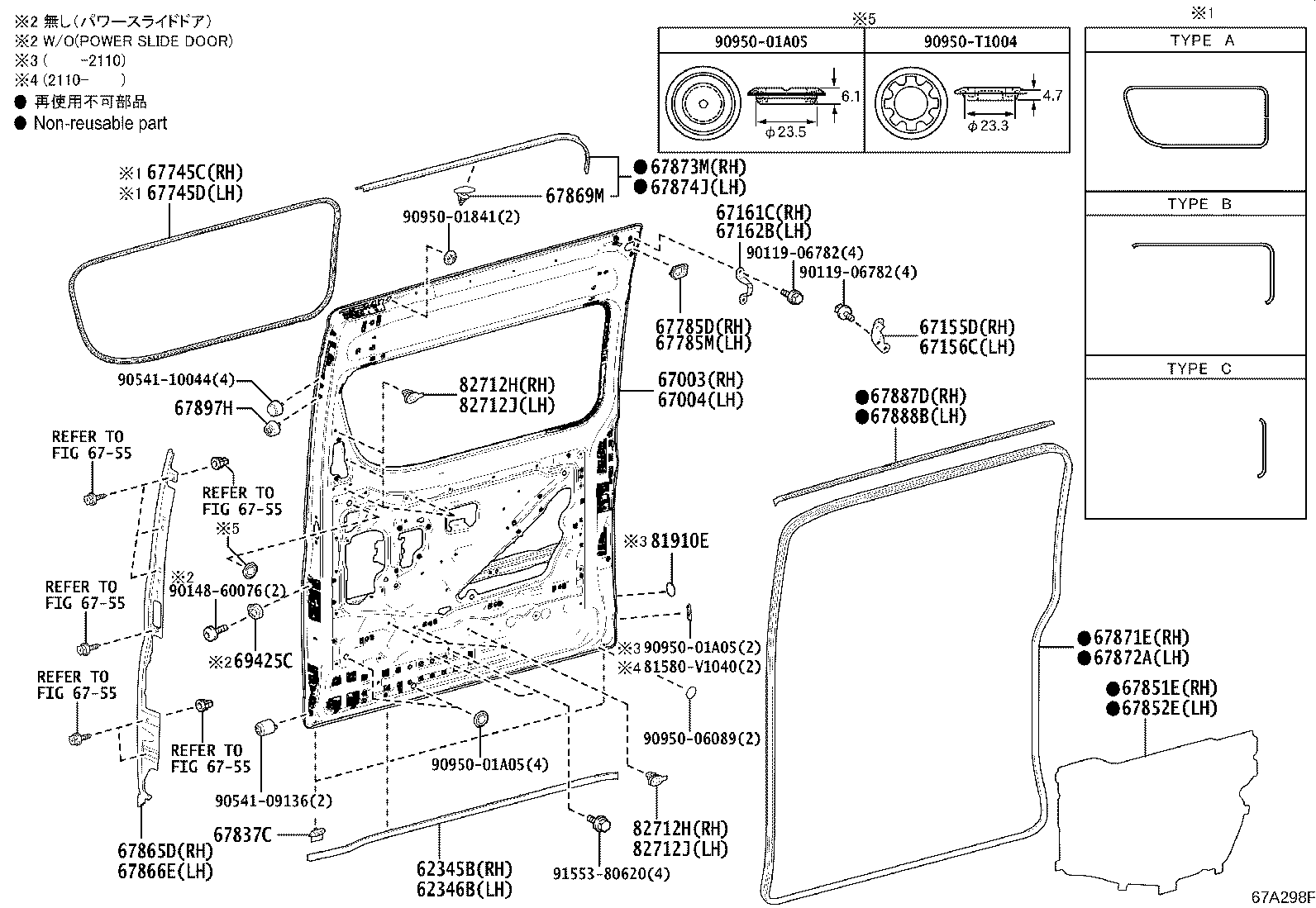

| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67155D | Bracket, Rear Door Corner, RH |
| 67156C | Bracket, Rear Door Corner, LH |
| 67161C | Extension, Slide Door Inside Panel, Upper RH |
| 67162B | Extension, Slide Door Inside Panel, Upper LH |
| 67487A | Garnish, Rear Door Rear Guide Bracket, RH |
| 67488A | Garnish, Rear Door Rear Guide Bracket, LH |

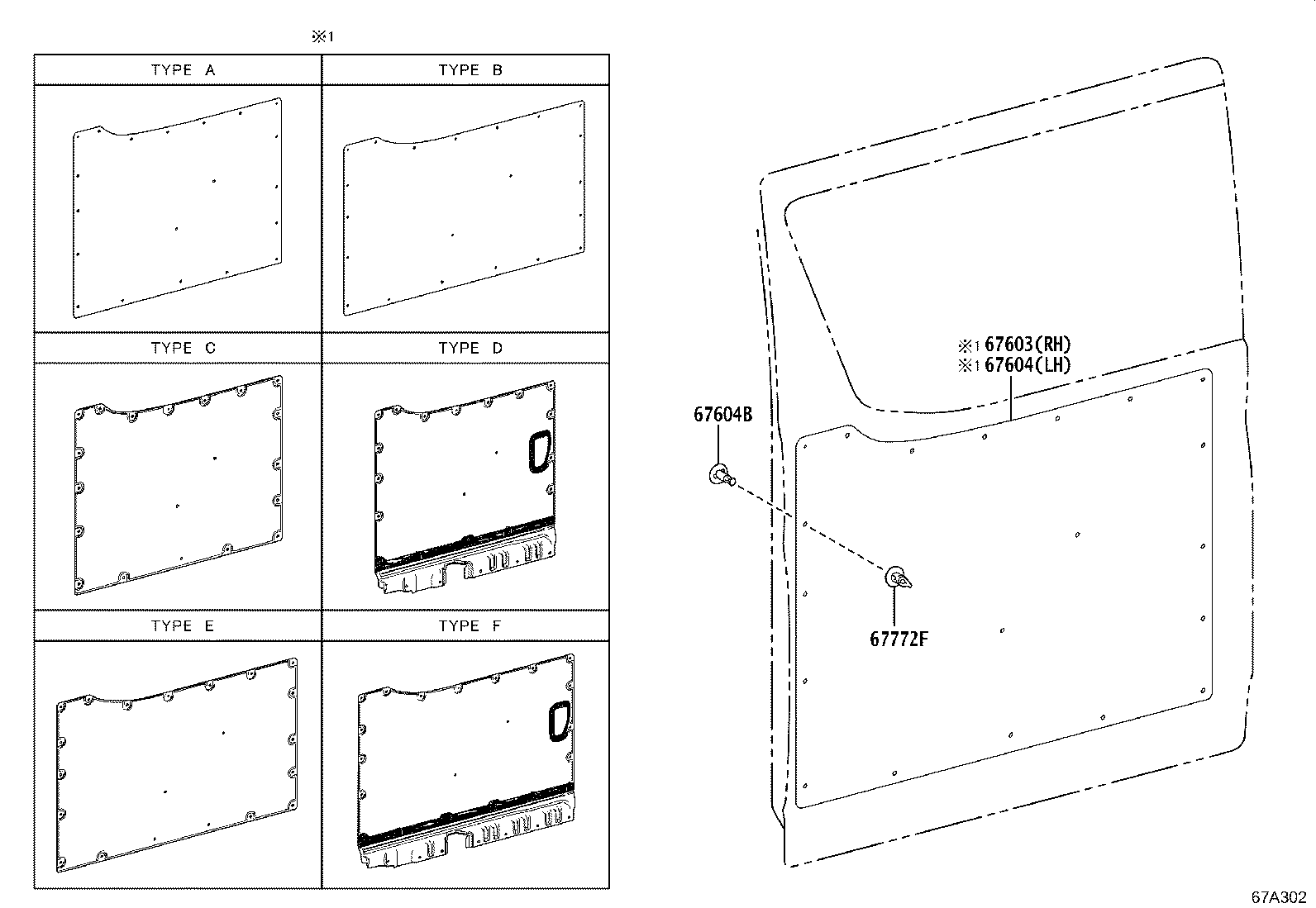

| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67604B | Clip(FOR SLIDE DOOR TRIM BOARD) |
| 67667A | Garnish, Slide Door Window, RH |
| 67668A | Garnish, Slide Door Window, LH |

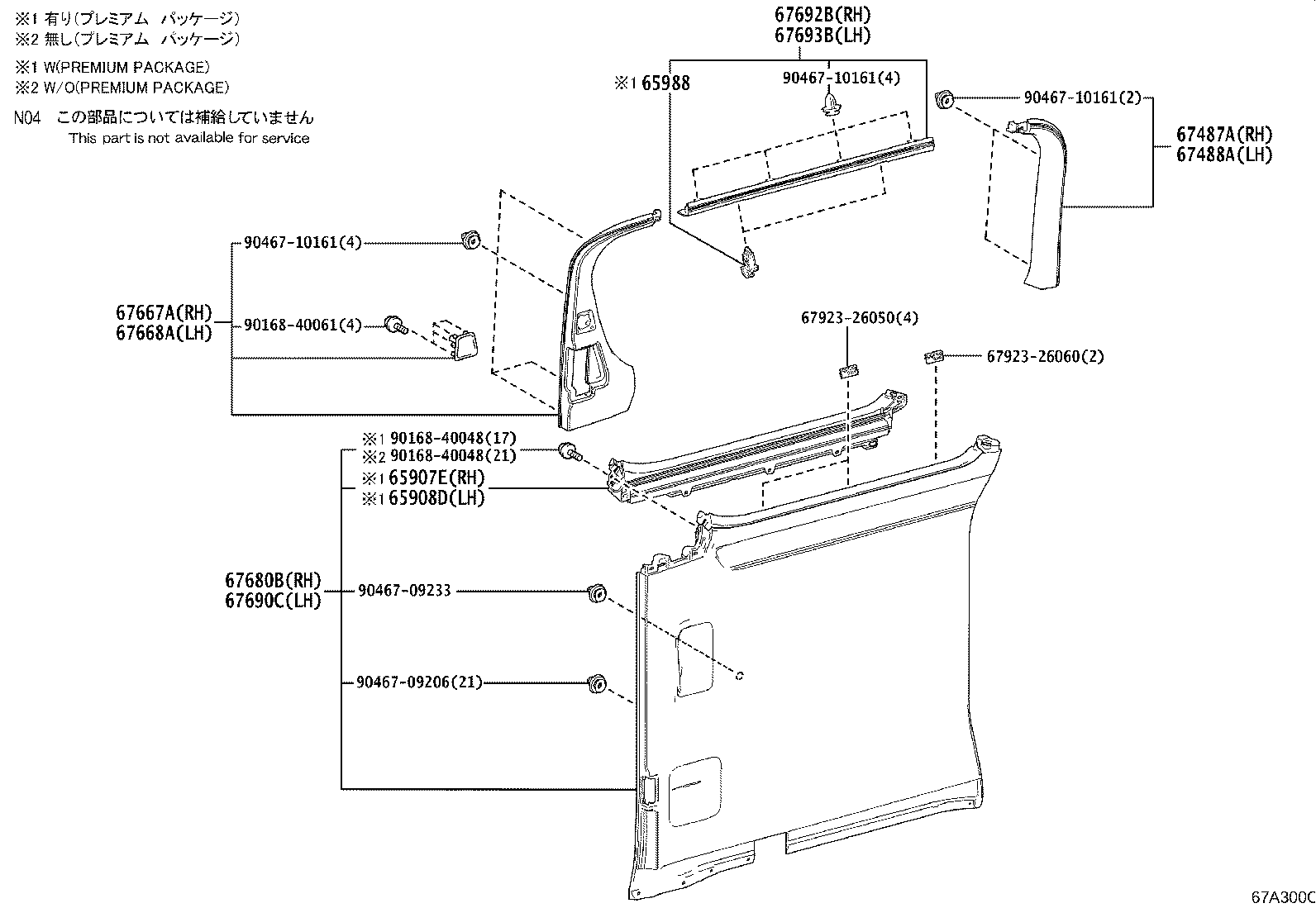

| 67680B | Board Assy, Slide Door Trim, RH |
| 67690C | Board Assy, Slide Door Trim, LH |

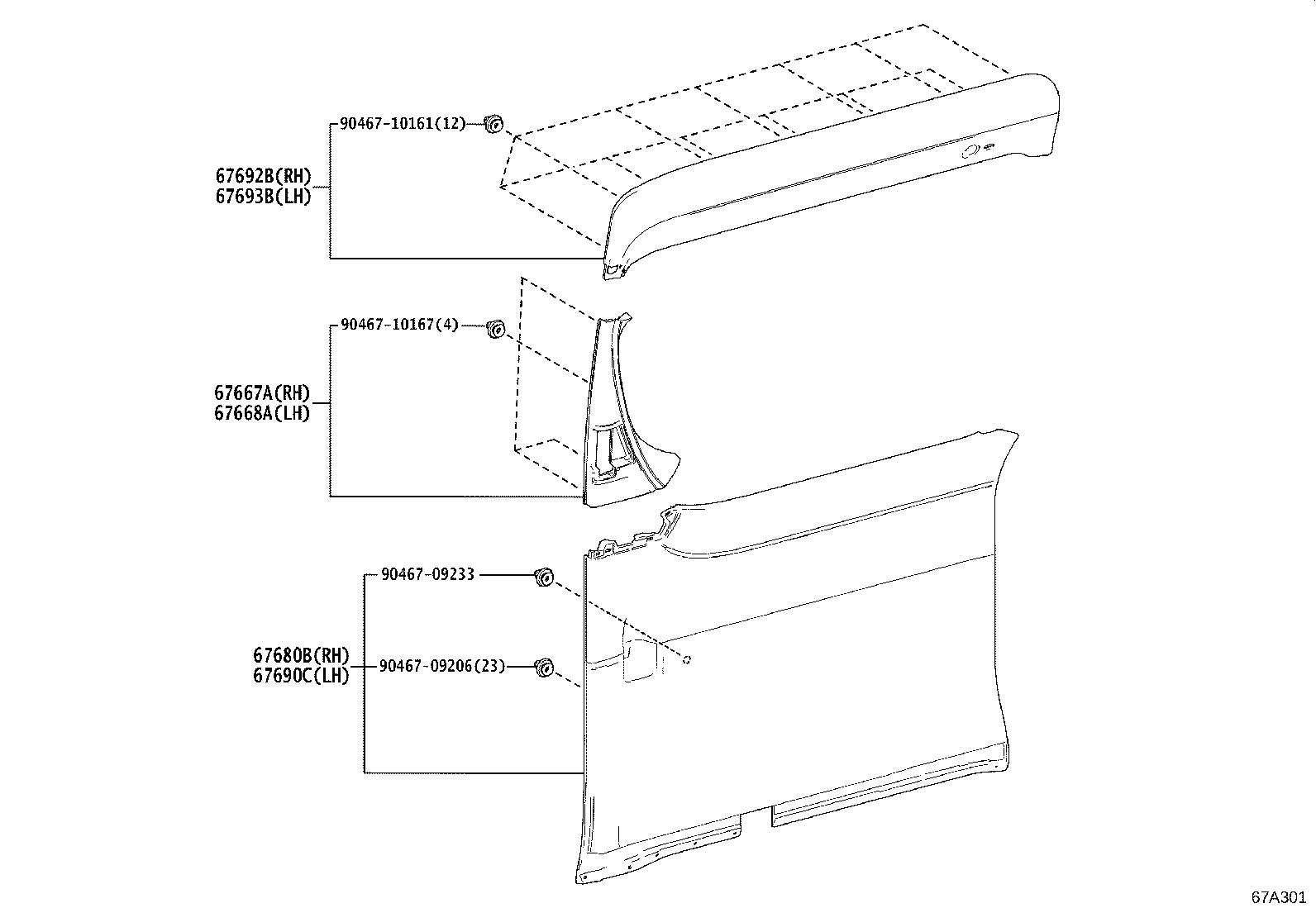

| 67692B | Cover, Slide Door Trim, Upper RH |
| 67693B | Cover, Slide Door Trim, Upper LH |
| 67745C | Moulding, Rear Door Trim, RH |
| 67745D | Moulding, Rear Door Trim, LH |
| 67772F | Cap, Rear Door Trim Retainer |
| 67785D | Cover, Rear Door Trim, Upper RH |
| 67785M | Cover, Rear Door Trim, Upper LH |
| 67837C | Seal, Rear Door Dust Proof |
| 67851E | Cover, Slide Door Service Hole, RH |
| 67852E | Cover, Slide Door Service Hole, LH |
| 67865D | Weatherstrip, Center Pillar Upper End, RH |
| 67866E | Weatherstrip, Center Pillar Upper End, LH |
| 67869M | Clip, Door Weatherstrip |
| 67871E | Weatherstrip, Slide Door, NO.1 RH |
| 67872A | Weatherstrip, Slide Door, NO.1 LH |
| 67873M | Weatherstrip, Center Door, Upper RH |
| 67874J | Weatherstrip, Center Door, Upper LH |
| 67887D | Weatherstrip, Slide Door, NO.2 RH |
| 67888B | Weatherstrip, Slide Door, NO.2 LH |
| 67897H | Cushion, Rear Door |
| 67897M | Weatherstrip, Slide Door, NO.4 RH |
| 67898H | Weatherstrip, Slide Door, NO.4 LH |
| 69425C | Cushion, Slide Door Stop |
| 81910E | Reflector Assy, Reflex |
| 82712H | Support, Wiring Harness |
| 82712J | Support, Wiring Harness |
| 86262D | Cover, Rear Door Speaker |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
