Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States
Supported model
Data version 2024-09
Front Seat & Seat Track
166 part groups · 59 illustrations
Illustrations
71B747B

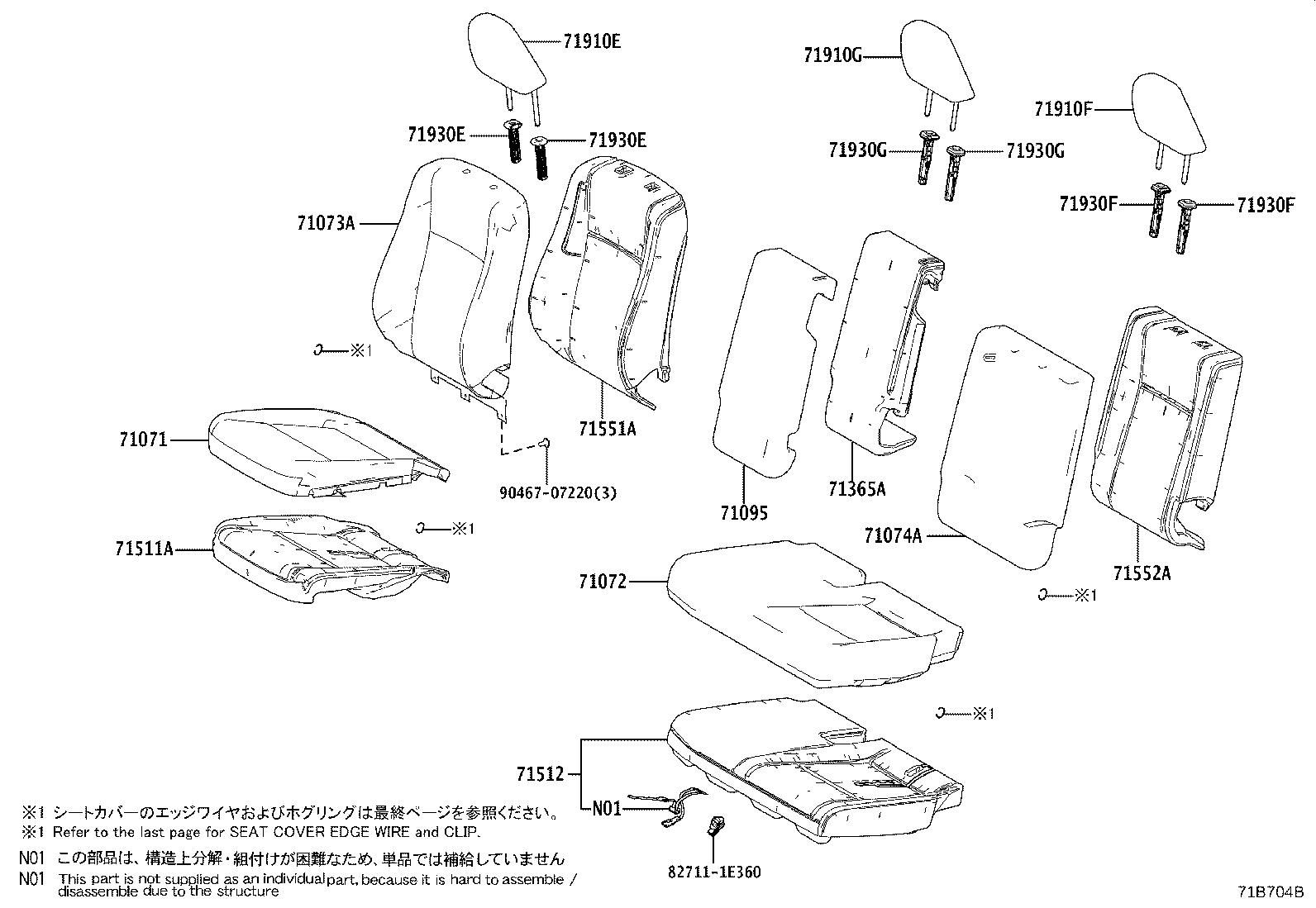

71B704B

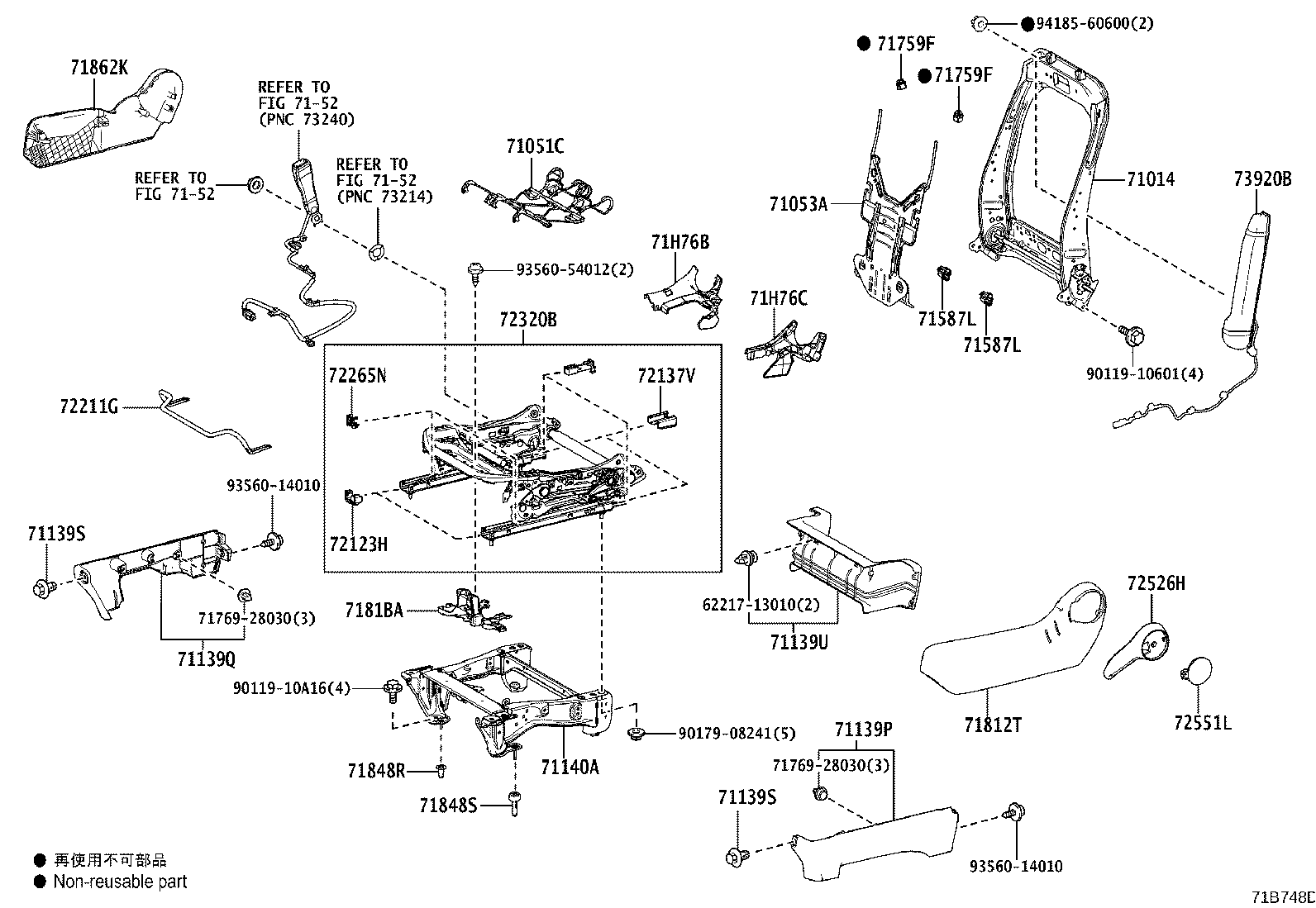

71B748D

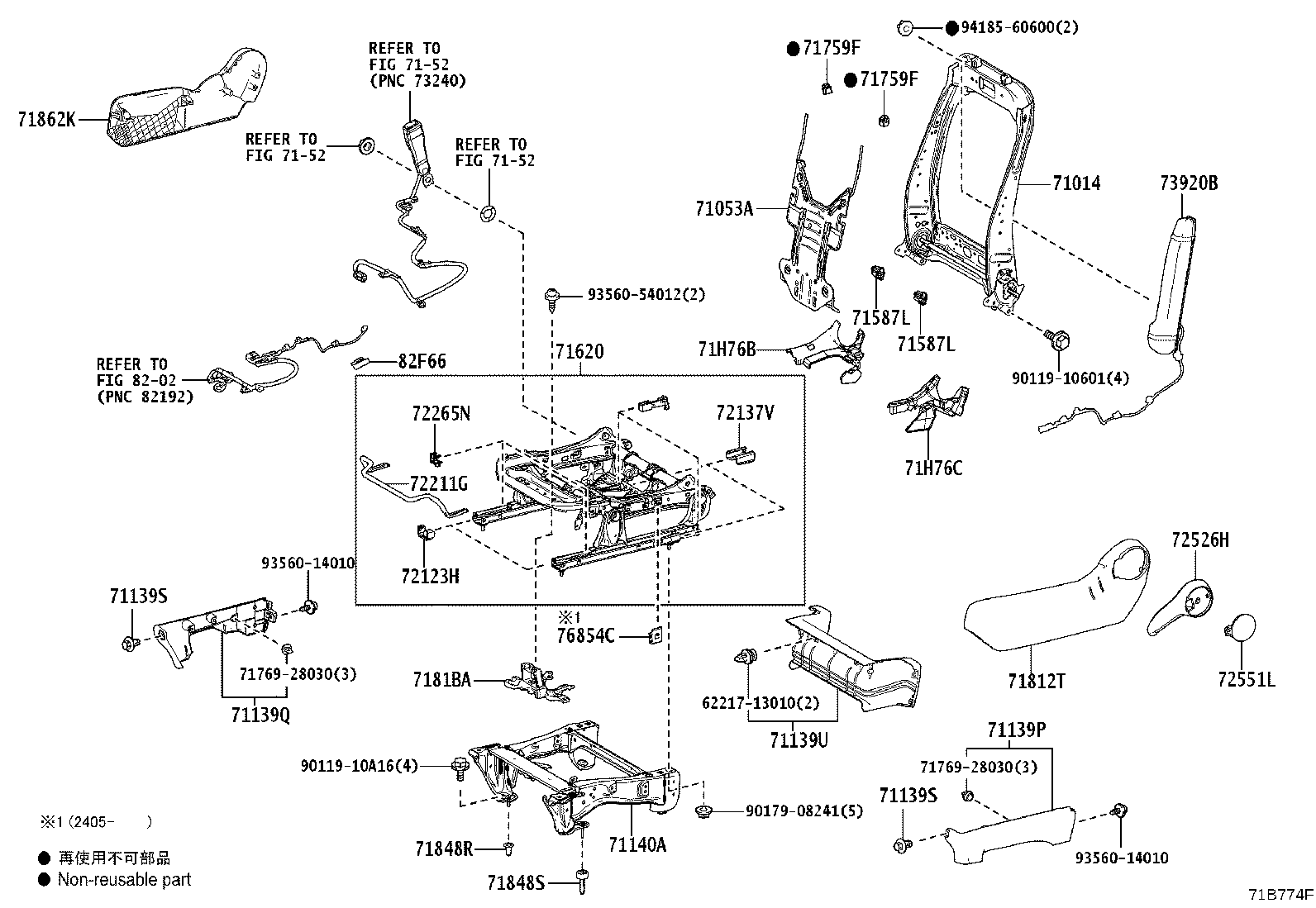

71B774F

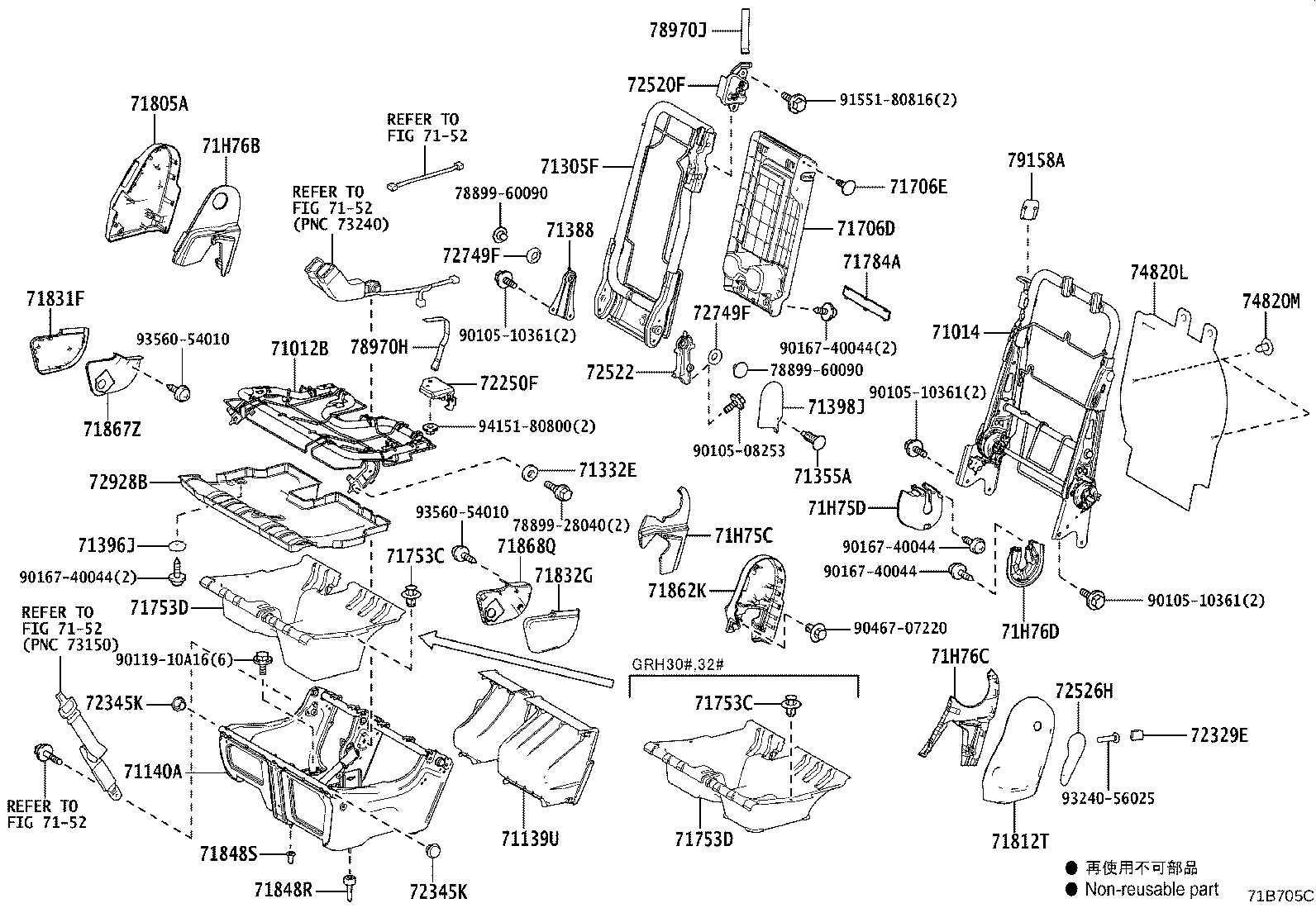

71B705C

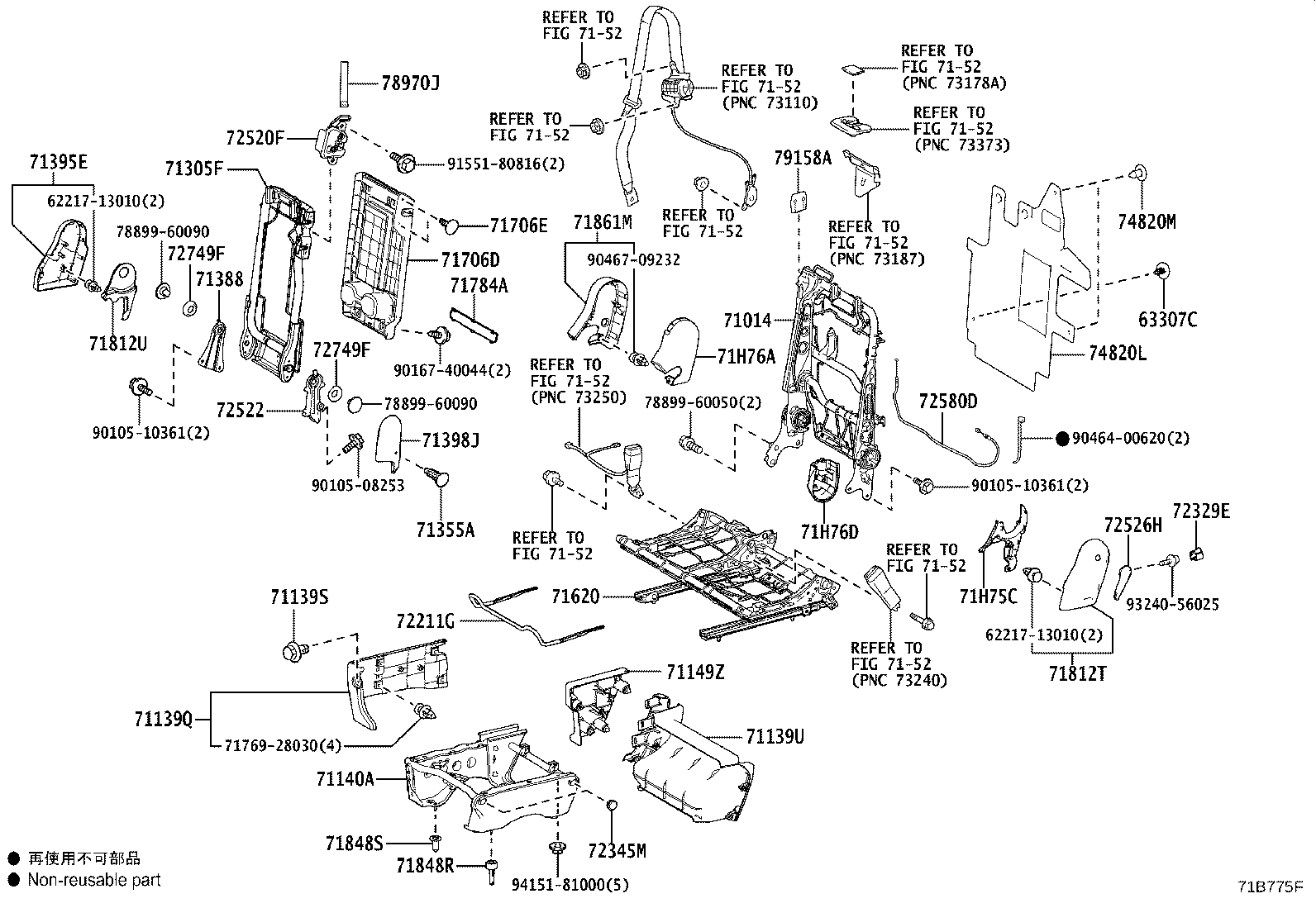

71B775F

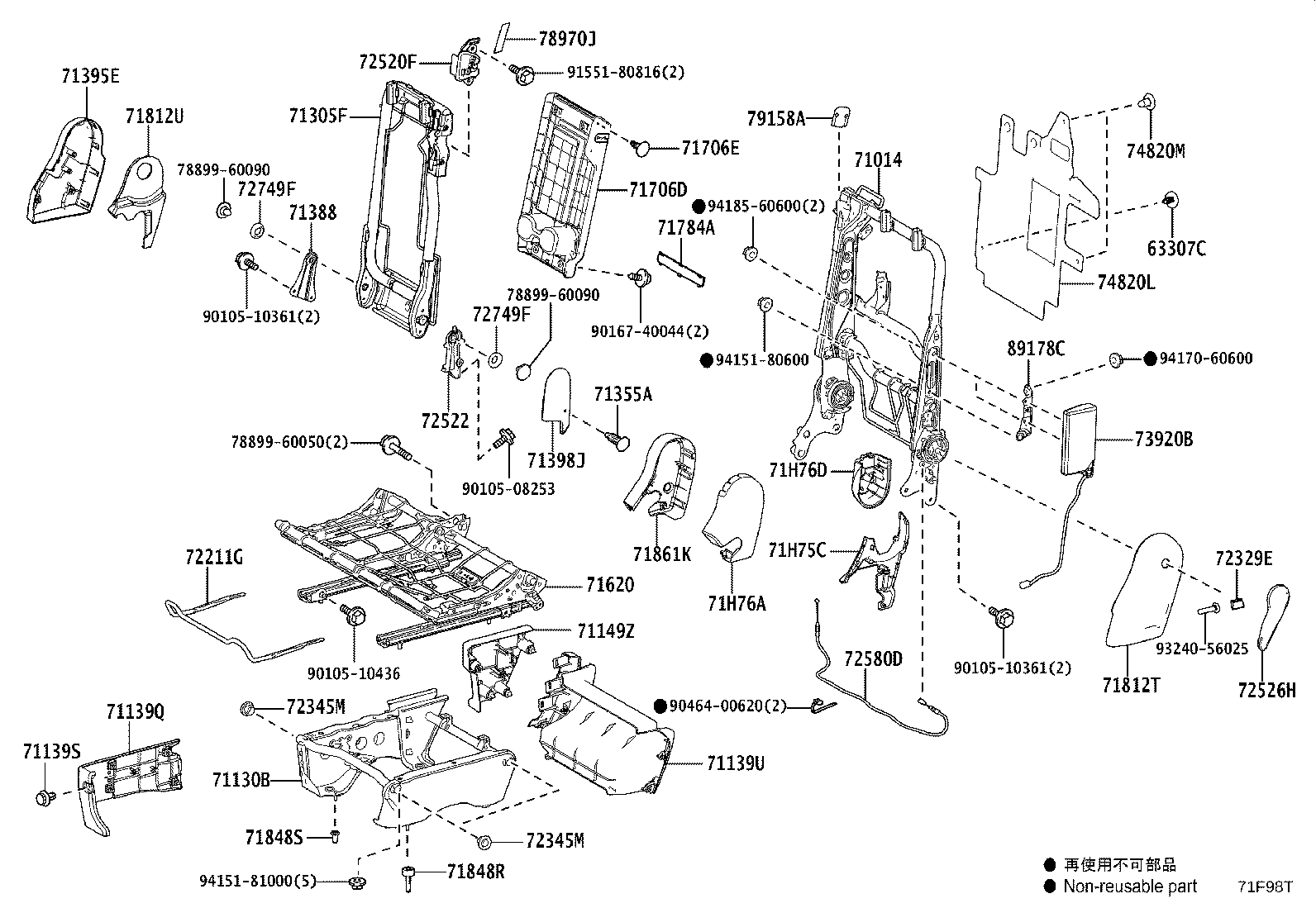

71F98T

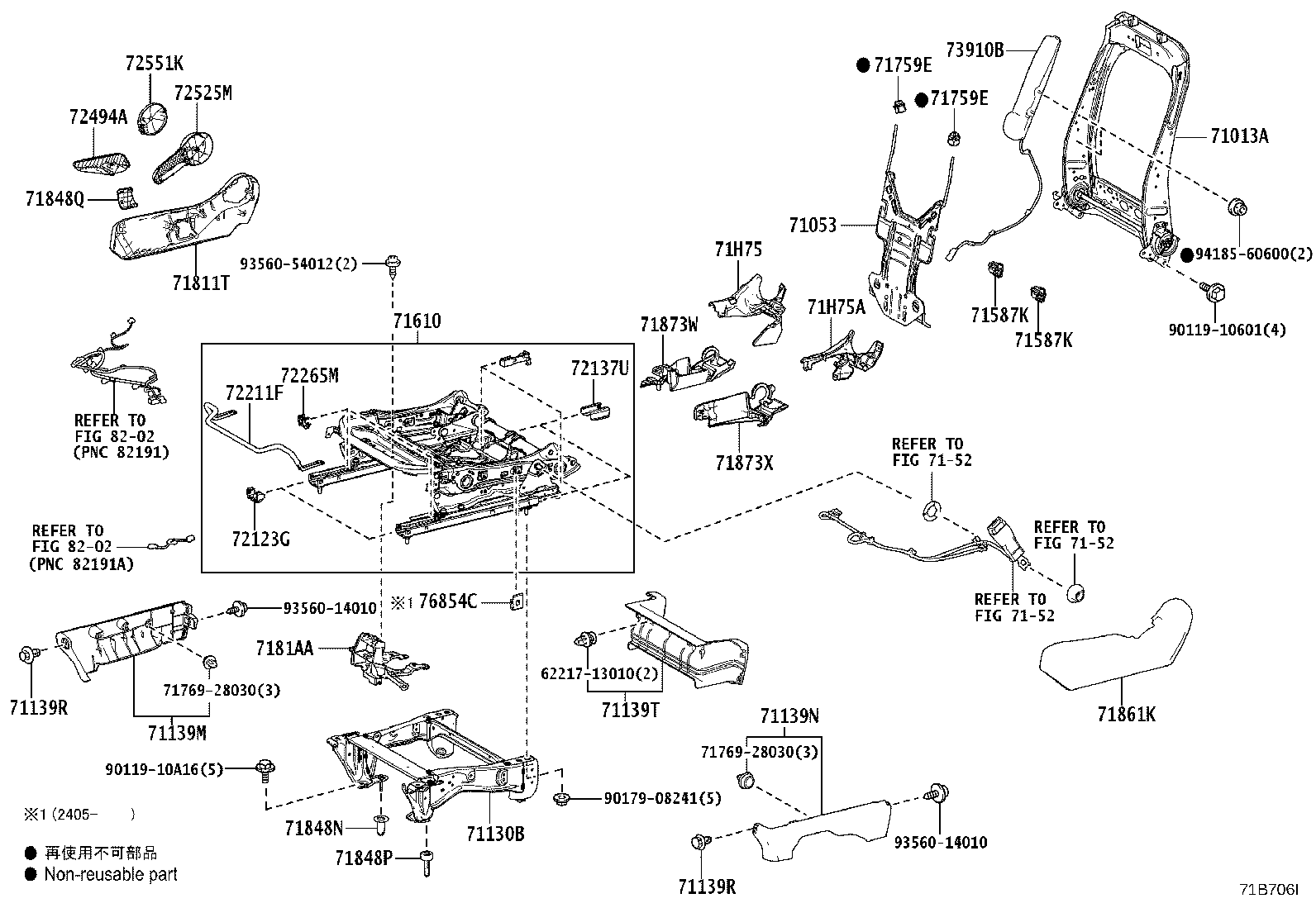

71B706I
71B706I
71B706I

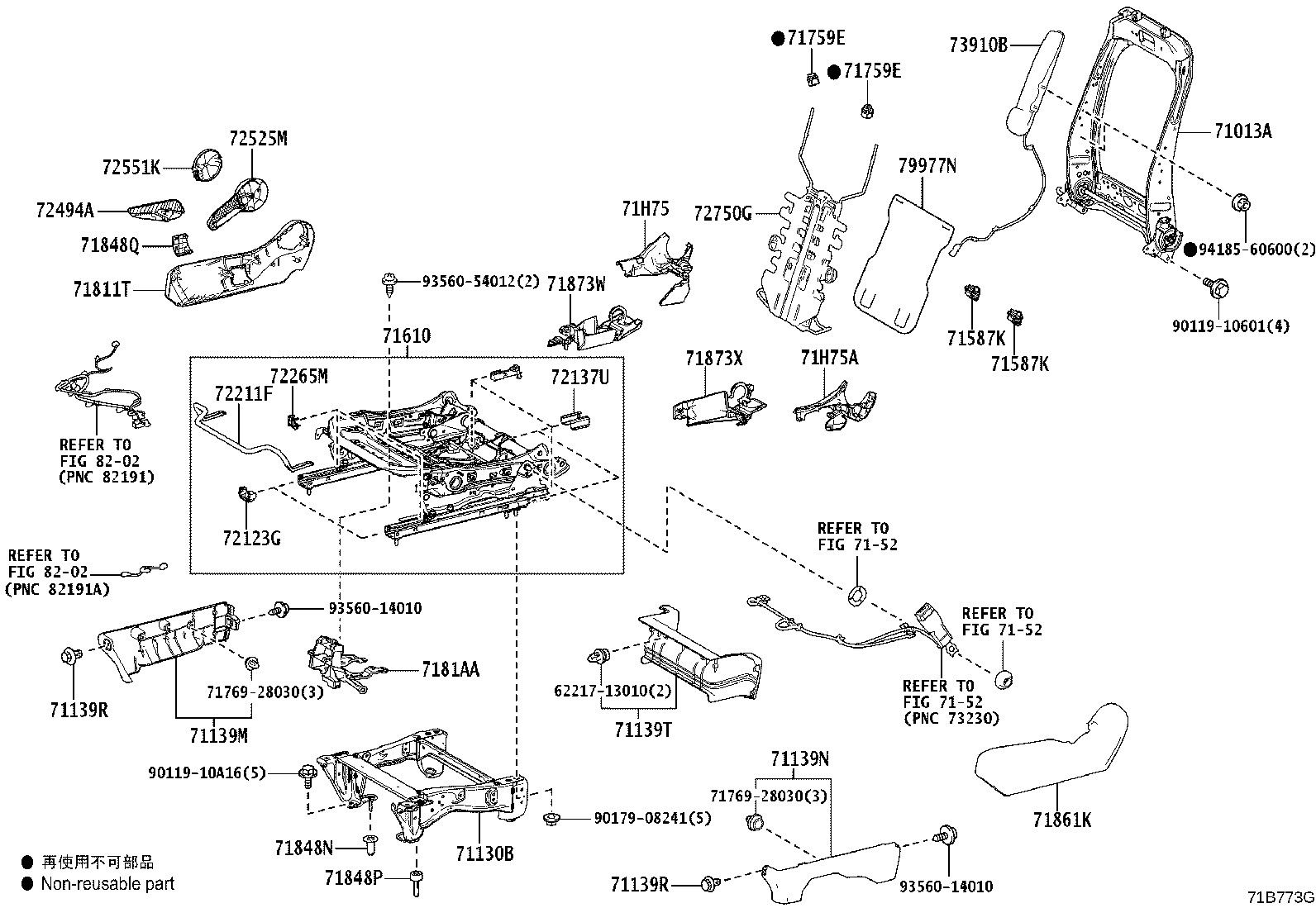

71B773G

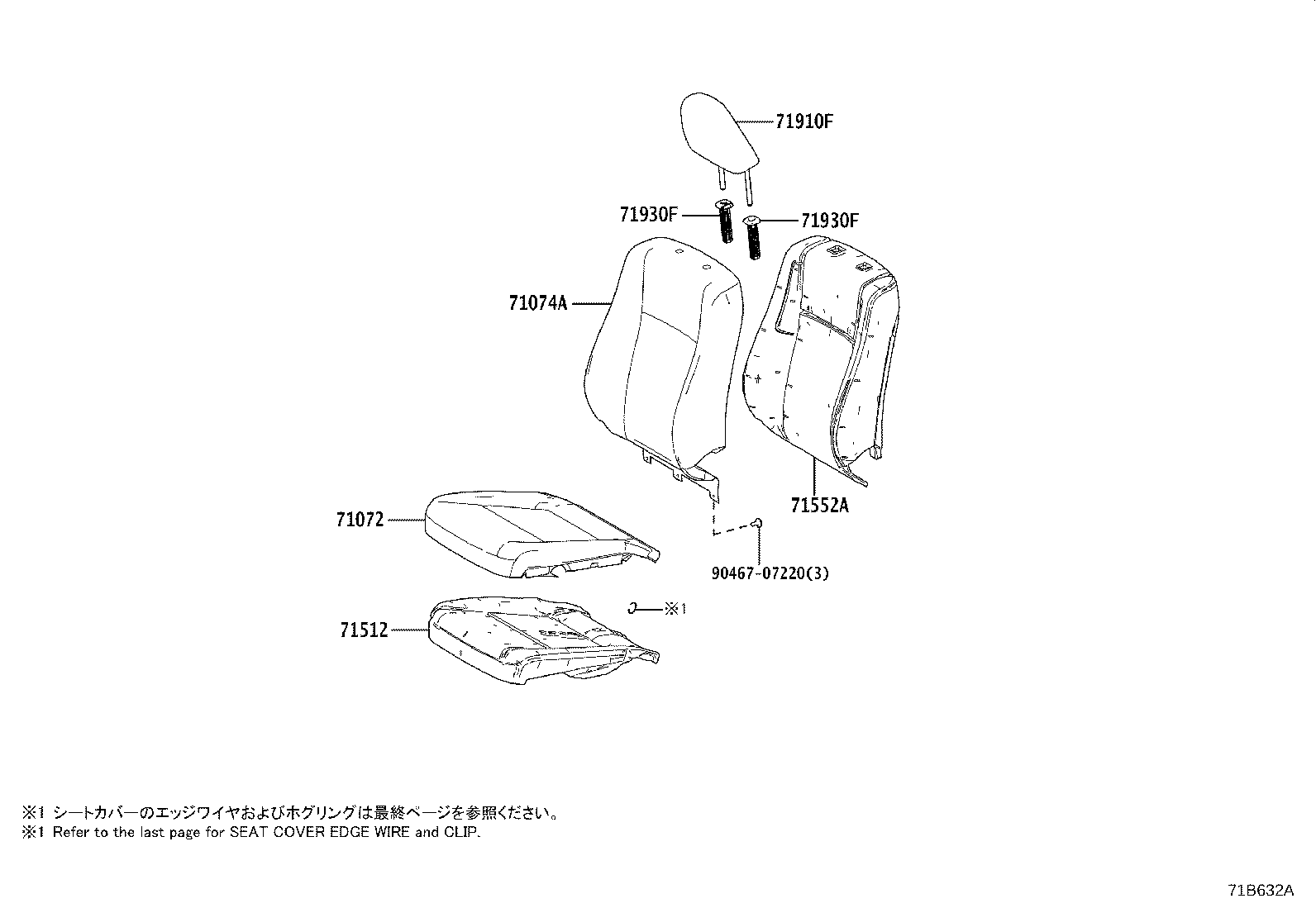

71B632A

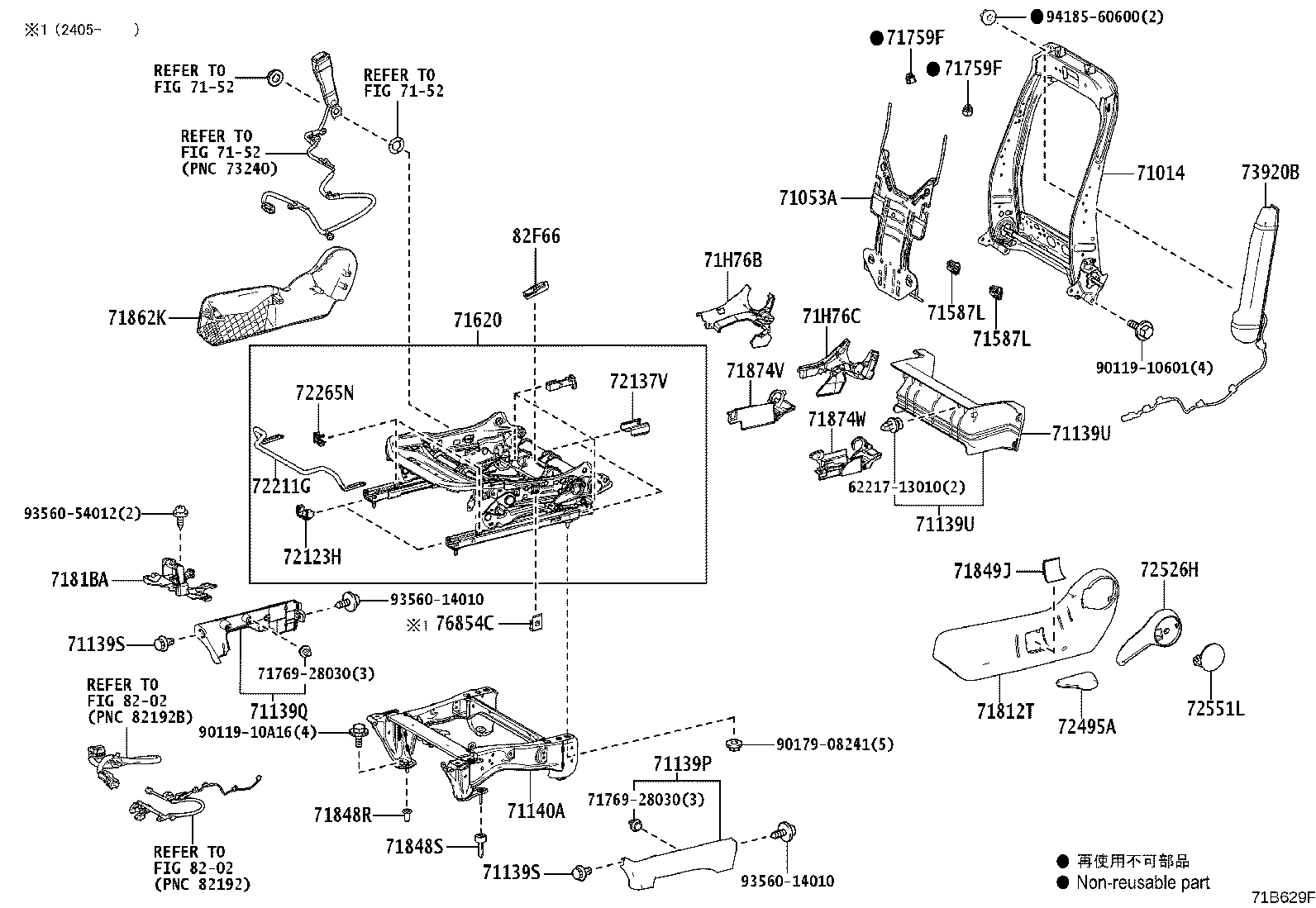

71B629F

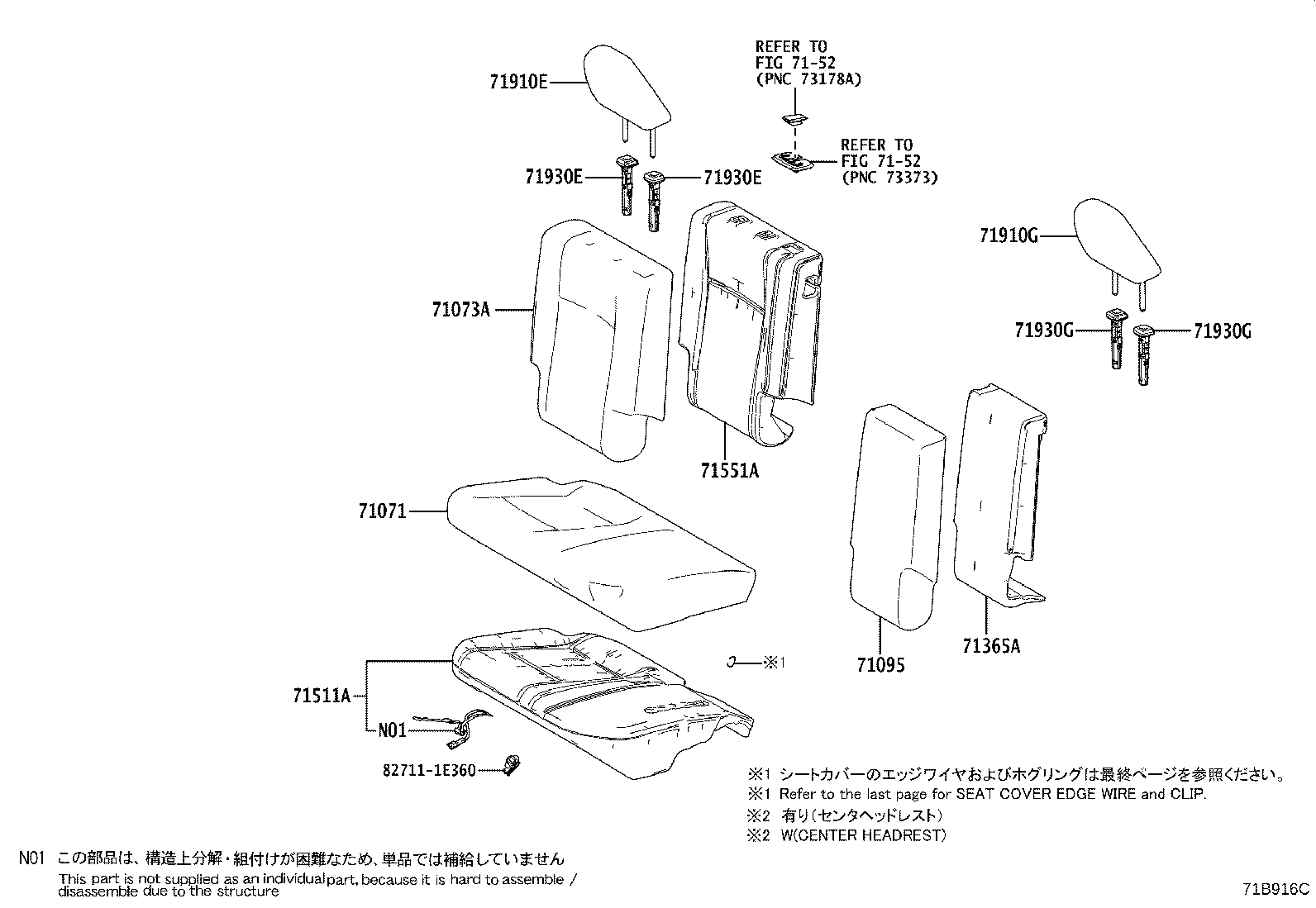

71B916C
71B916C

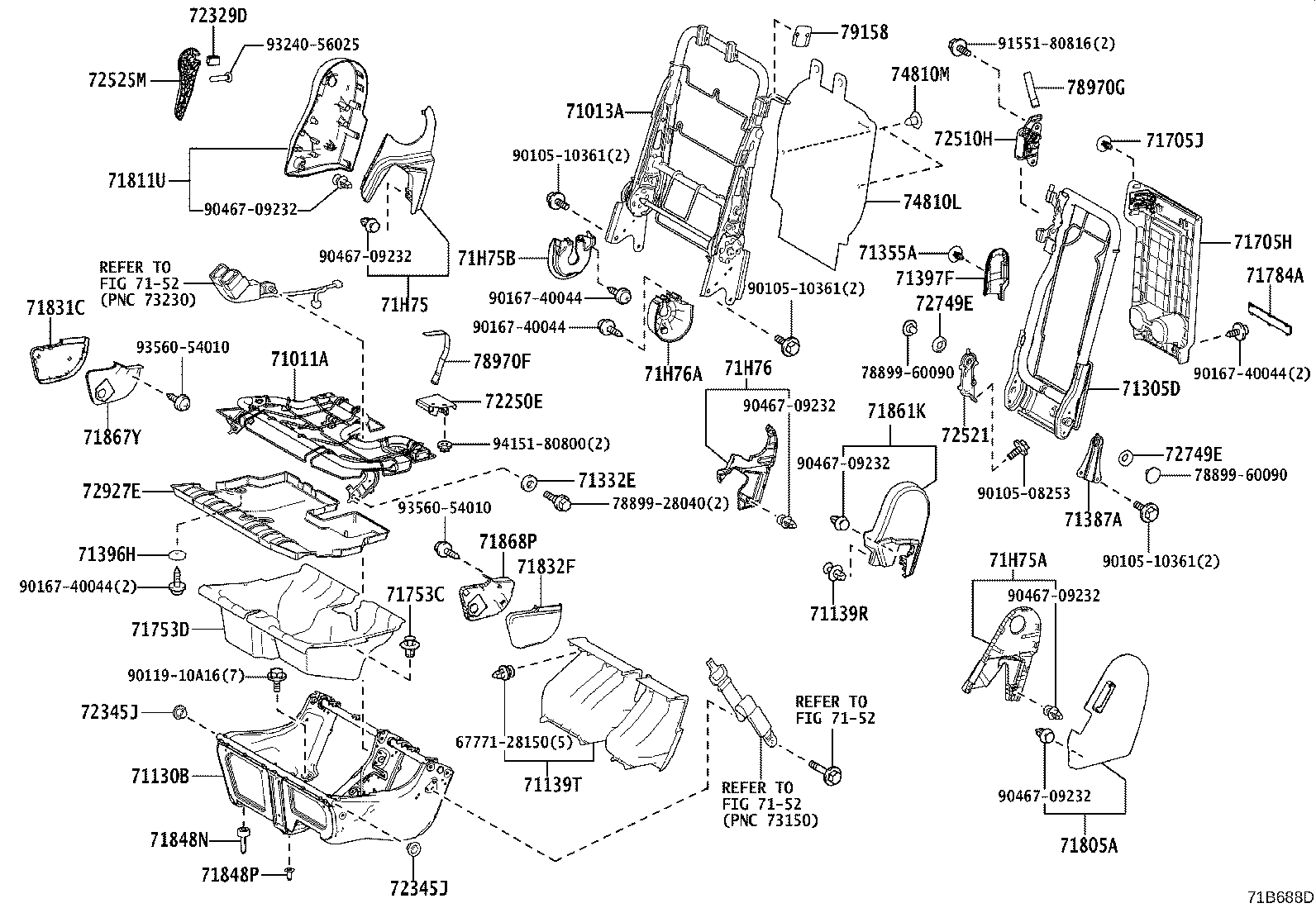

71B688D

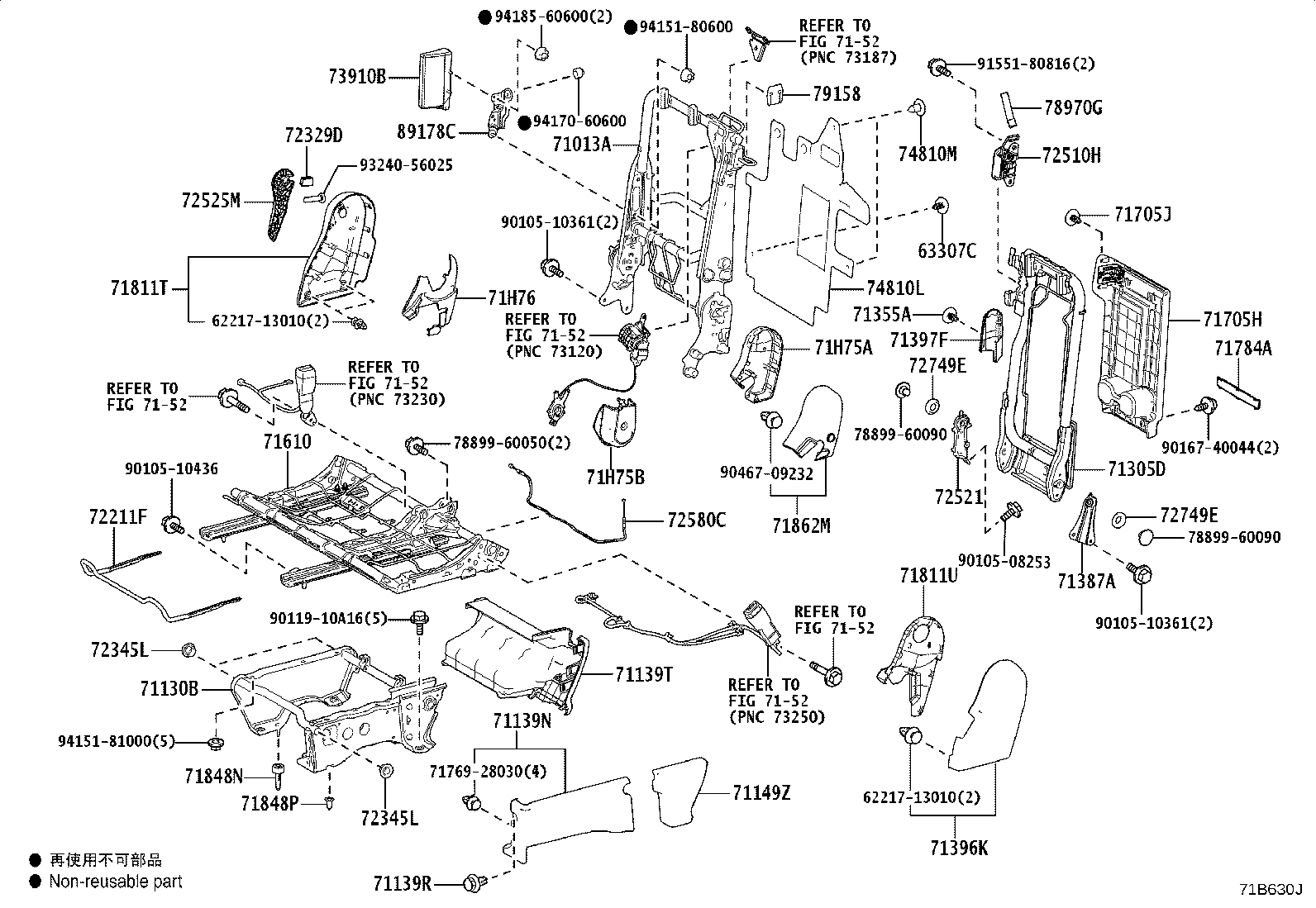

71B630J

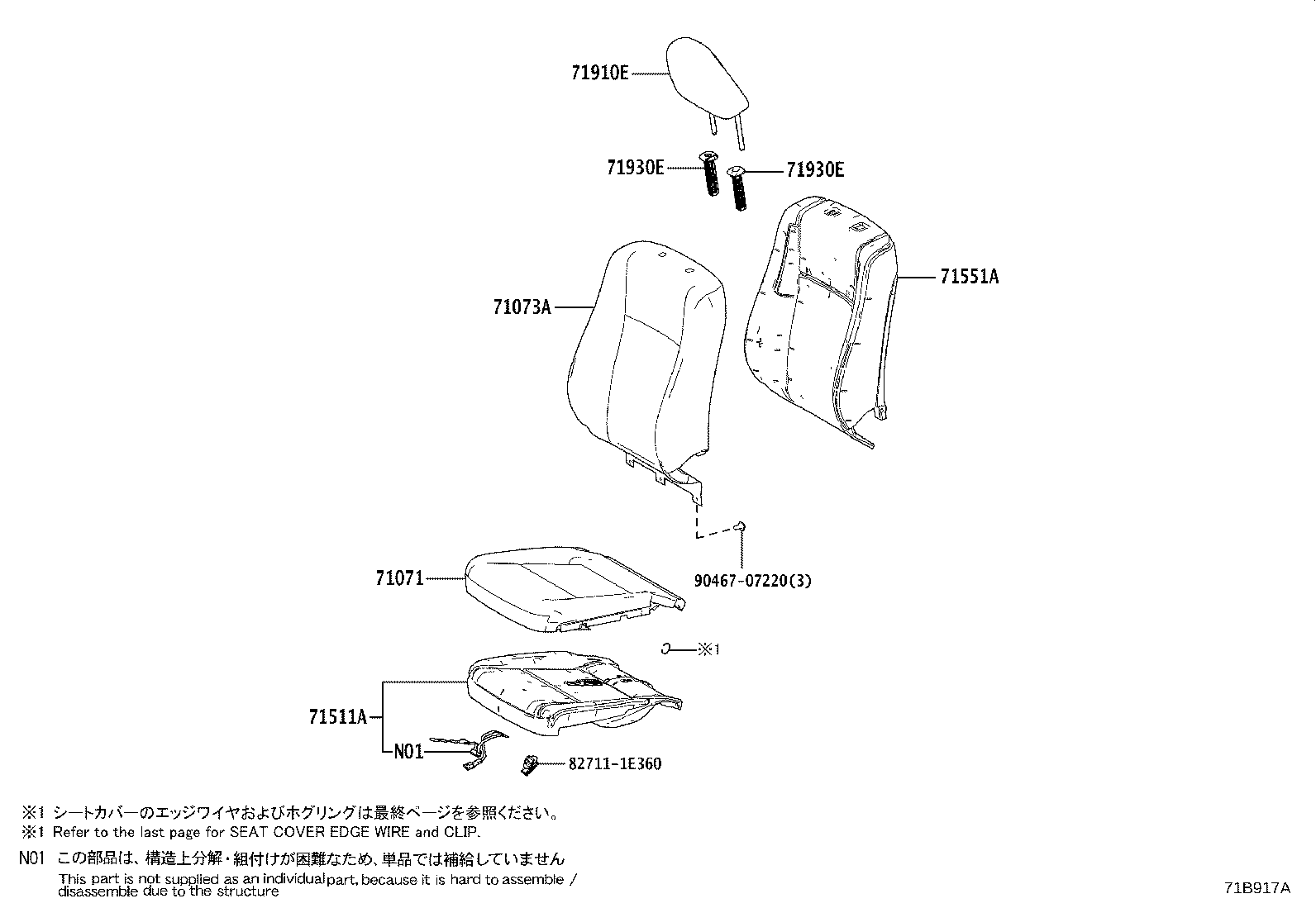

71B917A
71B917A
71B917A
71B917A

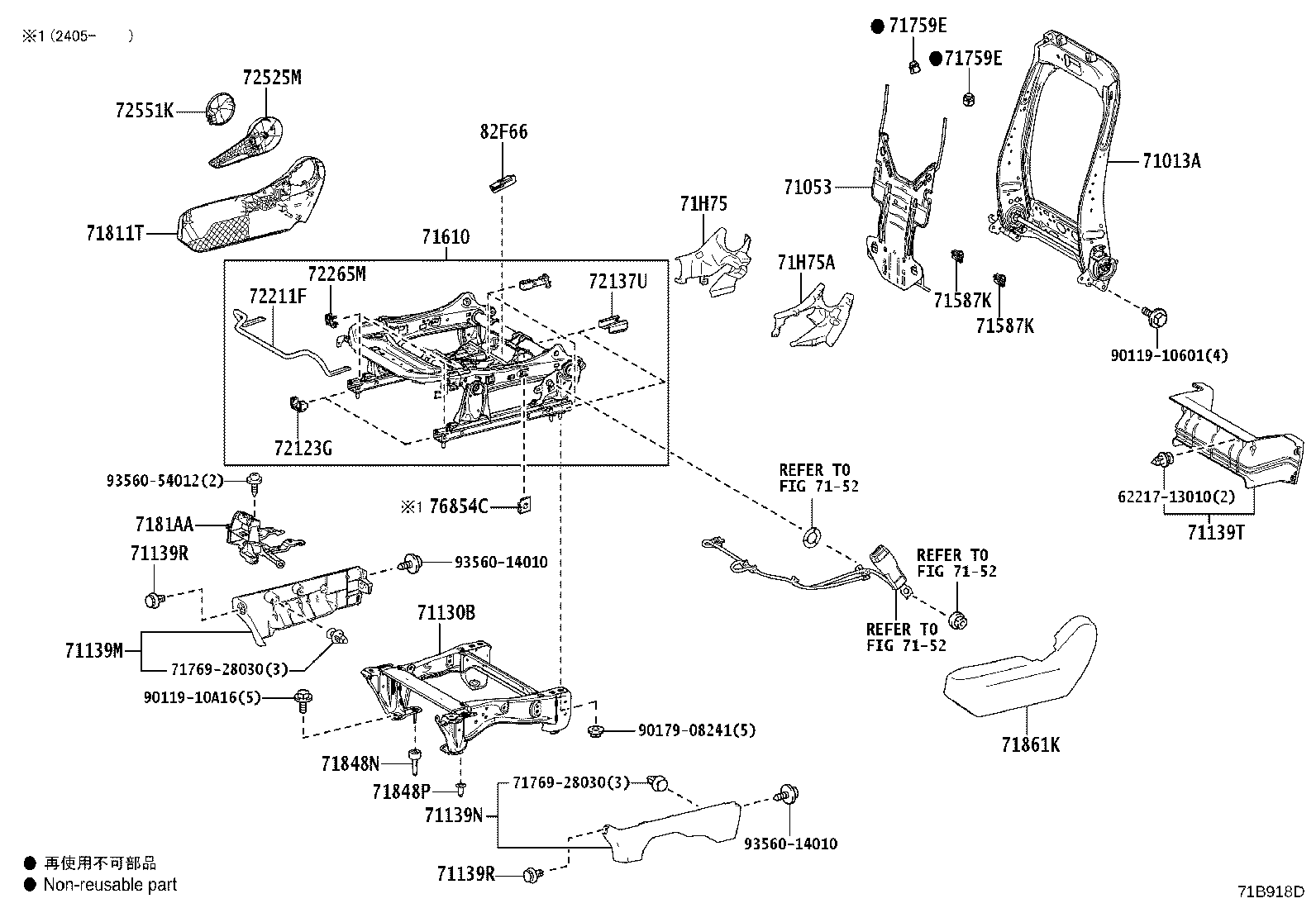

71B918D
71B918D
71B918D
71B918D

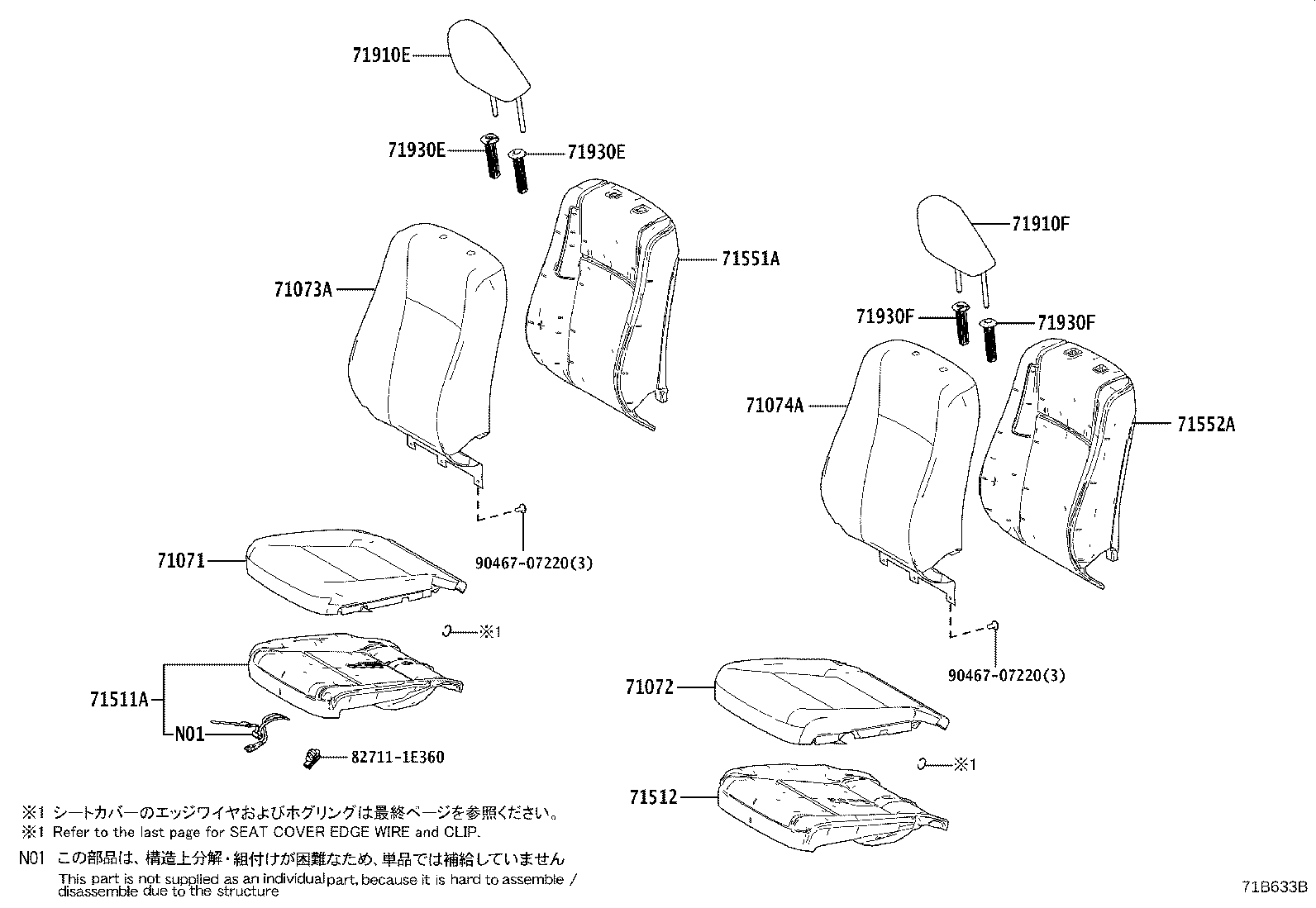

71B633B

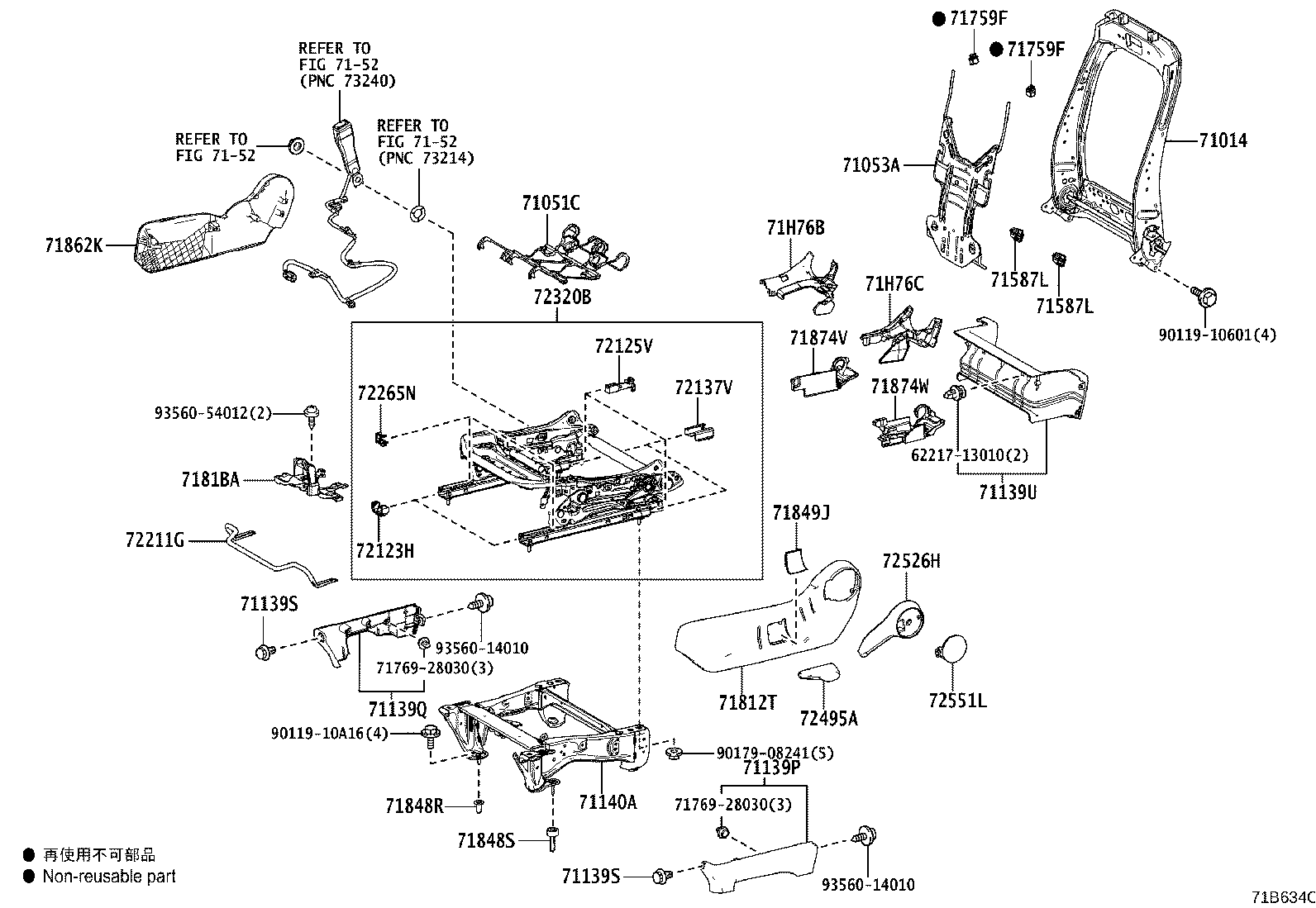

71B634D

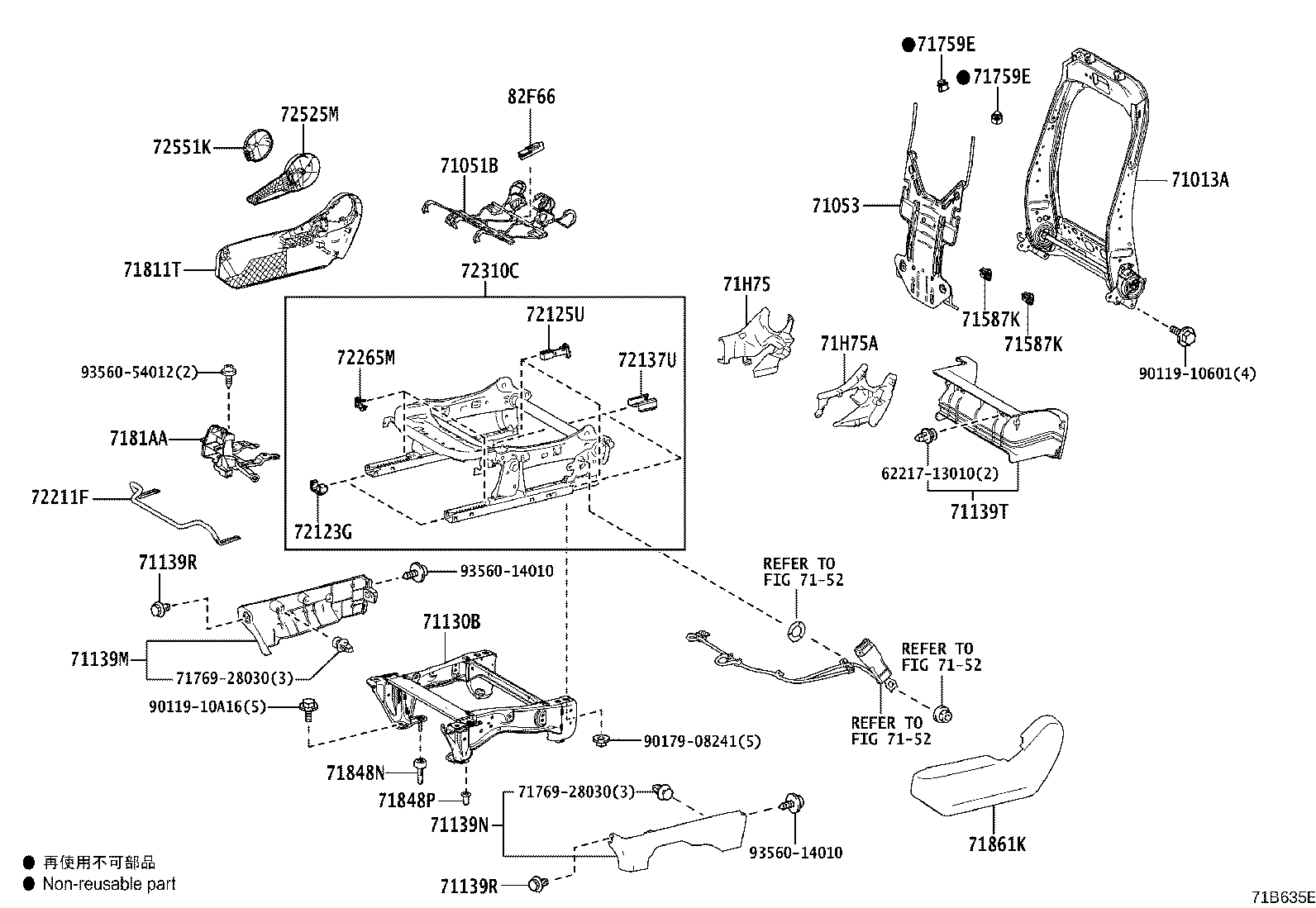

71B635E

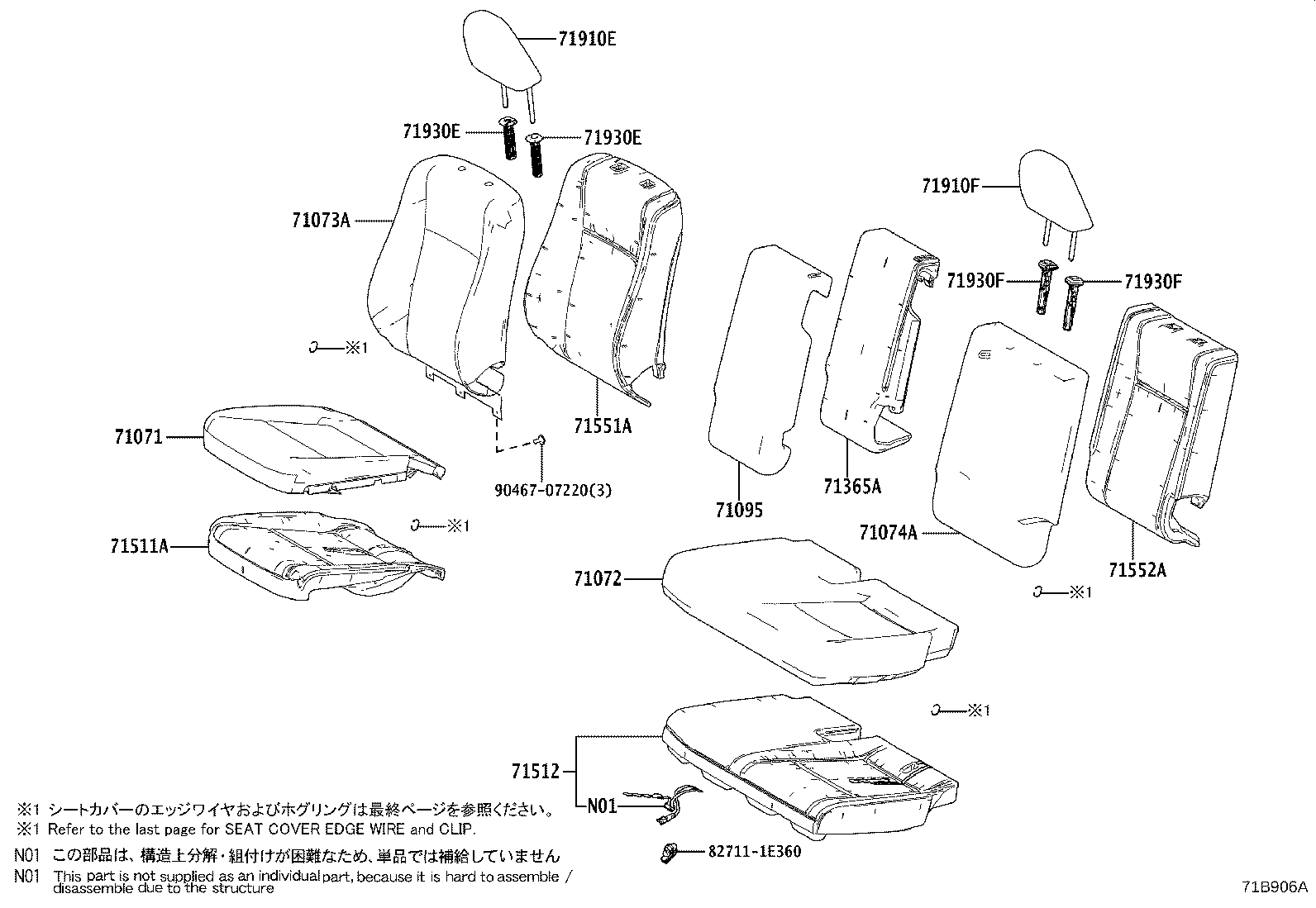

71B906A

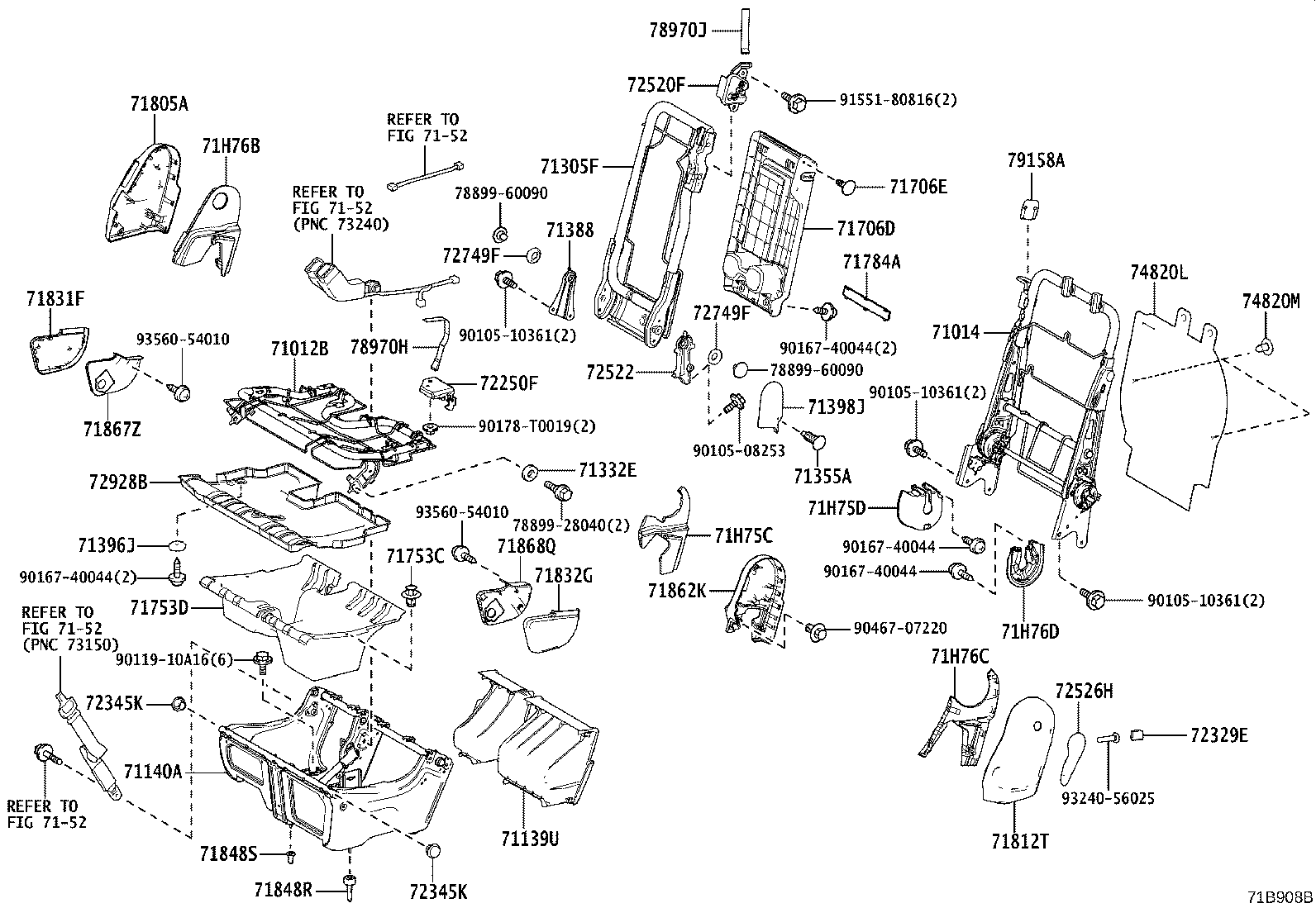

71B908B

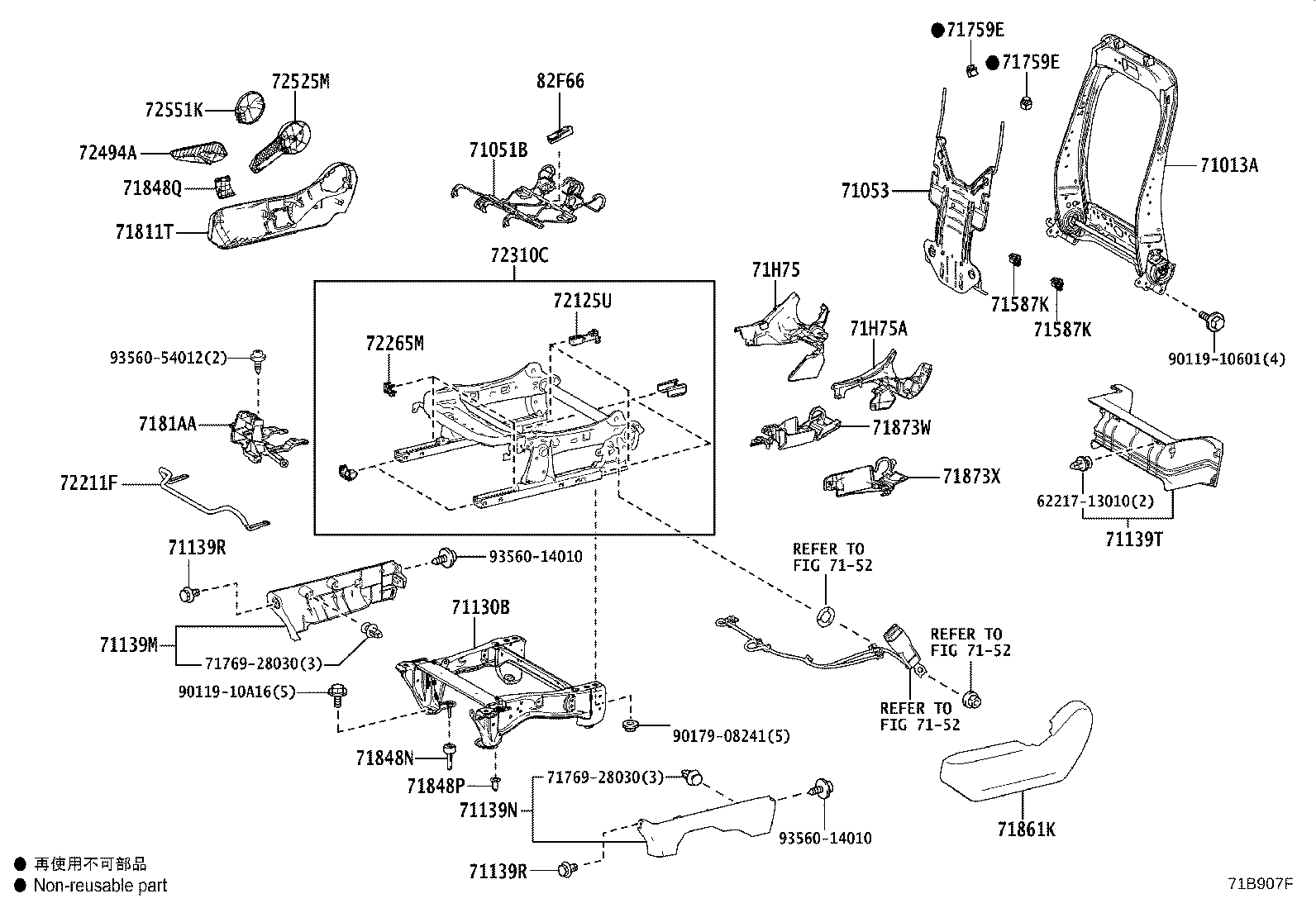

71B907F

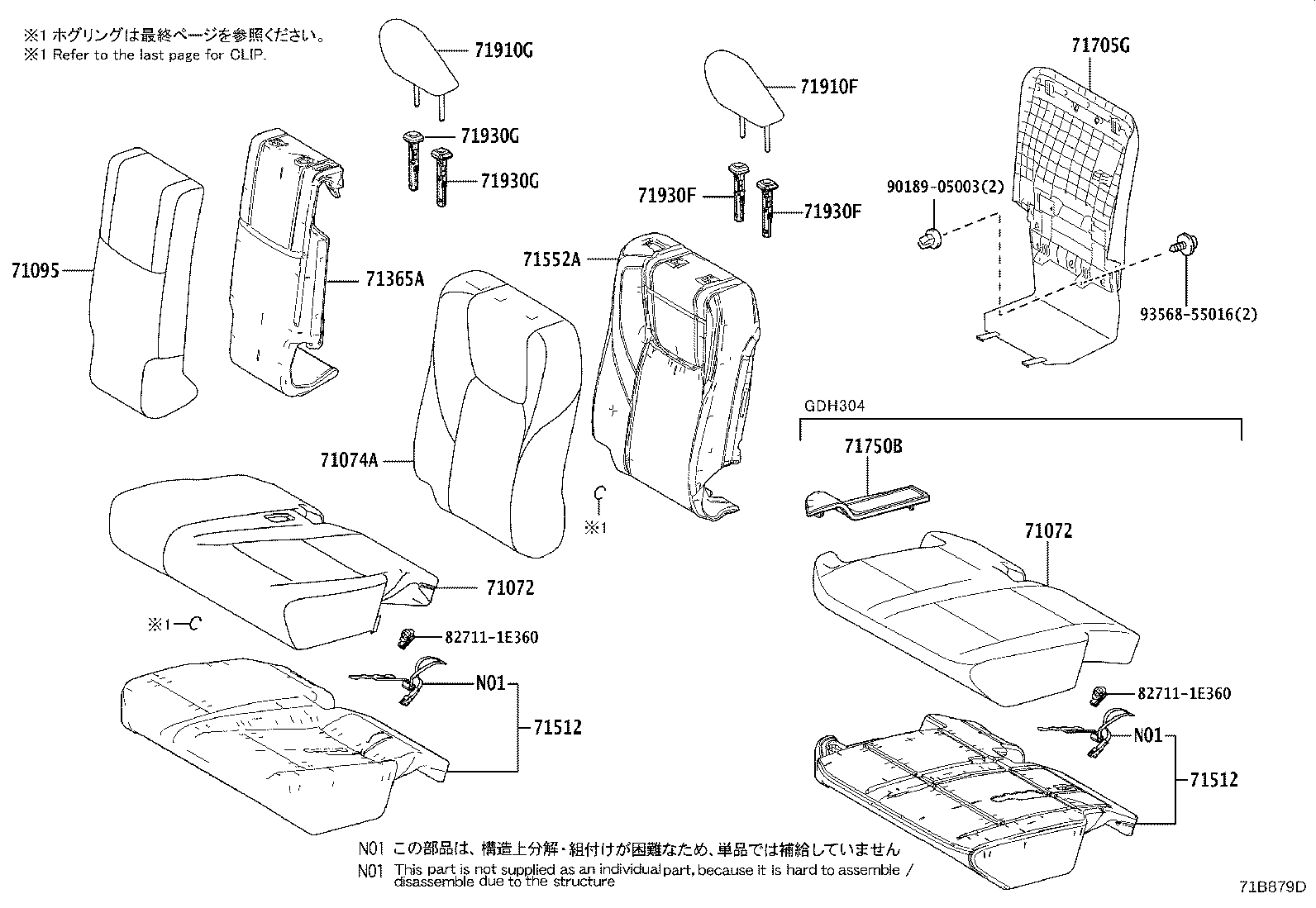

71B879D
71B879D

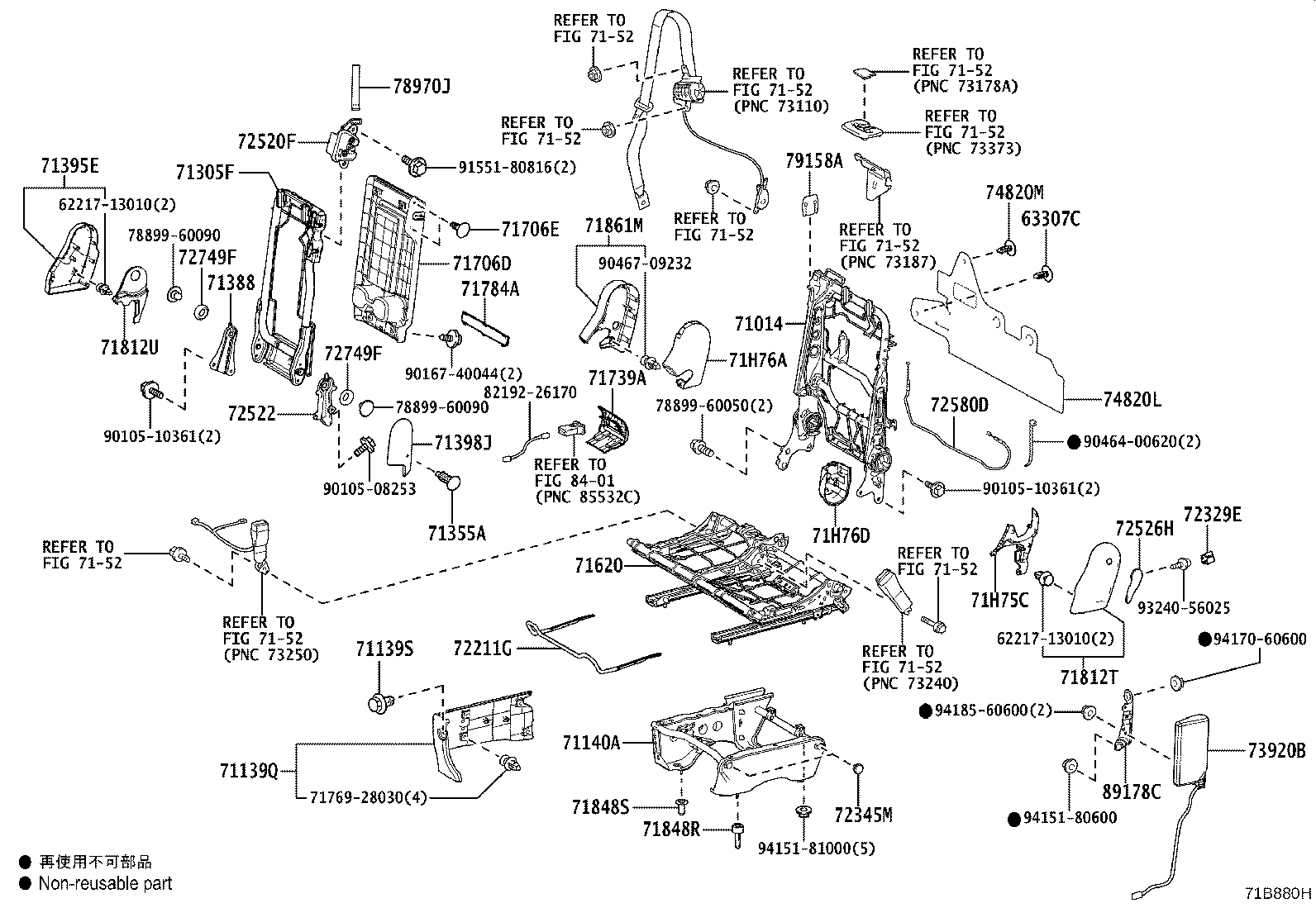

71B880H
71B880H

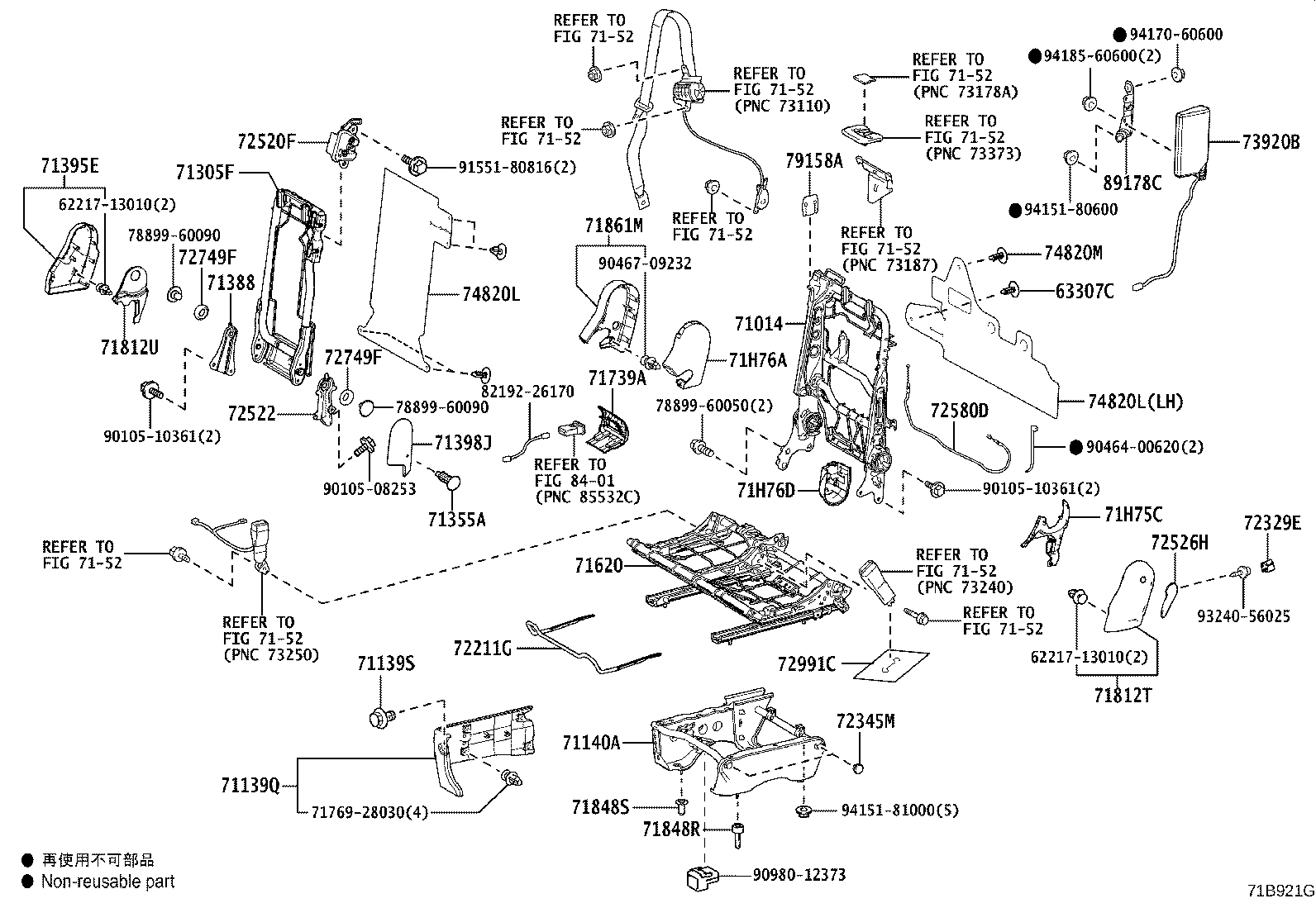

71B921G
71B878B
71B878B

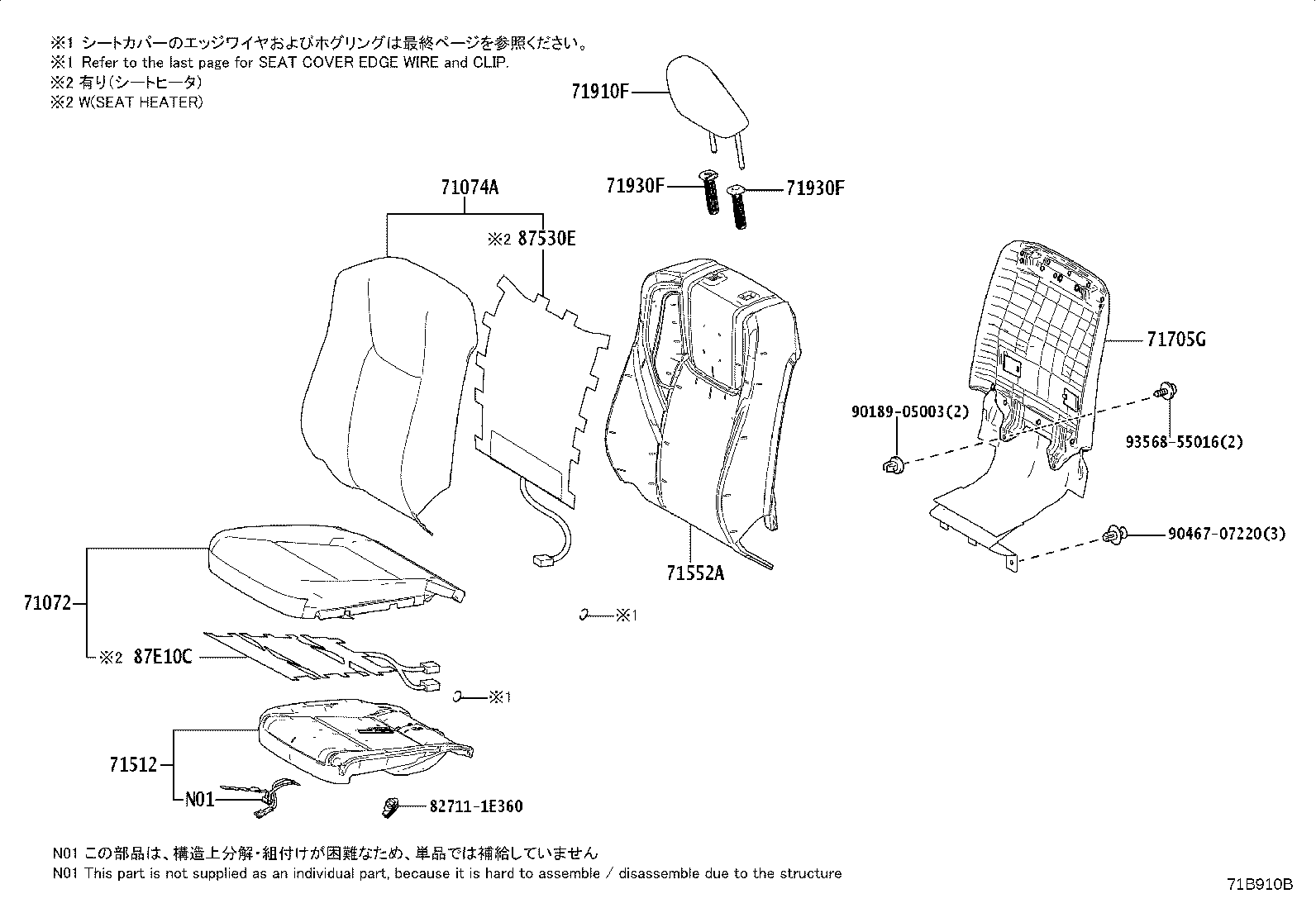

71B910B
71B910B

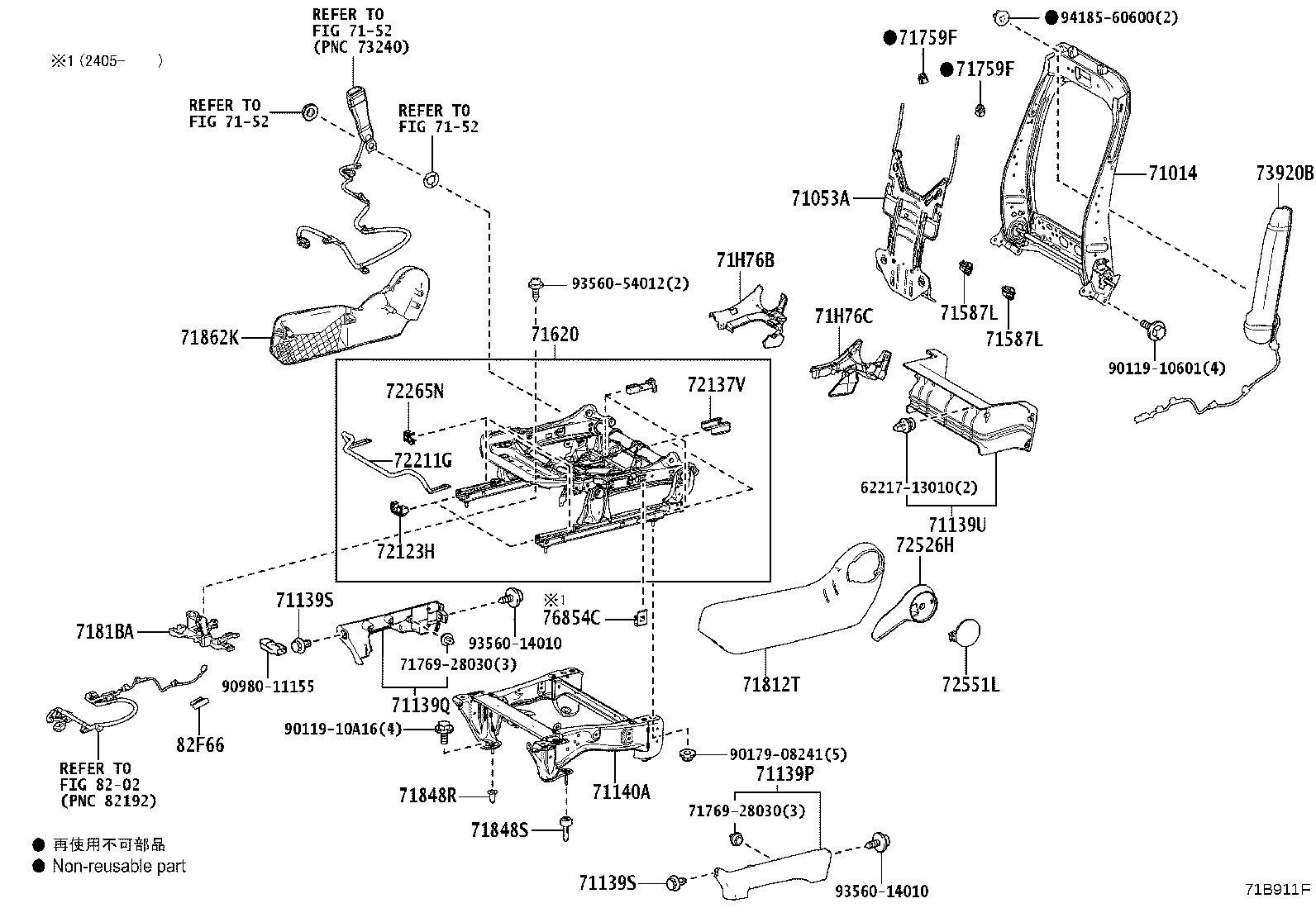

71B911F
71B911F

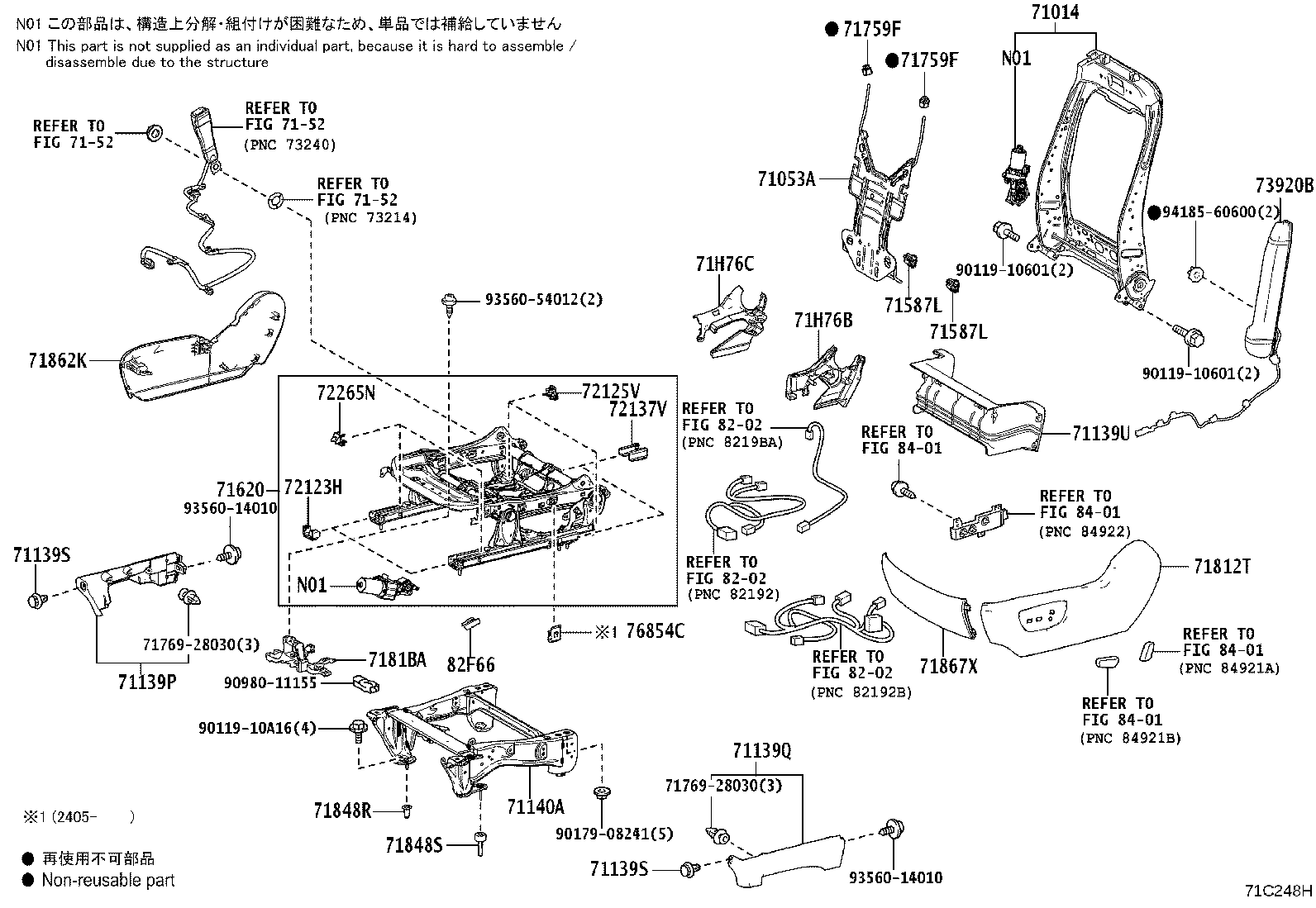

71C248H
71B912B
71B913D
71B913D

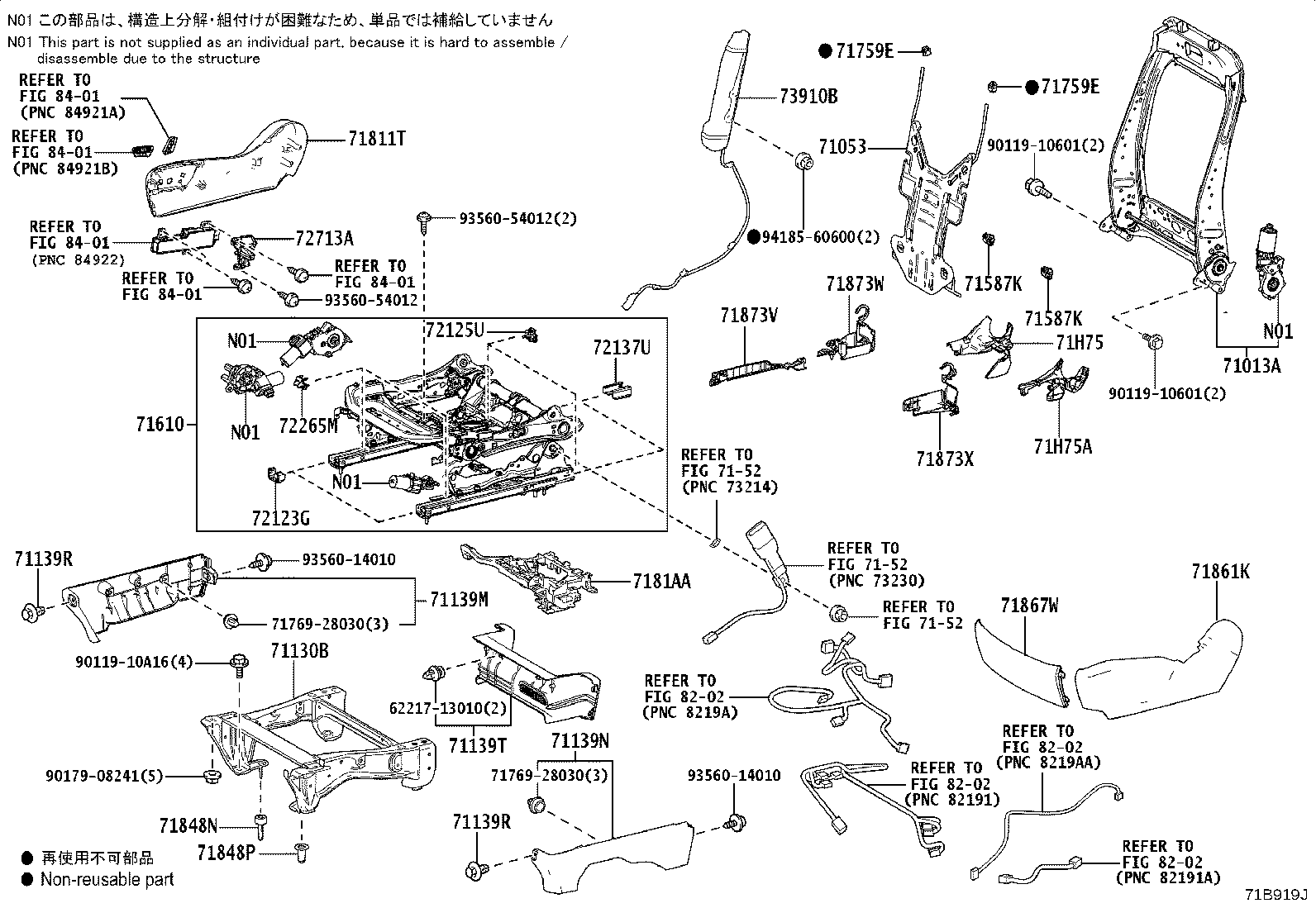

71B919J
71B919J
71F363D
71F362D

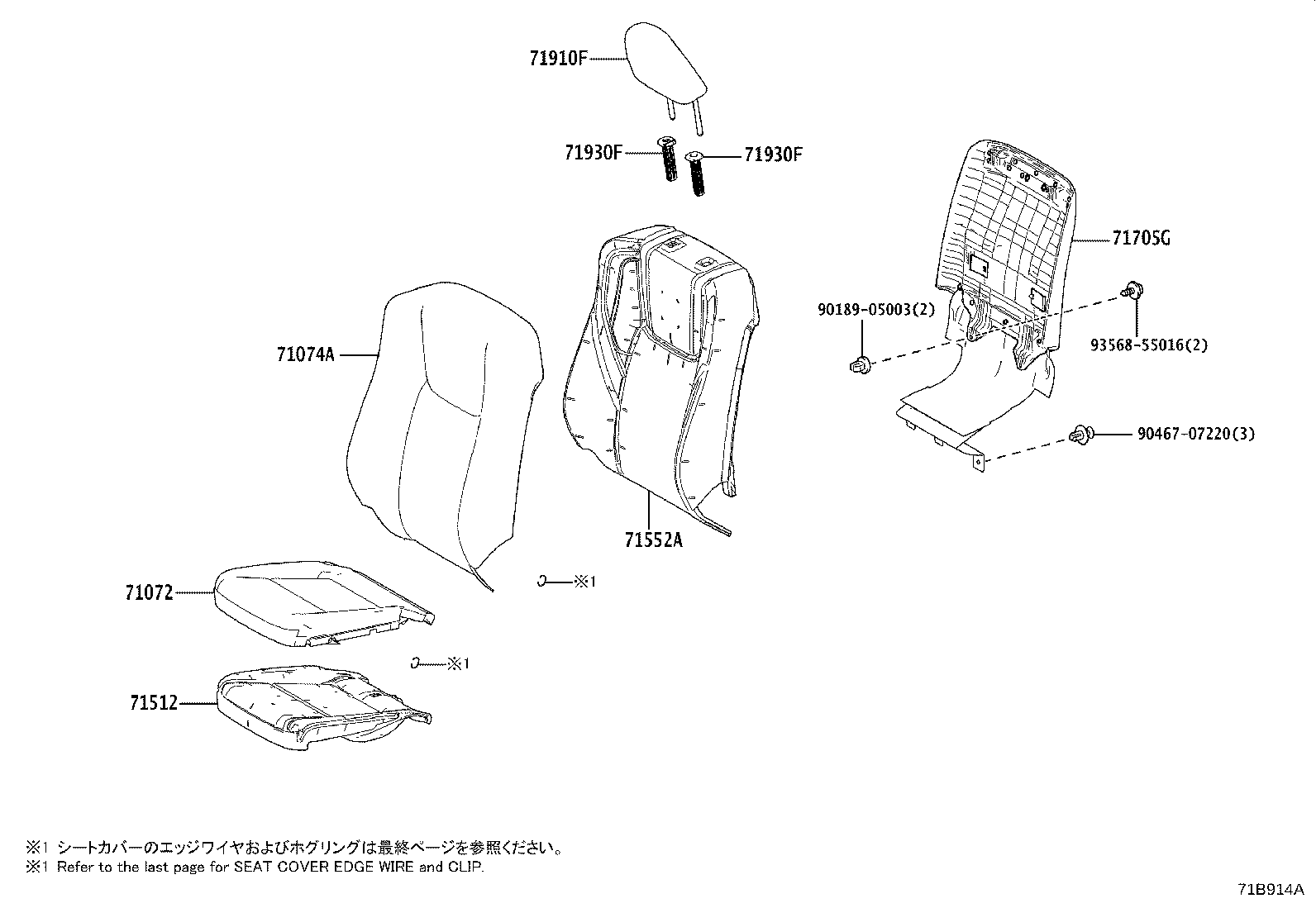

71B914A

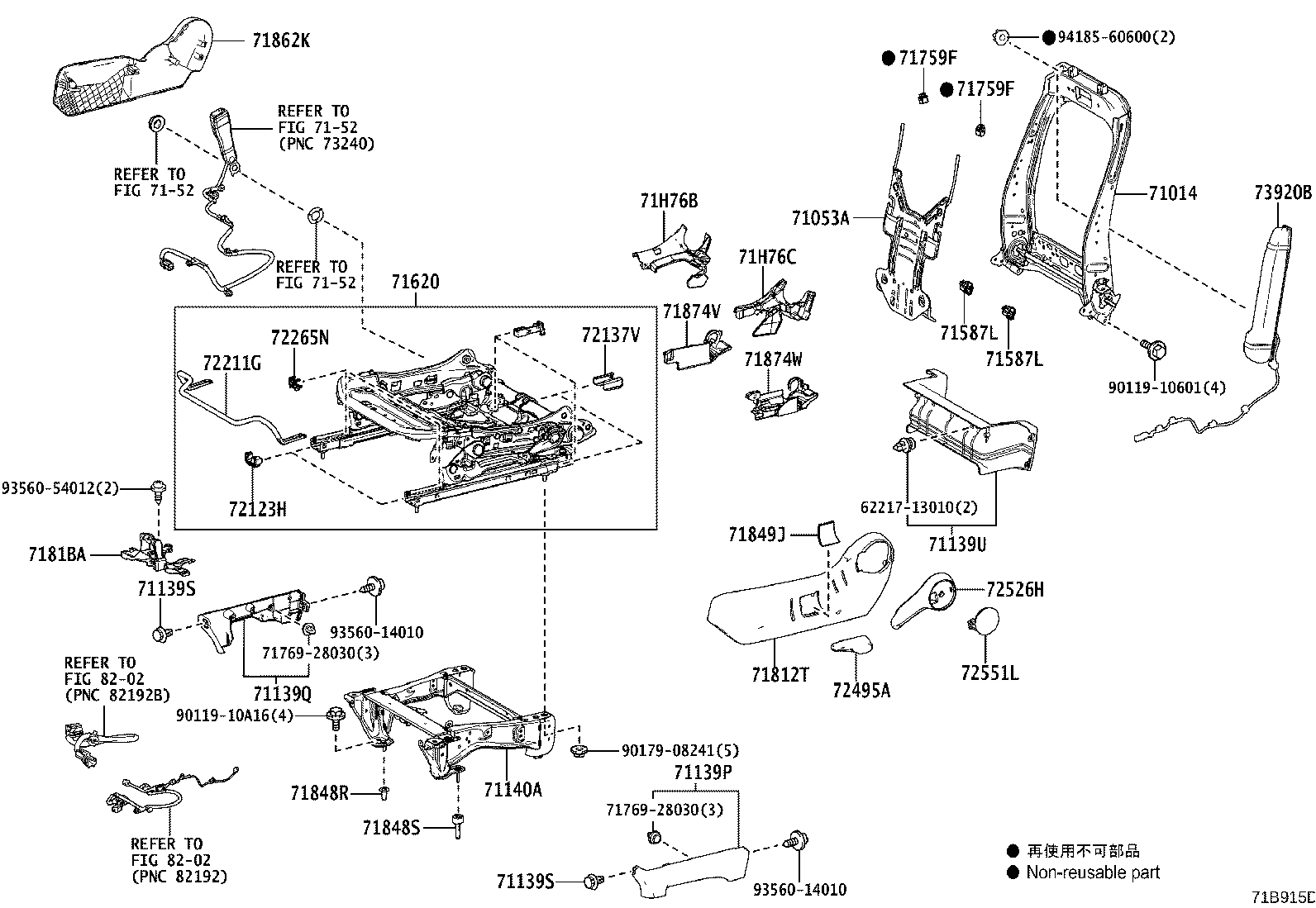

71B915D

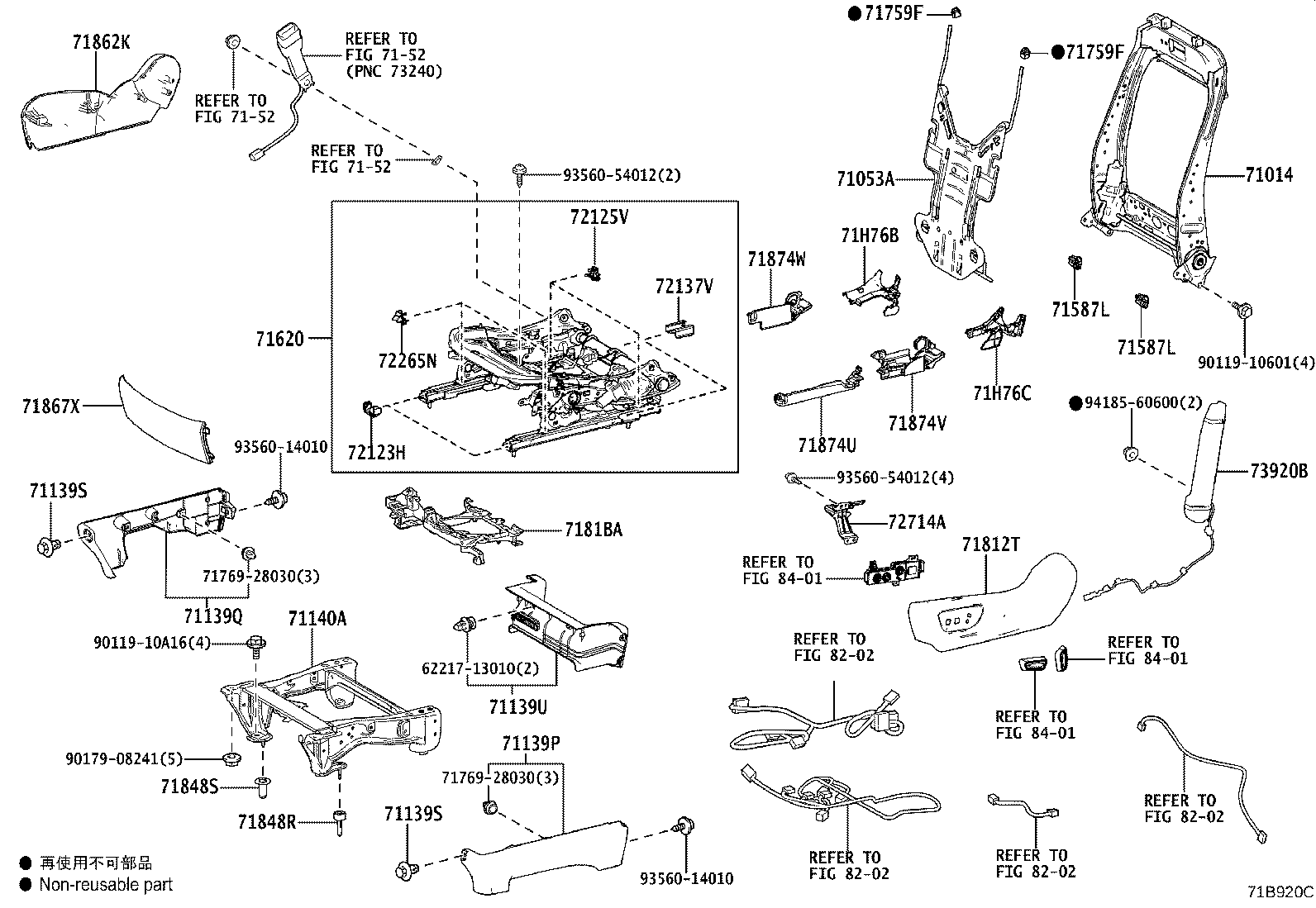

71B920C

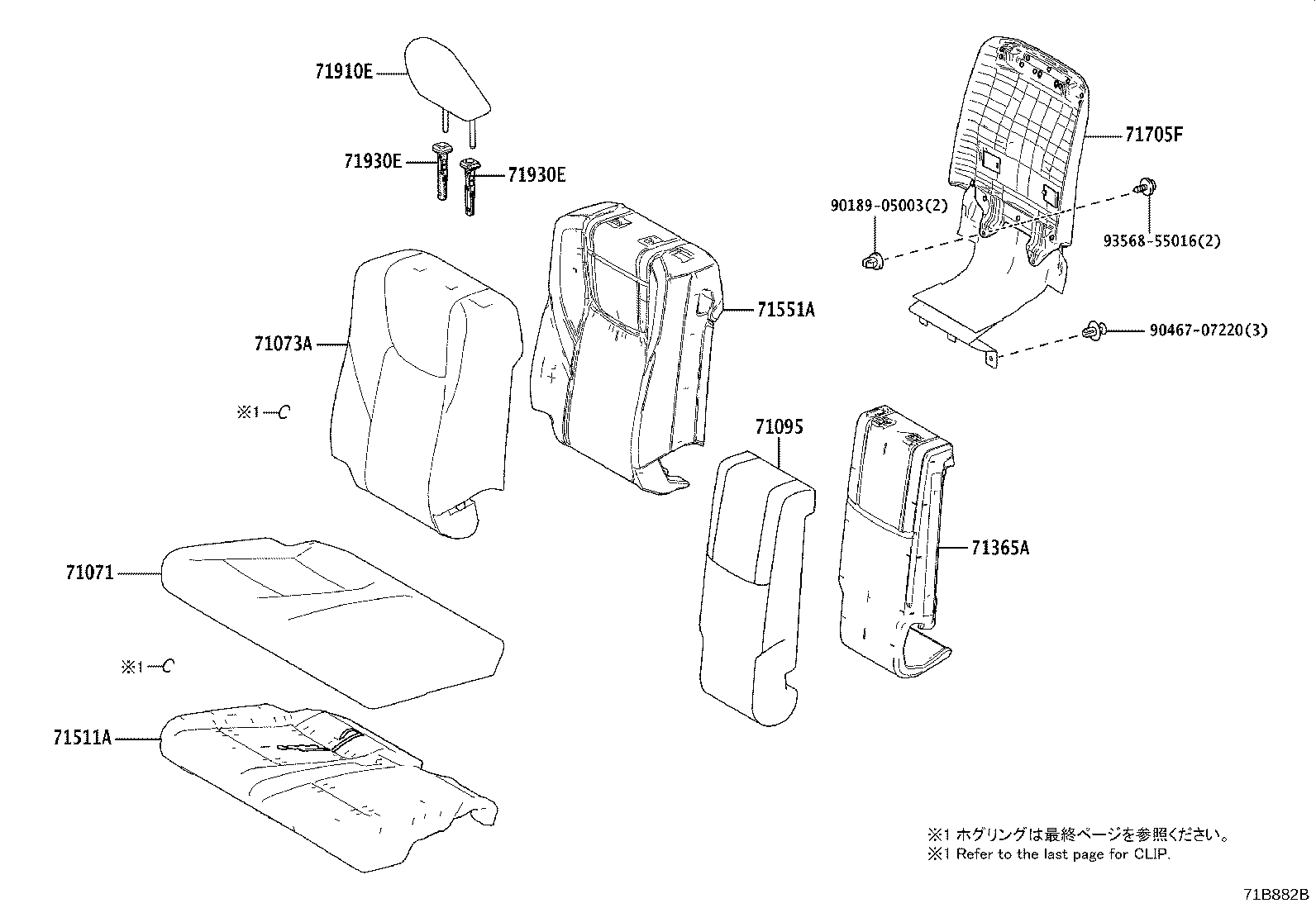

71B882B

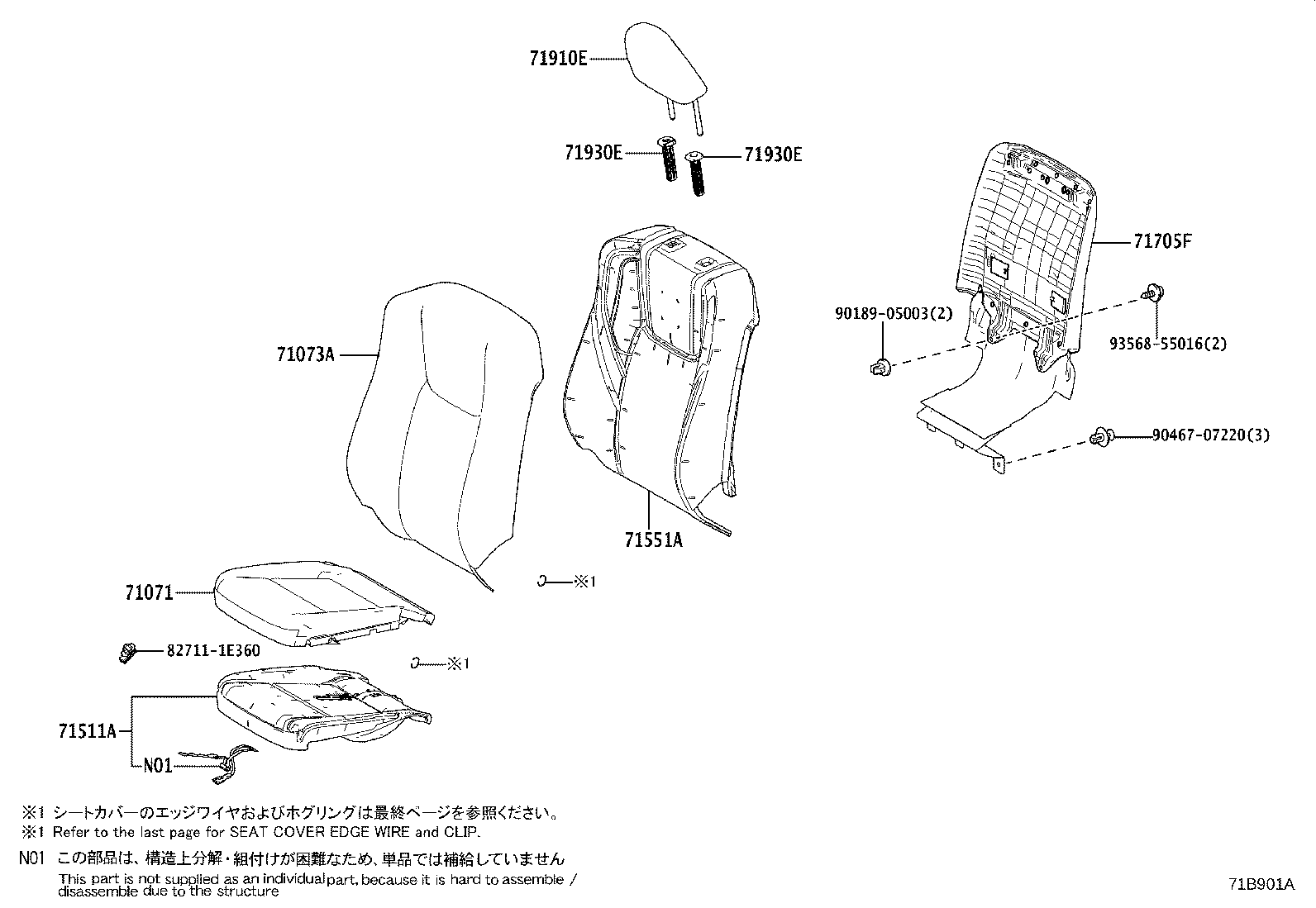

71B901A

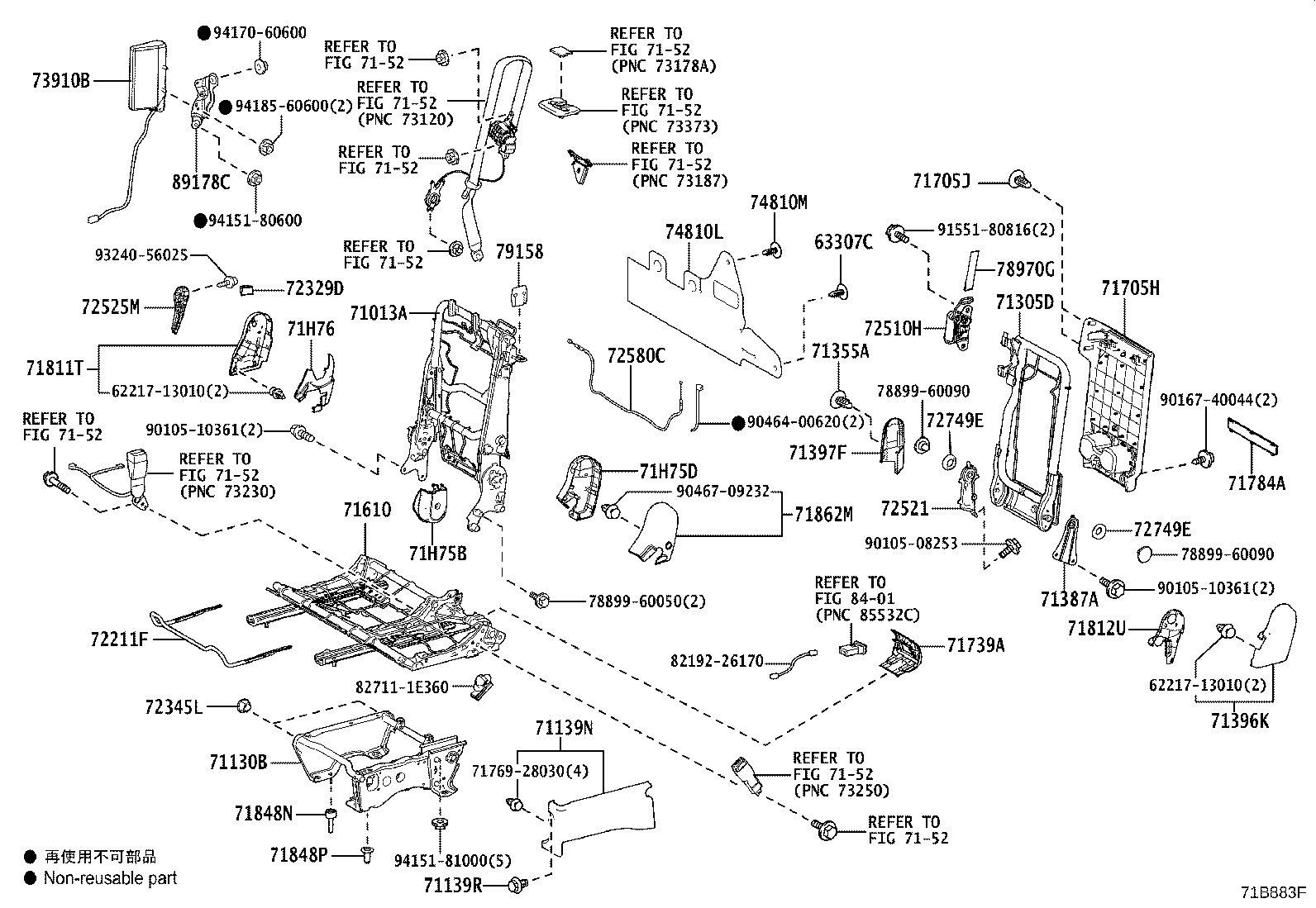

71B883F

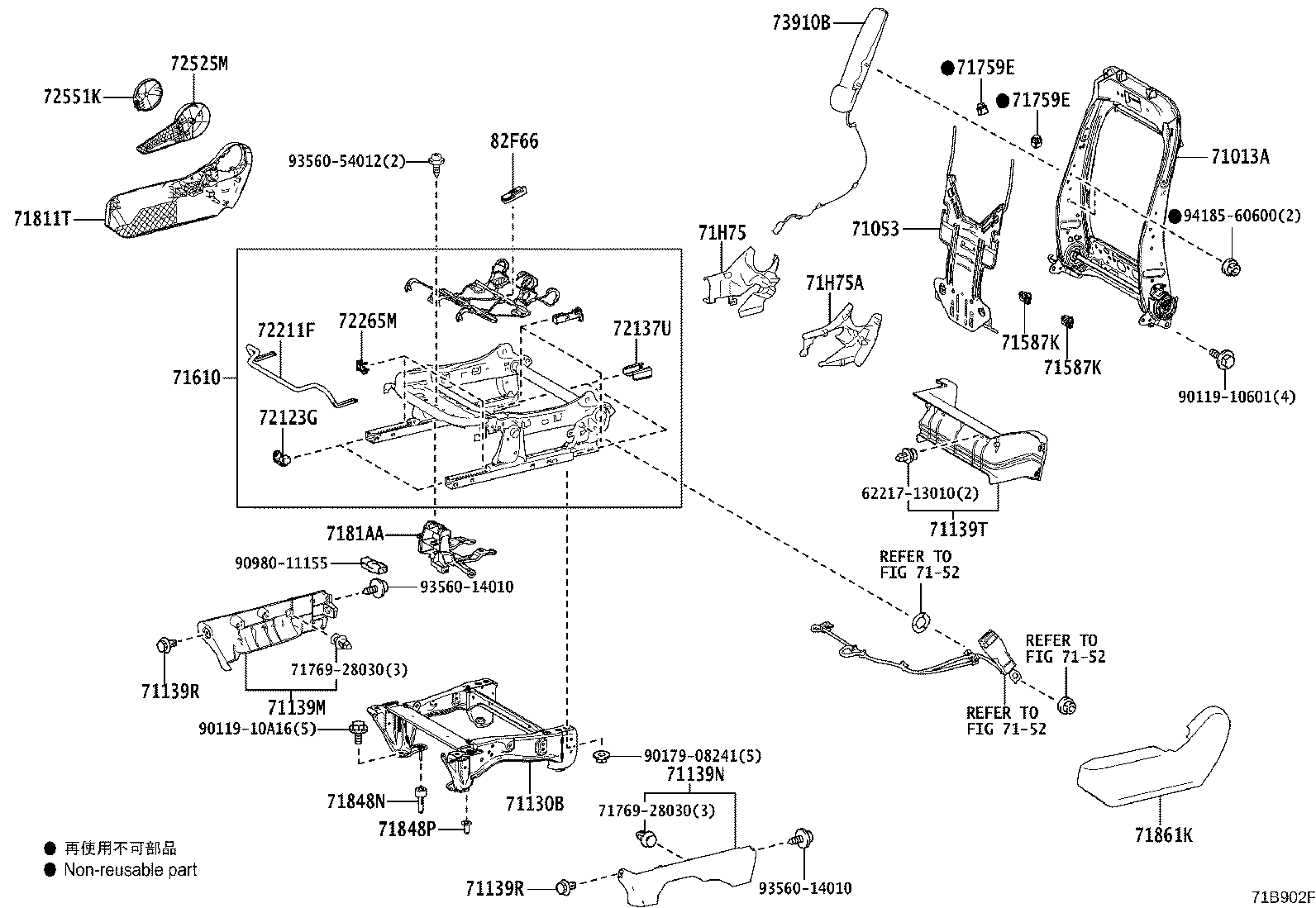

71B902F
71B881A

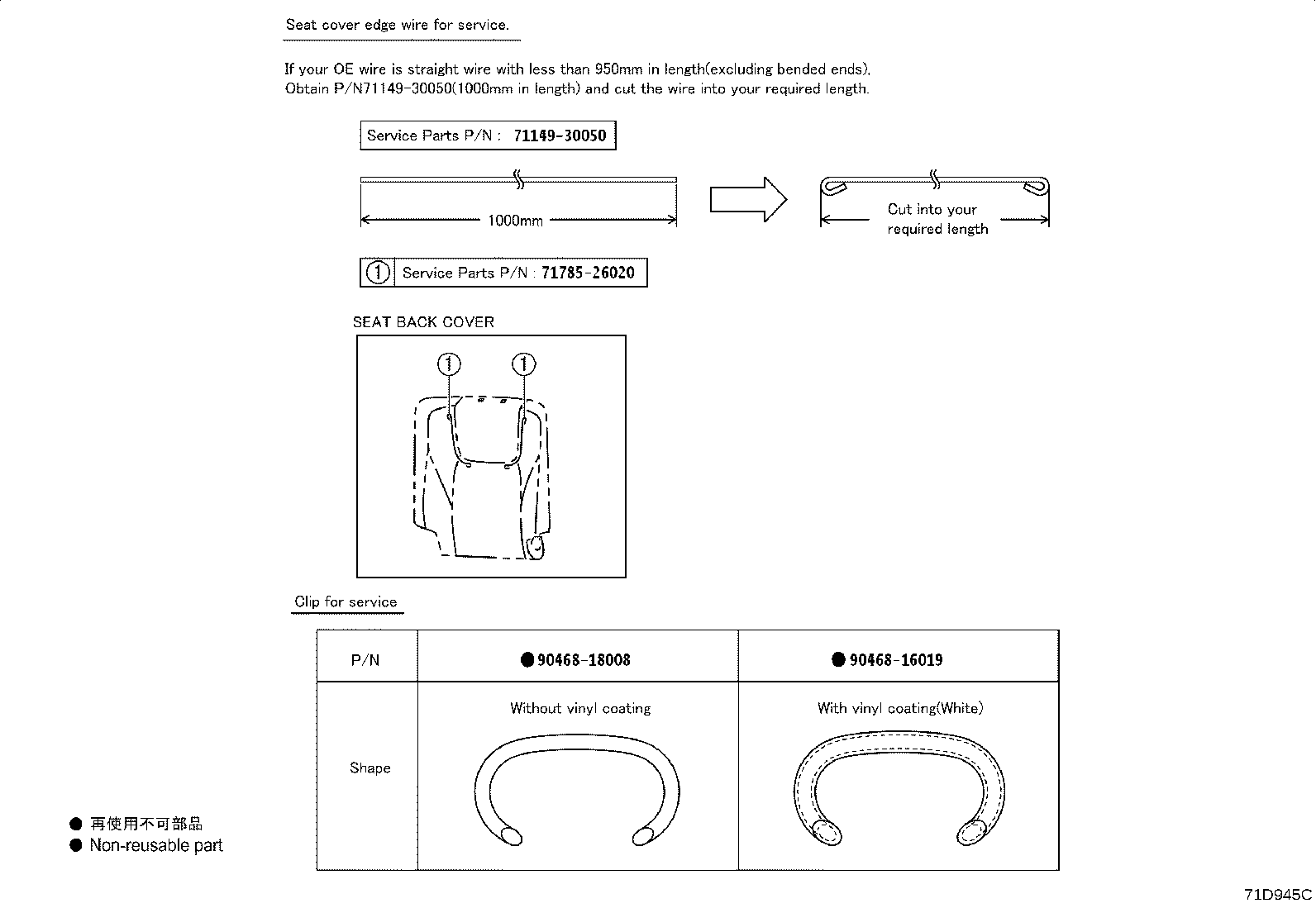

71D945C
Part groups
| PNC | Description |
|---|---|
| 63307C | Clip |
| 71011A | Frame Sub-assy, Front Seat Cushion, RH |
| 71012B | Frame Sub-assy, Front Seat Cushion, LH |
| 71013A | Frame Sub-assy, Front Seatback, RH |
| 71014 | Frame Sub-assy, Front Seatback, LH |
| 71051B | Spring Sub-assy, Front Seat Cushion, RH |
| 71051C | Spring Sub-assy, Front Seat Cushion, LH |
| 71053 | Spring Sub-assy, Front Seatback, RH |
| 71053A | Spring Sub-assy, Front Seatback, LH |
| 71071 | Cover Sub-assy, Front Seat Cushion, RH |
| 71072 | Cover Sub-assy, Front Seat Cushion, LH |
| 71073A | Cover Sub-assy, Front Seatback, RH |
| 71074A | Cover Sub-assy, Front Seatback, LH |
| 71095 | Cover Sub-assy, Center Seatback |
| 71130B | Leg Assy, Front Seat, RH |
| 71139M | Cover, Front Seat Leg, RH Outer |
| 71139N | Cover, Front Seat Leg, RH Inner |
| 71139P | Cover, Front Seat Leg, LH Outer |
| 71139Q | Cover, Front Seat Leg, LH Inner |
| 71139R | Clip, Front Seat Leg Cover, RH |
| 71139S | Clip, Front Seat Leg Cover, LH |
| 71139T | Cover, Front Seat Leg, Rear RH |
| 71139U | Cover, Front Seat Leg, Rear LH |
| 71140A | Leg Assy, Front Seat, LH |
| 71149Z | Cover, Front Seat Leg, Inner(FOR BENCH TYPE) |
| 71305D | Frame Sub-assy, Center Seatback, RH |
| 71305F | Frame Sub-assy, Center Seatback, LH |
| 71332E | Spacer, Front Seatback Hinge |
| 71355A | Clip |
| 71365A | Pad, Center Seatback |
| 71387A | Arm, Center Seat Hinge, Lower RH |
| 71388 | Arm, Center Seat Hinge, Lower LH |
| 71395E | Cover, Center Seat Hinge, RH |
| 71396H | Cushion, Front Seat Support, Rear RH |
| 71396J | Cushion, Front Seat Support, Rear LH |
| 71396K | Cover, Center Seat Hinge, LH |
| 71397F | Cover, Center Seat Hinge, Upper RH |
| 71398J | Cover, Center Seat Hinge, Upper LH |
| 71511A | Pad, Front Seat Cushion, RH |
| 71512 | Pad, Front Seat Cushion, LH |
| 71551A | Pad, Front Seatback, RH |
| 71552A | Pad, Front Seatback, LH |
| 71587K | Protector, Front Seatback Edge, RH |
| 71587L | Protector, Front Seatback Edge, LH |
| 71610 | Spring Assy, Front Seat Cushion, RH |
| 71620 | Spring Assy, Front Seat Cushion, LH |
| 71705F | Board Sub-assy, Front Seatback, RH |
| 71705G | Board Sub-assy, Front Seatback, LH |
| 71705H | Board Sub-assy, Front Center Seatback, RH |
| 71705J | Clip, Front Center Seatback Board, RH |
| 71706D | Board Sub-assy, Front Center Seatback, LH |
| 71706E | Clip, Front Center Seatback Board, LH |
| 71739A | Bezel, Front Seatback |
| 71750B | Tray Assy, Front Seat Under |
| 71753C | Clip, Front Seat Under Tray |
| 71753D | Tray, Front Seat Under |
| 71759E | Hook, Front Seatback, RH |
| 71759F | Hook, Front Seatback, LH |
| 71784A | Cap, Front Seatback Board |
| 71805A | Shield Sub-assy, Front Seat Cushion, RH |
| 71811T | Shield, Front Seat Cushion, RH |
| 71811U | Shield, Front Seat Cushion, RH(FOR BENCH TYPE) |
| 71812T | Shield, Front Seat Cushion, LH |
| 71812U | Shield, Front Seat Cushion, LH(FOR BENCH TYPE) |
| 7181AA | Holder, Front Seat Cushion Wire Harness, RH |
| 7181BA | Holder, Front Seat Cushion Wire Harness, LH |
| 71831C | Cover, Front Seat Hinge, RH(FOR RH SEAT) |
| 71831F | Cover, Front Seat Hinge, RH(FOR LH SEAT) |
| 71832F | Cover, Front Seat Hinge, LH(FOR RH SEAT) |
| 71832G | Cover, Front Seat Hinge, LH(FOR LH SEAT) |
| 71848N | Cap, Front Seat Adjuster Cover, RH NO.1 |
| 71848P | Cap, Front Seat Adjuster Cover, RH NO.2 |
| 71848Q | Cap, Front Seat Adjuster Cover, RH NO.3 |
| 71848R | Cap, Front Seat Adjuster Cover, LH NO.1 |
| 71848S | Cap, Front Seat Adjuster Cover, LH NO.2 |
| 71849J | Cap, Front Seat Adjuster Cover, LH NO.3 |
| 71861K | Shield, Front Seat Cushion, Inner RH |
| 71861M | Shield, Front Seat Cushion, Inner RH NO.2 |
| 71862K | Shield, Front Seat Cushion, Inner LH |
| 71862M | Shield, Front Seat Cushion, Inner LH NO.2 |
| 71867W | Shield, Front Seat Cushion, Front RH |
| 71867X | Shield, Front Seat Cushion, Front LH |
| 71867Y | Shield, Front Seat Cushion, Inner NO.1 RH(FOR RH SEAT) |
| 71867Z | Shield, Front Seat Cushion, Inner NO.1 RH(FOR LH SEAT) |
| 71868P | Shield, Front Seat Cushion, Inner NO.1 LH(FOR RH SEAT) |
| 71868Q | Shield, Front Seat Cushion, Inner NO.1 LH(FOR LH SEAT) |
| 71873V | Shield, Front Seat Cushion, Lower RH |
| 71873W | Shield, Front Seat Cushion, Lower RH, Outer |
| 71873X | Shield, Front Seat Cushion, Lower RH, Inner |
| 71874U | Shield, Front Seat Cushion, Lower LH |
| 71874V | Shield, Front Seat Cushion, Lower LH, Outer |
| 71874W | Shield, Front Seat Cushion, Lower LH, Inner |
| 71910E | Headrest Assy, Front Seat, RH |
| 71910F | Headrest Assy, Front Seat, LH |
| 71910G | Headrest Assy, Front Seat, Center |
| 71930E | Support Assy, Front Seat Headrest, RH |
| 71930F | Support Assy, Front Seat Headrest, LH |
| 71930G | Support Assy, Front Seat Headrest, Center |
| 71H75 | Cover, Reclining Adjuster Inside, RH Outer(FOR RH SEAT) |
| 71H75A | Cover, Reclining Adjuster Inside, RH Inner(FOR RH SEAT) |
| 71H75B | Cover, Reclining Adjuster Inside, RH(FOR RH SEATBACK FRAME) |
| 71H75C | Cover, Reclining Adjuster Inside, RH(FOR LH SEAT) |
| 71H75D | Cover, Reclining Adjuster Inside, RH(FOR LH SEATBACK FRAME) |
| 71H76 | Cover, Reclining Adjuster Inside, LH(FOR RH SEAT) |
| 71H76A | Cover, Reclining Adjuster Inside, LH(FOR RH SEATBACK FRAME) |
| 71H76B | Cover, Reclining Adjuster Inside, LH Inner(FOR LH SEAT) |
| 71H76C | Cover, Reclining Adjuster Inside, LH Outer(FOR LH SEAT) |
| 71H76D | Cover, Reclining Adjuster Inside, LH(FOR LH SEATBACK FRAME) |
| 72123G | Plate, Inner Seat Track Lock, RH |
| 72123H | Plate, Inner Seat Track Lock, LH |
| 72125U | Cover, Seat Track, Upper Rear RH |
| 72125V | Cover, Seat Track, Upper Rear LH |
| 72137U | Cover, Front Seat Track, RH |
| 72137V | Cover, Front Seat Track, LH |
| 72211F | Handle, Seat Track Adjusting, RH |
| 72211G | Handle, Seat Track Adjusting, LH |
| 72250E | Lock Assy, Front Seat Cushion, RH |
| 72250F | Lock Assy, Front Seat Cushion, LH |
| 72265M | Cover, Seat Track Upper Rail, RH |
| 72265N | Cover, Seat Track Upper Rail, LH |
| 72310C | Adjuster Assy, Front Seat Vertical, RH |
| 72320B | Adjuster Assy, Front Seat Vertical, LH |
| 72329D | Cover, Seat Adjuster Bolt, RH |
| 72329E | Cover, Seat Adjuster Bolt, LH |
| 72345J | Cap, Seat Stand Frame, RH |
| 72345K | Cap, Seat Stand Frame, LH |
| 72345L | Pipe, Reclining Connecting, RH |
| 72345M | Pipe, Reclining Connecting, LH |
| 72494A | Handle, Front Seat Vertical Adjuster, RH |
| 72495A | Handle, Front Seat Vertical Adjuster, LH |
| 72510H | Lock Assy, Front Seatback, RH |
| 72520F | Lock Assy, Front Seatback, LH |
| 72521 | Arm, Reclining Adjuster, Lower RH |
| 72522 | Arm, Reclining Adjuster, Lower LH |
| 72525M | Handle, Reclining Adjuster Release, RH |
| 72526H | Handle, Reclining Adjuster Release, LH |
| 72551K | Cover, Reclining Hinge, RH |
| 72551L | Cover, Reclining Hinge, LH |
| 72580C | Cable Assy, Reclining Adjusting(FOR RH SEAT) |
| 72580D | Cable Assy, Reclining Adjusting(FOR LH SEAT) |
| 72713A | Bracket, Seat Adjuster Shield Clamp, RH |
| 72714A | Bracket, Seat Adjuster Shield Clamp, LH |
| 72749E | Spacer, Front Seat Reclining, RH |
| 72749F | Spacer, Front Seat Reclining, LH |
| 72750G | Adjuster Assy, Lumbar Support, RH |
| 72927E | Cover, Front Seat Cushion Under, RH |
| 72928B | Cover, Front Seat Cushion Under, LH |
| 72991C | Cover, Front Seat |
| 73910B | Airbag Assy, Front Seat, RH |
| 73920B | Airbag Assy, Front Seat, LH |
| 74810L | Protector Assy, Front RH |
| 74810M | Clip, Front Seatback Protector, RH |
| 74820L | Protector Assy, Front LH |
| 74820M | Clip, Front Seatback Protector, LH |
| 76854C | Retainer, Front Seat Cushion Cover |
| 78970F | Band Assy, Front Seat Cushion Lock, RH |
| 78970G | Band Assy, Front Seatback Lock, RH |
| 78970H | Band Assy, Front Seat Cushion Lock, LH |
| 78970J | Band Assy, Front Seatback Lock, LH |
| 79158 | Plate, Seatback Cover, RH |
| 79158A | Plate, Seatback Cover, LH |
| 79977N | Felt, Seatback |
| 82F66 | Holder, Connector |
| 87530E | Heater Assy, Front Seatback, LH |
| 87E10C | Heater Assy, Front Seat Cushion, LH |
| 89178C | Bracket, Airbag, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
