Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States
Supported model
Data version 2024-09
Rear Seat & Seat Track
624 part groups · 220 illustrations
Illustrations
71B670

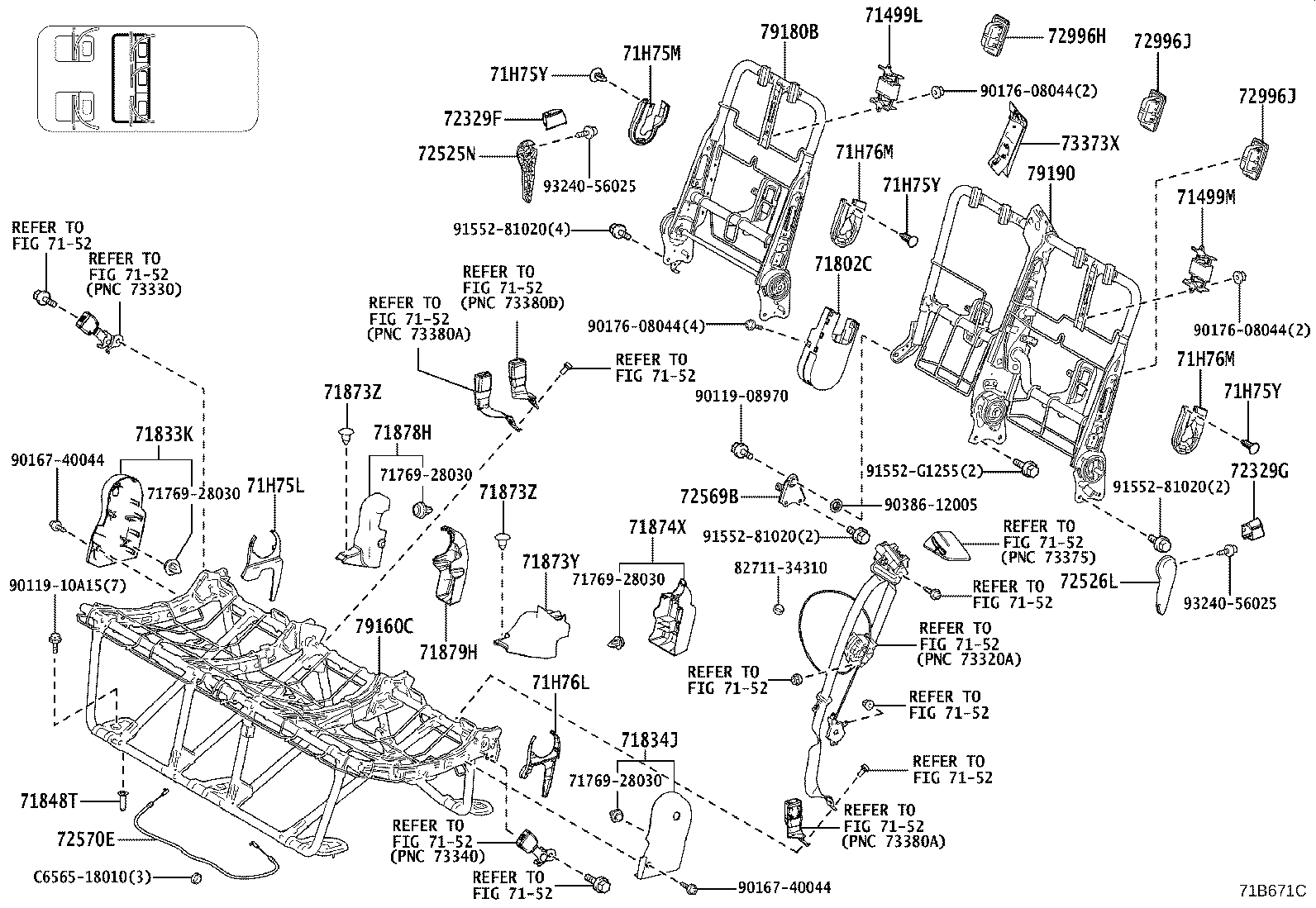

71B671C

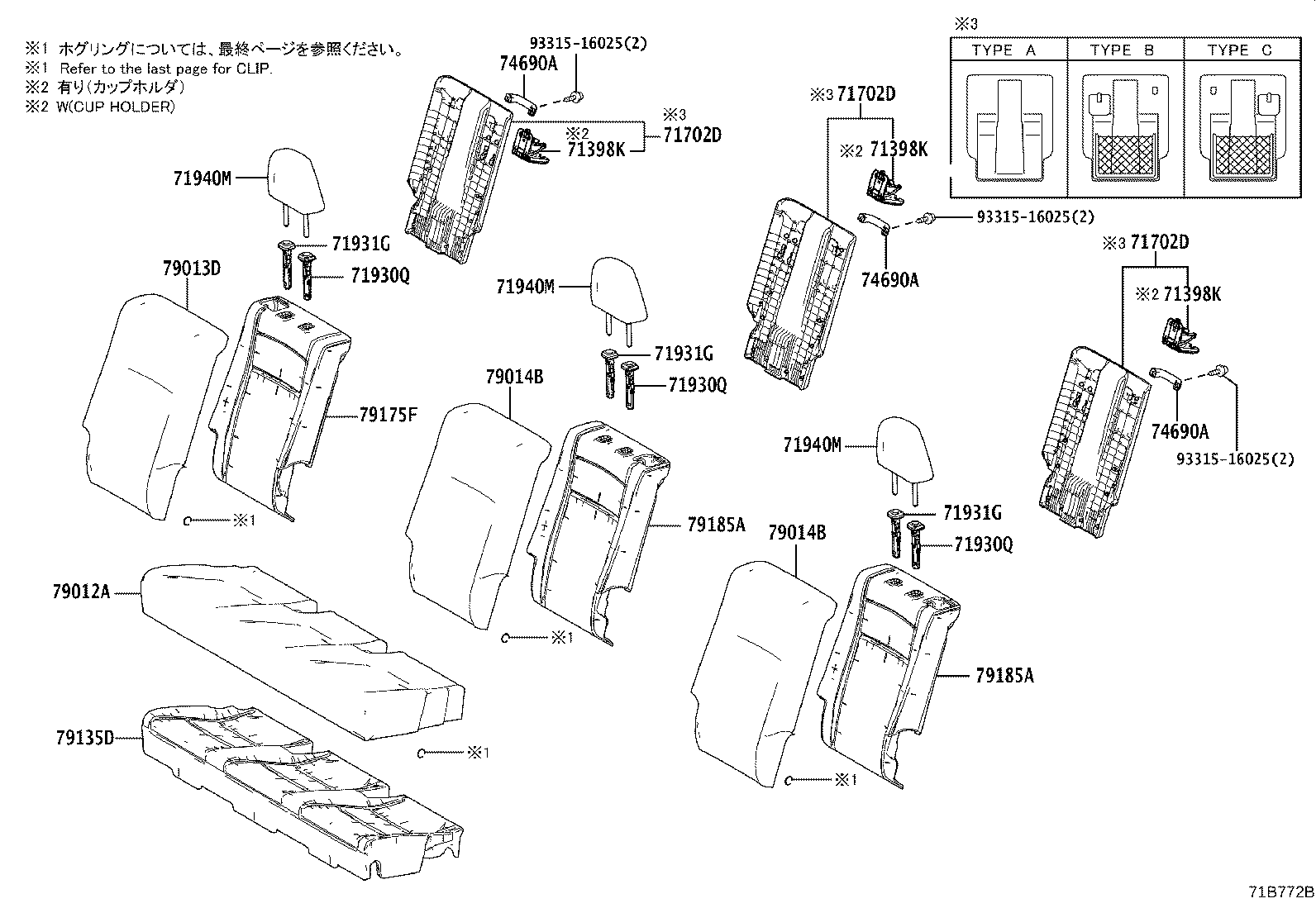

71B772B
71B772B

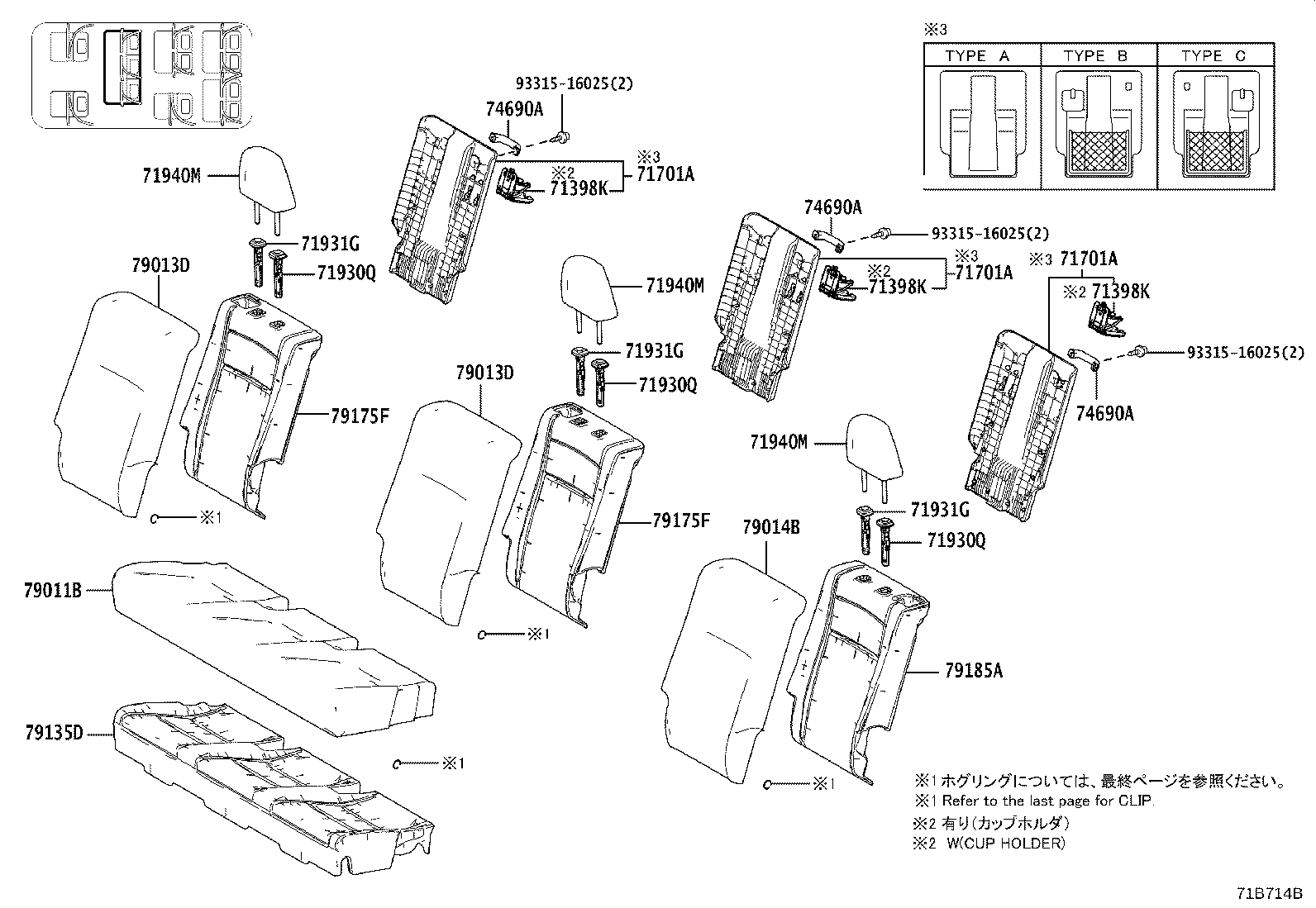

71B714B

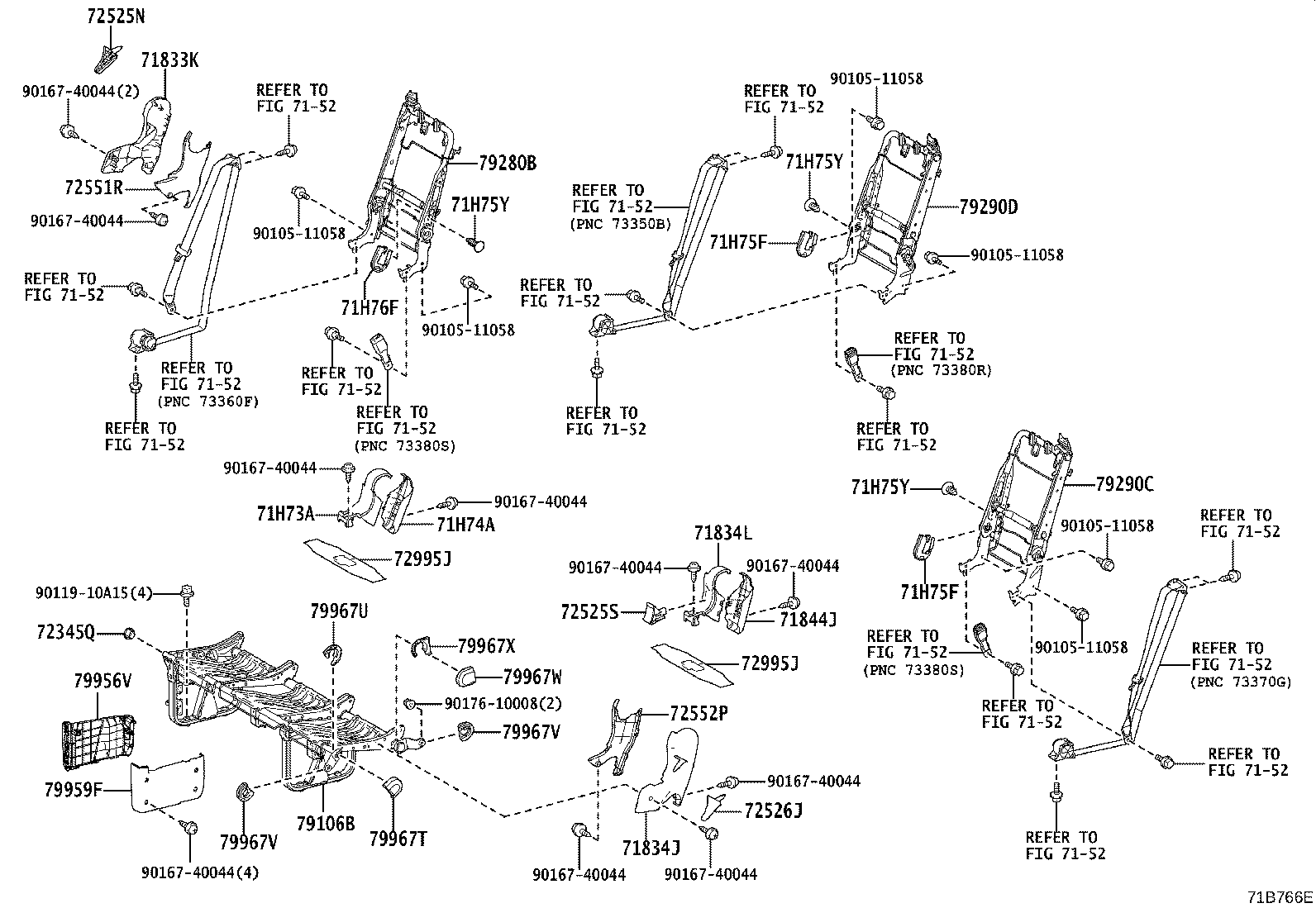

71B766E
71B766E

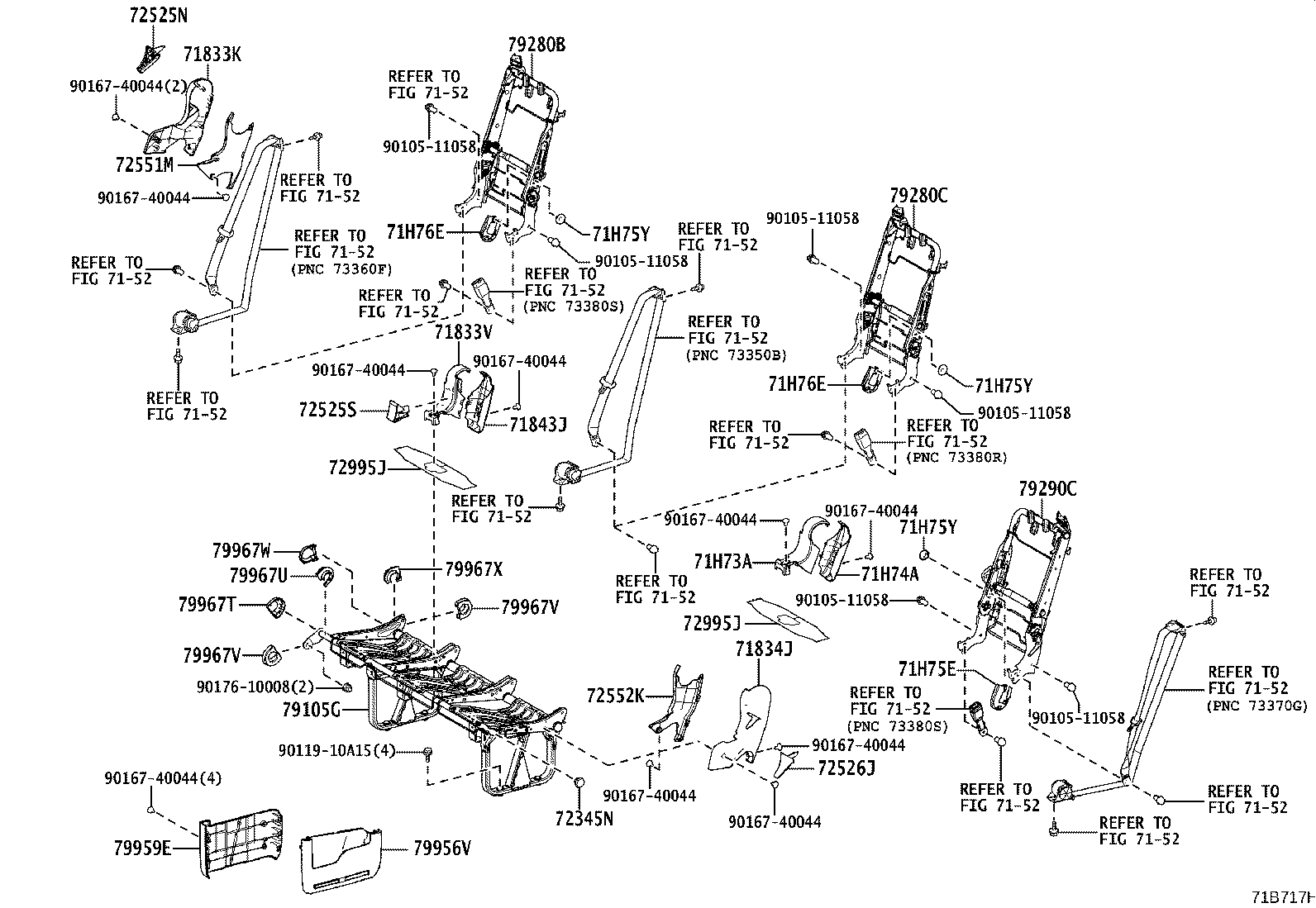

71B717H

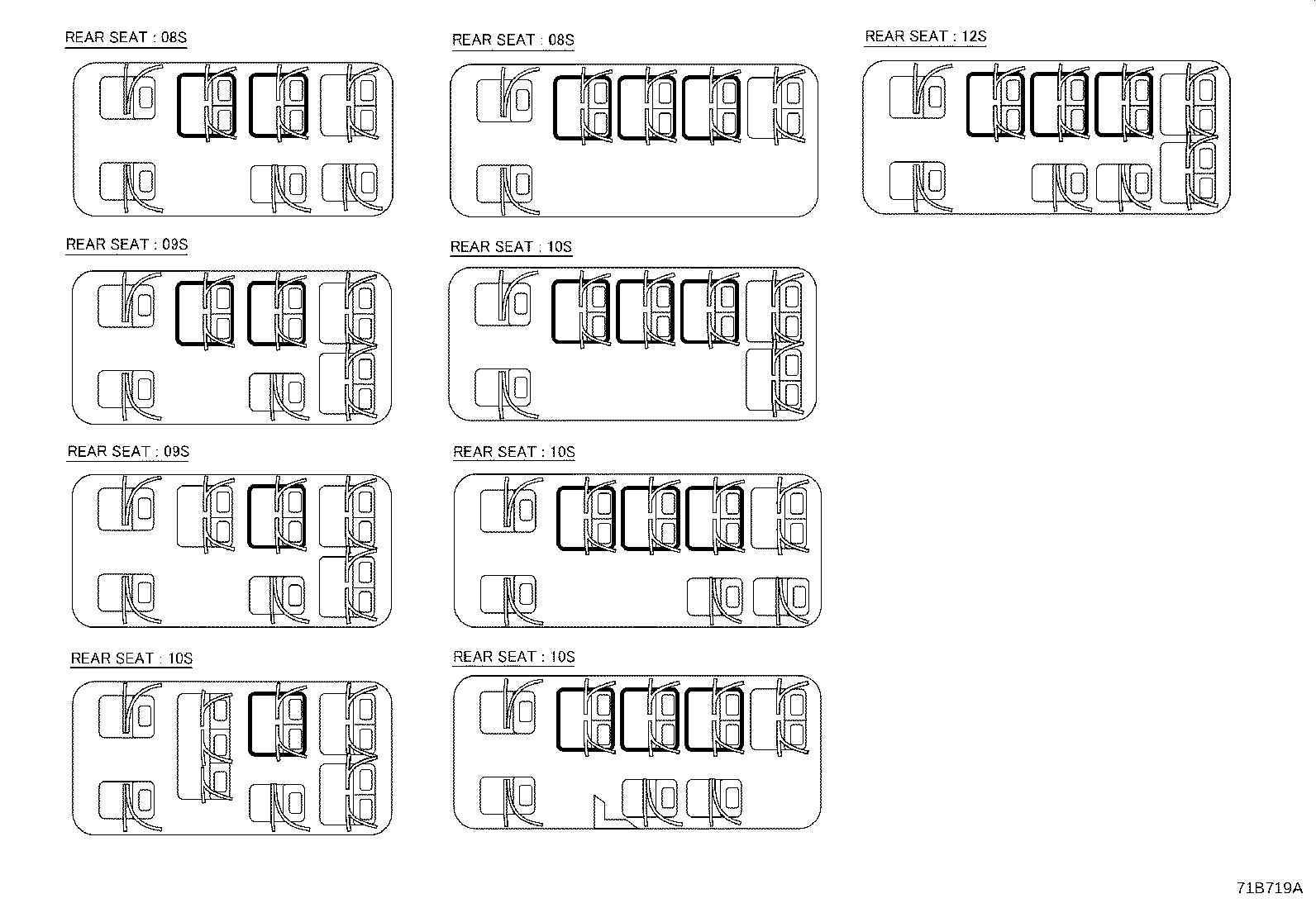

71B719A
71B719A

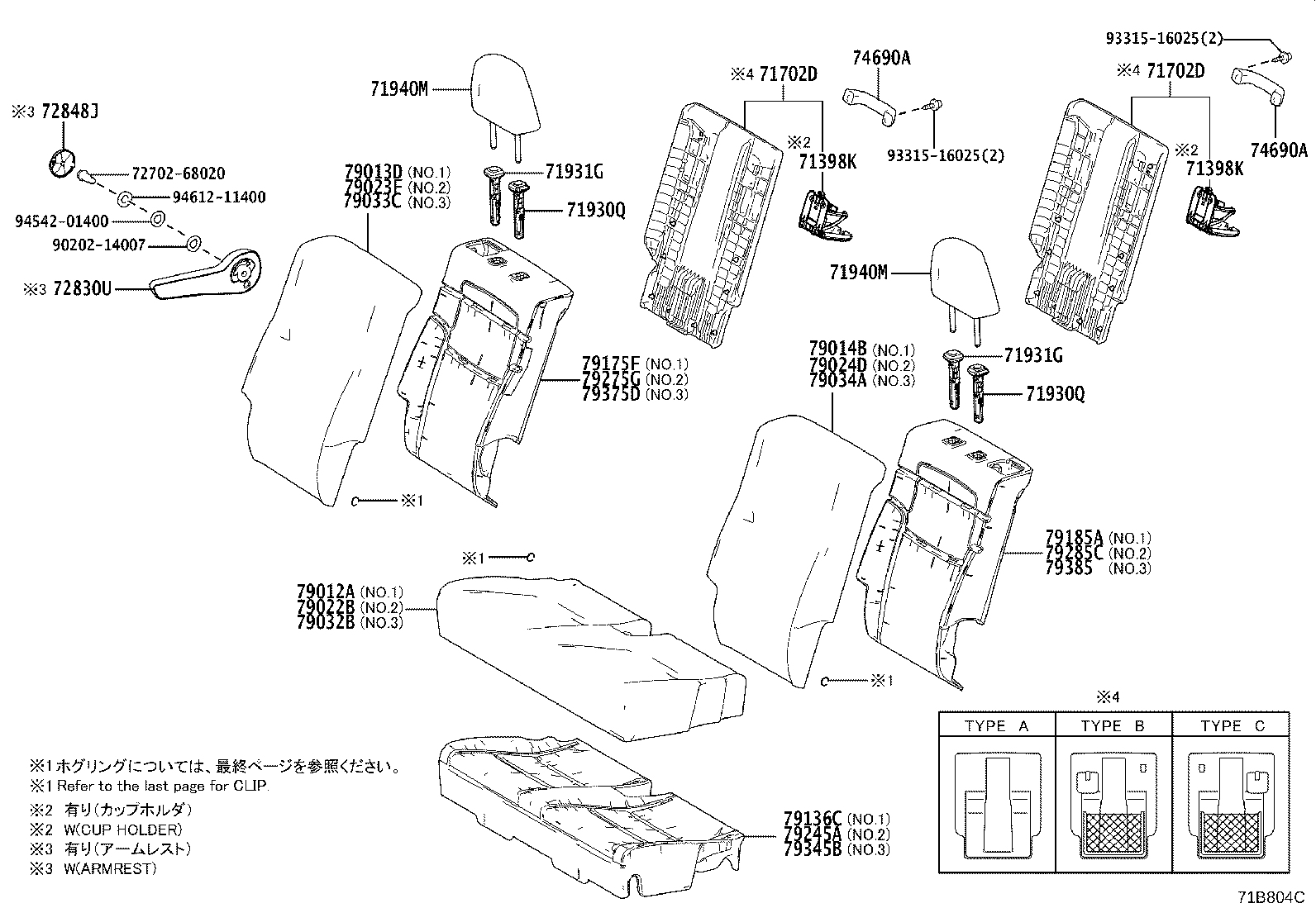

71B804C
71B804C
71B804C
71B804C
71B804C

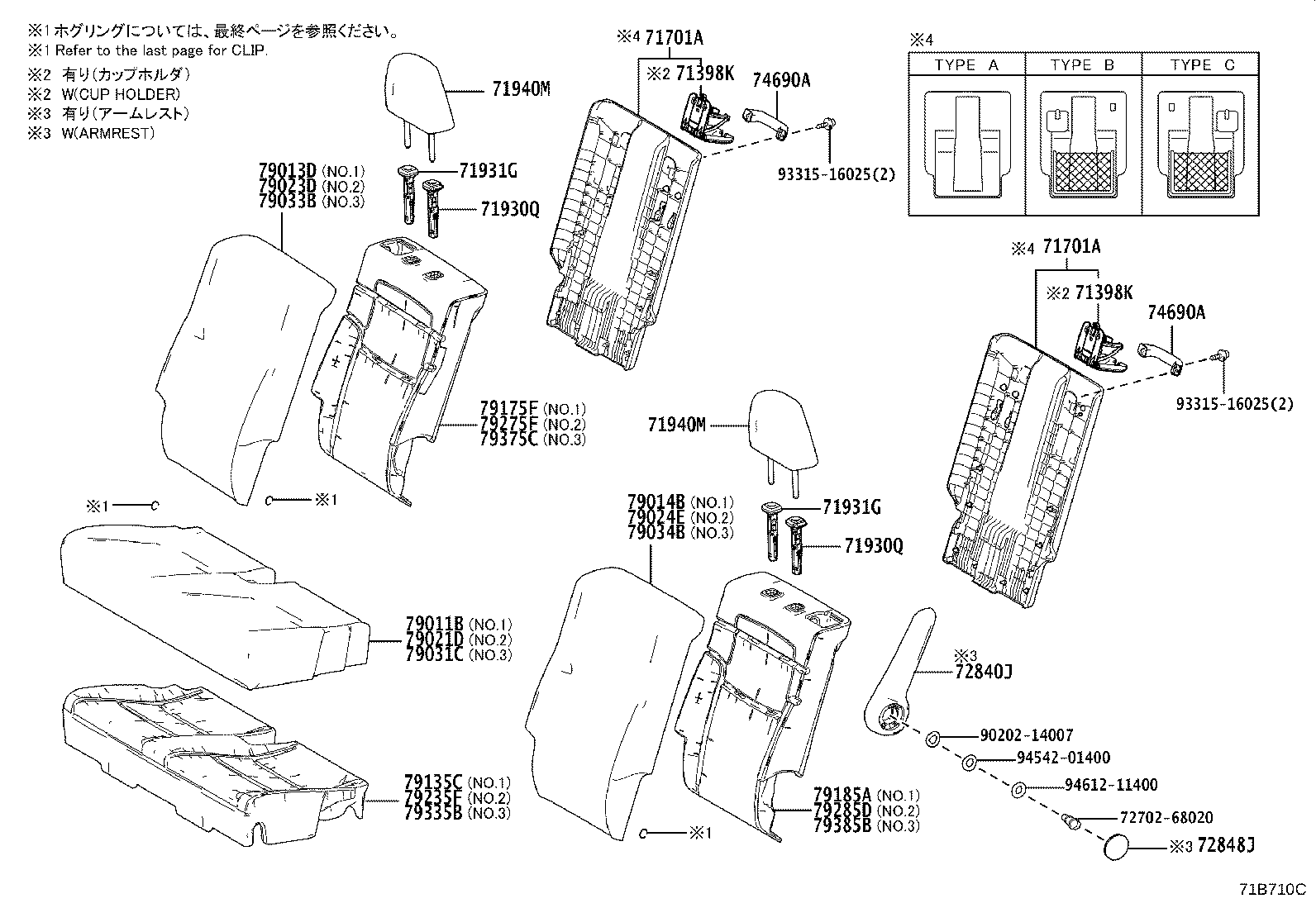

71B710C
71B710C

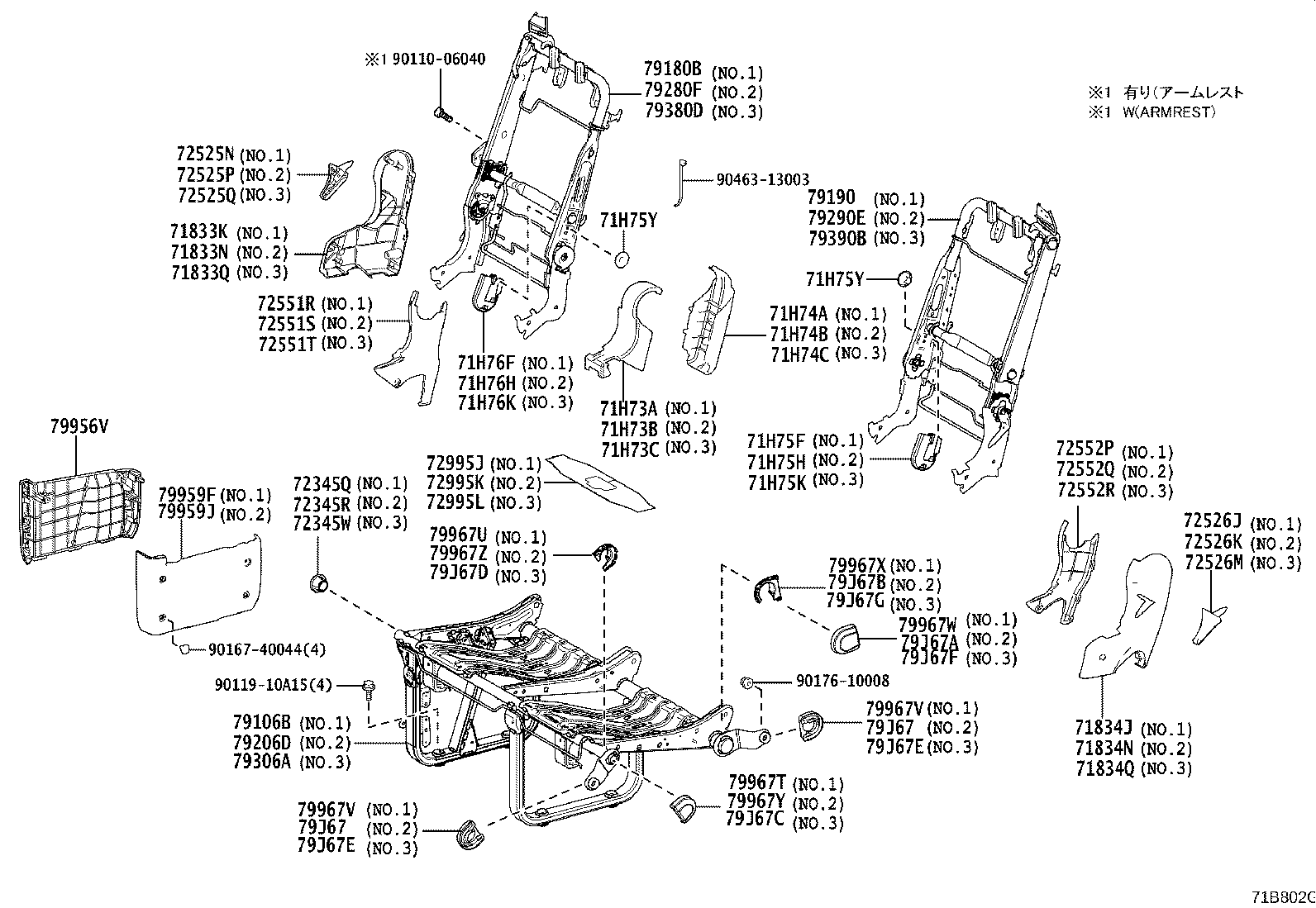

71B802G
71B802G
71B802G
71B802G
71B802G

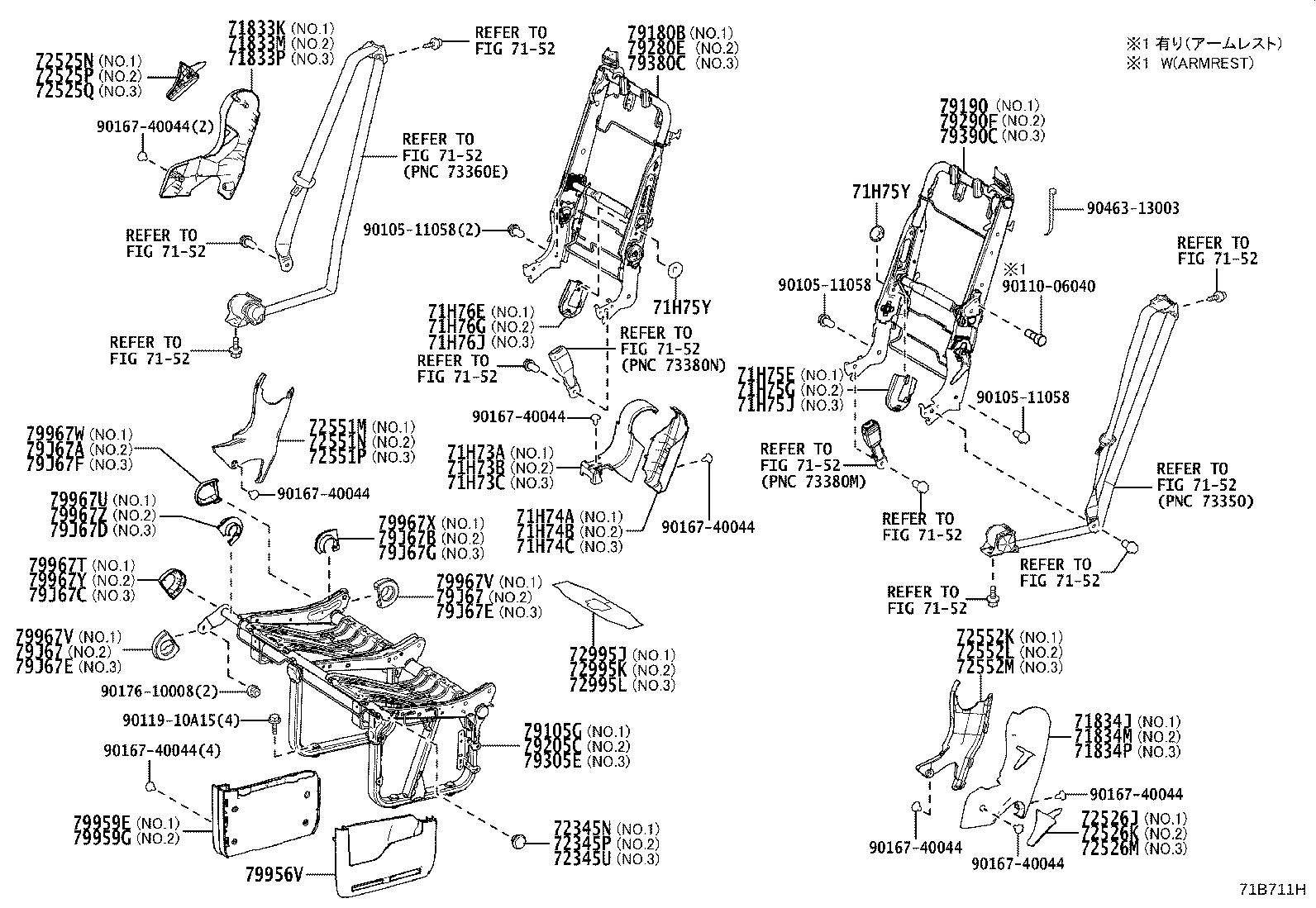

71B711H
71B711H

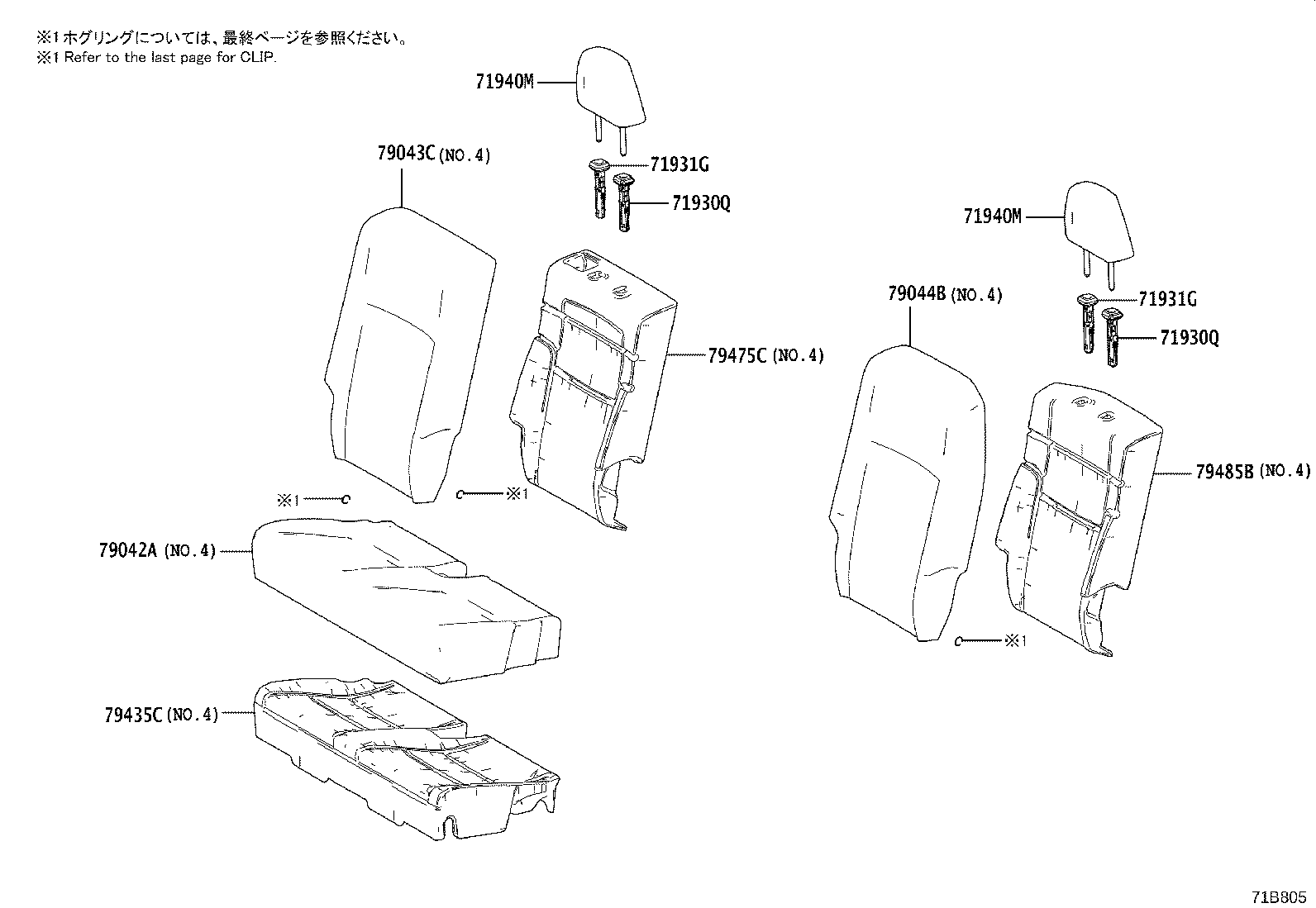

71B805
71B805

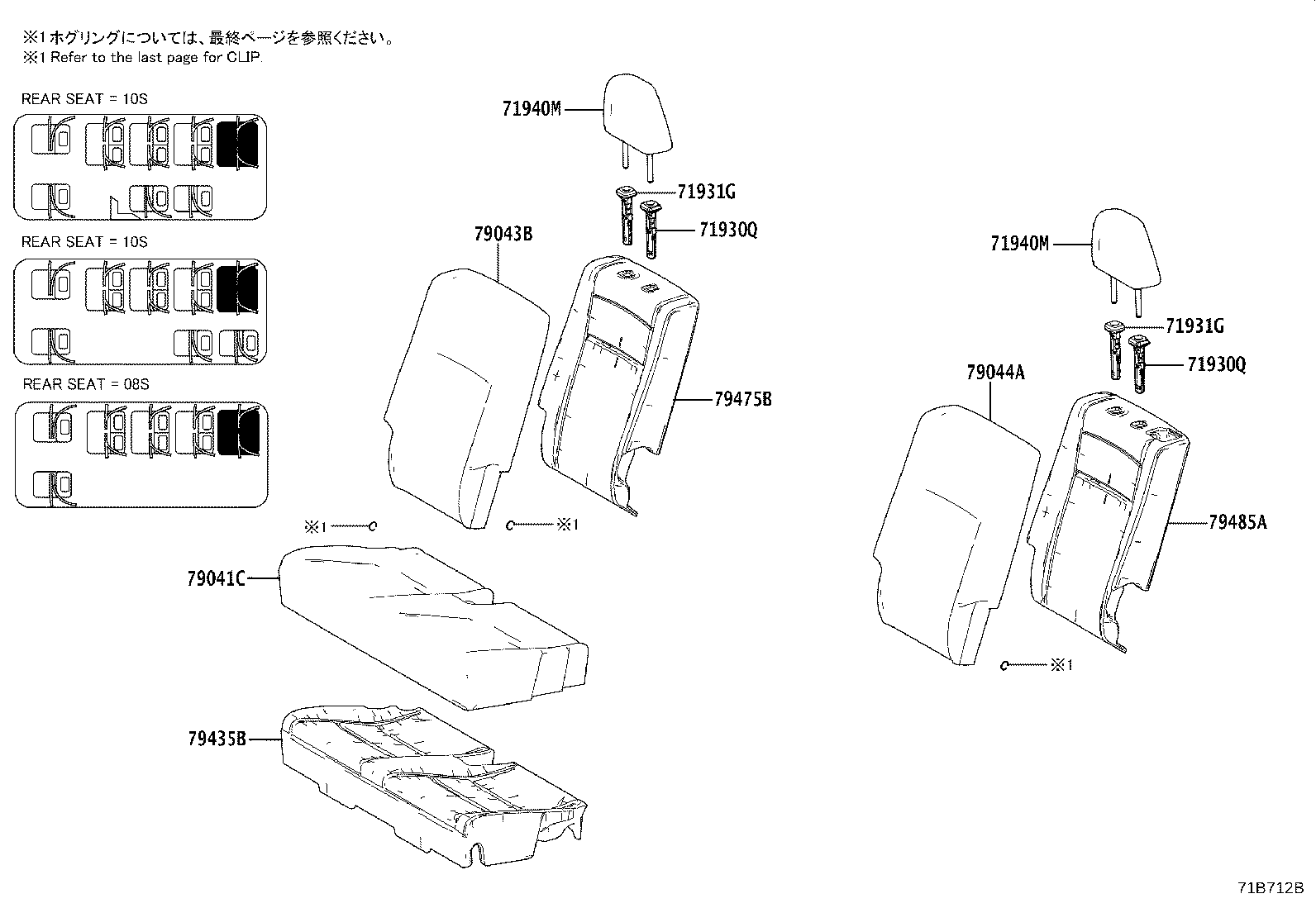

71B712B

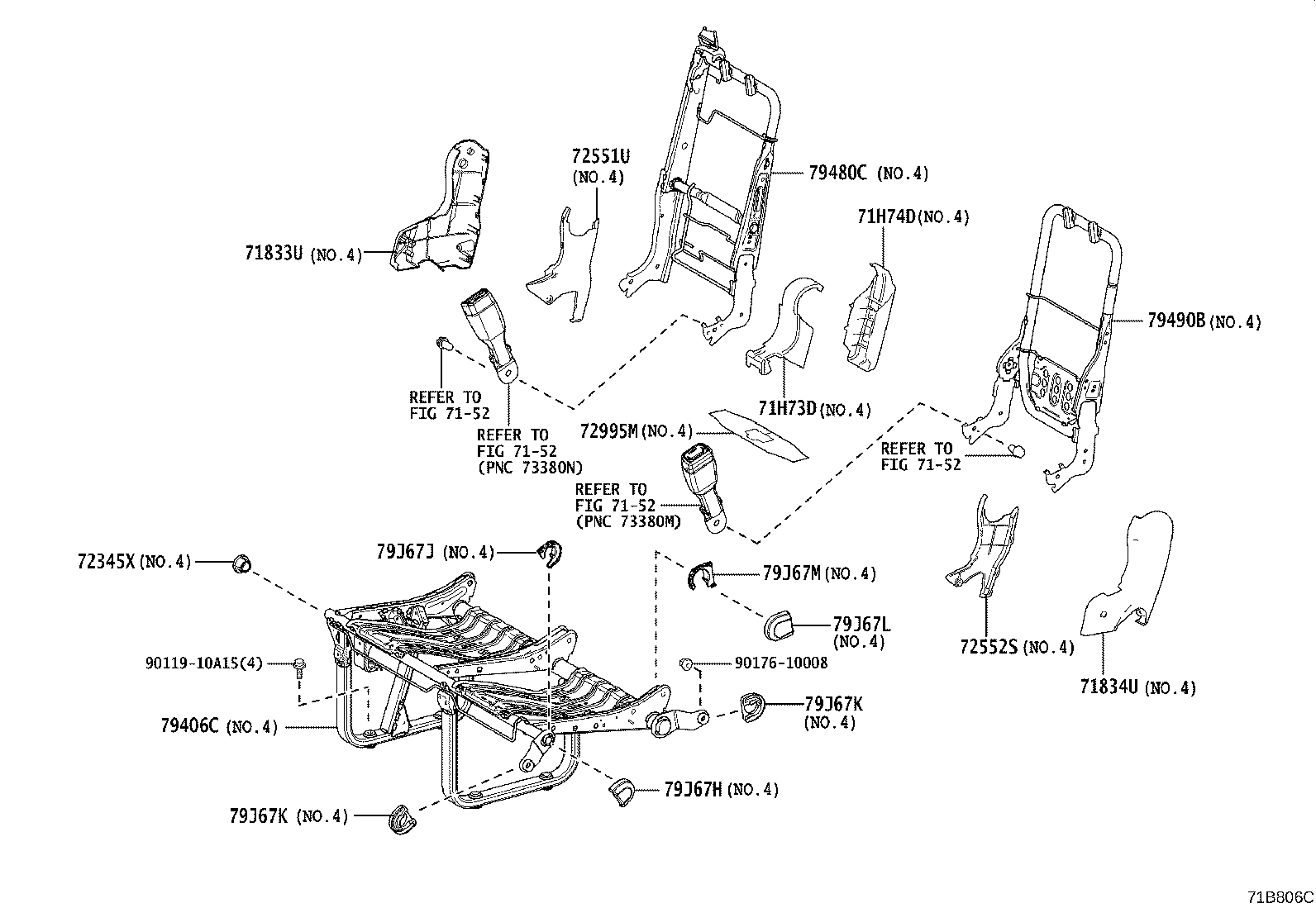

71B806C
71B806C

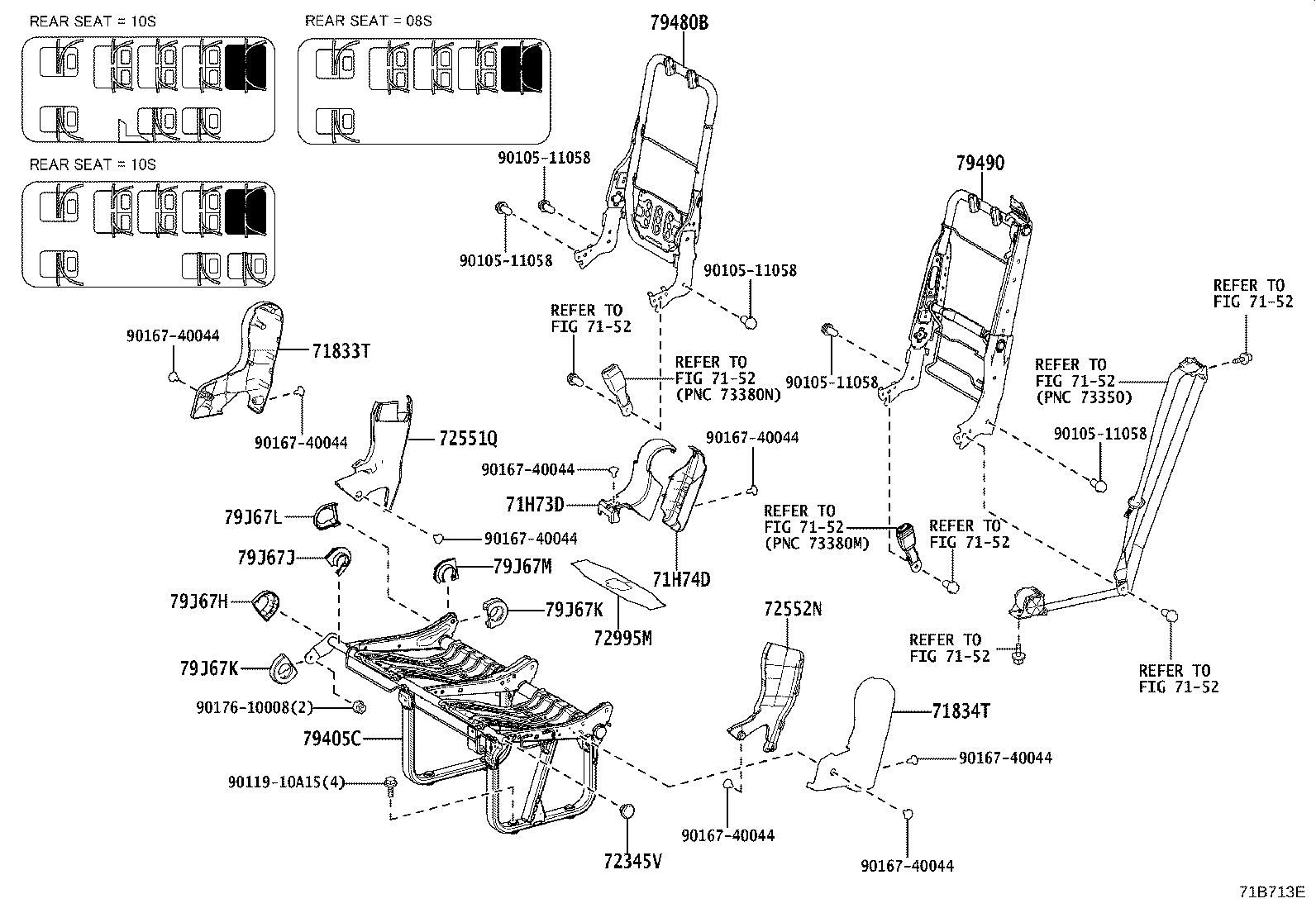

71B713E

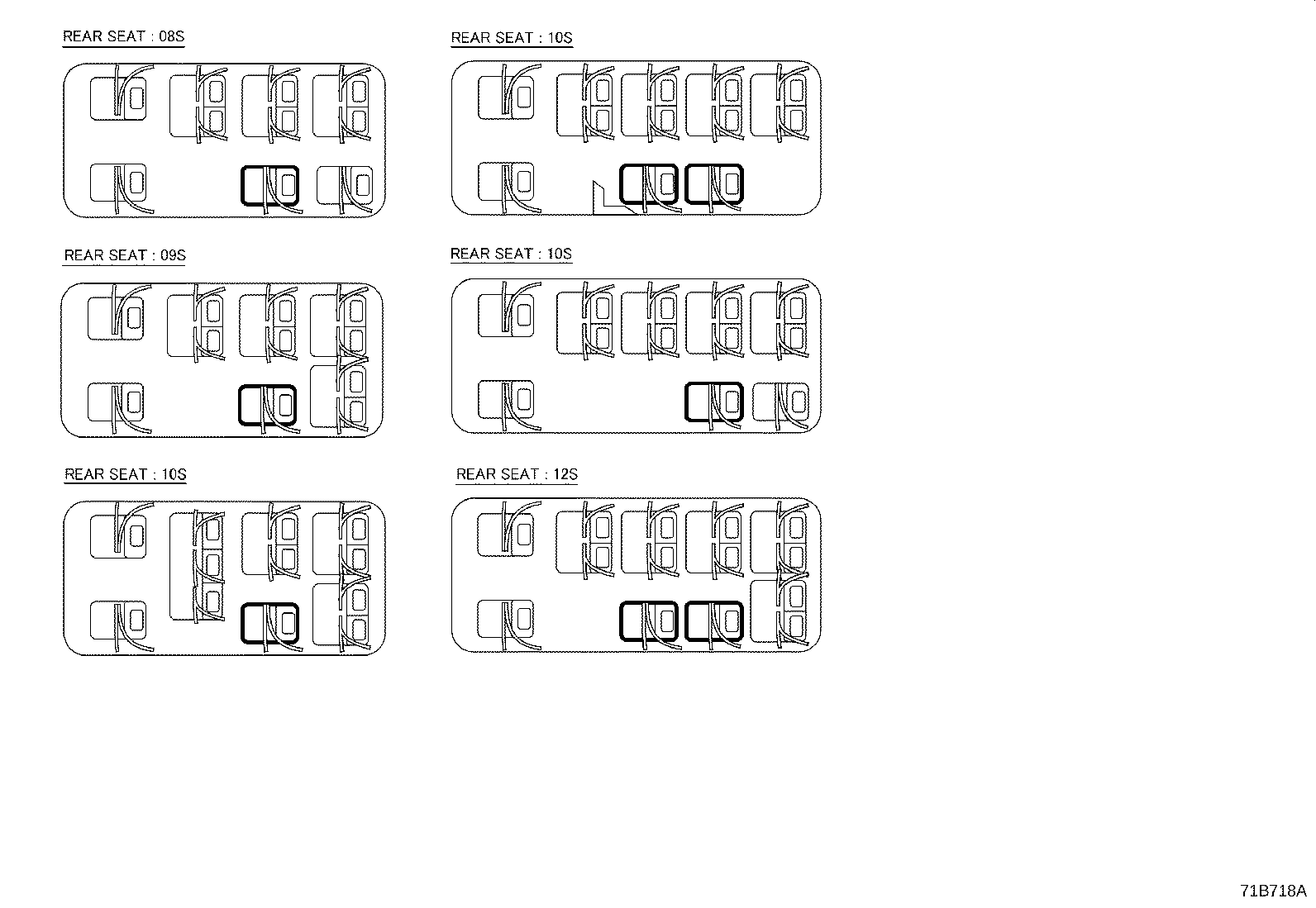

71B718A
71B718A

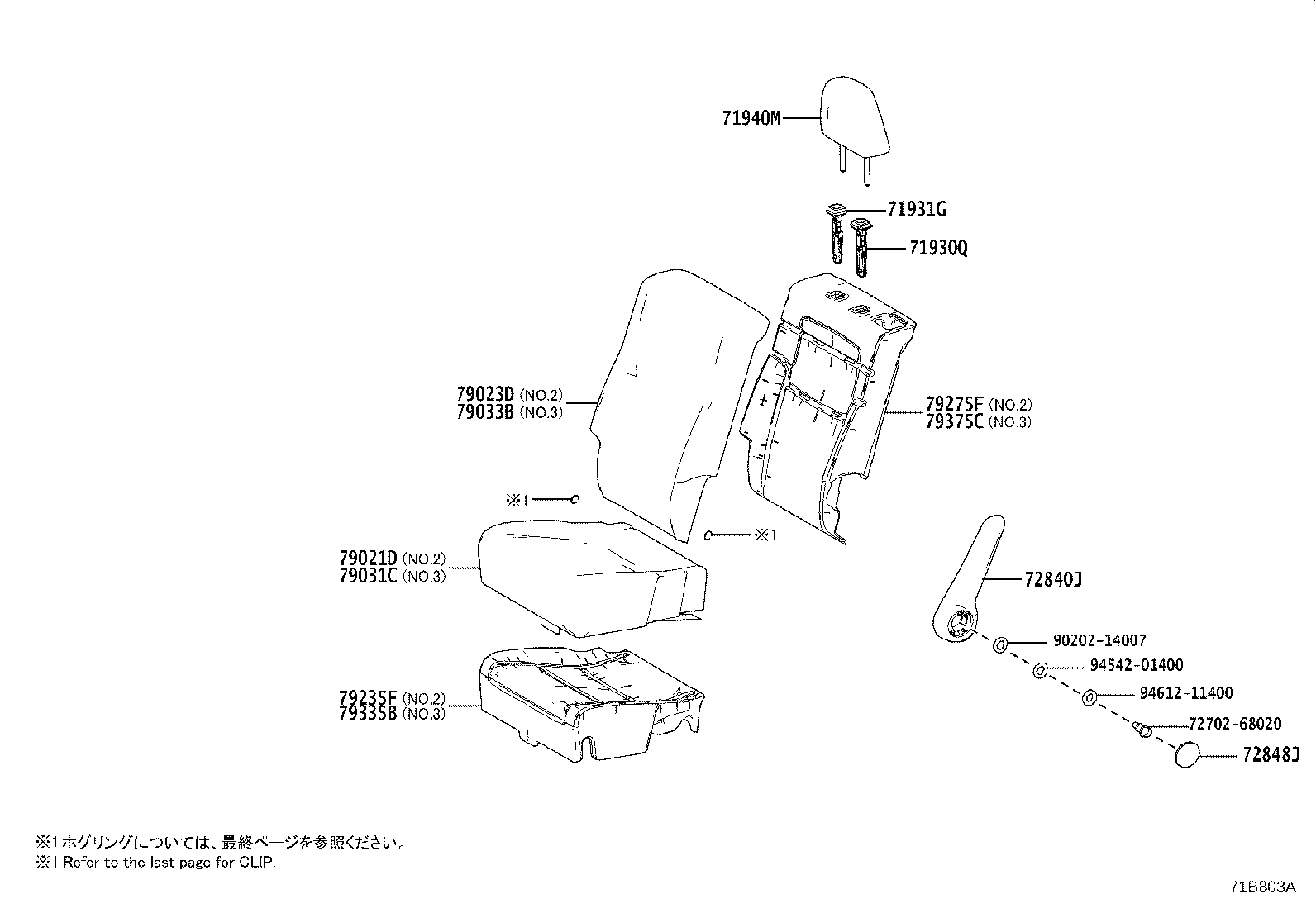

71B803A
71B803A
71B803A
71B803A
71B803A

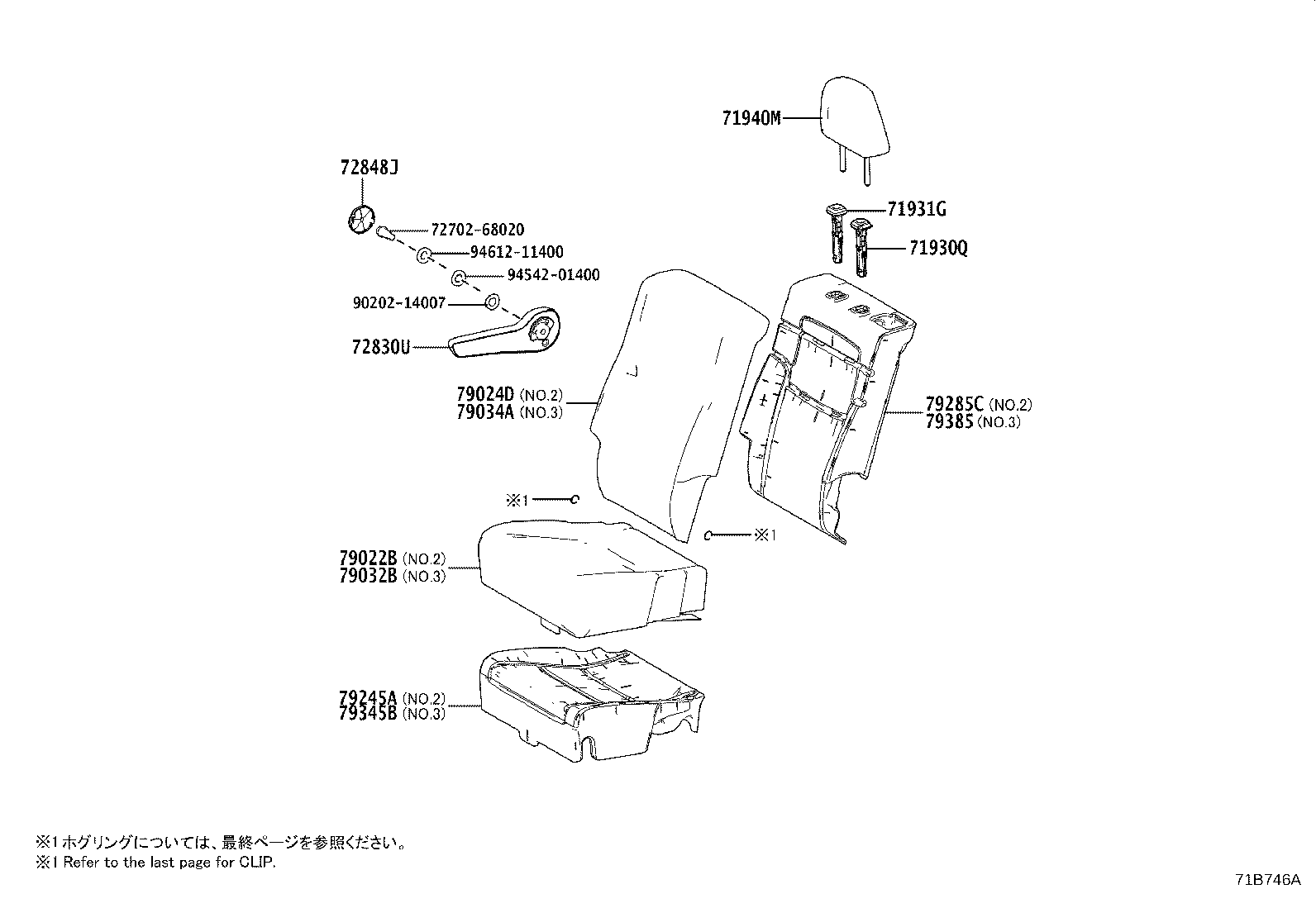

71B746A
71B746A

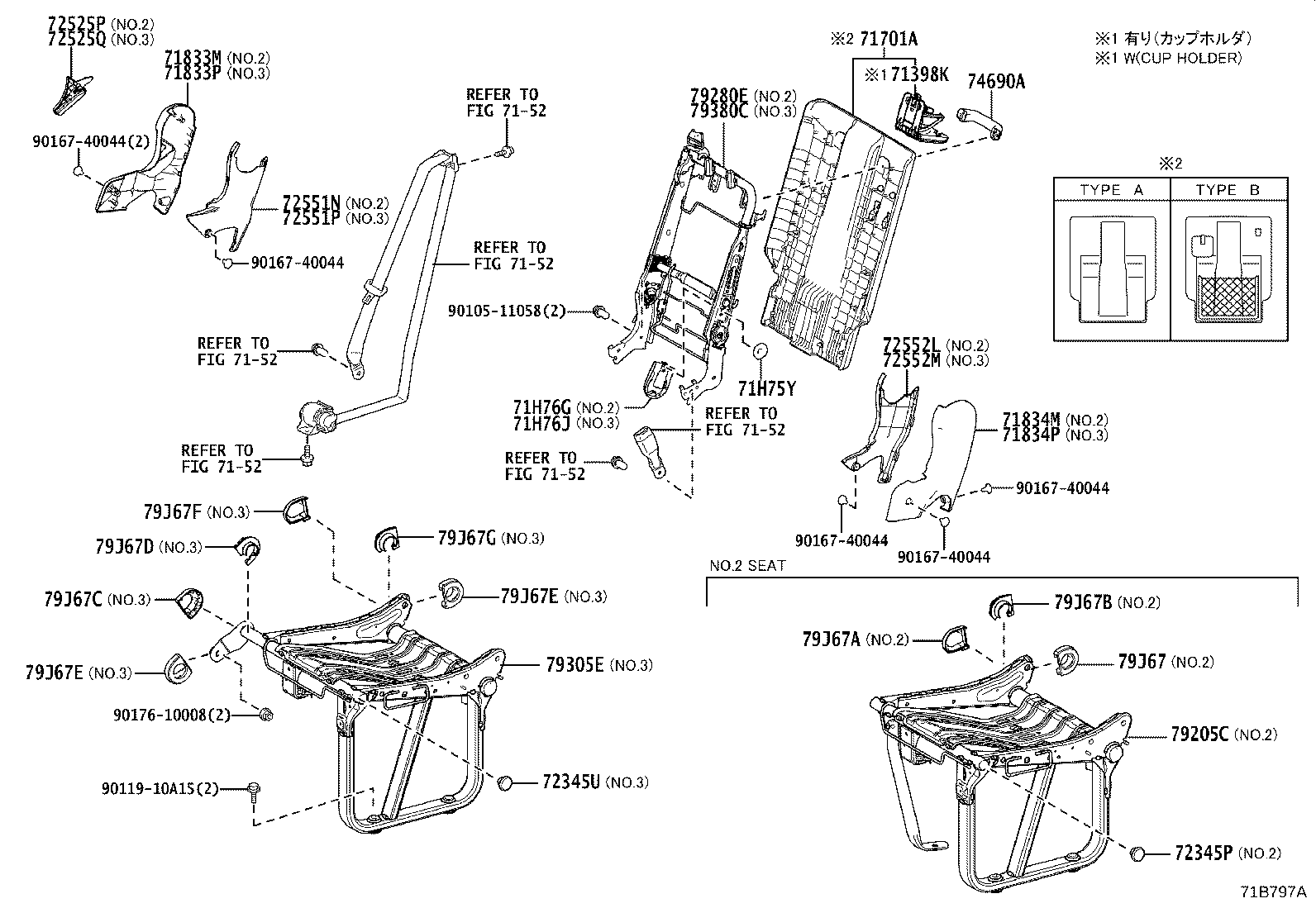

71B797A
71B797A
71B797A
71B797A
71B797A

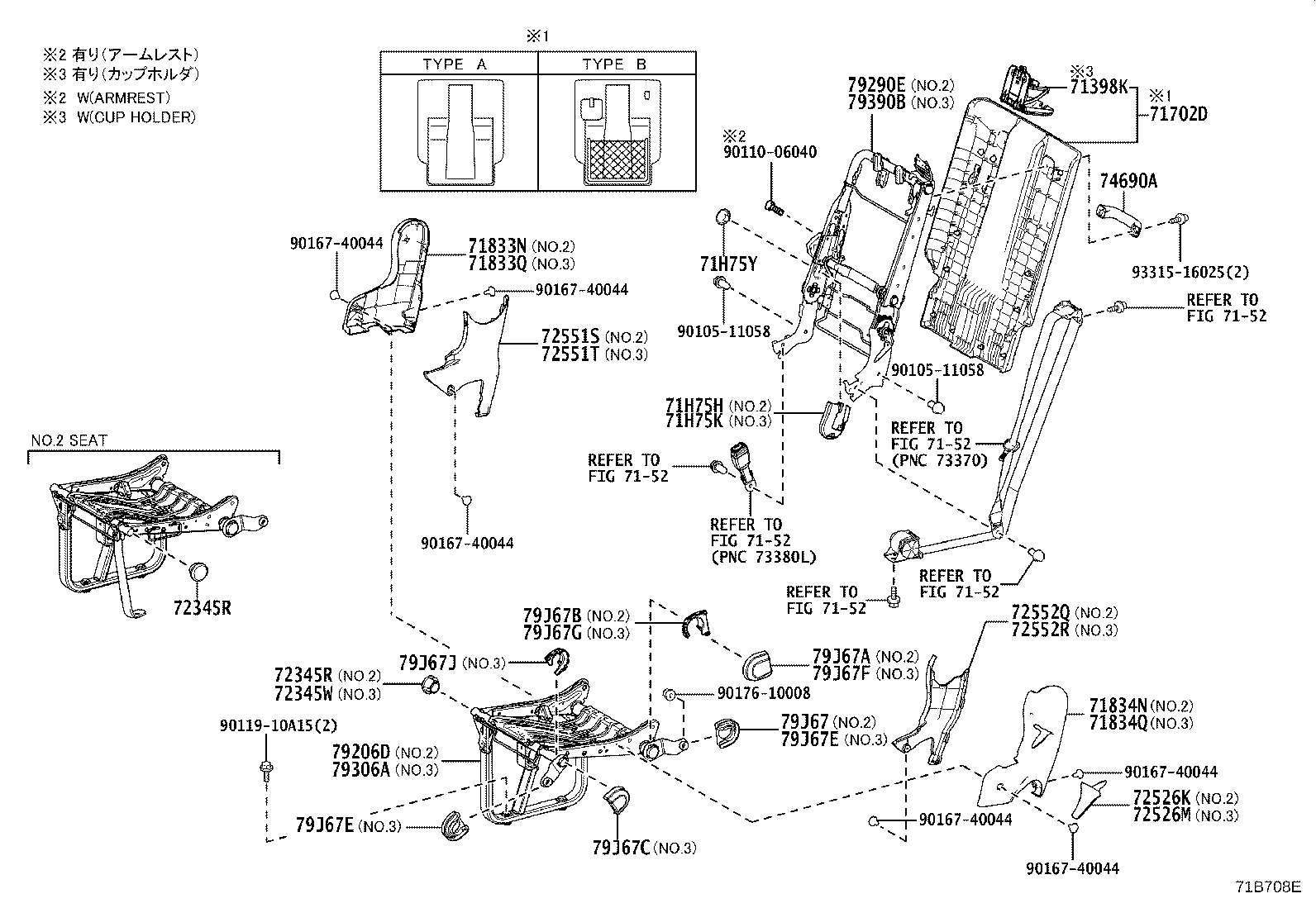

71B708E
71B708E

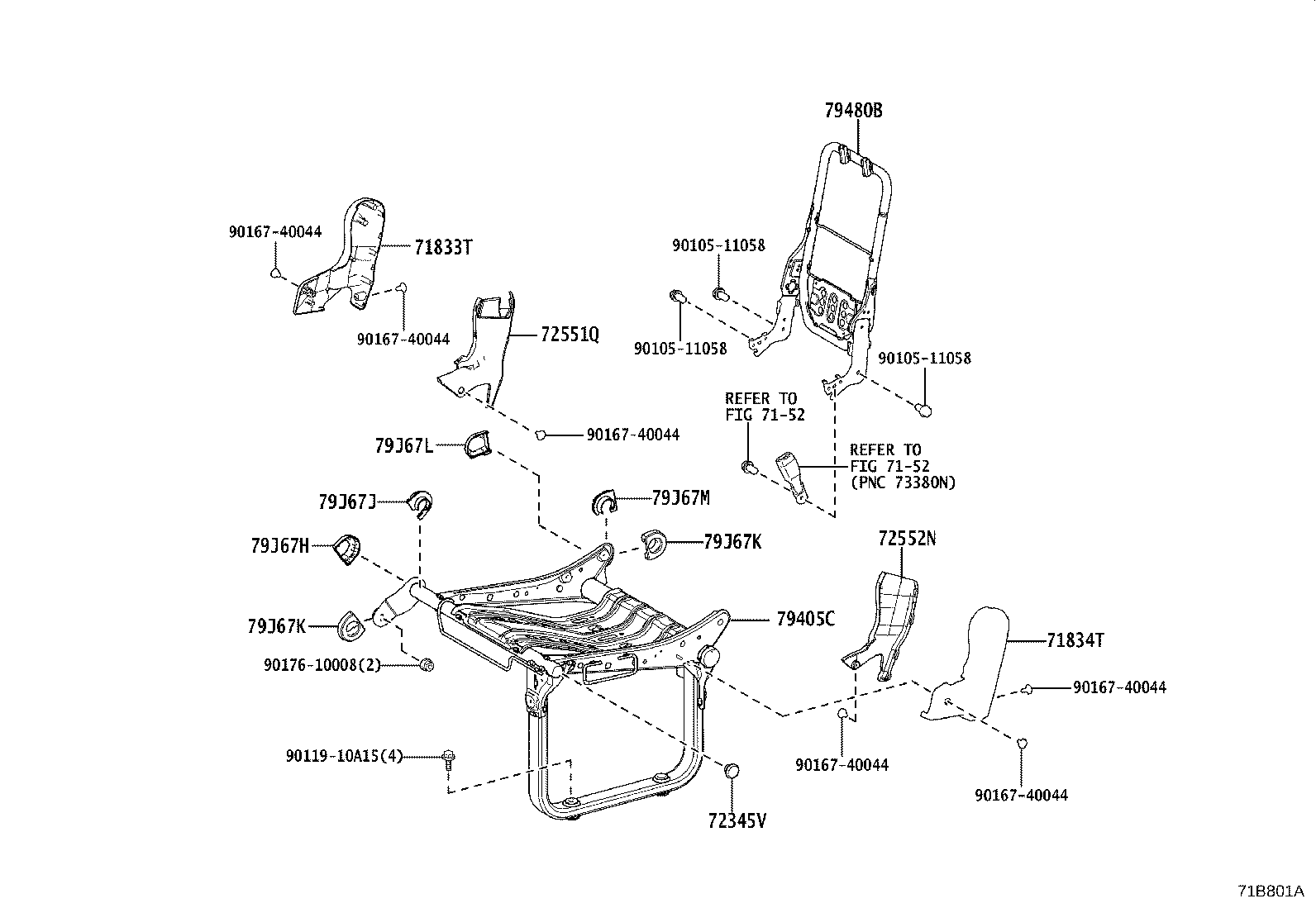

71B801A
71B801A

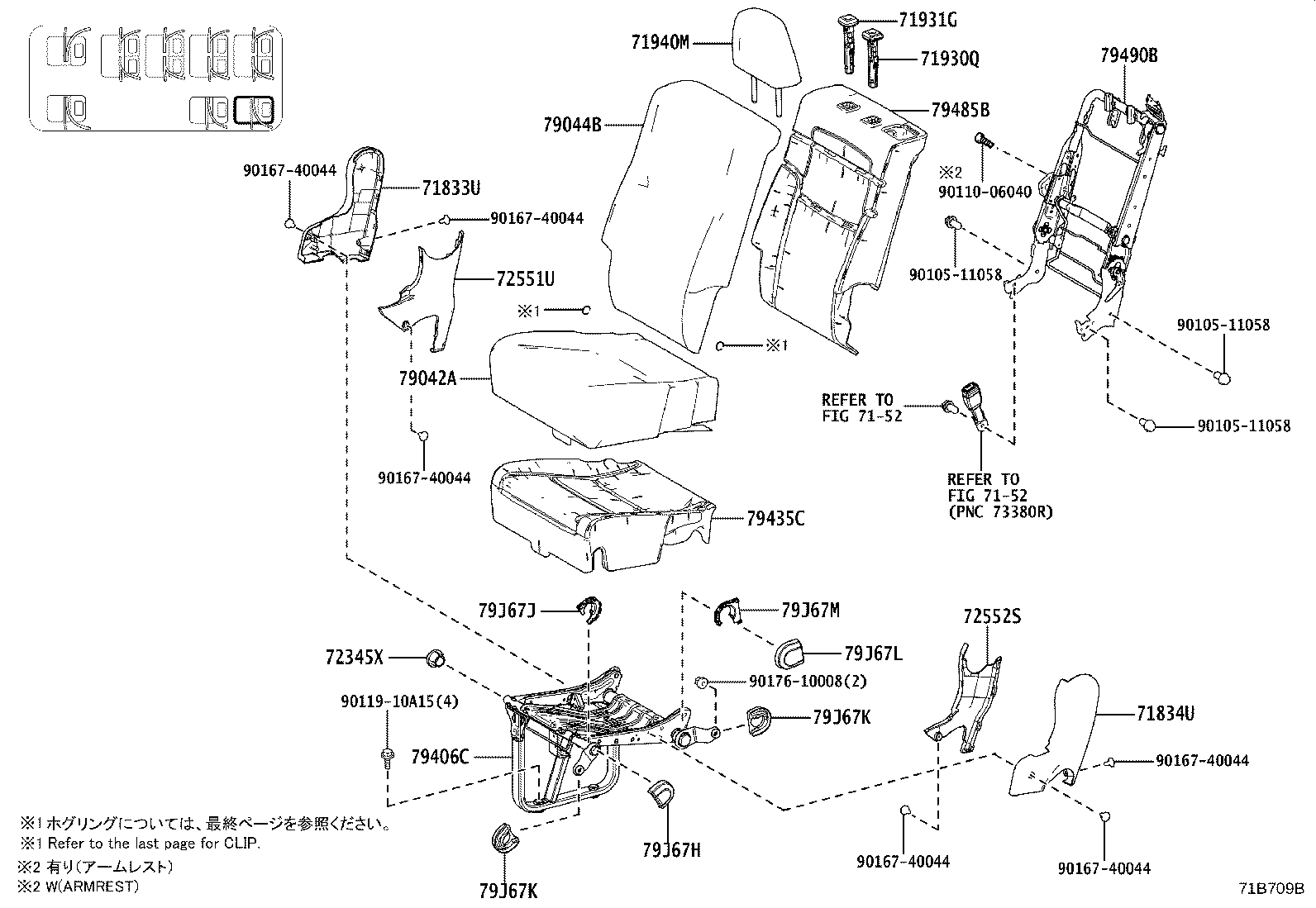

71B709B
71B709B

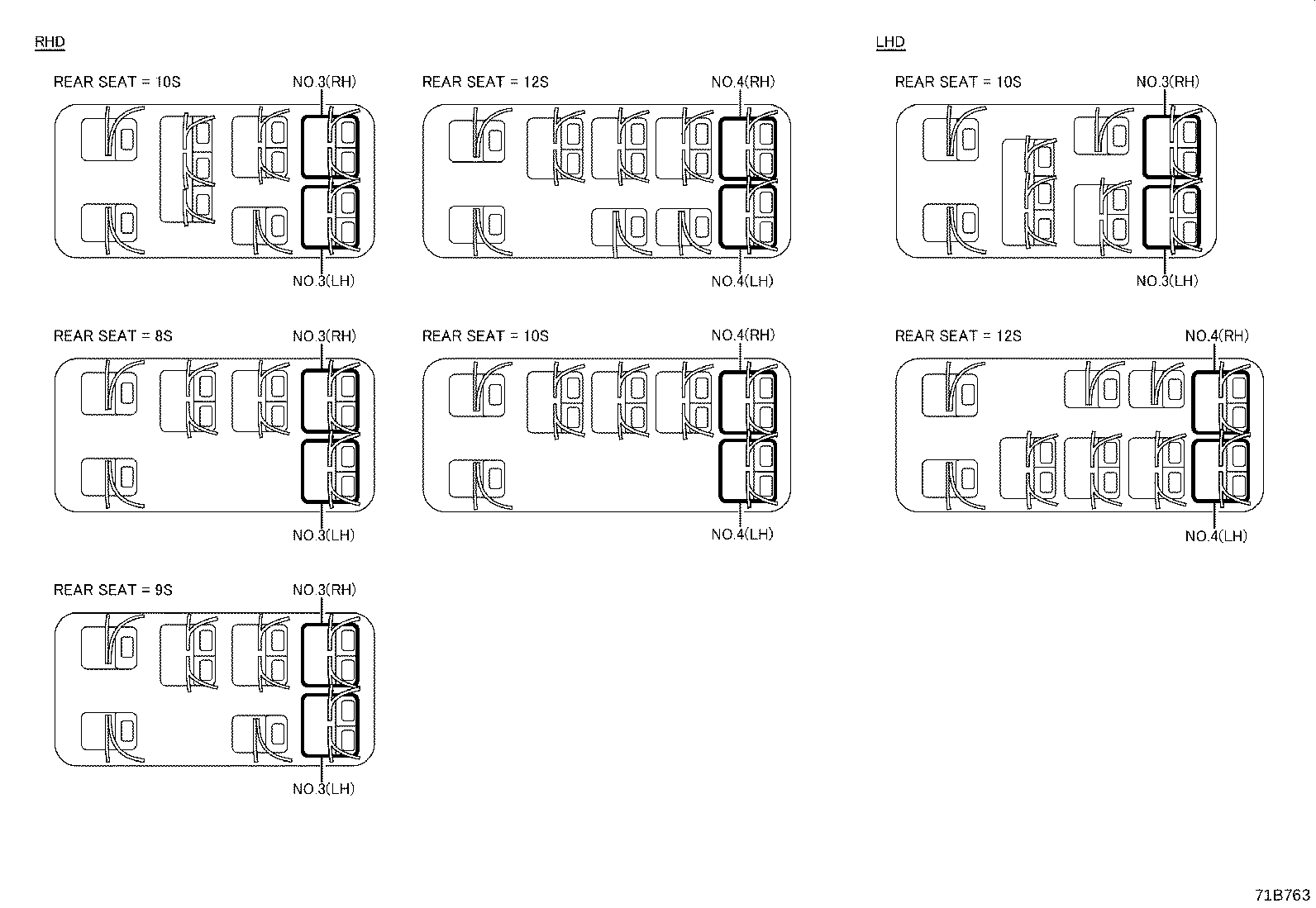

71B763
71B763
71B763

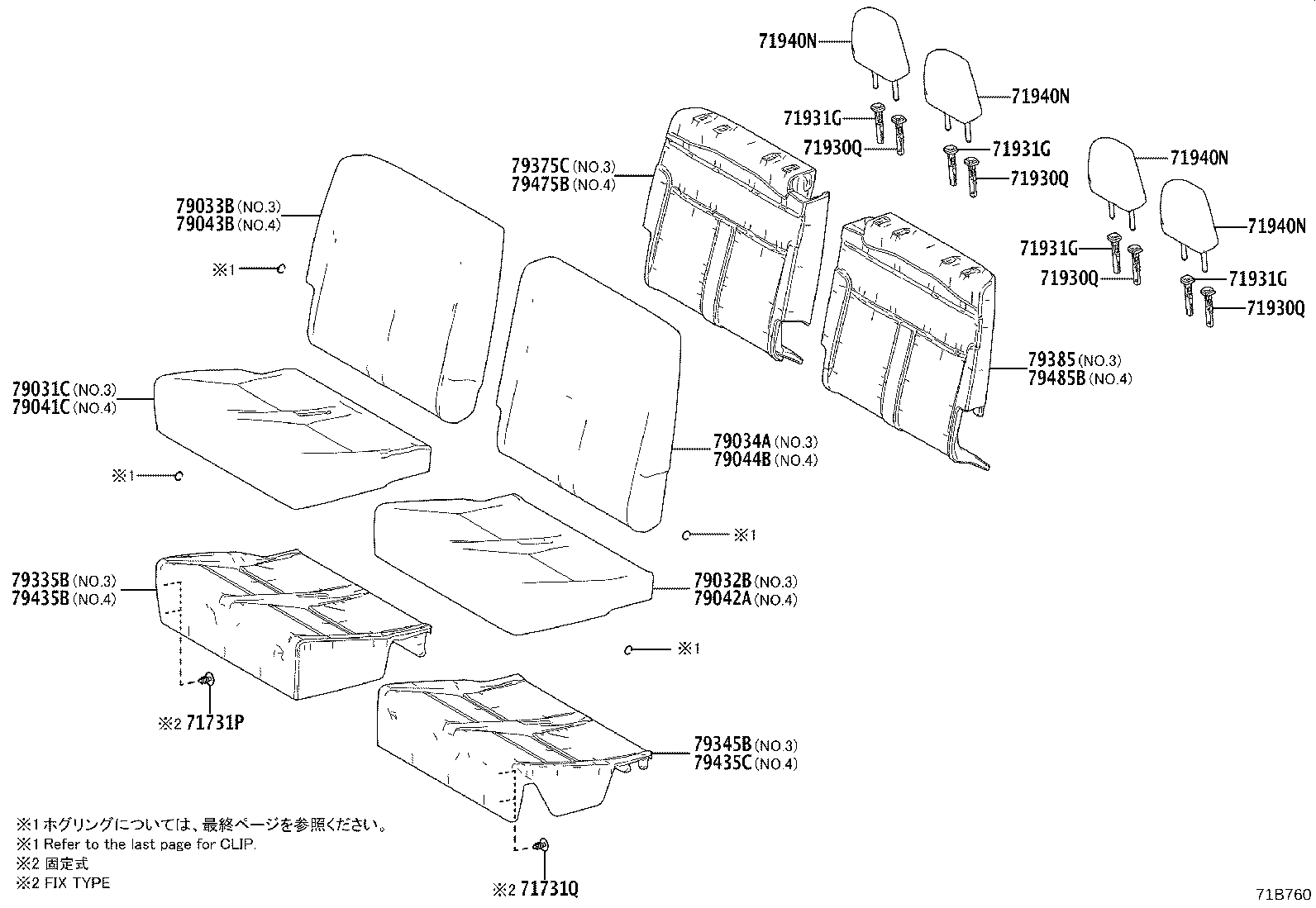

71B760
71B760
71B760
71B760

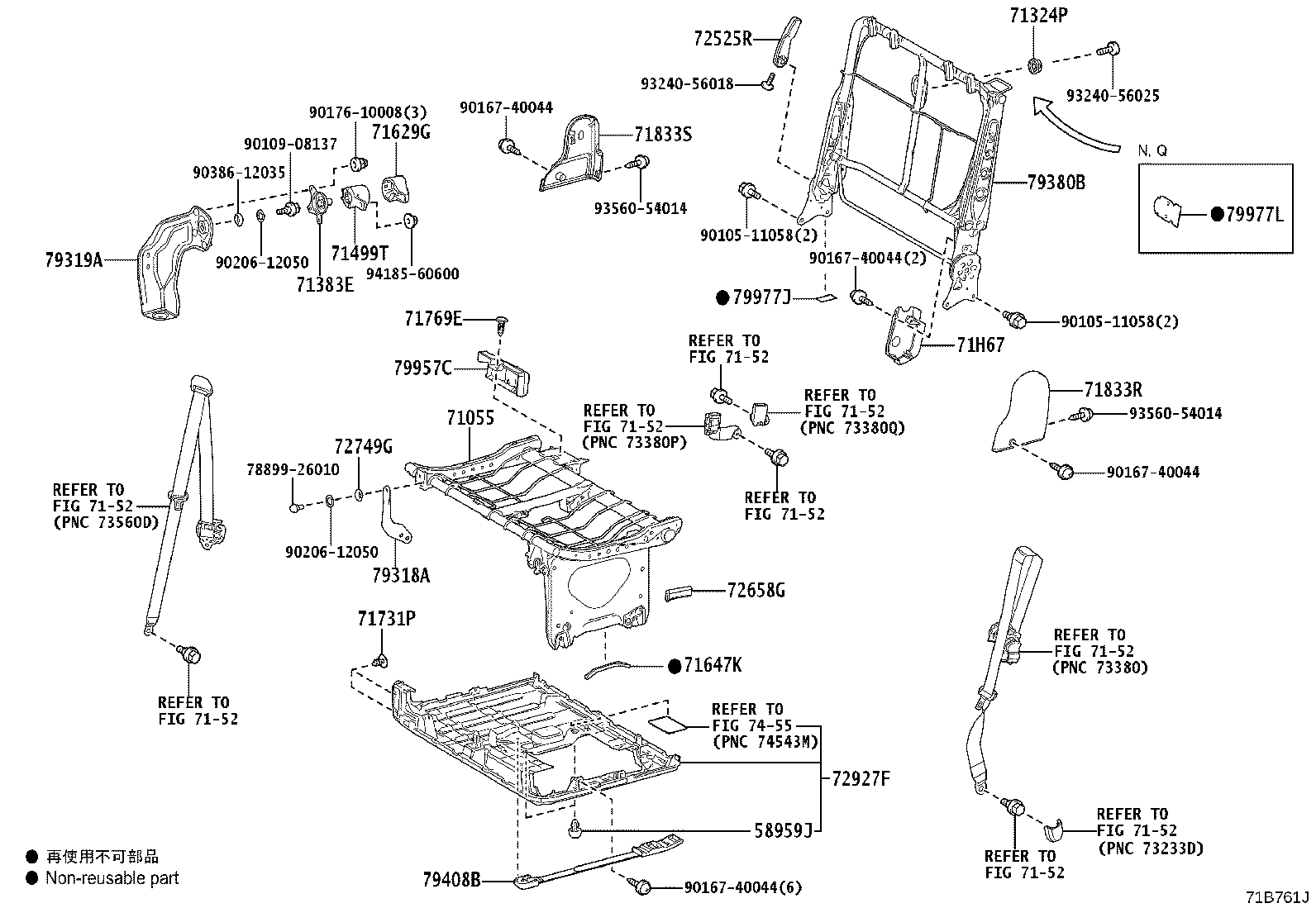

71B761J
71B761J
71B761J
71B761J

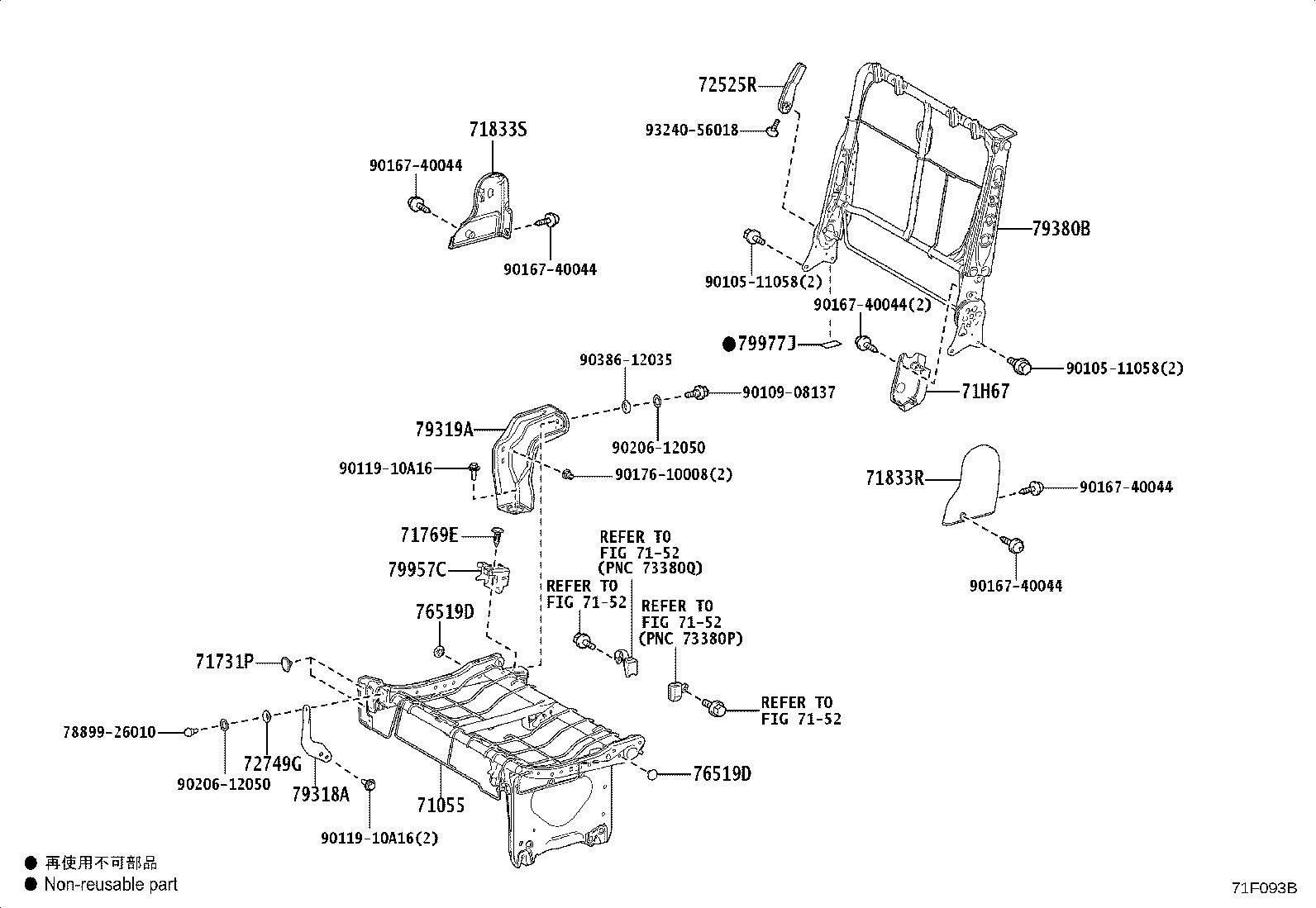

71F093B
71F093B

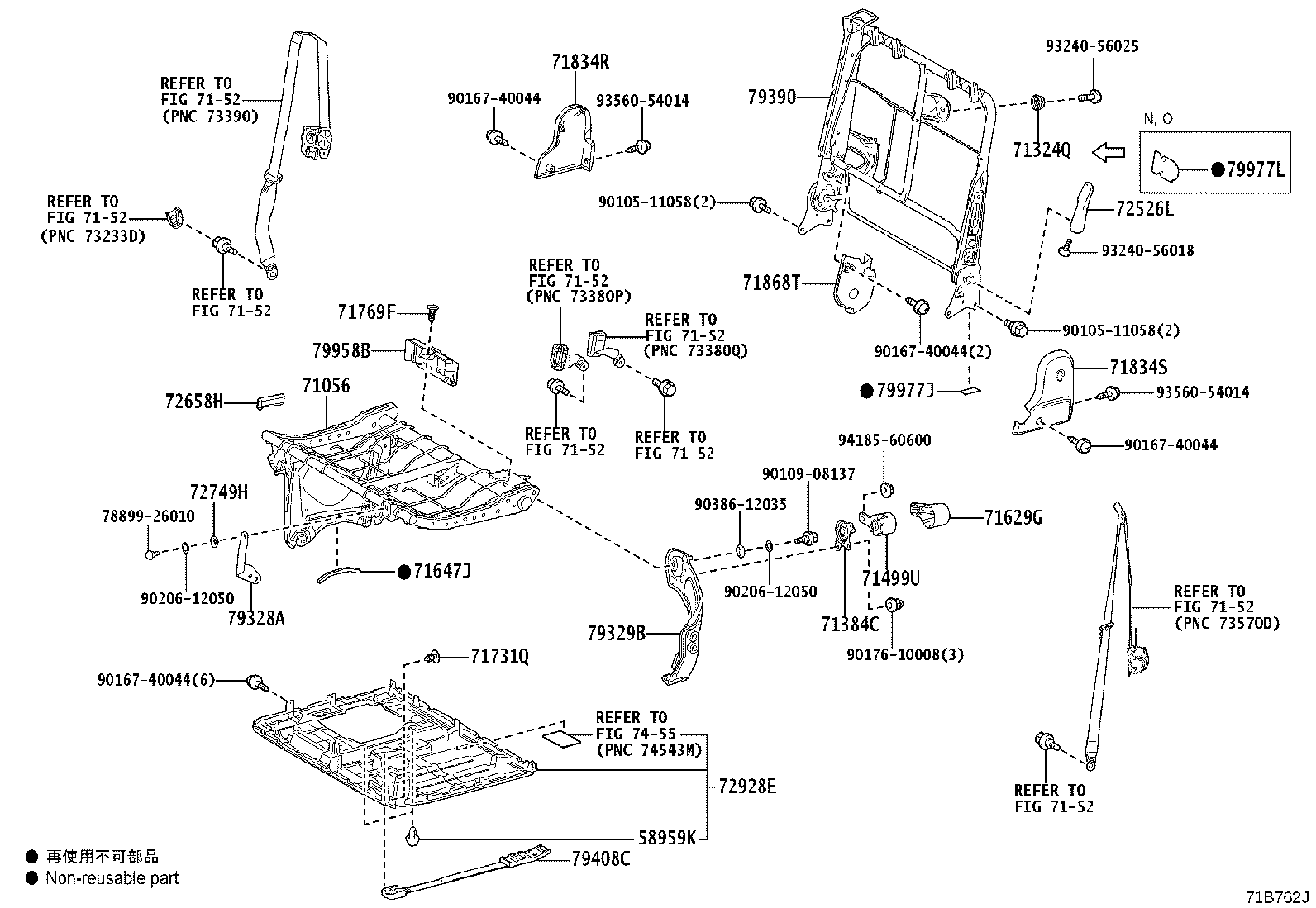

71B762J
71B762J
71B762J
71B762J

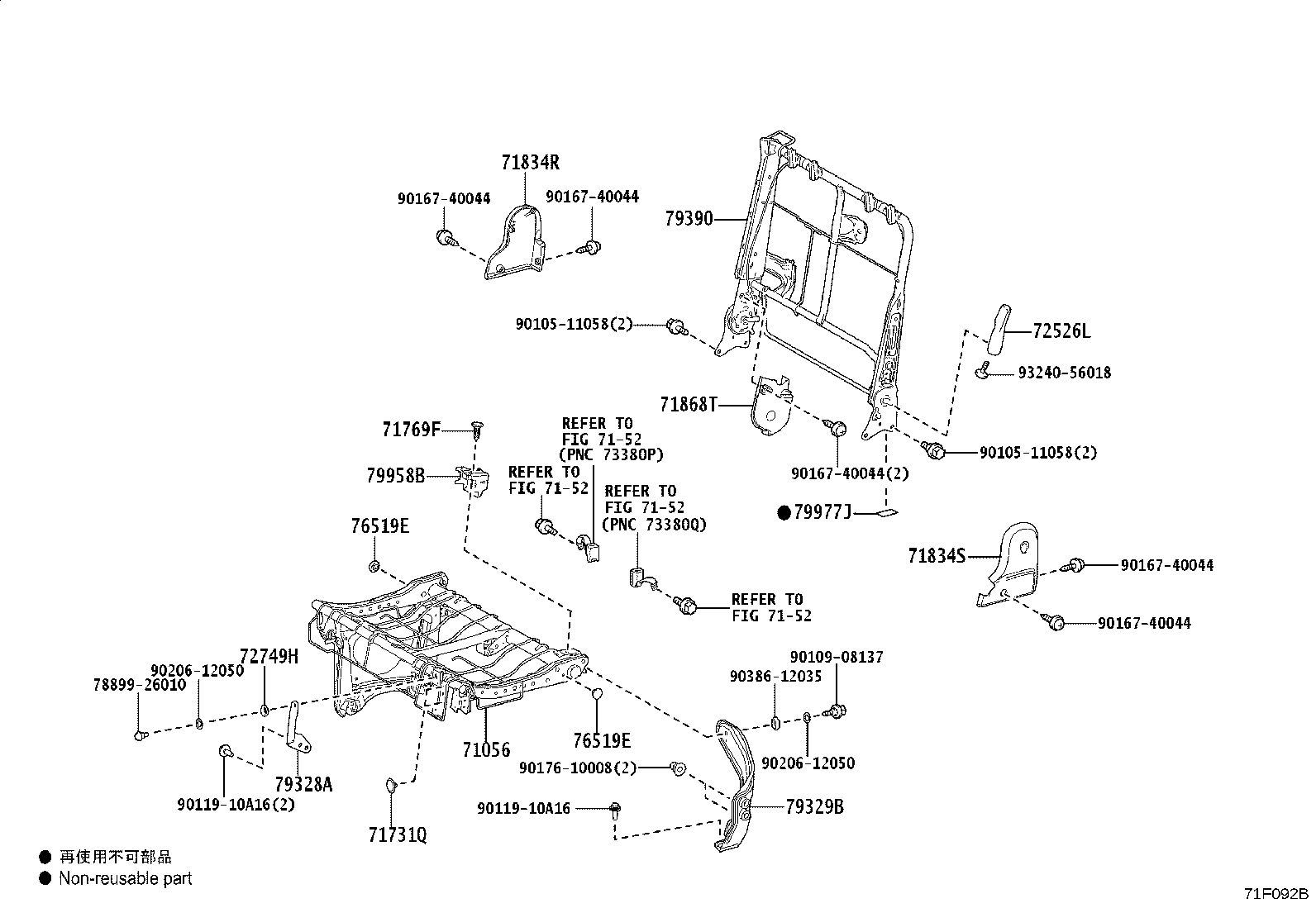

71F092B
71F092B

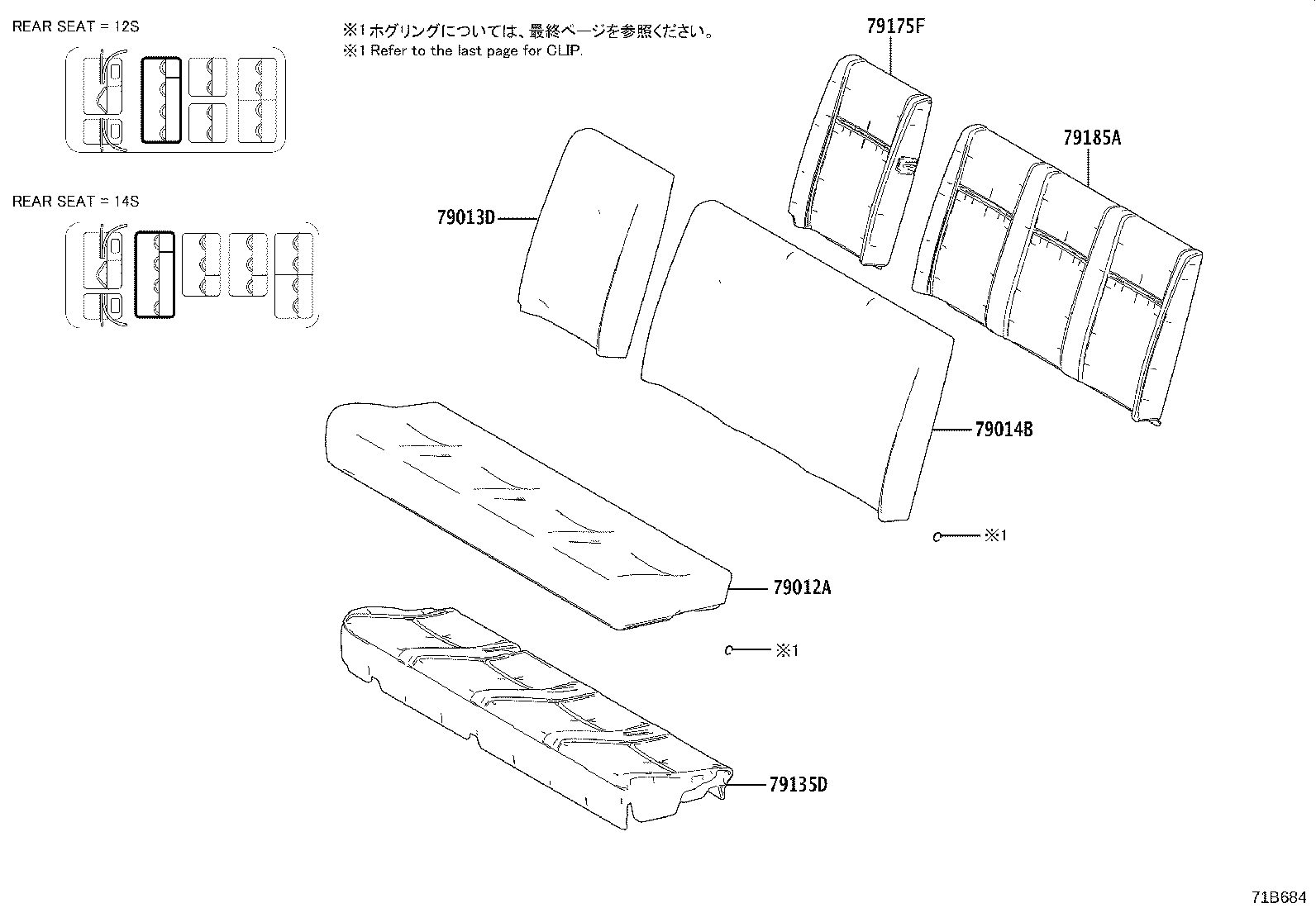

71B684
71B684
71B684

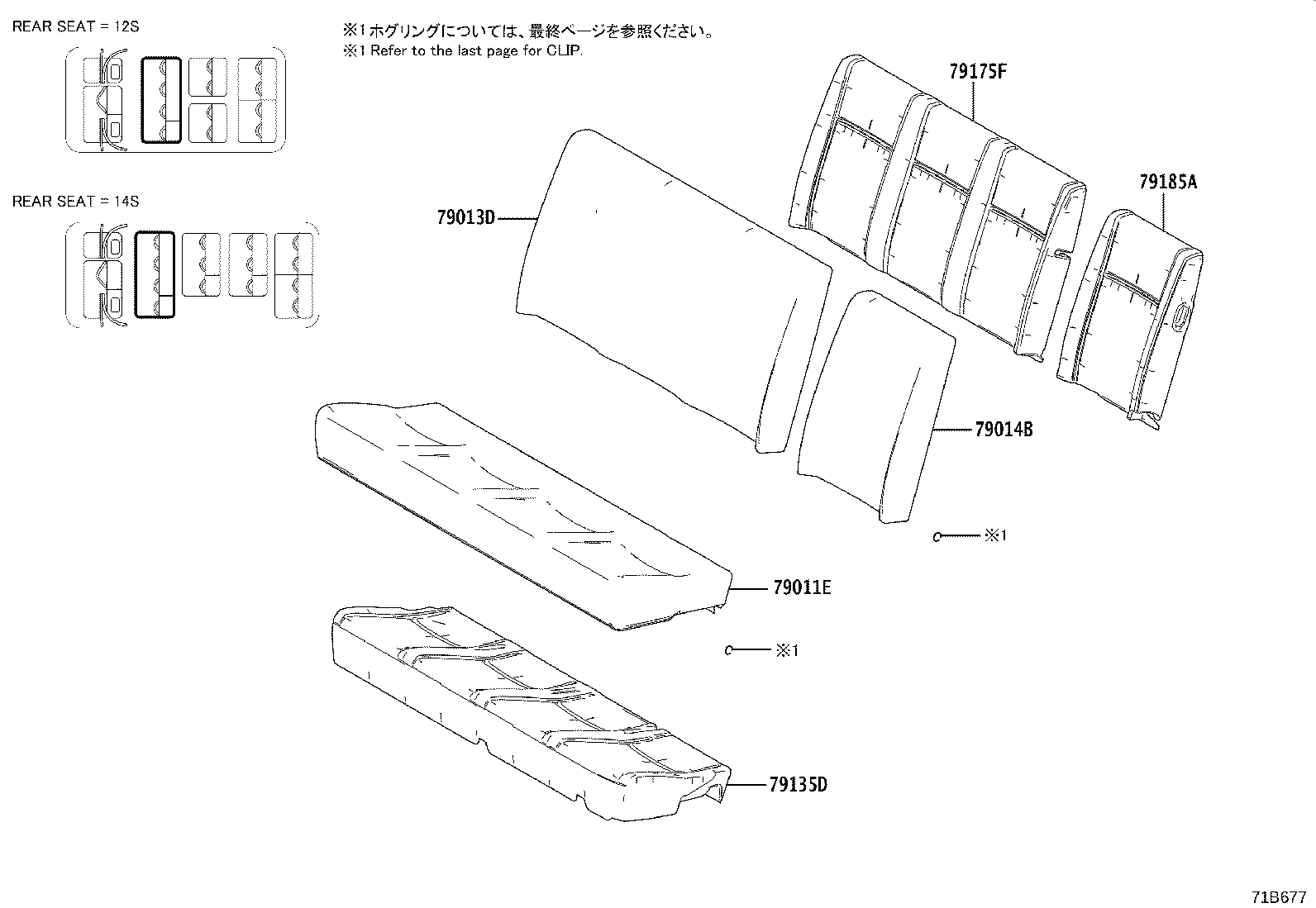

71B677

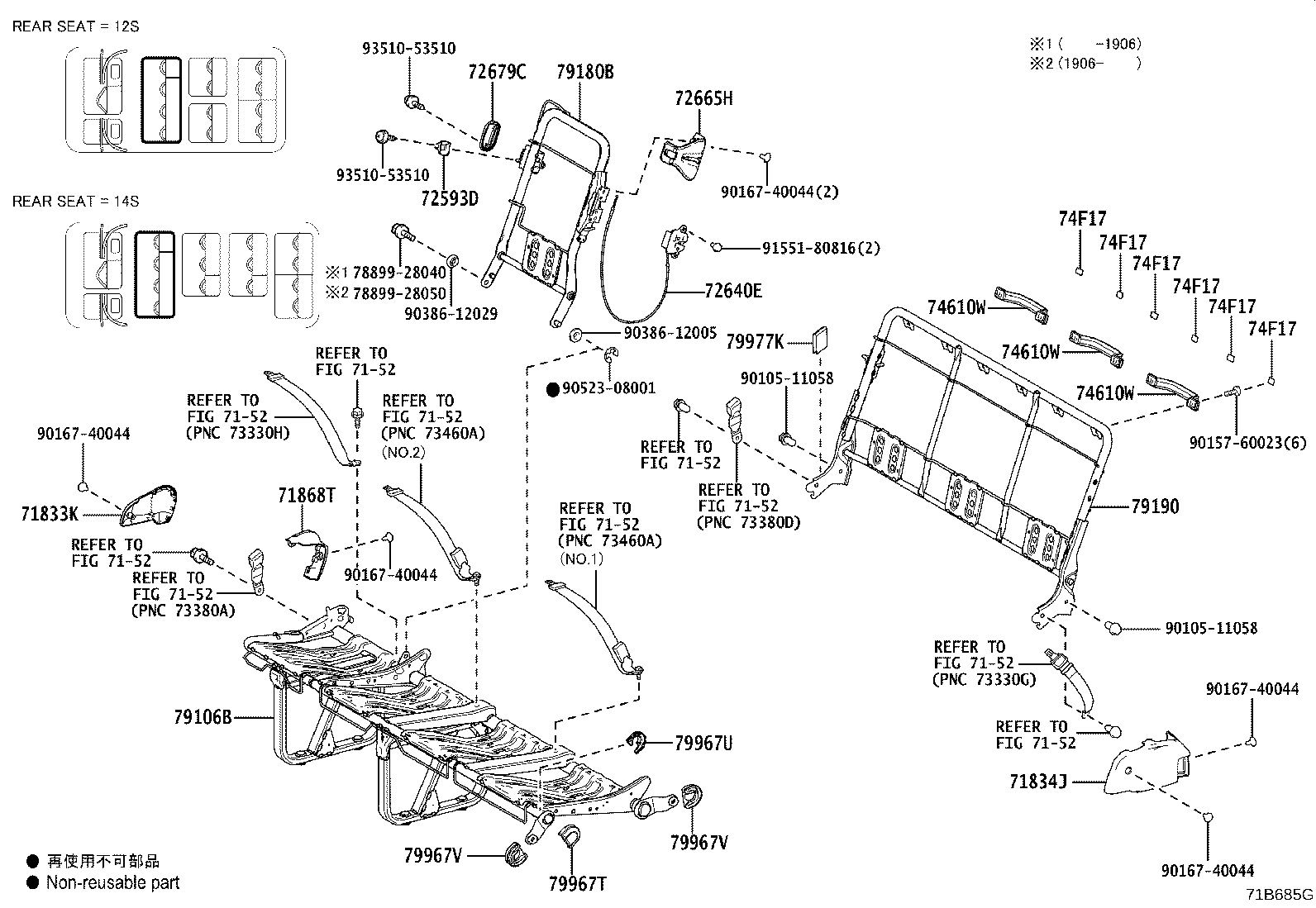

71B685G
71B685G
71B685G

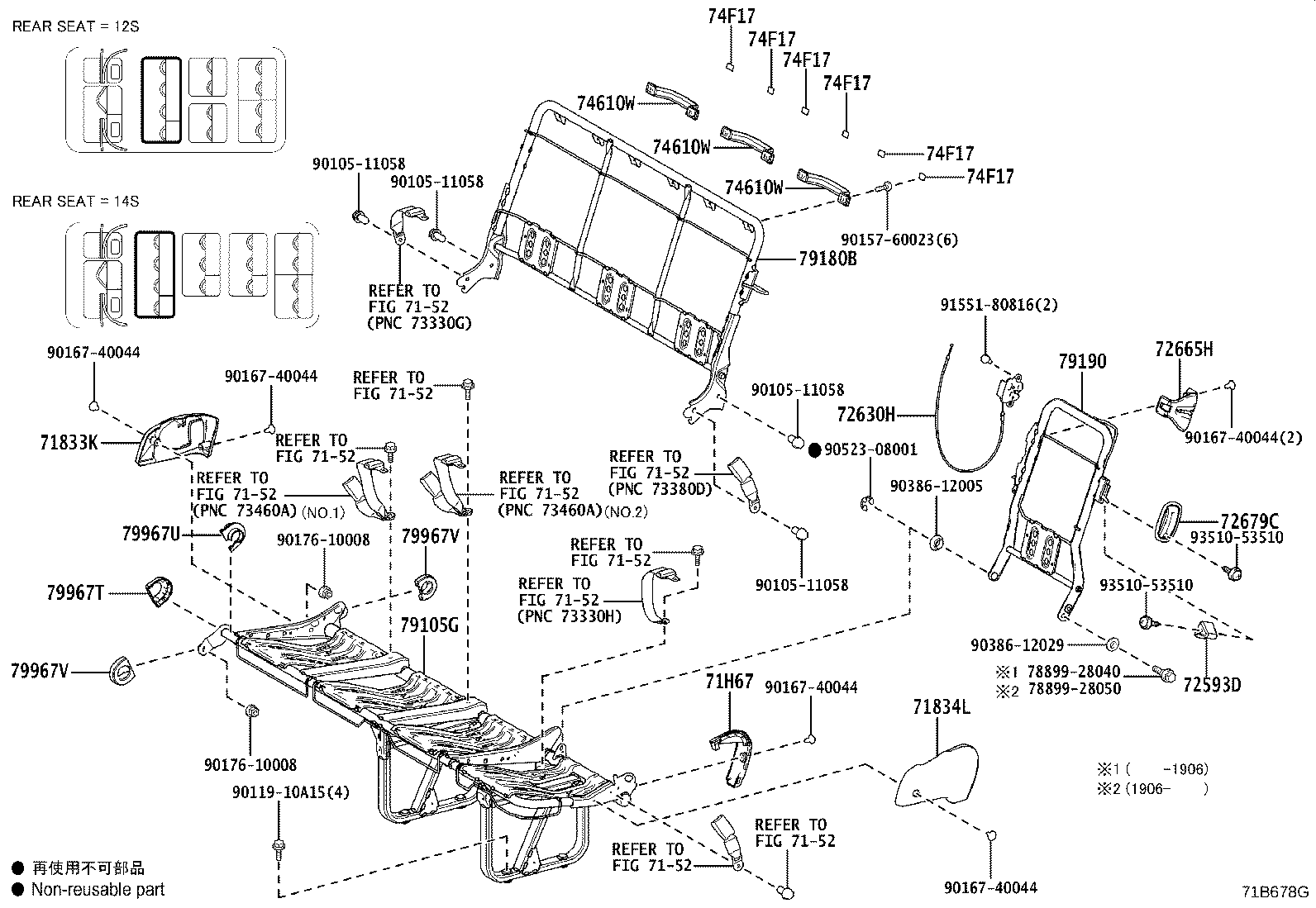

71B678G

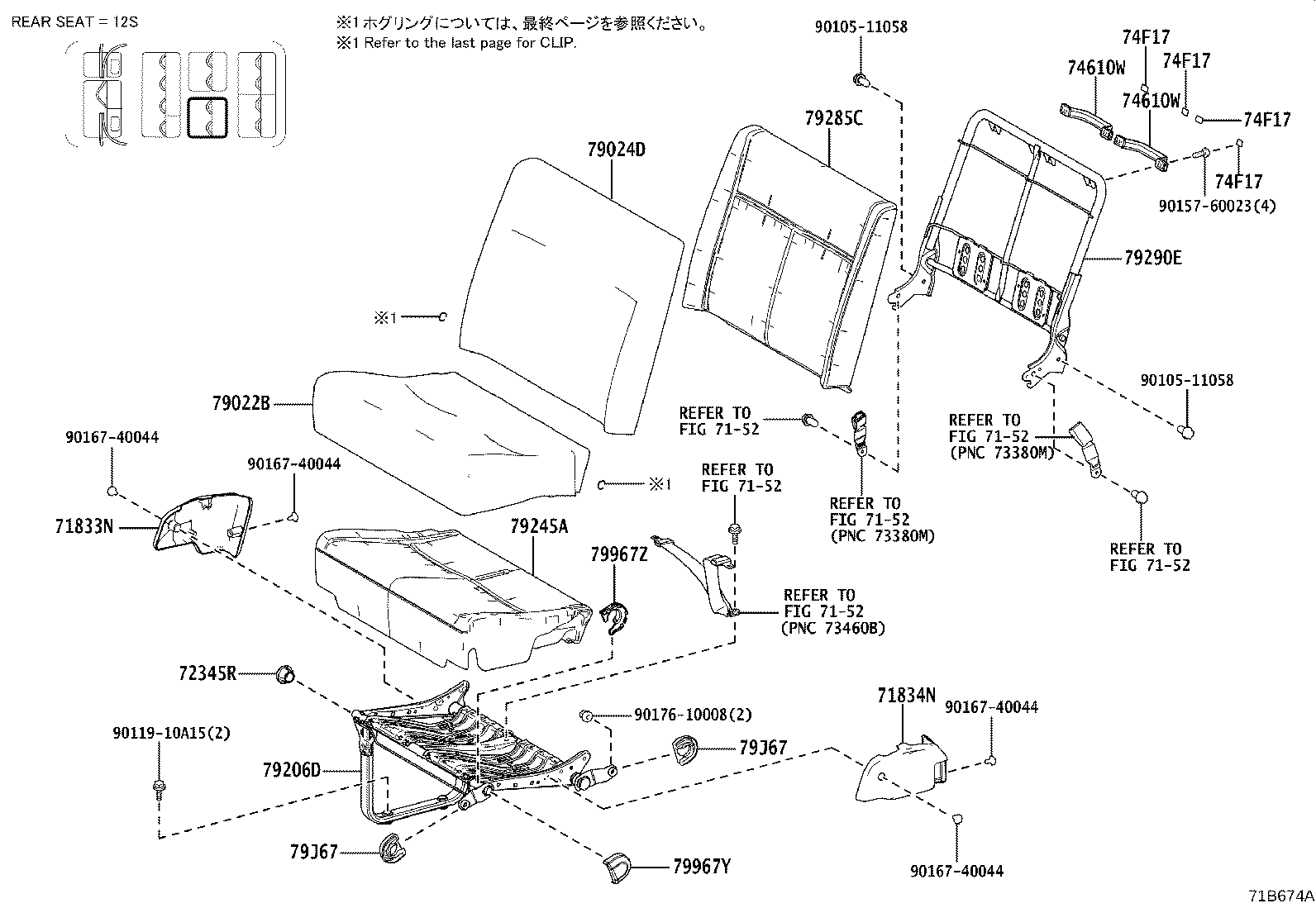

71B674A

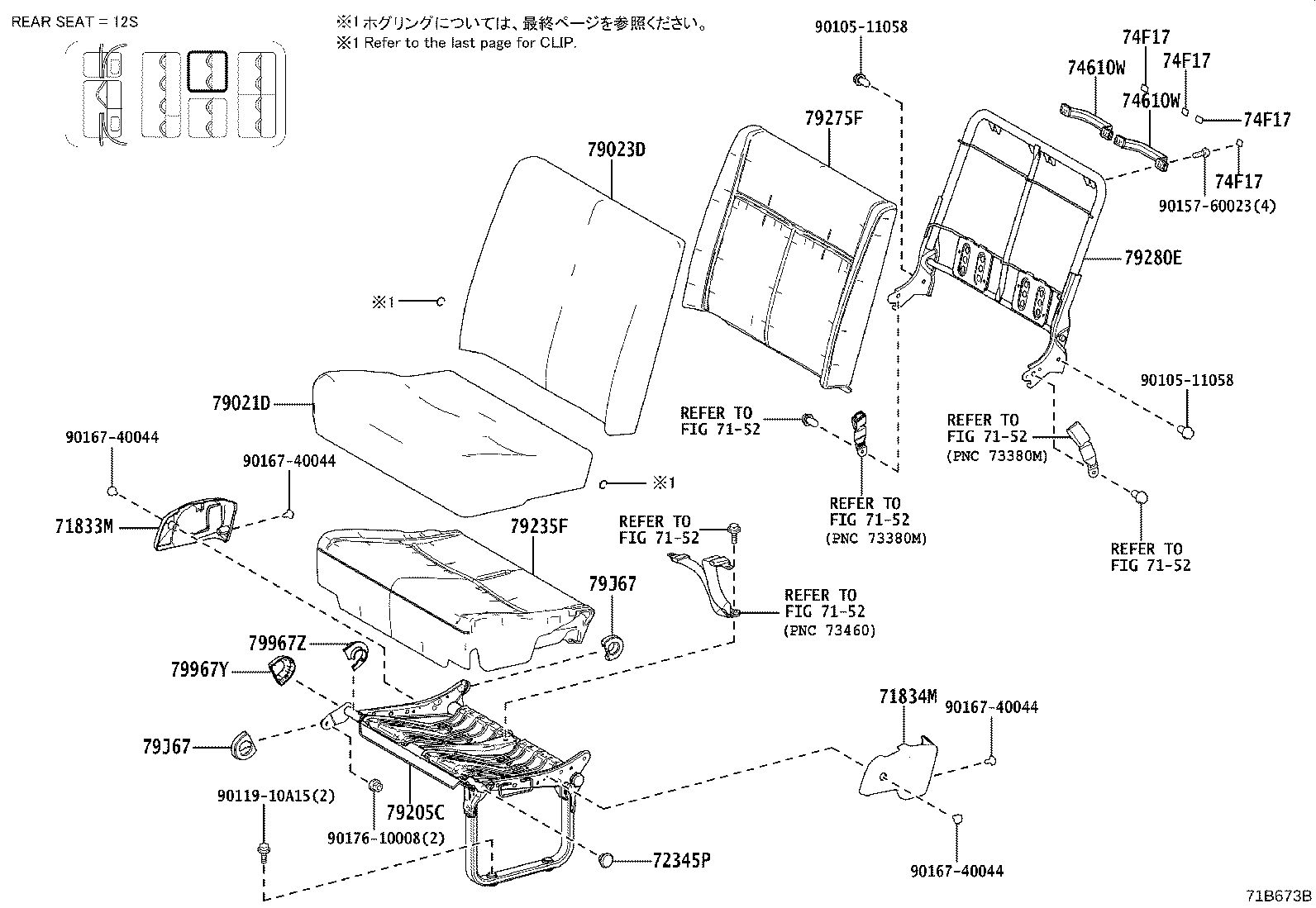

71B673B

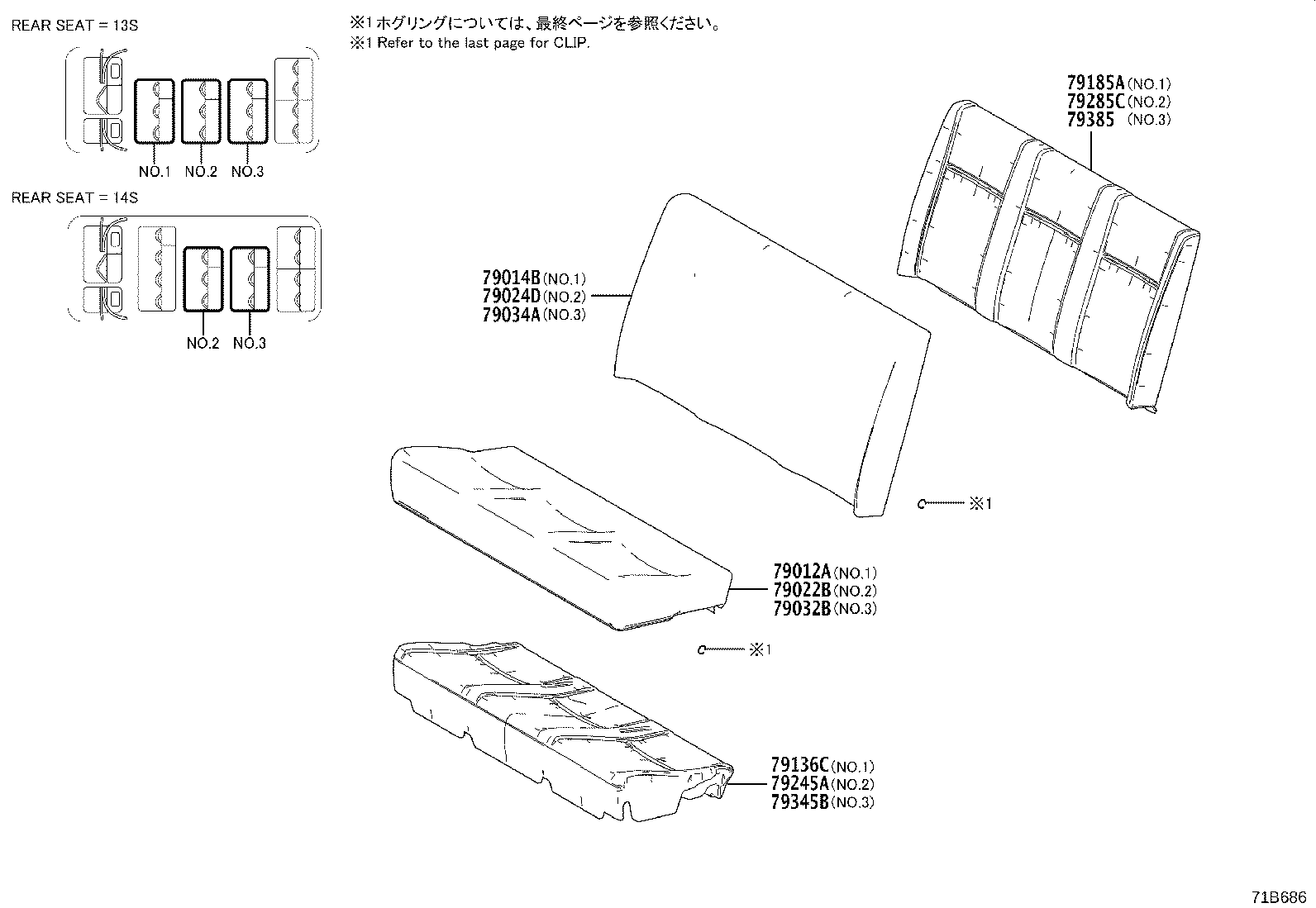

71B686
71B686
71B686

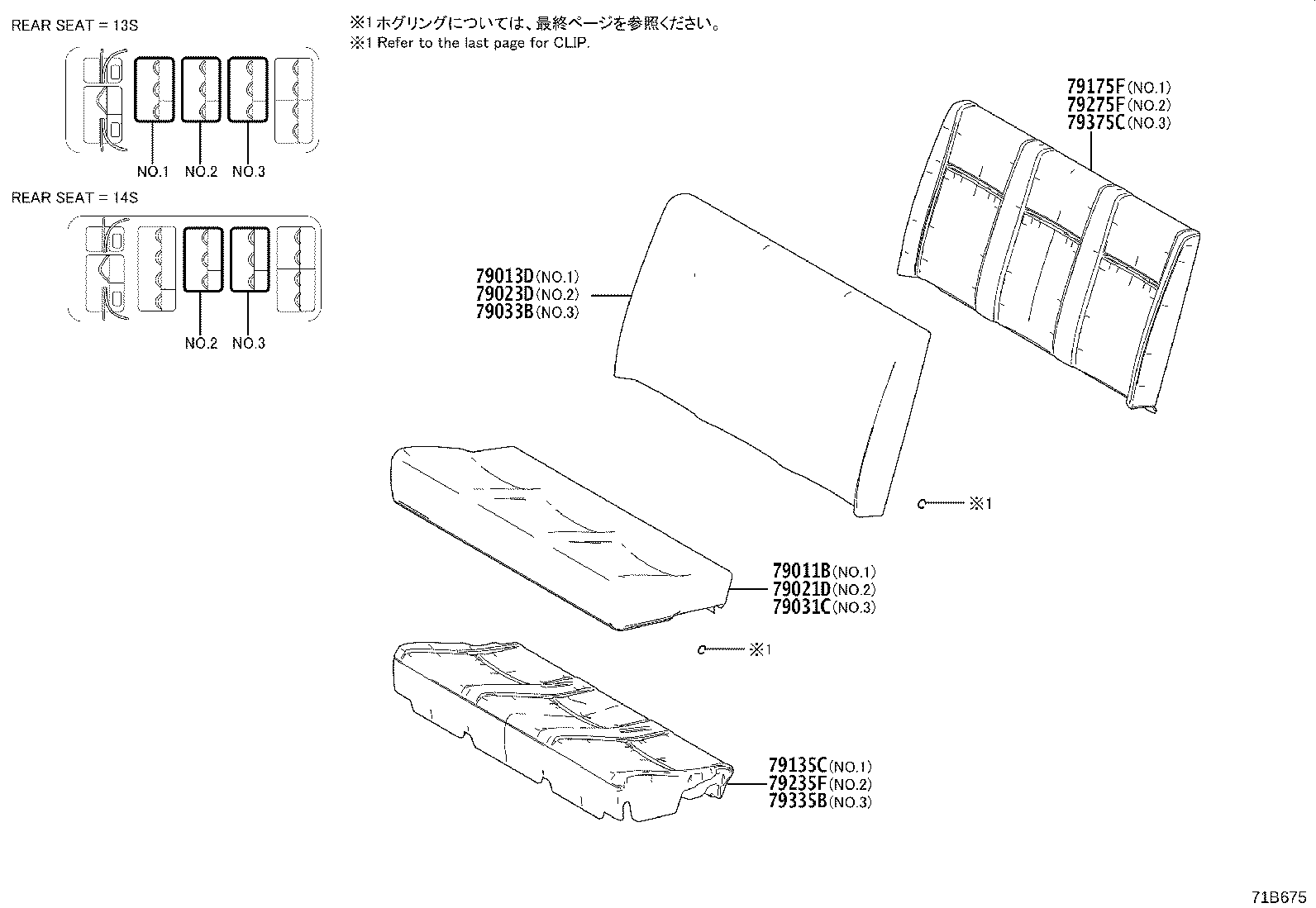

71B675

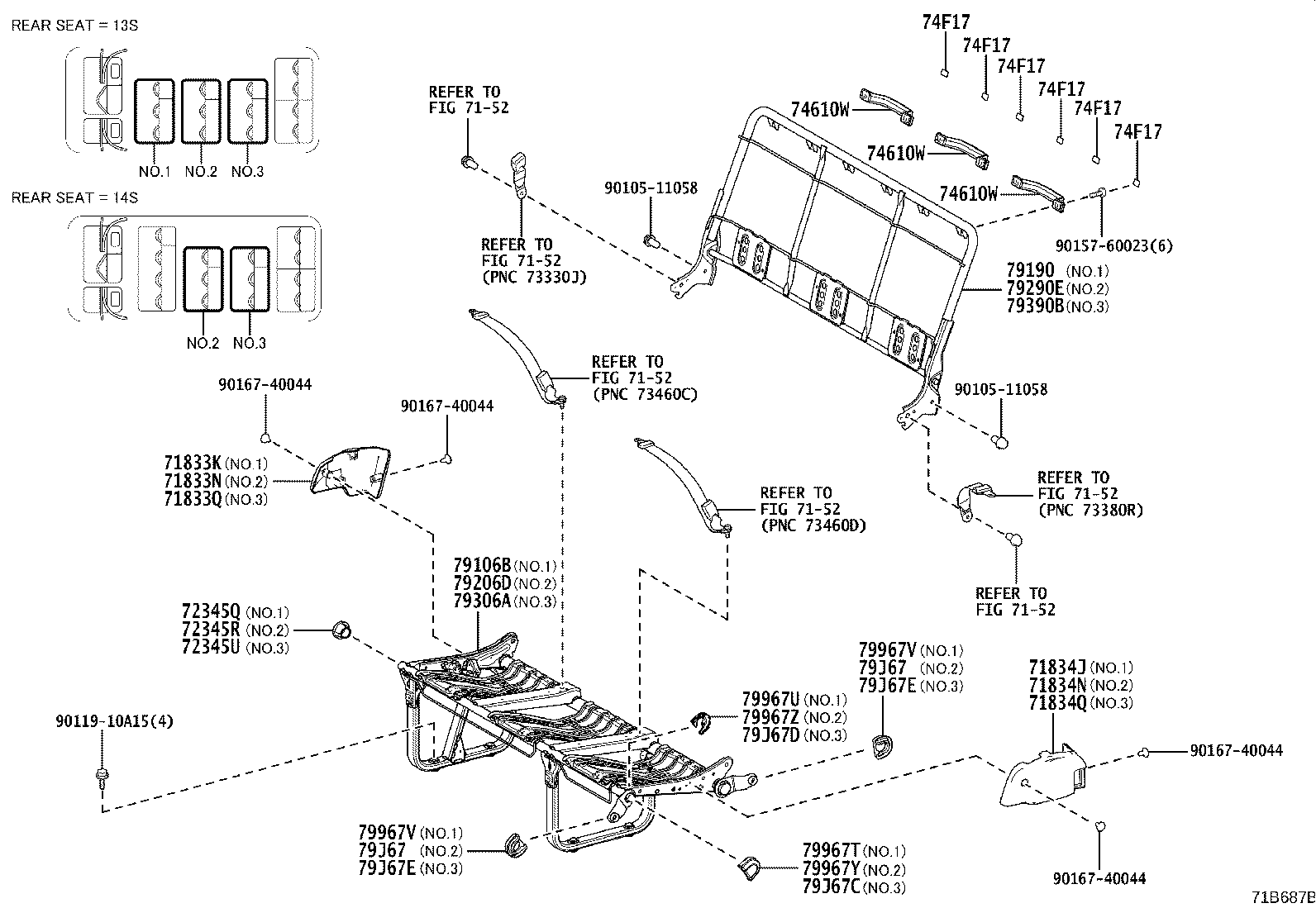

71B687B
71B687B
71B687B

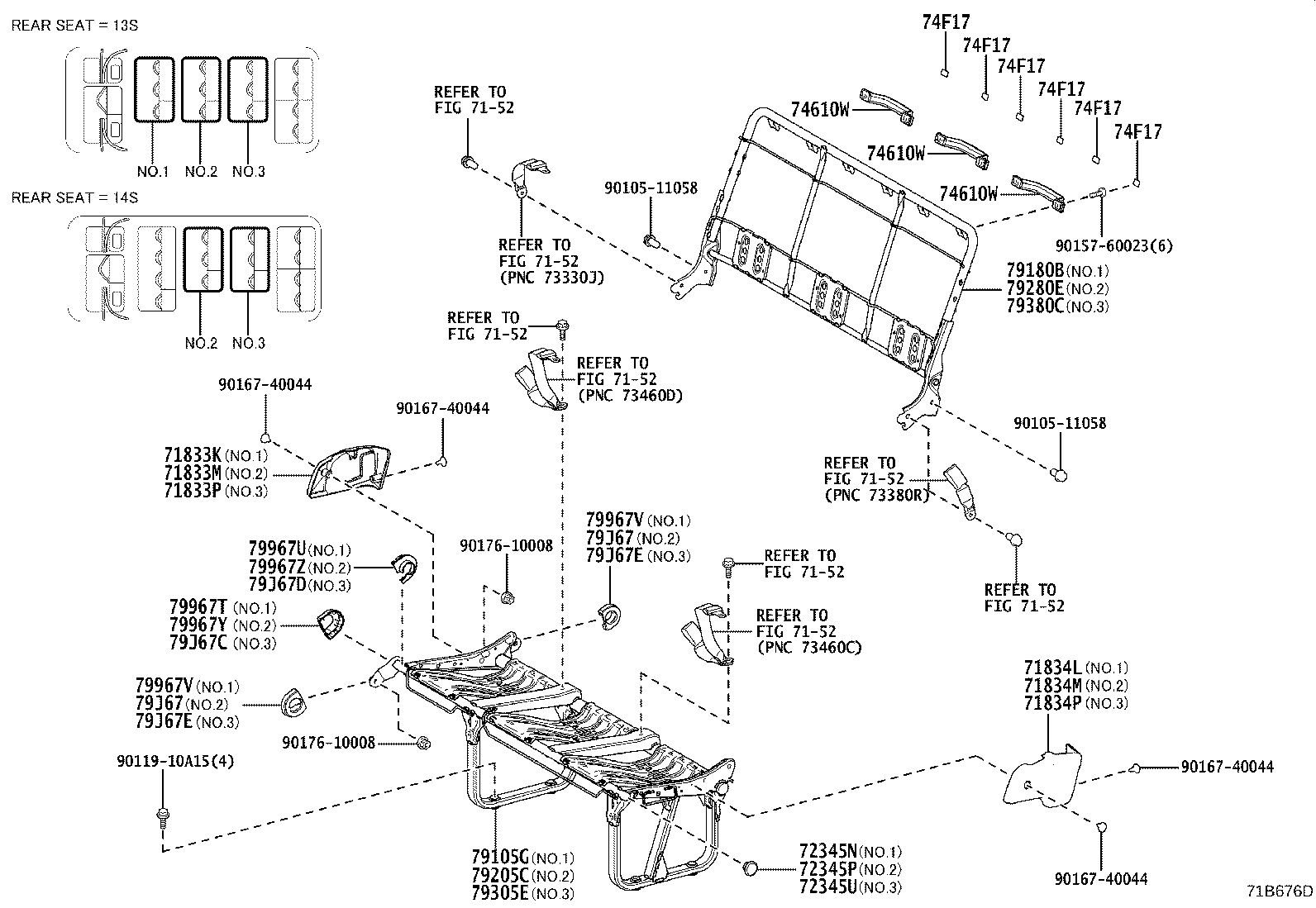

71B676D

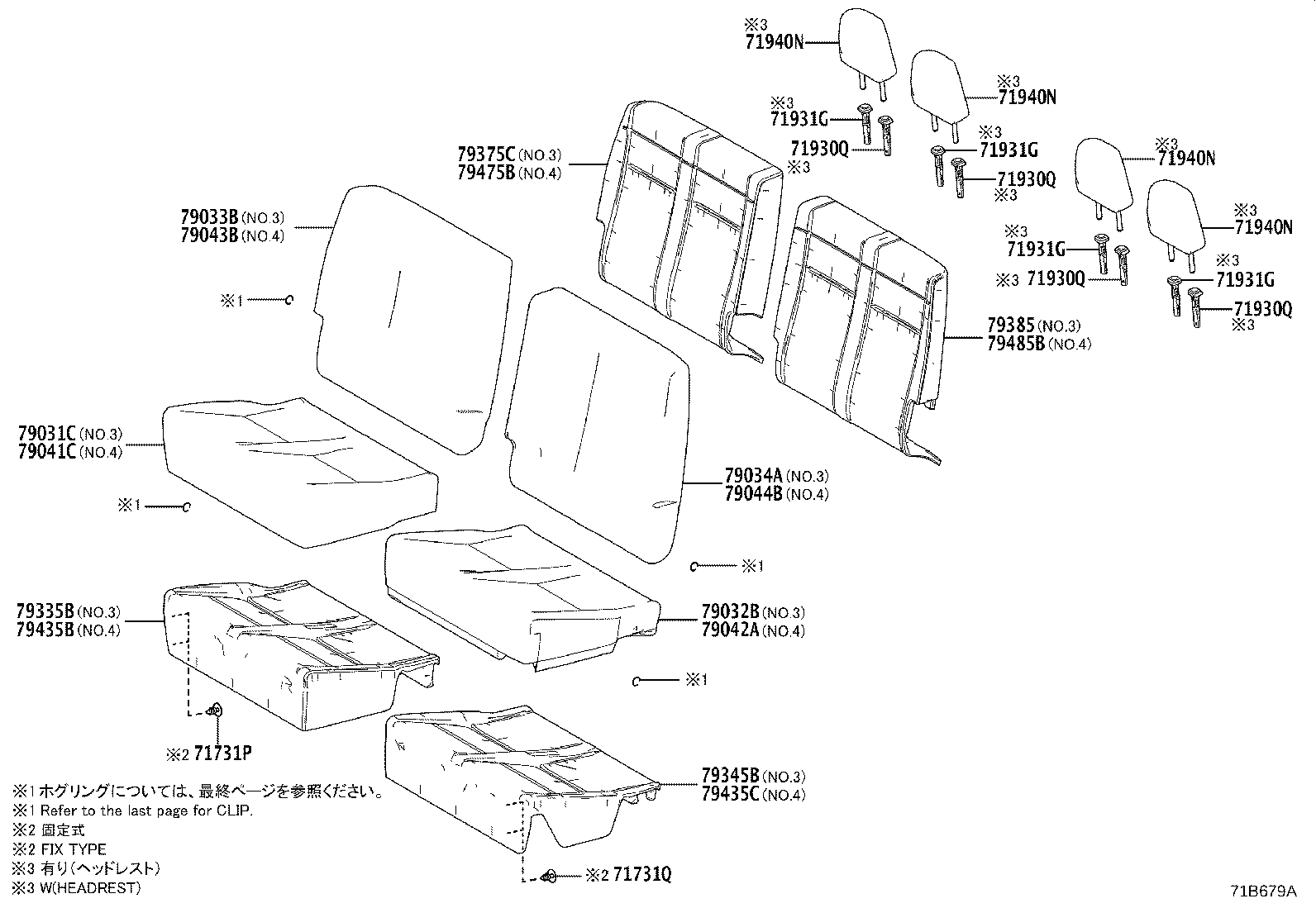

71B679A
71B679A
71B679A

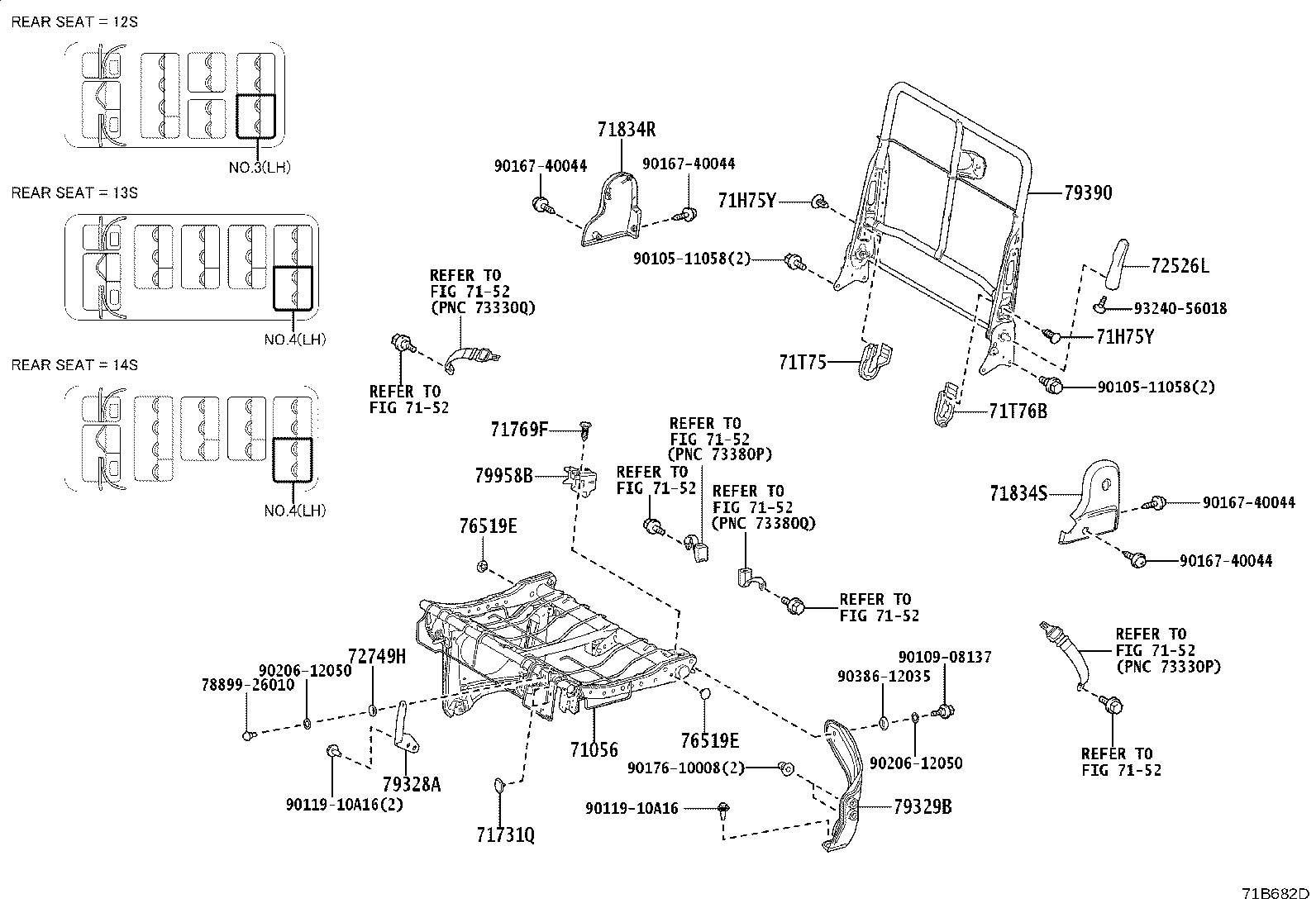

71B682D
71B682D
71B682D

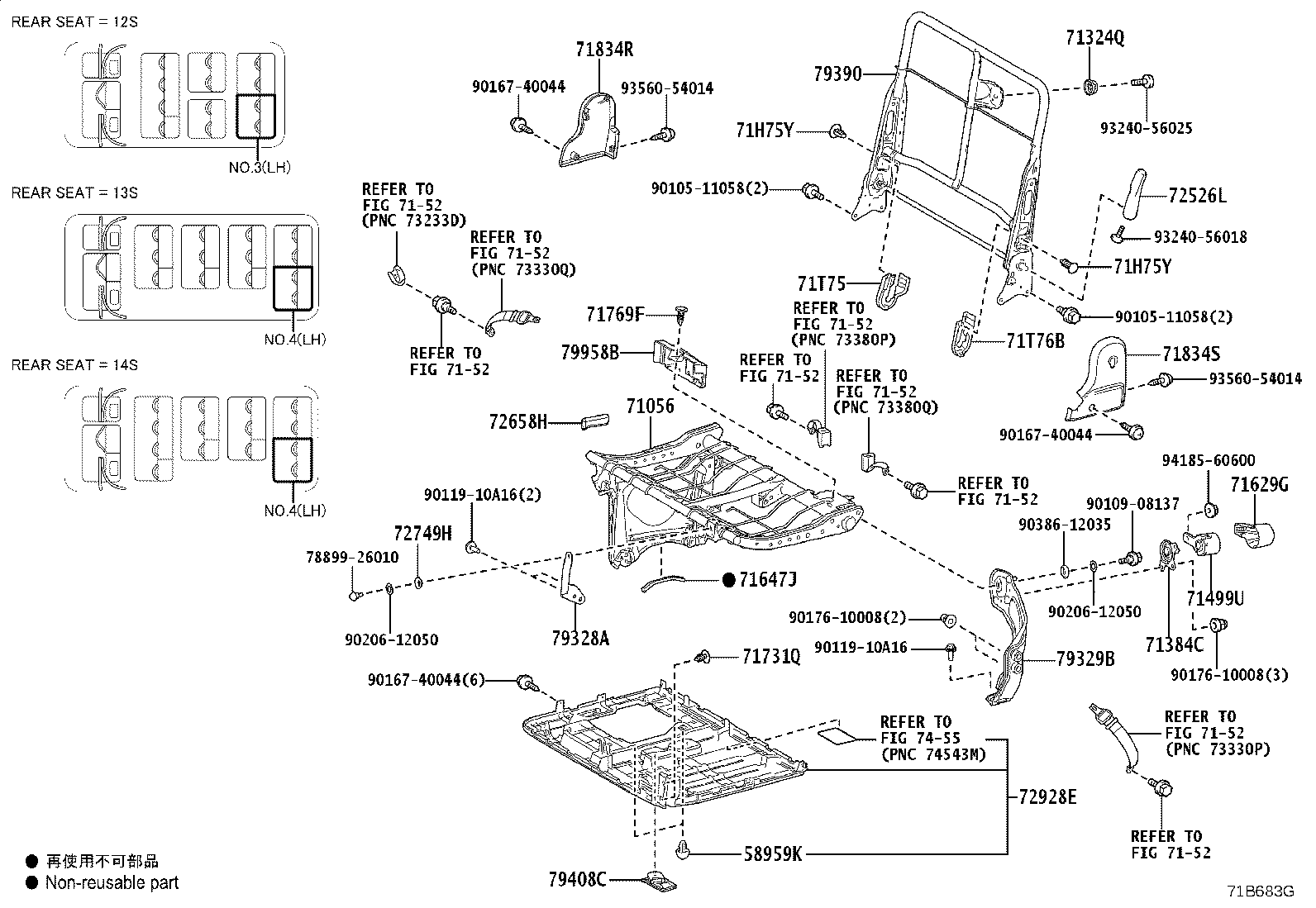

71B683G
71B683G

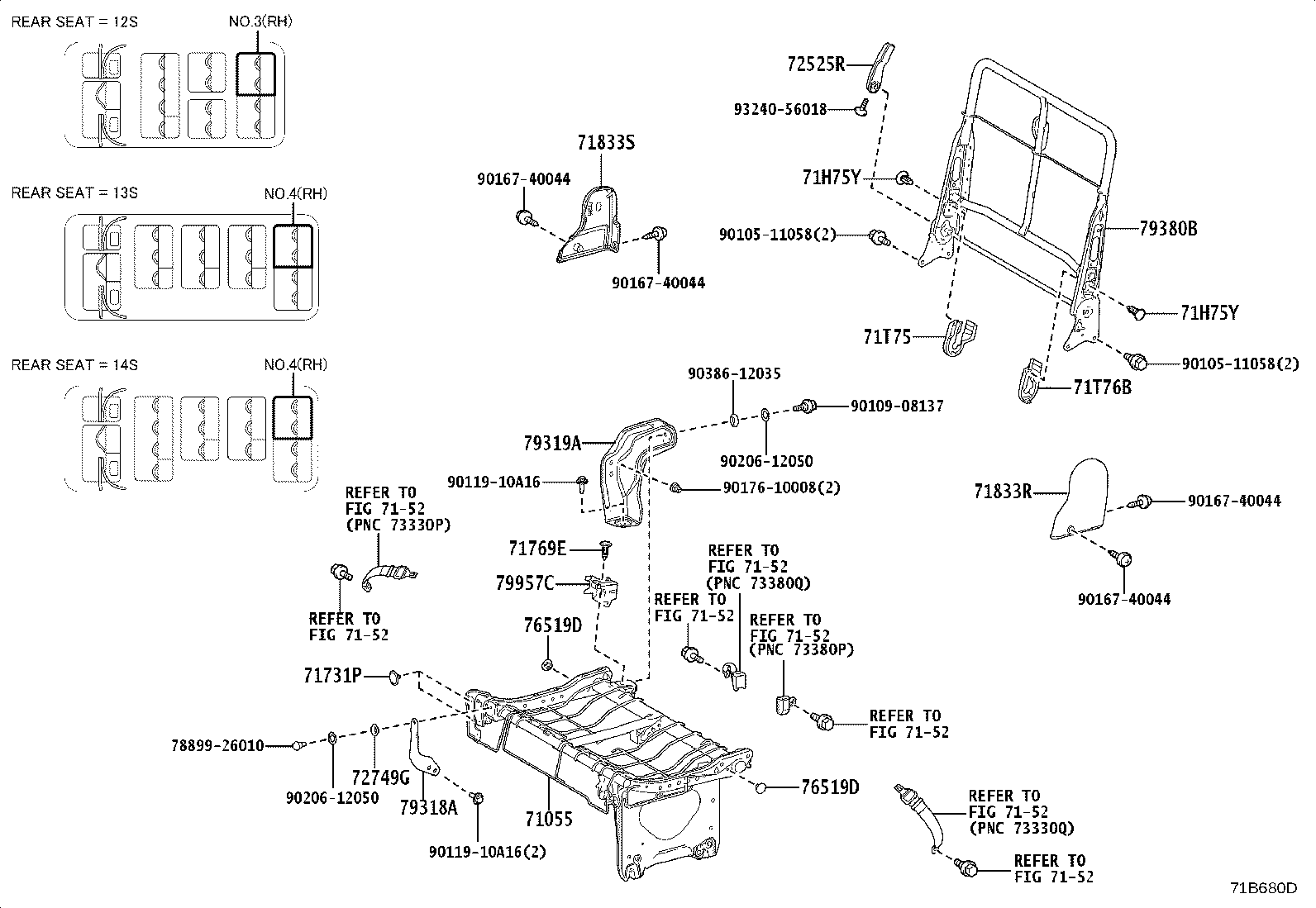

71B680D
71B680D
71B680D

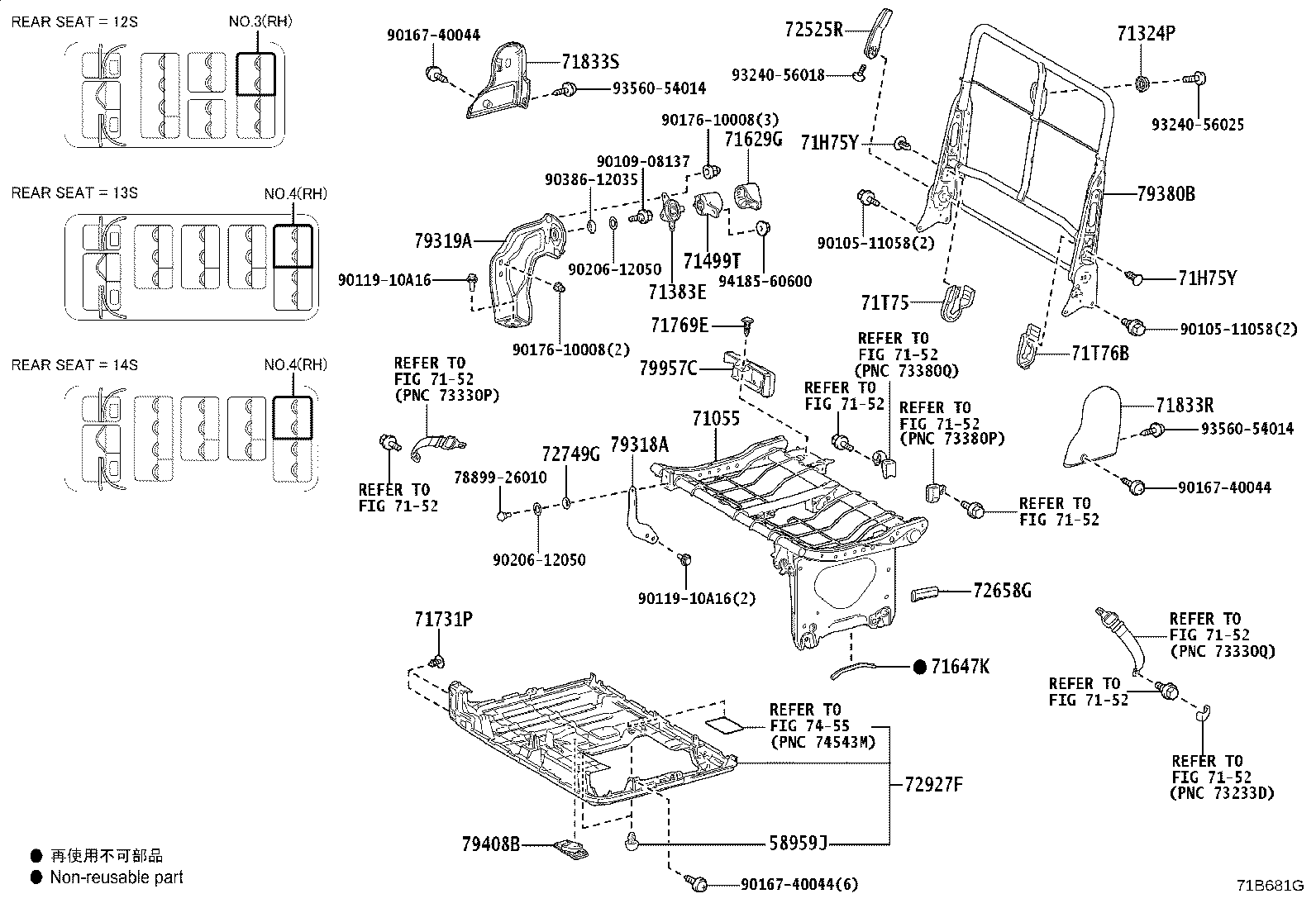

71B681G
71B681G

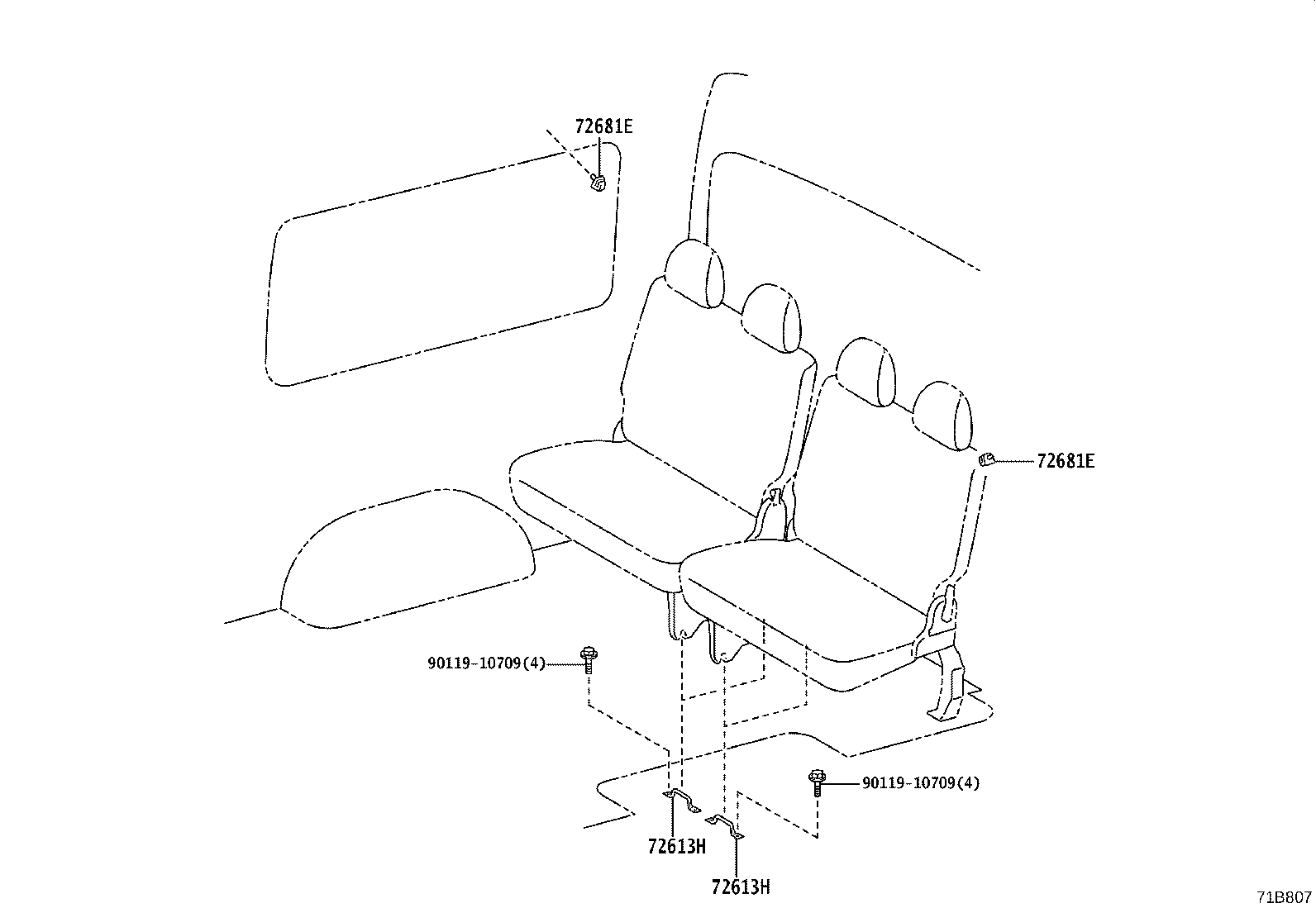

71B807

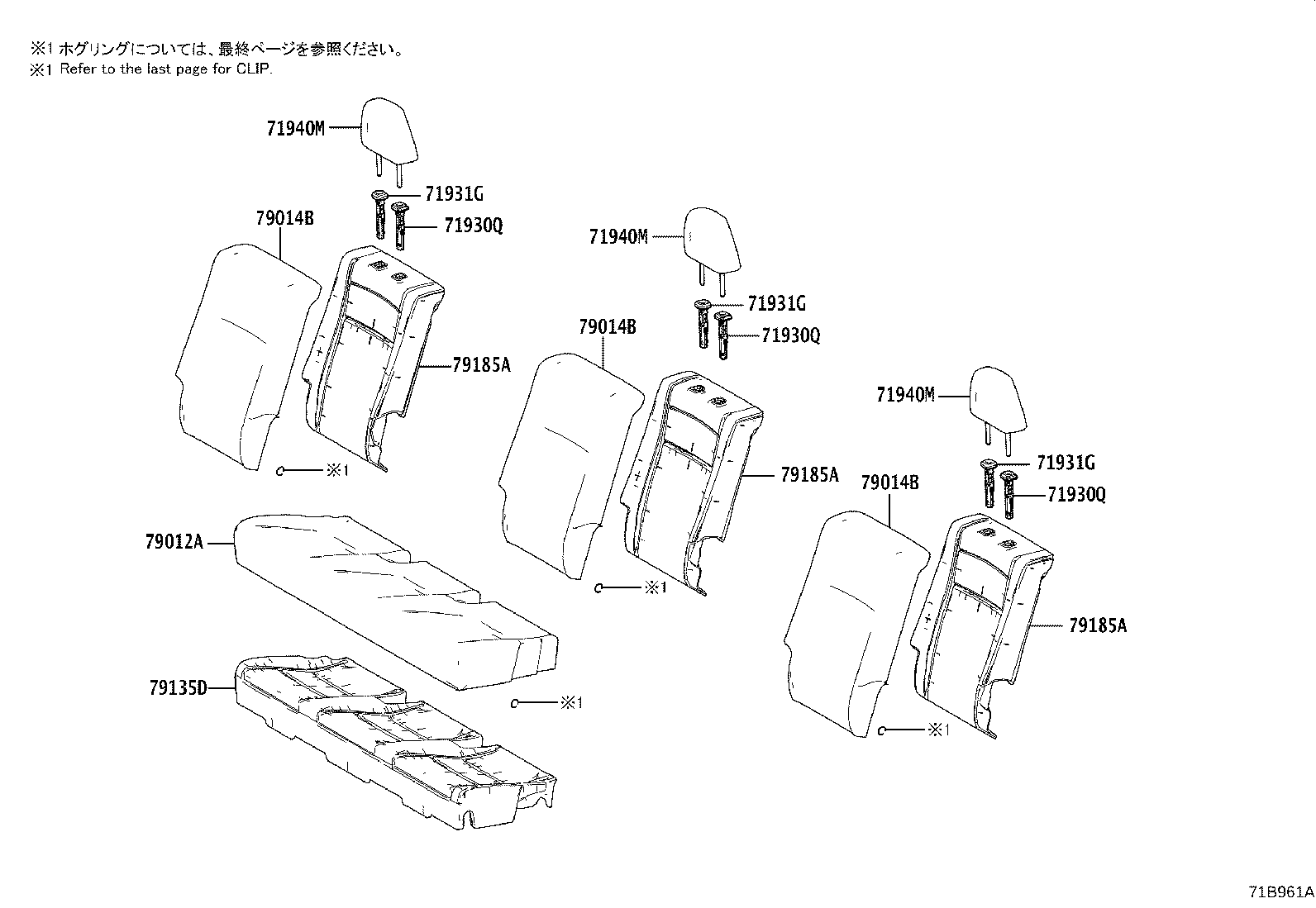

71B961A
71B961A
71B961A
71B961A
71B961A

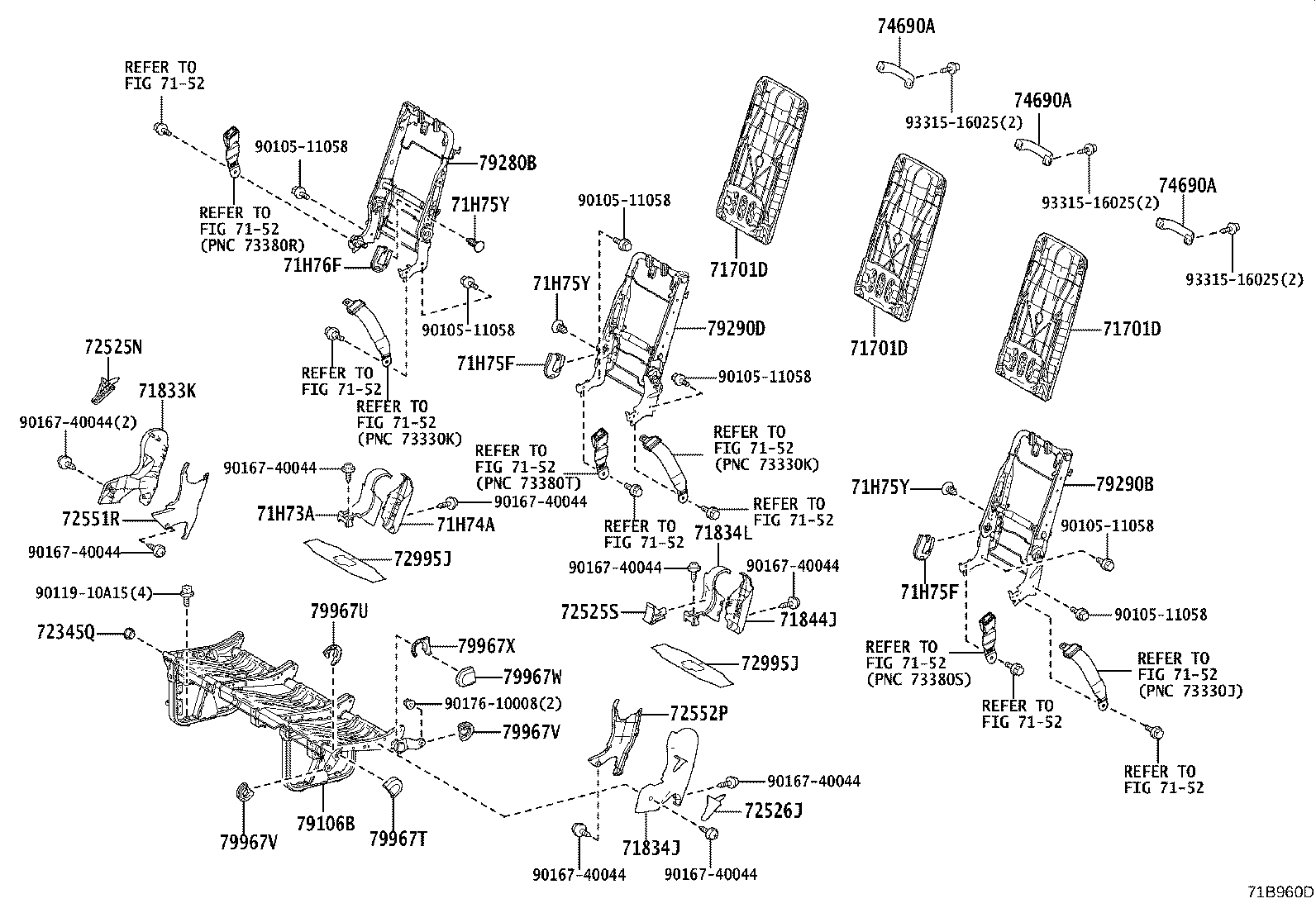

71B960D
71B960D
71B960D
71B960D
71B960D

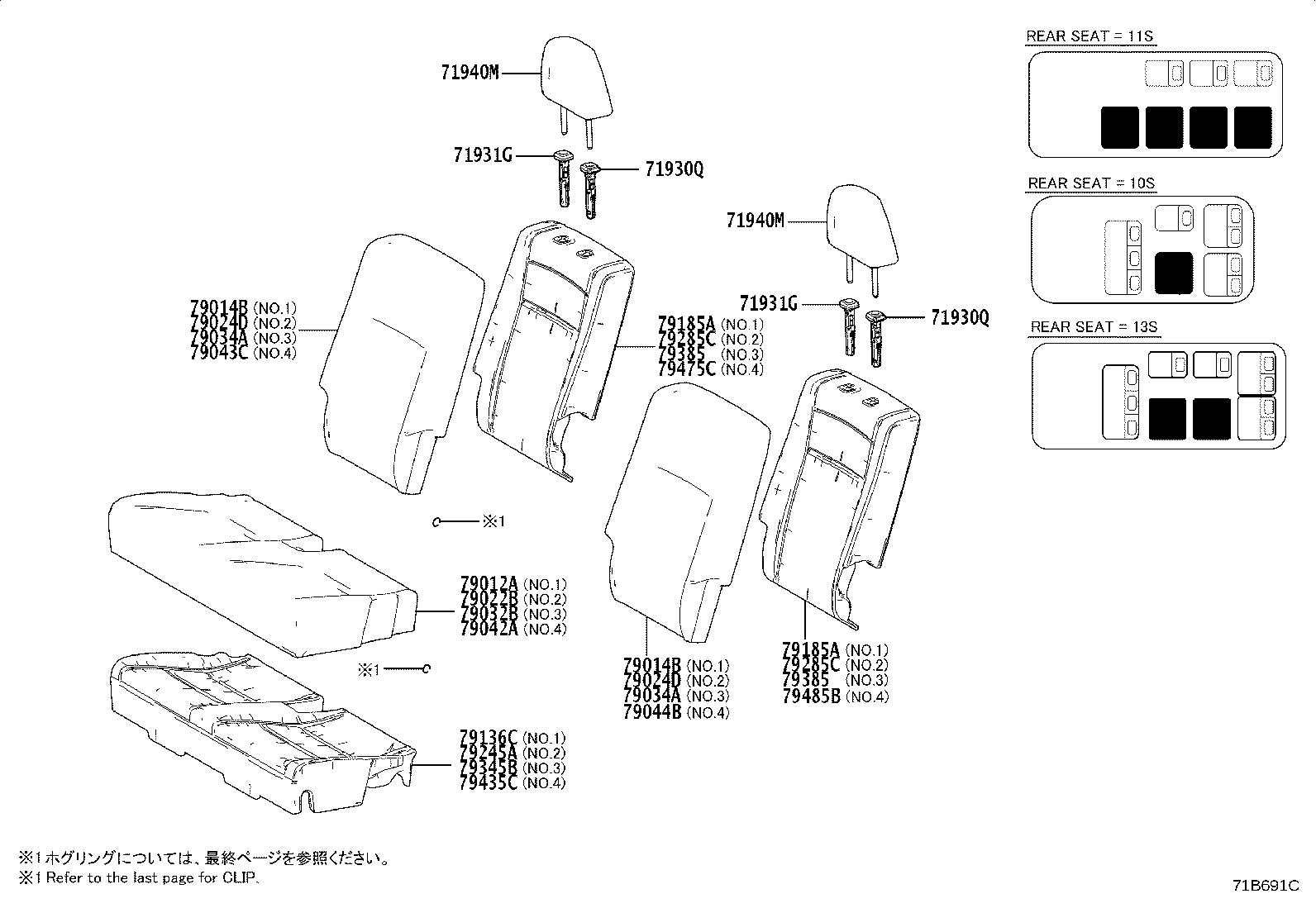

71B691C
71B691C
71B691C
71B691C

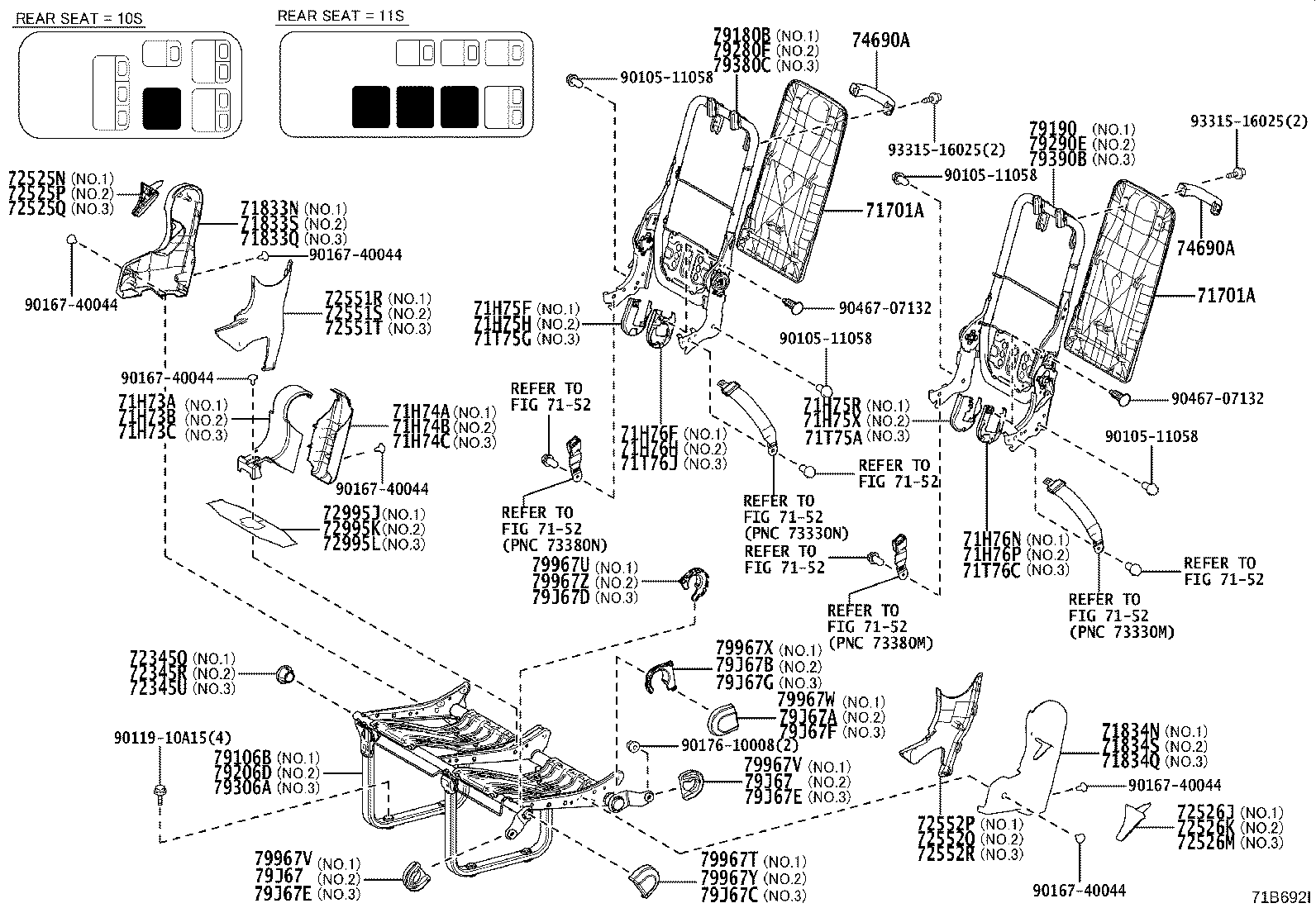

71B692I
71B692I
71B692I
71B692I

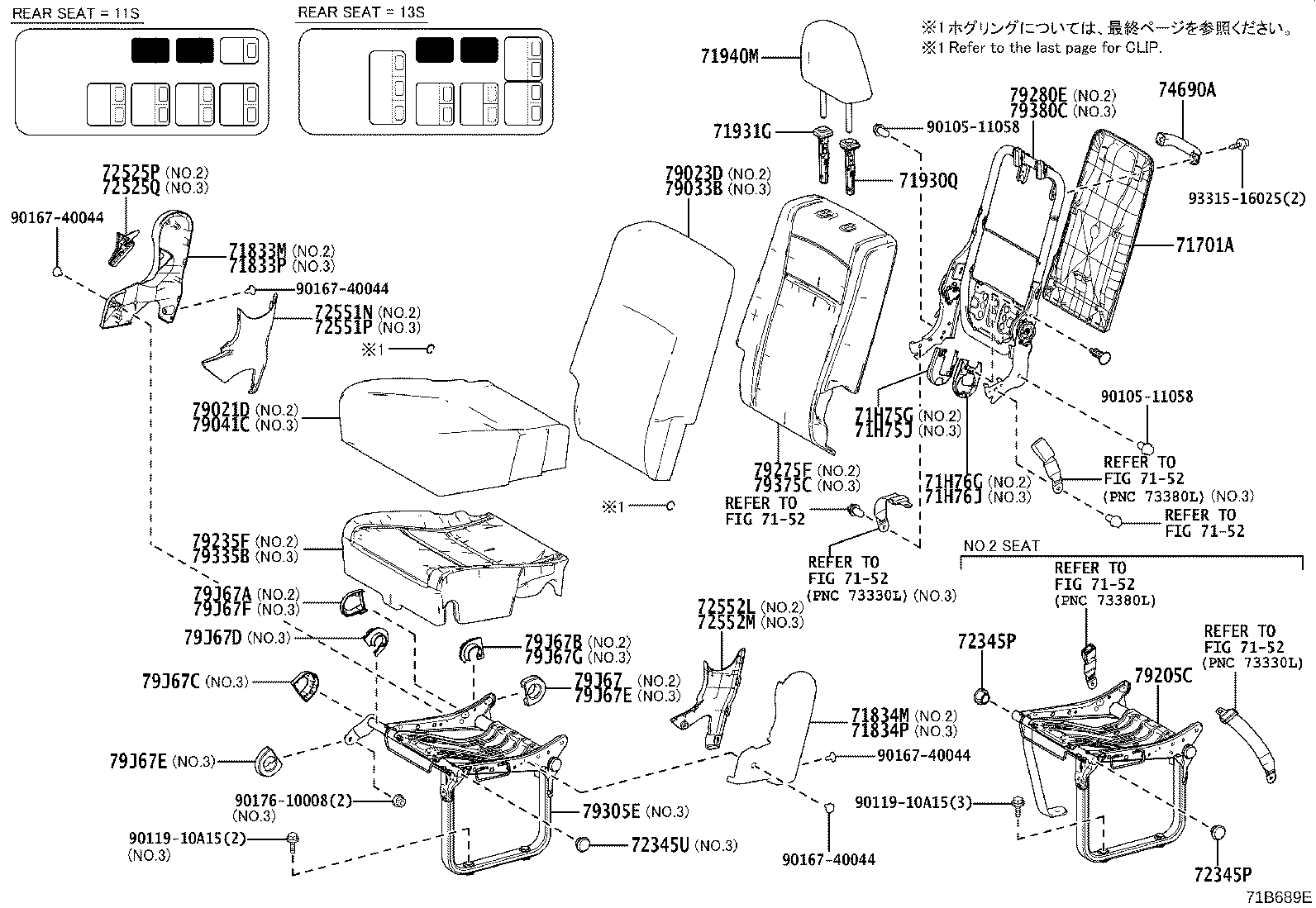

71B689E
71B689E
71B689E
71B689E

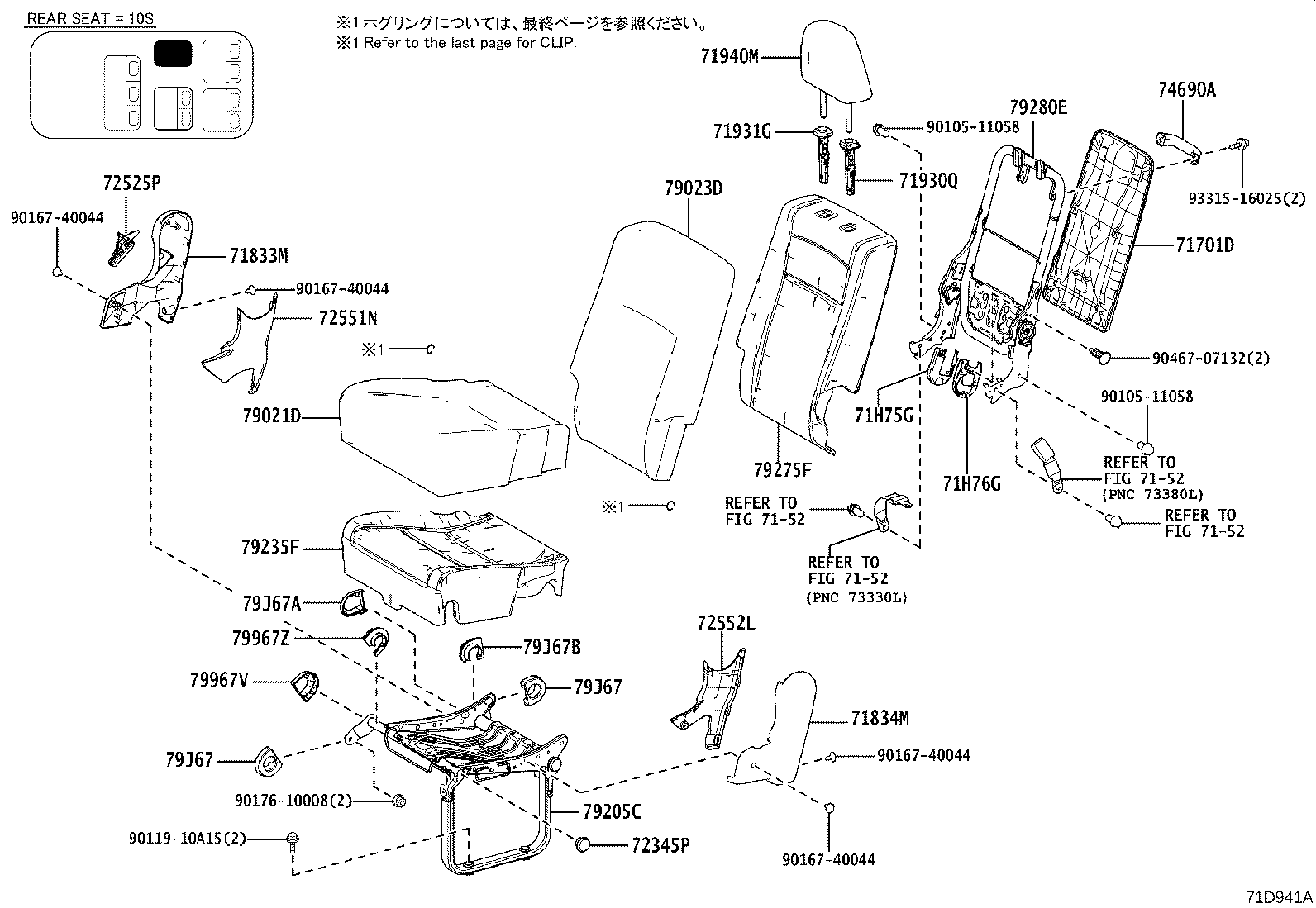

71D941A

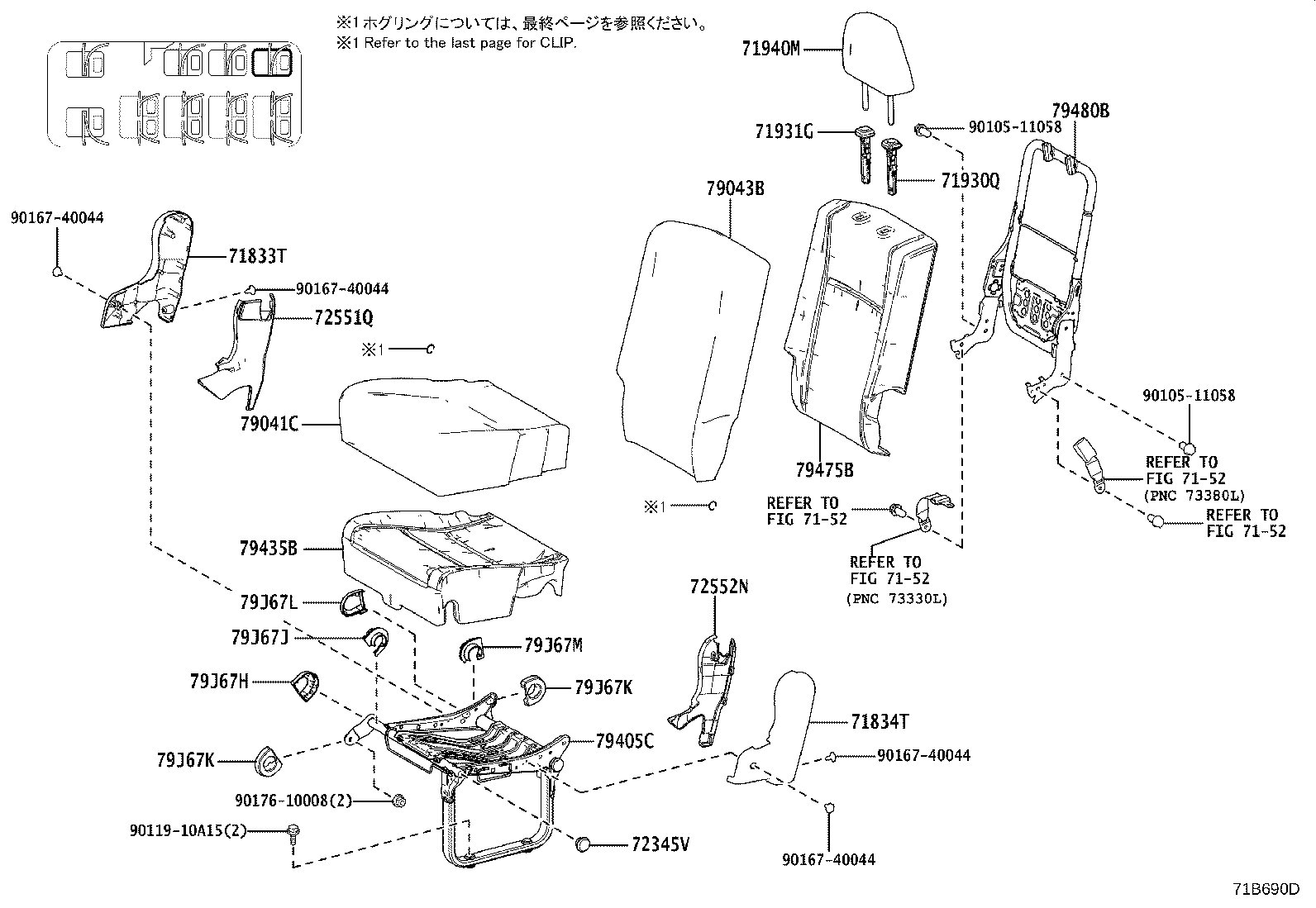

71B690D

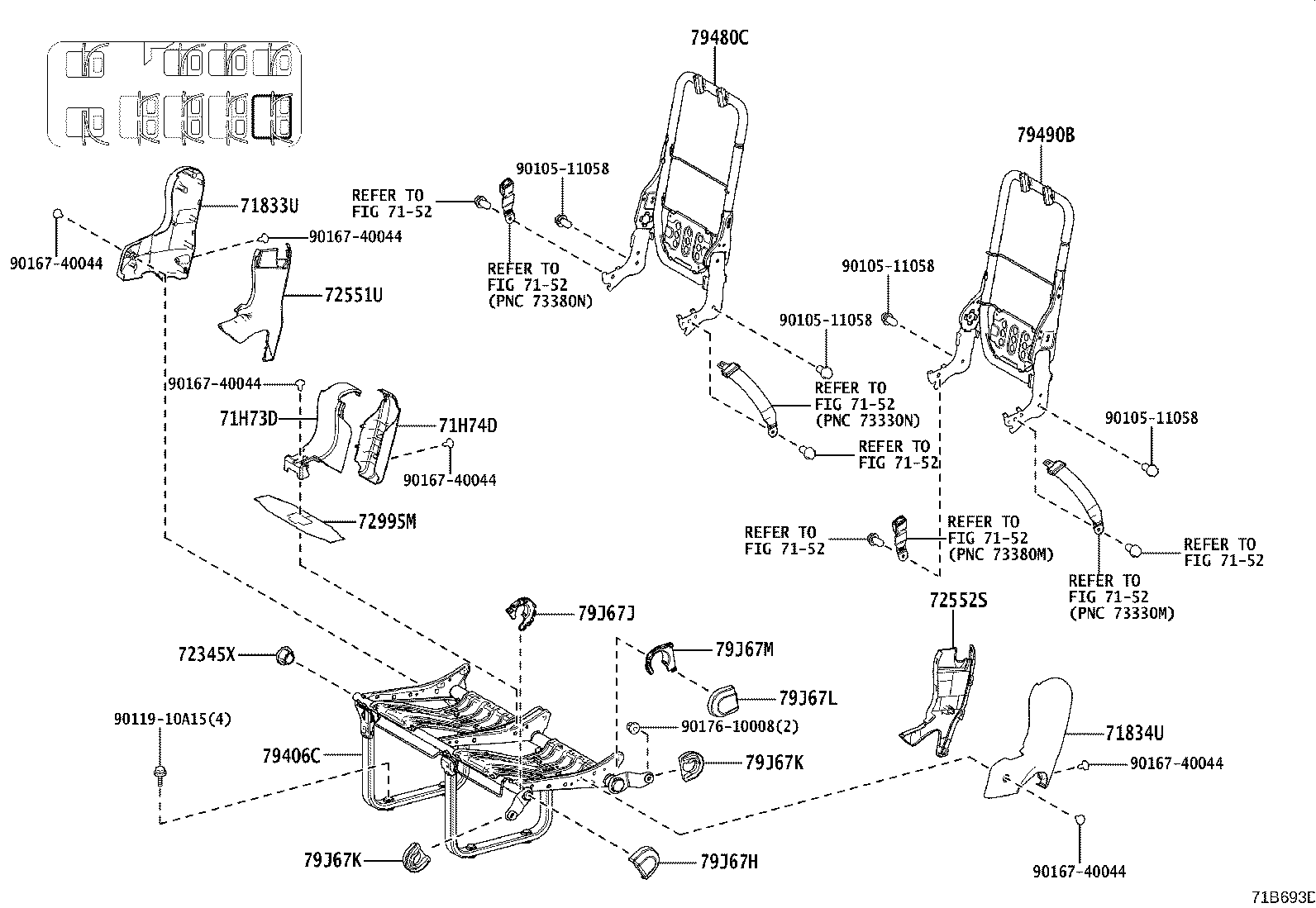

71B693D
71B962
71B962
71B962

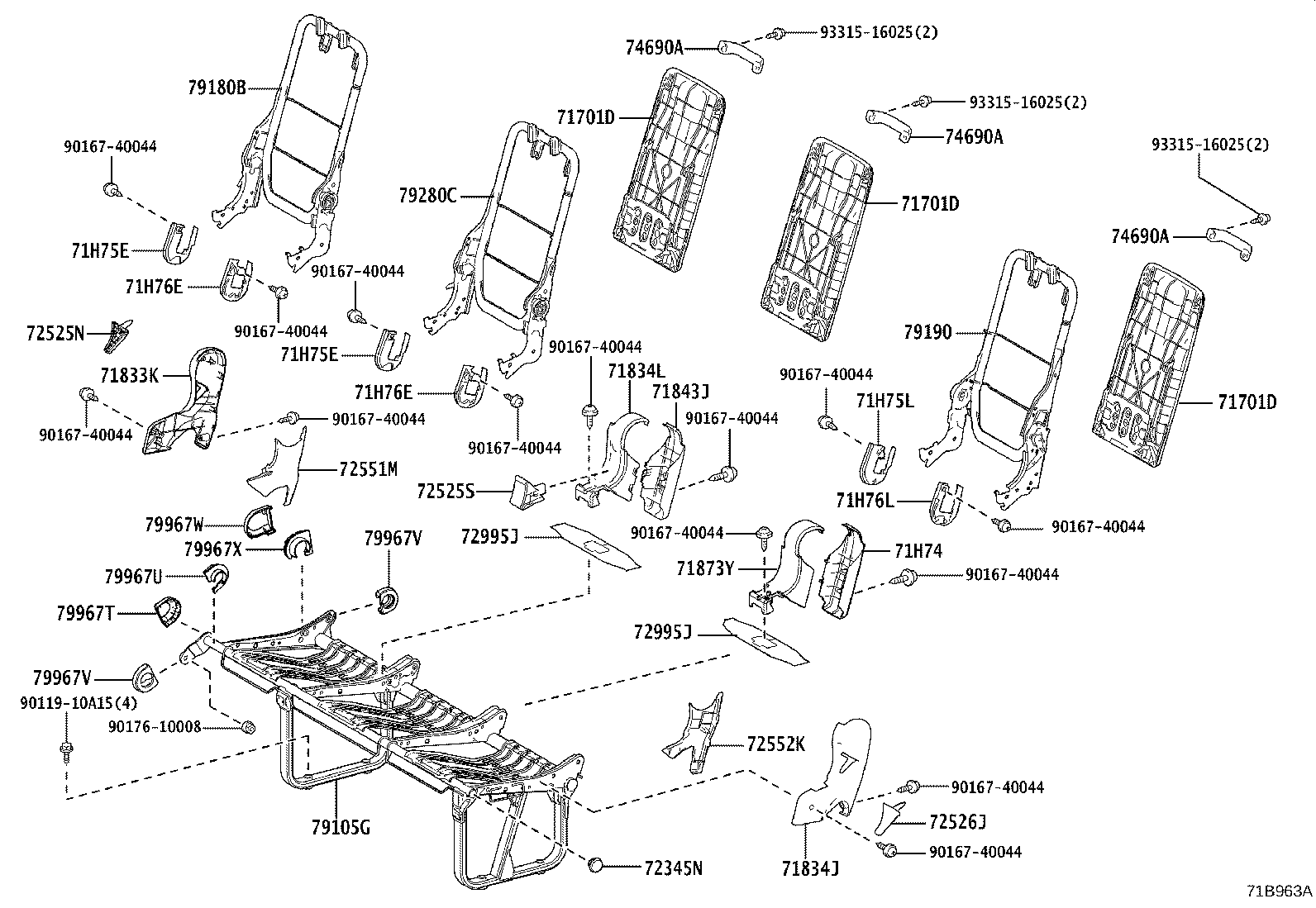

71B963A
71B963A
71B963A

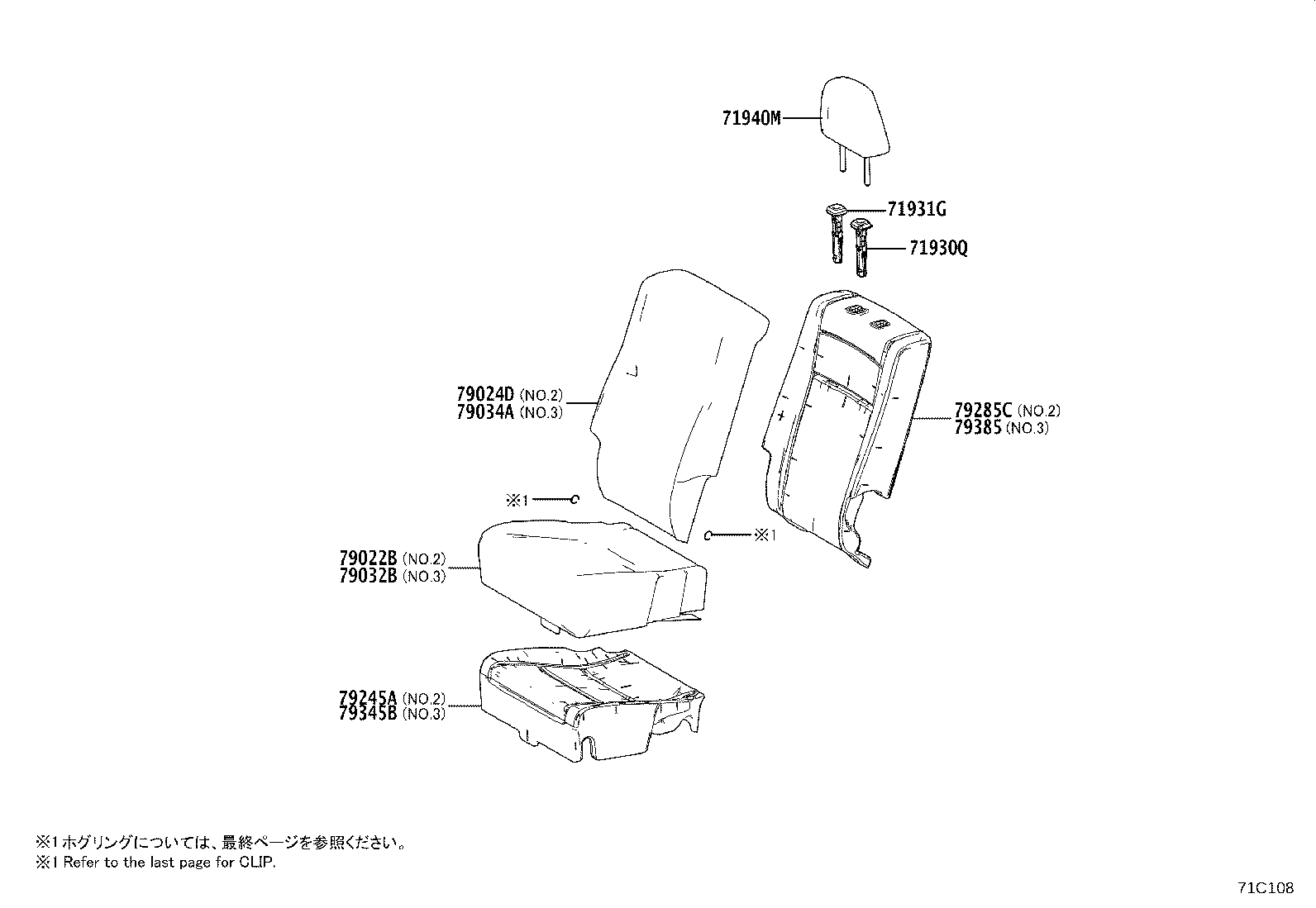

71C108
71C108
71C108

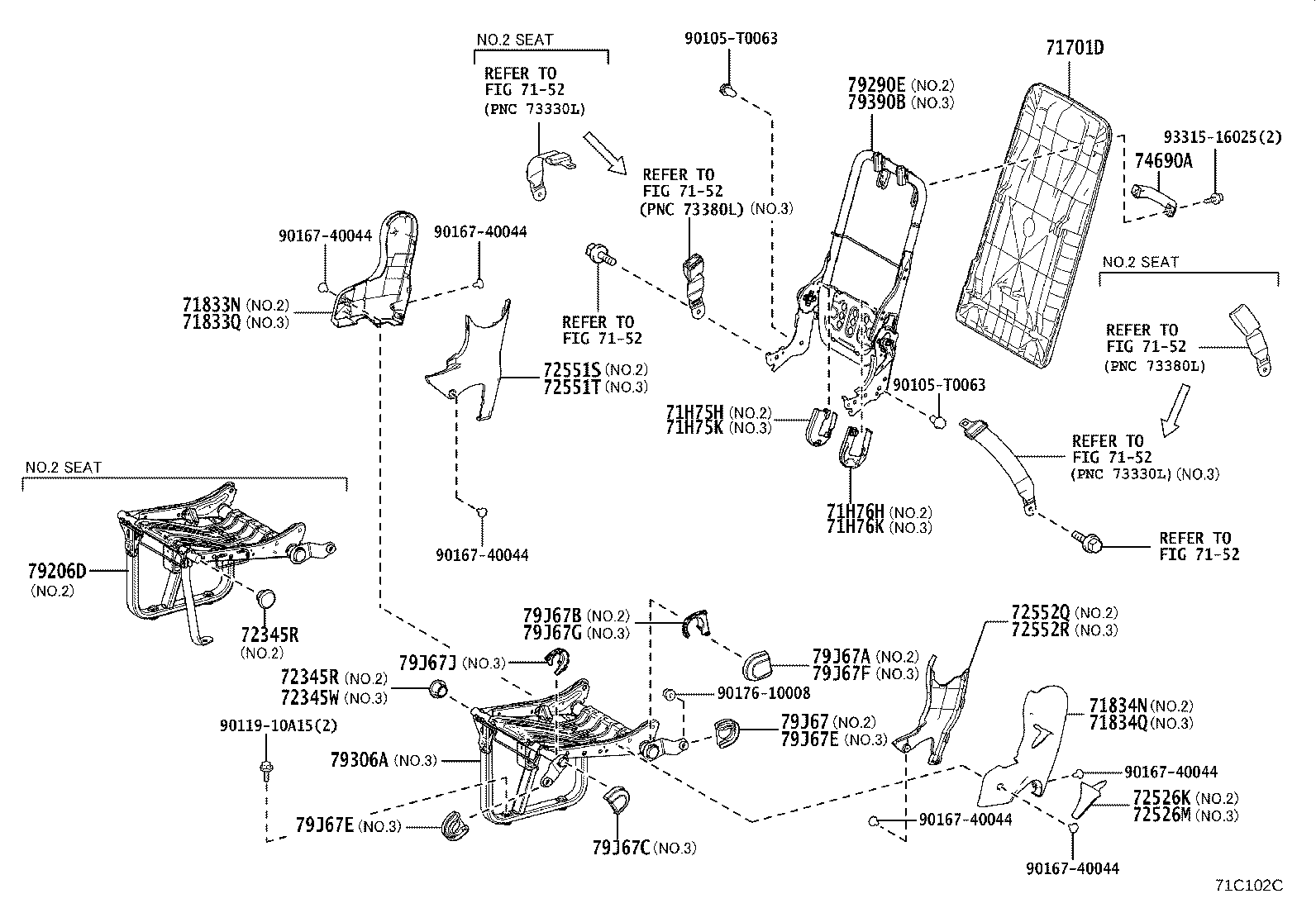

71C102C
71C102C
71C102C

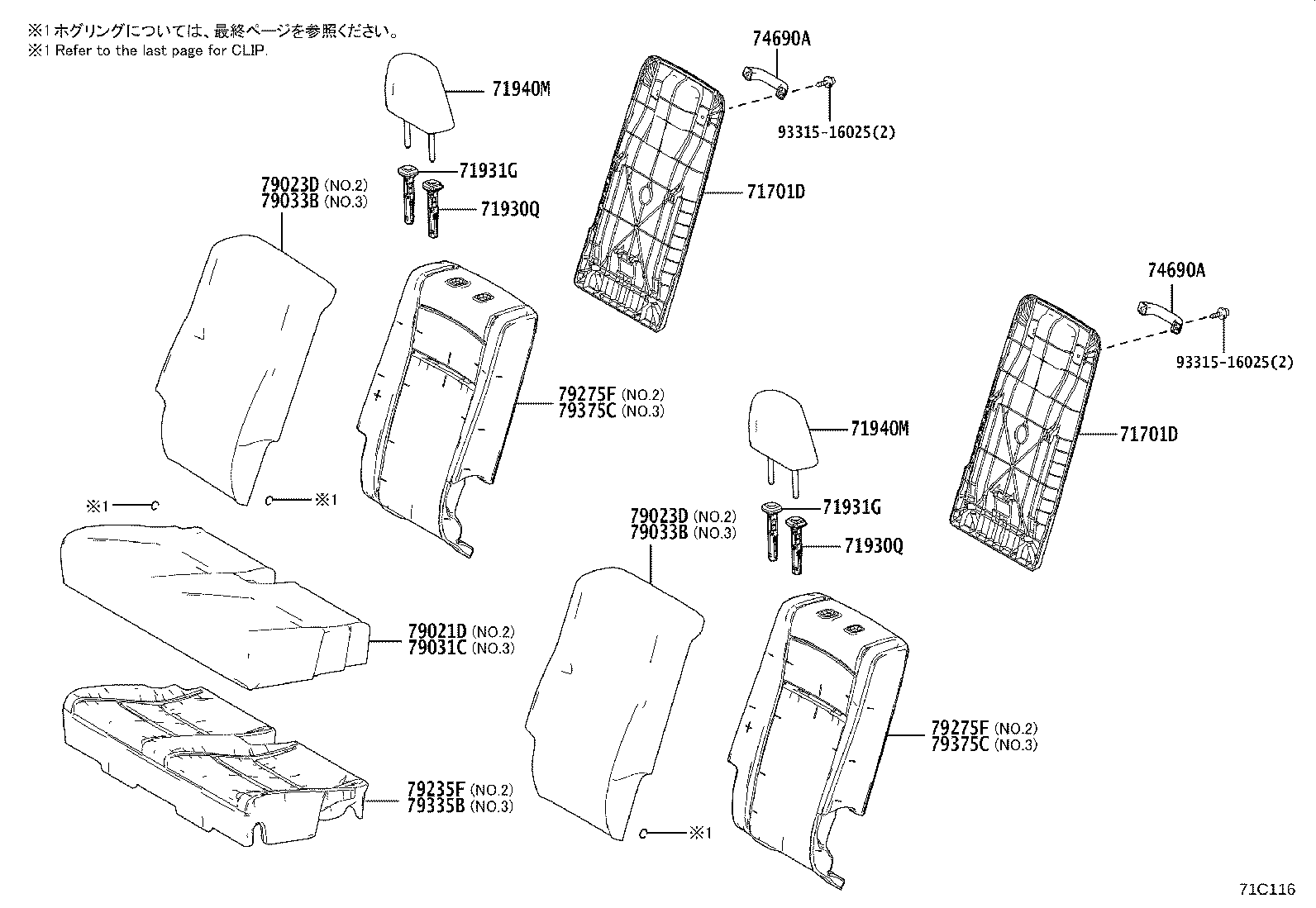

71C116
71C116
71C116

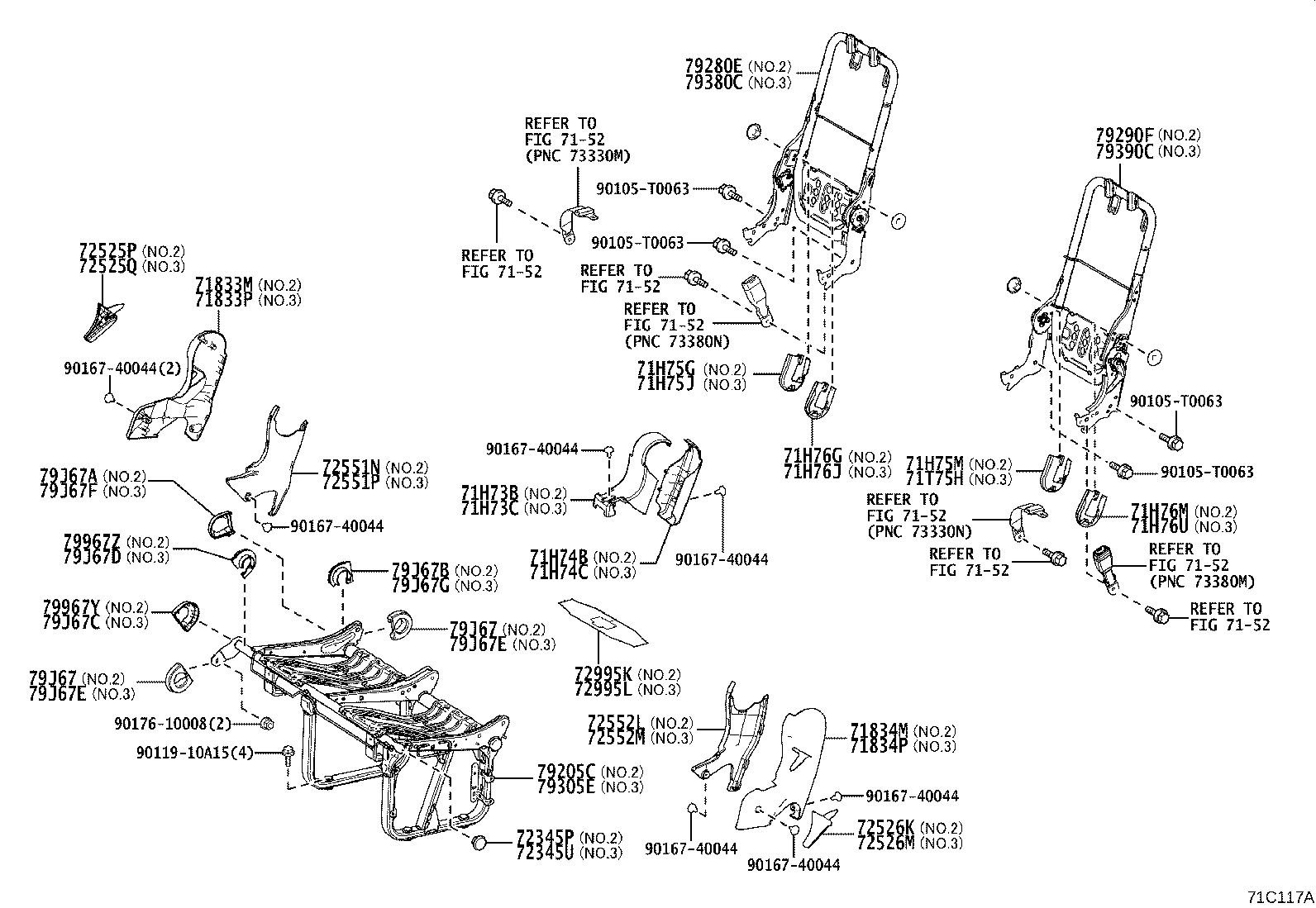

71C117A
71C117A
71C117A

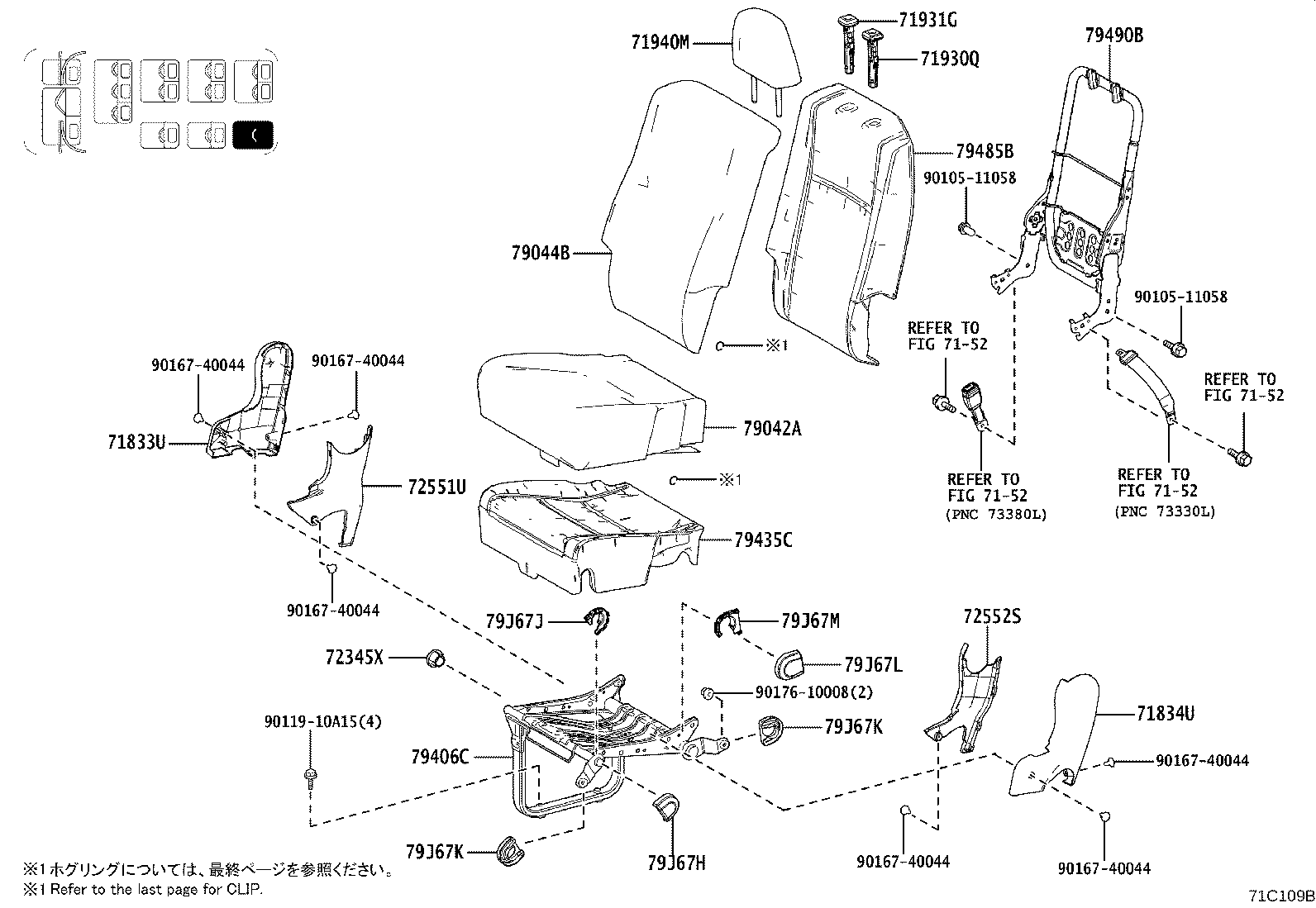

71C109B

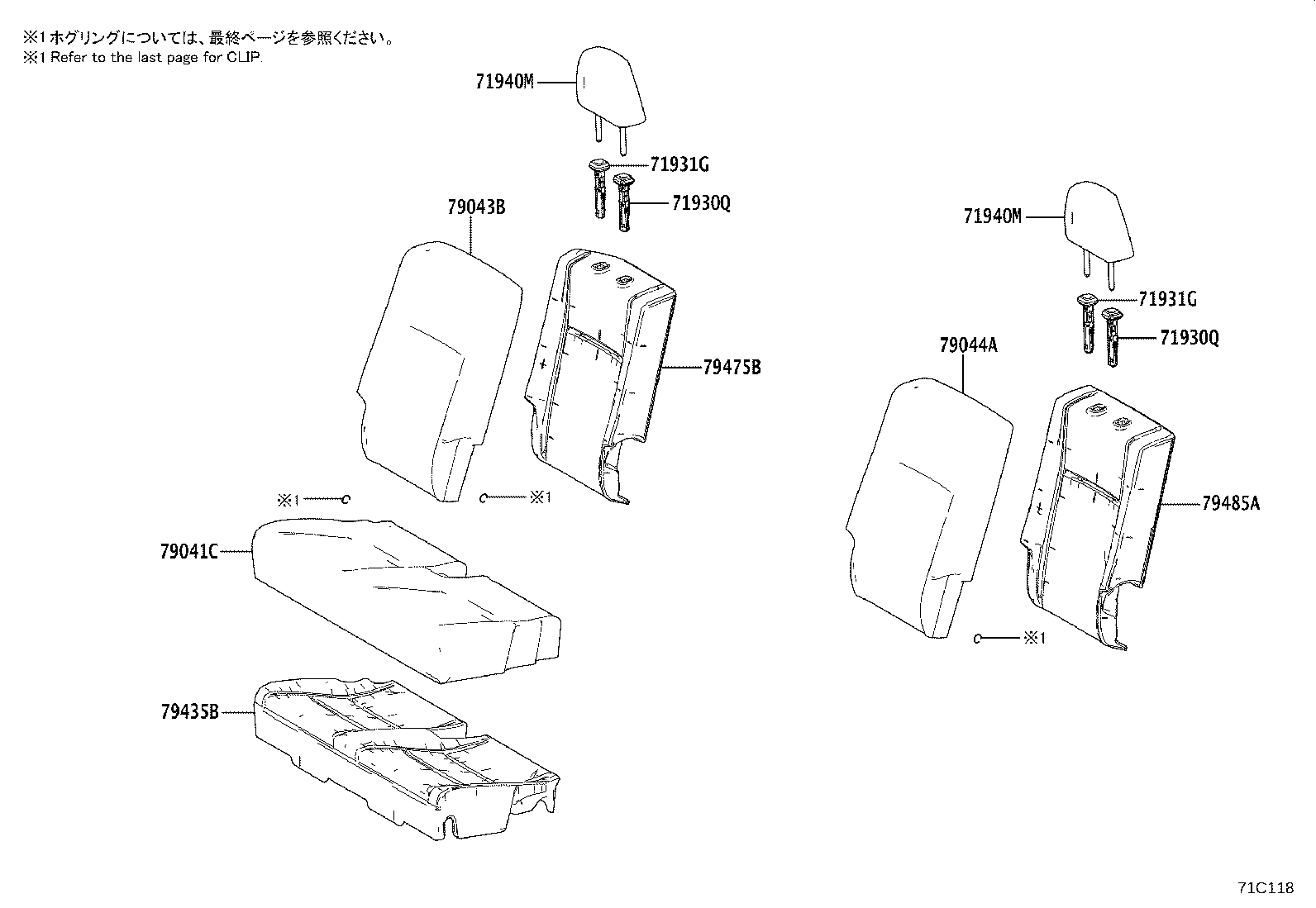

71C118

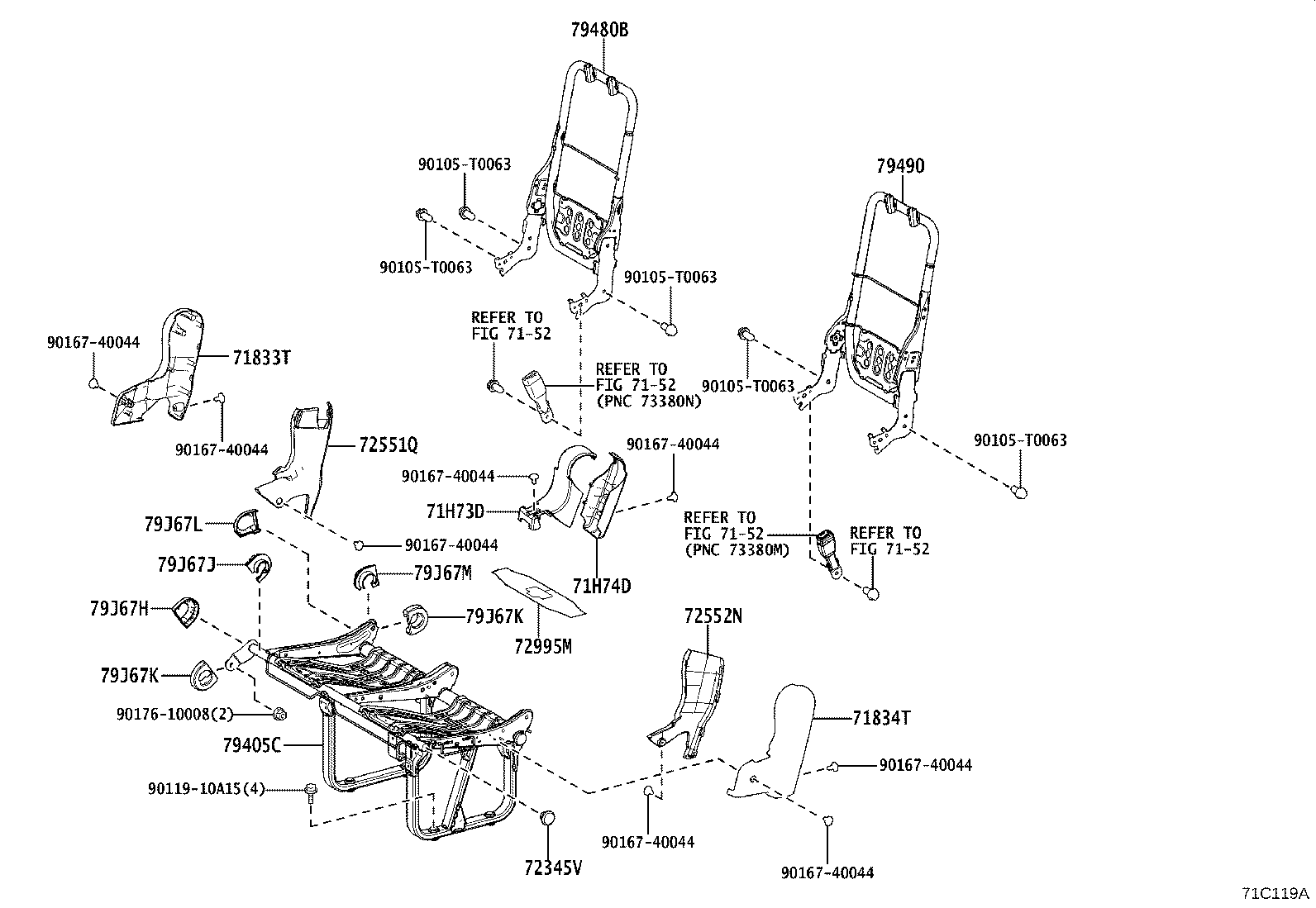

71C119A

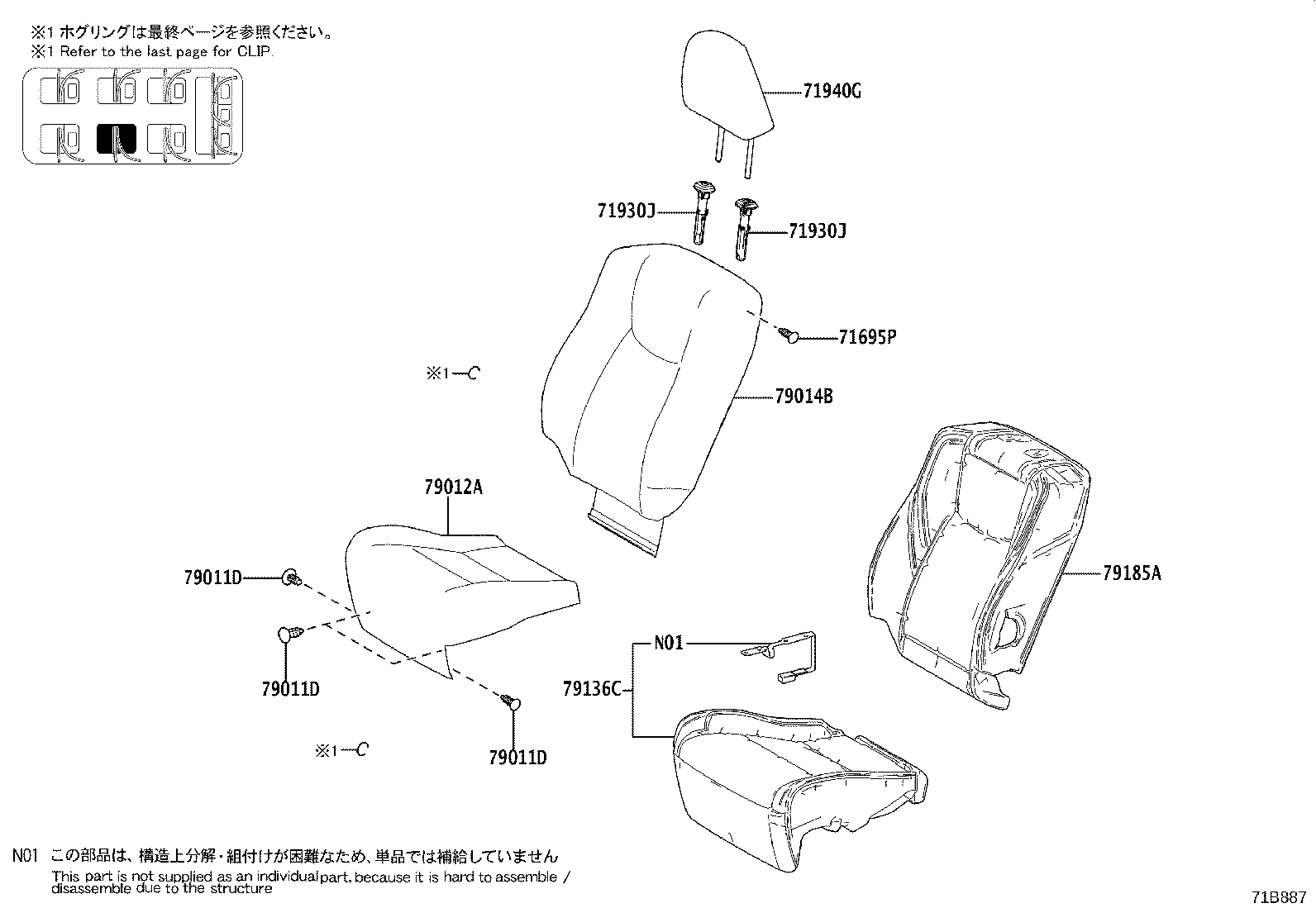

71B887
71B887

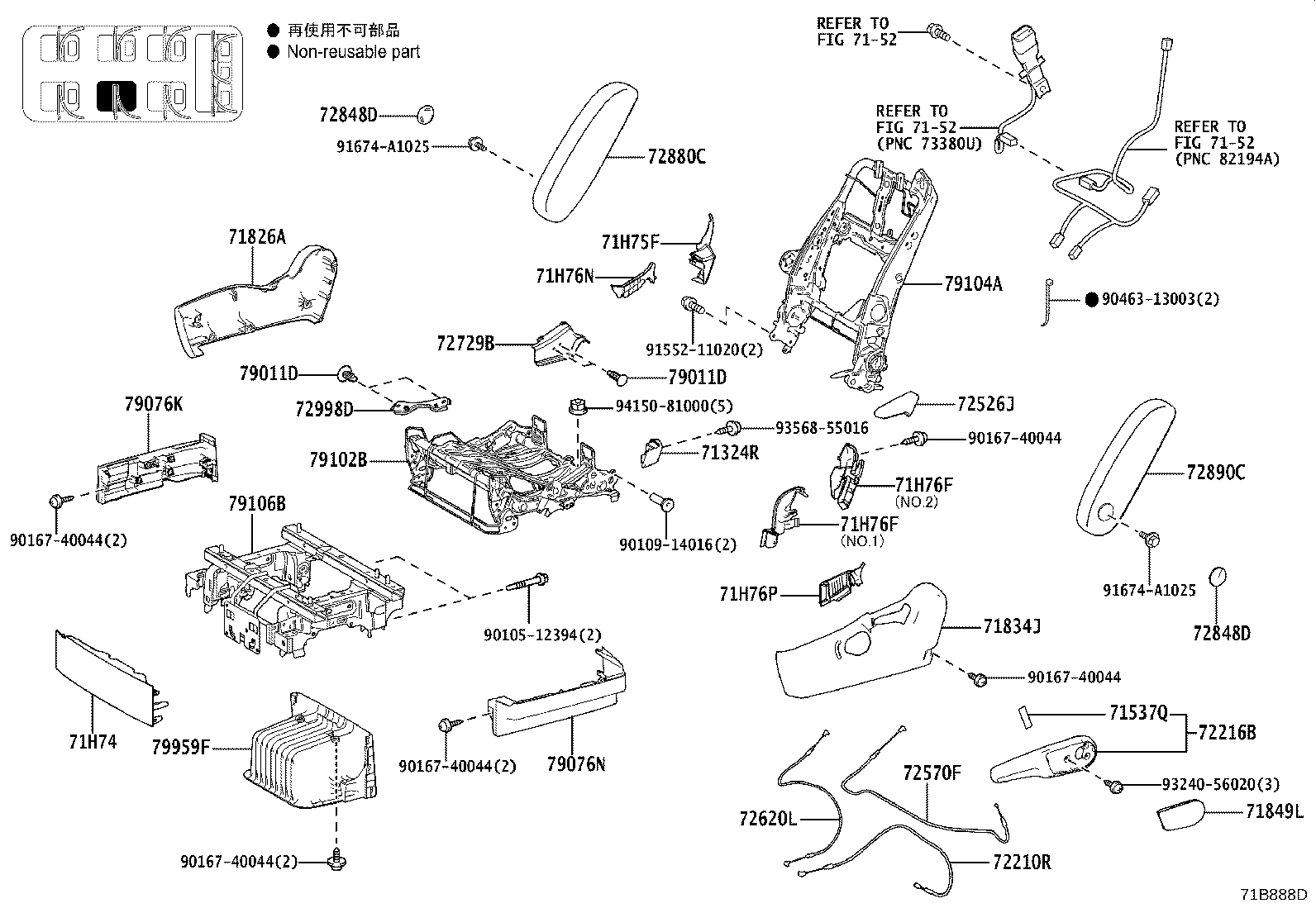

71B888D
71B888D

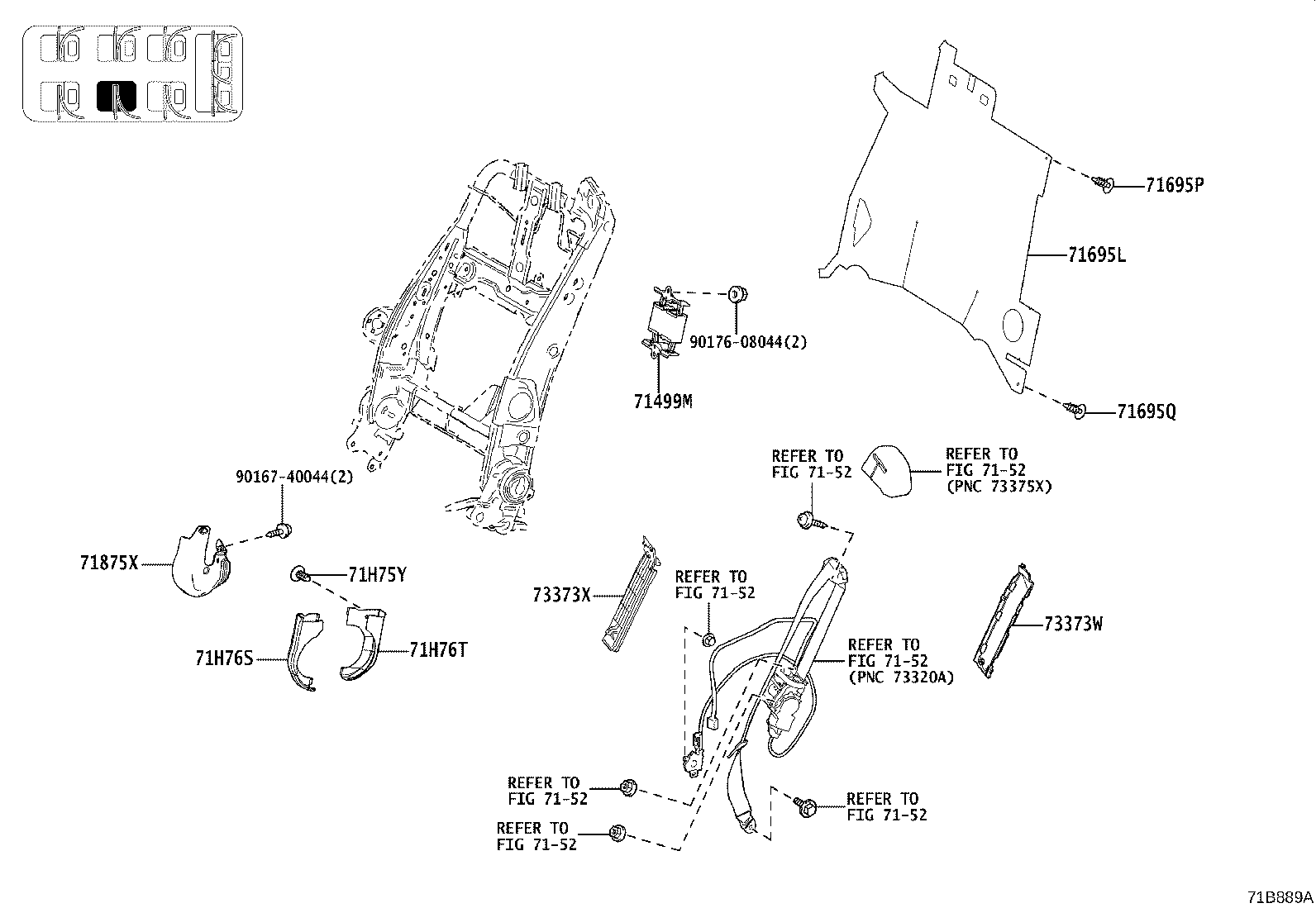

71B889A
71B889A

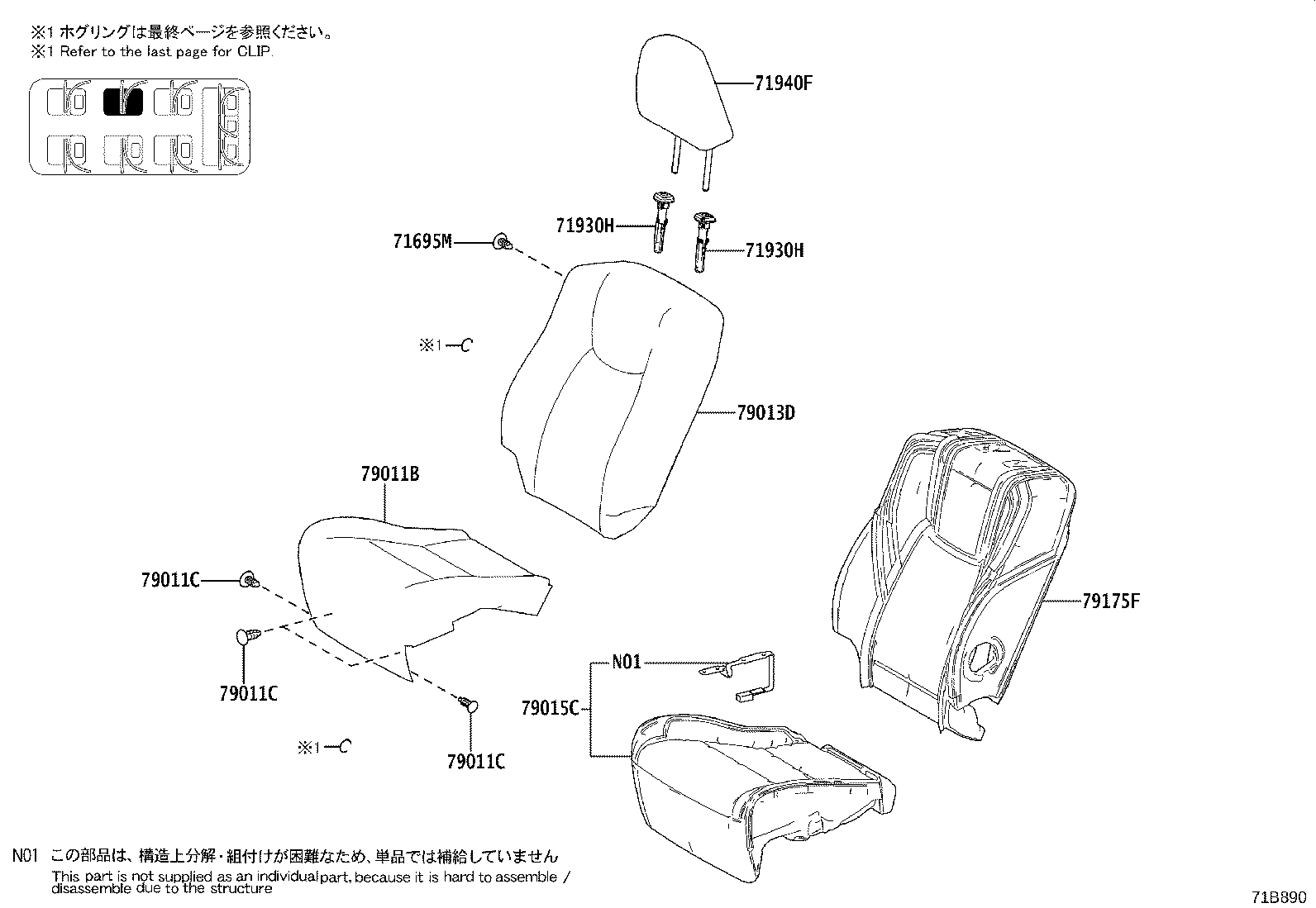

71B890
71B890

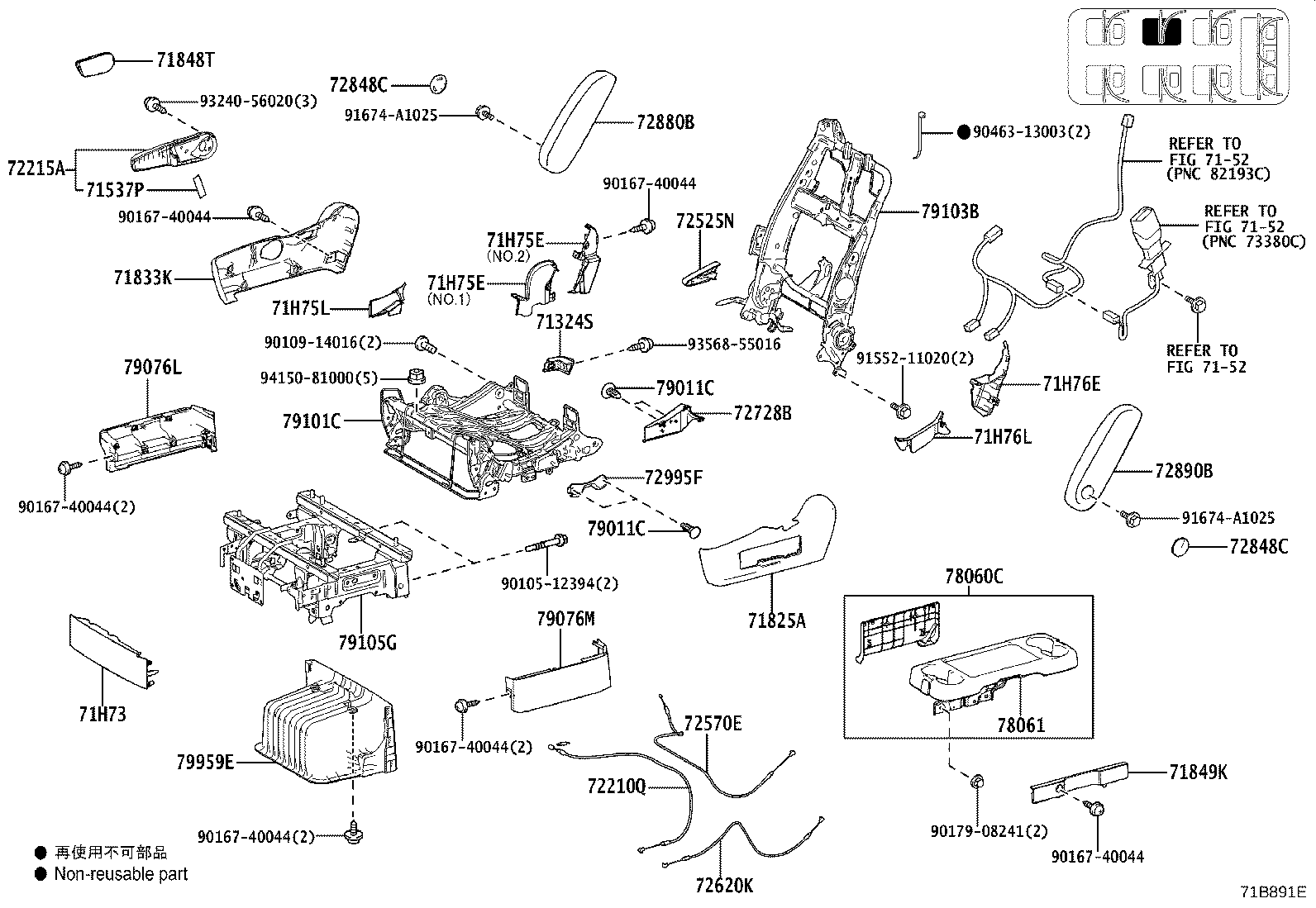

71B891E
71B891E

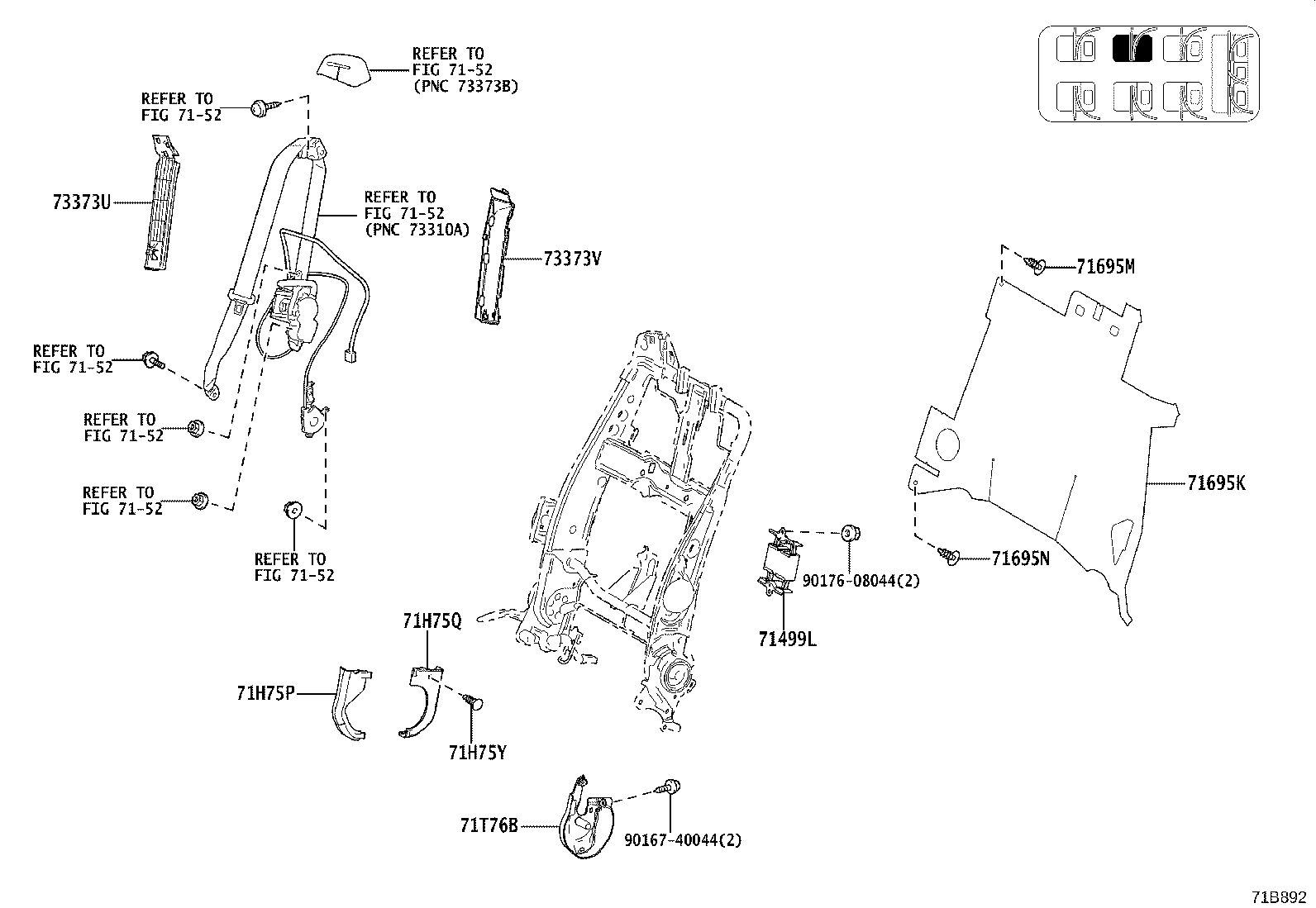

71B892
71B892

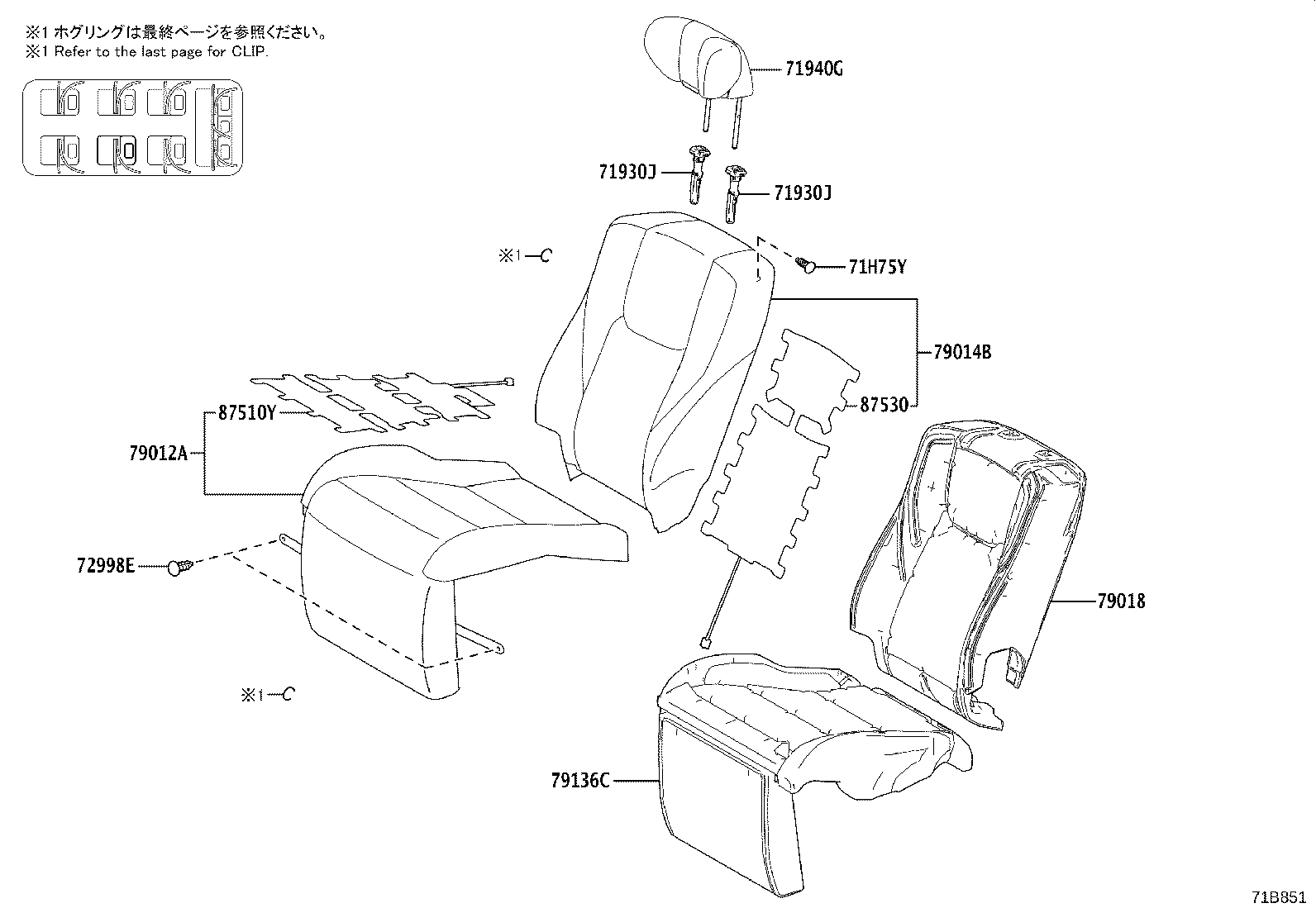

71B851
71B851

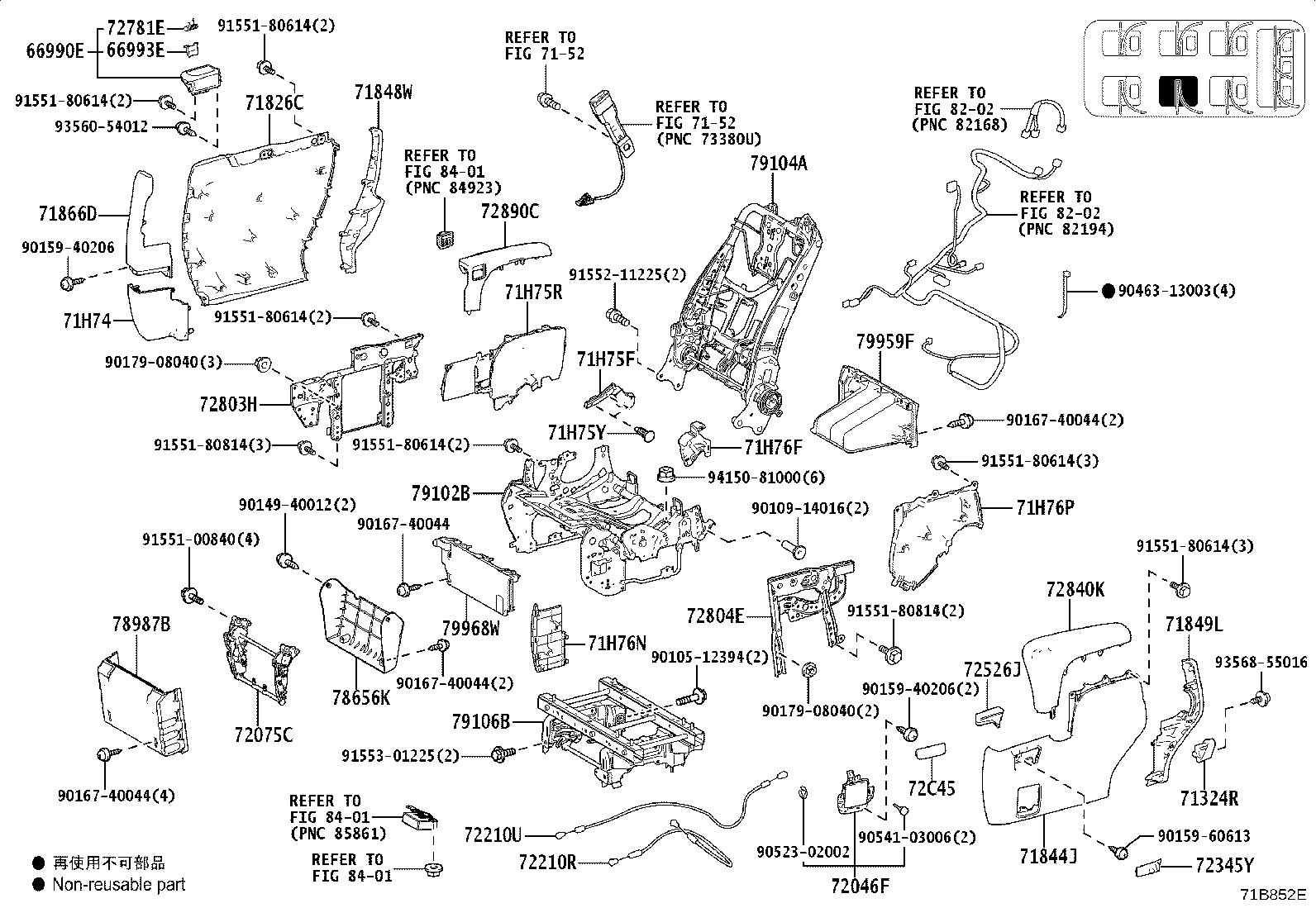

71B852E
71B852E

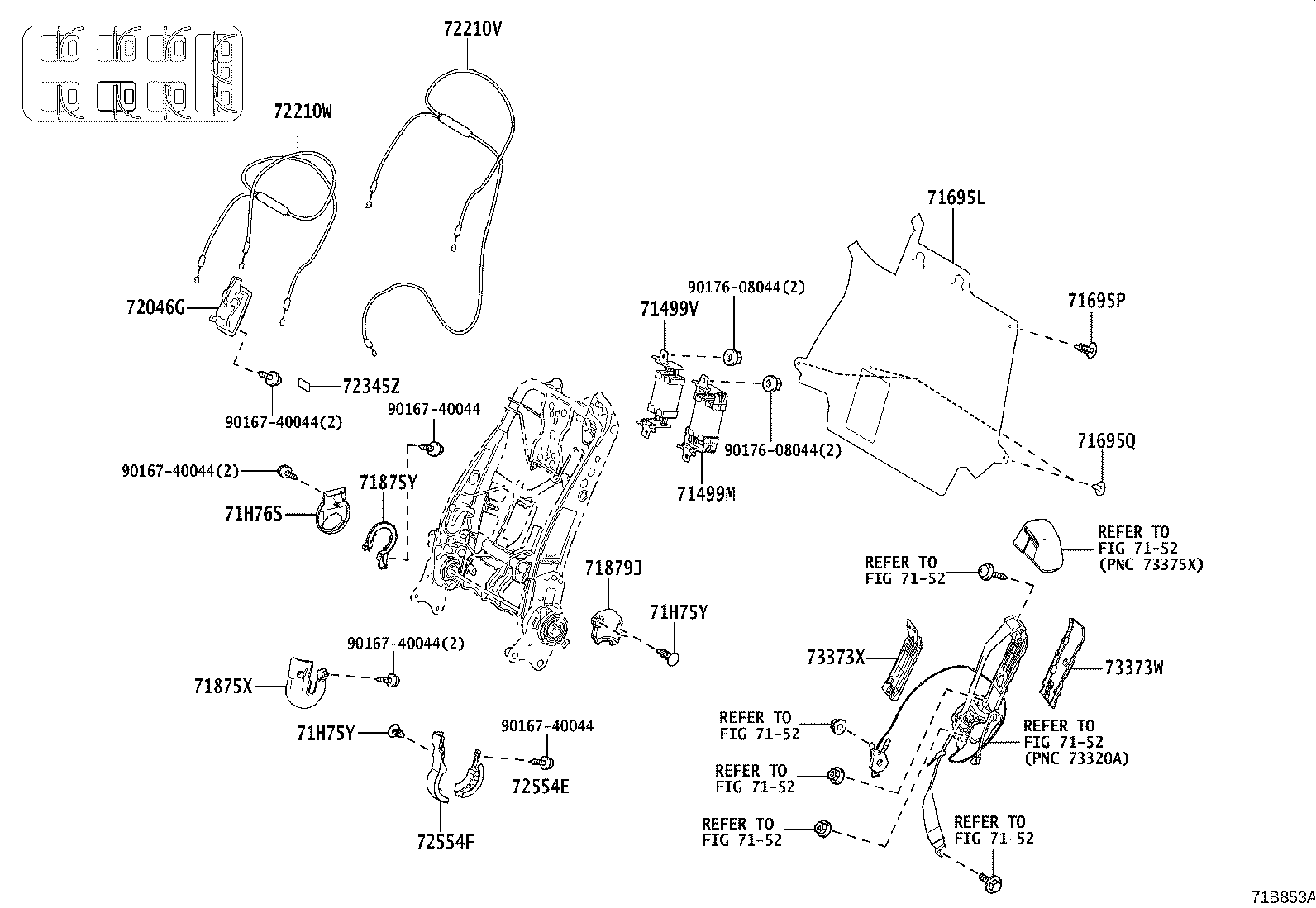

71B853A
71B853A

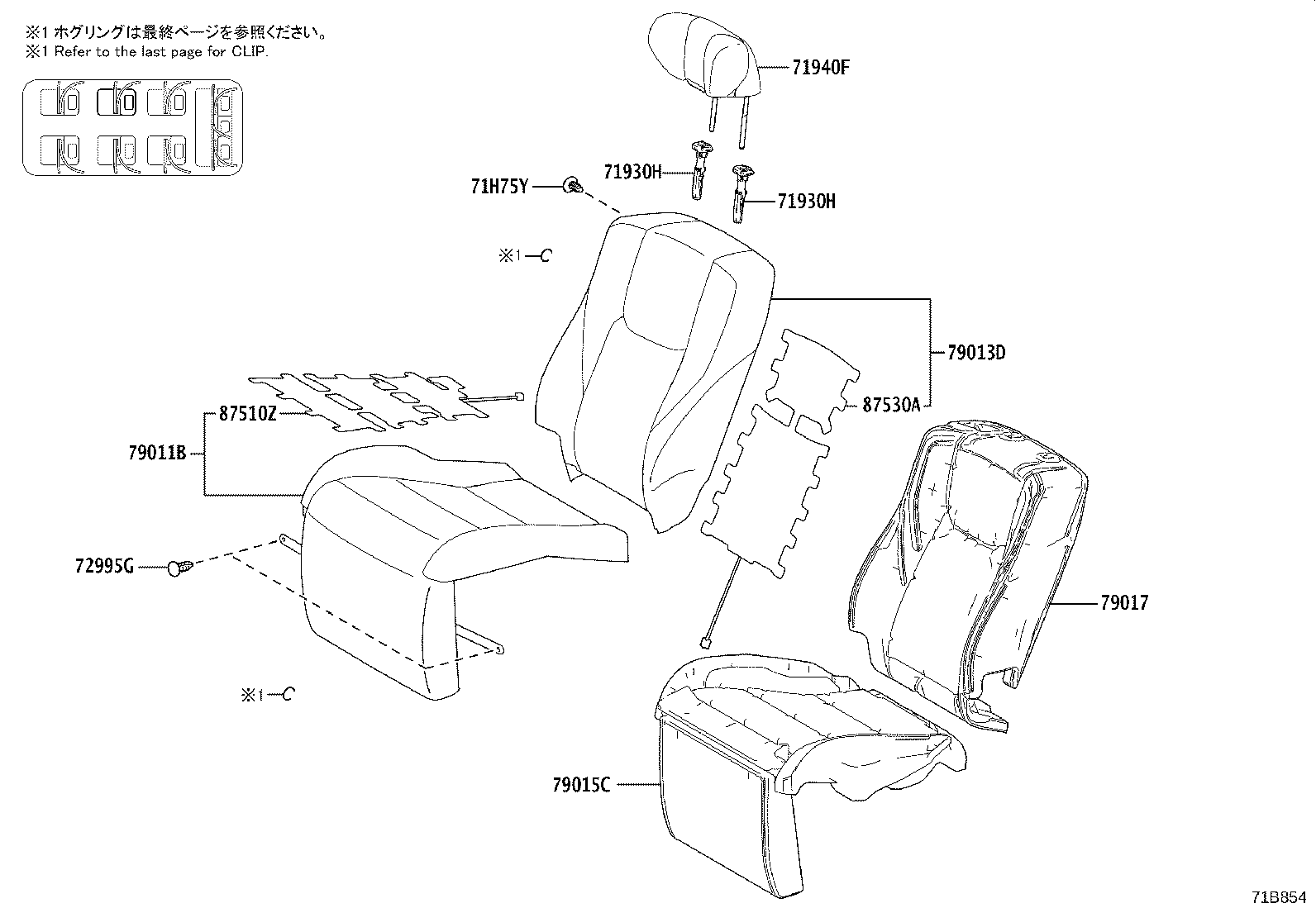

71B854
71B854

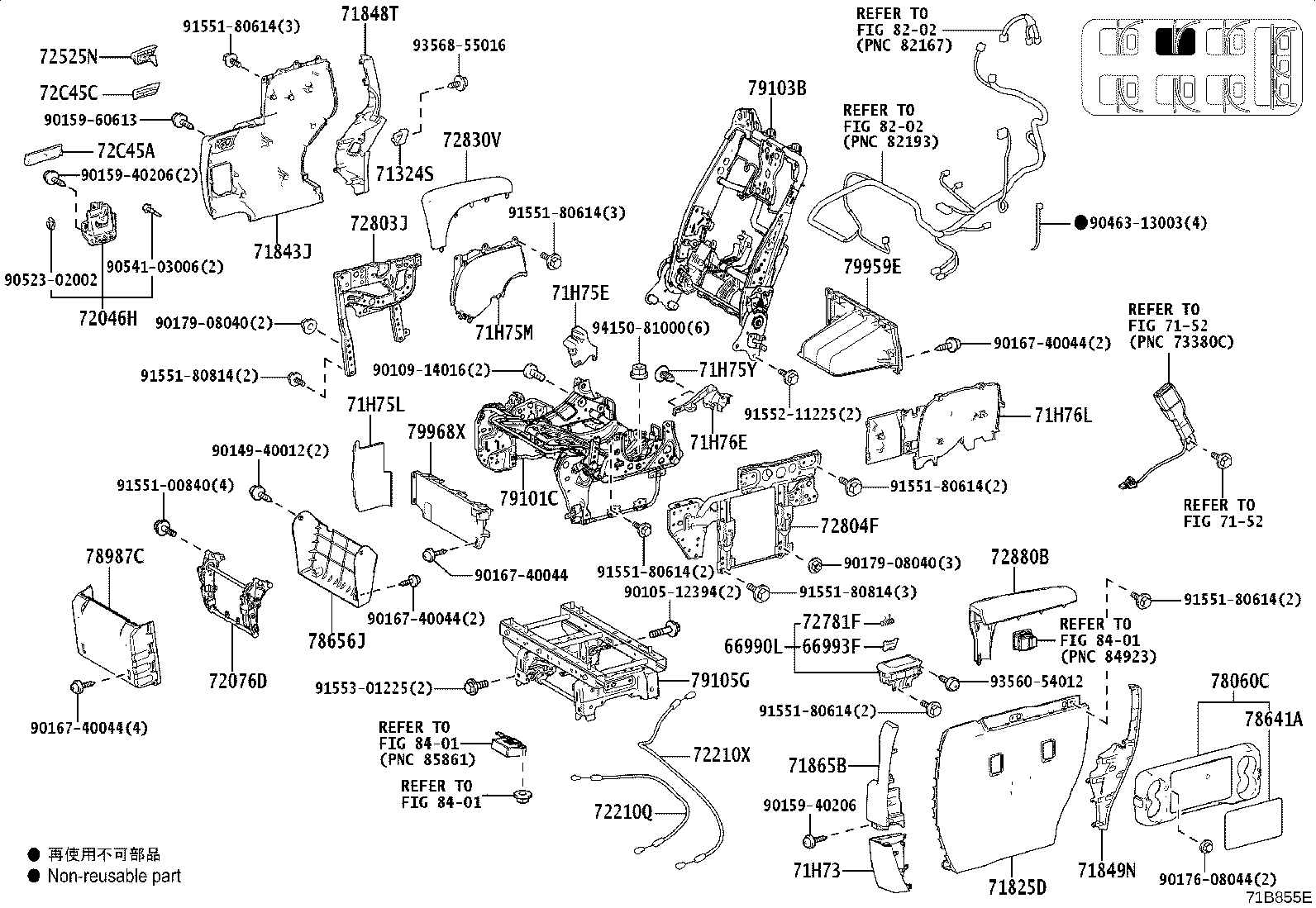

71B855E
71B855E

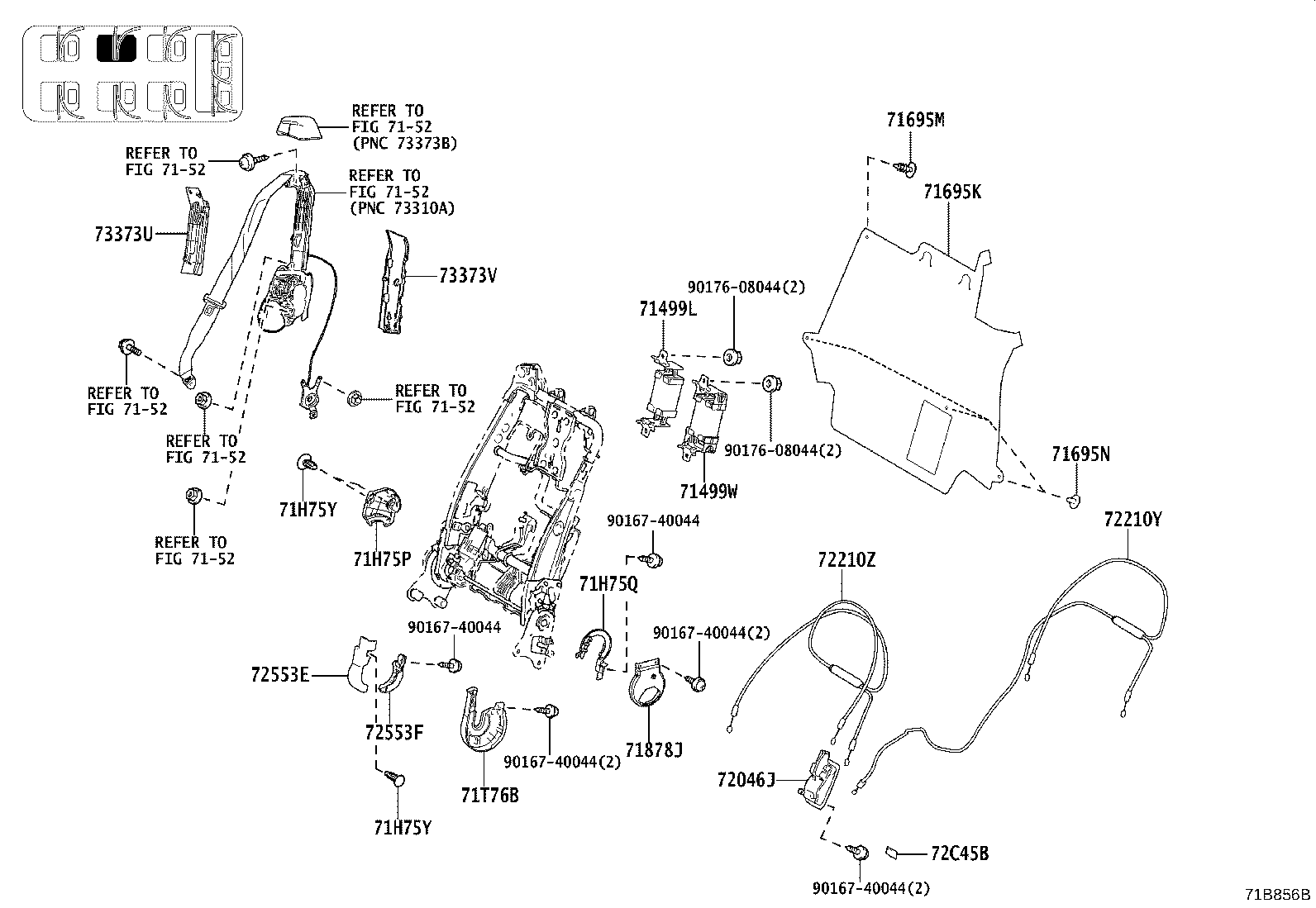

71B856B
71B856B

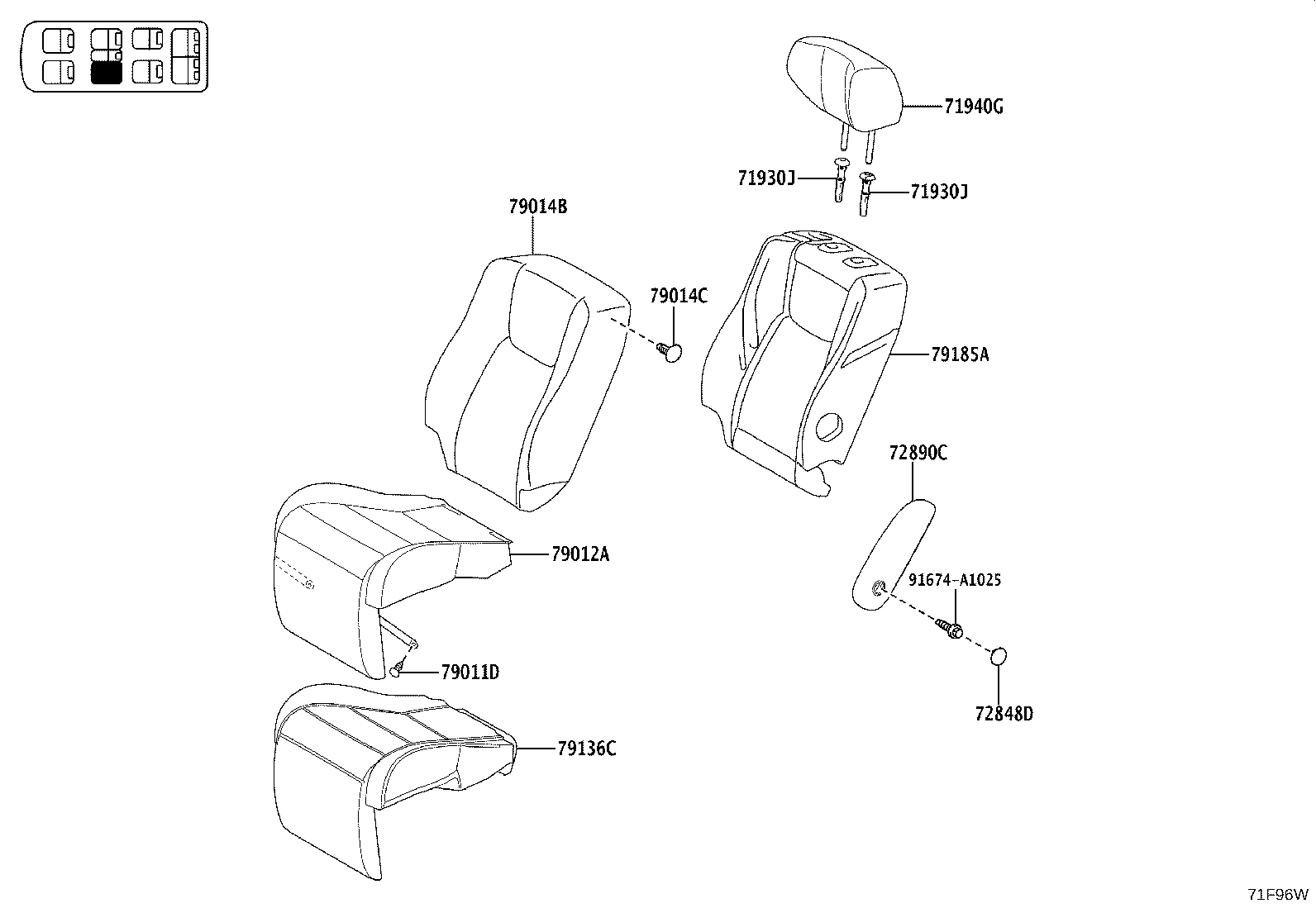

71F96W

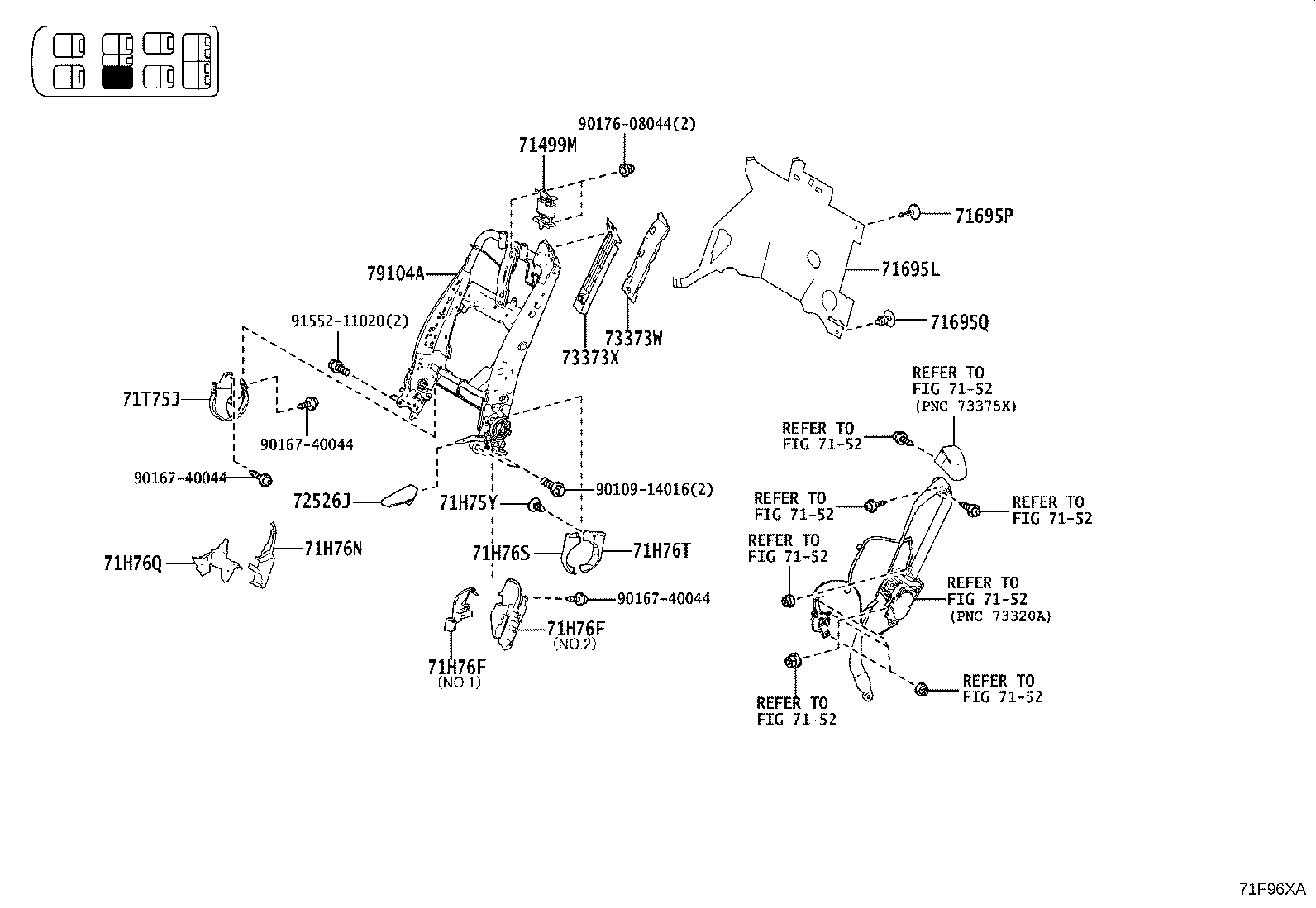

71F96XA

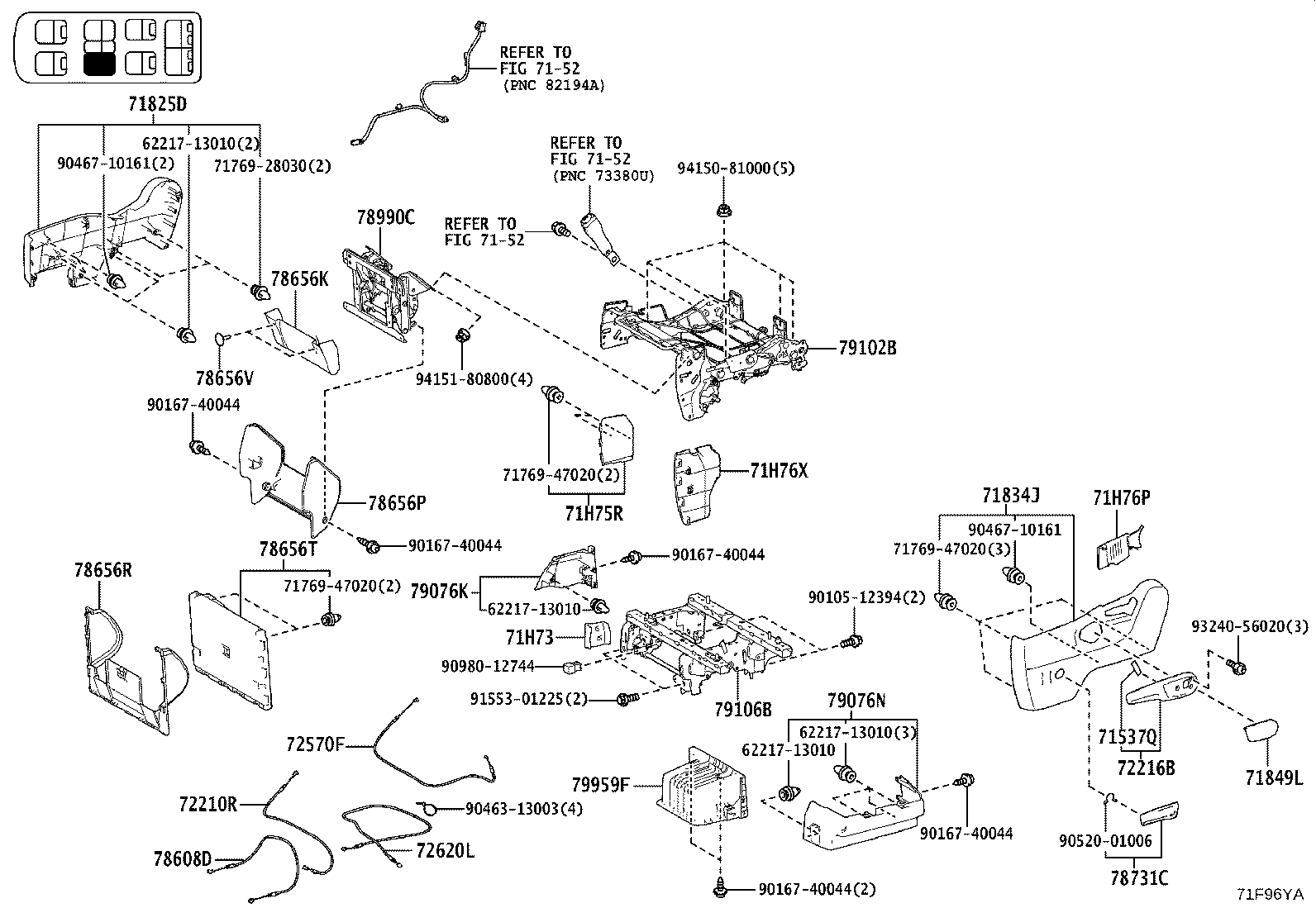

71F96YA

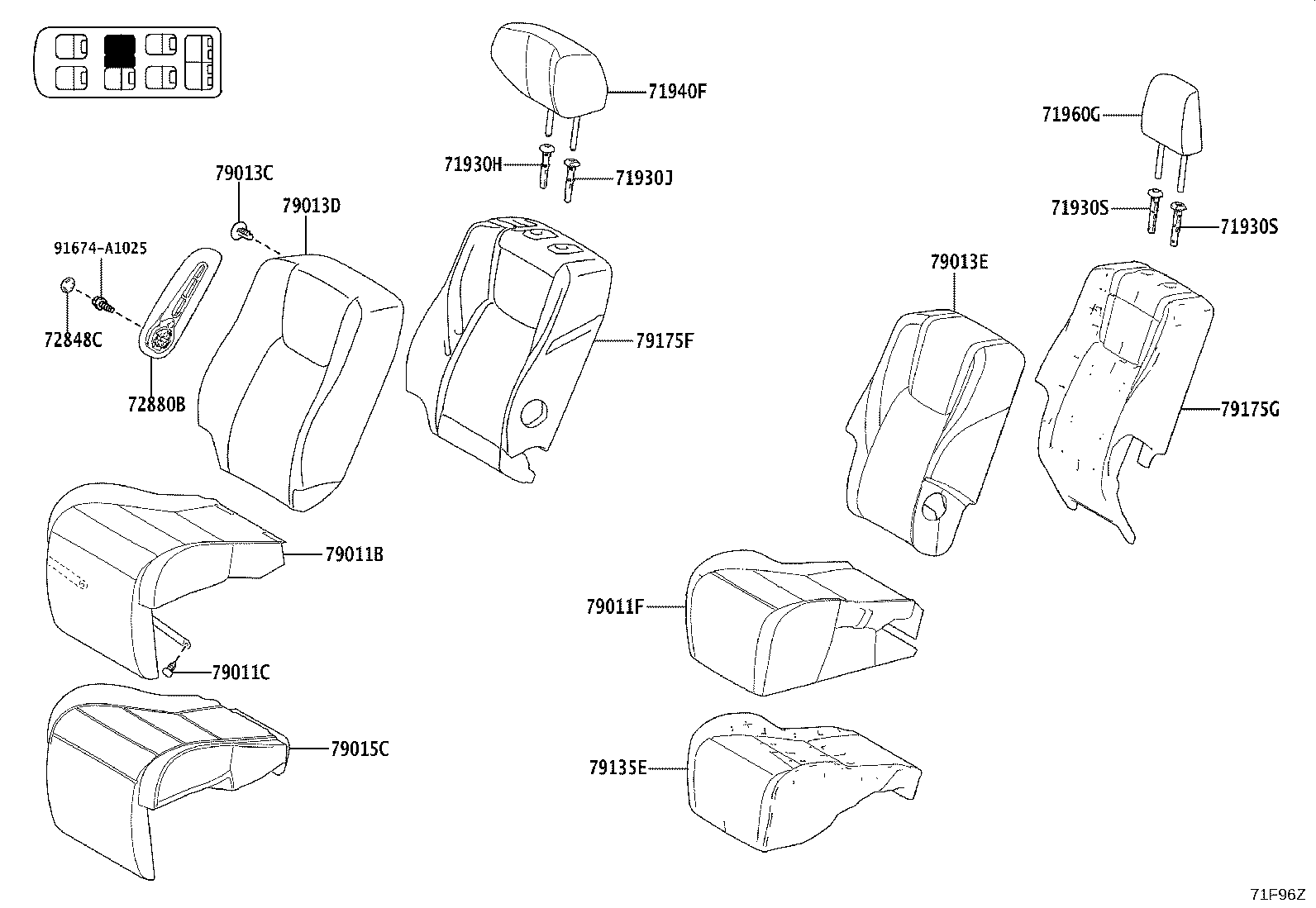

71F96Z

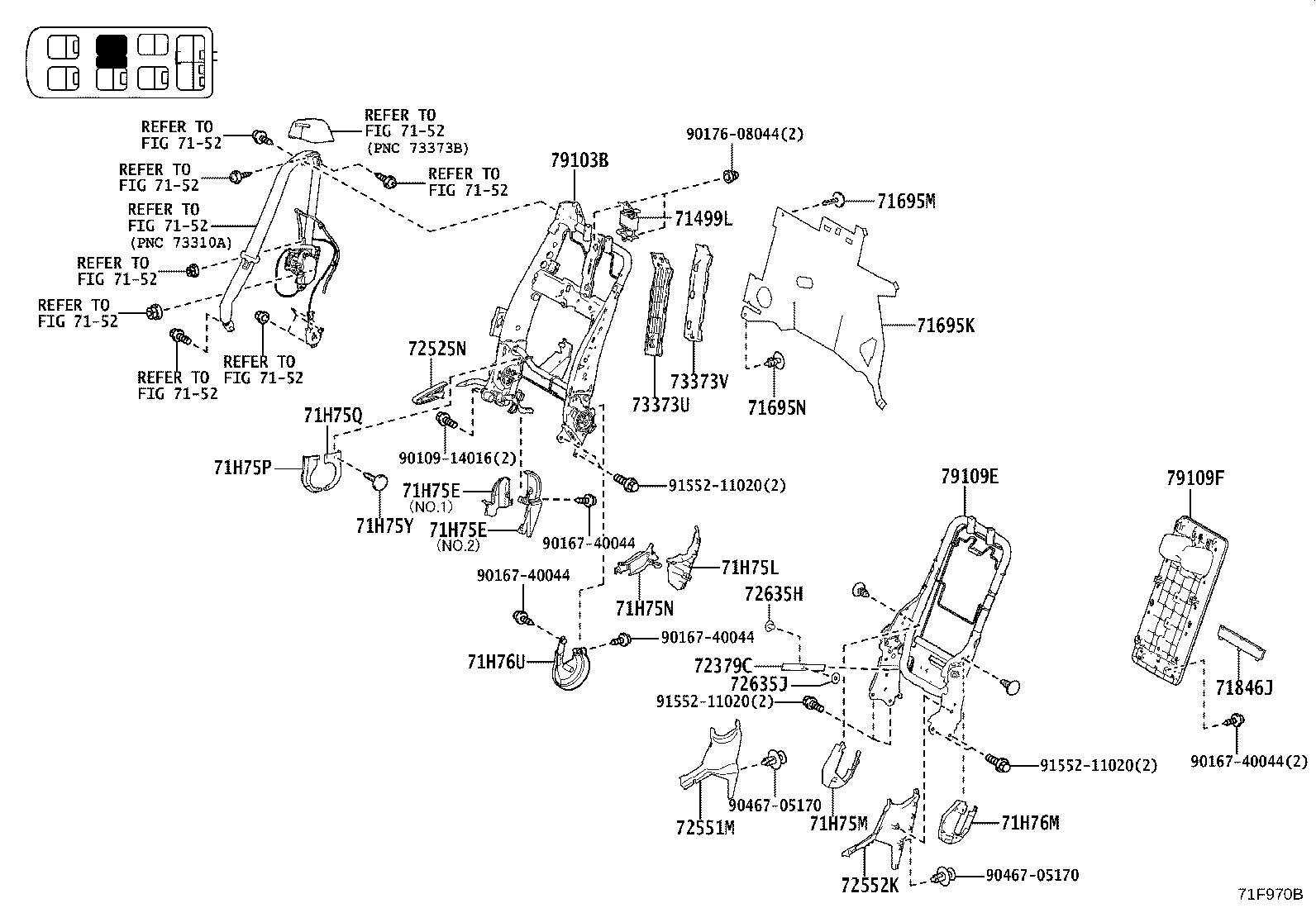

71F970B

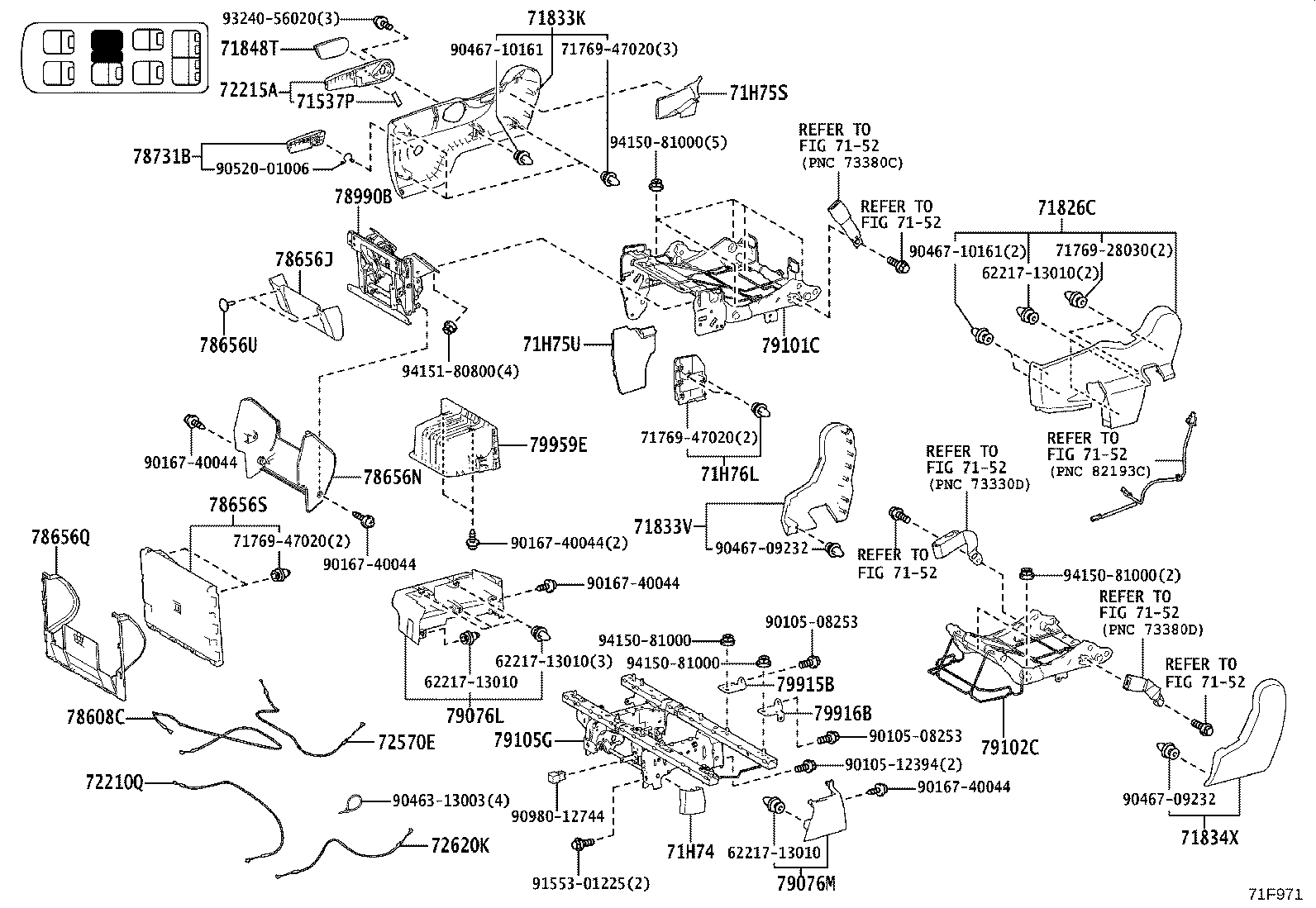

71F971

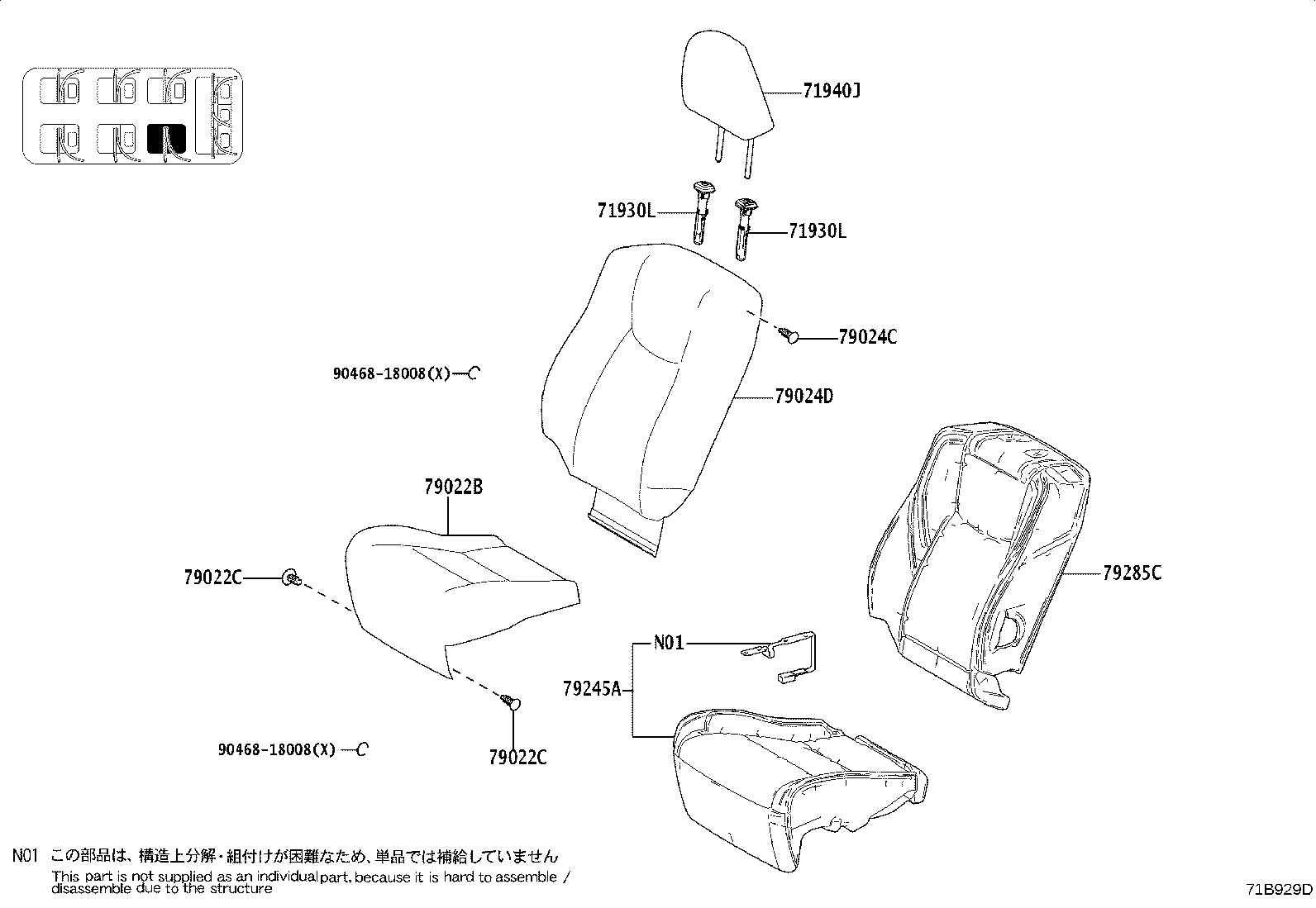

71B929D
71B929D

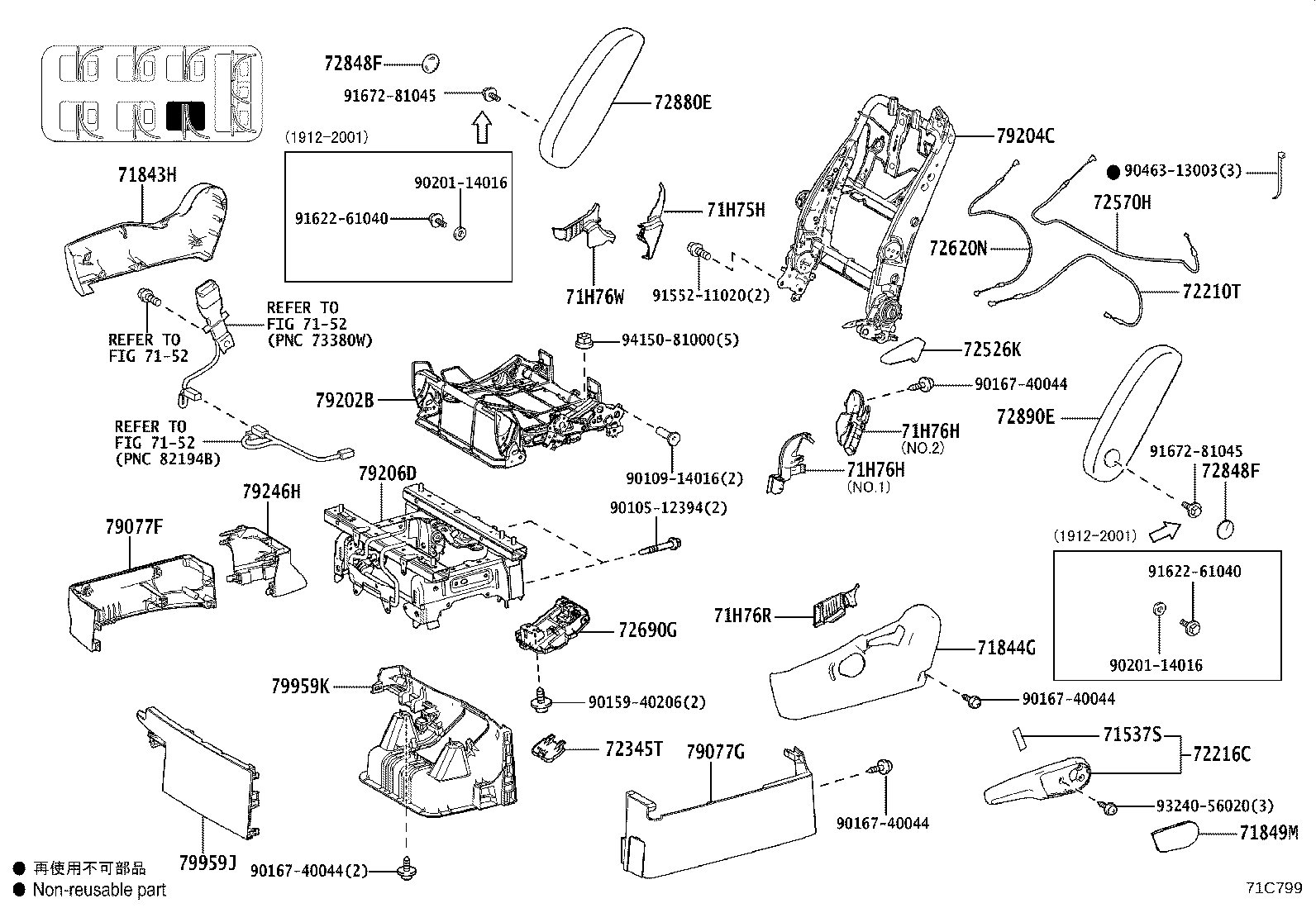

71C799
71C799

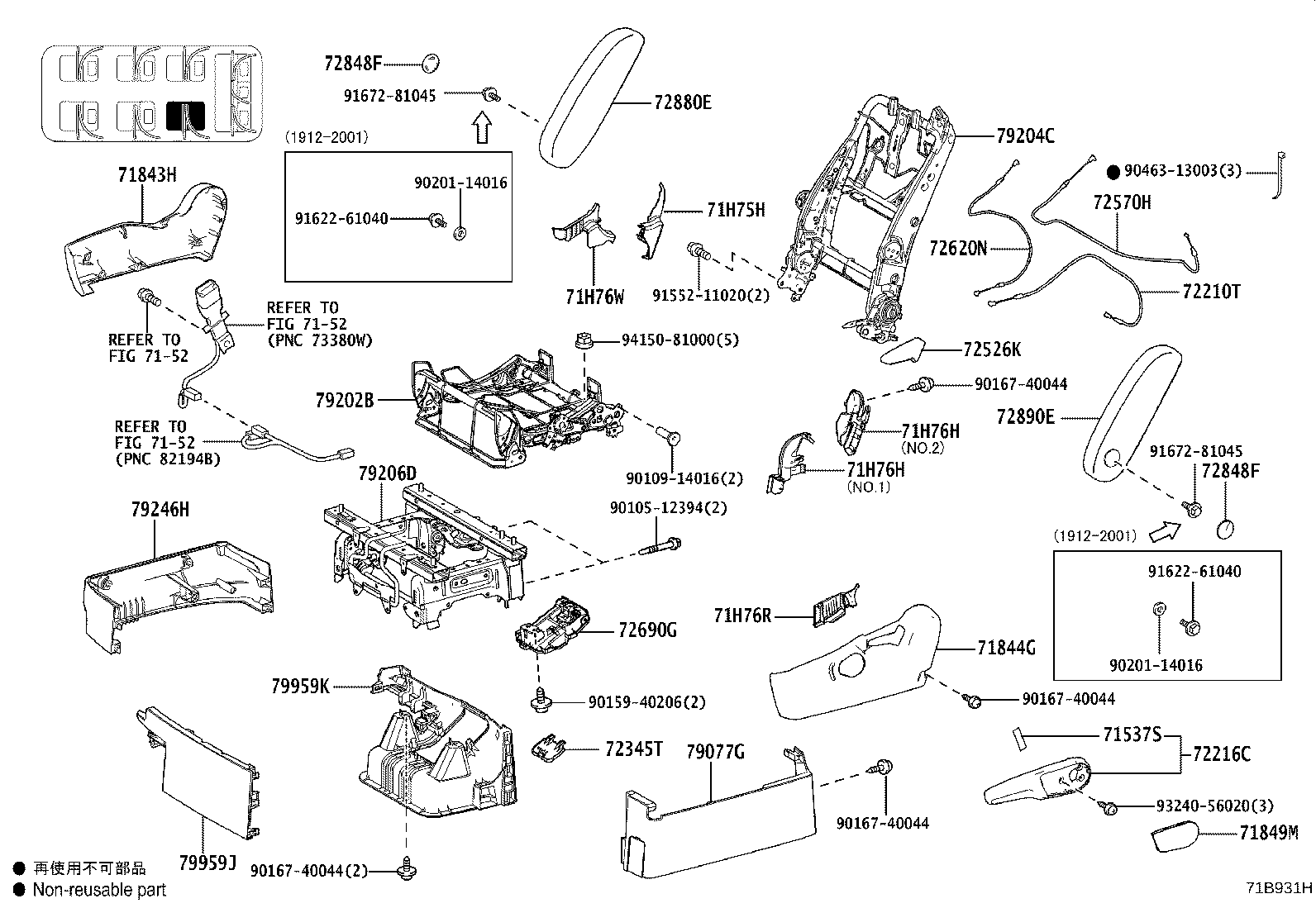

71B931H

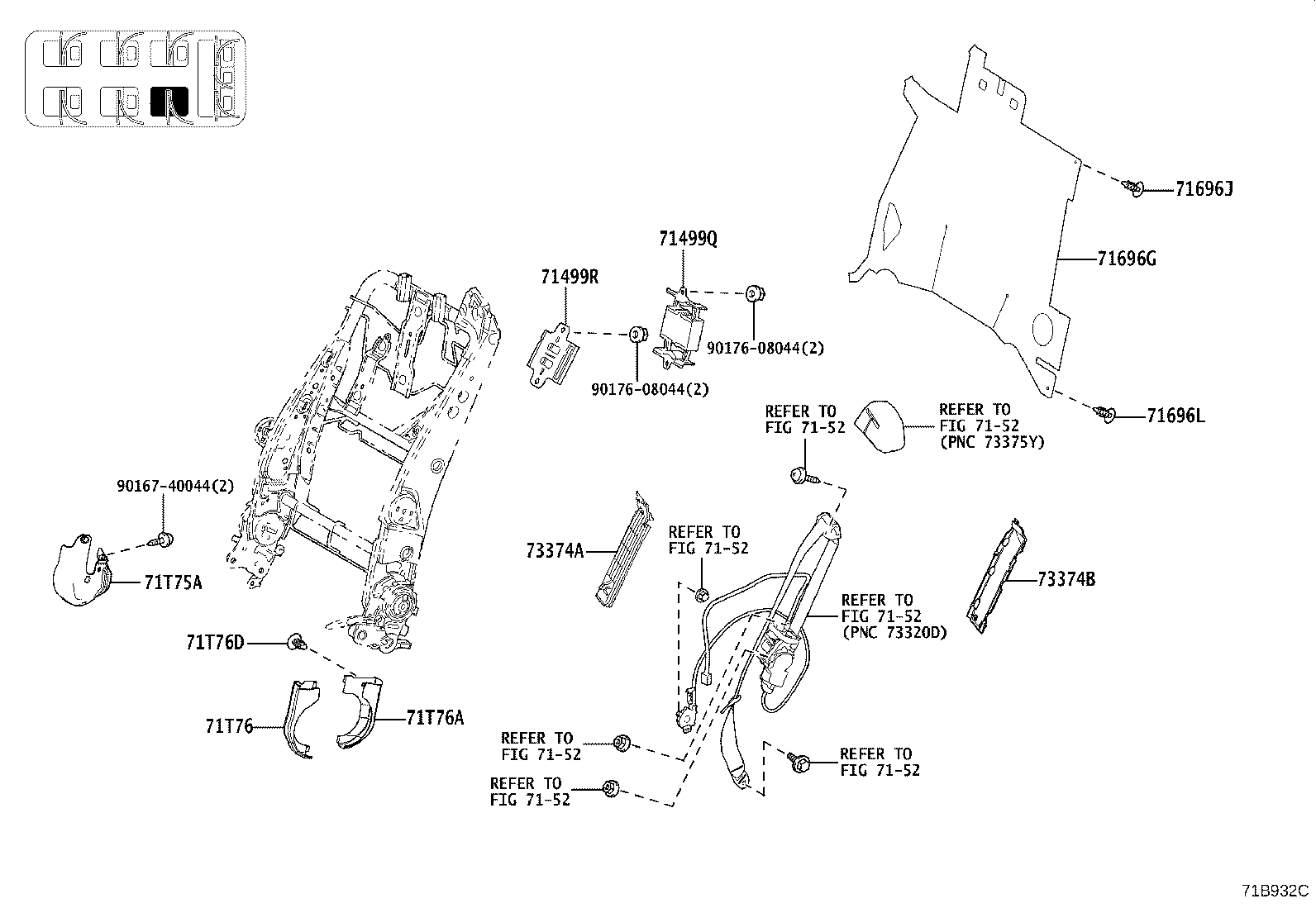

71B932C
71B932C

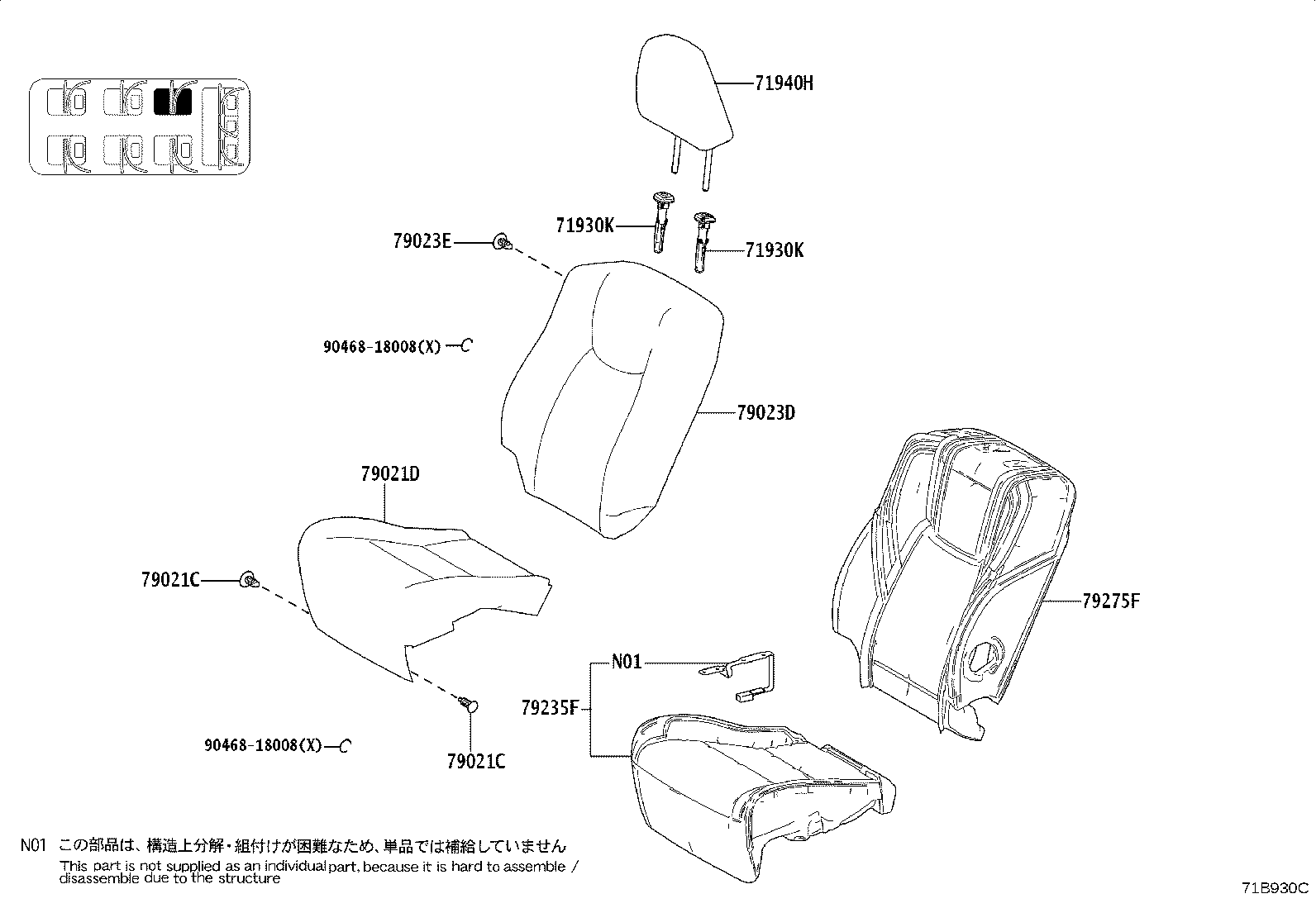

71B930C
71B930C

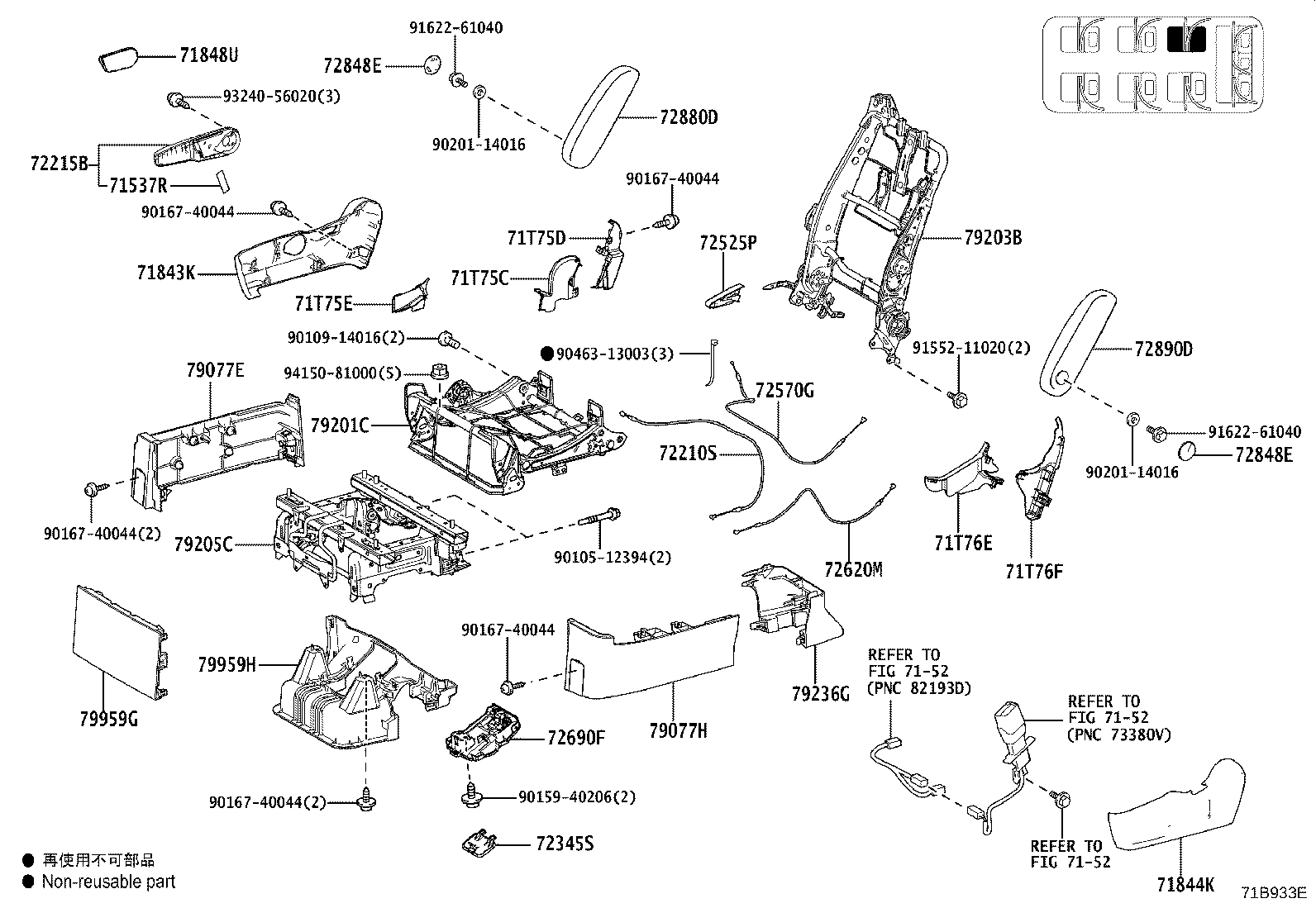

71B933E
71B933E

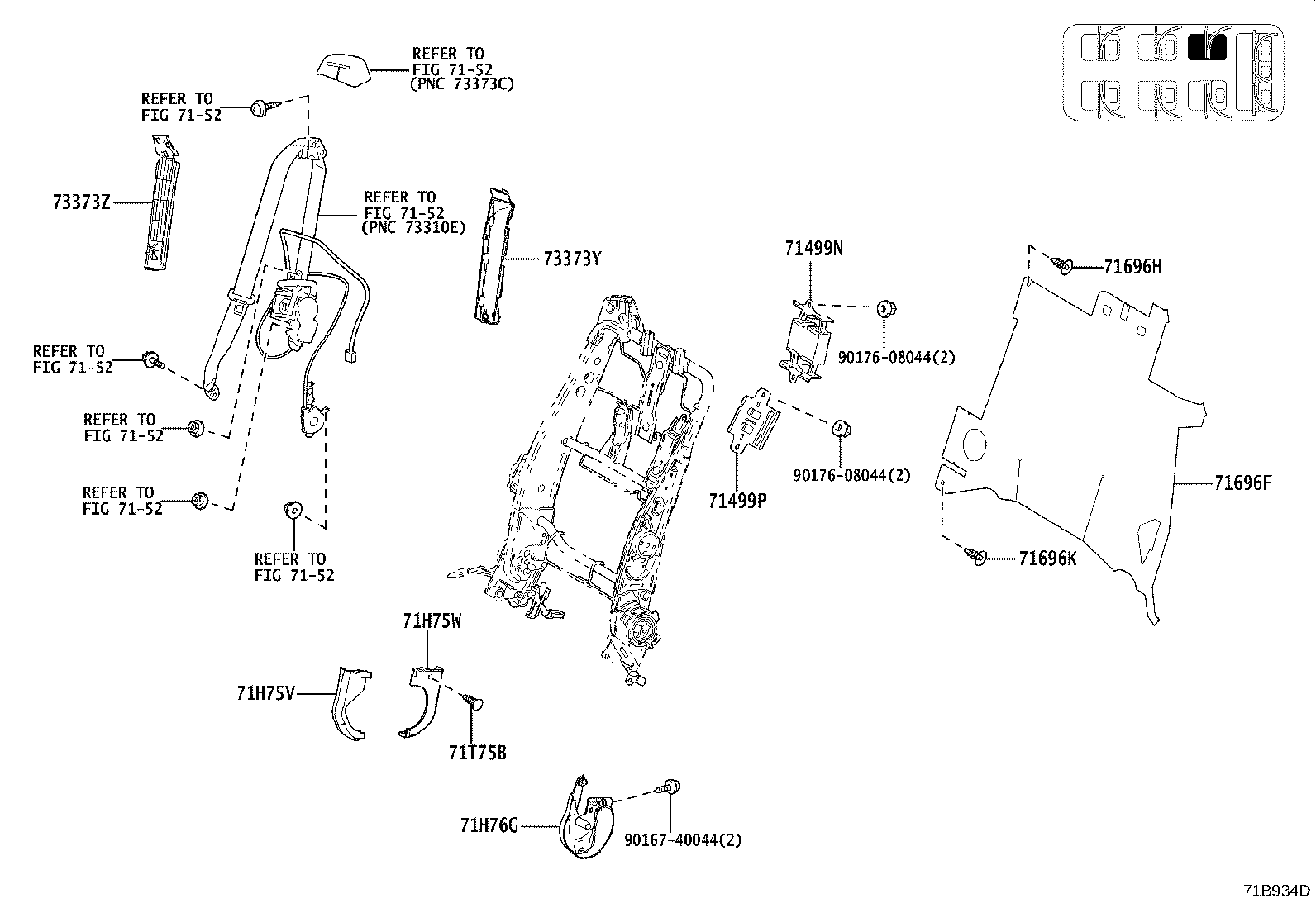

71B934D
71B934D

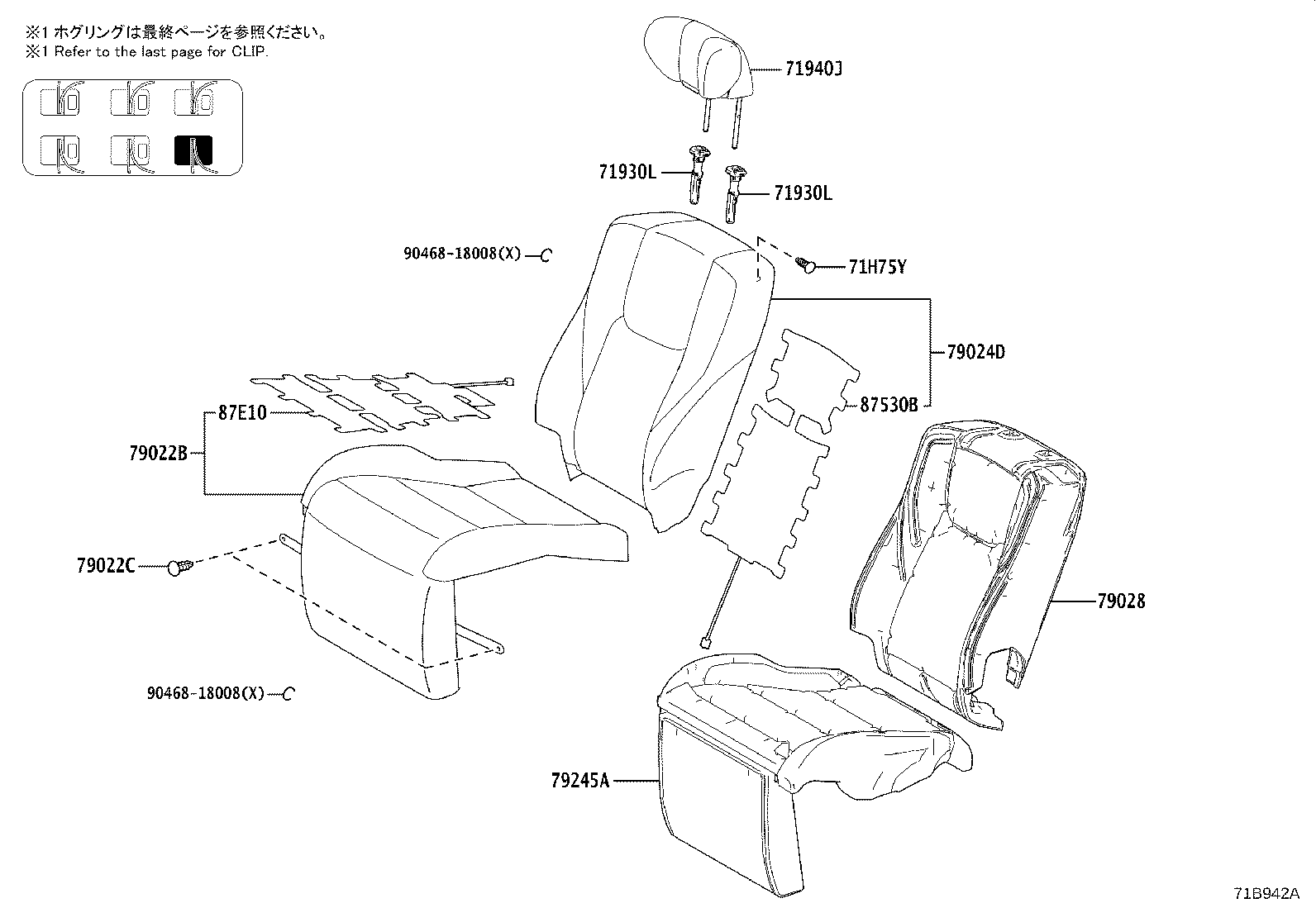

71B942A
71B942A

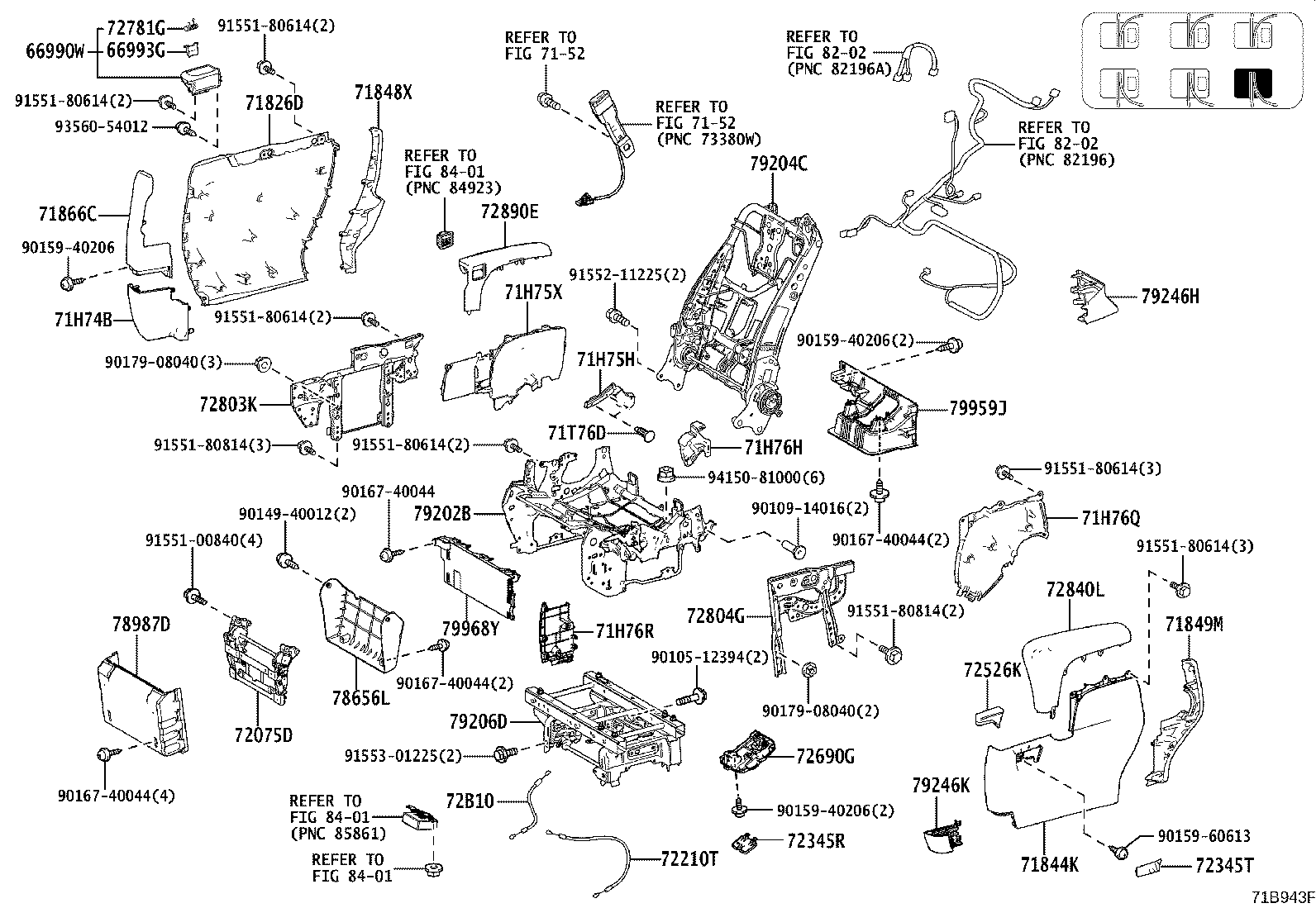

71B943F
71B943F

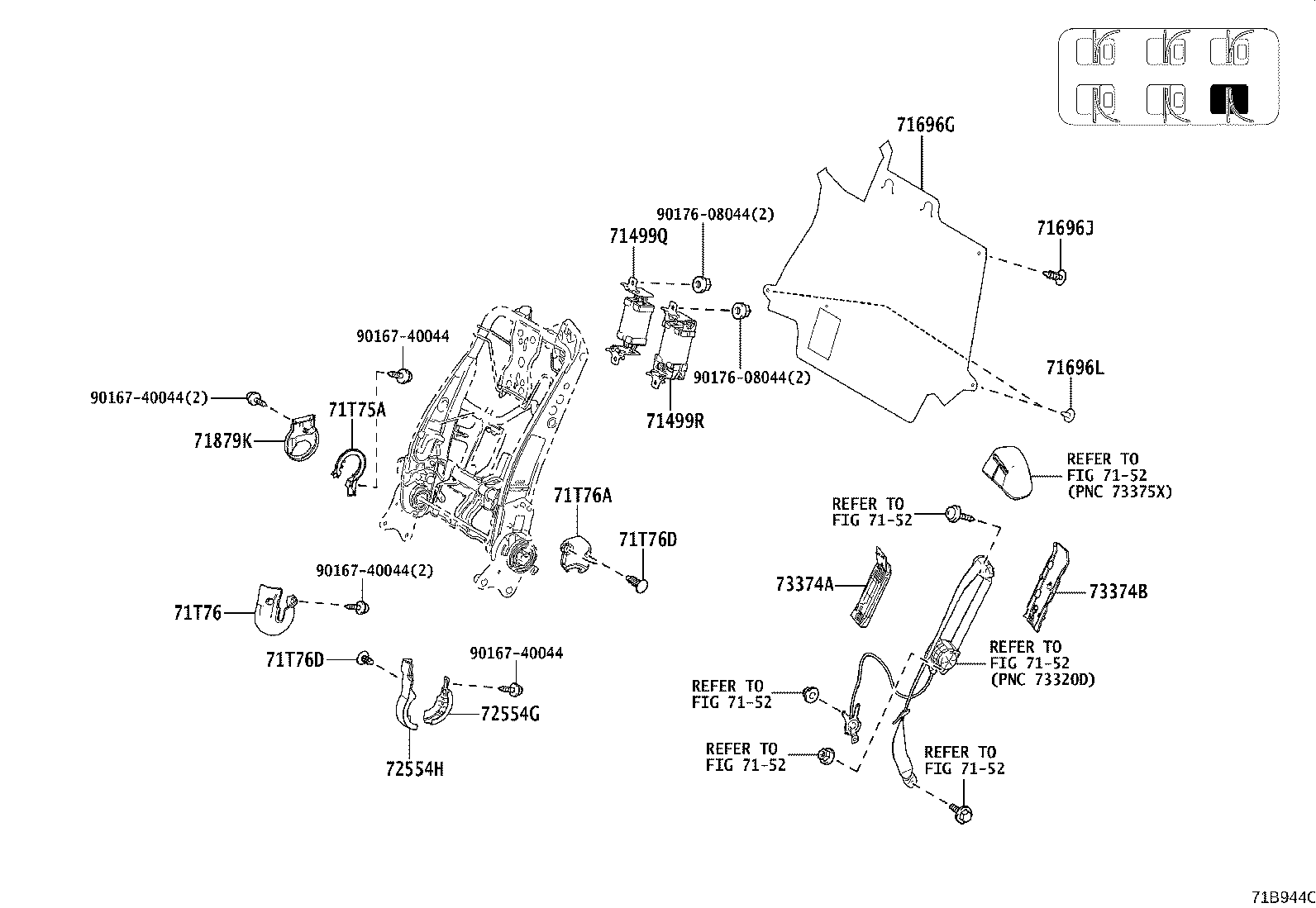

71B944C
71B944C
71B945C

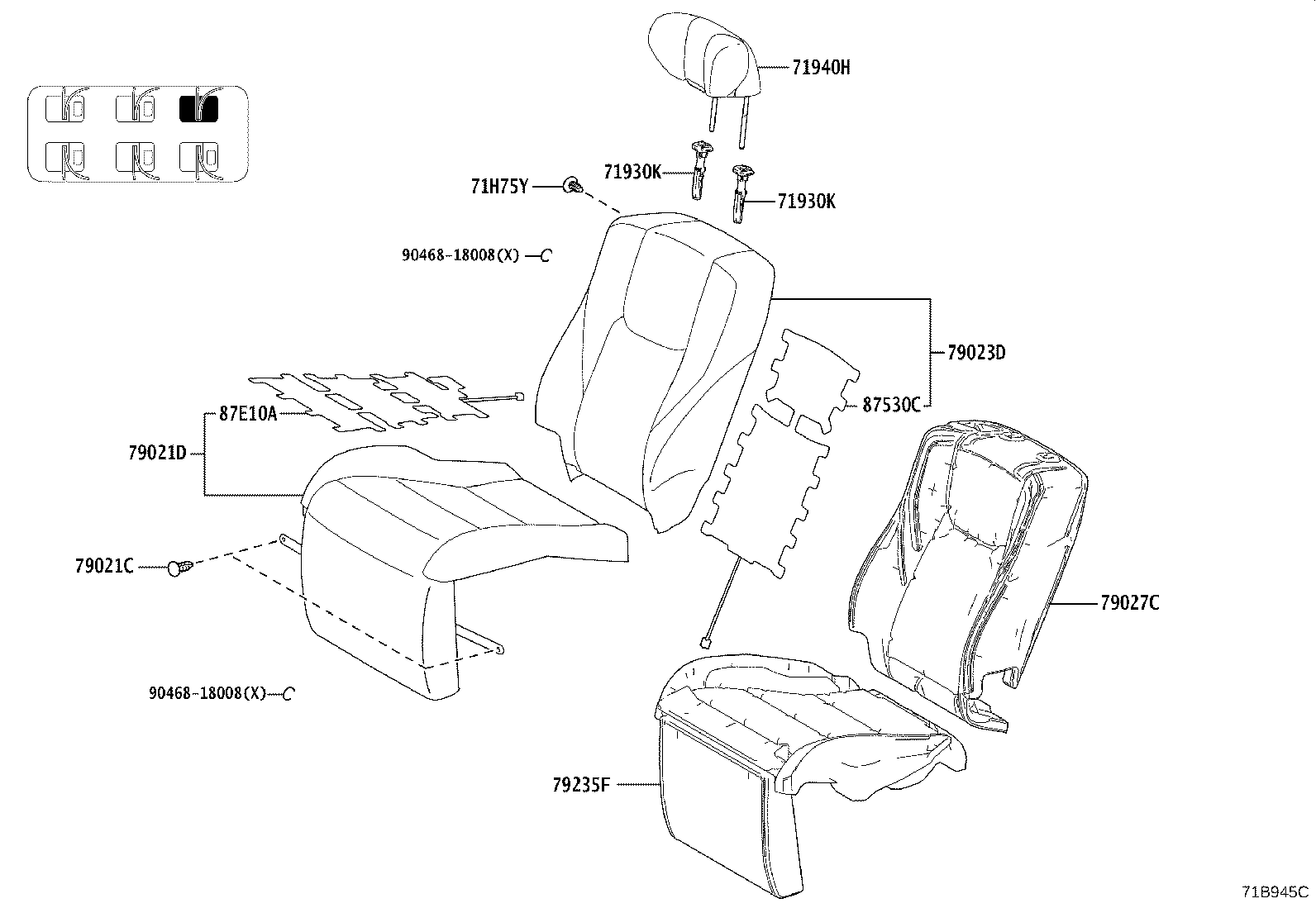

71B945C

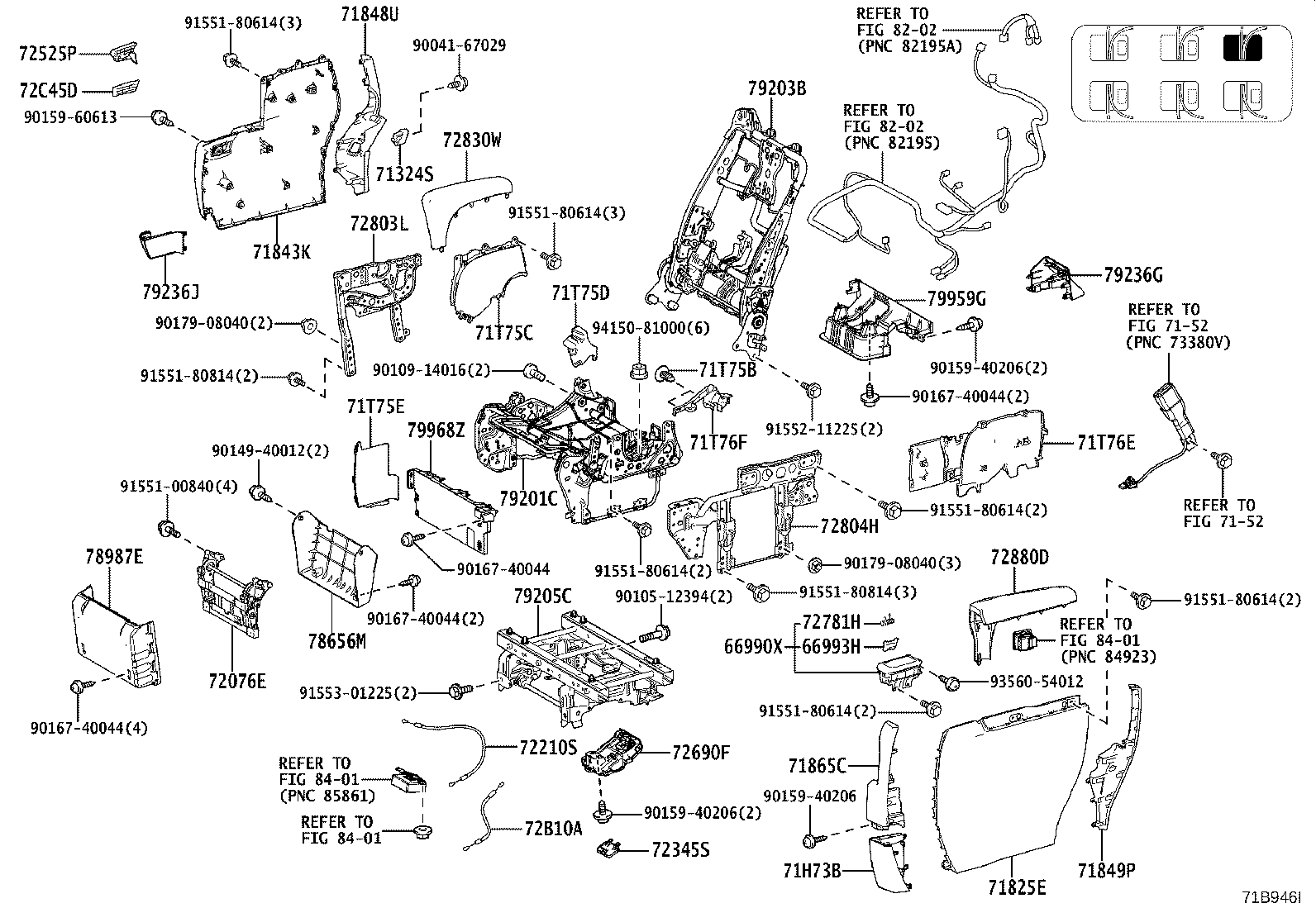

71B946I
71B946I

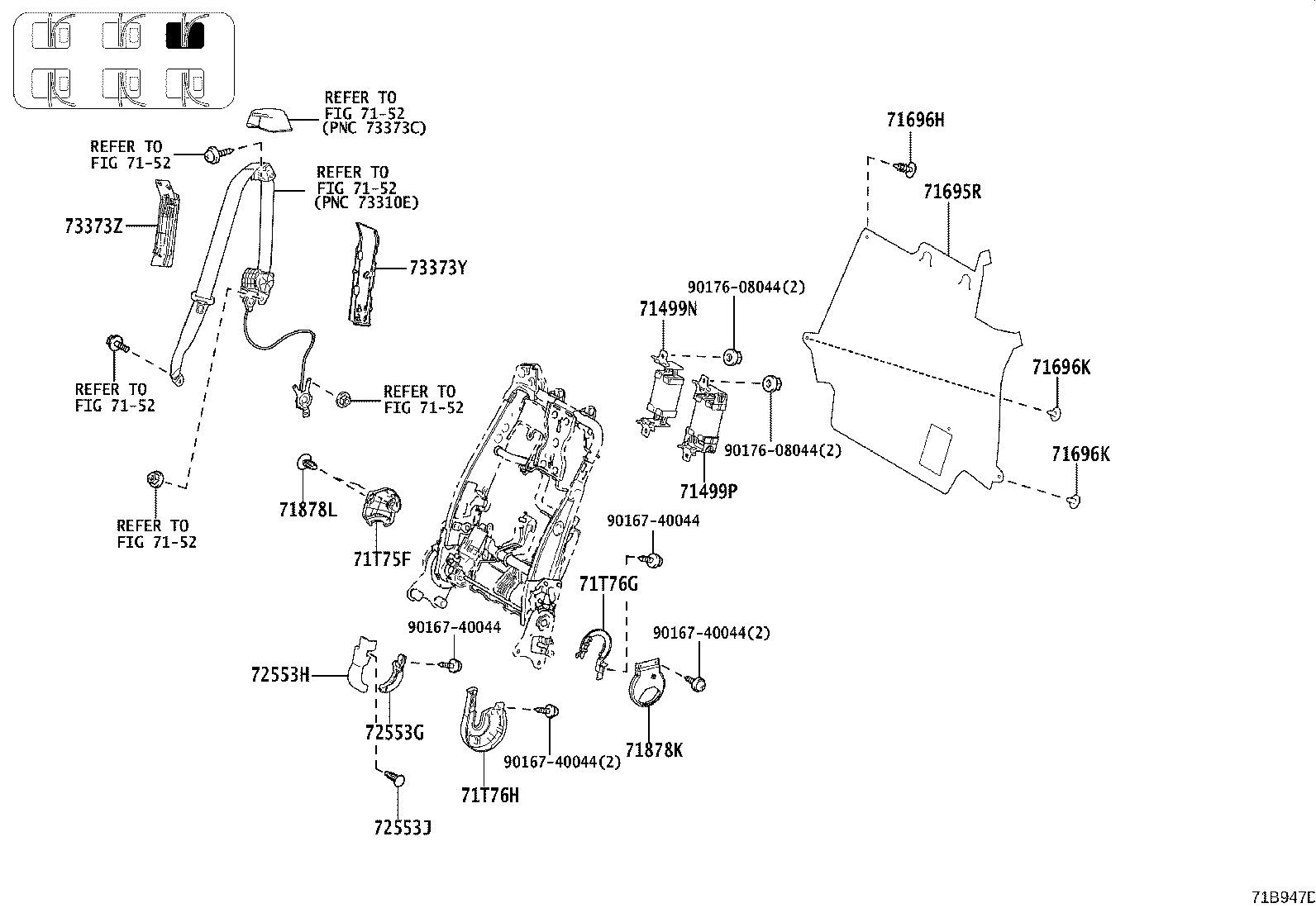

71B947D
71B947D

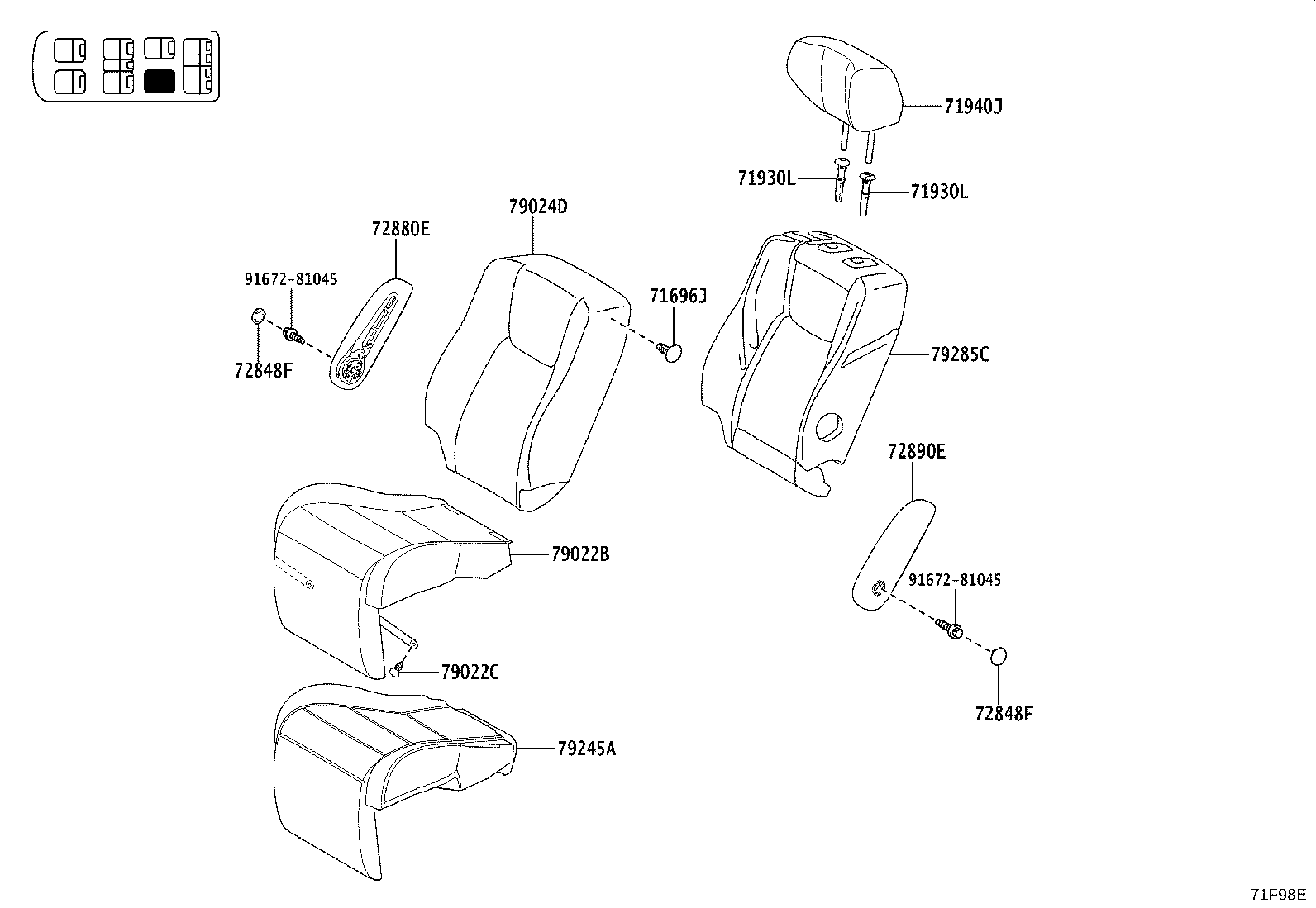

71F98E

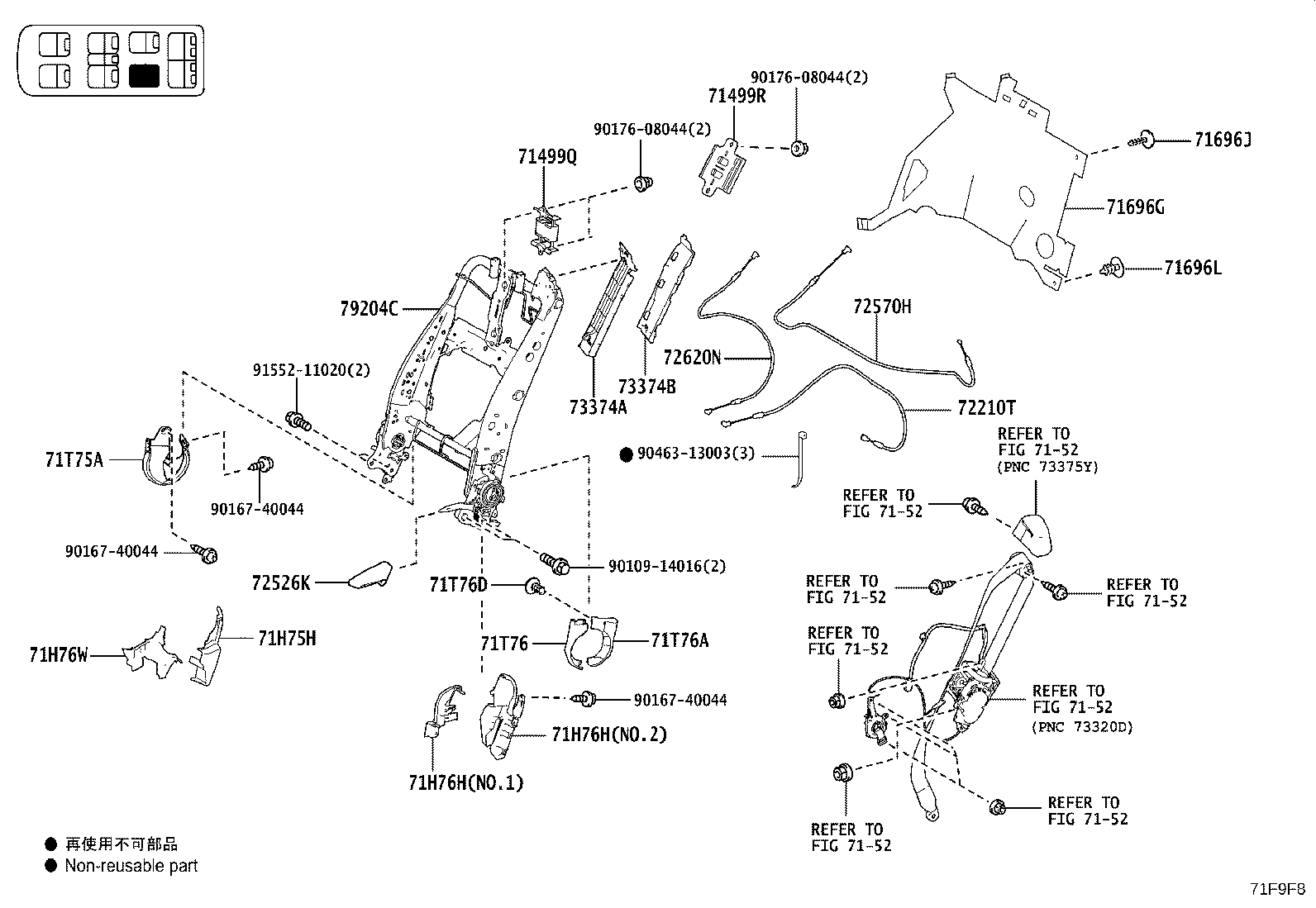

71F9F8

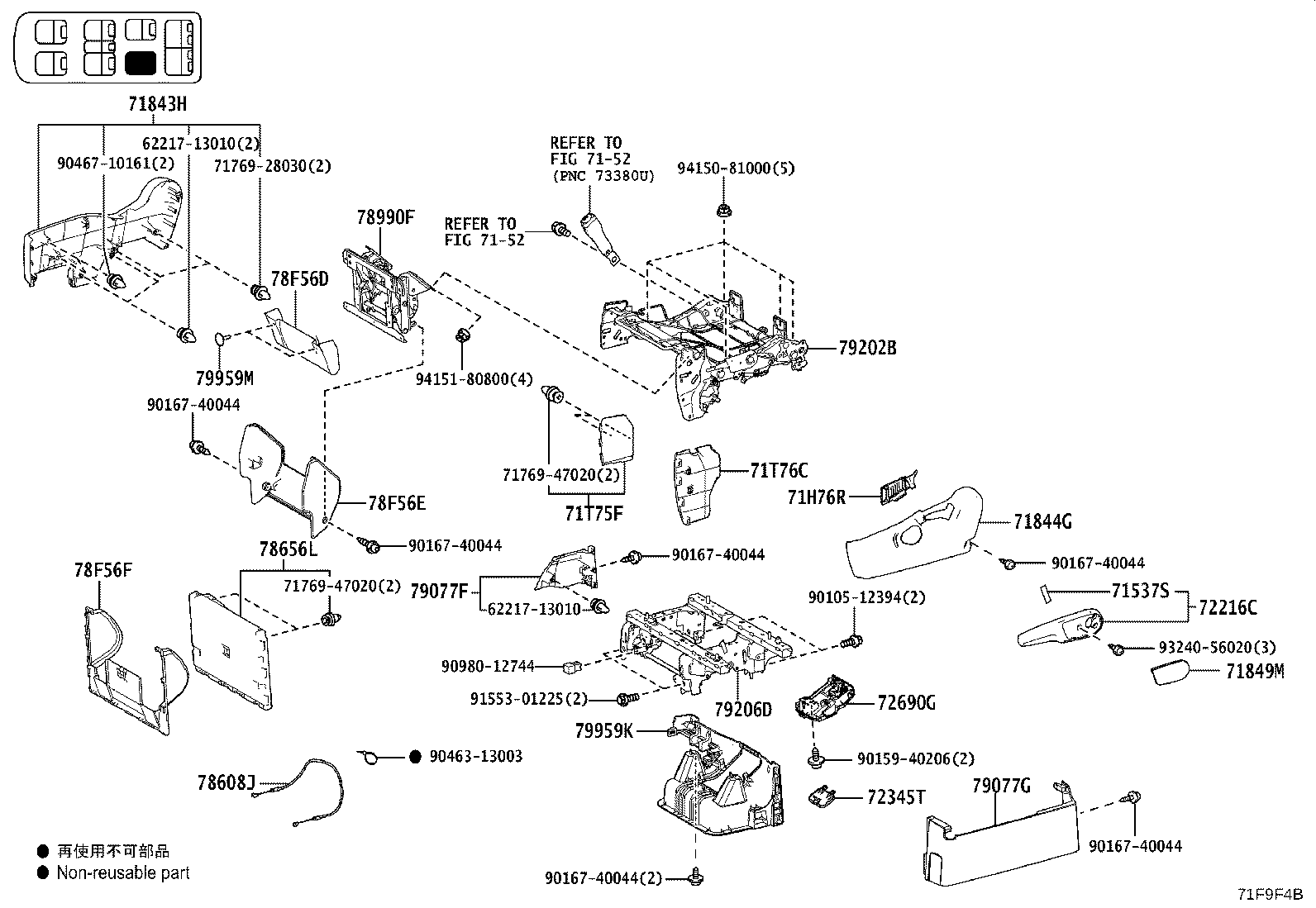

71F9F4B

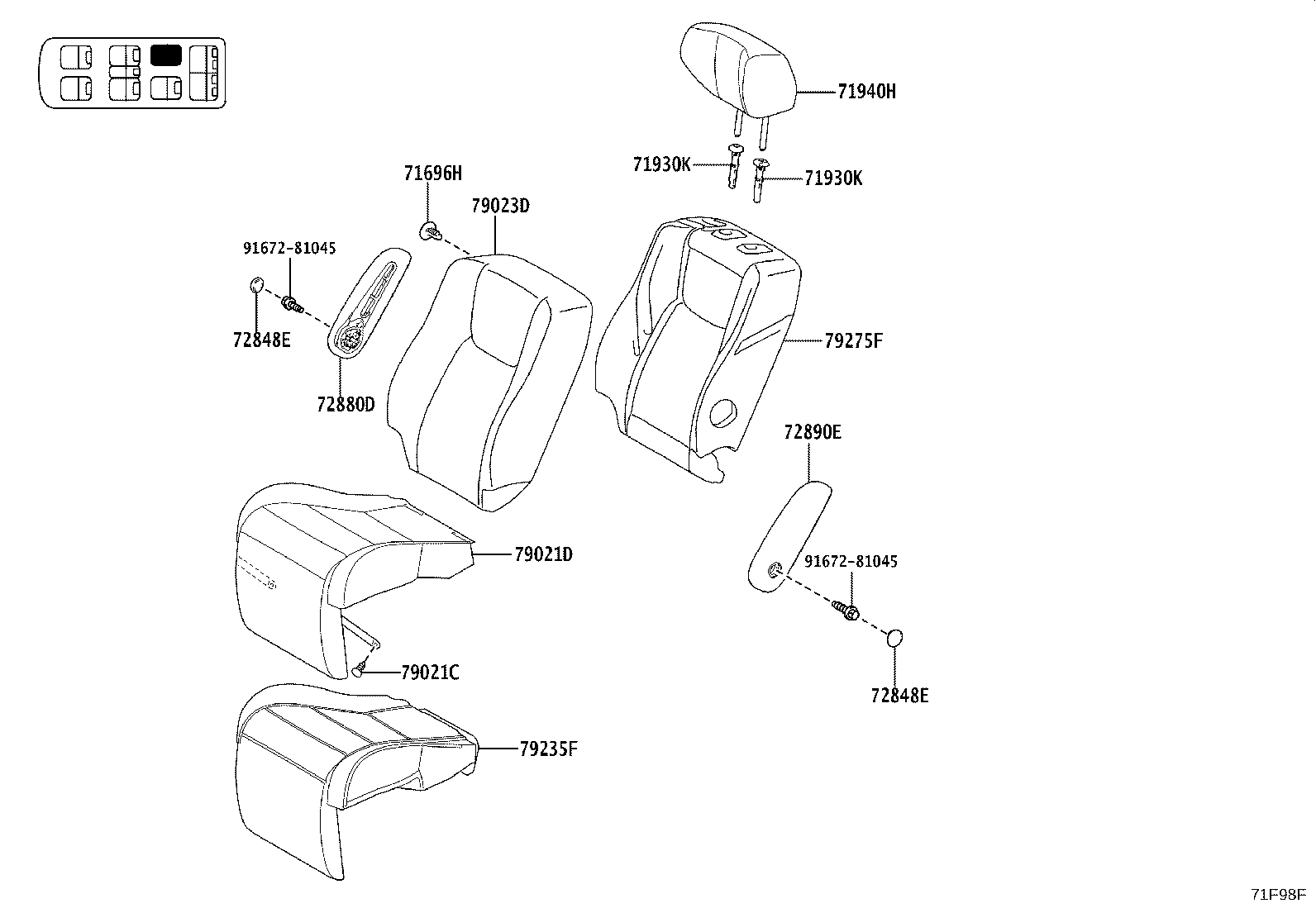

71F98F

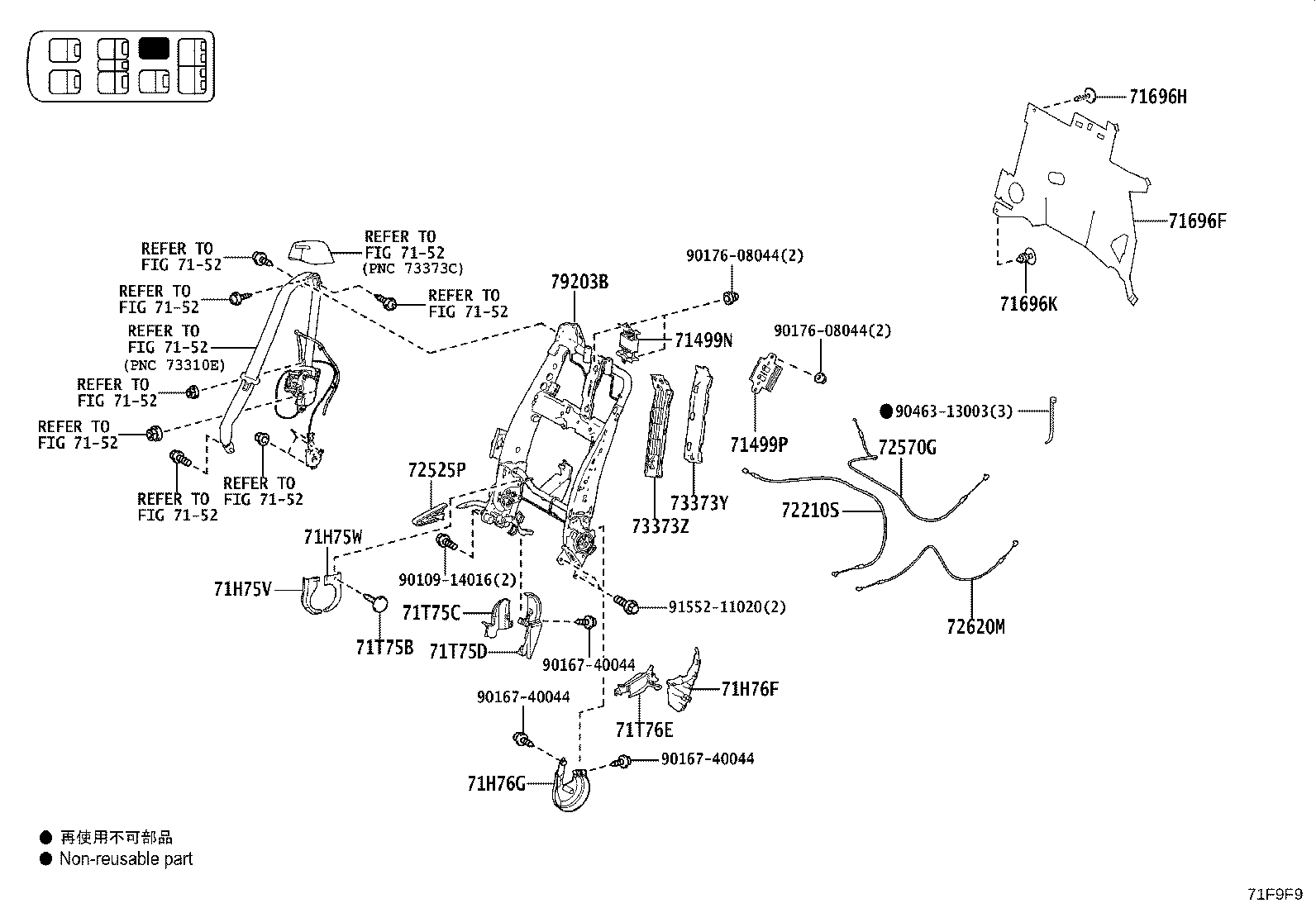

71F9F9

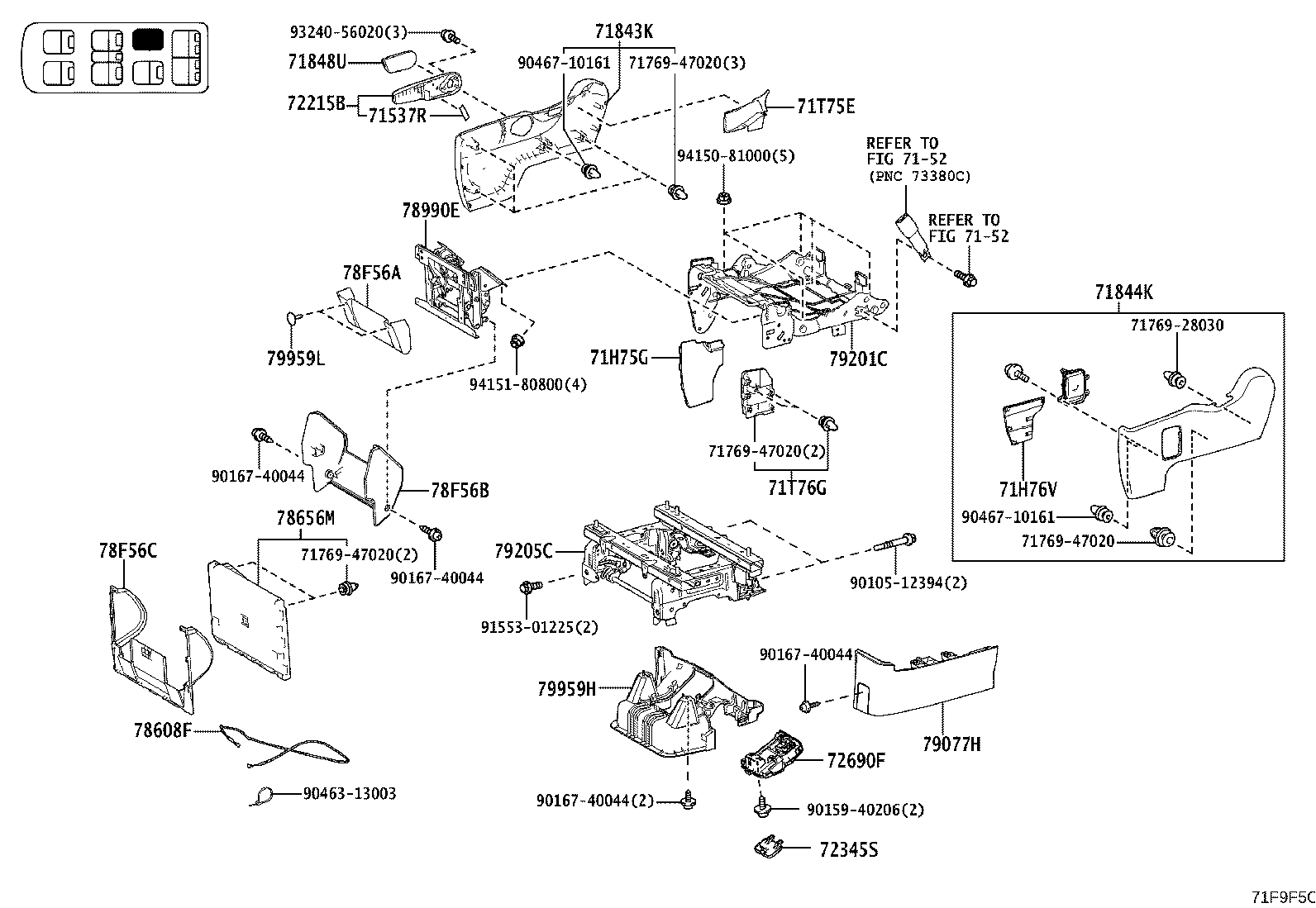

71F9F5C

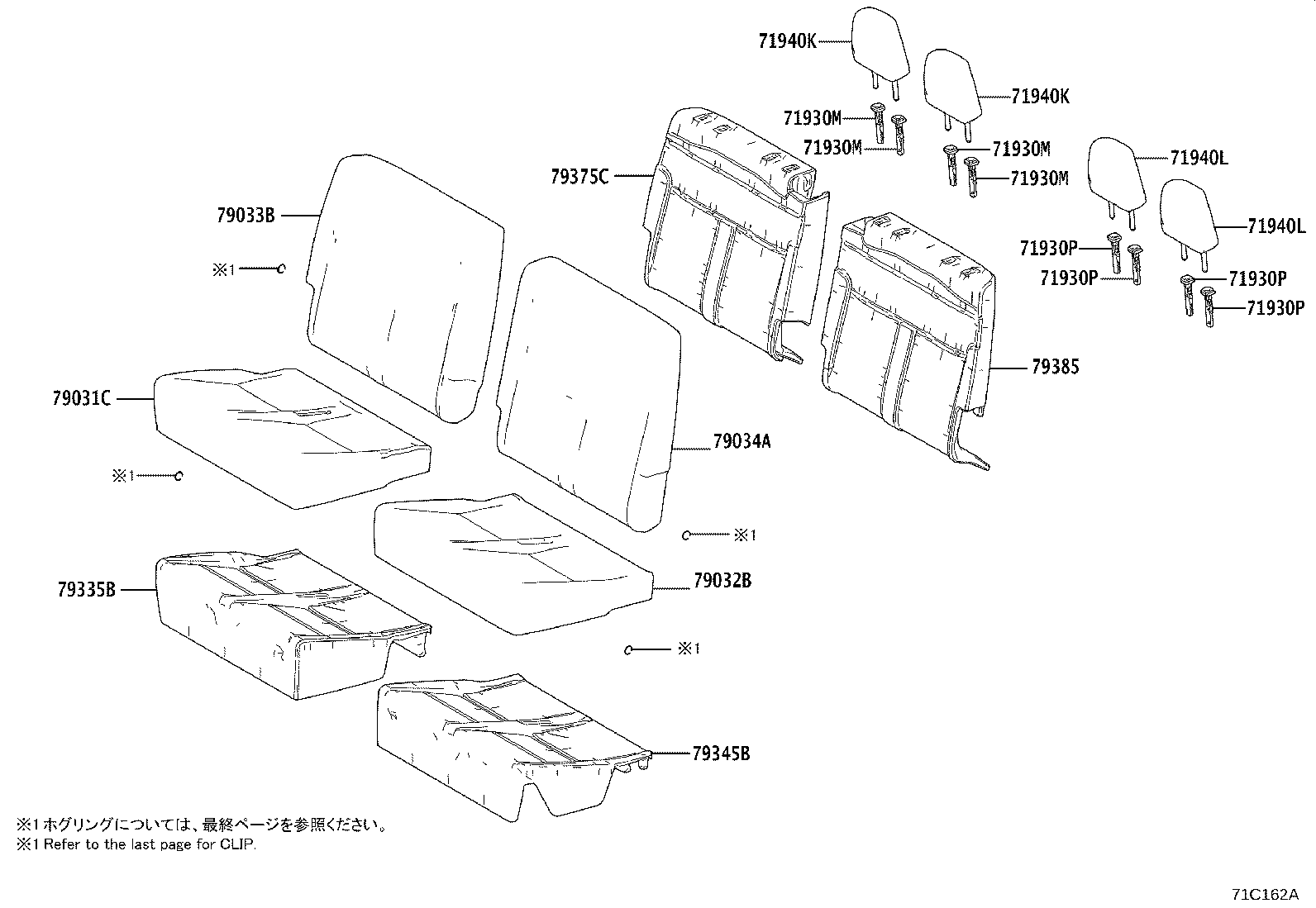

71C162A

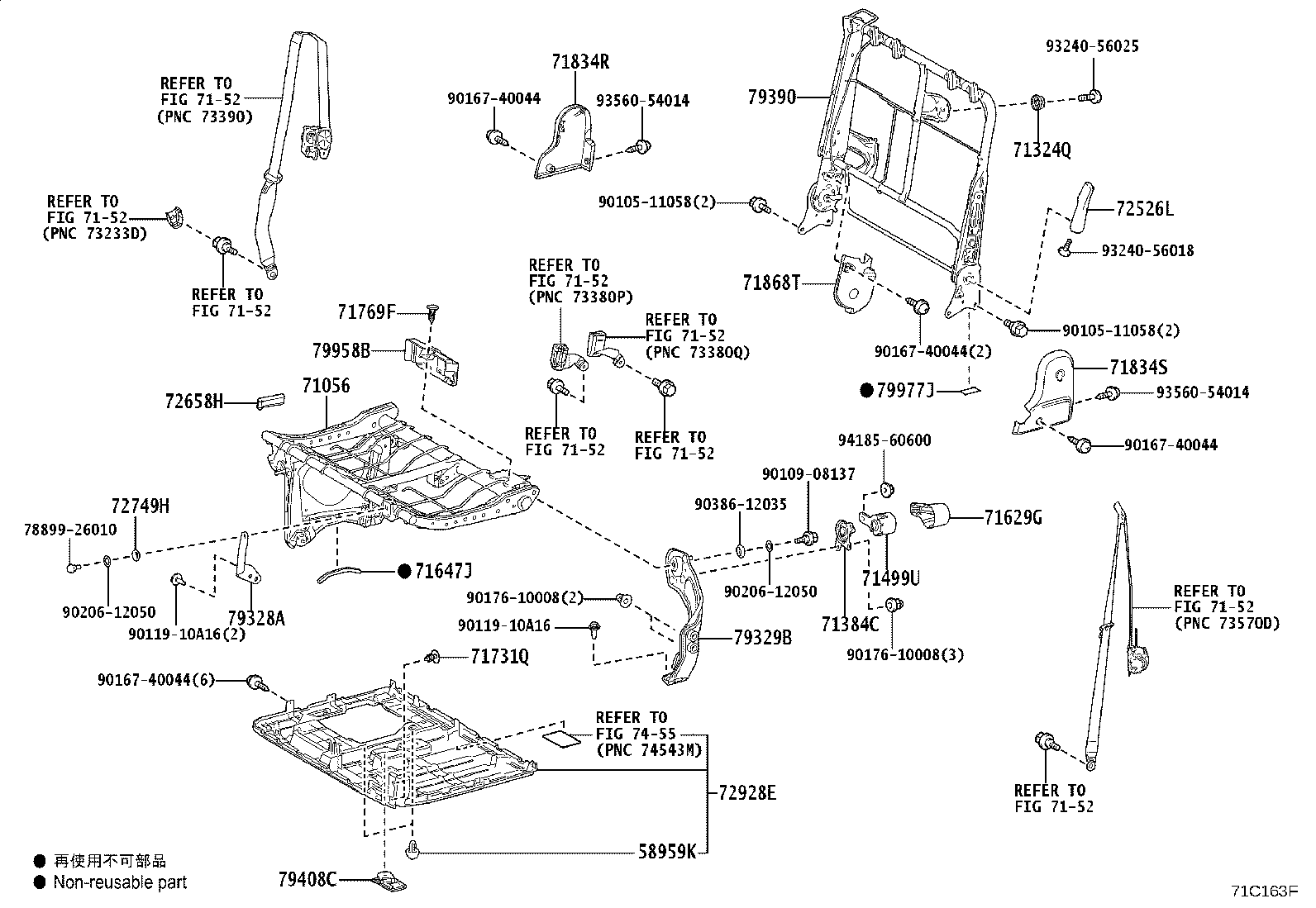

71C163F

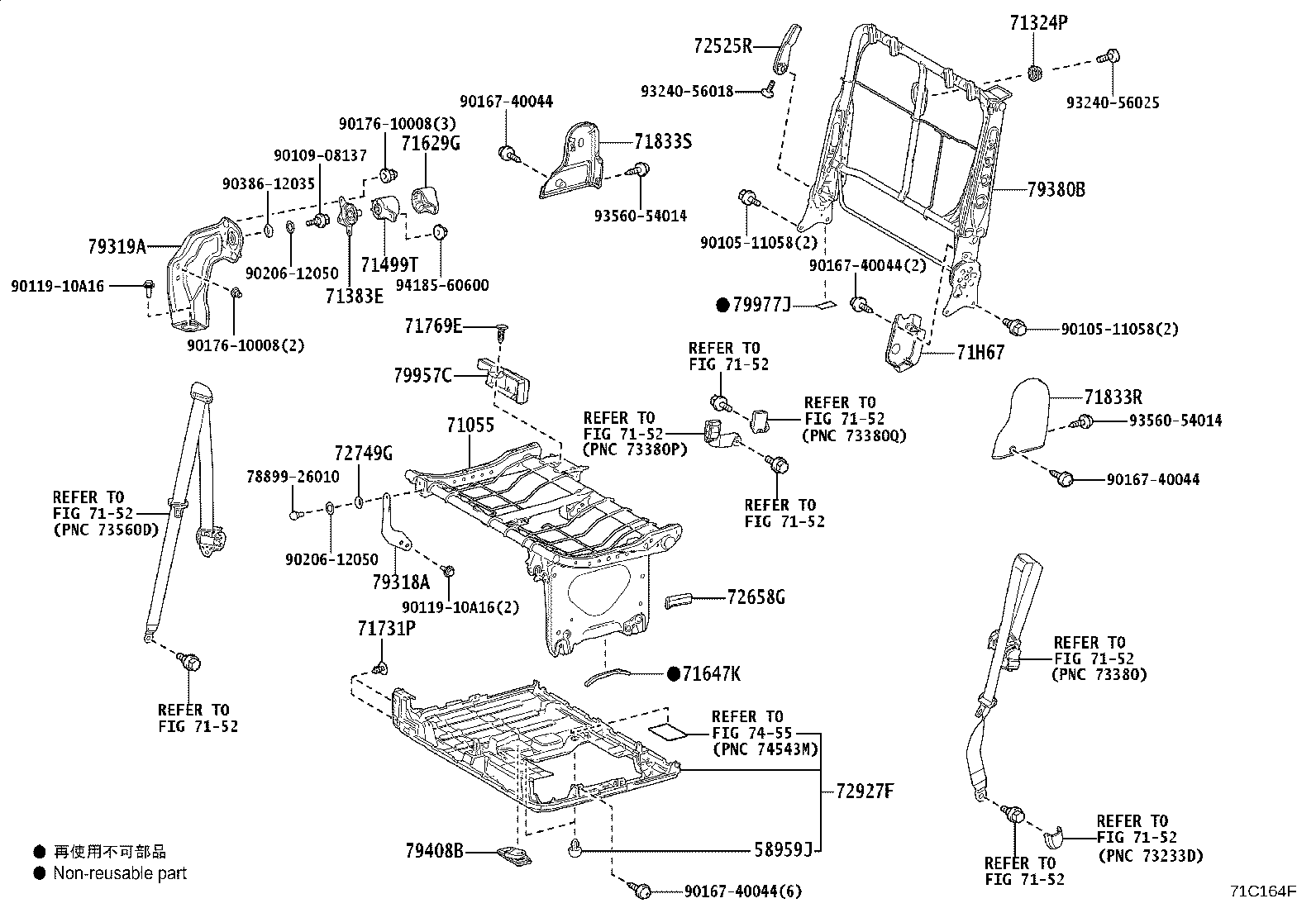

71C164F

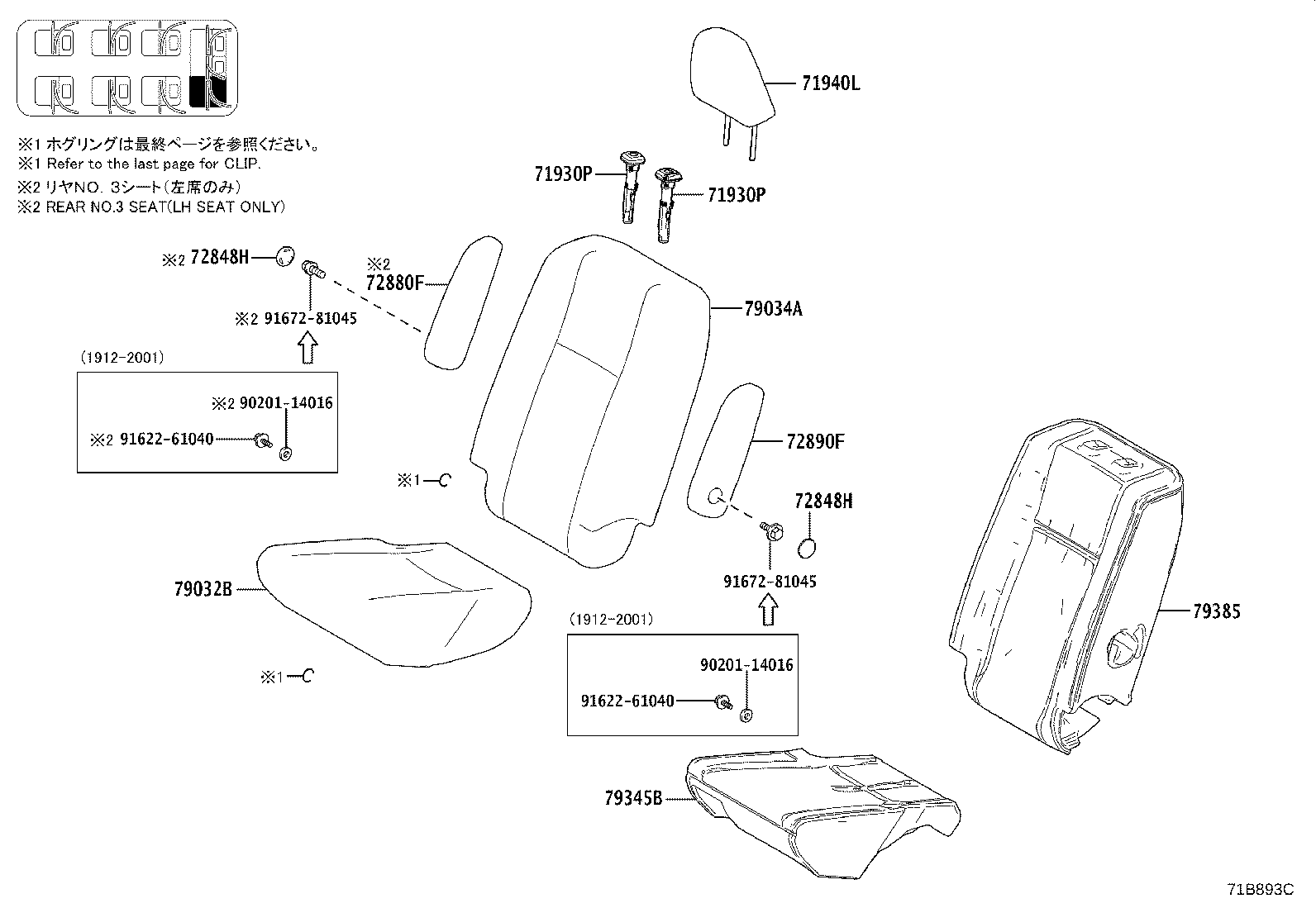

71B893C

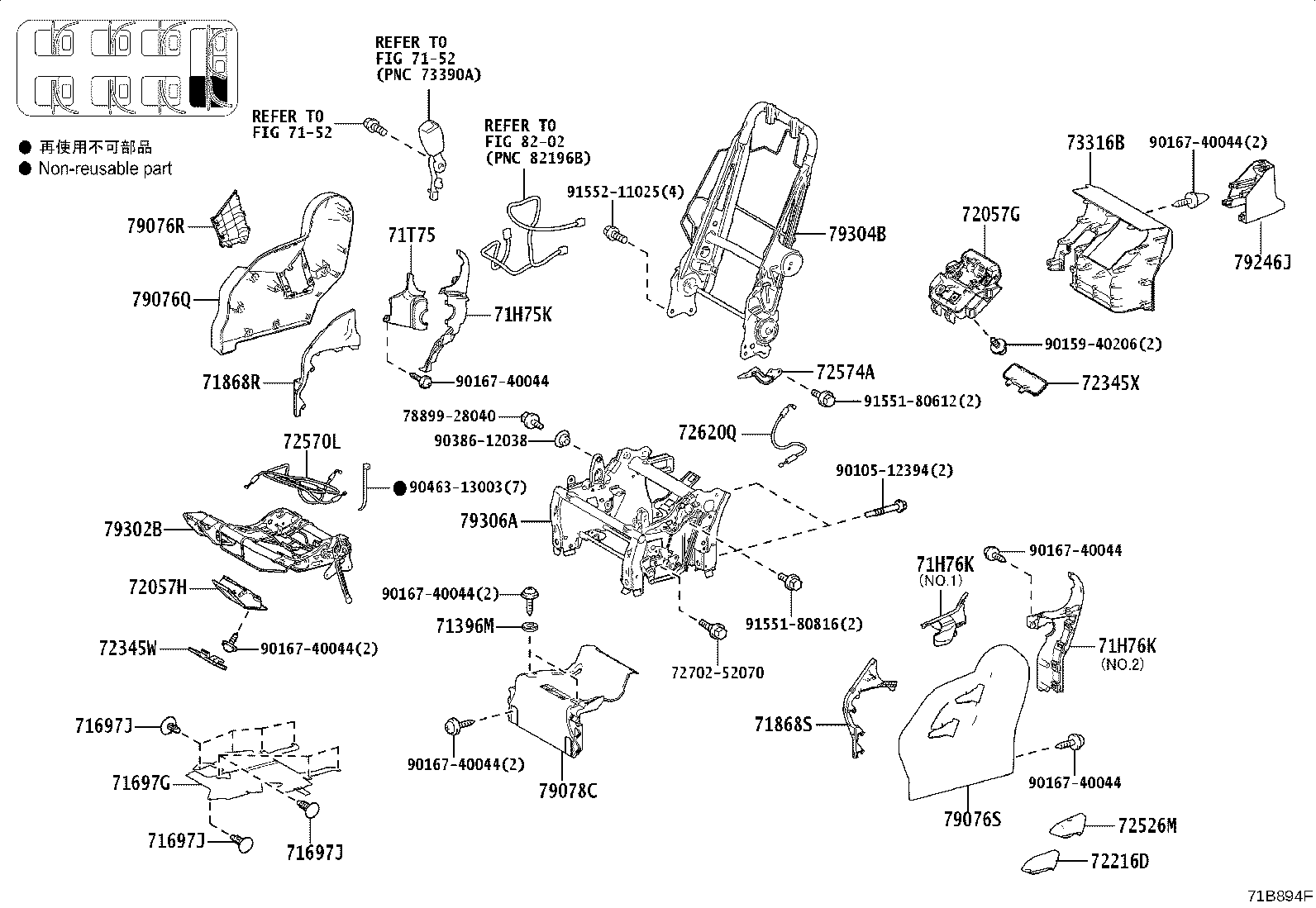

71B894F

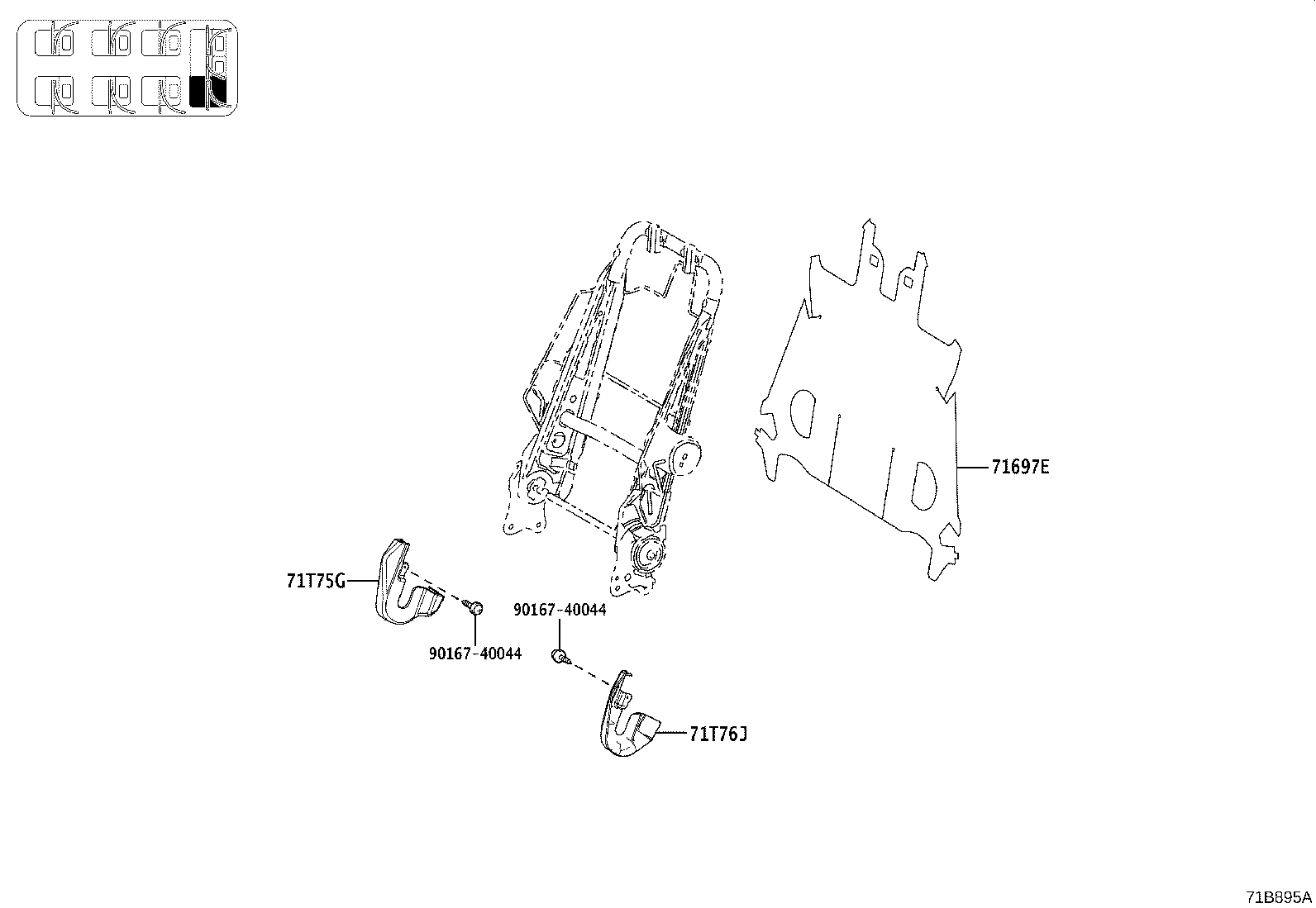

71B895A

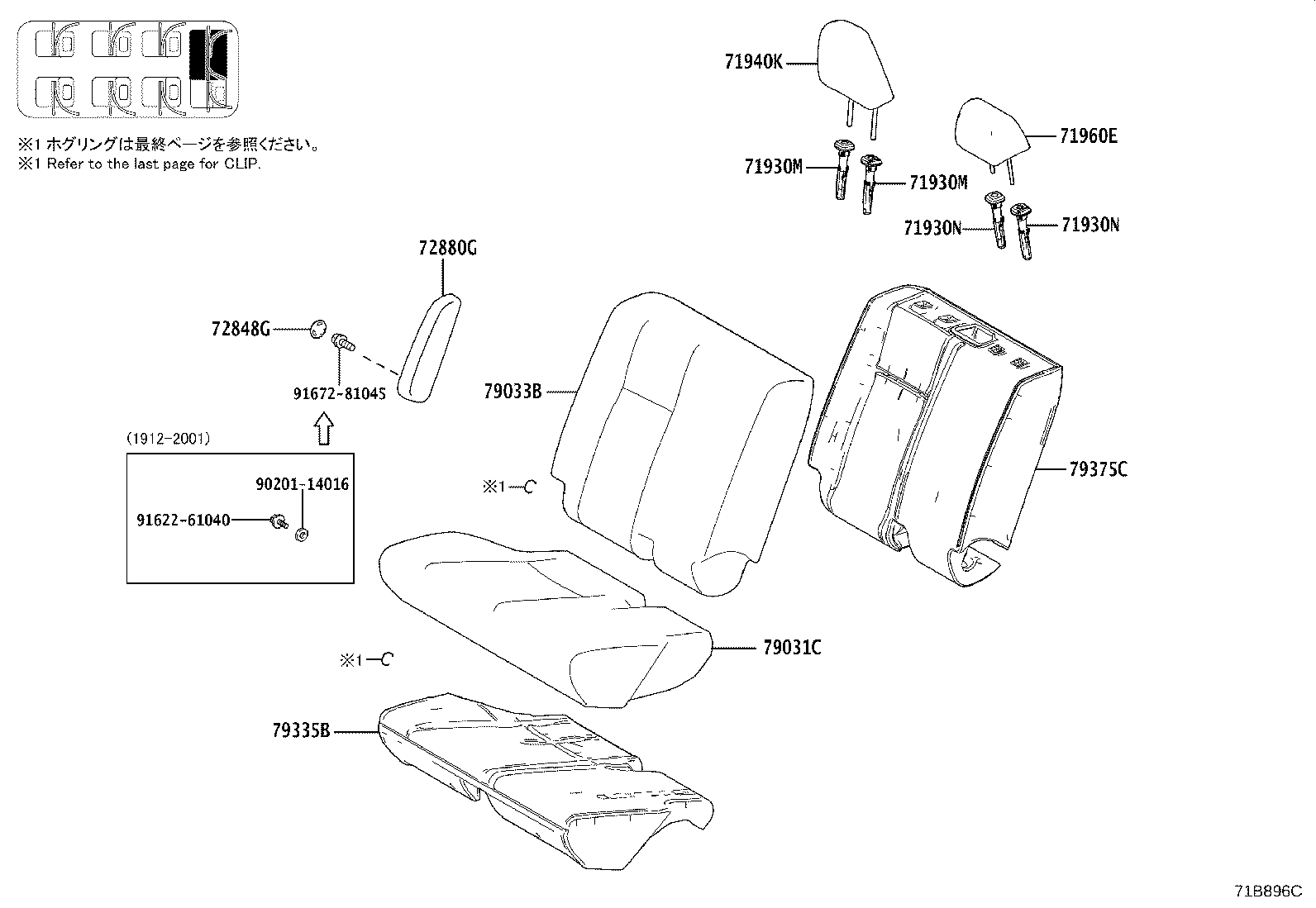

71B896C

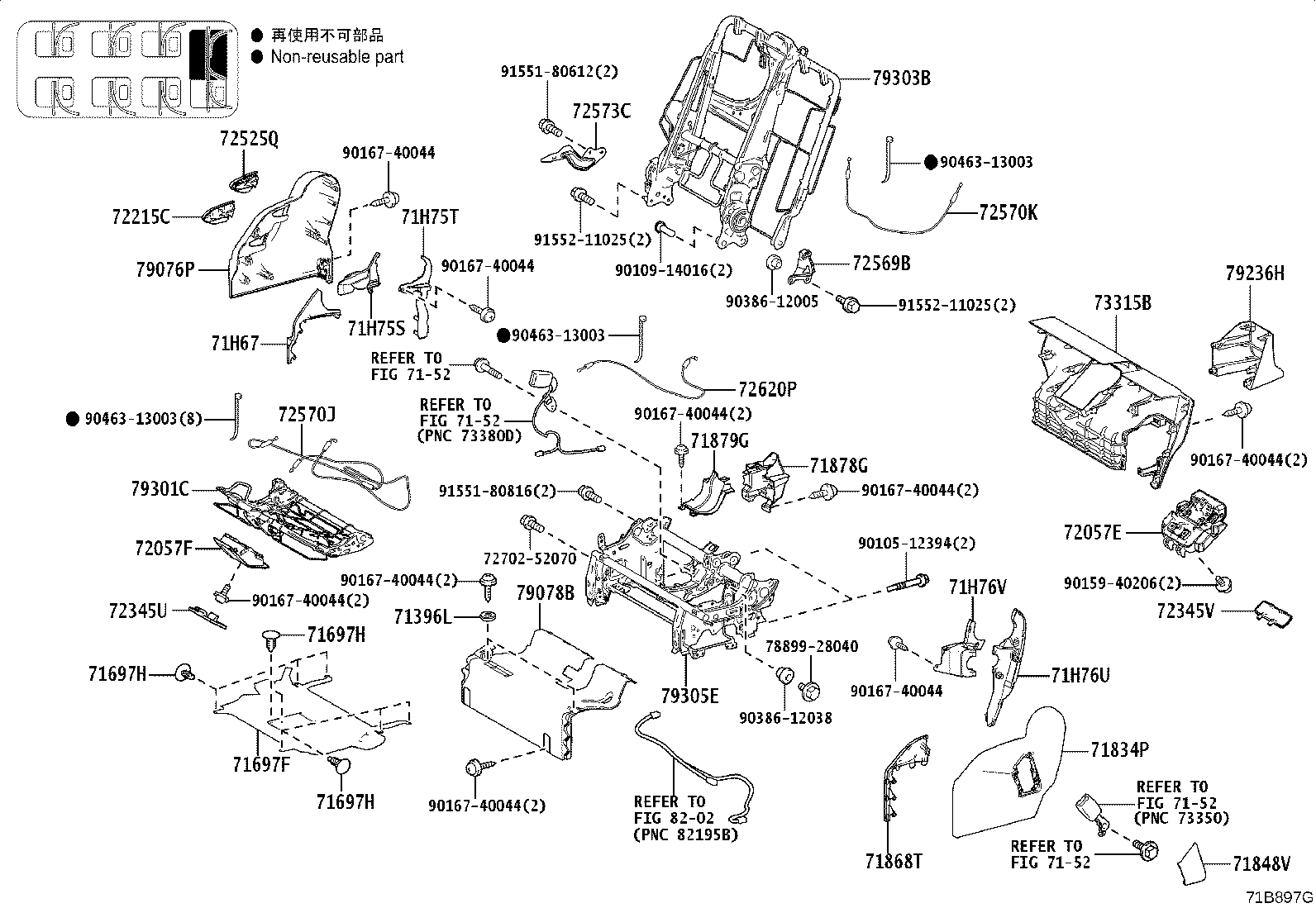

71B897G

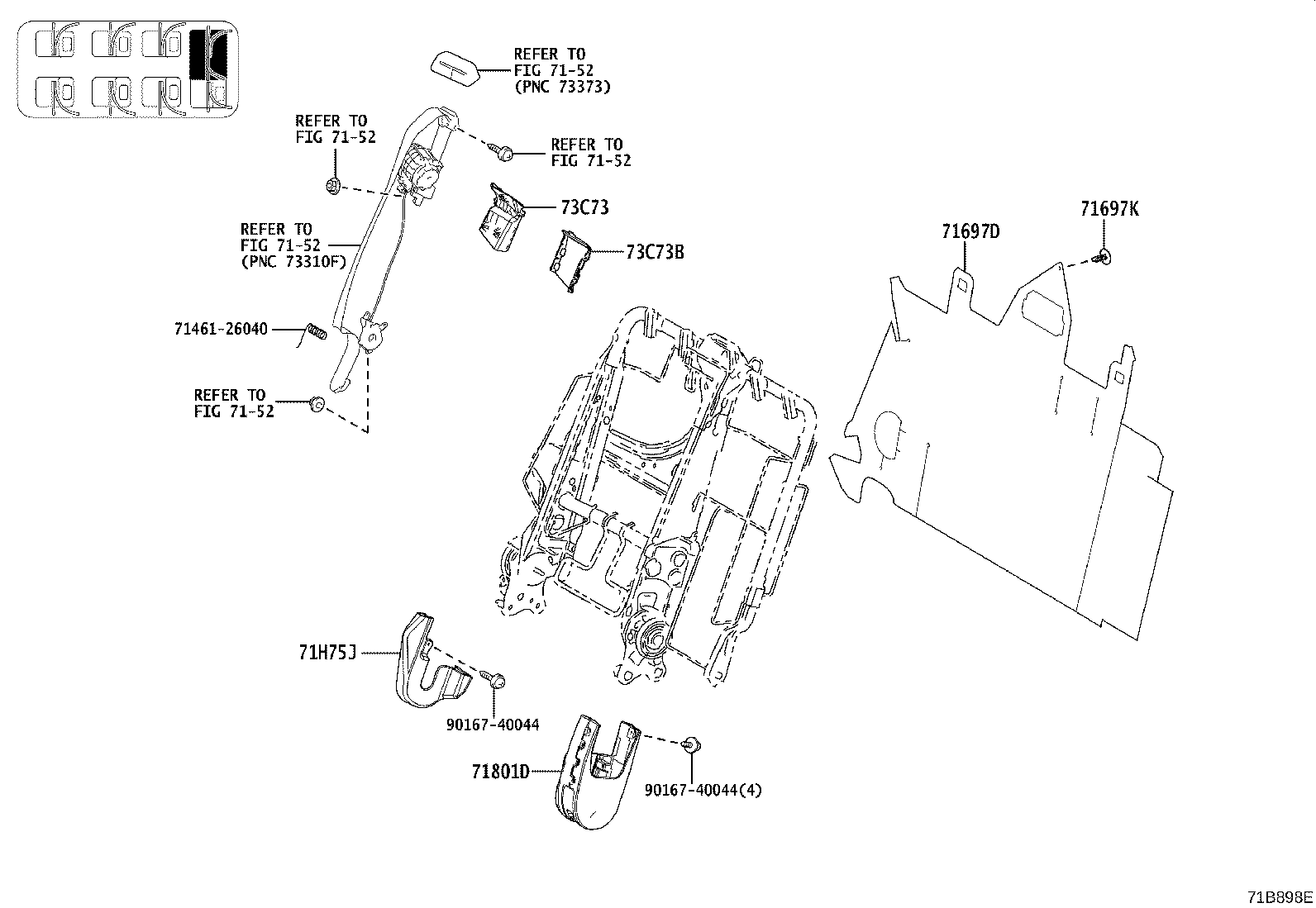

71B898E

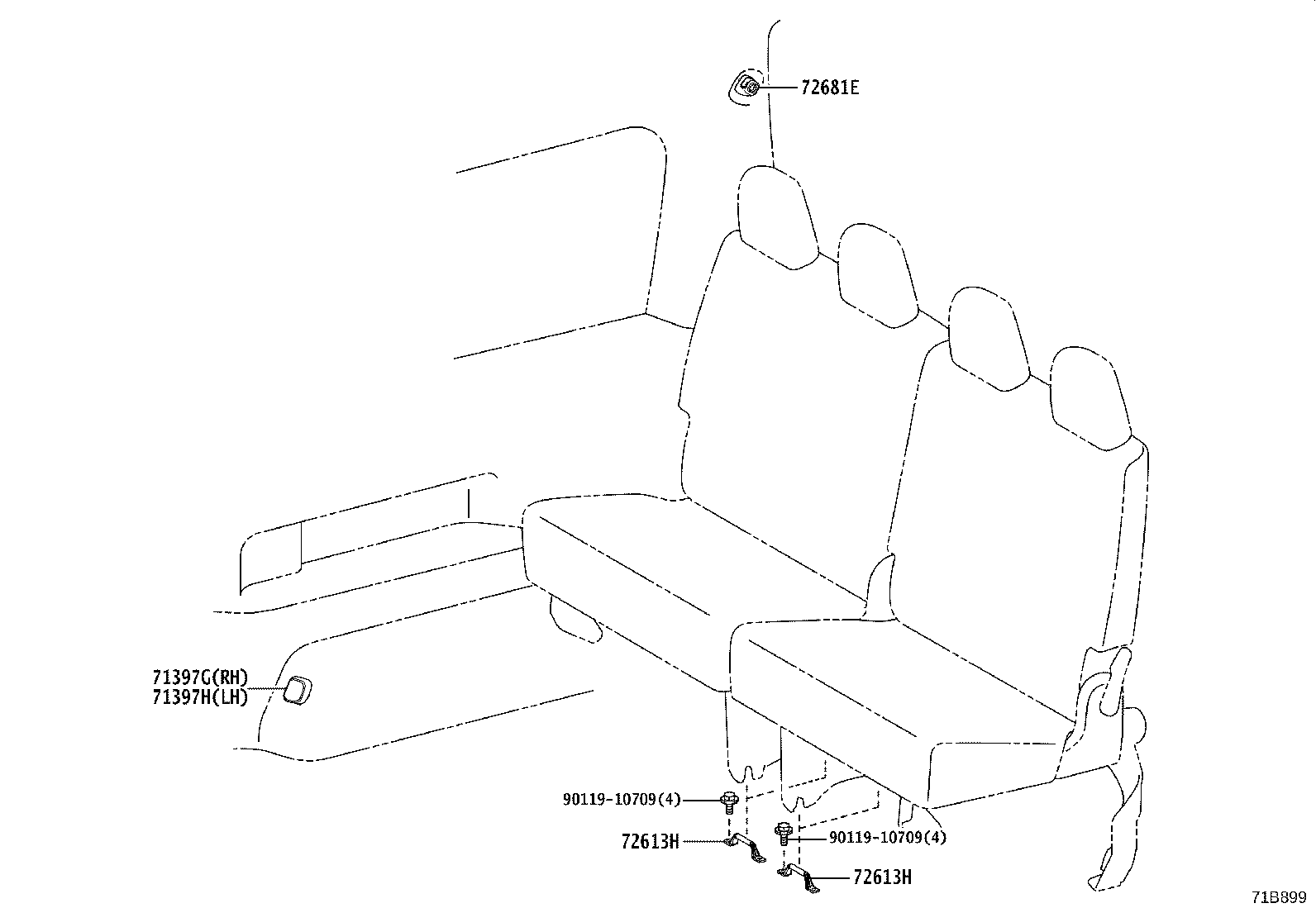

71B899
71B899
71D940B
Part groups
| PNC | Description |
|---|---|
| 58959J | Cushion, Rear Seat Cushion Under Cover, RH |
| 58959K | Cushion, Rear Seat Cushion Under Cover, LH |
| 66990E | Holder Assy, Rear NO.1 Seat Cup, LH |
| 66990L | Holder Assy, Rear NO.1 Seat Cup, RH |
| 66990W | Holder Assy, Rear NO.2 Seat Cup, LH |
| 66990X | Holder Assy, Rear NO.2 Seat Cup, RH |
| 66993E | Plate, Rear NO.1 Seat Cup Holder, LH |
| 66993F | Plate, Rear NO.1 Seat Cup Holder, RH |
| 66993G | Plate, Rear NO.2 Seat Cup Holder, LH |
| 66993H | Plate, Rear NO.2 Seat Cup Holder, RH |
| 71055 | Spring Sub-assy, Rear Seat Cushion, RH |
| 71056 | Spring Sub-assy, Rear Seat Cushion, LH |
| 71324P | Cushion, NO.1 Seat, RH |
| 71324Q | Cushion, NO.1 Seat, LH |
| 71324R | Cushion, Rear NO.1 Seat, LH |
| 71324S | Cushion, Rear NO.1 Seat, RH |
| 71383E | Bracket, Rear Seat Cushion Set, Rear RH |
| 71384C | Bracket, Rear Seat Cushion Set, Rear LH |
| 71396L | Cushion, NO.3 Seat Support, Rear RH |
| 71396M | Cushion, NO.3 Seat Support, Rear LH |
| 71397G | Stopper, Rear Seat, RH |
| 71397H | Stopper, Rear Seat, LH |
| 71398K | Cup Holder, Rear Seatback |
| 71499L | Damper, NO.1 Seatback Spring, RH |
| 71499M | Damper, NO.1 Seatback Spring, LH |
| 71499N | Damper, NO.2 Seatback Spring, RH NO.1 |
| 71499P | Damper, NO.2 Seatback Spring, RH NO.2 |
| 71499Q | Damper, NO.2 Seatback Spring, LH NO.1 |
| 71499R | Damper, NO.2 Seatback Spring, LH NO.2 |
| 71499T | Damper, Seat Cushion Spring, RH |
| 71499U | Damper, Seat Cushion Spring, LH |
| 71499V | Damper, NO.1 Seatback Spring, LH NO.2 |
| 71499W | Damper, NO.1 Seat Cushion Spring, RH NO.2 |
| 71537P | Protector, Rear NO.1 Seat Cushion, RH |
| 71537Q | Protector, Rear NO.1 Seat Cushion, LH |
| 71537R | Protector, Rear NO.2 Seat Cushion, RH |
| 71537S | Protector, Rear NO.2 Seat Cushion, LH |
| 71629G | Cover, Rear Seat Cushion Hinge |
| 71647J | Protector, Rear Seat Cushion Edge, LH |
| 71647K | Protector, Rear Seat Cushion Edge, RH |
| 71695K | Protector, NO.1 Seatback, RH |
| 71695L | Protector, NO.1 Seatback, LH |
| 71695M | Clip, Rear NO.1 Seat Protector, NO.1 RH |
| 71695N | Clip, Rear NO.1 Seat Protector, NO.2 RH |
| 71695P | Clip, Rear NO.1 Seat Protector, NO.1 LH |
| 71695Q | Clip, Rear NO.1 Seat Protector, NO.2 LH |
| 71695R | Protector, Rear NO.2 Seatback Stay, RH |
| 71696F | Protector, NO.2 Seatback, RH |
| 71696G | Protector, NO.2 Seatback, LH |
| 71696H | Clip, NO.2 Seatback Protector, RH NO.2 |
| 71696J | Clip, NO.2 Seatback Protector, LH NO.2 |
| 71696K | Clip, NO.2 Seatback Protector, RH NO.1 |
| 71696L | Clip, NO.2 Seatback Protector, LH NO.1 |
| 71697D | Protector, NO.3 Seatback, RH |
| 71697E | Protector, NO.3 Seatback, LH |
| 71697F | Protector, Rear Seat Cushion, NO.3 RH |
| 71697G | Protector, Rear Seat Cushion, NO.3 LH |
| 71697H | Clip, NO.3 Seat Cushion Protector, RH |
| 71697J | Clip, NO.3 Seat Cushion Protector, LH |
| 71697K | Clip, NO.3 Seatback Protector, RH |
| 71701A | Board Sub-assy, Rear Seatback, RH |
| 71701D | Board Sub-assy, Rear Seatback |
| 71702D | Board Sub-assy, Rear Seatback, LH |
| 71731P | Fastener, Seat Cover, RH |
| 71731Q | Fastener, Seat Cover, LH |
| 71769E | Cover, Seat Under Tray Bracket, RH |
| 71769F | Cover, Seat Under Tray Bracket, LH |
| 71801D | Cover Sub-assy, NO.3 Seat Reclining Adjuster, RH |
| 71802C | Cover Sub-assy, Reclining Adjuster, LH |
| 71825A | Moulding, NO.1 Seat Cushion, RH Inner |
| 71825D | Moulding, Rear NO.1 Seat Cushion, RH |
| 71825E | Moulding, Rear NO.2 Seat Cushion, RH |
| 71826A | Moulding, NO.1 Seat Cushion, LH Inner |
| 71826C | Moulding, Rear Seat Cushion, LH |
| 71826D | Moulding, Rear NO.2 Seat Cushion, LH |
| 71833K | Cover, NO.1 Seat Reclining, NO.1 RH Outer |
| 71833M | Cover, Rear NO.2 Seat Reclining, NO.1 RH(FOR RH SEAT) |
| 71833N | Cover, Rear NO.2 Seat Reclining, NO.1 RH(FOR LH SEAT) |
| 71833P | Cover, Rear NO.3 Seat Reclining, NO.1 RH(FOR RH SEAT) |
| 71833Q | Cover, Rear NO.3 Seat Reclining, NO.1 RH(FOR LH SEAT) |
| 71833R | Cover, Rear Seat Reclining, RH |
| 71833S | Cover, Rear Seat Reclining, NO.1 RH |
| 71833T | Cover, Rear NO.4 Seat Reclining, RH(FOR RH SEAT) |
| 71833U | Cover, Rear NO.4 Seat Reclining, RH(FOR LH SEAT) |
| 71833V | Cover, NO.1 Seat Reclining, NO.2 RH |
| 71834J | Cover, NO.1 Seat Reclining, NO.1 LH Outer |
| 71834L | Cover, Rear Seat Reclining, LH |
| 71834M | Cover, Rear NO.2 Seat Reclining, NO.1 LH(FOR RH SEAT) |
| 71834N | Cover, Rear NO.2 Seat Reclining, NO.1 LH(FOR LH SEAT) |
| 71834P | Cover, Rear NO.3 Seat Reclining, NO.1 LH(FOR RH SEAT) |
| 71834Q | Cover, Rear NO.3 Seat Reclining, NO.1 LH(FOR LH SEAT) |
| 71834R | Cover, Rear Seat Reclining, LH |
| 71834S | Cover, Rear Seat Reclining, NO.1 LH |
| 71834T | Cover, Rear NO.4 Seat Reclining, LH(FOR RH SEAT) |
| 71834U | Cover, Rear NO.4 Seat Reclining, LH(FOR LH SEAT) |
| 71834X | Cover, Rear Seat Reclining, NO.2 LH |
| 71843H | Cover, NO.2 Seat Reclining, NO.2 RH Inner |
| 71843J | Cover, Rear NO.1 Seat Reclining, NO.2 RH |
| 71843K | Cover, Rear NO.2 Seat Reclining, NO.2 RH |
| 71844G | Cover, NO.2 Seat Reclining, NO.2 LH Outer |
| 71844J | Cover, Rear NO.1 Seat Reclining, NO.2 LH |
| 71844K | Cover, Rear NO.2 Seat Reclining, NO.2 LH |
| 71846J | Cap, Rear Seatback Board, NO.2 |
| 71848T | Cap, NO.1 Seat Adjuster Cover, RH |
| 71848U | Cap, NO.2 Seat Adjuster Cover, RH |
| 71848V | Cap, NO.3 Seat Adjuster Cover, RH |
| 71848W | Cap, NO.1 Seat Adjuster Cover, RH(FOR LH SEAT) |
| 71848X | Cap, NO.2 Seat Adjuster Cover, RH(FOR LH SEAT) |
| 71849K | Cap, Seat Adjuster Cover(FOR SEAT SIDE TABLE) |
| 71849L | Cap, NO.1 Seat Adjuster Cover, LH |
| 71849M | Cap, NO.2 Seat Adjuster Cover, LH |
| 71849N | Cap, NO.1 Seat Adjuster Cover, LH(FOR RH SEAT) |
| 71849P | Cap, NO.2 Seat Adjuster Cover, LH(FOR RH SEAT) |
| 71865B | Bezel, Rear NO.1 Seat Cover, NO.1(FOR RH SEAT) |
| 71865C | Bezel, Rear NO.2 Seat Cover, RH |
| 71866C | Bezel, Rear Seat Cover, NO.2 |
| 71866D | Bezel, Rear NO.1 Seat Cover, NO.2(FOR LH SEAT) |
| 71868R | Shield, NO.3 Seat Cushion, Inner NO.1 RH |
| 71868S | Shield, NO.3 Seat Cushion, Inner NO.1 LH |
| 71868T | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71873Y | Shield, Rear Seat Cushion, Lower |
| 71873Z | Clip, Rear Seat Cushion Shield |
| 71874X | Shield, Rear Seat Cushion, Lower LH |
| 71875X | Cover, Reclining Adjuster Inside, RH |
| 71875Y | Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEATBACK) |
| 71878G | Cover, NO.3 Seat Reclining, Inner RH |
| 71878H | Cover, Rear Seat Reclining, Inner RH |
| 71878J | Cover, Rear NO.1 Seat Reclining, Inner RH |
| 71878K | Cover, Rear NO.2 Seat Reclining, Inner RH |
| 71878L | Clip, Rear NO.2 Seat Reclining Cover, RH |
| 71879G | Cover, NO.3 Seat Reclining, Inner LH |
| 71879H | Cover, Rear Seat Reclining, Inner LH |
| 71879J | Cover, Rear NO.1 Seat Reclining, Inner LH |
| 71879K | Cover, Rear NO.2 Seat Reclining, Inner LH |
| 71910H | Headrest Assy, Rear Seat |
| 71930H | Support Assy, NO.1 Seat Headrest, RH |
| 71930J | Support Assy, NO.1 Seat Headrest, LH |
| 71930K | Support Assy, NO.2 Seat Headrest, RH |
| 71930L | Support Assy, NO.2 Seat Headrest, LH |
| 71930M | Support Assy, NO.3 Seat Headrest, RH |
| 71930N | Support Assy, NO.3 Seat Headrest, Center |
| 71930P | Support Assy, NO.3 Seat Headrest, LH |
| 71930Q | Support Assy, Rear Seat Headrest |
| 71930S | Support Assy, Rear NO.1 Seat Headrest, Center |
| 71931G | Support Assy, Rear Seat Headrest |
| 71940F | Headrest Assy, NO.1 Seat, RH |
| 71940G | Headrest Assy, NO.1 Seat, LH |
| 71940H | Headrest Assy, NO.2 Seat, RH |
| 71940J | Headrest Assy, NO.2 Seat, LH |
| 71940K | Headrest Assy, NO.3 Seat, RH |
| 71940L | Headrest Assy, NO.3 Seat, LH |
| 71940M | Headrest Assy, Rear Seat |
| 71940N | Headrest Assy, Rear Seat, NO.2 |
| 71960E | Headrest Assy, NO.3 Seat, Center |
| 71960G | Headrest Assy, Rear NO.1 Seat, Center |
| 71H67 | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71H73 | Shield, Rear Seat Cushion, Lower RH |
| 71H73A | Shield, Rear NO.1 Seat Cushion, Lower |
| 71H73B | Shield, Rear NO.2 Seat Cushion, Lower |
| 71H73C | Shield, Rear NO.3 Seat Cushion, Lower |
| 71H73D | Shield, NO.4 Seat Cushion, Lower |
| 71H74 | Shield, Rear Seat Cushion, Lower LH |
| 71H74A | Shield, NO.1 Seat Cushion, Lower LH |
| 71H74B | Shield, NO.2 Seat Cushion, Lower LH |
| 71H74C | Shield, NO.3 Seat Cushion, Lower LH |
| 71H74D | Shield, NO.4 Seat Cushion, Lower LH |
| 71H75E | Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 RH SEAT) |
| 71H75F | Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 LH SEAT) |
| 71H75G | Cover, Reclining Adjuster Inside, RH(FOR REAR NO.2 RH SEAT) |
| 71H75H | Cover, Reclining Adjuster Inside, RH(FOR REAR NO.2 LH SEAT) |
| 71H75J | Cover, Reclining Adjuster Inside, RH(FOR REAR NO.3 RH SEAT) |
| 71H75K | Cover, Reclining Adjuster Inside, RH(FOR REAR NO.3 LH SEAT) |
| 71H75L | Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEAT) |
| 71H75M | Cover, Reclining Adjuster Inside, RH NO.2(FOR RH SEAT) |
| 71H75N | Cover, Reclining Adjuster Inside, RH NO.3(FOR RH SEAT) |
| 71H75P | Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEATBACK) |
| 71H75Q | Cover, Reclining Adjuster Inside, RH NO.2(FOR RH SEATBACK) |
| 71H75R | Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEAT) |
| 71H75S | Cover, Reclining Adjuster Inside, RH NO.4(FOR RH SEAT) |
| 71H75T | Cover, Reclining Adjuster Inside, RH NO.5(FOR RH SEAT) |
| 71H75U | Cover, Reclining Adjuster Inside, RH NO.6(FOR RH SEAT) |
| 71H75V | Cover, Reclining Adjuster Inside, RH NO.3(FOR RH SEATBACK) |
| 71H75W | Cover, Reclining Adjuster Inside, RH NO.4(FOR RH SEATBACK) |
| 71H75X | Cover, Reclining Adjuster Inside, RH NO.2(FOR LH SEAT) |
| 71H75Y | Clip, Rear Seat Reclining Cover |
| 71H76E | Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 RH SEAT) |
| 71H76F | Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 LH SEAT) |
| 71H76G | Cover, Reclining Adjuster Inside, LH(FOR REAR NO.2 RH SEAT) |
| 71H76H | Cover, Reclining Adjuster Inside, LH(FOR REAR NO.2 LH SEAT) |
| 71H76J | Cover, Reclining Adjuster Inside, LH(FOR REAR NO.3 RH SEAT) |
| 71H76K | Cover, Reclining Adjuster Inside, LH(FOR REAR NO.3 LH SEAT) |
| 71H76L | Cover, Reclining Adjuster Inside, LH NO.1(FOR RH SEAT) |
| 71H76M | Cover, Reclining Adjuster Inside, LH NO.2(FOR RH SEAT) |
| 71H76N | Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEAT) |
| 71H76P | Cover, Reclining Adjuster Inside, LH NO.2(FOR LH SEAT) |
| 71H76Q | Cover, Reclining Adjuster Inside, LH NO.3(FOR LH SEAT) |
| 71H76R | Cover, Reclining Adjuster Inside, LH NO.4(FOR LH SEAT) |
| 71H76S | Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEATBACK) |
| 71H76T | Cover, Reclining Adjuster Inside, LH NO.2(FOR LH SEATBACK) |
| 71H76U | Cover, Reclining Adjuster Inside, LH NO.3(FOR RH SEAT) |
| 71H76V | Cover, Reclining Adjuster Inside, LH NO.4(FOR RH SEAT) |
| 71H76W | Cover, Reclining Adjuster Inside, LH NO.5(FOR LH SEAT) |
| 71H76X | Cover, Reclining Adjuster Inside, LH NO.6(FOR LH SEAT) |
| 71T75 | Cover, Reclining Adjuster Inside, RH |
| 71T75A | Cover, Reclining Adjuster Inside, RH NO.2 |
| 71T75B | Clip, Reclining Adjuster Inside Cover, RH |
| 71T75C | Cover, Reclining Adjuster Inside, RH NO.1(FOR NO.2 RH SEAT) |
| 71T75D | Cover, Reclining Adjuster Inside, RH NO.2(FOR NO.2 RH SEAT) |
| 71T75E | Cover, Reclining Adjuster Inside, RH NO.3(FOR NO.2 RH SEAT) |
| 71T75F | Cover, Reclining Adjuster Inside, RH |
| 71T75G | Cover, Reclining Adjuster Inside, RH(FOR NO.3 LH SEAT BACK) |
| 71T75H | Cover, Reclining Adjuster Inside, RH(FOR NO.3 RH SEAT BACK) |
| 71T75J | Cover, Reclining Adjuster Inside, RH NO.3(FOR LH SEAT) |
| 71T76 | Cover, Reclining Adjuster Inside, LH NO.3(FOR LH SEAT BACK) |
| 71T76A | Cover, Reclining Adjuster Inside, LH NO.4(FOR LH SEAT BACK) |
| 71T76B | Cover, Reclining Adjuster Inside, LH |
| 71T76C | Cover, Reclining Adjuster Inside, LH NO.2 |
| 71T76D | Clip, Reclining Adjuster Inside Cover, LH |
| 71T76E | Cover, Reclining Adjuster Inside, LH NO.1(FOR NO.2 RH SEAT) |
| 71T76F | Cover, Reclining Adjuster Inside, LH NO.2(FOR NO.2 RH SEAT) |
| 71T76G | Cover, Reclining Adjuster Inside, LH |
| 71T76H | Cover, Reclining Adjuster Inside, RH |
| 71T76J | Cover, Reclining Adjuster Inside, LH(FOR NO.3 LH SEAT BACK) |
| 72046F | Cover Sub-assy, NO.1 Seat Track, Outer LH NO.1(FOR LH SEAT) |
| 72046G | Cover Sub-assy, NO.1 Seat Track, Outer LH NO.2(FOR LH SEAT) |
| 72046H | Cover Sub-assy, NO.1 Seat Track, Outer LH NO.1(FOR RH SEAT) |
| 72046J | Cover Sub-assy, NO.1 Seat Track, Outer LH NO.2(FOR RH SEAT) |
| 72057E | Lever Sub-assy, Rear Seat Lock Control, RH NO.1 |
| 72057F | Lever Sub-assy, Rear Seat Lock Control, RH NO.2 |
| 72057G | Lever Sub-assy, Rear Seat Lock Control, LH NO.1 |
| 72057H | Lever Sub-assy, Rear Seat Lock Control, LH NO.2 |
| 72075C | Arm Sub-assy, Reclining Adjuster, Lower Inner(FOR LH SEAT) |
| 72075D | Arm Sub-assy, NO.2 Seat Reclining Adjuster, Lower Inner RH |
| 72076D | Arm Sub-assy, Reclining Adjuster, Lower Inner(FOR RH SEAT) |
| 72076E | Arm Sub-assy, NO.2 Seat Reclining Adjuster, Lower Inner LH |
| 72210Q | Cable Assy, NO.1 Seat Slide, RH |
| 72210R | Cable Assy, NO.1 Seat Slide, LH |
| 72210S | Cable Assy, NO.2 Seat Slide, RH |
| 72210T | Cable Assy, NO.2 Seat Slide, LH |
| 72210U | Cable Assy, NO.1 Seat Track Control, LH |
| 72210V | Cable Assy, NO.1 Seat Track Control, LH NO.1 |
| 72210W | Cable Assy, NO.1 Seat Track Control, LH NO.2 |
| 72210X | Cable Assy, NO.1 Seat Track Control, RH |
| 72210Y | Cable Assy, NO.1 Seat Track Control, RH NO.1 |
| 72210Z | Cable Assy, NO.1 Seat Track Control, RH NO.2 |
| 72215A | Lever, NO.1 Seat Track Handle Control, RH |
| 72215B | Lever, NO.2 Seat Track Handle Control, RH |
| 72215C | Lever, NO.3 Seat Track Handle Control, RH |
| 72216B | Lever, NO.1 Seat Track Handle Control, LH |
| 72216C | Lever, NO.2 Seat Track Handle Control, LH |
| 72216D | Lever, NO.3 Seat Track Handle Control, LH |
| 72329F | Cover, Rear Seat Adjuster Bolt |
| 72329G | Cover, Rear Seat Adjuster Bolt, NO.2 |
| 72345N | Cap, Seat Stand Frame, RH NO.1 |
| 72345P | Cap, Seat Stand Frame, RH NO.2 |
| 72345Q | Cap, Seat Stand Frame, LH NO.1 |
| 72345R | Cap, Seat Stand Frame, LH NO.2 |
| 72345S | Cap, NO.2 Seat Stand Frame, RH |
| 72345T | Cap, NO.2 Seat Stand Frame, LH |
| 72345U | Cap, Seat Stand Frame, RH NO.3 |
| 72345V | Cap, Seat Stand Frame, RH NO.4 |
| 72345W | Cap, Seat Stand Frame, LH NO.3 |
| 72345X | Cap, Seat Stand Frame, LH NO.4 |
| 72345Y | Cap, NO.1 Seat Stand Frame, NO.1(FOR LH SEAT) |
| 72345Z | Cap, NO.1 Seat Stand Frame, NO.2(FOR LH SEAT) |
| 72379C | Belt, Seat Reclining Handle |
| 72525N | Handle, NO.1 Seat Reclining Adjuster Release, RH |
| 72525P | Handle, NO.2 Seat Reclining Adjuster Release, RH |
| 72525Q | Handle, NO.3 Seat Reclining Adjuster Release, RH |
| 72525R | Handle, Reclining Adjuster Release, RH |
| 72525S | Handle, NO.1 Seat Reclining Adjuster Release, Center |
| 72526J | Handle, NO.1 Seat Reclining Adjuster Release, LH |
| 72526K | Handle, NO.2 Seat Reclining Adjuster Release, LH |
| 72526L | Handle, Reclining Adjuster Release, LH |
| 72526M | Handle, NO.3 Seat Reclining Adjuster Release, LH |
| 72551M | Cover, Reclining Hinge, RH NO.1(FOR RH SEAT) |
| 72551N | Cover, Reclining Hinge, RH NO.2(FOR RH SEAT) |
| 72551P | Cover, Reclining Hinge, RH NO.3(FOR RH SEAT) |
| 72551Q | Cover, Reclining Hinge, RH NO.4(FOR RH SEAT) |
| 72551R | Cover, Reclining Hinge, RH NO.1(FOR LH SEAT) |
| 72551S | Cover, Reclining Hinge, RH NO.2(FOR LH SEAT) |
| 72551T | Cover, Reclining Hinge, RH NO.3(FOR LH SEAT) |
| 72551U | Cover, Reclining Hinge, RH NO.4(FOR LH SEAT) |
| 72552K | Cover, Reclining Hinge, LH NO.1(FOR RH SEAT) |
| 72552L | Cover, Reclining Hinge, LH NO.2(FOR RH SEAT) |
| 72552M | Cover, Reclining Hinge, LH NO.3(FOR RH SEAT) |
| 72552N | Cover, Reclining Hinge, LH NO.4(FOR RH SEAT) |
| 72552P | Cover, Reclining Hinge, LH NO.1(FOR LH SEAT) |
| 72552Q | Cover, Reclining Hinge, LH NO.2(FOR LH SEAT) |
| 72552R | Cover, Reclining Hinge, LH NO.3(FOR LH SEAT) |
| 72552S | Cover, Reclining Hinge, LH NO.4(FOR LH SEAT) |
| 72553E | Protector, Reclining Cover, RH NO.1 |
| 72553F | Protector, Reclining Cover, RH NO.2 |
| 72553G | Protector, Rear NO.2 Seat Reclining Cover, RH NO.1 |
| 72553H | Protector, Rear NO.2 Seat Reclining Cover, RH NO.2 |
| 72553J | Clip, Rear NO.2 Seat Reclining Cover Protector, RH |
| 72554E | Protector, Reclining Cover, LH NO.1 |
| 72554F | Protector, Reclining Cover, LH NO.2 |
| 72554G | Protector, Rear NO.2 Seat Reclining Cover, LH NO.1 |
| 72554H | Protector, Rear NO.2 Seat Reclining Cover, LH NO.2 |
| 72569B | Plate, Seatback Stopper |
| 72570E | Cable Assy, NO.1 Seat Reclining Adjusting, RH |
| 72570F | Cable Assy, NO.1 Seat Reclining Adjusting, LH |
| 72570G | Cable Assy, NO.2 Seat Reclining Adjusting, RH |
| 72570H | Cable Assy, NO.2 Seat Reclining Adjusting, LH |
| 72570J | Cable Assy, NO.3 Seat Reclining Adjusting, RH NO.1 |
| 72570K | Cable Assy, NO.3 Seat Reclining Adjusting, RH NO.2 |
| 72570L | Cable Assy, NO.3 Seat Reclining Adjusting, LH |
| 72573C | Lever, NO.3 Seat Reclining Control, RH |
| 72574A | Lever, Reclining Control, LH |
| 72593D | Knob, Reclining Remote Control Lever |
| 72613H | Striker, Rear Seat Lock |
| 72620K | Cable Assy, NO.1 Seat Walk-in, RH |
| 72620L | Cable Assy, NO.1 Seat Walk-in, LH |
| 72620M | Cable Assy, NO.2 Seat Walk-in, RH |
| 72620N | Cable Assy, NO.2 Seat Walk-in, LH |
| 72620P | Cable Assy, NO.3 Seat Slide, RH |
| 72620Q | Cable Assy, NO.3 Seat Slide, LH |
| 72630H | Lock Assy, NO.1 Seatback |
| 72635H | Hook, Rear NO.1 Seatback Lock, NO.1(FOR RH SEAT) |
| 72635J | Hook, Rear NO.1 Seatback Lock, NO.2(FOR RH SEAT) |
| 72640E | Lock Assy, NO.1 Seatback, LH |
| 72658G | Knob, Rear Seat Lock Handle, RH |
| 72658H | Knob, Rear Seat Lock Handle, LH |
| 72665H | Cover, Rear Seatback Lock |
| 72679C | Bezel, Rear Seatback Lock Control |
| 72681E | Hook, Rear Seat |
| 72690F | Lever Assy, NO.2 Seat Cushion Lock Release, RH |
| 72690G | Lever Assy, NO.2 Seat Cushion Lock Release, LH |
| 72728B | Protector, NO.1 Seat Reclining, Inner RH |
| 72729B | Protector, NO.1 Seat Reclining, Inner LH |
| 72749G | Spacer, Rear Seat Reclining, RH |
| 72749H | Spacer, Rear Seat Reclining, LH |
| 72781E | Spring, Rear NO.1 Seat Plate, LH |
| 72781F | Spring, Rear NO.1 Seat Plate, RH |
| 72781G | Spring, Rear NO.2 Seat Plate, LH |
| 72781H | Spring, Rear NO.2 Seat Plate, RH |
| 72803H | Frame Sub-assy, Rear NO.1 Seat Armrest, RH(FOR LH SEAT) |
| 72803J | Frame Sub-assy, Rear NO.1 Seat Armrest, RH(FOR RH SEAT) |
| 72803K | Frame Sub-assy, Rear NO.2 Seat Armrest, RH(FOR LH SEAT) |
| 72803L | Frame Sub-assy, Rear NO.2 Seat Armrest, RH(FOR RH SEAT) |
| 72804E | Frame Sub-assy, Rear NO.1 Seat Armrest, LH(FOR LH SEAT) |
| 72804F | Frame Sub-assy, Rear NO.1 Seat Armrest, LH(FOR RH SEAT) |
| 72804G | Frame Sub-assy, Rear NO.2 Seat Armrest, LH(FOR LH SEAT) |
| 72804H | Frame Sub-assy, Rear NO.2 Seat Armrest, LH(FOR RH SEAT) |
| 72830U | Armrest Assy, Rear Seat, RH |
| 72830V | Armrest Assy, Rear NO.1 Seat, RH |
| 72830W | Armrest Assy, Rear NO.2 Seat, RH |
| 72840J | Armrest Assy, Rear Seat, LH |
| 72840K | Armrest Assy, Rear NO.1 Seat, LH |
| 72840L | Armrest Assy, Rear NO.2 Seat, LH |
| 72848C | Cap, NO.1 Seat Armrest, NO.1 RH |
| 72848D | Cap, NO.1 Seat Armrest, NO.1 LH |
| 72848E | Cap, NO.2 Seat Armrest, NO.1 RH |
| 72848F | Cap, NO.2 Seat Armrest, NO.1 LH |
| 72848G | Cap, NO.3 Seat Armrest, NO.1 RH |
| 72848H | Cap, NO.3 Seat Armrest, NO.1 LH |
| 72848J | Cap, Seat Armrest, NO.1 |
| 72880B | Armrest Assy, NO.1 Seat, C RH(FOR RH SEAT) |
| 72880C | Armrest Assy, NO.1 Seat, C RH(FOR LH SEAT) |
| 72880D | Armrest Assy, NO.2 Seat, C RH(FOR RH SEAT) |
| 72880E | Armrest Assy, NO.2 Seat, C RH(FOR LH SEAT) |
| 72880F | Armrest Assy, NO.3 Seat, C RH(FOR LH SEAT) |
| 72880G | Armrest Assy, NO.3 Seat, C RH(FOR RH SEAT) |
| 72890B | Armrest Assy, NO.1 Seat, C LH(FOR RH SEAT) |
| 72890C | Armrest Assy, NO.1 Seat, C LH(FOR LH SEAT) |
| 72890D | Armrest Assy, NO.2 Seat, C LH(FOR RH SEAT) |
| 72890E | Armrest Assy, NO.2 Seat, C LH(FOR LH SEAT) |
| 72890F | Armrest Assy, NO.3 Seat, C LH(FOR LH SEAT) |
| 72927F | Cover, Rear Seat Cushion Under, RH |
| 72928E | Cover, Rear Seat Cushion Under, LH |
| 72995F | Cover, Rear Seat Cushion, RH |
| 72995G | Clip, Rear Seat Cushion Cover, RH |
| 72995H | Clip, Rear NO.2 Seat Cushion Cover, RH |
| 72995J | Cover, Rear NO.1 Seat Cushion |
| 72995K | Cover, Rear NO.2 Seat Cushion |
| 72995L | Cover, Rear NO.3 Seat Cushion |
| 72995M | Cover, Rear NO.4 Seat Cushion |
| 72996H | Cover, Rear Seatback |
| 72996J | Cover, Rear Seatback, NO.2 |
| 72998D | Cover, Rear Seat Cushion, LH |
| 72998E | Clip, Rear Seat Cushion Cover, LH |
| 72998F | Clip, Rear NO.2 Seat Cushion Cover, LH |
| 72B10 | Cable Assy, Rear NO.2 Seat Track Control(FOR LH SEAT) |
| 72B10A | Cable Assy, Rear NO.2 Seat Track Control(FOR RH SEAT) |
| 72C45 | Cap, NO.1 Seat Stand Frame, NO.3(FOR LH SEAT) |
| 72C45A | Cap, NO.1 Seat Stand Frame, NO.1(FOR RH SEAT) |
| 72C45B | Cap, NO.1 Seat Stand Frame, NO.2(FOR RH SEAT) |
| 72C45C | Cap, NO.1 Seat Stand Frame, NO.3(FOR RH SEAT) |
| 72C45D | Cap, Rear NO.2 Seat Stand Frame(FOR RH SEAT) |
| 73315B | Cover, Rear NO.3 Seat Belt, Inner RH |
| 73316B | Cover, Rear NO.3 Seat Belt, Inner LH |
| 73373U | Cover, NO.1 Seat Shoulder Belt, RH NO.1 |
| 73373V | Cover, NO.1 Seat Shoulder Belt, RH NO.2 |
| 73373W | Cover, NO.1 Seat Shoulder Belt, LH NO.2 |
| 73373X | Cover, NO.1 Seat Shoulder Belt, LH NO.1 |
| 73373Y | Cover, NO.2 Seat Shoulder Belt, RH NO.1 |
| 73373Z | Cover, NO.2 Seat Shoulder Belt, RH NO.2 |
| 73374A | Cover, NO.2 Seat Shoulder Belt, LH NO.1 |
| 73374B | Cover, NO.2 Seat Shoulder Belt, LH NO.2 |
| 73C73 | Cover, Rear NO.3 Seat Shoulder Belt, RH NO.1 |
| 73C73B | Cover, Rear NO.3 Seat Shoulder Belt, RH NO.2 |
| 74610W | Grip Assy, Assist |
| 74690A | Grip Assy, Seat Assist, Rear |
| 74F17 | Plug, Assist Grip |
| 76519D | Clip, Rear Seat Cushion Spring, RH |
| 76519E | Clip, Rear Seat Cushion Spring, LH |
| 78060C | Table Assy, NO.1 Seat Side |
| 78061 | Table Sub-assy, Rear NO.1 Seat Side |
| 78608C | Cable Sub-assy, Legrest Lock Control(FOR RH SEAT) |
| 78608D | Cable Sub-assy, Legrest Lock Control(FOR LH SEAT) |
| 78608F | Cable Sub-assy, Legrest Lock Control, NO.2(FOR RH SEAT) |
| 78608J | Cable Sub-assy, Legrest Lock Control, NO.2(FOR LH SEAT) |
| 78641A | Board, Rear NO.1 Seat Side Table |
| 78656J | Cover, Rear Seat Legrest, RH |
| 78656K | Cover, Rear Seat Legrest, LH |
| 78656L | Cover, Rear NO.2 Seat Legrest(FOR LH SEAT) |
| 78656M | Cover, Rear NO.2 Seat Legrest(FOR RH SEAT) |
| 78656N | Cover, Rear Seat Legrest, RH NO.2 |
| 78656P | Cover, Rear Seat Legrest, LH NO.2 |
| 78656Q | Cover, NO.1 Seat Legrest, RH NO.3 |
| 78656R | Cover, NO.1 Seat Legrest, LH NO.3 |
| 78656S | Cover, NO.1 Seat Legrest(FOR RH SEAT) |
| 78656T | Cover, NO.1 Seat Legrest(FOR LH SEAT) |
| 78656U | Clip, NO.1 Seat Legrest Cover(FOR RH SEAT) |
| 78656V | Clip, NO.1 Seat Legrest Cover(FOR LH SEAT) |
| 78731B | Lever, Sub Seat Cushion(FOR RH SEAT) |
| 78731C | Lever, Sub Seat Cushion(FOR LH SEAT) |
| 78987B | Cover, Rear NO.1 Seat Footrest, NO.1 LH |
| 78987C | Cover, Rear NO.1 Seat Footrest, NO.1 RH |
| 78987D | Cover, Rear NO.2 Seat Footrest, NO.1(FOR LH SEAT) |
| 78987E | Cover, Rear NO.2 Seat Footrest, NO.1(FOR RH SEAT) |
| 78990B | Adjuster Assy, NO.1 Seat Footrest(FOR RH SEAT) |
| 78990C | Adjuster Assy, NO.1 Seat Footrest(FOR LH SEAT) |
| 78990E | Adjuster Assy, NO.2 Seat Footrest(FOR RH SEAT) |
| 78990F | Adjuster Assy, NO.2 Seat Footrest(FOR LH SEAT) |
| 78F56A | Cover, Rear NO.2 Seat Legrest, NO.1(FOR RH SEAT) |
| 78F56B | Cover, Rear NO.2 Seat Legrest, NO.2(FOR RH SEAT) |
| 78F56C | Cover, Rear NO.2 Seat Legrest, NO.3(FOR RH SEAT) |
| 78F56D | Cover, Rear NO.2 Seat Legrest, NO.1(FOR LH SEAT) |
| 78F56E | Cover, Rear NO.2 Seat Legrest, NO.2(FOR LH SEAT) |
| 78F56F | Cover, Rear NO.2 Seat Legrest, NO.3(FOR LH SEAT) |
| 79011B | Cover Sub-assy, NO.1 Seat Cushion, RH |
| 79011C | Clip, NO.1 Seat Cushion Cover, RH |
| 79011D | Clip, NO.1 Seat Cushion Cover, LH |
| 79011E | Cover Sub-assy, NO.1 Seat Cushion |
| 79011F | Cover Sub-assy, NO.1 Seat Cushion, Center |
| 79012A | Cover Sub-assy, NO.1 Seat Cushion, LH |
| 79013C | Clip, NO.1 Seatback Cover, RH |
| 79013D | Cover Sub-assy, NO.1 Seatback, RH |
| 79013E | Cover Sub-assy, NO.1 Seatback, Center |
| 79014B | Cover Sub-assy, NO.1 Seatback, LH |
| 79014C | Clip, NO.1 Seatback Cover, LH |
| 79015C | Pad Sub-assy, NO.1 Seat Cushion, RH |
| 79017 | Pad Sub-assy, NO.1 Seatback, RH |
| 79018 | Pad Sub-assy, NO.1 Seatback, LH |
| 79021C | Clip, NO.2 Seat Cushion Cover, RH |
| 79021D | Cover Sub-assy, NO.2 Seat Cushion, RH |
| 79022B | Cover Sub-assy, NO.2 Seat Cushion, LH |
| 79022C | Clip, NO.2 Seat Cushion Cover, LH |
| 79023D | Cover Sub-assy, NO.2 Seatback, RH |
| 79023E | Clip, NO.2 Seatback Cover, RH |
| 79023F | Cover Sub-assy, NO.2 Seatback, RH(FOR LH SEAT) |
| 79024C | Clip, NO.2 Seatback Cover, LH |
| 79024D | Cover Sub-assy, NO.2 Seatback, LH |
| 79024E | Cover Sub-assy, NO.2 Seatback, LH(FOR RH SEAT) |
| 79027C | Pad Sub-assy, NO.2 Seatback, RH |
| 79028 | Pad Sub-assy, NO.2 Seatback, LH |
| 79031C | Cover, Sub-assy, NO.3 Seat Cushion, RH |
| 79032B | Cover, Sub-assy, NO.3 Seat Cushion, LH |
| 79033B | Cover Sub-assy, NO.3 Seatback, RH |
| 79033C | Cover Sub-assy, NO.3 Seatback, RH(FOR LH SEAT) |
| 79034A | Cover Sub-assy, NO.3 Seatback, LH |
| 79034B | Cover Sub-assy, NO.3 Seatback, LH(FOR RH SEAT) |
| 79041C | Cover Sub-assy, NO.4 Seat Cushion, RH |
| 79042A | Cover Sub-assy, NO.4 Seat Cushion, LH |
| 79043B | Cover Sub-assy, NO.4 Seatback, RH(FOR RH SEAT) |
| 79043C | Cover Sub-assy, NO.4 Seatback, RH(FOR LH SEAT) |
| 79044A | Cover Sub-assy, NO.4 Seatback, LH(FOR RH SEAT) |
| 79044B | Cover Sub-assy, NO.4 Seatback, LH(FOR LH SEAT) |
| 79076K | Cover Sub-assy, NO.1 Seat Leg, LH Inner |
| 79076L | Cover Sub-assy, NO.1 Seat Leg, RH Outer |
| 79076M | Cover Sub-assy, NO.1 Seat Leg, RH Inner |
| 79076N | Cover Sub-assy, NO.1 Seat Leg, LH Outer |
| 79076P | Cover Sub-assy, NO.3 Seat Leg, RH |
| 79076Q | Cover Sub-assy, NO.3 Seat Leg, Inner NO.1 |
| 79076R | Cover Sub-assy, NO.3 Seat Leg, Inner NO.2 |
| 79076S | Cover Sub-assy, NO.3 Seat Leg, LH |
| 79077E | Cover Sub-assy, NO.2 Seat Leg, RH Outer |
| 79077F | Cover Sub-assy, NO.2 Seat Leg, LH Inner |
| 79077G | Cover Sub-assy, NO.2 Seat Leg, LH Outer |
| 79077H | Cover Sub-assy, NO.2 Seat Leg, RH Inner |
| 79078B | Cover Sub-assy, NO.3 Seat Leg, RH |
| 79078C | Cover Sub-assy, NO.3 Seat Leg, LH |
| 79101C | Frame Sub-assy, NO.1 Seat Cushion, RH |
| 79102B | Frame Sub-assy, NO.1 Seat Cushion, LH |
| 79102C | Frame Sub-assy, NO.1 Seat Cushion, Center |
| 79103B | Frame Sub-assy, NO.1 Seatback, RH |
| 79104A | Frame Sub-assy, NO.1 Seatback, LH |
| 79105G | Leg Sub-assy, NO.1 Seat, RH |
| 79106B | Leg Sub-assy, NO.1 Seat, LH |
| 79109E | Frame Sub-assy, Rear NO.1 Seatback, Center |
| 79109F | Board Sub-assy, NO.1 Seatback, RH |
| 79135C | Pad, NO.1 Seat Cushion, RH |
| 79135D | Pad, NO.1 Seat Cushion |
| 79135E | Pad, NO.1 Seat Cushion, Center |
| 79136C | Pad, NO.1 Seat Cushion, LH |
| 79160C | Spring Assy, NO.1 Seat Cushion |
| 79175F | Pad, NO.1 Seatback, RH |
| 79175G | Pad, NO.1 Seatback, Center |
| 79180B | Spring Assy, NO.1 Seatback, RH |
| 79185A | Pad, NO.1 Seatback, LH |
| 79190 | Spring Assy, NO.1 Seatback, LH |
| 79201C | Frame Sub-assy, NO.2 Seat Cushion, RH |
| 79202B | Frame Sub-assy, NO.2 Seat Cushion, LH |
| 79203B | Frame Sub-assy, NO.2 Seatback, RH |
| 79204C | Frame Sub-assy, NO.2 Seatback, LH |
| 79205C | Leg Sub-assy, NO.2 Seat, RH |
| 79206D | Leg Sub-assy, NO.2 Seat, LH |
| 79235F | Pad, NO.2 Seat Cushion, RH |
| 79236G | Cover, NO.2 Seat Leg, RH |
| 79236H | Cover, NO.3 Seat Leg, RH |
| 79236J | Cover, NO.2 Seat Leg, RH Outer |
| 79245A | Pad, NO.2 Seat Cushion, LH |
| 79246H | Cover, NO.2 Seat Leg, LH |
| 79246J | Cover, NO.3 Seat Leg, LH |
| 79246K | Cover, NO.2 Seat Leg, LH Outer |
| 79275F | Pad, NO.2 Seatback, RH |
| 79275G | Pad, NO.2 Seatback, RH(FOR LH SEAT) |
| 79280B | Spring Assy, NO.1 Seatback RH |
| 79280C | Spring Assy, NO.1 Seatback RH Center |
| 79280E | Spring Assy, NO.2 Seatback RH |
| 79280F | Spring Assy, NO.2 Seatback RH |
| 79285C | Pad, NO.2 Seatback, LH |
| 79285D | Pad, NO.2 Seatback, LH(FOR RH SEAT) |
| 79290B | Spring Assy, NO.1 Seatback LH |
| 79290C | Spring Assy, NO.1 Seatback LH |
| 79290D | Spring Assy, NO.1 Seatback LH Center |
| 79290E | Spring Assy, NO.2 Seatback LH |
| 79290F | Spring Assy, NO.2 Seatback LH |
| 79301C | Frame Sub-assy, NO.3 Seat Cushion, RH |
| 79302B | Frame Sub-assy, NO.3 Seat Cushion, LH |
| 79303B | Frame Sub-assy, NO.3 Seatback, RH |
| 79304B | Frame Sub-assy, NO.3 Seatback, LH |
| 79305E | Leg Sub-assy, NO.3 Seat, RH |
| 79306A | Leg Sub-assy, NO.3 Seat, LH |
| 79318A | Bracket, Rear Seat Leg, Front RH |
| 79319A | Bracket, Rear Seat Leg, Rear RH |
| 79328A | Bracket, Rear Seat Leg, Front LH |
| 79329B | Bracket, Rear Seat Leg, Rear LH |
| 79335B | Pad, NO.3 Seat Cushion, RH |
| 79345B | Pad, NO.3 Seat Cushion, LH |
| 79375C | Pad, NO.3 Seatback, RH |
| 79375D | Pad, NO.3 Seatback, RH(FOR LH SEAT) |
| 79380B | Spring Assy, Rear Seatback, RH |
| 79380C | Spring Assy, NO.3 Seatback, RH |
| 79380D | Spring Assy, NO.3 Seatback, RH(FOR LH SEAT) |
| 79385 | Pad, NO.3 Seatback, LH |
| 79385B | Pad, NO.3 Seatback, LH(FOR RH SEAT) |
| 79390 | Spring Assy, Rear Seatback, LH |
| 79390B | Spring Assy, NO.3 Seatback, LH |
| 79390C | Spring Assy, NO.3 Seatback, LH(FOR RH SEAT) |
| 79405C | Leg Sub-assy, NO.4 Seat, RH |
| 79406C | Leg Sub-assy, NO.4 Seat, LH |
| 79408B | Hook Sub-assy, Rear Seat, RH |
| 79408C | Hook Sub-assy, Rear Seat, LH |
| 79435B | Pad, NO.4 Seat Cushion, RH |
| 79435C | Pad, NO.4 Seat Cushion, LH |
| 79475B | Pad, NO.4 Seatback, RH(FOR RH SEAT) |
| 79475C | Pad, NO.4 Seatback, RH(FOR LH SEAT) |
| 79480B | Spring Assy, NO.4 Seatback, RH(FOR RH SEAT) |
| 79480C | Spring Assy, NO.4 Seatback, RH(FOR LH SEAT) |
| 79485A | Pad, NO.4 Seatback, LH(FOR RH SEAT) |
| 79485B | Pad, NO.4 Seatback, LH(FOR LH SEAT) |
| 79490 | Spring Assy, NO.4 Seatback, LH(FOR RH SEAT) |
| 79490B | Spring Assy, NO.4 Seatback, LH(FOR LH SEAT) |
| 79915B | Bracket, Seat Leg |
| 79916B | Bracket, Seat Leg, NO.2 |
| 79956V | Cover, Rear Seat Leg Side, RH |
| 79957C | Cover, Rear Seat Rear Bracket, RH |
| 79958B | Cover, Rear Seat Rear Bracket, LH |
| 79959E | Cover, NO.1 Seat Leg, RH |
| 79959F | Cover, NO.1 Seat Leg, LH |
| 79959G | Cover, NO.2 Seat Leg, RH NO.1 |
| 79959H | Cover, NO.2 Seat Leg, RH NO.2 |
| 79959J | Cover, NO.2 Seat Leg, LH NO.1 |
| 79959K | Cover, NO.2 Seat Leg, LH NO.2 |
| 79959L | Clip, NO.2 Seat Leg Cover, RH |
| 79959M | Clip, NO.2 Seat Leg Cover, LH |
| 79967T | Cover, Rear NO.1 Seat Leg Side, NO.1 |
| 79967U | Cover, Rear NO.1 Seat Leg Side, NO.2 |
| 79967V | Cover, Rear NO.1 Seat Leg Side, NO.3 |
| 79967W | Cover, Rear NO.1 Seat Leg Side, NO.4 |
| 79967X | Cover, Rear NO.1 Seat Leg Side, NO.5 |
| 79967Y | Cover, Rear NO.2 Seat Leg Side, NO.1 |
| 79967Z | Cover, Rear NO.2 Seat Leg Side, NO.2 |
| 79968W | Cover, Rear NO.1 Seat Leg Side, NO.5(FOR LH SEAT) |
| 79968X | Cover, Rear NO.1 Seat Leg Side, NO.5(FOR RH SEAT) |
| 79968Y | Cover, Rear NO.2 Seat Leg Side, NO.5(FOR LH SEAT) |
| 79968Z | Cover, Rear NO.2 Seat Leg Side, NO.5(FOR RH SEAT) |
| 79977J | Felt, Seatback |
| 79977K | Felt, Seatback, NO.2 |
| 79977L | Felt, Seatback(FOR SPACE UP SEAT) |
| 79J67 | Cover, Rear NO.2 Seat Leg Side, NO.3 |
| 79J67A | Cover, Rear NO.2 Seat Leg Side, NO.4 |
| 79J67B | Cover, Rear NO.2 Seat Leg Side, NO.5 |
| 79J67C | Cover, Rear NO.3 Seat Leg Side, NO.1 |
| 79J67D | Cover, Rear NO.3 Seat Leg Side, NO.2 |
| 79J67E | Cover, Rear NO.3 Seat Leg Side, NO.3 |
| 79J67F | Cover, Rear NO.3 Seat Leg Side, NO.4 |
| 79J67G | Cover, Rear NO.3 Seat Leg Side, NO.5 |
| 79J67H | Cover, Rear NO.4 Seat Leg Side, NO.1 |
| 79J67J | Cover, Rear NO.4 Seat Leg Side, NO.2 |
| 79J67K | Cover, Rear NO.4 Seat Leg Side, NO.3 |
| 79J67L | Cover, Rear NO.4 Seat Leg Side, NO.4 |
| 79J67M | Cover, Rear NO.4 Seat Leg Side, NO.5 |
| 87510Y | Heater Assy, Rear NO.1 Seat Cushion, LH |
| 87510Z | Heater Assy, Rear NO.1 Seat Cushion, RH |
| 87530 | Heater Assy, Rear NO.1 Seatback, LH |
| 87530A | Heater Assy, Rear NO.1 Seatback, RH |
| 87530B | Heater Assy, Rear NO.2 Seatback, LH |
| 87530C | Heater Assy, Rear NO.2 Seatback, RH |
| 87E10 | Heater Assy, Rear NO.2 Seat, LH |
| 87E10A | Heater Assy, Rear NO.2 Seat, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
