Seat Rail

20 part groups · 18 illustrations

Illustrations

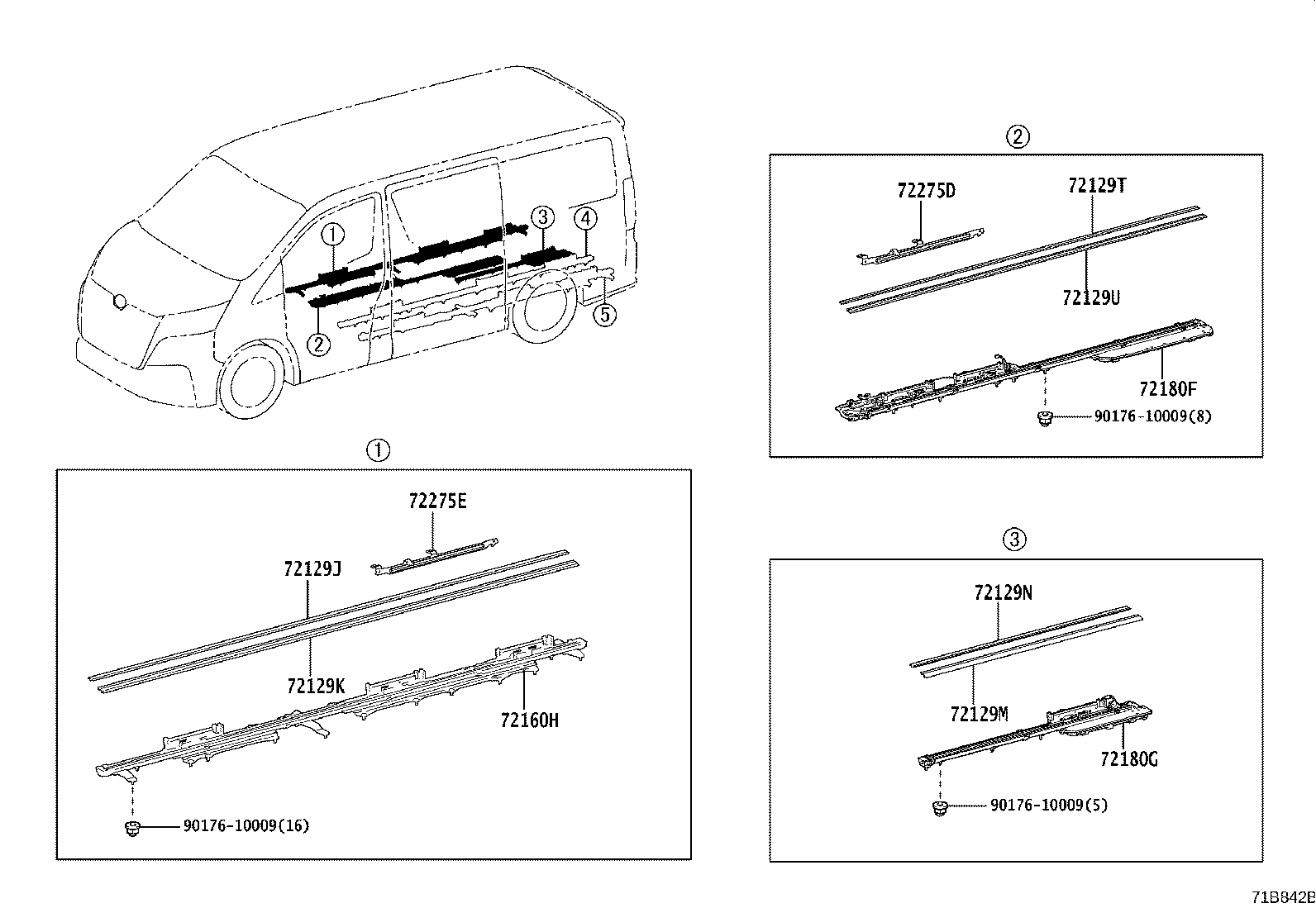

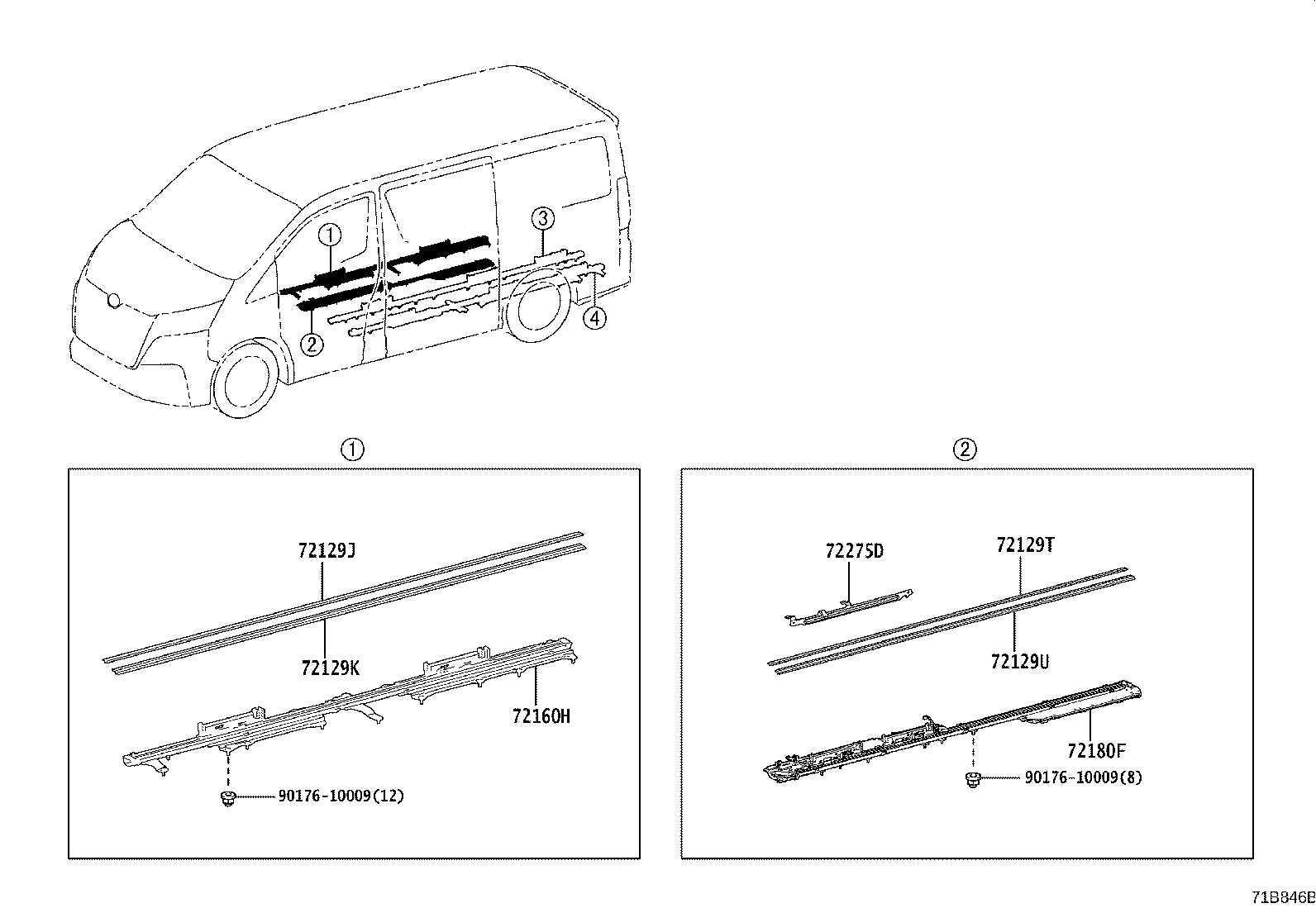

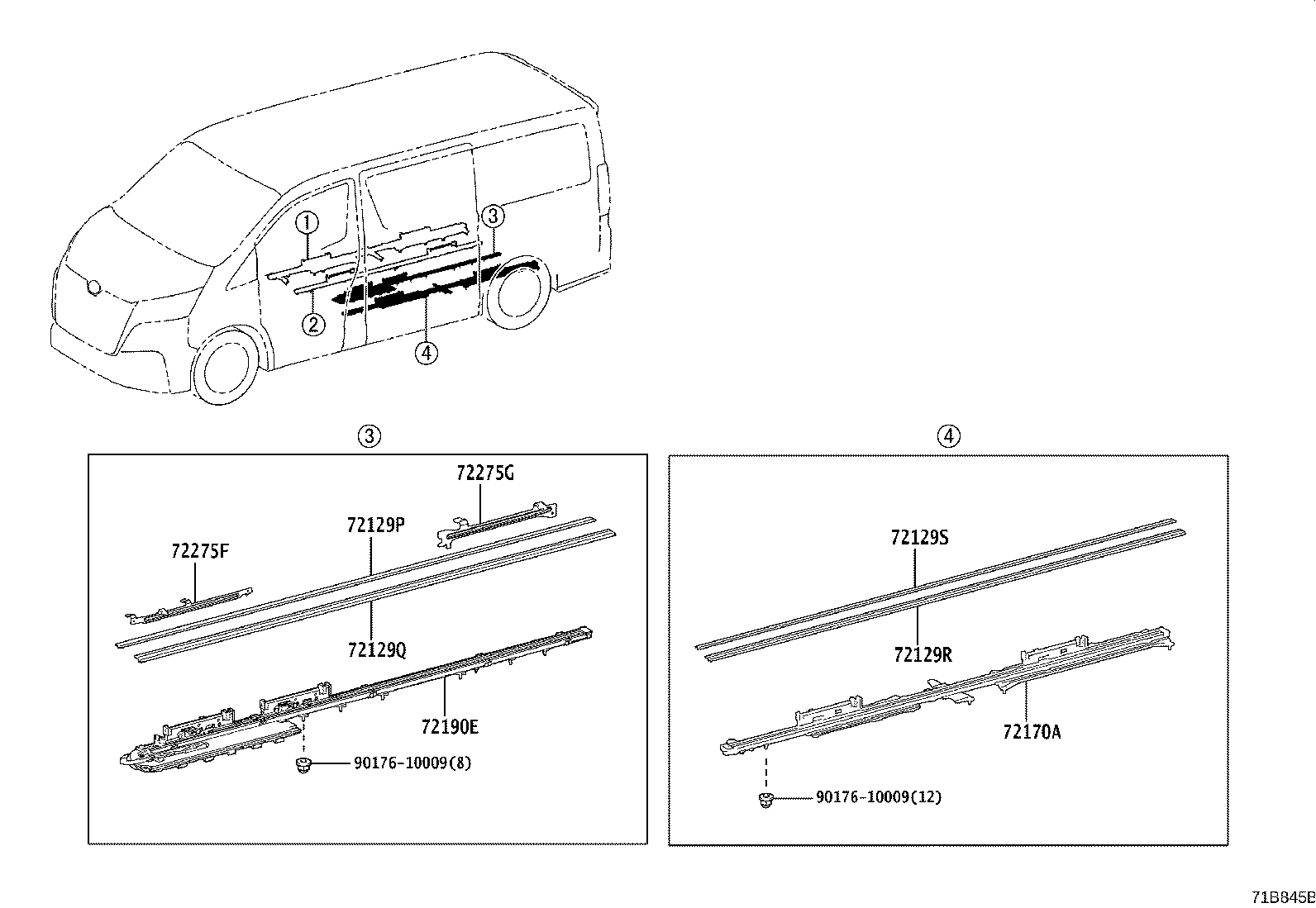

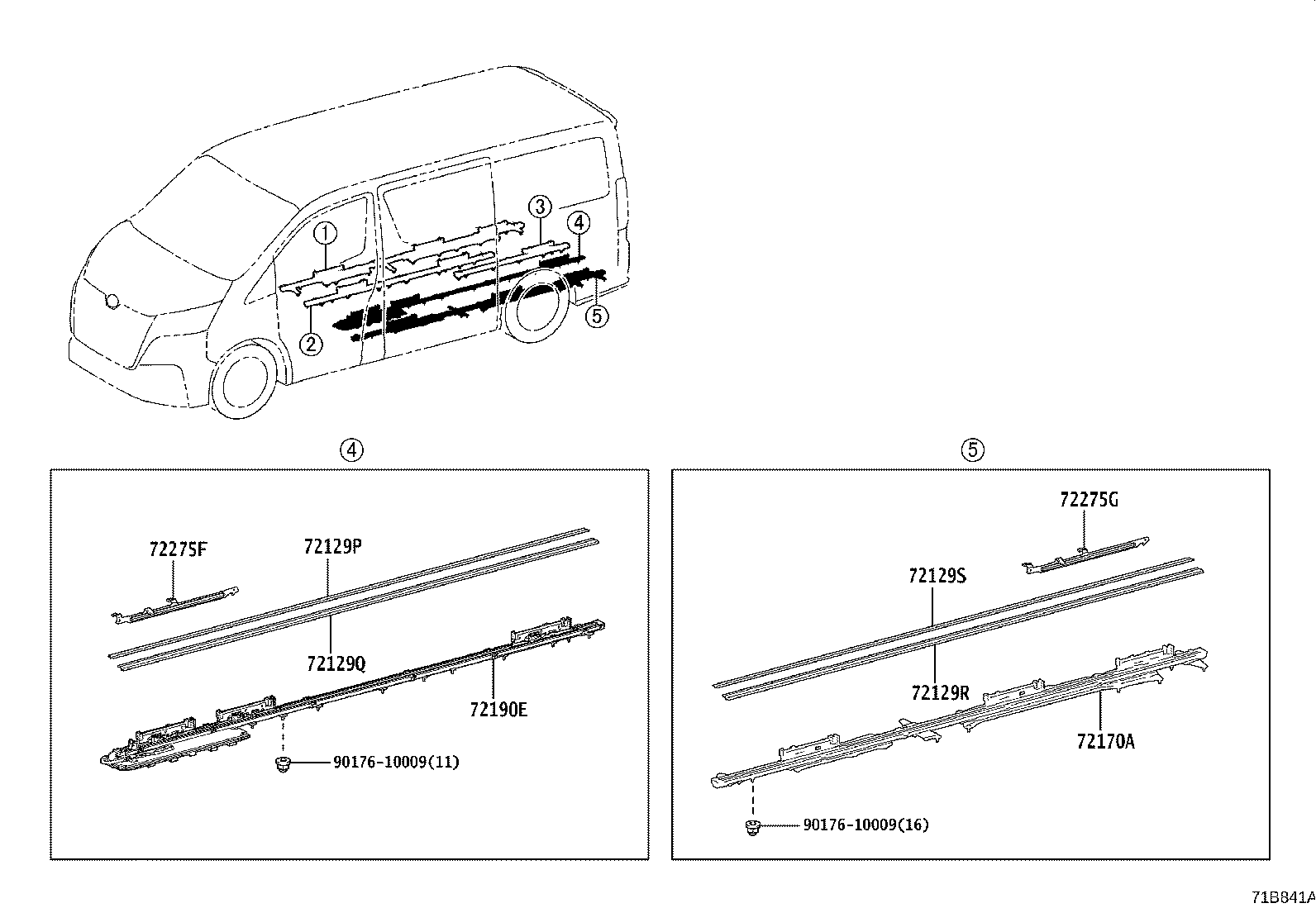

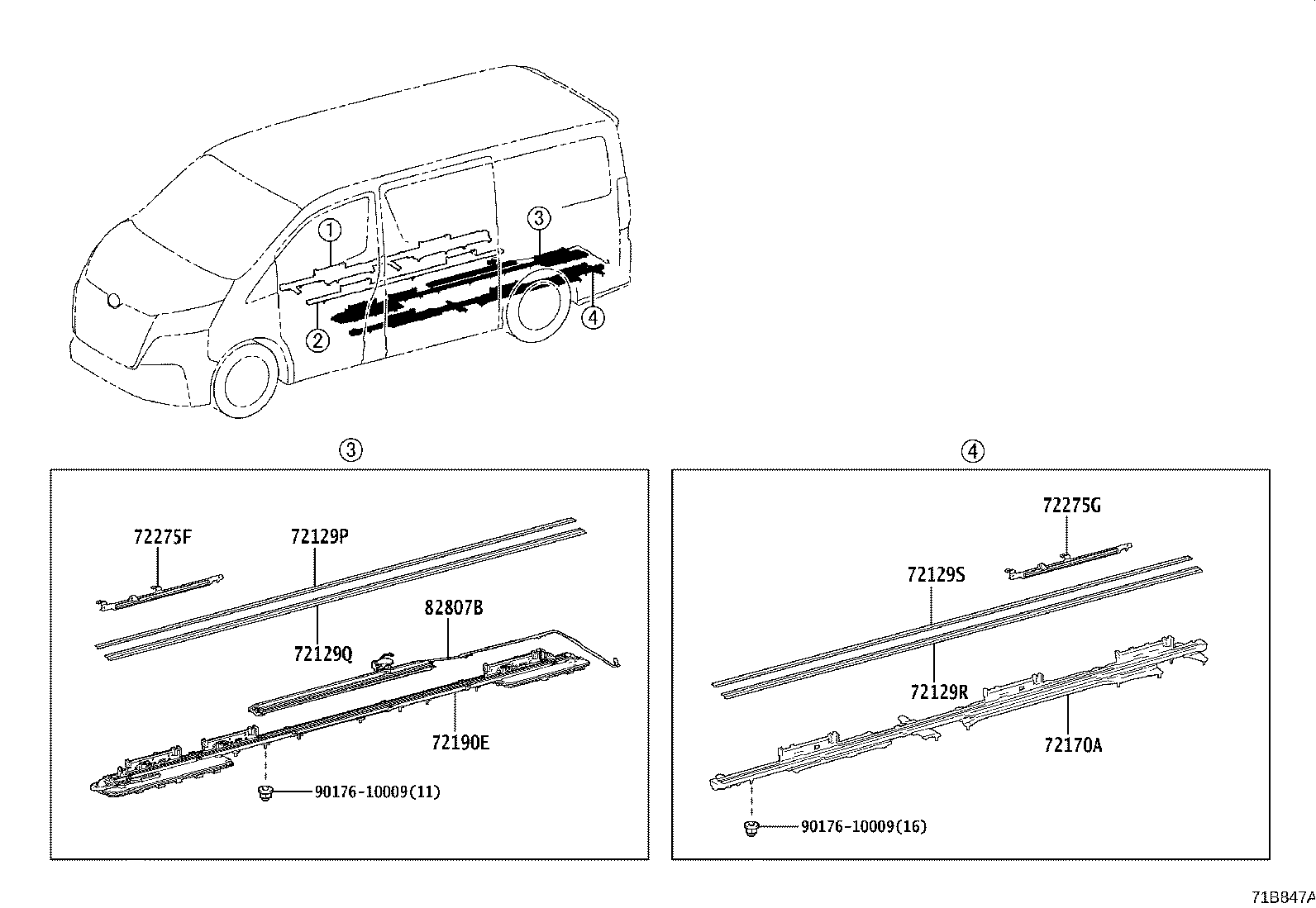

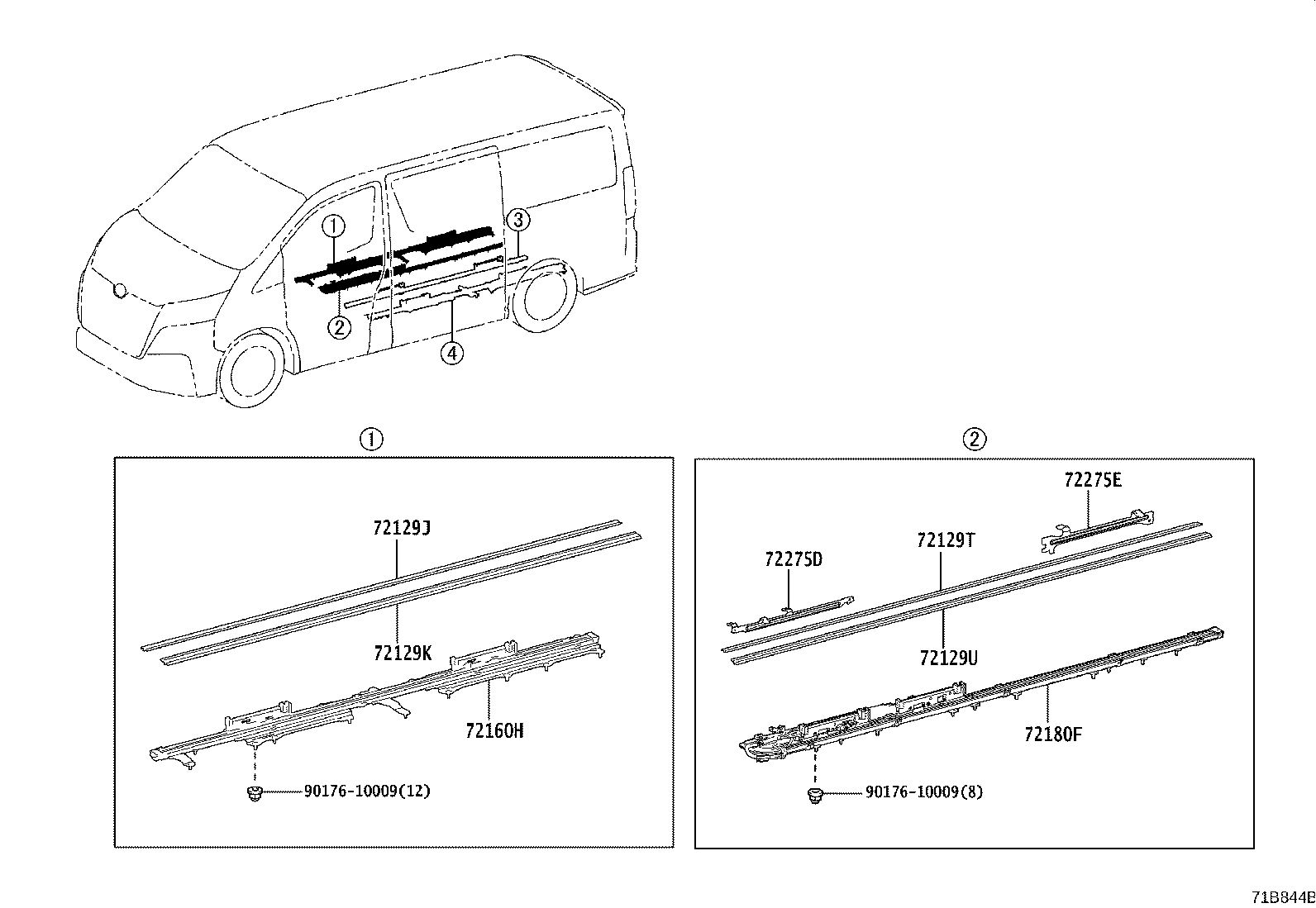

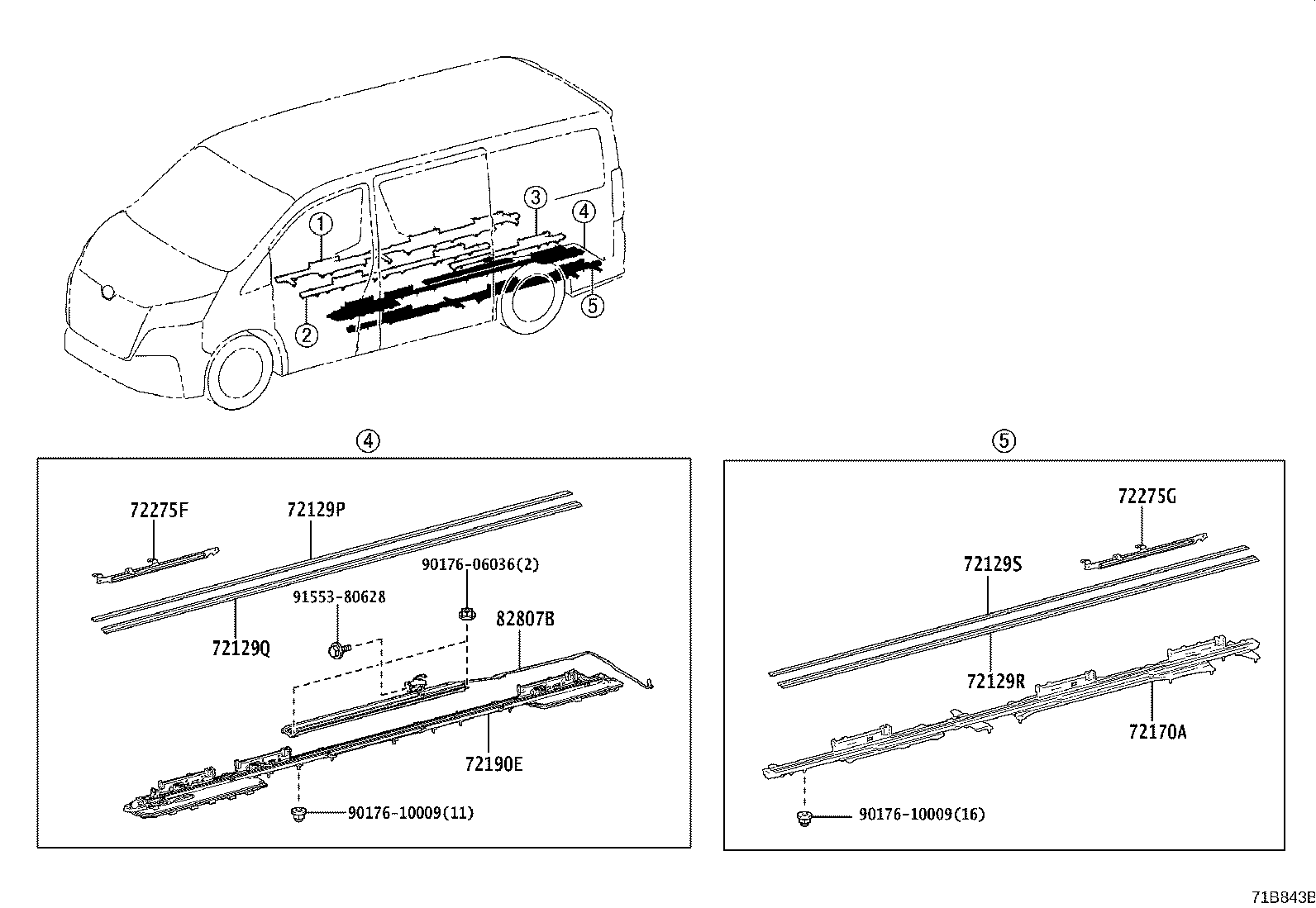

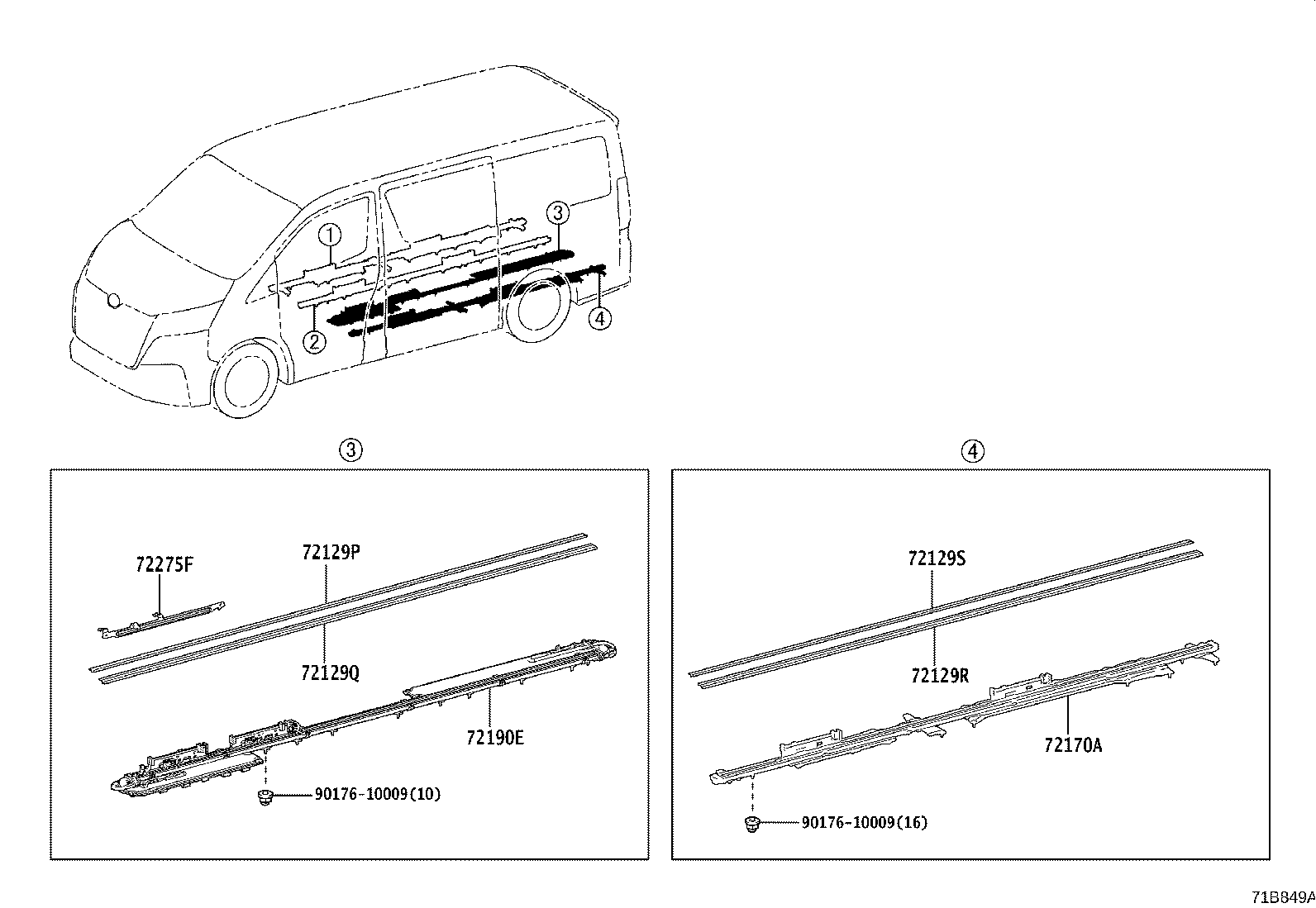

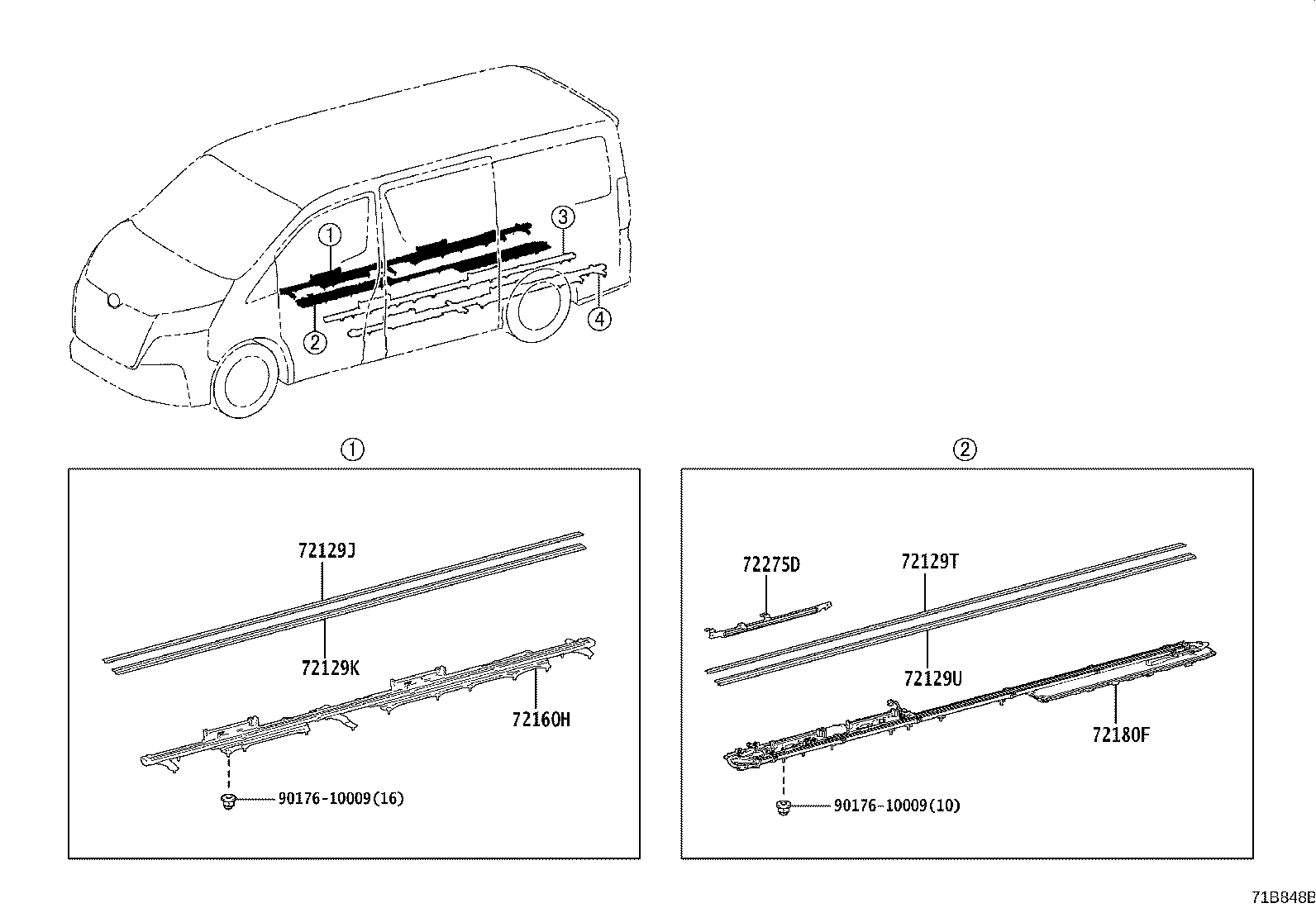

Figure 71B840B 71B840B 2019-07 → — Figure 71B841A 71B841A 2019-07 → — Figure 71B842B 71B842B 2019-07 → — Figure 71B842B 71B842B 2020-06 → — Figure 71B843B 71B843B 2019-07 → — Figure 71B843B 71B843B 2020-06 → — Figure 71B844B 71B844B 2019-07 → — Figure 71B845B 71B845B 2019-07 → — Figure 71B846B 71B846B 2019-07 → — Figure 71B847A 71B847A 2019-07 → — Figure 71B848B 71B848B 2019-07 → 2021-06 Figure 71B848B 71B848B 2019-07 → 2022-07 Figure 71B848B 71B848B 2019-07 → — Figure 71B848B 71B848B 2019-07 → — Figure 71B849A 71B849A 2019-07 → 2021-06 Figure 71B849A 71B849A 2019-07 → 2022-07 Figure 71B849A 71B849A 2019-07 → — Figure 71B849A 71B849A 2019-07 → —

Part groups

PNCDescription
72129J Protector, Seat Track Lower Rail, RH Outer NO.1
72129K Protector, Seat Track Lower Rail, RH Outer NO.2
72129M Protector, Seat Track Lower Rail, RH Inner Rear NO.1
72129N Protector, Seat Track Lower Rail, RH Inner Rear NO.2
72129P Protector, Seat Track Lower Rail, LH Inner NO.1
72129Q Protector, Seat Track Lower Rail, LH Inner NO.2
72129R Protector, Seat Track Lower Rail, LH Outer NO.1
72129S Protector, Seat Track Lower Rail, LH Outer NO.2
72129T Protector, Seat Track Lower Rail, RH Inner NO.1
72129U Protector, Seat Track Lower Rail, RH Inner NO.2
72160H Track Assy, Rear Seat, Outer RH
72170A Track Assy, Rear Seat, Outer LH
72180F Track Assy, Rear Seat, Inner RH
72180G Track Assy, Rear Seat, Inner RH Rear
72190E Track Assy, Rear Seat, Inner LH
72275D Stopper, Rear Seat Track Slide, RH NO.1
72275E Stopper, Rear Seat Track Slide, RH NO.2
72275F Stopper, Rear Seat Track Slide, LH NO.1
72275G Stopper, Rear Seat Track Slide, LH NO.2
82807B Protector Set, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
