Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States
Supported model
Data version 2024-09

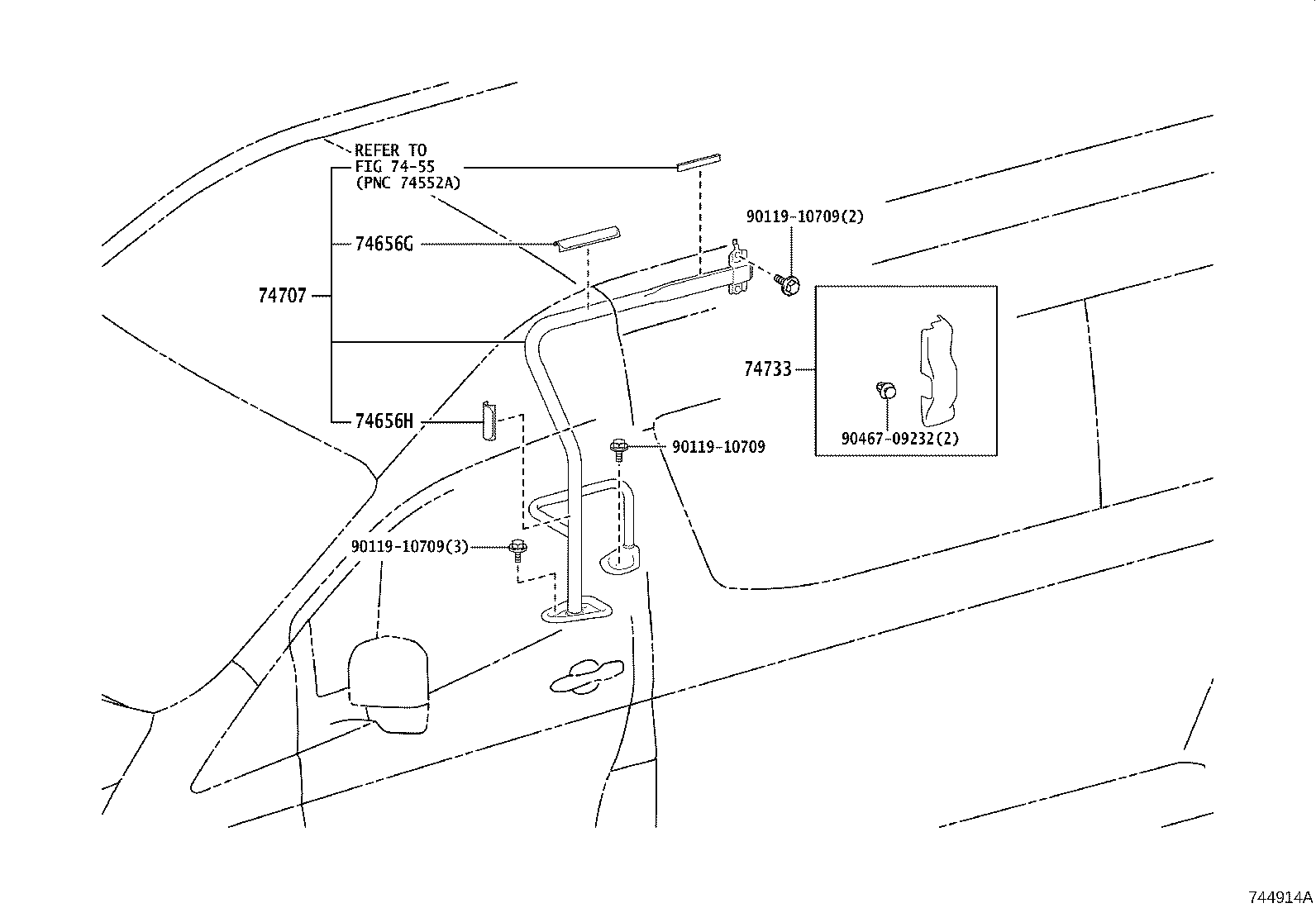

Protector Pipe, Roll Bar & Handrail
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74656G | Cover, Hand Rail Bar, NO.1 |
| 74656H | Cover, Hand Rail Bar, NO.2 |
| 74707 | Frame Sub-assy, Hand Grip, NO.1 |
| 74708 | Frame Sub-assy, Hand Grip, NO.2 |
| 74733 | Cover, Hand Grip, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
