Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States
Supported model
Data version 2024-09
Caution Plate
26 part groups · 6 illustrations
Part groups

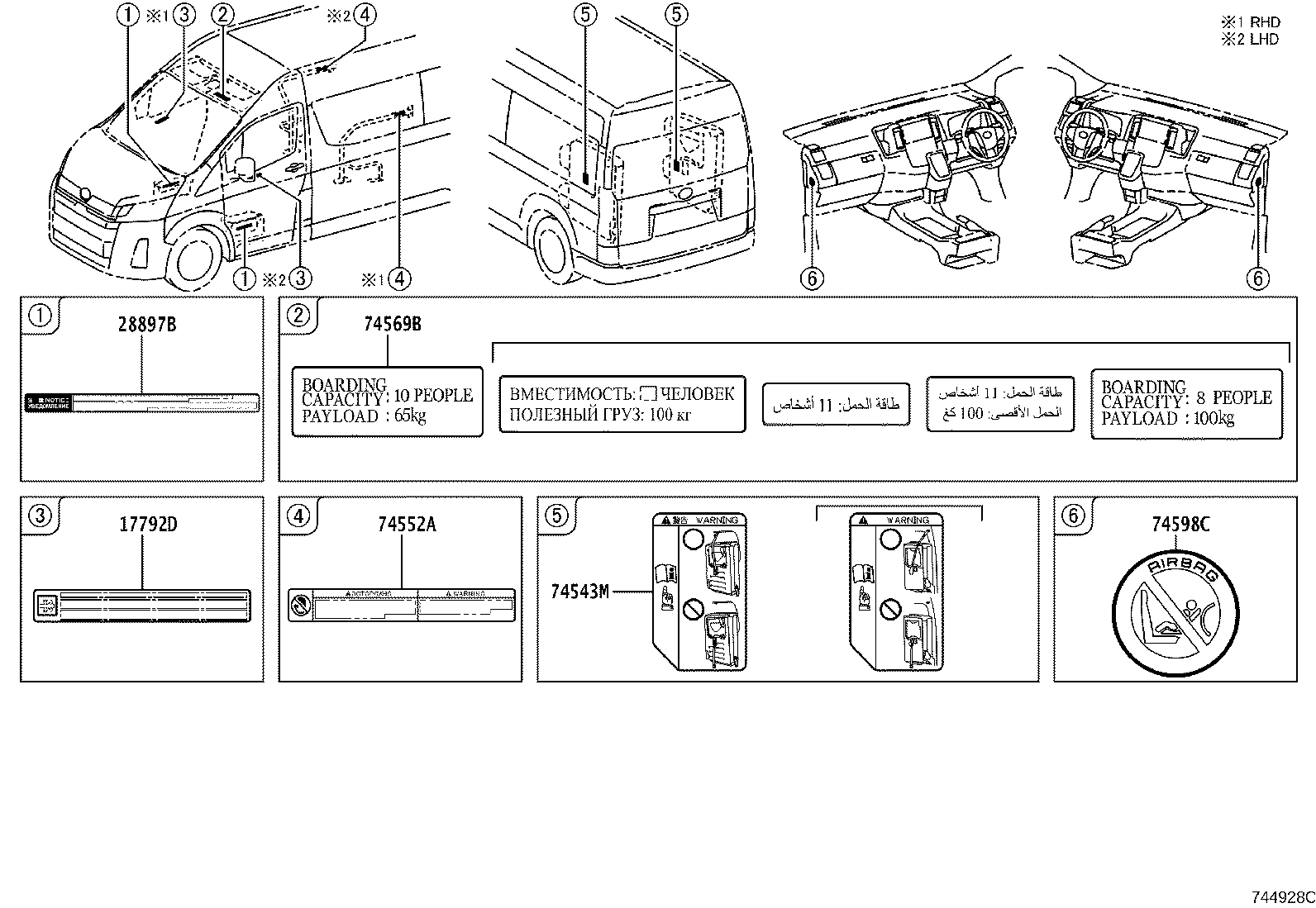

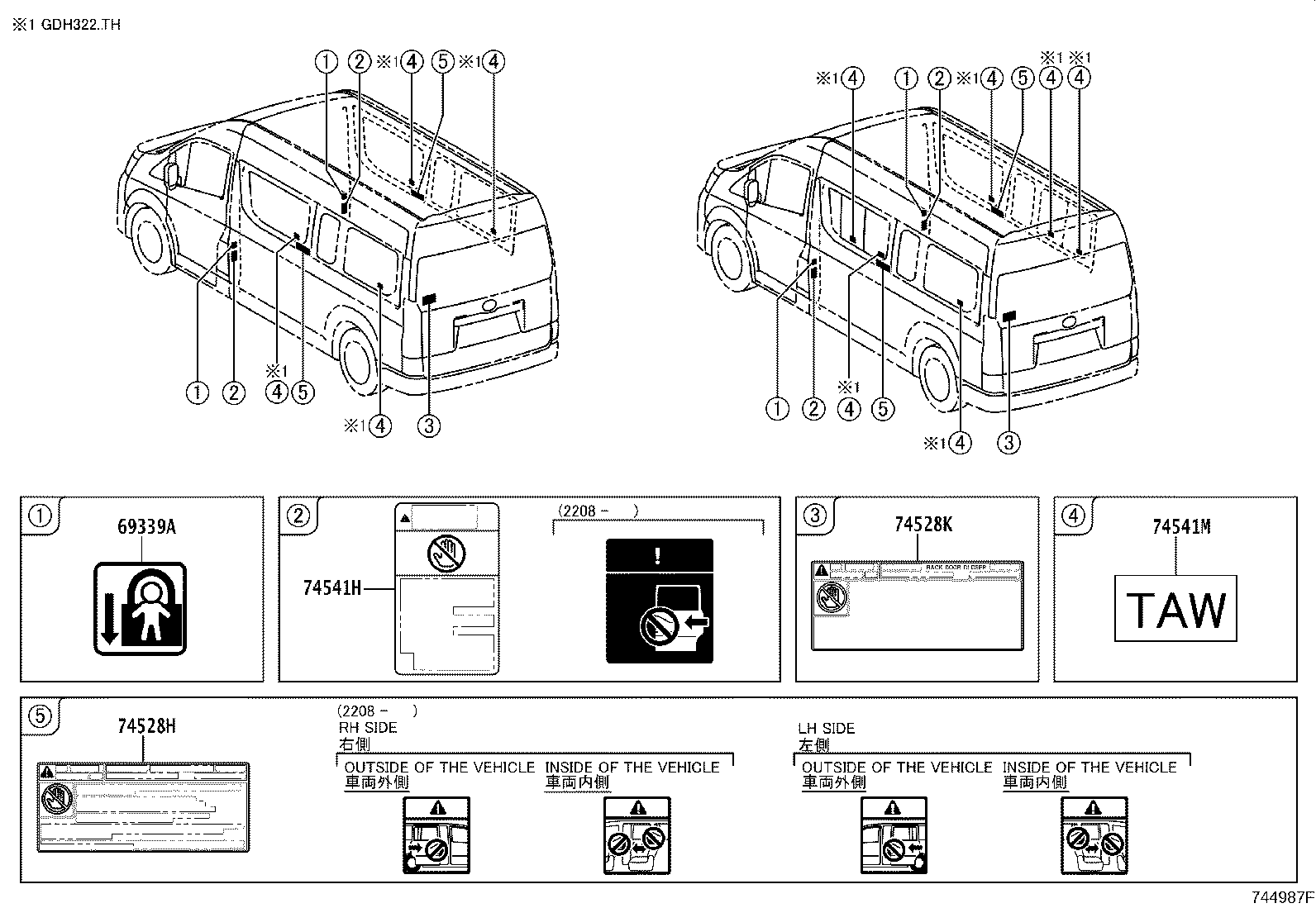

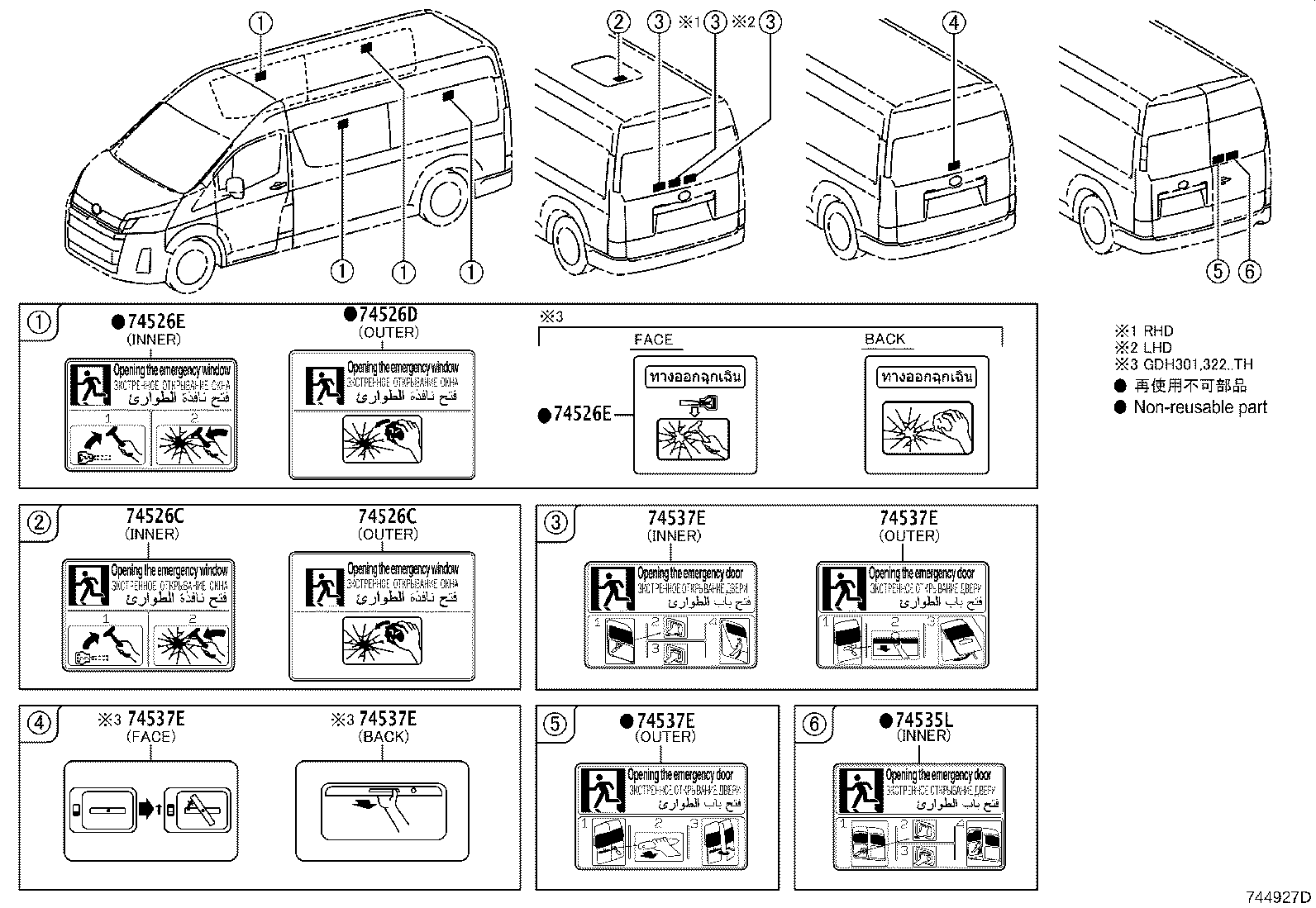

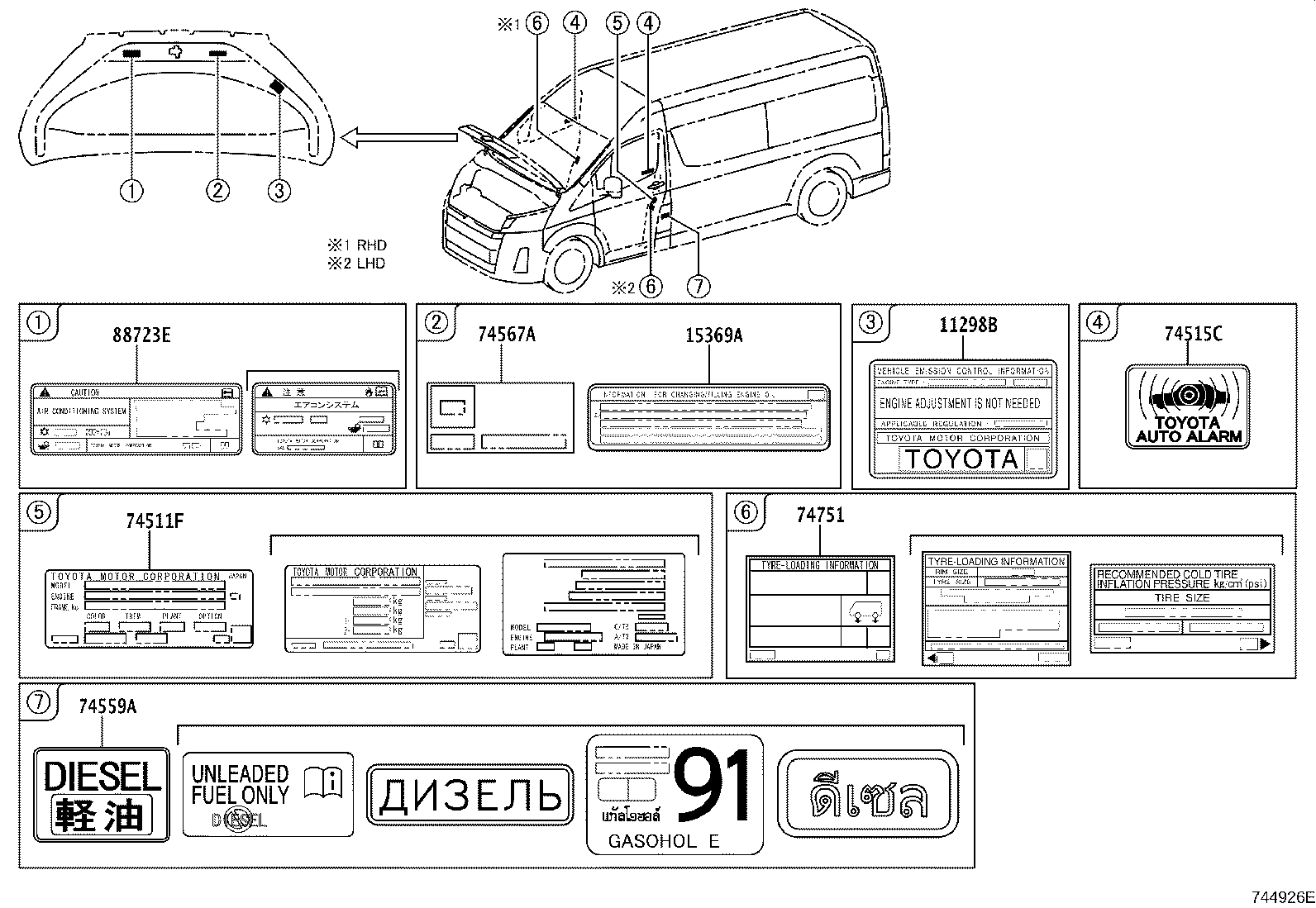

| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11295B | Label, Engine Service Notice, NO.1 |
| 11298B | Label, Emission Control Information |
| 15369A | Label, Engine Oil Information |
| 17792D | Label, Emission Control Device Information |
| 28897B | Label, Battery Caution, NO.1 |
| 69339A | Plate, Child Protector Lock Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515C | Label, Theft Warning Information |
| 74526C | Label, Emergency Hammer Caution |
| 74526D | Label, Emergency Hammer Caution, NO.2 |
| 74526E | Label, Emergency Hammer Caution, NO.3 |
| 74528H | Label, Power Slide Door Caution |
| 74528K | Label, Door Closer Caution |
| 74535L | Label, Emergency Back Door Inner Caution |
| 74537E | Label, Emergency Back Door Caution |
| 74541H | Plate, Body Caution |
| 74541M | Label, Slide Door Information |
| 74543M | Label, Rear Seat Caution, NO.2 |
| 74552A | Label, Safety Caution |
| 74559A | Plate, Fuel Caution |
| 74567A | Plate, E.C.E Approved Number |
| 74569B | Label, Vehicle Information |
| 74598C | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
