Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

9 part groups · 6 illustrations

Illustrations

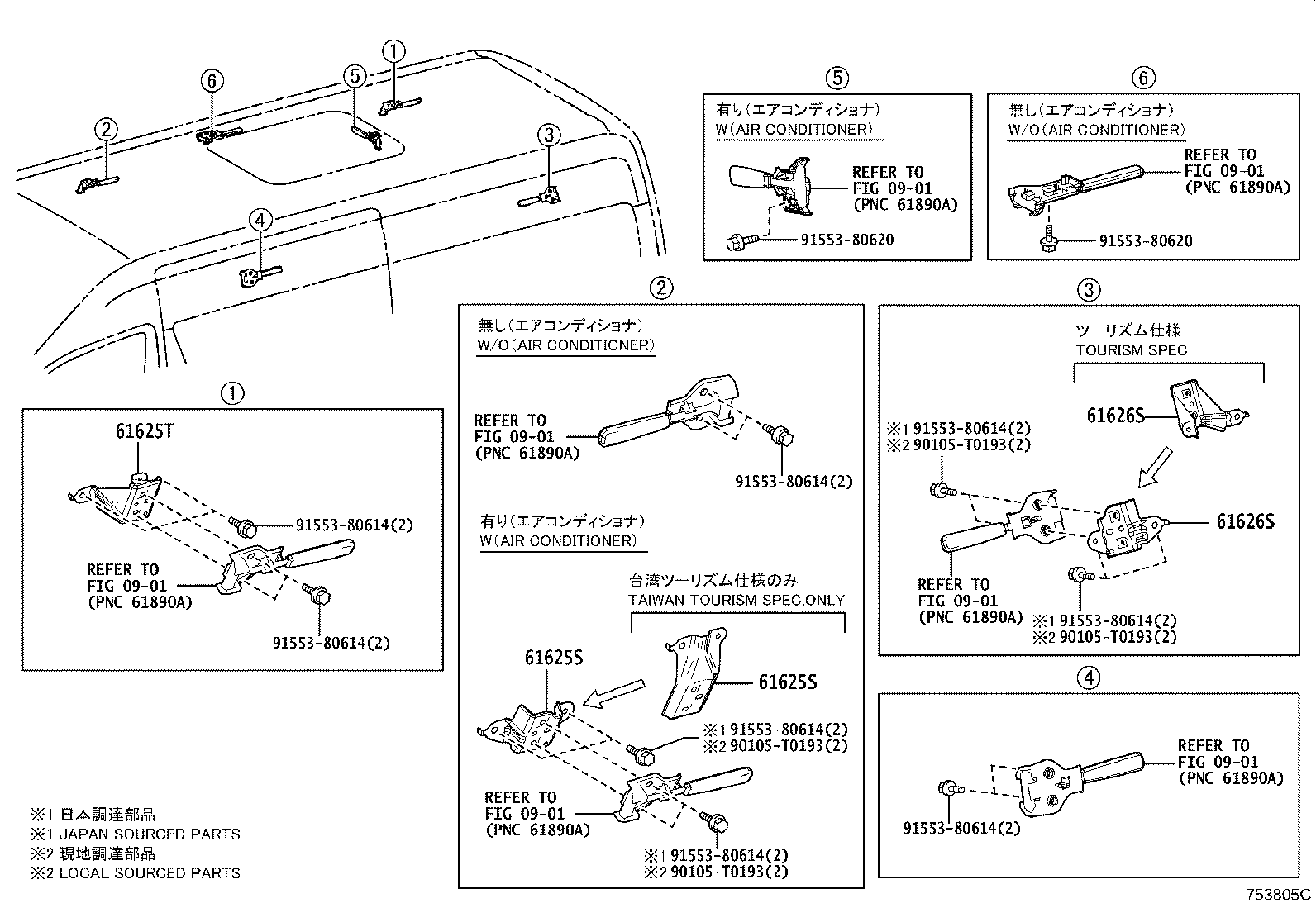

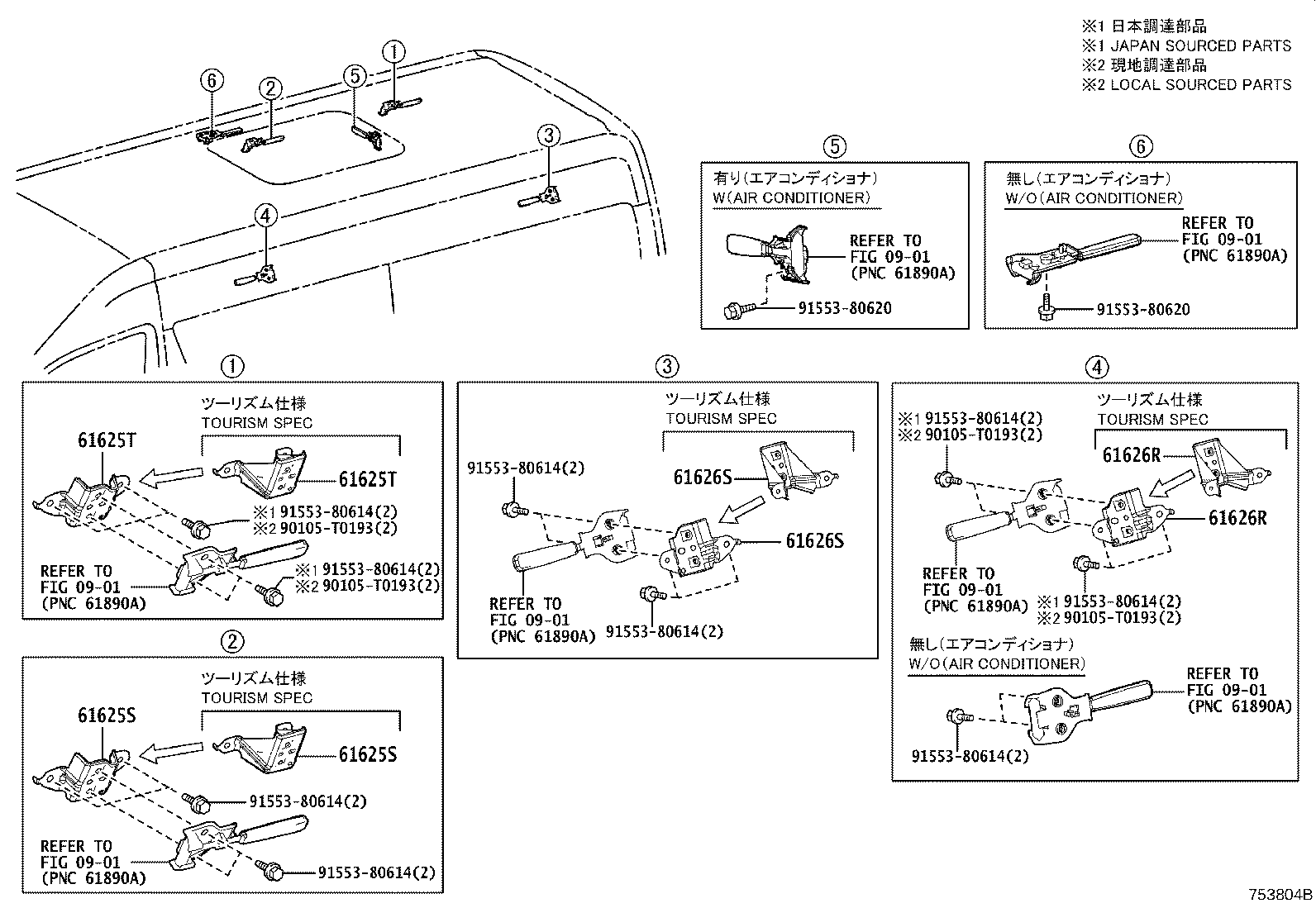

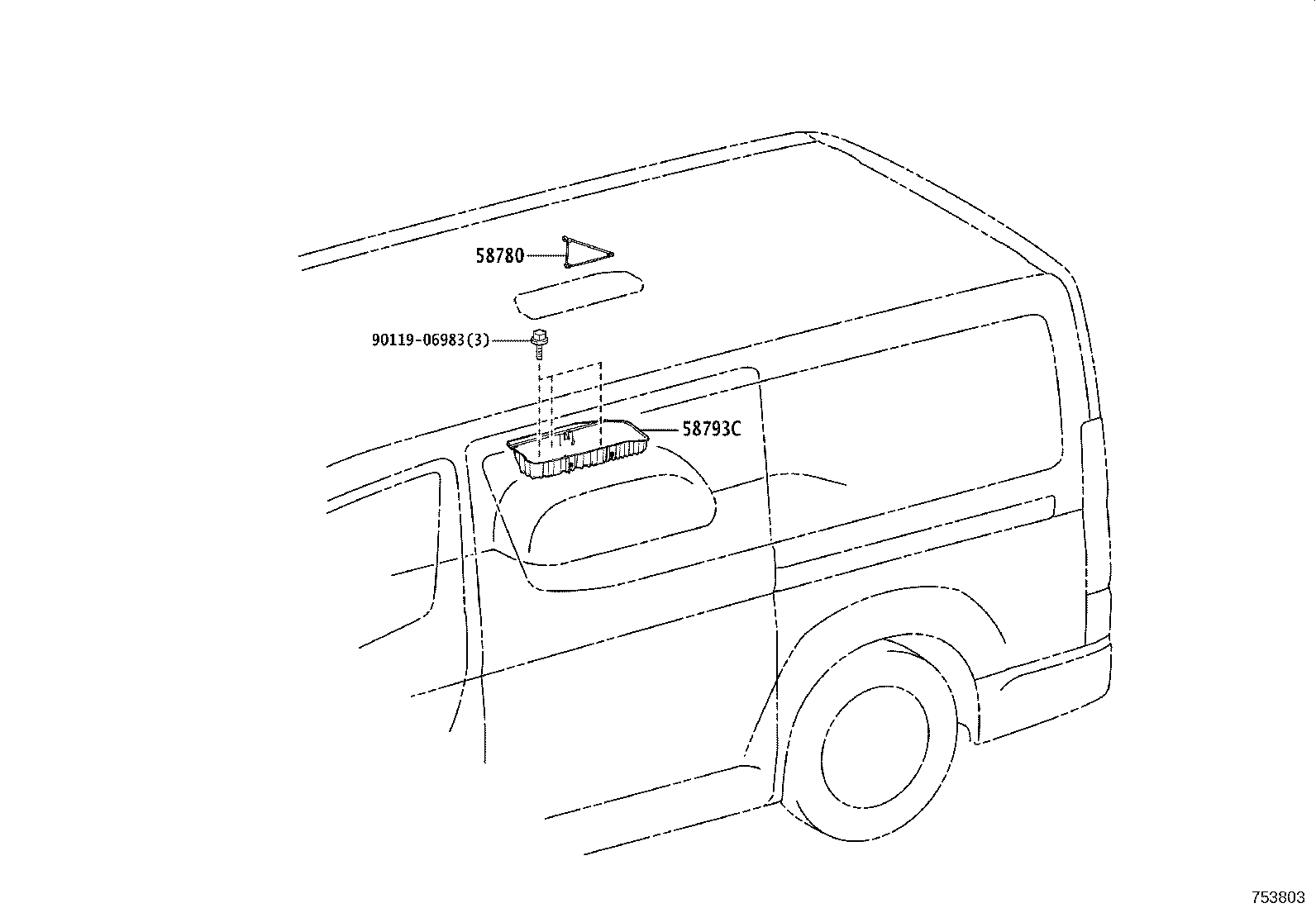

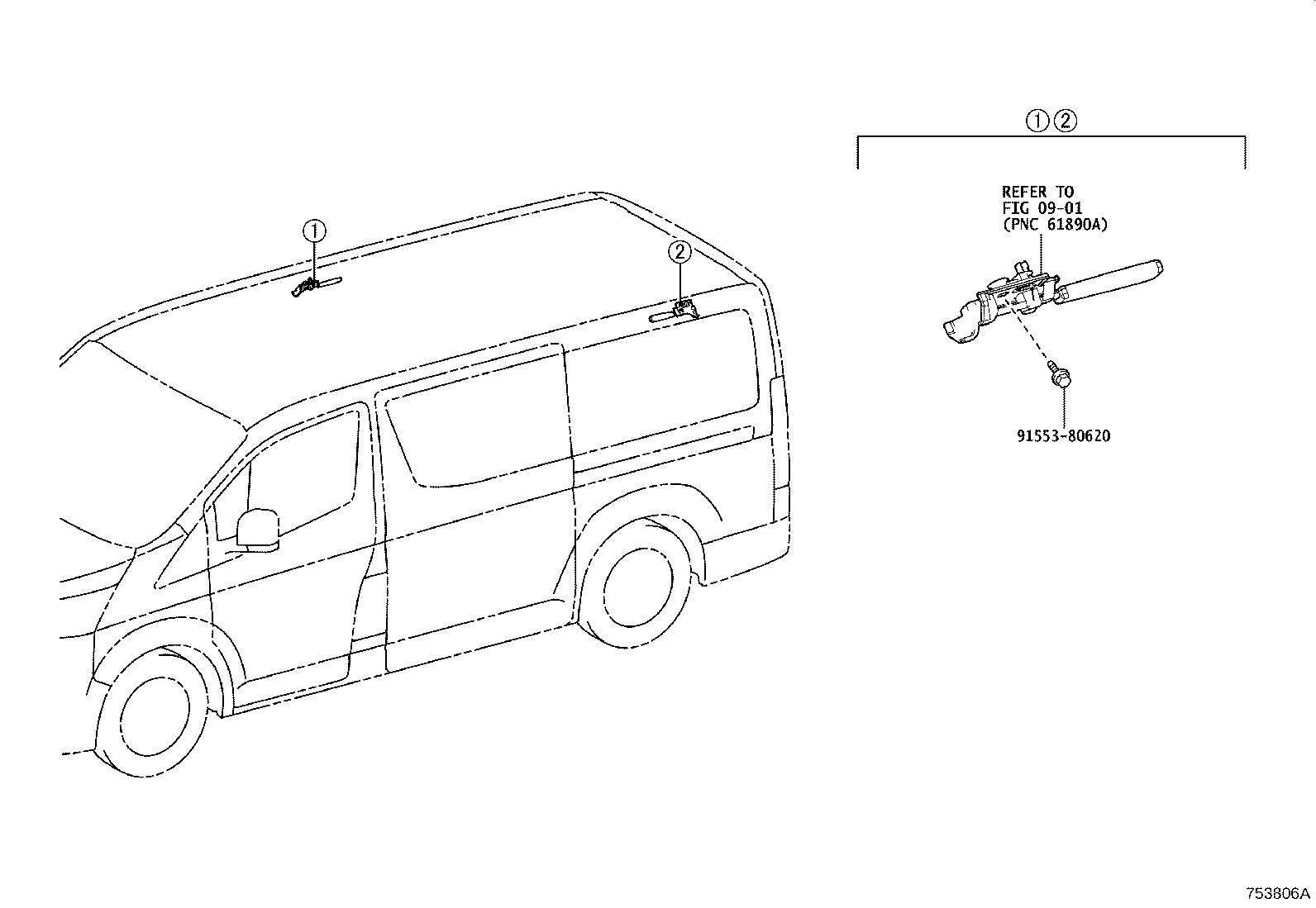

Figure 753802 753802 2019-02 → — Figure 753803 753803 2019-07 → — Figure 753806A 753806A 2019-02 → — Figure 753804B 753804B 2019-03 → — Figure 753805C 753805C 2019-03 → — Figure 753805C 753805C 2019-03 → —

Part groups

PNCDescription
58777A Holder, Tool Bag
58780 Band Assy, Tool Box
58781 Band, Tool Bag
58788B Hook, Tool Box Band, NO.1
58793C Bracket, Jack Carrier, NO.1
61625S Extension, Quarter Panel, Rear RH NO.1
61625T Extension, Quarter Panel, Rear RH NO.2
61626R Extension, Quarter Panel, Rear LH NO.1
61626S Extension, Quarter Panel, Rear LH NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
