Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States
Supported model
Data version 2024-09

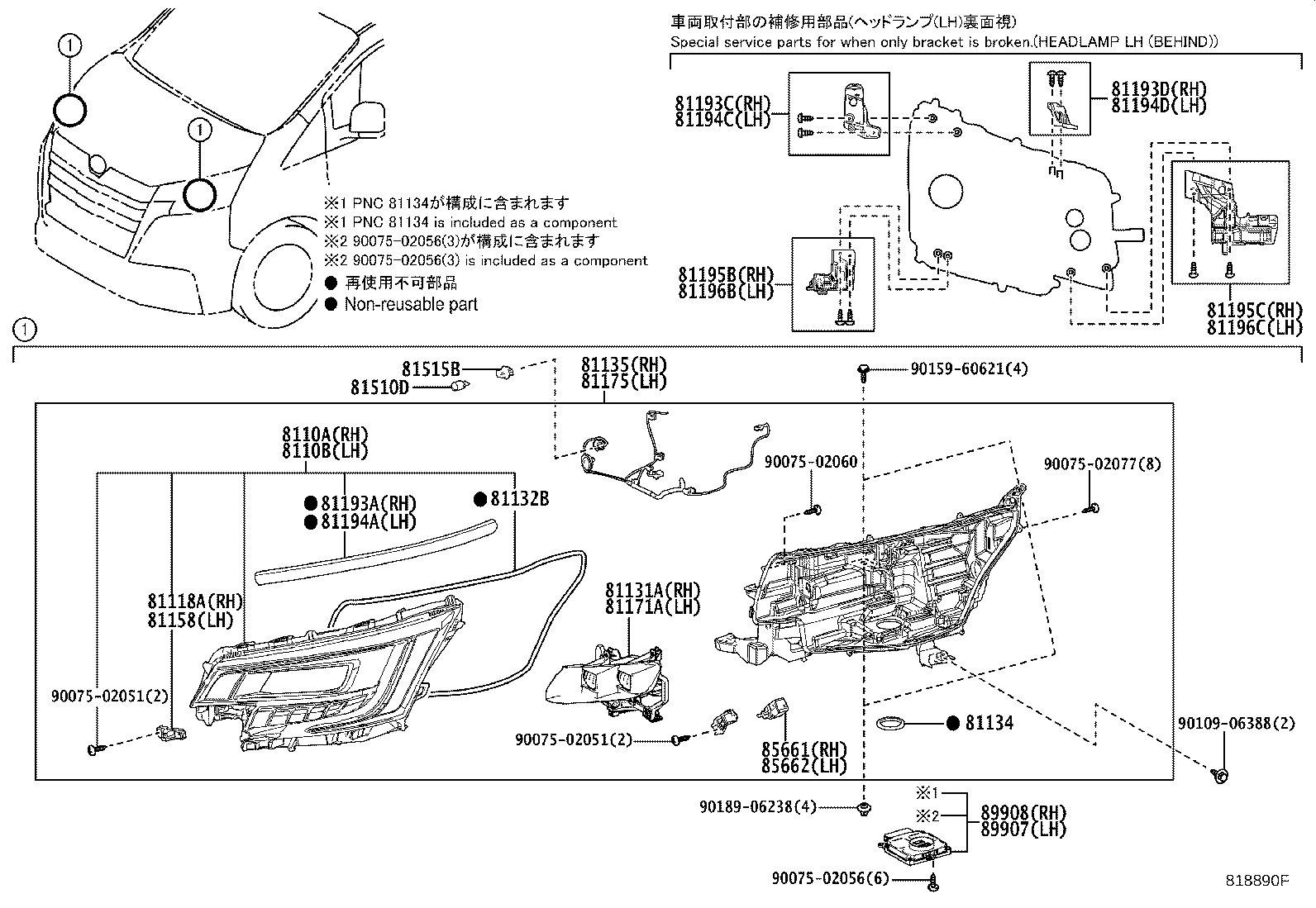

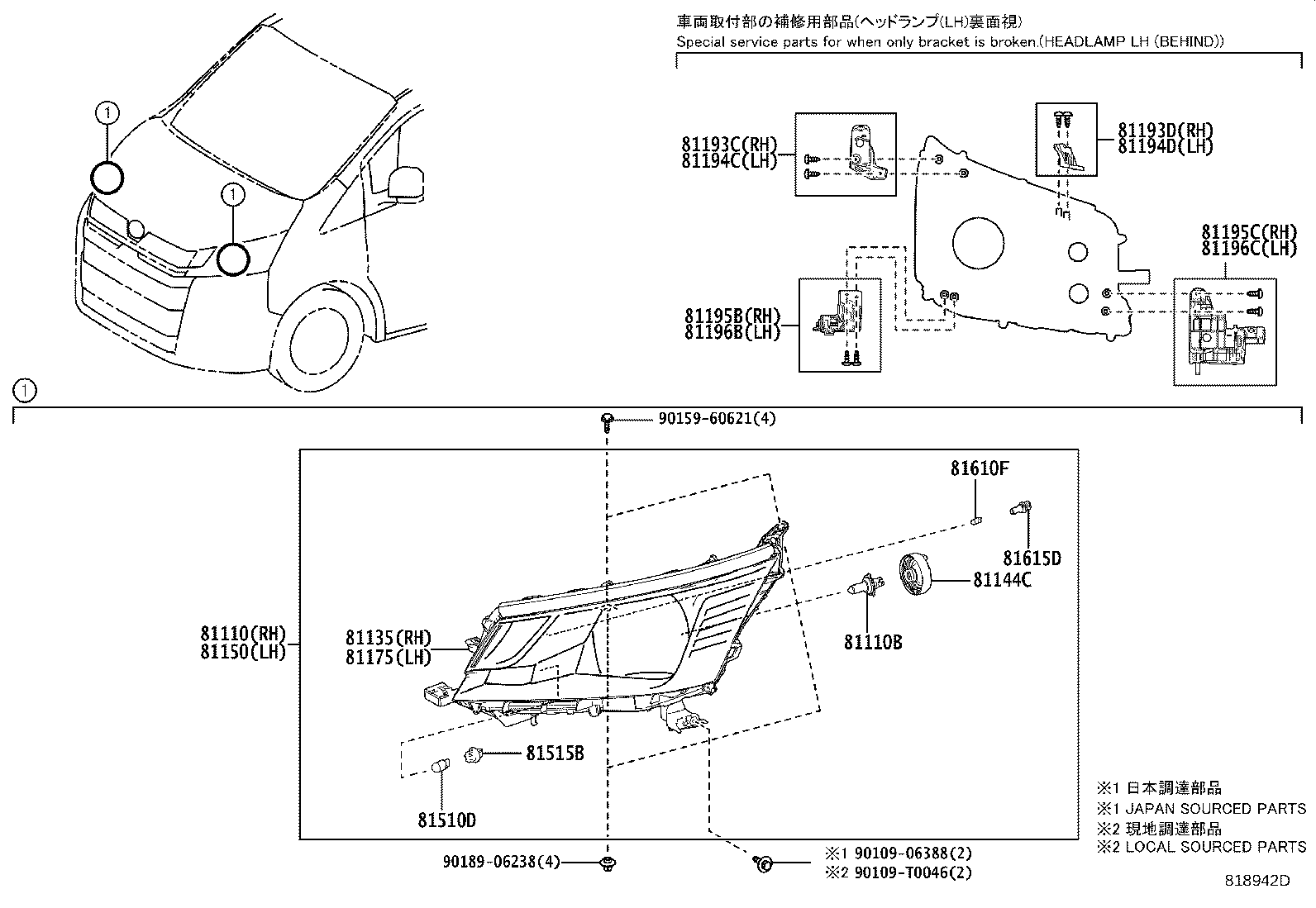

Headlamp
35 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 8110A | Lens Sub-assy, Headlamp, RH |
| 8110B | Lens Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81118A | Bracket, Headlamp, RH |
| 81131A | Unit, Headlamp, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81144C | Cover, Headlamp Socket |
| 81150 | Headlamp Assy, LH |
| 81158 | Bracket, Headlamp, LH |
| 81171A | Unit, Headlamp, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193A | Protector, Headlamp, RH |
| 81193C | Retainer, RH Headlamp Protector, Upper RH |
| 81193D | Retainer, RH Headlamp Protector, Upper LH |
| 81194A | Protector, Headlamp, LH |
| 81194C | Retainer, LH Headlamp Protector, Upper RH |
| 81194D | Retainer, LH Headlamp Protector, Upper LH |
| 81195B | Retainer, RH Headlamp Protector, Lower RH |
| 81195C | Retainer, RH Headlamp Protector, Lower LH |
| 81196B | Retainer, LH Headlamp Protector, Lower RH |
| 81196C | Retainer, LH Headlamp Protector, Lower LH |
| 81510D | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81510J | Bulb(FOR DAYTIME RUNNING LAMP) |
| 81510L | Socket, Daytime Running Lamp |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85669 | Packing, Headlamp Leveling Motor Base |
| 89907 | Computer Sub-assy, Headlamp, LH |
| 89908 | Computer Sub-assy, Headlamp, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
