Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

29 part groups · 7 illustrations

Illustrations

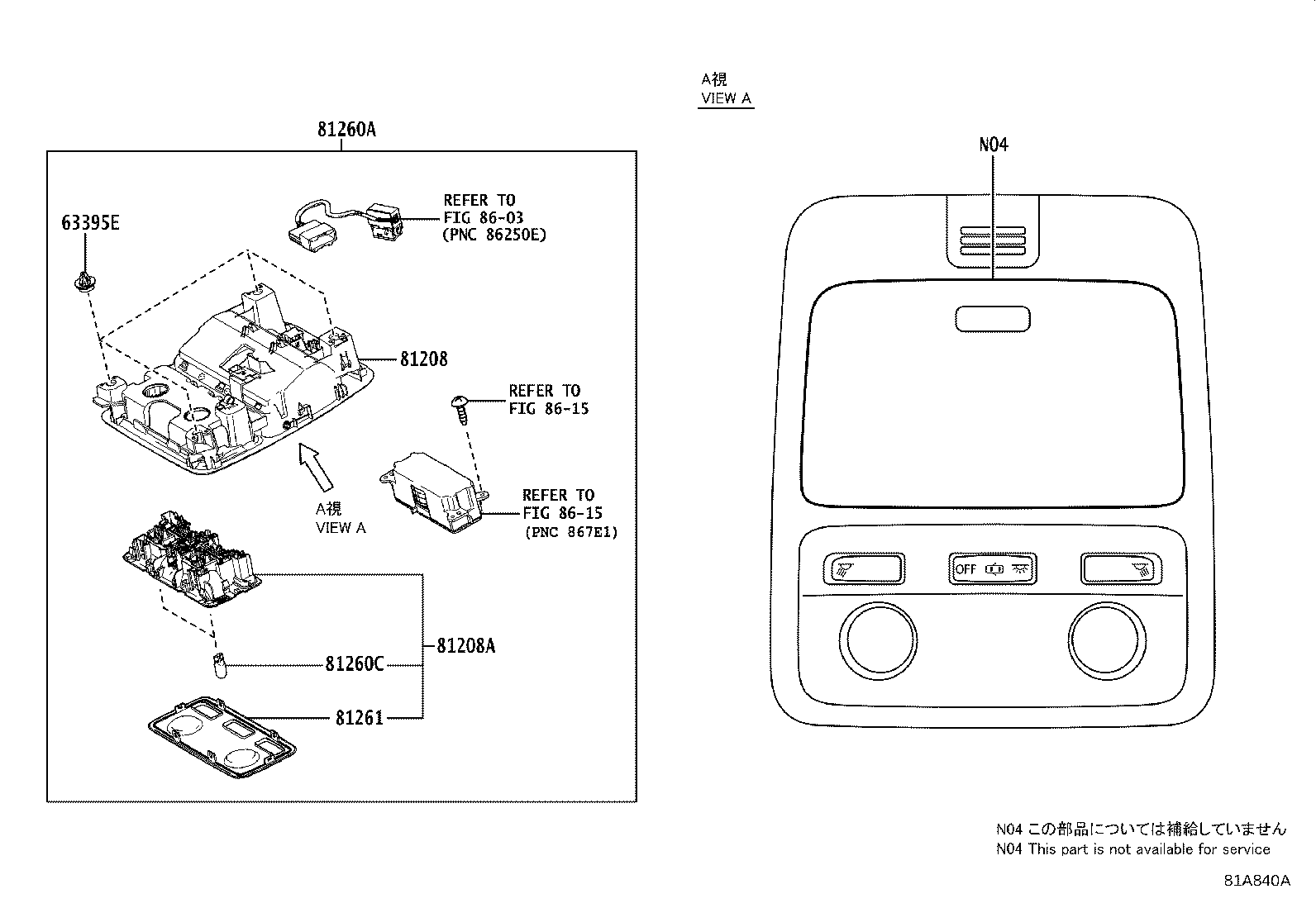

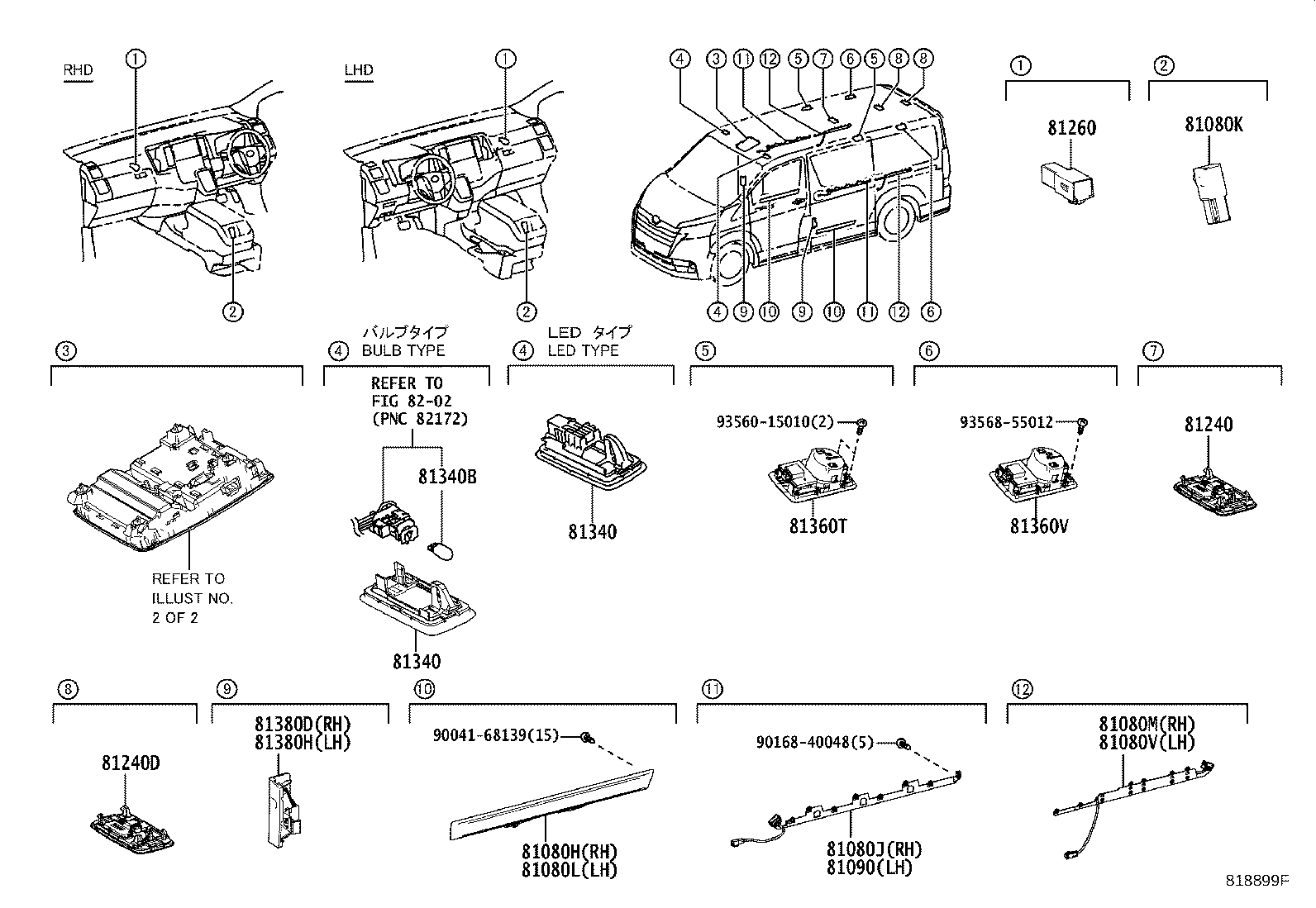

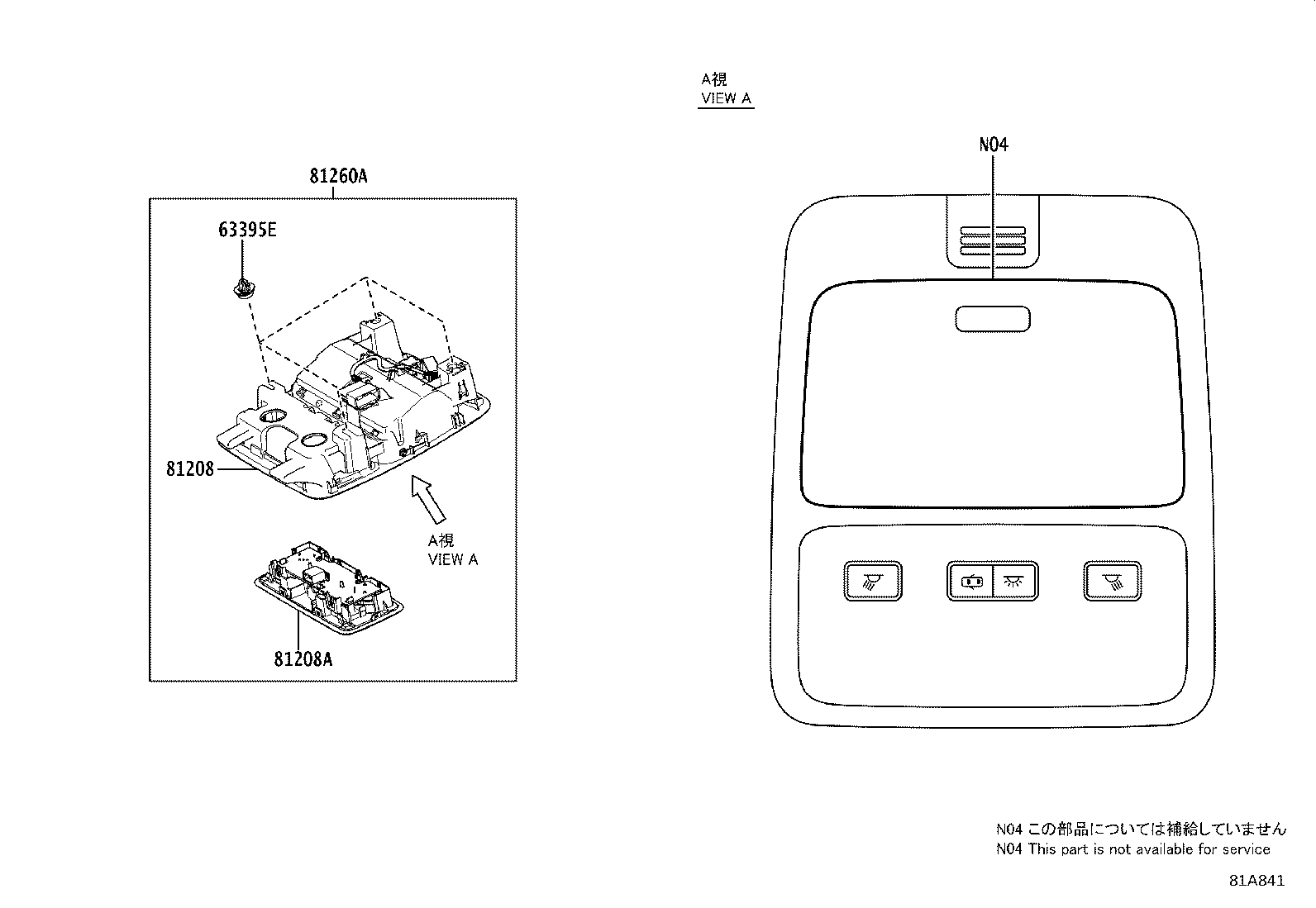

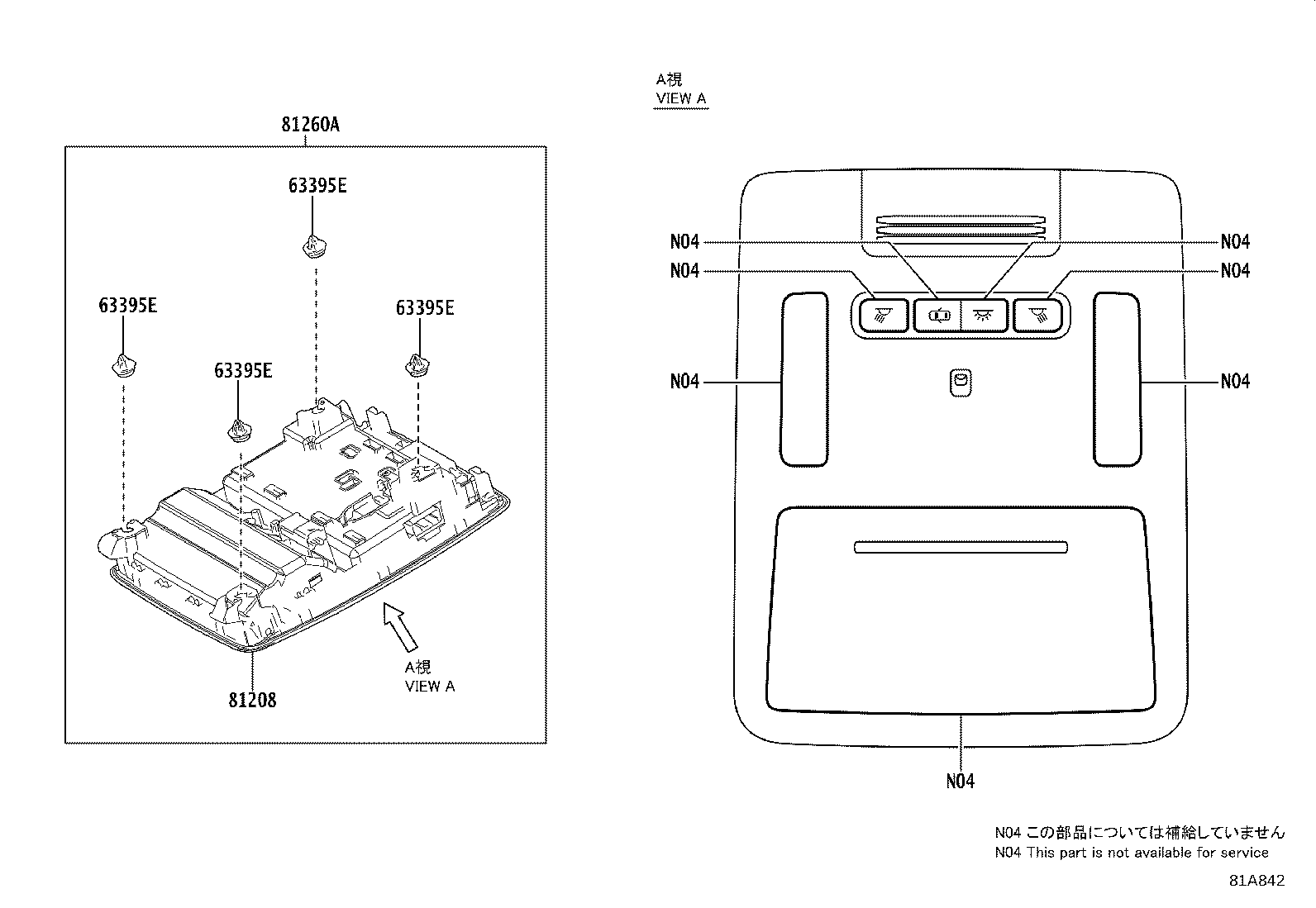

Figure 818898K 818898K 2019-02 → — Figure 818899F 818899F 2019-07 → — Figure 81A840A 81A840A 2019-02 → — Figure 81A840A 81A840A 2019-02 → — Figure 81A841 81A841 2019-02 → — Figure 81A841 81A841 2019-02 → — Figure 81A842 81A842 2019-07 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080J Lamp Assy, Interior Illumination, NO.1
81080K Lamp Assy, Console Box Illumination
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080M Lamp Assy, Interior Illumination, NO.1
81080V Lamp Assy, Interior Illumination, NO.2
81090 Lamp Assy, Interior Illumination, NO.2
81208 Lamp Sub-assy, Map
81208A Lamp Sub-assy, Map, NO.2
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81240D Lamp Assy, Room, NO.2
81240E Bulb, Room Lamp, NO.2
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81251 Lens, Room Lamp, NO.2
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81261 Lens And Cover, Map Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81360T Lamp Assy, Spot
81360V Lamp Assy, Spot, NO.2
81380D Lamp Assy, Step
81380H Lamp Assy, Step
81870D Lamp Assy, Key Cylinder
81870E Bulb, Key Cylinder Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
